USER MANUAL KDS550 JVC

Technical line drawing of a device rear panel with an arrow indicating assembly or transformation (no text or symbols present)

40W×4 DIRECT TRACK ACCESS RD S550 JVC 1 2 3 4 5 6 END EN SOL MOSO SVM 1 2 3 4 5 6 END EN SOM

For installation and connections, refer to the separate manual.

MANUEL D'INSTRUCTIONS

GEBRUIKSAANWIJZING

Position And Reproduction Of Labels

Bottom panel of the main unit

DANGER: Invisible laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) ADVARSEL: Usynlig laser-stråling ved åbning, när sikkerhedsafbrydere er ude af funktion. Undgåudsæt- telse for stråling. (d) VARNING: Osynlig laser-strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s) VARO: Avattaessa ja suo-jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f) IMPORTANT FOR LASER PRODUCTS Precautions: 1. CLASS 1 LASER PRODUCT 2. DANGER: Invisible laser radiation w open and interlock failed or defeated. A direct exposure to beam. 3. CAUTION: Do not open the top co There are no user-serviceable parts ins

Caution:

This product contains a laser component of higher laser class than Class 1.

IMPORTANT FOR LASER PRODUCTS

Precautions:

1. CLASS 1 LASER PRODUCT
2. DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
3. CAUTION: Do not open the top cover. There are no user-serviceable parts inside. Leave all servicing to qualified service personnel.
4. CAUTION: This CD player uses invisible laser radiation and is equipped with safety switches to prevent radiation emission when unloading CDs. It is dangerous to defeat the safety switches.
5. CAUTION: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

How to reset your unit

Press and hold both the SEL (Select) and ⏻/1/ATT (Standby/On/ATT) buttons at the same time for several seconds.

This will reset the built-in microcomputer.

NOTES:

• Your preset adjustments — such as preset channels or sound adjustments — will also be erased.
• If a CD is in the unit, it will eject when you reset the unit. Pay attention not to drop the CD.

0/1/ATT
(Standby/On/ATT)

Technical line drawing of a mechanical component with no visible text or symbols

SEL (Select)

Note:

For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit's chassis. Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.

BEFORE USE

* For safety....
- Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
- Stop the car before performing any complicated operations.

* Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Thank you for purchasing a JVC product. Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

CONTENTS

BASIC OPERATIONS 4

RADIO OPERATIONS.... 5

Listening to the radio ....5

Storing stations in memory....6

FM station automatic preset:SSM 6

Manual preset 7

Tuning into a preset station 8

Other convenient tuner functions ......9

Scanning broadcast stations 9

Selecting FM reception sound 9

FM/AM

CD OPERATIONS 10

Playing a CD 10

Locating a track or a particular portion on a CD ......11

Selecting CD playback modes ....12

Prohibiting CD ejection ....12

SOUND ADJUSTMENTS 13

Adjusting the sound....13

Turning on/off the loudness function 14

Using the Sound Control Memory ....15

Selecting and storing the sound modes 15

Recalling the sound modes 16

Canceling Advanced SCM ....17

Storing your own sound adjustments ....18

OTHER MAIN FUNCTIONS 19

Setting the clock ....19

Selecting the level display 20

Detaching the control panel 21

MAINTENANCE 22

Handling CDs....22

TROUBLESHOOTING 23

SPECIFICATIONS 24

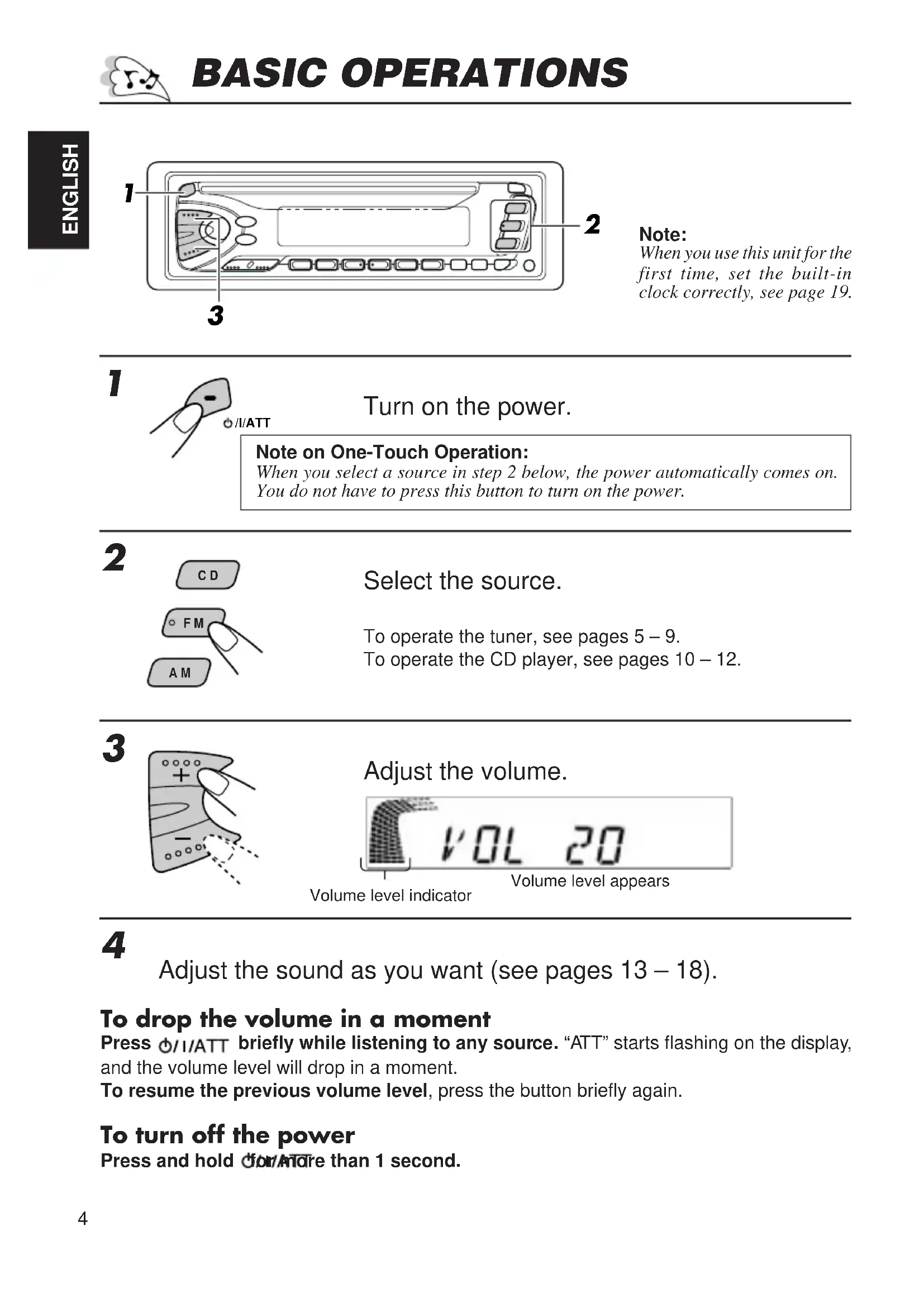

1 2 3

Note:

When you use this unit for the first time, set the built-in clock correctly, see page 19.

1

Turn on the power.

Note on One-Touch Operation:

When you select a source in step 2 below, the power automatically comes on. You do not have to press this button to turn on the power.

2

CD FM AM

Select the source.

To operate the tuner, see pages 5 – 9. To operate the CD player, see pages 10 – 12.

3

Hand holding a battery with positive and negative terminals, no text or symbols present

Adjust the volume. VOL 20 Volume level indicator Volume level appears

4

Adjust the sound as you want (see pages 13 – 18).

To drop the volume in a moment

Press ⬤/1/ATT briefly while listening to any source. "ATT" starts flashing on the display, and the volume level will drop in a moment.

To resume the previous volume level, press the button briefly again.

To turn off the power

Press and hold for more than 1 second.

Listening to the radio

Diagram of a device rear panel with labeled parts 1 and 2, showing internal components like buttons, dials, and control buttons.

1

Select the band (FM1, FM2, FM3 or AM).

You can select any one of FM1, FM2 and FM3 to listen to an FM station.

Volume level indicator

87.5

selected band appears

2

Pure mechanical diagram showing a bracket with arrows and dashed lines indicating motion or force, no text or symbols present.

To search stations of higher frequencies.

To search stations of lower frequencies.

Start searching a station.

When a station is received, searching stops.

88.3 FAM

To stop searching before a station is received, press the same button you have pressed for searching.

To tune in a particular frequency without searching:

1 Select the band (FM or AM).

Press FM or AM.

2 Press and hold ▲▶▶ or ◀◀◀ ∨ until “M” starts flashing on the display.

Now you can manually change the frequency while "M" is flashing.

3 Press ▲▶▶ or ◀◀◀ ▼ repeatedly until the frequency you want is reached.

- If you hold down the button, the frequency keeps changing (in 50 kHz intervals for FM and 9 kHz intervals for AM – MW/LW) until you release the button.

Storing stations in memory

You can use one of the following two methods to store broadcasting stations in memory.

• Automatic preset of FM stations: SSM (Strong-station Sequential Memory)
- Manual preset of both FM and AM stations

FM station automatic preset: SSM

You can preset 6 local FM stations in each FM band (FM1, FM2, and FM3).

Diagram of a device rear panel with labeled components and numbered parts

7

Select the FM band number (FM1, FM2 or FM3) you want to store FM stations into.

2

SSM

Press and hold the both buttons for more than 2 seconds.

...55M...

“SSM” appears, then disappears when automatic preset is over

Local FM stations with the strongest signals are searched and stored automatically in the band number you have selected (FM1, FM2 or FM3). These stations are preset in the number buttons — No. 1 (lowest frequency) to No. 6 (highest frequency).

When automatic preset is over, the station stored in number button 1 will be automatically tuned in.

Manual preset

You can preset up to 6 stations in each band (FM1, FM2, FM3 and AM) manually.

EXAMPLE: Storing an FM station of 88.3 MHz into the preset number 1 of the FM1 band

Diagram of a car front panel with labeled parts including controls, buttons, and indicator lights

1

Select the FM1 band.

87.5

2

SSM

Tune into a station of 88.3 MHz.

See page 5 to tune into a station.

88.3

3

Press and hold the button for more than 2 seconds.

88.3 P1

"P1" flashes for a few seconds.

4

Repeat the above procedure to store other stations into other preset numbers.

Notes:

• A previously preset station is erased when a new station is stored in the same preset number.
• Preset stations are erased when the power supply to the memory circuit is interrupted (for example, during battery replacement). If this occurs, preset the stations again.

Tuning into a preset station

You can easily tune into a preset station.

Remember that you must store stations first. If you have not stored them yet, see pages 6 and 7.

Diagram of a device rear panel with labeled components including buttons, dials, and control knobs

1

Select the band (FM1, FM2, FM3 or AM) you want.

2

1 2 3 ° 4 5 6

Select the number (1 - 6) for the preset station you want.

Other convenient tuner functions

MO/RND RPT/SCAN

Scanning broadcast stations

When you press RPT/SCAN while listening to the radio, station scanning starts. Each time a broadcast is tuned in, scanning stops for about 5 seconds (tuned frequency number flashes on the display), and you can check what program is now being broadcast.

If you want to listen to that program, press the same button again to stop scanning.

Selecting FM reception sound

When an FM stereo broadcast is hard to receive:

Press MO/RND (Mono/Random) while listening to an FM stereo broadcast. The sound you hear becomes monaural but reception will be improved.

88.3 mm

MONO

Lights up when receiving an FM broadcast in stereo

To restore the stereo effect, press the same button again.

Playing a CD

Diagram of a device rear panel with labeled ports and indicators, showing internal layout and control buttons.

1

Simple line drawing of a CD inside a rectangular frame with an arrow indicating direction (no text or symbols)

Insert a disc into the loading slot.

The unit turns on, draws a CD and starts playback automatically.

- When a CD is inserted upside down, "EJECT" appears on the display and the CD automatically ejects.

LOAD

PLAY ... *

4729° 10 °

00'02" 01

Total playing time of the inserted disc
Total track number of the inserted disc
Elapsed playing time
Current track

Note on One-Touch Operation:

When a CD is already in the loading slot, pressing CD turns on the unit and starts playback automatically.

CAUTION on Volume Setting

CDs produces very little noise compared with other sources. If the volume level is adjusted for the tuner, for example, the speakers may be damaged by the sudden increase in the output level. Therefore, lower the volume before playing a CD and adjust it as required during playback.

To stop play and eject the CD

Press ▲.

CD play stops and the CD automatically ejects from the loading slot. The source changes to the tuner (you will hear the last received station).

If you change the source to AM or FM, the CD play also stops (without ejecting the CD this time).

• If the ejected disc is not removed for about 15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (CD play will not start this time.)
• You can eject the CD even when the unit is turned off.

Locating a track or a particular portion on a CD

Number buttons

To fast forward or reverse the track

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Press and hold ▶▶, while playing a CD, to fast forward the track.

Press and hold ◀◀◀ ▼, while playing a CD, to reverse the track.

To go to the next track or the previous track

Diagram of a device with arrows indicating movement or force, no text or symbols present

Press ▶▶ briefly, while playing a CD, to go ahead to the beginning of the next track. Each time you press the button consecutively, the beginning of the next tracks is located and played back.

Press ◀◀◀ ▼ briefly, while playing a CD, to go back to the beginning of the current track. Each time you press the button consecutively, the beginning of the previous tracks is located and played back.

To go to a particular track directly

789101112

1 2 3 4 5 6

Press the number button corresponding to the track number to start its playback.

• To select a track number from 1 – 6:
Press 1 (7) - 6 (12) briefly.
• To select a track number from 7 – 12:
Press and hold 1 (7) - 6 (12) for more than 1 second.

Selecting CD playback modes

Diagram of a device rear panel with ports and buttons, no text or symbols present

RPT/SCANMO/RND

To play back tracks at random (Random Play)

You can play back all tracks on the CD at random.

Each time you press MO/RND (Mono/Random) while playing a CD, CD random play mode turns on and off alternatively.

When the random mode is turned on, the RND indicator lights up on the display and a track randomly selected starts playing.

RND 88

To play back tracks repeatedly (Repeat Play)

You can play back the current track repeatedly.

Each time you press RPT(Repeat)/SCAN while playing a CD, CD repeat play mode turns on and off alternatively.

When the repeat mode is turned on, the RPT indicator lights up on the display.

RPT 11

Track number of the currently playing track

Prohibiting CD ejection

You can prohibit the CD ejection and can "lock" a CD in the loading slot.

Press and hold CD and ▲ for more than 2 seconds.

"EJECT" flashes on the display for about 5 seconds, and the CD is "locked."

To cancel the prohibition and “unlock” the CD, press and hold CD and ▲ for more than 2 seconds again. “EJECT” appears on the display, and the CD ejects from the loading slot.

Adjusting the sound

You can adjust the sound characteristics to your preference.

2 1 Equalization pattern indicator

1

Select the item you want to adjust.

Indication To do: Range
BAS Adjust (Bass)	the bass -6 (min.) — +6 (max.)
TRE Adjust (Treble)	the treble -6 (min.) — +6 (max.)
FAD Adjust (Fader)* balance	the front and rear speaker R6 (rear only) — F6 (front only)
BAL Adjust (Balance) balance	the left and right speaker L6 (left only) — R6 (right only)
VOL Adjust (Volume)	the volume 00 (min.) — 50 (max.)

Note:

* If you are using a two-speaker system, set the fader level to "00"

Illustration of a hand holding a device with polarity markings (no text or symbols)

Adjust the level.

Equalization pattern changes as you adjust the bass or treble TRE +6

Note:

Normally the + and - buttons work as the volume control buttons. So you do not have to select "VOL" to adjust the volume level.

Turning on/off the loudness function

The human ear is less sensitive to low and high frequencies at low volumes.

The loudness function can boost these frequencies to produce a well-balanced sound at low volume levels.

Each time you press LOUD, the loudness function turns on/off alternatively.

LOUD ON

LOUD OFF

Using the Sound Control Memory

You can select and store a preset sound adjustment suitable to each playback source. (Advanced SCM)

Selecting and storing the sound modes

Once you select a sound mode, it is stored in memory, and will be recalled every time you select the same source. A sound mode can be stored each of the following sources — FM1, FM2, FM3, AM and CD.

- If you do not want to store the sound mode separately for each playback source, but want to use the same sound mode for all the sources, see “Canceling Advanced SCM” on page 17.

"Link" indicator/ sound mode indicator Equalization pattern indicator 7

1

Select the sound mode you want.

Each time you press the button, the sound mode changes as follows.

- If the "Link" indicator is lit on the display (with "SCM LINK" set to "LINK ON" — see page 17), the selected sound mode can be stored in memory for the current source, and the effect applies to the current source.

- If the "Link" indicator is NOT lit on the display (with "SCM LINK" set to "LINK OFF"), the selected sound mode effect applies to any source.

Indication For: Preset values
		Bass Treble	Loudness
SCM OFF (Flat sound) 00 00 On
BEAT Rock or disco music +2 00 On
SOFT Quiet background music +1		-3 Off
POP	Light music	+4	+1 Off

Recalling the sound modes

Technical line drawing of a device rear panel with buttons and ports (no text or symbols)

1

CD o FM AM

Select the source while the "Link" indicator is lit on the display.

The "Link" indicator starts flashing, and the sound mode stored in memory for the selected source is recalled.

Equalization pattern of the selected sound mode appears 87.5

Notes:

• You can adjust each sound mode to your preference, and store it in memory.
  If you want to adjust and store your original sound mode, see "Storing your own sound adjustments" on page 18.
• To adjust the bass and treble reinforcement levels or to turn on/off the loudness function temporarily, see page 13 and 14. (Your adjustments will be cancelled if another source is selected.)

Canceling Advanced SCM

You can cancel the Advanced SCM (Sound Control Memory), and unlink the sound modes and the playback sources.

When shipped from the factory, a different sound mode can be stored in memory for each source so that you can change the sound modes simply by changing the sources.

LINK ON: Advanced SCM (different SCMs for different sources)

LINK OFF: Conventional SCM (one SCM for all sources)

3 1,4 2

1

Press and hold SEL for more than 2 seconds. "CLOCK H", "CLOCK M", "SCM LINK" or "LEVEL" appears on the display.

2

SSM

Select "SCM LINK" if not shown on the display.

→CLOCK H→CLOCK M→SCM LINK LEVEL←

3

Illustration of a hand holding a pad with polarity signs and a dashed line indicating contact or disconnection (no text or symbols)

Select the desired mode — “LINK ON” or “LINK OFF”.

4

Finish the setting.

Storing your own sound adjustments

You can adjust the sound modes (BEAT, SOFT, POP: see page 15) to your preference and store your own adjustments in memory.

3 2 2 1,4

    subgraph SCM
        E["Call up the sound mode you want to adjust. See page 15 for details."] --> F["Within 5 seconds"]
        G["To adjust the bass or treble sound level Select "BAS" or "TRE.""] --> H["SEL"]
        I["To turn on or off the loudness function Each time you press LOUD, the loudness function turns on and off alternatively. (→ go to step 4)"] --> J["LOUD"]
    end

    subgraph BLE
        K["Adjust the bass or treble level. See page 13 for details."] --> L["Within 5 seconds"]
        M["Press and hold SCM until the sound mode you have selected in step 1 flashes on the display. Your setting is stored in memory."] --> N["SCM"]
    end

5 Repeat the same procedure to store other settings.

To reset to the factory settings

Repeat the same procedure and reassign the preset values listed in the table on page 15.

Setting the clock

Press and hold SEL for more than 2 seconds.

"CLOCK H", "CLOCK M", "SCM LINK" or "LEVEL" appears on the display.

2

1.

SSM 2.

Set the hour.

1. Select "CLOCK H" if not shown on the display.

→CLOCK H→CLOCK M→SCM LINK LEVEL←

1. Adjust the hour.

3

1.

SSM 2.

Set the minute.

1. Select "CLOCK M."

→CLOCK H→CLOCK M→SEM LINK LEVEL ←

1. Adjust the minute.

4

Finish the setting.

To check the current clock time (changing the display mode)

Press DISP repeatedly. Each time you press the button, the display mode changes as follows.

During tuner operation:Clock ↔ Frequency

During CD operation:Clock ↔ Elapsed playing time

- If the unit is not in use when you press DISP, the power turns on, the clock time is shown for 5 seconds, then the power turns off.

Selecting the level display

You can select the level display according to your preference.

When shipped from the factory, "VOL 2" is selected.

VOL 1: Shows the volume level indicator and the equalization pattern indicator.

VOL 2: Alternates "VOL 1" setting and illumination display.

OFF: Erase the volume level indicator and the equalization pattern indicator.

Diagram of a device rear panel with labeled ports and connectors (no text or symbols)

Equalization pattern indicator

3 1,4 2

Volume level indicator

7

Press and hold SEL for more than 2 seconds. "CLOCK H", "CLOCK M", "SCM LINK" or "LEVEL" appears on the display.

2

SSM

Select "LEVEL" if not shown on the display.

3

Illustration of a hand holding a card with plus and minus signs, no text or symbols present

Select the desired mode — “VOL 1”, “VOL 2” or “OFF”.

4

Finish the setting.

Detaching the control panel

You can detach the control panel when leaving the car.

When detaching or attaching the control panel, be careful not to damage the connectors on the back of the control panel and on the panel holder.

How to detach the control panel

Before detaching the control panel, be sure to turn off the power.

1

Unlock the control panel.

Diagram showing a mechanical component with a magnified inset of a pipe fitting (no text or symbols)

2

Lift and pull the control panel out of the unit.

Technical line drawing showing two views of a device housing with internal components (no text or symbols)

3

Put the detached control panel into the case provided.

Technical line drawing of a mechanical component with an open lid and internal structure (no text or symbols)

How to attach the control panel

7

Insert the left side of the control panel into the groove on the panel holder.

Technical line drawing of two mechanical components with no visible text or symbols

2

Press the right side of the control panel to fix it to the panel holder.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Note on cleaning the connectors:

If you frequently detach the control panel, the connectors will deteriorate.

To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.

Pure technical line drawing of a mechanical bracket or bracket assembly without any text, numbers, or symbols

Connectors

Handling CDs

This unit has been designed only to reproduce the CDs bearing the Other discs cannot be played back.

mark.

How to handle CDs

When removing a CD from its case, press down the center holder of the case and lift the CD out, holding it by the edges.

- Always hold the CD by the edges. Do not touch its recording surface.

When storing a CD into its case, gently insert the CD around the center holder (with the printed surface facing up).

- Make sure to store CDs into the cases after use.

To keep CDs clean

A dirty CD may not play correctly. If a CD does become dirty, wipe it with a soft cloth in a straight line from center to edge.

To play new CDs

New CDs may have some rough spots around the inner and outer edges. If such a CD is used, this unit may reject the CD.

To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.

Moisture condensation

Moisture may condense on the lens inside the CD player in the following cases:

• After starting the heater in the car.

- If it becomes very humid inside the car.

Should this occur, the CD player may malfunction. In this case, eject the CD and leave the unit turned on for a few hours until the moisture evaporates.

Center holder

CAUTIONS:

• Do not insert 8cm (3 3/16") CDs (single CDs) into the loading slot. (Such CDs cannot be ejected.)
• Do not insert any CD of unusual shape – like a heart or flower; otherwise, it will cause a malfunction.
• Do not expose CDs to direct sunlight or any heat source or place them in a place subject to high temperature and humidity. Do not leave them in a car.
• Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean CDs.

When playing a CD-R (Recordable)

You can play back your original CD-Rs on this recevier.

• Before playing back CD-Rs, read their instructions or cautions carefully.
• Some CD-Rs recorded on CD recorders may not be played back on this receiver because of their disc characteristics, and of the following reasons:

– Discs are dirty or scratched.

- Moisture condensation occurs on the lens inside the unit.

– The pickup lens inside the CD player is dirty.

• Use only "finalized" CD-Rs.
• CD-RWs (Rewritable) cannot be played back on this recevier.

About mistracking:

Mistracking may result from driving on extremely rough roads. This does not damage the unit and the CD, but will be annoying.

We recommend that you stop CD play while driving on such rough roads.

What appears to be trouble is not always serious. Check the following points before calling a service center.

Symptoms	Causes	Remedies
• CD cannot be played back.	CD is inserted upside down.	Insert the CD correctly.
• CD sound is sometimes interrupted.	You are driving on rough roads.	Stop CD play while driving on rough roads.
	CD is scratched.	Change the CD.
	Connections are incorrect.	Check the cords and connections.
• “NO DISC” appears on the display.	No CD is in the loading slot.	Insert a CD into the loading slot.
	CD is inserted incorrectly.	Insert it correctly.
• Sound cannot be heard from the speakers.	The volume control is turned to the minimum level.	Adjust it to the optimum level.
	Connections are incorrect.	Check the cords and connections.
• SSM (Strong-station Sequential Memory) automatic preset does not work.	Signals are too weak.	Store stations manually.
• Static noise while listening to the radio.	The antenna is not connected firmly.	Connect the antenna firmly.
• CD can be neither played back nor ejected.	The CD player may function incorrectly.	Press Ⓧ/I/ATT and ▲ at the same time for more than 2 seconds. Be careful not to drop CD when it is ejected.
• The unit does not work at all.	The built-in microcomputer may function incorrectly due to noise, etc.	Press Ⓧ/I/ATT and SEL at the same time for more than 2 seconds to reset the unit. (The clock setting and preset stations stored in memory are erased.) (See page 2.)

AUDIO AMPLIFIER SECTION

Maximum Power Output:

Front: 40 watts per channel

Rear: 40 watts per channel

Continuous Power Output (RMS):

Front: 16 watts per channel into 4 , 40 to 20,000 Hz at no more than 0.8% total harmonic distortion.

Rear: 16 watts per channel into 4 , 40 to 20,000 Hz at no more than 0.8% total harmonic distortion.

Load Impedance: 4 (4 to 8 allo wance)

Tone Control Range

Bass: ±10 dB at 100 Hz

Treble:±10 dB at 10 kHz

Frequency Response: 40 to 20,000 Hz

Signal-to-Noise Ratio: 70 dB

Line-Out Level/Impedance: 2.0 V/20 k load (full-scale)

Output Impedance: 1 k

TUNER SECTION

Frequency Range

FM: 87.5 to 108.0 MHz

AM: (MW) 522 to 1,620 kHz

(LW) 144 to 279 kHz

[FM Tuner]

Usable Sensitivity: 11.3 dBf (1.0 μV/75)

50 dB Quieting Sensitivity: 16.3 dBf (1.8 V/75 )

Alternate Channel Selectivity (400 kHz): 65 dB

Frequency Response: 40 to 15,000 Hz

Stereo Separation: 30 dB

Capture Ratio: 1.5 dB

[MW Tuner]

Sensitivity: 20 μV

Selectivity: 35 dB

[LW Tuner]

Sensitivity: 50 μV

CD PLAYER SECTION

Type: Compact disc player

Signal Detection System: Non-contact optical pickup (semiconductor laser)

Number of channels: 2 channels (stereo)

Frequency Response: 5 to 20,000 Hz

Dynamic Range: 96 dB

Signal-to-Noise Ratio: 98 dB

Wow and Flutter: Less than measurable limit

GENERAL

Power Requirement

Operating Voltage: DC 14.4 volts (11 to 16 volts allowance)

Allowable Working Temperature: 0°C to +40°C

Grounding System: Negative ground

Dimensions (W x H x D) Installation Size:

182 × 52 × 150 mm

Panel Size: 188 x 58 x 14 mm

Mass: 1.3 kg (excluding accessories)

Design and specifications subject to change without notice.

Diagram of a medical device with internal components and a central body (no text or labels)

SEL (Select)

Hinweis:

Illustration of a hand holding a small electronic device with polarity markings (no text or symbols)

Pure mechanical diagram showing a bracket with arrows indicating force or motion, no text or symbols present

Technical diagram of a device rear panel with labeled components and numbered parts

7

Diagram of a car rear panel with labeled components including buttons, dials, and control panel

1

Diagram of a device rear panel with labeled components and control buttons

1

Den gewünschten

Technical diagram of a device rear panel with labeled ports and control buttons

1

Simple line drawing of a CD inside a rectangular frame with an arrow indicating direction (no text or symbols)

Diagram of a hand pressing down on a component with arrows indicating movement (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating movement (no text or symbols)

Diagram of a device rear panel with ports and buttons, no text or symbols present

RPT/SCANMO/RND

RND 88 PCD

Diagram of a computer monitor front panel showing internal components and ports (no text or labels)

Illustration of a hand holding a handheld device with plus and minus signs (no text or symbols)

Top-down schematic of a device casing with internal components and labeled part '1' (no text or symbols beyond label)

1

CD o FM AM

Illustration of a hand holding a small electronic device with polarity markings (no text or symbols)

Illustration of a hand holding a small electronic device with polarity markings (no text or symbols)

Diagram showing a device with a handle and a magnified view of the handle (no text or symbols)

2

Technical line drawing showing two views of a device with internal components and a directional arrow (no text or symbols)

3

Technical line drawing of a mechanical component with an open housing and a rectangular base (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

2

Technical line drawing of a mechanical component with a bracket and mounting hole (no text or symbols)

11,3 dBf (1,0 μV/75 Ω)

Diagram of a medical device with internal components and a vertical line indicating a measurement or alignment (no text or symbols present)

SEL (sélection)

Remarque:

Hand holding a battery with positive and negative terminals, no text or symbols visible

Ajustez le volume.

VOL 20

Diagram of a digital device front panel with labeled parts 1 and 2, showing internal components like buttons, dials, and indicators.

1

Diagram showing a finger pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram of a device rear panel with labeled components, showing internal layout and numbered parts.

7

Diagram of a car rear panel with labeled components including buttons, dials, and control panel

1

Diagram of a device rear panel with labeled components and control buttons

1

Diagram of a device rear panel with labeled ports and control buttons (no text or symbols beyond labels)

1

Simple line drawing of a CD inside a rectangular frame with an arrow indicating direction (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

Diagram showing a hand pressing a button on a device with directional arrows and control buttons, likely illustrating a process or movement.

Top-down diagram of a computer monitor case showing internal components and control buttons (no text or labels)

RPT/SCANMO/RND

Diagram of a device rear panel with labeled ports and connectors (no text or symbols)

Illustration of a hand holding a device with plus and minus signs, no text or symbols present

Ajustez le niveau.

Technical line drawing of a device rear panel with buttons and ports (no text or symbols)

7

CD o FM AM

Illustration of a hand holding a card with plus and minus signs, no text or symbols present

Diagram of a device rear panel with labeled ports and internal components (no text or symbols)

3 2 2 1,4

Illustration of a hand holding a card with plus and minus signs, no text or symbols present

Choisissez le mode - "VOL 1", "VOL 2" ou "OFF".

4

Diagram showing a hand inserting a cylindrical object into a rectangular device (no text or symbols present)

2

Technical line drawing showing two views of a device with internal components and an arrow indicating direction (no text or symbols)

3

Technical line drawing of a mechanical component with an open lid and internal structure (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

2

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Dimensions (L x H x P)

Diagram of a device interior with labeled parts, showing a handle and control panel (no text or symbols)

SEL (Selectie)

Opmerking:

Hand holding a battery with positive and negative terminals, no text or symbols visible

Regel het volume.

Diagram of a device rear panel with labeled components, showing front, side, and interior views.

1

Selecteer de golfband (FM1, FM2, FM3 of AM)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or force vectors.

1 Kies de golfband (FM of AM)

Druk op FM of AM.

Diagram of a device rear panel with labeled components, showing internal layout and numbered parts.

7

...55M...

Diagram of a car front panel with labeled parts including controls, buttons, and indicator lights

1

Selecteer FM1.

87.5

2

SSM

Diagram of a device rear panel with labeled components and control buttons

1
    note right of E Selectee FM3 of A

Selecteer de gewenste golfband (FM1, FM2, FM3 of AM).

2

1 2 3 4 5 6

Technical diagram of a device rear panel with labeled ports and control buttons

1

Simple line drawing of a CD inside a rectangular frame with an arrow indicating direction (no text or symbols)

Diagram of a hand pressing down on a component with arrows indicating movement (no text or symbols)

Diagram of a hand pressing down on a mechanical component with arrows indicating movement (no text or symbols)

Diagram of a device rear panel with labeled ports and buttons (no text or symbols)

RPT/SCANMO/RND

Illustration of a hand holding a device with polarity markings (no text or symbols)

Pas het niveau aan.

Top-down schematic of a device casing with internal components and labeled part '1' (no text or symbols beyond label)

1

CD o FM AM

Illustration of a hand holding a device with polarity markings (no text or symbols)

Selecteer de gewenste modus: "LINK ON" of "LINK OFF".

4

Illustration of a hand holding a card with plus and minus signs, no text or symbols present

1. Selecteer "CLOCK M".

→CLOCK H→CLOCK M→SEM LINK LEVEL←

Illustration of a hand holding a card with plus and minus signs, no text or symbols present

Selecteer de gewenste modus: "VOL 1", "VOL 2" of "OFF"

4

Diagram showing a hand holding a tool interacting with a device, with an arrow indicating the process (no text or symbols present)

2

Technical line drawing of two mechanical components with arrows indicating assembly or movement (no text or symbols)

3

Technical line drawing of a mechanical component with an open lid and internal structure (no text or symbols)

Technical line drawing of two mechanical components with no visible text or symbols

2

Technical line drawing of a mechanical component with no visible text or symbols

Connectors

Omgaan met CD's

11,3 dBf (1,0 μV/75 Ω)

Stereo-scheiding: 30 dB

Vangbereik: 1,5 dB

[MW-zenders]

Gevoeligheid: 20 μV

Having TROUBLE with operation? Please reset your unit

Refer to page of How to reset your unit
