USER MANUAL LEDB13TU24F AKIRA

Remote control setup PVR MENU

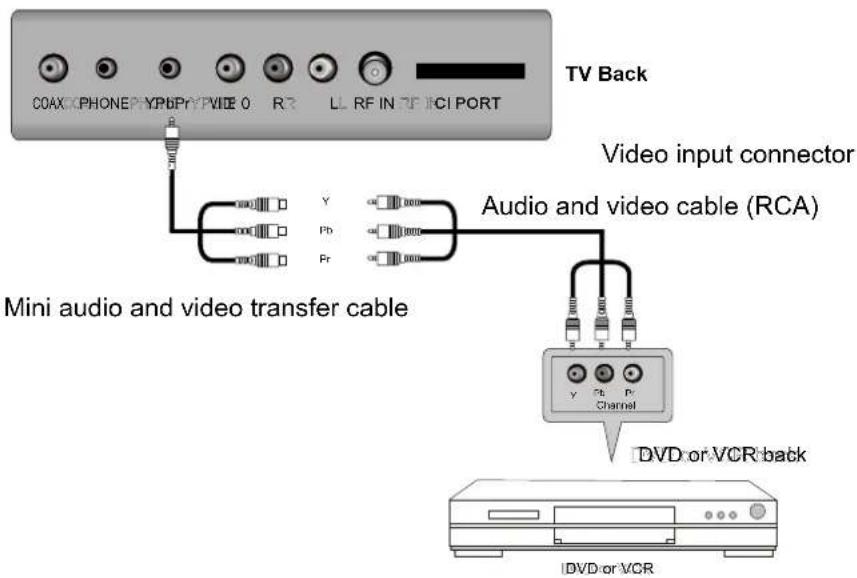

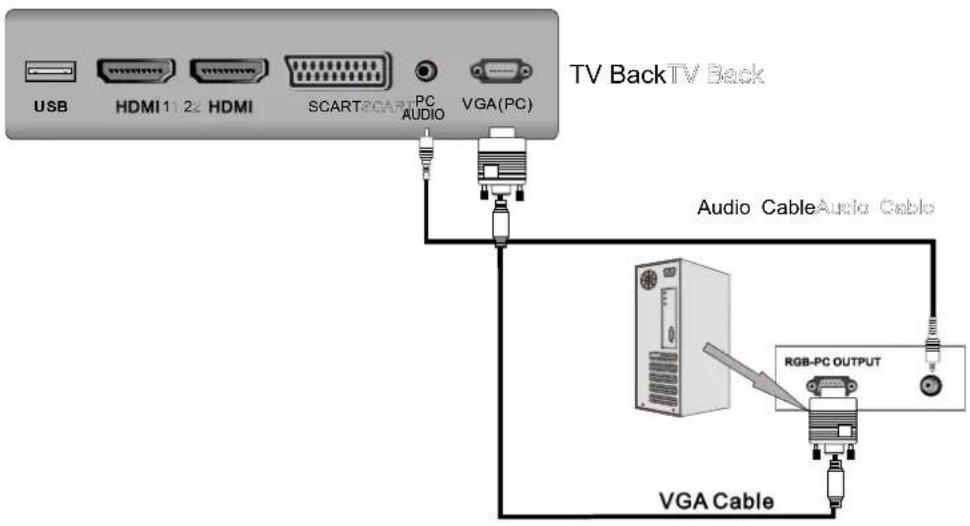

Power Cord ConnectionVGA(PC) Connection AV Connection YPbPr Connection Antennas Connection HDMI ConnectionSCART Connection USB Connection

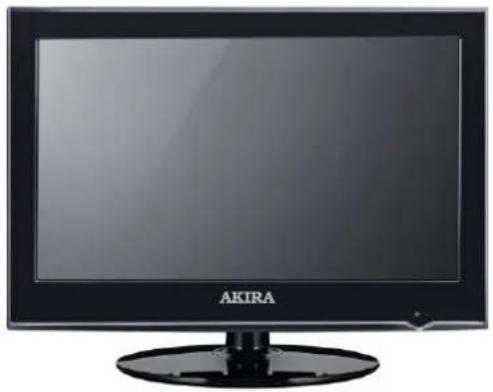

91.PREFACE Thank you for buying this TV ! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV is damaged, do no install it and contact your dealer. Check that you have all the accessories according to the model. 2.SAFETY PRECAUTIONS Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall. Minimum distances 10cm 20cm 10cm 5cm Put the TV on a stable surface. Do not place any material on the TV. Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady. Do not use the TV with fixtures other than those provided or suggested by the manufacturer. 3Keep the TV away from heat sources. Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV. Only clean the TV with a soft and dry cloth. Unplug the TV during lightening storms or when unused for long periods of time. Keep the TV dry and away from humidity. In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or other incidents.

1.where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable; 2.A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. 3.A warning that an apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.5

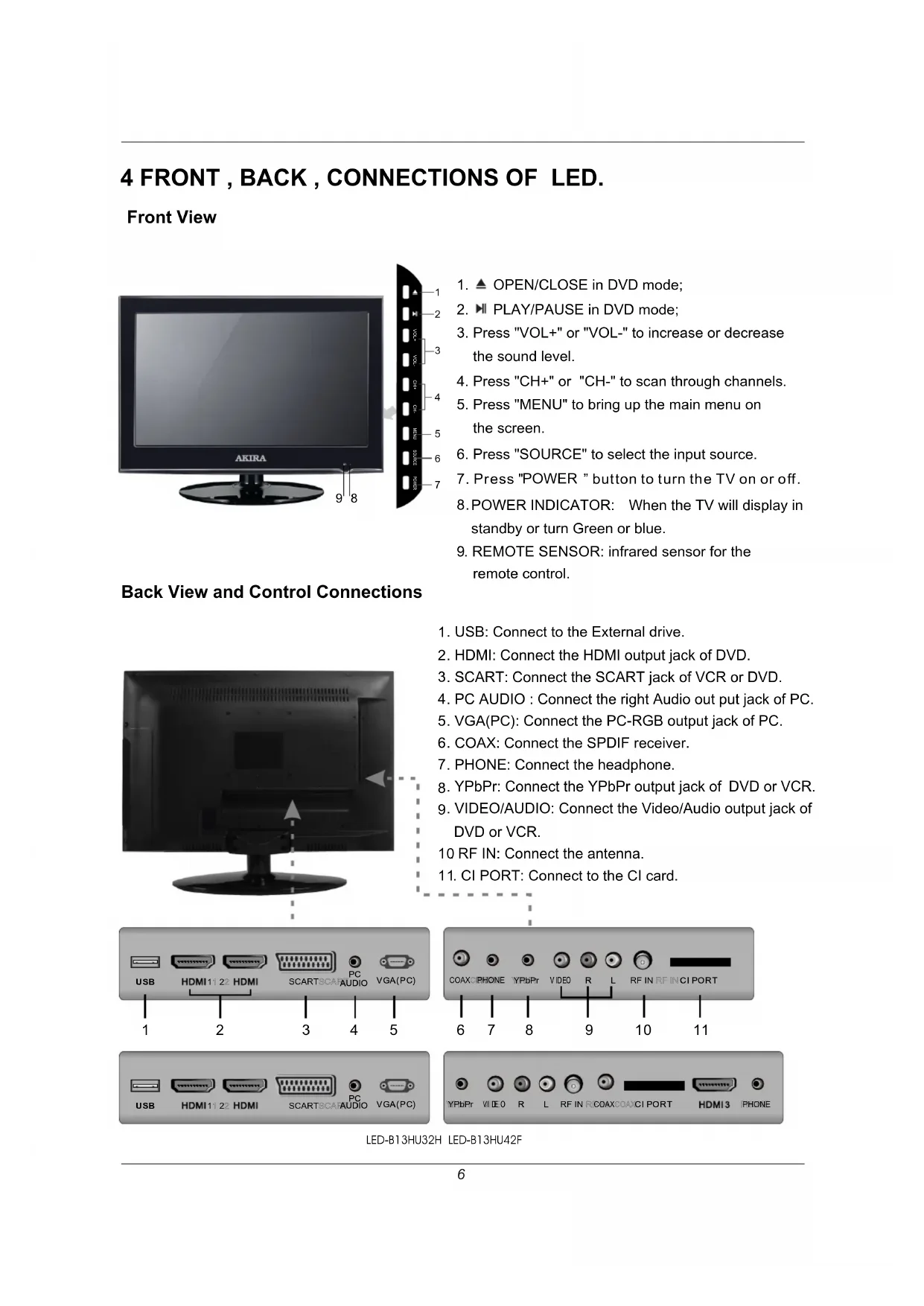

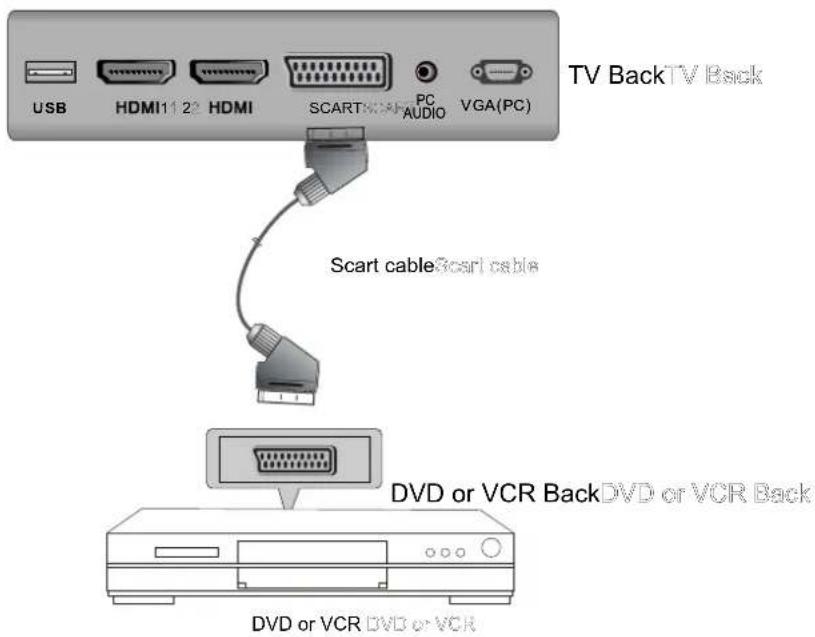

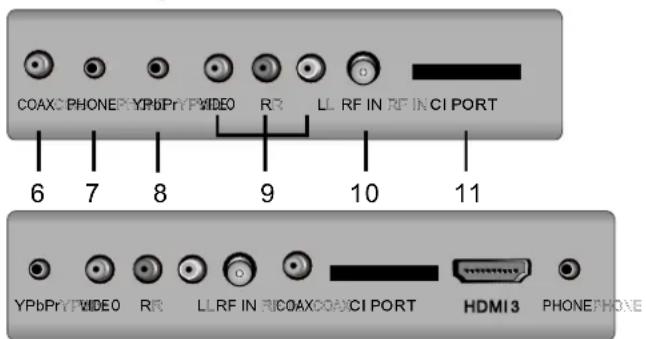

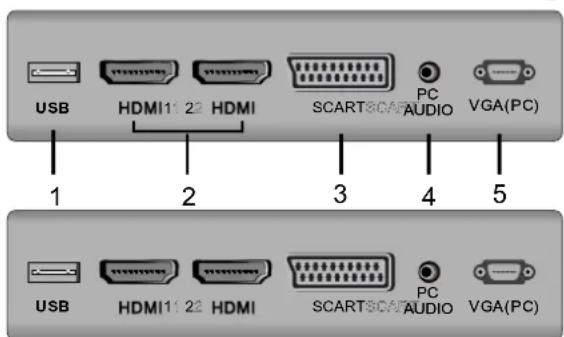

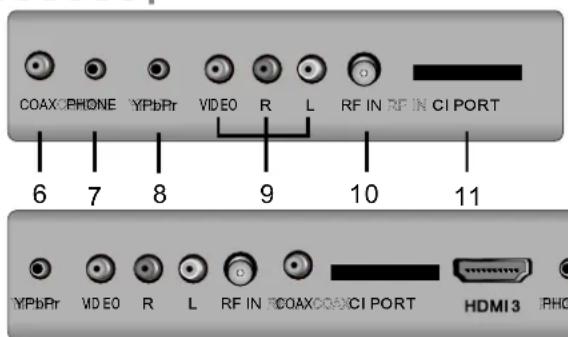

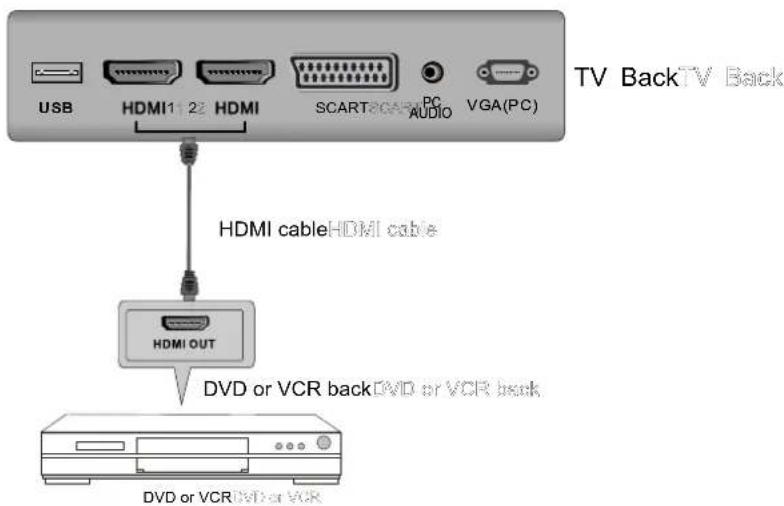

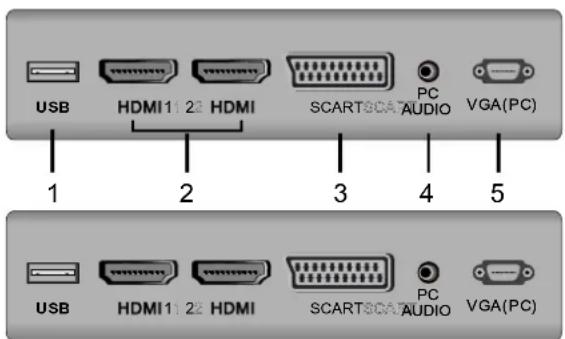

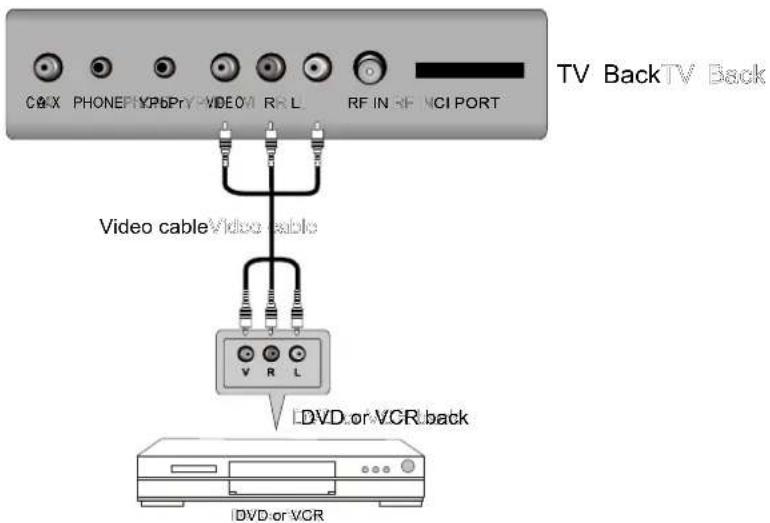

. USB: Connect to the External drive. . HDMI: Connect the HDMI output jack of DVD. . SCART: Connect the SCART jack of VCR or DVD. . PC AUDIO : Connect the right Audio out put jack of PC. . VGA(PC): Connect the PC-RGB output jack of PC. . COAX: Connect the SPDIF receiver. . PHONE: Connect the headphone. . YPbPr: Connect the YPbPr output jack of DVD or VCR. . VIDEO/AUDIO: Connect the Video/Audio output jack of DVD or VCR. 1 . RF IN: Connect the antenna. 1 . CI PORT: Connect to the CI card. VGA(PC)VGA(PC)

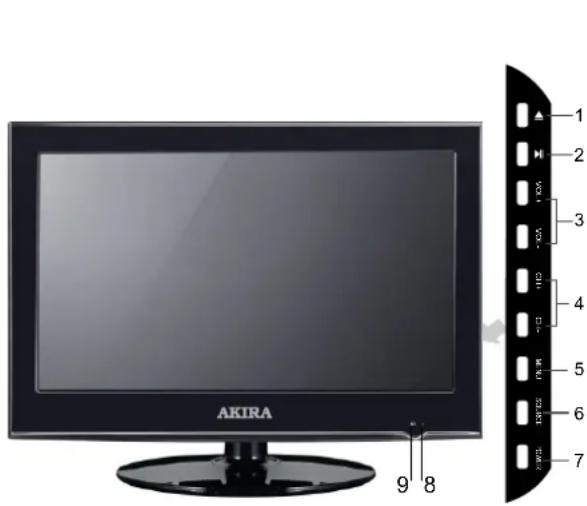

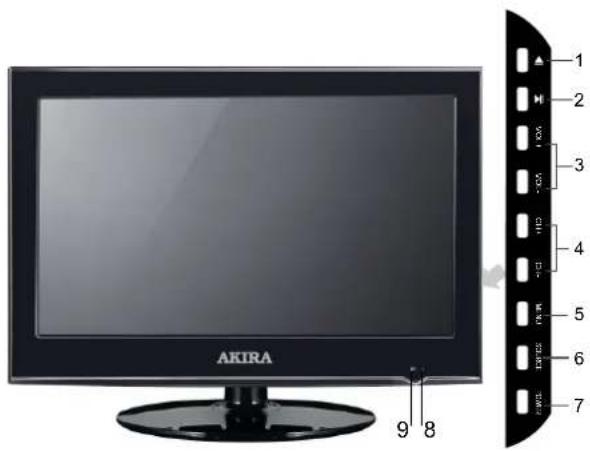

1. OPEN/CLOSE in DVD mode;

2. PLAY/PAUSE in DVD mode;

3. Press "VOL+" or "VOL-" to increase or decrease

4. Press "CH+" or "CH-" to scan through channels.

5. Press "MENU" to bring up the main menu on

6. Press "SOURCE" to select the input source.

7. Press " ” button to turn the TV on or off.

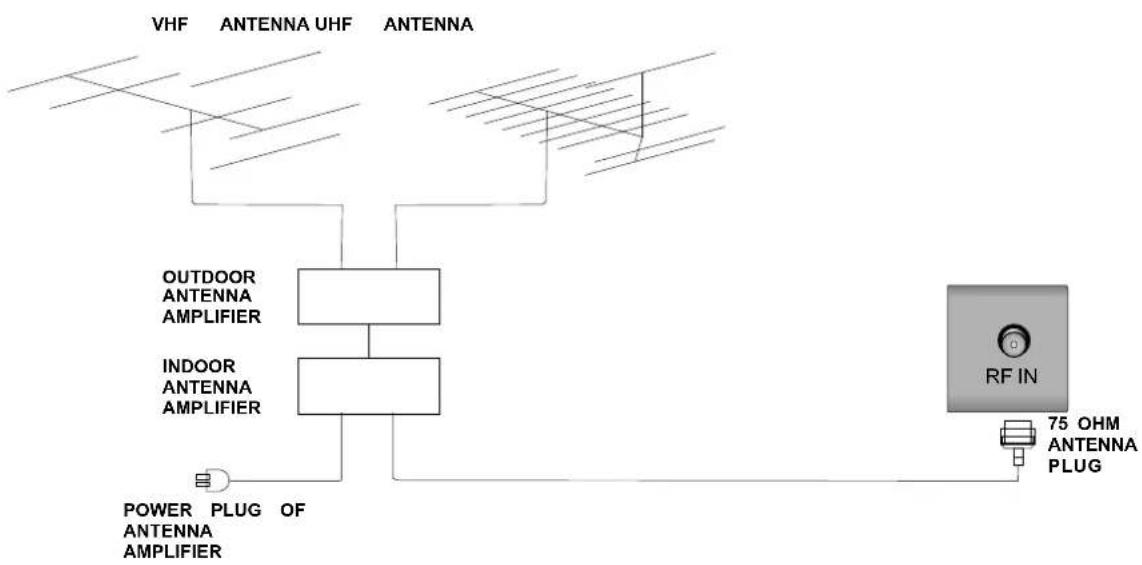

To ensure good picture and sound, TV antenna system needs to be instalLED. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

5. BASIC A INSTALL TION

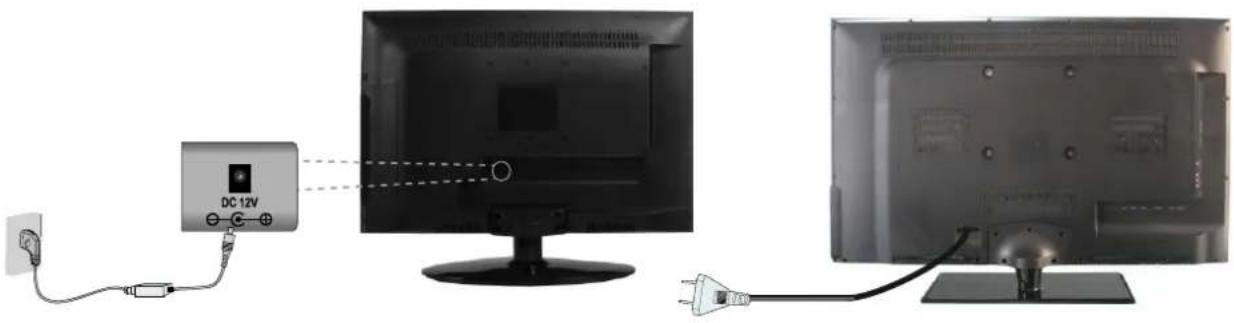

Power Cord Connection Antennas Connection - Connect the power cord correctly as shown. - Press the POWER button of your LED TV to switch on the LED TV. The power indicator on the front panel lights up in Green or Blue. RF IN8 VGA(PC) Connection SCART Connection Connect the RGB output of the PC to the VGA jack on the TV set. Connect the AUDIO output of the PC to the PC AUDIO jack on the TV set . Select the VGA input source via the SOURCE button on the remote control. Connect the SCART connector to the external video item and the SCART connector on the tv. The SCART lead operates as an Input/Output connection. If the tv does not select the SCART input automatically, select SCART using the SOURCE button on the remote control or TV. SCARTSCART AUDIO AUDIO USB VGA(PC)VGA(PC) 11 22DVD or VCR DVD or VCR DVD or VCR BackDVD or VCR Back TV BackTV Back Scart cableScart cable TV BackTV Back SCARTSCART AUDIO AUDIO USB VGA(PC)VGA(PC) Audio CableAudio Cable9 AV Connection Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source via the SOURCE button on the remote control. YPbPr Connection Connect the YPbPr output of the DVD or VCR to the YPbPr input on the TV set. Connect the Audio output of the DVD or VCR to the Audio input jacks on the TV set using the RCA cable. Match the jacks colors : Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select YPbPr input source via the SOURCE button on the remote control.

RF IN RF IN PHONEPHONE

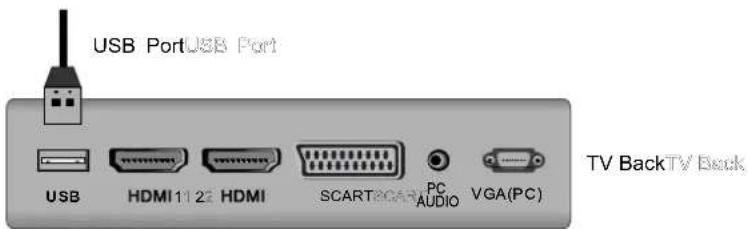

Insert the USB flash drive to the USB port. Select USB channel source via the SOURCE button on the remote control. TV BackTV Back COAX Connection

RF IN RF IN PHONEPHONE

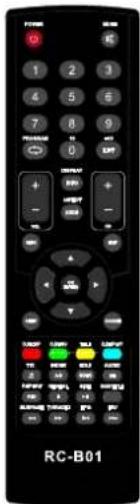

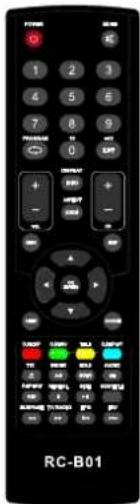

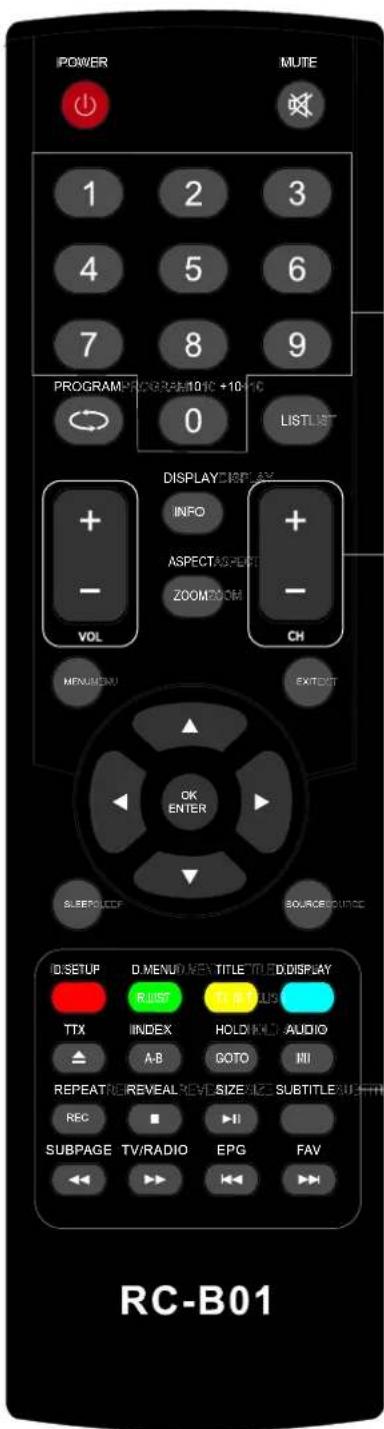

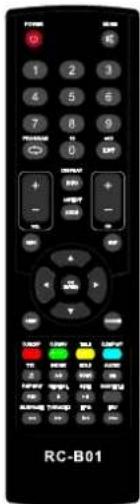

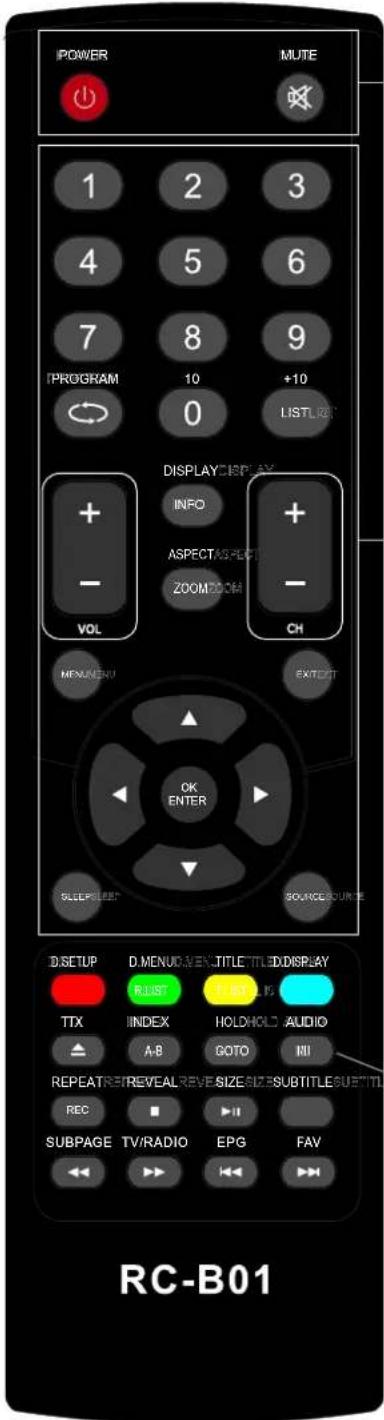

MUTEMUTE Remote control instructions in TV mode POWER Turn the LED TV ON or OFF. MUTE Press to mute the sound. Press again or press VOL+ to un-mute the TV. AUDIO(I/II) Press to search the NICAM modes. NUMBER BUTTONS Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds. MENU Brings up the main TV menu to the screen. THUMBSTICK( ▲/ ▼/◄ / ►/ OK ENTER ) Allows you to navigate the on-screen menus and adjust the system settings to your preference. EXIT Exit the main TV menu to the screen. CH+/CH- Press to scan through channels. VOL+/VOL- Press to increase / decrease the sound level. Return to the previous channel viewed. DISPLAY Press to display the source and channel's information. SLEEP Lets you select amount of time before your TV turn itself off automatically. SOURCE Press SOURCE to display the OSD input source, Press▲▼to select an input source,and then press OK to confirm. LIST Press to display the TV program list. ASPECT Selects screen display ratio.

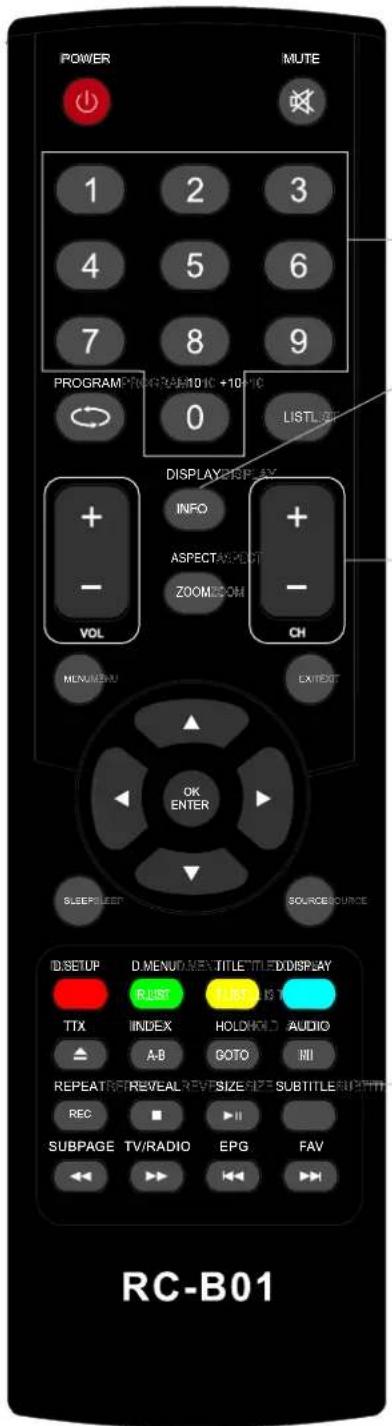

MUTEMUTE Remote control instructions in DTV/USB mode NUMBER BUTTONS Press 0-9 to select a channel. CH+/CH- When watching a channel, changes the channel. INFO Press to display the source and channel's information. COLOR BUTTONS Color buttons (respectively red, green, yellow and blue) used in a few sub-menus. SUBTITLE To display subtitle in DTV mode. AUDIO To display audio menu. TV/RADIO When watching a channel,allows you switch between TV and Radio modes. FAV Favorite program list. REC Press to record the TV program in DTV mode. EPG Launches the EPG(Electronic Program Guide)in DTV mode. REPEAT Press to select the repeat mode in USB mode. Stop playing or stop recording. Fast reverse and Fast forward. Previous / next chapter in USB mode,or play the Previous Play or pause. Press to enter Timeshift, the image paused and it start record from the paused position. (Timeshift) R.LISTR.LISTT.LISTT.L IS T T.LIST Press to display the Record Timer Schedule List. R.LIST Display the recorded file list. /next scene of the recorded programs, jump by 30 seconds.13 DISPLAYDISPLAY OKENTER OKENTERASPECTASPECTMENUMENUEXITEXITSLEEPSLEEPSOURCESOURCED.MENUD.MENULISTLISTSUBTITLESUBTITLETITLETITLEZOOMZOOM1010 +10+10PROGRAMPROGRAMREPEATREPEATTTXTTXGOTOGOTOHOLDHOLDD.SETUPD.SETUPA-BA-BD.DISPLAYD.DISPLAYINDEXINDEXI/III/IIRECRECAUDIOAUDIOSIZESIZEREVEALREVEALPOWERPOWERINFOINFOFAVFAV SUBPAGESUBPAGE EPGEPG

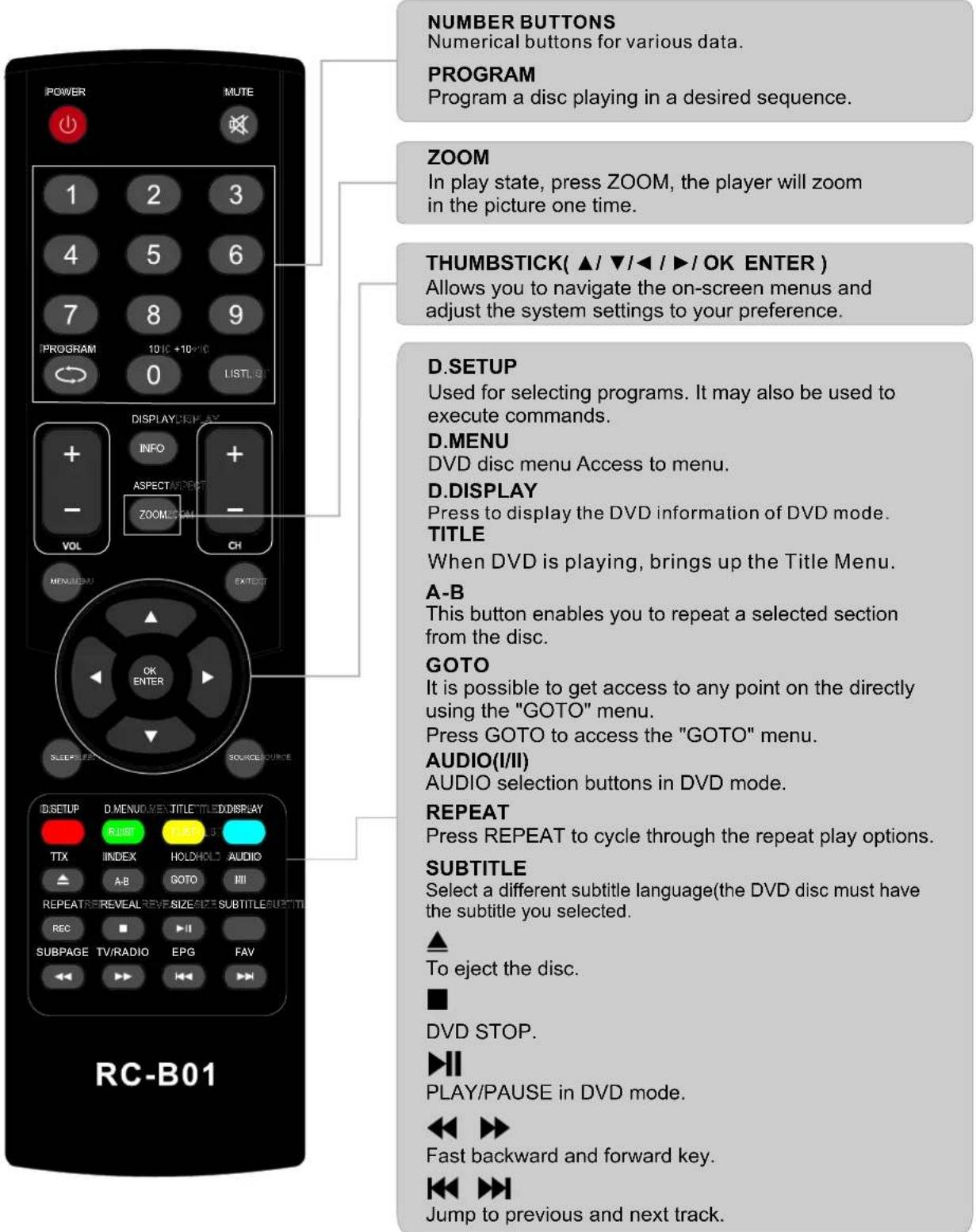

MUTEMUTE D.SETUP Used for selecting programs. It may also be used to execute commands. REPEAT Press REPEAT to cycle through the repeat play options. A-B This button enables you to repeat a selected section from the disc. SUBTITLE Select a different subtitle language(the DVD disc must have the subtitle you selected. D.DISPLAY Press to display the DVD information of DVD mode. TITLE When DVD is playing, brings up the Title Menu. PLAY/PAUSE in DVD mode. To eject the disc. DVD STOP. Jump to previous and next track. Fast backward and forward key. D.MENU DVD disc menu Access to menu. NUMBER BUTTONS Numerical buttons for various data. PROGRAM Program a disc playing in a desired sequence. THUMBSTICK( ▲/ ▼/◄ / ►/ OK ENTER ) Allows you to navigate the on-screen menus and adjust the system settings to your preference. AUDIO(I/II) AUDIO selection buttons in DVD mode. GOTO It is possible to get access to any point on the directly using the "GOTO" menu. Press GOTO to access the "GOTO" menu. ZOOM In play state, press ZOOM, the player will zoom in the picture one time.

R.LISTR.LISTT.LISTT.LIST

Note: Please ensure that the TV you have bought with DVD loader, otherwise, all these parts with no effect.

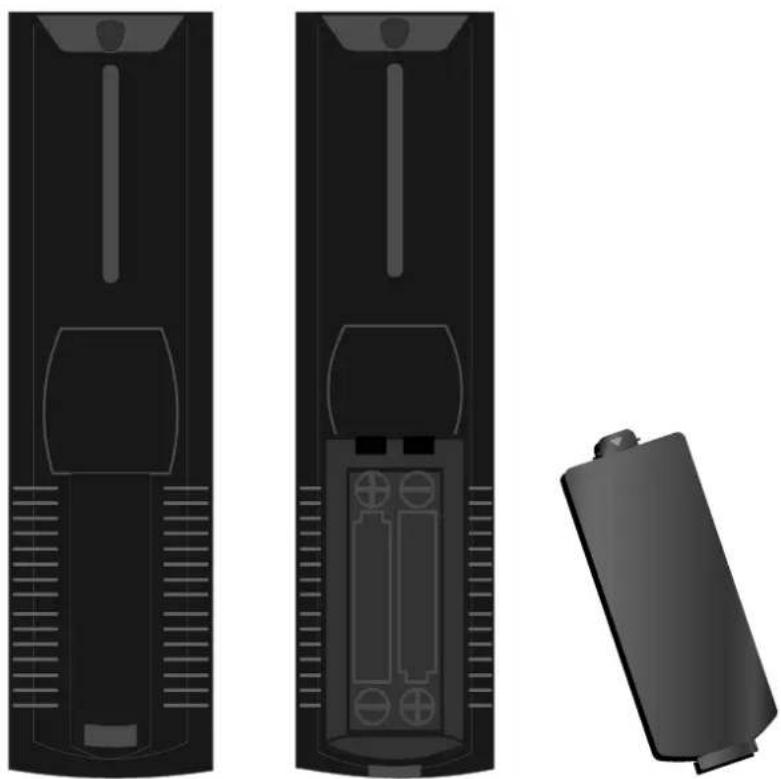

Remote control setup

2. AAA size batteries, When inserting the batteries, make sure correct polarities as per“+”and “-”

marks o n the batteries and within the battery compartment .

3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.

2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc)

3. Remove batteries when the remote is not used for a long time.Move

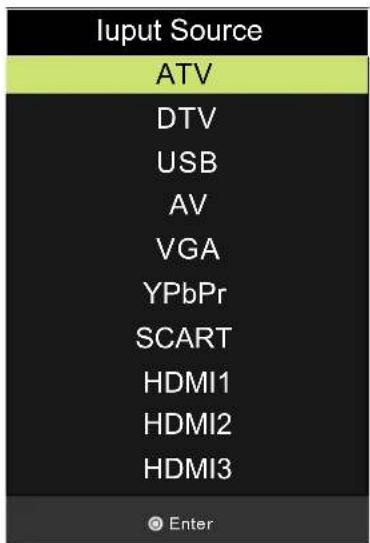

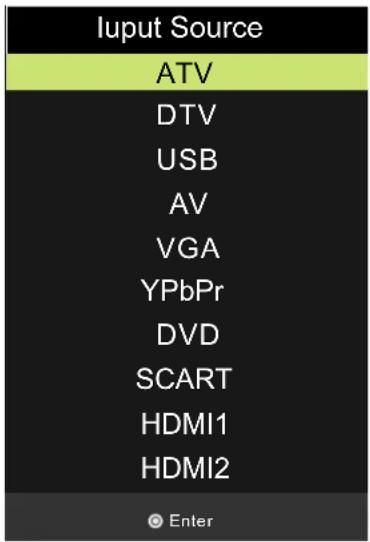

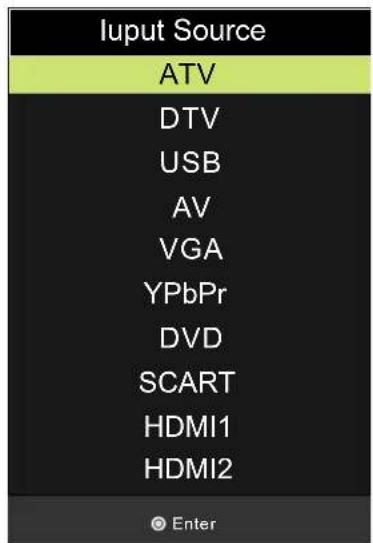

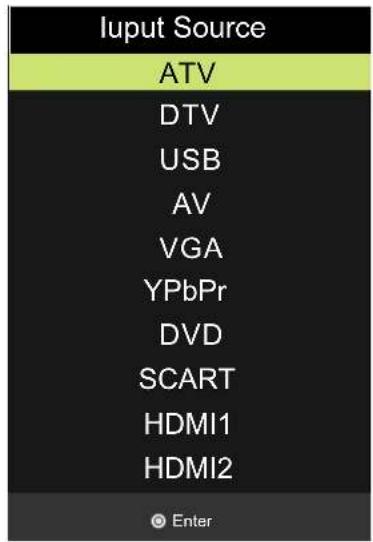

Press SOURCE button to display the input source list; Press ▼ / ▲ or SOURCE button to select the input source you want to watch; Press OK button to enter the input source; Press EXIT button to quit; INPUT SOURCE

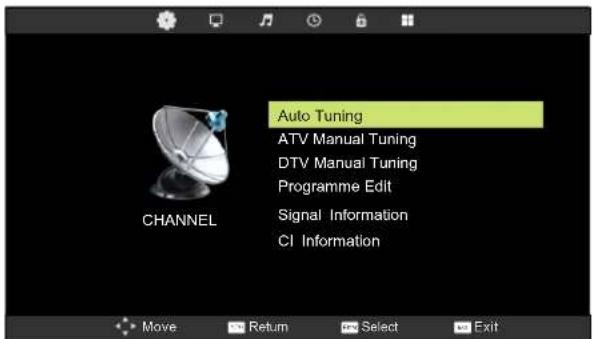

1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.

2. Press OK button to adjust.

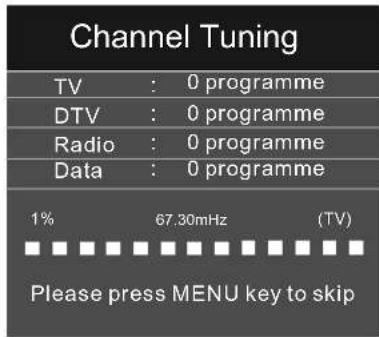

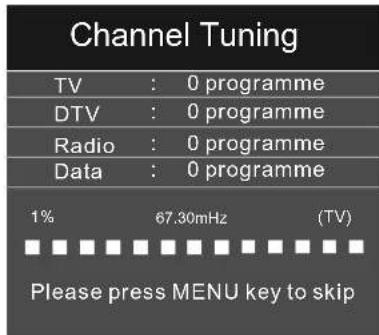

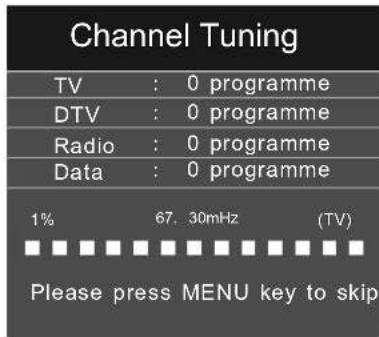

0 programme DTV Radio Data 0 programme 0 programme 0 programme

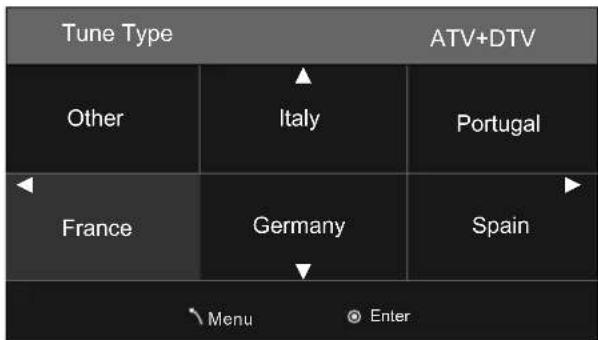

Spain Germany Tune Type ATV+DTV 67.30mHz Menu Enter

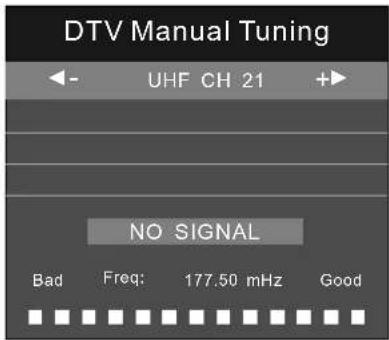

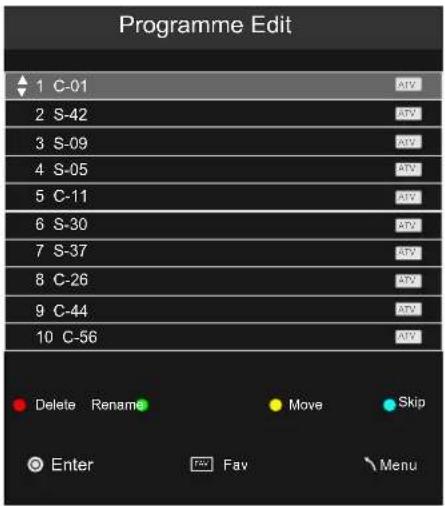

• Use Red button to delete the current channel.

• Use Green button to set the current channel to Rename.

• Use Yellow button and the ▲/▼arrow button to move the current channel.

• Use Blue button to skip the current channel.

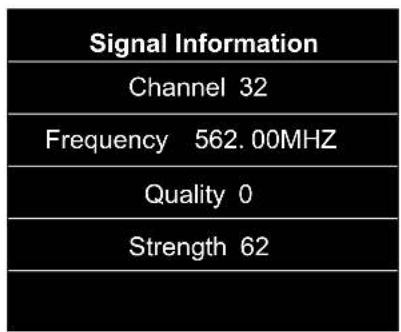

Signal Information Press ▼ / ▲ button to select Signal Information, then press OK button to display signal details, Including Channel, Frequency, Quality and Strength. CI Information Press ▼ / ▲ button to select CI Information, then press OK button to display details if you has inserted the CI card. Signal Information Channel 32 Frequency 562.00MHZ Quality 0 Strength 62 Cl Information Viaccess Conditional Access Mian Menu

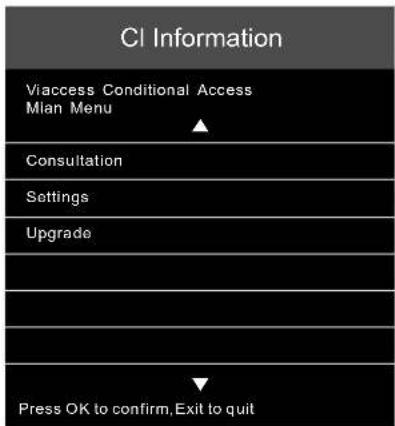

Press OK to confirm,Exit to quit Consultation Settings UpgradePicture Mode StandardColour Temp NormalNoise Reduction MiddleContrast 50Brightness 50Colour 50Tint 50Sharpness PICTURE

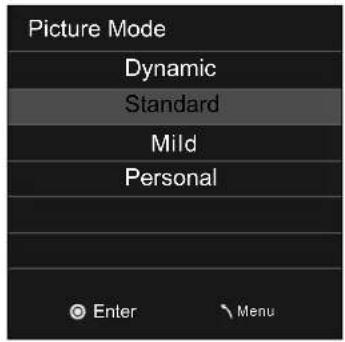

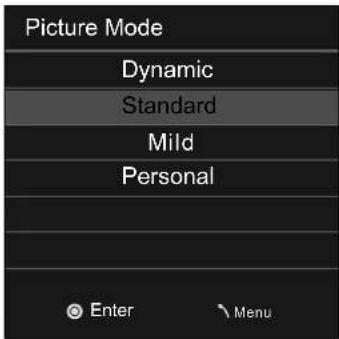

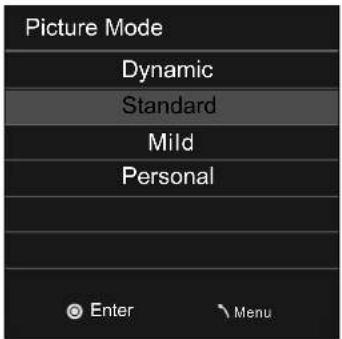

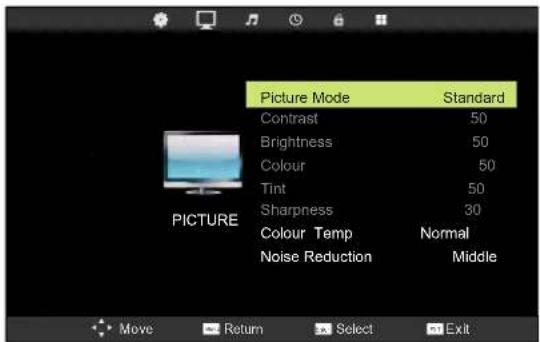

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.

2. Press OK button to adjust.

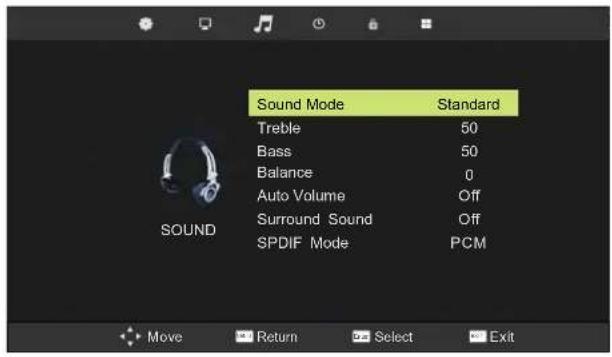

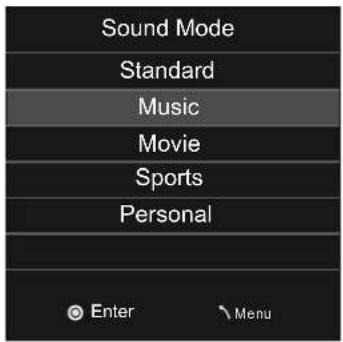

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.

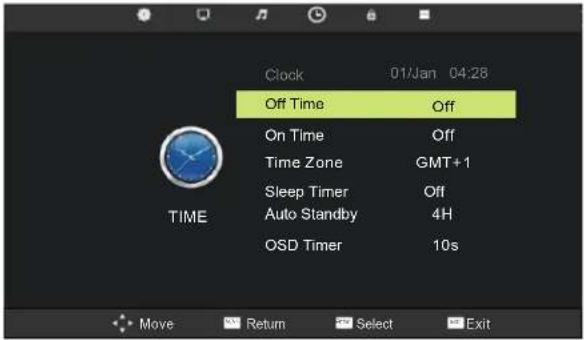

1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.

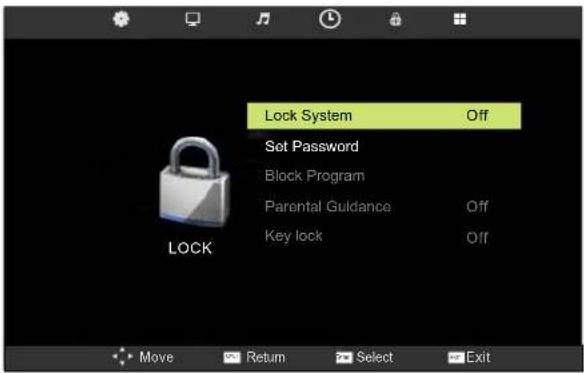

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK menu.

Please enter old password CancelClear Please enter new password Confirm new password

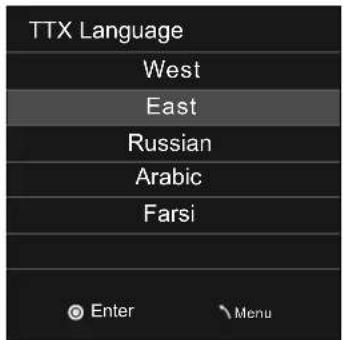

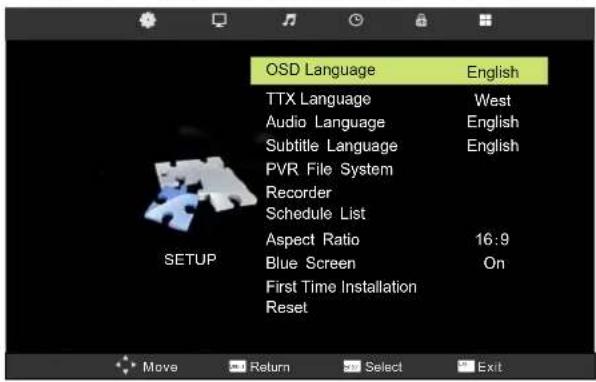

1. Press ▼/▲ button to select the option that you want to adjust in the SETUP menu.

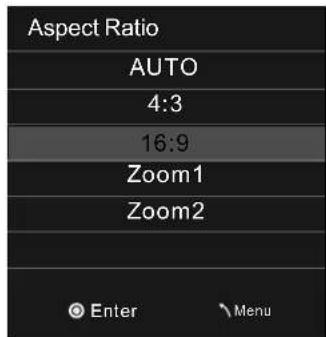

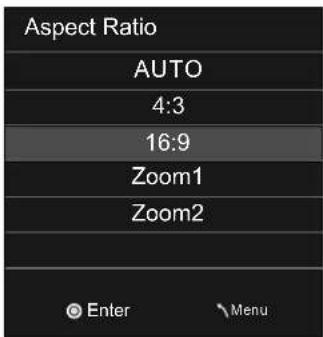

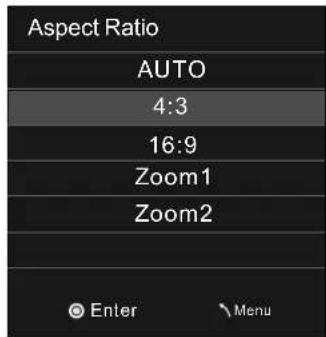

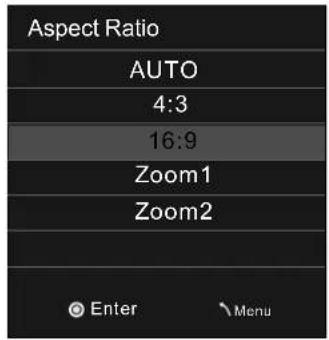

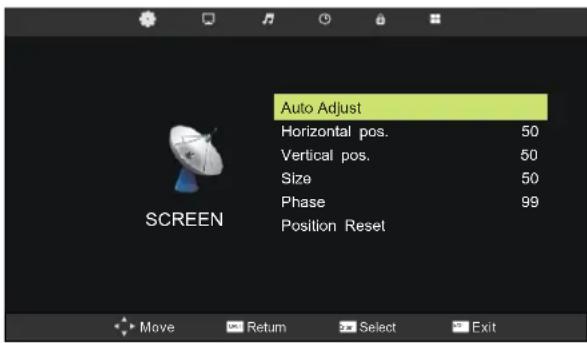

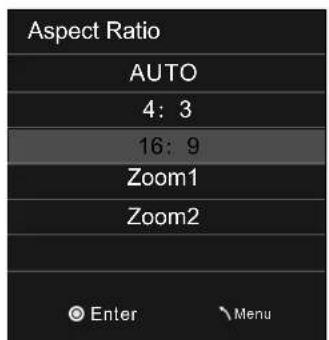

1. Press ▼/▲ button to select the option that you want to adjust in the SCREEN menu.

2. Press OK button to adjust.

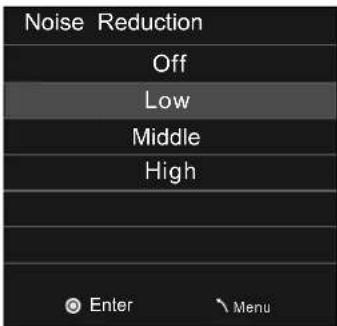

1. Noise Reduction in PICTURE option is invalid.

2. SOUND menu and description are the same as that for DTV mode.

3. LOCK menu and description are the same as that for DTV mode.

4 .PVR File System in SETUP menu is invalid. AV/SCART/HDMI/YPbPr Notes:

1. PICTURE menu and description are the same as that for DTV mode.

2. SOUND menu and description are the same as that for DTV mode.

3. LOCK menu and description are the same as that for DTV mode.

4. PVR File System in SETUP menu is invalid.

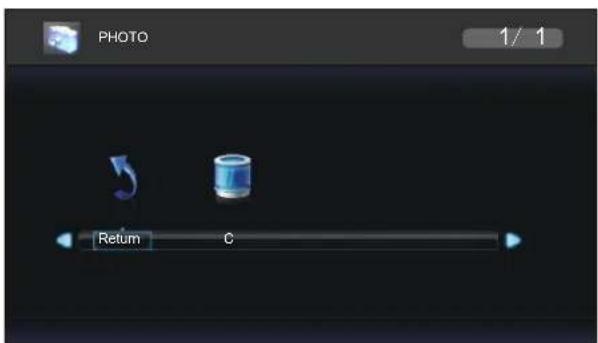

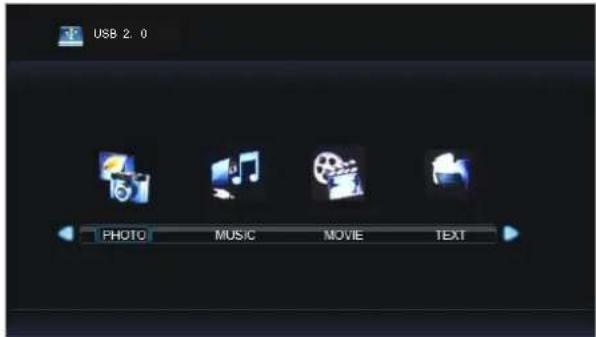

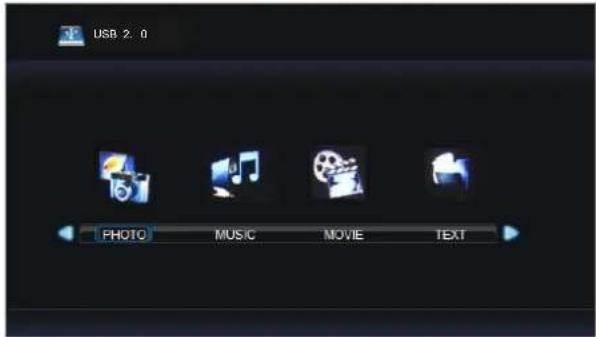

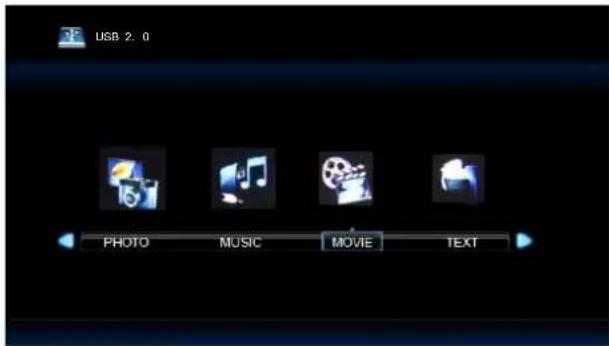

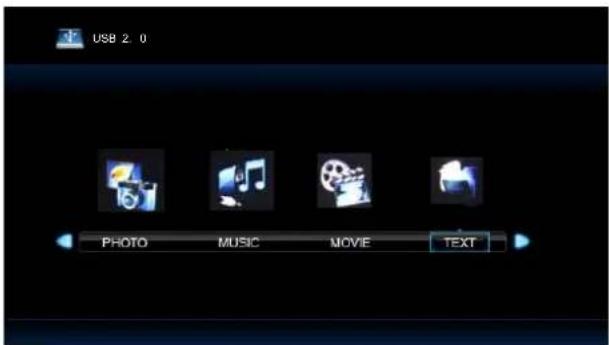

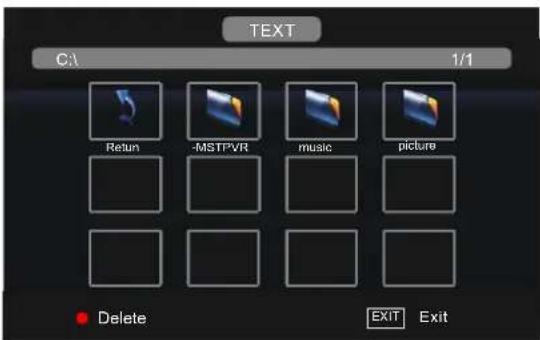

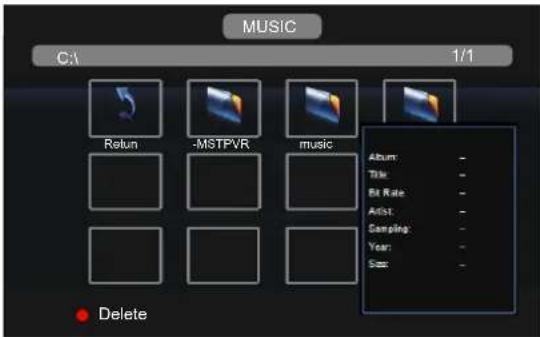

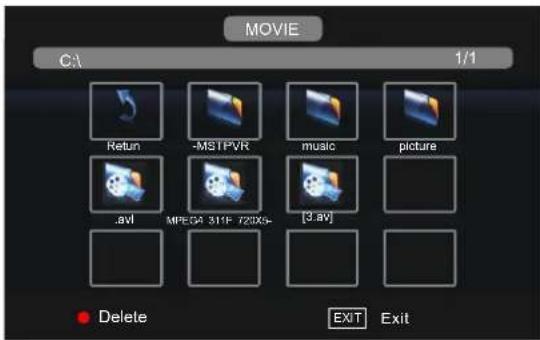

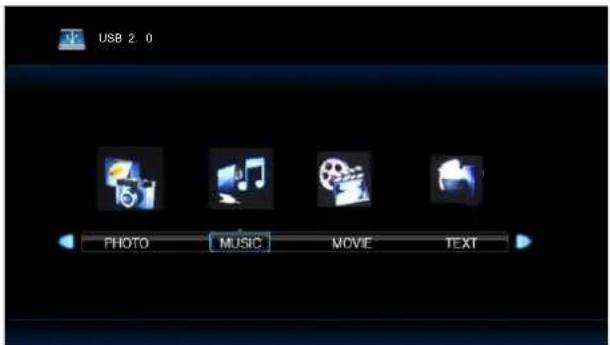

VGA(PC)26 Note:Before operating MEDIA menu,Plug in USB device,then press SOURCE button to set the Input Source to USB, then press OK button to enter. Press ◄/► button to select the option you want to adjust in the main MEDIA menu, then press OK button to enter. PHOTO Menu Press ◄/► button to select PHOTO in the main menu, then press OK button to enter.

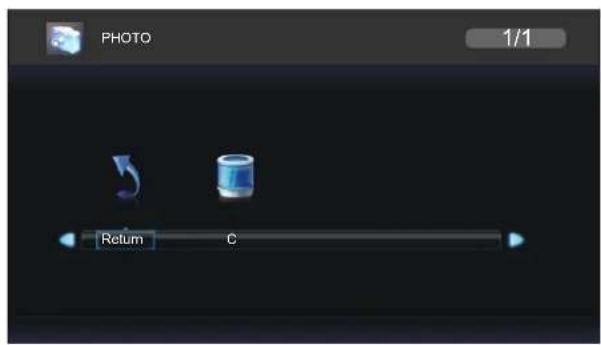

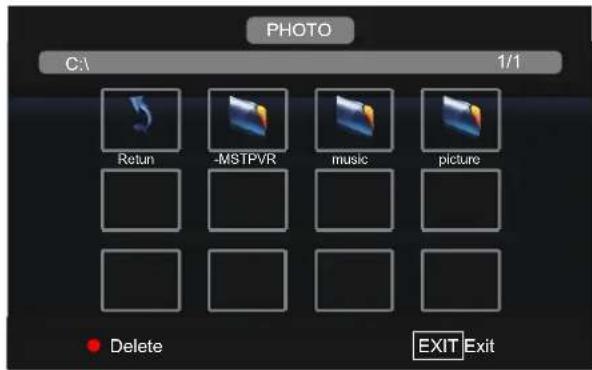

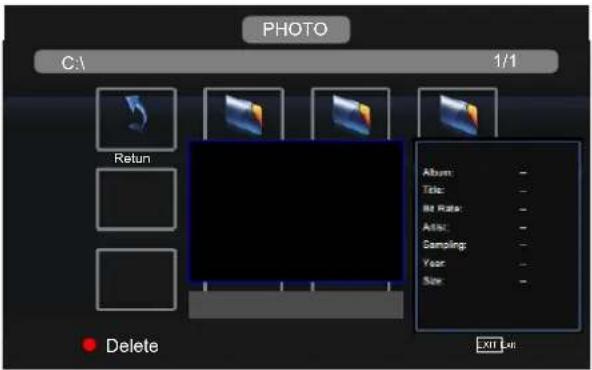

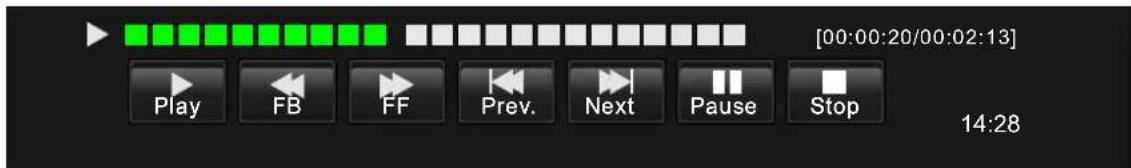

Press ◄ / ► button to select drive disk you want to watch, then press OK button to enter. Press ◄ / ► button to select return option to back to the previous menu. PHOTO 1/1 Return Retun-MSTPVRmusicpicture C:\ 1/1 PHOTO Delete Press ◄/► button to select the file you want to watch in the file selecting menu, then press OK button to display picture. When highlighting the option you select,the file information will appear on the right and picture will be previewed in the center. EXIT Exit USB 2. 0USB 2. 0 Press EXIT button to return back to the previous menu.27 Retun -MSTPVR music picture C:\ 1/1 PHOTO Delete Press ◄/► button to select the file folder you want to search in the file selecting menu, then press OK button on your remote control to enter sub-menu. Press ◄/► button to select the file you want to delete in the file selecting menu, then press red button On your remote control to delete files. Press ◄/► button to select MUSIC in the main menu, then press OK button to enter. Press ◄/► button to select drive disk you want to watch, then press OK button to enter. Press ◄/► button to select return option to back to the previous menu. When highlighting the option you select,the file information will appear on the right. previewed in the center. MUSIC Menu USB 2. 0Retun-MSTPVRmusic picture C:\ 1/1 Delete MUSIC Press ◄/► button to select the file you want to watch in the file selecting menu, then press OK button to play the selected music. EXIT Exit Press EXIT button to return back to the previous menu.28 Press ◄/► button to select MOVIE in the main menu, then press OK button to enter. USB 2. 0 Press OK button to play the selected movie. Press ◄ / ► button to select drive disk you want to watch, then press OK button to enter. Press ◄ / ► button to select return option to back to the previous menu. When highlighting the option you select,the file information will appear on the right and movie will be previewed in the center. Retun-MSTPVRmusicpicture C:\ 1/1 Delete MOVIE .avl[3.av]MPEG4_311F_720X5- Press ◄ / ► button to select TEXT in the main menu, then press OK button to enter. USB 2. 0 MOVIE Menu TEXT Menu EXIT Exit Press EXIT button to return back to the previous menu. Press ◄ / ► button to select drive disk you want to watch, then press OK button to enter. Press ◄ / ► button to select return option to back to the previous menu.29 When highlighting the option you select,the file information will appear on the right and text will be previewed in the center. Press OK button to view the selected text. Retun-MSTPVRmusicpictureC:\1/1Delete TEXT Note:Make sure you have insert the USB device to the TV board before you start to do the recording. Press REC button on your remote control to start record whenever you want to start. There will be a recording iron on the buttom of the display screen during recording: Instant RecorderInstant Recorder Press REC button to display the control bar or hide it. Press button to select stop or press stop button on your remote control to stop recording.◄/► There will be a dialog as follows: PlayPlay FBFB FFFF NextNextPrev.Prev. 14:28 (0001:57:29) 5 Five Before Winter Comes PVR MENU EXIT Exit It will stop Recording ◄ YES No► Press EXIT button to return back to the previous menu. StopStop [00:00:20] PausePauseMove ReturnMEN UEnterSelect Exit EXIT OSD Language Subtitle Language PVR File System Recorder Schedule List First Time Installation Reset Audio Language SETUP TTX Language Aspect Ratio Blue Screen On West English English English 16:9

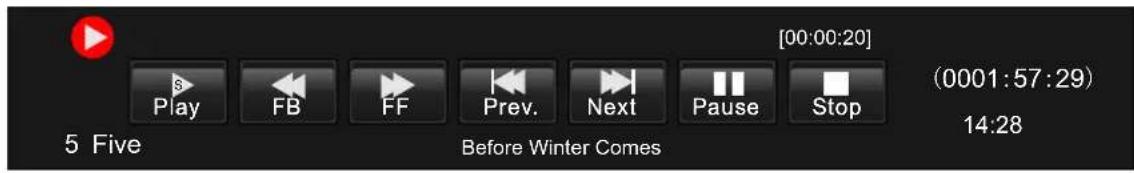

Press button to select stop PVR or not.◄/► Press button to select to play the recorded program during recording.◄/► You can press the button on the control bar to play,fastback,fastforward,play previous,play next, pause or stop playing. Note: you can also play the recorded program in the file named ” _MSTPVR” under the MOVIE file in the USB Source. PlayPlay FBFB FFFF NextNextPrev.Prev. StopStopPausePause [00:00:20/00:02:13] 14:28 PVR File SystemPVR File System Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select SETUP in the main menu, then press OK button to enter.▼/▲

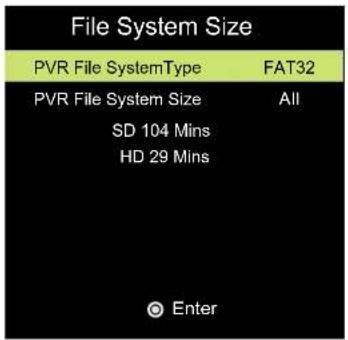

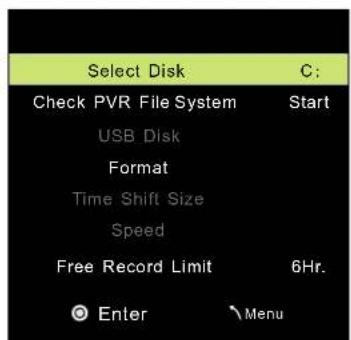

1. Press button to select PVR File System;

2. Press OK button to enter and press button to edit.

3. After finishing your adjustment, Press Menu button to save and back to the previous menu.

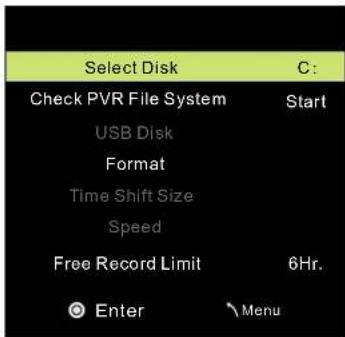

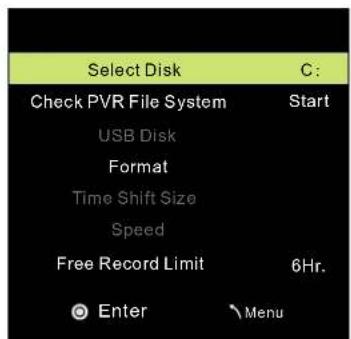

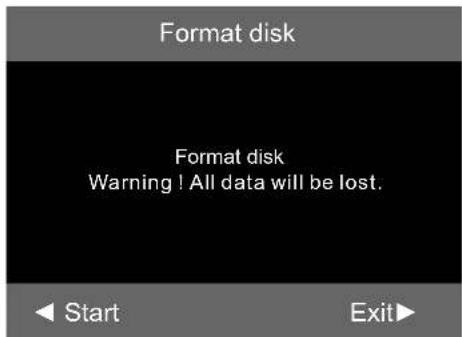

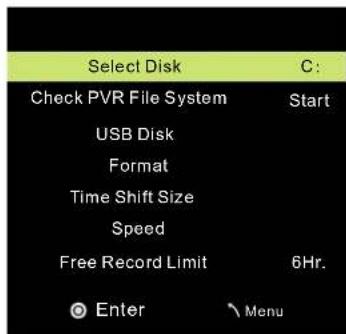

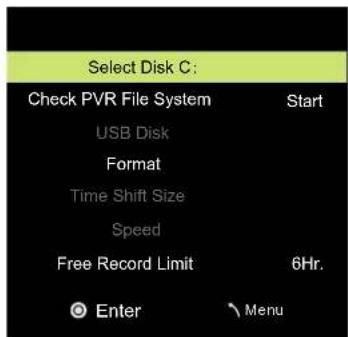

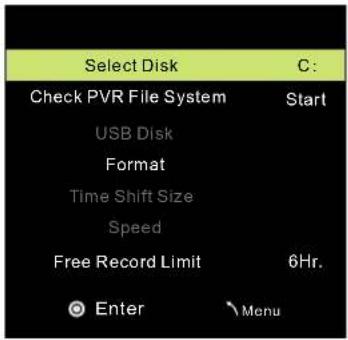

Select Disk Check PVR File System Press button to select Check PVR File System , then press OK button to check the disk you have selected.

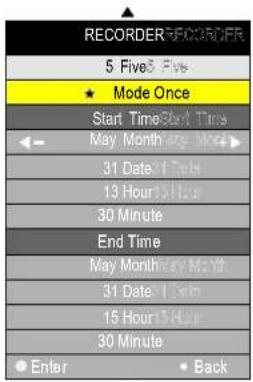

3. After finishing your settings, Press OK button to save .Then there will display a save successful

dialog and a Schedule List which display the recording schedules you just setted,you can press RED button to cancel you setting. You can select Mode Auto\Mode Once\Mode Everyday\Mode Weekly for recording.

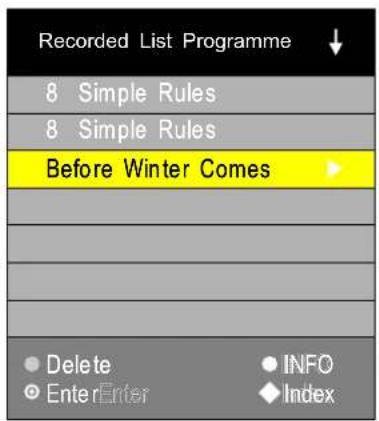

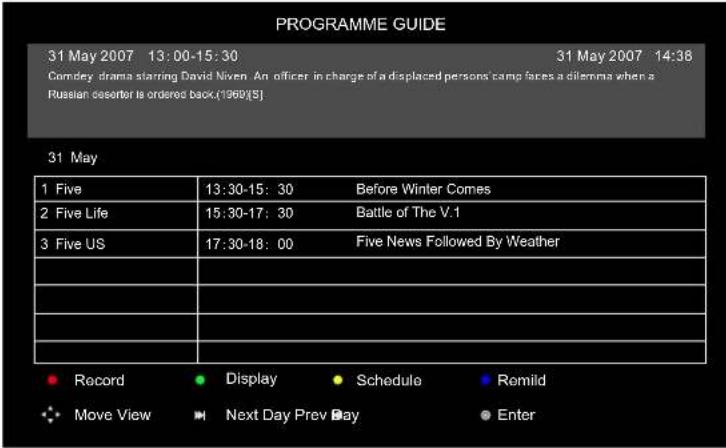

8 Simple Rules8 Simple Rules 8 Simple Rules8 Simple Rules Before Winter ComesBefore Winter Comes DeleteDelete EnterEnter INFOINFO IndexIndex Record List Press R.LIST button on the remote control to display the Recorded List. Record List Recorded List Programme33 Press EPG button in the Remote control. Schedule List Schedule List pattern for reference the menu is as follows: Schedule List DELETEDELETE Delete Focused programme.

1. Press Source button on the remote controller to select DVD input source.

2. Press OPEN / CLOSE button to load from into disc tray.

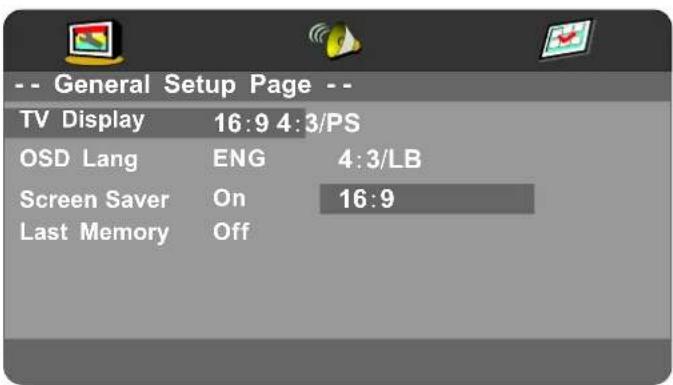

Hold the disc without touching either or its surfaces, insert the DVD with the label toward the device’s back panel into the DVD slot on the right side of you TV set. Only push the DVD slightly until the unit feeds it automatically. This is used to select the aspect 4:3/PS, 4:3/LB, 16:9. Basic Operation TV Display 8.DVD Operation General Setup DVD Setup Mode

• Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, and Preference Page .

• Item selection in the Setup Menu is done by using the Navigation Arrows, D.SETUP button and the OK button.

• Press the D.SETUP button first , enter into SETUP menu, then press the DIRECTION RIGHT button,you can enter into the next Sub-menu.

• Press the D.SETUP button again to exit the Setup Menu. Note : please ensure that the TV you have bought bought is with DVD loader, otherwise all this part does not apply.- - General Setup Page - - TV Display OSD Lang Screen Saver Last Memory ENG

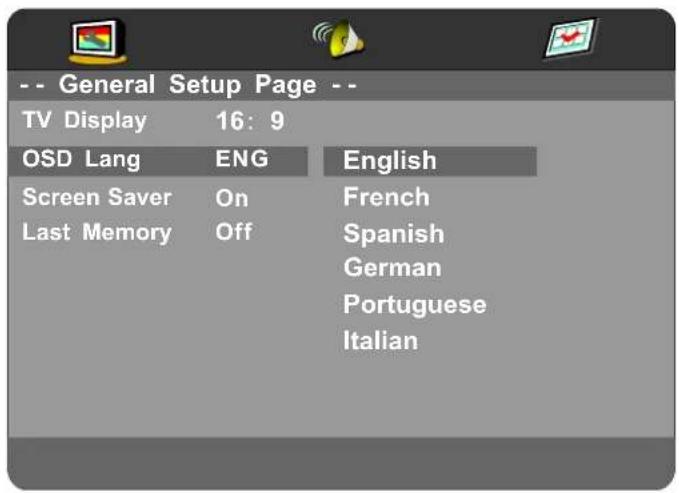

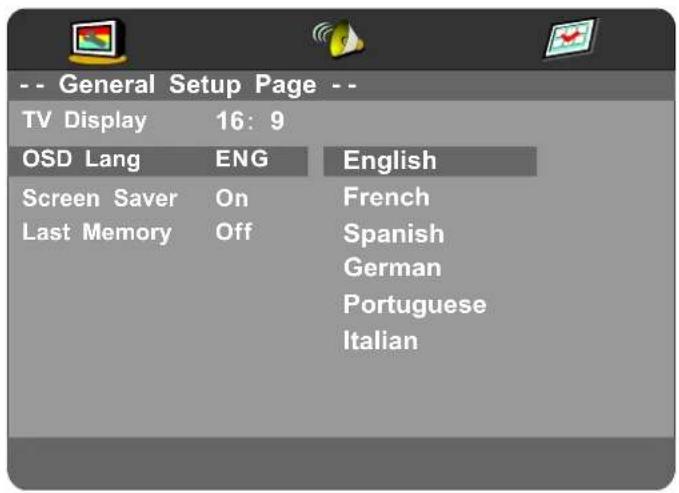

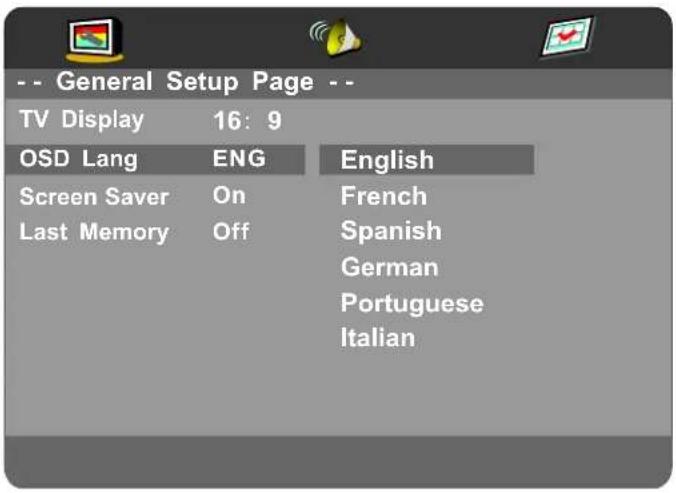

Off 16: 9 English French Spanish German Portuguese Italian Off OSD Language This is used to select the OSD language.

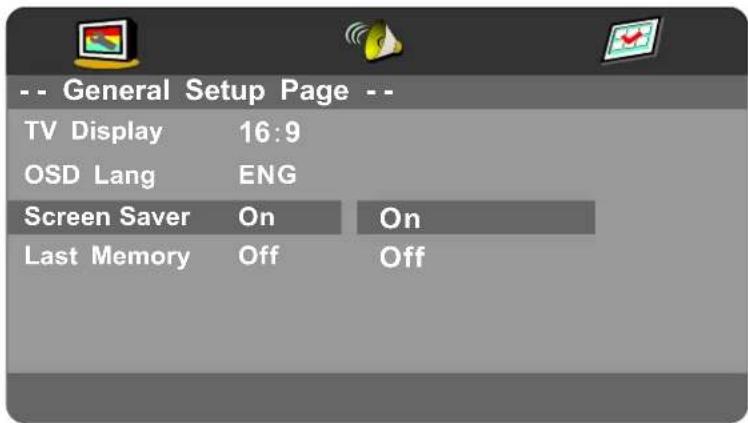

Screen Saver Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged.

• On (Start the screen saver).

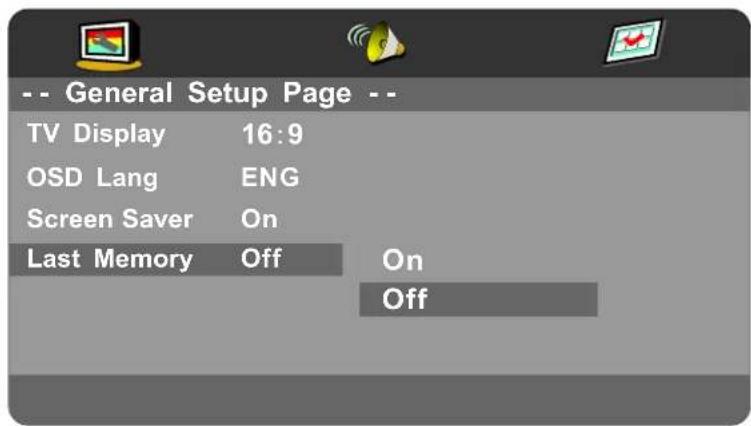

• Off (Remove the screen saver). Last Memory Can set the items on the last memory, “on”and “off” option. Select “on”, shutdown the machine before the settings for memory, re-boot the machine setting. Set near the same time. Select “off”, every time the machine automatically switched back to the default settings.

• On (Start the Last Memory).

• Off (Remove the Last Memory).

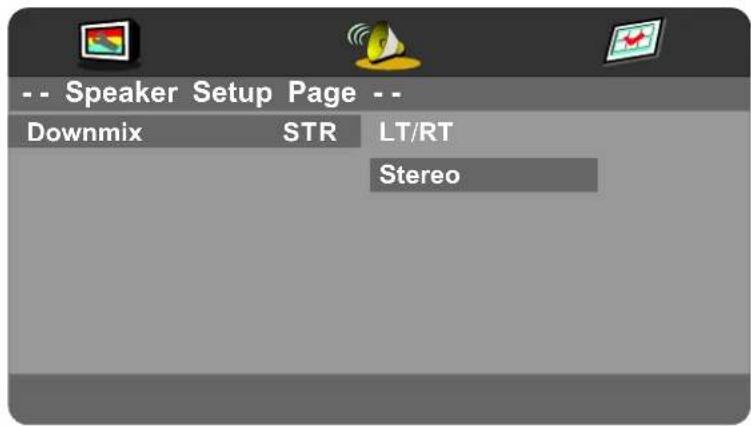

• LT/RT A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

• Stereo A disc recorded multi channel soundtrack, The output signal will be incorporated to stereo.

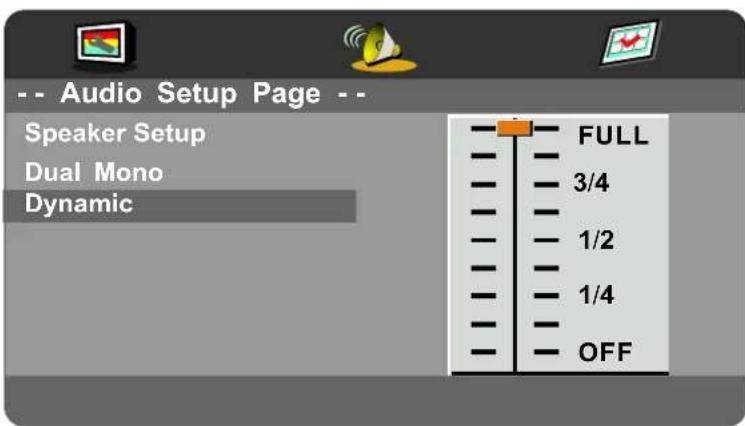

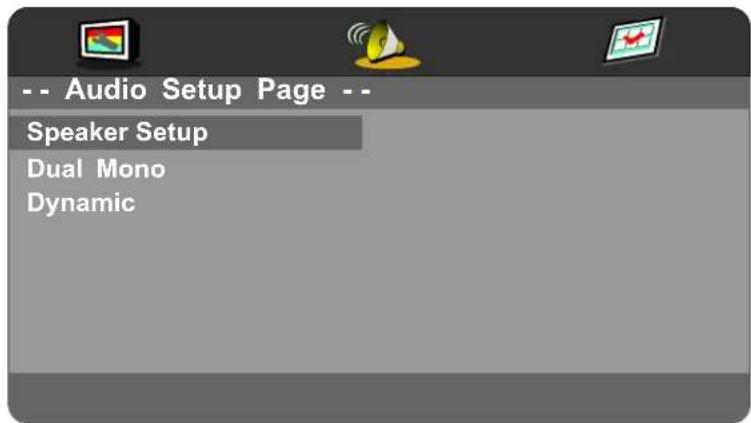

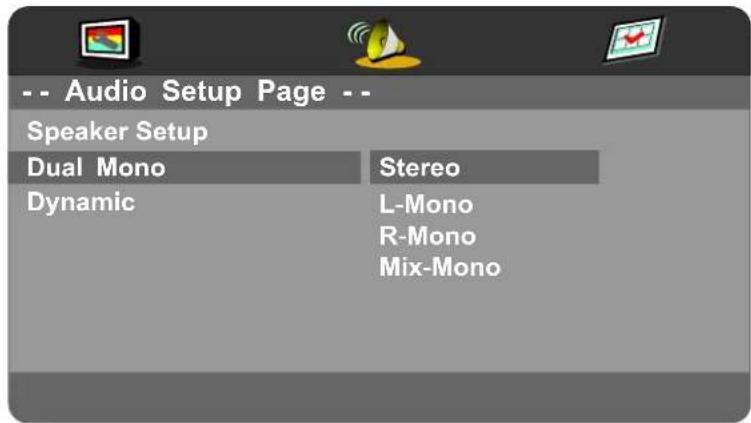

Speaker Setup Dual Mono Dynamic Stereo Mix-Mono R-Mono L-Mono - - Audio Setup Page - - Speaker Setup Dual Mono Dynamic FULL 3/4 1/2 1/4 OFF Dynamic This option is used to set the compression ratio in order to control the sound (Volume) contrast. You must sure no disc in the DVD then you can select Preference Page. TV Type

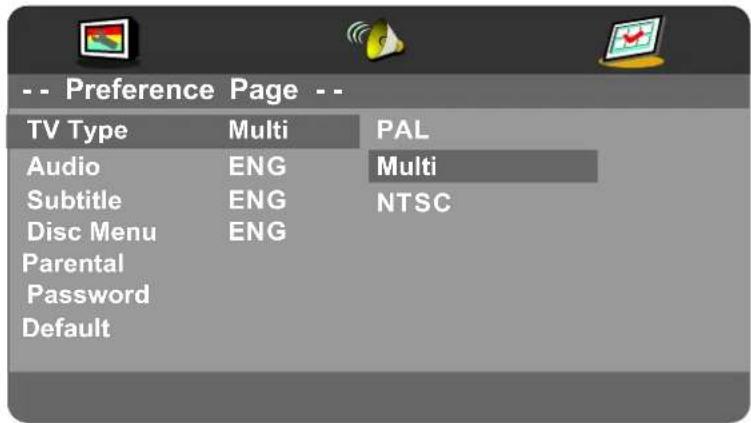

• PAL This is selected when the player is connected to an PAL System TV.

• MULTI The player will set the TV system according to the disc in the tray.

• NTSC This is selected when the player is connected to a NTSC System TV. Dual Mono This is used to select the Stereo, L-MONO, R-MONO and MIX-MONO. Preference Setup

37- - Preference Page - -

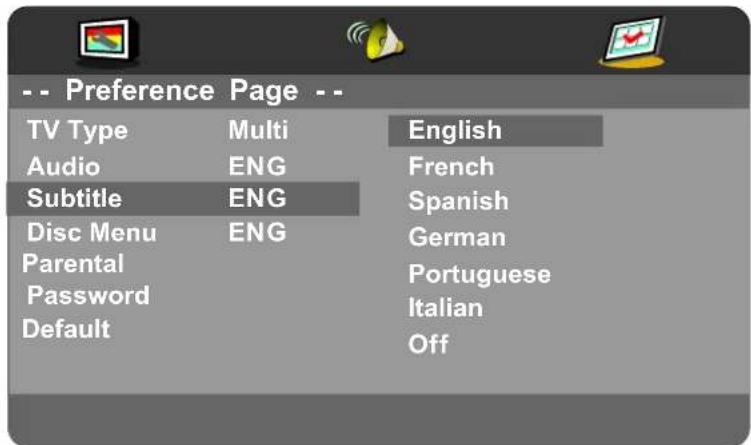

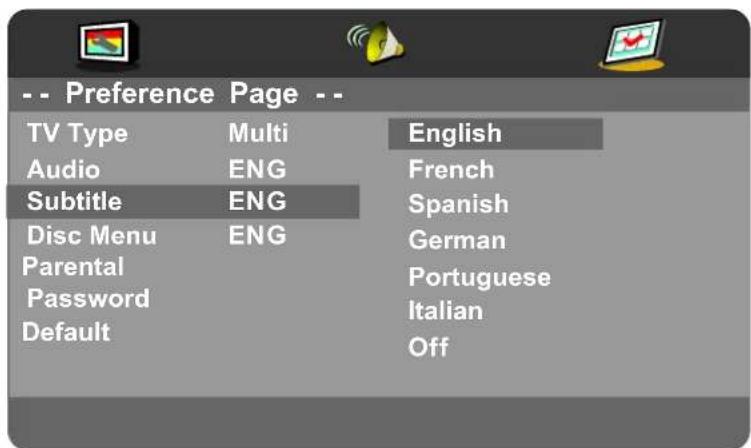

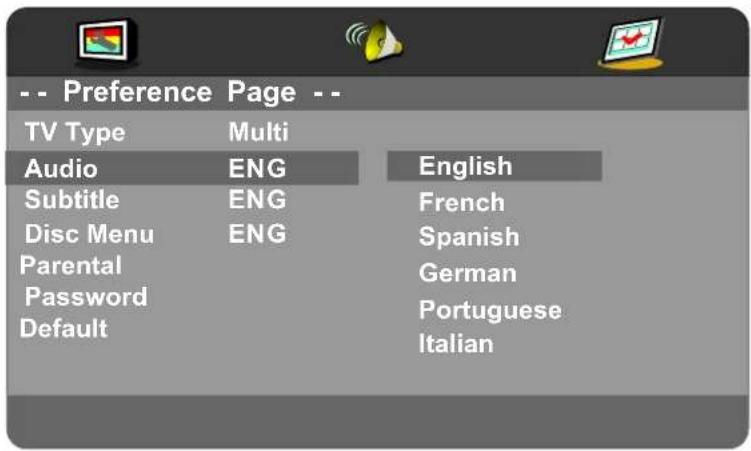

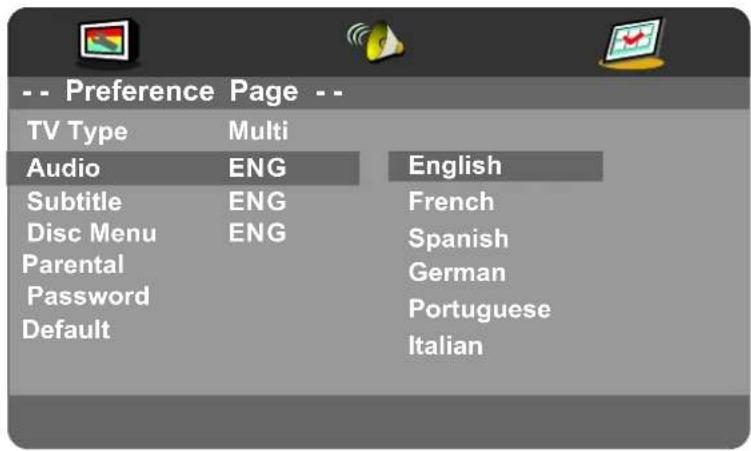

TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG English French Spanish German Portuguese Italian Audio If a language listed below is recorded on the disc, you can play the sound in such language. If not, the language recorded will be used.

• Italian - - Preference Page - - TV Type Audio Subtitle Multi PAL NTSC Disc Menu Password Parental Default Multi ENG ENG ENG - - Preference Page - - TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG English French Spanish German Portuguese Italian Off Subtitle If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language. If not, the language recorded will be used.

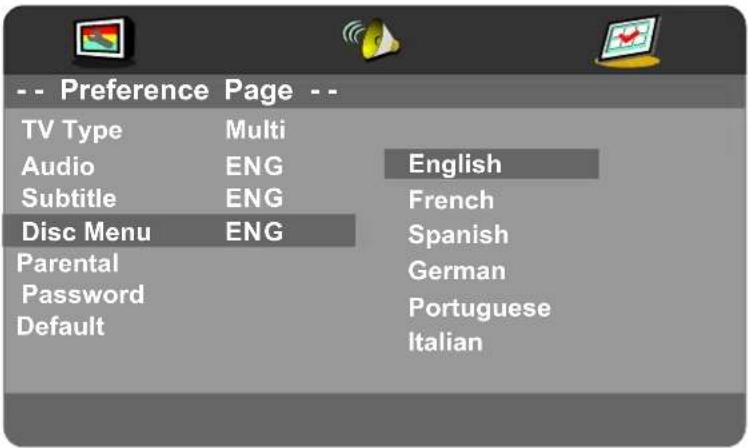

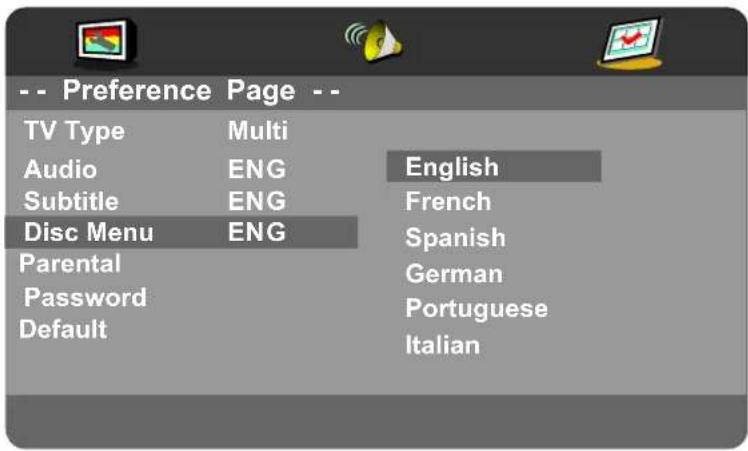

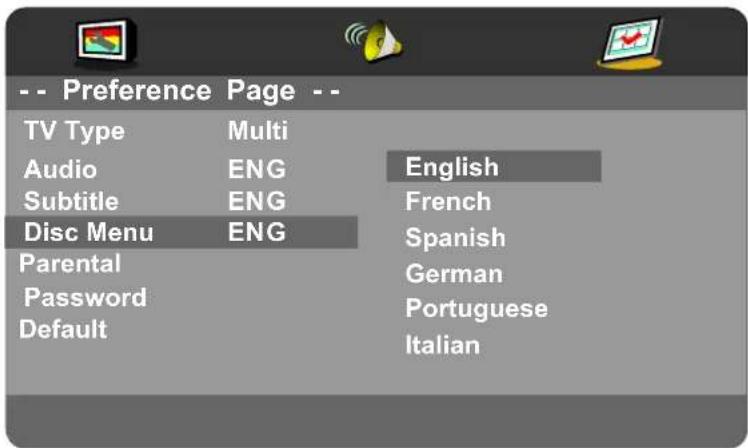

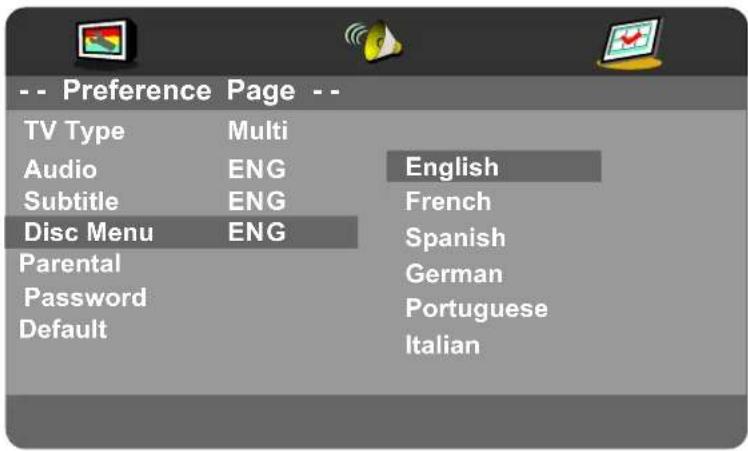

TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG English French Spanish German Portuguese Italian Disc Menu If a language listed below is record on the disc, you can set the Menu to be displayed in such language. If not, the language recorded will be used.

• Italian Parental When playing disc with parental lock function, you may select an Age Control Grade according to grade of disc and your own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade cannot be played.

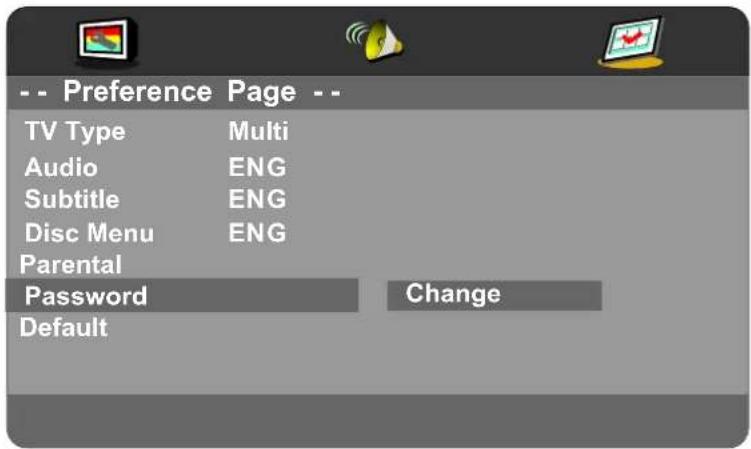

TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG Change Password User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function. NOTE:(Default password is 123456 ) - - Preference Page - - TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG Reset Default User can load the original factory setting by choose RESET and press OK button.

409. TROUBLESHOOTING AND ADVICE

Please check if you can solve the issue by yourself. Control Troubleshooting No signal No color shades Stain showing on the screen Double or multiple display image Snow on the screen The remote control does not work No sound Please check that all cables and cords are correctly plugged in. Adjust the contrast, the color and the brightness. Maybe result from a lighting signal from car, motor, neon light and other electrical devices or appliances. Maybe the result of an electrical wave disturbance from other TV, Computer and Game machine or Radio. The cables of the antenna are not correctly plugged in. Please check the batteries order and alignment.Check that the IR of the remote control is not hidden by something. Make sure that you have not pressed the MUTE button on the panel or the remote control.

No DVD Make sure if the TV Set have been switched to DVD mode DVD player not working properly Ensure disc is correctly inserted into the player. Ensure the disc does not damaged and with correct format. Please wait patiently as some discs need longer time to play.42 10.SPECIFICATIONS This manual is only for your reference, any change to the design and specification will not be advised. 534x49x349534x49x349 534x49x349534x183x403534x183x403 534x183x403 Disc Physical Format Screen Size Display Type Resolution(Pixel) Aspect Ratio TV System Video Input Format Audio Output Power SUPPORT

Power Consumption Power Supply

Power Consumption Power Supply

1019x50x6291019x260x697

3. Press "VOL+" or "VOL-" to increase or decrease

SOURCE D'ENTREESOURCE D'ENTREE

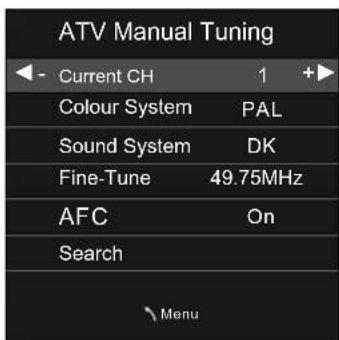

49.75MHz Channel Tuning (TV)

0 programme DTV Radio Data 0 programme 0 programme 0 programme

France Portugal Germany Tune Type ATV+DTV 67.30mHz Menu Enter Belgium

Please enter password CancelClear

Please enter old password CancelClear Please enter new password Confirm new password

Off 16: 9 English French Spanish German Portuguese Italian Off

• Off Sous-titres English French Spanish German Portuguese Italian Off English French Spanish German Portuguese Italian- - Preference Page - - TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG - - Preference Page - - TV Type Audio Subtitle Disc Menu Password Parental Default Multi ENG ENG ENG 2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC17 8 ADULT 1 KID SAF

Power Consumption Power Supply

1019x50x6291019x260x697

RF IN RF IN PHONEPHONE

RF IN RF IN PHONEPHONE

0 programme DTV Radio Data 0 programme 0 programme 0 programme

Please enter old password CancelClear Please enter new password Confirm new password

Neto (Kgs) Bruto (Kgs)

1019x50x6291019x260x697

. USB: . HDMI: . SCART: . PC AUDIO: . VGA(PC): . COAX: Ligue o receptor SPDIF. . PHONE: Connect the headphone.

RF IN RF IN PHONEPHONE

49.75MHz Channel Tuning (TV)

0 programme DTV Radio Data 0 programme 0 programme 0 programme

Italy Spain Poland Tune Type ATV+DTV

Press OK to confirm,Exit to quit Consultation Settings Upgrade

Please enter old password CancelClear Please enter new password Confirm new password

• Off (Eliminar o Last Memory).

1019x50x6291019x260x697

RF IN RF IN PHONEPHONE

RF IN RF IN PHONEPHONE

0 programme DTV Radio Data 0 programme 0 programme 0 programme

France Portugal Germany Tune Type ATV+DTV 67.30mHz Menu Enter Belgium

Press OK to confirm,Exit to quit Consultation Settings UpgradePicture Mode Standard Colour Temp Normal Noise Reduction Middle Contrast 50 Brightness 50 Colour 50 Tint 50 Sharpness PICTURE

Please enter old password CancelClear Please enter new password Confirm new password
