Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV is damaged, do no install it and contact your dealer. Check that you have all the accessories according to the model.

2.SAFETY PRECAUTIONS

Put the TV on a stable surface.

Do not place any material on the TV.

Do not use the TV with fixtures other than those provided or suggested by the manufacturer.

Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.

Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.

Keep the TV dry and away from humidity.

Keep the TV away from heat sources.

Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.

Only clean the TV with a soft and dry cloth.

In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or other incidents.

Unplug the TV during lightening storms or when unused for long periods of time.

1. where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable;

2.A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

3.A warning that an apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

3. IN THE CARTON

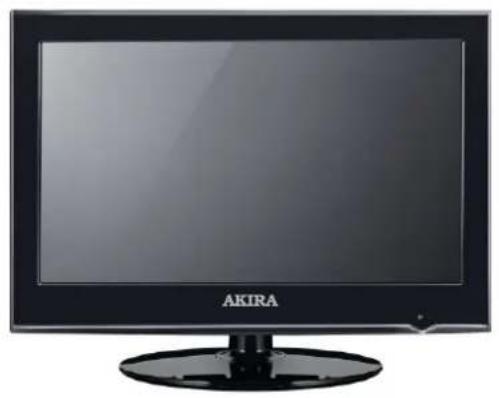

LED TV SETLED TV SET

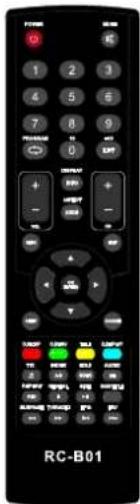

Remote Control Remote Control

Adapter &Power Cord

AAA Batteries

USER'S MANUAL

User Manual

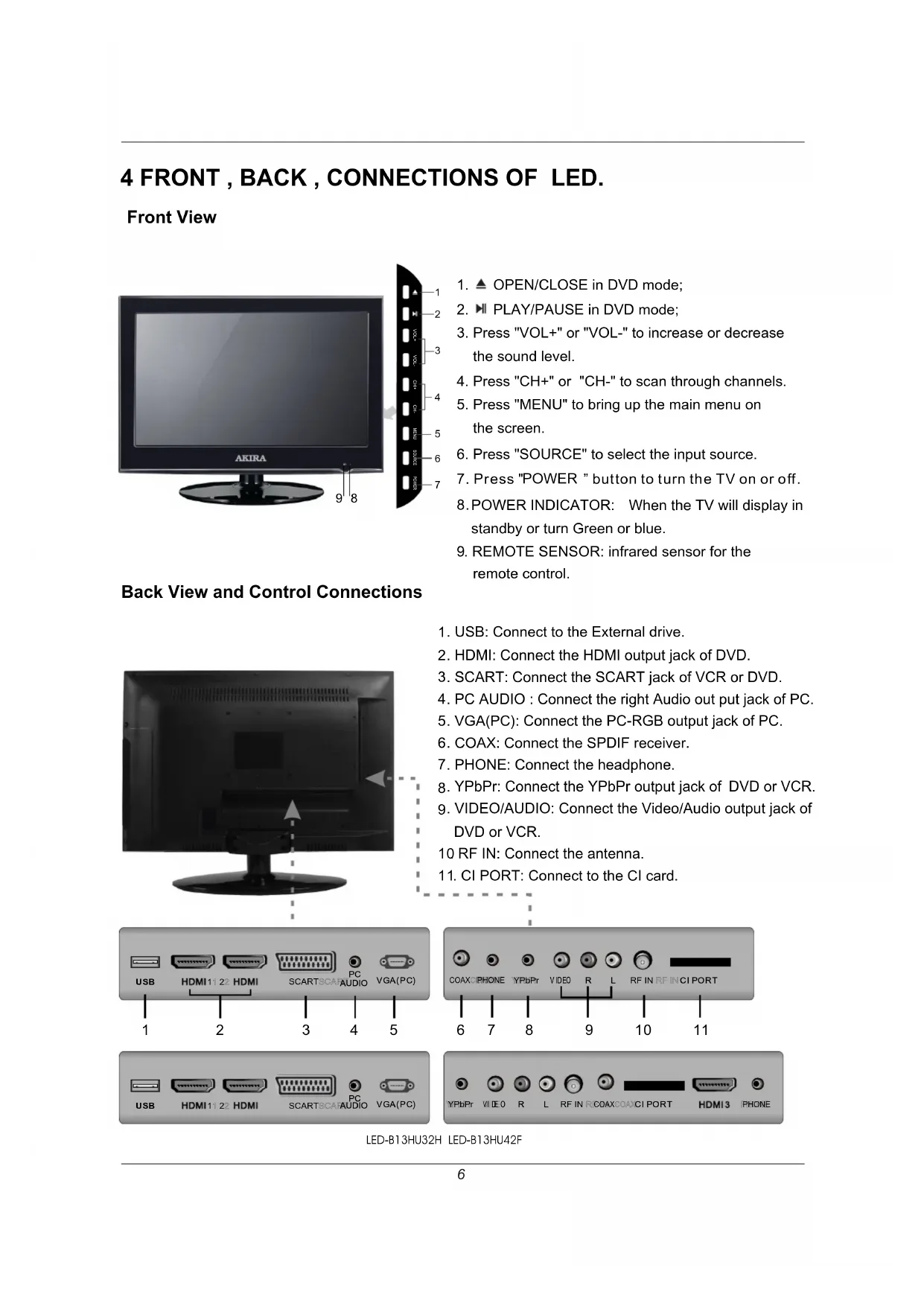

4 FRONT, BACK, CONNECTIONS OF LED.

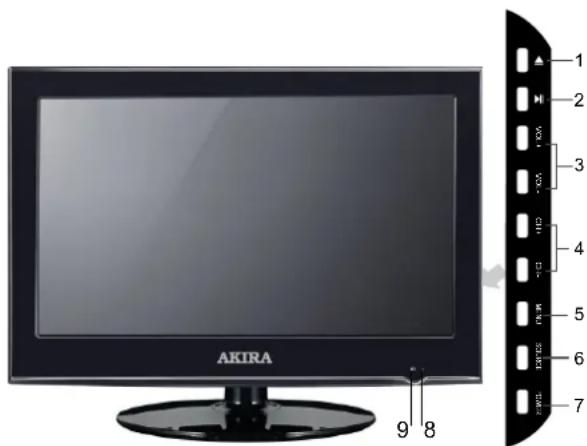

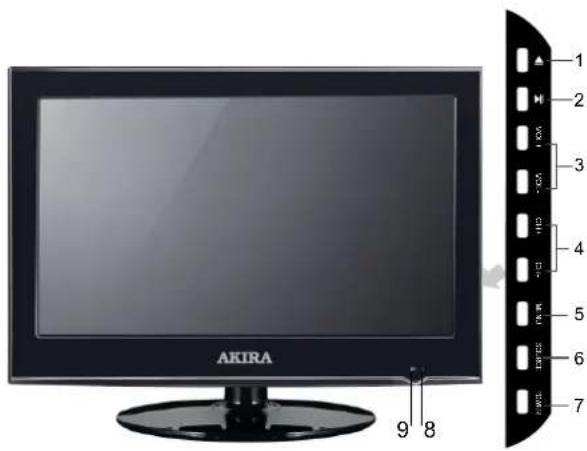

Front View

1. OPEN/CLOSE in DVD mode;
2. PLAY/PAUSE in DVD mode;
3. Press "VOL+" or "VOL-" to increase or decrease the sound level.
4. Press "CH+" or "CH-" to scan through channels.
5. Press "MENU" to bring up the main menu on the screen.
6. Press "SOURCE" to select the input source.
7. Press "POWER" button to turn the TV on or off.
8. POWER INDICATOR: When the TV will display in standby or turn Green or blue.
9. REMOTE SENSOR: infrared sensor for the remote control.

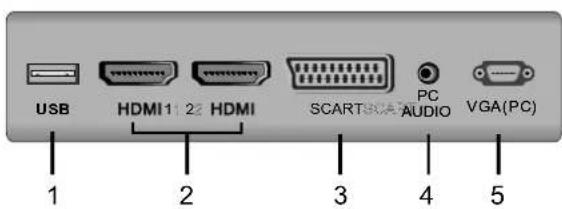

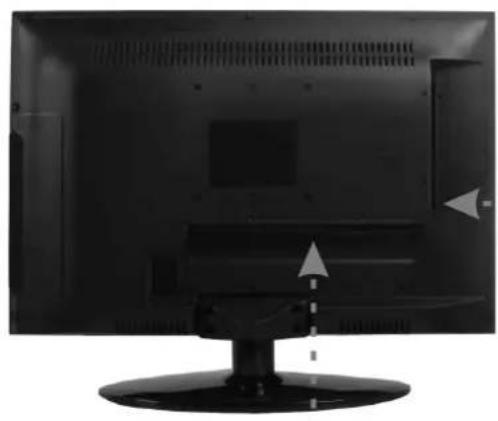

Back View and Control Connections

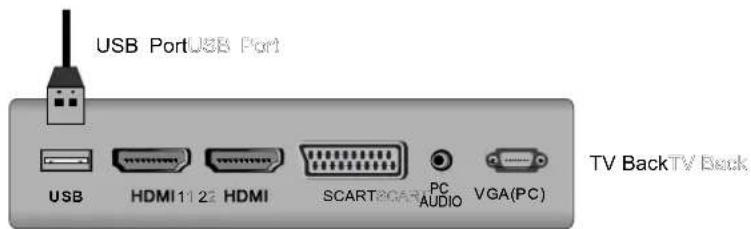

1. USB: Connect to the External drive.
2. HDMI: Connect the HDMI output jack of DVD.
3. SCART: Connect the SCART jack of VCR or DVD.
4. PC AUDIO: Connect the right Audio out put jack of PC.
5. VGA(PC): Connect the PC-RGB output jack of PC.
6. COAX: Connect the SPDIF receiver.
7. PHONE: Connect the headphone.
8. YPbPr: Connect the YPbPr output jack of DVD or VCR.
9. VIDEO/AUDIO: Connect the Video/Audio output jack of DVD or VCR.

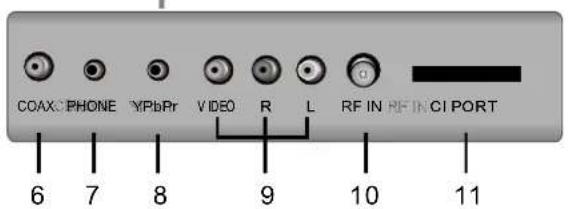

10 RF IN: Connect the antenna.

1. CI PORT: Connect to the CI card.

Power Cord Connection

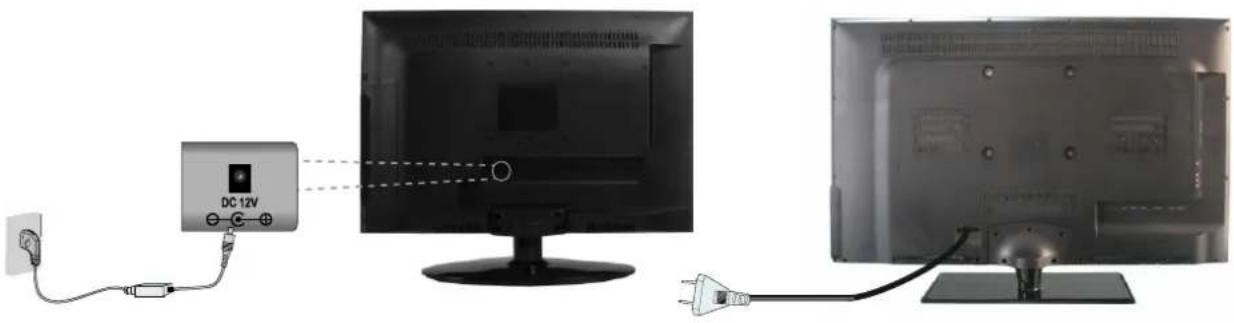

• Connect the power cord correctly as shown.
• Press the POWER button of your LED TV to switch on the LED TV. The power indicator on the front panel lights up in Green or Blue.

Antennas Connection

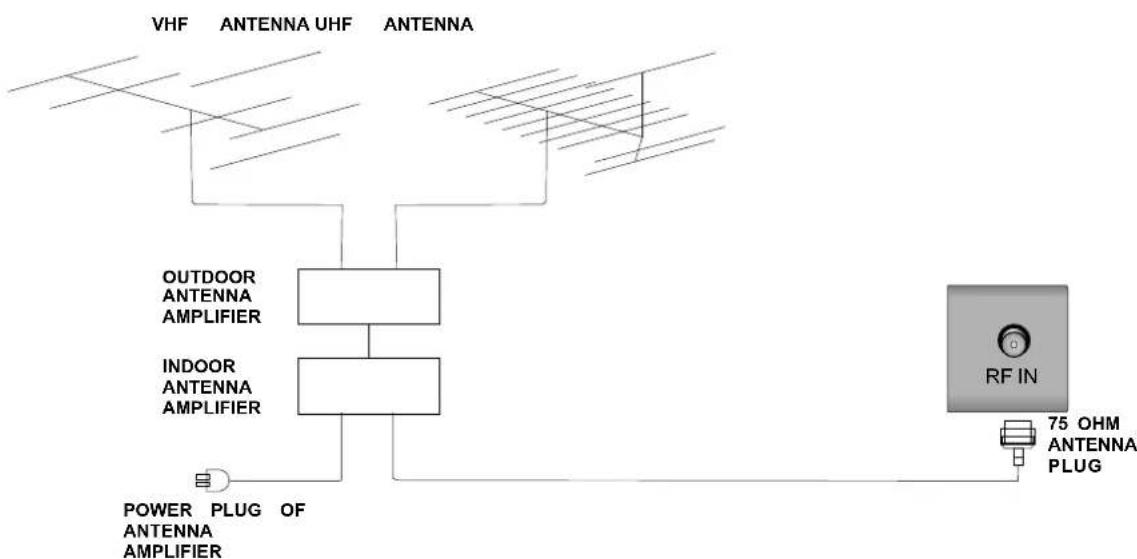

To ensure good picture and sound, TV antenna system needs to be installed. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

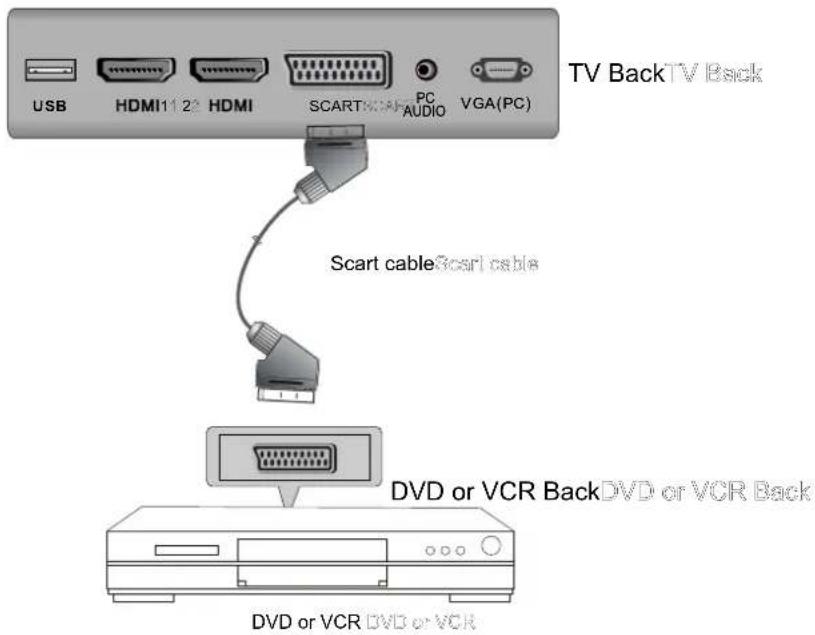

SCART Connection

Connect the SCART connector to the external video item and the SCART connector on the tv. The SCART lead operates as an Input/Output connection. If the tv does not select the SCART input automatically, select SCART using the SOURCE button on the remote control or TV.

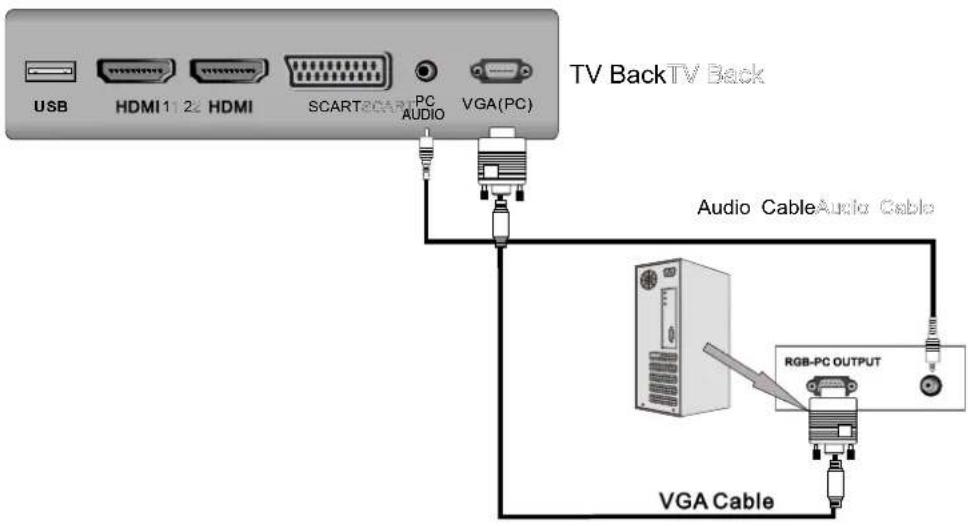

VGA(PC) Connection

Connect the RGB output of the PC to the VGA jack on the TV set. Connect the AUDIO output of the PC to the PC AUDIO jack on the TV set. Select the VGA input source via the SOURCE button on the remote control.

AV Connection

TV Back TV Back

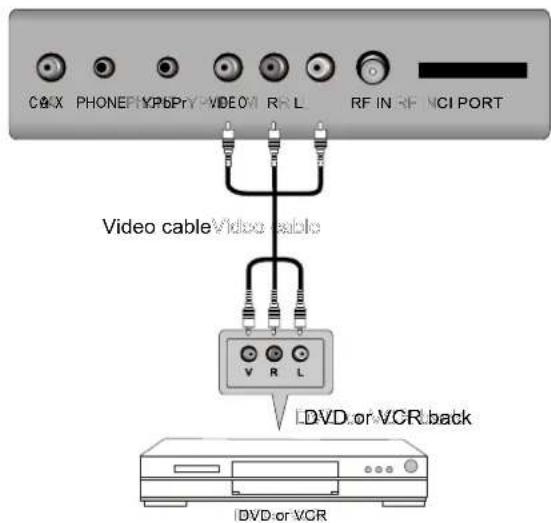

Connect the Video and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the TV set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source via the SOURCE button on the remote control.

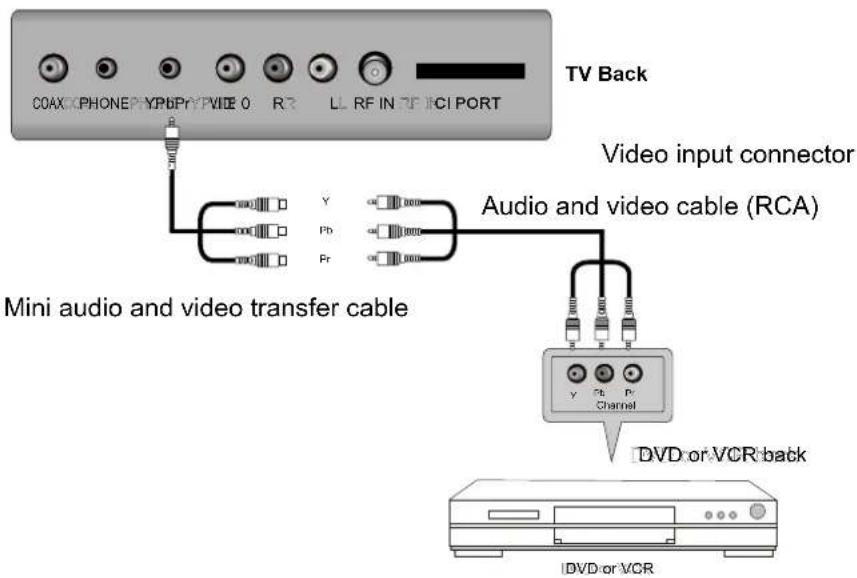

YPbPr Connection

Connect the YPbPr output of the DVD or VCR to the YPbPr input on the TV set. Connect the Audio output of the DVD or VCR to the Audio input jacks on the TV set using the RCA cable. Match the jacks colors: Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select YPbPr input source via the SOURCE button on the remote control.

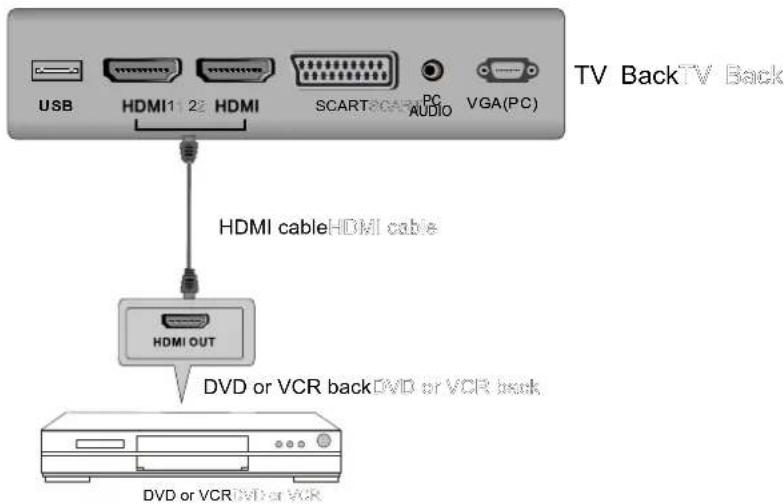

HDMI Connection

The HDMI input connection enables the digital transfer of audio/video/control signals through one cable only.

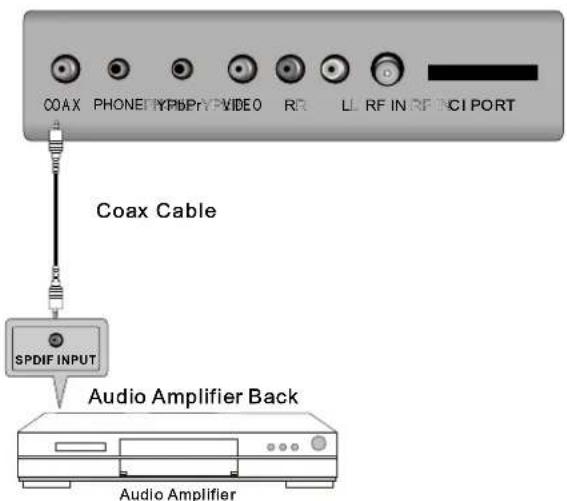

COAX Connection

Connect to Audio Amplifier device to the COAX output jack on the TV.

USB PORT FUNCTION

Insert the USB flash drive to the USB port. Select USB channel source via the SOURCE button on the remote control.

6 REMOTE CONTROL.

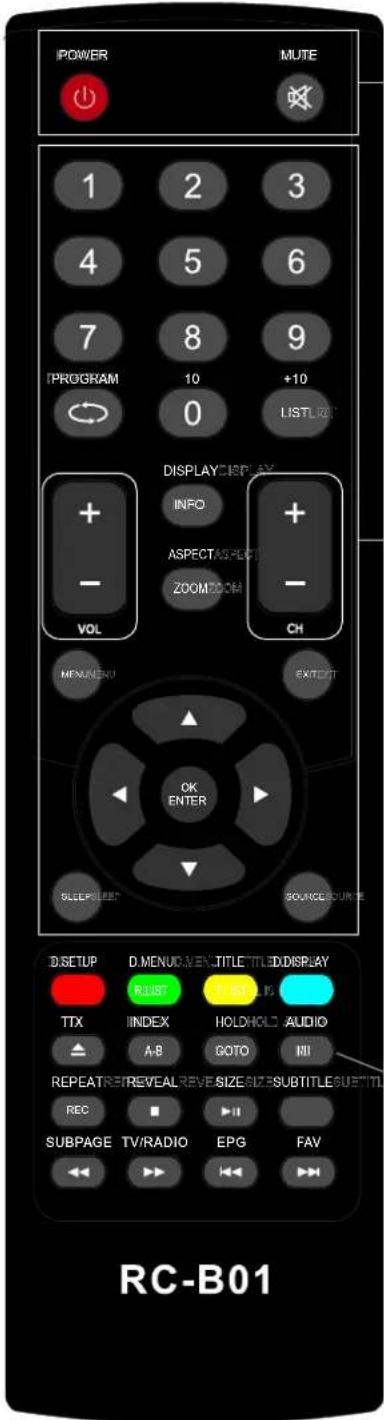

Remote control instructions in TV mode

POWER

Turn the LED TV ON or OFF.

MUTE

Press to mute the sound. Press again or press VOL+ to un-mute the TV.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds.

Return to the previous channel viewed.

LIST

Press to display the TV program list.

DISPLAY

Press to display the source and channel's information.

ASPECT

Selects screen display ratio.

VOL+/VOL-

Press to increase / decrease the sound level.

CH+/CH-

Press to scan through channels.

MENU

Brings up the main TV menu to the screen.

SOURCE

Press SOURCE to display the OSD input source,

Press to select an input source, and then press

OK to confirm.

THUMBSTICK(▲/▼/▲/▶/OK ENTER)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

SLEEP

Lets you select amount of time before your TV turn itself off automatically.

EXIT

Exit the main TV menu to the screen.

AUDIO(I/II)

Press to search the NICAM modes.

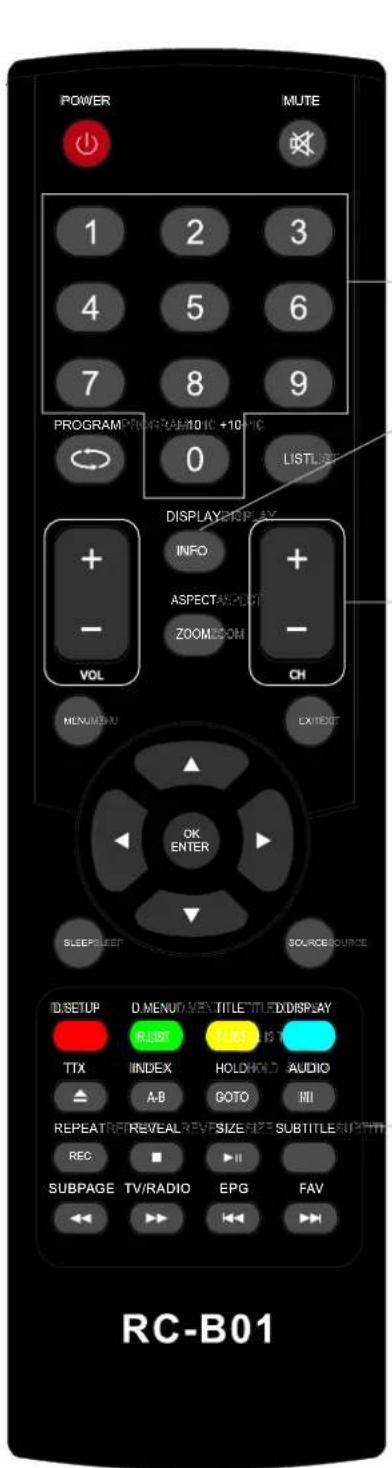

Remote control instructions in DTV/USB mode

NUMBER BUTTONS

Press 0-9 to select a channel.

INFO

Press to display the source and channel's information.

CH+/CH-

When watching a channel, changes the channel.

COLOR BUTTONS

Color buttons (respectively red, green, yellow and blue) used in a few sub-menus.

T.LIST

Press to display the Record Timer Schedule List.

R.LIST

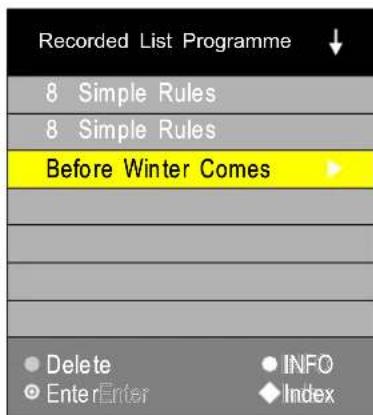

Display the recorded file list.

SUBTITLE

To display subtitle in DTV mode.

FAV

Favorite program list.

REC

Press to record the TV program in DTV mode.

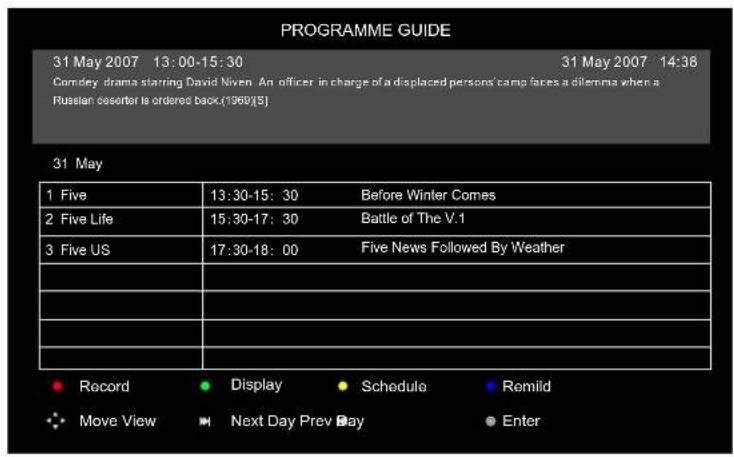

EPG

Launches the EPG(Electronic Program Guide)in DTV mode.

AUDIO

To display audio menu.

TV/RADIO

When watching a channel, allows you switch between TV and Radio modes.

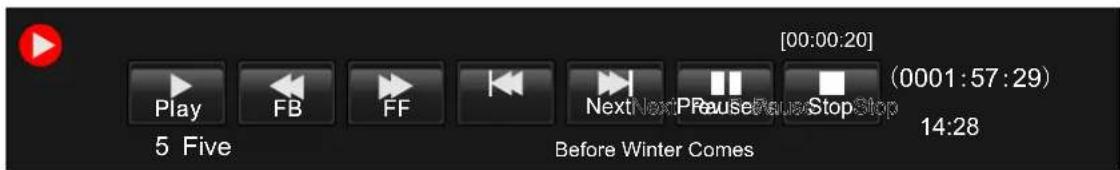

II (Timeshift)

Play or pause.

Press to enter Timeshift, the image paused and it start record from the paused position.

Stop playing or stop recording.

Fast reverse and Fast forward.

Previous / next chapter in USB mode, or play the Previous /next scene of the recorded programs, jump by 30 seconds.

REPEAT

Press to select the repeat mode in USB mode.

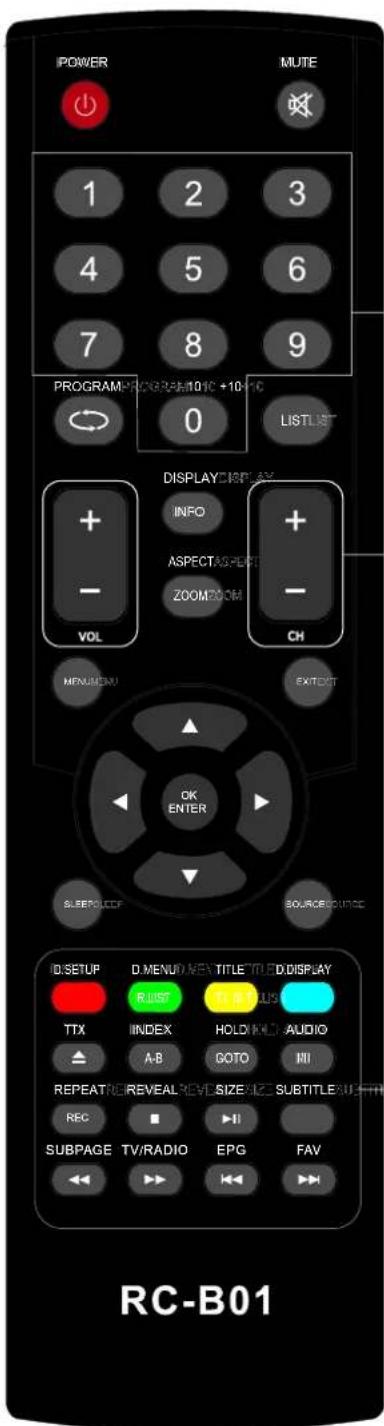

Remote control instructions in TELETEXT mode

NUMBER BUTTONS

Press 0-9 to select a teletext page.

CH+/CH-

Page up and Page down.

TTX

Press to switch between TV and Teletext mode.

COLOR BUTTONS

Select 4 Preferred TELETEXT page.

SUBTITLE

To display subtitle.

HOLD

Freeze the current page.

SIZE

Change the picture size.

REVEAL

Reveal or hide the hidden words.

INDEX

Request index page when index link is valid.

SUBPAGE

TELETEXT Subpage.

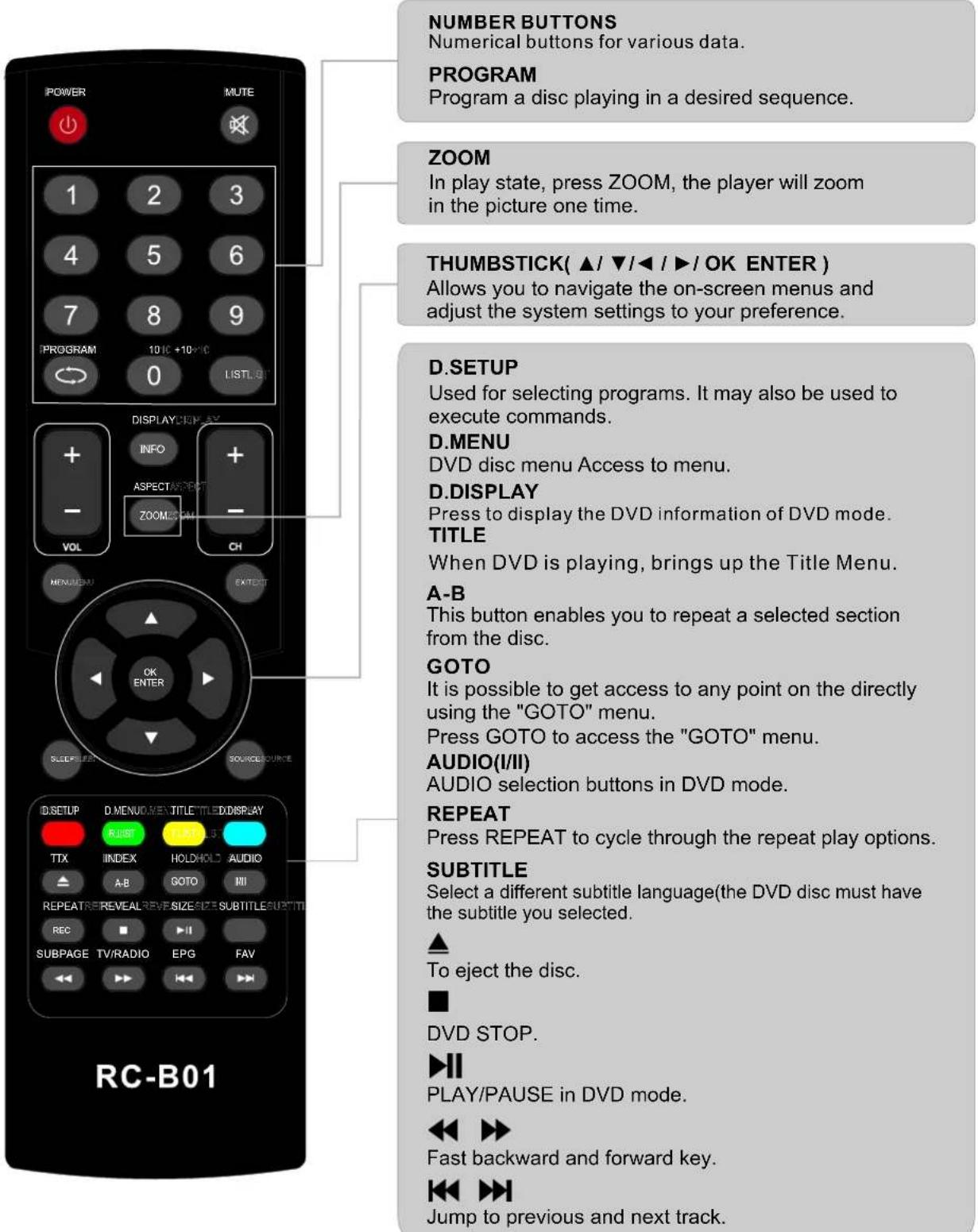

Remote control instructions in DVD mode

Note: Please ensure that the TV you have bought with DVD loader, otherwise, all these parts with no effect.

Remote control setup

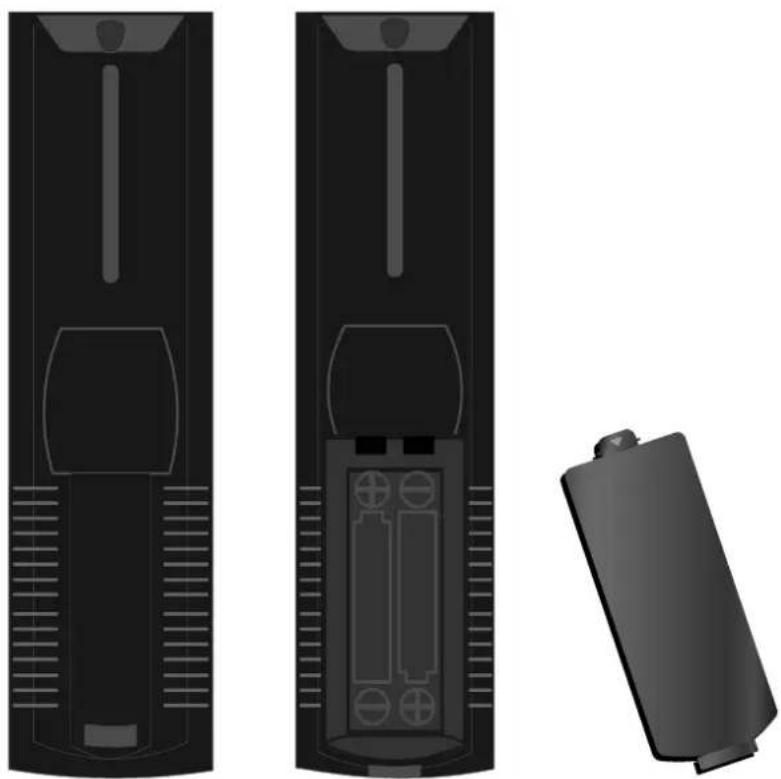

1. Open the cover.
2. AAA size batteries, When inserting the batteries, make sure correct polarities as per "+" and -" marks on the batteries and within the battery compartment .
3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries: (OLD and NEW or CARBON and ALKALINE, etc)
3. Remove batteries when the remote is not used for a long time.

7. MENU OPERATION

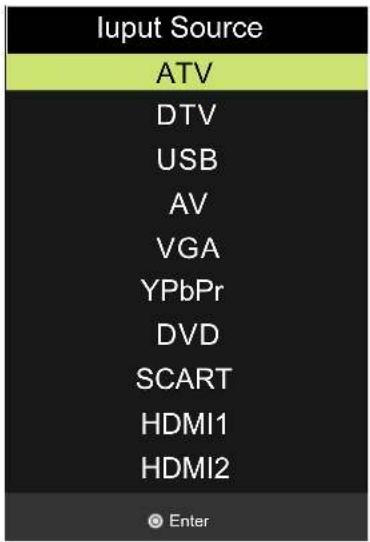

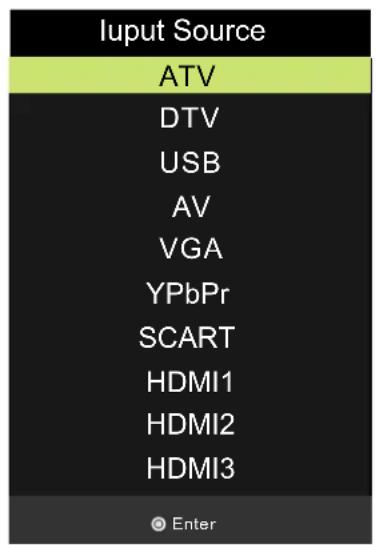

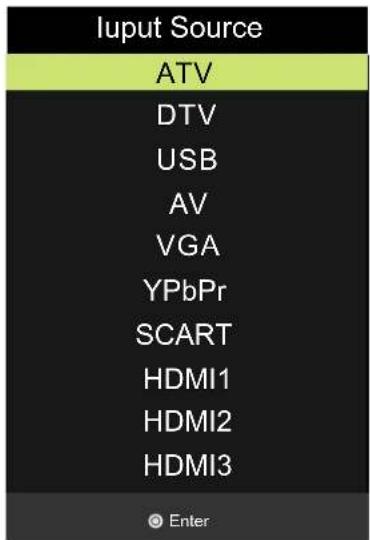

INPUT SOURCE

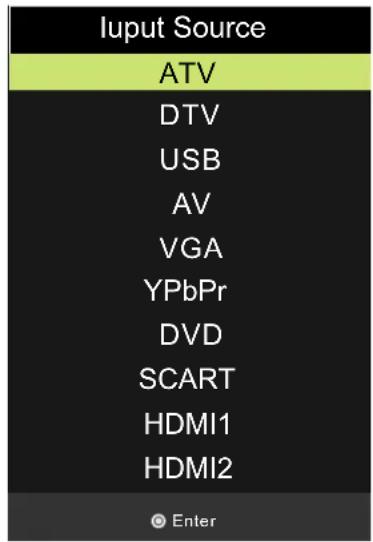

Press SOURCE button to display the input source list;

Press / or SOURCE button to select the input source you want to watch;

Press OK button to enter the input source;

Press EXIT button to quit;

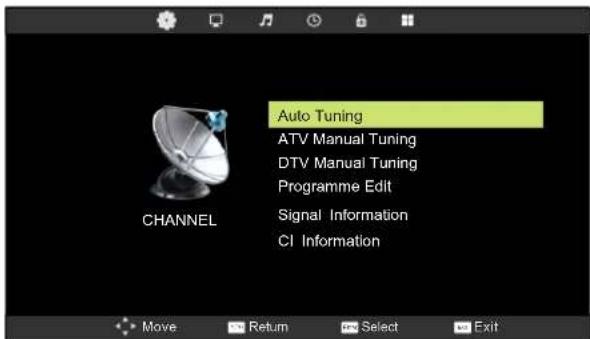

CHANNEL MENU

Press MENU button to display the main menu.

Press / button to select CHANNEL in the main menu, it will highlight the first option.

1. Press / button to select the option that you want to adjust in the CHANNEL menu.
2. Press OK button to adjust.

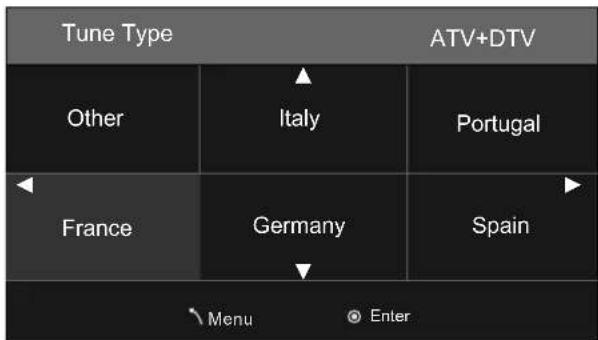

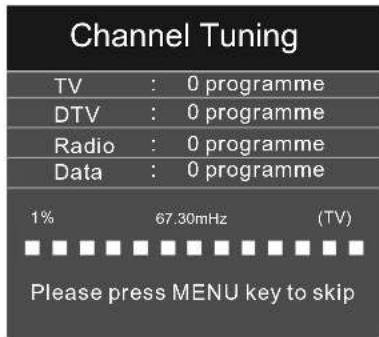

Auto Tuning

Press / button to select Auto Tuning, then press OK button to start auto search.

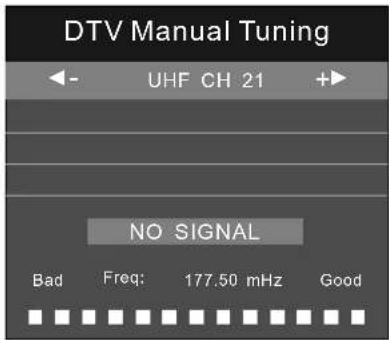

DTV Manual Tuning

Press / button to select DTV Manual Tuning, then press OK button to enter Sub-menu.

Press / button to select channel, then press OK button to search program.

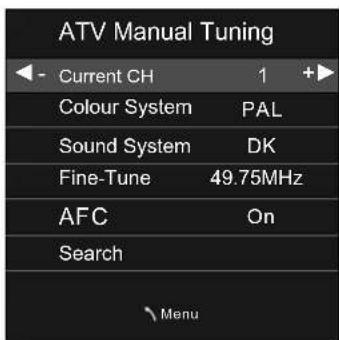

ATV Manual Tuning

Press / button to select ATV Manual Tuning, then press OK button to enter Sub-menu.

Press / button to select channel number you want to store.

Press / button to select colour system.

Press / button to select audio system.

Press / button to select search, then press OK button to start tuning.

Press / button to select Fine-Tune.

Press / to ON or OFF automatic frequency control.

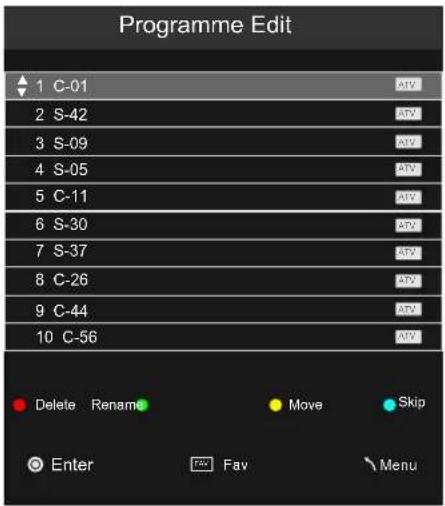

Programme Edit

Press / button to select Program Edit, then press OK button to enter sub-menu.

• Use Red button to delete the current channel.
• Use Green button to set the current channel to Rename.
• Use Yellow button and the / arrow button to move the current channel.
• Use Blue button to skip the current channel.

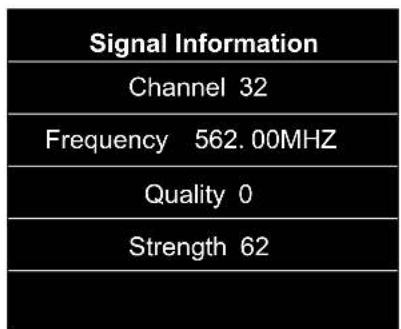

Signal Information

Press / button to select Signal Information, then press OK button to display signal details, Including Channel, Frequency, Quality and Strength.

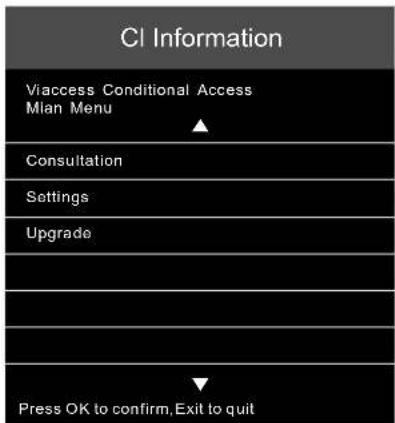

CI Information

Press / button to select CI Information, then press OK button to display details if you has inserted the CI card.

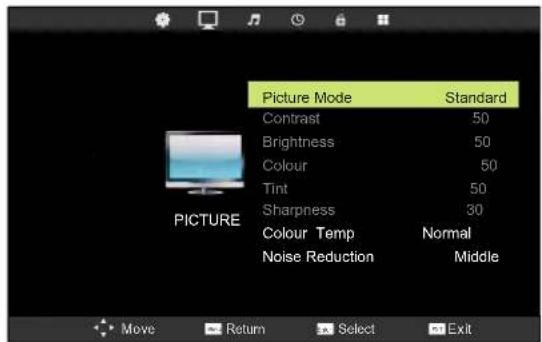

PICTURE MENU

Press MENU button to display the main menu.

Press / button to select PICTURE in the main menu, it will highlight the second option.

1. Press / button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.

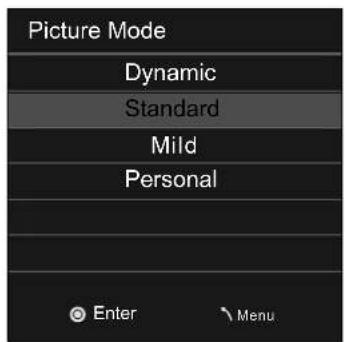

Picture Mode

Press / button to select Picture Mode, then press OK button to enter sub-menu. Press / button to select.

You can change the value of contrast, brightness, colour and sharpness when the picture is in Personal mode.

Contrast

Press / button to select Contrast, then press OK button to enter sub-menu. Press / button to adjust.

Brightness

Press / button to select Brightness, then press OK button to enter sub-menu. Press / button to adjust.

Colour

Press / button to select Colour, then press OK button to enter sub-menu. Press / button to adjust.

Tint

Press / button to select Tint, then press OK button to enter sub-menu. Press / button to adjust.

(Only available in NTSC mode.)

Sharpness

Press / button to select Sharpness, then press / button to adjust.

Colour Temp

Press / button to select Colour Temp, then press OK button to select.

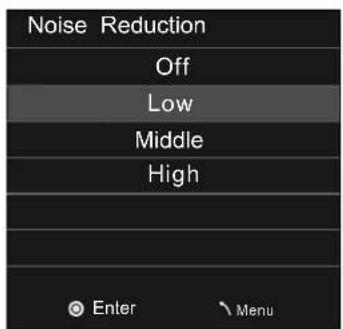

Noise Reduction

Press / button to select Noise Reduction, then press OK button to select.

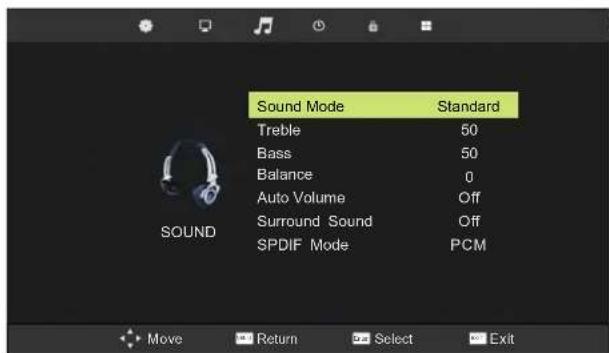

SOUND MENU

Press MENU button to display the main menu.

Press / button to select Sound in the main menu, it will highlight the third option.

1. Press / button to select the option that you want to adjust in the SOUND menu.
2. Press / button to adjust.

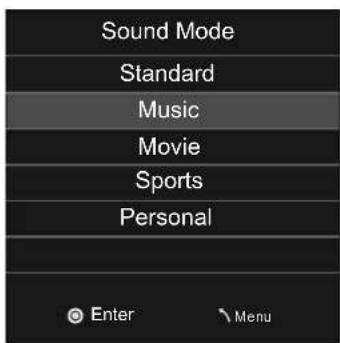

Sound Mode

Press / button to select Sound Mode, then press OK button to enter sub-menu.

Press / button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

SPDIF Mode

Press / button to select SPDIF MODE, then press OK button to select Off/PCM/Auto.

Treble

Press / button to select Treble, then press OK button to enter sub-menu. Press / button to adjust.

Bass

Press / button to select Bass, then press OK button to enter sub-menu. Press / button to adjust.

Balance

Press / button to select Balance, then press OK button to enter sub-menu. Press / button to adjust.

Auto Volume

Press / button to select Auto Volume, then press OK button to select On of Off.

Surround Sound

Surround Sound settings, Press / to set ON/OFF.

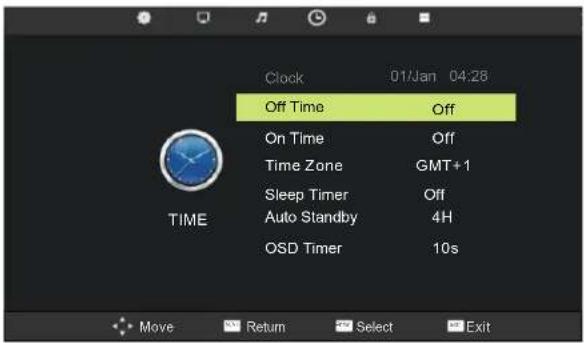

TIME MENU

Press MENU button to display the main menu.

Press / button to select TIME in the main menu, it will highlight the fourth option.

1. Press / button to select the option that you want to adjust in the TIME menu.
2. Press / button to adjust.

Clock

Display the current system time. It's not available.

Time Zone

Press / button to select Time Zone, then press OK button to enter sub-menu.

Sleep Timer

Press / button to select Sleep Timer, then press OK button to enter sub-menu. Press / button to select.

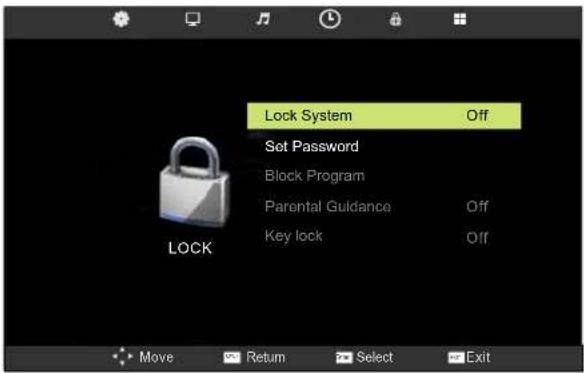

Press / button to select LOCK in the main menu, it will highlight the fifth option.

1. Press / button to select the option that you want to adjust in the LOCK menu.
2. Press / button to adjust.

Lock System

Press / button to select Lock System, then press OK button To make the following options valid.(Default password is '0000').

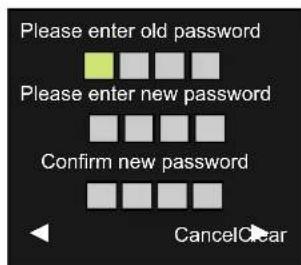

Set Password

Press / button to select Set Password, then press OK button to enter sub-menu to set new password.

Block Program

Press / button to select Block Program, then press OK button to enter sub-menu.
Press / button to select the program you want to lock, then press green button on your remote control. (To unlock program, input the password you set.)

Press OK button to save setting and menu button to back to the previous menu.

Parental Guidance

Press / button to select Parental Guidance, then press OK button to enter sub-menu to select. (Available options are:Off, 4-18)

Key Lock

Press / button to select Key Lock, then press OK button to select on or off.

SETUP MENU

Press MENU button to display the main menu.

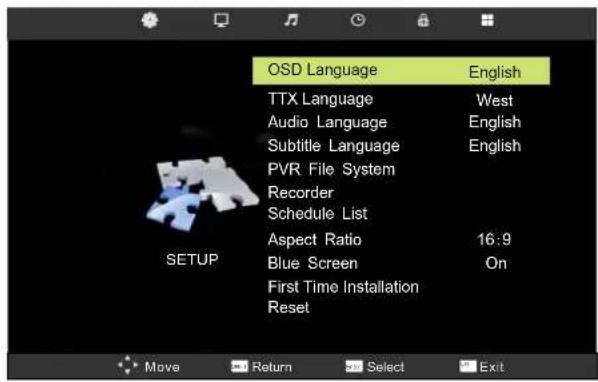

Press / button to select Setup in the main menu, it will highlight the sixth option.

1. Press / button to select the option that you want to adjust in the SETUP menu.
2. Press / button to adjust.

OSD Language/Audio Language/Subtitle Language

Press / button to select OSD/Audio/Subtitle Language, then press OK button to enter sub-menu.

Press / / / button to select OSD language, default setting is English.

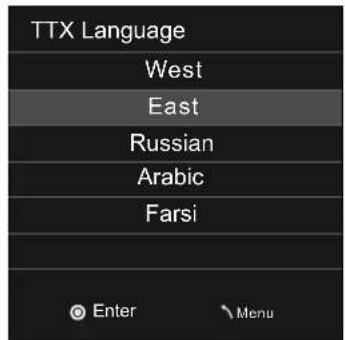

TTX Language

Press / button to select TTX Language, then press OK button to enter sub-menu.

Press / button to select TTX Language

PVR File System

Press / button to select PVR File System, then press OK button to enter sub-menu.

Schedule List

Press / button to select Schedule List, then press OK button to enter sub-menu.

Schedule List 14:27 31th May Edit Menu
Time Date	Program Title	Channel Name
13:30-15:30 Thurs. 31 May Before Winter Comes Five

Recorder

Press MENU button on the remote control to display the main menu; Use button to select SETUP, and use / button to select Recorder. Then press OK button enter the sub-menu.

Aspect Ratio

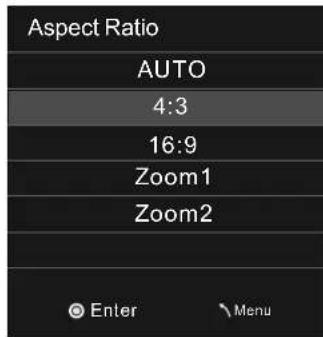

Press / ▲ button to select Aspect Ratio, then press OK button to enter sub-menu.

Blue Screen

Press / button to select Blue Screen, then press / button to select on or off.

First Time Installation

Press / button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.

Reset

Press / button to select Reset, then press OK button to enter a dialogue. Press / button selecting Yes or No.

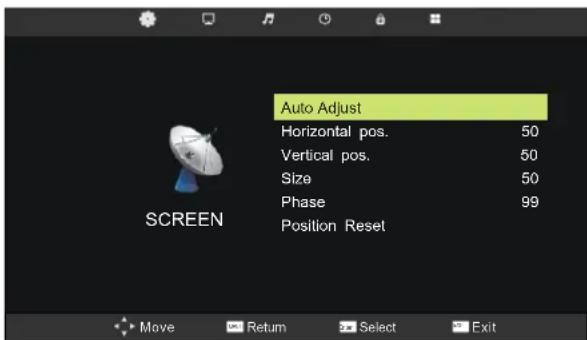

SCREEN MENU

Press MENU button to display the main menu.

Press / button to select Screen in the main menu, it will highlight the first option.(Only available when inputting PC-RGB signal)

1. Press / button to select the option that you want to adjust in the SCREEN menu.
2. Press OK button to adjust.

Auto Adjust

Press / button to select Auto Adjust, then press OK button to start adjusting automatically.

Horizontal Pos.

Press / button to select Horizontal Pos., then press OK button to enter sub-menu. Press / button to adjust.

Vertical Pos.

Press / button to select Vertical Pos., then press OK Button to enter sub-menu. Press / button to adjust.

Size

Press / button to select Size, then press OK button to enter sub-menu. Press / button to adjust display size.

Phase

Press / button to select Phase, then press OK button to enter sub-menu. Press / button to adjust.

VGA(PC)

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. SOUND menu and description are the same as that for DTV mode.
3. LOCK menu and description are the same as that for DTV mode.
   4.PVR File System in SETUP menu is invalid.

AV/SCART/HDMI/YPbPr

Notes:

1. PICTURE menu and description are the same as that for DTV mode.
2. SOUND menu and description are the same as that for DTV mode.
3. LOCK menu and description are the same as that for DTV mode.
4. PVR File System in SETUP menu is invalid.

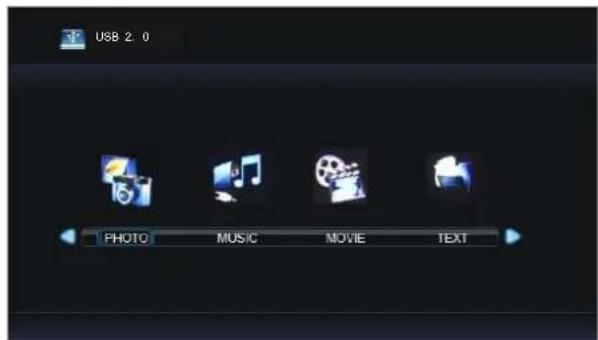

MEDIA(USB) MENU

Note:Before operating MEDIA menu,Plug in USB device,then press SOURCE button to set the Input Source to USB, then press OK button to enter.

Press button to select the option you want to adjust in the main MEDIA menu, then press OK button to enter.

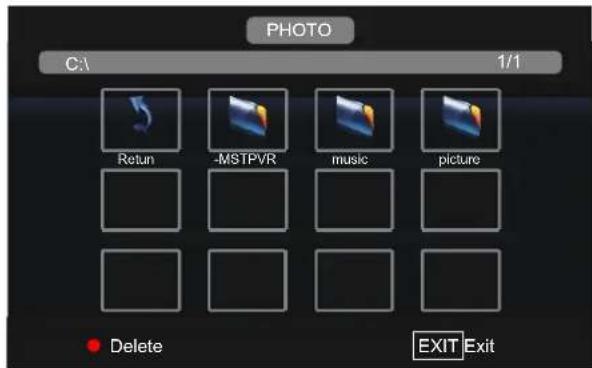

PHOTO Menu

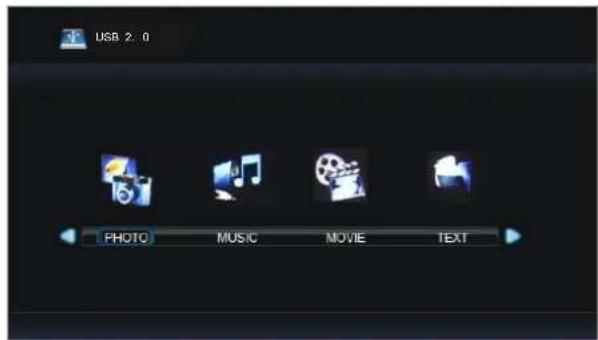

Press button to select PHOTO in the main menu, then press OK button to enter.

Press / button to select drive disk you want to watch, then press OK button to enter.

Press / button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

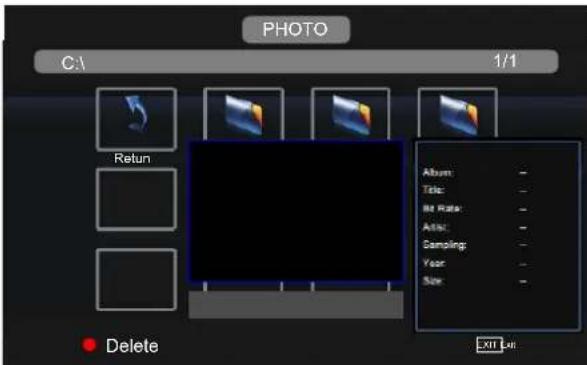

Press button to select the file you want to watch in the file selecting menu, then press OK button to display picture. When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

Press button to select the file folder you want to search in the file selecting menu, then press

OK button on your remote control to enter sub-menu.

Press / button to select the file you want to delete in the file selecting menu, then press red button. On your remote control to delete files.

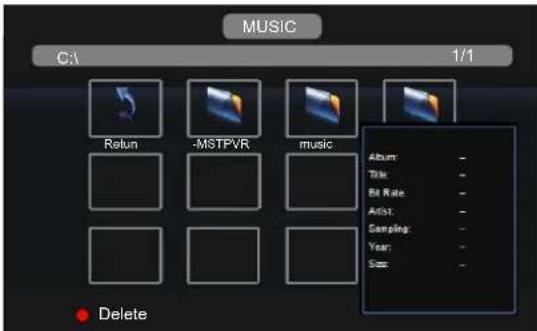

MUSIC Menu

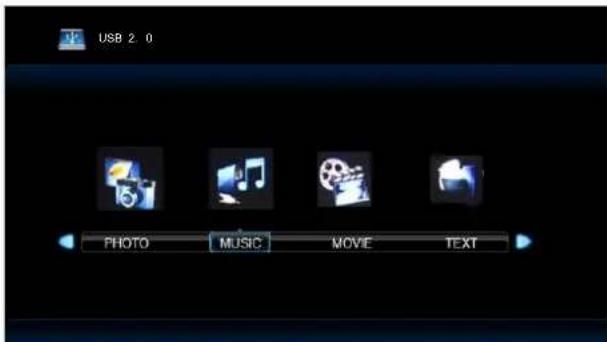

Press / button to select MUSIC in the main menu, then press OK button to enter.

Press / button to select drive disk you want to watch, then press OK button to enter.

Press / button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

reviewed in the center.

Press EXIT button to return back to the previous menu.

Press / button to select the file you want to watch in the file selecting menu, then press OK button to play the selected music.

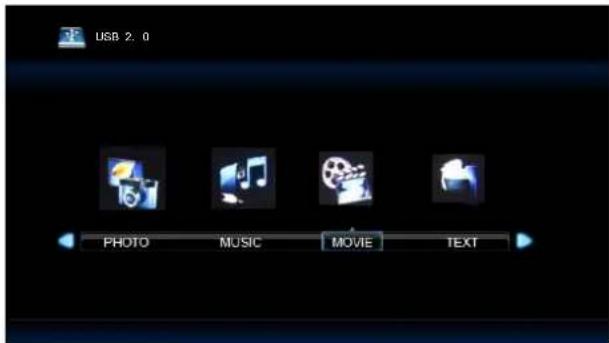

MOVIE Menu

Press / button to select MOVIE in the main menu, then press OK button to enter.

Press / button to select drive disk you want to watch, then press OK button to enter.

Press / button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

When highlighting the option you select, the file information will appear on the right and movie will be previewed in the center.

Press OK button to play the selected movie.

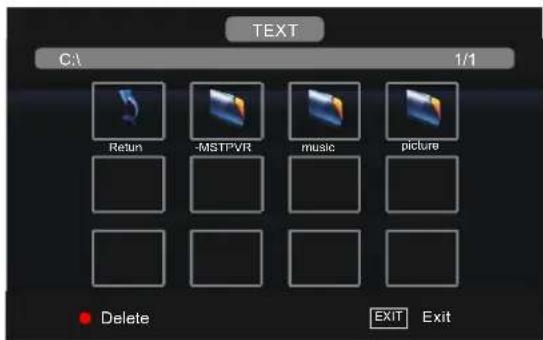

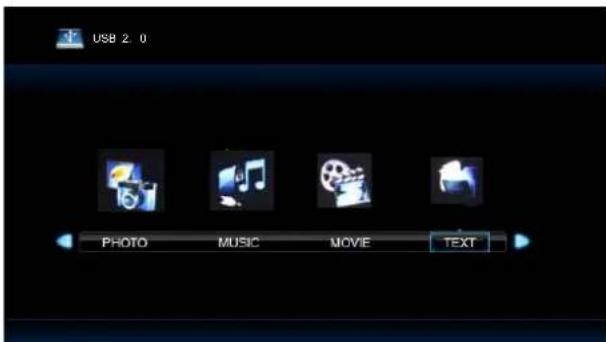

TEXT Menu

Press / button to select TEXT in the main menu, then press OK button to enter.

Press / button to select drive disk you want to watch, then press OK button to enter.

Press / button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

When highlighting the option you select, the file information will appear on the right and text will be previewed in the center.

Press OK button to view the selected text.

PVR MENU

Instant Recorder instant Recorder

Note:Make sure you have insert the USB device to the TV board before you start to do the recording.

Press REC button on your remote control to start record whenever you want to start.

There will be a recording iron on the bottom of the display screen during recording:

Press REC button to display the control bar or hide it.

Press / button to select stop or press stop button on your remote control to stop recording. There will be a dialog as follows:

Press button to select stop VR or not.

Press / button to select to play the recorded program during recording.

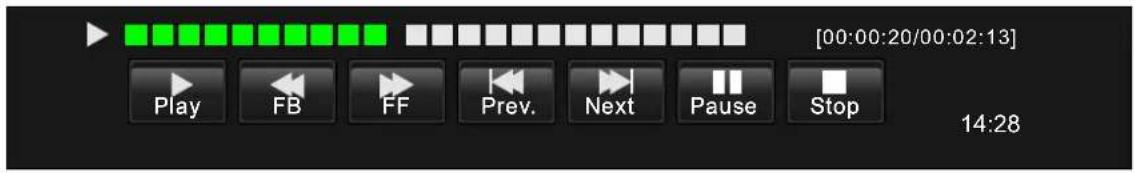

You can press the button on the control bar to play, fastback, fastforward, play previous, play next, pause or stop playing.

Note: you can also play the recorded program in the file named „_MSTPVR" under the MOVIE file in the USB Source.

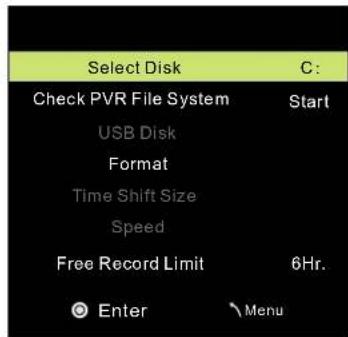

PVR File System

Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press / button to select SETUP in the main menu, then press OK button to enter.

1. Press / button to select PVR File System;
2. Press OK button to enter and press / 动 button to edit.
3. After finishing your adjustment, Press Menu button to save and back to the previous menu.

Select Disk

Press / button to select Select Disk, then press OK button to enter and press / button to select the disk you want to check.

Check PVR File System

Press / button to select Check PVR File System, then press OK button to check the disk you have selected.

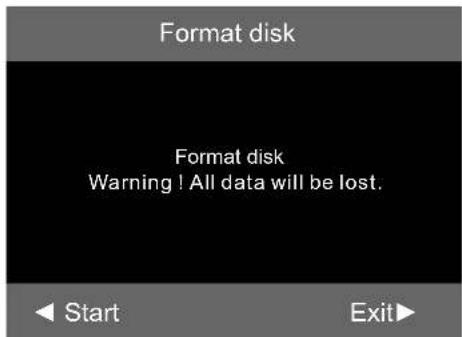

Format

Press / button to select Format, then press OK button to enter the sub menu:

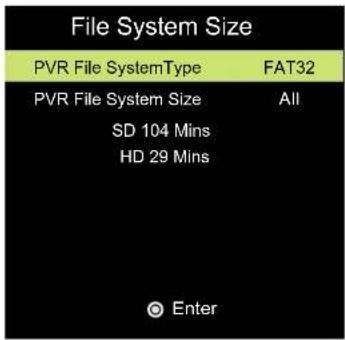

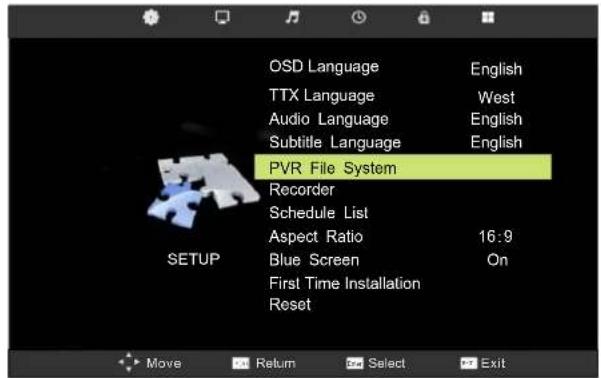

Press select PVR File System Type, then press button to select the system type, press OK button to format the disk, a dialog will be displayed as follows:

Press button to start format or press button to cancel format and back to the previous menu.

Recorder

Press MENU button on the remote control to display the main menu; Use / button to select SETUP, and use / button to select Recorder. Then press OK button enter the sub-menu.

1. Press button to select the item;
2. Press button to adjust.
3. After finishing your settings, Press OK button to save .Then there will display a save successful dialog and a Schedule List which display the recording schedules you just setted, you can press RED button to cancel you setting.

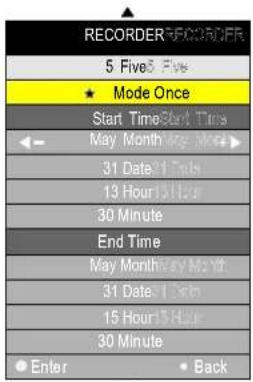

You can select Mode Auto\Mode Once\Mode Everyday\Mode Weekly for recording.

Start Time

Start recording time;

End Time

Recording end time.

Timeshift Timeshift

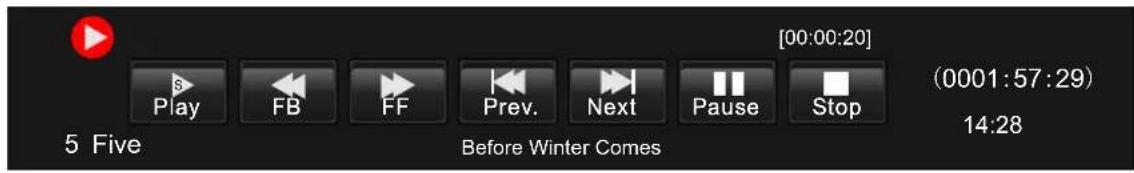

Press button to start Timeshift,there will be a control bar as follows:

The program will stop when you start timeshift, you can continue watching the program by press the PLAY button whenever youwant to watch it within the acquired timeshift time.

You can press the button on the control bar or remote control to play、fastback、fastforward、play previous、play next、pause or stop timeshifting.

Note: During Timesthift, you can not callout Input Source, Menu, Text, FAV List and so on unless you stop it first. During recording, you can't change the channel unless you stop it first; Press POWER button will stop the Timesthift; The Timesthift function doesn't support Timesthift Radio Channel and locked channel.

Record List

Press R.LIST button on the remote control to display the Recorded List.

EPG Menu

Press EPG button in the Remote control.

Record

Record programme. It show record mode when selected,check PVR manual details.

Display

Display shows all the information.

Schedule List

pattern for reference the menu is as follows:

Schedule List 14:27 31th May Delete Back
Time Date	Program Title	Channel Name
13:30-15:30 Thurs. 31 May Before Winter Comes 5 Five

Up and down to move Focus to select programme.

- DELETEDELETE

Delete Focused programme.

BACKBACK

Back to EPG menu.

Remind

Programme reserved. Choose Remind to show the settings menu.

Use up and down to choose setted programme.

8.DVD Operation

Note : please ensure that the TV you have bought bought is with DVD loader, otherwise all this part does not apply.

Basic Operation

1. Press Source button on the remote controller to select DVD input source.
2. Press OPEN / CLOSE button to load from into disc tray.

Hold the disc without touching either or its surfaces, insert the DVD with the label toward the device's back panel into the DVD slot on the right side of you TV set.

Only push the DVD slightly until the unit feeds it automatically.

DVD Setup Mode

• Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, and Preference Page.
• Item selection in the Setup Menu is done by using the Navigation Arrows, D. SETUP button and the OK button.
• Press the D. Setup button first, enter into Setup menu, then press the DIRECTION RIGHT button. you can enter into the next Sub-menu.
• Press the D. Setup button again to exit the Setup Menu.

General Setup

TV Display

This is used to select the aspect 4:3/PS,4:3/LB,16:9.

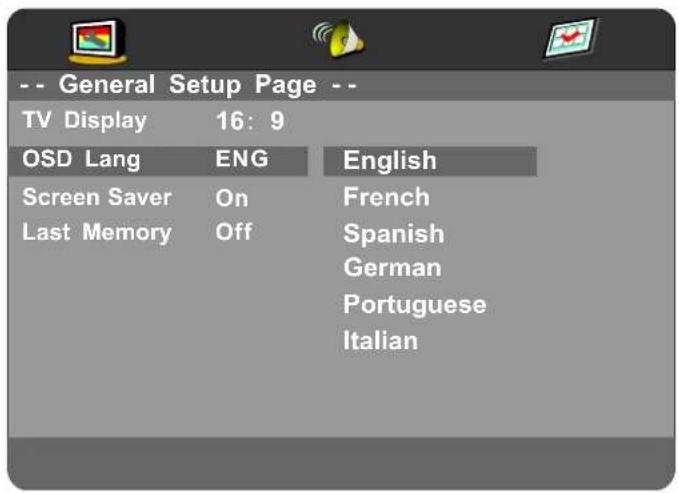

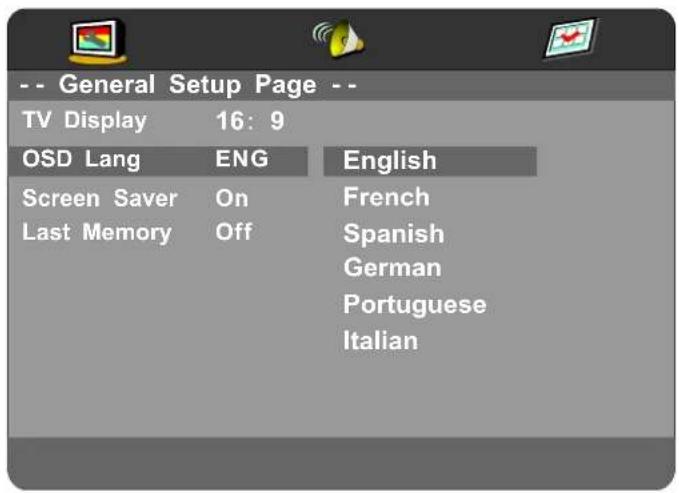

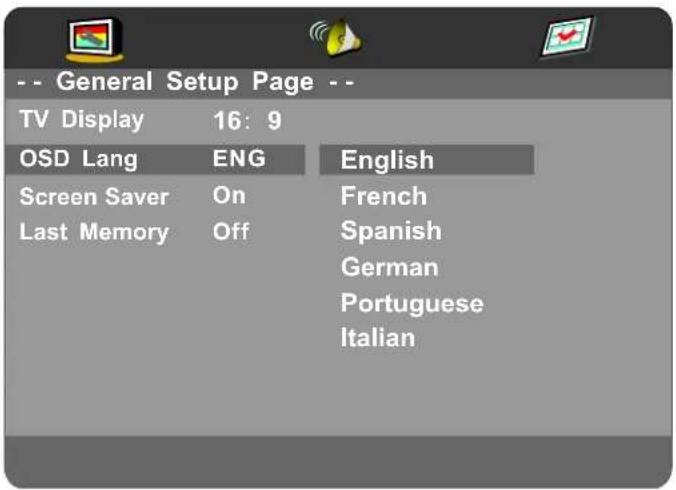

OSD Language

This is used to select the OSD language.

• English
  French
• Spanish
  German
• Portuguese
  Italian

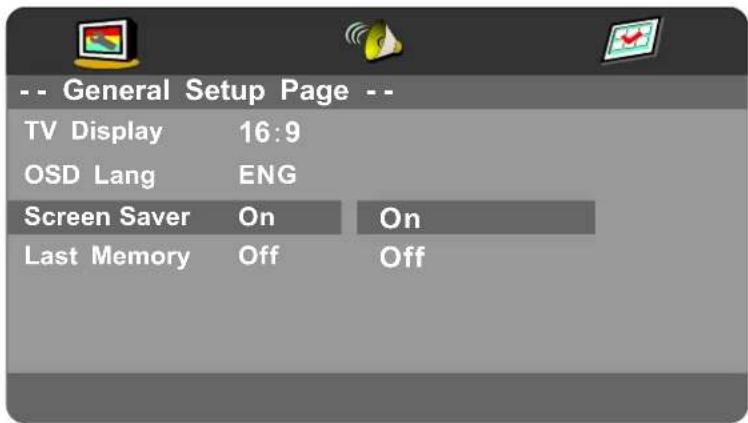

Screen Saver

Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged.

• On (Start the screen saver).
• Off (Remove the screen saver).

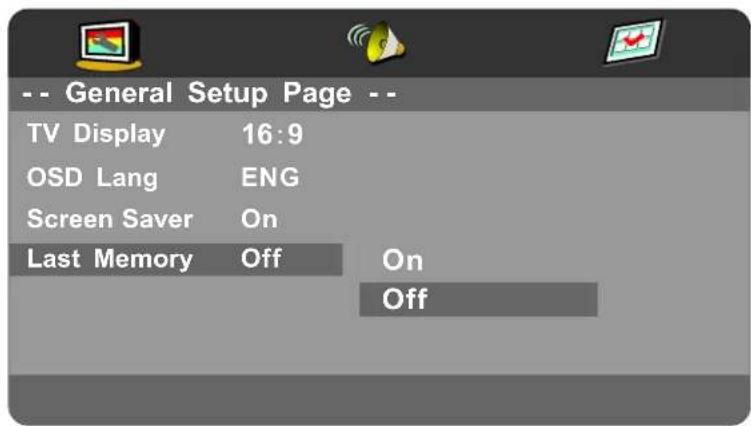

Last Memory

Can set the items on the last memory, "on" and "off" option.

Select "on", shutdown the machine before the settings for memory, re-boot the machine setting.

Set near the same time.

Select "off", every time the machine automatically switched back to the default settings.

• On (Start the Last Memory).
• Off (Remove the Last Memory).

Audio Setup

- Speaker Setup

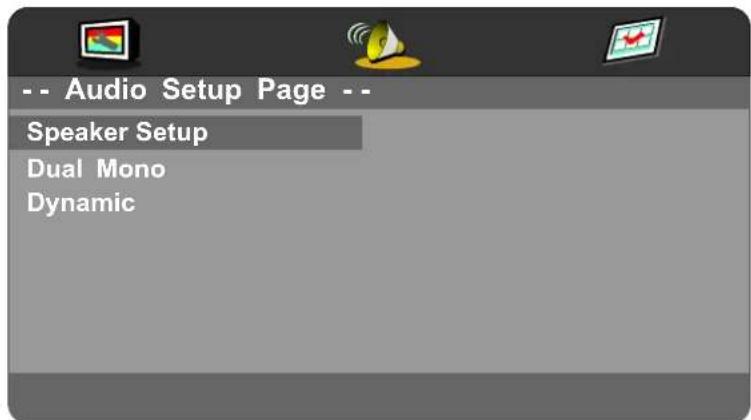

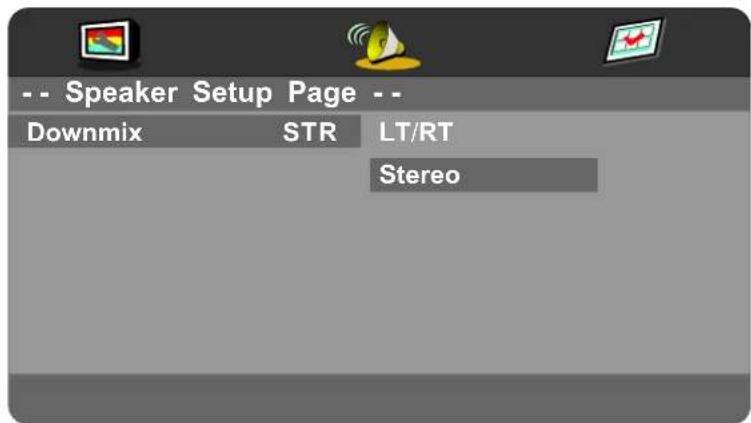

In the "Audio Setup page" press "▼" button to select "Speaker Setup" item, press the "OK ENTER" or "▶" button (play) into the "Speaker Setup Page".

Downmix

LT/RT

A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

• Stereo

A disc recorded multi channel soundtrack, The output signal will be incorporated to stereo.

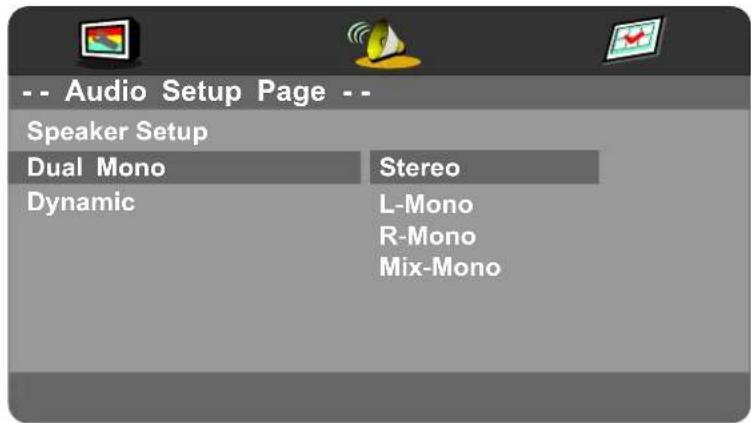

Dual Mono

This is used to select the Stereo, L-MONO, R-MONO and MIX-MONO.

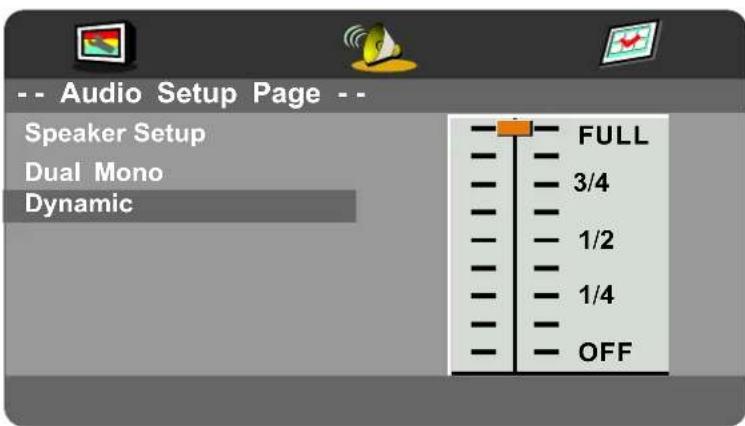

Dynamic

This option is used to set the compression ratio in order to control the sound (Volume) contrast.

Preference Setup

You must sure no disc in the DVD then you can select Preference Page.

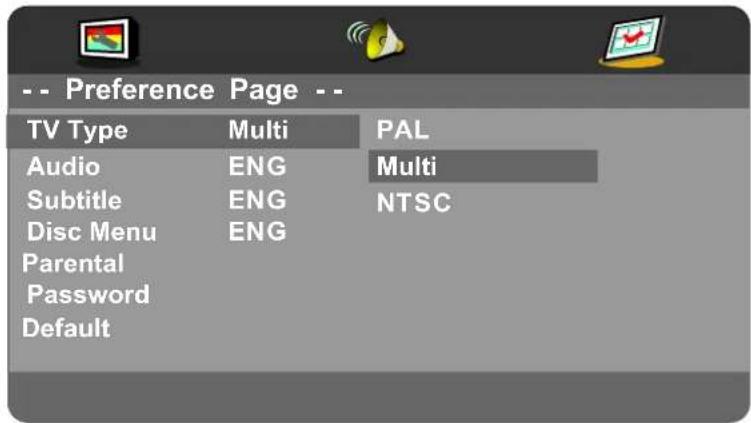

TV Type

• PAL

This is selected when the player is connected to an PAL System TV.

MULTI

The player will set the TV system according to the disc in the tray.

• NTSC

This is selected when the player is connected to a NTSC System TV.

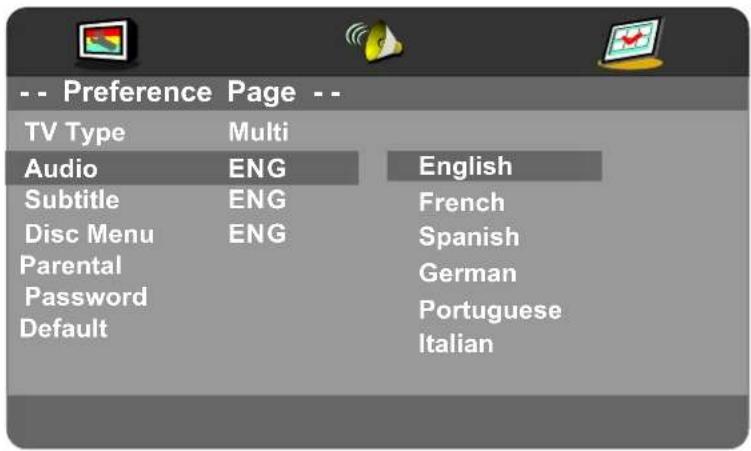

Audio

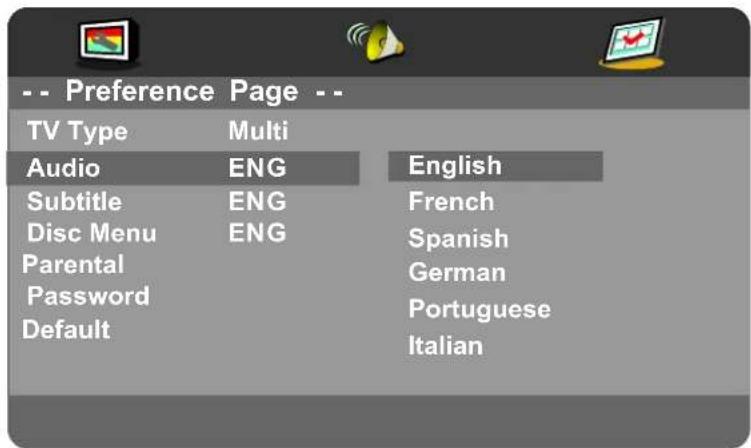

If a language listed below is recorded on the disc, you can play the sound in such language. If not, the language recorded will be used.

• English
  French
  Spanish
  German
• Portuguese
  Italian

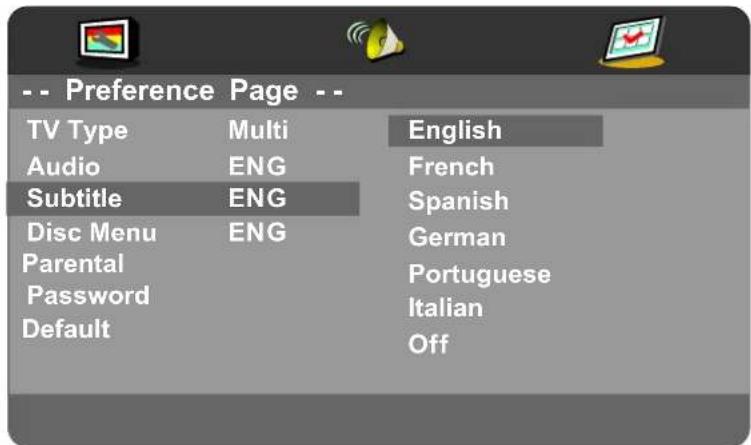

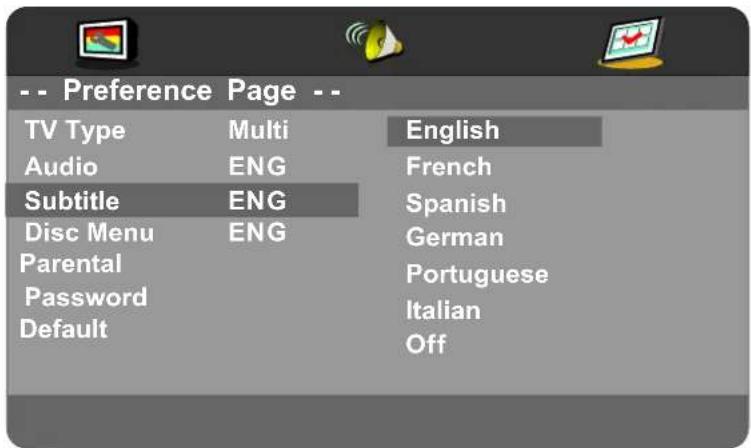

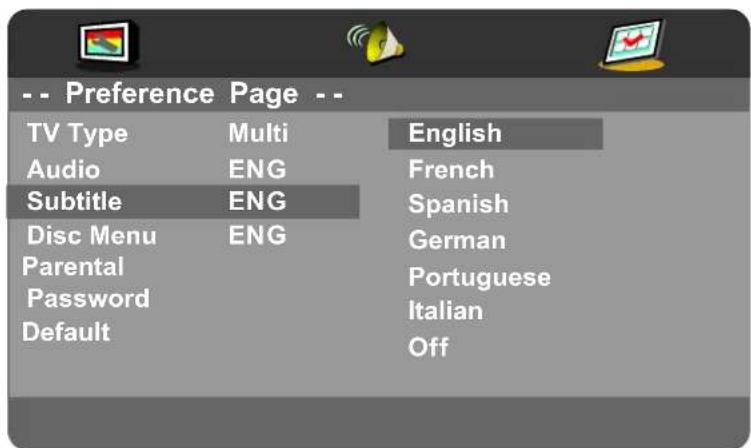

Subtitle

If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language. If not, the language recorded will be used.

• English
  French
  Spanish
  German
• Portuguese
  Italian
• Off

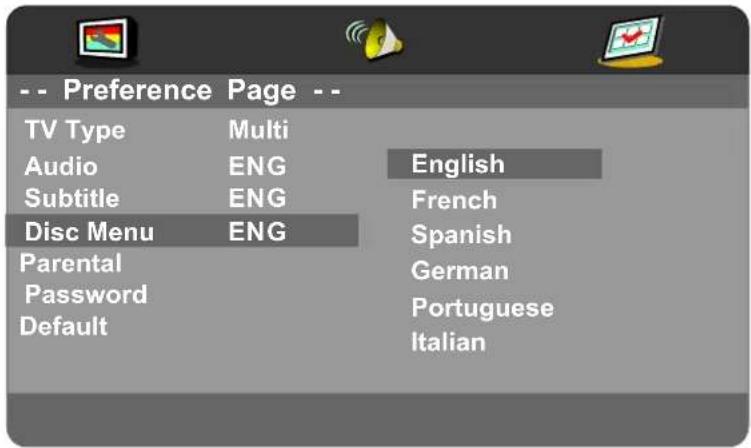

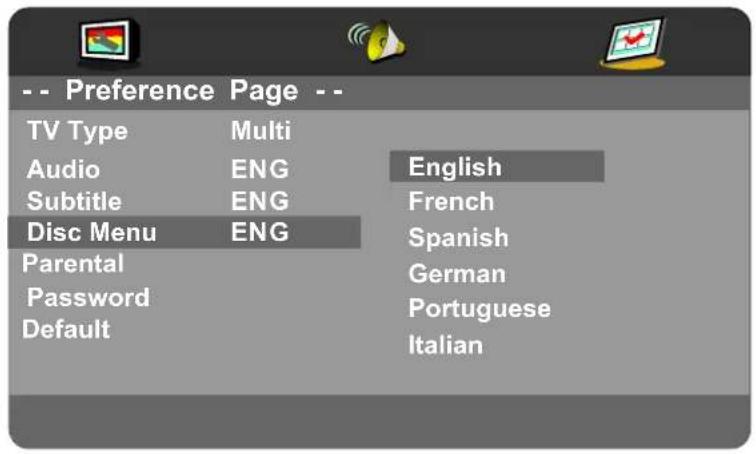

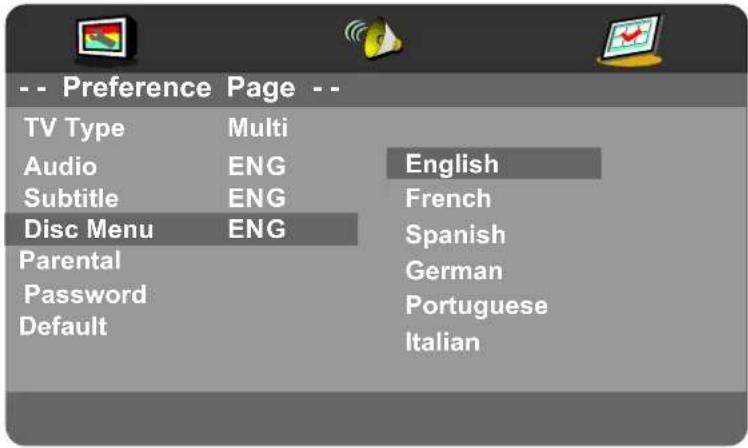

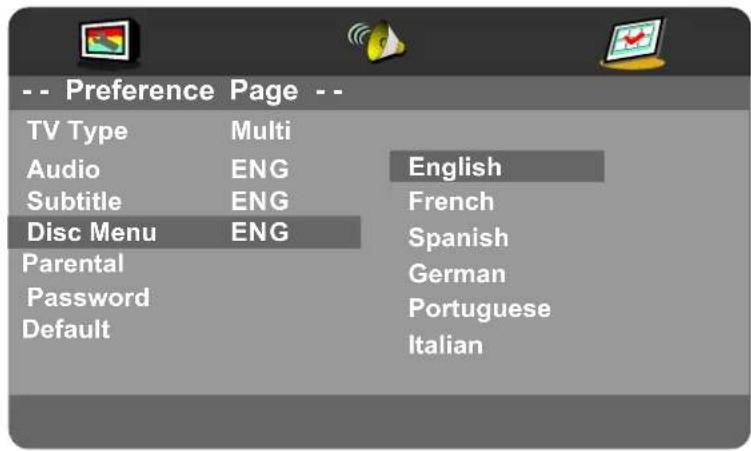

Disc Menu

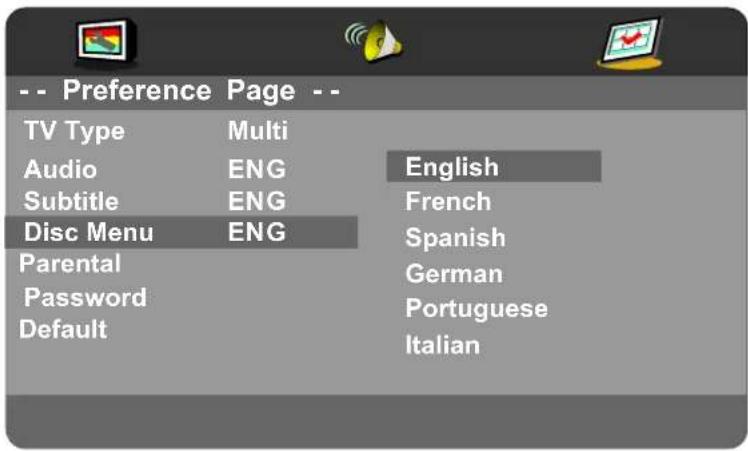

If a language listed below is record on the disc, you can set the Menu to be displayed in such language. If not, the language recorded will be used.

• English
  French
  Spanish
  German
• Portuguese
  Italian

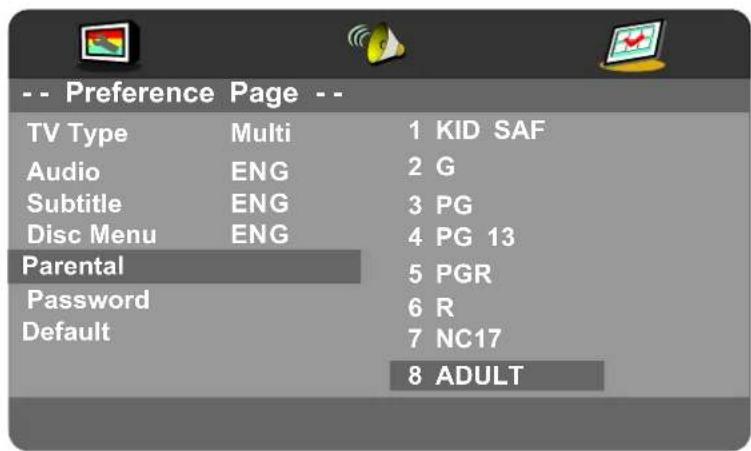

Parental

When playing disc with parental lock function, you may select an Age Control Grade according to grade of disc and your own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade cannot be played.

• KID SAFE
  G
  PG
  PG13
  ·PGR
  R
  NC 17
  ADULT

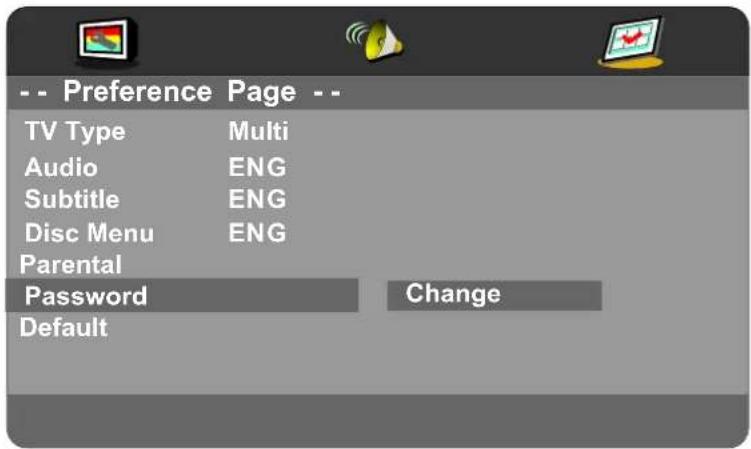

Password

User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function.

NOTE: (Default password is 123456)

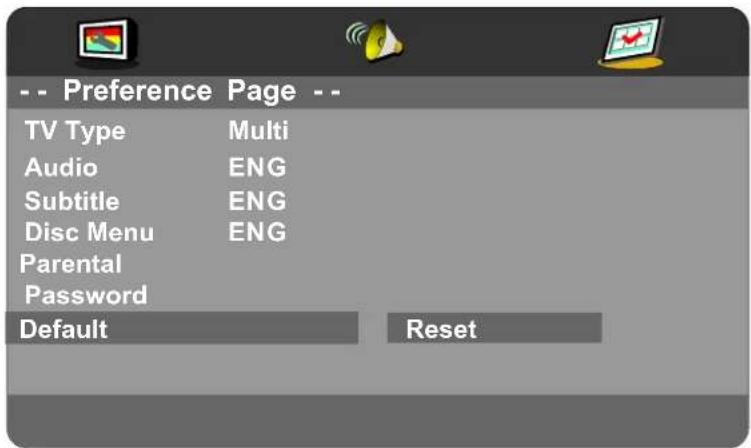

Default

User can load the original factory setting by choose RESET and press OK button.

9. TROUBLESHOOTING AND ADVICE

Please check if you can solve the issue by yourself.

Troubleshooting	Control
No signal	Please check that all cables and cords are correctly plugged in.
No color shades	Adjust the contrast, the color and the brightness.
Stain showing on the screen	Maybe result from a lighting signal from car, motor, neon light and other electrical devices or appliances.
Double or multiple display image	Maybe the result of an electrical wave disturbance from other TV, Computer and Game machine or Radio.
Snow on the screen	The cables of the antenna are not correctly plugged in.
The remote control does not work	Please check the batteries order and alignment. Check that the IR of the remote control is not hidden by something.
No sound	Make sure that you have not pressed the MUTE button on the panel or the remote control.
No DVD	Make sure if the TV Set have been switched to DVD mode
DVD player not working properly	Ensure disc is correctly inserted into the player. Ensure the disc does not damaged and with correct format. Please wait patiently as some discs need longer time to play.

10.SPECIFICATIONS

This manual is only for your reference, any change to the design and specification will not be advised.

Mode		LED-B13TU19H	LED-B13TU22H	LED-B13HU22H	LED-B13TDU22H
Screen Size		18.5Inch 21.6Inch 21.6Inch		21.6Inch
Display Type		TFT LED
Resolution(Pixel)		1366 X 768
Aspect Ratio		16:9
Power Supply		AC 100-240V 50/60Hz			DC 12V
Power Consumption		40W			48W
TV System		PAL/SECAM
Video Input Format		PAL/NTSC/SECAM
Audio Output Power		L / R 2X3W
SUPPORT	ANTENNA	YES
	AV-IN	YES
	YPbPr - IN	YES
	HDMI - IN	YES
	VGA(PC) - IN	YES
	VGA(PC) AUDIO - IN	YES
	SCART - IN	YES
	SCART - OUT	YES
	EARPHONE - OUT	YES
	S-VIDEO - IN	--
	COAXIAL - OUT	YES
	COMMON INTERFACE	YES
	USB	YES
	IPOD	--
DVD	Disc Physical Format	--	--	--	CD/CD±R/RWDVD/DVD±R/RW
	DVD Video Output Format	--	--	--	PAL/NTSC
Dimensions	Inc Stand (LxWxHmm)	466x182x366		534x183x403534x183x403534x183x403534x183x403534x183x403534x183x403534x183x403534x183x403534x183x403534x183x403
	Exc Sand (LxWxHmm)	466x49x309		534x49x349534x49x349534x49x349534x49x349
Weight	Net (Kgs)	4.0	4.8	4.8	5.3
	Gross (Kgs)	5.0	6.4	6.4	6.9
Mode		LED-B13TU24F	LED-B13HU24F	LED -B13H U32H	LED -B13H U42F
Screen Size		23Inch	23Inch	31.5Inch	42Inch
Display Type		TFT LED
Resolution(Pixel)		1920 X 1080
Aspect Ratio		16:9
Power Supply		AC 100-240V 50/60Hz
Power Consumption		48W		120W 140W
TV System		PAL/SECAM
Video Input Format		PAL/NTSC/SECAM
Audio Output Power		L / R 2X3WL / R 2X8W
SUPPORT	ANTENNA	YES
	AV-IN	YES
	YPbPr - IN	YES
	HDMI - IN	YES
	VGA(PC) - IN	YES
	VGA(PC) AUDIO - IN	YES
	SCART - IN	YES
	SCART - OUT	YES
	EARPHONE - OUT	YES
	S-VIDEO - IN	--
	COAXIAL - OUT	YES
	COMMON INTERFACE	YES
	USB	YES
	IPOD	--
DVD	Disc Physical Format	--	-- --
	DVD Video Output Format	--	-- --
Dimensions	Inc Stand (LxWxHmm)	587x183x438	587x183x438	790x200x564	1019x260x697
	Exc Sand (LxWxHmm)	587x49x385	587x49x385	790x47x499	1019x50x629
Weight	Net (Kgs)	5.2	5.2	11.5	17.2
	Gross (Kgs)	6.8	6.8	12.0	18

1	PRÉFACEPRÉFACE	3
2	PRECAUTIONS D'EMPLOI	3
3	DANS LE CARTONDANS LE CARTON	5
4	CONNEXI ONS À L'AVANT ET À L'ARRÊRE DE LA TV	6
5	INSTALLATION DE BASE	7 7 8 8 9 9 10 10 10 10
	TéléCOMMANDÉTELECOMMUNAUTISATION de la télécommande en mode DTV/USB	11 12 13 14 15
6		11 12 13 14 15
7	UTILISATION DU MENU	16 16 19 20 21 22 23 24 26 29 33
	SOURCE D'ENTREE	16
	MENU CHAINE	16
	MENU IMAGE	19
	MENU SON	20
	MENU HEURE	21
	MENU VERROUILLAGE	22
	MENU DE CONFIGURATION	23
	MENU ECRAN	24
	MENU MEDIA (USB)	26
	MENU MN	29
	MENU GEP	33
8	UTILISATION DU DVD	34
	Configuration générale	34
	Réglage Audio	36
	Réglage des Préférences	37
9	AUTO-DÉPANNAGE ET CONSEILS	41
10	CARACTERISTIQUESCARACTERISTIQUEES	42

1.PREFACE1.PREFACE

SOURCE D'ENTREESOURCE D'ENTREE

Schedule List 14:27 31th May Edit Menu
Time Date	Program Title	Channel Name
13:30-15:30 Thurs. 31 May Before Winter Comes Five		5 Five

Enregistreur

English
French
Spanish
German
- Portuguese
Italian

Fond d'écran

• English
  French
  Spanish
  German
• Portuguese
  Italian

Sous-titres

• English
  French
• Spanish
  German
• Portuguese
  Italian
• Off

Menu du disque

• English
  French
• Spanish
  German
• Portuguese
  Italian

Contrôle parental

Press to display the Record Timer Schedule List.

R.LIST

Press / button to select Colour Temp, then press OK button to select.

Temperatura del color

Schedule List 14:27 31th May Edit Menu
Time Date	Program Title	Channel Name
13:30-15:30	Thurs. 31 May Before Winter Comes	5 Five

Grabadora

When highlighting the option you select, the file information will appear on the right and movie will be previewed in the center.

selectionarparar PVR o no.

Pulsareboton para

Start recording time;

English
French
Spanish
German
Portuguese
Italian

Salvapantallas

• English
  French
  Spanish
  German
• Portuguese
  Italian

Subtitulos

• English
  French
• Spanish
  German
  Portuguese
  Italian
  -Off

Menu del disco

• English
  French
• Spanish
  German
• Portuguese
  Italian

Control paterno

Adapter & Power Cord

Pilhas AAAPIhas AAA

MANUAL DO UTILIZADOR

Manual do UtilizadorManual do Utilizador

4 LIGAÇÖES DIANTEIRAS E TRASEIRAS DO LED. 4. LIGACÖES DIAN

Vista Frontal

Lets you select amount of time before your TV turn itself off automatically.

EXIT

Para exhibir as legends em modo DTV.

FAV

When watching a channel, allows you switch between TV and Radio modes.

Timeshift

Play ou停下.

The program will stop when you start timeshift, you can continue watching the program by press the PLAY button whenever youwant to watch it within the acquired timeshift time.

You can press the button on the control bar or remote control to play, fastback, fastforward, play previous, play next, pause or stop timeshifting.

Note: During Timesthift, you can not callout Input Source, Menu, Text, FAV List and so on unless you stop it first. During recording, you can't change the channel unless you stop it first; Press POWER button will stop the Timesthift;

The Timeshift function doesn't support Timeshift Radio Channel and locked channel.

Lista de Gravações

Schedule List 14:27 31th May Delete Back
Time Date	Program Title	Channel Name
13:30-15:30 Thurs. 31 May Before Winter Comes 5 Five

• English
  French
• Spanish
  German
• Portuguese
  Italian

Proteção de Ecran

• English
  French
  Spanish
  German
• Portuguese
  Italian

Legendas

English
French
Spanish
German
Portuguese
Italian
- Off

Menu Disco

• English
  French
• Spanish
  German
• Portuguese
  Italian

Parental (Controlo Parental)

KID SAFE
G
PG
PG13
-PGR
R
- NC 17
ADULT

Palavra-passe

Adapter & Power Cord

1.5V 1.5V

Batterie AAABatterie AAA

MANUALE UTENTE

You can change the value of contrast, brightness, colour and sharpness when the picture is in Personal mode.

Contrasto

Schedule List 14:27 31th May Edit Menu
Time Date	Program Title	Channel Name
13:30-15:30	Thurs. 31 May Before Winter Comes	5 Five

Registraratore

Schedule List 14:27 31th May Delete Back
Time Date	Program Title	Channel Name
13:30-15:30 Thurs. 31 May Before Winter Comes	5 Five

• English
  French
• Spanish
  German
• Portuguese
  Italian

Screen Saver

• English
  French
  Spanish
  German
• Portuguese
  Italian

Sottotitoli

• English
  French
• Spanish
  German
  Portuguese
  Italian
• Off

Disc Menu (Menu disco)

• English
  French
• Spanish
• German
• Portuguese
  Italian

Controllo genitori

Thank you for choosing AKIRA

Check out our web site www.akiraeurope.com
