Product Type	LCD TV
Brand	AKIRA
Model	LCT-B01HU24F
Screen Size	24 inches (diagonal)
Display Resolution	1366 x 768 (HD)
Dimensions (without stand)	55.5 cm x 34.0 cm x 8.5 cm (W x H x D)
Weight (without stand)	3.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30 W (typical)
Video Inputs	HDMI x2, VGA x1, Composite (AV) x1, RF x1
Audio Output	3.5mm headphone jack, built-in speakers (2 x 5W)
Other Inputs	USB 2.0 x1
Key Features	Teletext, Sleep Timer, Parental Lock, Electronic Program Guide (EPG)
VESA Mount Compatible	Yes (100 x 100 mm)
Accessories Included	Remote control, stand base, screws, user manual
Clean and Care	Wipe with a soft, dry cloth; do not use harsh chemicals
Safety Warnings	Do not block ventilation, avoid moisture and extreme temperatures, unplug during storms
Repairability	User replaceable: stand, batteries; internal parts: service technician required

Frequently Asked Questions - LCT-B01HU24F LCD TV AKIRA

How do I connect external devices like a game console?

Use the HDMI ports on the back of the TV. Simply plug one end of an HDMI cable into the device and the other into the TV. Select the corresponding HDMI input using the Source button on the remote.

How can I reset the TV to factory settings?

Press Menu on the remote, go to Settings > General > Factory Reset. Confirm with the remote. This will erase all custom settings.

Can I update the TV firmware?

This model does not support user firmware updates via USB or internet. The firmware is fixed at the factory. Contact AKIRA support if you encounter issues.

Is the TV wall-mountable?

Yes, it supports VESA 100x100 mm wall mount brackets. Ensure the bracket can support at least 4 kg. Follow the wall mount manual for safe installation.

How do I clean the LCD screen?

Turn off the TV and unplug it. Use a soft, dry microfiber cloth. For stubborn smudges, dampen the cloth slightly with water and wring it out. Never spray liquid directly on the screen.

What should I do if the TV does not turn on?

First, check the power cord is securely plugged into the TV and wall outlet. Verify the wall outlet works by testing another device. If the standby light is off, try plugging into a different outlet. If still no power, contact AKIRA service.

Why is there no sound from the TV?

Check that the volume is not muted (look for the mute icon). Increase the volume level using the remote. If using external speakers, ensure they are properly connected and turned on. If still no sound, go to Settings > Audio to check audio output settings.

How do I improve picture quality?

Press Menu on the remote, navigate to Picture settings. You can adjust Brightness, Contrast, Sharpness, and Color. Also try preset modes like Standard, Movie, or Dynamic.

The remote control is not working. What can I do?

First, check if the batteries need replacing. Also, ensure there are no obstructions between the remote and the TV sensor. Try cleaning the remote's infrared emitter. If still not working, you can use the buttons on the TV itself (usually located below the screen) as a temporary solution.

What is the warranty period for this TV?

AKIRA typically provides a 1-year limited warranty from the date of purchase for manufacturing defects. Retain your purchase receipt for warranty claims. Contact the retailer or AKIRA customer support for more details.

USER MANUAL LCT-B01HU24F LCD TV AKIRA

User Manual

Thanks you for purchasing this AKIRA™ product and for your confidence in our company. This product meets applicable safety requirements and has undergone stringent testing during manufacture.

However, should there occur a defect, the product or its defective part(s) (excluding accessories and consumables) will be repaired free of charge (labor, parts and transportation within the boarder of the below mentioned countries) or, at AKIRA™ discretion, exchanged for a similar item, provided that it has been returned with 24 (twenty four) months from the date of original purchase (date of receipt), is defective in material and/or workmanship and has been bought in any of the following countries: France (metropolitan territory), Spain, Italy, Portugal, Belgium, Germany, Austria, Switzerland or in a duty-free shop in named countries.

This guarantee will be granted only upon presentation of the original invoice or cash receipt, indicating the date of purchase and dealer's name, and of this guarantee card with the product type and serial number. The benefit of this guarantee may be refused if the invoice, cash receipt or guarantee card has been altered in any way, deleted or made illegible after the original purchase.

Online registration: please register your AKIRA™ product within 30 days of purchase at http://akiraeurope.com/en/Supp/Enregistrement/

This guarantee does not apply to the following:

1. Damage caused by accidents including, but not limited to, lightening, fire, water.
2. Damage to the product resulting from neglect, misuse, use against the operating manual instructions, repair and/or install wrongly performed (non exhaustive list). Especially any burned panel from too long still picture display such as computer inputs or channel logos, as described in the operating manual, will not be guaranteed.
3. Modification, adaptations or alterations of the product to operate in a country other than for which it was originally designed and manufactured, or any damage resulting from such modifications.
4. Usage other than usual consumer home usage.
5. Defect on individual pixels when the number of defective is below the following numbers: Dark pixel: 7 / Bright or flickering pixel: 3 / Total defective pixels: 8

These statements do not affect your statutory rights as a consumer under applicable national legislation in force, nor your consumer's rights against the dealer from whom you bought the product.

If you need service, whether or not under guarantee, please approach the dealer who sold you the product.

In your own interest, we advise you to read the instruction booklet for your AKIRA™ product carefully before contacting your dealer or service center.

Should you have any question that your dealer is unable to answer, please contact AKIRA hotline (please check out the phone number on our web site http://akiraeurope.com/en/Supp/AideSAV/).

AKIRA™ is a registered trademark of TT International, Inc.

Stick your serial number barcode here

TROUBLESHOOTING AND ADVICE

41

10

SPECIFICATIONS

42

1.PREFACE

Thank you for buying this TV! Please read this manual thoroughly before operating the TV. Make sure the TV was not damaged in transit. Should the TV is damaged, do no install it and contact your dealer. Check that you have all the accessories according to the model.

2.SAFETY PRECAUTIONS

Put the TV on a stable surface.

Do not place any material on the TV.

Do not use the TV with fixtures other than those provided or suggested by the manufacturer.

Do not block or cover the ventilation openings on the TV. If you have a wall mount, check that it is steady.

Power cord and cables must be properly routed and protected to prevent people from stepping on them and causing the TV to fall.

Keep the TV dry and away from humidity.

Keep the TV away from heat sources.

Unplug the TV before cleaning it. Do not use solvent or liquid to clean the TV.

Only clean the TV with a soft and dry cloth.

In case of troubleshooting, do not use spare parts other than those suggested by the manufacturer. Using inadequate spare parts can lead to electric shocks, short-circuits fire or other incidents.

Unplug the TV during lightening storms or when unused for long periods of time.

1. where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable;

2.A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

3.A warning that an apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

3. IN THE CARTON

LCD TV SETLCD TV SET

Remote Control Remote Control

USER'S MANUAL

User Manual User Manual

AAA Batteries AAA Batteries

4 FRONT, BACK, CONNECTIONS OF LCD.

Front View

1. Press "SOURCE" to select the input source.
2. Press "MENU" to bring up the main menu on the screen.
3. Press "CH+" or "CH-" to scan through channels.
4. Press "VOL+" or "VOL-" to increase or decrease the sound level.
5. ▶ PLAY/PAUSE in DVD mode;
6. ▲ OPEN/CLOSE in DVD mode;
7. Press "POWER" button to turn the TV on or off.
8. POWER INDICATOR: show red in standby mode, show green or blue when your TV is switched on.
9. REMOTE SENSOR: infrared sensor for the remote control.

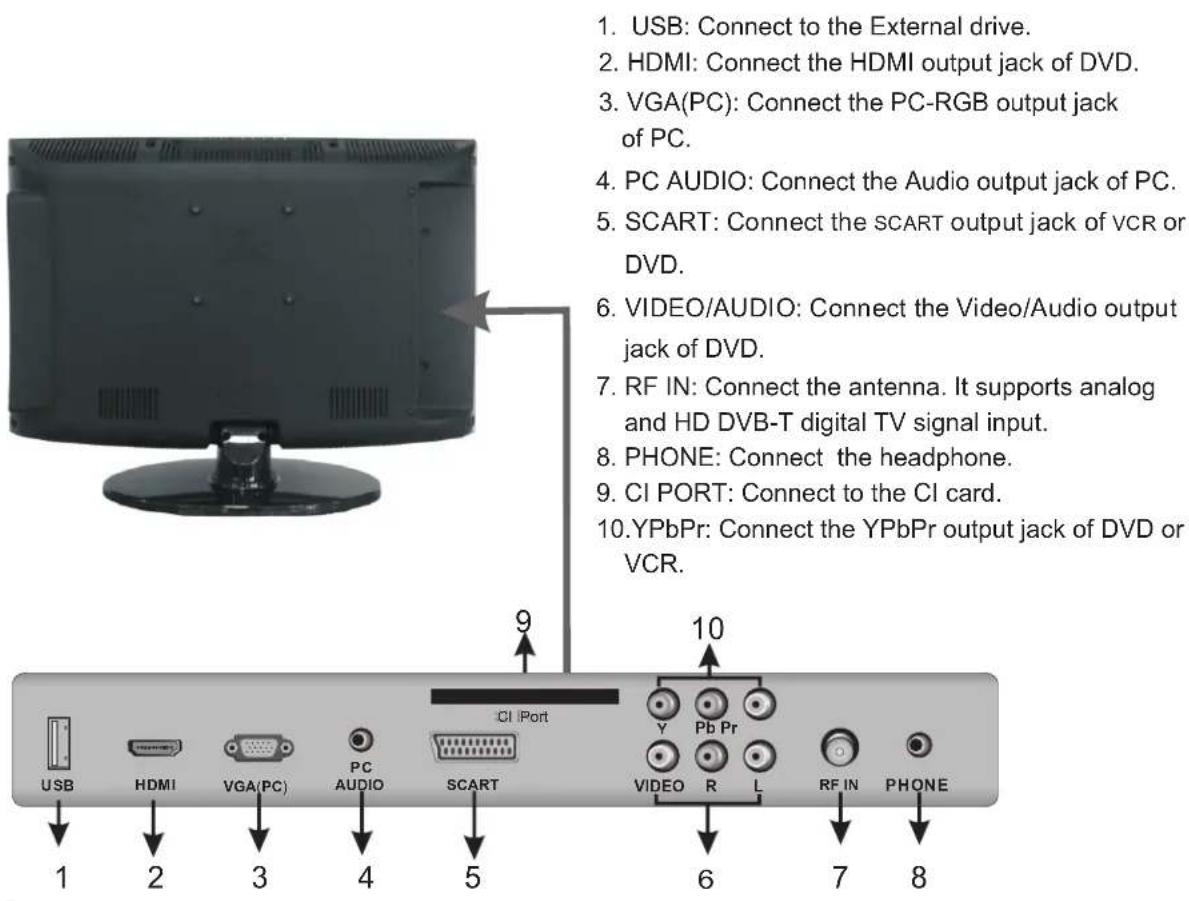

Back View and Control Connections

5. BASIC A INSTALL TION

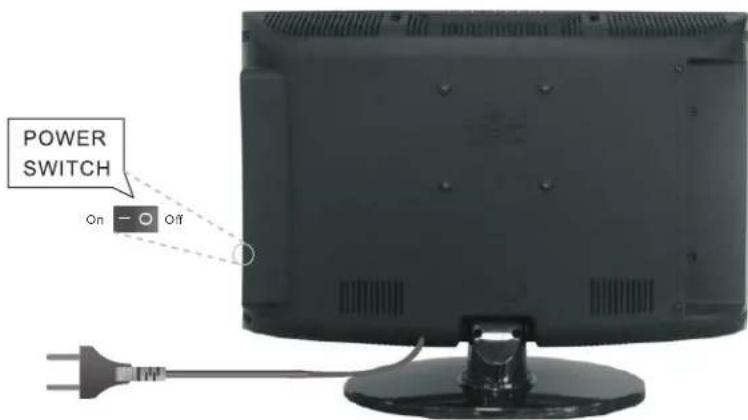

Power Cord Connection

• Connect the power cord correctly as shown.
• Press the POWER button of your LCD TV to switch on the LCD TV. The power indicator on the front panel lights up in Green or Blue.

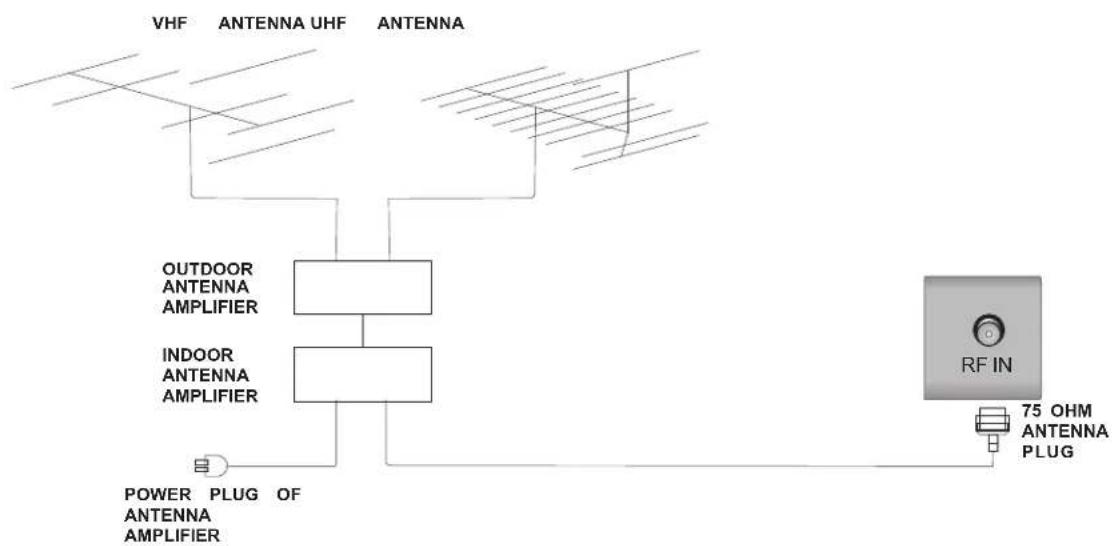

Antennas Connection

To ensure good picture and sound, TV antenna system needs to be installLCD. The antenna system as shown can be sourced from TV equipment shops, which will provide service for correct installation and connection. After installation, insert the 75-ohm antenna plug into the antenna jack as shown.

SCART Connection

Connect the SCART connector on the external video device to the SCART connector on the set using a SCART cable. Select SCART input source with using the SOURCE button.

VGA(PC) Connection

Connect the RGB output of the PC to the VGA jack on the TV set. Connect the AUDIO output of the PC to the PC AUDIO jack on the TV set. Select the VGA input source via the SOURCE button on the remote control.

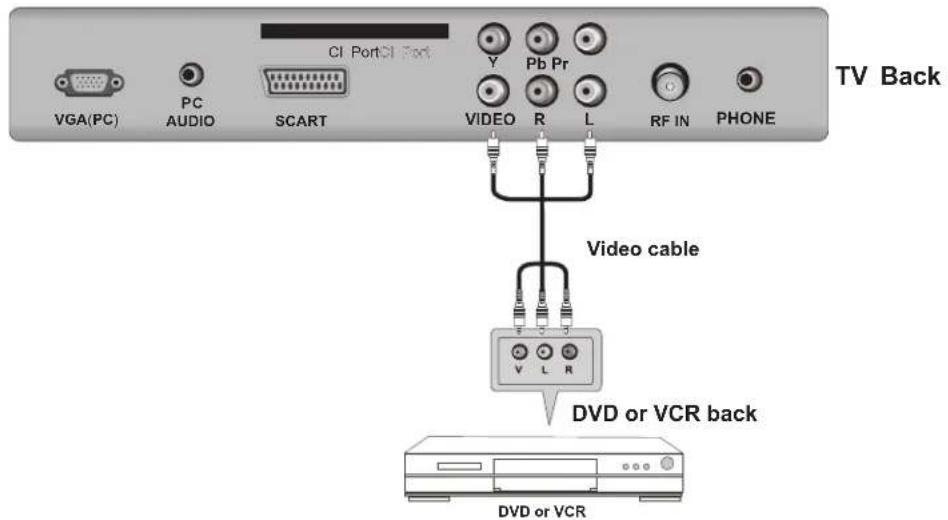

AV Connection

Connect the VIDEO and AUDIO output jack of the DVD or VCR to the AV jacks on the TV set using the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red. Select the AV input source via the SOURCE button on the remote control.

YPbPr Connection

Connect the YPbPr output of the DVD or VCR to the YPbPr input on the TV set. Connect the Audio output of the DVD or VCR to the Audio input jacks on the TV set using the RCA cable. Match the jacks colors: Y is green, Pb is blue, Pr is red, Audio left is white and Audio right in red. Select YPbPr input source via the SOURCE button on the remote control.

HDMI Connection

The HDMI input connection enables the digital transfer of audio/video/control signals through one cable only.

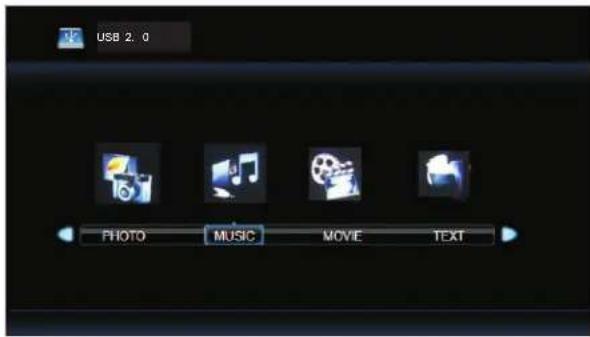

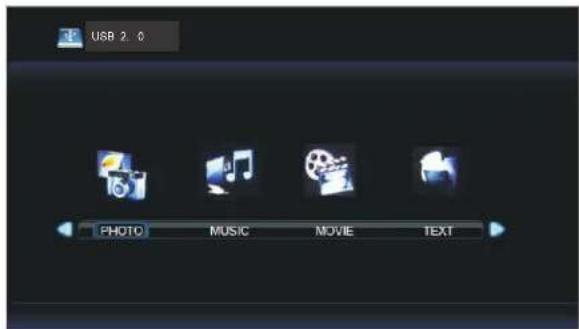

USB Connection

Insert the USB flash drive to the USB port. Select USB channel source via the SOURCE button on the remote control.

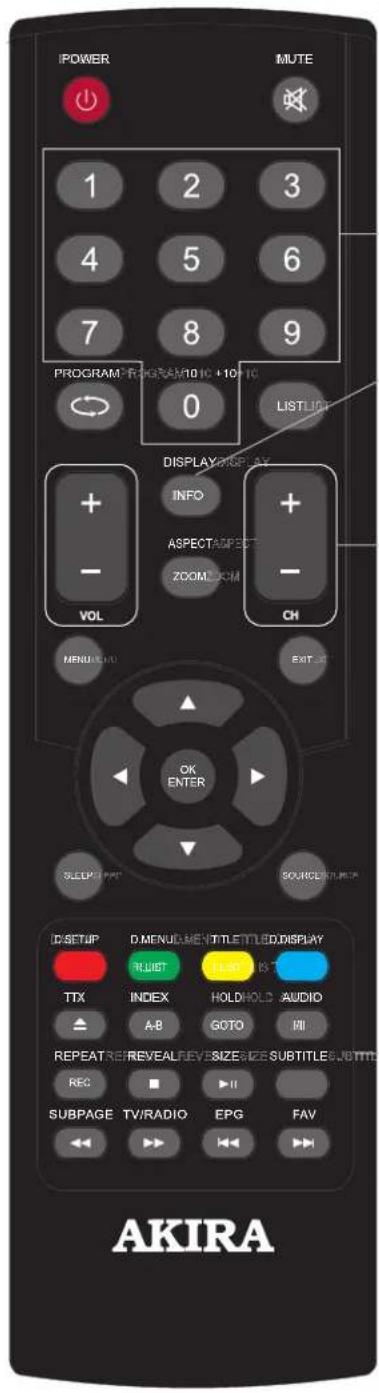

6 REMOTE CONTROL.

Remote control instructions in TV mode

POWER

Turn the LCD TV ON or OFF.

MUTE

Press to mute the sound. Press again or press VOL+ to un-mute the TV.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV. The channel change after 2 seconds.

Return to the previous channel viewed.

LIST

Press to display the TV program list.

DISPLAY

Press to display the source and channel's information.

ASPECT

Selects screen display ratio.

VOL+/VOL-

Press to increase / decrease the sound level.

CH+/CH-

Press to scan through channels.

MENU

Brings up the main TV menu to the screen.

SOURCE

Press SOURCE to display the OSD input source,

Press ▲▼ to select an input source, and then press OK to confirm.

THUMBSTICK( ▲/ ▼/◀ / ▶/ OK ENTER )

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

SLEEP

Lets you select amount of time before your TV turn itself off automatically.

EXIT

Exit the main TV menu to the screen.

AUDIO(I/II)

Press to search the NICAM modes.

Remote control instructions in DTV/USB mode

NUMBER BUTTONS

Press 0-9 to select a channel.

INFO

Press to display the source and channel's information.

CH+/CH-

When watching a channel, changes the channel.

COLOR BUTTONS

Color buttons (respectively red, green, yellow and blue) used in a few sub-menus.

T.LIST

Press to display the Record Timer Schedule List.

R.LIST

Display the recorded file list.

SUBTITLE

To display subtitle in DTV mode.

FAV

Favorite program list.

REC

Press to record the TV program in DTV mode.

EPG

Launches the EPG(Electronic Program Guide)in DTV mode.

AUDIO

To display audio menu.

TV/RADIO

When watching a channel, allows you switch between TV and Radio modes.

▶II (Timeshift)

Play or pause.

Press to enter Timeshift, the image paused and it start record from the paused position.

Stop playing or stop recording.

Fast reverse and Fast forward.

Previous / next chapter in USB mode, or play the Previous /next scene of the recorded programs, jump by 30 seconds.

REPEAT

Press to select the repeat mode in USB mode.

Remote control instructions in TELETEXT mode

NUMBER BUTTONS

Press 0-9 to select a teletext page.

CH+/CH-

Page up and Page down.

TTX

Press to switch between TV and Teletext mode.

COLOR BUTTONS

Select 4 Preferred TELETEXT page.

SUBTITLE

To display subtitle.

HOLD

Freeze the current page.

SIZE

Change the picture size.

REVEAL

Reveal or hide the hidden words.

INDEX

Request index page when index link is valid.

SUBPAGE

TELETEXT Subpage.

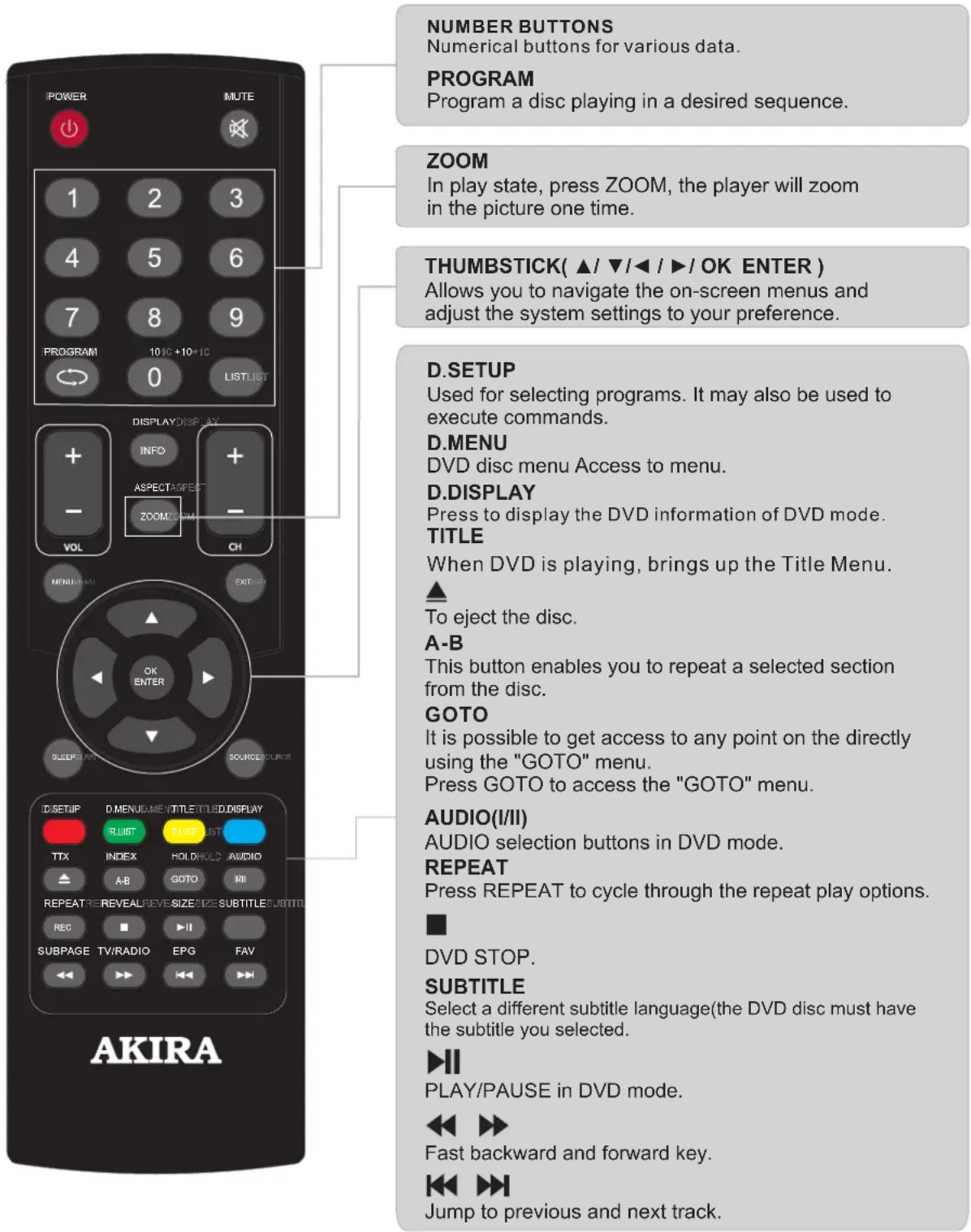

Remote control instructions in DVD mode

Note: Please ensure that the TV you have bought with DVD loader, otherwise, all these parts with no effect.

Remote control setup

1. Open the cover.
2. AAA size batteries, When inserting the batteries, make sure correct polarities as per“+”and “-” marks on the batteries and within the battery compartment.
3. Replace the battery cover.

To prevent battery leakage which may result in bodily injury or damage to the remote:

1. Install all batteries correctly, and as marked on the remote control.
2. Do not mix batteries:(OLD and NEW or CARBON and ALKALINE, etc)
3. Remove batteries when the remote is not used for a long time.

7. MENU OPERATION

INPUT SOURCE

Press SOURCE button to display the input source list;

Press ▼ / ▲ or SOURCE button to select the input source you want to watch;

Press OK button to enter the input source;

Press EXIT button to quit;

CHANNEL MENU

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu, it will highlight the first option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press OK button to adjust.

Auto Tuning

Press ▼ / ▲ button to select Auto Tuning, then press OK button to start auto search.

DTV Manual Tuning

Press ▼/▲ button to select DTV Manual Tuning, then press OK button to enter Sub-menu.

Press ◀ / ▶ button to select channel, then press OK button to search program.

ATV Manual Tuning

Press ▼ / ▲ button to select ATV Manual Tuning, then press OK button to enter Sub-menu.

Press ◀ / ▶ button to select channel number you want to store.

Press ◀ / ▶ button to select colour system.

Press ◀ / ▶ button to select audio system.

Press ◀ / ▶ button to select search, then press OK button to start tuning.

Press ◀ / ▶ button to select Fine-Tune.

Press ◀ / ▶ to ON or OFF automatic frequency control.

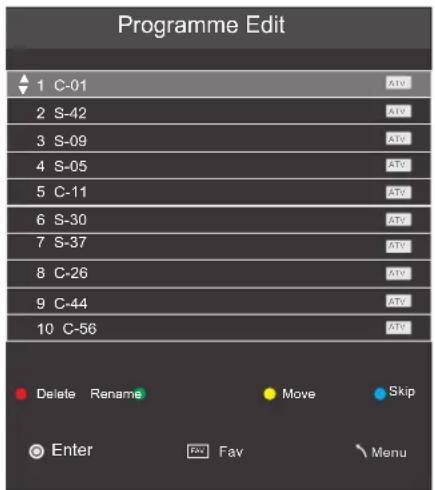

Programme Edit

Press ▼ / ▲ button to select Program Edit, then press OK button to enter sub-menu.

• Use Red button to delete the current channel.
• Use Green button to set the current channel to Rename.
• Use Yellow button and the ▲/▼arrow button to move the current channel.
• Use Blue button to skip the current channel.

Signal Information

Press ▼ / ▲ button to select Signal Information, then press OK button to display signal details, Including Channel, Frequency, Quality and Strength.

Signal Information

Channel 32

Frequency 562.00MHZ

Quality 0

Strength 62

CI Information

Press ▼ / ▲ button to select CI Information, then press OK button to display details if you has inserted the CI card.

PICTURE MENU

Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu, it will highlight the second option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.

Picture Mode

Press ▼/▲ button to select Picture Mode, then press OK button to enter sub-menu. Press ▼/▲ button to select.

You can change the value of contrast, brightness, colour and sharpness when the picture is in Personal mode.

Contrast

Press ▼/▲ button to select Contrast, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Brightness

Press ▼/▲ button to select Brightness, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Colour

Press ▼/▲ button to select Colour, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Tint

Press ▼ / ▲ button to select Tint, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

(Only available in NTSC mode.)

Sharpness

Press ▼/▲ button to select Sharpness, then press ◀/▶ button to adjust.

Colour Temp

Press ▼ / ▲ button to select Colour Temp, then press OK button to select.

Noise Reduction

Press ▼ / ▲ button to select Noise Reduction, then press OK button to select.

SOUND MENU

Press MENU button to display the main menu.

Press ◀ / ▶ button to select Sound in the main menu, it will highlight the third option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press ◀ / ▶ button to adjust.

Sound Mode

Press ▼/▲ button to select Sound Mode, then press OK button to enter sub-menu.

Press ▼/▲ button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

Treble

Press ▼/▲ button to select Treble, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Bass

Press ▼/▲ button to select Bass, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Balance

Press ▼/▲ button to select Balance, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

Auto Volume

Press ▼/▲ button to select Auto Volume, then press OK button to select On of Off.

Surround Sound

Surround Sound settings, Press ◀ / ▶ to set ON/OFF.

TIME MENU

Press MENU button to display the main menu.

Press ◀ / ▶ button to select TIME in the main menu, it will highlight the fourth option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the TIME menu.
2. Press ◀ / ▶ button to adjust.

Clock

Display the current system time. It's not available.

Time Zone

Press ▼/▲ button to select Time Zone, then press OK button to enter sub-menu.

Sleep Timer

Press ▼/▲ button to select Sleep Timer, then press OK button to enter sub-menu. Press ▼/▲ button to select.

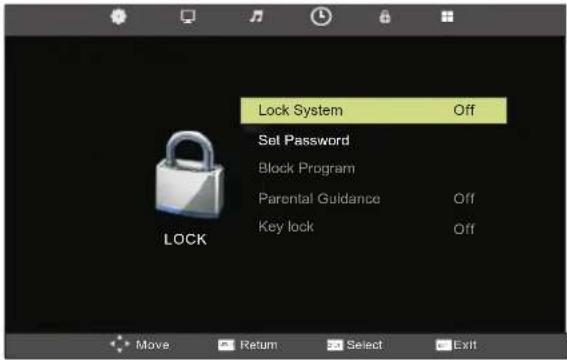

Press ◀ / ▶ button to select LOCK in the main menu, it will highlight the fifth option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK menu.
2. Press ◀ / ▶ button to adjust.

Lock System

Press ▼ / ▲ button to select Lock System, then press OK button To make the following options valid.(Default password is '0000'.)

Set Password

Press ▼ / ▲ button to select Set Password, then press OK button to enter sub-menu to set new password.

Block Program

Press ▼ / ▲ button to select Block Program, then press OK button to enter sub-menu.

Press ▼ / ▲ button to select the program you want to lock, then press green button on your remote control. (To unlock program, input the password you set.)

Press OK button to save setting and menu button to back to the previous menu.

Parental Guidance

Press ▼ / ▲ button to select Parental Guidance, then press OK button to enter sub-menu to select. (Available options are: Off, 4-18)

Key Lock

Press ▼ / ▲ button to select Key Lock, then press OK button to select on or off.

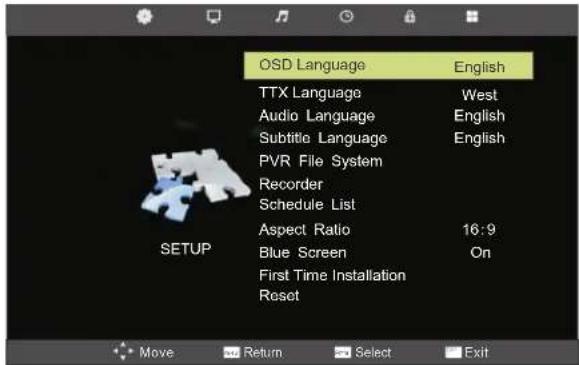

SETUP MENU

Press MENU button to display the main menu.

Press ▼ / ▲ button to select Setup in the main menu, it will highlight the sixth option.

1. Press ▼/▲ button to select the option that you want to adjust in the SETUP menu.
2. Press ◀/▶ button to adjust.

OSD Language/Audio Language/Subtitle Language

Press ▼/▲ button to select OSD/Audio/Subtitle Language, then press OK button to enter sub-menu.

Press ▼/▲/◄/► button to select OSD language, default setting is English.

TTX Language

Press ▼/▲ button to select TTX Language, then press OK button to enter sub-menu.

Press ▼/▲ button to select TTX Language

PVR File System

Press ▼ / ▲ button to select PVR File System, then press OK button to enter sub-menu.

Schedule List

Press ▼ / ▲ button to select Schedule List, then press OK button to enter sub-menu.

Schedule List 14:27 31th May Delete \Menu
	Time Date		Program Title	Channel Name
	13:30 15:30	Thurs. 31 May	Before Winter Comes	5 Five

Recorder

Press MENU button on the remote control to display the main menu; Use ◀/▶ button to select SETUP, and use ▼/▲ button to select Recorder. Then press OK button enter the sub-menu.

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press OK button to enter sub-menu.

Blue Screen

Press ▼ / ▲ button to select Blue Screen, then press ◀/▶ button to select on or off.

First Time Installation

Press ▼ / ▲ button to select First Time Installation, then press OK button to set relevant options including OSD language, country and tuning.

Reset

Press ▼ / ▲ button to select Reset, then press OK button to enter a dialogue. Press ◀/▶ button selecting Yes or No.

SCREEN MENU

Press MENU button to display the main menu.

Press ◀/▶ button to select Screen in the main menu, it will highlight the first option.(Only available when inputting PC-RGB signal)

1. Press ▼/▲ button to select the option that you want to adjust in the SCREEN menu.
2. Press OK button to adjust.

Auto Adjust

Press ▼/▲ button to select Auto Adjust, then press OK button to start adjusting automatically.

Horizontal Pos.

Press ▼/▲ button to select Horizontal Pos. , then press OK button to enter sub-menu.Press ◀/▶ button to adjust.

Vertical Pos.

Press ▼/▲ button to select Vertical Pos. , then press OK Button to enter sub-menu.Press ◀/▶ button to adjust.

Size

Press ▼/▲ button to select Size, then press OK button to enter sub-menu. Press ◀/▶ button to adjust display size.

Phase

Press ▼/▲ button to select Phase, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

VGA(PC)

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. SOUND menu and description are the same as that for DTV mode.
3. LOCK menu and description are the same as that for DTV mode.
   4 .PVR File System in SETUP menu is invalid.

AV/SCART/HDMI/YPbPr

Notes:

1. PICTURE menu and description are the same as that for DTV mode.
2. SOUND menu and description are the same as that for DTV mode.
3. LOCK menu and description are the same as that for DTV mode.
4. PVR File System in SETUP menu is invalid.

MEDIA(USB) MENU

Note: Before operating MEDIA menu, Plug in USB device, then press SOURCE button to set the Input Source to USB, then press OK button to enter.

Press ◀/▶ button to select the option you want to adjust in the main MEDIA menu, then press OK button to enter.

PHOTO Menu

Press ◀/▶ button to select PHOTO in the main menu, then press OK button to enter.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

Press ◀/▶ button to select the file you want to watch in the file selecting menu, then press OK button to display picture. When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

Press ◀/▶ button to select the file folder you want to search in the file selecting menu, then press OK button on your remote control to enter sub-menu.

Press ◀/▶ button to select the file you want to delete in the file selecting menu, then press red button. On your remote control to delete files.

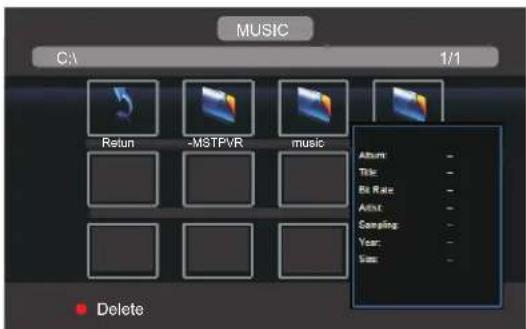

MUSIC Menu

Press ◀/▶ button to select MUSIC in the main menu, then press OK button to enter.

Press ◀/▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀/▶ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right. previewed in the center.

Press EXIT button to return back to the previous menu.

Press ◀/▶ button to select the file you want to watch in the file selecting menu, then press OK button to play the selected music.

MOVIE Menu

Press ◀/▶ button to select MOVIE in the main menu, then press OK button to enter.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

When highlighting the option you select, the file information will appear on the right and movie will be previewed in the center.

Press OK button to play the selected movie.

TEXT Menu

Press ◀ / ▶ button to select TEXT in the main menu, then press OK button to enter.

Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

Press EXIT button to return back to the previous menu.

When highlighting the option you select, the file information will appear on the right and text will be previewed in the center.

Press OK button to view the selected text.

PVR MENU

Instant RecorderInstant Recorder

Note: Make sure you have insert the USB device to the TV board before you start to do the recording. Press REC button on your remote control to start record whenever you want to start. There will be a recording iron on the bottom of the display screen during recording:

Press REC button to display the control bar or hide it.

Press ◀/▶ button to select stop or press stop button on your remote control to stop recording There will be a dialog as follows:

Press button to select

sto VR or not.

Press ◀/▶ button to select

to play the recorded program during recording.

You can press the button on the control bar to play, fastback, fastforward, play previous, play next, pause or stop playing.

Note: you can also play the recorded program in the file named " _MSTPVR" under the MOVIE file in the USB Source.

PVR File System

Press MENU button on the front of panel or MENU on the remote control to display the main menu.

Press ▼/▲ button to select SETUP in the main menu, then press OK button to enter.

1. Press ▼/▲button to select PVR File System;
2. Press OK button to enter and press ▼/button to edit.
3. After finishing your adjustment, Press Menu button to save and back to the previous menu.

Select Disk

Press ▼/▲ button to select Select Disk, then press OK button to enter and press ▼/▲ button to select the disk you want to check.

Check PVR File System

Press ▼/▲ button to select Check PVR File System, then press OK button to check the disk you have selected.

Format

Press ▼/▲ button to select Format, then press OK button to enter the sub menu:

Press Button to select PVR File System Type, then press button to select the system type, press OK button to format the disk, a dialog will be displayed as follows:

Press ◀button to start format or press ▶button to cancel format and back to the previous menu.

Recorder

Press MENU button on the remote control to display the main menu; Use ◀/▶ button to select SETUP, and use ▼/▲ button to select Recorder. Then press OK button enter the sub-menu.

1. Press ▼ button to select the item;
2. Press button to adjust.
3. After finishing your settings, Press OK button to save .Then there will display a save successful dialog and a Schedule List which display the recording schedules you just sett, you can press RED button to cancel you setting.
   You can select Mode Auto\Mode Once\Mode Everyday\Mode Weekly for recording.

Start Time

Start recording time;

End Time

Recording end time.

Timeshift Timeshift

Press ▶button to start Timeshift, there will be a control bar as follows:

The program will stop when you start timeshift, you can continue watching the program by press the PLAY button whenever you want to watch it within the acquired timeshift time.

You can press the button on the control bar or remote control to play、fastback、fastforward、play previous、play next、pause or stop timeshifting.

Note: During Timeshift, you can not callout Input Source, Menu, Text, FAV List and so on unless you stop it first. During recording, you can't change the channel unless you stop it first; Press POWER button will stop the Timeshift; The Timeshift function doesn't support Timeshift Radio Channel and locked channel.

Record List

Press R.LIST button on the remote control to display the Recorded List.

EPG Menu

Press EPG button in the Remote control.

Record

Record programme. It show record mode when selected, check PVR manual details.

Display

Display shows all the information.

Schedule List

pattern for reference the menu is as follows:

Schedule List 14:27 31th May Delete Back
	Time Date		Program Title	Channel Name
	13:30-15:30	Thurs. 31 May	Before Winter Comes	5 Five

Up and down to move Focus to select programme.

DELETEDELETE

Delete Focused programme.

BACKBACK

Back to EPG menu.

Remind

Programme reserved. Choose Remind to show the settings menu.

Use up and down to choose settled programme.

8. DVD Operation

Note : please ensure that the TV you have bought bought is with DVD loader, otherwise all this part does not apply.

Basic Operation

1. Press Source button on the remote controller to select DVD input source.
2. Press OPEN / CLOSE button to load from into disc tray.

Hold the disc without touching either or its surfaces, insert the DVD with the label toward the device's back panel into the DVD slot on the right side of you TV set.

Only push the DVD slightly until the unit feeds it automatically.

DVD Setup Mode

• Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, and Preference Page.
• Item selection in the Setup Menu is done by using the Navigation Arrows, D.SETUP button and the OK button.
• Press the D.SETUP button first, enter into SETUP menu, then press the DIRECTION RIGHT button, you can enter into the next Sub-menu.
• Press the D.SETUP button again to exit the Setup Menu.

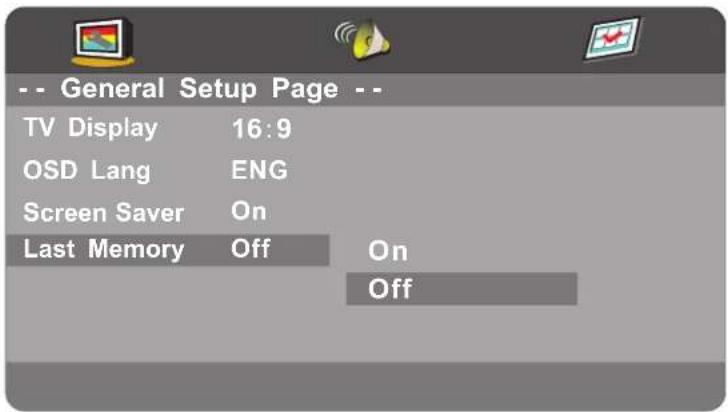

General Setup

TV Display

This is used to select the aspect 4:3/PS, 4:3/LB, 16:9.

OSD Language

This is used to select the OSD language.

• English
• French
• Spanish
  • Italian
• Polish

- Portuguese

Screen Saver

Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged.

• On (Start the screen saver).
• Off (Remove the screen saver).

Last Memory

Can set the items on the last memory, "on" and "off" option.

Select "on", shutdown the machine before the settings for memory, re-boot the machine setting. Set near the same time.

Select "off", every time the machine automatically switched back to the default settings.

• On (Start the Last Memory).
• Off (Remove the Last Memory).

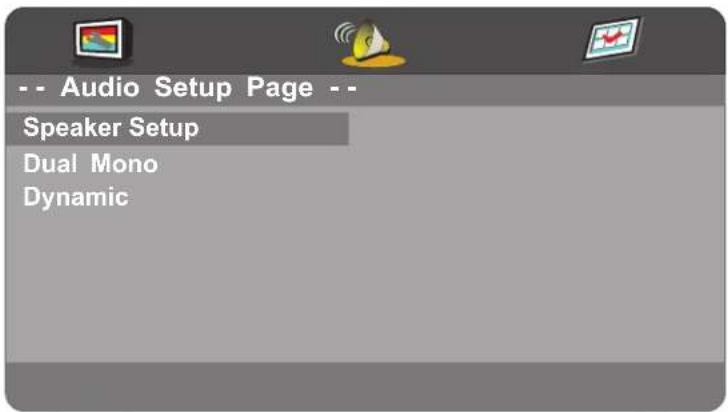

Audio Setup

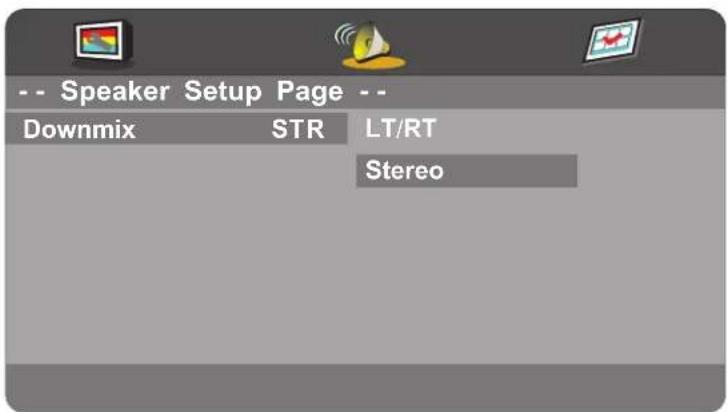

- Speaker Setup

In the "Audio Setup page" press "▼" button to select "Speaker Setup" item, press the "OK ENTER" or "►" button (play) into the "Speaker Setup Page".

Downmix

• LT/RT

A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

- Stereo

A disc recorded multi channel soundtrack, The output signal will be incorporated to stereo.

Dual Mono

This is used to select the Stereo, L-MONO, R-MONO and MIX-MONO.

Dynamic

This option is used to set the compression ratio in order to control the sound (Volume) contrast.

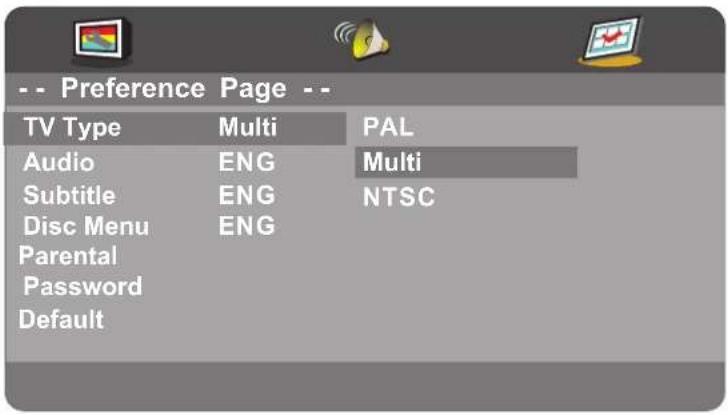

Preference Setup

You must sure no disc in the DVD then you can select Preference Page.

TV Type

• PAL

This is selected when the player is connected to an PAL System TV.

• MULTI

The player will set the TV system according to the disc in the tray.

• NTSC

This is selected when the player is connected to a NTSC System TV.

Audio

If a language listed below is recorded on the disc, you can play the sound in such language. If not, the language recorded will be used.

• English
• French
• Spanish
• Portuguese
  • Italian
• Polish

Subtitle

If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language. If not, the language recorded will be used.

• English
• French
• Spanish
• Portuguese
  • Italian
• Polish
  • Off

Disc Menu

If a language listed below is record on the disc, you can set the Menu to be displayed in such language. If not, the language recorded will be used.

• English
• French
• Spanish
• Portuguese
  • Italian
• Polish

Parental

When playing disc with parental lock function, you may select an Age Control Grade according to grade of disc and your own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade cannot be played.

User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function.

NOTE:(Default password is 123456)

Default

User can load the original factory setting by choose RESET and press OK button.

9. TROUBLESHOOTING AND ADVICE

Please check if you can solve the issue by yourself.

Troubleshooting	Control
No signal	Please check that all cables and cords are correctly plugged in.
No color shades	Adjust the contrast, the color and the brightness.
Stain showing on the screen	Maybe result from a lighting signal from car, motor, neon light and other electrical devices or appliances.
Double or multiple display image	Maybe the result of an electrical wave disturbance from other TV, Computer and Game machine or Radio.
Snow on the screen	The cables of the antenna are not correctly plugged in.
The remote control does not work	Please check the batteries order and alignment.Check that the IR of the remote control is not hidden by something.
No sound	Make sure that you have not pressed the MUTE button on the panel or the remote control.
No DVD	Make sure if the TV Set have been switched to DVD mode
DVD player not working properly	Ensure disc is correctly inserted into the player. Ensure the disc does not damaged and with correct format. Please wait patiently as some discs need longer time to play.

10.SPECIFICATIONS

This manual is only for your reference, any change to the design and specification will not be advised.

Mode		LCT-B01HDU22H	LCT-B01TDU22H	LCT-B01TU22H	LCT-B01TU24F	LCT-B01HU24F	LCT-B01HU32H
Screen Size		21.6Inch	21.6Inch	21.6Inch	23.6Inch	23.6Inch	31.5Inch
Display Type		TFT LCD
Resolution(Pixel)		1366 X 768			1920 X 1080		1366 X 768
Aspect Ratio		16:9
Power Supply		AC 110-240V 50/60Hz
Power Consumption		70W		60W	72W		140W
TV System		PAL/SECAM
Video Input Format		PAL/NTSC/SECAM
Audio Output Power		L/R 2X3W					L/R 2X8W
SUPPORT	ANTENNA	YES					YES
	AV-IN	YES					YES
	YPbPr - IN	YES					YES
	HDMI - IN	YES					YES X2
	VGA(PC) - IN	YES					YES
	VGA(PC) AUDIO - IN	YES					YES
	SCART - IN	YES					YES
	SCART - OUT	YES					YES
	EARPHONE - OUT	YES					YES
	S-VIDEO - IN	--					--
	COAXIAL - OUT	--					--
	COMMON INTERFACE	YES					YES
	USB	YES					YES
	IPOD	--					--
DVD	Disc Physical Format	YES	YES	--	--	--	--
	DVD Video Output Format	YES	YES	--	--	--	--
Dimensions	Inc Stand (LxWxHmm)	536x210x418	536x210x418	536x210x418	579x210x435	579x210x435	806x241x595
	Exc Sand (LxWxHmm)	536x83x418	536x83x418	536x83x418	579x90x420	579x90x420	806x114x552
Weight	Net (Kgs)	5.3	5.3	4.8	6.0	6.0	14
	Gross (Kgs)	6.7	6.7	6.2	6.7	6.7	16.5

AKIRA

Thank you

for choosing

AKIRA

Check out our web site

www.akiraeurope.com
