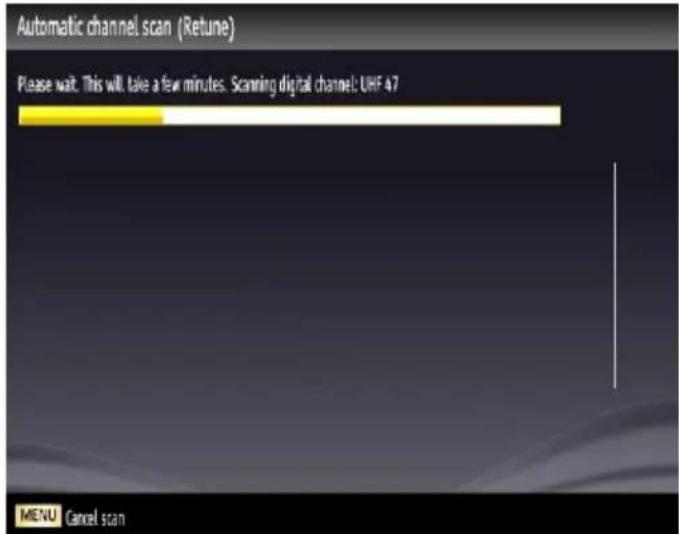

First Time Installation.... 34

Media Playback via USB Input 36

Media Browser Menu.... 36

Changing Image Size: Picture Formats.... 36

Using the Channel List 36

Menu Features and Functions.... 37

Menu Features and Functions.... 38

Menu Features and Functions.... 39

DVD MODE 40

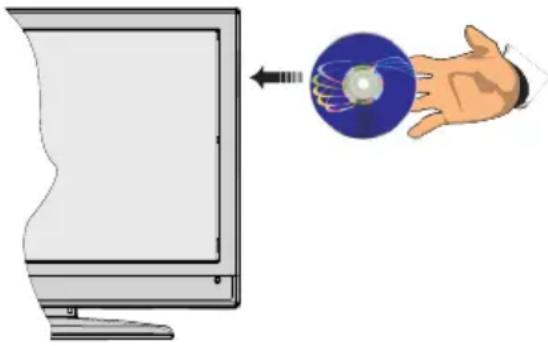

How to watch a DVD 40

Notes on DVD Playback 40

DVD Mode Configuration.... 41

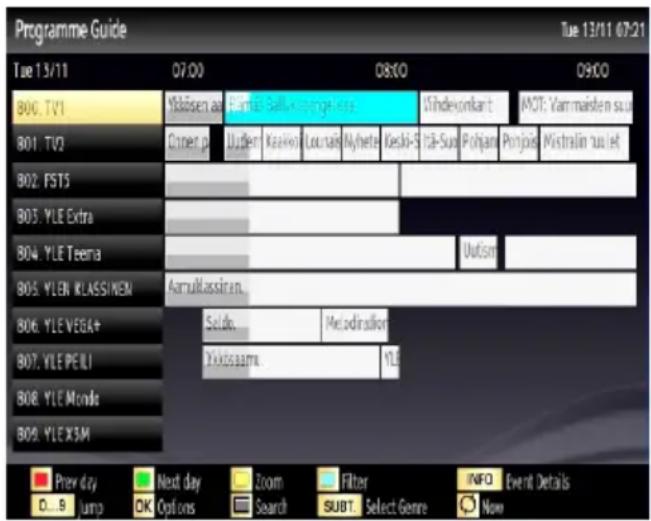

Electronic Programme Guide (EPG) 43

Teletext 43

Digital Teletext (If available)...... 43

Software Upgrade.... 43

Troubleshooting & Tips 44

PC Typical Display Modes 45

Supported File Formats for USB Mode 46

Specifications 46

Safety Precautions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Please read these instructions fully before installing or operating.

WARNING: Never let people (including ren) with physical, sensory or mental ties or lack of experience and / or knowledge supervised use electrical device!

Children may not recognize dangers right! The swallowing of batteries can be fatal. Keep batteries always out of reach of small children. If a battery is swallowed, immediately seek medical attention. Keep the packaging films out of reach of children. Risk of suffocation.

Power source

The TV should be operated only from a 220-240 V • AC, 50 Hz outlet.

Warning: Do not leave your TV in standby or rating mode when you leave your house.

Positioning the TV

For ventilation, please leave a clear space of at least 10cm all around the TV.

Do not block the ventilation openings. •

Do not place the TV on sloping or unstable surfaces, • the TV may tip over.

- To prevent damage to the TV, do not place any objects on top of the TV.

- Only use the TV in moderate climates.

Power cord and plug

The power cord plug should be easily accessible. In case of storms and lightning, when going on holiday, or when the TV is not used for a long period of time disconnect the power cord from the mains power socket.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

Do not • place the TV, furniture, etc. on the power cord or pinch the cord.

Handle the power cord by the plug, • do not unplug the TV by pulling the power cord.

Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.

Never make a knot in the power cord or tie it with other cords.

Power cords should be placed in such a way that they are not likely to be stepped on or driven over.

A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.

Moisture and Water

Do not• use this TV in a humid or damp place (avo bathrooms, the sink in the kitchen, and near the washing machine).

• Do not expose this TV to rain or water, as this may be dangerous.
• Do not place objects filled with liquids, such as flower vases, on top of the TV. Avoid from dripping or splashing.
• If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.

- To prevent overheating, these openings must not be blocked or covered in anyway.

Heat sources and Flames

Do not• expose the TV to direct sunlight or other heat sources.

•The TV should not be placed near to open flames and sources of intense heat such as an electric heater.

- Ensure that no open flame sources, such as lighted candles, are placed on top of the TV.

Headphone Volume

- Excessive sound pressure from earphones and headphones can cause hearing loss, please take care.

Wall Mounting (optional)

To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

LCD Screen

Occasionally, a few non-active pixels may appear • on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.

Take care not to scratch the screen with fingernails • or other hard objects.

Cleaning

Before cleaning, unplug the TV from the wall • socket.

- Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Servicing

- Warning: Risk of exposure to radiation from class 1/class 3b visible and invisible laser beams. Do not open the TV and stare directly into beam.

CLASS 1 LASER PRODUCT

- Warning: Risk of electric shock, do not attempt to repair, service or modify this TV yourself. Contact the manufacturer, their approved service agent

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode as Eco, the TV will switch to energy-saving mode and luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

Power Save Mode < Off >

If you set power save mode as Picture off, a message will appear on the screen and backlight will be off within three seconds. Press any button on the remote controller to activate the picture again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time.

It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. Also it is recommended to disconnect the TV from the mains plug to save energy more when you do not use.

Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Accessories included

Remote Control

Batteries: 2 x AAA

Instruction Book

Quick Start Guide

Side AV Connection Cable

TV - Features

Fully integrated digital/cable (DVB-T/C).

HDMI connector for digital video and audio.

USB input.

10000 programmes.

OSD menu system.

Scart socket for external devices.

Stereo sound system.

Teletext, fastext, TOP text.

Headphone connection.

Automatic programming system.

- Forward or backward manual tuning.

Automatic power down after up to six hours.

- Sleep timer.

- Child lock.

• Automatic sound mute when no transmission.

- NTSC playback.

• AVL (Automatic Volume Limiting).

- PLL (Frequency Search).

- PC input.

- Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.

- Game Mode.

- Picture off function.

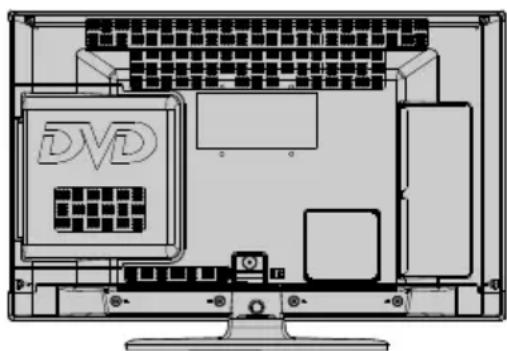

DVD - Features

• DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG playback.
• NTSC / PAL playback (according to disc content).

LPCM audio via coaxial and optical digital audio outputs (optional).

- Multi-Audio (up to 8) support (according to disc content).

- Multi-Subtitle (up to 32) support (according to disc content).

- Multi-Angle (up to 9) support (according to disc content).

• 8 level parental control.
• Fast forward and rewind - 5 different speeds: 2x, 4x, 8x, 16x, 32x.
• Slow motion playback - 4 different speeds: 1/2x , 1/4x , 1/8x , 1/16x forward.
  • Frame by frame forward playback.
• Search Mode
• Repeat
• Coaxial audio output (optional).
• Copied disks may be incompatible.

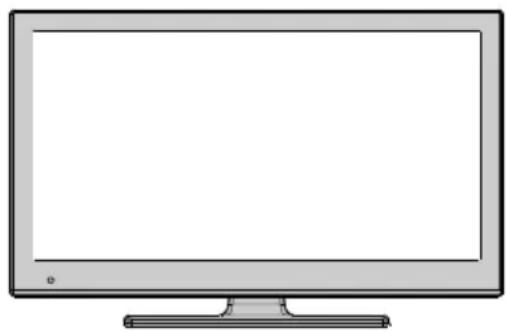

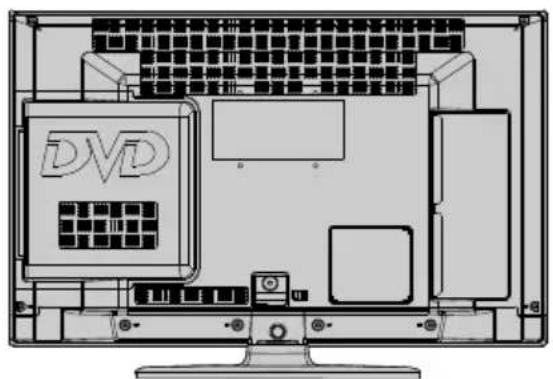

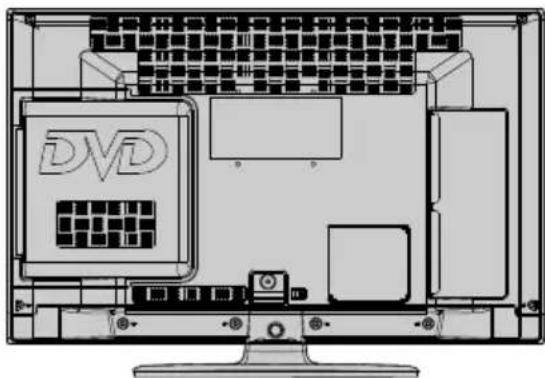

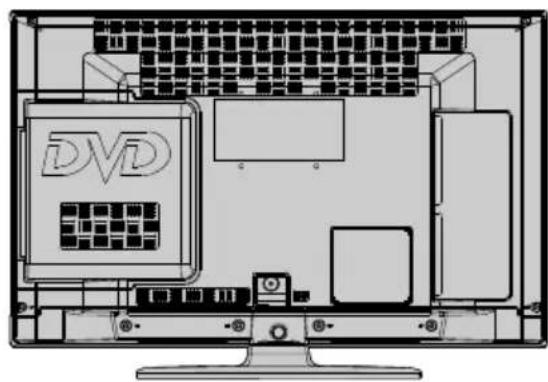

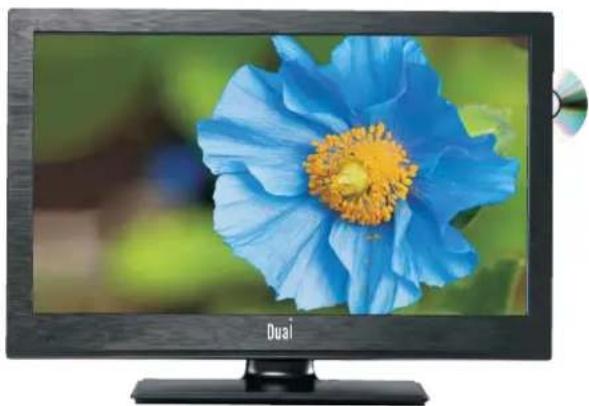

Viewing the TV

Illustration of a flat-screen computer monitor with blank screen and stand (no text or symbols)

Top-down schematic of a computer monitor showing internal components like an DVD and drive unit (no text or labels)

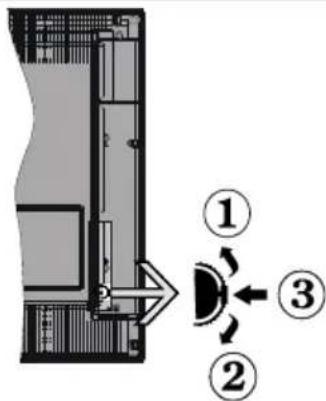

TV Control Switch & Operation

Diagram showing a device interior with labeled components and directional arrows, including numbered annotations ①, ②, and ③.

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch

You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

(StandbySwitch)

1, switch is used for turning the TV on or off.

Operation with the Remote Control

Press MENU button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press RETURN or MENU button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the V ^ / v and CH ^ / v buttons on the remote.

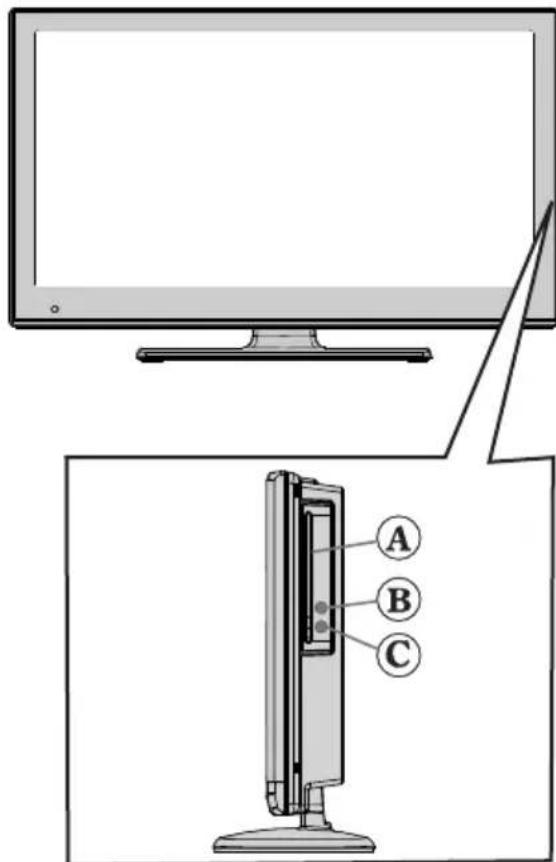

DVD - Control buttons

A- Disc loader
B- Play / Pause (▶ / ▶) button

Plays / pauses the disc. When DVD menu (root menu) is active, this button functions as "button select" (selects the highlighted item in menu) if this is not prohibited by the disc).

C- Stop / Eject (■ / ▶ button

Stops the disc playing / Ejects or Loads the disc.

NOTE: You cannot eject the disc via the remote control. To eject while playing a file; you should press the STOP button "■ / ▶(on the TV) three times.

Diagram showing a computer monitor and its internal panel with labeled parts A, B, and C.

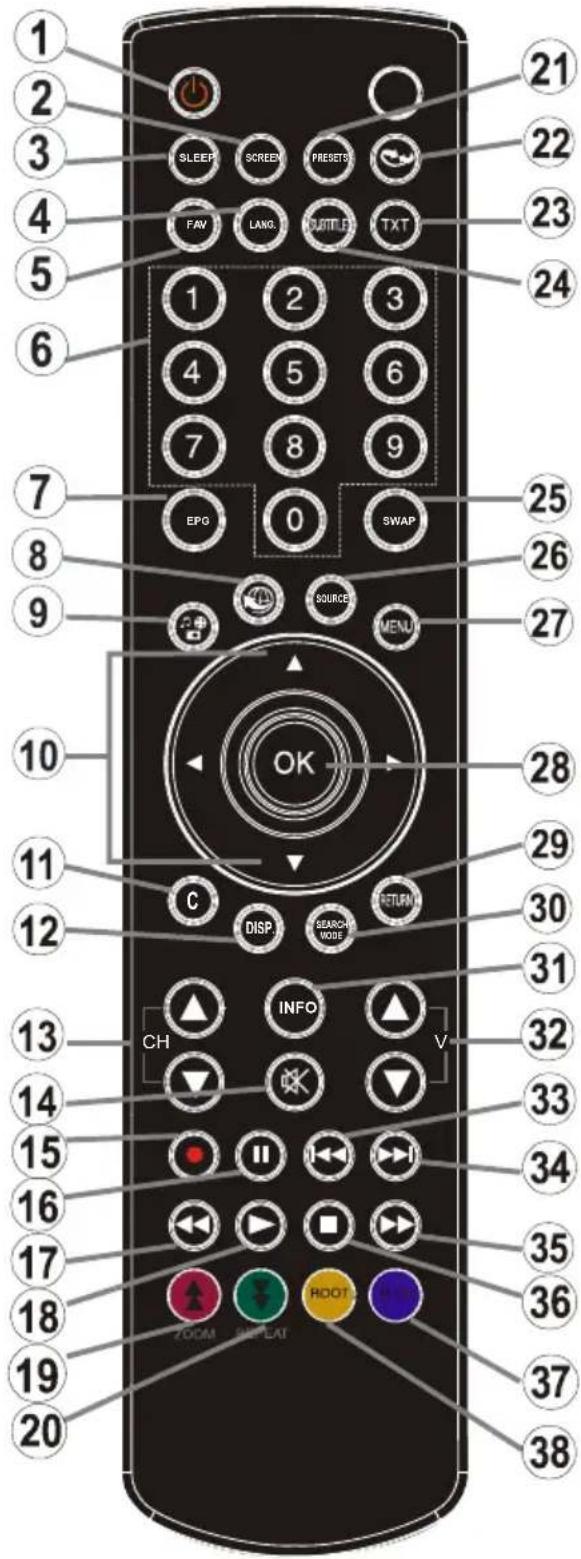

Viewing remote control - TV

Standby1.

Image size2.

Sleep Timer3.

Mono/Stereo - Dual I-II / Current Language (*) 4 (in DVB channels)

Favourite channels5.

Numeric buttons6.

Electronic programme guide(in DVB channels)7.

No function8.

Media Browser9.

Navigation buttons (Up/Down/Left/Right)10.

No function11.

No function12.

Programme Down / Page up - Programme Up / 13. Page down

Mute14.

No function15.

Pause (in Media Browser mode) 16.

Rapid reverse (in Media Browser mode)17.

Play (in Media Browser mode)18.

1. Red button

2. Green button

3. Picture mode selection No function22.

4. Teletext / Mix (in TXT mode)

5. Subtitle on-off (in DVB channels)

6. Previous programme

7. AV / Source selection Menu on-off27.

8. Okay (Confirm) / Hold (in TXT mode)/ Channel List

Exit / Return / Index page (in TXT mode)29. No function30.

1. Info / Reveal (in TXT mode)

2. Volume Up / Down No function 33. No function 34.

3. Rapid advance (in Media Browser mode)

4. Stop (in Media Browser mode) Blue button37.

5. Yellow button

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 SLEEP SCREEN PRESITS FAV LANG. BUTTER TXT 1 2 3 4 5 6 7 8 9 EPG 0 SWAP SOURCE MENU OK C DISP. SEARCH MODE RETURN CH INFO V 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

NOTE: The Remote Control range is approximately
7m / 23ft.

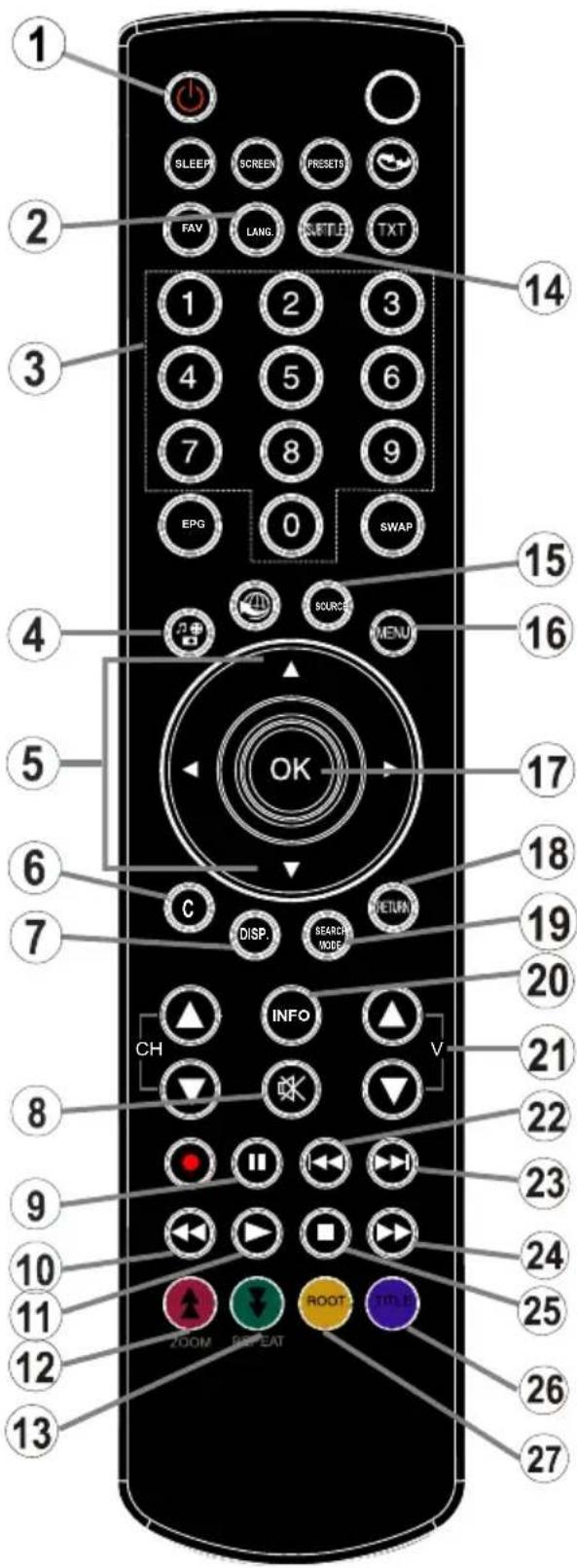

Viewing remote control - DVD

Standby1.

Language selection (Set language)2.

Numeric buttons3.

Angle4.

Navigation buttons (Up/Down/Left/Right)5.

Clear 6.

Display time / DVD menu7.

Mute8.

Pause9.

Rapid reverse10.

Play11.

Zoom12.

Repeat13.

Subtitle14.

AV / Source selection15.

Menu16.

1. OK
2. Return
3. Search Mode
4. Info
5. Volume Up / Down
6. Skip Previous
7. Skip Next
8. Rapid advance
9. Stop
10. Title
11. Root

NOTE: Remote Control buttons that are not indicated a number cannot be used in DVD mode.

1 SLEEP SCREEN PRESETS FAV LANG SETT TXT 1 2 3 4 5 6 7 8 9 EPG 0 SWAP 4 SOURCE MENU OK 5 6 7 C RETURN DISP. SEARCH MODE CH INFO V 21 22 23 24 25 26 27 9 10 11 12 13 ZOOM REPEAT ROOT ITEMS

Viewing the Connections

Connector	Type	Cables	Device
	Scart Connection (back)
	VGA Connection (back)
	PC/YPbPrAudio Connection (side)		SideAudio/Video ConnectionCable (Supplied)
	HDMI Connection (back)
SPDIFF	SPDIFF Connection (back)
	SideAV Connection (side)		[STK4]AVConnection Cable(supplied)
	Headphone Connection (side)
	USB Connection (side)
	CI Connection (side)

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied).

Installing the Batteries to the Remote

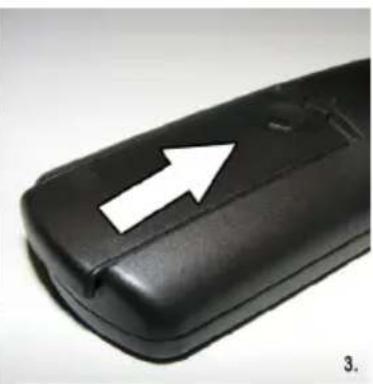

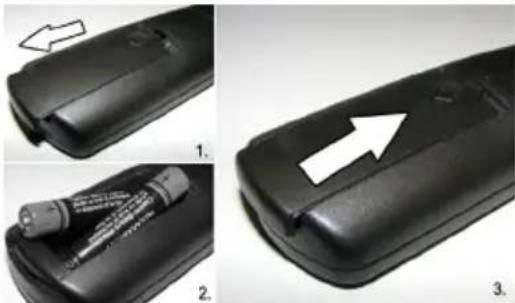

1. Lift the cover on the back of the remote upward gently.

2. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity.

3. Replace the cover.

Close-up of a black remote control case with two views showing internal battery and plug (no text or symbols visible)

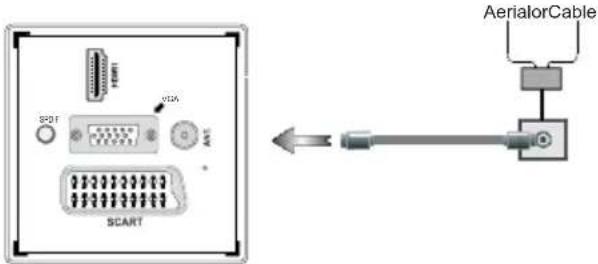

Connect Power & Antenna/Cable

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

AerialorCable START VDA AVT SCART

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz socket.

Switch the "☐" button on the rear left hand side to position "|" so the TV will switch to standby mode Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the "☐" button, CH ^ / v or a numeric button on the remote control.

b. Press the middle of the “ ” button on the TV. By either method the TV will switch on.

Switching the TV Off

Press the “💡” button on the remote control or press the “ ” button, so the TV will switch to standby mode.

Switch the "☐" button to position 2 as illustrated,

so the TV will switch OFF.

To turn off the TV completely, remove the power cord plug from the mains power socket.

Note: When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

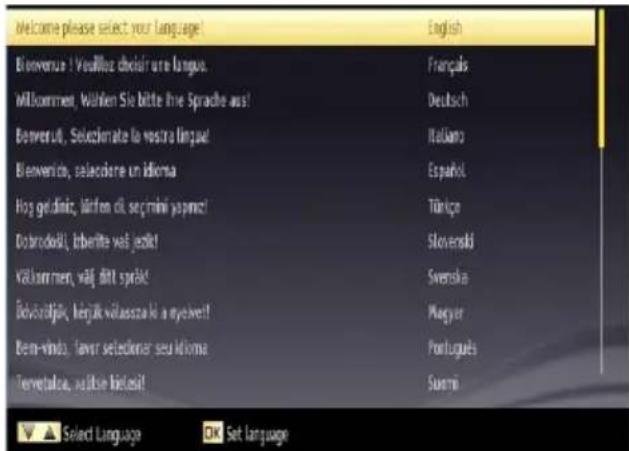

Welcome please select your language Blevenze ! Veuillez choisir une langue. Millkommen, willen Sie bitte ihre Sprache aus! Benverut, Selectmate la vostra linguat Blenvenico, selecione un idiomai Hog geldinit, wirfen di seç mini yapmaz! Dotrodiál, terberite val jedit! Välkommen, välj dāt spráč! Behväräjä, kierjik välassza ki a myelvet! Bern-vindo, favor seleccioner seu idiome Tervetalca, valjse kielasit! English Français Deutsch Italiano Español Türico Slovenski Swenska Magyar Portugues Suerni Select Language Set language

Press the “” or “” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “<” or “>” button to set the required country, and press “” button to select Search Type (optional).

Use “<” or “>” to set the desired search type. Available search types are Digital and analog, digital only and analog only.

When set, press “√” to select Teletext Language. Use “<” or “>” to select the desired Teletext Language. Next, select Scan Encrypted and set as Yes if you want to scan coded stations.

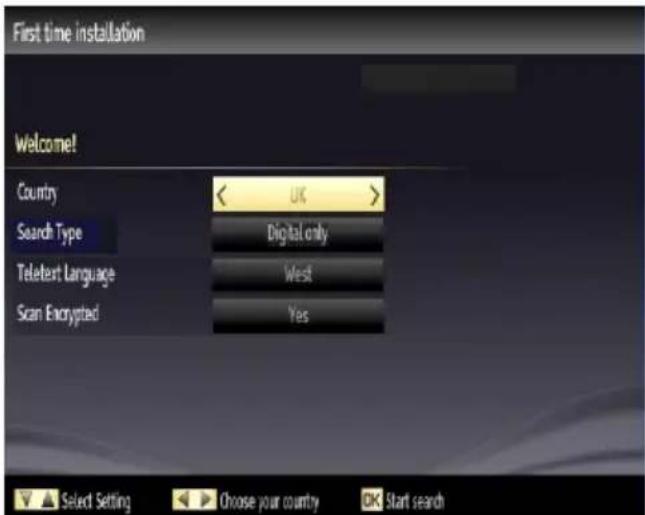

First time installation Welcome! Country UK Search Type Digital only Teletext Language West Scan Encrypted Yes Select Setting Choose your country Start search

Press OK button on the remote control to continue and the following message will be displayed on the screen.

Please Select Digital Search Type Aerial Cable

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

Automatic channel scan (Retune) Please wait. This will take a few minutes. Scanning digital channel: UHF 47 MENU Cancel scan

NOTE: You can press MENU button to cancel.

After all the available stations are stored, Channel List will be displayed on the screen. If you like the sort channels, according to the LCN(*), please select "Yes" and then press OK.

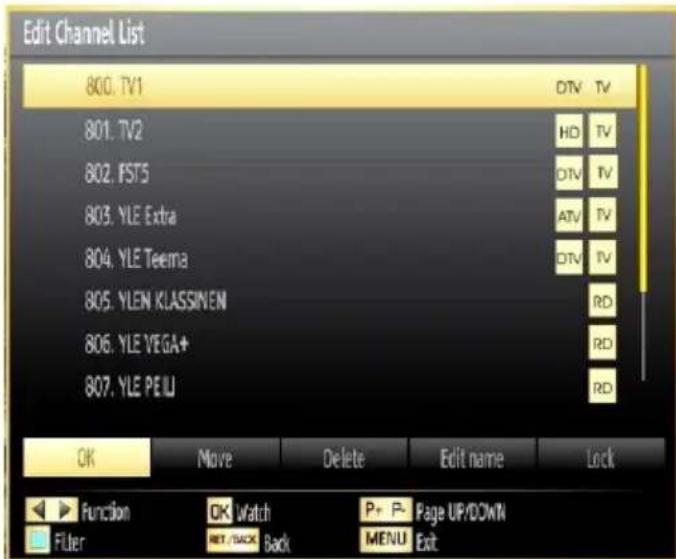

Edit Channel List 800. TV1 801. TV2 802. FST5 803. YLE Extra 804. YLE Teema 805. YLEN KCLASSINEN 806. YLE VEGA+ 807. YLE PEIU OK Move Delete Edit name Lock Function OK Watch P+ P- Page UP/DOWN Filter NET/BACK Back MENU Exit

Press OK button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

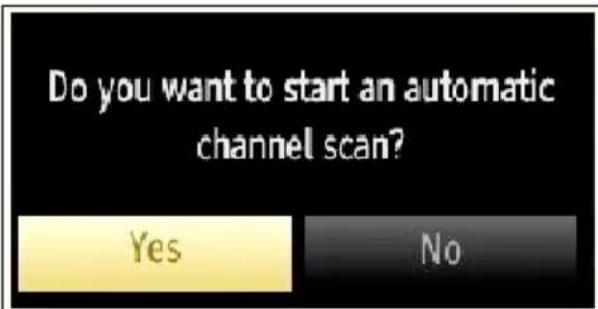

Do you want to start an automatic channel scan? Yes No

To continue please select YES and press OK. To cancel operation, select NO and press OK.

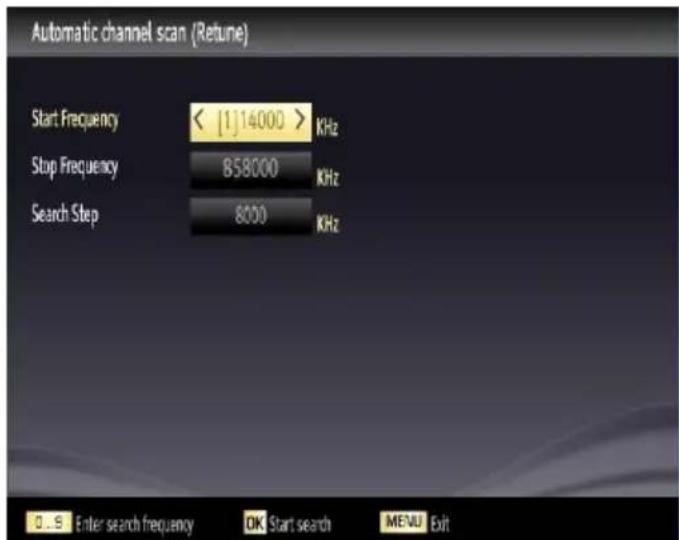

Automatic channel scan (Refune) Start Frequency < [1]14000 > KHz Stop Frequency 858000 KHz Search Step 8000 KHz 0..9 Enter search frequency OK Start search MENU Exit

You can select frequency ranges from this screen. For highlighting lines you see, use " / or " " button.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. Note: While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using “^” or “▼” button and press OK.

Press MENU button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press SCREEN button repeatedly to change the image size. You can shift the screen up or down by using “^” or “” buttons while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

Edit Channel List 800. TV1 801. TV2 802. PST5 803. YLE Extra 804. YLE Tee ma 805. YLEN KCLASSINEN 806. YLE VEGA+ 807. YLE PEIU DIV TV HD TV DTV TV ATV TV DIV TV RD RD RD OK Move Delete Edit name Lock ◀ Function OK Watch P+ P- Page UP/DOWN Filter RIT/BACK Sark MENU Exit

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options. Press MENU button to view main menu. Select Channel List item by using Left or Right button. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK buttons to select Edit Channel List. Press Up or Down button to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press MENU button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using “^” or “▼” button. Press OK button to continue. You can select a network type option from the list by using “<” or “> and OK buttons.

Menu Features and Functions

Picture Menu Contents
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast	Sets the lightness and darkness values of the screen.
Brightness	Sets the brightness value for the screen.
Sharpness	Sets the sharpness value for the objects displayed on the screen.
Colour	Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, “Environmental Information” in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp	Sets the desired colour tone.
Picture Zoom	Sets the picture size to Auto, 16:9, Subtitle, 14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True Black(optional)	While watching from HDMI source, this feature will be visible in the Picture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode (optional)	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Adjust the desired skin tone.
Colour Shift	Adjust the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset	Resets the picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Contents
Volume	Adjusts volume level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the MENU button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance	This setting is used for emphasizing left or right speaker balance.
Headphone	Sets headphone volume.
Sound Mode	You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass (optional)	Enables or disables the Dynamic Bass.
Digital Out	Sets digital out audio type.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options.Digital Aerial: Searches and stores aerial DVB stations.Digital Cable: Searches and stores cable DVB stations.Analogue: Searches and stores analogue stations.Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Man ua I C ha nn el Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.

Menu Features and Functions

Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language	Configures language settings.
Parental	Configures parental settings.
Timers	Sets timers for selected programmes.
Date/Time	Sets date and time.Note:* The TV takes the time info via the broadcast. Correct time will be available on Date/Time Settings, if the time info is provided in the broadcast.If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual, Time Zone will be enabled.* If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other words, time information will be available according to these priorities: The TV first looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information.
Sources	Enables or disables selected source options.
Other Settings: Displays other setting options of the TV set:
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time , the TV will go off.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.

DVD MODE

Handling Discs

To keep the disc clean, only handle the disc by its edge. Do not touch the surface.

Do not• stick paper or tape on the disc.

If the disc is contaminated with any substance like • glue, remove before using it.

Do not• expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature can rise quickly and damage the disc.

After playing, store the disc in its case.

Cleaning Discs

Before playing, clean • the disc with a cleaning cloth. Wipe the disc from the centre out.

Do not•

use solvents

such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

DVD - Features

DVD / CD / CD-R / CD-RW / MP3 / JPEG / MPEG • playback.

- NTSC / PAL playback (according to disc content).

LPCM audio via coaxial and optical digital audio outputs (optional).

Multi-Audio (up to 8) support (according to disc content).

Multi-Subtitle (up to 32) support (according to disc • content).

Multi-Angle (up to 9) support (according to disc content).

• 8 level parental control.

- Fast forward and rewind - 5 different speeds: 2x, 4x, 8x, 16x, 32x.

- Slow motion playback - 4 different speeds: 1/2x, 1/4x, 1/8x, 1/16x forward.

• Frame by frame forward playback.

- Search Mode

- Repeat

- Coaxial audio output (optional).

• Copied disks may be incompatible.

How to watch a DVD

NOTE: DVD mode cannot be accessed unless a D is inserted or a DVD control button is pressed.

1. Switch on the TV.
2. Switch to DVD source using the "SOURCE" button on the remote control.
3. Insert a disc into the loader.

The disc MUST be facing you when looking at the TV screen.

Illustration of a hand holding a CD with an arrow indicating motion, next to a computer monitor (no text or symbols)

Most discs will be automatically loaded and play will start automatically if the disc does not have any menus recorded on it.

If play does not start automatically, press the play button “▶” on the remote control, or the play button “▶ / Ⅱ” on the right side of the TV.

A menu may appear on the TV screen after a few moments or the film may start immediately after the Film/TV Company introduction. This will depend on the disc content and may differ on each disc.

NOTE: Steps 4 and 5 are only available when a nu is recorded on the disc.

1. Press the navigation buttons “^”, “√”, “<” or “>” or the number button/s to select the required title.
2. Press the OK button. The selected item starts to play.

Notes on DVD Playback

a. No sound will be heard during Rapid advance or Rapid reverse.
b. No sound will be heard during Slow motion play.
c. Reverse Slow motion play is not available.
d. In some cases, the subtitle language will not be changed immediately to the selected one.
e. When the preferred language will not select, even after pressing the button several times, it means the language is not available on the disc.
f. When the DVD player is restarted or the disc is changed, the subtitle selection is automatically changed back to the initial settings.

g. If a language is selected that is not supported by the disc, the subtitle language will automatically be set to the disc's priority (default) language.

h. Usually a 'circulation' will happen while switching to another language, this means you can cancel the subtitle by pressing the same button a number of times until "Subtitle Off" appears on the screen.

i. When the power is turned on or the disc is removed, the language heard will be the one selected at the initial settings.

j. Some DVDs may not contain root and/or title menus.

k. Reverse stepping is not available.

I. For reference: If you attempt to enter a number greater than the total time of the current title, the time search box disappears and "Input Invalid ✉" message appears on top-left corner of screen.

m. The slide show is disabled when the ZOOM mode is on.

DVD Mode Configuration

1. While in DVD source, press DISPLAY button to access DVD Setup menu. This is only possible if there is no playback.

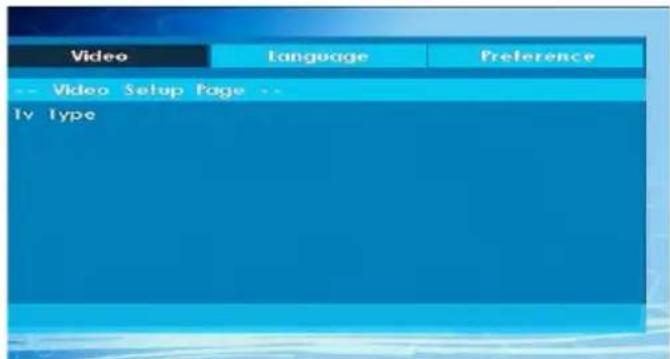

Video Language Preference -- Video Setup Page -- Iv Type

1. This menu is operated using “<or“” and “^” or “” buttons.

TV Type

TV Type is only available as 'PAL'. The TV set also supports NTSC signal; however, the signal will be converted to PAL when it appears on the screen.

Language Setup

This menu is used for setting language preferences in DVD mode. Language menu contents are detailed below:

OSD LANG

You can select the default OSD language of the player menus

AUDIO

You can select the default audio language if supported by the DVD disc.

DISC MENU

You can select the DVD's disc menu language among these languages. Disc menu appears in the selected language, if supported by the DVD disc.

SUBTITLE

You can select the default subtitle language if supported by the DVD disc.

Preferences: These are the DVD mode preferences. Menu contents are detailed below:

DEFAULT

If you choose RESET and press SELECT, the factory-presets are loaded. Parental level and parental password does not change.

DOWNMIX

This mode can be selected when the digital audio output of the TV is used.

SURROUND

Surround sound output.

STEREO

Two channels stereo.

PARENTAL

Playing some DVDs can be limited depending on the age of users. The “Parental Control” function allows playback limitation level to be set by the parent. Parental Level can be adjusted to one of the eight levels. Level “8 ADULT” adjustment let you watch all of the DVD titles ignoring the DVD disc’s parental level. You can watch the DVD discs, which has the same or lower parental level than the player’s level only. Menu contents are detailed below:

PASSWORD

Using this item you can change the current password. To change the password you will be prompted to enter your old password. After you have entered your old password, you can now enter the new 4-digit password. You can use C key to delete the incorrect entry.

NOTE: Factory preset of the password is "0000".

You have to enter XXXX digital password every time you want to change the parental level. If you forget your password please contact technical service.

SPDIF OUTPUT

You can set Spdif Output as PCM or RAW. If you select PCM from SPDIF Output in DVD menu and play DVD with Dolby audio, you can get audio output with two channels via the speakers and the SPDIF Out. If you select RAW from SPDIF Output in DVD menu and play DVD with Dolby audio, speakers will be muted and you can get 5+1 Dolby audio via the SPDIF Out.

DVD Controls

You can operate DVD, movie CD, music or picture CD's content by using the correct buttons on your remote control. Below are main functions of commonly used remote control buttons.

Buttons DVD	Playback Movie	Playback Picture	Playback Music	Playback
▶	Play Play	Play Play
II	Pause Pause	Pause Pause
■	Stop Stop	Stop Stop
|◀/▶|	Skip backward/forward	Skip backward/forward	Previous / Next Previous / Next
◀/▶	Shifts the zoomed picture left or right (if available).
√/^	Highlights a menu item / Shifts the zoomed picture up or down (if available).
◀/▶	Rapid advance / Rapid reverse
	Views the scene from different angles (if available)		Changes slide effect (depends on the content)	X
C	Clears digit (if available).
DISPLAY	Displays time / Views main setup menu
INFO	Time counter mode selection (during playback). Press repeatedly to switch between modes.
LANG.	Auto language		X	X
MENU	Displays TV menu.
OK / SELECT	Enter / View / Play
REPEAT	Displays repeat options.
RETURN	Returns back to the previous menu (if available).
ROOT	Goes back to the root folder (if available).
SEARCH MODE *	Direct selection of scenes or time.		Selects the desired file.	Selects the desired file.
SUBTITLE	Subtitle on-off. Press repeatedly to switch between subtitle options.		X	X
SWAP	Media source selection.
TITLE	Displays disc menu (if available).	Displays disc menu (if available).	X	X
MENU	Zooms picture. Press repeatedly to switch between zoom options.

Other Functions – Button Combinations (During playback)

II + ▶▶	Slow forward
(II + ▶▶) + ◀◀ ▶▶	Sets slow forward speed
▶▶ + ▶▶	Sets rapid advance speed
◀◀ + ◀◀	Sets rapid reverse speed
■ + ■	Confirms stop command
II + ▶▶▶	Press repeatedly to advance manually

(*) You can switch to a title by pressing number buttons directly. You need to press 0 and then digit key to switch one digit titles (example: to select 5, press 0 and 5).

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Programme Guide Tue 13/11 07:21 Tue 13/11 07:00 08:00 09:00 B00. TV1 Yildisen aan Hart & Salkkörngel-Kiss Vihdekonkant MOT: Varmaiden suu B01. TV2 Cnerp Udber Kaski Lou-tak Nyhete Kesk-S iÄ-Sua Pohjam Ponjois Mästralin tu-et B02. FSTS B03. YLE Extra B04. YLE Teema B05. YLEN KCLASSINEN Aarulklassiren... B06. YLE VEGA+ Saldo Mezodration B07. YLE PEI LI Yiklosama YLI B08. YLE Monde B09. YLE X3M Prev day Next day Zoom Filter INFO Event Details ... Jump OK Options Search SUBT Select Genre Now

Info bar commands:

RED button: Previous day.

GREEN button: Next day.

YELLOW button: Zooms to the selected programme.

BLUE button - Next day: displays filtering options.

INFO button - Details: displays, in detail information on programme selected.

Number buttons - Jump: go to preferred channel directly using number buttons.

OK button - Reminder: to view current selected broadcasts or set reminders for future programmes.

“TXT” button - Search: to view “Guide Search” menu. Using this feature, you can search the programme guide database in line with the genre selected or with name match and on the day/s selected.

SUBTITLE: Displays GENRE options.

SWAP button - Now: jumps to the current broadcast (when viewing previous "Prev. day" or future "Next day" programmes).

Teletext

“TXT” Teletext / Mix: Activates teletext mode when pressed once. Press again to place the teletext screen over the programme (mix). Pressing again will quit the teletext mode.

"RETURN" Index: Selects the teletext index page.

"INFO"Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

“◀”/“▶ Subcode Pages: Selects subcode pages if available when the teletext is activated.

P+ / P- and numbers (0-9): Press to select a page.

Note: Most TV stations use code 100 for their index pages.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing “▼” or “▲” commands will request the next or previous page respectively.

Digital Teletext (If available)

- Press the "TXT" button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "TXT" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

• It is possible manually to check if there is a new software upgrade for your TV set.
• Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.
• In Upgrade Options menu select Scan for upgrade and press OK button.
• If a new upgrade is found, it starts to download the upgrade. A progress bar indicates the remaining download progress. When download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

- While TV is connected to Internet, in background it searches for critical software upgrades. If a critical software upgrade is found it downloads the upgrade silently. When download completes with success a message is displayed for reboot operation to activate

new software. Press OK to continue with the reboot operation.

3) 3.AM search and upgrade mode

- If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up TV opens with new software version.

Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking. Around 5 minutes later TV restarts with new software activated.

- If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still can not get TV working please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plug is connect to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?.
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?
3. Are the plugs connected tightly to the aerial socket?
4. Is the aerial cable damaged?
5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the "OK" button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

The DVD picture quality is poor

1. Make sure the DVD disc surface is not damaged (no scratches, fingerprints etc.).
2. Clean the DVD disc and try again. See instructions in "Cleaning Discs" to clean your disc properly.
3. Ensure that the DVD disc is in the loader with the label facing you when looking at the TV screen.
4. A damp DVD disc or condensation may effect the equipment. Wait for 1 to 2 hours in Stand-by mode to dry the equipment.

The Disc does not play

1. No disc in the machine - Place a disc into the loader.
2. Disc is incorrectly loaded - Ensure that the DVD disc is in the loader with the label facing you when looking at the TV screen.
3. Wrong type of disc. The DVD player cannot play CD-ROMS etc.
4. The region code of the DVD disc must match the player.

Ensure that the DVD disc is in the loader with the label facing to the front.

Wrong type of disc. The machine cannot play CD-ROMS with PC-Data.

Wrong OSD language

1. Select the language in the setup menu.
2. The language for the sound or subtitles on a DVD disc cannot be changed.
3. Multilingual sound and/or subtitles are not recorded on the DVD disc.
4. Try to change the sound or subtitles using DVD's title menu. Some DVD's do not allow the user to change these settings without using the disc's menu.

Angle, Zoom etc. functions do not work

1. These functions are not available on the DVD.
2. Angle can only be changed when the angle symbol is displayed.

If nothing works.

If you have tried the above solutions and none seem to work, try switching your TV-DVD off and on again. If this does not work, contact your supplier or TV-DVD repair technician. Never attempt to repair a defective TV-DVD yourself.

Man u fact ure d und e r li cens e from Do I by Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution	Frequency
1	640x350p 60	Hz
2	640x400p 60	Hz
3	1024x768 60	Hz
4	1280x768 60	Hz
5	1360x768 60	Hz
6	720x400 60	Hz
7	800x600 56	Hz
8	800x600 60	Hz
9	1024x768 60	Hz
10	1024x768 66	Hz
11	1280x768 60	Hz
12	1360x768 60	Hz
13	1280x1024 60	Hz
14	1280x960 60	Hz
15	1280x1024 60	Hz
16	1400x1050 60	Hz
17	1920x1080 60	Hz
18	1600x1200 60	Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L'

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER ( W_RMS. ) (10% THD)

2×2,5

POWER CONSUMPTION (W)

50 W (max)

PANEL

16:9 display, 22" Screen Size

DIMENSIONS (mm)

DxLxH (With foot):135 x 530 x 375

Weight (Kg): 5,15

DxLxH (Without foot): 55 x 530 x 340

Weight (Kg): 4,95

Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg .mpeg	MPEG1,2	MPEG Layer 1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat	MPEG1,2	MPEG2
	.vob	MPEG2
	.mkv	H.264, MPEG1,2,4	EAC3/ AC3
	.mp4	MPEG4Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00,Xvid 1.01, Xvid 1.02, Xvid 1.03,Xvid 1.10-beta1/2H.264	PCM
Music	.mp3	-	MPEG 1 Layer 1 /2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg	Baseline JPEG	-	max WxH = 15360x8640 4147200bytes
	.	Progressive JPEG	-	max WxH = 9600x6400 3840000bytes
	.bmp	-	-	max WxH = 9600x6400 3840000bytes
Subtitle	.sub .srt	-	-	-

DVD Mode Supported file formats

Media File	Extension Format Supported			(Maximum resolution/Bit rate etc.)
Movie	.mpg/.dat/.vob	MPEG1 MPEGLayer 1/23
		MPEG2 MPEG2
	.avi	XviD/3ivx PCM/MP3 XviD Version up to:1.1.2
		MPEG4 PCM/MP3
		MS ISOMPEG4	PCM/MP3 Support SP and ASP
Music	-- PCM Sample Rate: 8K ~ 48KHz
	.mp3	-	MPEG 1/2Layer 1/2/3 MP3	Sample Rate: 8K ~ 48KHz, Bit Rate: 64K ~ 320Kbps
Photo	.jpg	Baseline JPEG		W x H = 8902 x 8902 up to 77 Mega-pixel Support format: 444/440/422/420/Grayscale
		Progressive JPEG Up to 4 Mega-pixel		Support format: 444/440/422/420/Grayscale
External Subtitles	.srt			Support Text File Format,but do not supportPicture File Format
	.smi
	.sub
	.ssa
	.ass

Compatible disc types

Disc Types (Logos)	Recording Types	Disc Size	Max. Playing Time	Characteristics
	Audio + Video	12cm	Single sided; 240 min.Double sided; 480 min.	DVD contains excellent sound and video due to Dolby Digital and MPEG-2 System. Various screen and audio functions can be easily selected through the on screen menu.
	Audio	12cm	74 min.	An LP is recorded as an analogue signal with more distortion. CD is recorded as a digital signal with better audio quality, less distortion and less deterioration of audio quality over time.
	Audio (xxxx.mp3)	12cm	Depends on MP3 quality	MP3 is recorded as a digital signal with better audio quality, less distortion and less deterioration of audio quality over time.
	Video (still picture)	12cm	Depends on JPG quality	JPEG is recorded as a digital signal with better picture quality over time.

Table des matières

CLASS 1 LASER PRODUCT

Illustration of a flat-screen computer monitor with blank screen (no text or symbols)

DVD

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating motion or flow.

C- Bouton (■ / ▶ Stop / Ejection

Diagram showing a computer monitor and its internal panel with labeled parts A, B, and C.

Close-up of a black remote control case with two views showing internal components and an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a CD to transfer a CD into a computer monitor (no text or symbols present)

Symbol of a trash bin crossed with no visible text or labels

Batterie

Produits

PAL/SECAM B/G D/K K' I/I' L/L'

RECEPTION NUMERIQUE

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

RÉCEPTION DE CANAUX

VHF (BANDE I/III)

UHF (BANDE U)

HYPERBANDE

NOMBRE DE CANAUX PRÉRÉGLÉS

10000

INDICATEUR DE CHAÎNE

Affichage à l'écran

ENTRÉE D'ANTENNE RF

German + Nicam Stéréo

PUISSANCE DE SORTIE ( W_RMS ) (10% THD)

2×2,5

CONSOMMATION ÉLECTRIQUE (W)

50W (max)

PANNEAU

CLASS 1 LASER PRODUCT

Illustration of a flat-screen computer monitor with blank screen (no text or symbols)

Top-down line drawing of a computer monitor showing internal components like an DVD and keyboard (no text or symbols)

Diagram showing a mechanical or electrical component with numbered annotations indicating directional flow or rotation.

Diagram showing a computer monitor and its internal panel with labeled parts A, B, and C.

Close-up of a black electronic device casing with a white arrow pointing to a component (no visible text or symbols)

Close-up of a black remote control case with an arrow pointing to the side (no text or symbols visible)

Close-up of a black cylindrical battery with a red plastic cap, placed on a black surface (no visible text or symbols)

Illustration of a hand holding a CD to interact with a computer monitor, showing motion lines around it (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Batería

Productos

PAL/SECAM B/G D/K K' I/I' L/L'

RECEPCIÓN DIGITAL

DVB-T y MPEG2

DVB-T MPEG4 HD

DVB-C y MPEG2.

DVB-C MPEG4 HD

75 Ohm (sin balance)

CLASS 1 LASER PRODUCT

Illustration of a flat-screen computer monitor with blank screen (no text or symbols)

Top-down schematic of a computer monitor showing internal components like DVD and desktop areas (no text or symbols)

Diagram showing a device interior with labeled components and directional arrows, including numbered parts 1, 2, and 3.

Diagram showing a computer monitor and its internal panel with labeled parts A, B, and C.

Three-step illustration of a black remote control case with a battery inserted, showing step-by-step assembly (no text or symbols)

Illustration of a hand holding a CD with an arrow pointing to it, next to a computer monitor (no text or symbols present)

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Ürünler

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Batarya

PAL/SECAM B/G D/K K' I/I' L/L'

DİJİTAL ALGILAMA

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

ALINAN KANALLAR

VHF (BANT I/III)

UHF (U BANDI)

HYPERBAND

ÖNCEDEN AYARLANABİLEN KANAL SAYISI

10000

KANAL GÖSTERGESİ

Ekran Görüntüsü

RF ANTEN GİRİŞİ

75 Ohm (dengesiz)

ÇALIŞMA GERİLİMİ

220-240V AC, 50 Hz

SES

Alman + Nicam Stereo

SES ÇIKİŞ GÜCÜ (W _RMS. ) (10% THD)

2×2,5

GÜÇ TÜKETİMİ (W)

50 W (maks.)

PANEL

Dual® 20 years of innovation 50229162
