Before connecting, operating or adjusting this product, please read this user's manual carefully and completely. USER'S MANUAL DVP-9412

PORTABLE DVDWarning: To reduce the risk of electric shock, do not remove the cover or back. There are no user-serviceable parts inside. Refer servicing to qualified personnel.

Warning: To prevent fire or electric shock hazard, do not

expose the unit to rain or moisture. Do not expose the Adaptor and portable DVD to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the unit. Keep the portable DVD away from direct sunlight and heat source such as radiators or stoves. Do not block the ventilation openings. Slots and openings on the unit are provided for ventilation. The openings should never be blocked by placing your portable DVD on a cushion, sofa or other similar surface. Do not place the portable DVD on unstable cart, stand, tripod, bracket or table. The unit may fall, resulting in possible damage or injury. Never place heavy or sharp objects on the LCD panel or frame. Only use the AC adapter included with portable DVD. Using any other adapter will void your warranty. The plug of AC adaptor is used as the disconnect device, the disconnect device shall remain readily operable. Unplug the power from the outlet when the unit is not in use. Attention should be drawn to the environmental aspects of battery disposal. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Important Safety Instructions CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNNING: The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like. WARNNING: Excessive sound pressure from earphones or headphones can cause hearing loss. WARNNING: Only use attachments/accessories specified provided by the manufacturer, the portable DVD is supplied by AC adapter, the AC adapter is used as disconnect device, the disconnect device shall remain readily operable. Caution: Danger of explosion if battery is incorrectly replaced, replaced only with the same or equivalent type (Lithium battery) Power supply adaptor Manufacturer：Shenzhen Mass Power Electronics Limited Model number: EFF0900150E1BA Use only the power supply listed in the user instructionsN Notes on Copyrights: It is forbidden by law to copy, broadcast, show,broadcast via cable, play in public, or rent copyrighted material without permission. This product features the copy protection function developed by Macrovision.Copy protection signals are recorded on some discs. When recording and playing the pictures of these discs picture noise will appear.This product incorporates copyright protection technology that is protected by method claims of certain U.S. Patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by macrovision Corporation. Reverse engineering or disassembly is prohibited.SERIAL NUMBER: You can find the serial number on the back of the unit.This number is unique to this unit and not available to others.You should record requested information here and retain this guide as a permanent record of your purchase.Model No. ______________________________Serial No. ______________________________Date of Purchase_________________________

Warning: when the unit using by child, parents must make sure to let the child understand all contents in Instruction book how battery using to guarantee using battery correctly all the time.Warning: when find battery overheat, swell or dour, please stop using battery and contact service centre for getting replacement.Warning: do not charging battery on the place of insufficientventilation such as: mattress, sofa, cushion , soft mat......Warning: we will not take any responsibility if user incorrectly use battery, not following our warning instruction label on the battery case.Warning: more than 250mm USB extension cord is prohibited to use for USB portWarning: This digital video disc player employs a laser system.Use of controls,adjustments, or the performance of procedures other than those specified herein may result in hazardous radiation Exposure.Warning: To prevent direct exposure to laser beam,do not openthe enclosure.Visible laser radiation when open.Warning: Never stare directly into the laser beam.Caution: Do not install this product in a confined space suchas a book case or similar unit.RISK OF ELECTRIC SHOCKDO NOT OPENWARNINGcharge over heat 40 C strong impactIdentification of Controls Main Unit

HDMI (only in TV mode, not in DVD mode)

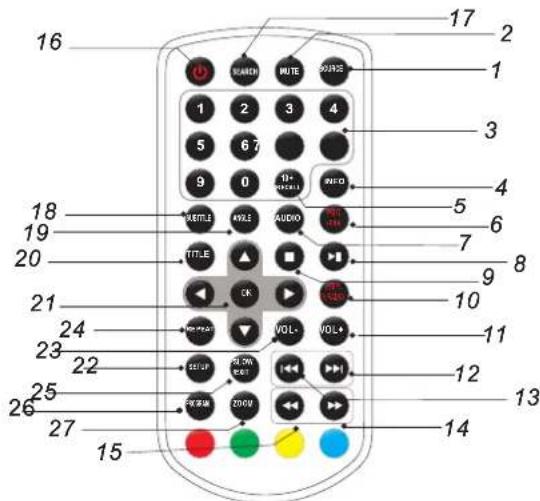

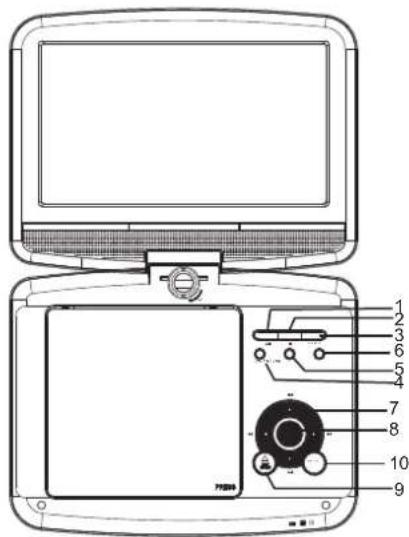

Remote control unit Identification of Controls 1. SOURCEDVD/CARD/USB.3.0-9 NUMBER BUTTONSelects numbered items in a menu.4.INFOTo display the playtime and status information.2. MUTEDisable Audio output. 5.10+ RECALLIn order to select a track 10 or greater, first press 10+, For example;select track 12, first press 10+, and then press number 2 button.6. PBC/FAVPBC on/off switch (VCD) . 7.AUDIO Press AUDIO repeatedly during playback to hear a different audio language or audio track, if avilable. Press AUDIO repeatedly during playback to hear a different audio channel ( Left,Right,Mix,Stereo). DVD VCDCD10. STEP/TV/RADIOStep the motion in DVD mode.14. BUTTONPress BUTTON allow skipping ahead at 5-level speed(X2->X4->X8->X16->X32->PLAY), press PLAY button return to normal playback.8.PLAY/PAUSEPress PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE second time will resume the playback.13.Reverse SkipGo to previous chapter/ track to the beginning.12.Forward SkipGo to next chapter/ track.9.STOPWhen this buttom is pressed once, the unit records the stopped point,from where playback will resume if PLAY( )is pressed after wards. But if STOP button is pressd again instead of PLAY( )button, there will be no resume function.11.VOL+Adjust volume

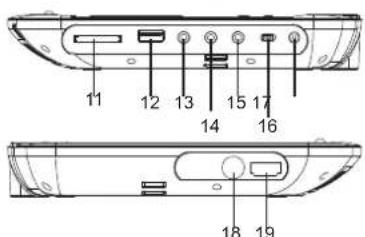

19Identification of Controls

Turn on/off the power. 22.SETUP Accesses or removes setup menu. 18.SUBTITLE Press SUBTITLE repeatedly during playback to see a different subtitle languages. 20.TITLE Return to DVD title menu 21.OK Confirms menu selection.. 24.REPEAT Press REPEAT during playback to select a desired repeat mode. : you can play select repeat chapter/title/all. DVD : you can select repeat shuffle/random/single/repeat one/ repeat folder/folder. VCD : you can select repeat track/all.

MP3 19.ANGLE :Press ANGLE will change the view angle, on DVDs that support this feature. DVD 25.SLOW Press Slow button repeatedly to enter slow playback, and cycle between different speeds. The speeds are 1/2,1/4,1/8,1/16,and normal. 26.PROGRAM :The program function enables you to store your favourite tracks from the disc. Press PROGRAM button ,then PROGRAM MENU will appear on screen, now you can use the number key to direct input the titles,chapters or tracks number and select PLAY option. TO resume normal playback, press PROGRAM and select clear program option on the program menu,press PROGRAM again to exit program menu,Mp3 has function Folder/ File list.. DVD VCD : Use ZOOM to enlarge or shrink the video image. 1.Press ZOOM during playback or still playback to activate the Zoom function. The square frame appears briefly in the right bottom of the picture.

2. Each press of the ZOOM button changes the TV screen in the

following sequence: : Use ZOOM to enlarge or shrink the picture. 1.Press 'ZOOM' . 2,Used " " to enlarge,or " " to shorten the picture. Use the button to move through the zoomed picture. DVD VCD JPEG 27.ZOOM CDSETUP Menu Setting General Setup Page

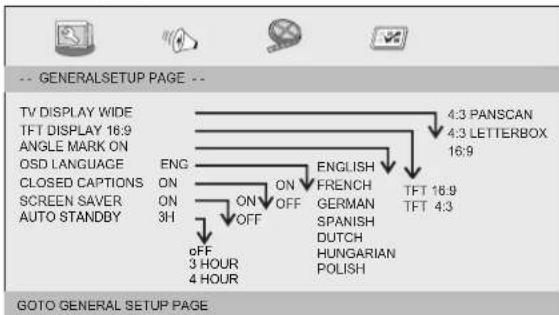

Angle MarkDisplays current angle setting information on the right hand corner of the TFT screen if available on the disc.OSD LanguageYou can select your own preferred language settings.Closed CaptionsClosed captions are data that are hidden in the video signal of some discs.Before you select this function,please ensure that the disc contains closed captions information and your TV set also has this function.Screen SaverThis function is used to turn the screen saver On or Off.Audio Setup Page Audio Setup Page Press SETUP button to get the setup menu. Use direction buttonsto select the preferred item. After finishing settings, press SETUP again to normal display.The following menu items can be changed:GENERAL: selects the GENERAL PAGE menu.AUDIO: selects the AUDIO PAGE menu.VIDEO: selects the VIDEO PAGE menu.PREFERENCE : selects the PREFERENCE PAGE menu.General Setup Page- - GENERALSETUP PAGE - -GOTO GENERAL SETUP PAGETV DISPLAY WIDEANGLE MARK ONOSD LANGUAGE ENGCLOSED CAPTIONS ONSCREEN SAVER ON4:3 PANSCAN4:3 LETTERBOX 16:9

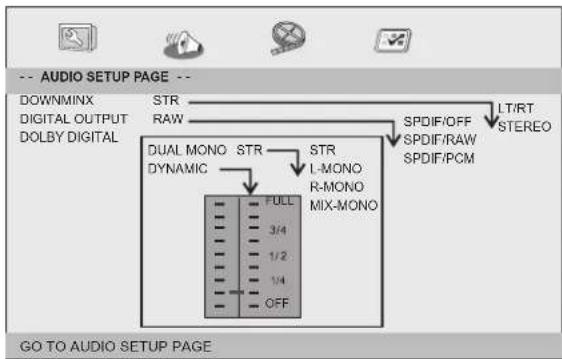

OFF TV DISPLAY: selects the aspect ratio of the playback picture.4:3 PANSCAN: if you have a normal TV and want both sides of the picture to be trimmed or formatted to fit your TV screen.4:3 LETTERBOX: if you have a normal TV. In this case, a wide picture with black bands on the upper and lower portions of the TV screen will be displayed.16:9:wide screen display.-- --DOWNMINX STR DIGITAL OUTPUT RAW DOLBY DIGITAL LT/RTSTEREOSPDIF/OFFSPDIF/RAWSPDIF/PCMDUAL MONODYNAMIC STR STR L-MONOR-MONOMIX-MONO

oFF 3 HOUR4 HOURAuto StandbyThis function is used to standby.TFT DISPLAY 16:9TFT DISPLAYselects the aspect ratio during playback. HUNGARIANPOLISHSETUP Menu Setting

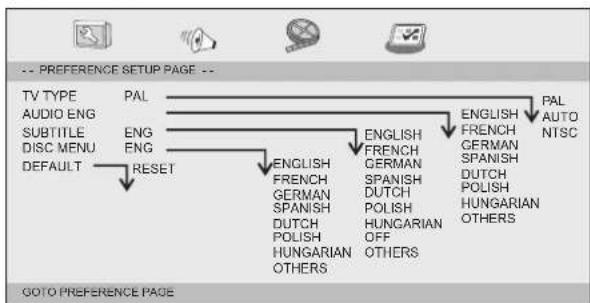

PAL AUTO NTSC RESET TV Type Selecting the colour system that corresponds to your TV when AV outputs.This DVD Player is compatible with both NTSC and PAL. DownmixThis options allows you to set the stereo analog output of your DVD Player. LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder. Stereo :Select this option when output delivers sound from only the two front speakers. Digital OutputThe function is used to select the SPDIF Output:SPDIF Off,SPDIF/RAW,SPDIF/PCM. SPDIF Off: Turns off the SPDIF output. SPDIF/RAW: If you have connected your DIGITAL AUDIO OUT to a multi-channel decoder/receiver. SPDIF/PCM: Only if your receiver is not capable of decoding multi-channel audio.Dolby digitalThe options included in Dolby Digital Setup are: 'Dual Mono ' and 'Dynamic '. Dual Mono Stereo:Left mono sound will send output signals to Left speakerand Right mono sound will send output signals to Right speaker. L-Mono:Left mono sound will send output signals to Left speaker and Right speaker. R-Mono:Right mono sound will send output signals to Left speaker and Right speaker. Mix-Mono:Left and Right mixed mono sound will send output signals to Left and Right speakers. Dynamic Dynamic range compression. Audio Setup Page OFF OTHERSENGLISHFRENCHGERMANSPANISHDUTCHPOLISHHUNGARIANOTHERSENGLISHFRENCHGERMANSPANISHDUTCHPOLISHHUNGARIANENGLISHFRENCHGERMANSPANISHDUTCHPOLISHHUNGARIANOTHERSSETUP Menu Setting PAL - Select this if the connected TV is PAL system.It will change the video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format. Auto:Change the video signal output automatic according to the playing disk format. Audio:Selects a language for audio (if available). Subtitle:Selects a language for subtitle (if available). Disc Menu:Selects a language for disc menu (if available). Preference Page Item Standard requirementAudio:Speaker:1WX2, outputHeadphonesVIDEO OUTAUDIO OUT:1.4 Vrms (1 KHz, 0 dB)Power requirements Power consumption Operating humidity: AC 100-240 V , 50/60 Hz: <10W: 5 % to 90 % Parameters and specifications Electronical parameters :Semiconductor laser, wavelength 650 nmSignal system: NTSC / PALFrequency Signal-to-noise ratio:More than 80 dB (ANALOG OUT connectors only)Dynamic range:More than 85 dB (DVD/CD) Note: Design and specifications are subject to change prior notice. : 20Hz to 20 kHz(1dB)Output System Laserresponse

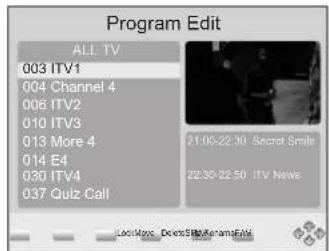

Battery Charging Connect the DVD player to the supplied power adaptor, the LED indicator will be RED when the battery is charging and will turn into green when the battery is full charged.When battery is no power, LED is OFF.003 ITV1 004 Channel 4 006 ITV2 010 ITV3 013 More 4 014 E4 030 ITV4 037 Quiz Call Program Edit LockMove ALL TV 21:00-22:30 Secret Smile22:30-22:50 ITV NewsDeleteSkip RenameFAV GOTO FAV Basic Operation Program Manage Settings Program Edit OSD Language English Country Germany Channel Search Installation Guide ConfirmExit

Exit Program Edit Sort By LCN LCN On Program ConfirmReturn

Exit First Time Installation After all connections have been made properly, switch on TV and makesure the receiver is connected to the Main Power. Press Power Button toswitch receiver on. If you are using the receiver for the first time or restored to Factory Default, the Main Menu will appear on your TV screen. Menu provides options to adjust the To access the Menu, press the MENU button and select [Program]. The Program Manage Settings. Select an option and press OK or RIGHT to adjust that setting. Press the EXIT button to exit the Menu. To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. (1) Select [OSD Language] and press RIGHT/LEFT key to select an language. (2) Select [Country] and press RIGHT/LEFT key to select your country of residence. (3) Select [Channel Search] and press RIGHT or OK key to begin Automatic channel search. (4) Once channel tuning is complete, you are now ready to watch TV. 9First Time Installation Set Favourite Program/s You can create a shortlist of favourite programs that you can easily access.Set Favourite TV or Radio program: 1.Select the preferred program then press the PAVOURITE button. A heart-shaped symbol will appear and the program is marked as a favourite. 2.Repeat the previous step to select more Favourite programs. 3.To confirm and exit the Menu,press the EXIT key. Disable Favourite TV or Radio Program: Press the FAV buton on the Remote Control with the heart-shaped symbol. View Favourite Programs: 1.Press the Fav button and the Favourite Menu will appear. 2.Press UP/DOWN to selest your Favourite Programs. 3.Press OK to select your favourite program. Delete a TV or Radio Program/s 1.Select the Program and then press the BLUE button A message will appear.Press OK to delete the program. 2.Repeat the previous step to select more programs to delete. Skip TV or Radio Program/s 1.Select the program you would like to skip and press the GREEN button A skip symbol is displayed. The program is marked as a skip. 2.Repeat the previous step to select more programs. 3.To confirm and exit themenu,press EXIT key. Disable a skip TV or Radio Program: Press the GREEN button on the skip program with the skip symbol. Move a TV or Radio Program/s

1. Select the preferred program then press the RED button. A

move symbolwill appear.

2. Press UP/DOWN to move the program.

3. Press OK to confirm.

4. Repeat the above steps to move more channels .

Lock Program/s You can lock selected programs for restricted view. Lock a TV or Radio Program: 1.Select the preferred program then press the YELLOW button. A lock-shaped symbol is displayed. The program is now marked as locked.

2. Repeat the previous step to select more programs .

3. To confirm and exit the menu, press the EXIT button.

4. Press the YELLOW button to disable the locked program.

5. To view the locked program, you will be require to enter either

the default. 10Sort LCN (Logical channel number) Video Setting You must set the display format to either 4:3 PanScan, 4:3 Letter Box,16:9 Wide Screen or Auto to get the maximum display when watching TV.Sort your channels from the following options:[LCN] - Sort the channels in ascending order. [Name] - Sort the channels in alphabetical order. [Service ID] - Sort the channels according to the station. Set LCN on or off. To access the Menu, press MENU then select [Picture]. The Menu provides options to adjust the video settings. Press UP/DOWN to select an option and press RIGHT/LEFT to adjust that setting. Press EXIT to exit the menu.Aspect RatioTV formatTo access the menu,press MENU and select [Search Channel]. The Menu provides options to adjust the Search Channel settings. Select an option and press RIGHT/LEFT to adjust the settings. Press EXIT to exit the Menu. Resolution

the video does not appear correctly, change the setting. This setting is to match the most common setting for HDMI. Please note : HDMI-out can only be used in the TV mode, not in the DVD model. [576i] for PAL system TV. [576P]: for PAL system TV. [720P]: for NTSC or PAL system TV. [1080I]: for NTSC or PAL system TV. If the video does not appear correctly, you need to change the settings. This should match the most common setting for TVs in your country. [NTSC]: for NTSC system TV. [PAL]: for PAL system TV. Channel Search HDMI Aspect Ratio 16:9 Wide ScreenHDMI Resolution 1080iTV Format PAL Picture ConfirmReturn

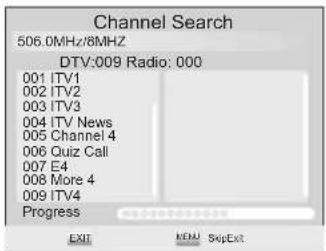

First Time InstallationAuto Search Search and install all channels automatically. This option overwrites all preset channels.

1. Select [Auto Search] and press OK or RIGHT to start channel

2. Press the RIGHT/LEFT key to select the channel frequency.

3. Press OK to start searching channels.

If a channel is found, it is saved and added to the channels list. If channels cant be found, then exit the menu. Country Select your country of residence. Manual Search Install new channels manually. This option adds new channels without changing the current channels list.

1. Select [Manual Search] then press OK or RIGHT. The channel

search screen will appear. Time Offset Auto Country Region Berlin Time Zore GMT +1 Time ConfirmReturn

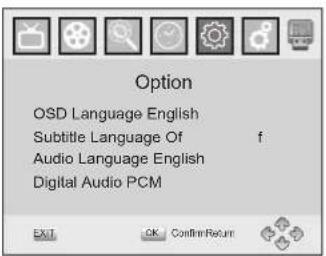

First Time Installation search menu.Option To access the Menu,press MENU and select [Option]. The menu provides options to adjust the OSD Language, Subtitle Language and Audio Language. Select an option and press RIGHT/LEFT to adjust the setting.Press EXIT to exit The Menu. System Setting To access the Menu,press MENU and select [System].The menu. Provides options to adjust the system settings. Press the UP/DOWN key to select an option and press RIGHT/LEFT to adjust the setting.Press EXIT to exit the Menu. OSD Language Audio Language Select the preferred audio language for watching TV channels.If the language is not available, the default program language will be used. Subtitle Language Select an OSD language. Select the preferred subtitle language. Set Password Restore Factory Default Information View model, hardware and software information. Set or change the password for Locked programs. Enter your old Password or the default password '000000'. You will then be asked to enter your new password. To confirm re-enter your new password. Once it is confirmed, press EXIT to exit the Menu. Reset your Set Top Box to the Default Factory Settings.In Main Menu select [Restore Factory Default] and press OK or RIGHT to select. Enter your password or the default password '000000' and press OK to confirm. This option will delete all preset channels and settings. OSD Language EnglishSubtitle Language Of Audio Language EnglishDigital Audio PCM Option ConfirmReturn

EXIT Troubleshooting The image stopped suddenly or mosaic Problem Potential Reasons What to do No picturePower isn't connectedConnect the powerThe power switch is not onSwitch on the powerScreen showsNo SignalDVB-T cable not Plug in the DVB-T cable Incorrect settingReset setting No sound from speaker No or incorrect connection with audio cableConnect the audiocorrectlySound on muteTurn off mute function Incorrect sound track Try another sound track Only sound, no image on the screen No or incorrect connection with AV cableMake sure cablesconnected correctly The program is a radio programPress <TV/RADIO> keyshift into TV mode Remote Control is not responding The battery is exhaustedChange battery Remote Control is not facing or close enoughto the Set Top BoxAdjust the positionRemote Control andcloser to the unit The signal is too weak Strengthen the signal cable are to of the moveconnected

First Time Installation Technical Specifications VideoDecoder FormatMPEG4 AVC/H.264 HP@L4MPEG2 MP@ML.HLOutput Format576P , 720P, 1080i, 4:3 and 16:9Output Port HDMI (only for TV mode)Item Sub Item ParameterTunerInput Frequency170~230MHz470~860MHzRF Input level-25~-82dBmIF Bandwidth7MHz and 8MHzModulationQPSK,16QAM,64QAM Movie Configure15 Service and support For information: www.lenco.com For support: http://lencosupport.zendesk.com Lenco helpdesk: Germany 0900-1520530 (Local charges) The Netherlands 0900-23553626 (Local charges + 1ct p/min) Belgium 02-6200115 (Local charges) France 03-81484280 (Local charges) The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number below: Model: DVP-9412 Serial number:_________________________________ Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer. Important note: It is not possible to send products that need repairs to Lenco directly. Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires. This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.
