USER MANUAL MWP717HWH Holland Electro

• Flüssigkeiten und andere Lebensmittel dürfen nicht in verschlossenen Behältern erhitzt werden, weil der Behälter wahrscheinlich explodierten würde. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 15Precautions to avoid possible exposure to excessive microwave energy (a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy.It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) DOOR(dent) (2) HINGES AND LATCHES (broken or loosened)

SAVE THESE INSTRUCTIONS CAREFULLY

WARNING: When the appliance is operated in the combination mode, children

should only use the oven under adult supervision due to the temperatures generated.

WARNING: If the door or door seals are damaged, the oven must not be

operated until it has been repaired by a competent person.

3) WARNING: It is hazardous for anyone other than a competent person to carry

out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers

since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when ade

quate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

7) Only use utensils that are suitable for use in microwave ovens.

8) When heating food in plastic or paper containers, keep an eye on the oven

due to the possibility of ignition.

9) If smoke is observed, switch of or unplug the appliance and keep the door

closed in order to stifle any flames.

10) Microwave heating of beverages can result in delayed eruptive boiling, there

fore care must be taken when handling the container.

11) The contents of feeding bottles and baby food jars shall be stirred or shaken

and the temperature checked before consumption, in order to avoid burns.

12) Eggs in their shell and whole hard-boiled eggs should not be heated in

microwave ovens since they may explode, even after microwave heating has ended.

13) Details for cleaning door seals, cavities and adjacent parts.

14) The oven should be cleaned regularly and any food deposits removed.

15) Failure to maintain the oven in a clean condition could lead to deterioration

of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16) If the supply cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualified persons in order to avoid a hazard. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 17Safety

1. The oven must be on a leveled surface.

2. The turntable and turntable roller rest must be in the oven during cooking.

Place the cookware gently on the turntable and handle it carefully to avoid possible breakage.

3. Incorrect use of browning dish may cause the turntable to break.

4. Use only the specified bag size when using Direct Access Popcorn.

5. The oven has several built-in safety switches to ensure that the power remains

off when the door is open. Do not tamper with these switches.

6. Do not operate the microwave oven empty. Operating the oven with no food

or food that is extremely low in moisture can cause fire, charring or sparking.

7. Do not cook bacon directly on the turntable. Excessive local heating of the

turntable may cause the turntable to break.

8. Do not heat baby bottles or baby food in the microwave oven. Uneven heat

ing may occur and could cause physical injury.

9. Do not heat narrow-necked containers, such as syrup bottles.

10. Do not attempt to deep-fry in your microwave oven.

11. Do not attempt home canning in this microwave oven as it is impossible to be

sure all contents of the jar have reached boiling temperature.

12. Do not use this microwave oven for commercial purpose. This microwave oven

is made for household use only.

13. To prevent delayed eruptive boiling of hot liquids and beverages or scalding

yourself, stir liquid before placing the container in the oven and again halfway through cooking time. Let stand in the oven for a short time and stir again before removing the container. 14 . Please do notice the food in the microwave oven to avoid burning due to excessive cooking when cooking food in it.

15. When the appliance is operated in the combination mode, children should

only use the oven under adult supervision due to the temperatures generated.

16. Failure to maintain the oven in a clean condition could lead to deterioration

of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 18Important safety instructions

WARNING: To reduce the risk of fire, electric shock, injury to persons, or exposure to

excessive microwave oven energy when using your appliance, follow these basic precautions:

1. Read all instructions before using the appliance.

2. Read and follow the specific: “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE

TO EXCESSIVE MICROWAVE ENERGY”.

3. As with most cooking appliances,close supervision is necessary to reduce the

risk of a fire in the oven cavity. If a fire should start:

1. Keep the oven door closed

2. Turn the oven off, and unplug the appliance.

3. Disconnect the power at the fuse or circuit breaker panel.

Keep in mind the following rules at all times:

1. Do not overcook food. Carefully attend the appliance if paper,plastic,or other

combustible materials are placed inside the oven to facilitate cooking.

2. Do not use the oven cavity for storage purposes. Do not store combustible

items such as bread, cookies, paper products, etc. inside the oven. If lightning strikes the power line, the oven may turn on by itself.

3. Remove wire twist-ties and metal handles from paper or plastic

containers/bags before placing them in the oven.

4. This oven must be grounded. Connect only to properly grounded outlet.

See”GROUNDING INSTRUCTIONS”.

5. Install or locate this oven only in accordance with the installation instructions

6. Some products such as whole eggs, water with oil or fat, sealed containers and

closed glass jars may explode and therefore should not be heated in this oven.

7. Use this appliance only for its intended uses as described in the manual.

Do not use corrosive chemicals or vapors in this appliance. This oven is specifi cally designed to heat or cook food. It is not designed for industrial or laboratory use.

8. As with any appliance, close supervision is necessary when used by children.

9. Do not operate this oven if it has a damaged cord or plug, if it is not working

properly or if it has been damaged or dropped.

10. This appliance should be serviced only by qualified service technicians. Contact

the nearest authorised service facility for examination,repair or adjustment.

11. Do not cover or block any vents on the oven.

12. Do not store or use this appliance outdoors.

13. Do not use this oven near water, near a kitchen sink, in a wet basement or

near a swimming pool.

14. Do not immerse cord or plug in water.

15. Keep cord away from heated surfaces.

16. Do not let cord hang over edge of table or counter.

MWP717HWHman.qxd 11-07-2005 15:59 Pagina 1917. When cleaning door and oven surfaces use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.

SAVE THESE INSTRUCTIONS

Grounding installation

DANGER: Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING: Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, ground- ing reduces the risk of electric shock by providing an escape wire for the electric cur- rent. This appliance is equipped with a cord having a grounding wire with a ground- ing plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-pronged grounding plug, and a 3-slot receptacle that will accept the plug on the appliance.

1. A short power-supply cord is provided to reduce the risks resulting from

becoming entangled in or tripping over a longer cord.

2. Longer cord sets or extension cord is provided to reduce the risks resulting

from becoming entangled in or tripping over a longer cord.

3. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at

least as great as the electrical rating of the appliance.

2) The extension cord must be a grounding-type 3-wire cord.

3) The longer cord should be arranged so that it will not drape over the counter

top or tabletop where it can be pulled on by children or tripped over unintentionally. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 20Utensils CAUTION: Personal Injury Hazard Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches pierced before cooking. See next page for further instructions “Materials you can use in microwave oven or to be avoided in micro-wave oven.”There may be certain non-metallic utensils that are not safe to use for microwaving. Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking bags Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape. Paper plates Use for short –term cooking/warming only. Do not leave oven unatte and cups ned while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labelled “Microwave Safe”. Some plastic containers soften as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 21Materials to be avoided in microwave oven Utensils Remarks Aluminium tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food into microwave-safe metal metal handle handle dish. Metal or metal- Metal shields the food from microwave energy. Metal trim may trimmed utensils cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. Setting up your oven Names of Oven Parts and Accessories Remove the oven and all materials from the carton. Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1 A) Control panel B) Turntable shaft C) Turntable ring assembly D) Glass tray E) Observation window F) Door assembly G) Safety interlock system Shuts off oven power if door is opened during operation. Turntable installation a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. All food and containers of food should be always placed on the glass tray for cooking. d. The glass tray rotates clockwise; this is normal. e. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorised service centre.

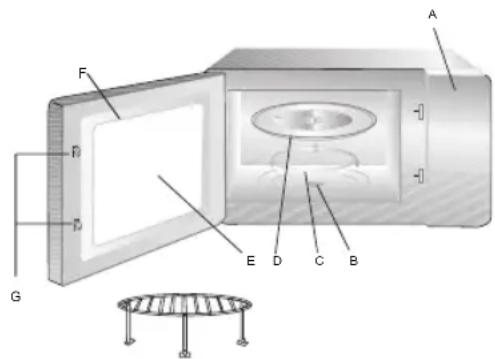

A)Control panel B)Turntable shaft C)Turntable ring assembly D)Glass tray E)Observation window F) Door assembly G)Safety interlock system MWP717HWHman.qxd 11-07-2005 15:59 Pagina 22Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Countertop Cabinet: Remove any protective film found on the cabinet surface.

WARNING: Do not remove the light brown Mica cover that is screwed to the oven

cavity to protect the magnetron. Installation

1. Select a level surface that provide enough open space for the intake and/or

outlet vents. A minimum clearance of 3.0 inch (7.5cm) is required between the oven and any adjacent wall. One side must be open. (1) Leave a minimum clearance of 12 inch(30cm) above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the intake and/or outlet openings can damage the oven. (4) Place the oven as far away from radios and TV as possible. Operation of icrowave oven may cause interference to your radio or TV reception.

2. Plug your oven into a standard household outlet. Be sure the voltage and

the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing

appliance. If installed could be damaged and the warranty would be void. Operation Control Panel and Features

1. To set cooking power by turning the power knob to desired level.

2. To set the time of cooking by turning the timer knob to desired time per

your food cooking guide.

3. To set defrost by turning the timer knob to desired time per your food

4. The microwave oven will automatically start cooking after Power level and

5. After the cooking time is up ,the unit will “Ding” to stop.

6. If the unit is not in use, always set time to “0”.

MWP717HWHman.qxd 11-07-2005 15:59 Pagina 23Function/Power Output Application Low 17% power Soften ice cream Medium Low(Defrost) 33% power Cook tough meat, soup stew, soften butter or defrost Medium 55% power Milk cake, stew or defrost Medium High 77% power Rice, fish cookie or meat High 100% power Reheat, boil water, vegetables, chicken or beverage Maintenance Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. Trouble Possible Cause Possible remedyOven will not start a. Electrical cord for oven is not plugged in.b. Door is open.c. Wrong operation is set.a. Plug into the outlet.b. Close the door and tryagain.c. Check instruction. Arcing or sparking a. Materials to be avoided inmicrowave oven are used. b. The oven is operated when empty. c. Spilled food remains in the cavity. a. Use microwave-safe cookware only. b. Do not operate with oven empty. c. Clean with wet towel. Unevenly cooked a. Materials to be avoided in microwave oven are used. b. Food is not defrosted completely. c. Cooking time, power level is not suitable. d. Food is not turned or stirred. a. Use microwave-safe cookware only. b. Completely defrost food. c. Use correct cooking time, power level. d. Turn or stir food. Overcooked foods Cooking time, power levelis not suitable.Use correct cooking time,power level. Undercooked foods a. Materials to be avoided in is not suitable. b. Food is not defrosted completele c. Oven ventilation ports are d. Cooking time, power level is not suitable a. Use microwave-safe cookware only b. Completely defrost food. c. Check to see that oven ventilation Use correct cooking time,power level. Improper defrosting a. Materials to be avoided in microwave oven are used. b. Cooking time, power level is not suitable. c. Food is not turned or stirred. a. Use microwave-safe cookware only b. Use correct cooking time, power level. c. Turn or stir food. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 24Questions and Answers Q: Why is there noise coming from the turntable when the oven is turned on? A: This noise occurs when some eyewinkers exist between the turntable roller rest and cavity bottom. Frequentcleaning of these parts should eliminate or reduce the noise. Q: Why is there noise coming from the oven when using a lower power level? A: When cooking with power other than 100%, the oven automatically turns on and off to obtain lower power output. The clicking noise can be heard when the oven switches on and off. This is normal. Q: Why is there steam coming out of the air exhaust vent? A: Steam is produced during cooking. The microwave oven has been made to vent this steam. Q: What is wrong when the oven light will not glow? A: There may be several reasons why the oven light will not glow. The light bulb has burned out or START has not been pressed. Q: Why do eggs sometimes pop? A: The egg yolk may poop because of steam build-up inside the membrane. Pierce the membrane with a toothpick before cooking it. Never microwave eggs in the shell since they may explode. Q: How are boil-overs avoided? A: Use a larger utensil than usual for cooking. If you open the oven door or touch STOP/CLEAR, the food will stop boiling. Cleaning Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and wipe dry. This should be done on a weekly basis, more often if needed. Never use cleaning powders or rough pads. Excessive oil splatters on the inside top will be difficult to remove if left for many days. Wipe splatters with a wet paper towel, especially after cooking chicken or bacon. Removable Parts (1) The turntable may be cleaned at the sink. Be careful not to chip or scratch the edges as this may cause the turntable to break during use. (2) The turntable roller rest should be cleaned regularly. Special Care For best performance and safety, the inner door panel and the oven front frame should be free of food. MWP717HWHman.qxd 11-07-2005 15:59 Pagina 25Notes

1. Before commissioning this oven please read this instruction manual and keep it

2. There must be more than 30 cm high space necessary above the top surface of

3. Do not repair the oven yourself, please consult an authorized expert.

4. The contents of feeding bottles and baby food jars are to be stirred or shaken

and the temperature is to be checked before consumption, in order to avoid burns.

5. Check the oven and the cable regularly for damage. If there is any kind of dam

age, the oven should not be used.

1. It is hazardous for anyone other than a trained person to carry out any service or

repair operation, which involves the removal of any cover which gives protection against exposure to microwave energy.

2. Only allow children to use the oven without supervision when adequate

instructions have been given so that the children is able to use the oven in a safe way and understands the hazards of improper use.

3. If the suply cord is damaged, it must be replaced by the manufacture or its service

agent or a similarly qualified person in order to avoid a hazard.

• Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

• Carefully clean door seala and sealing surfaces

• Do not operate the oven if it is damaged. It is particularly important that the oven door is closed properly and that there is no damage at the:

2) hinges and latches (broken or loosened),

3) door seals and sealing surfaces.

• Utensils should be checked to ensure that they are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

• If smoke is observed, switch off or unplug the appliance and deep the door closed in order to stifle any flames.

• Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode.

• If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.
