USER MANUAL MW8526HDCSS Holland Electro

+LWWH EHVWHQGLJ NHUDPLHN

7RW JU HQ WHPS JUDGHQ & P LQ

3RVLWLRQ GpFRQJpODWLRQ

3RPPHVGH WHUUH FXLWHV

3RPPHV GHWHUUHF XLWHV &2'( WRXUQHU [

3RS FRUQ &2'( WRXUQHU [

%URFKHWWHGHYLD QGH &2'( WRXUQHU [

0LWWHOQLHGULJ $XIWDX3RVLWLRQ

7HPSHUDWXU LP 8POXIWKHUG

INSTRUCTION MANUALMake sure that all the packing materials are removed from the inside of the door.

WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and

sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact qualified service personnel. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet. Do not operate the oven without glass tray, roller support, and shaft in their proper positions. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface. The socket must be readily accessible so that it can be easily unplugged in an emergency. Do not use the oven outdoors. This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING Improper use of the grounding plug can result in a risk of electric shock. Note If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures. The wires in this cable main are colored in accordance with the following code: Green and Yellow = EARTH Blue = NEUTRAL Brown = LIVE When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive

microwave energy: Read all instructions before using the appliance. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use. Do not operate the oven when empty. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

WARNING: Only allow children to use the oven without supervision when adequate instructions have been

given so that the child is able to use the oven in a safe way and understands the hazards of improper use. To reduce the risk of fire in the oven cavity: When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition; Remove wire twist-ties from paper or plastic bags before placing bag in oven. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil. Utensils should be checked to ensure that they are suitable for use in microwave oven.

WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair

operation which involves the removal of any cover which gives protection against exposure to microwave energy.

IMPORTANT SAFETY INSTRUCTIONS

GROUNDING INSTRUCTIONS INSTALLATION 31• Arrange food carefully. Place thickest areas towards outside of dish.

• Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.

• Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

• Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.

• Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

• The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

• Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

• Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fires.

• Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.

• Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don’t use too much and keep a distance of 1 inch (2.54cm) between foil and cavity. The list below is a general guide to help you select the correct utensils. Cookware Microwave Grill Convection Combination* Heat–Resistant Glass Yes Yes Yes Yes Non Heat–Resistant Glass No No No No Heat–Resistant Ceramics Yes Yes Yes Yes Microwave–Safe Plastic Dish Yes No No No Kitchen Paper Yes No No No Metal Tray No Yes Yes No Metal Rack No Yes Yes No Aluminum Foil & Foil Container No Yes Yes No

• Combination: applicable for both “microwave+grill”, and “microwave+convection” cooking.

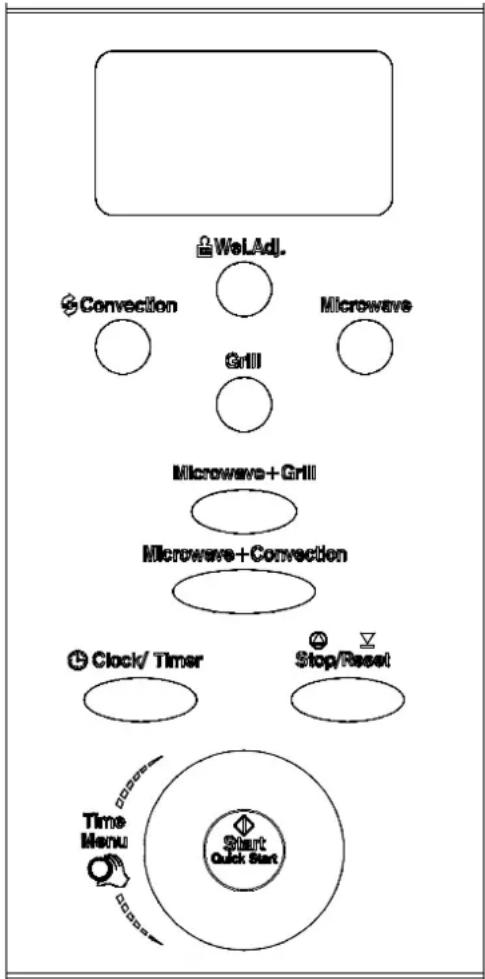

3DISPLAY SCREEN Cooking time, power, indicators and present time are displayed. MICRO. Press to select microwave power level. GRILL Press to set a grill cooking program. CONVECTION Press to program convection temperature. MICRO+GRILL Press to select one of two combination cooking settings. MICRO+CONVECTION Press to select one of four combination cooking settings. TIME MENU (DIAL) Rotate to set cooking time or select auto-menu.

Press to start cooking program or set quick start cooking program. Wei.Adj./Clock Press to select the amount of food or enter cooking time setting state. STOP/CANCEL Touch to stop cooking program or clear all previous settings before cooking starts.

BEEPS DURING OVEN SETTINGS

ONE BEEP: Oven accepts the entry. TWO BEEPS: Oven does not accept the entry. Please check and try again.

Press CLOCK / TIMER button. Rotate the TIME/MENU dial until the correct hour is displayed. Press CLOCK / TIMER button. Rotate the TIME/MENU dial until the correct minute is displayed. Press CLOCK / TIMER button to confirm. MICROWAVE Microwave cooking allows you to customize cooking power and time. First, you select a power level by pressing the MICROWAVE button a number of times (see the table below). Then you set the cooking time (maximum 95 minutes here) by rotating the TIME/MENU dial, before pushing the START button.

HOW TO SET THE OVEN CONTROLS

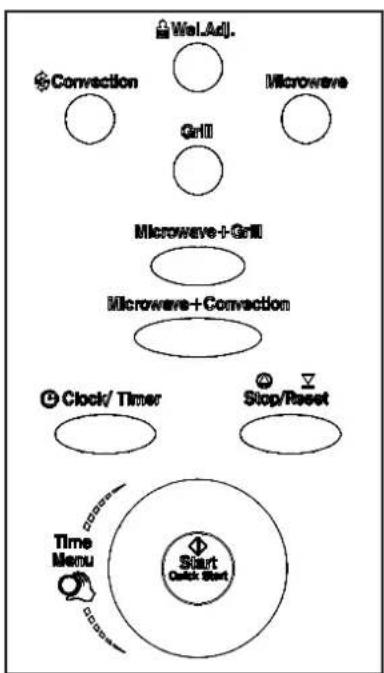

CONTROL PANEL 33Press MICRO button to select cooking power Press Power Description once 100%(P-HI) High twice 90%(P-90) 3 times 80%(P-80) 4 times 70%(P-70) Medium High 5 times 60%(P-60) 6 times 50%(P-50) Medium 7 times 40%(P-40) 8 times 30%(P-30) Med. Low/Defrost 9 times 20%(P-20) 10 times 10%(P-10) Low 11 times 0%(P-00) Zero microwave power may serve to cool down the microwave oven’s components. Suppose you want to cook for 5 minute at 60% power level. Press MICRO button 5 times. Rotate the TIME/MENU dial until the correct cooking time (5:00) is displayed. Press START button. NOTE: If you want to temporarily stop a cooking session, press the STOP/CANCEL once and then you can start the cooking again by press START; or press the STOP/CANCEL twice to cancel the cooking program altogether. After the cooking time ends, the system will beep four times and END is displayed. Before starting another cooking session, you need to clear the display and reset the system by pressing the STOP/CANCEL button. Grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages and pieces of chicken. It is also suitable for hot sandwiches and au gratin dishes. Suppose you want to program grill cooking for 12 minutes. Make sure the system is reset, which means no current cooking program is running, and the system is waiting for instructions. Press GRILL button. Turn the TIME/MENU to 12:00. Press START button. NOTE: Grill cooking power is set at full power level by the system. Maximum cooking time for grill is 95 minutes. During convection cooking, hot air is circulated throughout the oven cavity to brown and make crisp foods quickly and evenly. This oven can be programmed for ten different cooking temperatures. To Cook with Convection Press CONVECTION button to set convection temperature. Press Temperature

Suppose you want to cook at 180

for 40 minutes. Press CONVECTION button 3 times. Rotate the TIME/MENU dial until the correct cooking time is displayed. Press START button. CONVECTION GRILL 34NOTE: The maximum convection cooking time is 9 hours, 30 minutes. After time has elapsed four beeps sound and END appears in display. Press STOP/CANCEL button or open door to clear END before starting another cooking function. You can check the convection temperature while cooking is in progress by pressing the CONVECTION button. To Preheat and Cook with Convection Your oven can be programmed to combine preheating and convection cooking operations. Suppose you want to preheat to 170? and then cook 35 minutes.

• Press CONVECTION button 4 times.

• Press START button. When the oven reaches the programmed temperature, one beep will sound and “PREH” will flicker in the display.

• Open the door and place container of food at the center of the turntable.

• Rotate the TIME/MENU dial to program cooking time.

• Press START button. This feature allows you to combine grill and microwave cooking on two different settings. First, press this button once or twice to choose an appropriate combination setting, then, at the screen prompt, enter the desired cooking time by turning the TIME/MENU dial. After you have pushed the start button, the system begins to count down. NOTE: The maximum cooking time here is 95 minutes. During cooking, you can see the programmed setting by pressing this button. COMBINATION 1 30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin. Suppose you want to set combination 1 cooking for 26 minutes.

• Press START button. COMBINATION 2 55% time for microwave cooking, 45% for grill cooking. Use for pudding, omelets, baked potatoes and poultry. Suppose you want to set combination 2 cooking for 12 minutes.

• Press START button. This oven has four pre-programmed settings that make it easy to cook with both convection heat and microwave automatically. Press MICRO+CONVECTION button to select convection temperature: Press Oven temperature COMB1 once 230 COMB2 twice 200 COMB3 3 times 180 COMB4 4 times 150 Suppose you want to bake a cake for 24 minutes on COMB3. Press CONVECTION+MICROWAVE button 3 times. Rotate the TIME/MENU dial to program cooking time. Press START button to start. NOTE: The maximum cooking time is 9 hours, 30 minutes. After time has elapsed four beeps sound and END appears in display. Press RESET button or open door to clear END before starting another cooking function. You can check the convection temperature while cooking is in progress by pressing the CONVECTION+MICROWAVE button. MICROWAVE +CONVECTION MICROWAVE +GRILL 35Suppose you want to defrost frozen food for five minutes. Rotate the TIME/MENU dial until “08” and “CODE” are displayed. Press WEI.ADJ.. button. Rotate the TIME/MENU dial to program defrosting time. NOTE: For either raw or previously cooked frozen food the rule of thumb is approximately 5 minutes per pound. For example, defrost 5 minutes for 1 pound of frozen spaghetti sauce. Always stop the oven periodically to remove or separate the portions that are defrosted. If food is not defrosted at the end of the estimated defrosting time, program the oven in 1-minute increments until totally defrosted. When using plastic containers from the freezer, defrost only long enough to remove from plastic in order to place in a microwave- safe dish. The maximum defrosting time is 45 minutes. After time has elapsed four beeps sound and END appears in display. Press RESET button or open door to clear END before starting another cooking function. Your oven can be programmed for up to 3 automatic cooking sequences. SPEED defrost can only be selected before the cooking stage in a program. Suppose you want to set the following cooking program. Speed defrost Microwave cooking Convection cooking (without preheat function)

• Rotate the TIME/MENU dial until “08” and “CODE” are displayed.

• Rotate the TIME/MENU dial to program defrosting time.

• Press MICROWAVE button to set power level.

• Rotate the TIME/MENU dial to program cooking time.

• Press CONVECTION button to set convection temperature.

• Rotate the TIME/MENU dial to program cooking time.

• Press START button. “AUTO MENU” allow you to cook or reheat food automatically without entering power level or time. BAKED POTATO Amount Press ADJ. Cooking time 1 once 5 min 40 sec 2 twice 9 min. 40 sec. 3 3 times 13 min 4 4 times 17 min Each amount is about 5 to 7 oz. Rotate the TIME/MENU dial until “01” and “CODE” are displayed. Press ADJ to select needed amount. Press START button. NOTE: After the cooking program have finished, let food stand in the oven for 5~10 minutes. Amount Press ADJ. Cooking time 1 once 2 min 20 sec 2 twice 4 min 3 3 times 5 min 40 sec 4 4 times 7 min 20 sec Each amount is about 9 to 11 oz. Rotate the TIME/MENU dial until “02” and “CODE” are displayed. Press ADJ to select needed amount. Press START button. BEVERAGE

SETTINGS ABOUT AUTO-MENU

MULTI-STAGE COOKING SPEED DEFROST (ADJ.) 36Rotate the TIME/MENU dial until “03” and “CODE” are displayed. Press ADJ button once, the cooking time (2 min 30 sec) will be displayed. Press START button. NOTE: To reset POPCORN time: Rotate the MENU FUNCTION ADJUSTING dial until “03” and “CODE” are displayed, press ADJ button twice, rotate the MENU FUNCTION ADJUSTING dial to program the new popcorn time, and then press START button to verify. The new popcorn time will remain whenever you use the POPCORN function until you reset it. REHEAT Rotate the TIME/MENU dial until “4” and “CODE” are displayed. Press ADJ button, reheating time (3 min 40 sec) will be displayed. Press START button. Note:

1. The objects of reheat are generally leftovers, beverages, or refrigerated foods temperature between 5-10

Celsius such as pizza. The reheat weight: Leftover rice or dishes: 200~500g, chicken, duck, fish, vegetables and soup, etc. Beverages: 2-3 cups, each cup contains 120~200ml. Refrigerated foods: pizza 200~300g. Roast a pizza of 4 ~ 5 oz. Rotate the TIME/MENU dial until “05” and “CODE” are displayed. Press ADJ button once, the baking time will displayed. Press START button. Roast a bigger pizza. Rotate the TIME/MENU dial until “05” and “CODE” are displayed. Press ADJ button twice, the baking time will be displayed. Press START button. Press ADJ Weight Cooking time once 6 oz 12 min twice 11 oz 15 min 3 times 1 lb. 3 oz 23 min 4 times 1 lb. 12 oz 30 min Rotate the TIME/MENU dial until “06” and “CODE” are displayed. Press ADJ to select needed amount. Press START button. NOTE: At the middle of cooking time, beeps will remind you to open the door and rearrange the food, and then close the door, press START to cook for the remaining time.. Rotate the TIME/MENU dial until “07” and “CODE” are displayed. Press ADJ button once, the cooking time (40 min.) will be displayed. Press START button. NOTE: To reset cooking time: Rotate the TIME/MENU dial until “07” and “CODE” are displayed, press ADJ button twice, rotate the TIME/MENU dial to program the new cooking time, and then press START button to verify. The new cooking time will remain whenever you use the CAKE function until you reset it. CAKE MEAT SKEWERS PIZZA POPCORN

The child proof lock prevents unsupervised operation by little children. To set the child proof lock: Press RESET button for 3 seconds, then a beep will sound and the indicator light will come on. In the lock state, all buttons are disabled. To cancel the child proof lock: Press RESET button for three seconds, then a beep will sound and the indica- tor light will come off. QUICK START Use this feature to program the oven to microwave food at 100% power conveniently. Press START button in quick succession to set the cooking time. The maximum cooking time is 10 minutes. The oven will auto-start two seconds later. After time has elapsed four beeps sound and END appears in dis- play. Press RESET button or open door to clear END before starting another cooking function. TO STOP THE OVEN WHILE THE OVEN IS OPERATING Press STOP button.

• You can restart the oven by pressing START pad.

• Touch RESET to erase all instructions. Open the door.

• You can restart the oven by closing the door and pressing START pad. NOTE: Oven stops operating when door is opened. Turn off the oven and remove the power plug from the wall socket before cleaning. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner. Typenumber: MW8526HDCSS Articlenumber: 10005651 Power: 230V, 50Hz, 1400W (Microwave) 230V, 1400W (Convection) 230V, 1200W (Heater) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz measurement outside: 310mm(H)_508mm(W)_458mm(D) measurement inside: 210mm(H)_338mm(W)_348mm(D) amount: 25 Litres Cookway: Turntable System {314mm} Weight Ca. 22kg 0900-2025194 ca. 20cpm or mail to [e-mail] website: www.service.shop.nl Boxford Holland BV Service afdeling Postbus 275 8000AG Zwolle CONTACT SPECIFICATIONS
