Product type	Monoblock mobile air conditioner
Brand	Suntec
Model	Freeze 9.000+
Dimensions (approx.)	Height: 70 cm, Width: 35 cm, Depth: 35 cm
Weight (approx.)	25 kg
Power supply	220-240 V ~ 50 Hz, grounded power outlet
Cooling capacity	9,000 BTU/h (approx. 2.6 kW)
Refrigerant	R410A, 370 g (GWP 2088, equiv. 0.77256 t CO2)
Operating modes	Cooling, dehumidification, ventilation, sleep
Temperature setting	16 °C to 31 °C (cooling mode)
Fan speeds	Low and high
Timer	On/off programming from 1h to 24h
Remote control	Included, batteries not supplied
Noise level	Approximately 52 dB(A) (estimated)
Filter maintenance	Clean every 14 days with lukewarm water, dry before reassembly
Draining the water tank	Manual drain via drain plug (W.F. display when full)
Compressor protection	3-minute start-up delay
Child safety	Use prohibited for children under 8 without supervision
Spare parts available	Air filter, remote control, exhaust hose, drainage kit, window slider
Warranty	24 months
Optional accessories	Air-Block Klima-Sail, Air-Extension-Kit, Component-Kit 15 RO, Drainage-Kit 10/11d

Frequently Asked Questions - Freeze 9.000+ SUNTEC

The device does not turn on after pressing POWER, what should I do?

Check that the plug is correctly inserted into a working power outlet (220-240 V, 50 Hz). If the W.F. light is on, drain the water tank.

Why does the device restart frequently?

This may be due to open windows/doors, other heat sources, direct sunlight, or a blocked exhaust hose. Close openings and eliminate heat sources.

What does the 'W.F.' display mean?

The W.F. display indicates that the water tank is full. The device goes into standby automatically. To drain it, remove the drain plug and let the water flow into a container.

How to clean the air filter?

Turn off and unplug the device. Open the grille, remove the filter, wash it with lukewarm water, dry it without exposure to sunlight, then put it back. Clean the filter every 14 days.

Can I use an extension cord?

No, it is recommended not to use multi-sockets or extension cords. Plug the device directly into a grounded wall outlet.

The device is too noisy, what should I do?

Make sure the device is placed on a flat, level surface. Check that the exhaust hose is not bent or obstructed.

The compressor does not start, why?

The compressor thermal protection may be activated. Turn off the device and wait at least 3 minutes before turning it on again.

How to use sleep mode?

In cooling mode, press the SLEEP MODE button. The temperature increases by 1°C after 1 hour, then by another 1°C after 2 hours, for more comfortable sleep.

Can I repair the device myself?

No, any repairs must be carried out by a qualified professional. Improper handling voids the warranty and may cause damage.

Where to find spare parts?

You can purchase spare parts from your local dealer or on the website www.suntec-wellness.de. Accessories such as the hose extension kit or climate sail are available.

USER MANUAL Freeze 9.000+ SUNTEC

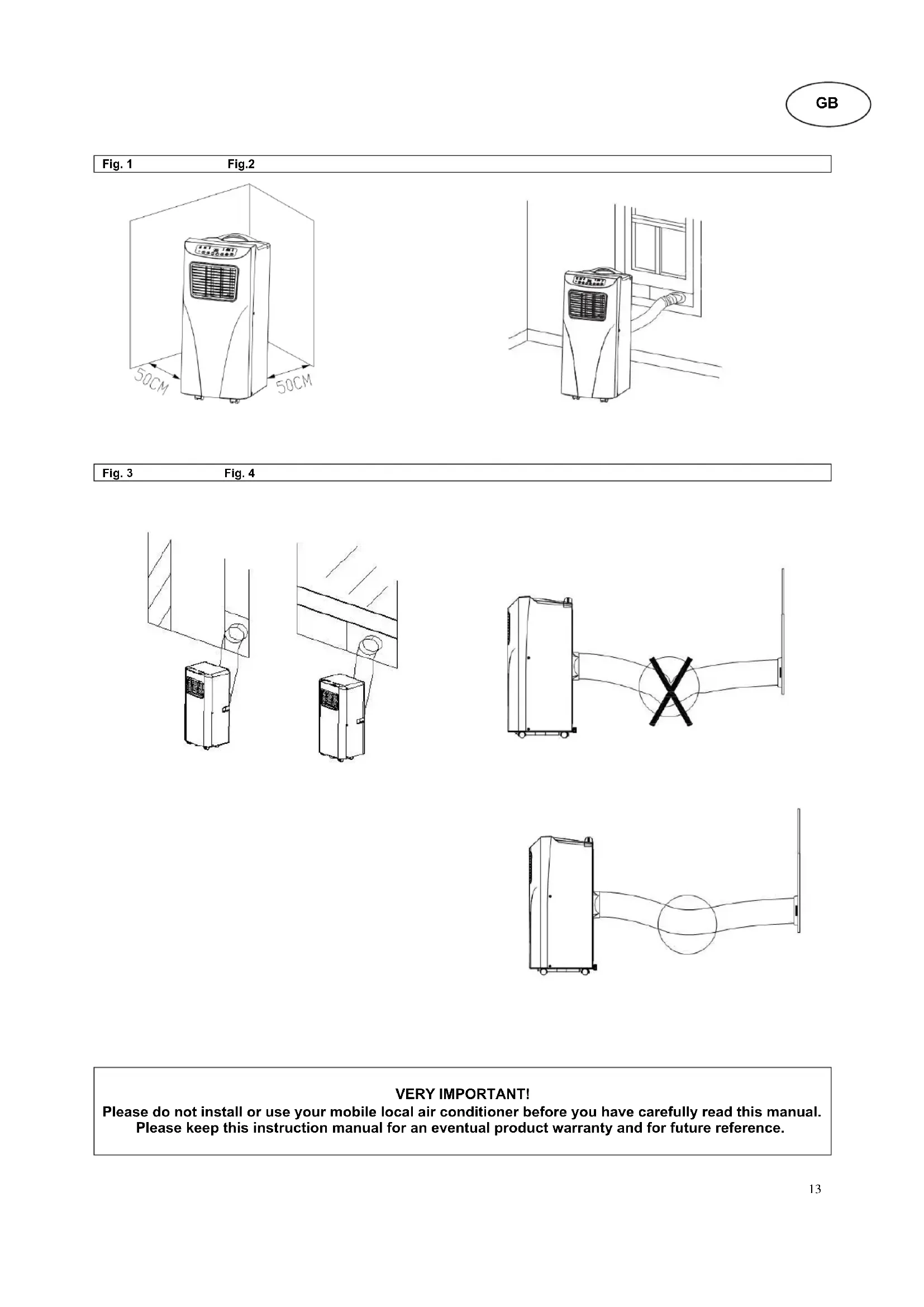

Abb. 1
Abb.2

Abb. 3
Abb. 4

SEHR WICHTIG!

1 Handgriff
6 Oberes Filtergitter
2 Bedienfeld
3 Luftauslass
4 Ventilator
5 Laufrollen

Fig. 3
Fig. 4

VERY IMPORTANT!

Please do not install or use your mobile local air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference.

Safety instruction

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised.

Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• Do not use the unit outdoor.
• Do not use the unit if the power cord was damaged, if it seems to be defective.
• The unit may not be connected to a defective outlet. Please make sure before using that the unit has been properly installed.
• Do not use the unit near open fire sources.
• Do not expose the unit to direct sunlight.

• Please turn off the power before you unplug the power cord.

• Before cleaning the unit, turn it off and unplug the power cord.

• Before replacing the unit please make sure that the power cord is not plugged in and move it slowly.
• Please clean the unit only on the way as described in this manual.
• Connect the unit to a properly grounded electrical outlet (220-240V, 50 Hz).
• Do not let your children play with the unit.
• The unit should not be used without supervision. Please turn off the unit even if you leave the room for only a short time.
• Unplug the unit from the socket when you do not use it. Please do not pull on the cord.
• Do not use the unit on a place where it could be splashed with an oil or water.
• Do not use the unit near bath, shower or swimming pool.
• Never insert fingers, pencils or other objects into the unit if the power cord is plugged, and especially not during operation.
• This local air conditioner must be stored and transported upright, otherwise you may cause irreparable compressor damage. In case of doubt let the unit rest for at least 24 hours before you start it.
• Do not cover the unit and make sure that the air inlet and outlet are not blocked.
• Please make sure that the unit stands upright.
• Please use only the spare parts and accessories offered by the manufacturer to avoid damage to the device.
• You should never repair your local air conditioner by

yourself. Please contact your dealer if the unit needs to be repaired.

• In case of breakdown turn off the unit (only by the Power button located on the control panel) and contact your dealer.
• In case of power cord damage please turn off the unit and unplug it to avoid fire hazard.
- Do not use multiple sockets or extension cords.

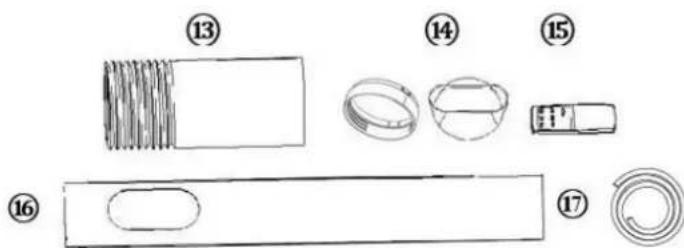

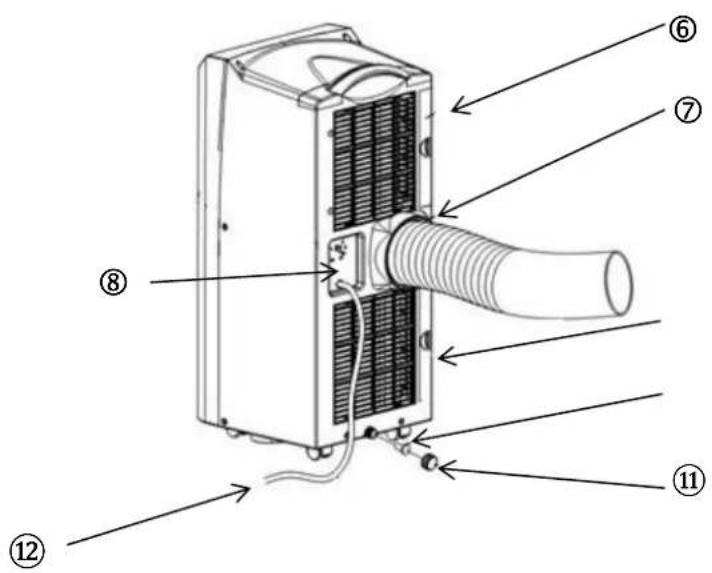

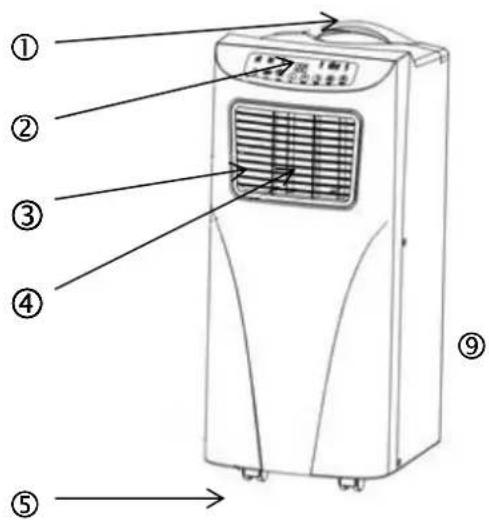

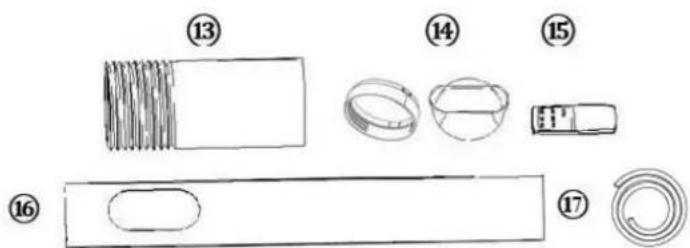

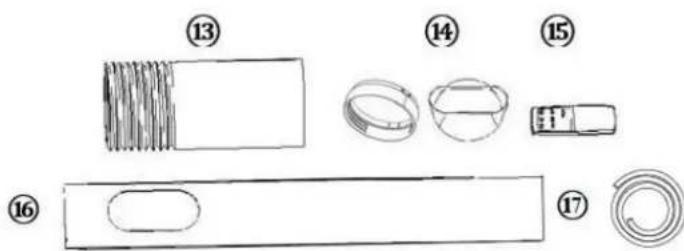

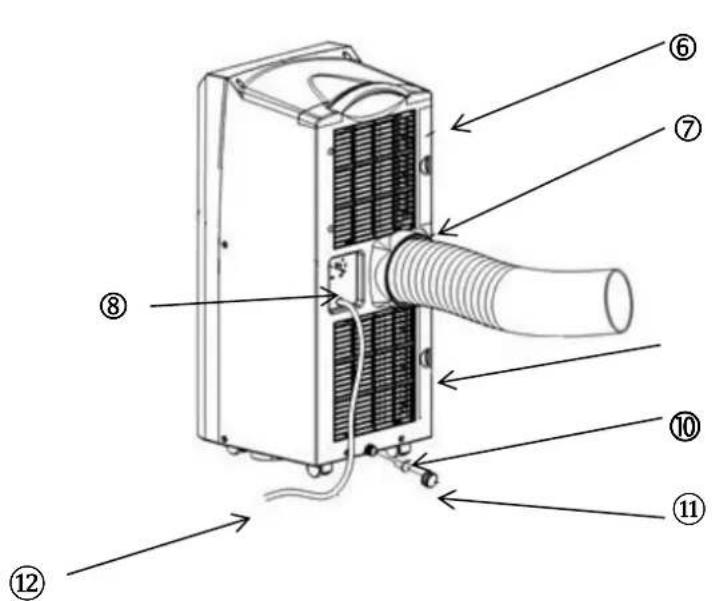

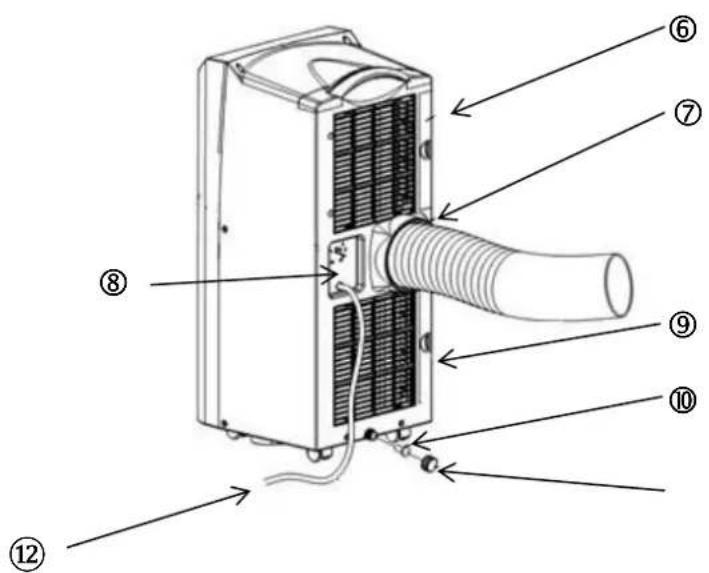

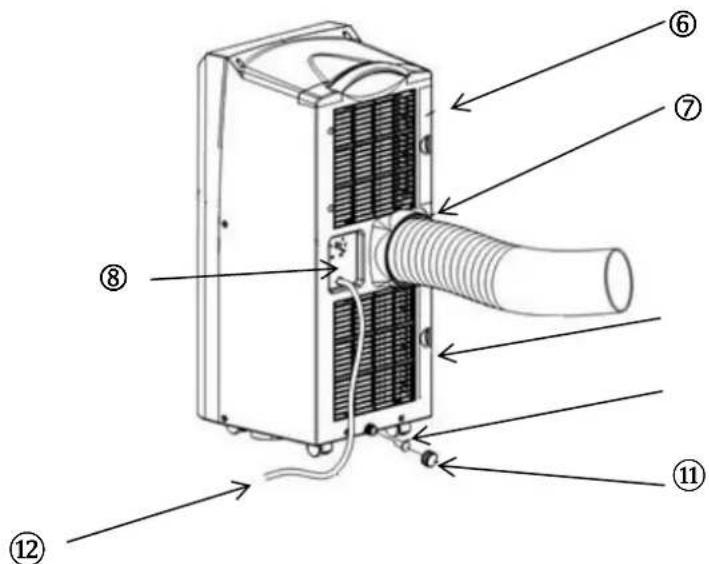

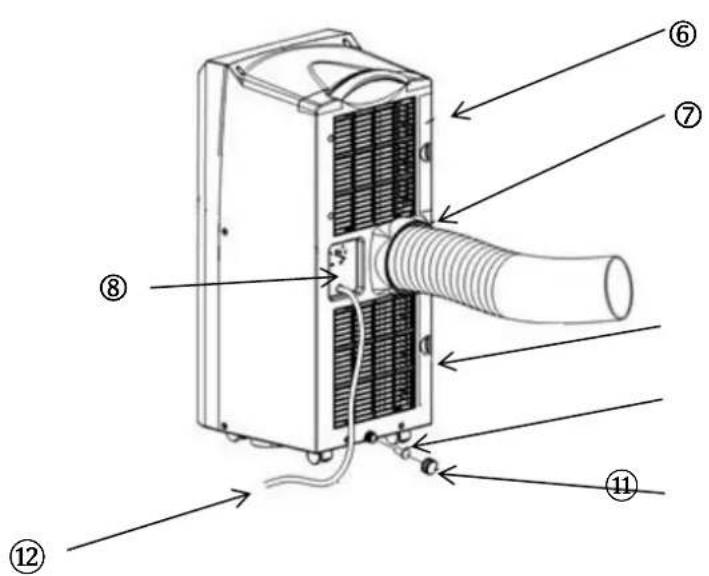

Components

1 Handle
2 Control panel
3 Air outlet
4 Fan
5 Castor

6 Upper air filter grille
7 Exhaust hose opening
8 Power cord mount
9 Lower filter grille
10 Rubber stopper
11 Rubber stopper cover
12 Power cord

13 Exhaust hose
14 Exhaust hose adapters
15 Remote control
16 Window kit
17 Drainage hose

Installation

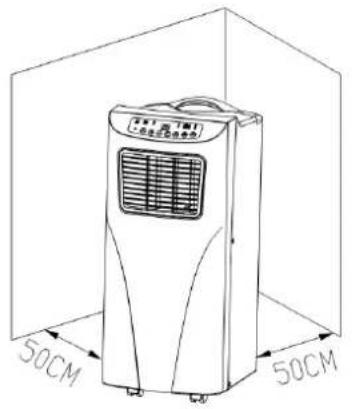

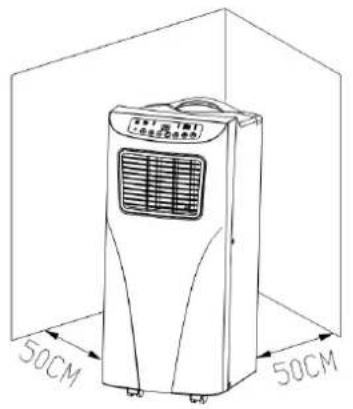

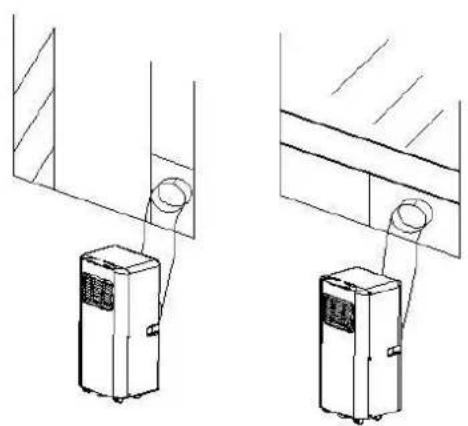

The unit should stand 50 cm away from other objects because they can strongly influence performance of the device (Fig. 1).

Warning: Before using this unit, you should let it stand straight for at least 24 hours.

The unit can be easily moved between rooms, but please note the following:

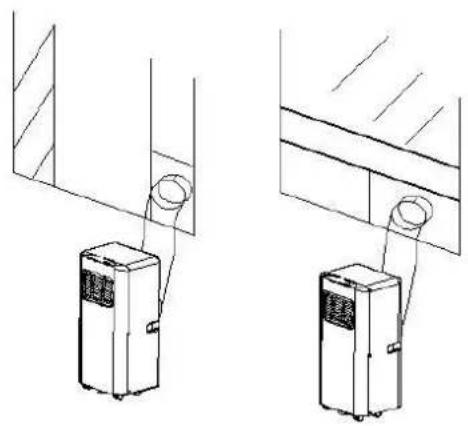

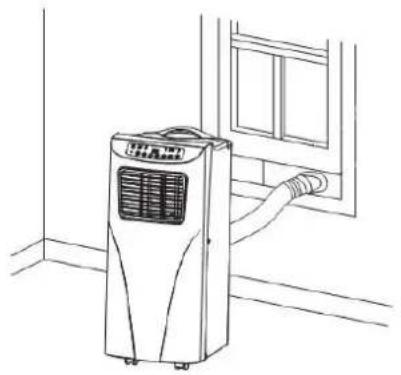

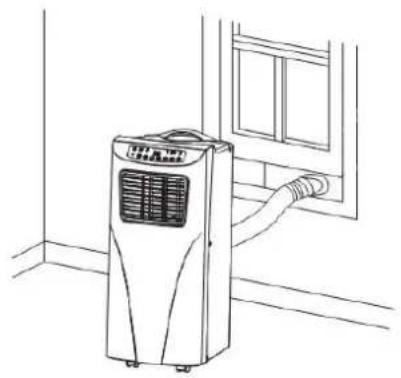

Installation of the exhaust hose, Fig. 2 und 3

1) Place the unit near a power outlet.
2) Attach the adapters at the ends of the exhaust hose.
3) Attach the round end of the exhaust hose into the appropriate hole on the back of the unit.
4) Fix the slide bar at the window. Plug the oval shaped adapter into the opening on the scroll bar.
5) Plug the power cord into the outlet (220-240VAC, 50 Hz).

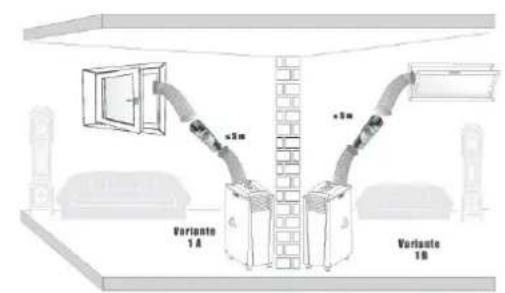

For common casement window, please use the Air-Block Klima-Sail EAN 4250058312099 (see "Spare parts and accessory supply").

Possible installation errors

• Make sure that the outlet is not blocked to prevent damage to the unit.

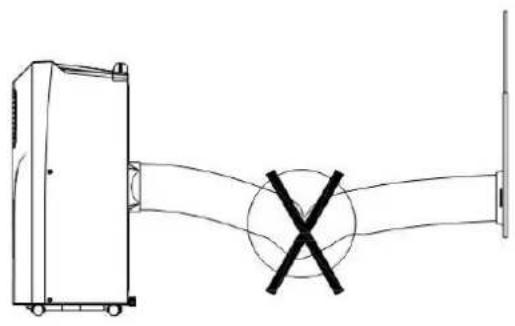

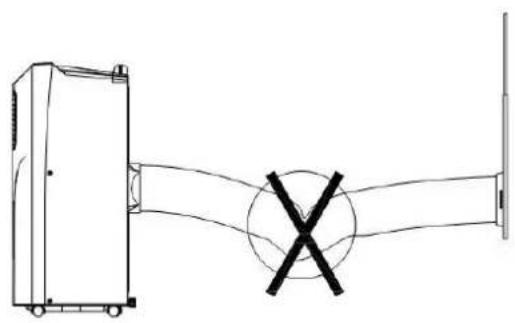

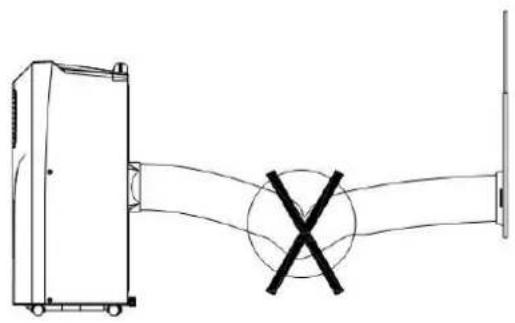

  • The exhaust hose should not be bent (Fig. 4).

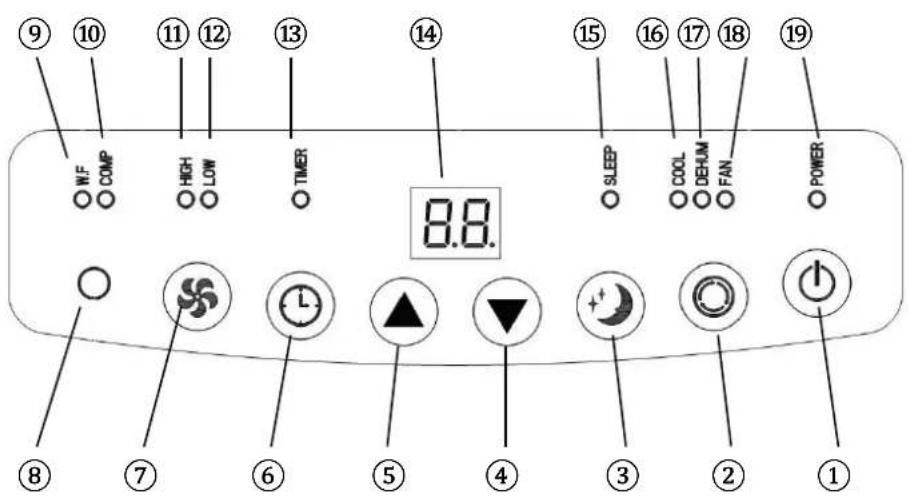

Control panel

1. POWER: Press the button to turn the unit on or off. The unit automatically starts in cooling mode with low fan speed.

2. MODE: Press the Mode button after starting the unit to select between cooling, dehumidifying or fan mode.

3. FAN: Press the Fan button after starting the unit and adjust the desired fan speed.

4. TEMPERATURE - / TEMPERATURE +: Switch the unit into the cooling mode and use these buttons to adjust desired room temperature (16-31°C).
5. SLEEP MODE: Switch the unit into the cooling mode and press this button to de- or activate the sleep mode.
6. TIMER: Turn the unit on and leave it in standby mode, then press this button to set the timer. You can set the desired on or off time using the ▲ and ▼ keys (1h-24h).

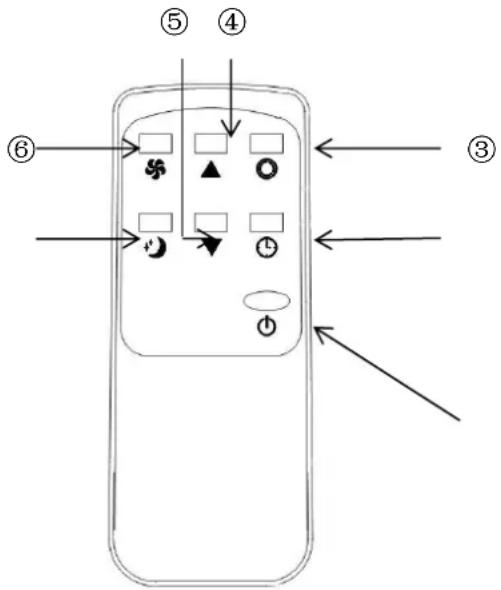

Remote control

1. Power
2. Timer
3. Mode
4. Temperature +
5. Temperature -
6. Fan
7. Sleep mode ⑦ ②

①

• After starting the unit it will automatically start with default settings: cooling mode, 22°C, low fan speed.
- Press the MODE button to set the cooling mode, the cooling mode indicator lights.
- Press the ▲ or ▼ to adjust to the temperature (16° C – 31° C).
- Press the FAN button to adjust the fan speed (high or low).

Fan mode

• Press MODE button to turn on the fan mode, the fan mode indicator lights.
• Press the FAN button to adjust the fan speed (high or low).
  • Temperature setting and sleep mode cannot be set.

Timer

• In standby mode, press the TIMER button to set the on-time. The timer indicator lights up.
  • After starting the unit press the TIMER button to set the off-time. The timer indicator goes off.

Dehumidifying mode

• Press the SLEEP MODE button, the fan speed will be automatically adjusted on the low level.
• If the sleep mode will be activated during operation in the cooling mode, the temperature will rise an hour later by 1° C, two hours later by another 1° C and then remains constant.
• Sleep mode is not adjustable during dehumidifying and fan mode. If the water tank is full, the standby mode will switch on, settings will be deleted and the sleep mode will be disable.

Compressor protection

The compressor requires a start-up phase and will start three minutes later on after turning on / reboot the device.

Important:

Emptying of the water tank

• The unit has an automatic water evaporation system. Condensed water will be used to cool the condenser. Thus the cooling performance will be increased and the energy will be saved.
• As soon as the water tank is full, the "WF" blinks on the display, the standby mode automatically turns on, it will sound the warning alarm and all the buttons will be locked until the tank is emptied.
• To empty of the water tank you need to remove the rubber stopper on the bottom of the unit and let the water leak into a container.
  • Turn off the power and unplug the power cord. Once you reboot the device, it will work normally.

Cleaning

Before starting cleaning or maintenance, turn the power off by pressing the POWER button, wait a few minutes and then unplug the power cord from the outlet.

Surface cleaning

Clean the unit using a damp cloth, and then wipe it using a dry cloth. Do not use chemical solvents (such as gasoline, alcohol). The surface and the entire housing could be damaged.

Air filter cleaning

Clean the air filter regularly. If the air filter is clogged with dust, the efficiency of the device could be reduced.

1) Open the air outlet and remove the filter.
2) Wash the air filter by submersion into warm water (about 40° C) with neutral detergent, rinse it under running water and dry it with a soft cloth.
3) Install air filter carefully after cleaning and drying.

Storage

1. Pull the power plug and empty the water tank. Then set the device into the operating mode. Press the fan button and hold it for a. 5 seconds until the device switches to low fan speed. Let the unit run in this mode for half a day until the inner construction has dried. Thus, it will not become mouldy.
2. Turn off the unit and unplug the power cord.
3. Coil the cord and attach it to the holder.
4. Disconnect the exhaust tubing from the device and keep it safe.
5. Put the unit into a box and bring it to a dry place.
6. Remove the batteries from the remote control and keep them safe as well.

Troubleshooting

Don't repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession.

Problems	Cause	Solution
1. The unit does not turn on when you press the Power button.	Power cord is not plugged.	Insert the plug into the socket and turn on the unit.
	Water full indicator lamp blinks.	Empty the water tank.
2. The unit restarts again and again	Windows and doors are open, other heat sources in the room (leading to temperature variation)	Close doors and windows, remove the heat source.
	Direct sunlight	Put the unit to the shade or draw the curtains.
	Exhaust hose is disconnected or blocked.	Connect or clean exhaust hose.
	Air inlet is blocked by smth.	Clean the blocked place.
3. Noise	The unit does not stand on a flat surface.	Place the unit on a hard flat surface (reduces noise).
4. Compressor does not start	Thermal protection function is activated.	Please turn off the device and restart it 3 Minutes later.

Spare parts and accessories supply (fast convenient supply)

You can obtain spare parts and accessories for your FREEZE unit from your local dealer. And at our website

you will find further information on individual accessory products as well as information on obtaining our spare parts quickly and conveniently. You will also find other information (e.g. FAQ, lists of spare parts, document download, etc) about your FREEZE unit.

NameEAN	Description	Drawing
Air-Block Klima-Sail4250058312099	Sail which can be used for all types of windows and doors. As for an external fly screen, it is fixed with Velcro and operated via a zip. The window or door can be closed at any time.

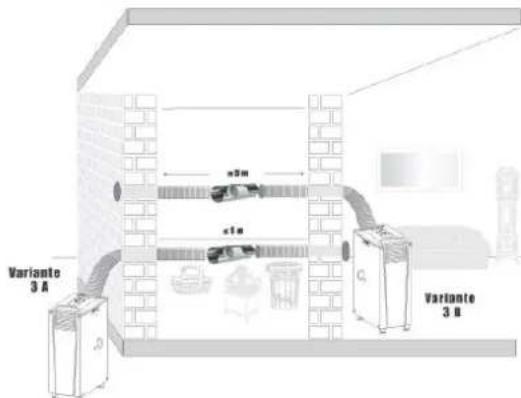

Air-Extension-Kit4250058312105	A World First with which you can air-condition almost every corner of your house, and it doesn't matter where the local air conditioner is located. You can extend the extract air hose by 5 meters via a special propeller. For FREEZE this also applies for the air supply and extraction.
Component-Kit 15 RO4250058314895	Exhaust hoseExhaust hose adapter for the unitExhaust hose end adapterWindow kitDrainage hose
Drainage-Kit 10/11d4250058314888	Drainage hose4 rubber stoppers
Remote Control 7K/9K4250058314932	Remote control

In the case of complaints

• Would you like to complain about the device, you can do it within 24 months from the date of purchase (receipt).
- A free replacement or repair will be excluded from the prior improper product manipulation.
- Defects on parts and consumables, as well as cleaning, maintenance or replacement of said parts are therefore chargeable.
- If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.suntec-wellness.de and learn more.
- No proof of purchase will generally not free repair or replacement.
• In the event that the complaint case is analogous to our terms of service, all defects of the device or its accessories due to material or manufacturing faults by repair or, at our option, by replacement of the device.
- The damage of accessories does not automatically lead to a free replacement of the entire unit. In these cases, please contact your dealer. Glass breakage, or breakage of plastic parts is always a charge.
- The dealer or repair after the warranty service can carry out repairs with costs.

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2019/03 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This local air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Your Suntec local air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

Freeze 7000+: R410A (HFC32: 50%, HFC125: 50%), GWP: 2088, 390g = 0,81432t CO2e

Freeze 9000+: R410A (HFC32: 50%, HFC125: 50%), GWP: 2088, 370g = 0,77256t CO2e

Note concerning protection of environment

This product must not be disposed of via normal household waste after its service life, but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

Liability is excluded for all printing errors and omissions.

Dib. 1
Dib.2

Dib. 3
Dib. 4

Muy importante!

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit. With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2019/03 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Refrigerant

(CE) N 842/2006: This air conditioner contains the refrigerant R410A. The amount of refrigerant is less than 1kg, and is in a closed cooling circuit. The coolant does have zero ozone depletion potential, but is a so-called greenhouse gases under the Kyoto Protocol and may thus contribute to global warming, if it is released to the atmosphere. Therefore only trained technicians with refrigerant certificate make a filling or emptying. Suntec your air conditioner does not have to use if used properly and undamaged coolant circuit can be refilled with refrigerant.

Freeze 7000+: R410A (HFC32: 50%, HFC125: 50%), GWP: 2088, 390g = 0,81432t CO2e

Freeze 9000+: R410A (HFC32: 50%, HFC125: 50%), GWP: 2088, 370g = 0,77256t CO2e

Fig. 4

Fig. 3

TRÈS IMPORTANT!

MOLTO IMPORTANTE!

13 Tubo di scarico

ERG BELANGRIJK!

© 2019/03 SUNTEC WELLNESS GMBH

ERP-besluit

Abb. 3
Abb. 4

MUITO IMPORTANTE!

1 Pega
2 Campo de comando
3 Saída de ar
4 Ventilador
5 Rodas

Slika 3
Slika 4

VAŽNO UPOZORENJE!

Nemojte instalirati ili koristiti svoj mobilni klima-uređaj prije no što pažljivo pročitate ove upute za rukovanje. Upute sačuvajte zbog eventualnog jamstva, ali i kao izvor informacija o proizvodu.

Upozorenje!

Ovaj uređaj se može koristiti od strane djece u dobi od 8 godina i iznad i osoba sa smanjenim fizičkim, osjetilnim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja, ako su pod nadzorom ili ih uputila u korištenje aparata na siguran način i razumiju opasnosti uključeni. Čišćenje i održavanje korisnik ne donosi djecu bez nadzora. Djeci mlađoj od 3 godine, koja nisu pod stalnim nadzorom, mora biti onemogućen pristup uređaju. Djeca uzrasta između 3 i 8 godina smiju samo uključivati i isključivati uređaj, i to pod pretpostavkom, da je uređaj pozicioniran ili instaliran u svom normalnom radnom položaju, te da su djeca podučena u pogledu sigurne upotrebe uređaja, da stoje pod nadzorom i da su shvatila moguće opasnosti.

Djecu uzrasta između 3 i 8 godina uređaj ne smiju priključivati na utičnicu, ne smiju ga regulirati, čistiti niti vršiti održavanje uređaja.

1 Ručka
2 Komandna ploča
3 Izlaz zraka
4 Ventilator
5 Kotačići

6 Gornja rešetka filtera
7 Otvor crijeva za otpadni zrak
8 Držač električnog kabela
9 Donja rešetka filtera
10 Gumeni čep
11 Kapica gumenog čepa
12 Električni kabel

Sl. 4

Sl. 3

VAŽNO UPOZORENJE!

Nemojte instalirati ili koristiti svoj mobilni klima-uređaj prije nego što pažljivo pročitate ovo uputstvo za rukovanje. Uputstvo sačuvajte zbog eventualne garancije, ali i kao izvor informacija o proizvodu.

Upozorenje!

Ovaj uređaj se može koristiti od strane djece u dobi od 8 godina i iznad i osoba sa smanjenim fizičkim, senzornim i mentalnim sposobnostima ili nedostatkom iskustva i znanja ako su pod nadzorom ili instrukcija za upotrebu aparata na siguran način i razumiju opasnosti uključeni. Čišćenje i održavanje korisnika neće biti od strane djece bez nadzora. Djeci mlađoj od 3 godine, koja nisu pod stalnim nadzorom, mora biti onemogućen pristup uređaju. Djeca uzrasta između 3 i 8 godina smiju samo uključivati i isključivati uređaj, i to pod pretpostavkom, da je uređaj pozicioniran ili instaliran u svom normalnom radnom položaju, te da su djeca podučena u pogledu sigurne upotrebe uređaja, da stoje pod nadzorom i da su shvatila moguće opasnosti.

Djecu uzrasta između 3 i 8 godina uređaj ne smiju priključivati na utičnicu, ne smiju ga regulirati, čistiti niti vršiti održavanje uređaja.

1 Ručka
2 Komandna ploča
3 Izlaz zraka
4 Ventilator
5 Točkići

6 Gornja rešetka filtera
7 Otvor crijeva za otpadni zrak
8 Držač električnog kabela
9 Donja rešetka filtera
10 Gumeni čep
11 Kapica gumenog čepa
12 Električni kabel

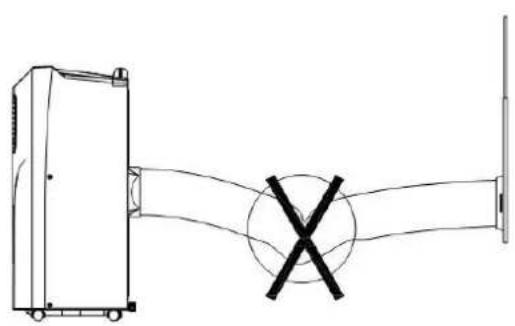

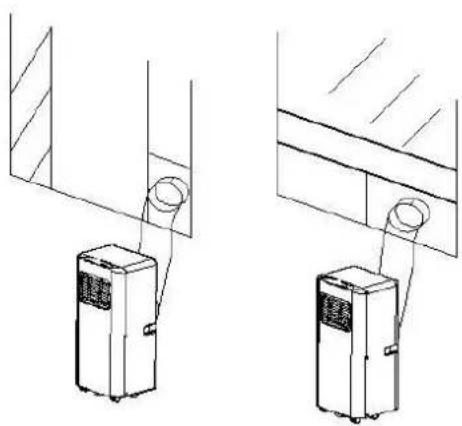

Eventualne greške kod instalacije

Slika 3
Slika 4

ZELO POMEMBNO!

Možne napake pri montaži

Obr. 3
Obr. 4

VEL'MI DÔLEŽITÉ!

Obrázek. 4

Obrázek. 3

VELMI DÜLEŽITÉ!

1. ábra

2. ábra


NAGYON FONTOS!

EC-Declaration of Conformity

The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit.

With the publication of this manual, all previous are not valid. SUNTEC, SUNTEC Wellness, KLIMATRONIC and the Sun logo are registered trademarks. © 2019/03 SUNTEC WELLNESS GMBH

ERP Regulation

This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in particular the new ERP Regulation 626/2011 to a "local air conditioner."

Hütöközeg

Rysunek 3
Rysunek 4

BARDZO WAŻNE!

For this appliance we assure 24 months warranty.

During the 24 months warranty we guarantee to repair your appliance free of charge or to provide your seller the spare parts free of charge if the appliance fails to work due to production failure.

Other claims are excluded from this warranty. We will not be liable for any defects caused by acts of nature, improper use, neglection of the instruction manual, damage from continuous use and damages during transportation.

This warranty card is only applicable with the according invoice.

In case of service please bring your purchased product to your seller.

Product name:

Serial number:

Name of buyer:

Date of purchase:

Stamp and signature of seller:

Manufacturer:

Suntec Wellness GmbH

Holzstraße 2

40221 Düsseldorf

Germany

SUNTEC WELLNESS GMBH

HOLZSTRAße 2

40221 DÜSSELDORF

NÉMETORSZÁG

www.suntec-wellness.de

Garanciajegy

vásárlás helye

vásárlás dátuma

cikkszám/EAN

Kedves Vásárló,
