USER MANUAL KD49XE8005 SONY

• Before operating the TV, please read the “Safety information” (page 3).• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.• The “xx” that appears in the model name corresponds to a numeric digit, related to design, colour or TV system. Location of the Setup Guide Setup Guide is placed on top of the cushion inside the TV carton. Help/Help Guide Help feature offers a lot of information about your TV. To use the Help feature, press HELP on the remote control. You can find how to and troubleshooting from the list or keyword search. Select [Help Guide] on Help menu to view the manual. If you connect your TV to the internet, the Help feature and information will be updated. Location of the identification label Labels for the TV Model No., Production Date (year/month) andPower Supply rating are located on the rear of the TV or package.For models with supplied mains adaptor:Labels for the mains adaptor Model No. and Serial No. are locatedon the bottom of the mains adaptor. WARNING

SPREAD OF FIRE, KEEP

CANDLES OR OTHER OPEN

FLAMES AWAY FROM THIS

PRODUCT AT ALL TIMES.

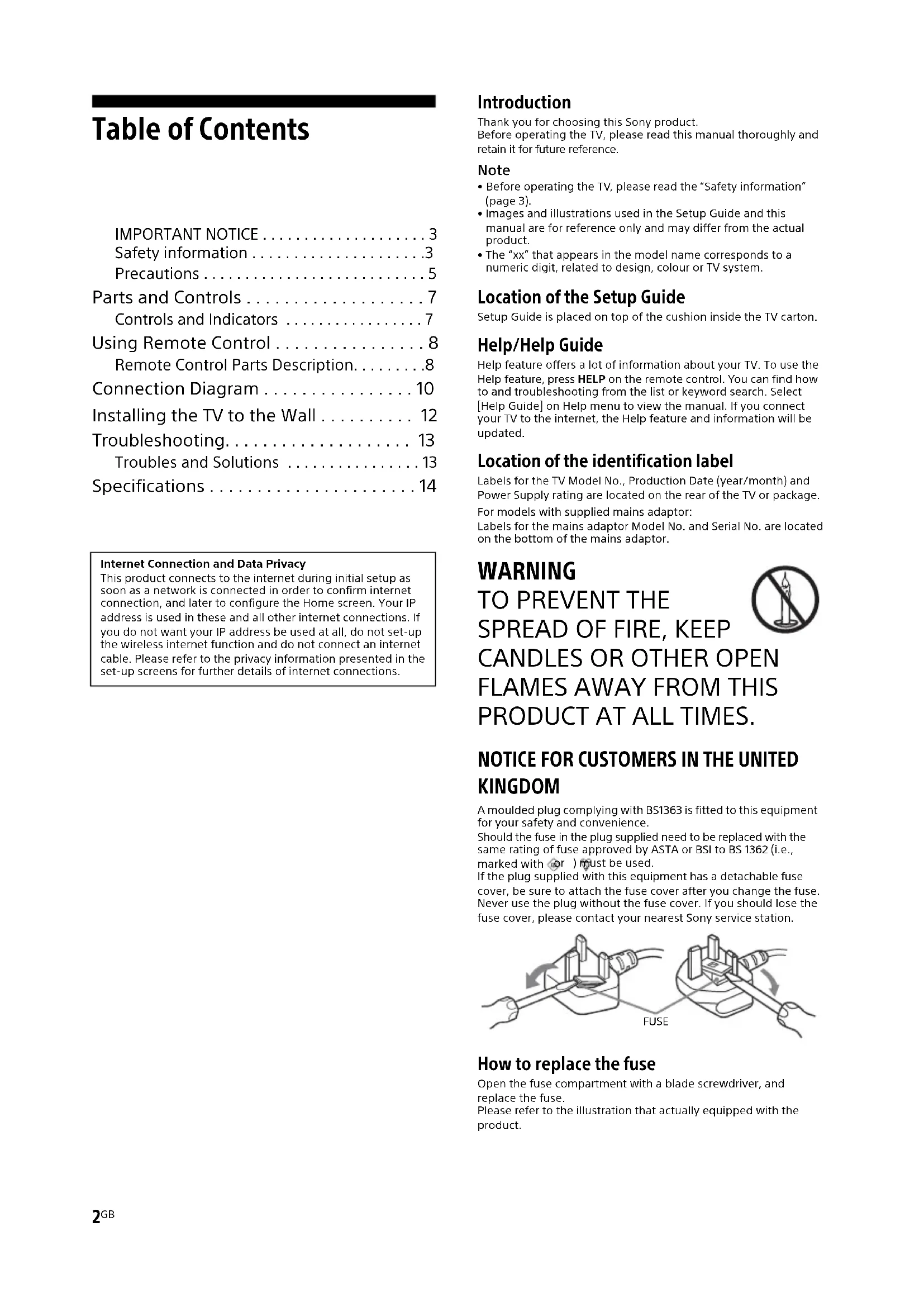

NOTICE FOR CUSTOMERS IN THE UNITED

KINGDOM A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.Should the fuse in the plug supplied need to be replaced with the same rating of fuse approved by ASTA or BSI to BS 1362 (i.e., marked with or ) must be used.If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. How to replace the fuse Open the fuse compartment with a blade screwdriver, and replace the fuse.Please refer to the illustration that actually equipped with the product. FUSE Internet Connection and Data PrivacyThis product connects to the internet during initial setup as soon as a network is connected in order to confirm internet connection, and later to configure the Home screen. Your IP address is used in these and all other internet connections. If you do not want your IP address be used at all, do not set-up the wireless internet function and do not connect an internet cable. Please refer to the privacy information presented in the set-up screens for further details of internet connections.3

KD-55XE83xx / 55XE80xx / 49XE83xx / 49XE80xx / 43XE83xx / 43XE80xx / FW-55XE80xx / 49XE80xx / 43XE80xx 4-684-583-12(1) Notice for Wireless Signal Hereby, Sony Corporation declares that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/ Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives. TV wireless system may be operated in following countries: AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo This equipment can be operated in other non-European countries. This radio equipment can be operated in the EU without infringing applicable requirements on the use of radio spectrum. WARNING Batteries must not be exposed to excessive heat such as sunshine, fire or the like. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: Using cabinets or stands recommended by the manufacturer of the television set. Only using furniture that can safely support the television set. Ensuring the television set is not overhanging the edge of the supporting furniture. Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture. Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. Installation/Set-up Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries. Installation

• The TV set should be installed near an easily accessible mains socket.

• Place the TV on a stable, level surface to prevent it from falling over and causing personal injury or property damage.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Only qualified service personnel should carry out wall-mount installations.

• For safety reasons, it is strongly recommended that you use Sony accessories, including: Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc. Transporting

• Before transporting the TV set, disconnect all cables.

• Two or three people are needed to transport a large TV set.

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

• When lifting or moving the TV set, hold it firmly from the bottom.

• When transporting the TV set, do not subject it to jolts or excessive vibration. IMPORTANT NOTICE This product has been manufactured by or on behalf of Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. Inquiries related to product compliance based on European Union legislation shall be addressed to the authorized representative, Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935 Zaventem, Belgium. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents. Safety information Screw (M6) Wall-Mount Bracket 8 mm - 12 mm TV’s rear cover4

• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material. Topple prevention Ventilation

• Never cover the ventilation holes or insert anything in the cabinet.

• Leave space around the TV set as shown below.

• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air circulation. Installed on the wall Installed with stand

• To ensure proper ventilation and prevent the collection of dirt or dust: Do not lay the TV set flat, install upside down, backwards, or sideways. Do not place the TV set on a shelf, rug, bed or in a closet. Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc. Do not install the TV set as shown below. Mains lead Handle the mains lead and socket as follows in order to avoid any risk of fire, electric shock or damage and/or injuries: Use only mains leads supplied by Sony, not other suppliers. Insert the plug fully into the mains socket. Operate the TV set on a 220 V - 240 V AC supply only. When wiring cables, be sure to unplug the mains lead for your safety and take care not to catch your feet on the cables. Disconnect the mains lead from the mains socket before working on or moving the TV set. Keep the mains lead away from heat sources. Unplug the mains plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire. Note

• Do not use the supplied mains lead on any other equipment.

• Do not pinch, bend, or twist the mains lead excessively. The core conductors may be exposed or broken.

• Do not modify the mains lead.

• Do not put anything heavy on the mains lead.

• Do not pull on the mains lead itself when disconnecting the mains lead.

• Do not connect too many appliances to the same mains socket.

• Do not use a poor fitting mains socket. NOTE ON MAINS ADAPTOR (models with supplied mains adaptor only) Warning To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the mains socket is installed near the equipment and shall be easily accessible.

• Be sure to use the supplied mains adaptor and mains lead.

• Do not use any other mains adaptor. It may cause a malfunction.

• Connect the mains adaptor to an easily accessible mains socket.

• Do not coil the mains lead around the mains adaptor. The core wire may be cut and/or it may cause a malfunction of the media receiver.

• Do not touch the mains adaptor with wet hands.

• If you notice an abnormality in the mains adaptor, disconnect it from the mains socket immediately.

• The set is not disconnected from the mains source as long as it is connected to the mains socket, even if the set itself has been turned off.

• As the mains adaptor will become warm when it is used for a long time, you may feel hot when touching it by hand. Prohibited Usage Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electric shock, damage and/or injuries. Locations:

• Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke. Environments:

• Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc.). The TV set shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV. Situations:

• Use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from mains socket and aerial during lightning storms. 8 mm - 12 mm Screw (not supplied) Screw (not supplied) Cord (not supplied)

{15 kgf·cm} 30 cm 10 cm 10 cm 10 cm Leave at least this space around the set. 30 cm 10 cm 10 cm Leave at least this space around the set. 6 cm Air circulation is blocked. Wall Wall5

• Install the TV so that it sticks out into an open space. Injury or damage from a person or object bumping into the TV may result.

• Place the TV in a humid or dusty space, or in a room with oily smoke or steam (near cooking tables or humidifiers). Fire, electric shock, or warping may result.

• Install the TV in places subject to extreme temperature such as in direct sunlight, near a radiator or a heating vent. The TV may overheat in such condition which can cause deformation of the enclosure and/or TV malfunction.

• If the TV is placed in the changing room of a public bath or hot spring, the TV may be damaged by airborne sulfur, etc.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor colour. Should this occur, allow moisture to evaporate completely before powering the TV on. Broken pieces:

• Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

• If the surface of the TV set cracks, do not touch it until you have unplugged the mains lead. Otherwise this may cause an electric shock. When not in use

• If you will not be using the TV set for several days, the TV set should be disconnected from the mains for environmental and safety reasons.

• As the TV set is not disconnected from the mains when the TV set is just turned off, pull the plug from the mains to disconnect the TV set completely.

• Some TV sets may have features that require the TV set to be left in standby to work correctly. For children

• Do not allow children to climb on the TV set.

• Keep small accessories out of the reach of children, so that they are not mistakenly swallowed. If the following problems occur... Turn off the TV set and unplug the mains lead immediately if any of the following problems occur. Ask your dealer or Sony service centre to have it checked by qualified service personnel. When: Mains lead is damaged. Poor fitting of mains socket. TV set is damaged by being dropped, hit or having something thrown at it. Any liquid or solid object falls through openings in the cabinet. About LCD TV Temperature When the LCD TV is used for an extended period, the panel surrounds become warm. You may feel hot when touching there by the hand. Viewing the TV

• View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

• When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result. LCD Screen

• Although the LCD screen is made with high-precision technology and 99.99 % or more of the pixels are effective, black dots may appear or bright points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

• Do not push or scratch the front filter, or place objects on top of this TV set. The image may be uneven or the LCD screen may be damaged.

• If this TV set is used in a cold place, a smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

• Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

• The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

• The LCD screen contains a small amount of liquid crystal. Follow your local ordinances and regulations for disposal. Handling and cleaning the screen surface/ cabinet of the TV set Be sure to unplug the mains lead connected to the TV set from mains socket before cleaning. To avoid material degradation or screen coating degradation, observe the following precautions.

• To remove dust from the screen surface/cabinet, wipe gently with a soft cloth. If dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

• Do not touch the TV if your hand is covered in any chemical substance such as hand cream or sunblock.

• Periodic vacuuming of the ventilation openings is recommended to ensure proper ventilation.

• When adjusting the angle of the TV set, move it slowly so as to prevent the TV set from moving or slipping off from its table stand. Optional Equipment

• Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection signal cable shorter than 3 meters.

• This equipment has been tested and found to comply with the limits set out in the EMC Directive using a RF cable shorter than 30 meters for terrestrial/satellite/CATV terminal. Recommendation of F-type plug Projection of the inner wire from the connection part must be less than 1.5 mm. Precautions

(Reference drawing of the F-type plug) 7 mm max.6

• Do not operate this unit near medical equipment (pacemaker, etc.), as this may result in the malfunction of the medical equipment.

• Although this unit transmits/receives scrambled signals, be careful of unauthorised interception. We cannot be responsible for any trouble as a result.

• This equipment should be installed and operated keeping a separation distance of 20 cm or more between the antenna of this device and a person's body. Caution about handling the remote control

• Observe the correct polarity when inserting batteries.

• Do not use different types of batteries together or mix old and new batteries.

• Dispose of batteries in an environmentally friendly way. Certain regions may regulate the disposal of batteries. Please consult your local authority.

• Handle the remote control with care. Do not drop or step on it, or spill liquid of any kind onto it.

• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room. Disposal of the TV set Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product. Disposal of waste batteries (applicable in the European Union and other European countries with separate collection systems) This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005 % mercury or 0.004 % lead. By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources. In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries. For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.7

KD-55XE83xx / 55XE80xx / 49XE83xx / 49XE80xx / 43XE83xx / 43XE80xx / FW-55XE80xx / 49XE80xx / 43XE80xx 4-684-583-12(1) Parts and Controls (Power) /+/- When the TV is off, Press to power on. When the TV is on, Press and hold to power off.Press repeatedly to change the function, then press + or – button to:•Adjust the volume.• Select the channel.• Select the input source of TV. Remote Control sensor* / Light sensor* / Illumination LED The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.* Do not place anything near the sensor. Controls and Indicators

• Switch to a TV channel or input from other applications.

• Turn on the TV to display TV channel or input. GUIDE/ Display the digital programme guide. BACK/ Return to previous screen. HOME Display the TV Home Menu. DISCOVER Bring up the Content Bar to search for content. //// (Item select/Enter) +/– (Volume) Adjust the volume. (Jump) Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected. (Muting) Mute the sound. Press again to restore the sound. PROG +/–// In TV mode: Select the channel. In Text mode: Select the next () or previous () page. AUDIO Change the language for the programme currently being viewed.

Operate media contents on TV and connected BRAVIA Sync-compatible device. (Subtitle setting) Turn subtitles on or off (when the feature is available). HELP Display Help menu. Help Guide can be accessed from here. REC Record the current programme with the USB HDD recording function. TITLE LIST Display the Title list.10

< 14 mm < 14 mm Headphone/Home Audio System/SubwooferDigital still camera/Camcorder/USB storage mediaHome Audio System with ARC/HDMI DeviceCable/Antenna/Set Top BoxHome Audio System with Optical Audio InputDVD player with component outputHDMI DeviceRouterHDMI DeviceVCR/Video game equipment/DVD player/Camcorder/Set Top Box* VCR/Video game equipment/DVD player/CamcorderIR BlasterSatelliteConditional Access Module11

• To listen to the TV's sound through the connected equipment, press HOME. Select [Settings] t [Sound] t [Headphone/Audio out] and then select the desired item. HDMI IN 1/2/3/4

• If connecting a digital audio system that is compatible with Audio Return Channel (ARC) technology, use HDMI IN 3. If not, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.

• Provides access to pay TV services. For details, refer to the instruction manual supplied with your CAM.

• Do not insert the smart card directly into the TV CAM slot. It must be fitted into the Conditional Access Module provided by your authorised dealer.

• CAM is not supported in some countries/ areas. Check with your authorised dealer.

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port. (RF input), (Satellite input)

• Connections for terrestrial/cable and satellite. 6 AV IN 1

*1 When connecting mono equipment, connect to the L (MONO) audio jack (socket).*2 For an external device which has only SCART AV OUT, use a SCART-RCA adapter.*3 Only on limited region/country/TV model. < 21 mm < 12 mm

1: L 2: Video 3: Ground 4: R

D:\SONY TV\SY17_KF_EU_RG_121\4684583121\01_4684583121_GB\030ADD_GB.fm masterpage: Left KD-55XE83xx / 55XE80xx / 49XE83xx / 49XE80xx / 43XE83xx / 43XE80xx / FW-55XE80xx / 49XE80xx / 43XE80xx 4-684-583-12(1) Installing the TV to the Wall This TV’s instruction manual only shows the steps on preparing the installation of the TV before installing to the wall. To Customers: For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself. To Sony Dealers and Contractors: Provide full attention to safety during the installation, periodic maintenance and examination of this product. Use the Wall-Mount Bracket SU-WL450 (not supplied) to install the TV to the wall. When installing the Wall-Mount Bracket, also refer to the Operating Instructions and Installation Guide supplied with the Wall-Mount Bracket. Note

• Be sure to store the removed screws in a safe place, keeping them away from children. For instructions on Wall-Mount Bracket installation of your TV model, refer to the following website: www.sony.eu/tv/wall-mount-bracket-manual To detach the Table-Top Stand from the TV Sufficient expertise is required for installing this product, especially to determine the strength of the wall for withstanding the TV’s weight. Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation. KD-55XE83xx/55XE80xx, FW-55XE80xx only KD-49/43XE83xx, KD-49/43XE80xx, FW-49/43XE80xx only13

KD-55XE83xx / 55XE80xx / 49XE83xx / 49XE80xx / 43XE83xx / 43XE80xx / FW-55XE80xx / 49XE80xx / 43XE80xx 4-684-583-12(1) Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the TV from the mains lead for two minutes and then plug it in again. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. 4 Visit Sony support website (information provided on the back cover). When [A new TV system software update is available...] message is displayed. Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating…] will appear and the illumination LED flashes white while software is updating. Do not unplug the mains lead during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes. When you plug in TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. Troubles and Solutions When the illumination LED is flashing in red. Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the mains lead for two minutes, then turn on the TV. If the problem persists, disconnect the mains lead, and contact your dealer or Sony service centre with the number of times the illumination LED flashes. Terrestrial/cable service cannot be received. Check the antenna (aerial)/cable connection and booster settings. Select terrestrial/cable service by pressing DIGITAL/ANALOG on the remote control. If the broadcasting service is not displayed, press TV and then press DIGITAL/ANALOG. Terrestrial signal might be suppressed if there is a strong signal supplied nearby. Set [LNA (CH ---)] to [Off] in digital tuning settings. After moving to a new house or trying to receive new services, attempt a service search by selecting [Digital Tuning]. Satellite service cannot be received. Check the satellite cable connection. When [No signal. LNB overload detected...] message is displayed, unplug the mains lead. Then, ensure the satellite cable is not damaged and the satellite signal line is not short-circuited in the satellite connector. The remote control does not function. Replace the batteries. The parental lock for broadcast password has been forgotten. Enter 9999 for the PIN code and select [Change PIN Code]. The TV surrounds become warm. When the TV is used for an extended period, the TV surrounds become warm. You may feel hot when touching there by the hand. Updating...14

TV software version: PKG_.____.____EUA Press HELP on the Remote Control to know the software version.

USB device port ( 3 USB HDD device for REC feature) USB port 1 and 2 support High Speed USB (USB2.0). USB port 3 supports Super Speed USB (USB3.0). CAM (Conditional Access Module) slot LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. 10BASE-T/ 100BASE-TX communication rate and communication quality are not guaranteed for this TV.) Wireless LAN (IEEE 802.11ac/a/b/g/n) Frequency range Output Power 2400 - 2483.5 MHz < 20.0 dBm 5150 - 5250 MHz < 23.0 dBm 5250 - 5350 MHz < 20.0 dBm 5470 - 5725 MHz < 20.0 dBm 5725 - 5850 MHz < 13.9 dBm Bluetooth Frequency range Output Power 2400 - 2483.5 MHz < 10.0 dBm Bluetooth Frequency range Output Power 2400 - 2483.5 MHz < 10.0 dBm15

IR Blaster Cable input (mini jack) Others Optional accessories Wall-Mount Bracket: SU-WL450 Operating temperature 0 ºC – 40 ºC Operating humidity 10 % – 80 % RH (non-condensing) Power, Product Fiche and others Power requirements except models with supplied mains adaptor 220 V - 240 V AC, 50 Hz models with supplied mains adaptor only

19.5 V DC with mains adaptor

0.50 W (13 W in software/EPG update mode)

Display resolution 3,840 dots (horizontal) × 2,160 lines (vertical) Output Rating USB 1/2: 5 V, , 500 mA MAX USB 3: 5 V, , 900 mA MAX Dimensions (Approx.) (w × h × d) with Table-Top Stand KD-55XE83xx / 55XE80xx: 123.2 × 77.2 × 25.2 cm KD-49XE83xx / 49XE80xx: 109.6 × 69.1 × 25.2 cm KD-43XE83xx / 43XE80xx: 96.4 × 61.7 × 24.2 cm without Table-Top Stand KD-55XE83xx / 55XE80xx: 123.2 × 71.6 × 5.7 cm KD-49XE83xx / 49XE80xx: 109.6 × 64.0 × 5.7 cm KD-43XE83xx / 43XE80xx: 96.4 × 56.7 × 5.7 cm Mass (Approx.) with Table-Top Stand KD-55XE83xx / 55XE80xx: 18.6 kg KD-49XE83xx / 49XE80xx: 12.9 kg KD-43XE83xx / 43XE80xx: 10.8 kg without Table-Top Stand KD-55XE83xx / 55XE80xx: 17.6 kg KD-49XE83xx / 49XE80xx: 12.2 kg KD-43XE83xx / 43XE80xx: 10.1 kg *1 Only on limited region/country/TV model. *2 Energy consumption per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used. *3 Specified standby power is reached after the TV finishes necessary internal processes. *4 Standby power consumption will increase when your TV is connected to the network. Note

• Do not remove the cover from TV CAM (Conditional Access Module) slot other than to insert a smart card fitted in CAM.

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.16

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.

• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/ HEVC codecs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed. Trademark information

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA” and are trademarks of Sony Corporation.

• Gracenote, Gracenote eyeQ, Gracenote VideoID, Gracenote Video Explore, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Wi-Fi, Wi-Fi Direct, Miracast, Wi-Fi Protected Setup and Wi-Fi CERTIFIED Logo are trademarks or registered trademarks of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.2

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.

5.150 - 5.250 MHz < 23,0 dBm

• Opera® Devices SDK. Copyright 1995-2016 Opera TV AS. All rights reserved.
