USER MANUAL Desk Rocker ION


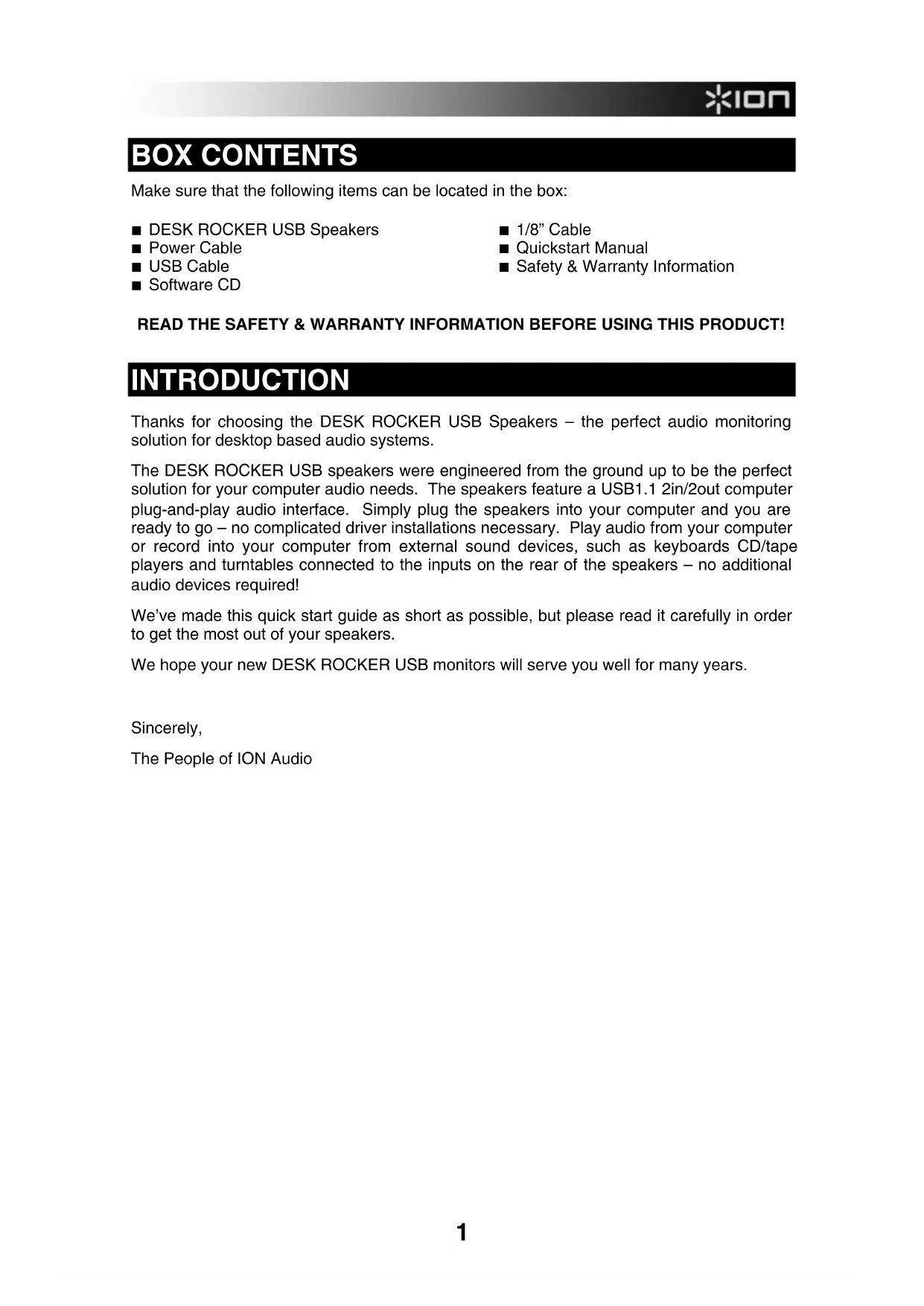

Make sure that the following items can be located in the box:
■ DESK ROCKER USB Speakers
■ Power Cable
■ USB Cable
■ Software CD
■ 1/8" Cable
■ Quickstart Manual
■ Safety & Warranty Information
READ THE SAFETY & WARRANTY INFORMATION BEFORE USING THIS PRODUCT!
INTRODUCTION
Thanks for choosing the DESK ROCKER USB Speakers – the perfect audio monitoring solution for desktop based audio systems.
The DESK ROCKER USB speakers were engineered from the ground up to be the perfect solution for your computer audio needs. The speakers feature a USB1.1 2in/2out computer plug-and-play audio interface. Simply plug the speakers into your computer and you are ready to go – no complicated driver installations necessary. Play audio from your computer or record into your computer from external sound devices, such as keyboards CD/tape players and turntables connected to the inputs on the rear of the speakers – no additional audio devices required!
We've made this quick start guide as short as possible, but please read it carefully in order to get the most out of your speakers.
We hope your new DESK ROCKER USB monitors will serve you well for many years.
Sincerely,
The People of ION Audio

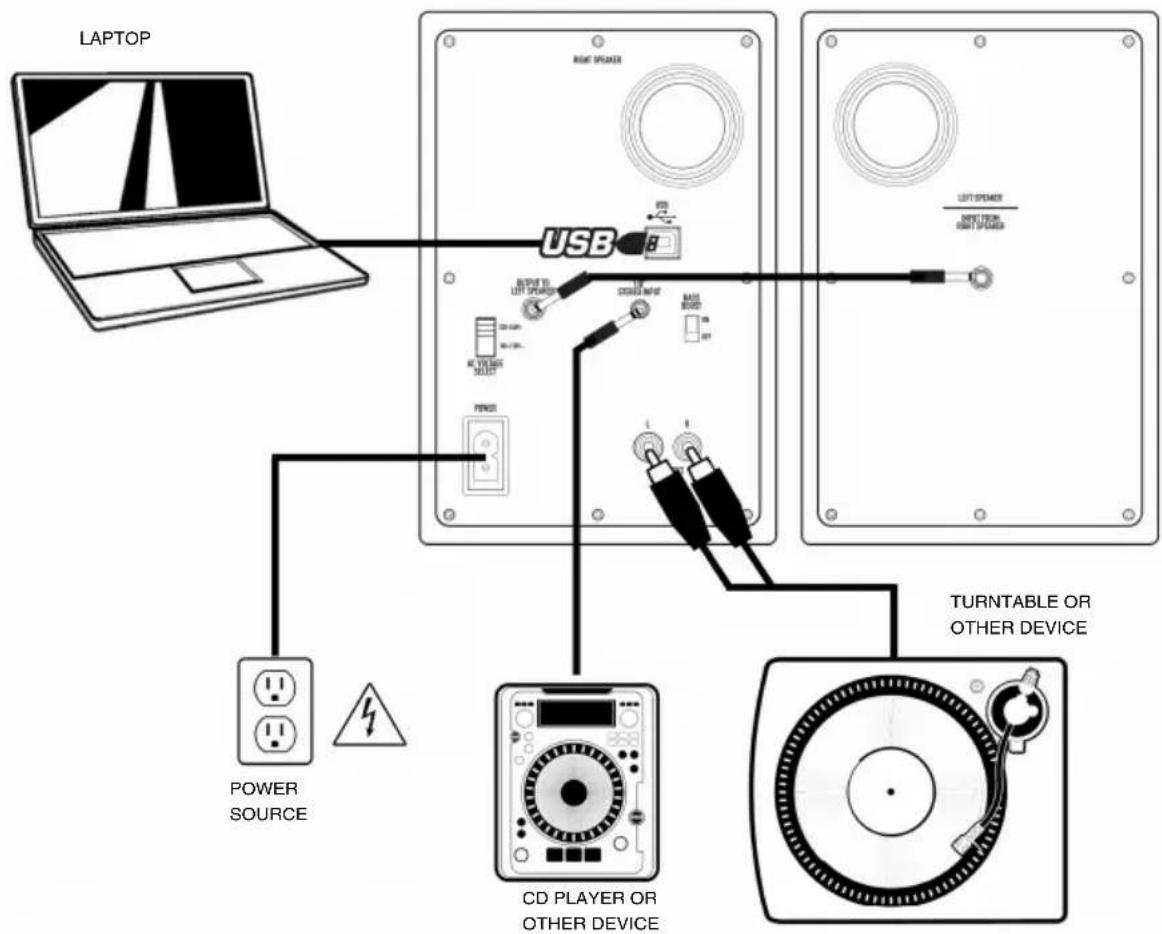

HOOKUP DIAGRAM
Refer to the possible connection scenario for hooking up the DESK ROCKER USB speakers.


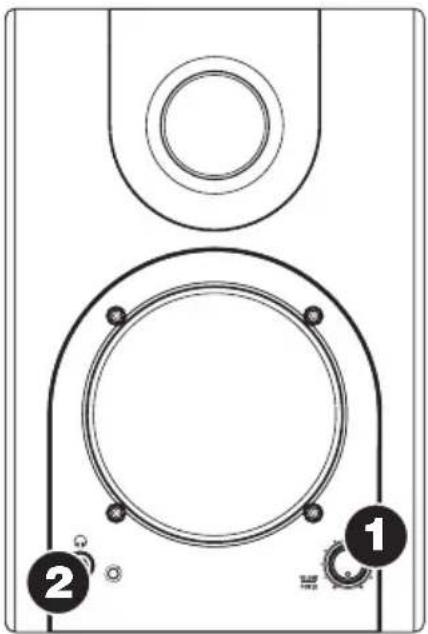

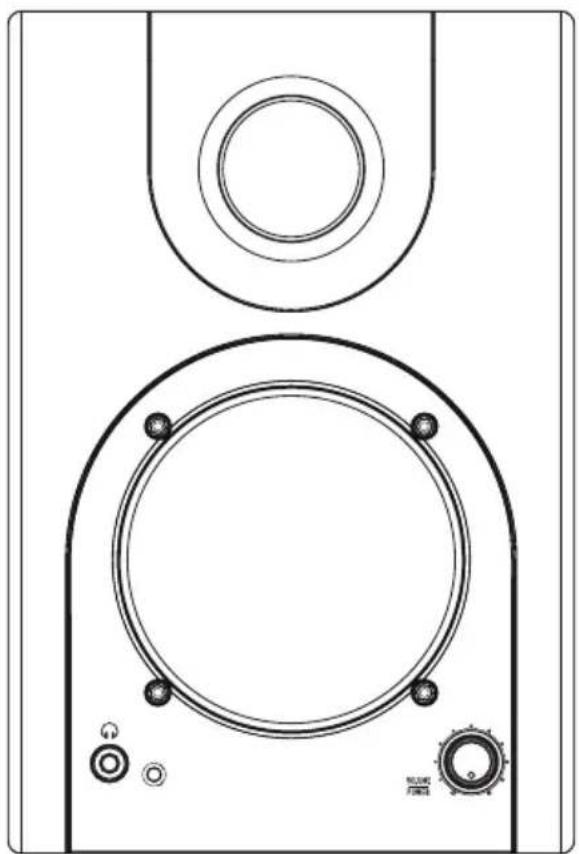

VOL/POWER – This knob is used to turn the speakers on and adjust their volume. To turn on, simply turn up the knob; you will feel a click when the speakers turn on. A blue LED light on the left side of the speaker will illuminate. To turn off, simply turn the volume all the way down; the blue LED will turn off to let you know that the speakers are off.
-
HEADPHONES – Connect your 1/8" headphones to this output to hear the mix through your headphones. Note that while the headphones are connected, you will not be able to hear sound out of your speakers until the headphones are disconnected.
REAR PANEL OVERVIEW


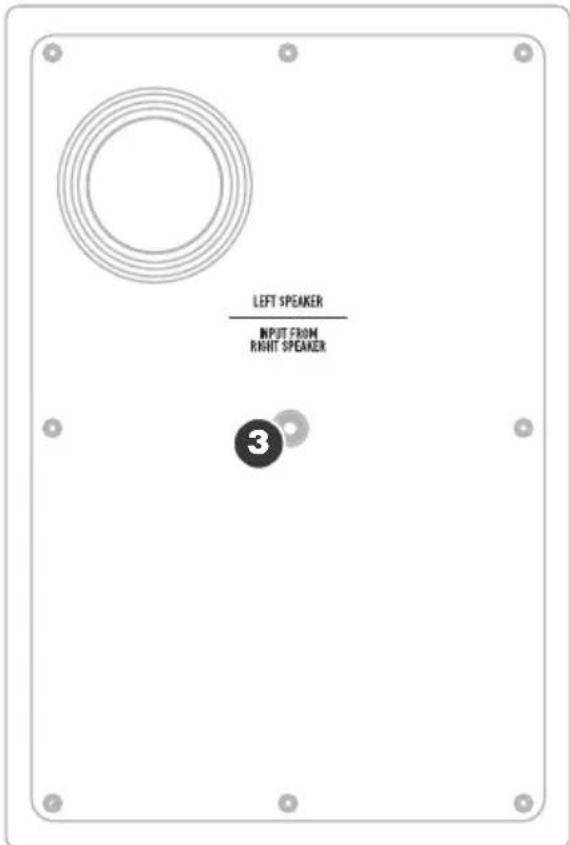

LEFT SPEAKER INPUT FROM RIGHT SPEAKER 3-
POWER – Use the included power cable to connect the speakers to a live power source. Make sure your AC Voltage Selector (see item #2 below) is set to the correct voltage for your country.
-
AC VOLTAGE SELECTOR – This 2-position switch sets the AC input voltage for the speaker. U.S. users should set this switch to "100-120V" whereas U.K. and most European users will need to set this to "220-240V".
-
OUTPUT TO LEFT SPEAKER – This is the audio connection to the left speaker. Use the included 1/8" cable to connect the right speaker to the left speaker.
-
USB (1.1) – Use the supplied USB cable to connect the speaker system to your computer. Note that the DESK ROCKER USB speakers are Plug-and-Play so there is no additional driver installation necessary; the speakers should be ready to use as soon as they are plugged in.
If you experience problems when connecting the speakers through a USB hub, we recommend connecting the speakers directly to your computer.
- 1/8" STEREO INPUT – Use a 1/8" stereo cable (not included) to connect external sound sources to this input.
All input options are mixed together as a stereo pair when recording your external sources into your computer.
-
RCA INPUTS – Use a stereo RCA cable (not included) to connect external sound sources to these inputs.
-
BASS BOOST – This 2-position switch allows you to boost the speakers' bass frequencies.
SPEAKER PLACEMENT
The placement of your speakers has a huge impact on how well they will perform in your studio.
Although nearfield studio monitors are designed to be more forgiving when it comes to placement, you should do your best to make sure they form an equilateral triangle relative to your head. In other words, make sure that each speaker is equally distant from both your head as well as the other speaker. Once each speaker has been placed, rotate the speakers slightly so that they point toward the listener.
Take a look at the diagram on the right. Notice that the distance from the listener's head to each speaker is the same as the distance between the left and right speakers. Also note that the speakers are turned slightly so that they face the listener.
This is an ideal setup but if it is not practical (or possible) to do this, try to match this setup as closely as possible.


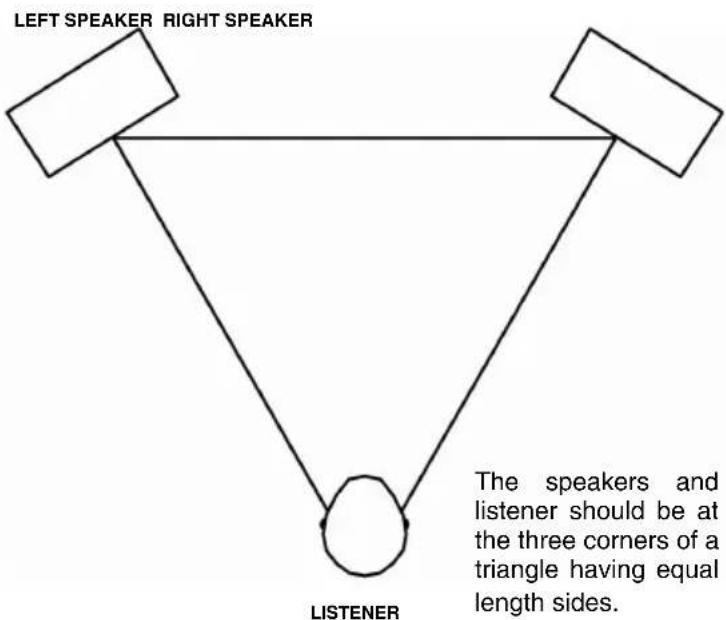

LEFT SPEAKER RIGHT SPEAKER LISTENER The speakers and listener should be at the three corners of a triangle having equal length sides.SPEAKER HEIGHT
The ideal height for DESK ROCKER USB speakers is so that the speaker is parallel to the ground and that the midpoint of the woofer and tweeter is at ear-height.

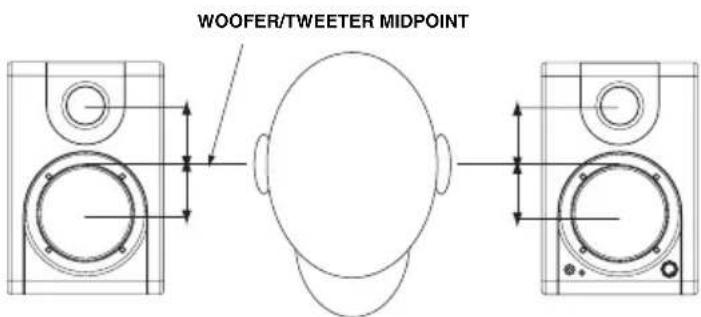

The diagram below demonstrates the ideal placement height of the speakers relative to the engineer. Notice that the engineer's ears are directly between the woofer and tweeter.
The DESK ROCKER USB speakers are plug-and-play under Windows XP/Vista so there is no special driver installation necessary. Simply power on the speakers, connect them to your computer's USB port and all the necessary drivers will be automatically installed.


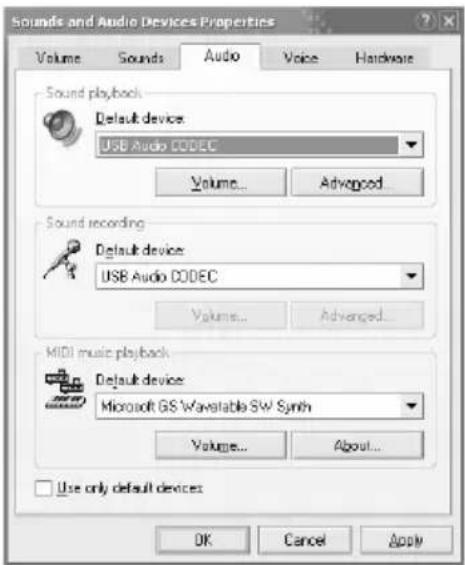

Sounds and Audio Devices Properties Volume Sound Audio Voice Hardware Sound playback Default device: USB Audio CODEC Volume... Advanced... Sound recording Default device: USB Audio CODEC Volume... Advanced... MIDI music playback Default device: Microsoft GS Wavelength SW Synth Volume... About... Use only default devices OK Cancel ApplyYou may choose to use the DESK ROCKER USB speakers as the default audio output for your computer. To access your computer's default audio preferences, go to Start ▶ Control Panel ▶ Sounds and Audio Devices and click on the Audio tab.
You will see the screen displayed on the left.
To select the speakers as the default playback device, choose USB Audio CODEC under Sound Playback.
To select the speakers as the default recording device, choose USB Audio CODEC under Sound Recording.
Tip: While in Sounds and Audio Devices, we recommend turning off Windows system sounds so they do not interfere with your audio while recording or listening to your music. You can do this by clicking on the Sounds tab and selecting No Sounds under the Sound Scheme pull-down menu.
ABOUT LATENCY & THIRD-PARTY ASIO DRIVERS
"Latency" is the delay between the moment when audio is generated and the moment when you actually hear it. Higher latency means a longer delay.
The DESK ROCKER USB speakers feature zero latency direct monitoring so you don't have to worry about latency when monitoring input sources connected to the rear of the speakers. However, latency may become an issue when using software synths and instruments.
Generally, you want to keep latency as low as possible while still allowing your equipment to operate without glitches. Latency and buffering is usually adjusted in your software's Preferences settings.
If you still experience too much latency or “lag” when using software synths and instruments, you might want to download one of the free and widely available ASIO (Audio Stream Input/Output) drivers from the Internet. In general, ASIO drivers may perform better and with lower latency since they create a more efficient communication between audio devices and software. You may download and install the free ASIO4ALL driver (PC) by visiting www.asio4all.com.
CONFIGURATION UNDER MAC OSX


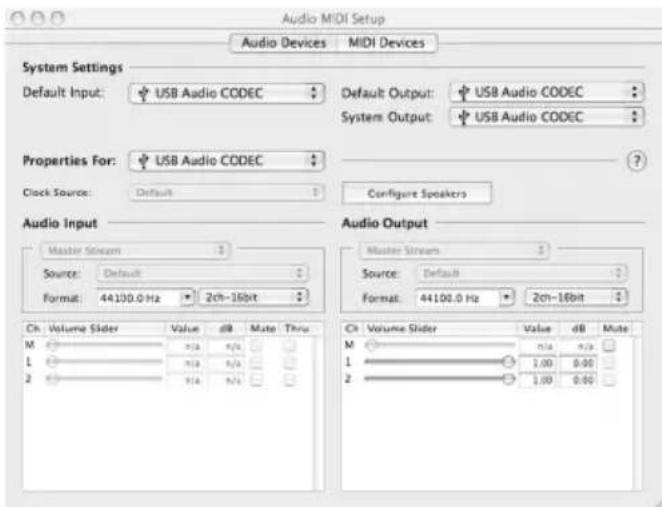

Audio MIDI Setup Audio Devices Mali Devices System Settings Default Input: USB Audio CODEC Default Output: USB Audio CODEC System Output: USB Audio CODEC Properties For: USB Audio CODEC Clock Source: Default Configure Speakers Audio Input Master Stream Source: Default Format: 44100.0 Hz 2ch-18bit Audio Output Master Stream Source: Default Format: 44100.0 Hz 2ch-18bit Ch Volume Slider Value dB Mate Thru M n/a n/a 1 n/a n/a 2 n/a n/a Ch Volume Slider Value dB Mate M n/a n/a 1 1.00 0.00 2 1.00 0.00The DESK ROCKER USB speakers are plug-and-play under Mac OSX so there is no special driver installation necessary. Simply power on the speakers, connect them to your computer's USB port and the speakers should be ready to use immediately.
You may choose to use the DESK ROCKER USB speakers as the default audio output for your computer. To access your computer's default audio preferences, go to Applications ▶ Utilities and double-click Audio MIDI Setup.
Under the Audio Devices tab, select USB Audio CODEC as the default system input and output.
CONFIGURING YOUR DESKTOP AUDIO WORKSTATION
Below are some tips on configuring your desktop audio workstation (DAW) to work with the speakers.
PLAYBACK
If you have not set them to be the default system audio output, you may need to make sure that the speakers are enabled as an audio output device in your DAW. This is usually done in the application's Preferences dialog.
RECORDING
As you may have noticed, there are several inputs on the rear panel of the left speaker. These inputs allow you to record external sound sources directly into your computer. Note that the three sets of inputs are summed together before entering your computer as a stereo track. Therefore, it's important to ensure that the volume of the input signal does not clip when using multiple external devices simultaneously.
To record from the inputs, make sure that the speakers are enabled as an audio input device in your DAW. This is usually done in the application's Preferences dialog.
IMPORTANT: Make sure that software monitoring is turned off when recording from external sound sources. Otherwise, you may get feedback and distortion. To turn off monitoring on the recording channel, you can simply mute the channel in your software.
USING THE INCLUDED AUDIO CONVERTER SOFTWARE
With you purchase of the DESK ROCKER USB Speakers, we have also included a CD containing several easy-to-use audio recorder applications. Please refer to the included software guide for information on installing and using the bundled software.
TROUBLESHOOTING
Please refer to the following list of common troubleshooting scenarios if you run into problems.
| PROBLEM CAUSE SOLUTION | ||
| Speakers do not work. | Speakers not plugged in. Make | sure that the speakers are connected to a live power source. |
| Speakers not turned on. Make sure | sure that the speakers are turned on. The blue LED will be illuminated while the speakers are on. | |
| Speakers not connected to computer. | Make sure that the speakers are connected to a functioning USB port on your computer. | |
| Problem is caused by use of a hub. | We strongly recommend that you avoid using USB hubs and connect the speakers directly to your computer. | |
| Headphones are plugged in. Remember that while the headphones are plugged in, the speakers will not output audio. Disconnect the headphones if you would like to listen through the speakers. | ||
| Volume is all the way at minimum.. | Turn up the volume knob on the front to a suitable level. | |
| I am only hearing audio from the right speaker. | Left speaker not connected. Make sure that the left speaker is connected to the right speaker with the included 1/8" cable. | |
| I am experiencing distortion when recording from external sources. | Gain levels of your input sources are too hot. | Turn down the audio level of your input sources. This is extremely important when using multiple sources, as the inputs on the rear panel of the speakers will be summed together before entering your computer. |
| Software monitoring has not been tuned off and is causing a feedback loop. | Make sure that your software monitoring is turned off when recording from external sources to avoid feedback and distortion. | |
| I am experiencing a lot of latency or "lag". | Buffer size in your software is set too high. | Set the buffer size to a lower value. This is usually done in your software's Audio settings or perferences. |
| The class-compliant audio drivers are insufficient. | Download the free ASIO4ALL driver from www.asio4all.com. It may help achieve better results under extremely low latency settings. | |
| I am experiencing audio dropouts and glitches. | Buffer size in your software is set too low. | Exteremely low buffer sizes can result in your computer working harder than it can, causing unwanted dropouts and glitches. Select a higher buffer size in your software to avoid this. |
| My software DAW is not "seeing" the speakers. | Speakers were connected after the software was started. | Some configurations require that audio and MIDI devices are connected prior to starting any software applications with which you may wish to use the devices. Try restarting the application with the speakers plugged in and powered on. |
TECHNICAL SPECIFICATIONS
Woofer: 3" lightweight, magnetically-shielded,
polypropylene cone with rubber surround and high
power handling voice coil. 4 Ohm impedance.
Tweeter: 1" silk dome
Frequency Response: 80 Hz – 20 kHz
Bass Boost: 4.8dB at 100Hz
Power: 10 W per channel RMS
Signal-to-Noise Ratio: 88dB weighted
Inputs: RCA, 1/8" Stereo, USB1.1
Input Impedance: 20k ohms
DAC/ADC 16 bit delta sigma, 44.1kHz or 48kHz sampling rate
Dimensions (W x H x D): 6.0" x 5.0" x 7.5" / 15.3 cm x 12.7 cm x 19.0 cm
Net Weight (total): 7.5 lbs / 3.4 kg
