Power measures taken according to audison standard 1998 edition.

• 12 VDC and 13.8 VDC.
• 1 KHz or crossover cut-off frequency.
• 0.3 % THD nominal power; 1% THD continuous power.
• Tolerance: +10%; -5%.
• Continuous power given by RMS Voltage measured on resistive load.
• The nominal power of the amplifier is measured upon a battery voltage of 12 Volts with a 4 Ohms load and with all channels in function.

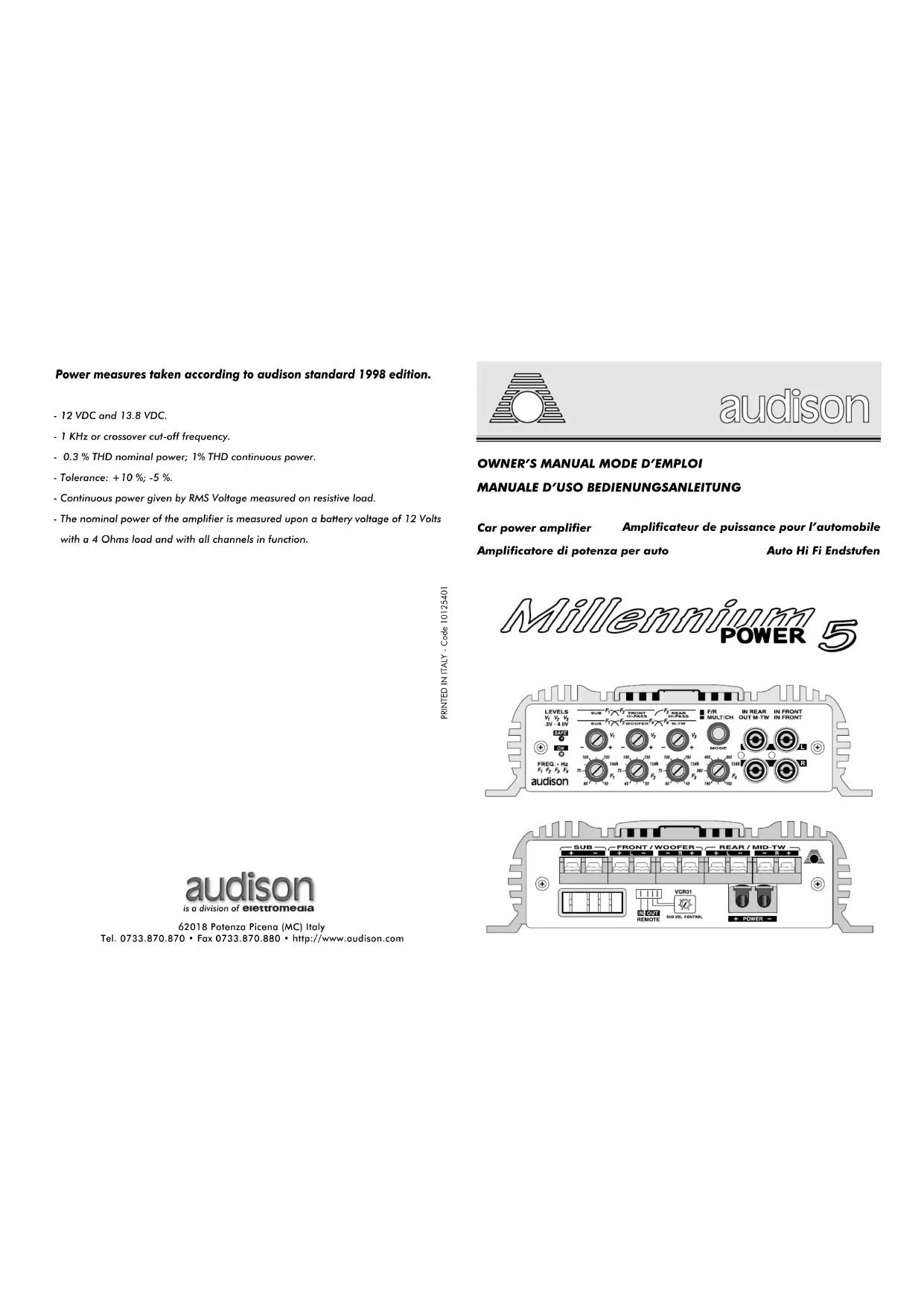

audison

OWNER'S MANUAL MODE D'EMPLOI

is a division of elettromedia

62018 Potenza Picena (MC) Italy

Tel. [phone] · Fax [phone] · http://www.audison.com

Millennium POWER 5 LEVELS V1 V2 V3 .3V - 4 0V SUB F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 audison SUB FRONT H1-PASS F1 WOOFER F2 WOOFER F3 WOOFER F4 WOOFER SUB F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 F2 F3 F4 + - FREQ - Hz F1 WOOFER F2 WOOFER F3 WOOFER F4 WOOFER SUB FRONT / WOOFER + - + - - R + + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + VCR01 IN OUT REMOTE SUB VEL. CONTROL SUB VEL. CONTROL IN REAR IN FRONT OUT M-TW IN FRONT MOUNTCH MODE R/R R

MILLENNIUM POWER 5 (MP5): FEATURES

MP5. It is a five channel amplifier with high musical performances. The outstanding features of its sophisticated circuitry are: "FRONT END" stages realized by two complementary differential stages, final stages made of transistors in Darlington connection, final transistors with in current capacity of 15 A and MOSFET PWM power supply with high energy reserve.

This device has four 50 W RMS on 4 Ohms channels and a 200 W RMS on 4 Ohms and 290 W RMS on 2 Ohms channel, specific for SUBWOOFER. Channels are driven by a sophisticated crossover which can be configured at two or three ways through Mode switch; in both configurations, one way, which has a 24dB slope, is dedicated to the SUBWOOFER, which is also supplied with FADEF

CONSTANT BASS function (Subwoofer constant level when Front/Rear level is varied through Fader control). The crossover has four independent adjustments for cut-off frequencies, three adjustments for output levels, two preamplified output/input connectors.

Mode: Switch on F/R (Front/Rear)

It allows the realisation of a Hi FI, FRONT REAR system. The FRONT section is driven by the IN FRONT input, which handles a Lo Pass filter (50 Hz - 150 Hz) for SUBWOOFER, and a Hi Pass filter (50 Hz - 150 Hz); each filter is supplied with a frequency and level control. The REAR section is driven by IN REAR input, which handles a Hi Pass filter (50 Hz - 150 Hz), equal to the one of the FRONT section, with its own frequency and level control.

Mode: Switch on MULTICH. (Multichannel).

It allows the realisation of a Hi FI, two way FRONT + SUB system. The only input which can be used is IN FRONT. It handles a Lo Pass filter (50 Hz - 150 Hz) for SUBWOOFER, a Band Pass filter for WOOFERS (50 Hz - 150 Hz / 150 Hz - 850 Hz) and a Hi Pass filter for MID-TW (150 Hz - 850 Hz). The crossover frequencies between SUBWOOFER and WOOFER are handled by two independent frequency adjusters. Cut-off frequency between WOOFER and MID-TW is controlled by a single adjuster. Each of the three power outputs is adjusted through its own level control. The Hi Pass section of MID-TW filter (150 Hz - 850 Hz) is repeated on the proper OUT M-TW preamplified output, and it does not have a volume adjuster. Output level is 0dB.

Sub remote volume control.

MP5 is designed in order to be used with an accessory kit for the SUB volume remote control.

This accessory is VCR01K and it is supplied separately by audison. VCR01K consist of three parts:

1) Volume control (VCR01);

2) Module to put into MP5 (VCA):

3) Connecting cables between VCR01 and the proper pins on the MP5 power outputs panel.

PRECAUTIONS

In order for this device to function properly it's important that it is installed in a spot where temperature doesn't fall below 0°C (32°F) or rise above 55°C (131°F).

It must be installed in a dry and well ventilated spot.

Power supply voltage is 12 VCC with negative to ground. Make sure that the characteristics of the vehicle electrical system are compatible with this device.

For safe driving we advise to listen to music at a volume level that won't drown external traffic sounds.

INSTALLATION

For mounting use 4 self-threading screws and protective plastic rings provided. For a very good result we suggest to use audison cable products to complete your installation. These include: power cables, signal cables, speaker wires, RCA connectors and all accessories needed to complete the wiring.

WARNINGS

INPUTS: If the radio-cassette player doesn't share the output GND with the chassis, the braided shield of the shielded cable must be connected to the radio-cassette player chassis.

OUTPUTS: Never connect -R and -L outputs to ground or to each other. If a crossover filter is used, be sure its two channels don't have a common ground.

REGULATIONS: If you hear saturation phenomena at moderate volume levels, it means that a distorted signal is coming from the radio-cassette player. Turn radio-cassette player volume down until there's no longer any distortion. Then adjust the amplifier calibration levels until you hear slight saturation phenomena.

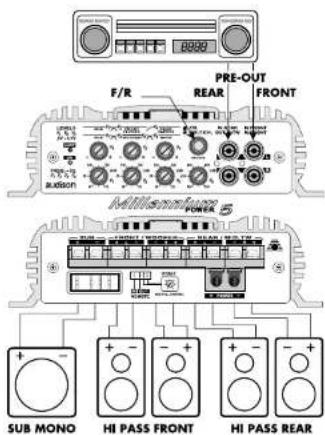

FRONT / REAR SYSTEM AND SUBWOOFER

8000 F/R PRE-OUT REAR FRONT Millennium POWER SUB MONO HI PASS FRONT HI PASS REAR

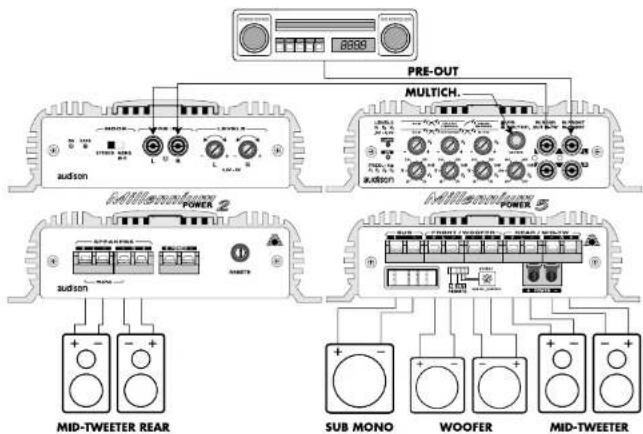

TWO WAY FRONT + SUB SYSTEM AND HI-PASS REAR

PRE-OUT MULTICH. AUDSON AUDSON MID-TWEETER REAR SUB MONO WOOFER MID-TWEETER

Sub remote volume control kit (Optional) VCR01K: VCR01 + VCA Module

1 - Put VCA module into connector C.

2 - Put the switch 3 on VCR.

VCA C S BP VCR ②

1 - Mount the bottom B again (8 screws).

CAR LIGHTS SWITCH Ground 10 VCCN1 LIONSPINTE ⑤

MILLENNIUM POWER 5 (MP5): CARATTERISTICHE

Sub remote volume control.

Sub remote volume control.

SUB FRONT / WOOFER REAR / MID-TW + - + L - - R + + L - - R + VCR01 M 357 REMOTE SUB VOL CONTROL + POWER -

UNIT FIXING

SIZE OF POWER CABLE4/5 m (12/15 feet) length
Load	4 Ohms		2 Ohms
Measure Unit	mm ^3	A.W.G.	mm ^3	A.W.G.
MP5	17	5	17	5

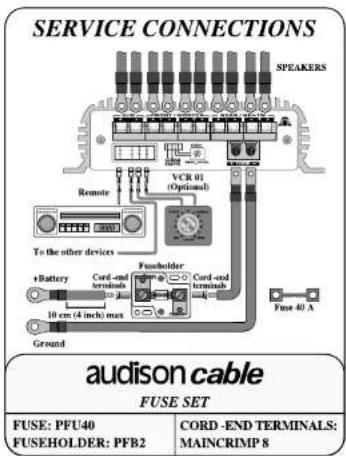

SERVICE CONNECTIONS SPEAKERS VCR 01 (Optional) Remote To the other devices +Battery 10 cm (4 inch) max Ground Fusholder Cord-end terminals Cord-end terminals Fuse 40 A audison cable FUSE SET FUSE: PFU40 FUSEHOLDER: PFB2 CORD-END TERMINALS: MAINCRIMP 8

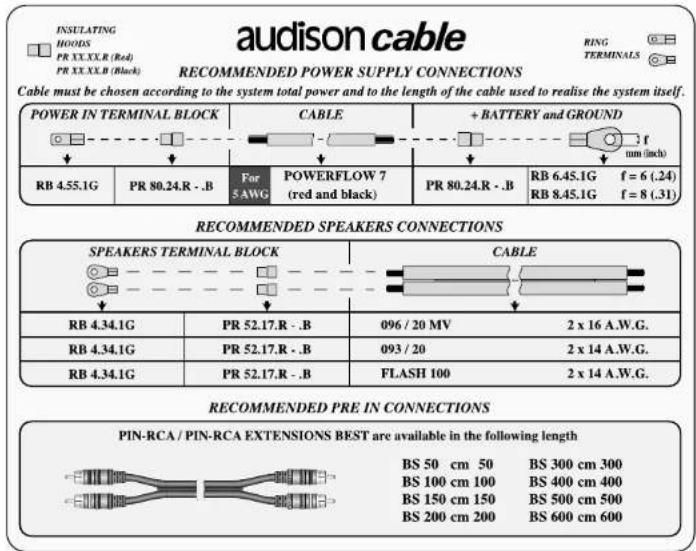

INSULATING HOODS PR XX.XX.R (Red) PR XX.XX.B (Black) AUDISON CABLE RECOMMENDED POWER SUPPLY CONNECTIONS Cable must be chosen according to the system total power and to the length of the cable used to realise the system itself. POWER IN TERMINAL BLOCK CABLE + BATTERY AND GROUND RB 4.55.1G PR 80.24.R - .B For 5 AWG POWERFLOW 7 (red and black) PR 80.24.R - .B RB 6.45.1G f = 6 (.24) RB 8.45.1G f = 8 (.31) RECOMMENDED SPEAKERS CONNECTIONS SPEAKERS TERMINAL BLOCK CABLE RB 4.34.1G PR 52.17.R - .B 096 / 20 MV 2 x 16 A.W.G. RB 4.34.1G PR 52.17.R - .B 093 / 20 2 x 14 A.W.G. RB 4.34.1G PR 52.17.R - .B FLASH 100 2 x 14 A.W.G. RECOMMENDED PRE IN CONNECTIONS PIN-RCA / PIN-RCA EXTENSIONS BEST are available in the following length BS 50 cm 50 BS 300 cm 300 BS 100 cm 100 BS 400 cm 400 BS 150 cm 150 BS 500 cm 500 BS 200 cm 200 BS 600 cm 600

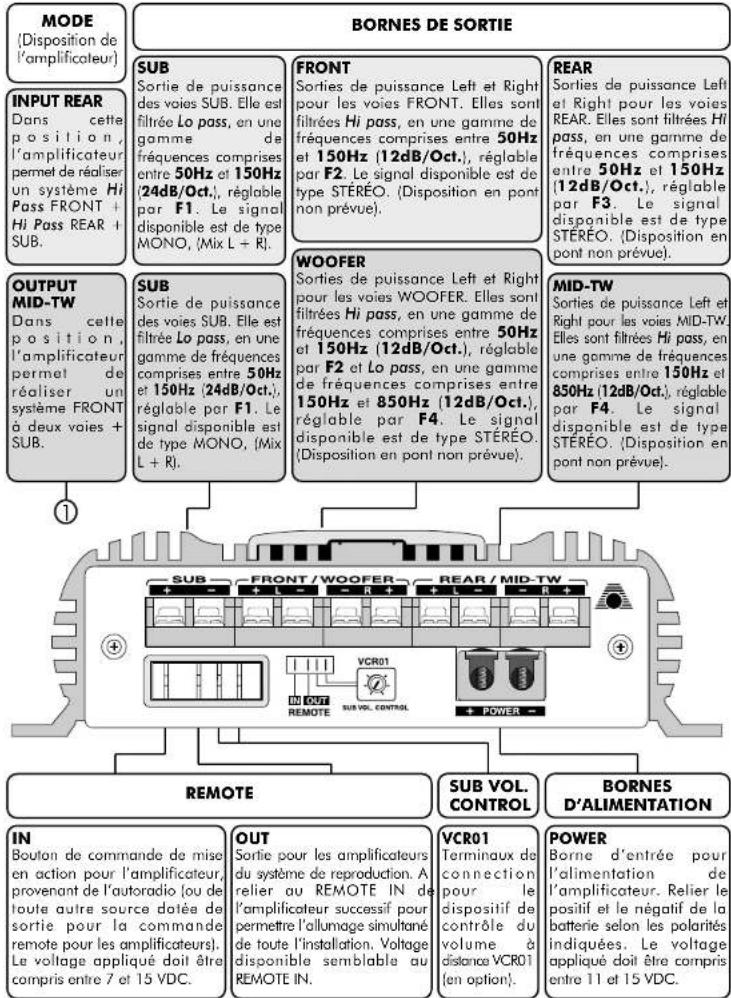

DISPOSITION DES BORNES DE CONNECTION

CONTROLS AND FUNCTIONS

INDICATOR LIGHTS

LEVEL ONTROLS

ON

Lit when the amplifier is on.

SAFE

When lit, it indicates the intervention of protection circuits: in case of overheating (temperature exceeding 80^ C/176°F) or output anomalies (presence of continuous current, short circuit or dangerously low load impedance). When protection circuits intervene, the amplifier shuts down. Turn the amplifier off. When the problem is corrected, turn the amplifier back on.

V1 - V2 - V3

Level adjustments for SUB, FRONT/WOOFER and REAR/MID-TW channels (channels vary according to the MODE switch configuration).

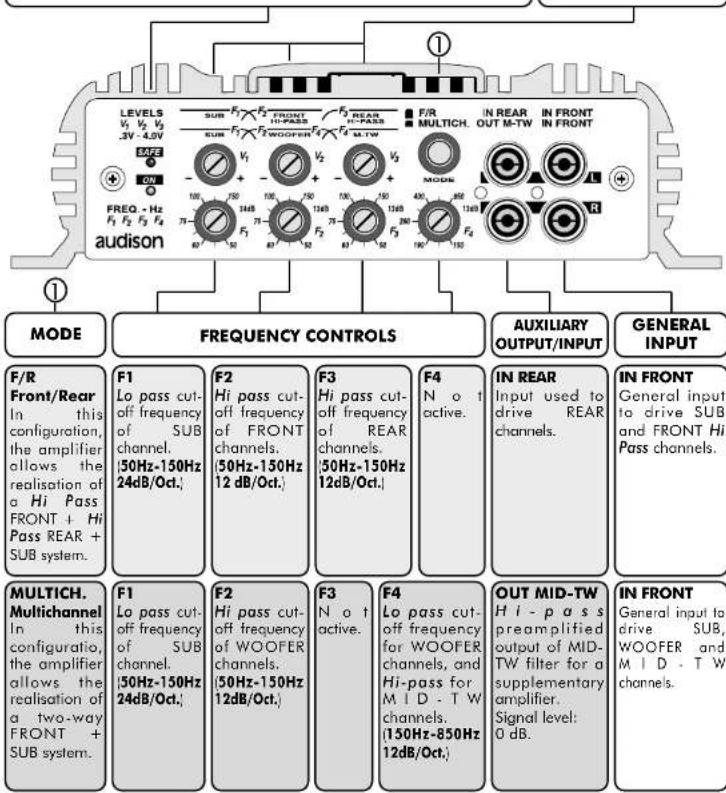

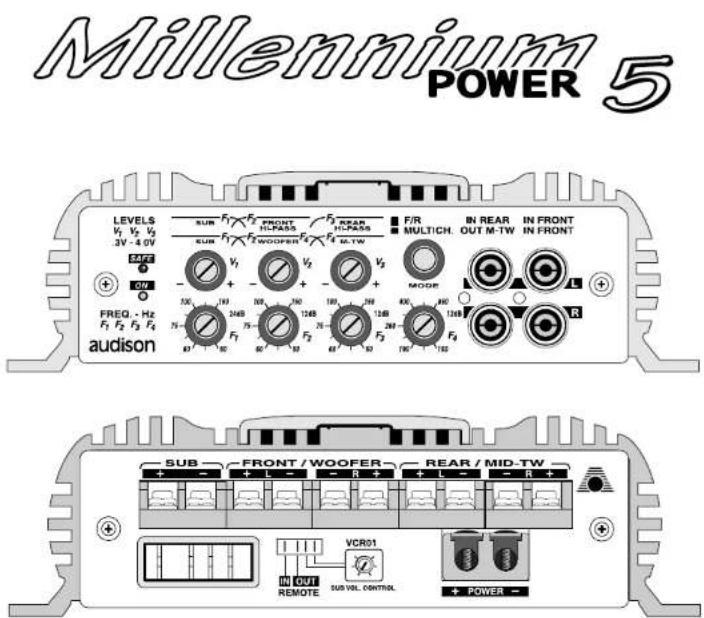

LEVELS V1 V2 V3 .3V - 4.0V SAFE ON FREQ. - Hz F1 F2 F3 F4 audison F1 Lo pass cut-off frequency of SUB channel. [50Hz-150Hz 24dB/Oct;] F2 Hi pass cut-off frequency of FRONT channels. [50Hz-150Hz 12 dB/Oct;] F3 Hi pass cut-off frequency of REAR channels. [50Hz-150Hz 12dB/Oct;] F4 N o t active. F1 Lo pass cut-off frequency of WOOFER channels. [50Hz-150Hz 12dB/Oct;] F2 Hi pass cut-off frequency of WOOFER channels. [50Hz-150Hz 12dB/Oct;] F3 N o t active. F4 Lo pass cut-off frequency for WOOFER channels, and Hi-pass for MID-TW channels. [150Hz-850Hz 12dB/Oct;] F1 Sub F1 FRONT H-PASS F2 REAR H-PASS M-TW F3 MULTICH. IN REAR OUT M-TW IN FRONT IN FRONT IN FRONT F/R Front/Rear In this configuration, the amplifier allows the realisation of a Hi Pass FRONT + Hi Pass REAR + SUB system. F1 Lo pass cutoff frequency of SUB channel. [50Hz-150Hz 24dB/Oct;] F2 Hi pass cutoff frequency of FRONT channels. [50Hz-150Hz 12 dB/Oct;] F3 Hi pass cutoff frequency of REAR channels. [50Hz-150Hz 12dB/Oct;] F4 N o t active. IN REAR Input used to drive REAR channels. IN FRONT General input to drive SUB and FRONT Hi Pass channels. MULTICH. Multichannel In this configuration, the amplifier allows the realisation of a two-way FRONT + SUB system. F1 Lo pass cutoff frequency of SUB channel. [50Hz-150Hz 24dB/Oct;] F2 Hi pass cutoff frequency of WOOFER channels. [50Hz-150Hz 12dB/Oct;] F3 N o t active. F4 Lo pass cutoff frequency for WOOFER channels, and Hi-pass for MID-TW filters for a supplementary amplifier. Signal level: 0 dB. OUT MID-TW Hi - pass s preamplified output of MID-TW filter for a supplementary amplifier. Signal level: 0 dB. IN FRONT General input to drive SUB, WOOFER and MID - T W channels.

CONFIGURATION OF CONNECTING CLAMPS

MODE

OUTPUT CLAMPS

F/R

Front/Rear In this configuration, the amplifier allows the realisation of a Hi Pass FRONT + Hi Pass REAR + SUB system.

SUB Power output for SUB channels. It is Lo Pass filtered, in a range of frequencies between 50Hz and 150Hz (24dB/Oct.), adjustable through F1. The available signal is MONO. (Mix L + R).

FRONT Left and Right power outputs for FRONT channels. They are Hi Pass filtered, in a range of frequencies between 50Hz and 150Hz (12dB/Oct.), adjustable through F2. The available signal is STEREO. (Bridge configuration is not possible).

REAR Left and Right power outputs for REAR channels. They are Hi Pass filtered, in a range of frequencies between 50Hz and 150Hz (12dB/Oct.), adjustable through F3. The available signal is STEREO. (Bridge configuration is not possible).

MULTICH.

Multichannel In this configuration, the amplifier allows the realisation of a two-way FRONT + SUB system.

SUB Power output for SUB channels. It is Lo Pass filtered, in a range of frequencies between 50Hz and 150Hz(24dB/Oct.), adjustable through F1. The available signal is MONO. (Mix L + R).

WOOFER Left and Right power outputs for WOOFER channels. They are Hi Pass filtered, in a range of frequencies between 50Hz and 150Hz (12dB/Oct.), adjustable through F2, and Lo Pass filtered, in a range of frequencies between 150Hz and 850Hz (12dB/Oct.), adjustable through F4. The available signal is STEREO. (Bridge configuration is not possible).

MID-TW

Left and Right power outputs for MID-TW channels. They are Hi Pass filtered, in a range of frequencies between 150Hz and 850Hz (12dB/Oct.), adjustable through F4. The available signal is STEREO. (Bridge configuration is not possible).

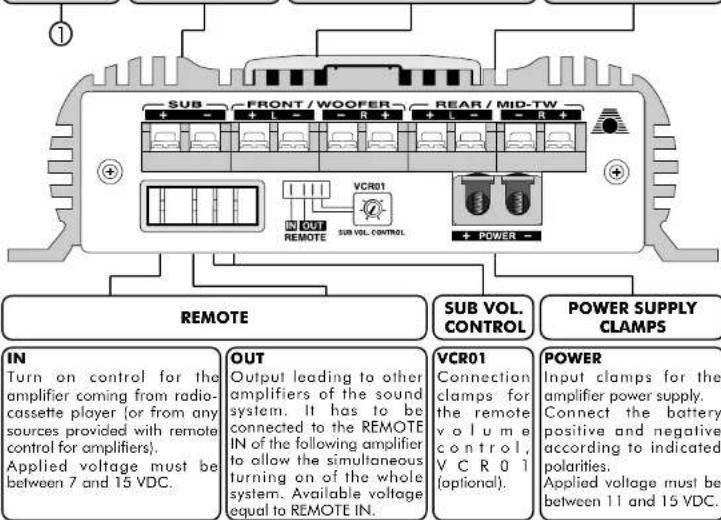

SUB FRONT / WOOFER REAR / MID-TW VCR01 IN OUT REMOTE SUB VOL. CONTROL POWER REMOTE SUB VOL. CONTROL POWER SUPPLY CLAMPS IN Turn on control for the amplifier coming from radio- cassette player [or from any sources provided with remote control for amplifiers). Applied voltage must be between 7 and 15 VDC. OUT Output leading to other amplifiers of the sound system. It has to be connected to the REMOTE IN of the following amplifier to allow the simultaneous turning on of the whole system. Available voltage equal to REMOTE IN. VCR01 Connection clamps for the remote volume control, V C R 0 1 (optional). POWER Input clamps for the amplifier power supply. Connect the battery positive and negative according to indicated polarities. Applied voltage must be between 11 and 15 VDC.
