USER MANUAL GZPA 1.10KHC Ground Zero
Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.
www.ground-zero-audio.com
We reserve the right to make needed change or improvement to the product without informing customer about this in advance.
MENT GERMAN ENGINEERING
Amplifier
Owner's manual
PLUTONIUM
GZPA 1.6K-HC
GZPA 1.8K-HC
GZPA 1.8K-18V
GZPA 1.10K-HC

GROUND ZERO
MOBILE ENTERAINMENT
PLEASE READ BEFORE INSTALLATION
Thank you for selecting a GROUND ZERO Plutonium amplifier. We are providing a helpful hints list which should keep you from experiencing unnecessary shut down.
Introduction Class-D Amplifier
Amplifiers provide high-performance sound reinforcement for you mobile audio equipment. It's versatility enables compatibility with optional equalizer, frequency dividing network crossovers, and other audio processors in a customized system.
The Multi-Mode bridging capabilities allow flexibility in hosting several different speaker configurations.
To achieve optimum performance, it is highly recommend that you read this owners manual before beginning the installation.
Features
• Class-D Design for high efficiency
• Efficiency \~84%
- Linkable with 1 amplifier
• 1 Ω stable (Linkmode 2Ω)
• High-efficiency MOS-FET PWM power supply
• Power and Protection Indicator
- Lowpass crossover
• +9dB Bassboost
- Subsonic filter variable
- 180^ Phase Shift variable
• Aluminium heat sink
- RCA input / output
- Bassremote control
Tools and materials you need
- Screwdriver
• Electric drill 1/8 carbide drill bit - Mounting screws
• Use 0 AWG power wire (min. 50 mm ^4 ) - Use 0 AWG ground wire (min. 50~mm^2 )
• Use 11 AWG speaker cable (mln. 4 mm²)
Caution!
- Please use great caution drilling your trunk, your gas tank and brake lines can be damaged by puncturing with your drillbit – this could cause damage or failure of your cars operating systems.
- As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (see owner's manual of your car for further information).
- 0 AWG / min. 50 mm ^2 (thicker if planning for additional amplifiers) wire is recommended both the power and grounds. Both types are available at most Mobile audio dealers or installation shops.
- Please consider the enormous power consumption (up to 900A) of these amps when designing the setup. We strongly recommend to install one or better more additionally batteries. Too little power from the battery / alternator may cause defects
WARNING
High powered audio systems in a vehicle are capable of generating "Live Concert" high level of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sound such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. For safety reasons we recommends listening at lower volume levels while driving.
Planning your system
a) select a suitable location that is convenient for mounting, is accessible for wiring and has enough room for air circulation and cooling.
b) If your radio is equipped with preamplifier outputs (RCA), it is advisable to use them.
Mounting your amplifier
- Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
- Use the amplifier a template to mark the mounting holes, remote the amplifier and drill 6 holes (use extreme caution, inspect underneath surface before drilling!)
- Secure the amplifier using the screws provided
Connections


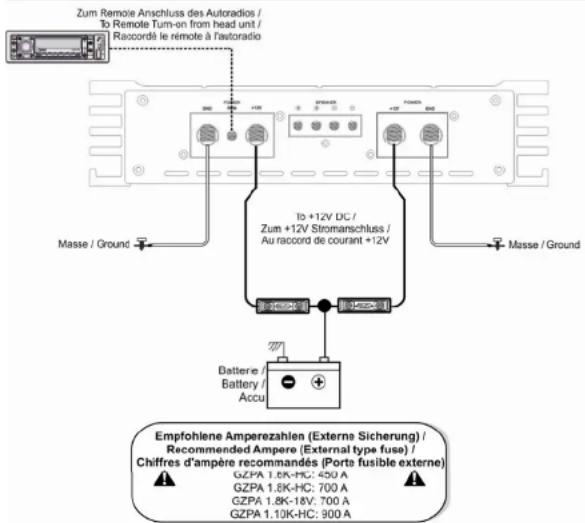

Zum Remoie Anschluss des Autoradios / To Remote Turn-on from head unit / Raccordé le rémote à l'autoradio To +12V DC / Zum +12V Stromanschluss / Au raccord de courant +12V Masse / Ground Masse / Ground Battere / Battery / Accu Empfohlene Amperezahlen (Externe Sicherung) / Recommended Ampere (External type fuse) / Chiffres d'ampère recommandés (Porte fusible externe) GZPA 1.6K-HC: 450 A GZPA 1.8K-HC: 700 A GZPA 1.8K-18V: 700 A GZPA 1.10K-HC: 900 AConnections
1.) GROUND: To vehicle Chassis
To avoid ignition noise caused by ground loops, it is necessary that the amplifiers be grounded to a clean, bare metal surface of the vehicles chassis.
NOTE: GROUND WIRE SHOULD NOT BE EXTENDED MORE THAN 3 FT.(1 Meter) min. 0 AWG / 50mm²
2.) +12 Volt (Fused) Constant power: To Battery (+)
Due to the power requirements of the amplifier, this connection should be made directly to the positive (+) terminal of battery. For safety reasons, install an in-line fuse holder (not included) as close to the battery positive (+) terminal as possible with a rating not exceeding value of fuses in amp.
3.) Remote Turn-On Input: to power antenna output of car stereo
This amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON".
Turning on your amplifier
The amplifier automatically turns on a few seconds after you turn your vehicle's Ignitions switch to ACC. ON or turn on your auto sound system, depending on how you wired the system. The POWER LED on the side of the amplifier lights when the amplifier is on.
Important: Your amplifier requires 30 – 900 amps of power from your vehicle's battery during operation. To protect your battery from discharging, do not operate the amplifier unless your vehicle is running.
Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools down.
For the best performance, you must set LEVEL (MIN/MAX) on the side of the amplifier to adjust the level of the audio signals.
- Use a screwdriver to turn LEVEL(MIN/MAX) fully to MIN
- Turn the auto sound system's volume control to about two-third of its full range.
- Adjust LEVEL(MIN/MAX) to a comfortable listening level
- Turn up the auto sound system's volume control until the sound begins to distort. Then immediately turn the volume down to a point just before where the distortion began. Caution: Never turn up the auto sound system's volume control more than needed to adjust the audio level, more than two thirds of its maximum volume.
- Adjust LEVEL (MIN/MAX) until the sound is at the maximum level you want the amplifier two produce.
- Adjust the auto sound system's volume control to a comfortable listening level.

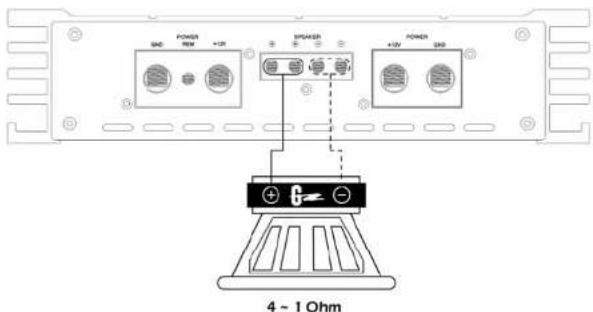

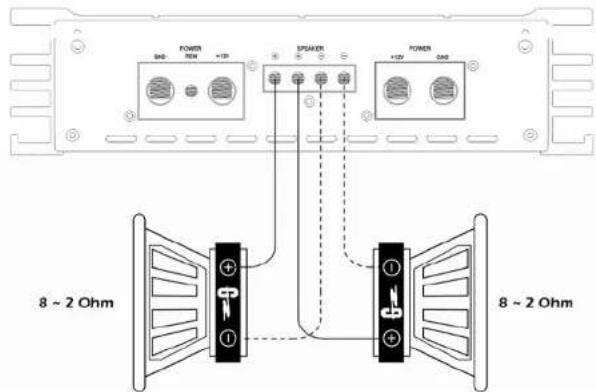

line

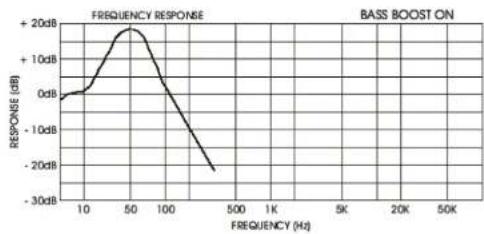

| FREQUENCY (Hz) | RESPONSE (dB) | | -------------- | ------------- | | 10 | 0 | | 50 | +15 | | 100 | 0 | | 500 | -20 |RCA connections – single amplifier


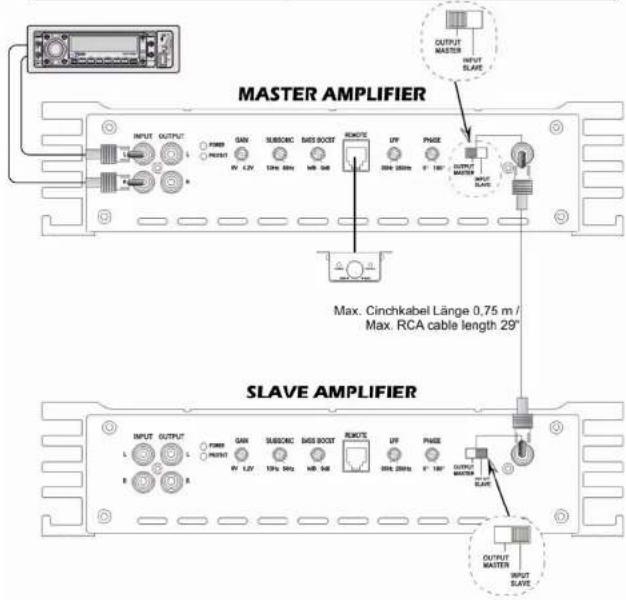

MASTER AMPLIFIER MAX. Cinchkabel Länge 0,75 m / Max. RCA cable length 29" SLAVE AMPLIFIERWenn Sie den Linkmode verwenden, hat der MASTER Verstärker volle Kontrolle über den SLAVE Vertärker.
Beim Linktbode empieren wir, die eingebäute linkschaltung zu verwenden (KEIN externes Linkmodul)
Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier.
We recommend to use the built-in linkmode without an extremal link module.
En linkmode, l'amplificateur MASTER à un plein contrôle sur l'amplificateur ESCLAVE.
Nous recommandons d'utiliser le circuit gauche installé et aucun module extérieur.

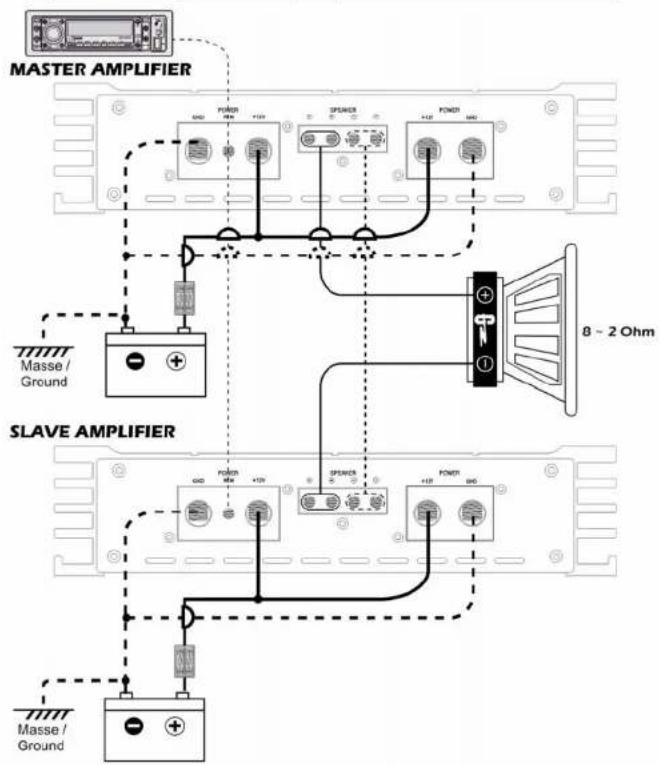

Speaker connections (Linkmode - 2 amplifiers)
This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. If the amplifier shuts down due to excessive heat, the protection indicators will not light: simply allow time for the unit to cool. Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first.
| Problem Check points | |
| Amplifier Is not powered up | Check that there is battery power on the +12V terminal.Check that remote terminal has at least +12V DC remote connection.Check a good ground connection. Check all fuses.Check the protection LED is not lit. |
| Protection LED illuminates when amplifier is powered up | Check shorts on speaker wires.Remove speaker wires and reset the amplifier.If the protection LED still comes on, then the amplifier is faulty. |
| Fuse blowing | Check that the minimum speaker impedance is correct.Check short on power cable and vehicle chassis. |
| Overheating | Check that the minimum speaker impedance is correct.Check speaker shorts.Check that there is a good airflow around the amplifier. |
| Sound too low / Distorted sound | Check that the input level control is set to match the output level of the unit.Check the head unit volume.Check speaker shorts.Check that crossover frequencies have been properly set. |
| High hiss / engine noise in speakers | Check a good ground and for speaker shorts.Disconnect all RCA inputs from the amplifier.If hiss/noise disappears, check it with a good RCA interconnect. Then check the component driving the amplifier. |
