USER MANUAL GZPA 1.10000SPL Ground Zero

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

Thank you for selecting a GROUND ZERO Plutonium amplifier. We are providing a helpful hints list

which should keep you from experiencing unnecessary shut down

Introduction Class-D Amplifier

Amplifiers provide high-performance sound reinforcement for you mobile audio equipment. It's versatility enables compatibility with optional equalizer, frequency dividing network crossovers, and other audio processors in a customized system.

The Multi-Mode bridging capabilities allow flexibility in hosting several different speaker configurations.

To achieve optimum performance, it is highly recommend that you read this owners manual before beginning the installation.

Features

• Class-D High Power Amp
• Efficiency >86%
• Damping factor >170 (GZPA 1.6500SPL), >250 (GZPA 1.10000SPL) at 4Ω
- Unkable with 1 amplifier
• 1 Ω stable (Linkmode 232)
• Dual MOS-FET PWM Power Supplies
• Power and Protection Indicator
Lowpass crossover
- Subsonic filter variable
- 180° Phase Shift Variable
- Aluminum Heat Si
- RCA input/output
• Bessremote control • 10-R, Page heart
• Operating voltage: DC 10V \~ 18V input
• 2 x 0 Gauge / 50mm² battery Input Connectors

Tools and materials you need

• Screwdriver, electric drill 1/8 carbide drill bit
• Use 0 AWG power wire (min. 50 mm ^4 )
• Ground your amplifier one meter close to installation location
• Use 12 A965 speaker wire or header from your amplifier to your speakers
2015. 22:47:30 Spanish, Mio. de Meiner, From your application to your species
- Eddie for tats in the place of your West and the line has to avoid Pakistan.
• Use 16 AWG wire for remote trigger

Note all wire gauges are based on stranded wire with polarity indicators on two wire configurations.

Caution!

• Please use great caution drilling your trunk, your gas tank and brake lines can be damaged by puncturing with your drillbit – this could cause damage or failure of your cars operating systems.
• As a precaution it is advisable to disconnect the vehicle's battery before making connection to the +12 Volts supply wiring (see owner's manual of your car for further information!).
• 0 AWG / min. 50 mm ^2 (thicker if planning for additional amplifiers) wire is recommended both the power and grounds. Both types are available at most Mobile audio dealers or installation shops.

WARNING

High powered audio systems in a vehicle are capable of generating „Live Concert" high level of sound pressure. Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sound such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. For safety reasons we recommends listening at lower volume levels while driving.

Planning your system

a) select a suitable location that is convenient for mounting, is accessible for wiring and has enough room for air circulation and cooling.
b) If your radio is equipped with proamplifier outputs (RCA), it is advisable to use them.

Mounting your amplifier

• Select a suitable location that is convenient for mounting, is accessible for wiring and has ample room for air circulation and cooling.
• Use the amplifier a template to mark the mounting holes, remote the amplifier and drill 6 holes (use extreme caution, inspect underneath surface before drilling!)
• Secure the amplifier using the screws provided

Connections

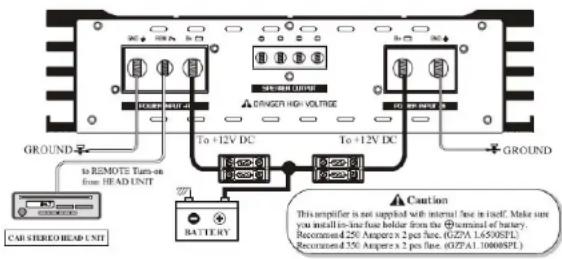

GROUND to REMOTE Turn-on from HEAD UNIT CAR STEREO HEAD UNIT To +12V DC BATTERY To +12V DC CAUTION This amplifier is not equipped with internal fuse in itself. Make sure you install-in-line fuse holder from the ① nominal of battery. Recommend 420 Ampere's 2 pin fuse (GZVA 1.6508SFL) Recommend 350 Ampere's 2 pin fuse (GZVA 1.10008PL)

Connections

1.) GROUND: To vehicle Chassis

To avoid ignition noise caused by ground loops, it is necessary that the amplifiers be grounded to a clean, bare metal surface of the vehicles chassis.

NOTE: GROUND WIRE SHOLD NOT BE EXTENDED MORE THAN 3 FT.(1 Meter) min. 0 AWG / 50mm ^2

2.) +12 Volt (Fused) Constant power: To Battery (+)

Due to the power requirements of the amplifier, this connection should be made directly to the positive (+) terminal of battery. For safety reasons, install an in-line fuse holder (not included) as close to the battery positive

(+) terminal as possible with a rating not exceeding value of fuses in amp.

3.) Remote Turn-On Input: to power antenna output of Car Stereo

This amplifier is turned "ON" remotely when the vehicle's stereo is turned "ON".

Turning on your amplifier

The amplifier automatically turns on a few seconds after you turn your vehicle's ignitions switch to ACC. ON or turn on your auto sound system, depending on how you wired the system. The POWER LED on the side of the amplifier lights when the amplifier is on.

Important: Your amplifier requires 3D amps or more of power from your vehicle's battery during operation. To protect your battery from discharging, do not operate the amplifier unless your vehicle is running. Note: Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools down.

For the best performance, you must set LEVEL (MIN/MAX) on the side of the amplifier to adjust the level of the audio signals.

1. Use a screwdriver to turn LEVEL(MIN/MAX) fully to MIN
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL(MIN/MAX) to a comfortable listening level
4. Turn up the auto sound system's volume control until the sound begins to distort. Then immediately turn the volume down to a point just before where the distortion began. Caution: Never turn up the auto sound system's volume control more than needed to adjust the audio level, more than two thirds of its maximum volume.
5. Adjust LEVEL (MIN/MAX) until the sound is at the maximum level you want the amplifier two produce.
6. Adjust the auto sound system's volume control to a comfortable listening level.

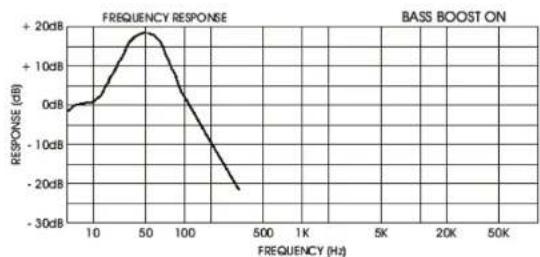

Turning on your amplifier

RCA Connections

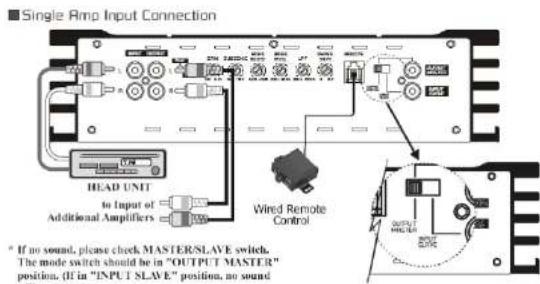

Single Amp Input Connection HEAD UNIT In Input of Additional Amplifiers Wired Remote Control If no sound, please check MASTER/SLAVE switch. The mode switch should be in "OUTPUT MASTER" position. (If in "INPUT SLAVE" position, no sound

RCA Connections

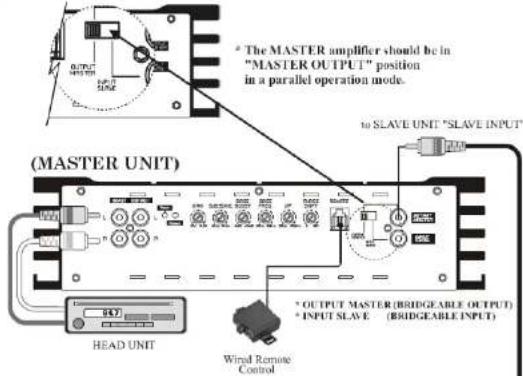

■Dual Amp Input Connection (MASTER & SLAVE RCA Connection)

The MASTER amplifier should be in "MASTER OUTPUT" position in a parallel operation mode. to SLAVE UNIT "SLAVE INPUT" (MASTER UNIT) OUTPUT MASTER (BRIDGEABLE OUTPUT) * INPUT SLAVE (BRIDGEABLE INPUT) HEAD UNIT Wind Remote Control

(SLAVE UNIT)

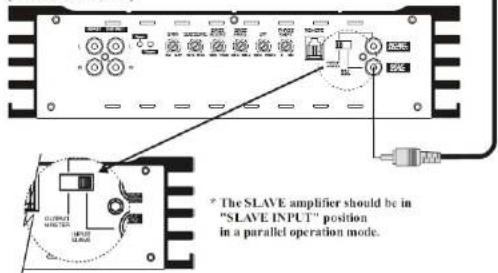

The SLAVE amplifier should be in "SLAVE INPUT" position in a parallel operation mode.

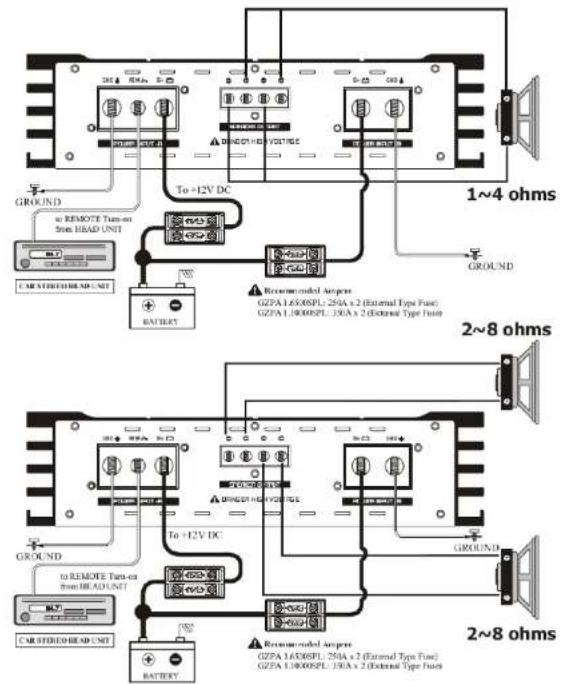

Single amp power & speaker connection

1~4 ohms Ground to REMOTE Turn-on Turn HEAD UNIT CAR STEREOH HEAD UNIT To +12V DC BATTERY Recommended Ampere GZPA 1.6000PL: 250A x 2 (External Type Fuse) GZPA 1.0000PL: 350A x 2 (External Type Fuse) GROUND 2~8 ohms Ground to REMOTE Turn-on Turn HEAD UNIT CAR STEREOH HEAD UNIT To +12V DC BATTERY Recommended Ampere GZPA 1.6000PL: 250A x 2 (External Type Fuse) GZPA 1.0000PL: 350A x 2 (External Type Fuse) 2~8 ohms

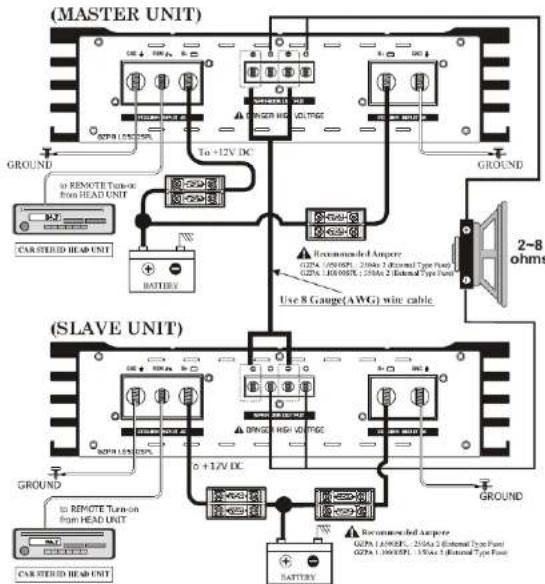

Dual amp power & speaker connection - Linkmode

(MASTER UNIT) To +12V DC GROUND (a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT BATTERY (SLAVE UNIT) GROUND a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND a) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND b) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND c) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND d) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND e) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND f) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT GROUND g) REMOTE TUNION Rear HEAD UNIT CAR STEREOI HEAD UNIT

Using a dual amplifier configuration, the MASTER amplifier has total control over the SLAVE amplifier. for the linkmode we recommend NOT to use an external link-module.

Caution!

When utilizing the dual amplifier configuration it is important to note that the connected speaker load can be no lower than 2 ohms. Connecting a lower impedance load can damage the amplifier and void your warranty.

Trouble shooting

This power amplifier has protection features to prevent any damages from misuse or faulty conditions. If the unit senses excessive heat, short circuited speakers or overload, the protection indicators will light, and the system will be turned off. In order to check the occurred problem, you should turn all levels down and all power off and carefully check the installation for wiring mistakes or short. If the amplifier shuts down due to excessive heat, the protection indicators will not light: simply allow time for the unit to cool. Before removing your amplifier, refer to the list below and follow the suggested procedures. Always test the speakers and their wires first.

Problem Check points
Amplifier is not powered up	Check that there is battery power on the +12V terminal.Check that remote terminal has at least +12V DC remote connection.Check a good ground connection. Check all fuses.Check the protection LED is not lit.
Protection LED illuminates when amplifier is powered up	Check shorts on speaker wires.Remove speaker wires and reset the amplifier.If the protection LED still comes on, then the amplifier is faulty.
Fuse blowing	Check that the minimum speaker impedance is correct.Check short on power cable and vehicle chassis.
Overheating	Check that the minimum speaker impedance is correct.Check speaker shorts.Check that there is a good airflow around the amplifier.
Sound too low / Distorted sound	Check that the input level control is set to match the output level of the unit.Check the head unit volume.Check speaker shorts.Check that crossover frequencies have been properly set.
High hiss / engine noise in speakers	Check a good ground and for speaker shorts.Disconnect all RCA inputs from the amplifier.If hiss/noise disappears, check it with a good RCA interconnect. Then check the component driving the amplifier.

Specifications

Model GZPA 1.6500SPL GZPA	1.10000SPL
RMS power @ 1 Ω, 10% THD CEA Standard CEA-2006-A	1 x 6500W 1 x 9500W
RMS power @ 1 Ω, 1% THD CEA Standard CEA-2006-A	1 x 5800W 1 x 8300W
RMS power @ 2 Ω, 1% THD CEA Standard CEA-2006-A	1 x 3400W 1 x 4800W
RMS power @ 4 Ω, 1% THD CEA Standard CEA-2006-A	1 x 1800W 1 x 2600W
RMS power @ 1 Ω 18 V, 10% THD	1 x 8000W 1 x 11000W
RMS power @ 2Ω Linkmode 14,6 V, 1% THD	1 x 11000 W 1 x 15000W
Damping factor	>170 (100Hz @ 4 Ω)	>250 (100Hz @ 4 Ω)
Signal to noise ratio >65 dB >65 dB
Lowpass crossover 35Hz ~ 250Hz	35Hz ~ 250Hz
Subsonic Filter	10Hz ~ 70Hz	10Hz ~ 70Hz
Bass boost	0 ~ +9dB	0 ~ +9dB
Bass boost Frequency	30Hz ~ 90Hz	30Hz ~ 90Hz
Phase shift	0 ~ 180°	0 ~ 180°
Frequency range	10 Hz ~ 250 Hz (+/- 1dB)	10 Hz ~ 250 Hz (+/- 1dB)
Efficiency @ 4 Ω	86%	86%
Input sensitivity	200mV to 10V (+/- 5%)	200mV bis 10V (+/- 5%)
Dimensions W x H x L mm	625 x 75 x 300 mm	870 x 75 x 300 mm
Dimensions W x H x L inch	24.61" x 2.95" x 11.81"	34.25" x 2.95" x 11.81"

Limited warranty - defective products must be returned in original packaging - please add a copy of the original purchasing invoice showing the purchasing date and a detailed description of the failure. Failure caused by overload, misuse or by using the product for competition purpose are not covered by the warranty.

www.ground-zero-audio.com

We reserve the right to make needed change or improvement to the product without informing customer about this in advance.

GROUND to REMOTE Turn-on from HEAD UNIT CAR STEREO HEAD UNIT To +12V DC BATTERY To +12V DC CAUTION This amplifier is not supplied with internal fuse in itself. Make sure you install in one fuse holder from the ④ terminal of battery. Recommended 250 Ampere x 2 pin line: (0/27A) L6500SPL Recommended 350 Ampere x 2 pin line: (0/27A) 10000SPL

GROUND to REMOTI Turn-on from HEAD UNIT CAR STEREO HEAD UNIT To +12V DC To +12V DC GROUND BATTERY Caution This amplifier is not supplied with internal fuse in itself. Make sure you install in-line fuse holder from the @manual of battery. Recommend 4250 Amperex 2 pcs fuse (GZZA 1.6500SFL) Recommend 350 Amperex 2 pcs fuse (GZTA 1.0800P/L)

The MASTER amplifier should be in

"MASTER OUTPUT" position in a parallel operation mode.

to SLAVE UNIT "SLAVE INPUT"

(MASTER UNIT) HEAD UNIT * OUTPUT MASTER (BRIDGEABLE OUTPUT) * INPUT SLAVE (BRIDGEABLE INPUT) Wired Remote Control (SLAVE UNIT)

The SLAVE amplifier should be in

"SLAVE INPUT" position in a parallel operation mode.
