GZUA 4125SQ - Car stereo Ground Zero - Free user manual and instructions

Product type	4-channel amplifier
Brand	Ground Zero
Model	GZUA 4125SQ
RMS power (4 ohms)	4 x 135 W
RMS power (2 ohms)	4 x 225 W
Mono power (2 ohms)	2 x 450 W
Maximum power	1000 W
Technology	Full MOS-FET
Signal input	250 mV - 8 V adjustable
Frequency range	5 - 30000 Hz
Low-pass filter (LPF)	20 Hz - 400 Hz (x1), 200 Hz - 4 kHz (x10)
High-pass filter (HPF)	20 Hz - 400 Hz (x1), 200 Hz - 4 kHz (x10)
Band-pass filter	Adjustable
Total harmonic distortion (THD)	< 0.008%
Signal-to-noise ratio (SNR)	> 96 dB/A
Minimum impedance	2 Ω (stereo)
Fuse	2 x 40 A
Dimensions (W x D x H)	350 x 280 x 49 mm
RCA inputs	Yes, with gold-plated connectors
RCA output	Yes (mono) for additional amplifier
Balanced/unbalanced input	Switchable (BAL/UNBAL)
Protection	Protection indicator (red)
Power supply	12 V DC

Frequently Asked Questions - GZUA 4125SQ Ground Zero

How to connect the GZUA 4125SQ amplifier?

Make sure to disconnect the vehicle battery before installation. Connect the power cable (min. 20 mm²) to the +12V terminal, the ground cable (min. 20 mm²) directly to the chassis, and the REMOTE wire to the head unit's remote output. Use RCA cables for audio input and speaker cables (min. 2 x 1.5 mm²) for outputs.

What to do if the amplifier does not turn on?

Check for +12V at the +12V terminal, the ground connection, and the fuse. Ensure the REMOTE wire receives 12V from the head unit. If the POWER LED is off, the issue is with the power supply.

What does the red PROTECTION LED mean?

The red PROTECTION LED lights up in case of a speaker short circuit, overheating, or internal fault. Check the speaker impedance (minimum 2 Ω) and ensure they are not short-circuited. If the amplifier overheats, let it cool down.

How to adjust the gain (GAIN)?

Set the GAIN control to MIN. Turn up the head unit volume to about 2/3 of maximum. Then turn the GAIN until you get a pleasant sound level without distortion. The gain should be adjusted between 8V and 250mV depending on the input.

How to connect a subwoofer to this amplifier?

You can use the speaker outputs in stereo or mono mode. For a subwoofer, it is recommended to set the low-pass filter (LPF) to cut high frequencies. Use the RCA MONO OUTPUT to connect an additional mono amplifier if needed.

Why is there no sound on one channel?

Check the RCA cables and speaker cables for that channel. Ensure the RCA jack is not defective and that all connected devices share the same ground point. The problem may also be due to an incorrect filter setting.

How to use the balanced or unbalanced input (BAL/UNBAL)?

By default, the switch is in BAL (balanced) position to reduce noise. If noise persists, switch to UNBAL (unbalanced). If the problem continues, check the wiring or consult a professional installer.

What is the minimum speaker impedance supported?

In stereo mode, the minimum impedance per channel is 2 Ω. Do not go below this to avoid damaging the amplifier. For mono use, the minimum impedance may vary; refer to the specifications in the manual.

How to install the amplifier in the vehicle?

Choose a location with good airflow for cooling. Use the amplifier as a template to drill mounting holes (3 mm drill bit). Secure it with the supplied screws. Make sure not to drill into the fuel tank, brakes, or other important parts.

Where is the fuse located and how to replace it?

The fuse is located on the fuse holder next to the power terminals. Use a fuse of the same amperage (2 x 40 A for this model). Never replace with a different value fuse, as this could cause damage not covered by warranty.

USER MANUAL GZUA 4125SQ Ground Zero

Kelterning 16; D-85658 Egmating Germany

Fax: [phone] Tel: [phone]

www.ground-zero-audio.com

e-mail: [e-mail]

GROUND ZERO

Mobile Entertainment

Amplifier

Owners Manual

Uranium - 5Q

Sound-Quality Level

GZUA 21255Q

GZUA 22255Q

GZUA 41255Q

GROUND ZERO

Mobile Entertainment

Please read before Installation

Thank you for selecting a Ground Zero SQ (Sound Quality) Amplifier.

We are providing a helpful hints list wich should keep you from Experiencing

unnecessaryshutdown.

Features

Bar Brown Products
Sound Quality Level with high quality parts
2Ω stabil Stereo GZUA 4125SQ, GZUA 2125SQ
1Ω stabil stereo GZUA 2225SQ
FULL MOS-FET Technology
Adjustable Low-pass filter 20Hz-400Hz / 200-4000Hz
Adjustable High-pass filter 20Hz-400Hz / 200-4000Hz
Band-pass filter function adjustable with LPF/HPF
Adjustable Input Sensitivity
Gold platet RCA Cinch Inputs
- RCA Cinch output (mono) for other subwoofer amplifiers
Q-Faktor adjustable
- Bass Boost Remote control GZUA 2225SQ

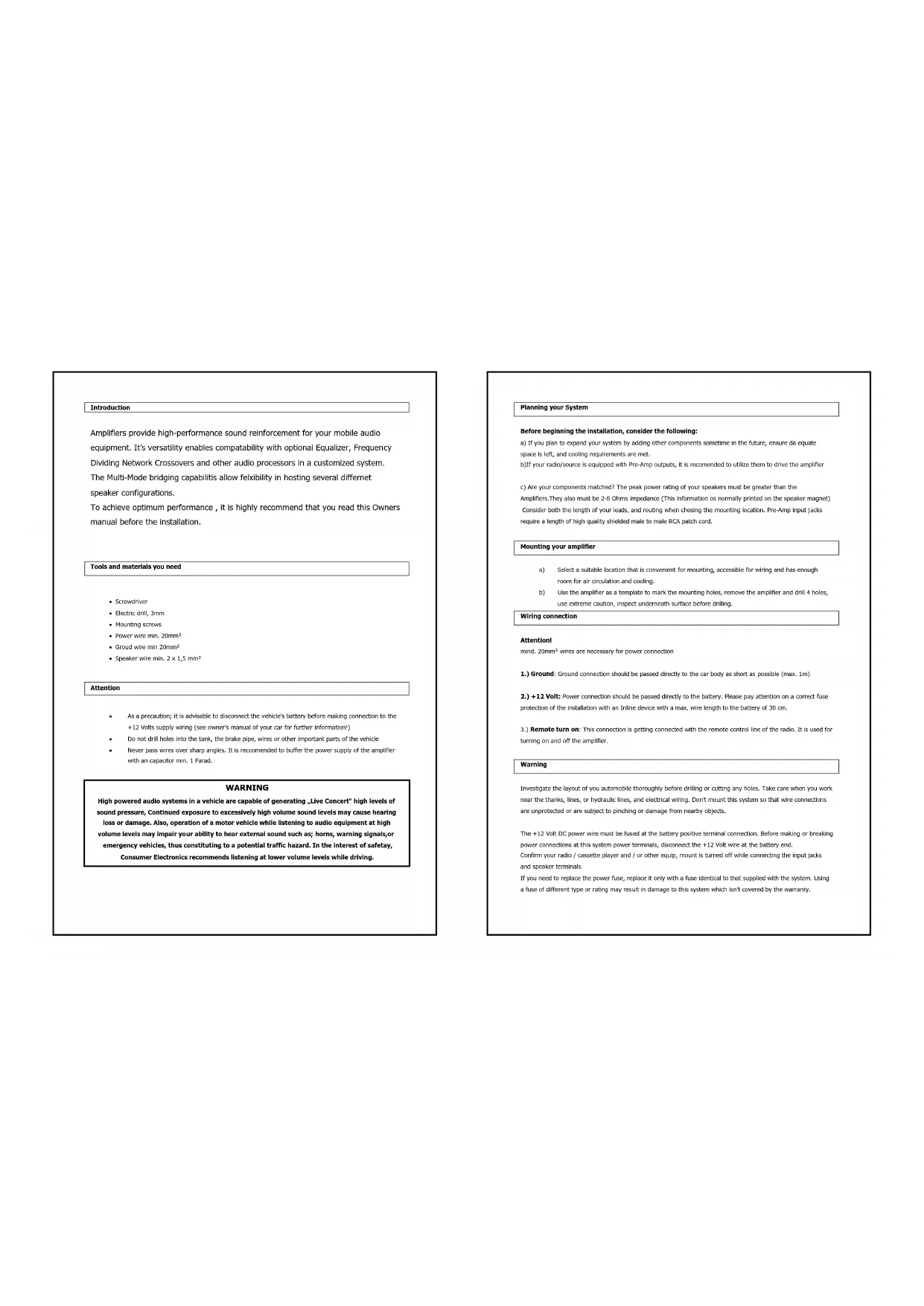

Introduction

Amplifiers provide high-performance sound reinforcement for your mobile audio equipment. It's versatility enables compatibility with optional Equalizer, Frequency Dividing Network Crossovers and other audio processors in a customized system. The Multi-Mode bridging capabilities allow felibility in hosting several differnet speaker configurations.

To achieve optimum performance, it is highly recommend that you read this Owners manual before the Installation.

Tools and materials you need

• Scrowdriver
  Electric drill, 3mm
  Mounting screws
  Power wirs min. 20mm3
  Groud wire min 20mm²
• Speaker wire min. 2 × 1,5 ~mm^3

Attention

• As a precaution; it is advisable to disconnect the vehicle's battery before making connection to the +12 volts supply wiring (see owner's manual of your car for further information)
  Do not drill holes into the tank, the brake pipe, wires or other important parts of the vehicle
• Never pass wires over sharp angles. It is recommended to buffer the power supply of the amplifier with an capacitor min. 1 Farad.

WARNING

High powered audio systems in a vehicle are capable of generating "Live Concert" high levels of sound pressure, Continued exposure to excessively high volume sound levels may cause hearing loss or damage. Also, operation of a motor vehicle while listening to audio equipment at high volume levels may impair your ability to hear external sound such as; horns, warning signals, or emergency vehicles, thus constituting to a potential traffic hazard. In the Interest of safetay,

Consumer Electronics recommends listening at lower volume levels while driving.

Planning your System

Before beginning the Installation, consider the following:

a) If you plan to expand your system by adding other components sometime in the future, ensure due equate space is left, and cooling requirements are met.
b) Your radio/insurance is equipped with Pro-Axis output. It is recommended to utilize them to drive the annular

c) Are your components matched? The peak power rating of your speakers must be greater than the Amplifiers. They also must be 2-8 ohms impedance (This information as normally printed on the speaker magnet). Consider both the length of your leads, and routing when choosing the mounting location. Pro-Amp Input jacks require a length of high quality shielded male to male RCA patch cord.

Mounting your amplifier

a) Select a suitable location that is convenient for mounting, accessible for writing and has enough room for air circulation and cooling.
b) Use the amplifier as a template to mark the mounting holes, remove the amplifier and drill 4 holes, use extreme caution, inspect underneath surface before drilling.

Wiring connection

Attention!

mind. 20mm^2 wires are necessary for power connection

1.) Ground: Ground connection should be passed directly to the car body as short as possible (max. 1m)
2. +12 Volt: Power connection should be passed directly to the battery. Please pay attention on a correct fuse protection of the installation with an Infine device with a max. wire length to the battery of 30cm .
3.) Remote turn on: This connection is getting connected with the remote control line of the radio. It is used for tuning on and off the amplifier.

Warning

Investigate the layout of your automobile thoroughly before drilling or cutting any holes. Take care when you work near the thanks, lines, or hydraulic lines, and electrical wiring. Don't mount this system so that wire connections are unprotected or are subject to pinching or damage from nearby objects.

The +12 Volt DC power wire must be fused at the battery positive terminal connection. Before making or breaking power connections at this system power terminals, disconnect the +12 Volt wire at the battery end. Confirm your radio / cassette player and / or other equip, mount it turned off while connecting the input jacks and speaker terminals.

If you need to replace the power fuse, replace it only with a fuse identical to that supplied with the system. Using a fuse of different type or rating may result in damage to this system which isn't covered by the warranty.

Connections and adjustments

Adjustments:

All adjustments of the GROUNDOZERO SO-SERIE are located under the upper aluminium cover in the middle. All screws have to be released.

Connections and adjustments

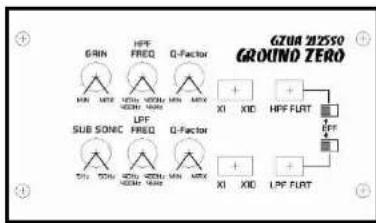

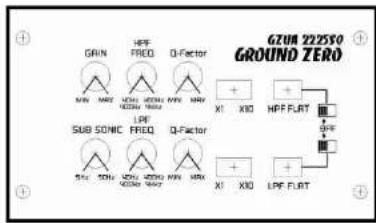

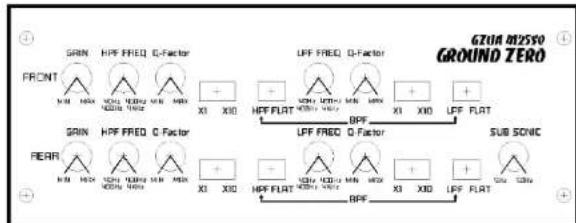

GZUA 4125SQ, GZUA 2125SQ, GZUA 2225SQ Adjustments

GRIN. here, the Input Level Sensitivity 250mV - 8V is adjusted

HPF FREDX-over (you hear everything from e.g. 20 Hz up)

LPF FREQ. X-over (you hear everything till e.g 200Hz down)

BPF.. Band-pass filter for a certain area of frequency from-to

(you hear everything from 100 Hz to 2000 Hz)

Q-Factor.. adjusting the Q of the filter

SUBSONIC.... Filer for the lowest not hearable frequencies

FLRT.........switch setting for recording every Frequenc

X1... switch setting the filter HPF/LPF x1 20 Hz-400 Hz range

X10... switch setting the filter HPF/LPF x10 200 Hz -4 KHz range

Balanced / Unbalanced Functionality

The GrounD Zero S0 Series have the possibility to clear disturbing noises, that creep on the wire to the
The optional circuit of the Cinch inputs is symmetric and asymmetric.

Application BRL/UNBAL

All switches are switched symmetricity on. ^L in the delivery status. If there are disturbances after the installation, you can turn the switches to JUNBRL to clear the disturbances. If there are still disturbances, please contact your dealer.

Connections and adjustments

GZUA 4215SQ
GZUA 2225SQ

GZUA 2125SQ

Connections and adjustments

FRONT INPUT...Cinch connection for Front Input

RERR INPUT.Cinch connection for Rear Input

MONO OUTPUT... ..Cinch connection for Mono Output (e.g. for more subwoofer amplifiers)

UNBRL... .Switch for asymmetrical input

BRL. Switch for symmetrical Input

FRONT/R-ch.SpeakerFrontOutput/Rightchannel

REAR / L-ch......Speaker Rear Output / Left channel

REMOTE . basr remote control connection(GZUA 2225SQ)

GZUA 41255Q

GZUA 2125SQ / GZUA 2250SQ

POwER. .Operation

PROT. Protection Red - Device is in protection circuit

FUSE. Fuse holder amp fuse

+12V.. .+12 Volt Connection. Connection for the power wire from the battery

REM.. Remote Connection Connection for the remote wire from car radio

GND. Ground Connection Connection for Ground wire

GZUA 4125SQ

GZUA 2125SQ GZUA 2250SQ

Adujstment and Tuning

The amplifier automatically turns on a few seconds after you turn your vehicle's ignitions switch to ACC or ON or

turn on your auto sound system, depending on how you wired the system.

Your amplifier temporarily shuts down if it gets too hot, then restarts automatically once it cools down.

For the best performance of the amplifier, the Input level sensitivity has to be adjusted correctly (8V-250V)

Adjustment of the GRIN Input Level sensitivity (8V-250mV)

For the best performance, you must set LEVEL(MIN/RWX) on the Top of the amplifier to adjust the level of the audio signals.

1. Use a screwdriver to turn LEVEL(MIN/MAX) fully to MIN
2. Turn the auto sound system's volume control to about two-third of its full range.
3. Adjust LEVEL(MIN/MAX) to a comfortable listening level
   Turn up the auto sound system's volume control until the sound begins to distort. Then immediately turn the volume down to a point just before where the distortion began. Caution: Never up turn the auto sound system's volume control more than needed to adjust the audio level, more than thirds of its maximum volume.
4. 1. Adjust LEVEL(MIN/MAX) until the sound is at the maximum level you want the amplifier two

5. Adjust the auto sound system's volume control to a comfortable listening level.

Attention!

Please note that the gage on a CD that reproduces music with a higher dynamic is essential higher as an Radio reception.

With the bass remote control, you can readjust the Bass gain from the driver's seat. (GZUA 22255Q).

If something doesn't work

Problem Control	Help
No Sound	Is the PWR LED on?	Check fuse Check remote wire Check +12Volt Check ground
	Is the PROT LED on?	Short circuit on speaker Device overheated Device defective
No Sound		Check fuse Check +12Volt Check ground
No Sound	No voltage on Remote	Check Remote on radio
Amplifier is turning off at higher volume	Check speaker Impedance	Check if the LS terminal in min of 2Ω resistance(GZUA 4125SQ, 2125SQ) Check if the resistor on LS terminal Ω (GZUA 2225SQ) .
No sound at one channel	Check cinch / speaker wire	Wire/connector damaged

Specifications

Model GZUA 4125SQGZUA 2125SQGZUA 2225SQ
Power RMS @ 4Ω	4 x 135 2 x 100	2 x 225
Power RMS @ 2Ω	4 x 225 2 x 175	2 x 375
Power RMS @ 1Ω	- - 2 x 550
Power Mono @ 4Ω	2 x 450 1 x 350	1 x 750
Power Mono @ 2Ω	- - 1 x 1100
Max. Power 1000	400	1200
Input Level Sensitivity 250mV - 8 Volt 250 mV - 8Volt 250 mV - 8 Volt
Frequency range 5-30000Hz 5-30000 Hz 5-30000 Hz
Lowpass LPF x 1Lowpass LPF x 10	20 Hz - 400 Hz200 Hz - 4 KHz	20 Hz - 400 Hz200 Hz - 4 KHz	20 Hz - 400 Hz200 Hz - 4 KHz
Highpass HPF x 1Highpass HPF x 10	20 Hz - 400 Hz200 Hz - 4 KHz	20 Hz - 400 Hz200 Hz - 4 KHz	20 Hz - 400 Hz200 Hz - 4 KHz
THD	<0,008%	<0,008%	<0,008%
SNR Signal-to-noise ratio	>96 dB/A	>96 dB/A	>96 dB/A
Damping Factor	>400	>400	>800
Impedance Min.	2 Ω	2 Ω	1Ω
Fuse	2 x 40 A	2 x 20 A	3 x 40 A
Dimension:W X D X H (mm)W x D x H (Inches)	350 x 280 x 4913.9" x 11.1" x 1.9"	300 x 280 x 4911.9" x 11.1" x 1.9"	350 x 280 x 4913.9" x 11.1" x 1.9"

For warranty matters please contact your dealer.

www.ground-zero-audio.com

e-mail: [e-mail]

GROUND ZERO

Mobile Entertainment

Amplificateur

Mode d'Emploi

Uranium - 5Q

Sound-Quality Level

GZUA 21255Q

GZUA 22255Q

GZUA 42155Q

GROUND ZERO

Mobile Entertainment

Lire attentivement s.v.p.

BPF. Fillr Band pass

wwwground-zero-audio.com

e-mail: [e-mail]

GROUND ZERO

Mobile Entertainment

Versterker

Bedienings handleding

Uranium - 5Q

Sound-Quality Level

GZUA 21255Q

GZUA 22255Q

GZUA 41255Q

GROUND ZERO

Mobile Entertainment

REMOTE. Aansluting Bass remote

GZUA 4125SQ

GZUA 2125SQ / GZUA 2250SQ

POUER... Inschakel LED

PROT. Fout meidng

FUSE. Zekoring

Step 1 ingangsgregelaar GAIN near links drasien MIN
