4 KANAL LEISTUNGSVERSTÄRKER 4 CHANNEL POWER AMPLIFIER AMPLIFICATEUR DE PUISSANCE À 4 CANAUX

At the end of the product's useful life, please dispose of it at appropriate collection points provided in your country.

EDITION FOUR LIMITED

Stereo / Gebrückt

Max. Ausgangsleistung (1 kHz Sinus Burst 2:8, B+=14,4V) 4 x 200 W / 2 x 600 W an 4 Ohm

Dear MAGNAT Customer,

The EDITION FOUR / EDITION FOUR LIMITED car hi-fi power amplifier will enable you to satisfy your high demands on sound reproduction in your car. With its impressive deep-bass power reserves, low harmonic content and neutral reproduction, the EDITION FOUR / EDITION FOUR LIMITED takes car hi-fi to new heights. The amplifier is characterized by low operating current, rapid switching capabilities and excellent temperature stability. Increased output power can be achieved by switching two amplifier channels in an amplifier together in bridging mode. Experience and enjoy how this high-tech machine perfectly reproduces magnificent sound.

Please read all of the owner's manual before installing and using the amplifier.

1. TECHNICAL DATA EDITION FOUR

Stereo / Bridged

Max. output power (1 kHz sinus burst 2:8, B+=14.4V) 4 x 140 W / 2 x 500 W on 4 Ohm

Nominal output power (DIN 45 324, B+=14.4V) 4 x 55 W / 2 x 150 W on 4 Ohm

Max. output power (1 kHz sinus burst 2:8, B+=14.4V) 4 x 250 W on 2 Ohm

Nominal output power (DIN 45 324, B+=14.4V) 4 x 75 W on 2 Ohm

Loudspeaker impedance (stereo) 2 - 8 Ohm

Frequency response 5 – 50 000 Hz (-3 dB)

Total harmonic content (DIN 45 403) < 0.08% (1 kHz)

Stereo separation (IEC 581) > 60 dB (1 kHz)

Weighted noise distance (IEC A) > 100 dB

Input sensitivity LOW LEVEL INPUT 0.4 – 4 V

Input impedance LOW LEVEL INPUT

Low-pass filter

High-pass filter

Bass boost

Supply

Fuse

Sizes (W x H x D)

Weight

20 kOhm

40 – 300 Hz, 12 dB per octave

40 – 300 Hz, 12 dB per octave

0...12 dB at 45 Hz

+ 12 V (10 - 15 V), minus to ground

1 x 30 A

345 × 57 × 236 mm

3.1 kg

EDITION FOUR LIMITED

Stereo / Bridged

Max. output power (1 kHz sinus burst 2:8, B+=14.4V) 4 x 200 W / 2 x 600 W on 4 Ohm

Nominal output power (DIN 45 324, B+=14.4V) 4 x 75 W / 2 x 220 W on 4 Ohm

Max. output power (1 kHz sinus burst 2:8, B+=14.4V) 4 x 300 W on 2 Ohm

Nominal output power (DIN 45 324, B+=14.4V) 4 x 110 W on 2 Ohm

Loudspeaker impedance (stereo) 2 - 8 Ohm

Frequency response 5 – 50 000 Hz (-3 dB)

Total harmonic content (DIN 45 403) < 0.08% (1 kHz)

Stereo separation (IEC 581) > 60 dB (1 kHz)

Weighted noise distance (IEC A) > 100 dB

Input sensitivity LOW LEVEL INPUT 0.4 – 4 V

Input impedance LOW LEVEL INPUT

Low-pass filter

High-pass filter

Bass boost

Supply

Fuse

Sizes (W x H x D)

Weight

20 kOhm

40 – 300 Hz, 12 dB per octave

40 – 300 Hz, 12 dB per octave

0...12 dB at 45 Hz

+ 12 V (10 - 15 V), minus to ground

2 × 25 A

345 × 57 × 236 mm

3.2 kg

SUBJECT TO TECHNICAL CHANGE

2. FEATURES

• Complementary push-pull final stage
• Automatic switching on/off via car radio
Infinitely adjustable low-pass filter 40 – 300 Hz
• Infinitely adjustable high-pass filter 40 – 300 Hz
• Infinitely variable bass equalisation
Adjustable input sensitivity
- Bridgeable 4-/3-/2-channel mode
. Tri-mode
Channel mode selector switch
Electronic protective circuit against short circuiting, DC offset and excess temperature
Mute switch for suppressing switch-on crackle interference
Low-level outputs (cinch jacks) for connecting additional amplifiers (channel 3 and 4 only)
Status indicator (green LED) and overload indicator (red LED)

3. IMPORTANT INSTALLATION INFORMATION

· This appliance may only be connected to a 12 volt system with negative ground.

The heat radiated when the amplifier is used means that sufficient air circulation is required at the place of installation. It is very important that the cooler's cooler ribs do not contact any metal plating or any surfaces which could impair air circulation. The amplifier may not be installed in small confined spaces or spaces without air circulation (e.g. spare wheel recess or under the vehicle carpeting). Installation in the boot is recommended.
- Install the amplifier in such a way that it is protected as far as possible against vibrations and dust and dirt.
• Make sure that the input/output cables are sufficiently distant from the power supply cables as otherwise interference may occur.
- Make sure that the fuse and operating elements are accessible after installation.
The appliance's reliability and performance depend on the quality of installation. Preferably get an expert to install the system, particularly if you want to install several loudspeakers or a complex multi-way system.

4. CONNECTIONS

4.1 POWER SUPPLY AND AUTOMATIC SWITCHING ON

Important notice: Before commencing the installation, disconnect the plus terminals from the car battery in order to prevent short circuits.

The power cabling usually installed in on-board car networks is not sufficient for a power amplifier's demands. Make sure that the power lines to GND and to the +12 V terminal have been sufficiently specified. A cable cross-section of at least 10 mm^2 must be used to connect the battery to the amplifier's terminals.

First connect the amplifier's GND terminal to the battery's minus pole. It is very important that the connection is good. Dirt residues must be carefully removed from the battery's connection point. A loose connection may cause malfunctions or interference noise or distortion.

The +12 V amplifier connection must then be connected with a power cable possessing an integrated fuse to the battery's plus pole. The fuse should be located close to the battery; for safety reasons, the cable from the positive terminal of the battery to the fuse must not exceed 60 cm in length. Only insert the fuse when all installation work, including the connection of the loudspeakers, has been completed.

Now connect the car hi-fi receiver's remote control connection to the amplifier's REM control jack. A cable with a cross-section of 0.75mm^2 is sufficient for connecting the amplifier's REMOTE connection and the control device.

4.2 AUDIO CABLES

When installing the audio cable between the cinch output of your car receiver and the cinch input of the amplifier inside your car, the audio and power supply cables should, wherever possible, not be routed along the same side of the vehicle. We recommend an isolated installation, e.g. routing the power cable through the cable duct on the left-hand side and the audio cable through the cable duct on the right-hand side or vice versa. This reduces interference due to crosstalk into the audio cables.

4.3 LOUDSPEAKER CONNECTIONS

In normal operating mode (i.e. one loudspeaker on each individual amplifier channel), the lowest terminal resistance is 2 ohm per channel.

- In bridging mode (two amplifier outputs combined) the lowest terminal resistance doubles to 4 ohm.

· The impedance in tri-mode may not fall below 2 ohm per channel.

- Never connect the loudspeakers' minus terminals to the vehicle chassis.

· Never connect the +12 V supply voltage to a loudspeaker output as this would destroy the amplifier final stage.

If the amplifier is operated with lower terminal resistances or incorrectly used as described above, both the amplifier and the loudspeakers may be damaged. The warranty becomes void in such cases.

5. OPERATING ELEMENTS AND IN/OUTPUTS

5.1 SETTING THE INPUT SENSITIVITY

The input sensitivity may be adapted to any car radio or tape deck. Turn the volume control of your radio to is central position and then adjust the input-level control (3) to produce an average medium volume. This setting usually provides sufficient power reserves at optimum weighted noise voltage.

ATTENTION: only reproduce loud test noises briefly to prevent damaging the loudspeakers.

5.2 LOW-PASS FILTER WITH ADJUSTABLE CROSS-OVER FREQUENCY

Set the switch (5) to "LPF" if you want to use Channels CH1/2 or CH3/4 respectively for the subwoofer amplifier. Set the desired crossover frequency with the control (4). This makes the filter adaptable to the installed woofer's sound requirements. The filter's high edge steepness is responsible for the precise reduction of middle and high frequency ranges.

5.3 HIGH-PASS FILTER WITH ADJUSTABLE CROSS-OVER FREQUENCY

If the amplifier is to be used as an amplifier for satellite loudspeakers (mid-range/tweeter loudspeakers), set switch (5) to "HPF". Set the desired cross-over frequency with the control (4). Only the frequencies above the set cross-over frequency will then be amplified. This effectively minimizes distortions caused by excessive membrane movement at low frequencies and small satellite loudspeakers without reducing the bass level.

5.4 BASS-BOOST

The bass-boost function elevates or distorts the lower bass ranges. Infinitely variable accentuation level using control (6).

5.5 OUTPUTS FOR CONNECTING ADDITIONAL AMPLIFIERS

The input signal of the INPUT connections CH3 / CH4 is forwarded directly to the OUTPUT jacks. The OUTPUT connections allow the use of additional amplifiers without requiring additional T-plugs and cables.

FIG. 1 POWER SUPPLY / REMOTE SWITCH-ON CONNECTIONS

(1) GND terminal for the ground, to the battery's minus pole
(2) REM terminal for remote switch-on
(3) Terminal for +12 V battery voltage
(4) Battery
(5) Cable fuse
(6) To your car radio's automatic aerial connection

If your car is not equipped with an automatic aerial connection, connect this cable's plus pole (+) to the ignition lock. An on/off switch should be inserted in this case. Make sure that this switch is switched off if the amplifier is not used.

FIG. 2 4-CHANNEL MODE

Connect and set the amplifier as shown in Fig. 2 if it is to be controlled by a car radio with four output channels and used with four loudspeakers:

(1) To the car radio, front left output
(2) To the car radio, front right output
(3) To the car radio, rear left output
(4) To the car radio, rear right output
(5) Front left loudspeaker
(6) Front right loudspeaker
(7) Rear left loudspeaker
(8) Rear right loudspeaker

FIG. 3/4 3-CHANNEL MODE

The 3-channel mode uses the high-pass filter for channels 1/2 and the low-pass filter for Channels 3/4. Section 5 describes how they are used.

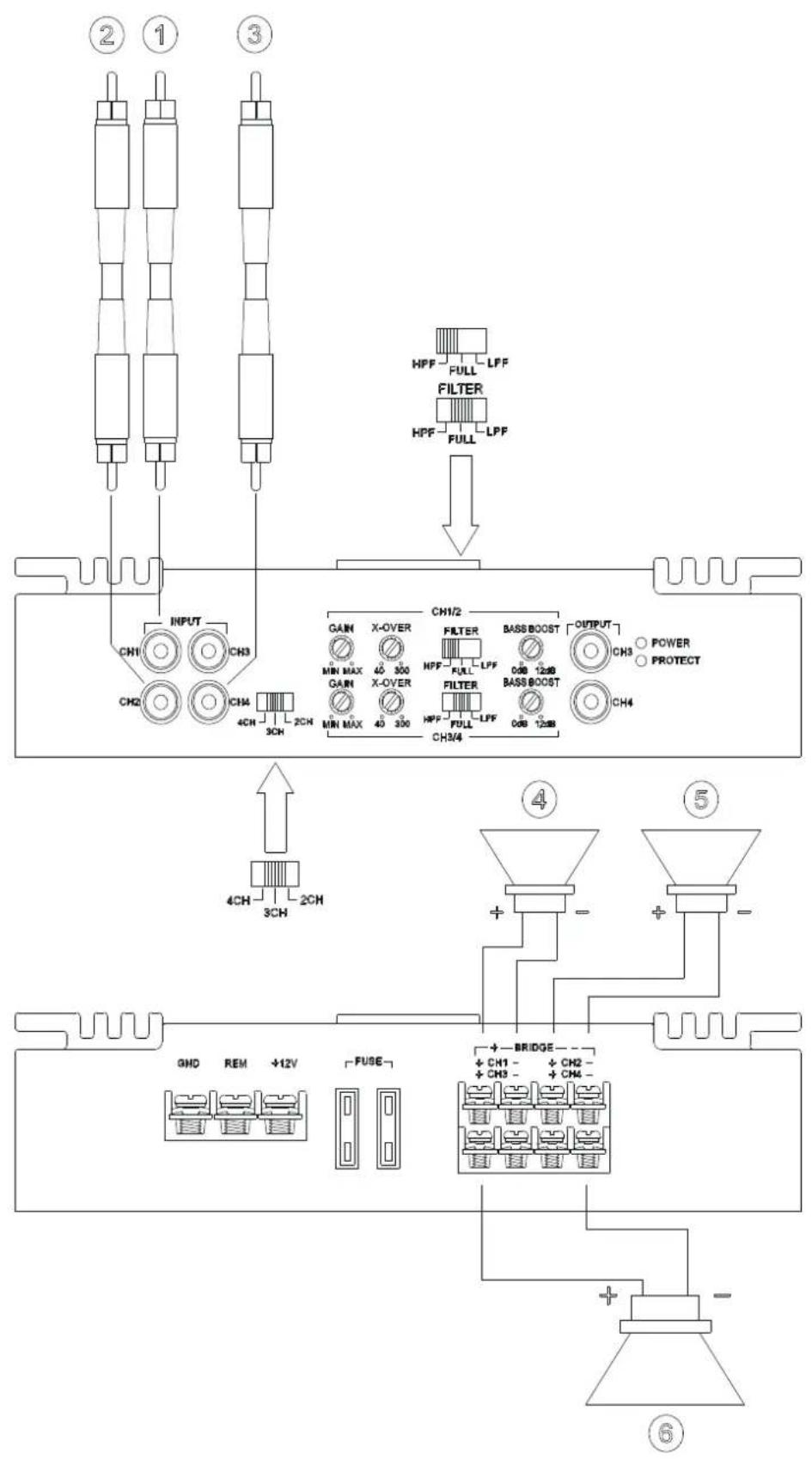

FIG. 3

Connect and set the amplifier as shown in Fig. 3 if it is to be controlled by a car radio with stereo output and used with stereo satellite loudspeakers and a subwoofer.

(1) To the car radio, left output
(2) To the car radio, right output
(3) Left satellite loudspeaker
(4) Right satellite loudspeaker
(5) Subwoofer

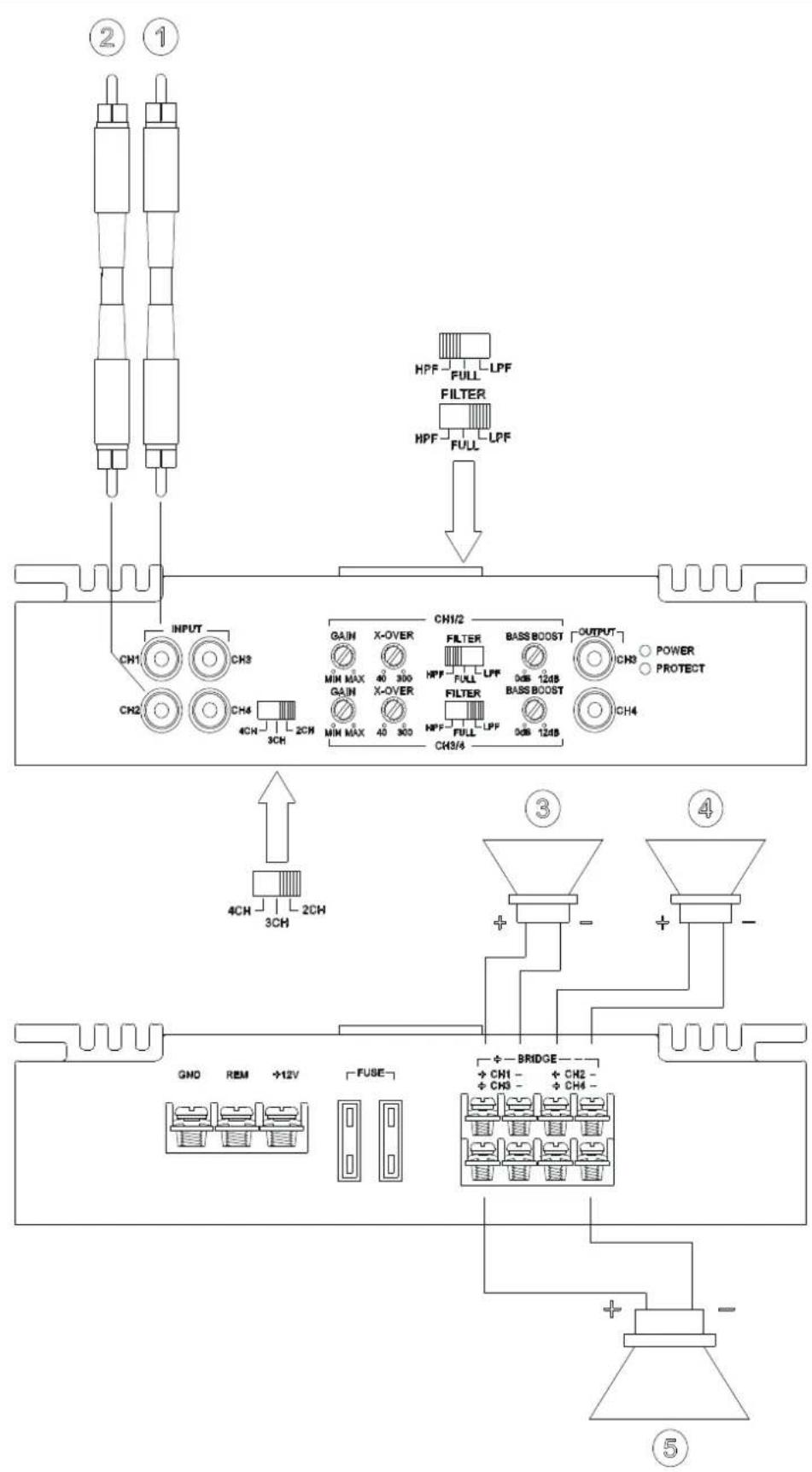

FIG. 4

Connect and set the amplifier as shown in Fig. 4 if it is to be controlled by a car radio with stereo receiver and separate subwoofer output and used with stereo satellite loudspeakers and a subwoofer.

(1) To the car radio, left output
(2) To the car radio, right output
(3) To the car radio, subwoofer output
(4) Left satellite loudspeaker
(5) Right satellite loudspeaker
(6) Subwoofer

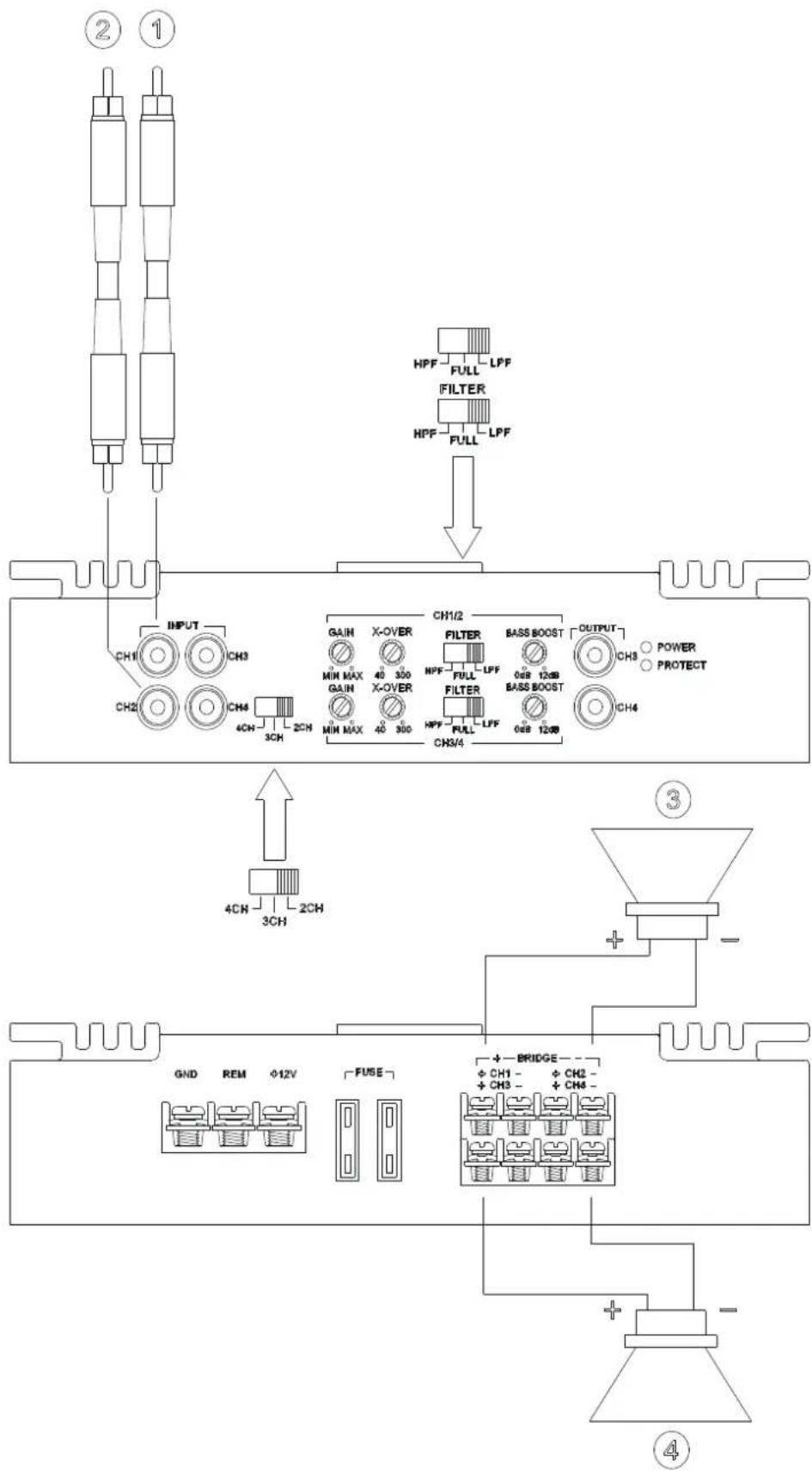

FIG. 5 2-CHANNEL MODE

If the amplifier has to generate more power to operate two subwoofers, connect and set it as shown in Fig. 5. The use of the low-pass filter used is described in Chapter 5.

(1) To the car radio, left output
(2) To the car radio, right output
(3) Subwoofer
(4) Subwoofer

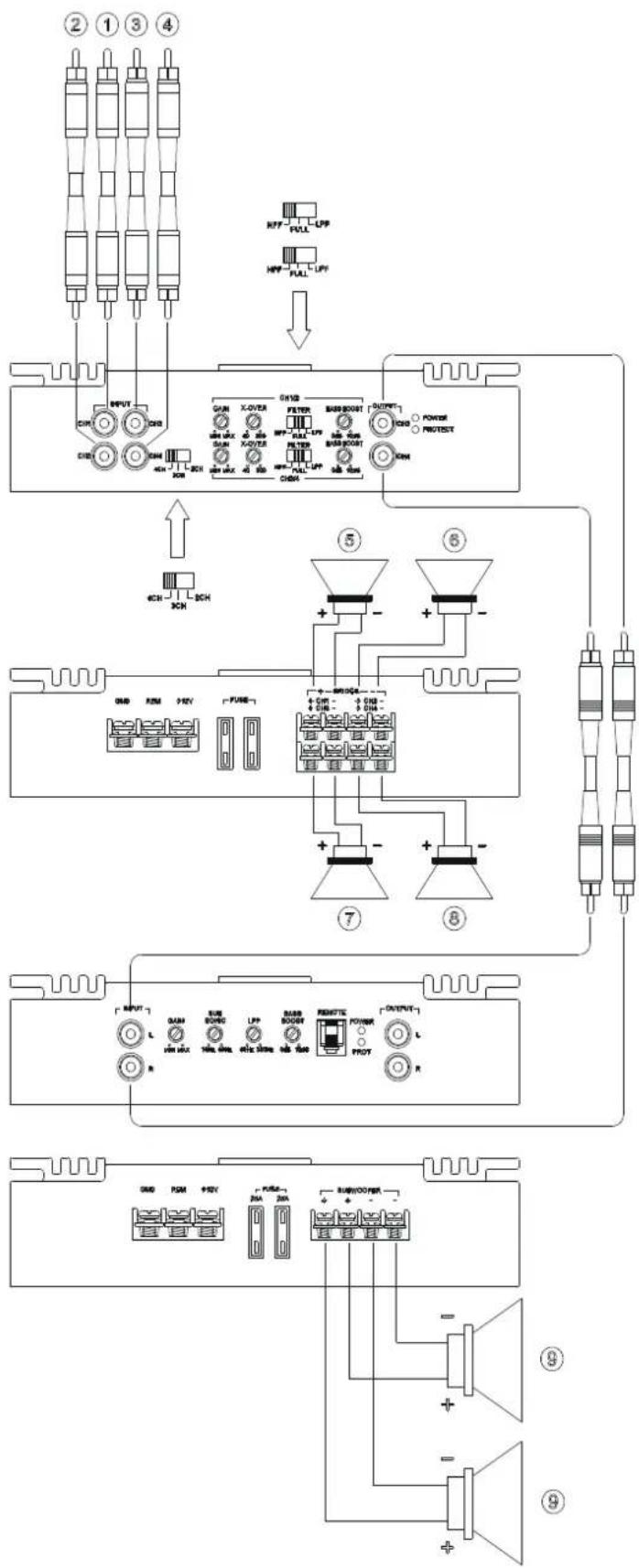

FIG. 6 USE AS AN AMPLIFIER FOR 4 SATELLITE LOUDSPEAKERS AND A SUBWOOFER USING AN ADDITIONAL 1-CHANNEL AMPLIFIER (EDITION MONO)

(1) To the car radio, front left output
(2) To the car radio, front right output
(3) To the car radio, rear left output
(4) To the car radio, rear right output
(5) Front left loudspeaker
(6) Front right loudspeaker
(7) Rear left loudspeaker
(8) Rear right loudspeaker
(9) Subwoofer

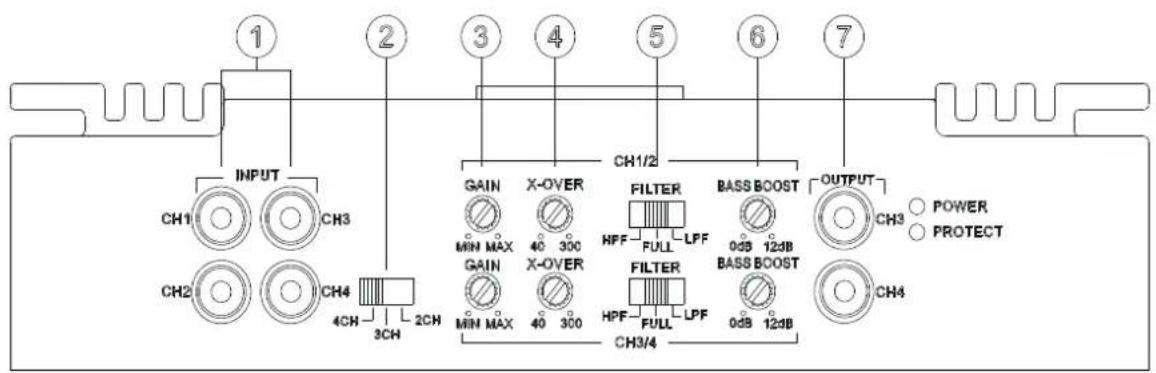

FIG. 7 OPERATING ELEMENTS AND IN/OUTPUTS

(1) Low-level input
(2) Channel mode selector switch
(3) Input-level control
(4) Cross-over frequency control for low pass / high pass
(5) Linear (FULL) / low pass filter (LPF) / high pass filter (HPF) option switch
(6) Bass-booster control
(7) Low level outputs (channel 3/4)

Cher client de MAGNAT,

Dimensions (L x H x P))

Poids

20 kOhm

EDITION FOUR LIMITED

Stéréo / ponté

Dimensions (L x H x P))

Poids

20 kOhm

EDITION FOUR LIMITED

Stereo / Gebrugd

1. DATI TECNICI EDITION FOUR

Stereo / a ponte

Dimensioni (L x A x P)

Peso

20 Kohm

EDITION FOUR LIMITED

Stereo / a ponte

Dimensioni (L x A x P)

Peso

20 Kohm

EDITION FOUR LIMITED

EDITION FOUR LIMITED

Estéreo / Em brigde

EDITION FOUR LIMITED

Stereo / Bryggad

4.3 HÖGTALARANSLUTNINGAR

EDITION FOUR LIMITED

EDITION FOUR LIMITED

立体声 / 桥接

EDITION FOUR LIMITED

ステレオ /ブリッジ

4 x 200 W / 2 x 600 W 4 Ohm

4 x 75 W / 2 x 220 W 4 Ohm

4 x 300 W 2 Ohm

4 × 110 W 2 Ohm

2-8 Ohm

5 - 50 000 Hz (-3 dB)

< 0.08% (1 kHz)

60 dB (1 kHz)

100 dB

0,4-4V

20 kOhm

② ① ③ ④ INPUT CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN CIN

3

② ① HPF FULL LPF FILTER HPF FULL LPF INPUT CH1 CH3 GAIN X-OVER CH1/2 FILTER BASS BOOST OUTPUT MIN MAX 40 300 HPF FULL LPF 0dB 12dB CH3 POWER PROTECT GAIN X-OVER FILTER BASS BOOST MIN MAX 40 300 HPF FULL LPF 0dB 12dB CH3/4 CH3/4 CH4 4CH 3CH 2CH ③ ④ GND REM +12V FUSE + BRIDGE + CH1 - + CH2 - + CH3 - + CH4 - + - ⑤

4

② ① ③ HPF FULL LFF FILTER HPF FULL LPF INPUT CH1 CH3 CH2 CH4 4CH 3CH 2CH GAIN X-OVER MIN MAX 40 500 GAIN X-OVER MIN MAX 40 300 CH1/2 FILTER BASS BOOST HPF FULL LPF 0dB 12dB FILTER BASS BOOST HPF FULL LPF 0dB 12dB CH3/4 OUTPUT CH3 POWER PROTECT ④ ⑤ 4CH 3CH 2CH GHD REM +12V FUSE + BRIDGE + CH1 - + CH2 - + CH3 - + CH4 - + + - + ⑥

5

② ① HPF FULL LPF FILTER HPF FULL LPF INPUT CH1 CH3 CH2 CH4 4CH 3CH 2CH GAIN X-OVER MIN MAX 40 300 GAIN X-OVER MIN MAX 40 300 CH1/2 FILTER BASS BOOST OUTPUT CH3 POWER PROTECT HPF FULL LPF FILTER 0dB 12dB HPF FULL LPF BASS BOOST 0dB 12dB CH3/4 CH4 ③ 4CH 3CH 2CH GND REM φ12V FUSE + BRIDGE + CH1 + CH2 - + CH3 - + CH4 - + BRIDGE - + - CH1 - + CH2 - + CH3 - + CH4 - + ④

6

Technical schematic diagram of a power supply or audio system with labeled components and connections

7

1 2 3 4 5 6 7 INPUT CH1 CH3 CH2 CH4 4CH 3CH 2CH GAIN X-OVER CH1/2 FILTER BASS BOOST OUTPUT MIN MAX 40 300 HFF FULL LPF 0dB 12dB CH3 POWER PROTECT GAIN X-OVER FILTER BASS BOOST MIN MAX 40 300 HFF FULL LPF 0dB 12dB CH3/4 CH3/4

D

GB Congratulations! You have made a wise selection in becoming the owner of a MAGNAT HiFi equipment. Due to high quality MAGNAT products have earned an excellent reputation through the western world. And this high quality standard enables us to grant a 2-years warranty for MAGNAT HiFi-electronic components.

The equipments are checked and tested continuously during the entire production process. In case you have problems with your MAGNAT HiFi equipment, kindly observe the following:

1. The guarantee period commences with the purchase of the component and is applicable only to the original owner.
2. During the guarantee period we will rectify any defects due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damages or subsequential damages, are excluded. The guarantee period is not altered by the fact that we have carried out guarantee work.
3. Unauthorized tampering with the equipment will invalidate this guarantee.
4. Consult your authorized dealer first, if guarantee service is needed. Should it prove necessary to return the component to the factory, please insure that • the component is packed in original factory packing in good condition • the quality control card has been filled out and enclosed with the component, • your enclose your receipt as proof of purchase.
5. Excluded from the guarantee are: • Illuminates • Wear parts • Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with forwarding agent, the railway express office or post office). • Scratches in cases, metal components, front panels, etc. (You must notify your dealer directly of such defects within three days of purchase.) • Defects caused by incorrect installation or connection, by operation errors (see operating instructions), by overloading or by external force. • Equipments which have been repaired incorrectly or modified or where the case has been opened by persons other than us. • Consequential damages to other equipments. • Reimbursement of cools, without our prior consent, when repairing damages by third parties.

F

Toutes nos félicitations!
