MSA90 IX - Oven BORETTI - Free user manual and instructions

Brand	Boretti
Model	MSA90 IX
Product type	Built-in oven
Color	Stainless steel
Width	90 cm
Height	60 cm
Depth	55 cm
Net weight	Approximately 45 kg
Power supply	220-240 V ~ 50/60 Hz
Total power	Approximately 3000 W
Capacity	70 L (estimated)
Number of functions	11
Cooking functions	Defrost, fan cooking, fan + grill, conventional + fan, central grill, double grill, top heat, bottom heat, fan + bottom heat, conventional cooking
Pyrolytic cleaning	Yes
Interior lighting	Yes
Electronic programmer	24h clock, timer, manual/semi-automatic/automatic cooking programming
Safety	Door locking during pyrolysis, detailed safety instructions
Supplied accessories	Grill, drip tray
Removable door	Yes
Material	Stainless steel
After-sales service	Contact Boretti

Frequently Asked Questions - MSA90 IX BORETTI

How to use the pyrolysis function?

The pyrolysis function generates extreme heat to burn off food residues. Select the automatic cleaning cycle, and the door locks. Once finished and cooled to 180°C, wipe away the ashes with a damp cloth. Keep children away as surfaces become very hot.

How to remove the oven door?

Open the door fully, pull the small locking hooks upward, then close it halfway and gently pull it toward you. To reinstall, reverse the procedure, ensuring the hook notches engage correctly.

How to set the clock?

When first powered on or after a power cut, three digits flash. Press the [+] and [-] buttons simultaneously to set the correct time. The adjustment speed depends on how hard you press.

How to program an automatic cooking?

Press the programming button, then set the desired duration and end time using the [+] and [-] buttons. Then select the temperature and cooking mode with the thermostat and selector switch. The AUTO symbol lights up continuously.

What to do if the oven does not heat?

First check that the appliance is plugged in and the circuit breaker has not tripped. Make sure the programmer is not in timer-only mode. If the problem persists, unplug the oven and contact Boretti customer support.

How to clean the oven interior?

Wait until the oven is completely cool. Use warm water and a non-aggressive cleaner. Never use a knife, steel wool, or abrasive products. After each use, remove residues to prevent buildup. The pyrolysis function can also be used.

The oven light is not working, how to change the bulb?

First unplug the appliance. Remove the bulb cover (usually glass) and replace the bulb with one of the same type and wattage (refer to the manual). Reattach the cover. If the problem persists, contact after-sales service.

Can I use cleaning sprays for the oven?

It is not recommended to use aggressive cleaning sprays or steam cleaners. Use a damp cloth and mild detergent. For pyrolysis, no chemicals are needed.

Why does steam come out when opening the oven?

This is normal, especially when cooking moist foods. Steam accumulates and escapes when opened. Keep your hands away and avoid burns. It does not affect the appliance's operation.

How to use the defrost function?

Place frozen food in the oven, select the defrost function. The fan runs without heat (thermostat inactive). The door must be closed. This allows defrosting about three times faster than room temperature.

USER MANUAL MSA90 IX BORETTI

m = 311 ;

m = 311 ;

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you. Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy using this product!

Boretti

Contents

Before First Use

Safety Instructions 34

Cleaning Before First Use 34

General Installation Instructions

Installation and connection 35

Description of oven functions

Overview 37

Digital timer 39

Maintenance 40

Environmental Regulations 41

Before First Use

Safety Instructions

This manual is part of the range cooker. It must be kept nearby during the entire lifespan of the range cooker. We recommend reading this manual carefully before using the range cooker.

The range cooker must be installed by a qualified technician in compliance with installation instructions as described in the previous chapter.

This range cooker is suitable for household use, and complies with current EU guidelines. The range cooker has been manufactured to cook and bake foods. Boretti is not liable for unauthorized use of the appliance, such as heating up a space.

Never block the openings and slots of your Boretti, so that proper ventilation is ensured.

Check the appliance after unpacking the oven. If there are visible damages do not install and use the oven and contact Boretti immediately. Boretti can not be held liable for damages after installation of the appliance.

Immediately after installation, the range cooker should be thoroughly tested, and any malfunctions reported.

Always open or close the oven door using the handle. Also, before closing the door check if there are no objects in the oven which should not be left in the oven.

Never place combustible products in your oven. Unexpected ignition could result in fire.

The range cooker is designed for use by adults, never allow children to remain near the range cooker unsupervised. Certain parts such as the grill element can become extremely hot.

Therefore do not allow children to play or be near the range cooker.

After every use, verify that all control knobs are set to "off".

In case of doubt regarding the safety instructions of your Boretti, we urgently recommend that you call Boretti. You will find our phone numbers on the back of this manual.

Do not use parchment paper when grilling.

Do not sit on the oven door or use it for support or as working table.

Never put combustible objects or products that could melt at low temperatures in the storage space below the oven.

The oven is equipped with a cooling fan which ensures that the outside cavity of the oven is as cool as possible. This fan blows air out of the front of the oven and will keep on doing this until the inside of the oven is efficiently cooled down,

Cleaning Before First Use

It is recommended to thoroughly remove all packaging residue from the range cooker, followed by cleaning according to the guidelines. Before first use of the oven, you should heat the oven at full power for 30 minutes. An unpleasant scorching smell will develop during this initial heating. This is normal.

We recommend that you ventilate the kitchen area thoroughly during initial heating.

General Installation Instructions

Your oven must be installed by a qualified technician according to legal/locally applicable codes and ordinances.

Check whether voltage and capacity agree with the features mentioned on your oven's type plate.

The oven can be installed under a surface or in a cabinet. Please respect the built-in cabinet dimensions as mentioned in figures 1, 2 and 3.

Please take in account that the oven requires sufficient ventilation as indicated in figures 1, 2 and 3.

The oven can be fixed by using 4 screws, delivered together with the oven.

Important: never lift the oven by using the handle!

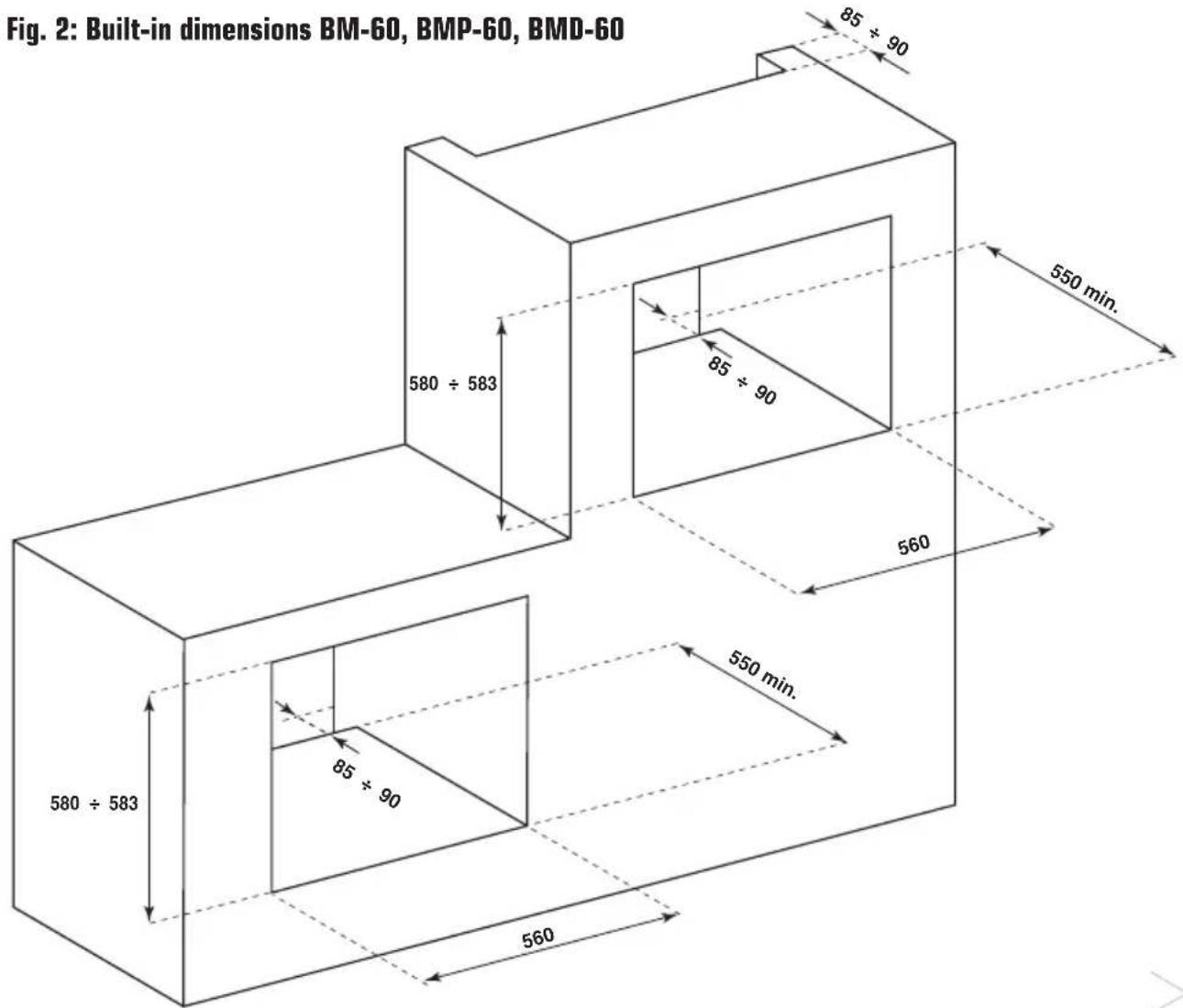

Fig. 2: Built-in dimensions BM-60, BMP-60, BMD-60

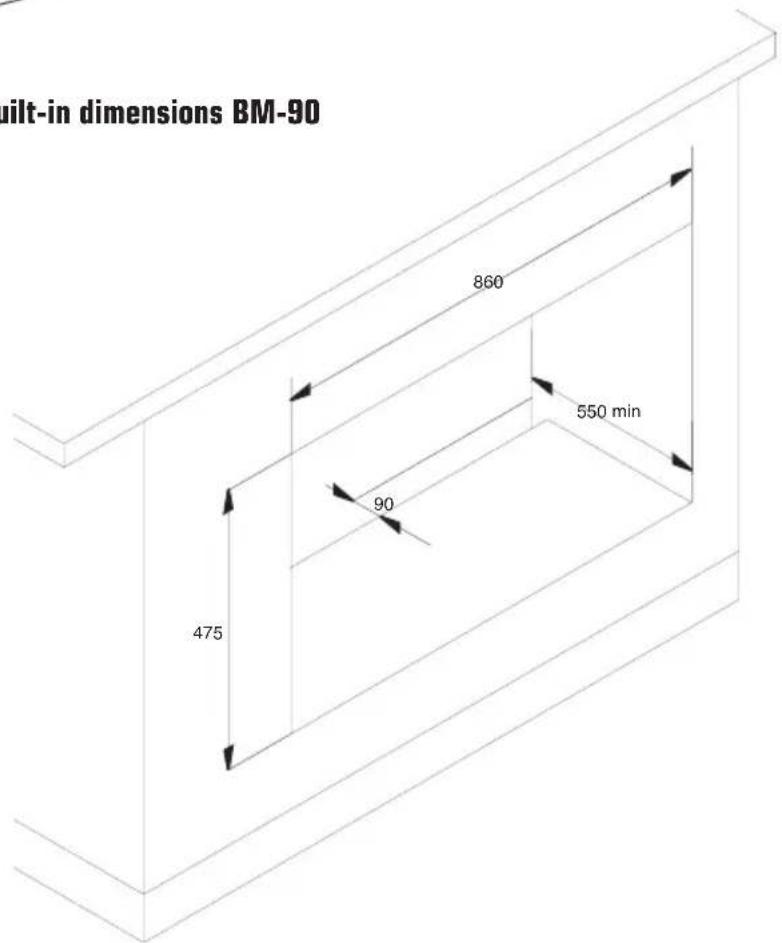

Fig. 3: Built-in dimensions BM-90

The door can be hooked on both sides.

Release position Block position

Description of oven functions

Please note that the oven functions differ per model. Some functions mentioned in this user manual may not be available on the oven which you have purchased.

The different oven functions can be used by choosing the desired function with the function switch knob and setting the correct temperature with the temperature knob.

Thaw function

The thaw function will switch on the fan in the back of the oven so that an air stream will start flowing which will slightly speed up the thawing of your dish.

Convection Heating

The heat is supplied directly by the heating element mounted in the back of the oven around the fan. This adjustment is very suitable for baking or roasting a complete meal. It is possible to cook on several levels because of the circulating heat. Often convection heating is the most popular function of the oven.

Caution: This function is also called "intensive baking", because it is an effective way to cook. In many cases, this function will also reduce the cook time of a dish.

Circulation Grilling

The heat generated by the grilling element will be evenly distributed throughout the oven by the fan in the back of the oven. This is suitable for grilling such foods as pork chops, sausages, skewers, etc.

Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie.

Intensive baking

A rapid, intensive form of baking, particularly well suited for preparing various oven dishes. The upper and lower heating elements, together with the convection fan, provide the best baking results and even distribution of heat.

Centre Grill

Conventional grilling with the grilling element only. This is suitable for grilling such foods as chicken and roasts. It is also often used for cooking au gratin, or preparing deserts with caramelized sugar.

Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie.

Double grill

With this function the complete grill element is used. Suitable for grilling large prtons of food.

Caution: The oven door should be closed during grilling. For model BMD-60 this function can be used in combination with the rotisserie.

Top Heat

This should be used to slowly brown the top of a dish, but can also be used to cook a dish au gratin more slowly than when using the grill.

Bottom Heat

This function is very suitable for dishes that need to rise. It can be used in combination with the convection function. In other words, if the product has risen, it can continue to bake with the convection function.

Bottom heat and fan

This function is very suitable for slow-cooking

Top and Bottom Heat

A function that works like a conventional oven, but includes a top heating element. It can be used for all dishes that could also be prepared in a convection oven.

Pyrolyse cleaning:

(Automatic self-cleaning cycle)

This cleaning cycle consists of the combustion of food residues at extremely high temperatures. During this cycle, the oven door is blocked. Once the oven cools off to a save temperature, the door is unlocked. Please note that even when the door is unlocked, the oven can still be hot. The residual ashes can be removed with a damp cloth.

WARNING: During pyrolysis cleaning, the oven surface will reach a higher temperature than normal.

Lighting

With this function only the lighting of the oven is turned on. The light in the oven will also switch on automatically when you select any particular oven function.

Digital timer

With the digital timer the following options are available:

• Indication of time [24 hours clock]
• Timer (from 1 minute till 23 hours and 59 minutes)
• Programming of automatic start time and end time of cooking sequence
• Programming of cooking time
• Programming of end time

Set the time

Upon immediate hooking up of the oven or after a blackout, three zeros will flash on the programmer panel. The oven shall not function until the time has been set.

You can adjust the time by first pushing the button and afterwards the buttons + and - till the correct time has been set.

Timer

The timer can be set by pushing the button and afterwards the buttons + and - till the correct time has been set. After the set time has passed the oven will give a audible signal. You can turn this signal of by pushing the button

Programming of automatic start time and end time of cooking sequence

1. Set the length of cooking time by pushing the button and afterwards the buttons + and -
2. Set the end of cooking time by pushing the button and afterwards the buttons + and
3. Turn the temperature and function knobs of the oven to the corrects settings. The word AUTO will appear in the display, which means the program has been memorized.

Setting end time of cooking sequence

Set the end of cooking time by pushing the button 品 and afterwards the buttons ^+ and-. The word AUTO will appear in the display, which means the program has been memorized.

The oven will turn itself of after the cooking time has expired and will give an audible signal.

Turn the signal off by pushing the button

Cancelling a program

You can cancel a program by pushing the button. The word AUTO will disappear from the display..

Adjusting the sound level

You can adjust the sound level by pushing the button. You can choose from 3 different sound levels.

The sound level can only be adjusted when no programs are set.

Maintenance

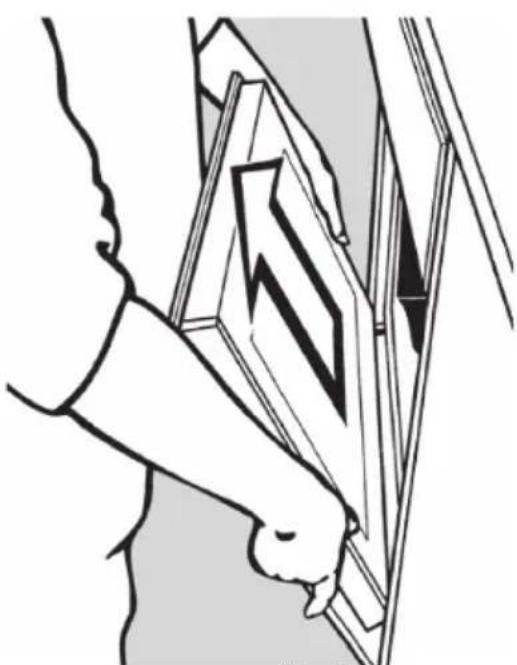

Dismantling the Oven Door

It is easy to remove the door from your Boretti range cooker. Please follow these instructions: Open the oven door completely. Move the fitted brackets to an upright position (Fig. 3) Close the door halfway. Without using force, pull the door slowly towards you (Fig. 4).

Attaching the door is done in reverse order. However, you must make sure that the little slots underneath the bracket fit onto the frame of the range cooker. This may take some practice.

Removing the Inside Panels from the Oven

In order to remove the inside panels from the oven, follow these steps:

open the oven door completely
- remove all racks and baking sheets from the oven cavity

There are two large screws that you can unscrew on the sides, after which the side panels can be easily removed.

Cleaning the Oven Cavity

Wait until the oven has cooled down completely, then clean it with lukewarm water and a mild cleaning agent. Never use knives, steel-wool pads or other abrasive products or objects for cleaning purposes. This might damage the finish on the

inside of your oven. Make sure that food spills are removed after every cooking session, in order to prevent damage. An additional advantage of regular cleaning is that there will be fewer unpleasant odours the next time you use the oven.

Fig. 3

Fig. 4

Environmental Regulations

Never leave packaging unsupervised. Separate the various packing materials by type, and take them to the nearest waste sorting station in your municipality.

We use non-polluting and therefore environmentally-friendly and recyclable materials for the packaging of our products. We ask for your cooperation in making sure that the packing materials are processed properly. Addresses for collection, recycling and processing centers are available at your dealer or the appropriate local institutions.

Never simply dump packaging or parts of it. This could be a choking hazard for children, particularly the plastic bags. You are also responsible for proper processing of the old appliance.

Important: take the appliance to a local company authorized to collect discarded household appliances. With proper processing, valuable materials can be recycled in an intelligent fashion. Before you dispose of your appliance,

it is important that you remove the door, and leave the racks in functional position in order to avoid children getting shut into the oven cavity while playing. In addition, you should cut off the electrical power cord, and remove it together with the plug. The guidelines determine standards for collection and recycling of discarded appliances which apply to the entire European Union.
