BHP003 - Earphones Gembird - Free user manual and instructions

Product Type	In-Ear Headphones
Brand	Gembird
Model	BHP003
Dimensions (earphone)	Approximately 1.5 x 1.5 x 2 cm
Weight (pair)	Approximately 12 g
Connection Type	3.5 mm jack or Bluetooth 5.0 (depending on version)
Cable Length	1.2 m (for wired version)
Battery Life	Up to 4 hours (for wireless version)
Battery	Lithium-ion 40 mAh per earbud
Impedance	32 ohms
Frequency Response	20 Hz - 20 kHz
Speaker	Diameter 10 mm
Microphone	Built-in (depending on version)
Controls	Multifunction button (play/pause, call)
Included Accessories	Silicone ear tips (3 sizes), USB cable (if wireless)
Care and Cleaning	Clean with a soft, dry cloth. Do not immerse in water.
Storage	In a dry place at room temperature
Safety	Do not use at high volume for extended periods to protect hearing
Warranty	36 months
Spare Parts	Ear tips, cable (depending on model)
Repairability	Limited, prefer after-sales service

Frequently Asked Questions - BHP003 Gembird

How to connect Gembird BHP003 earphones to my smartphone?

If your earphones are wireless, enable Bluetooth and select 'Gembird BHP003' from the list. For the wired version, simply plug in the 3.5 mm jack.

What to do if one earphone stops working?

Check the connection (wired) or charge (wireless). Try resetting the earphones by placing them back in the charging case. If the issue persists, contact customer service.

How to clean the earphones?

Use a soft, dry cloth to wipe the earphones. Remove the silicone ear tips and wash them with soapy water, then dry them before reattaching.

What is the battery life?

For the wireless version, battery life is approximately 4 hours of continuous playback. The charging case provides additional recharges. Charging time is about 1 hour.

What to do if the sound is distorted or low?

Clean the earphone mesh with a soft brush. Make sure your device volume is sufficient. Check that the ear tips fit your ear properly.

Are the earphones water-resistant?

No, they are not waterproof. Avoid moisture and excessive sweat. Store them in a case after use.

How to reset the earphones?

Place the earphones in the charging case, press and hold the multifunction button for 10 seconds until the indicator flashes quickly. They will then be reset.

Can I use a single earbud at a time?

Yes, wireless earphones can be used individually (mono mode). Remove one earbud from the case and pair it alone.

How to change the ear tips?

Gently pull the ear tip to remove it. Align the new ear tip with the earphone nozzle and push firmly until it is securely attached.

What to do in case of loss or damage?

Contact Gembird support for replacement options. Keep your proof of purchase for the 36-month warranty.

USER MANUAL BHP003 Gembird

Abstract logo design featuring a stylized arrow and 'GE' letters, no readable text or symbols beyond the graphic elements.

GEMBIRD®

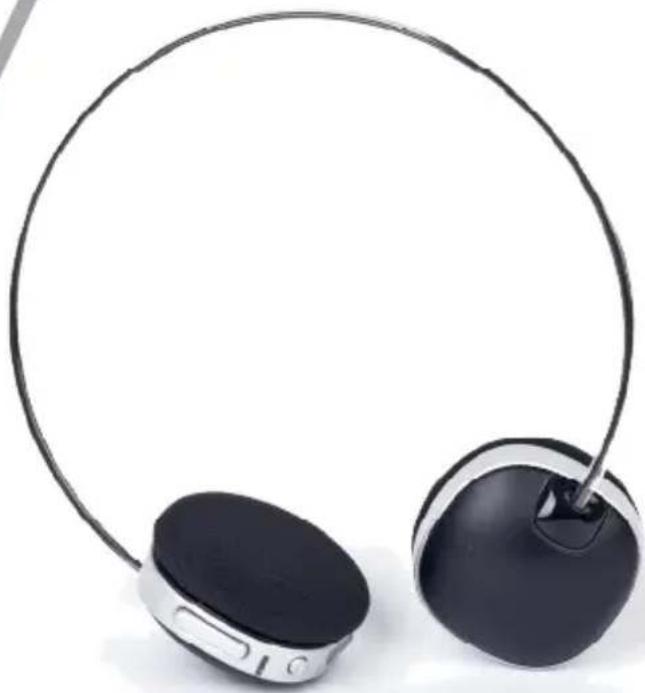

Close-up of a black and silver multi-band headphones with earbuds, shown against a plain white background (no text or symbols visible)

BLUETOOTH STEREO HEADSET

BLUETOOTH STEREO HEADSET

BLUETOOTH STEREO HEADSET

CASQUE STÉRÉO BLUETOOTH

• Bluetooth stereo headphones with built-in microphone
  • Advanced DSP noise reduction technology
  • Up to 500 hours of standby time and 15 hours of listening time
  • Automatically mutes your music in case of incoming calls
  • Multifunction button, volume control and low battery indication
  • Comfortable ear cushions and adjustable headband

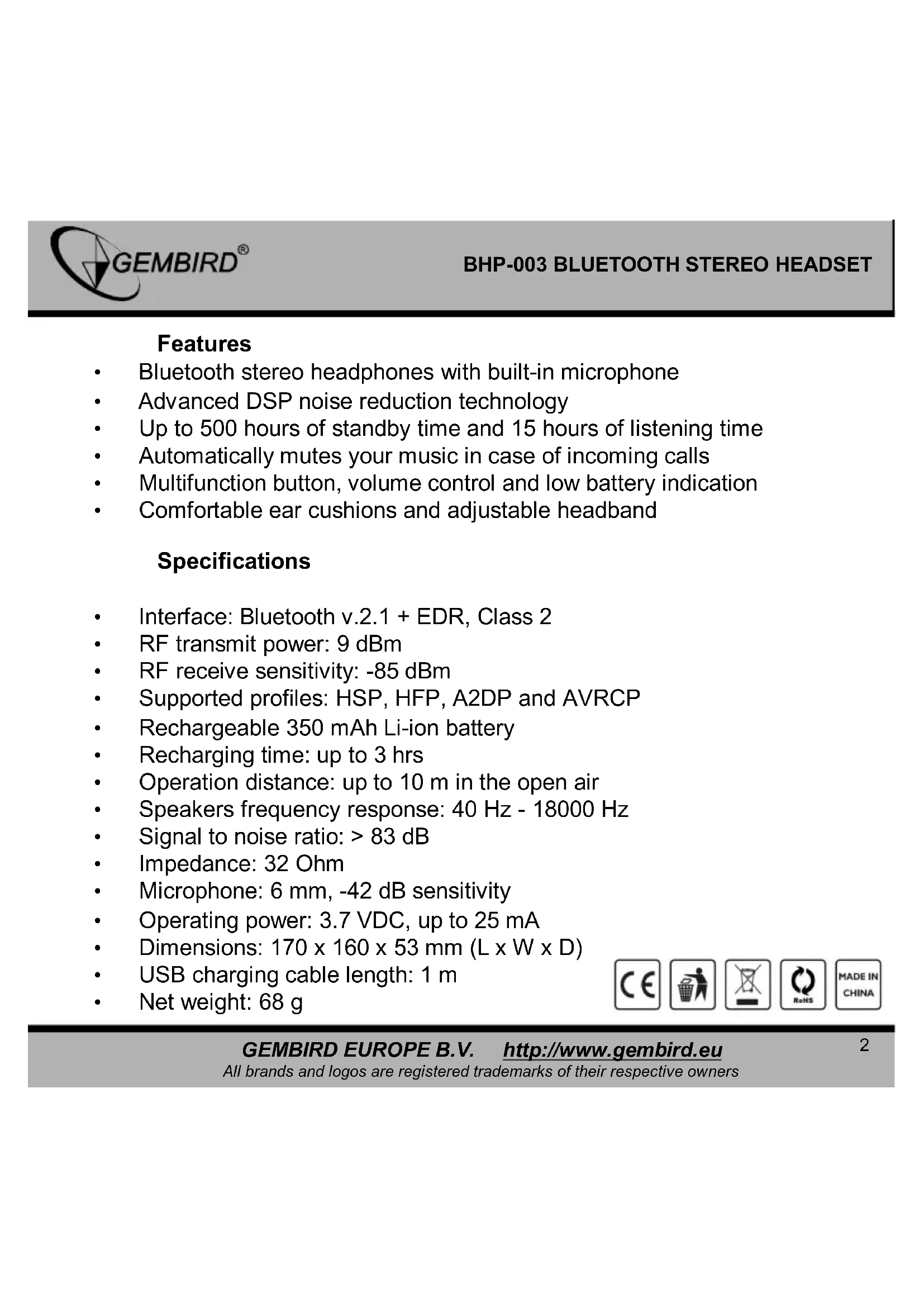

Specifications

• Interface: Bluetooth v.2.1 + EDR, Class 2
• RF transmit power: 9 dBm
• RF receive sensitivity: -85 dBm
• Supported profiles: HSP, HFP, A2DP and AVRCP
• Rechargeable 350 mAh Li-ion battery
• Recharging time: up to 3 hrs
• Operation distance: up to 10 m in the open air
• Speakers frequency response: 40 Hz - 18000 Hz
• Signal to noise ratio: > 83 dB
• Impedance: 32 Ohm
• Microphone: 6 mm, -42 dB sensitivity
• Operating power: 3.7 VDC, up to 25 mA
• Dimensions: 170 x 160 x 53 mm (L x W x D)
• USB charging cable length: 1 m
• Net weight: 68 g

CE ReHS MADE IN CHINA

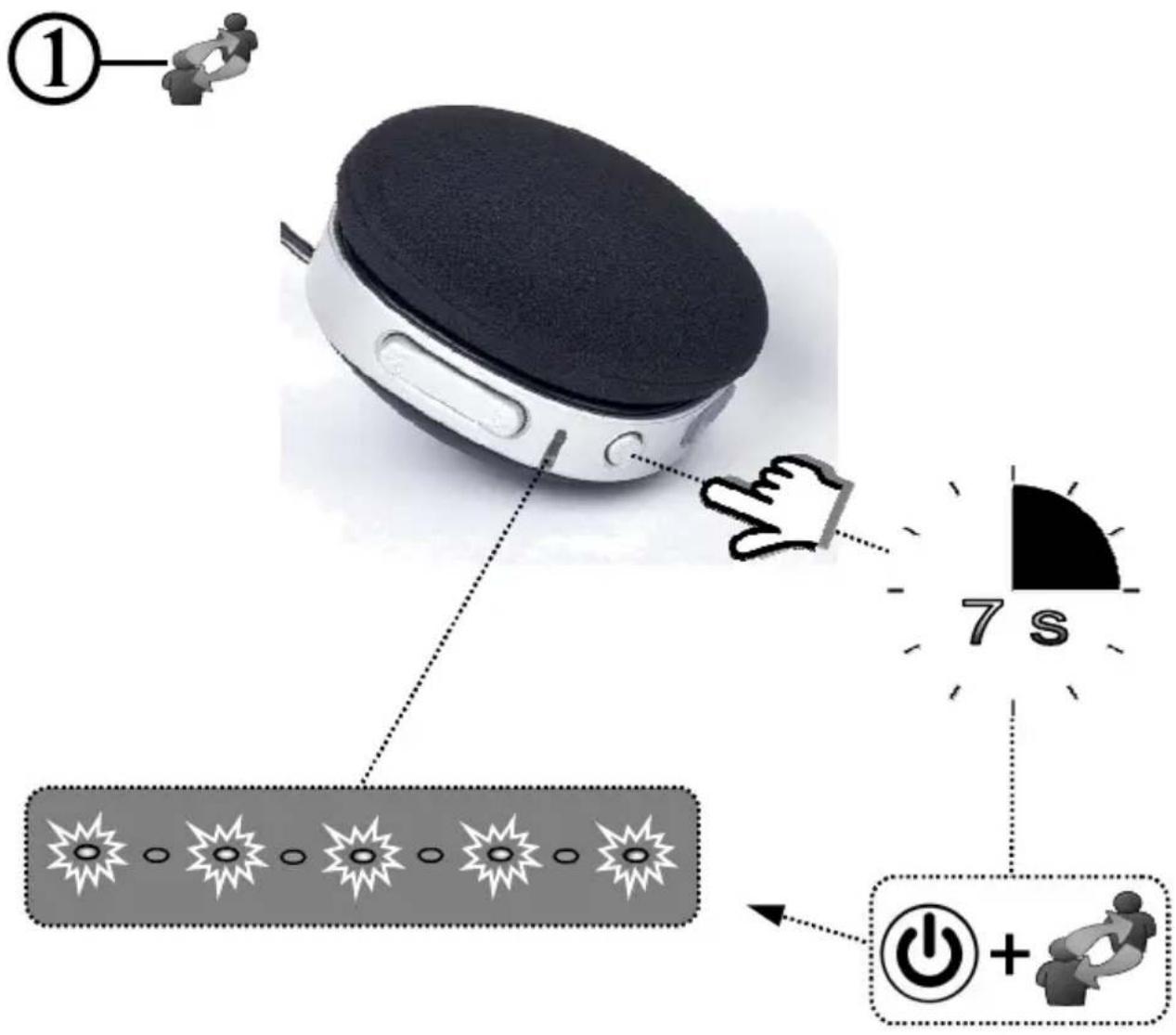

(①—) 7 s ①—

②

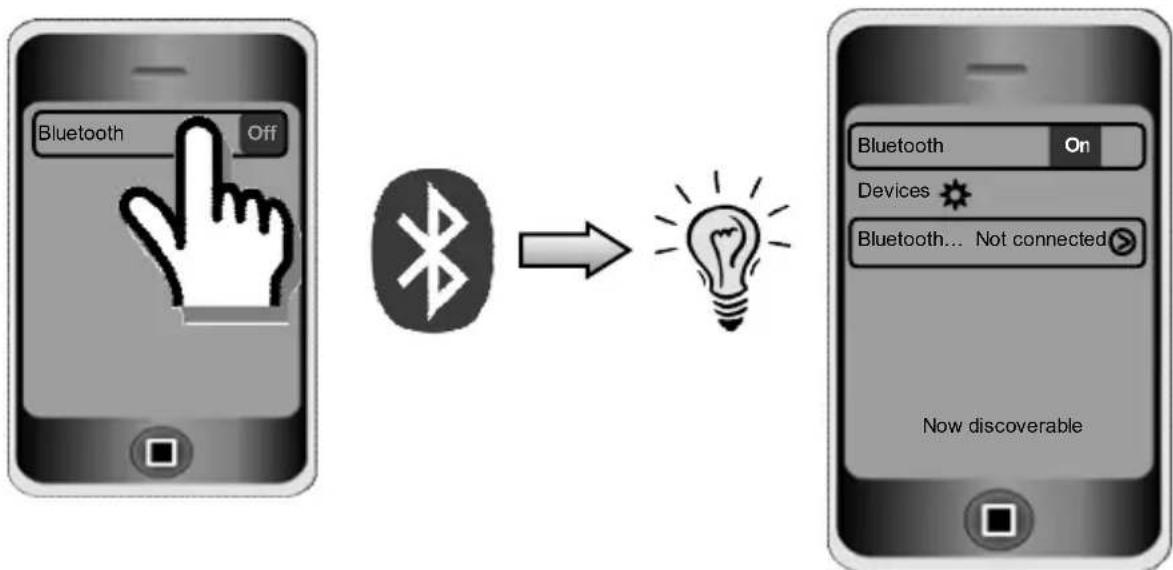


③

BTCC-001 PIN 0000

④—○/○

5 s ① / ○

Black circular icon with an exclamation mark symbol (no text or numbers)

Hand-drawn sketch showing a hand washing a cup with water droplets above, likely illustrating a hygiene or health concept.

Safety warning sign showing sun and a person with fever, crossed by a diagonal line indicating no heat.

Simple line drawing of a hand holding a screwdriver with a screw and two additional screws nearby (no text or symbols)

Simple line drawing of a container with a cross symbol crossed out, and abstract shapes including a flag and paperclip above (no text or symbols)

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

BHP-003B

Product description :

BHP-003B Bluetooth stereo headset, black color

European standards:

R&TTE ETSI 301489:2002; ETSI 30022:2000; 0 EN60950:2001; 1999/5/

EC; EN55022:2006; EN55024:1998+A1:2001+A2:2003;

EN61000-3-2:2000+A2:2005; EN61000-3-3:1995+A1:2001+A2:2005

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

CONDITIONS DE GARANTIE

1358CD Almere, The Netherlands

www.gembird.nl/support

[e-mail]

[phone]
