USER MANUAL SAVE305 SONY

MicroSatellite System

Operating Instructions GB

Mode d'emploi FR

Owner's Record

The model and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. SA-VE505/VE502/VE305/VE302 Serial No.

SA-VE505

SA-VE502

SA-VE305

SA-VE302

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

NOTICE FOR THE CUSTOMERS IN THE USA

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Note to CATV system installer:

This reminder is provided to call CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTICE FOR THE CUSTOMERS IN CANADA

CAUTION

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

AR46

Table of Contents

Hooking up the system 4

Positioning the speakers. 7

Listening to the sound 8

Adjusting the sound 9

Precautions 11

Troubleshooting 12

Specifications 12

About this manual

The instructions in this manual are for SA-VE505, SA-VE502, SA-VE305, and SA-VE302, Sony Micro Satellite Systems.

Differences between the systems

SA-VE505 and SA-VE305

The SA-VE505 and SA-VE305 are 5.1 channel speaker systems consisting of two front speakers, two rear speakers, one center speaker, and one subwoofer. Both support Sony Digital

Cinema Sound, Dolby* Pro Logic, and Dolby Digital (AC-3), and are thus geared towards the enjoyment of movies.

SA-VE502 and SA-VE302

Consisting of two front speakers and one subwoofer, the SA-VE502 and SA-VE302 are suited for the enjoyment of music.

• Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol [D], "PRO LOGIC" and "Dolby Digital (AC-3)" are trademarks of Dolby Laboratories Licensing Corporation.

Any difference in operation is clearly indicated in the text, for example, "SA-VE505 only."

Hooking up the system

Connect the speaker system to the speaker output terminals of an amplifier.

Make sure power to all components (included the subwoofer) is turned off before starting the hook-up.

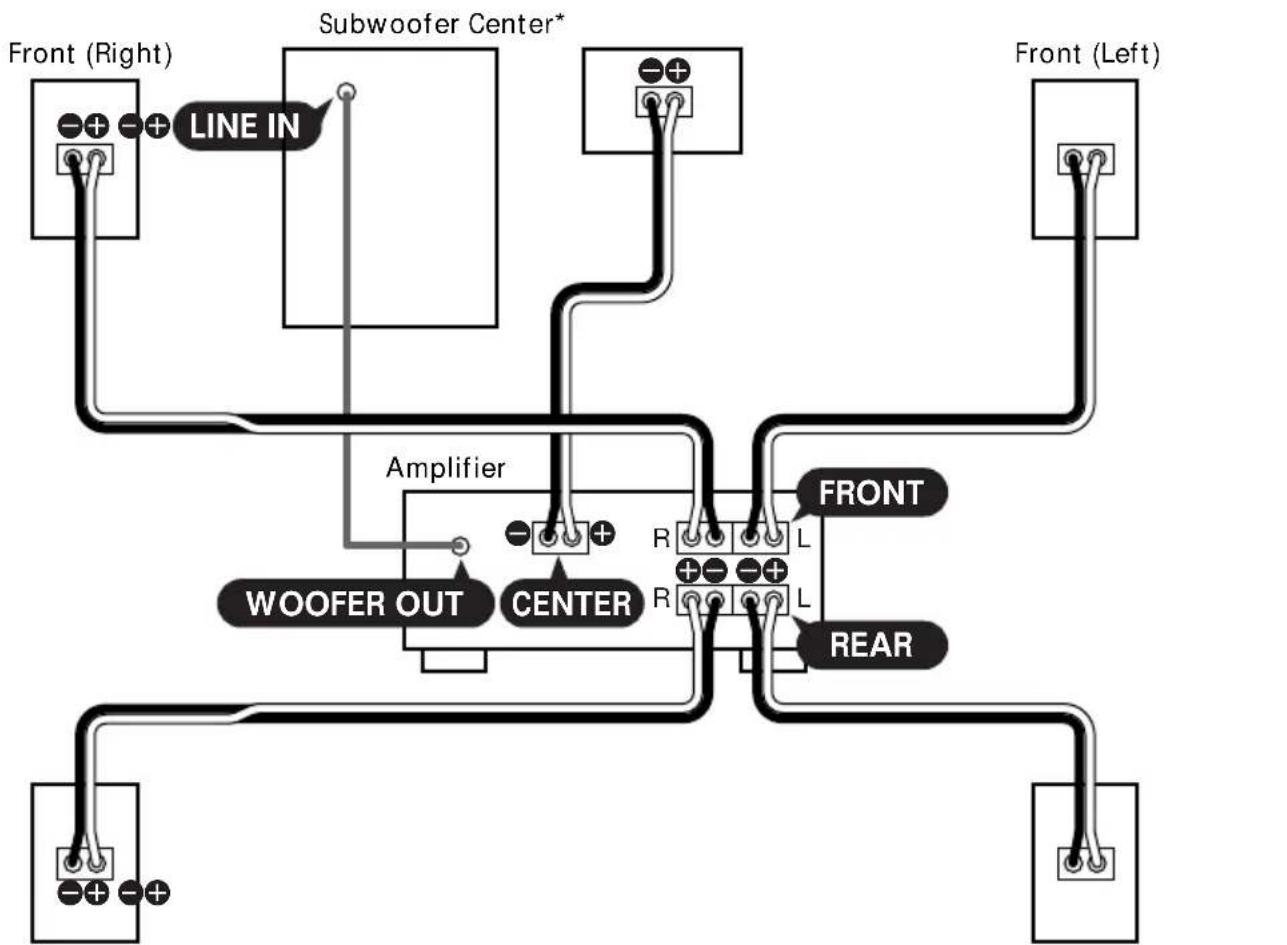

Hookup A (for SA-VE505/VE305)

This configuration is used when the amplifier is connected to a DVD player, LD player, VCR or other video devices.

Rear (Left)Rear (Right)

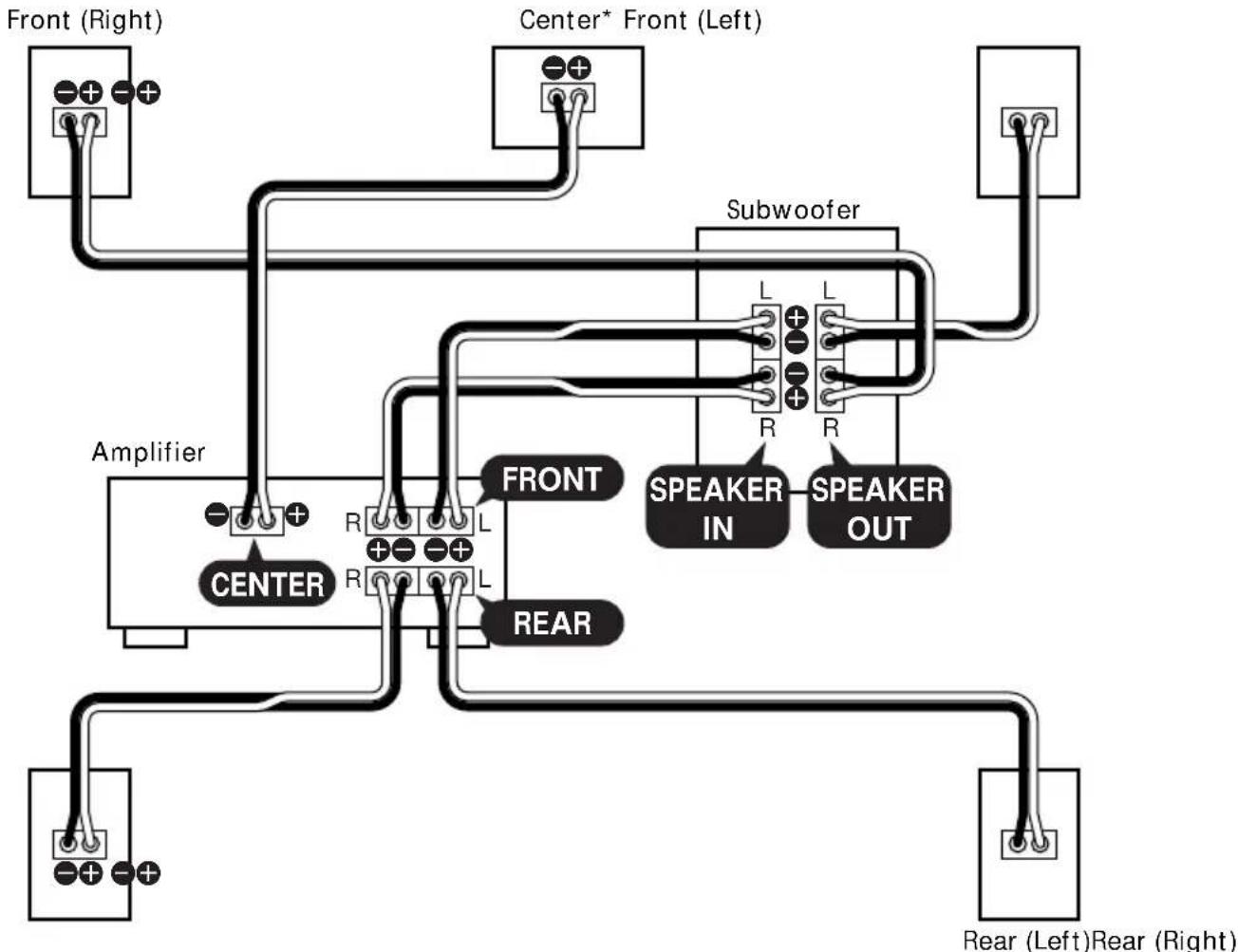

Hookup B (for SA-VE505/VE305)

Try this configuration instead of "Hookup A" in the following situations:

• When there are no jacks on the amplifier for a subwoofer.
• When you want stronger bass sound from the subwoofer.

* (SA-VE505 only) Connect the center speaker to the amplifier and mount it onto the supplied speaker stand for placement on the top of the TV set (see page 7).

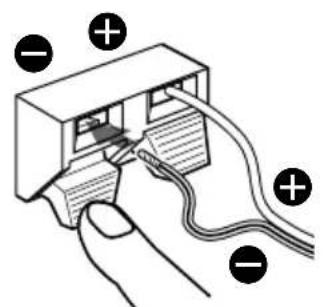

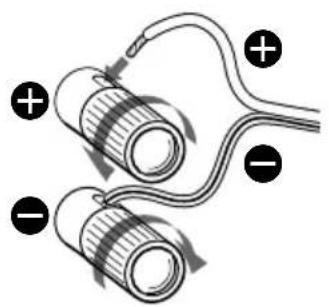

Terminal (jack) connections

Hooking up the system (continued)

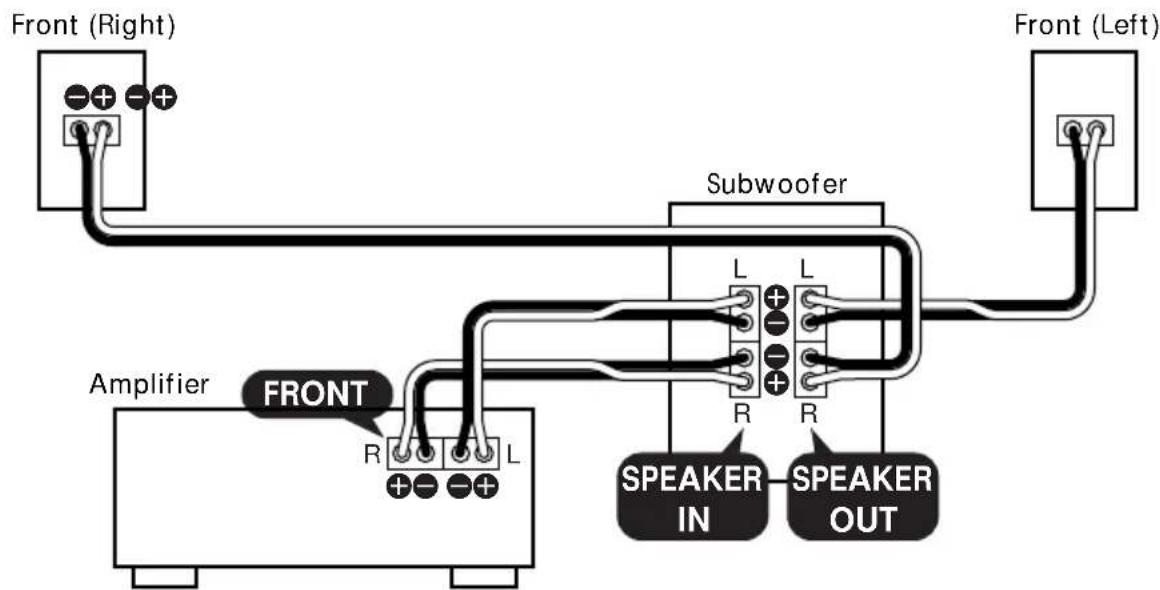

Hookup C (for SA-VE502/VE302)

This configuration is used when the amplifier is connected to a CD player, MD deck, cassette deck, or other audio devices.

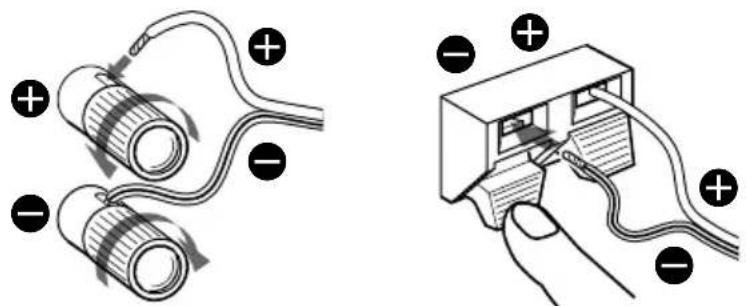

Terminal connections

Notes

• Make sure the plus (+) and the minus (-) terminals on the speakers are matched to the corresponding the plus (+) and the minus (-) terminals on the amplifier.
• Be sure to tighten the screws of the speaker terminals securely since loose screws may become a source of noise.
• Make sure all connections are firm. Contact between bear speaker wires at the speaker terminals may cause a short-circuit.
• Do not connect the subwoofer to the amplifier's CENTER output terminal (which is for Dolby Pro Logic or Dolby Digital (AC-3)). No bass will output from the subwoofer if you do.
• For details regarding the connections on the amplifier side, refer to the manual that was provided with your amplifier.

Tip

It is convenient to remember that all striped wires are minus (-) in polarity and should be connected to the minus (-) speaker terminals.

Positioning the speakers

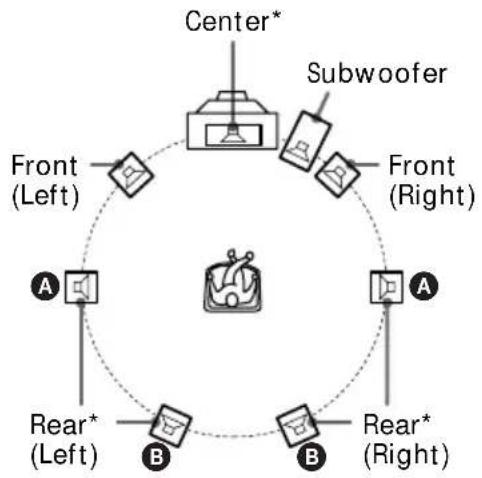

Location of each speaker

* SA-VE505/VE305 only

Each speaker should face the listening position. Better surround effect will result if all speakers are set at the same distance from the listening position.

Place the front speakers at a suitable distance to the left and right of the television.

Place the subwoofer on either side of the television.

Place the center speaker on the top-center of the TV set.

The placement of rear speakers greatly depends on the configuration of the room.

The rear speakers may be placed on both sides of the listening position A or behind the listening position B.

Tips

Movies are best enjoyed in a room that produces no echoes (as in one with surrounding curtains).
- Music (especially classical music) is best enjoyed in a room that produces some echo.

Setting the center speaker

SA-VE505

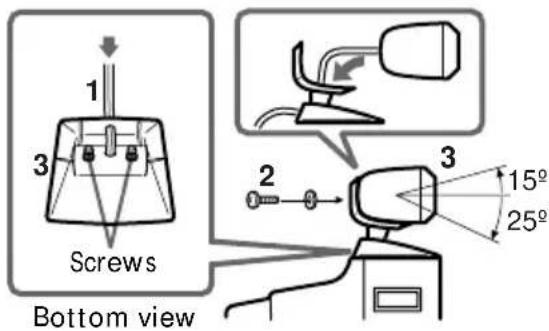

Attach the center speaker to supplied speaker stand and place it on a top of the TV set.

For optimum listening enjoyment, the speaker should face directly towards the listener. Adjust the angle of the speaker for that purpose.

1 Pass the speaker cord into the hole on the back of the base and out from the hole at the bottom of the mount.
2 Secure the center speaker to the mount with the supplied screw.
3 Adjust the angle of the speaker stand. Loosen the two screws under the base to adjust the angle, then tighten them again afterwards.

SA-VE305

Attach the supplied foot pads to the bottom of the center speaker, one in each of the four corners. Set the speaker firmly on top of the TV set, then make sure it is completely level.

Positioning the speakers (continued)

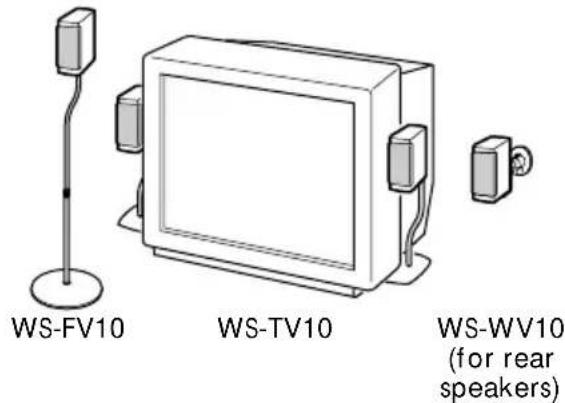

Setting up other speakers

For greater flexibility in the positioning of the speakers, use the optional WS-FV10, WS-TV10, or WS-WV10 speaker stand (available only in certain countries).

SA-VE505/VE502 only

You can attach the supplied foot pads to the bottom of the speakers, one in each corner.

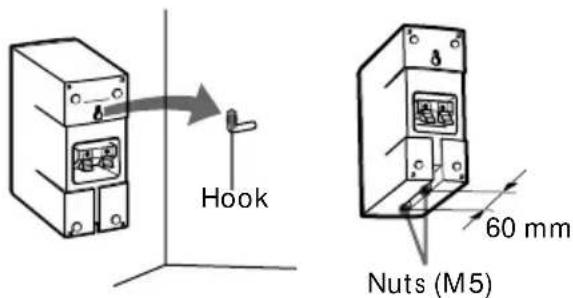

SA-VE305/VE302 only

You can hang or install the front (and rear) speakers on a wall using hooks or nuts (commercially available).

Note

You are responsible for the proper selection and use of mounting hardware that you purchase at a hardware store, and for the proper and safe mounting of the speakers.

Tip (for SA-VE505/VE305)

The height of the front speakers should be adjusted to about the center of the TV screen.

Listening to the sound

SA-VE505/VE502

SA-VE305/VE302

First, turn down the volume on the amplifier. The volume should be set to minimum before you begin playing the program source.

1 Turn on the amplifier and select the program source.
2 Press ① on the subwoofer. The ① indicator on the subwoofer lights up green.
3 Play the program source.

Power turns on and off automatically - Auto power on/off function (SA-VE505/VE502 only)

When the subwoofer is on (i.e, the indicator lights up green) and there is no signal input for a few minutes, the indicator changes to red and the subwoofer enters power saving mode. While in this mode a signal is input to the subwoofer, the subwoofer automatically turns on (auto power on/off function). To turn this feature off, slide the POWER SAVE switch on the rear panel to OFF.

Note

If you turn down the volume level of the subwoofer too low, the auto power on/off function may activate, causing the subwoofer to enter power saving mode.

Adjusting the sound

Slight adjustments to the system can enhance your sound enjoyment.

Adjusting the subwoofer

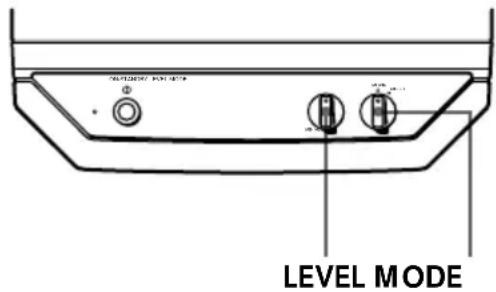

SA-VE505/VE502

1 Set MODE according to the program source as follows:

Source MODE

DVD, LD, video cassette MOVIE or other video source

MD, CD, cassette tape MUSIC or other audio source

2 Rotate LEVEL to adjust the volume. Set the volume level to suit the program source.

Notes

• Some amplifier functions for enhancing the sound may cause distortion in the subwoofer. If such distortion occurs, turn off those functions.
• To enjoy high-quality sound, do not turn the subwoofer volume too high.
  To increase the bass sound from the subwoofer, connect the system using "Hookup B" (see page 5).

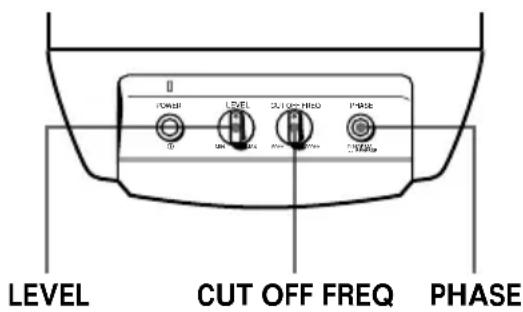

SA-VE305/VE302

1 Rotate CUT OFF FREQ to set a cut-off frequency of 100Hz to 150Hz (or between 1 o'clock and 3 o'clock position, in terms of position). For Dolby Digital (AC-3), set the cut-off frequency to the maximum level (200Hz)
2 Rotate LEVEL to adjust the volume. Set the volume level to suit the program source.
3 Press PHASE to select the phase polarity (NORMAL or REVERSE). Set PHASE to NORMAL when Dolby Digital (AC-3) is on.

Tip

The proper phase polarity depends on the location of a subwoofer or adjustment of the cut-off frequency.

Try both settings and select the one that suits your listening taste.

Notes

• Some amplifier functions for enhancing the sound may cause distortion in the subwoofer. If such distortion occurs, turn off those functions.
• To enjoy high-quality sound, do not turn the subwoofer volume too high.
  To increase the bass sound from the subwoofer, connect the system using "Hookup B" (see page 5).

Adjusting the sound (continued)

Setting your amplifier to enjoy movies (SA-VE505/VE305 only)

For the Dolby Digital (AC-3)

If your amplifier is connected internally or externally with a Dolby Digital (AC-3) processor, you should use the some setup menus in the amplifier to specify the parameters of your speaker system.

See the table below for the proper settings. For details on the setting procedure, refer to the manual that was provided with your amplifier.

When "Hookup A" is used (Speaker setup)

For Set to

Front speakers SMALL

Center speaker SMALL

Rear speakers SMALL

Subwoofer ON (or YES)

(Other setup)

Menu Set to

LFE MIX* -10 dB

BASS BOOST** ON

• Low Frequency Effect

**A function that reinforces the bass sound

When "Hookup B" is used (Speaker setup)

For Set to

Front speakers LARGE

Center speaker SMALL

Rear speakers SMALL

Subwoofer OFF (or NO)

(Other setup)

Menu Set to

LFE MIX-10 dB

BASS BOOST ON

For the Dolby Pro Logic

If your amplifier is connected internally or externally with a Dolby Pro Logic processor, you should set the surround effect mode to "NORMAL" in the amplifier for your particular speaker system.

For details on the setting procedure, refer to the manual that was provided with your amplifier.

Precautions

On safety

• Before operating the system, be sure that the operating voltage of the system is identical with that of your local power supply.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the system from the wall outlet if it is not to be used for an extended period of time. To disconnect the cord, pull the cord by grasping the plug. Never pull the cord itself.
• Should any liquid or solid object fall into the system, unplug the system's power cord and have the system checked by qualified personnel before operating it any further.
• AC power cord must be changed only at the qualified service shop.

On operation

• Do not drive the speaker system with a continuous wattage exceeding the maximum input power of the system.
• If the polarity of the speaker connections are not correct, the bass tones will be weak and the position of the various instruments obscure.
• Contact between bear speaker wires at the speaker terminals may result in a short-circuit.
• Before connecting, turn off the amplifier to avoid damaging the speaker system.
• The speaker grille cannot be removed. Do not attempt to remove the grille on the speaker system. If you try to remove it, you may damage the speaker.

If you encounter color irregularity on a near by TV screen

This speaker system is magnetically shielded to allow it to be installed near a TV set. However, color irregularities may still be observed on certain types of TV sets.

If color irregularity is observed...

Turn off the TV set once, then turn it on again after 15 to 30 minutes.

If color irregularity is observed again...

Place the speakers further away from the TV set.

If howling occurs

Reposition the speakers or turn down the volume on the amplifier.

On placement

• Do not place the speakers in an inclined position.
• Do not place the speakers in locations that are:

Extremely hot or cold
Dusty or dirty
— Very humid
Subject to vibrations
Subject to direct sunlight

On cleaning

Clean the speaker cabinets with a soft cloth lightly moistened with a mild detergent solution or water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

If you have any questions or problems concerning your speaker system, please consult your nearest Sony dealer.

Troubleshooting

Should you encounter a problem with your speaker system, check the following list and take the indicated measures. If the problem persist, consult your nearest Sony dealer.

There is no sound from the speaker system.

Make sure all the connections have been correctly made.
- Make sure the volume on the amplifier has been turned up properly.
- Make sure the program source selector on the amplifier is set to the proper source.
- Check if headphones are connected. If they are, disconnect them.

There is distortion in the subwoofer sound output.

• Make sure the cut-off frequency on the subwoofer set to the maximum level (200 Hz) when Dolby Digital (AC-3) is on (SA-VE305 only).
• Check if any sound-enhancing functions have been activated on the amplifier. If they have, turn them off.

There is hum or noise in the speaker output.

Make sure all the connections have been correctly made.
- Make sure none of the audio components are positioned too close to the TV set.

The sound has suddenly stopped.

• Make sure all the connections have been correctly made. Contact between bear speaker wires at the speaker terminals may cause a short-circuit.

Specifications

SA-VE505/VE502

For the U.S. model

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC DISTORTION:

with 8 ohm loads both channels driven, from 20 - 150Hz ; rated 100 watts per channel minimum RMS power, with no more than 0.8% total harmonic distortion from 250 milliwatts to rated output.

SS-MS5 (front, center, and rear speakers)

Speaker system Full range · 2 magnetically shielded
Speaker units 5cm (2 in.), balance drive type
Enclosure type Bass reflex
Rated impedance 8 ohms
Power handling capacity
Maximum input power: 120 watts
Sensitivity level 87 dB (1 W, 1 m)
Frequency range 120Hz - 20,000Hz Dimensions (w/h/d) Approx. 77· 131 105mm(3^1 / 8· 5^1 / 4· 4^1 / 4 in.), including front grille Approx. 131 · 125 · 113mm(5^1 / 4· 5· 4^1 / 2 in.), with center speaker stand attached

Mass Approx. 730g (1 lb 10 oz)

each

SA-WMS5 (subwoofer)

System

Speaker system Active subwoofer, magnetically shielded
Speaker unit Woofer: 20 cm (8 in.), cone type

Enclosure type Advanced SAW type

Practical maximum output

100W

Reproduction frequency range 26 Hz - 150 Hz

Inputs

LINE IN (input pin jack)
SPEAKER IN (input terminals)

Outputs

LINE OUT (output pin jack) SPEAKER OUT (output terminals)

General

Power requirements
USA and Canada: 120 V AC, 60 Hz
Europe: 220 - 230 V AC, 50/60 Hz
Others: 220 - 240 V AC, 50/60 Hz
Power consumptions 80 W

Dimensions (w / h / d) Approx. 230· 380·

440mm (91/8·15·

17 3/8 in.), including front grille

Mass Approx. 13kg

(28 lb 10 oz)

Supplied accessories

SA-VE505

Foot pads (16)

Center speaker stand (1)

Screw (for the center speaker stand) (1)

Washer (for the center speaker stand) (1)

Audio connecting cord (1)

Speaker connecting cords, 10m (32 ft 9^3 / 4 in.) (2)

Speaker connecting cords, 2.5m

(8 ft 2^1 / _2 in.) (5)

SA-VE502

Foot pads (8)

Audio connecting cord (1)

Speaker connecting cords, 2.5m

(8 ft 2^1 / 2 in.) (4)

Design and specifications are subject to change without notice.

SA-VE305/VE302

For the U.S. model

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION:

with 6 ohm loads both channels driven, from

20 - 150 Hz; rated 100 watts per channel minimum RMS power, with no more than

0.8% total harmonic distortion from

250 milliwatts to rated output.

SS-V305 (front and rear speakers)

Speaker system Full range, magnetically shielded

Speaker units 5· 9cm (2· 3^5 / 8 in.), cone type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 100 watts

Sensitivity level 86 dB (1 W, 1 m)

Frequency range 90Hz - 20,000Hz

Dimensions (w/h/d) Approx. 68·151

135mm (2^3 / 4· 6·

5^3 / 8 in.), including front grille

Mass Approx. 790g (1 lb 12 oz)

each

SS-CN305 (center speaker)

Speaker system Full range · 2

magnetically shielded

Speaker units 5· 9cm (2· 3^5 / 8 in.),

cone type

Enclosure type Bass reflex

Rated impedance 8 ohms

Power handling capacity

Maximum input power: 120 watts

Sensitivity level 88 dB (1 W, 1 m)

Frequency range 90Hz - 20,000Hz

Dimensions (w/h/d) Approx. 301·68

137mm (11^7 / 8· 2^3 / 4

5^1 / 2 in.), including front grille

Mass Approx. 1.5kg 3 lb 5 oz

Speaker system Active subwoofer,

magnetically shielded

Speaker unit Woofer: 16cm (6 3/8 in.),

cone type

Enclosure type Advanced SAW type

Practical maximum output

USA:60W

Others: 50 W

Reproduction frequency range

28 Hz - 200 Hz

High frequency cut-off frequency

50 Hz - 200 Hz

Phase selector NORMAL, REVERSE

Inputs

LINE IN (input pin jack)

SPEAKER IN (input terminals)

Outputs

LINE OUT (output pin jack)

SPEAKER OUT (output terminals)

General

Power requirements

USA and Canada: 120VAC,60Hz

Europe: 220 - 230 V AC, 50/60 Hz

Singapore and Malaysia: 110 - 220/220 - 240 V AC

50 / 60Hz

Others: 220 - 240 V AC, 50/60 Hz

Power consumptions

USA:35 W

Others: 45 W

Dimensions (w / h / d)

Approx. 205·380

15^5 / 8 in.), including front

grille

Mass Approx. 9.5kg

(20 lb 15 oz)

Supplied accessories

SA-VE305

Foot pads (4)

Audio connecting cord (1)

Speaker connecting cords, 10m (32 ft 9^3 / 4 in.) (2)

Speaker connecting cords, 2.5m

(8 ft 2^1 / 2 in.) (5)

SA-VE302

Audio connecting cord (1)

Speaker connecting cords, 2.5m

(8 ft 2^1 / 2 in.) (4)

Design and specifications are subject to change without notice.

AVERTISSEMENT

SPEAKER IN (bornes d'entree)

Sorties

LINE OUT (prise cinch de sortie)

SPEAKER OUT (boredes de sortie)

Généralités

Alimentation

SPEAKER OUT (bornes de sortie)

Généralités

Alimentation
