USER MANUAL MHCDP1000D SONY

Mini Hi-Fi Component System

Operating Instructions GB

Mode d'emploi FR

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

U.S.A. model

This label is located on the rear exterior.

European model

The following caution label is located inside the apparatus.

To prevent fire, do not Cover the ventilation of the apparatus with news papers, table-cloths, curtains, etc. And don't place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Don't throw a battery, dispose it as the injurious wastes.

This system incorporates Dolby Digital, Pro Logic Surround, DTS*, and the DTS Digital Surround System.

• Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved. **Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. "DTS" and "DTS Digital Surround" are registered trademarks of Digital Theater Systems, Inc. © 1996, 2000 Digital Theater Systems, Inc. All rights reserved.

IMPORTANT NOTICE

Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.

Table of Contents

This system can play the following discs .... 6

Parts Identification

Main unit 7

Remote control 8

digipad operations 9

Getting Started

Hooking up the system 10

Inserting two size AA (R6) batteries into the remote 12

Setting up your speakers for Dolby Pro Logic* 13

Specifying the speaker parameters 14

Setting the time. 15

Saving the power in standby mode..... 16

Setting Up for DVD/VIDEO CD/CD

Using the Setup Display 17

Setting the display or sound track language
— LANGUAGE SETUP 18

Settings for the display
— SCREEN SETUP 19

Custom settings
--- CUSTOM SETUP 20

Speaker settings SPEAKER SETUP. 21

DVD/VIDEO CD/CD

Playing discs:

Loading a disc 23

Playing a disc
— Normal Play/Shuffle Play/
Slow-motion Play/Freeze Frame... 23

Playing DVDs using the menu 25

PlayingVIDEOCDswithPBCfunctions (Ver.2.0) PBCPlay 25

Creating your own program
— Program Play 26

Resuming playback from the point you stopped the disc
—Resume Play 28

Playing repeatedly
— Repeat Play 28

Viewing information about the disc:

Checking the playing time and remaining time 29

Checking the playback information ADVANCED 31

Sound adjustments:

Changing the sound 32

Enjoying movies:

Searching for a title/chapter/track/ index/scene 34

Changing the angles 35

Displaying the subtitles 35

Using various additional functions:

Locking discs
— CUSTOM PARENTAL
CONTROL/PARENTAL
CONTROL 36

Tuner

Preseting radio stations. 40

Listening to the radio Preset Tuning 40

Using the Radio Data System (RDS)** 41

Tape

Loading a tape 42

Playing a tape 42

Recording to a tape
— CD Synchro Recording/
High-Speed Dubbing/Recording
Manually/Program Edit 43

Timer-recording radio programs 45

Sound Adjustment

To listen to multi channel sound 46

About indicators 46

Adjusting the sound 46

Selecting the preset effect file 47

Adjusting the sound effects 47

Creating a personal audio effect file Personal file. 48

Other Features

Changing the spectrum analyzer display 49

To adjust the brightness of the display... 49

Singing along: Karaoke*** 49

Falling asleep to music — Sleep Timer 50

Waking up to music Daily Timer 50

Hooking Up the Optional Components

Connecting audio components 52

Additional Information

Precautions 53

Troubleshooting. 54

Specifications 59

Glossary 62

Language code list 64

Control Menu Item List 65

Setup Display Item List 66

• MHC-DP1000D only.
  ** European model only.
  ***Except for North American and European models.

This system can play the following discs

DVD VIDEOs Audio CDs VIDEO CDs
Disc logo	DVDVIDEO	COMPACT DISC DIGITAL AUDIO TEXT	COMPACT DISC DIGITAL VIDEO
Contents Audio + Audio Audio + Video Video

The "DVD VIDEO" logo is a trademark.

Discs that this system cannot play

• CD-ROMs (PHOTO CDs included)
• All CD-Rs other than music and VCD format CD-Rs
  Data part of CD-Extras
  DVD-ROMs
  DVD Audio discs
• HD layer on SACDs
• 8 cm CDs

Note

Some CD-Rs/CD-RWs or DVD-Rs/DVD-RWs cannot be played on this system depending upon the format or the recording quality or physical condition of the disc, or the characteristics of the recording device.

Furthermore, the disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device.

Region code of DVDs you can play on this system

Your system has a region code printed on the back of the unit and will only play DVDs labeled with identical region code.

DVDs labeled will also be played on this system.

If you try to play any other DVD, the message "Playback prohibited by area limitations." will appear on the TV screen.

Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.

Note on playback operations of DVDs andVIDEO CDs

Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this system plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.

Note on PBC (Playback Control) (VIDEO CDs)

This system conforms to Ver. 1.1 and Ver. 2.0 of VIDEO CD standards. You can enjoy two kinds of playback depending on the disc type.

Disc type	You can
VIDEO CDs without PBC functions (Ver. 1.1 discs)	Enjoy video playback (moving pictures) as well as music.
VIDEO CDs with PBC functions (Ver. 2.0 discs)	Play interactive software using menu screens displayed on the TV screen (PBC Playback), in addition to the video playback functions of Ver. 1.1 discs. Moreover, you can play high-resolution still pictures, if they are included on the disc.

Copyrights

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Macrovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Parts Identification

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses ( ) for details.

Main unit

4

2CH/MULTI 42 (24,46)

CD SYNC HI-DUB [17] (43, 44)

CLOCK/TIMER SET 33 (15,45, 51)

DECKA 21 (42)

DECKB1842

digipad 39 (9,24,40,47)

DIGITAL 26 (52)

DIGITAL IN (OPTICAL) jack 24 (52)

DIRECTION [35] (42-44, 50)

DISC1-3 (23,24)

DISCSKIP EX-CHANGE 3 (23,24)

Disc tray 5 (23)

DISPLAY 31 (16,29,30)

DOLBY NR [36] (42-44)

DSPEDIT47(47)

DVD 30 (12, 25, 26, 34, 43, 44)

DVD DISPLAY 35 (17,28,30)

DVD MENU 19 (25)

EFFECT 43 (47)

ENTER 40 (14, 15, 25-27, 31, 32, 34-41, 44, 45, 47, 51)

FM MODE [36] (41)

GAME 25 (52)

GAME MODE 46 (47)

GROOVE 44 (46)

IR receptor 14

KARAOKE PON (Except for North American and European models) [32] (49)

MD(VIDEO)27(52)

MIC jack (Except for North American and European models) [23] (49)

MIC LEVEL control (Except for North American and European models) [22] (49)

MOVIE MODE [38] (47)

MULTI CHANNEL DECODING indicator 49 (46)

MUSIC MODE 48 (47)

PFILE 45 (48)

PHONES jack 15

PLAY MODE 37 (23, 26, 27, 44)

PTY (European model only) 35 (41)

REC PAUSE/START [16] (43, 44, 50)

REPEAT 36 (28, 29)

SPECTRUM (North American and European models only) 32 (49)

TAPE A/B 28 (42, 43)

TIMER SELECT 34 (45, 51)

TITLE 20 (25)

TOOL MODE 41 (47)

TUNER/BAND 29 (40)

TUNER MEMORY 37 (40)

VOLUME control 13

BUTTON DESCRIPTIONS

1( power) 1
OPEN/CLOSE (disc tray) 4
(play) 6
(pause)
stop8
(10
(go forward) 9
- (rewind) 12
/ + (fast forward) 11

2CH/MULTI (24, 46)

AMP MENU 32 (14, 49)

ANGLE 35 (35)

AUDIO (32)

CLEAR 42 (21, 27, 28, 34)

CLOCK/TIMER SELECT 2 (45, 51)

CLOCK/TIMER SET 3 (15,45, 51)

D.SKIP [2] (23, 24, 28)

DIGITAL 47 (52)

DISPLAY 45 (16,29,30)

DSPEDIT 34(47)

DVD 49 (12, 16, 25, 26, 34, 43, 44)

DVD DISPLAY [23] (17, 28, 30-32, 34-36)

DVD MENU [21] (25)

DVD SET UP [19] (18, 22, 37)

EFFECT ON/OFF [13] (47)

ENTER 28 (14, 15, 17, 25-27, 31, 32, 34-41, 44, 45, 47, 49, 51)

GAME 46 (52)

GAME MODE 29 (47)

MD(VIDEO)48(52)

MOVIE MODE 25 (47)

MUSIC MODE [31] (47)

NEXT 39 (24, 25)

Numeric buttons [8] (26)

PFILE 33 (48)

PREV 40 (24, 25)

REPEAT [10] (28, 29)

RETURN 41 (25,37,38)

SLEEP (50)

SLOW 18 (24)

SPEAKER LEVEL 24 (14)

SPECTRUM 44 (49)

STEP II/II 37 (24)

SUB TITLE 36 (35)

TAPE A/B 51 (42,43)

TITLE 20 (25)

TOOL MODE 27 (47)

TUNER/BAND 50 (40, 41)

TV1/4(12)

TV CH + / - [7] (12)

TV/VIDEO 9 (12)

TV VOL + / - [6] (12)

VOL + / - 26

BUTTON DESCRIPTIONS

I/(power) [5]

(play), SELECT 14

I (pause) 15

stop) 17

/ (rewind/fast forward),

TUNING-/+ [16]

/ (go back/go forward),

PRESET-/+38

A/▼/△/□ 30

10 43

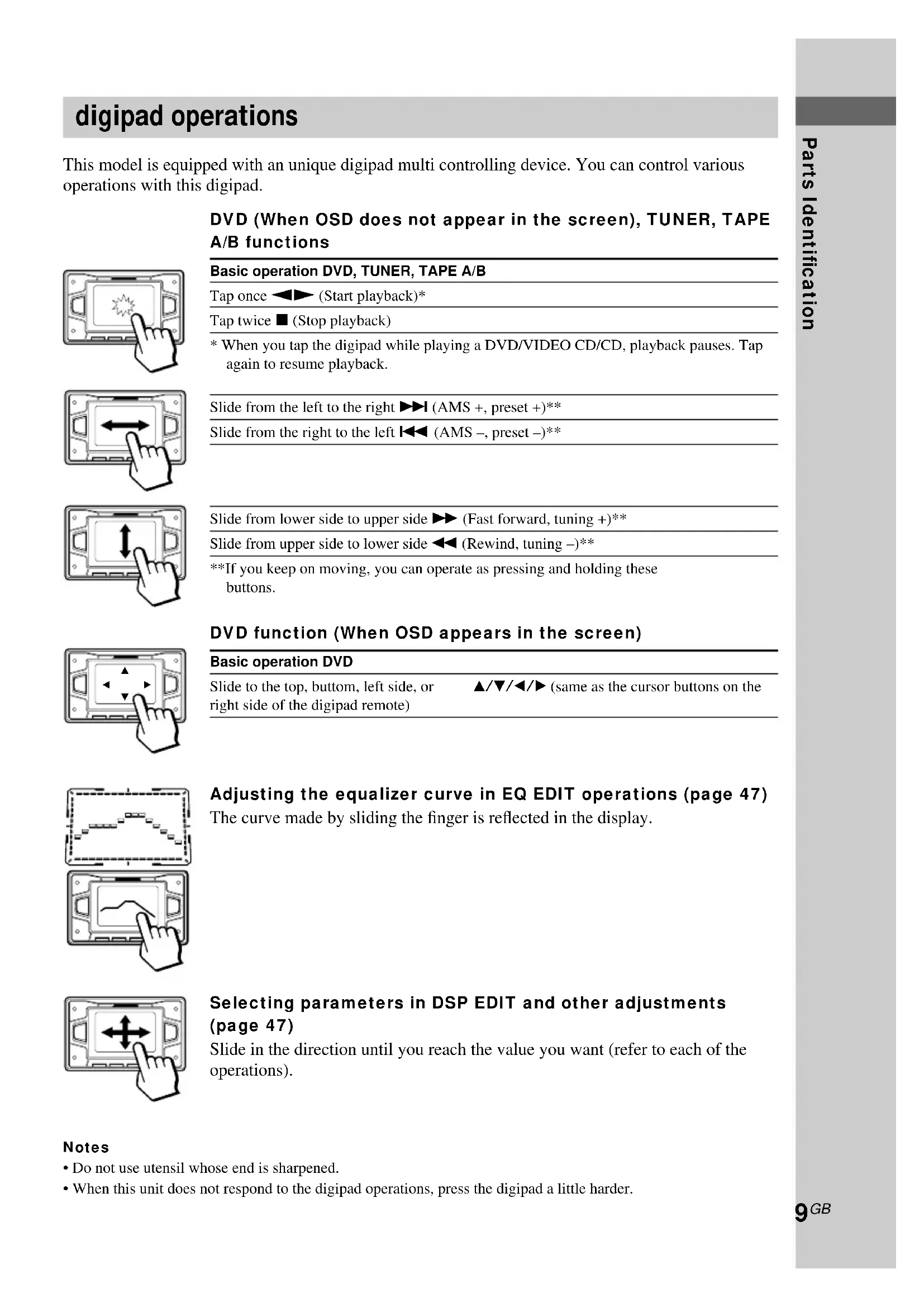

digipad operations

This model is equipped with an unique digipad multi controlling device. You can control various operations with this digipad.

DVD (When OSD does not appear in the screen), TUNER, TAPE A/B functions

Basic operation DVD, TUNER, TAPE A/B

Tap once (Start playback)*

Tap twice (Stop playback)

• When you tap the digipad while playing a DVD/VIDEO CD/CD, playback pauses. Tap again to resume playback.

Slide from the left to the right (AMS ^+ , preset +^*

Slide from the right to the left (AMS-, preset - )**

Slide from lower side to upper side (Fast forward, tuning +)**

Slide from upper side to lower side (Rewind, tuning-)**

**If you keep on moving, you can operate as pressing and holding these buttons.

DVD function (When OSD appears in the screen)

Basic operation DVD

Slide to the top, bottom, left side, or right side of the digipad remote)

/ / / (same as the cursor buttons on the

Adjusting the equalizer curve in EQ EDIT operations (page 47)

The curve made by sliding the finger is reflected in the display.

Selecting parameters in DSP EDIT and other adjustments (page 47)

Slide in the direction until you reach the value you want (refer to each of the operations).

Notes

• Do not use utensil whose end is sharpened.
• When this unit does not respond to the digipad operations, press the digipad a little harder.

Hooking up the system

Do the following procedure 1 to 8 to hook up your system using the supplied cords and accessories.

* MHC-DP1000D only.

1 Connect the front speakers.

Connect the speaker cords to the FRONT SPEAKER jacks (MHC-DP1000D) or SPEAKER jacks (MHC-DP900D).

2 Connect the rear speakers. (MHC-DP1000D only)

Connect the speaker cords to the REAR SPEAKER jacks.

3 Connect the center speaker. (MHC-DP1000D only)

Connect the speaker cords to the CENTER SPEAKER jacks.

4 Connect the FM/AM antennas.

Set up the AM loop antenna, then connect it.

Jack type A Extend the FM lead AM loop antenna antenna horizontally.

Jack type B Extend the FM lead antenna horizontally.

The plug of the FM antenna may vary according to the model you purchased.

5 Connect the video input jack of your TV to the VIDEO OUT jack with the video cable.

When using a TV

Turn on the TV and select the video input so you can view the pictures from this system.

Tip

For even higher quality video images, you can use an optional S-video cable to connect the SVIDEO input jack on your TV to the SVIDEO OUT jack.

6 For models with a voltage selector, set VOLTAGE SELECTOR to the position of your local power line voltage.

7 Connect the power cord to a wall outlet.

The demonstration appears in the display. When you press I/O, the system turns on and the demonstration automatically ends. If the supplied adaptor on the plug does not fit your wall outlet, detach it from the plug (only for models equipped with an adaptor).

continued

Hooking up the system (continued)

8(Except for Pan American and European models)

Set the color system according to your TV.

The color system is factory set to NTSC for region code 3 models, and PAL for other region code models. Each time you perform the procedure below, the color system changes as follows:

NTSC PAL

Use the buttons on the unit.

1 Press / to turn on the system.
2 Press DVD.
3 Press ■.
4 Press I/while holding down The system turns off.
5 Press I/O to turn on the system. The system turns on and the color system is changed.

To attach the speaker pads

Attach the supplied speaker pads to the bottom of the speakers to stabilize the speakers and prevent them from slipping.

Notes

• Keep the speaker cords away from the antennas to prevent noise.
• The type of speakers supplied vary according to the model you purchased (see "Specifications" on page 59).
• Do not place the rear speakers on top of a TV. This may cause color distortion in the TV screen.
• For MHC-DP1000D, be sure to connect both left and right rear speakers. Otherwise, the sound will not be heard.
• When you play a VIDEO CD recorded in the different color system from the one you set to the system, the picture image may be distorted.

Inserting two size AA (R6) batteries into the remote

Operating a Sony TV

You can use the following buttons on the remote to operate a Sony TV.

To Press

Turn the TV on or off TV I/①.

Switch the TV's video input TV/VIDEO.

Change the TV channels TV CH +/-

Adjusts the volume of the TV TV VOL + / - speaker(s)

Tip

When the remote no longer operates the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of time, remove the batteries to avoid possible damage from battery leakage.

Notice for carrying this system

Do the following to protect the DVD mechanism.

1 Turn on the system, then press DVD. Make sure that all discs are removed from the unit.
2 Hold down DVD, then press I/O until "LOCK" appears.
3 Release I/ first, then release DVD.
4 Unplug the AC power cord.

Setting up your speakers for Dolby Pro Logic

(MHC-DP1000D only)

Dolby Pro Logic Surround improves the sound image by using four separate channels. These channels manipulate the sound to be heard and enhance the action on the screen.

Positioning the speakers

For the best possible surround sound, all speakers should be the same distance from the listening position (A). However, this unit lets you to place the center speaker up to 1.5 meters (5 feet) closer (B) and the rear speakers up to 4.5 meters (15 feet) closer (C) to the listening position. The front speakers can be placed from 1.0 to 12.0 meters (3 to 40 feet) from the listening position (A).

Note

Do not place the center speaker farther away from the listening position than the front speakers.

Setting the center speaker

Place the center speaker at about the same height as the front speakers. Align the center speaker with the front speakers or place it slightly behind the front speakers.

Setting the rear speakers

Place the rear speakers facing each other at about 60 to 90cm above your listening position.

continued

Setting up your speakers for Dolby Pro Logic (continued)

Specifying the distance of the speakers

Use the remote for the operation.

1 Press AMP MENU.
2 From your listening position, press or repeatedly to select the parameter. Adjustable parameters are described below.
3 Press or repeatedly to select the setting you want.
4 Repeat steps 2 to 3 to set other parameters.
5 Press ENTER.

Tips

• You can use the digipad instead of the cursor buttons ( / / / ) .
• You can use "SPEAKER SETUP" in the Setup Display to specify the distance of the speakers (page 21).

Note

If each of the front or rear speakers is not placed at an equal distance from your listening position, set the distance of the closest speaker.

Adjustable parameters

The default settings are in the parentheses.

• FRONT: 1.0 meter to 12.0 meters (2.4 meters)
  (3 feet to 40 feet (8 feet))*
  Front speakers distance.
• CENTER: FRONT to 1.5 meters (2.4 meters)
  (FRONT to 5 feet (8 feet))*
  Center speaker distance.
• REAR: FRONT to 4.5 meters (1.5 meters) (FRONT to 15 feet (5 feet))* Rear speakers distance.
• North American model only.

Notes

To enjoy Dolby Pro Logic surround with 2 channel PCM or analog input sources, select "NORMAL SURR" from the sound effect options (see page 47).
- If you press AMP MENU while adjusting parameters using OSD, the OSD turns off.

Specifying the speaker parameters

Use the remote for the operation.

1 From your listening position, press SPEAKER LEVEL.
Adjustable menus and parameters are described below.
2 Press or repeatedly to select the parameter.
3 Press or repeatedly to select the setting you want.
4 Repeat steps 2 to 3 to set other parameters.
5 Press ENTER.

Tips

• You can use the digipad instead of the cursor buttons ( / / / ) .
• You can use "SPEAKER SETUP" in the Setup Display to specify the balance, level, and test tone parameters (page 21).

Adjustable parameters

The default settings are in the parentheses.

BALANCE

• FRNT L_R: (center) Balance between the front left and right speakers.
  (MHC-DP1000D only) REAR L_R: (center) Balance between the rear left and right speakers.

Range: 6 dB (L) to 6 dB (R), 1 dB steps

LEVEL (MHC-DP1000D only)

REAR ** dB: (0 dB) Level of the rear speakers. Range: -6 dB to 6 dB, 1 dB steps
- CTR ** dB: (0 dB)
Level of the center speaker.
Range: -6 dB to 6 dB, 1 dB steps
- SW ** dB: (10 dB)
Level of the sub woofer.
Range: -10 dB to 10 dB, 1 dB steps

LFE

LFE ****: (0 dB)

Level of the LFE (Low Frequency Effect) channel output.
Range: OFF, -20dB to 0dB , 1 dB steps "OFF" cuts the sound of the LFE channel. However, the low frequency sound of the speakers are output from the subwoofer. -20dB to "0 dB" settings allow you to attenuate the LFE signal. "0 dB" outputs the full LFE signal at the mix level determined by the recording engineer.

D.COMP.

D.COMP.: (STD)

Dynamic range compression.
Range: OFF, 0.1 to 0.9, STD, MAX
"OFF" does not compress the dynamic range.
"0.1" to "0.9" settings allow you to compress the dynamic range in small steps. "STD" reproduces the sound track with the dynamic range intended by the recording engineer. "MAX" provides a great compression of the dynamic range.

T.TONE (MHC-DP1000D only)

T.TONE: (OFF)

Test tone output.

Range: OFF, ON

"ON" outputs the test tone from each speaker in sequence. Adjust the LEVEL and BALANCE parameters so that the volume level of the test tone from each speaker sounds the same using the remote from your listening position. Select "OFF" to turn off the test tone.

Notes

• When you adjust the level of the subwoofer, set T.TONE to "OFF".
• Dynamic range compression is possible with Dolby Digital sources only.
• If you press SPEAKER LEVEL while adjusting parameters using OSD, the OSD turns off.

Setting the time

1 Turn on the system.
2 Press CLOCK/TIMER SET.

When you set the time for the first time, proceed to step 5.

3 Press or repeatedly to select "CLOCK SET".
4 Press ENTER.
5 Press or repeatedly to set the hour.
6 Press ENTER.
7 Press I or repeatedly to set the minutes.
8 Press ENTER.

Tip

If you have made a mistake or want to change the time, start over from step 2.

Note

The clock settings are canceled when you disconnect the power cord or if a power failure occurs.

Saving the power in standby mode

Press DISPLAY repeatedly when the power is off.

Each time you press the button, the system switches cyclically as follows:

Demonstration Clock Power Saving Mode

To cancel the Power Saving mode

Press DISPLAY once to show the demonstration, twice to show the clock display.

Tips

• I/ indicator lights up even in the Power Saving Mode.
• The timer functions during the Power Saving Mode.

Note

During the Power Saving Mode, the following functions do not work:
- Setting the time.
- Changing the AM tuning interval (except for European and Middle Eastern models).
- Pressing a function button to turn the power on.
- Switching the function of MD (VIDEO).
- Switching the color system.

Setting Up for DVD/VIDEO CD/CD

Using the Setup Display

By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages 18-22. For an overall list of Setup Display items, see page 66.

The North American model is the model used for OSD (on-screen display) illustration purposes in this section.

Use the remote for the operation.

1 Press DVD.
2 When the playback is stopped, press DVD DISPLAY.

The Control Menu appears.
If you press DVD SET UP, you can go to step 4 directly.
3 Press or repeatedly to select "SETUP", then press ENTER.

The options for "SETUP" appear.

4 Press or repeatedly to select "CUSTOM", then press ENTER.

The Setup Display appears.

5 Press or repeatedly to select the setup item from the displayed list, then press ENTER.

The selected setup item appears.

Example: "SCREEN SETUP"

6 Press or repeatedly to select an item, then press ENTER.

The options for the selected item appear.

Example: "TV TYPE"

7 Press or repeatedly to select a setting, then press ENTER.

The setting is selected and the setup is completed.

Example: "4:3 PAN SCAN"

continued

Using the Setup Display (continued)

To turn off the Setup Display

Press DVD SET UP or DVD DISPLAY repeatedly until the Setup Display is turned off.

Tips

• If you select "RESET" in step 4, you can reset all of the "SETUP" settings on pages 18-22 (except for PARENTAL CONTROL) to the default settings. After you select "RESET" and press ENTER, select "YES" to reset the settings (it takes a few seconds to complete), or select "NO" and press ENTER to return to the Control Menu. Do not press / when resetting the system.
• You can use the digipad instead of cursor buttons ( / / / ) when DVD is selected as the current function and OSD appears on the screen.

Setting the display or sound track language

LANGUAGE SETUP

"LANGUAGE SETUP" allows you to set various languages for the on-screen display or sound track.

Select "LANGUAGE SETUP" in the Setup Display.

OSD (on-screen Display)

Switches the display language on the screen. Select the language from the displayed list.

DVD MENU (DVD only)

Select the language for the DVD menu.*

■AUDIO (DVD only)

Switches the language of the sound track. Select the language from the displayed list.* When you select "ORIGINAL", the language given priority in the disc is selected.

SUBTITLE (DVD only)

Switches the language of the subtitle. Select the language from the displayed list.* When you select "AUDIO FOLLOW", the language for the subtitles changes according to the language you selected for the sound track.

• If you select "OTHERS " in "DVD MENU", "AUDIO", or "SUBTITLE", select and enter the language code from the list using the numeric buttons (page 64). After you selected, the language code (4 digits) is displayed the next time you select "OTHERS ".

Note

When you select a language that is not recorded on the DVD, one of the recorded languages will be automatically selected (except for "OSD").

Settings for the display

SCREEN SETUP

Select settings according to the connected TV. Select "SCREEN SETUP" in the Setup Display.

TV TYPE (DVD only)

Select the aspect ratio of the connected TV.

16:9: Select this when you connect a wide-screen TV or a TV with a wide mode function.

• 4:3 LETTER BOX: Select this when you connect a 4:3 screen TV. This setting displays a wide picture with bands displayed on the upper and lower portions of the screen.

• 4:3 PAN SCAN: Select this when you connect a 4:3 screen TV. This setting displays the wide picture on the entire screen and cuts off the portions that do not fit.

Note

Depending on the DVD, "4:3 LETTER BOX" may be selected automatically instead of "4:3 PAN SCAN" or vice versa.

SCREENSAVER

Turn on and off the screen saver. If you turn on the screen saver, the screen saver image appears when you leave the player in pause or stop mode for 15 minutes or when you play a CD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press to turn off the screen saver.

• ON: Turns on the screen saver.
• OFF: Turns off the screen saver.

BACKGROUND

Select the background color or picture on the TV screen when the playback is stopped or while playing a CD.

• JACKET PICTURE: The jacket picture (still picture) appears in the background, but only when the jacket picture is already recorded on the disc (CD-EXTRA, etc). If the disc does not contain a jacket picture, the "GRAPHICS" picture appears.
• GRAPHICS: The preset picture stored in the system appears in the background.
• BLUE: The background color is blue.
• BLACK: The background color is black.

Custom settings

CUSTOM SETUP

Select "CUSTOM SETUP" in the Setup Display.

■COLOR SYSTEM (Except for Pan American and European models)

Select the color system when you play a VIDEO CD.

• AUTO: Outputs the video signal in the system of the disc, either PAL or NTSC. If your TV uses a DUAL system, select AUTO.
  PAL: Changes the video signal of an NTSC disc and outputs it in the PAL system.
• NTSC: Changes the video signal of a PAL disc and outputs it in the NTSC system.

Notes

• You cannot change the color system of the disc itself.
  Except for Pan American and European models, you can change the color system of this unit according to the connected TV. See page 12.

■PAUSE MODE (DVD only)

Select the picture in pause mode.

• AUTO: A picture including subjects that move dynamically is output with no jitter. Normally select this position.
• FRAME: A picture including subjects that do not move dynamically is output in high resolution.

PARENTAL CONTROL (DVD only)

Set a password and playback limitation level for DVDs with playback limitation for children. For details, see "Limiting playback by children (Parental Control)" on page 37.

■TRACK SELECTION (DVD only)

Gives the priority to the sound track which contains the highest number of channels when you play a DVD on which multiple audio formats (PCM, DTS, MPEG audio, or Dolby Digital format) are recorded.

OFF: No priority given.
- AUTO: Priority given.

Notes

• When you set to "AUTO", the language setting may change. The "TRACK SELECTION" setting has higher priority than the "AUDIO" setting in "LANGUAGE SETUP" (page 18).
• If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the same number of channels, the system selects PCM, DTS, MPEG audio, and Dolby Digital sound tracks in this order.
• Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS, MPEG audio, or Dolby Digital audio format by selecting "AUTO".

Speaker settings

— SPEAKER SETUP

Set up your speaker system for playback of 5.1CH DVDs.

Select "SPEAKER SETUP" in the Setup Display.

To return to the default setting

Select the item, then press CLEAR.

DISTANCE (MHC-DP1000D only)

The default distance settings for the speakers in relation to the listening position is shown below.

Be sure to change the value in the Setup Display when you move the speakers.

• FRONT: Front speaker distance from the listening position can be set in 0.1 meter (1 foot) steps from 1.0 to 12.0 meters (3 to 40 feet).
• CENTER: Center speaker distance can be moved up to 1.5 meters (5 feet) closer to the listening position, from the front speakers in 0.1 meter (1 foot) steps.
  REAR: Rear speaker distance can be moved up to 4.5 meters (15 feet) closer to the listening position, from the front speakers in 0.1 meter (1 foot) steps.

Notes

• When you select an item, the sound cuts off for a moment.
• If each of the front or rear speakers is not placed at an equal distance from your listening position, set the distance of the closest speaker.
• Do not place the rear speakers farther away from your listening position than the front speakers.

BALANCE

You can vary the balance of the left and right speakers as follows. Be sure to set "TEST TONE" to "ON" for easy adjustment. The default settings are in parentheses.

• FRONT (0 dB): Adjust the balance between the front left and right speakers (6 dB (L) to 6 dB (R), 1 dB steps).
• (MHC-DP1000D only)
  REAR (0 dB): Adjust the balance between the rear left and right speakers (6 dB (L) to 6 dB (R), 1 dB steps).

continued

Speaker settings (continued)

LEVEL (MHC-DP1000D only)

You can vary the level of each speakers as follows. Be sure to set "TEST TONE" to "ON" for easy adjustment.

The default settings are in parentheses.

• CENTER (0 dB): Adjust the level of the center speaker (-6dB to +6dB , 1 dB steps).
• REAR (0 dB): Adjust the level of the rear speakers (-6dB to +6dB , 1 dB steps).
• SUBWOOFER (10 dB): Adjust the level of the subwoofer (-10dB to +10dB , 1 dB steps).

TEST TONE (MHC-DP1000D only)

The speakers will emit a test tone to adjust "BALANCE" and "LEVEL".

• OFF: The test tone is not emitted from the speakers.
• ON: The test tone is emitted from each speaker in sequence while adjusting balance or level. When you select one of the "SPEAKER SETUP" items, the test tone is emitted from both left and right speakers simultaneously.

Note

When you adjust the level of the subwoofer, set T.TONE to "OFF".

To adjust the volume of all the speakers at once

Turn VOLUME (or press VOL + / - on the remote).

Adjusting the speaker volume and level

1 When the playback is stopped, press DVD SET UP, then select "SPEAKER SETUP".
2 Select "TEST TONE" and set "TEST TONE" to "ON".

You will hear the test tone from each speaker in sequence.

3 From your listening position, select "BALANCE" or "LEVEL", then press or repeatedly to adjust the value of "BALANCE", or press or repeatedly to adjust the value of "LEVEL".

The test tone is emitted from both left and right speakers simultaneously.

4 Select "TEST TONE" and set "TEST TONE" to "OFF" to turn off the test tone.

Notes

• When you adjust the speaker settings, the sound cuts off for a moment.
• If you adjust these parameters using OSD while adjusting the speaker parameters using AMP MENU or SPEAKER LEVEL (pages 14-15), the display on the unit turns off.

DVD/VIDEO CD/CD

Playing discs

Loading a disc

1 Press OPEN/CLOSE. The disc tray slides out.
2 Place a DVD/VIDEO CD/CD with the label side up on the disc tray.

To insert additional discs, press DISC SKIP EX-CHANGE (or D.SKIP on the remote) to rotate the disc tray.
3 Press OPEN/CLOSE to close the disc tray.

Playing a disc

Normal Play/Shuffle Play/ Slow-motion Play/Freeze Frame

You can play up to three discs (DVD,VIDEO CD, CD) in a row. Depending on the DVD orVIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with the disc.

When playing a DVD:

When playing a VIDEO CD or CD:

Disc tray number Track number Playing time

1 Turn on your TV and select the video input.

Refer to the operating instructions supplied with your TV if you need help.

2 Press DVD.
3 When playback is stopped, press PLAY MODE repeatedly until the mode you want appears in the display.

Select	To play
ALL DISCS	All discs in the disc tray continuously.
1 DISC	The disc you have selected in the original order.
ALL DISCS SHUFFLE	The tracks on all discs in random order.
1 DISC SHUFFLE	The tracks on the disc you have selected in random order.
PROGRAM	The tracks on all discs in the order you want them to be played (see “Creating your own program” on page 26).

4 Press one of the DISC 1-3 buttons.

If you press when DVD is selected as the function (press DVD) and the disc tray is closed, playback starts from the selected disc.

Tips

• You cannot change the play mode during playback.
• You can change the play mode between 1 DISC and ALL DISCS using the on-screen display as follows:

1 When playback is stopped, press DVD DISPLAY. The Control Menu appears.
2 Press or to select "ONE/ALL DISCS", then press ENTER.
3 Press or to select either "ONE DISC" or "ALL DISCS", then press ENTER.

Playing a disc (continued)

Other operations

To	Do this
Stop playback	Press ■. The playback stops at the point ■ is pressed (Resume Play). Press ■ again to cancel the Resume Play (see page 28).
Pause playback	Press !*1. Press again to resume playback.
Select a track or chapter	During playback or pause, press ▷▶ (or NEXT on the remote) (to go forward) or ▷▶ (or PREV on the remote) (to go back).
Find a point in a track title or chapter (Lock Search function)	Press ▷▶ or ▷▶ during playback. Each time you press the button, the speed changes as follows: 1 (slow) ↔ 2 (faster than 1) Press ▷▶ to stop searching at the desired point.
Change the playback speed*2 (Slow-motion play)	During playback, press SLOW ▷or ▷▶*3 on the remote. Each time you press the button, the speed switches between two slowed playback speeds. To return to normal playback, press ▷▶.
Playing the disc frame by frame changing the playback speed*2 (Freeze Frame)	During playback, press STEP ▷ll or ▷▶*3 on the remote. Each time you press the button, playback is advanced a single frame in the desired direction. To return to normal playback, press ▷▶.
Select a disc when playback is stopped	Press one of the DISC 1-3 buttons or DISC SKIP EX-CHANGE (or D.SKIP on the remote).
Switch to DVD function from another source	Press one of the DISC 1-3 buttons (Automatic Source Selection).
Exchange other discs during playback	Press DISC SKIP EX-CHANGE.
Remove the disc	Press ▲ OPEN/CLOSE.

1 There may be some disturbance in the video image.
^2 DVD andVIDEO CD only.
^*3 SLOW and STEP are not available during playback of VIDEO CDs.

Tips

• You can use the digipad for DVD/VIDEO CD/CD operations.
• You can use the digipad instead of cursor buttons ( / / /) when DVD is selected as the current function and OSD appears on the screen.

Notes

• Depending on the DVD or VIDEO CD, some operations may be prohibited.
  VIDEO CDs cannot be viewed slowly or frame by frame in the reverse direction.

• Under the following circumstances, 2CH/MULTI is automatically set to "2CH".

• When recording.

• When TAPE B is in REC PAUSE mode.

• When recording using TAPE B.

• When using headphones, the sound from headphones is 2 channel.

• Switch the channel mode to "2CH" by pressing 2CH/MULTI when making an analog recording using a component connected to the MD OUT jacks on this unit. There is no audio output from the MD OUT jacks in the multi channel mode.

• Depending on the DVD, digital recording may not be done. In this case, perform analog recording. Press 2CH/MULTI to switch the channel mode to "2CH" on this system when making an analog recording.
• Set the sound to "STEREO" using the AUDIO button when you play DTS sound tracks on a CD (page 32).

Playing DVDs using the menu

Some discs have a "title menu" or a "DVD menu". On some DVDs, this may simply be called a "menu" or "title".

Using the title menu

A DVD is divided into long sections of a picture or a music feature called "titles". When you play a DVD which contains several titles, you can select the title you want using the title menu.

1 Press DVD.
2 Press TITLE.

The title menu appears on the TV screen. The contents of the menu vary from disc to disc.

3 Press / / or the numeric buttons to select the title you want to play.
4 Press ENTER.

The playback starts from the selected title.

Using the DVD menu

Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select items such as the language for the subtitles and the language for the sound using the DVD menu.

1 Press DVD.
2 Press DVD MENU.

The DVD menu appears on the TV screen. The contents of the menu vary from disc to disc.

3 Press / / or the numeric buttons to select the item you want to change.
4 To change other items, repeat step 3.
5 Press ENTER.

Tip

You can use the digipad instead of cursor buttons

( / / /) when DVD is selected as the current function and OSD appears on the screen.

Playing VIDEO CDs with PBC functions (Ver. 2.0)

PBC Play

You can use menus on your TV screen to enjoy the disc's interactive software. The menu format and structure may differ depending on each disc.

1 Press DVD.
2 Press to start playing aVIDEO CD with PBC functions (Ver. 2.0).

The VIDEO CD and PBC indicators light and a PBC menu appears on your TV.

The PBC indicator lights during PBC playback of a PBC compatible VIDEO CD (Ver. 2.0).

3 Press or repeatedly to select a number from the menu, then press ENTER.
4 Continue playback according to the instructions on the menus to enjoy interactive playback.

To	Do this
Stop playback	Press■.
See the rest of the menu	Press NEXT on the remote.
Go back to the top of the menu	Press PREV on the remote.
Go back to the previous menu	Press RETURN ♂ on the remote.

continued

PlayingVIDEOCDswithPBC functions(Ver.2.0)(continued)

To	Do this
Cancel playback with PBC functions (Ver. 2.0)	When the playback is stopped, press ➔ or ➔ repeatedly to select the track you want, then press ENTER (or press the numeric buttons on the remote). The PBC indicator turns off and playback starts from the selected track. Still images, such as the menu screens, will not be shown.
Select a menu number using the remote	Press the numeric buttons, then press ENTER. To enter 0, press 10/0.

Note

Depending on the VIDEO CD, "Press ENTER" in step 3 may appear as "Press SELECT" in the operating instructions supplied with the disc.

Creating your own program

- Program Play

You can make a program of up to 25 steps from all the discs in the order you want them to be played.

1 Press DVD.
2 When the playback is stopped, press PLAY MODE repeatedly until "PROGRAM" appears in the front panel display.

The Program Display appears on the screen.

3 Press ENTER, then press or repeatedly to select the disc.

4 Press.

The cursor moves to the title or track (in this case, "01").

• “?” appears when the system has not loaded the disc information in the memory.

5 Select the title, chapter, or track you want to program.

When programming a DVD

For example, select chapter "03" of title "02".

Press / or the numeric buttons to select "02" under "T", then press ENTER.

Next, press or the numeric buttons to select "03" under "C", then press ENTER.

When programming a VIDEO CD or CD

For example, select track "02".

Press / or the numeric buttons to select "02" under "T", then press ENTER.

6 To program other discs, titles, chapters, or tracks, repeat steps 3 to 5.

7 Press to start Program Play. Program Play starts.

To	Do this
Return to normal playback	Press CLEAR during playback.
Turn off the Program Display	Press PLAY MODE when the playback is stopped.
Change the program	To change the disc, select the program number you want to change using ▲/▼ after step 2 or 5, then press ENTER. To change the title, chapter, or track, select the one you want in step 5.
Cancel the programmed order	To cancel all the titles, chapters, or tracks in the programmed order, press ▲, and select “ALL CLEAR” in step 3. To cancel the selected program, select the program using ▲/▼ in step 3, then press CLEAR.

Tip

The program you made remains in the system's memory even after it has been played back. Press to play the same program again.

Notes

The program is canceled when you change the function to TUNER or turn the system off.
- You may not be able to do Program Play depending on the DVD.
- You cannot make a program while playing a disc.
- When you switch the play mode to "PROGRAM" while "REPEAT 1" is selected, "REPEAT 1" is automatically canceled.

Resuming playback from the point you stopped the disc

—Resume Play

This system memorizes the point where you stopped the disc so you can resume from that point.

1 While playing a disc, press to stop playback.

"RESUME" appears in the display. If "RESUME" does not appear, Resume Play is not available.

2 Press.

The player starts playback from the point you stopped the disc in step 1.

To view from the beginning of the disc

When "RESUME" appears in the display, press , then press .

Notes

• Depending on where you stopped the disc, the system may resume playback from a different point.
• Resume play is canceled when:

you press numeric buttons, , D.SKIP, or
you remove the disc.
you unplug the unit's AC power cord.
you change the settings of "DVD MENU", "AUDIO", or "SUBTITLE" in "LANGUAGE SETUP" in the setup display.
you change the settings of "TV TYPE" in "SCREEN SETUP" in the setup display.
- you change the settings of "PARENTAL CONTROL" in "CUSTOM SETUP" in the setup display.

Playing repeatedly

Repeat Play

You can play all the titles/tracks or a single title/chapter/track on a disc.

In Shuffle or Program Play mode, the system repeats the titles or tracks in the shuffled or programmed order.

1 Press DVD DISPLAY.

The Control Menu appears.

2 Press or repeatedly to select "REPEAT", then press ENTER.

If you do not select "OFF," the "REPEAT" indicator lights in green.

3 Select the Repeat Play setting.

When playing a DVD and when Program Play is set to OFF

OFF: does not play repeatedly.
DISC: repeats all the titles.
- TITLE: repeats the current title on a disc.*
- CHAPTER: repeats the current chapter.

When playing aVIDEO CD/CD and when Program Play is set to OFF

OFF: does not play repeatedly.
DISC: repeats all the tracks on a disc.
- TRACK: repeats the current track.*

When Program Play is set to ON

OFF: does not play repeatedly.
- ON: repeats Program Play.

• When ALL DISCS SHUFFLE is selected, you can select the Repeat Play of TITLE or TRACK only.

To cancel Repeat Play

Press CLEAR.

Tips

• You can set Repeat Play when the playback is stopped. After selecting the "REPEAT" item, press . The Repeat Play starts.
• You can quickly display the "REPEAT" status. Press REPEAT.

Notes

• You cannot perform Repeat Play during PBC playback of VIDEO CDs (page 25).
• You may not be able to perform Repeat Play depending on the DVD.
• If you select DISC repeat (with or without Program Play), the program is repeated up to 5 times.

Viewing information about the disc

Checking the playing time and remaining time

You can check the remaining time of the current track or that of the disc.

When a DVD/CD TEXT disc is loaded, you can check the information stored on the disc, such as the titles.

When the system detects DVD/CD TEXT discs, the "DVD TEXT" (or "CD TEXT") indication appears in the display.

Using the front panel display

Press DISPLAY.

Each time you press the button, the display changes cyclically as follows:

During normal playback

When playing a DVD:

Playing time of the current title Remaining time of the current title Playing time and the current chapter Remaining time of the current chapter Text*1 Clock display (for 8 seconds) Effect status

When playing a VIDEO CD (without PBC functions) or CD:

Playing time and current track number Remaining time of the current track Playing time of the disc Remaining time of the disc Text ^*1 Clock display (for 8 seconds) Effect status

VIDEO CDs with PBC functions (Ver. 2.0):

Playing time of the current scene ^2 Text ^1 Clock display (for 8 seconds) Effect status

continued

Checking the playing time and remaining time (continued)

When the playback is stopped

DVDs:

Total number of titles ^3 Title name of the disc ^1 Clock display (for 8 seconds) Effect status

VIDEO CDs or CDs:

Total number of tracks and the total playing time ^3 Title name of the disc ^1 Clock display (for 8 seconds) Effect status

1 With DVD/CD TEXT discs only (certain characters cannot be displayed). Depending on the disc, DVD/ CD text does not appear and "NO TEXT" appears.
2 May not appear with still images, etc.
*3 When the playback is stopped and "RESUME" appears on the front panel display, the point where playback was stopped is displayed.

Using the on-screen display

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press DISPLAY repeatedly to change the time information.

The display and the kinds of time that you can change depend on the disc you are playing.

When playing a DVD

T ******
Playing time of the current title
T - ^::
Remaining time of the current title
C *****
Playing time of the current chapter
C-:*
Remaining time of the current chapter

When playing a VIDEO CD (with PBC functions)

****

Playing time of the current scene

■ When playing a VIDEO CD (without PBC functions) or CD

T^**

Playing time of the current track

T- **:

Remaining time of the current track

D

Playing time of the current disc

D- ***

Remaining time of the current disc

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Checking the text information of the disc

Press DISPLAY repeatedly while playing a DVD or a TEXT-CD.

The "TIME/TEXT" information is displayed at the top of the screen. When the elapsed time of the chapter, or track is displayed, text information is displayed at the bottom of the screen.

Notes

• Only DVD TEXT in English is displayed.
• When there is no text recorded on the disc, "NO TEXT" is displayed.
• If DISPLAY is not pressed for 2 seconds, the display disappears.

Checking the playback information

ADVANCED

(DVD only)

You can check information such as the bit rate or the disc layer that is being played. While playing a disc, an approximate bit rate of the playback picture is always displayed as Mbps (Mega bit per second) and the audio as Kbps (Kilo bit per second).

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press or repeatedly to select "ADVANCED", then press ENTER.

The options for "ADVANCED" appear.

3 Press or repeatedly to select the item.

For each item, see "Displays of each item".

• BIT RATE: Displays the bit rate.
• LAYER: Displays the layer and the pick-up point.

4 Press ENTER.

To close the "ADVANCED" display

Select "OFF" in step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Displays of each item

By pressing DVD DISPLAY repeatedly, you can display either "BIT RATE" or "LAYER", whichever was selected in "ADVANCED".

BIT RATE

When playing MPEG audio sound tracks:

Bit rate refers to the amount of video/audiodata per second in a disc. The higher the bit rate, the larger the amount of data. When the bit rate level is high, there is a large amount of data. However, this does not always mean that you can get higher quality pictures or sounds.

LAYER

This item indicates the approximate point where the disc is playing. When the DVD has dual layers, the system indicates which layer is being read ("Layer 0" or "Layer 1"). For details on the layers, see page 62 (DVD).

Sound adjustment

Changing the sound

If a DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can select the audio format you want while playing the DVD.

With stereo CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. (In this case, the sound loses its stereo effect.) For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can select the left channel and hear only the instruments from both speakers.

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press or repeatedly to select "AUDIO", then press ENTER.
3 Press or repeatedly to select the audio signal you want.

When playing a DVD

Depending on the DVD, the choice of the language varies. When 4 digits are displayed, they represent the language code (see the language code list on page 64). When the same language is displayed two or more, the DVD is recorded in multiple audio formats.

When playing a VIDEO CD or CD

STEREO: The standard stereo sound.
- 1/L: The sound of the left channel (monaural).
- 2/R: The sound of the right channel (monaural).

4 Press ENTER.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Tip

You can select "AUDIO" directly by pressing AUDIO on the remote. Each time you press the button, the item changes.

Notes

• For discs not in multiple audio format, you cannot change the sound.
• During DVD playback, the sound may change automatically.

Displaying the audio information of the disc

(DVD only)

When you select "AUDIO", the channels being played are displayed on the screen.

For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of the recorded channels may differ.

Current audio format
Current playing program format*

• "PCM", "MPEG", "DTS", or "DOLBY DIGITAL" is displayed.

For "DOLBY DIGITAL", the channels in the playing track are displayed numerically as follows:

For Dolby Digital 5.1 ch:

Front component 2 + Center component 1
LFE (Low Frequency Effect) component 1

**The letters in the program format display mean the following sound component:

L: Front (left)

R: Front (right)

C:Center

LS: Rear (left)

RS: Rear (right)

S: Rear (monaural): The rear component of the Dolby Surround processed signal or the Dolby Digital signal.

LFE: LFE (Low Frequency Effect)

The display examples are as follows:

PCM (stereo)

• Dolby Surround

Dolby Digital 5.1ch

When an LFE signal component is output, "LFE" is enclosed in a solid line. When an LFE signal component is not output, "LFE" is enclosed in a broken line.

DTS

"LFE" is always enclosed in a solid line regardless of the LFE signal component being output.

Note

When the signal contains rear signal components such as LS, RS, or S, the DSP effect is enhanced (page 48).

Enjoying movies

Searching for a title/ chapter/track/index/scene

You can search a DVD disc by title or chapter, and you can search a VIDEO CD or CD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. Or, you can search for a scene using the time code (TIME SEARCH).

1 Press DVD.
2 Press DVD DISPLAY.

The Control Menu appears.

3 Press or repeatedly to select the search method.

When playing a DVD

"TITLE", "CHAPTER", or "TIME/TEXT"

Select "TIME/TEXT" for TIME SEARCH.

When playing aVIDEO CD

"TRACK" or "INDEX"

When playing a VIDEO CD with PBC functions

"SCENE"

When playing a CD

"TRACK" or "INDEX"

4 Press ENTER.

****** changes to *- (**)

The number in parentheses indicates the total number of titles, chapters, tracks, indexes, or scenes.

5 Press or repeatedly, or press the numeric buttons to select the title, chapter, track, index, or scene number you want to search.

If you make a mistake

Press CLEAR to cancel the number, then select another number.

6 Press ENTER.

The playback starts from the selected number.

To search for a scene using the time code (TIME SEARCH) (DVD only)

1 In step 3, select "TIME/TEXT".

"T *::" (playing time of the current title) is selected.

2 Press ENTER.

"T ****** changes to "T ------".

3 Input the time code using the numeric buttons, then press ENTER.

For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter "2:10:20".

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Note

The displayed number of title, chapters, or tracks is the same number of title, chapters, or tracks recorded on the disc.

Changing the angles

(DVD only)

When playing a DVD on which various angles (multi-angles) for a scene are recorded, the "ANGLE" indicator lights in green. This means that you can change the viewing angle. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train's movement interrupted.

1 Press DVD DISPLAY during playback.

The Control Menu appears.

2 Press or repeatedly to select "ANGLE".

The angle number appears. The number in parentheses indicates the total number of angles.

3 Press ENTER.

The angle number changes to - .

4 Select the angle you want using the numeric buttons or / , then press ENTER.

The angle is changed to the selected angle.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Tip

You can select the angle by pressing ANGLE on the remote. Each time you press the button, the angle changes.

Note

Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

Displaying the subtitles

(DVD only)

With DVDs on which multilingual subtitles are recorded, you can change the subtitle language while playing a DVD, or turn the subtitles on or off whenever you want. For example, you can select the language you want to master and turn the subtitles on for better understanding.

1 Press DVD DISPLAY during playback. The Control Menu appears.
2 Press or repeatedly to select "SUBTITLE", then press ENTER. The options for "SUBTITLE" appear.
3 Press or repeatedly to select the language you want, then press ENTER. The subtitles are displayed in the selected language.

To cancel the SUBTITLE setting

Select "OFF" in step 3.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

Tip

You can select the subtitle by pressing SUBTITLE on the remote. Each time you press the button, the language changes.

Notes

• When 4 digits are displayed in step 3, they indicate the language code. Refer to the language code list on page 64 to see the language the code represents.
• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on the DVD.

Using various additional functions

Locking discs

CUSTOM PARENTAL CONTROL/PARENTAL CONTROL

You can set two kinds of playback restrictions for the disc.

• Custom Parental Control

You can set the playback restrictions so that the system will not play inappropriate discs. You can set the same Custom Parental Control password for up to 50 discs. When you set the fifty-first disc, the playback restriction for the first disc is canceled.

• Parental Control

You can limit the playback of some DVDs according to a predetermined level such as the age of the users. The limited scene is not played, or replaced by a different scene.

The same password is used for both Custom Parental Control and Parental Control.

Custom Parental Control

1 Insert the disc you want to lock.

If the disc is playing, press to stop playback.

2 When the playback is stopped, press DVD DISPLAY.

The Control Menu appears.

3 Press or repeatedly to select "CUSTOM PARENTAL CONTROL", then press ENTER.

The "CUSTOM PARENTAL CONTROL" display appears.

4 Press or repeatedly to select "ON ", then press ENTER.

If you have not entered a password

The display for registering a new password appears.

CUSTOM PARENTAL CONTROL

Enter a new 4-digit password, then press ENTER.

Enter a 4-digit password using the numeric buttons, then press ENTER.

The display for confirming the password appears.

When you have already registered a password

The display for entering the password appears.

CUSTOM PARENTAL CONTROL

Enter password, then press ENTER.

5 Enter or re-enter your 4-digit password using the numeric buttons, then press ENTER.

"Custom parental control is set." appears and the screen returns to the Control Menu Display.

If you make a mistake entering your password

Press before you press ENTER and input the correct number.

If you make a mistake

Press RETURN , then start from step 3 again.

To turn off the Control Menu

Press RETURN, then press DVD DISPLAY repeatedly until the Control Menu is turned off.

To turn off the Custom Parental Control function

1 In step 4, select "OFF ", then press ENTER.
2 Enter your 4-digit password using the numeric buttons, then press ENTER.

To change the password

1 In step 4, Press or repeatedly to select "password ", then press ENTER. The display for entering the password appears.
2 Enter your 4-digit password using the numeric buttons, then press ENTER.
3 Enter a new 4-digit password using the numeric buttons, then press ENTER.
4 To confirm your password, re-enter it using the numeric buttons, then press ENTER.

Playing the disc for which Custom Parental Control is set

1 Insert the disc for which Custom Parental Control is set.

The "CUSTOM PARENTAL CONTROL" display appears.

2 Enter your 4-digit password using the numeric buttons, then press ENTER.

The system is ready for playback.

Tip

If you forgot your password, enter the 6-digit number "199703" using the numeric buttons when the "CUSTOM PARENTAL CONTROL" display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password.

Limiting playback by children (Parental Control)

(DVD only)

1 When the playback is stopped, press DVD SET UP.

The Control Menu appears.

2 Press or repeatedly to select "CUSTOM SETUP", then press ENTER.

The "CUSTOM SETUP" display appears.

3 Press or repeatedly to select "PARENTAL CONTROL ", then press ENTER.

If you have not entered a password

The display for registering a new password appears.

Enter a 4-digit password using the numeric buttons, then press ENTER.

The display for confirming the password appears.

When you have already registered a password

The display for entering the password appears.

continued

Locking discs (continued)

4 Enter or re-enter your 4-digit password using the numeric buttons, then press ENTER.

The display for setting the playback limitation level and changing the password appears.

5 Press or repeatedly to select "STANDARD", then press ENTER.

The options for "STANDARD" appear.

6 Press or repeatedly to select a geographic area as the playback limitation level, then press ENTER.

The area is selected.

When you select "OTHERS ",select and enter the standard code in the table on page 39 using the numeric buttons.

7 Press ENTER.

The options for "LEVEL" appear.

8 Press or repeatedly to select the level you want, then press ENTER.

The Parental Control setting is completed.

The lower the value, the more strict the limitation.

If you make a mistake

Press RETURN to go back to the previous screen.

To turn off the Control Menu

Press DVD DISPLAY repeatedly until the Control Menu is turned off.

To turn off the Parental Control function and play the DVD after entering your password

Set "LEVEL" to "OFF" in step 8.

To change the password

1 In step 5, press to select "CHANGE PASSWORD ", then press ENTER. The display for entering the password appears.

2 Follow step 3 to enter a new password.

Playing the disc for which Parental Control is set

1 Insert the disc and press.

The "PARENTAL CONTROL" display appears.

2 Enter your 4-digit password using the numeric buttons, then press ENTER.

The playback starts.

Tip

If you forgot your password, remove the disc and repeat steps 1 to 5 of "Limiting playback by children". When you are asked to enter your password, enter "199703" using the numeric buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password in step 3, replace the disc in the system and press . When the "PARENTAL CONTROL" display appears, enter your new password.

Notes

• When you play DVDs which do not have the Parental Control function, playback cannot be limited on this system.
• Depending on the DVD, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is canceled, the level returns to the original level.

Area code

Standard Code number	Standard Code number
Argentina 2044	Korea 2304
Australia 2047	Malaysia 2363
Austria 2046	Mexico 2362
Belgium 2057	Netherlands 2376
Brazil 2070	New Zealand 2390
Canada 2079	Norway 2379
Chile 2090	Pakistan 2427
China 2092	Philippines 2424
Denmark 2115	Portugal 2436
Finland 2165	Russia 2489
France 2174	Singapore 2501
Germany 2109	Spain 2149
Hong Kong 2219	Sweden 2499
India 2248	Switzerland 2086
Indonesia 2238	Taiwan 2543
Italy 2254	Thailand 2528
Japan 2276	United Kingdom 2184

Presetting radio stations

You can preset 20 stations for FM and 10 stations for AM.

1 Press TUNER/BAND repeatedly to select FM or AM.
2 Press and hold or until the frequency indication starts to change, then release.

Scanning stops when the system tunes in a station. "TUNED" and "STEREO" (for a stereo program) appear.

3 Press TUNER MEMORY.

A preset number appears in the display. The stations are stored from preset number 1.

4 Press ENTER.

The station is stored.

5 Repeat steps 1 to 4 to store other stations.

To tune in a station with a weak signal

Press or repeatedly to tune in the station manually.

To set another station to an existing preset number

Start over from step 1. After step 3, press or repeatedly to select the preset number where you want to store a new station, then proceed to step 4.

Tips

• Pressing TUNER/BAND while the power is off automatically turns the power on.
• You can use the digipad instead of 4 3 .
• The preset stations are retained for half a day even if you unplug the power cord or if a power failure occurs.

To change the AM tuning interval (Except for European and Middle Eastern models)

The AM tuning interval is factory set to 9kHz (10 kHz in some areas). To change the AM tuning interval, tune in any AM station first, then turn off the power. While holding down the ENTER button, turn the power back on. When you change the interval, AM preset stations will be erased. To reset the interval, repeat the same procedure.

Listening to the radio

— Preset Tuning

Preset radio stations in the tuner's memory first (see "Presetting radio stations").

1 Press TUNER/BAND repeatedly to select FM or AM.
2 Press or repeatedly to tune in the preset station you want.

Preset number Frequency

To Do this

Turn off the radio Press I/0.

To listen to non-preset radio stations

In step 2, press or repeatedly (Manual Tuning) or press and hold or (Automatic Tuning).

Notes

• When the TUNER function is selected, the OSD does not appear on the screen.
• When DVD is selected as the current function and TUNER/BAND is pressed to select the TUNER function, some time may be necessary before the function can be switched.
• When you change the function from DVD to TUNER, "WAIT" may flash on the front panel display. While this flashes, there is no audio output.

Tips

• Pressing TUNER/BAND while the power is off automatically turns the power on.
• You can use the digipad instead of .
• When an FM program is noisy, press FM MODE so that "MONO" appears in the display. There will be no stereo effect, but the reception will improve.
  To improve broadcast reception, reorient the antennas.

Using the Radio Data System (RDS)

(European model only)

What is the Radio Data System?

Radio Data System (RDS) is a broadcasting service that allows radio stations to send additional information along with the regular program signal. This tuner offers convenient RDS features like station name display and location of stations by program type. RDS is available only for FM stations.

Note

RDS may not work properly if the station you are tuned to is not transmitting the RDS signal properly or if the signal is weak.

Receiving RDS broadcasts

Simply select a station from the FM band.

When you tune in a station that provides RDS services, the station name appears in the display.

To check the RDS information

Press DISPLAY.

Each time you press the button, the display changes cyclically as follows:

Station name* Frequency Program type* Clock display Effect status

• If the RDS broadcast is not received, the station name and program type may not appear in the display.

Locating a station by program type (PTY)

You can locate a station you want by selecting a program type. The tuner tunes in the type of programs currently being broadcast from the RDS stations stored in the tuner's preset memory.

The types of programs include NEWS, AFFAIRS (current news), INFO, SPORT, EDUCATE (education programs), DRAMA, CULTURE, SCIENCE, VARIORED (interviews, games and comedy), POP M, ROCK M, EASY M, LIGHT M, CLASSICS, OTHER M, WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY (country music), NATION M (nation's popular music), OLDIES, FOLK M, DOCUMENT (investigative features), TEST (test signal for emergency broadcast), ALARM (emergency broadcast) and NONE (any programs not defined above).

1 Press PTY while listening to the radio.
2 Press or repeatedly to select the program type you want.
3 Press ENTER.

"PTY SEARCH" and the selected program type appear alternately in the display. When the tuner receives a program, the preset station name flashes.

4 Press or repeatedly to continue searching for the station name you want.
5 Press ENTER while the preset station name you want is flashing.

To cancel the PTY search

Press PTY again.

Tip

You can use the digipad instead of 1 /

Note

"NOT FOUND" appears when the program type you selected is not currently being broadcast.

Tape

Loading a tape

1 Press TAPE A/B repeatedly to select deck A or B.
2 Press DECK A or DECK B .
3 Insert a tape in deck A or B.

Insert with the side you want to play/record facing forward.

Playing a tape

You can use TYPE I (normal) or TYPE II (CrO_2) tapes. The deck automatically detects the tape type.

1 Load a tape.
2 Press DIRECTION repeatedly to select to play one side, to play both sides, or RELAY* (Relay Play) to play both decks in succession.

3 Press.

The tape starts playing.

Press again to play the reverse side. When you select () or RELAY, the deck stops automatically after repeating the sequence 5 times.

*Relay Play always follow this cyclic sequence: Deck A (front side) Deck A (reverse side) Deck B (front side) Deck B (reverse side)

To	Do this
Stop playback	Press■.
Pause playback	Press■. Press again to resume playback.
Fast-forward	Press▶ while playing the front side or press← while playing the reverse side.
Rewind	Press▶ while playing the front side or press▶ while playing the reverse side.

Tips

• You can use the digipad for tape operations.
• Pressing TAPE A/B while the power is off automatically turns the power on.
• When you want to reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that "DOLBY NR" appears in the display.
• When a tape is inserted, corresponding presence indicator lights up.

Searching for the beginning of a track (AMS*)

During playback, press or repeatedly for the number of songs you want to skip forward (or backward).

The search direction, + (forward) or - (back), and number of songs being skipped (1-9) appear in the display.

Example: searching forward 2 songs

• Automatic Music Sensor

Note

The AMS function may not operate correctly under the following circumstances:

• When the unrecorded space between songs is less than 4 seconds long.
• When the unit is placed near a television.

Recording to a tape

— CD Synchro Recording/High-Speed Dubbing/Recording Manually/Program Edit

You can record from a DVD,VIDEO CD, CD, tape, radio or other connected component. You can use TYPE I (normal) or TYPE II (CrO_2) tapes. The recording level is adjusted automatically.

Steps	Recording from a VIDEO CD/CD (CD Synchro Recording)	Recording from a tape (High-Speed Dubbing)	Recording Manually
1	Insert a recordable tape into deck B.
2	Press DVD. Press a function	bPatest TAPE A/B repeatedly to select TAPE A function.	for the recording source.
3	Insert the disc you want to record.	Insert the tape you want to record into deck A.	Insert the disc, tape, or tune in the station you want to record.
4	Press CD SYNC HI-DUB.		Press REC PAUSE/START.
	Deck B stands by for recording. The REC PAUSE/START button flashes. To reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that “DOLBY NR” appears in the display (except when recording from a tape).
5	Press DIRECTION repeatedly to select → to record on one side. Select ⇌ (or RELAY) to record on both sides.
6	Press REC PAUSE/START. Recording starts.
7			Start playing the recording source.

To Press

Stop recording

Pause recording*

REC PAUSE/START.

• Only when recording manually.

Tips

• If you want to record from the reverse side, press TAPE A/B to select deck B and press to start playback of the reverse side after step 1. Press where you want to start recording.
• When you record on both sides, be sure to start from the front side. If you start from the reverse side, recording stops at the end of the reverse side.
• (High-Speed Dubbing only) If you set direction to when the tapes have different lengths, the tapes in each deck reverses independently. If you select RELAY, the tapes in both decks reverse together.

Notes

• You cannot listen to other sources while recording.
• You cannot use the digipad during recording.
• If you change the setting of sound, such as changing the preset effect file, while recording, the recording sound is interrupted at the point.
• If you start recording with the 2CH/MULTI set to "V.SEMI M.D.", "MULTI", or "V.M.DIMENS.", the setting automatically changes to "2CH".
  CD synchro recording is not available with DVDs.

continued

Recording to a tape (continued)

Recording a VIDEO CD/CD by specifying the track order

- Program Edit

When programming, make sure the playing times for each side do not exceed the length of one side of the tape.

1 Insert a recordable tape into deck B, then press DVD.
2 When the playback is stopped, press PLAY MODE repeatedly until "PROGRAM" appears in the front panel display.

The Program Display appears on the screen.

3 Press ENTER, then press or repeatedly to select the disc.

4 Press.

The cursor moves to the track (in this case, "01").

• “?” appears when the system has not loaded the disc information in the memory.

5 Select the track you want to program.

For example, select track "02".

Press / or the numeric buttons to select "02" under "T", then press ENTER.

Selected track

6 To program additional steps, repeat steps 3 to 5.
7 Press CD SYNC HI-DUB.

Deck B stands by for recording. To reduce the hiss noise in low-level high-frequency signals, press DOLBY NR so that "DOLBY NR" appears in the display. The REC PAUSE/START button flashes.

8 Press DIRECTION repeatedly to select to record on one side.

Select (·) (or RELAY) to record on both sides.

9 Press REC PAUSE/START.

Recording starts.

To cancel Program Edit

Press PLAY MODE repeatedly until "1 DISC" or "ALL DISCS" appears in the display.

Timer-recording radio programs

To timer-record, you must set the clock (see "Setting the time" on page 15) and preset the radio stations (see "Presetting radio stations" on page 40) beforehand.

1 Tune in the preset radio station (see "Listening to the radio" on page 40).
2 Press CLOCK/TIMER SET. "DAILY1 SET" appears.
3 Press or repeatedly to select "REC SET", then press ENTER.

"ON" appears and the hour indication flashes.

4 Set the time to start recording.

Press or repeatedly to set the hour, then press ENTER.

The minute indication flashes.

Press or repeatedly to set the minutes, then press ENTER.

The hour indication flashes again.

5 Set the time to stop recording following step 4.

The start time appears, followed by the stop time, the preset radio station to be recorded (e.g., "TUNER FM 5"), then the original display appears.

6 Insert a recordable tape into deck B.
7 Turn off the power.

When the recording starts, the volume level is set to the minimum.

To	Do this
Check the setting	Press TIMER SELECT (or CLOCK/TIMER SELECT on the remote) and press ↦ or ↦ repeatedly to select “REC SELECT”, then press ENTER.
Change the setting	Start over from step 1.
Cancel the Timer-recording	Press TIMER SELECT (or CLOCK/TIMER SELECT on the remote) and press ↦ or ↦ repeatedly to select “TIMER OFF”, then press ENTER.

Notes

• If the power is on at the preset time, the Timerrecording does not work.
• When you use the Sleep Timer, the Timer-recording will not turn on the system until the Sleep Timer turns it off.
  The power turns on 15 seconds before the preset time.

To listen to multi channel sound

Press 2CH/MULTI.

Each time you press the button, the display changes cyclically as follows:

$$ \begin{array}{l} 2 \mathrm {C H} \longrightarrow \mathrm {V . S E M I M . D .} \longrightarrow \mathrm {M U L T I ^ {}} \longrightarrow \ \mathrm {V . M . D I M E N S . ^ {}} \end{array} $$

2CH: The sound is output in 2-channel stereo.

V.SEMI M.D. (Virtual Semi Multi

Dimension): Uses 3D sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at a 30^ angle of elevation.

MULTI*: The sound is output in multi channel.

V.M.DIMENS. (Virtual Multi Dimension)*:

Uses 3D sound imaging to create an array of virtual rear speakers positioned higher than the listener from a single pair of actual rear speakers. This mode creates 5 sets of virtual speakers surrounding the listener at approximately a 30^ angle of elevation.

• MHC-DP1000D only.

Notes

• When using headphones, this setting is fixed to "2CH". You cannot select other settings.
• While decoding DTS signals, you cannot select the sound effect option of MUSIC MODE together with "V.SEMI M.D." or "V.M.DIMENS." simultaneously.

About indicators

MULTI CHANNEL DECODING indicator: Lights up when the unit is decoding signals recorded in a multi channel format.

PRO LOGIC indicator (in the display): Lights up when the unit applies Dolby Pro Logic processing to 2 channel signals in order to output the center and rear channel signals.

DIGITAL indicator (in the display): Lights up when the unit is decoding signals recorded in the Dolby Digital format.

dts indicator (in the display): Light up when DTS signals are input.

Adjusting the sound

Press GROOVE.

Each time you press the button, the display changes cyclically as follows:

$$ \begin{array}{l}\text {G R O O V E O N} \rightarrow \text {V - G R O O V E O N} \rightarrow\\text {G R O O V E O F F}\end{array} $$

GROOVE: The volume switches to power mode and the equalizer curve changes.

V-GROOVE: The volume switches to power mode, the lower bass frequencies of the sound you are listening to is powerfully reinforced, and the equalizer curve changes.

Selecting the preset effect file

Press one of the DSP buttons (MUSIC MODE, MOVIE MODE, GAME MODE, or TOOL MODE) repeatedly to select the preset effect you want.

The preset effect name appears in the display.

See "Sound effect options" below.

To cancel

Press EFFECT (or EFFECT ON/OFF on the remote) to select "EFFECT OFF". All the parameters become flat.

Sound effect options

You can enjoy surround sound simply by selecting one of the preset effect according to the program you want to listen to.

DSP Options MODE

MUSIC LIVE HOUSE MODE HALL S.ENHANCE (SOUND ENHANCE) RADIO SOUND

MOVIE C.STUDIO A (CINEMA STUDIO A) MODE C.STUDIO B (CINEMA STUDIO B) C.STUDIO C (CINEMA STUDIO C) NORMAL SURR (NORMAL SURROUND)

GAME ARCADE MODE RACING ADVENTURE BATTLE

TOOL PAN MODE FLANGER KEY CONTROL EXCITER COMPRESSOR REVERB EARLY RFLC. (EARLY REFLECTION)

CINEMA STUDIO A: Reproduces the sound characteristics of Sony Pictures Entertainment's classic editing studio.

CINEMA STUDIO B: Reproduces the sound characteristics of Sony Pictures Entertainment's mixing studio which is one of the most up-to-date facilities in Hollywood.

CINEMA STUDIO C: Reproduces the sound characteristics of Sony Pictures Entertainment's BGM recording studio.

Adjusting the sound effects

Before operation, first select the audio effect you want for your basic sound.

1 Press DSP EDIT.

Each time you press the button, the display changes as follows:

DSPEDIT* (to adjust DSP) EQ EDIT (to adjust equalizer)

• This menu does not appear depending on the audio effect.

2 Use the digipad to adjust the parameters.

The parameter is adjusted according to the curve your finger slides on the digipad. Adjustable parameters are described on page 48. After the curve your finger slides is displayed for a while, then the curve automatically adjusted by the unit is displayed. For DSP EDIT, the adjustable parameters vary depending on the preset effect.

3 Press ENTER.

To cancel

Press EFFECT (or EFFECT ON/OFF on the remote) to select "EFFECT OFF". The adjustment for the selected parameter is canceled.

continued

Adjusting the sound effects (continued)

Adjustable parameters

Menu Right/Left Up/Down (X) (Y)

DSP EDIT (See the chart below)

EQ EDIT Frequency Level

Adjustable DSP parameters

Sound effect Right/Left Up/Down options (X) (Y)

LIVE HOUSE Time Wall type

HALL Time Wall type

S. ENHANCE Time Level

RADIO SOUND Time Level

C.STUDIO A Level —

C.STUDIO B Level —

C.STUDIO C Level —

NORMAL SURR

ARCADE Time Level

RACING Shape

ADVENTURE Frequency Level

BATTLE Time Wall type

PAN Position Position

FLANGER Frequency Level

KEYCONTROL Key Time

EXCITER Frequency Level

COMPRESSOR Time Level

REVERB Time Wall type

EARLY RFLC. Shape

Wall type: This parameter lets you control the level of the high frequencies to alter the sonic character of your listening environment by simulating a softer or harder wall.

The adjustable DSP parameters are shown by the indicator on the upper left corner in the display. You can adjust in the direction the cursor lights. Slide your finger on the digipad to adjust the parameters.

Up/Down (Y)

Right/Left

(X)

Tips

• You can use the cursor buttons ( / / / ) on the remote instead of the digipad. You can press 2 buttons simultaneously to move obliquely. Example: Press and simultaneously to move upper right direction.
• You can store the adjusted effect in a personal file (see "Creating a personal audio effect file").

Creating a personal audio effect file

— Personal file

You can store the adjusted audio effects in the system's memory. You can create up to

5 audio effect files.

1 Obtain the sound effect you want to store to P FILE.
2 Press and hold P FILE.

The personal file number appears in the display.

3 Touch the digipad to select the file number where you want to store the effect.
4 Press ENTER.

To call up a personal file

Press P FILE repeatedly to select the file.

Note

When using personal files, the adjustable DSP EDIT parameters depend on the original preset effect.

Changing the spectrum analyzer display

Press SPECTRUM on the remote.

Each time you press the button, the display changes cyclically as follows:

PATTERN 1 PATTERN 2

PATTERN 3 PATTERN OFF

To adjust the brightness of the display

Use the remote for the operation.

1 Press AMP MENU.
2 Press or repeatedly to select "DIMMER".
3 Press or repeatedly to select the setting you want.

DIMMER 1 DIMMER 2

DIMMER 3

4 Press ENTER.

Singing along: Karaoke

(Except for North American and European models)

You can sing along with any disc or tape by turning down the singer's voice. You need to connect an optional microphone.

1 Turn MIC LEVEL to MIN to turn down the microphone volume.
2 Connect an optional microphone to MIC jack.

3 Press KARAOKE PON.

Each time you press the button, the display changes cyclically as follows:

KARAOKE PON MPXR MPXL Effect status*

• KARAOKE PON is cancelled.
  To sing karaoke by decreasing the vocal level of a disc or a tape, select "KARAOKE PON". To sing karaoke of multiplex CD, select "MPX R" or "MPX L".

4 Start playing the music and adjust the volume.
5 Adjust the microphone volume by turning MIC LEVEL.

When you use DVDs or VIDEO CDs

Turn on your TV and select the video input. Refer to the operating instructions supplied with your TV for details.

After you have finished

Turn MIC LEVEL to MIN and disconnect the microphone from MIC jack, then press KARAOKE PON repeatedly until " " disappears.

Notes

• With some songs, vocals may not be canceled when you select "KARAOKE PON".
• If you recall a sound effect, the karaoke mode is canceled.
• During "KARAOKE PON", "MPX R" or "MPX L", DSP effect switches to "KEY CONTROL". When the karaoke effect is canceled, the DSP effect before entering the karaoke effect is applied again.
• The instrumental sound may be reduced as well as the singer's voice when the sound is recorded in monaural.
• The singer's voice may not be reduced when: only a few instruments are playing.
  a duet is being played.
  the source has strong echoes or chorus.
  the singer's voice deviates from the center.
  the voice on the source is singing in high soprano or tenor.

continued

Singing along: Karaoke (continued)

Mixing and recording sound

1 Do the procedure for "Singing along" (steps 1 through 5). Then, load a recordable tape in deck B.
2 Press the function button of the source you want to record (e.g. DVD).

When you want to record from TAPE A, press TAPE A/B repeatedly until TAPE A is selected.

3 Press REC PAUSE/START.

Deck B stands by for recording.

4 Press DIRECTION repeatedly to select to record on one side. Select (or RELAY) to record on both sides.
5 Press REC PAUSE/START.

Recording starts.

6 Press to start playing the source to be recorded.

Start singing along the music.

To stop recording

Press ■.

Tips

• If acoustic feedback (howling) occurs, move the microphone away from the speakers or change the direction of the microphone.
• If you want to record your voice through the microphone only, you can do so by selecting the DVD function and not playing the disc.
• When high level sound signals are input, the unit automatically adjusts the recording level to prevent distortion of the recorded sound signal (Auto Level Control Function).

Falling asleep to music

— Sleep Timer

You can set the system to turn off at a preset time, so you can fall asleep to music.

Press SLEEP on the remote.

Each time you press the button, the minute display (the turn-off time) changes as follows:

$$ \begin{array}{l} \mathrm {A U T O ^ {*} \longrightarrow 9 0 \longrightarrow 8 0 \longrightarrow 7 0 \longrightarrow \ldots \longrightarrow} \ 1 0 \longrightarrow \mathrm {O F F} \end{array} $$

• The power turns off when the current disc or tape finishes playback (for up to 100 minutes).

To	Press
Check the remaining time (Except for AUTO)	SLEEP once.
Change the time to turn off	SLEEP repeatedly to select the time you want.
Cancel the Sleep Timer	SLEEP repeatedly until “SLEEP OFF” appears.

Waking up to music

Daily Timer

You can wake up to music at a preset time every day. Make sure you have set the clock (see "Setting the time" on page 15).

1 Prepare the music source you want to play.

DVD/VIDEO CD/CD: Load a disc.
- Tape: Load a tape with the side you want to play facing forward.
- Radio: Tune in the preset station you want (see "Listening to the radio" on page 40).

2 Adjust the volume.
3 Press CLOCK/TIMER SET.

"DAILY1 SET" appears.

4 Press or repeatedly to select "DAILY1 SET (or DAILY2 SET)", then press ENTER.

"ON" appears and the hour indication flashes.

5 Set the time to start playback.

Press or repeatedly to set the hour, then press ENTER.

The minute indication flashes.

Press or repeatedly to set the minutes, then press ENTER.

The hour indication flashes again.

6 Set the time to stop playback following step 5.
7 Press I or repeatedly until the music source you want appears.

The indications change as follows:

8 Press ENTER.

The type of timer ("DAILY 1" or "DAILY 2"), followed by the start time, stop time and the music source, appears, then the original display appears.

9 Turn off the power.

To	Do this
Check the setting	Press TIMER SELECT (or CLOCK/TIMER SELECT on the remote) and press ↓ or ↑ repeatedly to select the respective mode (“DAILY 1” or “DAILY 2”), then press ENTER.
Change the setting	Start over from step 1.
Cancel the Daily Timer	Press TIMER SELECT (or CLOCK/TIMER SELECT on the remote) and press ↓ or ↑ repeatedly to select “TIMER OFF”, then press ENTER.

Notes

• If the power is on at the preset time, the Daily Timer does not work.
• When you use the Sleep Timer, the Daily Timer will not turn on the system until the Sleep Timer turns it off.
  The power turns on 15 seconds before the preset time.
  The program is canceled when you change the function to TUNER or turn off the system.

Hooking Up the Optional Components

Connecting audio components

To the digital output jack of an MD deck

To	Do This
Make a digital recording from DVD/VIDEO CD/CD to MD	Connect an optional optical cable.
Listen to the digital sound of a connected MD deck	Press DIGITAL.
Listen to the analog sound of a connected MD deck	Press MD (VIDEO).
Listen to the analog sound of a connected VCR	Hold down MD (VIDEO) and press I/0 while the power is on. Release I/0 first, then release MD (VIDEO). This switches the function from MD to VIDEO. Once you switched to theVIDEO function, just press MD (VIDEO).
Listen to the analog sound of a connected video game	Press GAME.

Tips

• Pressing DIGITAL, MD (VIDEO) or GAME while the power is off automatically turns the power on.
• When you remove the optical cover, keep it for future use.

Notes

Make sure to match the color of the plugs and the connectors.
- If the sound is distorted or too loud when VIDEO function is selected, or you want to switch back to MD function, repeat the operation described above to switch to MD function.
- Digital signals are output from DIGITAL OUT jack during DVD or DIGITAL function only. Besides, the sound output from the DIGITAL OUT jack is not affected by the sound adjustment.
- This unit is not compatible with 96kHz sampling frequencies and SACD format.

Precautions

On operating voltage

Before operating the unit, check that the operating voltage of your unit is identical with the voltage of your local power supply.

On safety

• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Unplug the unit from the wall outlet (mains) if it is not to be used for an extended period of time. To disconnect the cord (mains lead), pull it out by the plug. Never pull the cord itself.
• Should any solid object or liquid fall into the component, unplug the unit and have the component checked by qualified personnel before operating it any further.
• The AC power cord must be changed only at a qualified service shop.

On placement

• Do not place the unit in an inclined position.
• Do not place the unit in locations where it is: - extremely hot or cold.

— dusty or dirty.
very humid.
vibrating.
subject to direct sunlight.

On heat buildup

• Although the unit heats up during operation, this is not a malfunction.
• Place the unit in a location with adequate ventilation to prevent heat build-up in the unit.

If you continuously use this unit at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet.

To prevent a malfunction, do not cover the ventilation hole for the cooling fan.

On operation

• If the unit is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the DVD player. Should this occur, the unit will not operate properly. Remove the disc and leave the unit turned on for about an hour until the moisture evaporates.
• When you move the unit, take out any discs.
  If you have any questions or problems concerning the unit, please consult your nearest Sony dealer.

Notes on discs

• Before playing, clean the disc with a cleaning cloth. Wipe the disc from the center out.
• Do not use solvents such as benzene, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.
• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Do not use discs encircled with a protection ring. This may cause a malfunction to the system.
• When using discs that have glue or similar tacky substance on the label side of the disc or that used a special ink when the label was printed, there is a chance that the disc or label may become attached to parts inside this unit. When this occurs, it may not be possible to remove the disc, and may also cause this unit to malfunction. Be sure to check that the label side of the disc is not sticky before using.

The following types of disc should not be used:

Rental or used discs with attached seals where the glue extends beyond the seal. The perimeter of the seal on the disc is tacky.
Discs that have labels printed using a special ink that feels tacky when touched.

• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.

Note on CD-R/CD-RW playback

Discs recorded on CD-R/CD-RW drives may not be played back because of scratches, dirt, recording condition or the drive's characteristics. Besides, the discs, which are not yet finalized at the end of recording, cannot be played back.

Cleaning the cabinet

Use a soft cloth slightly moistened with mild detergent solution.

continued

Precautions (continued)

To save a tape permanently

To prevent a tape from being accidentally recorded over, break off the cassette tab from side A or B as illustrated.

If you later want to reuse the tape for recording, cover the broken tab with adhesive tape. However, be careful not to cover the detector slots which allow the tape player to automatically detect the type of tape.

Tab of side B Tab of side A

Break off the cassette tab of side A

Before placing a cassette in the tape deck

Take up any slack in the tape. Otherwise the tape may get entangled in the parts of the tape deck and become damaged.

When using a tape longer than 90 minutes

The tape is very elastic. Do not change the tape operations such as play, stop, and fast-winding etc. frequently. The tape may get entangled in the tape deck.

Cleaning the tape heads

Clean the tape heads after every 10 hours of use. Make sure to clean the tape heads before you start an important recording or after playing an old tape. Use a separately sold dry-type or wet-type cleaning cassette. For details, refer to the instructions of the cleaning cassette.

Demagnetizing the tape heads

Demagnetize the tape heads and the metal parts that have contact with the tape every 20 to 30 hours of use with a separately sold demagnetizing cassette. For details, refer to the instructions of the demagnetizing cassette.

In case color irregularity is observed on nearby a TV screen

With the magnetically shielded type of speaker system, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on the type of your TV set.

If color irregularity is observed...

Turn off the TV set once, then turn it on after 15 to 30 minutes.

If color irregularity is observed again...

Place the speakers farther away from the TV set.

Troubleshooting

If you run into any problem using this unit, use the following check list.

First, check that the power cord is connected firmly and the speakers are connected correctly and firmly.

Should any problem persist, consult your nearest Sony dealer.

General

The display starts flashing as soon as you plug in the power cord even though you haven't turned on the power.

• The demonstration mode started. Press 1 / 0 (see step 7 on page 11).

The clock setting/timer is canceled.

• The power cord is disconnected or a power failure occurs. Redo "Setting the time" (page 15). If you have set the timer, redo "Waking up to music" (page 50) and/or "Timer-recording radio programs" (page 45).

The radio presetting is canceled.

• The power cord is disconnected or a power failure occurs for longer than half a day. Redo "Presetting radio stations" (page 40).

There is no sound.

• Turn VOLUME clockwise.
• The headphones are connected.
• Insert only the stripped portion of the speaker cord into the SPEAKER jack. Inserting the vinyl portion of the speaker cord will obstruct the speaker connections.
• The protective device on the amplifier has been activated because of a short circuit. ("PROTECT" and "PUSH POWER" flash alternately.) Turn off the power, eliminate the short-circuit problem and turn on the power again.
• The system is in pause mode or in Slow-motion Play mode. Press to return to normal play mode.
• There is no audio output during Timer-recording.

The sound loses stereo effect when you play a VIDEO CD, or a CD.

• Set "AUDIO" to "STEREO" in the Control Menu (page 32).
• Make sure you connect the system appropriately.

The surround effect is difficult to hear when you are playing a Dolby Digital or MPEG audio sound track.

• Make sure the DSP effect is on (page 47).
• Check the speaker connections and settings (pages 14, 21).
• Depending on the DVD, the output signal may not be the entire 5.1 channel but monaural or stereo even if the sound track is recorded in Dolby Digital or MPEG audio format.

There is severe hum or noise.

• A TV or VCR is placed too close to the unit. Move the unit away from the TV or VCR.

The sound from the component connected to the MD (VIDEO) jacks is distorted.

• If "VIDEO" appears in the display when you press MD (VIDEO), switch to "MD" function (see "Note: Connecting audio components" on page 52).

"---" lights up in the display.

• A power interruption occurred. Set the clock and timer settings again.

The timer does not function.

• Set the clock correctly.
• You cannot activate the Daily timer and the Timer-recording simultaneously.

"DAILY 1", "DAILY 2", or "REC" does not appear when you press TIMER SELECT (or CLOCK/TIMER SELECT on the remote).

• Set the timer correctly.
• Set the clock.

The remote does not function.

• There is an obstacle between the remote and the unit.
• The remote is not pointing in the direction of the unit's sensor.
• The batteries have run down. Replace the batteries.

There is acoustic feedback.

Decrease the volume level.
- Move the microphone away from the speakers or change the direction of the microphone.

The color irregularity on a TV screen persists.

• Turn off the TV set once, then turn it on after 15 to 30 minutes. If the color irregularity still persists, place the speakers farther away from the TV set.

"PROTECT" and "PUSH POWER" appear alternately.

• A strong signal is input. Turn off the power, leave the system turned off for a while, then turn on the power again. If "PROTECT" and "PUSH POWER" still appear alternately, check the speaker cords.

continued

Troubleshooting (continued)

Speakers

Sound comes from only one channel or unbalanced left and right volume.

• Check the speaker connection and speaker placement.
• The source being played back is monaural.
• Adjust the balance parameters (pages 14, 21).

The sound comes from the center speaker only. (MHC-DP1000D only)

• Depending on the disc, the sound may come from the center speaker only.

There is no sound from the center speaker. (MHC-DP1000D only)

• Set the center speaker level to the appropriate level.
• 2CH/MULTI is set to "2CH".
• Make sure the DSP effect is on (page 47).

There is no sound from the rear speakers. (MHC-DP1000D only)

• Set the rear speakers level to the appropriate level.
• 2CH/MULTI is set to "2CH".
• The software being played back has limited sound effects. Check the volume with the test tone.

No sound or only a very low-level sound is heard from the rear speakers.

• Make sure the DSP effect is on (page 47).

Sound lacks bass.

• Check that the speaker's + and - terminals are connected correctly.

DVD/VIDEO CD/CD Player

The disc tray does not close.

• The disc is not placed properly.

The disc does not play.

• The disc is not lying flat in the disc tray.
  The disc is dirty (see page 53).
• The disc is inserted label side down.
• Moisture condensation has built up.
• The system cannot play CD-ROMs, etc. (page 6).
• The region code on the DVD does not match the system.

The disc does not start playback from the beginning.

• Program Play, Shuffle Play, or Repeat Play has been selected (pages 23, 24, 26, 28). Press CLEAR to cancel these functions before playing a disc.
• Resume Play has been selected. When the playback is stopped, press , then start DVD playback (page 28).
• The title, DVD or PBC menu automatically appears on the screen.

Playback starts automatically.

• The DVD features an auto playback function.

Playback stops automatically.

• Some discs may contain an auto pause signal. While playing such a disc, the playback stops at the auto pause signal.

You cannot perform some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play, or Program Play.

Depending on the disc, you may not be able to do some of the operations above. Refer to the operating instructions supplied with the disc.


There is no picture.

• Press DVD.
• Check that the system is connected securely.
• The video cable is damaged. Replace it with a new one.
• Make sure you connect the system to the video input jack of your TV (page 11).
  Make sure you turn on the TV.
• Make sure you select the video input on the TV so that you can view the pictures from the system.

The picture noise appears.

Clean the disc.
- If video from your DVD player has to go through your VCR to get to your TV, the copy-protection applied to some DVD programs could affect picture quality. If you still experience problems after checking your connections, please try connecting your DVD player directly to your TV's S video-input, if your TV is equipped with this input (page 11).
Except for Pan American and European models, the color system is different. Set the color system to match your TV (pages 12, 20).

The aspect ratio of the screen cannot be changed even though you set "TV TYPE" in "SCREEN SETUP" in the Setup Display when you play a wide picture.

The aspect ratio is fixed on your DVD.
- If you connect the system with the S-video cable, connect directly to the TV. Otherwise, you may not change the aspect ratio.
- Depending on the TV, you may not change the aspect ratio.

Messages do not appear on the screen in the language you want.

• Select the language you want for the on-screen display in "OSD" under "LANGUAGE SETUP" in the Setup Display (page 18).

The language for the sound track cannot be changed.

• Multilingual tracks are not recorded on the DVD being played.
• The DVD prohibits changing the language for the sound track.

The subtitle language cannot be changed.

• Multilingual subtitles are not recorded on the DVD being played.
• The DVD prohibits changing the subtitles.

The subtitle cannot be turned off.

• The DVD prohibits turning off subtitles.

The angles cannot be changed.

• Multi-angles are not recorded on the DVD being played. The angle can be changed only when the "ANGLE" indicator lights up on the front panel display.
• The DVD prohibits changing the angles.

A 5-character service number is displayed on the screen and on the front panel display.

• The self-diagnosis function is activated. (See the table on page 58.)

The disc tray does not open and "LOCKED" appears on the front panel display.

• Contact your Sony dealer or local authorized Sony service facility.

continued

Troubleshooting (continued)

Tape Deck

The tape does not record.

• The tab has been removed from the cassette (see "To save a tape permanently" on page 54).
• The tape has reeled to the end.

The tape does not record nor play, or there is a decrease in sound level.

• The heads are dirty (see "Cleaning the tape heads" on page 54).
• The record/playback heads are magnetized (see "Demagnetizing the tape heads" on page 54).

The tape does not erase completely.

The record/playback heads are magnetized (see "Demagnetizing the tape heads" on page 54).

There is excessive wow or flutter, or the sound drops out.

• The capstans or pinch rollers are dirty (see "Cleaning the tape heads" on page 54).

Noise increases, or the high frequencies are erased.

• The record/playback heads are magnetized (see "Demagnetizing the tape heads" on page 54).

After pressing or , there is a mechanical noise, "EJECT" appears in the display, and the unit enters standby mode automatically.

• The cassette tape has not inserted correctly.

Tuner

There is severe hum or noise ("TUNED" or "STEREO" flashes in the display).

• Adjust the antenna.
• The signal is too weak. Connect an external antenna.

A stereo FM program cannot be received in stereo.

• Press FM MODE so that "MONO" disappears.

If other troubles not described above occur, reset the system as follows:

1 Press , DISPLAY and DISC 1 at the same time.
2 Unplug the power cord.
3 Plug the power cord back in.
4 Press I/O to turn on the power.

The system is reset to the factory settings except for DVD settings. All the settings other than DVD settings you made, such as the preset stations, clock, and timer are cleared. You should set them again.

Self-diagnosis function

(When letters/numbers appear in the display)

When the self-diagnosis function is activated to prevent the system from malfunctioning, a five-character service number (e.g., C 13 00) with a combination of a letter and digits appears on the screen. In this case, check the following table.

First three characters of the service number	Cause and/or Corrective Action
C 13	The disc is dirty →Clean the disc with a soft cloth (page 53).
C 31	The disc is not inserted correctly. →Re-insert the disc correctly.
E XX (XX is a number)	To prevent a malfunction, the system has performed the self-diagnosis function. →Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number. Example: E 61 10

Specifications

AUDIO POWER SPECIFICATIONS: (MHC-DP1000D USA model only)

POWER OUTPUT AND TOTAL HARMONIC DISTORTION

with 8 ohm loads both channels driven, from

120Hz - 10kHz rates 100 watts per channel

minimum RMS power, with no more than 10%

total harmonic distortion from 250 milliwatts to rated output.

Continuous RMS power output

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1kHz 10% THD)

Amplifier section

Canadian model: MHC-DP1000D

Continuous RMS power output (reference)

Front speaker: 100 + 100 watts

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1kHz 10%

THD)

Total harmonic distortion less than 0.07%

(8 ohms at 1 kHz, 70 W)

European model: MHC-DP1000D

DIN power output (rated) 60 + 60 watts

(8 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

Front speaker: 80 + 80 watts

Center speaker: 30 watts

Rear speakers: 30 + 30 watts

(8 ohms at 1 kHz, 10% THD)

Music power output (reference)

Front speaker: 150 + 150 watts

Center speaker: 60 watts

Rear speakers: 60 + 60 watts

(8 ohms at 1 kHz, 10% THD)

Other models: MHC-DP900D

The following measured at AC 120, 220, 240 V, 50 / 60Hz

DIN power output (rated) 130 + 130 watts

(6 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

180 + 180 watts

(6 ohms at 1 kHz, 10%

THD)

MHC-DP1000D

The following measured at AC 120, 220, 240 V, 50 / 60Hz

DIN power output (rated) 90 + 90 watts

(8 ohms at 1 kHz, DIN)

Continuous RMS power output (reference)

Front speaker: 120 + 120 watts

Center speaker: 40 watts

Rear speakers: 40 + 40 watts

(8 ohms at 1 kHz, 10%

THD)

Inputs

GAME IN: voltage 250mV

(phono jacks) impedance 47 kilohms

MD (VIDEO) IN: voltage 450mV / 250mV

(phono jacks) impedance 47 kilohms

OPTICAL IN:

(Square optical connector jacks, front panel)

wavelength

MIC: sensitivity 1mV

(Except for North impedance 10 kilohms

American and

European models)

.phone jack)

Outputs

MD (VIDEO) OUT: voltage 250mV

(phono jacks) impedance 1 kilohms

VIDEO OUT: max. output level

(phono jack) 1 Vp-p, unbalanced, Sync

negative, load impedance 75 ohms

S-VIDEO OUT: Y: 1 Vp-p, unbalanced,

(4-pin/mini-DIN jack) Sync negative,

C: 0.286Vp-p,

PHONES:

(stereo mini jack)

SPEAKER:

(MHC-DP900D only)

FRONT SPEAKER :

(MHC-DP1000D only)

REAR SPEAKER:

(MHC-DP1000D only)

CENTER SPEAKER:

(MHC-DP1000D only)

SUB WOOFER:

load impedance 75 ohms

accepts headphones of

8 ohms or more

accepts impedance of 6 to 16 ohms

accepts impedance of 8 to 16 ohms

accepts impedance of 8 to 16 ohms

accepts impedance of 8 to 16 ohms

Voltage 1 V,

impedance 1 kilohms

continued

Specifications (continued)

DVD player section

Laser Semiconductor laser

(DVD: = 650nm

CD: = 780nm

Emission duration:

continuous

Frequency response DVD (PCM 48 kHz):

2Hz - 22kHz = (± 1dB)

CD: 2Hz - 20kHz =

(±1 dB)

Signal-to-noise ratio More than 90 dB

Dynamic range More than 90 dB

Video color system format

NTSC, PAL

DIGITAL OUT OPTICAL

(Square optical connector jack, rear panel)

Wavelength 660 nm

Tape player section

Recording system 4-track 2-channel stereo

Frequency response 40 - 13,000Hz (± 3dB)

(DOLBY NR OFF) using Sony TYPE I

cassette,

40 - 14,000Hz (± 3dB)

using Sony TYPE II

cassette

Wow and flutter ± 0.15% W.Peak (IEC)

0.1% W.RMS (NAB)

± 0.2% W.Peak (DIN)

Tuner section

FM stereo, FM/AM superheterodyne tuner

FM tuner section

Tuning range 87.5 - 108.0 MHz

Antenna FM lead antenna

Antenna terminals 75 ohm unbalanced

Intermediate frequency 10.7 MHz

AMtuner section

Tuning range

Pan American model: 530 - 1,710kHz

(with the interval set at 10kHz

531-1,710 kHz

(with the interval set at 9kHz

European and Middle Eastern models:

531-1,602 kHz

(with the interval set at 9kHz

Other models: 531 - 1,602kHz

(with the interval set at 9kHz

530 - 1,710kHz

(with the interval set at

10 kHz)

Antenna AM loop antenna

Antenna terminals External antenna terminal

Intermediate frequency 450kHz

Speaker

Front speaker

SS-DP1000DW for MHC-DP1000D (North

American and European models)

Speaker system 2-way, bass-reflex type,

magnetically shielded type

Speaker units

Woofer: 17~cm cone type

Tweeter:

5 cm, cone type

Nominal

8 ohms

Dimensions (w/h/d)

Approx. 230 × 360 × 260 ~mm

Mass

Approx. 4.0kg net per

speaker

SS-DP1000D/DP900D for MHC-DP1000D/

DP900D (Oth

Speaker system 3-way, 3-unit,

bass-reflex type,

magnetically shielded type

Speaker units

Woofer: 15cm cone type

Subwoofer:

15 cm, cone type

5 cm, cone type

Tweeter:

Nominal impedance

SS-DP900D

6 ohms

SS-DP1000D

8 ohms

Dimensions (w/h/d)

Approx. 250 × 360 × 335 ~mm

Mass

Approx. 6.5kg net per

speaker

Rear speaker SS-RS270 for MHC-DP1000D

Speaker system 1-way, 1-unit,

bass-reflex type

Speaker units

Full-range:

8 cm, cone type

Nominal impedance

8 ohms

Dimensions (w/h/d)

Approx. 180 × 95 × 100 ~mm

Mass

Approx. 0.65kg net per

speaker

Center speaker SS-CT270 for MHC-DP1000D

Speaker system 1-way, 2-unit,

bass-reflex type,

magnetically shielded type

Speaker units

Full-range:

8 cm, cone type

Nominal impedance

8 ohms

Dimensions (w/h/d)

Approx. 225x95x100mm

Mass

Approx. 1.2kg net

For the customers in Canada

(MHC-DP1000D only)

Use only the supplied SS-RS270 rear speakers for connection to the REAR SPEAKER jacks, and only the supplied SS-CT270 center speaker for connection to the CENTER SPEAKER jacks on the

MHC-DP1000D.

General

Power requirements

North American model: 120V AC, 60Hz

European model: 230VAC 50 / 60Hz

Australian model: 230 - 240VAC

50/60 Hz

Mexican model: 120VAC,60Hz

Thailand model: 220V AC, 50 / 60Hz

Indian, Pakistani, Moroccan and Tunisian models:

220VAC,50/60Hz

Other models: 120V 220V or

230-240VAC.

50/60 Hz

Adjustable with voltage

selector

Power consumption

U.S.A. model:

MHC-DP1000D 205 watts

Canadian model:

MHC-DP1000D 205 watts

European model:

MHC-DP1000D 190 watts

0.5 watts (at the Power

Saving Mode)

Other models:

MHC-DP900D 210 watts

MHC-DP1000D 225 watts

Dimensions (w/h/d) Approx. 280 × 360 × 365 ~mm

Mass

North American and European models:

MHC-DP1000D Approx. 11.0kg

Other models:

MHC-DP900D Approx. 12.5kg

MHC-DP1000D Approx. 12.0kg

Supplied accessories: AM loop antenna (1)

FM lead antenna (1)

Remote commander (1)

Batteries (2)

Video cable (1)

Front speaker pads (8)

Center and rear speaker

pads (MHC-DP1000D

only, 12)

Design and specifications are subject to change without notice.

Glossary

Bit Rate

Value indicating the amount of video data compressed in a DVD per second. The unit is Mbps (Mega bit per second). 1 Mbps indicates that the data per second is 1,000,000 bits. The higher the bit rate is, the larger the amount of data. However, this does not always mean that you can get higher quality pictures.

Chapter

Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Dolby Digital

This sound format for movie theaters is more advanced than Dolby Pro Logic Surround. In this format, the rear speakers output stereo sound with an expanded frequency range and a subwoofer channel for deep bass is independently provided. This format is also called "5.1" because the subwoofer channel is counted as 0.1 channel (since it functions only when a deep bass effect is needed). All six channels in this format are recorded separately to realize superior channel separation. Furthermore, since all the signals are processed digitally, less signal degradation occurs.

Dolby Pro Logic Surround

As one method of decoding Dolby Surround, Dolby Pro Logic Surround produces four channels from two-channel sound. Compared with the former Dolby Surround system, Dolby Pro Logic Surround reproduces left-to-right panning more naturally and localizes sounds more precisely. To take full advantage of Dolby Pro Logic Surround, you should have one pair of rear speakers and a centre speaker. The rear speakers output monaural sound.

DTS

Digital audio compression technology that the Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround. The rear channel is stereo and there is discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. The good channel separation is realized because the all channel data is recorded discrete and processed in digital.

DVD

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD, at 4.7 GB (Giga Byte), is 7 times that of a CD. Furthermore, the data capacity of a dual-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD 9.4 GB, and a dual-layer and double-sided DVD 17 GB.

The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 of its original size. The DVD also uses the variable rate coding technology that changes the data to be allocated according to the status of the picture.

The audio data is recorded in Dolby Digital as well as in PCM, allowing you to enjoy more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

Index (CD) / Video Index (VIDEO CD)

A number that divides a track into sections to easily locate the point you want on a VIDEO CD or a CD. Depending on the disc, no indexes may be recorded.

Multi-angle function

Various angles, or viewpoints of the video camera, for a scene are recorded on some DVDs.

Multilingual function

Several languages for the sound or subtitles in a picture are recorded on some DVDs.

Parental Control

A function of the DVD to limit playback of the disc by the age of the users according to the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback is completely prohibited, violent scenes are skipped or replaced with other scenes and so on.

Playback Control (PBC)

Signals encoded on VIDEO CDs (Version 2.0) to control playback. By using menu screens recorded on VIDEO CDs with PBC functions, you can enjoy playing simple interactive programs, programs with search functions, and so on.

Region Code

This system is used to protect copyrights. A region number is allocated on each DVD system or DVD disc according to the sales region. Each region code is shown on the system as well as on the disc packaging. The system can play the discs that match its region code. The system can also play discs with the "ALL" mark. Even when the region code is not shown on the DVD, the region limit may still be activated.

Scene

On a VIDEO CD with PBC functions (page 25), the menu screens, moving pictures, and still pictures are divided into sections called "scenes". Each scene is assigned a scene number enabling you to locate the scene you want.

Title

The longest sections of a picture or a music piece on a DVD; a movie, etc., for a picture piece on video software; or an album, etc., for a music piece on an audio software. Each title is assigned a title number enabling you to locate the title you want.

Track

Sections of a picture or a music piece on a CD or VIDEO CD. Each track is assigned a track number enabling you to locate the track you want.

VIDEO CD

A compact disc that contains moving pictures.

The picture data uses the MPEG 1 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/140 of its original size. Consequently, a 12cm VIDEO CD can contain up to 74 minutes of moving pictures.

VIDEO CDs also contain compact audio data. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed.VIDEO CDs can hold 6 times the audio information of conventional audio CDs.

There are 2 versions of VIDEO CDs.

• Version 1.1: You can play only moving pictures and sounds.
• Version 2.0: You can play high-resolution still pictures and enjoy PBC functions.

This system conforms to both versions.

Language code list

For details, see pages 18, 32 and 35.

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language Code Language Code Language Code Language

1027 Afar 1186 Scots Gaelic 1350 Malayalam 1513 Siswati

1028 Abkhazian 1194 Galician 1352 Mongolian 1514 Sesotho

1032 Afrikaans 1196 Guarani 1353 Moldavian 1515 Sundanese

1039 Amharic 1203 Gujarati 1356 Marathi 1516 Swedish

1044 Arabic 1209 Hausa 1357 Malay 1517 Swahili

1045 Assamese 1217 Hindi 1358 Maltese 1521 Tamil

1051 Aymara 1226 Croatian 1363 Burmese 1525 Telugu

1052 Azerbaijani 1229 Hungarian 1365 Nauru 1527 Tajik

1053 Bashkir 1233 Armenian 1369 Nepali 1528 Thai

1057 Byelorussian 1235 Interlingua 1376 Dutch 1529 Tigrinya

1059 Bulgarian 1239 Interlingue 1379 Norwegian 1531 Turkmen

1060 Bihari 1245 Inupiak 1393 Occitan 1532 Tagalog

1061 Bislama 1248 Indonesian 1403 (Afan) Oromo 1534 Setsswana

1066 Bengali; Bangla 1253 Icelandic 1408 Oriya 1535 Tonga

1067 Tibetan 1254 Italian 1417 Punjabi 1538 Turkish

1070 Breton 1257 Hebrew 1428 Polish 1539 Tsonga

1079 Catalan 1261 Japanese 1435 Pashto; Pushto 1540 Tatar

1093 Corsican 1269 Yiddish 1436 Portuguese 1543 Twi

1097 Czech 1283 Javanese 1463 Quechua 1557 Ukrainian

1103 Welsh 1287 Georgian 1481 Rhaeto-Romance 1564 Urdu

1105 Danish 1297 Kazakh 1482 Kirundi 1572 Uzbek

1109 German 1298 Greenlandic 1483 Romanian 1581 Vietnamese

1130 Bhutani 1299 Cambodian 1489 Russian 1587 Volapuk

1142 Greek 1300 Kannada 1491 Kinyarwanda 1613 Wolof

1144 English 1301 Korean 1495 Sanskrit 1632 Xhosa

1145 Esperanto 1305 Kashmiri 1498 Sindhi 1665 Yoruba

1149 Spanish 1307 Kurdish 1501 Sangho 1684 Chinese

1150 Estonian 1311 Kirghiz 1502 Serbo-Croatian 1697 Zulu

1151 Basque 1313 Latin 1503 Singhalese 1703 Not specified

1157 Persian 1326 Lingala 1505 Slovak

1165 Finnish 1327 Laothian 1506 Slovenian

1166 Fiji 1332 Lithuanian 1507 Samoan

1171 Faroese 1334 Latvian; Lettish 1508 Shona

1174 French 1345 Malagasy 1509 Somali

1181 Frisian 1347 Maori 1511 Albanian

1183 Irish 1349 Macedonian 1512 Serbian

Control Menu Item List

Control Menu Items	Function
TITLE (DVD only)	Selects the title (DVD), the scene (VIDEO CD in PBC Playback), or the track (VIDEO CD) to be played.
SCENE (VIDEO CD in PBC Playback only)
TRACK (VIDEO CD only)
CHAPTER (DVD only)	Selects the chapter (DVD) or the index (VIDEO CD) to be played.
INDEX (VIDEO CD only)
TRACK (CD only)	Selects the track to be played.
INDEX (CD only)	Selects the index to be played.
TIME/TEXT	Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text.
AUDIO	Changes the audio setting.
SUBTITLE (DVD only)	Displays the subtitles. Changes the subtitle language.
ANGLE (DVD only)	Changes the angle.
ONE/ALL DISCS	Plays one disc or all discs in the disc tray.
REPEAT	Plays the entire disc (all titles/all tracks) repeatedly or one title/chapter/track repeatedly.
ADVANCED (DVD only)	Checks the information (bit rate or layer) on the disc while playing a DVD.
CUSTOM PARENTAL CONTROL	Sets the disc to prohibit playback.
SETUP	CUSTOM Setup Adjusts the image and sound quality, Parental Control, and other various settings.
	RESET Returns the settings in “SETUP” to the default setting.

Tips

• Each time you press DVD DISPLAY, the Control Menu display changes cyclically as follows.
• Control Menu display "ADVANCED" display (Appears if you select any setting other than "OFF". See page 31.) Control Menu display off
• The Control Menu items differ depending on the disc.
• The Control Menu icon indicator lights in green when you select any item except for "OFF" ("REPEAT" only). The "ANGLE" indicator lights in green only when the angles can be changed.

Setup Display Item List

You can set the following items in the Setup Display.

The order of the displayed items may be different from the actual display.

LANGUAGE

CUSTOM

SCREEN

SPEAKER

Except for Pan American and European models.
2 MHC-DP1000D only.

AVERTISSEMENT

Appareil principal 7

Telecommande 8

Appareil principal
4

2CH/MULTI 42 (24,46)

CD SYNC HI-DUB [17] (43, 44)

CLOCK/TIMER SET 33 (15,45, 51)

DVD 30 (12, 25, 26, 34, 43, 44)

DVD DISPLAY 35 (17,28,30)

DVD MENU 19 (25)

EFFECT 43 (47)

ENTER 40 (14, 15, 25-27, 31, 32, 34-41, 44, 45, 47, 51)

FM MODE 36 (41)

GAME 25 (52)

GAME MODE 46 (47)

GROOVE 44 (46)

PLAY MODE [37] (23, 26, 27, 44)

Prise DIGITAL IN (OPTICAL) 24 (52)

REC PAUSE/START 16 (43, 44, 50)

REPEAT [36] (28, 29)

SPECTRUM (modeles

CLEAR 42 (21, 27, 28, 34)

CLOCK/TIMER SELECT 2 (45, 51)

CLOCK/TIMER SET 3 (15,45, 51)

D.SKIP [2] (23, 24, 28)

DIGITAL 47 (52)

DISPLAY 45 (16,29,30)

DSPEDIT 34(47)

DVD 49 (12, 16, 25, 26, 34, 43, 44)

DVD DISPLAY [23] (17, 28, 30-32, 34-36)

DVD MENU [21] (25)

DVD SET UP [19] (18, 22, 37)

EFFECT ON/OFF [13] (47)

ENTER 28 (14, 15, 17, 25-27, 31, 32, 34-41, 44, 45, 47, 49, 51)

GAME 46 (52)

GAME MODE 29 (47)

MD(VIDEO)48(52)

MOVIE MODE 25 (47)

MUSIC MODE [31] (47)

NEXT 39 (24, 25)

PFILE 33 (48)

PREV 40 (24, 25)

REPEAT [10] (28, 29)

RETURN 41 (25,37,38)

SLEEP 1 (50)

SLOW 18 (24)

SPEAKER LEVEL 24 (14)

SPECTRUM 44 (49)

STEP 37 (24)

SUB TITLE 36 (35)

TAPE A/B 51 (42, 43)

TITLE 20 (25)

TOOL MODE 27 (47)

(lecture), SELECT 14

I (pause) 15

(17)

/ (rembobinage/avance),

TUNING-/+ [16]

1/（arriere/avant),

PRESET-/+ 38

△/▼/△/□ 30

10 43

* MHC-DP1000Dsubsection.

(MHC-DP1000Dsubsection)

(MHC-DP1000Dsubsection)

REAR L_R: (centre)

T.TONE (MHC-DP1000Dsubsection)

T.TONE: (OFF)

Example: "SCREEN SETUP"

La lecture commence.

Conseil

(6 ohms à 1 kHz, 10%

DHT)

MHC-DP1000D

(8 ohms à 1 kHz, 10%

DHT)

Entrées:

GAME IN: Tension 250mV

(prises cinch) impédance de 47 kilohms

MD (VIDEO) IN: Tension 450mV / 250mV

(prises cinch) impédance de 47 kilohms

OPTICAL IN:

MD (VIDEO) OUT: Tension 250mV

(prises cinch) impédance de 1 kilohm

SUB WOOFER: Tension 1 V,

impédance de 1 kilohm

voir page suivante

Specifications (suite)

Section Lecteur DVD

Tuner FM stereo, FM/AM superheterodyne

Section Tuner FM

Plage de frequencies 87,5 - 108,0 MHz

Antenne Antenne fil FM

MHC-DP1000D Approx. 11,0kg

Autres modèles:

MHC-DP900D Approx. 12,5kg

MHC-DP1000D Approx. 12,0kg

Accessoires fournis: Antenne cadre AM (1)

Antenne fil FM (1)

Télécommande (1)

Piles (2)

Cable video (1)

DIGITAL IN (OPTICAL) jack 24 (52)

DIRECTION [35] (42-44, 50)

DISC1-3 (23,24)

DISCSKIP EX-CHANGE 3 (23,24)

DISPLAY 31 (16,29,30)

DOLBY NR 36 (42-44)

DSPEDIT47(47)

DVD 30 (12, 25, 26, 34, 43, 44)

DVD DISPLAY 35 (17,28,30)

DVD MENU 19 (25)

EFFECT 43 (47)

ENTER 40 (14, 15, 25-27, 31, 32, 34-41, 44, 45, 47, 51)

FM MODE 36 (41)

GAME 25 (52)

GAME MODE 46 (47)

GROOVE 44 (46)

PLAY MODE [37] (23, 26, 27, 44)

PTY ( Modelo para Europa solamente) [35] (41)

REC PAUSE/START [16] (43, 44, 50)

Receptor de rayos infrarrojos (IR) [14]

REPEAT [36] (28, 29)

CLEAR 42 (21, 27, 28, 34)

CLOCK/TIMER SELECT 2 (45, 51)

CLOCK/TIMER SET 3 (15,45, 51)

D.SKIP [22] (23, 24, 28)

DIGITAL 47 (52)

DISPLAY 45 (16,29,30)

DSPEDIT 34(47)

DVD 49 (12, 16, 25, 26, 34, 43, 44)

DVD DISPLAY 23 (17, 28, 30-32, 34-36)

DVD MENU [21] (25)

DVD SET UP [19] (18, 22, 37)

EFFECT ON/OFF [13] (47)

ENTER 28 (14, 15, 17, 25-27, 31, 32, 34-41, 44, 45, 47, 49, 51)

GAME 46 (52)

GAME MODE 29 (47)

MD(VIDEO)48(52)

MOVIE MODE 25 (47)

MUSIC MODE 31 (47)

NEXT 39 (24, 25)

PFILE 33 (48)

PREV 40 (24, 25)

REPEAT 10 (28, 29)

RETURN 41 (25,37,38)

SLEEP (50)

SLOW 18 (24)

SPEAKER LEVEL 24 (14)

SPECTRUM 44 (49)

STEP 11/137 (24)

SUB TITLE 36 (35)

TAPE A/B [51] (42, 43)

Teclas numéricas [8] (26)

TITLE 20 (25)

TOOL MODE 27 (47)

TUNER/BAND 50 (40,41)

TV1/4(12)

TV CH + / - [7] (12)

TV/VIDEO 9 (12)

TV VOL + / - [6] (12)

VOL + / - 26

DESCRIPCION DE LAS TECLAS

1/ (Alimentación) 5

PROGRAM --- --- ---	T
ALL CLEAR	ALL
1. --- ---
2. --- ---
3. --- ---
4. --- ---
5. --- ---
6. --- ---

PROGRAM --- --- ---	T
ALL CLEAR	ALL
1. CD - 02
2. --- ---
3. --- ---
4. --- ---
5. --- ---
6. --- ---

EARLY RFLC. (EARLY REFLECTION)

La cinta no se borra Completely.

(8 ohm a 1 kHz, 10% de

(8 ohm a 1 kHz, 70 W)

Modelo para Europa: MHC-DP1000D

(8 ohm a 1 kHz, DIN)

(8 ohm a 1 kHz, 10% de

(8 ohm a 1 kHz, 10% de

(6 ohm a 1 kHz, DIN)

(6 ohm a 1 kHz, 10% de

(8 ohm a 1 kHz, DIN)

(8 ohm a 1 kHz, 10% de

traseros (MHC-DP1000D

solamente, 12)
