USER MANUAL Evoke F4 with Bluetooth PURE

Thank you for choosing Evoke F4 with Bluetooth. This music streaming and radio system brings a world of listening simply and easily within your reach. You can use it to enjoy music streamed wirelessly from your iOS or Android device or from your PC or Mac; to listen to a wide-range of internet, digital or FM radio stations; and to play thousands of podcasts, on-demand radio programmes and evocative ambient sounds. You can also access the Pure Connect cloud-based on-demand subscription service to gain instant access to millions of music tracks. This manual will get you up and running in no time, and explains how to make the most of your Evoke F4. We're constantly improving and adding new features to our products. To take advantage of any enhancements made since your product was shipped, please visit support.pure.com where you can download the latest version of this user guide in PDF format.

PURE SelectVolume

Important Safety Instructions

1. Read these instructions – All the safety and operating instructions should be read before this product is operated.
2. Keep these instructions – The safety and operating instructions should be retained for future reference.
3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow all instructions – All operating and use instructions should be followed.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, stoves, or other apparatus that produce heat.

9. Only use attachments and accessories specified by the manufacturer.

10. Unplug the apparatus during lightning storms or when unused for long periods of time.

11. Do not use the mains adapter outdoors.

12. Be aware of volume levels when using headphones, excessive volume can damage your hearing.

13. Cease use immediately if apparatus exhibits any signs of mechanical damage, excessive temperature, swelling or splitting.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

16. Use only power supplies listed in the user instructions (with model no. DSA-24CA-05 055357, manufactured Pure).

17. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, or the apparatus does not operate normally, or has been dropped.

18. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be placed on apparatus.

19. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

20. WARNING: The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable.

21. This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

Damage to hearing can occur with consistent exposure to high volume when using headphones. Always check the volume level before inserting headphones into your ears.

Use of headphones while operating a vehicle is not recommended and is illegal in some areas. Stop listening to your radio if you find it distracting while operating any type of vehicle or performing any other activity that requires your full attention.

Contents

4 Getting started

4 Quick start
5 Controls and sensors
6 Rear panel
6 Switching between Sleep, Standby and On
7 Screen icons

8 Internet listening via Pure Connect

8 Connecting to the Internet
8 Listening to Internet radio
9 Listening to other Internet content
10 Music streaming
10 Pure Connect tagging service

11 Streaming from the Pure Connect app

11 Download the Pure Connect app
11 Selecting Evoke or other Caskeid compatible device in the Pure Connect app

12 Streaming music from a PC or Mac

12 Listening to streamed tracks on Evoke

13 Listening to digital or FM radio

13 Changing digital stations

13 Searching for digital stations

13 Changing FM stations

13 Storing a preset

13 Listening to a preset

14 Listening to audio from a USB memory stick

14 Using Bluetooth

15 Recording radio programmes

15 Instant recordings
15 Timed recordings

16 Setting alarms and timers

16 Setting an alarm
16 Setting the sleep timer
16 Setting the kitchen timer
16 Cancelling a sounding alarm or timer
16 Snoozing a sounding alarm
16 Changing the alarm snooze time
16 Cancelling a snoozing alarm

17 Options and settings

17 Pure Connect settings
17 Autotune
17 FM settings
17 Network/USB media
18 Audio settings
19 Setting the clock
19 Changing the language shown on the display
19 Upgrading Evoke
19 Changing Evoke's name
19 Bluetooth settings
20 Network settings

21 Using an optional ChargePAK F1

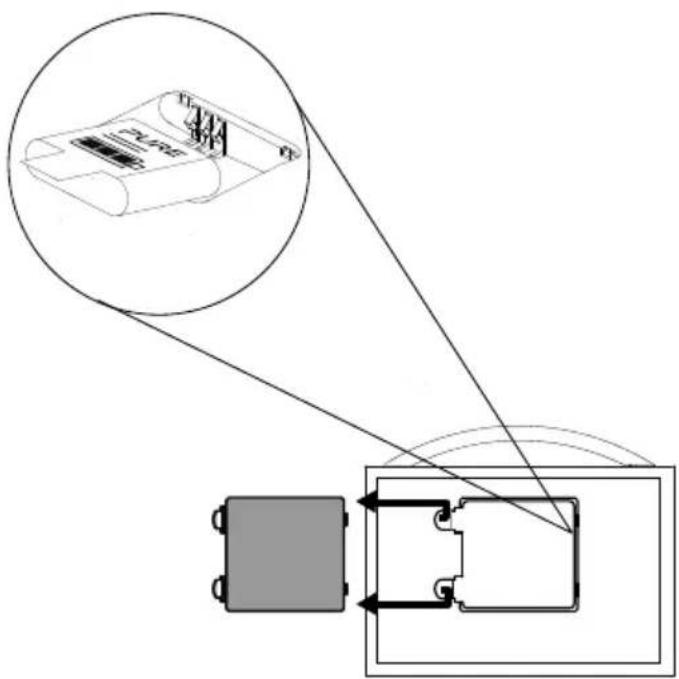

21 Installing a ChargePAK

22 Help and advice

23 Specifications

Getting started

Quick start

Note: If you have a ChargePAK F1 rechargeable battery (sold separately) fit it now before plugging in Evoke. See page 21 for more information.

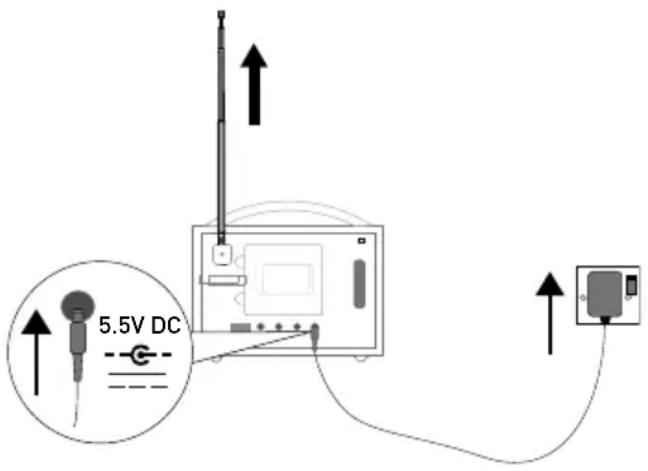

1 Extend the aerial and insert the connector of the supplied power adapter into the 5.5V DC input on the rear of Evoke. Plug the adapter into the power supply. Pure is displayed briefly on-screen.

5.5V DC

2 Choose your display language (English, French, German or Italian) by turning the Select dial to highlight the language you want. Push the Select dial in to confirm your choice. Repeat this process to select the time zone and region closest to you.

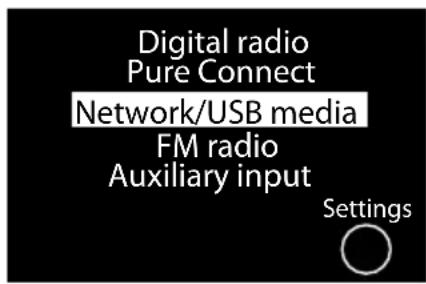

3 The Home screen is displayed:

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

Turn the Select dial to highlight and press to select one of the following options:

Digital radio See page 13

Pure Connect See page 8

Network/USB media See page 12

FM radio

See

page

13

Auxiliary input See page 6

To change any of Evoke's settings, tap the Settings button (see page 17).

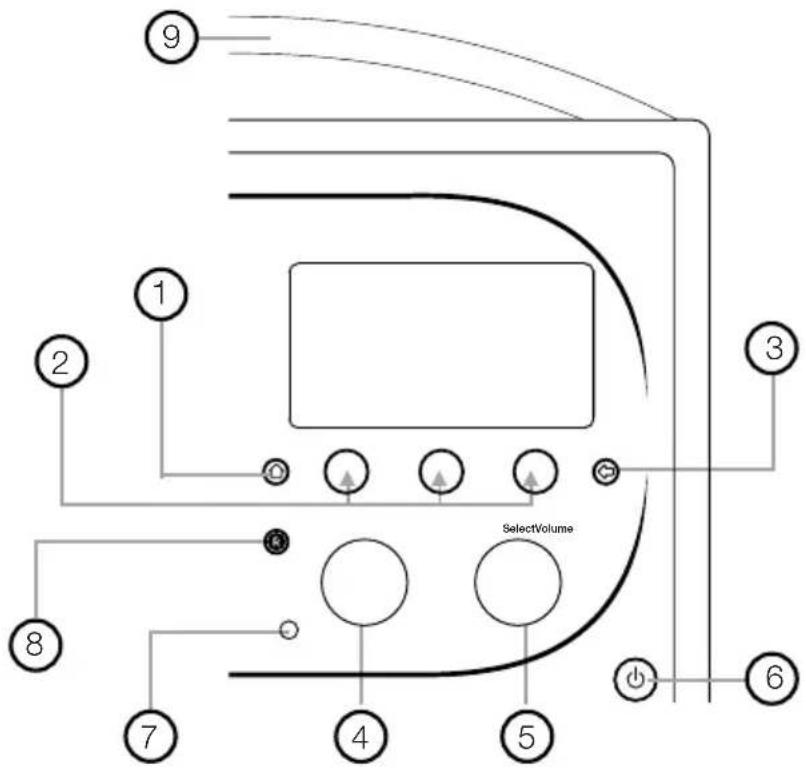

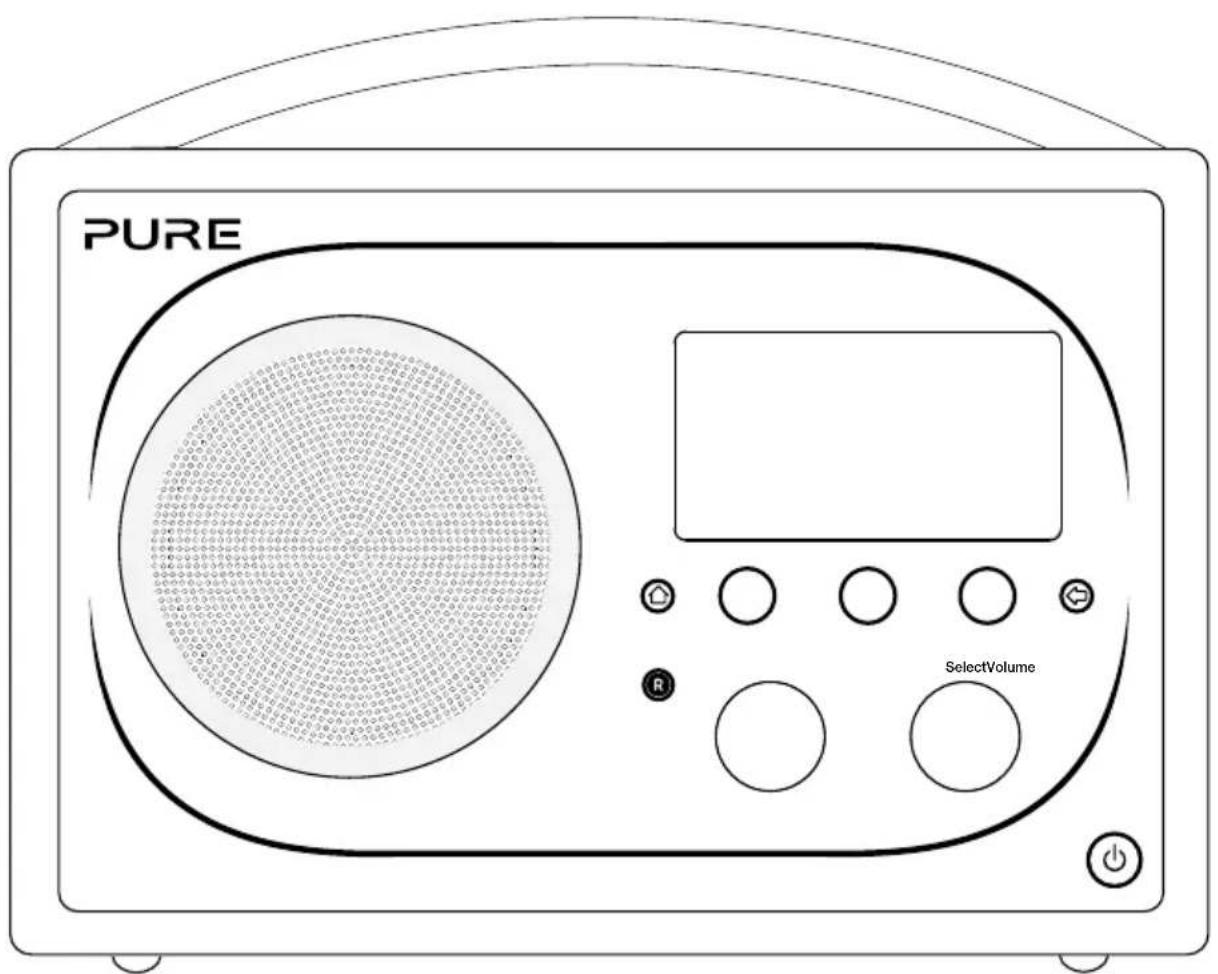

Controls and sensors

9 1 2 3 SelectVolume 8 7 4 5 6

No. Control Description
1 Home Tap to return to the H Home screen.
2	Context-sensitive touch buttons	Tap the button that corresponds to the function shown on screen that you want to use.
3 Back Tap to go back to the previous screen.
4 Volume/mute dial Turn to adjust volume. Push to mute and un-mute.
5 Select dial	Turn to navigate menus, stations or options and push to select an item.Push to pause a media track or podcast.*
6 Standby touch key	Tap ⏻ to switch between Sleep, Standby and On. See page 6 for more information.
7 Light sensor Do not cover.	Adjusts the display brightness according to the light levels in your room (only works when brightness level is set to ‘Automatic’).
8 Record button Tap to instantly record the internet or digital radio station that is playing.See page 15 for more information.
9	SnoozeHandle	Tap to snooze the alarm. Grip and hold to brighten the display to maximum brightness for 3 seconds.Note: The alarm will not sound if Evoke is powered down and if Evoke is not connected to mains power.

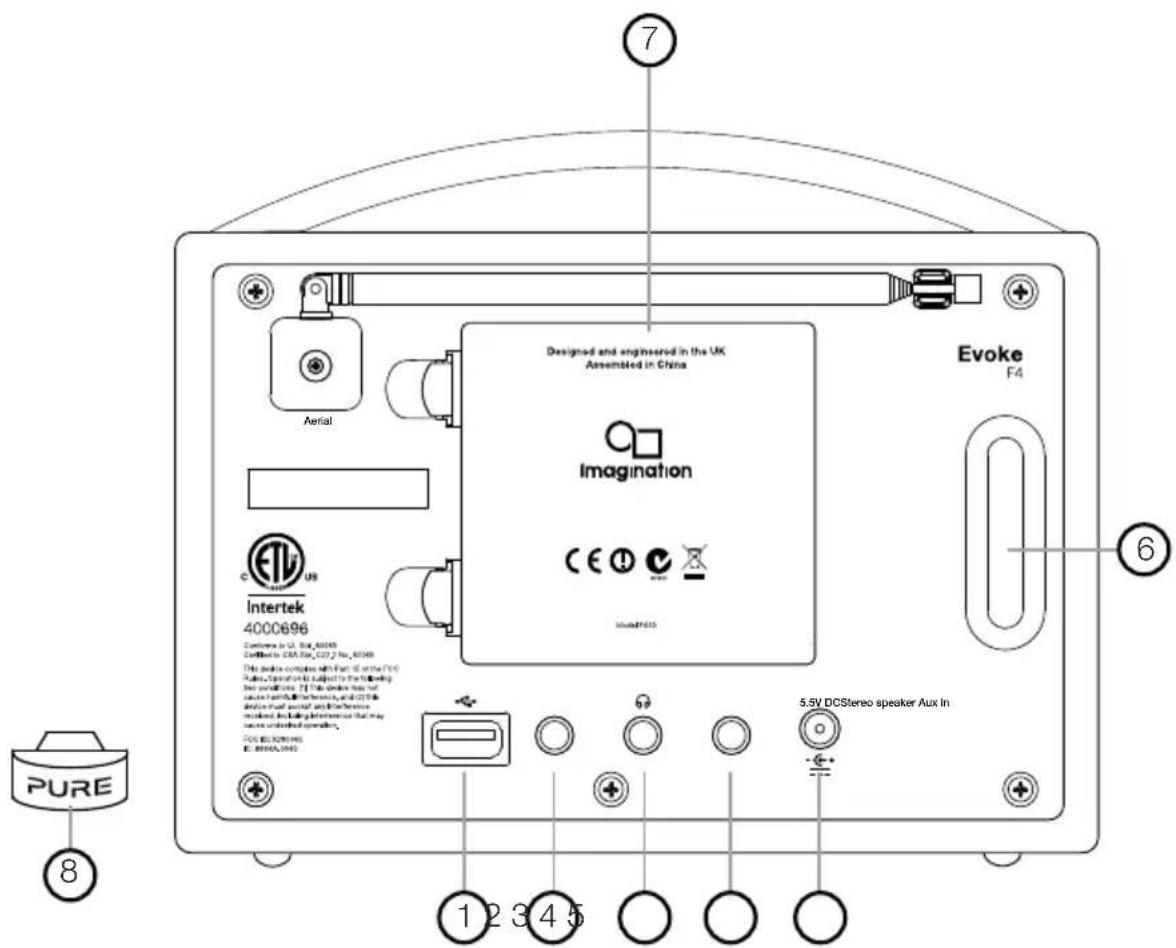

Rear panel

Designed and engineered in the UK Assembled in China Evoke F4 Imagination C ETV US Intertek 4000696 Pure 8 1 2 3 4 5 5.5V DCStereo speaker Aux In 6

1. USB connector for USB Ethernet adapter, Bluetooth adapter or a USB drive for recording/playback. Also used for upgrading Evoke's software when an internet connection is not available.
2. Output connector for the Evoke F4 stereo speaker.
3. Output connection for headphones (3.5mm).
4. 3.5mm auxiliary input connection for an iPod, MP3 player, etc.
5. 5.5V DC input connection for supplied mains adapter.
6. Acoustically tuned bass reflex port (do not cover).
7. Compartment for ChargePAK F1 rechargeable battery (sold separately).
8. USB Bluetooth adapter.

Switching between Sleep, Standby and On

Evoke has three power modes, Standby, Sleep and On. In Standby, Evoke uses minimal power. In Sleep mode, Evoke remains connected to the wireless network (once attached) and is ready to stream music using the Pure Connect app. See page 11 for more information.

To enter Sleep mode, tap Standby.

To enter Standby mode, tap and hold Standby.

Once in Sleep/Standby mode, tap Standby to switch to On.

Note: If you press the Standby button and Evoke is being powered by the ChargePAK F1, Evoke will power off and not enter the Sleep power state.

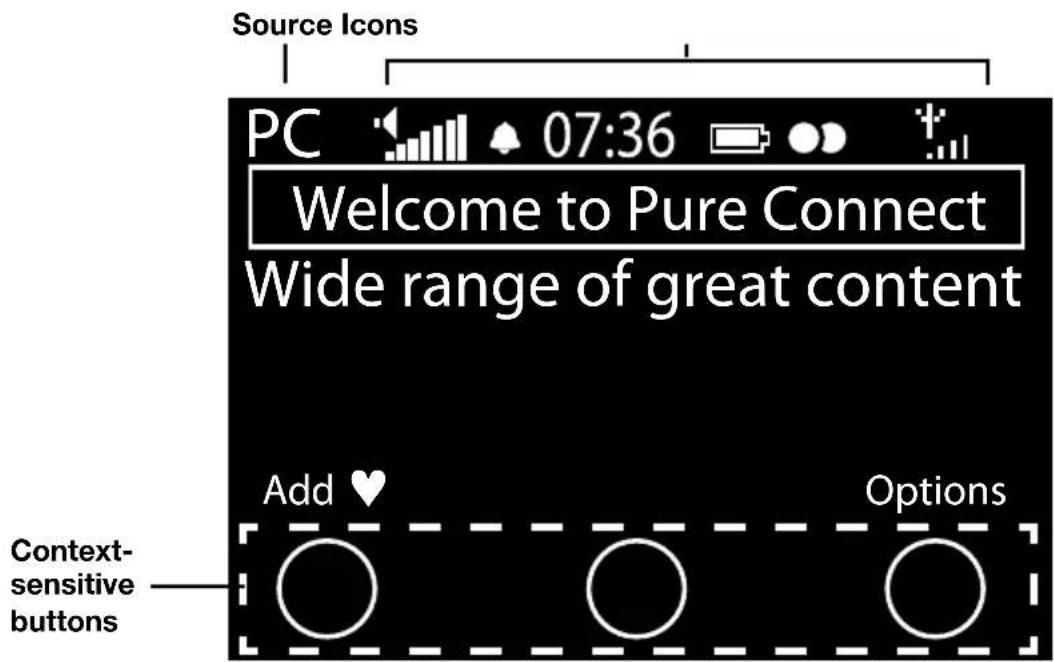

Screen icons

Source Icons PC 07:36 Welcome to Pure Connect Wide range of great content Add ♥ Options Context-sensitive buttons

Source Icons

DR Digital radio

PC Pure Connect

MP Media player

FM FM

AUX Auxiliary input

Caskeid

BT Bluetooth

Volume level

Mute

▲ 📊 Alarm/timer set indicators

07:36 Clock

ChargePAK battery level*

Stereo signal

Signal strength (Digital, FM or Wi-Fi)

Ethernet connection active

☐ × Ethernet connection lost

R Timed recording indicator

Internet listening via Pure Connect

Pure Connect is an online media portal that provides you with quick and easy access to thousands of internet radio stations, on-demand programs, podcasts and ambient sounds. You can enjoy all this content on your Evoke, on smartphones and tablets running the Pure Connect app, and on the Pure Connect website. You can also use Pure Connect to access additional subscription services such as Pure Connect's cloud-based music streaming service*, which provides you with instant access to millions of music tracks.

To access Pure Connect on Evoke, you will need to connect Evoke to your network. See below for more information.

After connecting Evoke to your network, you can register your Evoke on the Pure Connect website. We recommend registering your Evoke as this allows you to manage your Pure Connect favourites and access additional subscription services like music streaming.

Connecting to the Internet

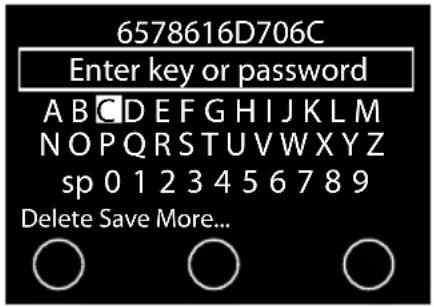

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

Using your wireless network

1. Tap Home and select Pure Connect from the Home screen. Evoke will scan for wireless networks and show them in a list.
2. Select your network. If your network requires a key, follow steps 3-4.
3. Enter your network key or password by turning and pressing the Select dial to highlight and select characters. Select sp to insert a space. Tap More... for lower-case; tap it again for symbols. Tap Delete to remove the last character.
4. Tap Save to finish. Evoke will connect to your network.

Helpful hint: Your Wi-Fi key is case sensitive, make sure to enter it exactly as shown.

PURE 100Mbps LAN USB

Using an Ethernet connection

You can also connect Evoke to the Internet using the optional Pure USB Ethernet adapter.

To use the Pure USB Ethernet adapter, connect your network cable to the adapter, then connect the adapter to the USB socket on your Evoke. The adapter USB light comes on and a connection to your network is made automatically.

The Ethernet connection status is shown on screen (see page 7).

Listening to Internet radio

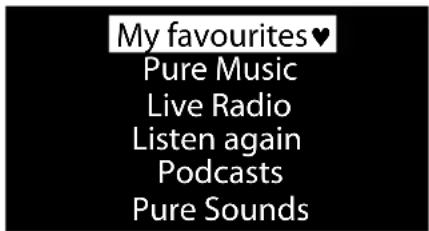

My favourites♥ Pure Music Live Radio Listen again Podcasts Pure Sounds

Pure Connect menu

Thousands of radio stations around the world broadcast online. To listen, select Pure Connect from the Home screen. Your Evoke will tune to the last station you listened to or show you the stations list.

Turn the Select dial to enter the Pure Connect menu. Select Live Radio to see a list of currently available Internet stations. Use the Select dial to browse the list and push to tune in. You can add a station to your Favourites by tapping Add.

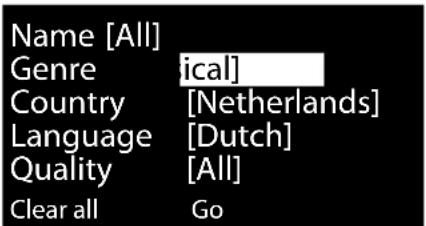

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Station search screen

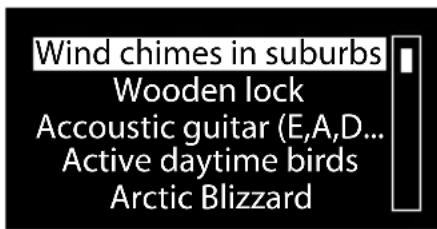

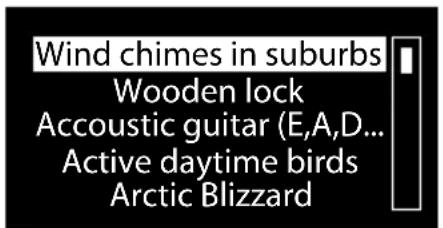

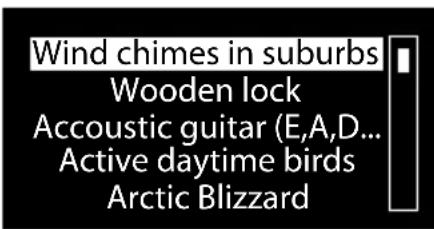

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Browsing Pure Sounds

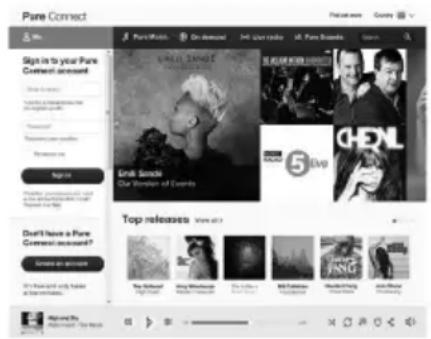

Pure Connect Sign In to your Pure Comment account! New friends "Don't have a Pure Cement account?" Creates an account? Don't have a Pure Cement account? Creates an account? Top releases (View 4) The New York Times New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheNew York Times TheOlder's by Alden's by

connect.pure.com

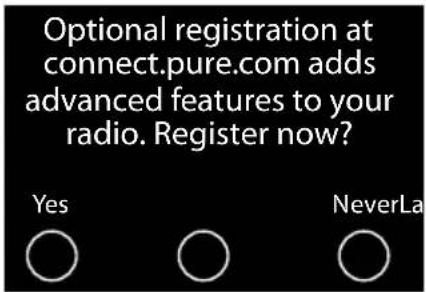

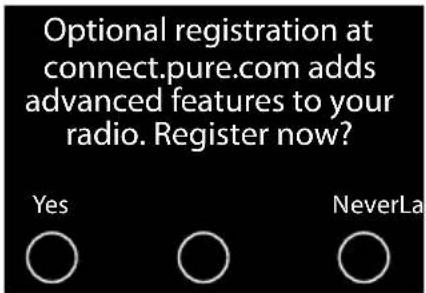

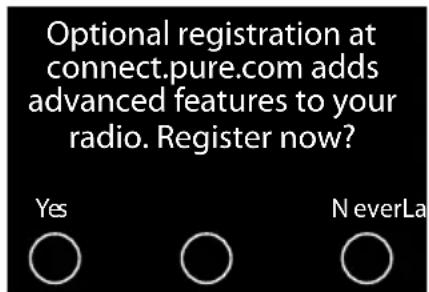

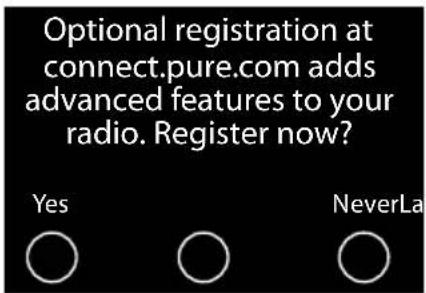

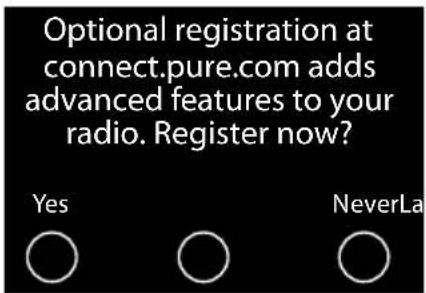

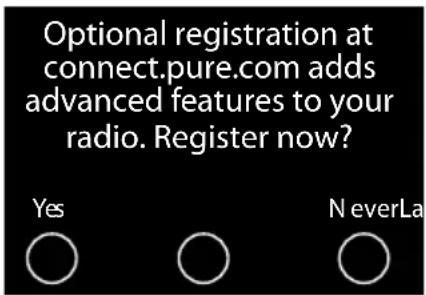

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

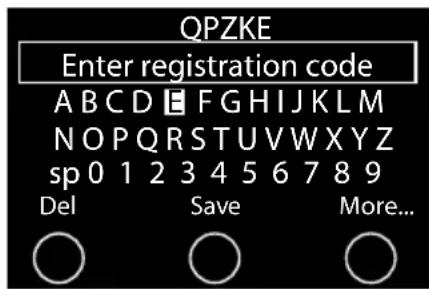

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Del Save More...

Search for a station

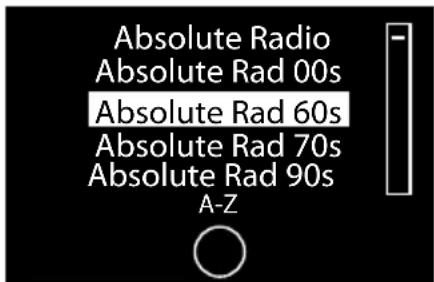

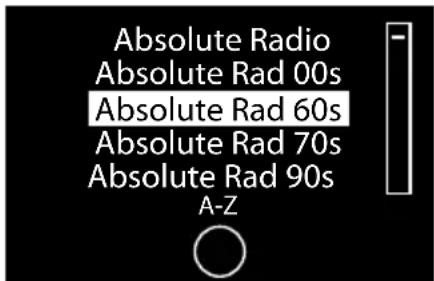

Tap Search when browsing the station list to search for stations by Name, Genre, Country, Language, Quality (sound quality), or any combination of these. Use the Select dial to set your options and tap Go to see the list of results.

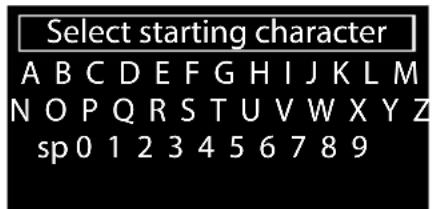

Searching for an internet radio station using Quick Jump

The Quick Jump function lets you to search for stations that begin with a certain letter. To use Quick Jump:

1. Tap the A-Z button to open the Quick Jump box.
2. Turn and press the Select dial to select the first letter of the radio station that you want to search for.

Listening to other Internet content

Tap Home and select Pure Connect from the Home screen, then one of the following content types:

Listen again

Select this option to access the BBC Listen Again service, which lets you catch up with any BBC radio shows that you might of missed. These archived radio programmes are available to listen to for a set period of time after the live broadcast.

Podcasts

Podcasts are prerecorded audio shows on a wide variety of subjects such as comedy, arts, business, and culture, for you to enjoy anytime.

Pure Sounds

Our library of evocative ambient sounds, including birdsong, cityscapes, and waves on shore.

Creating a Pure Connect account

All you need to create a Pure Connect account and register your Evoke is a valid e-mail address. We'll need to send you a couple of e-mails and you won't be able to complete the process without access to them.

To create a Pure Connect account:

1. Open your Internet browser.
2. Go to connect.pure.com.
3. Click Create account and follow the instructions on-screen.

Register your Evoke on Pure Connect

1. Log in to Pure Connect, click Me and select Devices. You'll see your registration code.

2. From Pure Connect settings on your radio, select Register with Pure Connect to enter your code. Use the Select dial to highlight and select characters; tap Del to erase characters; and tap Save to finish.

Congratulations! You've registered your Evoke on Pure Connect. The favourites you've created on Pure Connect will be visible on your Evoke, and those you've created on Evoke will appear on Pure Connect.

Music streaming

Pure Connect's music streaming is a cloud-based on-demand subscription service that gives you instant access to millions of music tracks from one of the world's largest music catalogues covering almost every conceivable artist and genre. You can listen on our music streaming and radio systems, on an Apple or Android device running the Pure Connect app or on the Pure Connect website.

Pure Connect's music streaming service is only available in certain countries. Please see http://www.pure.com/availability/ for details.

Accessing Pure Connect's music streaming on Evoke

1. Tap Home and select Pure Connect from the Home screen.
2. Turn and press the Select dial to select Pure Music.
3. Turn and press the Select dial to select one of the following options:

My Tracks: Select this option to access the tracks that you have purchased from Pure Connect.

Catalogue: Select this option to browse or search the complete music catalogue on your Evoke.

By playlist: Select this option to listen to playlists created by you at connect.pure.com or via the Pure Connect App (see "Streaming from the Pure Connect app" on page 11).

Pure Connect tagging service

The Pure Connect tagging service can be used to identify, bookmark and purchase tracks that are playing on a digital, FM or Internet radio station. In addition to accessing your favourite music tracks, the Pure Connect tagging service also automatically back catalogues any music by similar artists that you might be interested in, allowing you to explore something completely new or rediscover forgotten favourites.

Note: To use the Pure Connect tagging service, your Evoke will need to be connected to the internet and you will need a Pure Connect account. See page 9 for more information on setting up a Pure Connect account.

1. Tap the Tag button.
2. Evoke will identify the name of the song that is being played and allow you to buy it (or stream it if you have a music streaming subscription).

Note: To access your tagged tracks list, you will need to log in to your Pure Connect account at connect.pure.com.

Note: The Pure Connect tagging service will attempt to identify and match any playing track using our extensive catalogue. Purchasing and streaming tracks is subject to availability.

Streaming from the Pure Connect app

You can use the Pure Connect app to stream any music stored on your smartphone or tablet as well as all the content available on Pure Connect to Evoke and other Caskeid compatible devices (such as Jongo).

Note: Any devices that you want to use with the Pure Connect app will need to be on the same network.

Download the Pure Connect app

You can download the Pure Connect app on your smartphone or tablet from the Apple App Store or Google Play.

from the Apple App Store

from Google Play

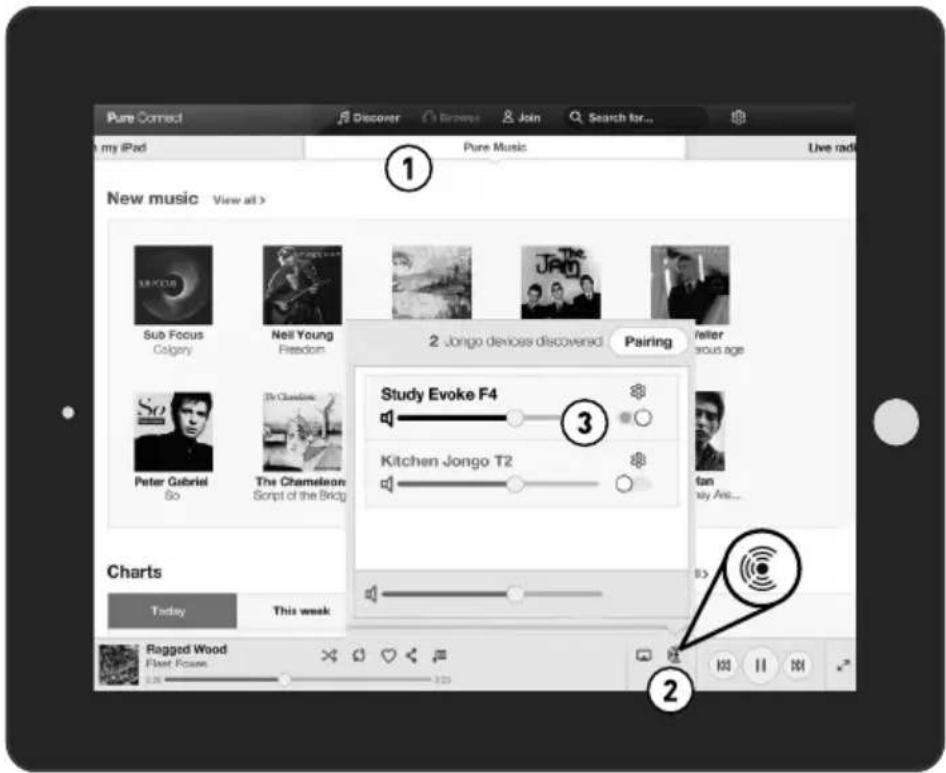

Selecting Evoke or other Caskeid compatible device in the Pure Connect app

With the Pure Connect app you can stream to a single Caskeid device or multiple Caskeid devices simultaneously.

To start streaming content:

1. Select the content that you want to stream in the Pure Connect app.
2. Tap the icon in the app player bar on your iOS or Android device to view a list of available devices on your network.
3. Tap the ○ icon next to the Caskeid compatible devices that you want to stream to.

Your selected content will start playing on the Caskeid devices that you selected.

See the help supplied with the app for more information on streaming to a Caskeid device.

Pure Connect Discover Browse Join Search for... Live radio My iPad Pure Music New music View all > Sub Focus Celgery Neil Young Freedom Jama Peter Gabriel So The Chameleon Script of the Bridg 2 Jongo devices discovered Pairing feller ous age Study Evoke F4 3 Kitchen Jongo T2 fan my Are... Charts Today This week Ragged Wood Fleet Focus 100 100 100 2

Pure Connect app

Streaming music from a PC or Mac

You can stream music stored on your computer or on a UPnP-compatible Network Attached Storage (NAS) device to Evoke. To stream music from your computer you will need to install media server software on it.

Listening to streamed tracks on Evoke

1. Tap Home and turn and press the Select dial to choose Network/USB media player from Home screen.
2. Turn and press the Select dial to choose the media player that you want to stream music from.
3. Turn and press the Select dial to navigate and select the track or playlist.

Playing/pausing audio playback

Press the Select dial to pause/play a track that is playing on Evoke.

Seeking within a track

While paused, you can hold down the and buttons to seek within the track.

Skipping backwards and forwards between tracks

If you are streaming audio on Evoke from a media server, you can tap the 📄️ whichs to skip back/forward between tracks.

Listening to digital or FM radio

Extend the aerial, then tap Home and select Digital radio or FM radio from the Home screen. The first time you select digital radio, Evoke will perform an autotune to find all available stations and will tune into one when finished.

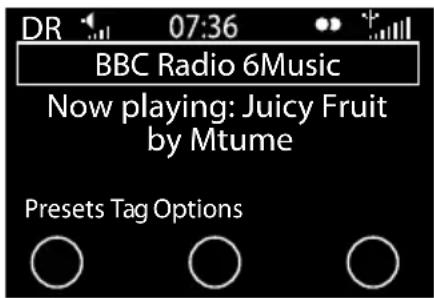

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Digital radio screen

Absolute Radio Absolute Rad 00s Absolute Rad 60s Absolute Rad 70s Absolute Rad 90s A-Z

Changing digital radio station

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

Searching for digital radio station

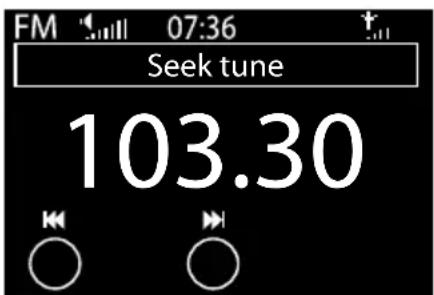

FM 07:36 Seek tune 103.30

Using seek tuning to change FM stations

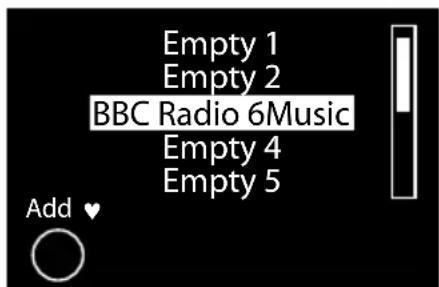

Empty 1 Empty 2 BBC Radio 6Music Empty 4 Empty 5 Add ♥

Selecting a preset

Changing digital stations

1. Turn the Select dial left or right to browse through the list of available digital stations.
2. Push the Select dial to change the station.

Searching for digital stations

1. Turn the Select dial left or right.
2. TapA-Z to open the search option.
3. Turn and press the Select dial to select the first letter of the radio station that you want to listen to.
4. Push the Select dial to change the station.

Changing FM stations

Seek tuning

1. Turn the Select dial.

2. Tap the letters to seek to the next or previous FM radio station that has a strong signal.

Manual tuning

Turn the Select dial right or left to step up or down 0.05MHz.

Storing a preset

Tune to the station you want to store as a preset and tap Presets. Turn the Select dial to highlight a preset number. Tap Add to store the preset. (You can replace existing presets.)

Listening to a preset

Tap Presets, select the station that you want to recall and tap Listen, or push the Select dial.

Listening to audio from a USB memory stick

Evoke can play music from a USB memory stick connected to the USB port on the back. Evoke supports WMA (Standard V9), AAC, MP3 and MP2 audio files. By default, Evoke looks for audio on your network if you have not connected a USB memory stick to the back of Evoke.

To listen to tracks from a USB memory stick:

1. Tap Home and turn and press the Select dial to choose Network/USB media from the Home screen.
2. Turn and press the Select dial to select the USB device.
3. Turn and press the Select dial to specify the type of audio (Playlists, Artists, Genres or Pure recordings) that you want to listen to.
4. Turn and press the Select dial to select the audio that you want to listen to,

Playing/pausing audio playback

Press the Select dial to pause/play a track that is playing on Evoke.

Seeking within a track

While paused, you can hold down the ◀ and buttons to seek within the track.

Skipping backwards and forwards between tracks

Tap the k-bitions to skip back/forward between tracks.

Using Bluetooth

If your phone or tablet is capable of storing audio files, you can use Bluetooth to stream any music stored on your phone or tablet to Evoke.

Note: Adding a Bluetooth device varies on different mobile devices. See your Bluetooth mobile device manual for specific information.

Preparing Evoke to stream audio using Bluetooth

1. Ensure that the Bluetooth adapter is inserted into Evoke's USB connector.
2. Enable Bluetooth on your mobile device.
3. On your mobile device, select the option to add a new Bluetooth device. On some mobile devices you may need to select the search or scan option.
4. Start the pairing process on your mobile device. Do this by selecting Evoke from the list of available devices that appear on the mobile device's screen. This will connect automatically once paired.

You will now be able to start streaming audio to Evoke from your Bluetooth device.

Note: You will need to disconnect any connected mobile Bluetooth devices from Evoke to stream using Wi-Fi or to stream from a different Bluetooth device. Bluetooth will automatically disconnect if you go out of range of Evoke. To manually disconnect you will usually need to use the Bluetooth settings on your mobile device.

Note: For more help with Bluetooth, see our "Help and advice" on page 22.

Recording radio programmes

Evoke allows you to record live radio from an internet (via Pure Connect) or digital radio station. You can either schedule recordings or record instantly. To record, you need to connect a USB memory stick to the USB port on the back of Evoke. The length of time that you can record depends on the amount of space available on your USB memory stick and the station that you are recording. A 2GB USB memory stick can record around 15 to 30 hours of digital or internet radio (based on the most common station data rates of 128kbps and 64kbps, respectively). If your USB memory stick runs out of space during a recording, Evoke will stop recording and display a message.

Note: You can only record live radio if you have selected Pure Connect as the audio source.

Instant recordings

To record instantly you will need to:

1. Tap Home to display the home menu.
2. Turn and press the Select dial to select either Pure Connect or Digital radio.
3. Tune into the radio station that you want to record and tap the Record button on the front of Evoke to begin recording.

To stop instant recording, tap the Record button on the front of Evoke.

Timed recordings

You can use the timed recordings function to schedule a recording from an internet or digital radio station that has been added to your favourites.

1. Tap Home to display the Home menu.
2. Tap Settings and turn and press the Select dial to select Timed recordings.
3. Turn and press the Select dial to choose a recording slot.
4. Tap the Edit button.
5. Turn and press the Select dial to turn the recording On or Off.
6. Turn the Select dial to adjust the hour the recording should start and press to confirm. Repeat to set the minutes.
7. Turn the Select dial to adjust the hour the recording should end and press to confirm. Repeat to set the minutes.
8. Turn the Select dial to set the days the timed recording should occur. Choose between Once only, Daily, Weekdays, Weekends, Every Monday, Every Tuesday, Every Wednesday, Every Thursday, Every Friday, Every Saturday and Every Sunday then press the Select dial to confirm.
9. Turn the Select dial to set the radio station source. Choose between Pure Connect or Digital radio then press the Select dial to confirm.
10. Turn and press the Select dial to choose the radio station that you want to record from your favourites list.
11. A timed recording is indicated by R in the icon bar.

Setting alarms and timers

Evoke has two alarms and two types of timers (kitchen and sleep). To set an alarm or a timer up, tap Home to display the Home screen. Tap Settings. Turn and press the Select dial to select Alarms and timers.

Setting an alarm

1. From the Alarms and timers menu, turn and press the Select dial to select either Alarm 1 settings or Alarm 2 settings and tap Edit.
2. Turn and press the Select dial to turn the alarm On or Off.
3. Turn the Select dial to adjust the hours and press to confirm. Repeat to set the minutes.
4. Turn the Select dial to set the days the alarm sounds. Choose between Once only, Daily, Weekdays, Weekends, Every Saturday and Every Sunday then press the Select dial to confirm.
5. Turn the Select dial to set the alarm type. Choose between Pure Connect station, Digital radio, FM radio or Tone then press the Select dial to confirm.
6. If you've set the alarm type as Pure Connect station, Digital radio or FM radio, turn the Select dial to choose between Last tuned (last station tuned to) or select a favourite Pure Connect station or digital and FM preset if you have any saved.
7. Turn the Select dial to change the alarm volume and press to confirm.
8. A set alarm is indicated by in the icon bar.

Note: If you are powering Evoke using a ChargePAK, any alarms that are set will not go off unless Evoke is powered on.

Setting the sleep timer

The sleep timer switches your radio into standby/sleep after a specified amount of time. From the Alarms and timers menu, select Sleep timer. Use the Select dial to adjust the length of the sleep timer in 15 minute steps from 15 mins to 1 hour 30 mins. Tap Save to store.

A set sleep timer is indicated by Ⓜ in the icon bar.

Setting the kitchen timer

The kitchen timer sounds a beeping tone after a set period of time.

From the Alarms and timers menu select Kitchen timer and use the Select dial to adjust the length of time. Tap Mins to toggle between minutes and hours. Tap Save to confirm.

A set kitchen timer is indicated by ⏻ in the icon bar.

Cancelling a sounding alarm or timer

To cancel a sounding alarm or timer, push either the Select or Volume dial. A sounding alarm will automatically cancel after 1 hour.

Note: Pushing the Volume dial will not cancel a tone alarm.

Warning: When powered by ChargePAK F1, tapping Standby switches the radio off and any set alarms or timers will not sound.

Snoozing a sounding alarm

Tap the Snooze button or the SnoozeHandle to snooze a sounding alarm for the specified time (default 9 minutes).

Changing the alarm snooze time

From the Alarms and timers menu, select Snooze time. Use the Select dial to adjust the duration of the snooze from 5 to 15, then either 20/25/30/40 minutes, or 1 hour.

Cancelling a snoozing alarm

To cancel a snoozing alarm push either the Select or Volume dial.

Options and settings

Pure Connect settings

These settings are only available when listening to Pure Connect. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select Pure Connect.

Pure Music repeat

Turn and press the Select dial to select a repeat option for the specified content on Pure Connect's cloud-based on-demand streaming service. Select All to specify that all tracks should be repeated. Select Track to specify that the track currently playing on Evoke should be repeated. Select Off to disable the repeat option.

Pure Music Shuffle

Turn and press the Select dial to select a shuffle option for the specified content on Pure Connect's cloud-based on-demand streaming service. Select On to shuffle all tracks. Select Off to disable shuffling.

Clear favourites

Select Clear favourites to remove all stations/podcasts/Pure Sounds from your favourites list, as well as from Pure Connect if your radio is connected.

Register with Pure Connect

Enter your Pure Connect registration code if you haven't already done so. See page 9 for more information.

Autotune

The Autotune option scans all digital frequencies for stations and automatically adds any new digital radio stations and removes any inactive ones. This option is only available if listening to digital radio. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select Autotune.

FM settings

These settings are only available when listening to FM radio. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select FM.

FM stereo

Switch between receiving FM stations in Mono (default) or Stereo. If listening with headphones or have connected an auxiliary speaker, you may want to change this setting to stereo.

Network/USB media

These settings are only available when listening to the Network/USB media source. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select Network/USB media.

Repeat

Select the repeat type.

Off (default): Tracks are played until the end of the current album, folder, playlist or search results.

All: Continuously repeats the current album, folder, playlist, or your search results.

Track: Repeats the current track.

Shuffle

Select the order that tracks in the current album, folder, playlist or search results are played:

Off (default): Tracks play in the order that they are displayed on-screen.

On: Tracks play in random order.

Media details

View technical details about your current media server or re-scan for alternative servers:

Current details: Turn the Select dial to view information about the media server, including the media server name, the software version, the IP address and the port number.

Display options

Adjust display settings, such as screen duration and the information displayed while you are listening to each source. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select Display.

Information

Different information displays are available for each audio source:

Digital/FM radio

Scrolling text: Text information broadcast by the current station. May include song titles, program details, news, etc.

Reception info: Displays the current frequency and signal strength.

Time and date: Displays the current time and date.

Pure Connect

Description: Broadcast by the current station. May include song titles and programme details. If streaming a track from Pure Connect's cloud-based on-demand streaming service this displays the artist and album of the track.

Location and Genre: Information about the current station, e.g., US Rock.

Time offset: Most stations will be live streams, but otherwise displays how far into a broadcast the station is. If streaming a track from Pure Connect's cloud-based on-demand streaming service this displays how far into the track's duration you are.

Wi-Fi signal strength: Displays a bar indicating the current Wi-Fi signal strength.

Station URL: Displays the URL address of the current station. If listening to a track from Pure Connect's cloud-based on-demand streaming service this displays the URL of the track.

Time and date: Displays the date with a full-screen clock (as in standby mode).

Media player

Track info: Displays artist and album information (id3 tags).

Time offset/duration: Displays a progress bar and timers indicating the current track position.

Wi-Fi signal strength: Displays a bar indicating the current Wi-Fi signal strength.

Time and date: Displays the date with a full-screen clock (as in standby mode).

Active and Standby backlight

You can adjust the duration that the screen is illuminated when switched on or in standby. Select Active backlight to adjust the display settings that apply when the radio is switched on or Standby backlight to adjust the display settings that apply when your radio is in standby. Choose from Always on or Off after 7 seconds.

Active and Standby brightness

You can adjust the brightness of the screen when Evoke is switched on or in standby. Select Active brightness to adjust the display brightness when Evoke is switched on or Standby brightness to adjust the display brightness when Evoke is in standby.

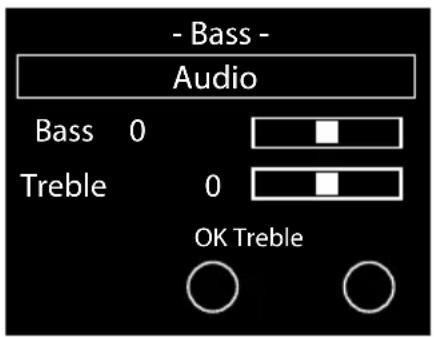

- Bass - Audio Bass 0 Treble 0 OK Treble

Audio settings

You can use this menu to adjust the bass and treble.

1. Tap Home to display the home menu and then tap Settings. Turn and press the Select dial to select Audio.
2. Turn the Select dial to adjust the bass level.
3. Tap Treble and turn the Select dial to adjust the treble level.
4. Tap OK when you have finished adjusting the audio settings.

Setting the clock

The clock will automatically set itself using your digital radio signal, FM radio signal or your network. However, if you cannot receive an updated time signal, or see the message 'Time not available', you can manually set the time and date. To set up the time and date manually:

1. Tap Home to display the Home menu and then tap Settings.
2. Turn and press the Select dial to select Alarms and timers > Set clock.
3. Turn and press the Select dial to adjust the time and date.
4. Tap to move to the previous or next setting.
5. Tap Save when you have finished setting up the time and date.

Changing the language shown on the display

To switch the display language between English, French, German and Italian:

1. Tap Home to display the Home menu and then tap Settings.
2. Turn and press the Select dial to select Miscellaneous > Language.
3. Turn and press the Select dial to set the display language.

Upgrading Evoke

Software updates may be issued in the future to provide new features and functions We recommend using automatic software updates for your Evoke, which are delivered via the Wi-Fi connection. If a software update is available, Evoke will display a message asking if you would like to install the software update.

To upgrade over your network manually

1. Tap Home to display the Home menu and then tap Settings.
2. Turn and press the Select dial to select Miscellaneous > Upgrade.
3. Evoke will search for any available updates. If an update is available the message New version available: vX.X will appear on screen (X.X is the version number, i.e. v2.1).
4. Tap OK to download and install the new software. This can take up to 5 minutes.

To upgrade using a USB drive (when a network is not available)

Contact Pure technical support (http://support.pure.com) for information on how to upgrade Evoke to the latest version of software.

Warning: Do not switch off Evoke while it is updating.

Changing Evoke's name

Your Evoke is assigned a name. This name is used so that you can find your radio easily when using the Pure Connect website to manage your listening. This name is also used to identify Evoke as an available speaker in the Pure Connect app and Bluetooth. By default this name is Evoke F4 *****, but here you can change this to anything you like to make it more memorable.

Note: ***** represents a six digit code that will be unique to each Evoke, which is based on the last six digits of Evoke's MAC address.

To assign a custom name to Evoke:

1. Tap Home to display the Home menu and then tap Settings.
2. Turn and press the Select dial to select Miscellaneous > View/change device name. The name that has currently been assigned to Evoke will display at the top of the screen.
3. Turn and press the Select dial to enter a new name.
4. Tap Save when you have finished setting up the radio name.

Bluetooth settings

You can use the Bluetooth menu to make Evoke visible or invisible to other Bluetooth devices.

1. Tap Home to display the Home menu and then tap Settings.
2. Turn and press the Select dial to select Miscellaneous > Bluetooth
3. Turn and press the Select dial to select one of the following options:

On (Discoverable)

On (Hidden)

Off

Network settings

Evoke can be connected to your network using a Wi-Fi or Ethernet connection. The settings that you can change are different depending on the type of connection you are using. Tap Home to display the Home menu and then tap Settings. Turn and press the Select dial to select Network.

Wireless network settings

Connection wizard

Scan for wireless networks to connect to.

View details

Displays your network configuration details.

Network name (SSID)

Encryption method (WEP, WPA or WPA2)

IP address

Network mask

DNS IP address

Router IP address

Device Wi-Fi MAC address

Access point MAC address

Manual setup

Manually configure your wireless network (for advanced users only).

Retry connection: Attempts to reconnect to the selected network.

Network name: Scan for networks or Enter SSID manually to specify a new SSID for your wireless network.

Encryption mode: Change the encryption mode between WEP, WPA (PSK), WPA2 (PSK) or None. Evoke automatically detects the mode for your network. Only change this setting if you think the encryption mode is incorrect.

Key or password: Enter a new encryption key or password.

IP address: Choose between DHCP (dynamic) or Static. If you select Static, another menu will appear where you will need to specify the IP address settings for Evoke.

Ethernet network settings

View details

Displays your network configuration details.

IP address

Network mask

DNS IP address

Router IP address

Device Wi-Fi MAC address

Ethernet MAC address

Manual setup

Manually configure your wireless network (for advanced users only).

IP address: Choose between DHCP (dynamic) or Static. If you select Static, another menu will appear where you will need to specify the IP address settings for Evoke.

General network settings

Clear network settings

Evoke will delete all previous Wi-Fi connections, passwords and other network settings. If using the wireless connection method, this will also perform a fresh scan for available networks.

Using an optional ChargePAK F1

ChargePAK makes your Evoke truly portable, so you can enjoy the programmes you love in the garden or at the beach.

Because it's rechargeable, ChargePAK is much cheaper than regular batteries. It's also more eco-friendly because it reduces the amount of toxic substances sent to landfill. And, because it's a fit-and-forget solution that charges whenever your radio is connected to the power outlet, it's much more convenient than standard rechargeable batteries.

Installing a ChargePAK

1. Switch your Evoke off and disconnect it from the power supply.
2. Open the battery compartment and position ChargePAK so that the Pure label is facing the battery compartment lid and ChargePAK's contacts line up with the three terminals in the battery compartment.
3. Replace the battery door and connect your product to a power outlet.
4. ChargePAK will begin charging. When charging your ChargePAK for the first time or after an extended period of inactivity we recommend that you charge it for around 24 hours to ensure full battery power.

Note: It is normal for your ChargePAK to get warm, especially during charging. Your ChargePAK will give years of trouble-free use under normal circumstances, but like all rechargeable batteries its efficiency will gradually reduce with age.

Important: Evoke can only be powered with a Pure ChargePAK F1 and is not compatible with any other batteries, either disposable or rechargeable, or any other ChargePAK model.

Diagram showing a device with an inset image of its internal components, including a magnified view and labeled parts.

Help and advice

I am having trouble connecting to my network

• Your radio can't connect to wireless networks that are access controlled, such as office networks, without a WEP, WPA or WPA2 key or password.
• Your radio needs to be positioned within the range of your wireless network, which will be reduced if there are walls between your router and radio. Although Evoke is very good at picking up wireless networks, the strength of the Wi-Fi signal will vary depending on your router and the surrounding environment. If Evoke fails to find your wireless network, or the signal drops off, move the radio closer to the router.
• Unless your wireless network is ‘open’ (this is generally not recommended due to the risk of unauthorised access), make sure you have your WEP, WPA or WPA2 key to hand.
• Make sure that you have entered the correct WEP, WPA or WPA2 key or password for your network.
• If you also experience trouble connecting to your network with the Ethernet adapter, check your Internet connection using a computer. If this is OK, try restarting your router or modem.

Screen displays 'Station not available'

- If a station will not play visit http://support.pure.com for assistance.

I can't see Evoke in the list of available Bluetooth devices on my mobile device

- This may be because your Evoke Bluetooth visibility setting is set to ‘On (Hidden)’ or ‘Off’ (see page 19). Your Evoke setting will need to be set to ‘On (Visible)’ to pair with your mobile device.

My mobile device is prompting me for a passcode when I try to pair with Evoke

- Some legacy Bluetooth devices may prompt you to enter a passcode when trying to pair with Evoke. If this occurs, enter the code '0000'.

Radio Digital (DAB/DAB+/DMB-R), FM and internet radio (via Wi-Fi or Ethernet connection).

Frequencies Digital Band III 174–240 MHz, FM 87.5-108 MHz.

Parametric stereo decode up to 256 kbps.

Network Wi-Fi: 802.11b and 802.11g supported with WEP and WPA/WPA2 encryption.

2.412GHz \~ 2.472GHz (channels 1 to 13).

Ethernet (requires optional adapter): 10/100 Mbps.

0.5 MB broadband speed recommended.

Bluetooth: A2DP supported via supplied USB dongle.

Media streaming Audio codecs supported include WMA (Standard V9), AAC, MP3, MP2. Media streaming requires UPnP server or PC/MAC running UPnP server software (supplied upon registration to connect.pure.com).

Speaker 3.5" full range driver.

Input connectors 5.5V DC power adapter socket (adapter supplied). 3.5mm Line-in for auxiliary devices. USB (Full-size A type) for USB recording/playback, product updates (also available over Wi-Fi), Bluetooth dongle or optional USB Ethernet adapter.

Output connectors 3.5mm stereo headphone socket. 3.5mm stereo socket for Evoke F4 stereo auxiliary speaker.

Presets 30 digital radio, 10 FM radio and unlimited internet radio favourites (requires registration at connect.pure.com).

Display Large high contrast white on black graphical 128 x 64 OLED display.

Mains power adapter Input: 100-240C AC, 50/60Hz, 0.8A

Output: 5,5V DC, 3.57A

ChargePAK Pure ChargePAK F1 rechargeable battery pack (available separately).

Power consumption Standby: <1W, Active: 3.4W.

Approvals CE!

CE marked. Hereby, Pure, declares that this Band II LPD device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The Declaration of Conformity may be consulted at http://www.pure.com/R&TTE-DoC. ETSI EN 300 401 compliant. Australian C-Tick N1600 and Electrical Safety.

Dimensions 209 mm wide x 110 mm deep x 175 mm high

Weight 1.5kg

Warranty Comprehensive three year warranty.

Disposal of Waste Electrical & Electronic Equipment

This symbol on the product or on its packaging indicates that this product should not be treated as household waste. Instead it should be handed over to a suitable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product.

Copyright

Copyright 2014 by Imagination Technologies Limited. All rights reserved. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language, in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Imagination Technologies Limited. Version 5 April 2014.

Trademarks

Evoke F4, ChargePAK, Pure, the Pure logo, Imagination Technologies, and the Imagination Technologies logo are trademarks or registered trademarks of Imagination Technologies Limited.

Caskeid is a superior synchronization technology, providing clear multi-speaker wireless audio.

Caskeid and the Caskeid logo are trademarks or registered trademarks of Imagination Technologies.

All other product names are trademarks of their respective companies.

Warranty Information

Imagination Technologies Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of three years from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, adjustment, modification or repair not authorized by us.

Please visit www.pure.com/register to register your product with us. Should you have a problem with your unit please contact your supplier or contact Pure Support at the address shown at the rear of this manual.

Disclaimer

Imagination Technologies Limited makes no representation or warranties with respect to the content of this document and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, Imagination Technologies Limited reserves the right to revise this publication and to make changes in it from time to time without obligation of Imagination Technologies Limited to notify any person or organization of such revisions or changes.

Acknowledgement of License Agreements

Portions of the code used in Evoke F4 are subject to the GPL, LPGL, BSD, and other open source licenses. For more details please refer to: http://www.pure.com/licensing

Evoke

F4 with Bluetooth

EN

DEUTSCH

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

Designed and engineered in the UK Assembled in China Evoke F4 Imagination C E Vo US Intertek 4000696 Continuous to U. Str. 2018 Continuous to GM Str. 2017 No. 3018 This device contains with Panel 16 (including PCB) Label, operation is subject to the following: no conditions: [1] This device may not value from external controls, and [2] this device must be used by other devices included in using different devices that may value unloaded controls. TOU 10.000000 E. 10.000000 5.5V DCStereo speaker Aux in Pure 8 1 2 3 4 5

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Sendersuchanzeige

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Pure Correct Tips to your Pure Comment account! Don't have a Pure Current account? Top releases: None (a) The New York Times Only New York Times The New York Times 800 Times New York Times Chenl Live Don't have a Pure Current account?

connect.pure.com

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z s p 0 1 2 3 4 5 6 7 8 9 Del S e avMore...

Pure Connect Discover Browse Join Search for... Live radio New music View all > Sub Focus Celgery Neil Young Freedom Peter Gabriel So The Chamefoots Script of the Bridg 2 Jongo devices discovered Pairing Study Evoke F4 3 Kitchen Jongo T2 Fan my Ant... Charts Today This week Ragged Wood Fleet Power 2

Pure Connect App

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

FM 07:36 Seek tune 103.30

- Bass - Audio Bass 0 Treble 0 OK Treble

Audio-Einstellungen

Diagram showing a device with an inset image of its internal components, including a magnified view and directional arrows indicating light or signal paths.

Australian C-Tick N1600 and Electrical Safety.

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

Radio FM Cf. page 14

7 Designed and engineered in the UK Assembled in China Evoke F4 Aerial Imagination C E O US Intertek 4000696 Made in USA, USA, Canada, Mexico This device is completed with the UK's first FCC Rule. Creation is subject to the following: the installation is [1] This device may not the device has been installed, and it is not Device must be tested and reference includes. It is long difference that may check or download assembly. PCB 2020/2021 5.5V DCStereo speaker Aux in Pure 8 6

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Naviguer parmi les sons Pure

Pure Correct Sign In to your Pure Comment account! Erab Smok Our Edition of Events Top releases: Live (5) Don't have a Pure Current account? Get into account? The School of Gigg Munchen The Society of BRL Academy Mazdaing Lion White Hill and Go

connect.pure.com

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z s p 0 1 2 3 4 5 6 7 8 9 Del S e avMore...

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

FM 07:36 Seek tune 103.30

- Bass - Audio Bass 0 Treble 0 OK Treble

Paramètres audio

IP Address (Adresse IP)

DNS IP address (Adresse IP DNS)

IP Address (Adresse IP)

DNS IP address (Adresse IP DNS)

Ethernet MAC address (Adresse MAC Ethernet)

Manual setup (Configuration manuelle)

Diagram showing a device with labeled components and an inset image of its internal structure, likely illustrating a sensor or measurement setup.

Aide et conseils

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

Designed and engineered in the UK Assembled in China Evoke F4 Imagination C E T I US Intertek 4000696 Customs to U.S. Air, device Coordinated to O.A. Air, CO2.2 for, 800Hz This device consists with PMI 78 of the PCC Radio, Cramium or a supplied to the following: the installation is [1] This device may not is able to form a microphone, and [2] it has desire must be used and/or use in the system. It is being designed that may be used without any other. PCC B: 30000000 E: 30000000 5.5V DCStereo speaker Aux in Pure 8 1 2 3 4 5

Sorgente Icone PC 07:36 Welcome to Pure Connect Wide range of great content Add ♥ Options Pulsanti contestuali.

Sorgente Icone

DR Radio digitale

PC Pure Connect

MP Media Player

FM FM

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

PURE 100MHz LAN USB

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Pure Connect Tips to your Pure Comment account Entire Renb Smok Get a Section of Events Top releases: More than 30% The New York Times Big Bang The New York Times BIL Edition New York Times Chenl Don't have a Pure Comment account? Don't have an account? Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China Beijing, China

connect.pure.com

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z s p 0 1 2 3 4 5 6 7 8 9 Del S_e avMore...

Pure Comed Discover Browse Join Search for... New my iPad Pure Music Live radio 1 New music View at > Sub Focus Calgary Neil Young Freedom 2 Jongo devices discovered Pairing Peter Gabriel So The Chamfeleon Script of the Bridge Study Evoke F4 3 Kitchen Jongo T2 tan my Ant... Charts Today This week 2 Ragged Wood Fleet Foxes

App Pure Connect

Musica in streaming da PC o Mac

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Schermata radio digitale

Absolute Radio Absolute Rad 00s Absolute Rad 60s Absolute Rad 70s Absolute Rad 90s A-Z

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

FM 07:36 Seek tune 103.30

- Bass - Audio Bass 0 Treble 0 OK Treble

Impostazioni audio

Diagram showing a device with an inset image of its internal components, including a magnified view and directional arrows indicating light or signal paths.

18 Network/USB media (Netwerk/USB media)

18 Display options (Weergaveopties)

19 De klok instellen

20 De Evoke upgraden

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

7 Designed and engineered in the UK Assembled in China Evoke F4 Aerial Imagination C E 10 2 3 4 5 Intertek US 4000696 Pure 8 6 1 2 3 4 5 5.5V DCStereo speaker Aux in

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

PURE 100Mbps LAN USB

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Stationzoekscherm

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Pure Connect Sign In to your Pure Cited account! New friends Your family Don't have a Pure Cement account? Creates an account? Don't have a Pure Cement account? Top releases (View it) The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times The New York Times

connect.pure.com

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z s p 0 1 2 3 4 5 6 7 8 9 Del S e avMore...

Pure Connect Discover Browse Join Search for... my iPad Live rad 1 New music View all > Sub Focus Calgary Neil Young Freedom Jama Weller gerous age 2 Jongo devices discovered Pairing Study Evoke F4 3 Kitchen Jongo T2 Peter Gabriel So The Chameleon Script of the Bird Clyton They Are... Charts Today This week Ragged Wood Fleet Frames 2 Call >

Pure Connect App

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Digitale radio-scherm

Absolute Radio Absolute Rad 00s Absolute Rad 60s Absolute Rad 70s Absolute Rad 90s A-Z

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

FM 07:36 Seek tune 103.30

Network/USB media (Netwerk/USB media)

Media details (Mediadetails)

- Bass - Audio Bass 0 Treble 0 OK Treble

Audio-instellingen

Handmatig upgraden via uw netwerk

Diagram showing a device with an inset image of its internal components, including a magnified view and directional arrows indicating light or signal paths.

Help en advies

Australian C-Tick N1600 and Electrical Safety.

Afmetingen

209 mm breed x 110 mm diep x 175 mm hoog

Gewicht

1,5 kg

Garantie

Digital radio Pure Connect Network/USB media FM radio Auxiliary input Settings

7 Designed and engineered in the UK Assembled in China Evoke F4 Aerial Imagination C E T I U S Intertek 4000696 Conductor to LTR, BANDE Capacitor to EVA, VGA, CO2.2 in, AED This device consists with Part 1 of the PCC Pulse, Operation to suit in the following: the system is [1] this device may not make a frequency or frequency of the PCC and it is done a user's phone and telephone used by adding devices that may measure and/or expandable. PCC ID: 500088 R: 1000000 6 5.5V DCStereo speaker Aux In PURE 8 1 2 3 4 5

Source Iconos PC 07:36 Welcome to Pure Connect Wide range of great content Add ♥ Options Botones contextuales

ES

Fuente Iconos

DR Radio digital

PC Pure Connect

MP Reproductor multimedia

FM FM

AUX Entrada auxiliar

Caskeid

BT Bluetooth

Volumen

Silencio

6578616D706C Enter key or password A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9 Delete Save More...

Name [All] Genre Country Language Quality Clear all ical] [Netherlands] [Dutch] [All] Go

Wind chimes in suburbs Wooden lock Acoustic guitar (E,A,D... Active daytime birds Arctic Blizzard

Pure Connect Tips to your Pure Comment account Entire Renb Smok Get a Section of Events Top releases: More than 30% The New York Times Big Bang The New York Times BIL Edition New York Times Chenl Don't have a Pure Comment account? Don't have an account? The New York Times Big Bang The New York Times BIL Edition New York Times

connect.pure.com

Optional registration at connect.pure.com adds advanced features to your radio. Register now? Yes NeverLa

QPZKE Enter registration code A B C D E F G H I J K L M N O P Q R S T U V W X Y Z s p 0 1 2 3 4 5 6 7 8 9 Del S_e avMore...

Pure Connect Discover Browse Join Search for... Live radio New music View all > Sub Focus Calgary Neil Young Freedom Peter Gabriel So The Chamsteon Script of the Bridge 2 Jongo devices discovered Pairing Study Evoke F4 3 Kitchen Jongo T2 fan my Are... Charts Today This week Ragged Wood Fleet Foxen 120 2

DR 07:36 BBC Radio 6Music Now playing: Juicy Fruit by Mtume Presets Tag Options

Pantalla de radio digital

Absolute Radio Absolute Rad 00s Absolute Rad 60s Absolute Rad 70s Absolute Rad 90s A-Z

Select starting character A B C D E F G H I J K L M N O P Q R S T U V W X Y Z sp 0 1 2 3 4 5 6 7 8 9

FM 07:36 Seek tune 103.30

- Bass - Audio Bass 0 Treble 0 OK Treble

Diagram showing a device with an inset image of its internal components, including a magnified view and directional arrows indicating light or signal paths.

Ayuda y asesoría

Imagination Technologies Limited

Home Park Estate

Kings Langley

Herts, WD4 8LZ

United Kingdom

www.pure.com

http://support.pure.com

Pure
