USER MANUAL Active Speaker 178.821 Skytec

Power Dynamics Professional Audio

Active Speakers

178.818 PD-12A 12Inch

178.821 PD-15A 15Inch

HANDLEIDING
INSTRUCTION MANUAL
MODE D'EMPLOI
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES

PD-12A

PD-15A

NL

ABS ACTIEVE PA LUIDSPREKERS

Constante brom, Iwaaai of zoem

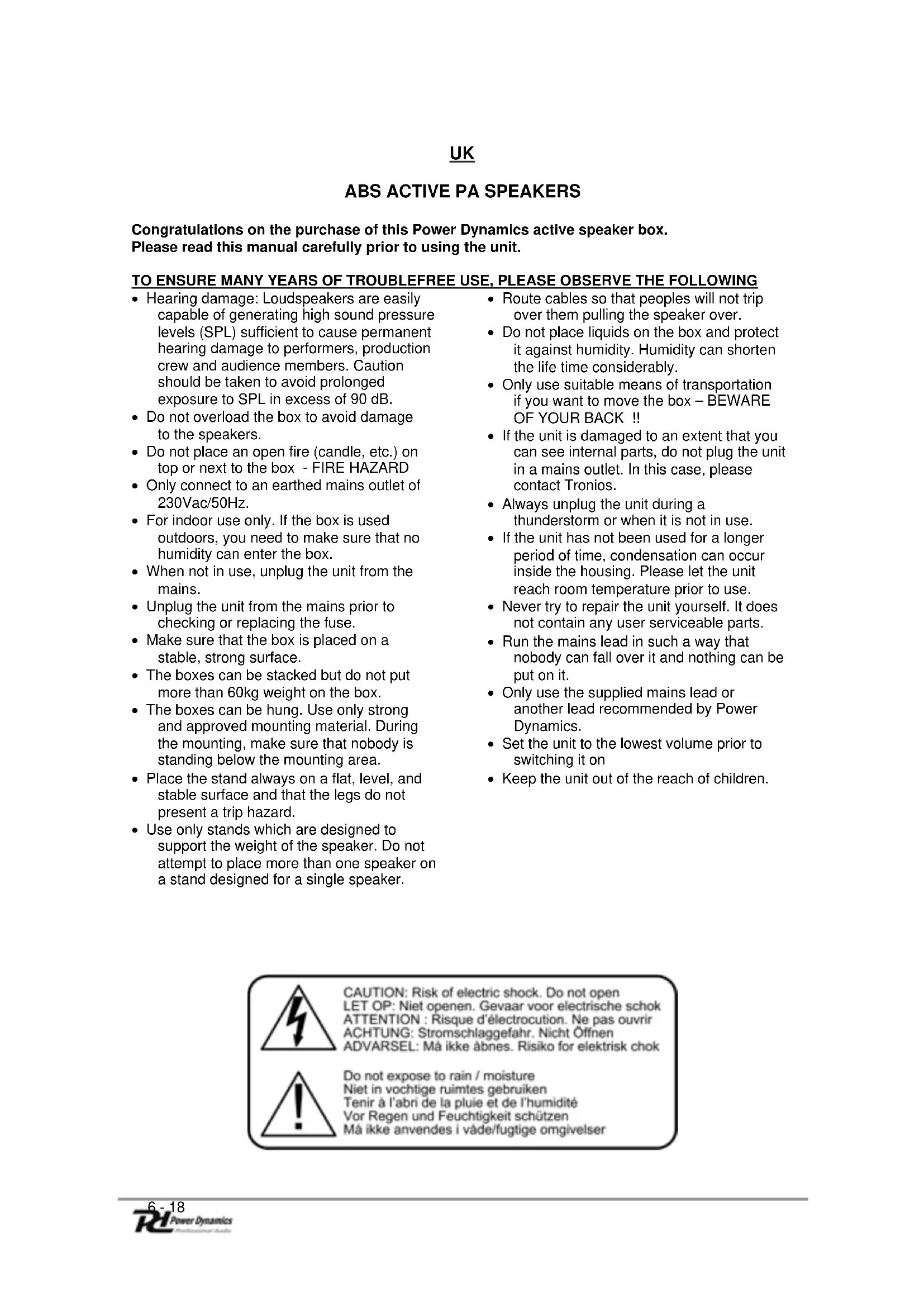

ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this Power Dynamics active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

• Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.
• Do not overload the box to avoid damage to the speakers.
• Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD
• Only connect to an earthed mains outlet of 230Vac/50Hz.
• For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.
• When not in use, unplug the unit from the mains.
• Unplug the unit from the mains prior to checking or replacing the fuse.
• Make sure that the box is placed on a stable, strong surface.
• The boxes can be stacked but do not put more than 60kg weight on the box.
• The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.
• Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.

• Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.

• Route cables so that peoples will not trip over them pulling the speaker over.

• Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.
• Only use suitable means of transportation if you want to move the box - BEWARE OF YOUR BACK !!
• If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.
  Always unplug the unit during a thunderstorm or when it is not in use.
• If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.
• Never try to repair the unit yourself. It does not contain any user serviceable parts.
• Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.
  Only use the supplied mains lead or another lead recommended by Power Dynamics.
• Set the unit to the lowest volume prior to switching it on
• Keep the unit out of the reach of children.

CAUTION: Risk of electric shock. Do not open LET OP: Niet openen. Gevaar voor electrische schok ATTENTION: Risque d'electrocution. Ne pas ouvrir ACHTUNG: Stromschlaggefahr. Nicht Offnen ADVARSEL: Maijke abnes. Risiko for elektrisk chok

Do not expose to rain / moisture
Niet in vochtige ruimtes gebruiken
Tenir à l'abri de la pluie et de l'humidité
Vor Regen und Feuchtigkeit schützen
Ma ikke anwendes i vade/fugtige omgivelser

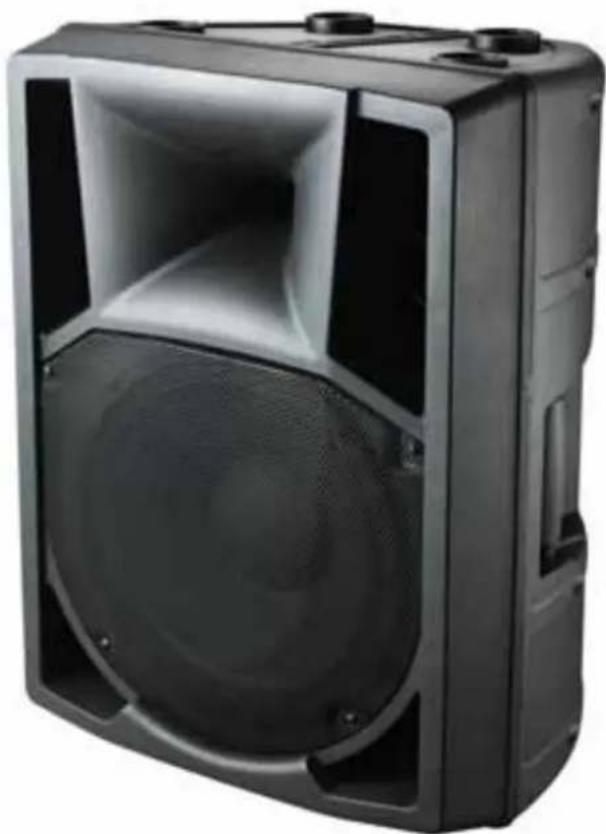

PRODUCT FEATURES

General

• Professional & sturdy ABS enclosure;
• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;
• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

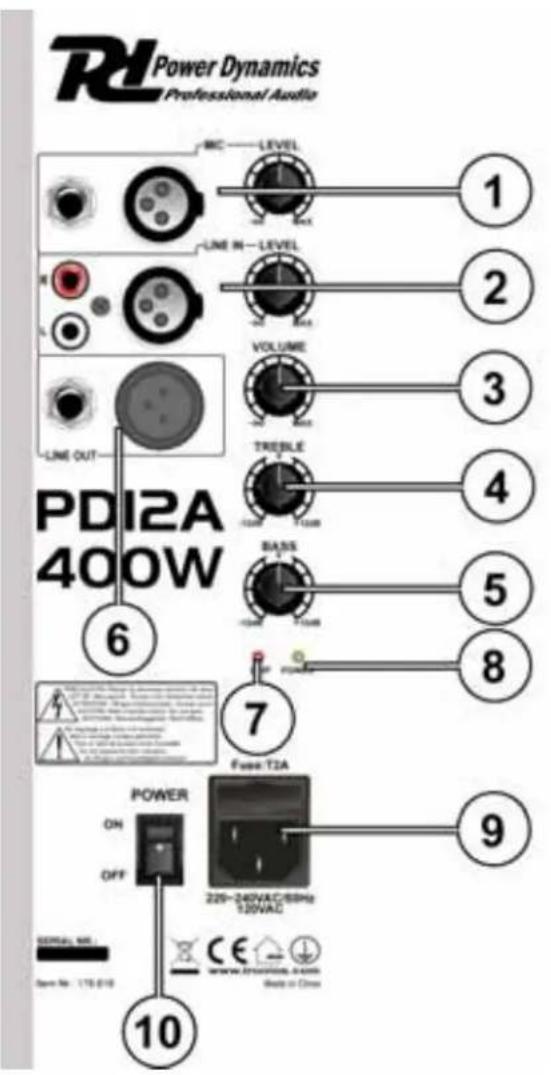

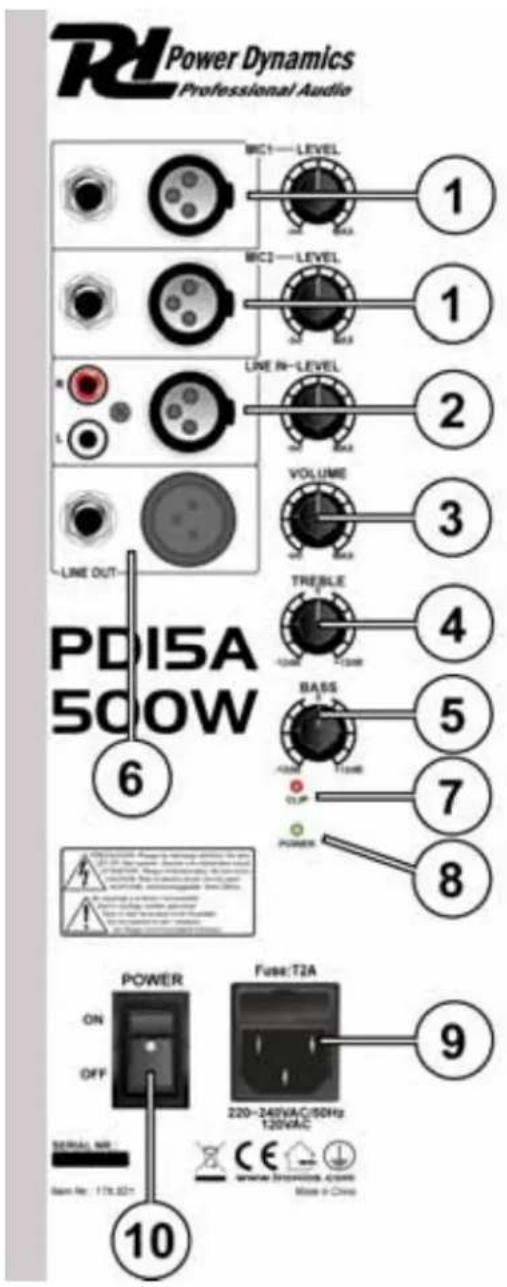

INPUT PANEL

1. Balanced input connector MIC (XLR or 6.3mm Jack)
   Volume control for MIC
2. Line input for audio input source e.g. mixer, CD player, etc.
   Volume control for Line Input
3. Master volume control.
4. Treble Tone control
5. Bass Tone control
6. Balanced output connector (line out). For connette a second active speaker box.
7. Clip lindication.

These LED will light up when amplifier are on max power. It can occur that these LED will lit up now and then, this is not a problem. But if it lights up continually you need to adjust the volume down, otherwise permanent damage to equipment might occur

1. Power Indication.

This clear green indicator will light when the amplifier is turned on.

1. Mains Power Connector / Fuse

This main fuse secures the speaker against defects. Replace this only with a fuse of same type and value.

1. On/Off Switch.

For switching the speaker on and off. Always adjust the volume down to its minimum before switching this speaker on.

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the "normally correct speaker" is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

No output

Possible cause Action

Speaker cables Reseat all connectors

Inspect cable for damage

Inspect wire or connector

for stray strand that m

Intermittent

Possible cause Action

Poor connections While it is possible for a faulty speaker to exhibit

intermittent output, it's more likely that an output

cable/connector is the problem. Reseat all connectors

Constant noise, buzzing and/or humming

Possible cause Action

Faulty electronic Any constant noise originates in the amplifier, mixer,

signal processing, source device in the signal devices, or

line-level wiring. Check and correct system grounding as

required. Chain check for noisy sources or electronic

components. Check wiring for shielding.

SPECIFICATIONS

Item	PD-12A	PD-15A
Output power 200W	250W
Output power (music)	400W 500W
Sensitivity	122dB	125dB
Frequency Range 50	18.000Hz 40	18.000Hz
Input(s) 1x Line/Mic +	1x Mic 2x Line/Mic +	1x Line
Woofer (inch) 12"	15"
Dimensions 585 x 420	0 x 310 mm 685 x 460	0 x 400 mm
Weight	17kg	22kg
Ref. Nr.	178.818	178.821

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Trionios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

F

ENCEINTES SONO ACTIVES

CE - RTTE Declaration of Conformity

Importer:

TRONIO S BV

Product Description: Passive PA Speaker

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN 61000-3-2 / -3-3

The product meets the requirements stated in the above mentioned Standards.

05-03-2012

S i g n a t u r e

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
