USER MANUAL CYPA4003N PANASONIC

Read the operating instructions for the unit and all other components of your car audio system carefully before using the system. They contain instructions about how to use the system in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual. This manual uses pictographs to show you how to use the product safely and to alert you to potential dangers resulting from improper connections and operations. The meaning of the pictographs are explained below. It is important that you fully understand the meanings of the pictographs in order to use this manual and the system properly. Safety Information This pictograph intends to alert you to the presence of important operating instructions. Failure to heed the instructions may result in severe injury or death. This pictograph intends to alert you to the presence of important operating instructions. Failure to heed the instructions may result in injury or material damage. Warning Caution Observe the following warnings when using the unit. Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system. Never operate this product with other battery system, especially a 24 V DC battery system. Do not disassemble or modify the unit. Do not disassemble, modify the unit or attempt to repair the product yourself. If the product needs to be repaired, consult your dealer or an authorised Panasonic Service Centre. Do not use the unit when it is out of order. If the unit is out of order (no power, no sound) or in an abnormal state (has foreign objects in it, is exposed to water, is smoking, or smells), turn it off immediately and consult your dealer. Refer fuse replacement to qualifi ed service personnel. When the fuse blows out, eliminate the cause and have it replaced with the fuse prescribed for this unit by a qualifi ed service engineer. Incorrect replacement of the fuse may lead to smoke, fi re, and damage to the product. When replacing one fuse which has blown, replace other fuses at the same time. In some cases, fuses may deteriorate without failing. Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fi re or damage to the unit. If the replacement fuse fails, contact your nearest Panasonic Service Centre for service. Warning Observe the following warnings when installing. Disconnect the lead from the negative () battery terminal before installation. Wiring and installation with the negative () battery terminal connected may cause electrical shock and injury due to a short circuit. Some cars equipped with the electrical safety system have specifi c procedures of battery terminal disconnection.

DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH. Never use safety-related components for installation, grounding, and other such functions. Do not use safety-related vehicle components (fuel tank, brake, suspension, steering wheel, pedals airbags, etc.) for wiring or fi xing the product or its accessories. Check for piping, gasoline tank, electric wiring, and other items before installing the product. If you need to open a hole in the vehicle chassis to attach or wire the product, fi rst check where the wire harness, gasoline tank, and electric wiring are located. Then open the hole from outside if possible. After installation and wiring, you should check the normal operation of other electrical equipment. The continuation of their using in abnormal conditions may cause fi re, electrical shock or a traffi c accident. In the case of installation to an airbag-equipped car, confi rm warnings and cautions of the vehicle manufacturer before installation. Make sure the leads do not interfere with driving or getting in and out of the vehicle. Failure to heed this caution may result in an accident and/or injury. Warning Observe the following cautions when using this unit. Turn off the power supply before changing the switch setting. Keep the sound volume at an appropriate level. Keep the volume level low enough to be aware of road and traffi c conditions while driving. This unit is designed for use exclusively in automobiles. Do not operate the unit for a prolonged period with the engine turned off. Operating the audio system for a long period of time with the engine turned off will drain the battery. Do not expose the unit to direct sunlight or excessive heat. Otherwise these will raise the interior temperature of the unit, and it may lead to smoke, fi re, or other damage to the unit. Do not use the product where it will be exposed to water, moisture, or dust. Exposure of the unit to water, moisture, or dust may lead to smoke, fi re, or other damage to the unit. Make especially sure that the unit does not get wet in car washes or on rainy days. Stop to use the unit when the red indicator (PROTECT) lights up. If the red indicator lights up, this unit will automatically shut down. Confi rm the speaker and other audio system’s wiring. Do not touch the heat dissipation region of the amplifi er. If this unit is operated at a high output continuously, the upper side of the unit will get very hot. Do not touch it nor place anything on top of the unit. Contact your local dealer for information about battery capacity. (If there is not enough battery capacity, increase the number of batteries.) Depending on the way you use this unit, (using at high volume for extended periods, increasing the number of amplifi ers etc. ) there may be insuffi cient battery capacity. There is a danger that the battery will run fl at, or other electronic parts may stop operating. Do not knock anything against this unit when loading or unloading objects from the trunk. Doing so will cause damage to this unit. Caution This unit cannot be used alone. This unit is a power amplifi er for use with Panasonic car audio products and speakers. For more details about safety information, refer to the operating instructions for the connected devices. Please follow the laws and regulations of your province or country for installation of the unit. For power connection, use the optional power cord specially designed for use with Panasonic car-audio/ AV system. Power cord kit (option): CA-PAC754 English

Safety Information (continued) Observe the following cautions when installing. Refer wiring and installation to qualifi ed service personnel. Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer. Panasonic is not liable for any problems resulting from your own installation of the unit. Follow the instructions to install and wire the product. Not following the instructions to properly install and wire the product could cause an accident or fi re. Take care not to damage the leads. Prevent them from getting caught in the vehicle chassis, screws, and moving parts such as seat rails. Do not scratch, pull, bend or twist the leads. Do not run them near heat sources or place heavy objects on them. If leads must be run over sharp metal edges, protect the leads by winding them with vinyl tape or similar protection. Use the designated parts and tools for installation. Use the supplied or designated parts and appropriate tools to install the product. The use of parts other than those supplied or designated may result in internal damage to the unit. Faulty installation may lead to an accident, a malfunction or fi re. Do not install the product where it is exposed to strong vibrations or is unstable. Avoid slanted or strongly curved surfaces for installation. If the installation is not stable, the unit may fall down while driving and this can lead to an accident or injury. We strongly recommended you to wear gloves for installation work to protect yourself from injuries. Failure to heed this caution may result in an accident and/or injury. Be sure to grip both sides of this unit securely before attempting to move it. Since this unit is quite heavy, the unit may fall down and this can lead to an accident or injury. Cover the unused terminals with insulating tape to prevent them from short circuiting. When an extension lead is used, it should be as thick and short as possible; connect it fi rmly with insulating tape. Wire breaks and short circuits can cause electrical shock or fi re. Caution Use the spacer included when installing the unit so that the fan and air hole on the base side of the unit are not covered. <CY-PAD1003N> If the fan and air hole on the base side of the unit are covered, the unit will become extremely hot and may fail.Caution for mounting the unit: Never mount the unit in any of the following locations to avoid damage due to overheating; • Near the heater port. • Places like the dashboard or rear deck, where it may be exposed to direct sunlight. Do not mount the unit near the door, where it could be exposed to rain. Keep a safe distance between the unit and other electronic equipment. When a short circuit occurs, such as in the speaker output terminal, etc. the overload protection circuit will operate. This circuit protects the power amplifi er from further damage when a short circuit occurs. Operation will temporarily stop. In this case, check the cause of the short-circuit and if the problem is fi xed, normal operation will resume. Since the power amplifi er has a very large output, the unit should be installed in the trunk of your car. Do not install this unit under a carpet, otherwise the unit may fail because of immature heat dissipation. In case more than one power amplifi er is used, make sure to employ the power cord and the fuse having the current capacity larger than the total current corresponding to the maximum consumption powers of all the amplifi ers. Caution for the power cord (option): Follow an expert’s instruction for the use of the cord separately sold. For the power, make sure to use the battery lead (yellow) separately sold and specially designed for Panasonic car-audio/AV system, and to connect directly to the car battery. Use the cord having the fuse capacity larger than that of this unit. Connect the power cord and other cords corresponding to the power supply after all the connections to the speaker are completed. Keep the battery lead (yellow) away from the speaker cord. Make sure to use the ground lead (black) separately sold and specially designed for car audio system, and to connect it to the metal portion of the car chassis. Wire the battery lead (yellow), the ground lead (black), the speaker cords, and this unit with as much distance as possible from the antenna, the antenna cords and the car stereo (car radio). If the ground wire is common to both left/right and front/rear speaker wirings, this unit cannot be used. Always use the independent lead wire for the speakers to be used. In this case, redo the wiring. Caution for the speaker cord (option): The speaker cords and the power amplifi er unit should be kept away from the antenna and antenna extension cord. Do not directly ground the speaker cords; do not share the negative leads of multiple speakers. When using the RCA cords, keep away from the speaker cords. Caution for the speaker (option): Use speakers with a suitable maximum input. In case of 4-channel/3-channel connection <CY-PA4003N>: Use speakers with the impedance of 28 . In case of 2-channel/stereo connection: Use speakers with the impedance of 48 . Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.For business users in the European UnionIf you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.Information on Disposal in other Countries outside the European UnionThis symbol is only valid in the European Union.If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.6 English

• Installation p. 20
• Wiring p. 22
• Wiring <CY-PA4003N> p. 24
• RCA p. 24

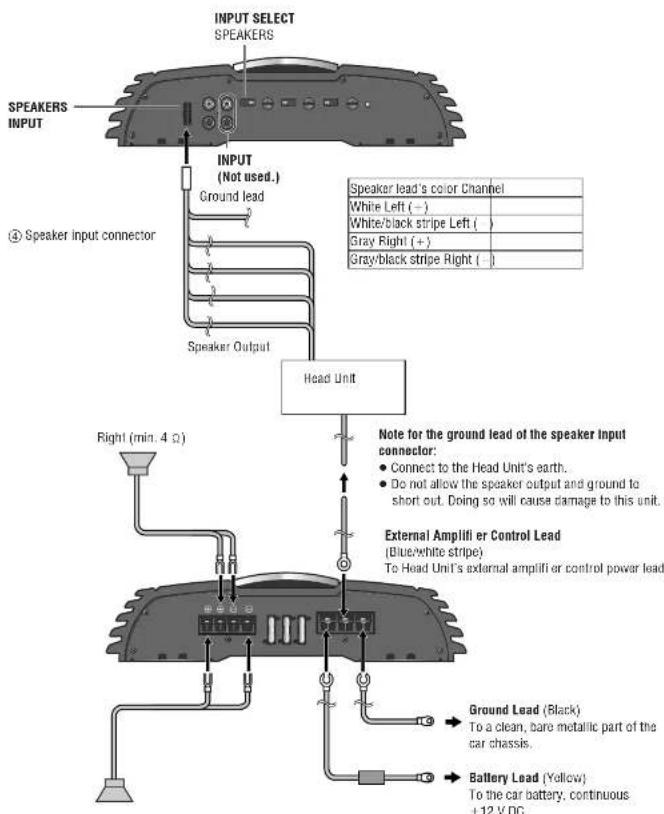

• SPEAKERS INPUT p. 25
• Wiring <CY-PA2003N> p. 26
• RCA p. 26

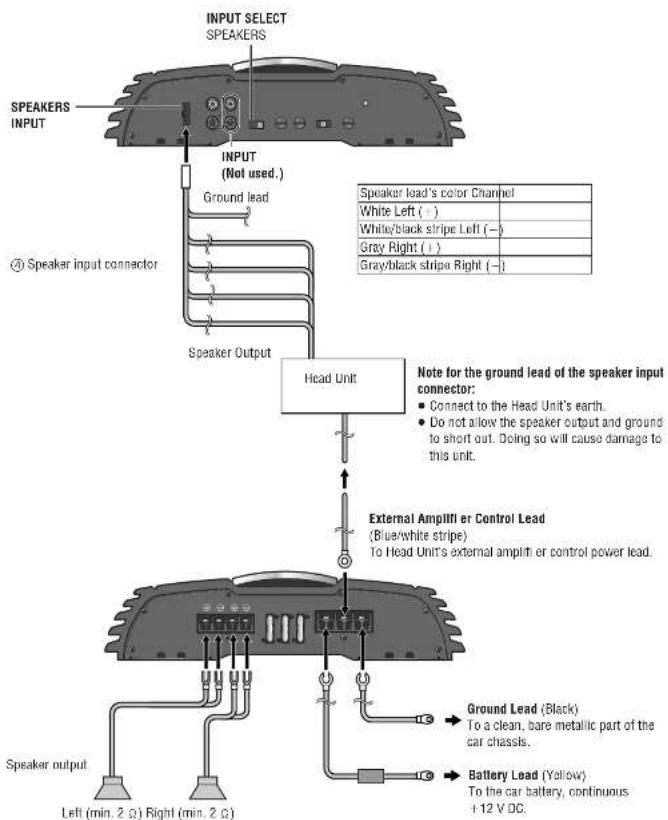

• SPEAKERS INPUT p. 27
• Wiring <CY-PAD1003N> p. 28
• RCA p. 28
• SPEAKERS INPUT p. 29
• Troubleshooting p. 30
• Maintenance p. 32
• Specifi cations Before Reading These Instructions Differences among 3 Models This Operating instruction manual is for 3 models CY-PA4003N, CY-PA2003N and CY-PAD1003N. All illustrations throughout this manual represent model CY-PA4003N unless otherwise specifi ed. The following table describes the differences among 3 models. Models FeaturesCY-PA4003N CY-PA2003N CY-PAD1003N Speaker connection 4/3/2-channel speaker 2/1-channel speaker 1-channel speaker Maximum power output 250 W4 channel 600 W2 channel 1 100 W1 channel Input channel 4-channel 2-channel 2-channel 4CH/2CH input selection Yes No NoHPF (High Pass Filter) Yes Yes NoSubsonic fi lter switch No No Yes Fuse 35 A2 25 A3 25 A3 Speaker input connector 2 (1 for front speaker, 1 for rear speaker)1 (for left/right speaker) 1 (for left/right speaker)Panasonic welcomes you to our constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. We know this product will bring you many hours of enjoyments, and after you discover the quality, value and reliability we have built into it, you too will be proud to be a member of our family. CY-PA4003N 4 Channel Power Amplifi er CY-PA2003N 2 Channel Power Amplifi er CY-PAD1003N Digital Mono Amplifi er Accessories Item Diagram Qty.Operating Instructions (YEFM285831A) PAN EUROPEAN GUARANTEE (Warranty Card) Installation Hardware (screws, cords, etc.) (page 20)Note: The number in parenthesis underneath each accessory part name is the part number for maintenance and service. Accessories and their parts numbers are subject to modifi cation without prior notice due to improvements. English 2 Deutsch 34 Français 66 Italiano 98 Español 130 Check the connections according to the manual of the device you have connected, and switch on the connected device’s power supply. Adjust the GAIN to a satisfactory volume. (page 11, 12) Refer to individual instruction and installation manuals for each device for detailed installation and wiring. Before Use8 English p. 32

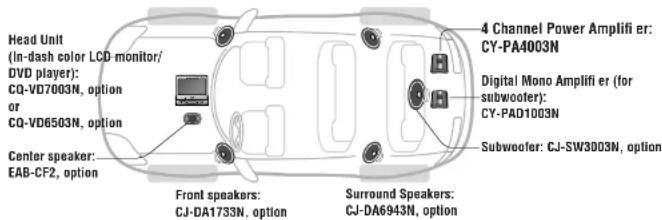

Features CY-PA4003N 250 W 4 channel maximum power output Total 1 000 W maximum power output An amplifi er connected to the 4-, 3- or 2-channel speaker 2CH/4CH input selection: The 4-channel speaker output is available under the 2-channel speaker input setting. Low-Pass Filter for subwoofer, High Pass Filter: Switchover of LPF/OFF/HPF is available. CY-PA2003N 600 W 2 channel maximum power output Total 1 200 W maximum power output Low-Pass Filter for subwoofer, High Pass Filter: Switchover of LPF/OFF/HPF is available. CY-PAD1003N 1 100 W 1 channel maximum power output Low-Pass Filter for subwoofer: Switchover of LPF/OFF is available. Head Unit (In-dash color LCD monitor/DVD player): CQ-VD7003N, option CQ-VD6503N, option Center speaker: EAB-CF2, option 4 Channel Power Amplifi er: CY-PA4003N Digital Mono Amplifi er (for subwoofer): CY-PAD1003N Subwoofer: CJ-SW3003N, option 5.1-channel Surround System (Combination with other Panasonic car audio products) You can enjoy a powerful 5.1-channel surround system by connecting Head Unit (CQ-VD7003N, CQ-VD6503N, option), 4-channel amplifi er (CY-PA4003N) and monaural amplifi er for subwoofer (CY-PAD1003N). For more details, refer to the operating instructions for the connected devices. <Common features of 3 models> High Level Speaker Input connection: The high-quality playback sound is produced when connecting the unit to the speaker output lead of the Head Unit.Use it when the Head Unit is not equipped with the terminal for the RCA output lead. Bass boost control system: The bass boost circuit is employed to play back the deep bass on the front and rear speakers. Crossover Frequency Control: The frequency band in the treble and the bass, which are played back on the front and rear speakers, can be adjusted. RCA output terminals: Equipped with RCA output for adding a power amplifi er. Front speakers: CJ-DA1733N, optionSurround Speakers: CJ-DA6943N, option10 English

High level speaker input terminal (SPEAKERS INPUT) When connecting Head Unit without RCA output terminals. Power/protection indicator (PWR/PROTECT) Lights green: When the Head Unit power is on. Lights red: • When the speaker cords are short-circuited. • When the speaker output line comes contact with the car grounding wire. • When this unit fails and the speaker output generates a DC power source. • When the amplifi er internally creates a high-pitched sound. • When the connection of the Head Unit or this unit is not completed. Location of Controls Caution Turn off the power supply before changing the switch setting. Stop to use the unit when the red indicator (PROTECT) lights up. If the red indicator lights up, this unit will automatically shut down. Confi rm the speaker and other audio system’s wiring. BASS BOOST control knob Turn this knob to boost the 45 Hz frequency sound. It enhances the low-pitched sound. For some speakers, the sound may be distorted because of the excessive power input to them. In that case, turn down the bass level until the distortion stops. Setting range: 0 dB to 15 dB GAIN control knob In some instances, the acoustical output from each speaker may not be balanced properly depending upon the type of speakers or Head Unit being used. Up: Turn up the knob when the sound volume is not satisfactory even though the volume of the Head Unit is increased. Down: Turn down the knob when the sound is distorted. Input select switch (LINE, SPEAKERS) LINE: When using RCA INPUT connectors. SPEAKERS: When using SPEAKER INPUT connectors. Channel A speaker output connector (SPEAKERS) Left Side () Left Side () Right Side () Right Side () Fuses (FUSES) (35 A2) Upper cover Channel B speaker output connector (SPEAKERS) Left Side () Left Side () Right Side () Right Side () Battery connector (12 V) To the car battery, continuous 12 V DC. Amplifi er control connector (CONT) To the head unit’s external amplifi er control power lead or to the car battery, continuous 12 V DC. Ground connector (GND) To a clean, bare metallic part of the car chassis. Crossover fi lter switch (LPF, OFF, HPF) LPF (Low Pass Filter): LPF cuts off the treble, and outputs only a low-pitched sound for the subwoofer. OFF: All frequency bands are output without fi ltering. Select when a subwoofer is not connected. HPF (High Pass Filter): Sound is output from the speakers for a high-pitched sound and midrange sound after deleting the low-pitched sound. Crossover frequency control knob (FREQUENCY) The frequency band of the treble and the bass played back on the front and rear speakers is adjusted. Setting range: 50 Hz to 250 Hz Speaker output terminals (For CH A) Equipped with RCA output for adding a power amplifi er. It is not a Speaker input terminal. Channel A input terminals (LEFT, RIGHT) Channel B input terminals (LEFT, RIGHT) Speaker channel select switch (4CH, 2CH) 4CH: When connecting Head Unit with 2 preout leads. 2CH: When connecting Head Unit with 1 preout lead.The upper cover can be reinstalled along with the reinstallation of the main body of the unit, such that the cover is aligned with other devices for neat and better look.

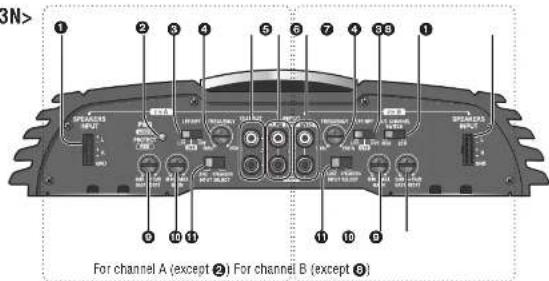

For channel A (except ) For channel B (except )

How to dismount: Unscrew the terminal screw with Allen wrench . <CY-PA4003N> Note: Do not insert anything between the upper cover and this unit. Doing so will cause damage to this unit.12 English

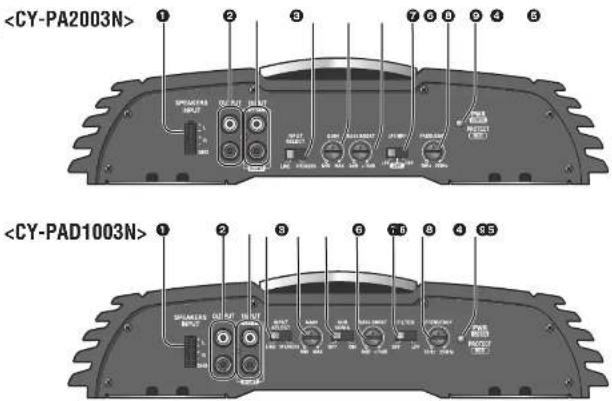

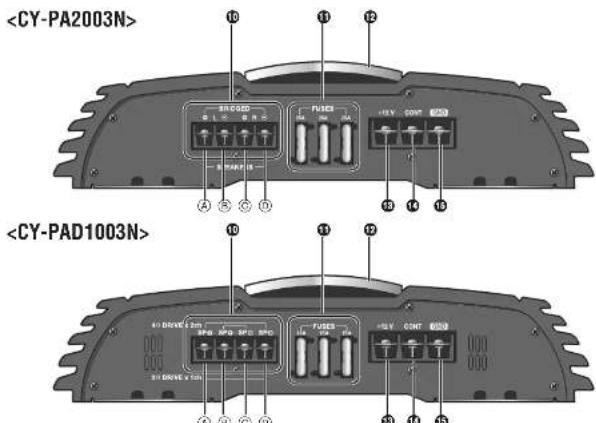

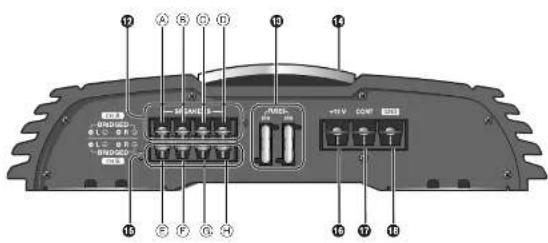

High level speaker input terminal (SPEAKERS INPUT) When connecting Head Unit without RCA output terminals. Speaker output terminals Equipped with RCA output for adding a power amplifi er. It is not a Speaker input terminal. Speaker input terminals (LEFT, RIGHT) Input select switch (LINE, SPEAKERS) LINE: When using RCA INPUT connectors. SPEAKERS: When using SPEAKER INPUT connectors. Location of Controls (continued) Caution Turn off the power supply before changing the switch setting. Stop to use the unit when the red indicator (PROTECT) lights up. If the red indicator lights up, this unit will automatically shut down. Confi rm the speaker and other audio system’s wiring. Crossover frequency control knob (FREQUENCY) The frequency band of the treble and the bass played back on the front and rear speakers is adjusted. Setting range: 50 Hz to 250 Hz Power/protection indicator (PWR/PROTECT) Lights green: When the Head Unit power is on. Lights red: • When the speaker cords are short-circuited. • When the speaker output line comes contact with the car grounding wire. • When this unit fails and the speaker output generates a DC power source. • When the amplifi er internally creates a high-pitched sound. • When the connection of the Head Unit or this unit is not completed. Speaker output connector <CY-PA2003N> Left Side () Left Side () Right Side () Right Side () Fuses (FUSES) (25 A3) Upper cover Battery connector (12 V) To the car battery, continuous 12 V DC. Amplifi er control connector (CONT) To the head unit’s external amplifi er control power lead or to the car battery, continuous 12 V DC. Ground connector (GND) To a clean, bare metallic part of the car chassis. <CY-PAD1003N> Subsonic fi lter switch (OFF, ON) Switch ON to remove noise from subwoofer. GAIN control knob In some instances, the acoustical output from each speaker may not be balanced properly depending upon the type of speakers or Head Unit being used. Up: Turn up the knob when the sound volume is not satisfactory even though the volume of the Head Unit is increased. Down: Turn down the knob when the sound is distorted. BASS BOOST control knob Turn this knob to boost the 45 Hz frequency sound. It enhances the low-pitched sound. For some speakers, the sound may be distorted because of the excessive power input to them. In that case, turn down the bass level until the distortion stops. Setting range: 0 dB to 15 dB Crossover fi lter switch (LPF, OFF, HPF) LPF (Low Pass Filter): LPF cuts off the treble, and outputs only a low-pitched sound for the subwoofer. OFF: All frequency bands are output without fi ltering. Select when a subwoofer is not connected. <CY-PA2003N> HPF (High Pass Filter): Sound is output from the speakers for a high-pitched sound and midrange sound after deleting the low-pitched sound.

<CY-PAD1003N> SP () SP () SP () SP ()The upper cover can be reinstalled along with the reinstallation of the main body of the unit, such that the cover is aligned with other devices for neat and better look.How to dismount: Unscrew the terminal screw with Allen wrench .Note: Do not insert anything between the upper cover and this unit. Doing so will cause damage to this unit.14 English

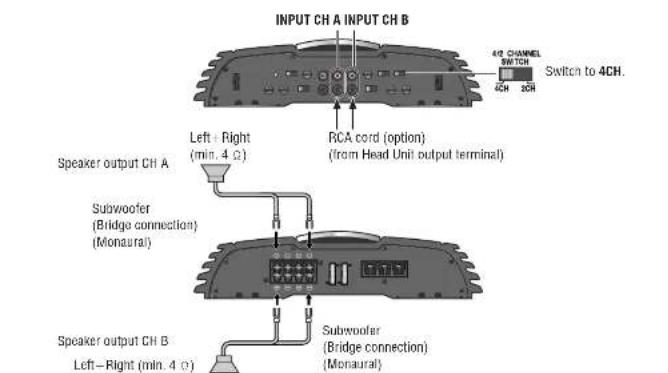

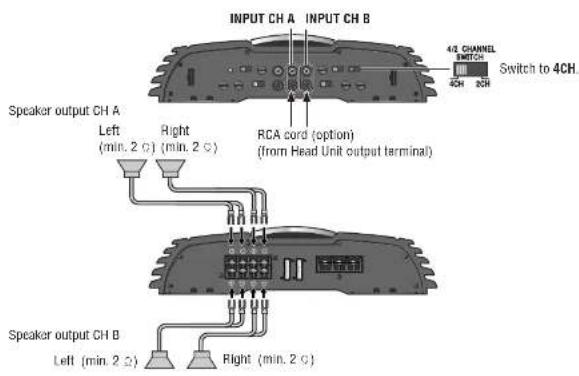

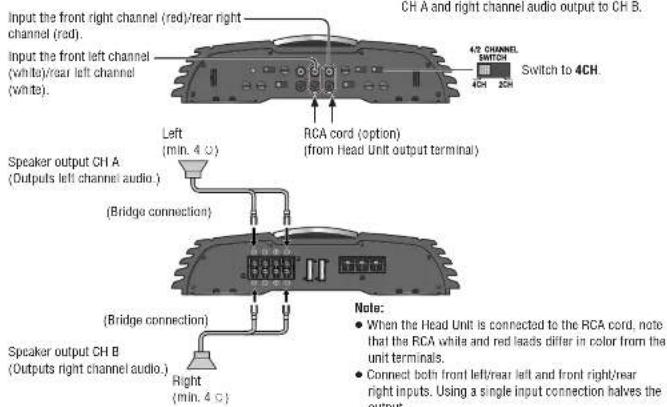

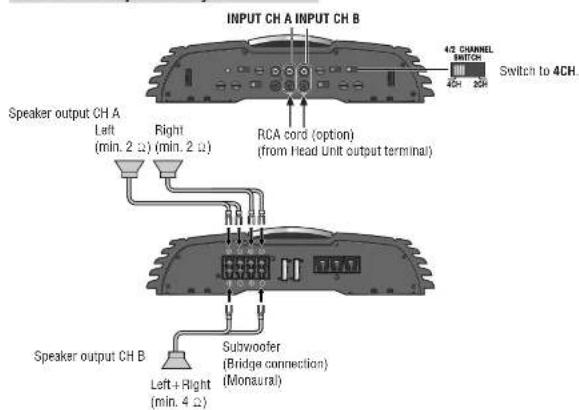

Speaker System Setting <CY-PA4003N> 4CH Input 4-channel Speaker System 3-channel Speaker System 2-channel Speaker System (Monaural) INPUT CH ARCA cord (option)(from Head Unit output terminal)INPUT CH BSpeaker output CH ASpeaker output CH BLeft (min. 2 )INPUT CH A INPUT CH BRCA cord (option)(from Head Unit output terminal)Speaker output CH ASpeaker output CH BSubwoofer (Bridge connection) (Monaural)RCA cord (option)(from Head Unit output terminal)Speaker output CH ALeftRight (min. 4 )INPUT CH A INPUT CH BSubwoofer (Bridge connection) (Monaural)LeftRight (min. 4 )Speaker output CH BSubwoofer (Bridge connection) (Monaural)LeftRight (min. 4 )Switch to 4CH. Switch to 4CH. Switch to 4CH. Right (min. 2 )Left (min. 2 )Right (min. 2 )Left (min. 2 )Right (min. 2 )RCA cord (option)(from Head Unit output terminal)Speaker output CH A (Outputs left channel audio.)Input the front left channel (white)/rear left channel (white). Input the front right channel (red)/rear right channel (red). (Bridge connection) Left (min. 4 )Speaker output CH B(Outputs right channel audio.)(Bridge connection) Right (min. 4 ) 2-channel Speaker System (Stereo) Switch to 4CH. Note: When the Head Unit is connected to the RCA cord, note that the RCA white and red leads differ in color from the unit terminals. Connect both front left/rear left and front right/rear right inputs. Using a single input connection halves the output. Special ApplicationExample: Connecting left channel audio output to CH A and right channel audio output to CH B.16 English

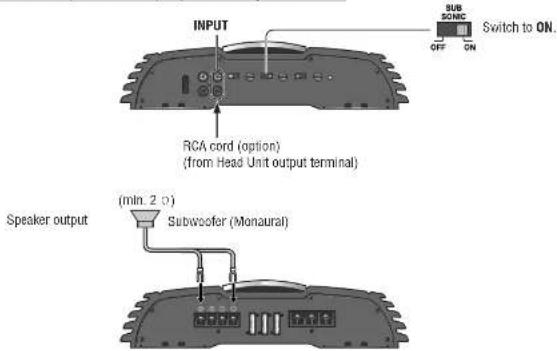

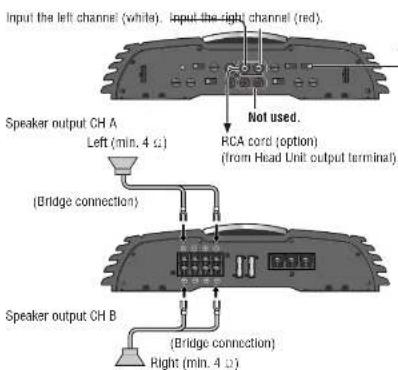

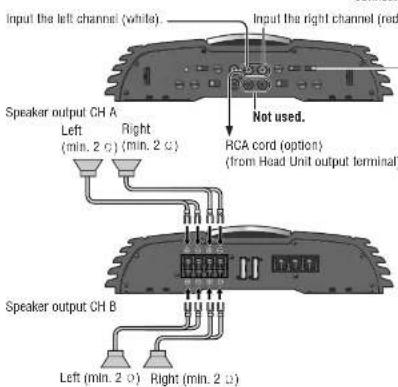

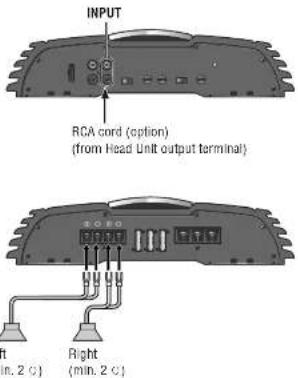

Speaker System Setting <CY-PA4003N> (continued) Speaker System Setting <CY-PA2003N> 1-channel Speaker System (Monaural) 2-channel Speaker System (Stereo) Subwoofer (Bridge connection) (Monaural) INPUTRCA cord (option)(from Head Unit output terminal)Speaker output Left (min. 2 )Right (min. 2 )INPUTRCA cord (option)(from Head Unit output terminal)Speaker output LeftRight (min. 4 ) 2CH Input 4-channel Speaker System 2-channel Speaker System Input the left channel (white). RCA cord (option)(from Head Unit output terminal)Input the right channel (red). Speaker output CH ASpeaker output CH BInput the left channel (white). Input the right channel (red). Not used. Speaker output CH ALeft (min. 4 )Speaker output CH B(Bridge connection) Note: The fader control is ineffective. The speaker outputs A and B are at the same level. The 3-channel speaker output is not allowed with the 2-channel input connection. When the Head Unit is connected to the RCA cord, note that the RCA white and red leads differ in color from the unit terminals.(Bridge connection) Right (min. 4 )Note: This is not a monaural output. The 3-channel speaker output is not allowed with the 2-channel input connection. When the Head Unit is connected to the RCA cord, note that the RCA white and red leads differ in color from the unit terminals.Switch to 2CH. Switch to 2CH. Left (min. 2 )Right (min. 2 )Left (min. 2 )Right (min. 2 )Not used. Special ApplicationExample: If the Head Unit only has a single pre-out, connect it to this unit for 4-channel audio output. RCA cord (option)(from Head Unit output terminal)Special ApplicationExample: If the Head Unit only has a single pre-out, connect it to this unit for 2-channel audio output.18 English

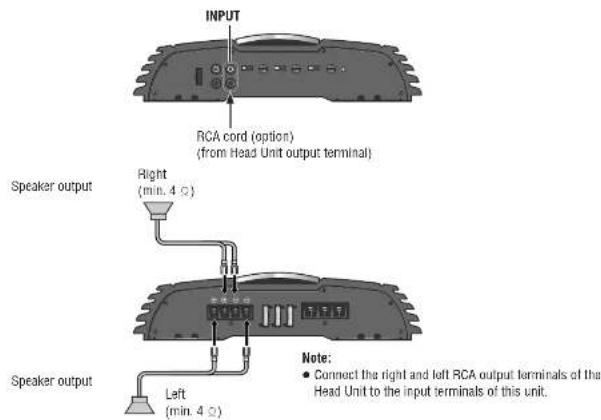

In case of 2-channel/stereo connection:In case of multiple speakers to be mounted in a bridge connection, confi rm the summed impedance to be 48 in order to avoid ignition, smoking, or damage.Do not make a connection in such a manner.Total impedance: 4 Speaker: 2 Speaker: 2 Speaker: 8 Speaker: 8 Total impedance: 4 Total impedance: 2 Speaker: 4 Speaker: 4 Speaker System Setting <CY-PAD1003N> 1-channel (Monaural) Speaker System 2-channel (Monaural) Speaker System INPUTSpeaker outputRight (min. 4 )Left (min. 4 )INPUTSpeaker outputSubwoofer (Monaural) Note: Connect the right and left RCA output terminals of the Head Unit to the input terminals of this unit. RCA cord (option)(from Head Unit output terminal)RCA cord (option)(from Head Unit output terminal)(min. 2 ) Note for Bridge Speaker Connection Speaker output <CY-PA4003N> Note for RCA Input Connection: Selectively assign each front and rear output to either RCA INPUT A or B, in accordance with the system from which the output is coming. In case of a single line coming from the RCA output of Head Unit, connect the line to RCA INPUT A. Do not connect it to RCA INPUT B.Switch to ON.20 English

Installation Preparation Caution Please follow the laws and regulations of your province or country for installation of the unit. We strongly recommended you to wear gloves for installation work to protect yourself from injuries. Be sure to grip both sides of this unit securely before attempting to move it. Since this unit is quite heavy, the unit may fall down and this can lead to an accident or injury. Disconnect the cable from the negative () battery terminal (see caution below). Caution If your car is equipped with air bag and/or anti-theft systems specifi c procedures may be required for connection and disconnection of the battery to install this product. Before attempting installation of this electronic component contact your car dealer or manufacturer to determine the required procedure and strictly follow their instructions. FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY. Installation Hardware (For Installation) No. Item Diagram Qty. Tapping Screw (5 mm20 mm)

Allen wrench 1 Installation Hardware (For Wiring) Note: For power connection, use the optional power cord specially designed for use with Panasonic car-audio/AV system. Use only the supplied screws for installation. If parts are missing please consult with your Panasonic dealer for advice. No. Item Diagram Qty. Speaker input connector2 Terminal cover for short-circuit prevention CY-PA4003N: 2 (1 for front speaker, 1 for rear speaker) CY-PA2003N, CY-PAD1003N: 1 (for left/right speaker) Mounting the Unit Caution Never mount the unit in any of the following locations to avoid damage due to overheating; • Near the heater port. • Places like the dashboard or rear deck, where it may be exposed to direct sunlight. Do not mount the unit near the door, where it could be exposed to rain. You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring harness, or other component. Keep a safe distance between the unit and other electronic equipment. If this unit is operated at a high output continuously, the upper side of the unit will get very hot. Do not touch it nor place anything on top of the unit. When a short circuit occurs, such as in the speaker output terminal, etc. the overload protection circuit will operate. This circuit protects the power amplifi er from further damage when a short circuit occurs. Operation will temporarily stop. In this case, check the cause of the short-circuit and if the problem is fi xed, normal operation will resume. Since the power amplifi er has a very large output, the unit should be installed in the trunk of your car. Do not install this unit under a carpet, otherwise the unit may fail because of immature heat dissipation. Use the spacer included when installing the unit so that the fan and air hole on the base side of the unit are not covered. <CY-PAD1003N> If the fan and air hole on the base side of the unit are covered, the unit will become extremely hot and may fail. <CY-PAD1003N> Installation Hardware (For Installation) No. Item Diagram Qty. Spacer 4 Tapping Screw (5 mm40 mm)

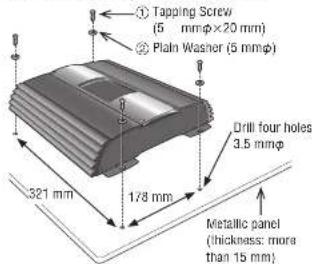

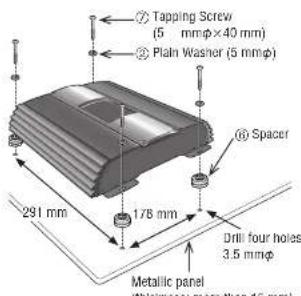

Before Mounting the Unit 1 Make the temporary connections.2 Confi rm the proper operation of the unit. Confi rm the proper connection and setting, and no blowout of the fuses.3 Confi rm after the installation of the unit that the spare tires, the jack, the tools, etc. can be picked up without obstruction. Install the unit to a metallic portion of the car Since the power amplifi er has a very large output, the unit should be installed in the boot of your car. <CY-PA4003N, CY-PA2003N> Tapping Screw (5 mm20 mm) Plain Washer (5 mm)Drill four holes 3.5 mmMetallic panel (thickness: more than 15 mm)321 mm178 mm <CY-PAD1003N> Tapping Screw (5 mm40 mm) Plain Washer (5 mm)Drill four holes 3.5 mmMetallic panel (thickness: more than 15 mm)291 mm178 mm SpacerNote: If you wish to install the unit without using the spacer included, drill holes in the Metallic panel etc so that the fan and air holes on the base side of the unit are not covered.Base side of CY-PAD1003N: Fan Air hole22 English

CY-PA4003N/PA2003N/PAD1003N

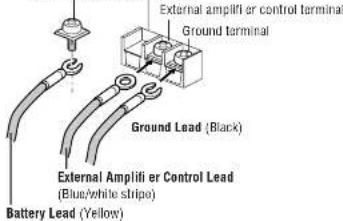

Wiring Caution This unit is designed for use in a car having a 12 V negative ground battery system. Be sure to insulate any exposed wires to prevent short circuiting with the car chassis. Bundle all cables, and prevent cable terminals from touching any metal parts. Note that if your car has a driving computer or a navigation computer, disconnecting the cable from the battery may clear the memory. Run the cords avoiding the spots where the temperature can be extremely high. Continuous use of a system that exceeds the maximum permissible input levels may damage the speakers. Since the power amplifi er has a very large output, the unit should be installed in the trunk of your car. Do not install this unit under a carpet, otherwise the unit may fail because of immature heat dissipation.Caution for the power cord (option): Follow an expert’s instruction for the use of the cord separately sold. For the power, make sure to use the battery lead (yellow) separately sold and specially designed for Panasonic car-audio/AV system, and to connect directly to the car battery. Use the cord having the fuse capacity larger than that of this unit. Connect the power cord and other cords corresponding to the power supply after all the connections to the speaker are completed. Keep the battery lead (yellow) away from the speaker cord. Make sure to use the ground lead (black) separately sold and specially designed for car audio system, and to connect it to the metal portion of the car chassis. Wire the battery lead (yellow), the ground lead (black), the speaker cords, and this unit with as much distance as possible from the antenna, the antenna cords and the car stereo (car radio). If the ground wire is common to both left/right and front/rear speaker wirings, this unit cannot be used. Always use the independent lead wire for the speakers to be used. In this case, redo the wiring.Caution for the speaker cord (option): The speaker cords and the power amplifi er unit should be kept away from the antenna and antenna extension cord. Do not directly ground the speaker cords; do not share the negative leads of multiple speakers. When using the RCA cords, keep away from the speaker cords. Caution for the speaker (option): Use speakers with a suitable maximum input. In case of 4-channel/3-channel connection <CY-PA4003N>: Use speakers with the impedance of 28 . In case of 2-channel/stereo connection: Use speakers with the impedance of 48 . Terminal Cover for Short-circuit Prevention This terminal cover is for preventing short-circuit between adjacent terminals. Before connecting each lead, pass it through the terminal cover. After connecting the leads to the terminals, cover the speaker output terminals and power terminals with this cover. Make sure that the projections to prevent slipping out are facing down. Terminal cover for short-circuit prevention <CY-PA4003N> Terminal cover for short-circuit prevention Speaker Output Terminal Screw Connection Power Terminal Screw Connection For power connection, use the optional battery lead (yellow) specially designed for car-audio system and connect it directly to the car battery. Use the cord having the fuse capacity larger than that of this unit. Securely tighten each lead with a terminal screw.1 Unscrew the terminal screw.2 Insert the screw into the terminal of the lead. Securely fasten the screw.If the battery lead has to be routed through high temperature area, protect it with a corrugated tube (option). Battery Lead (Yellow)Corrugated tube (10 mm)Speaker terminalSpeaker cordTerminal screwTerminal screw Battery terminalExternal amplifi er control terminalGround terminalBattery Lead (Yellow)External Amplifi er Control Lead (Blue/white stripe) Ground Lead (Black)Terminal screw

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

1 Using a nipper or cutter, expose approximately 10 mm long of the core of the speaker cord and twist its end.2 Attach the speaker terminal onto the speaker cord.3 Unscrew the terminal screw.4 Insert the screw into the terminal of the cord. Securely fasten the screw.24 English

CY-PA4003N/PA2003N/PAD1003N

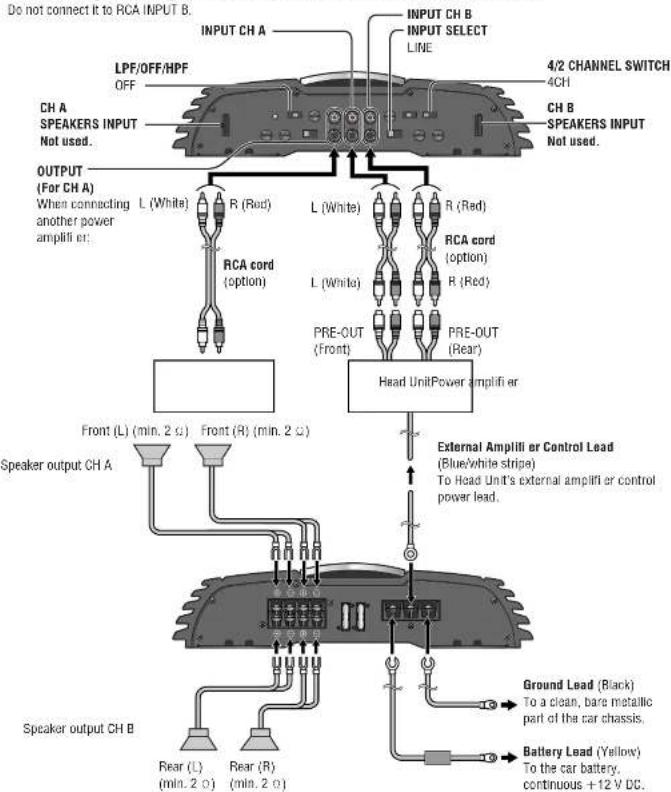

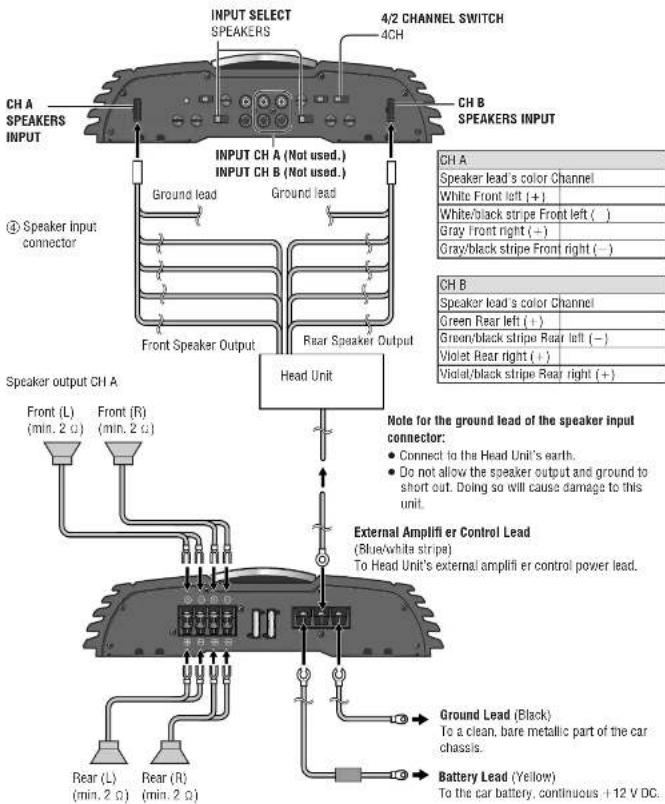

Wiring <CY-PA4003N> Speaker Connections with RCA cord Example: 4 channel speaker connection (4CH input) Note for RCA Input Connection: Selectively assign each front and rear output to either RCA INPUT A or B, in accordance with the system from which the output is coming. In case of a single line coming from the RCA output of Head Unit, connect the line to RCA INPUT A. Do not connect it to RCA INPUT B.Head UnitPower amplifi erPRE-OUT (Rear)PRE-OUT (Front)RCA cord (option)CH B SPEAKERS INPUT Not used. Front (L) (min. 2 )Front (R) (min. 2 )Rear (L) (min. 2 )Rear (R) (min. 2 )Battery Lead (Yellow)To the car battery, continuous 12 V DC. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Ground Lead (Black)To a clean, bare metallic part of the car chassis. CH A SPEAKERS INPUT Not used. OUTPUT(For CH A) When connecting another power amplifi er:INPUT CH AINPUT CH BLPF/OFF/HPF OFF 4/2 CHANNEL SWITCH 4CH INPUT SELECT LINE RCA cord (option)R (Red)L (White)R (Red)L (White)L (White)R (Red)Speaker output CH ASpeaker output CH B Speaker Connections with SPEAKERS INPUT Connectors Example: 4 channel speaker connection (4CH input) INPUT CH A (Not used.) INPUT CH B (Not used.) Head UnitBattery Lead (Yellow)To the car battery, continuous 12 V DC. Ground Lead (Black)To a clean, bare metallic part of the car chassis. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Front (L) (min. 2 )Front (R)(min. 2 )Rear (L) (min. 2 )Rear (R) (min. 2 )CH A SPEAKERS INPUT CH B SPEAKERS INPUT Rear Speaker OutputFront Speaker Output CH A Speaker lead’s color ChannelWhite Front left ()White/black stripe Front left ()Gray Front right ()Gray/black stripe Front right () CH B Speaker lead’s color ChannelGreen Rear left ()Green/black stripe Rear left ()Violet Rear right ()Violet/black stripe Rear right ()4/2 CHANNEL SWITCH 4CH INPUT SELECTSPEAKERSSpeaker output CH ASpeaker output CH B Speaker input connectorGround leadNote for the ground lead of the speaker input connector: Connect to the Head Unit’s earth. Do not allow the speaker output and ground to short out. Doing so will cause damage to this unit. Ground lead26 English

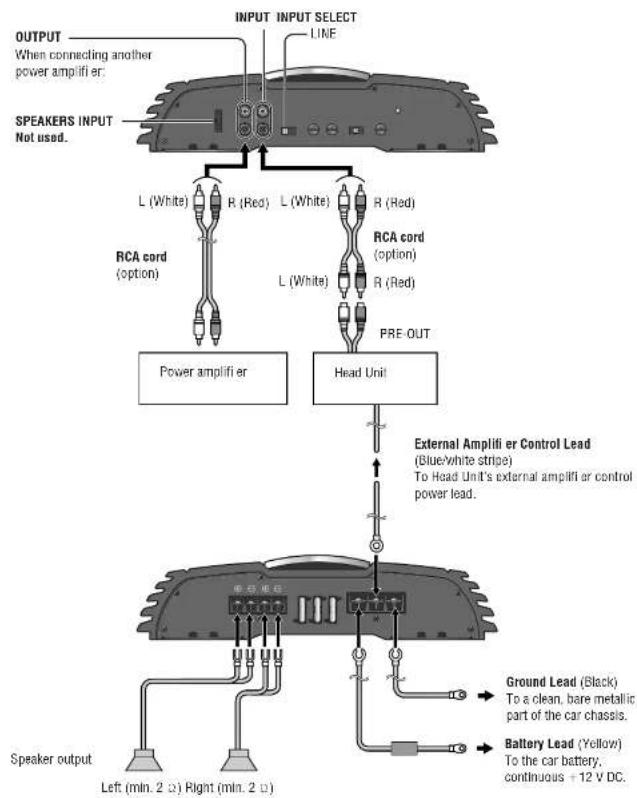

Wiring <CY-PA2003N> Speaker Connections with RCA cord Example: 2 channel speaker connection Head UnitPower amplifi erPRE-OUTLeft (min. 2 ) Right (min. 2 )Battery Lead (Yellow)To the car battery, continuous 12 V DC. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Ground Lead (Black)To a clean, bare metallic part of the car chassis. SPEAKERS INPUT Not used. OUTPUT When connecting another power amplifi er:INPUT INPUT SELECT LINE RCA cord (option)L (White)L (White)L (White)R (Red)RCA cord (option)R (Red)R (Red)Speaker output Speaker Connections with SPEAKERS INPUT Connectors Example: 2 channel speaker connection INPUT (Not used.)Head UnitBattery Lead (Yellow)To the car battery, continuous 12 V DC. Ground Lead (Black)To a clean, bare metallic part of the car chassis. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Left (min. 2 ) Right (min. 2 )SPEAKERS INPUT Speaker OutputINPUT SELECT SPEAKERSSpeaker output Speaker input connectorSpeaker lead’s color ChannelWhite Left ()White/black stripe Left ()Gray Right ()Gray/black stripe Right ()Ground leadNote for the ground lead of the speaker input connector: Connect to the Head Unit’s earth. Do not allow the speaker output and ground to short out. Doing so will cause damage to this unit.28 English

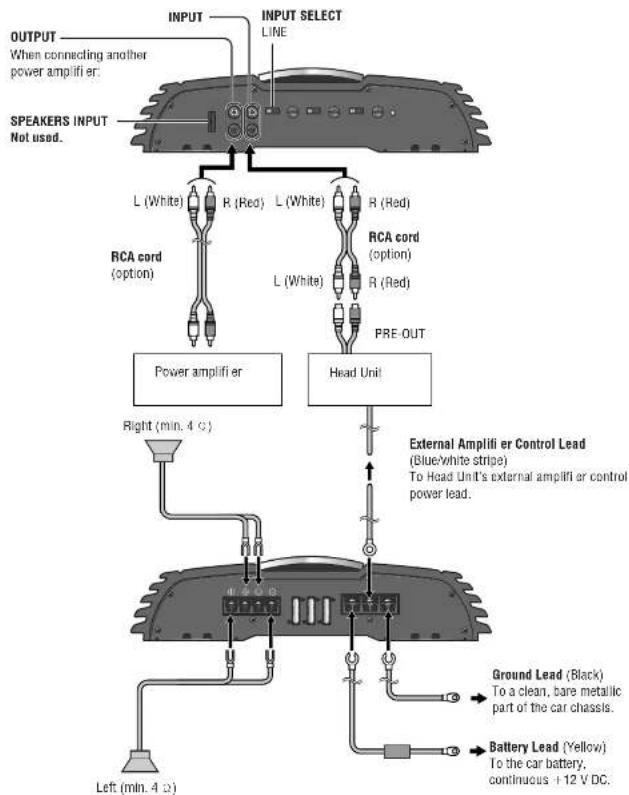

Wiring <CY-PAD1003N> Speaker Connections with RCA cord Example: 2 channel Input System Head UnitPower amplifi erPRE-OUTLeft (min. 4 )Right (min. 4 )Battery Lead (Yellow)To the car battery, continuous 12 V DC. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Ground Lead (Black)To a clean, bare metallic part of the car chassis. SPEAKERS INPUT Not used. OUTPUT When connecting another power amplifi er:INPUT INPUT SELECT LINE RCA cord (option)L (White)L (White)L (White)R (Red)RCA cord (option)R (Red)R (Red) Speaker Connections with SPEAKERS INPUT Connectors Example: 2 channel Input System INPUT (Not used.)Head UnitBattery Lead (Yellow)To the car battery, continuous 12 V DC. Ground Lead (Black)To a clean, bare metallic part of the car chassis. External Amplifi er Control Lead (Blue/white stripe) To Head Unit’s external amplifi er control power lead.Right (min. 4 )SPEAKERS INPUT Speaker OutputINPUT SELECT SPEAKERS Speaker input connectorSpeaker lead’s color ChannelWhite Left ()White/black stripe Left ()Gray Right ()Gray/black stripe Right ()Ground leadNote for the ground lead of the speaker input connector: Connect to the Head Unit’s earth. Do not allow the speaker output and ground to short out. Doing so will cause damage to this unit.30 English

Troubleshooting If You Suspect Something Wrong Check and take steps as described below. If the described suggestions do not solve the problem, it is recommended to take the unit to your nearest authorized Panasonic Service Centre. The product should be serviced only by qualifi ed personnel. Please refer checking and repair to professionals. Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking. Never take measures especially those other than indicated by italic letters in “Possible solution” described below because those are too dangerous for users to handle themselves. No sound available. The power cord (battery, power and ground) is connected in the wrong way. Check the wiring. The contact of the ground lead is poor. Make sure that the ground lead is connected to an unpainted part of the chassis securely. The speaker cord is short-circuited. Check the speaker cord, and replace the fuse.The speaker received damage because of too small input capacity. Obtain the right speaker allowed to connect this unit, and replace the fuse. (page 32) The speaker cord is not properly connected. Properly reconnect so that the polarity matches between the speaker cord and the terminal.The speaker cord is bitten with a screw of the vehicle. Correct the wiring of the speaker cord.The knob for sound volume control is not properly adjusted. Properly adjust it. Adjust the volume of the Head Unit.Input Select (LINE/SPEAKERS) is not set in accordance with the speaker output cord of the Head Unit. Check the Input Select (LINE/SPEAKERS) setting.Problem Possible cause Possible solution Warning Do not use the unit in abnormal condition, for example, without sound, or with smoke or foul smell, which can cause ignition or electric shock. Immediately stop using the unit and consult your dealer. Never try to repair the unit by yourself because it is dangerous to do so. Bad sound quality (Distorted sound)NoiseThe bass is too much enhanced. Set the bass boost appropriately.Problem Possible cause Possible solutionNo sound available. (continued)There is an electromagnetic-wave generator such as a cellular phone near the unit or its electrical lines. Keep the electromagnetic-wave generator such as a cellular phone away from the unit and the wiring of the unit. If noise cannot be eliminated due to the wiring harness of the car, consult your dealer.Fuse blows out. Eliminate the cause of fuse blowout and replace the fuse with new one. Consult your dealer. Sound comes out from only either the Front 2CH or the Rear 2CH.<CY-PA4003N> The 2CH/4CH setting of the speaker input is incorrect. Set it correctly.Only the bass is available.<CY-PA4003N, CY-PA2003N> The Crossover Filter Switch (LPF/OFF/HPF) is turned off. Set it on LPF or HPF according to the speaker connection. <CY-PAD1003N> The Crossover Filter Switch (LPF/OFF) is turned off. Set it on LPF according to the speaker connection. Only the treble is available.The setting of Crossover Frequency Control is incorrect. Check the Crossover Frequency Control setting.The Protect lamp lights red. The speaker cord is short-circuited. Check the speaker cord, and replace the fuse.The speaker received damage because of too small input capacity. Obtain the right speaker allowed to connect this unit, and replace the fuse. (page 32) The speaker cord is not properly connected. Properly reconnect so that the polarity matches between the speaker cord and the terminal.Fuse blows out. Eliminate the cause of fuse blowout and replace the fuse with new one. Consult your dealer.32 English

Maintenance Caution on Cleaning Your product is designed and manufactured to require minimum maintenance. Use a dry soft cloth for routine exterior cleaning. Never use benzine, thinner or other solvents. Pesticide AlcoholThinnerBenzine Wax Specifi cations <CY-PA4003N> Power Supply: DC 12 V (11 V–16 V), test voltage 14.4 V, Negative GroundCurrent Consumption: 32 A (at 64 W4)Speaker Impedance: 4 Power Output (“EIA” Power): 2-CH: 190 W2 (20 Hz20 000 Hz, 1 %, 4 ) 3-CH: 64 W2190 W (20 Hz20 000 Hz, 1 %, 4 ) 4-CH: 64 W4 (20 Hz20 000 Hz, 1 %, 4 )Maximum Power Output: 2-CH: 220 W2 (20 Hz20 000 Hz, 10 %) 3-CH: 85 W2220 W (20 Hz20 000 Hz, 10 %) 4-CH: 85 W4 (20 Hz20 000 Hz, 10 %)Total Harmonic Distortion: 0.08 % (1 000 Hz, at 10 W) Low Pass Filter: 50 Hz250 Hz High Pass Filter: 50 Hz250 Hz Bass Boost : 0 dB15 dB (Middle Frequency: 45 Hz)Signal to Noise Ratio: 90 dB (IHF, A)Frequency Response: 20 Hz20 kHz Input Sensitivity: 0.2 V6 V Input Impedance: More than 46 k Dimensions (WHD): 28062333 mm Weight: 4.4 k Note: Specifi cations and design are subject to modifi cation without notice due to improvements. Some fi gures and illustrations on this manual may be different from your product. Sales and Support Information For UK and Ireland customers only. Customer Care Centre For customers within the UK: 08705 357357 For customers within the Republic of Ireland: 01 289 8333 Visit our website for product information E-mail: [e-mail] Direct Sales at Panasonic UK Order accessories and consumable items for your product with ease and confi dence by phoning our Customer Care Centre Monday - Thursday 9:00am - 5:30pm, Friday 9:30am - 5:30pm. (Excluding public holidays). Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk. Most major credit and debit cards accepted. All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd. It couldn’t be simpler! Also available through our Internet is direct shopping for a wide range of fi nished products, so take a browse on our website for further details. Troubleshooting (continued) Product Servicing If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Service Centre. The product should be serviced only by a qualifi ed technician. Replacing the Fuse <CY-PAD1003N> Power Supply: DC 12 V (11 V–16 V), test voltage 14.4 V, Negative GroundCurrent Consumption: 29 A (at 350 W1)Speaker Impedance: 4 Power Output (“EIA” Power): 1-CH (Monaural): 350 W1 (10 Hz8 000 Hz, 1 %, 4 ) Maximum Power Output: 1-CH (Monaural): 600 W1 (10 Hz8 000 Hz, 10 %) Total Harmonic Distortion: 0.2 % (1 000 Hz, at 10 W) Low Pass Filter: 50 Hz250 Hz Bass Boost: 0 dB15 dB (Middle Frequency: 45 Hz)Subsonic Filter: 20 Hz, 3 dB, 12 dB/octSignal to Noise Ratio: 90 dB (IHF, A)Frequency Response: 10 Hz8 kHz Input Sensitivity: 0.2 V6 V Input Impedance: More than 22 k Dimensions (WHD): 28062303 mm Weight: 4.0 k Note: Specifi cations and design are subject to modifi cation without notice due to improvements. Some fi gures and illustrations on this manual may be different from your product. <CY-PA2003N> Power Supply: DC 12 V (11 V–16 V), test voltage 14.4 V, Negative GroundCurrent Consumption: 44 A (at 200 W2)Speaker Impedance: 4 Power Output (“EIA” Power): 1-CH (Monaural): 480 W1 (20 Hz20 000 Hz, 1 %, 4 ) 2-CH (Stereo): 200 W2 (20 Hz20 000 Hz, 1 %, 4 ) Maximum Power Output: 1-CH (Monaural): 550 W1 (20 Hz20 000 Hz, 10 %) 2-CH (Stereo): 260 W2 (20 Hz20 000 Hz, 10 %) Total Harmonic Distortion: 0.08 % (1 000 Hz, at 10 W) Low Pass Filter: 50 Hz250 Hz High Pass Filter: 50 Hz250 Hz Bass Boost: 0 dB15 dB (Middle Frequency: 45 Hz)Signal to Noise Ratio: 90 dB (IHF, A)Frequency Response: 20 Hz20 kHz Input Sensitivity: 0.2 V6 V Input Impedance: More than 43 k Dimensions (WHD): 28062333 mm Weight: 4.5 k Note: Specifi cations and design are subject to modifi cation without notice due to improvements. Some fi gures and illustrations on this manual may be different from your product. Warning Use fuses of the same specifi ed rating. CY-PA4003N: 35 A2CY-PA2003N: 25 A3CY-PAD1003N: 25 A3When replacing one fuse which has blown, replace other fuses at the same time.In some cases, fuses may deteriorate without failing. Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fi re or damage to the unit. If the replacement fuse fails, contact your nearest Panasonic Service Centre for service.34 Deutsch

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>

<CY-PA2003N, CY-PAD1003N>
