USER MANUAL SX315 PIONEER

Register your product at www.pioneerelectronics.com

• Protect your new investment
  The details of your purchase will be on file for reference in the event of an insurance claim such as loss or theft.
• Receive free tips, updates and service bulletins on your new product
• Improve product development
  Your input helps us continue to design products that meet your needs.
• Receive a free Pioneer newsletter
  Registered customers can opt in to receive a monthly newsletter.

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference.

In some countries or regions, the shape of the power plug may sometimes differ from that shown in the explanatory drawings. However, the method of connecting and operating the unit is the same.

WARNING – TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

D1-4-2-1_En

CAUTION – PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTENSION CORD.

RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

ATTENTION – POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT, SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUWERT. D2-4-4-1 EF

The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D1-4-2-3_En

This Class B digital apparatus complies with Canadian ICES-003.

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment. D8-10-2

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
D8-10-1-2_En

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections. D8-10-3

D8-10-3a_En

IMPORTANT SAFETY INSTRUCTIONS

READ INSTRUCTIONS — All the safety and operating instructions should be read before the product is operated.

RETAIN INSTRUCTIONS — The safety and operating instructions should be retained for future reference.

HEED WARNINGS — All warnings on the product and in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS — All operating and use instructions should be followed.

CLEANING — The product should be cleaned only with a polishing cloth or a soft dry cloth. Never clean with furniture wax, benzine, insecticides or other volatile liquids since they may corrode the cabinet.

ATTACHMENTS — Do not use attachments not recommended by the product manufacturer as they may cause hazards.

WATER AND MOISTURE — Do not use this product near water — for example, near a bathtub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

ACCESSORIES — Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

CART — A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

VENTILATION — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

POWER SOURCES — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

LOCATION – The appliance should be installed in a stable location.

NONUSE PERIODS – The power cord of the appliance should be unplugged from the outlet when left un-used for a long period of time.

GROUNDING OR POLARIZATION

- If this product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other), it will fit into the outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

- If this product is equipped with a three-wire grounding type plug, a plug having a third (grounding) pin, it will only fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

POWER-CORD PROTECTION — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

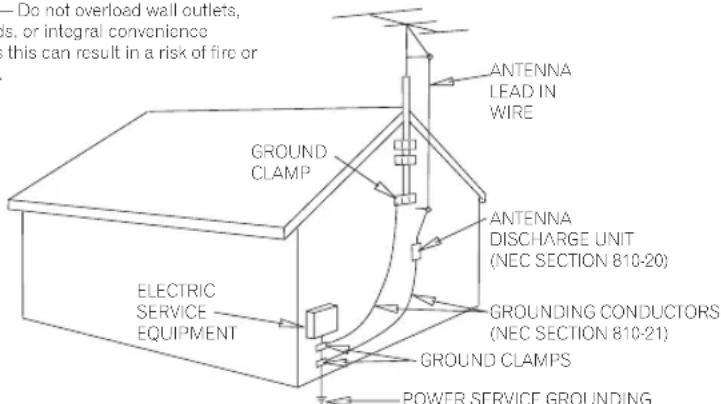

OUTDOOR ANTENNA GROUNDING — If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

LIGHTNING — For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

POWER LINES — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

SERVICING — Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

- When the power-supply cord or plug is damaged.

- If liquid has been spilled, or objects have fallen into the product.

- If the product has been exposed to rain or water. - If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

- If the product has been dropped or damaged in any way.

- When the product exhibits a distinct change in performance — this indicates a need for service.

REPLACEMENT PARTS — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

WALL OR CEILING MOUNTING — The product should not be mounted to a wall or ceiling.

HEAT — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

—Do not overload wall outlets, is, or integral convenience this can result in a risk of fire or GROUNDS CLAMP ELECTRIC SERVICE EQUIPMENT ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING

Fig. A

— POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H) NEC — NATIONAL ELECTRICAL CODE

D1-4-2-2_En

IMPORTANT NOTICE – THE SERIAL NUMBER FOR THIS EQUIPMENT IS LOCATED IN THE REAR. PLEASE WRITE THIS SERIAL NUMBER ON YOUR ENCLOSED WARRANTY CARD AND KEEP IN A SECURE AREA. THIS IS FOR YOUR SECURITY. D1-4-2-6

For U.S. and Australia Model

energy ENERGY STAR

C67-7-3_En

This product contains mercury. Disposal of this material may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance : www.eiae.org.

K057_En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period. K041_En

WARNING: Handling the cord on this product or cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm.

Wash hands after handling

D36-P4_En

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

"DTS" and "DTS Digital Surround" are trademarks of Digital Theater Systems, Inc.

Dear Customer:

Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing.

Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

• Start your volume control at a low setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level:

- Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

We Want You Listening For A Lifetime

Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association's Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection.

Decibel

Level Example

30 Quiet library, soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60 Air conditioner at 20 feet, sewing machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at two feet.

THE FOLLOWING NOISES CAN BE DANGEROUS UNDER CONSTANT EXPOSURE

90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 Gunshot blast, jet plane
180 Rocket launching pad

Information courtesy of the Deafness Research Foundation.

S001_En

Contents

01 Before you start

Checking what's in the box 6

Loading the batteries....6

Operating range of remote control unit 6

Ventilation....6

02 Connecting up

Making cable connections....7

Connecting to a TV and DVD recorder or player.....7

Connecting a satellite receiver or other digital set-top box....8

Connecting a tape deck or VCR 8

Connecting antennas 9

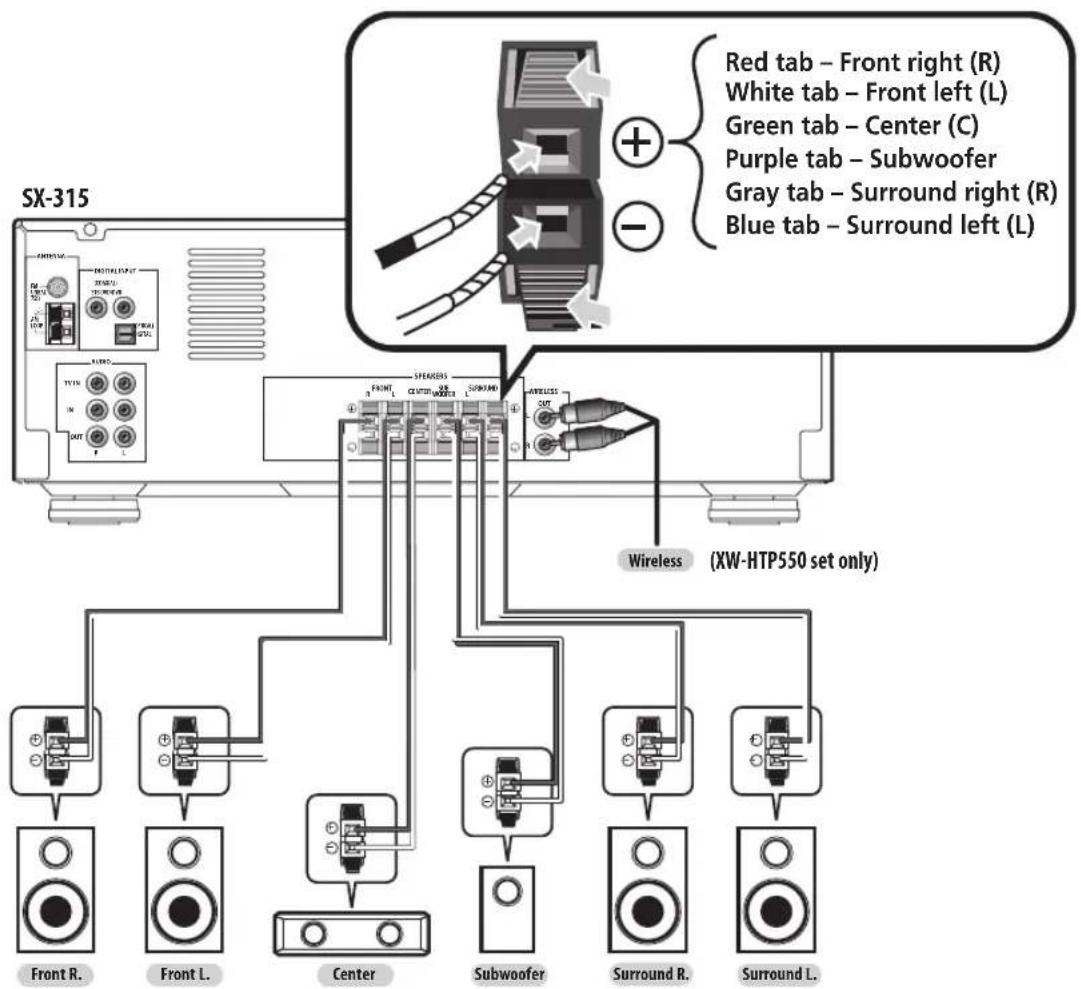

Connecting the speakers.... 10

Plugging in 11

03 Controls and displays

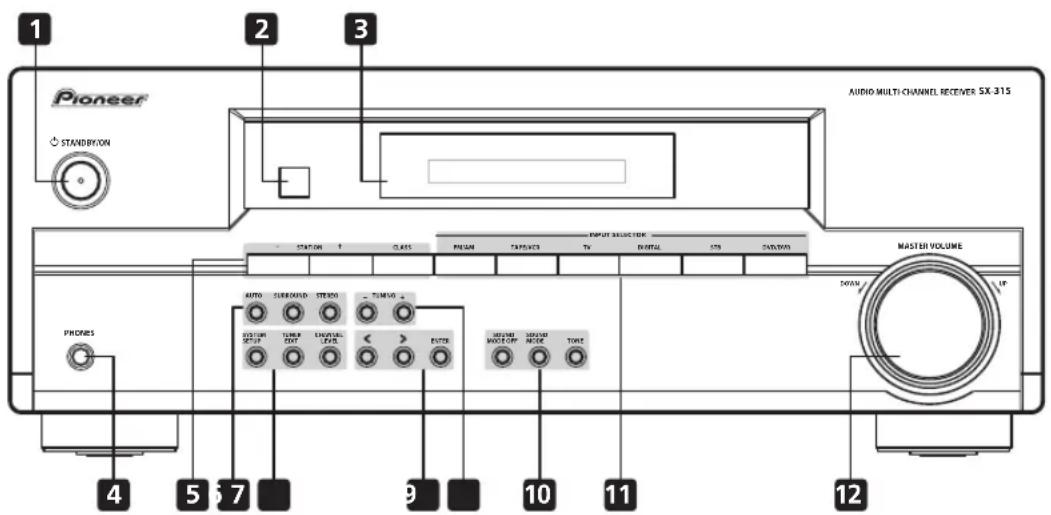

Front panel 12

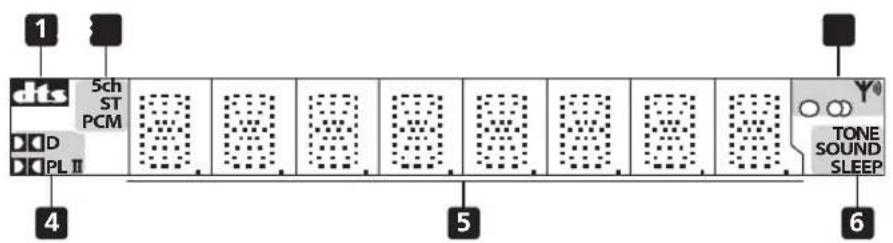

Display.... 13

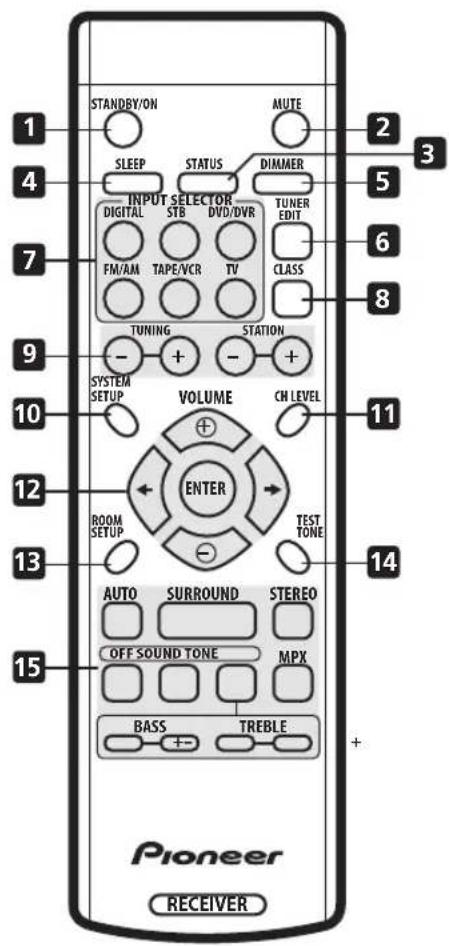

Remote control 14

04 Surround sound setup

Introduction to home theater.... 16

Switching on.... 16

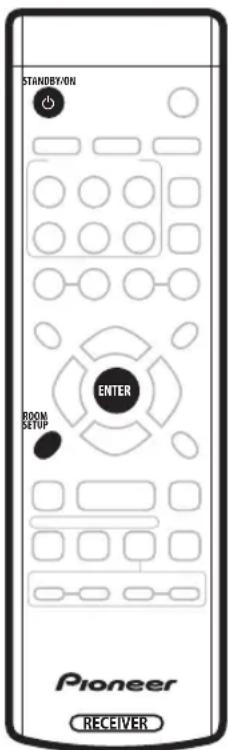

Quick setup using the Room Setup 16

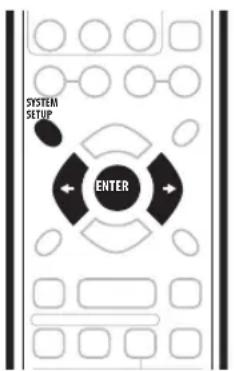

Setting speaker distances 17

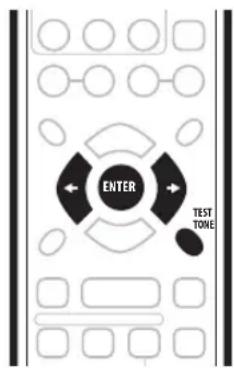

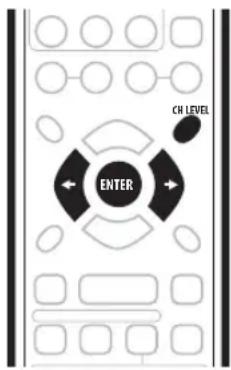

Setting individual channel levels 17

05 Listening to your system

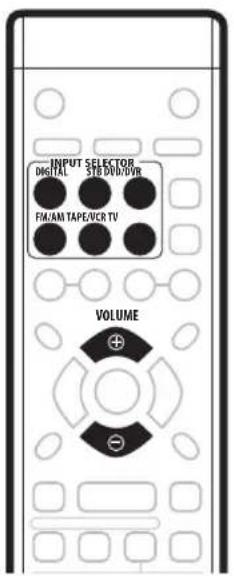

Selecting a source.... 19

Using the Auto listening mode 19

Listening in surround sound 20

Listening in stereo 20

Using the Sound modes 20

Using the tone controls 21

Listening through headphones 21

Dynamic Range Control setting.... 21

Dual Mono setting 22

Using the sleep timer.... 22

06 Using the tuner

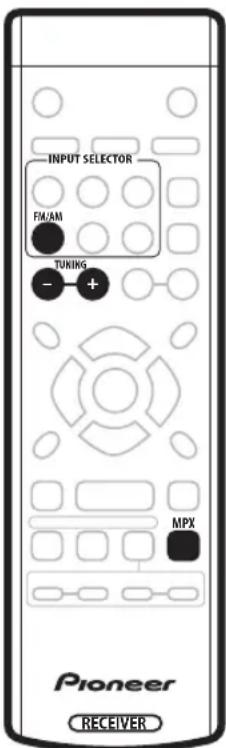

Listening to the radio.... 23

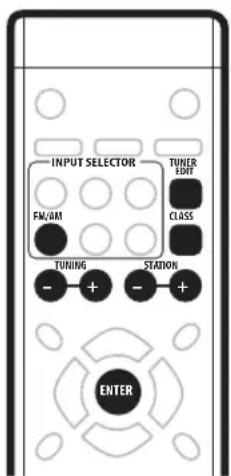

Saving station presets 23

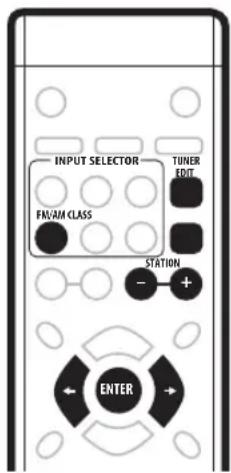

Listening to station presets 24

07 Additional information

Troubleshooting.... 25

Cleaning the unit.... 26

Tuner step setting 26

Input attenuator setting.... 26

Resetting the receiver 26

Specifications 27

Chapter 01:

Before you start

Checking what's in the box

Please check that you've received the following supplied accessories:

• AM loop antenna
• FM wire antenna
  • Dry cell batteries (AA size IEC R6) x2
• Remote control
• Warranty card
  • These operating instructions

Loading the batteries

1 Open the battery compartment on the rear of the remote control

3D rendering of a gray plastic tray or casing with a curved arrow indicating rotation (no text or symbols)

2 Insert the supplied batteries following the markings inside the battery compartment to align them correctly.

Illustration of a remote control device with a cable being inserted (no text or symbols visible)

3 Replace the battery compartment cover.

Illustration of a gray remote control device with a handle and buttons (no text or symbols)

Important

Incorrect use of batteries may result in such hazards as leakage and bursting. Observe the following precautions:

• Never use new and old batteries together.
• Insert the plus and minus sides of the batteries properly according to the marks in the battery case.
• Batteries with the same shape may have different voltages. Do not use different batteries together.
• When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

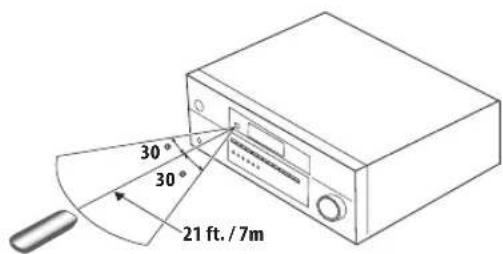

Operating range of remote control unit

The remote control may not work properly if:

• There are obstacles between the remote control and the receiver's remote sensor.
• Direct sunlight or fluorescent light is shining onto the remote sensor.
• The receiver is located near a device that is emitting infrared rays.
• The receiver is operated simultaneously with another infrared remote control unit.

30° 30° 21 ft. / 7m

Ventilation

The receiver should be properly ventilated to prevent overheating.

• Do not place anything directly on top of the receiver.
• Do not use the receiver on a thick carpet or other soft surface.

Chapter 02:

Connecting up

Making cable connections

Make sure not to bend the cables over the top of this unit (as shown in the illustration). If this happens, the magnetic field produced by the transformers in this unit may cause a humming noise from the speakers.

Important

- Before making or changing any connections, switch off the power and disconnect the power cable from the AC outlet.

Audio cables (analog)

Use audio cables (not supplied) to connect audio components.

Connect red plugs to R (right) jacks, white plugs to L (left).

Be sure to insert completely.

Diagram of two mechanical components labeled R and L, showing a close-up assembly (no text or symbols beyond labels)

Coaxial and Optical digital audio cables

Coaxial digital audio cables (standard video cables can also be used) or optical cables are used to connect digital components to this receiver.

Be sure to insert completely.

Coaxial digital audio cable (or standard video cable)

Optical cable

• When inserting the plug of an optical cable, be careful not to damage the shutter protecting the optical jack.
• Do not bend optical cables around sharp corners as they may be damaged. When storing, coil loosely.

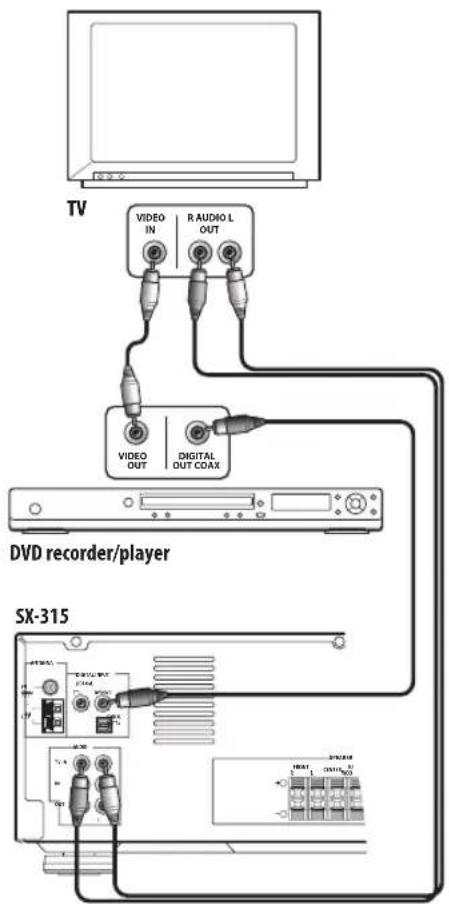

Connecting to a TV and DVD recorder or player

The diagram below shows the connections for a basic home theater setup of a TV, DVD recorder (or player) and this receiver.

Audio is output from the DVD recorder's coaxial digital audio jack, while the video output goes to the TV. Also shown is a stereo analog audio connection from your TV to this receiver so you can enjoy sound from this receiver when watching TV programs.

TV VIDEO IN R AUDIO L OUT VIDEO OUT DIGITAL OUT COAX DVD recorder/player SX-315

Note

- If your DVD recorder only has an optical digital output, you can still connect it to this receiver using the OPTICAL DIGITAL jack. In this case you will have to select the DIGITAL input function rather than DVD.

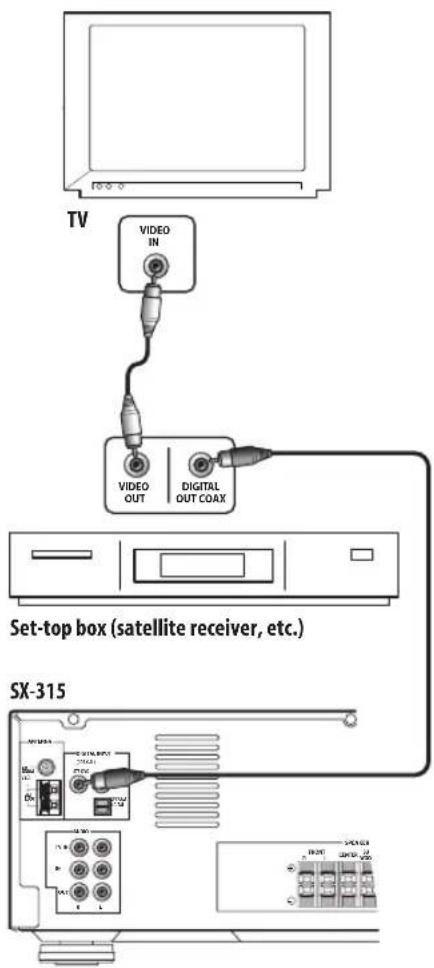

Connecting a satellite receiver or other digital set-top box

The diagram below shows the connections for a digital set-top box (digital satellite receiver, decoder, cable box, digital terrestrial receiver, etc.). Connect the digital audio output of the set-top box (STB) to the STB input on this receiver. Connect the video output from the STB directly to a spare video input on your TV.

TV VIDEO IN VIDEO OUT DIGITAL OUT COAX Set-top box (satellite receiver, etc.) SX-315

Note

- If your STB only has an optical digital output, you can still connect it to this receiver using the OPTICAL DIGITAL jack. In this case you will have to select the DIGITAL input function rather than STB.

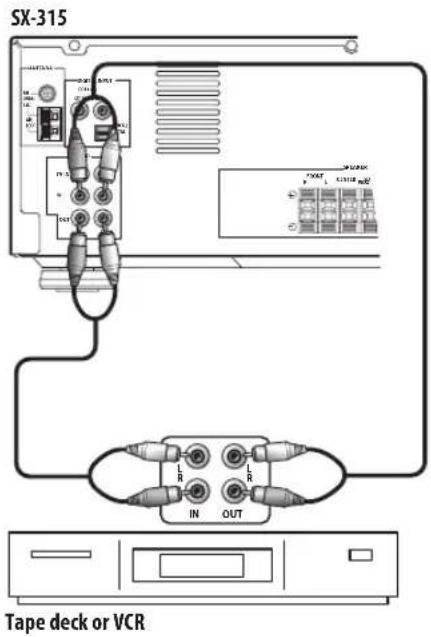

Connecting a tape deck or VCR

The diagram below shows a tape deck or VCR connected to the receiver using two sets of stereo analog audio cables, one set for the audio input and one set for output from the receiver for recording.

SX-315 Tape deck or VCR

Note

- You can only record from analog audio sources (TV or FM/AM inputs). Audio from the digital inputs is not recordable from the analog outputs.

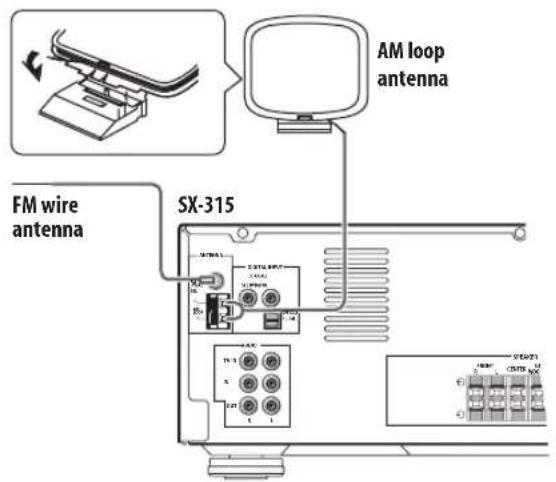

Connecting antennas

Connect the AM loop antenna and the FM wire antenna as shown below. To improve reception and sound quality, connect external antennas (see Using external antennas below). Always make sure that the receiver is switched off and unplugged from the wall outlet before making or changing any connections.

FM wire antenna SX-315 AM loop antenna

FM wire antenna

Connect the FM wire antenna and fully extend along a window frame or another suitable place that gives good reception.

AM loop antenna

Assemble the antenna and connect to the receiver. Attach (if necessary) and face in the direction that gives the best reception.

If you want to attach the loop antenna to a wall, assemble as shown below.

Technical line drawing of a mechanical device with two views: top shows a rectangular housing with internal components, bottom shows a rounded rectangle with a handle and cable (no text or symbols)

Antenna snap connectors

Twist the exposed wire strands together and insert into the hole, then snap the connector shut.

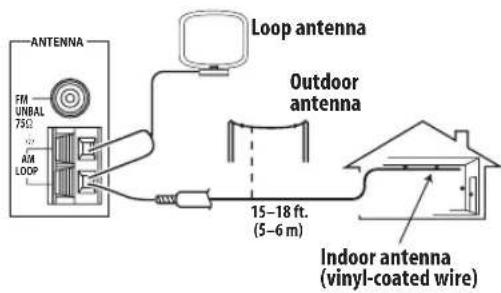

Using external antennas

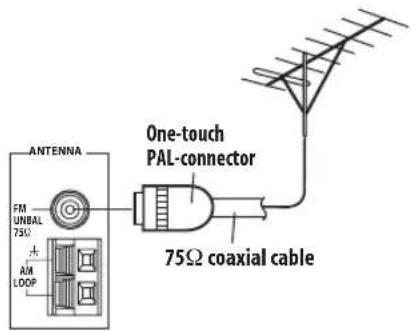

To improve FM reception

Connect an external FM antenna.

ANTENNA FM UNBAL 75Ω A/M LOOP One-touch PAL-connector 75Ω coaxial cable

To improve AM reception

Connect a 15–18 ft. (5–6 m) length of vinyl-coated wire to the AM antenna terminal without disconnecting the supplied AM loop antenna.

For the best possible reception, suspend horizontally outdoors.

ANTENNA FM UNBAL 75Ω A/M LOOP Loop antenna Outdoor antenna 15-18 ft. (5-6 m) Indoor antenna (vinyl-coated wire)

Connecting the speakers

The diagram below shows a complete surround sound setup of six speakers set up in a typical configuration. For the best sound, try to follow this setup in your room as closely as possible.

Make sure the positive (colored) and negative (black) terminals on the receiver match those on the speakers. You can use speakers with a nominal impedance between 6–16Ω.

SX-315 Red tab – Front right (R) White tab – Front left (L) Green tab – Center (C) Purple tab – Subwoofer Gray tab – Surround right (R) Blue tab – Surround left (L) Wireless (XW-HTP550 set only) Front R. Front L. Center Subwoofer Surround R. Surround L.

Hints on speaker placement

Speakers are usually designed with a particular placement in mind. Some are designed to be floorstanding, while others should be placed on stands to sound their best. Some should be placed near a wall; others should be placed away from walls. We have provided a few tips on getting the best sound from your speakers (following), but you should also follow the guidelines on placement that the speaker manufacturer provided with your particular speakers to get the most out of them.

- Place the front left and right speakers at equal distances from the TV.

• When placing speakers near the TV, we recommend using magnetically shielded speakers to prevent possible interference, such as discoloration of the picture when the TV is switched on. If you do not have magnetically shielded speakers and notice discoloration of the TV picture, move the speakers farther away from the TV.
• Place the center speaker above or below the TV so that the sound of the center channel is localized at the TV screen.
• If possible, place the surround speakers slightly above ear level.

- Try not to place the surround speakers further away from the listening position than the front and center speakers. Doing so can weaken the surround sound effect.

Caution

• If you choose to install the center speaker on top of the TV, be sure to secure it with putty, or by other suitable means, to reduce the risk of damage or injury resulting from the speaker falling from the TV in the event of external shocks such as earthquakes.
• Make sure no exposed speaker wire is touching the rear panel, this may cause the receiver to turn off automatically.
  • These speaker terminals are hazardous when live. To prevent the risk of electric shock when connecting or disconnecting the speaker cables, disconnect the power cable.

About the wireless speaker outputs

To the right of the main speaker terminals there is a pair of WIRELESS OUT jacks for use with the Pioneer XW-HTP550 wireless speaker system. Please do not connect any other component to these jacks.

For more information on using a wireless speaker with this receiver, please see the operating instructions that come with the wireless speaker system.

Plugging in

After making sure that everything is connected properly, connect the attached power cable to a wall outlet.

Power cord caution

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or an electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest Pioneer authorized service center or your dealer for a replacement.

Chapter 03:

Controls and displays

Front panel

Pioneer STANDBYON AUDIO MULTI CHANNEL RECEIVER SX 315 PHONE 4 5 6 7 9 10 11 12 OUTPUT S music timer MAIN OUTPUT MASTER VOLUME PHONES AUTO S C Bermuda STEREO TURUSO SYSTEM ORDER ENGLISH ORDER ENTER MAXIMUM ORDER TIME MAXIMUM ORDER TIME

1 ⏻ STANDBY/ON

Switches the receiver between on and standby (page 16).

2 Remote sensor

Receives the signals from the remote control (page 6).

3 Display

See Display on page 13 for details.

4 PHONES jack

Use to connect headphones. When the headphones are connected, there is no sound output from the speakers (page 21).

5 Tuner preset selection buttons

STATION +/-

Selects station presets when using the tuner (page 24).

CLASS

Switches between the three banks (classes) of station presets (page 23).

6 Listening mode buttons

AUTO

Press for automatic decoding (page 19).

SURROUND

Use to switch between the various surround modes (page 19).

STEREO

Switches to stereo playback (page 20).

7 SYSTEM SETUP

Press to access the System Setup menu (page 17, 21, 26).

TUNER EDIT

Use to memorize and name a station for recall using the STATION +/- buttons (page 23).

CH LEVEL

Press to set up the channel levels for surround sound (page 17).

8 < / > and ENTER

Use to navigate menus and change settings.

9 TUNING +/-

Use to tune to radio stations (page 23).

10 Listening mode buttons

SOUND MODE OFF

Press to turn off the current Sound mode (page 20).

SOUND MODE

Press to select a Sound mode (page 20).

TONE

Press to access the bass and treble controls, which you can then adjust with the remote's BASS and TREBLE buttons (page 21).

11 Input select buttons

Press to select an input source (page 19).

12 MASTER VOLUME

Display

1

Lights when the receiver is decoding a DTS signal.

2 5ch

Lights when the receiver is in 5ch stereo mode.

ST

Lights when the receiver is in Stereo mode.

PCM

Lights when the digital input is Linear PCM format (CD Audio, etc.).

3 TUNER indicators

8

Lights when a stereo FM broadcast is being received in auto stereo mode.

O

Lights when the mono mode is set using the MPX button (page 23).

Y0

Lights when a broadcast is being received.

4 D

Lights when the receiver is decoding a Dolby Digital signal.

DO PL II

Lights when the receiver is using Dolby Pro Logic II decoding.

5 Character display

6 TONE

Lights when the receiver is in tone mode.

SOUND

Lights when the receiver is in sound mode.

SLEEP

Lights when the receiver is in sleep mode.

Remote control

STANDBY/ON MUTE SLEEP STATUS DIMMER INPUT SELECTOR DIGITAL STB DVD/DVR TUNER EDIT FM/AM TAPE/VCR TV CLASS TUNING STATION SYSTEM VOLUME CH LEVEL SETUP SYSTEM VOLUME TEST TONE ENTER ROOM SETUP AUTO SURROUND STEREO OFF SOUND TONE MPX BASS TREBLE Pioneer RECEIVER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

1 ⏻ STANDBY/ON

This switches between standby and on for this receiver (page 16).

2 MUTE

Press to mute the sound (press again, or adjust the volume, to restore the sound).

3 STATUS

Press to display the current surround mode and sound mode.

4 SLEEP

Use to put the receiver in sleep mode and select the amount of time before the receiver turns off (page 22).

5 DIMMER

Press repeatedly to set the front panel display brightness.

6 TUNER EDIT

Use to memorize and name a station for recall using the STATION +/- buttons (page 23).

7 INPUT SELECTOR buttons

Press to select an input source (page 19).

DIGITAL

Press to select the optical digital input.

STB

Press to select the STB (set-top box) input (for cable/satellite receivers, etc.).

DVD/DVR

Press to select the DVD player/recorder input.

FM/AM

Press to select the FM or AM band for the built-in tuner.

TAPE/VCR

Press to select the analog tape/VCR input.

TV

Press to select the TV audio input.

8 CLASS

Switches between the three banks (classes) of radio station presets (page 23).

9 Radio tuning controls

TUNING +/-

Use to manually tune into radio stations (page 24).

STATION +/-

Use to tune to preset stations (page 24).

10 SYSTEM SETUP

Press to access the System Setup menu (page 17, 21, 26).

11 CH LEVEL

Press to set up the channel levels for surround sound (page 17).

12 ←/→ (cursor left/right), VOLUME +/- and ENTER

Use to navigate menus and adjust the volume.

13 ROOM SETUP

Press to set up surround sound using the Room Setup presets (page 16).

14 TEST TONE

Sounds the test tone when setting up the surround sound of the receiver (page 17).

15 Listening mode buttons

AUTO

Press for automatic decoding based on the source material (page 19).

SURROUND

Press to switch between the various Pro Logic II and other listening mode options (page 20).

STEREO

Switches to stereo playback using only the front left and right speakers (page 20).

OFF

Switches off the Sound mode (page 20).

SOUND

Press to select a Sound mode (page 20).

TONE

Use in conjunction with the BASS and TREBLE buttons below (page 21).

MPX

Switches between stereo and mono reception of FM broadcasts. If the signal is weak then switching to mono will improve the sound quality (page 23).

BASS +/-

Use with the TONE button above to adjust the bass (page 21).

TREBLE +/-

Use with the TONE button above to adjust the treble (page 21).

Chapter 04:

Surround sound setup

Introduction to home theater

You are probably used to using stereo equipment to listen to music, but may not be used to home theater systems that give you many more options (such as surround sound) when listening to soundtracks.

Home theater refers to the use of multiple audio tracks to create a surround sound effect, making you feel like you're in the middle of the action or concert. The surround sound you get from a home theater system depends not only on the speakers you have set up in your room, but also on the source and the sound settings of the receiver.

DVD-Video has become the basic source material for home theater due to its size, quality, and ease of use. Depending on the DVD, you can have up to seven different audio tracks coming from one disc, all of them being sent to different speakers in your system. This is what creates a surround sound effect and gives you the feeling of 'being there'.

This receiver will automatically decode Dolby Digital, DTS, or Dolby Surround DVD-Video discs, according to your speaker setup. In most cases, you won't have to make changes for realistic surround sound, but other possibilities (like listening to a CD with multichannel surround sound) are explained in Listening to your system on page 19.

Switching on

Use the ⏻ STANDBY/ON button on the front panel or the remote control to switch the receiver on or into standby.

Remember that when the receiver is in standby it still uses a small amount of power (0.45 W). Unplug from the wall outlet to completely disconnect the power. The receiver will retain its settings for about four weeks when unplugged.

Quick setup using the Room Setup

The Room Setup feature gives you a very simple way to set up your receiver for good surround sound by setting the room size and your seating position in the room.

You can make more detailed settings for surround sound later if you want, setting individual channel levels and speaker distances. See below for more details.

STANDBY/ON ENTER ROOM SETUP Pioneer RECEIVER

1 If the receiver isn't already on, press ⏻ STANDBY/ON (remote or front panel) to switch on.

2 Press ROOM SETUP then ENTER.

The display shows the current Room Setup setting.

- If any of the speaker distance settings have been changed (see Setting speaker distances below) then the display blinks ROOM SET.

3 Use the ROOM SETUP button to select a room size setting, then press ENTER.

Select from:

• Room S – Smaller than average room (approx. 3.5 x 4.5m)
• Room M – Average room (approx. 5.5 x 6.0m)

- Room L – Larger than average room (approx. 7.5 x 9.0m)

4 Use the ROOM SETUP button to select a seating position setting, then press ENTER.

Select from:

• Seat Fwd – If you are nearer to the front speakers than the surround speakers
• Seat Mid – If you are equal distance from the front and surround speakers
• Seat Back – If you are nearer to the surround speakers than the front speakers

After selecting the seating position, the display shows the new settings for a couple of seconds.

Setting speaker distances

For more accurate surround sound settings you can set the distance from your listening position to each of the speakers.

See also Setting individual channel levels below for setting the relative levels of individual speakers.

SYSTEM SETUP ENTER

1 Press SYSTEM SETUP (front panel or remote).

The display shows: F c h : followed by a distance in feet. This is the receiver's current setting for the distance from your listening position to each of the front left and right speakers.

2 Use the / (cursor left/right) buttons to change the distance setting.

You can set the distance in increments of one foot.

- You can also use the < and > buttons on the front panel.

3 Press SYSTEM SETUP again to select the center speaker distance setting, then set using the ←/→ (cursor left/right) buttons.

The display shows: C c h : followed by the current distance setting.

4 Press SYSTEM SETUP again to select the surround speaker distance setting, then set using the / (cursor left/right) buttons.

The display shows: S c h : followed by the current distance setting.

5 Press SYSTEM SETUP again to select the subwoofer speaker distance setting, then set using the ←/→ (cursor left/right) buttons.

The display shows: S W : followed by the current distance setting.

6 Press ENTER to exit the System Setup menu.

Setting individual channel levels

In order to balance the sound from all the speakers in your system you can adjust the relative level of each speaker. Adjust so that the level of each speaker is similar from your listening position.

While setting the channel levels, you can either listen to a multichannel source (such as a DVD), or use the built-in test tone feature.

Setting the channel levels using the test tone

The test tone feature outputs a constant noise tone from each speaker, giving you a good reference to adjust the levels.

ENTER TEST TONE

1 Press TEST TONE.

The test tone starts sounding from the left front speaker and continues around each speaker in turn.

2 While the test tone is sounding, use the / (cursor left/right) buttons to adjust the level of that speaker.

You can adjust each speaker from -10 (quieter) to +10 (louder).

- You can also use the front panel < and > buttons, although it's usually best to make this setting from your listening position using the remote.

3 When you're done, press ENTER to exit.

- Pressing any button (except VOLUME +/-) will also exit.

Setting the channel levels while playing a source

The following way of setting the channel levels is best done while playing a multichannel source, such as a DVD. See also the following chapter, Listening to your system on page 19 for more on playing sources.

1 Press CH LEVEL on the remote or CHANNEL LEVEL on the front panel to select a speaker to adjust.

Each press changes the selected speaker:

• L – Left front speaker
• C– Center speaker
• R—Right front speaker
  • RS – Right surround speaker
  • LS – Left surround speaker
• SW – Subwoofer

On the right side of the display you can see the current channel level setting. Initially these are all set at zero.

2 Use the / (cursor left/right) buttons to change the setting for the displayed speaker.

You can adjust each speaker from -10 (quieter) to +10 (louder).

- You can also use the front panel < and > buttons, although it's usually best to make this setting from your listening position using the remote.

3 When you're done, press ENTER to exit.

If no button is pressed for ten seconds, channel setting is automatically exited.

Chapter 05:

Listening to your system

Selecting a source

You can use either the front panel buttons or the remote control to select what you want to listen to; your DVD player, the sound from your TV, the built-in radio tuner, and so on.

INPUT SELECTOR DIGITAL 5TB DVD/DVR FM/AM TAPE/VCR TV VOLUME

1 Use one of the INPUT SELECTOR buttons to select an input source.

• DVD/DVR – Coaxial digital input for a DVD player or recorder.
• STB – Coaxial digital input for a set-top box such as a satellite receiver or cable box.
  • DIGITAL – Optical digital input for any kind of digital audio component (CD, DVD, MD player, etc.).
• TV – Analog inputs for your TV's stereo audio output.
• TAPE/VCR – Analog inputs for a tape deck or VCR.
• FM/AM – The built-in radio tuner. See the following chapter for how to use this.

2 Use the front panel MASTER VOLUME knob or the VOLUME +/- buttons on the remote to adjust the volume.

Note

- The input level for TAPE/VCR can be adjusted if it is too high. See Input attenuator setting on page 26.

- If the channel level has been raised using the channel level settings (see page 17), it's possible that the volume level will not go all the way up to MAX with a sound mode on. This is indicated by a blinking volume indicator in the display.

Using the Auto listening mode

The simplest way to listen to any source is using the Auto listening mode. This lets the receiver choose a default setting depending on the kind of source playing.

AUTO

- While listening to a source, press AUTO (front panel or remote) to select Auto listening mode.

Depending on the kind of source you're listening to, 2 ch, Multich or 1 ch is automatically selected:

• 2 ch – Sound plays through the front left and right speakers only (used for two-channel Dolby Digital, DTS, PCM or analog sources).
• Multi ch – Sound plays through all the speakers used in the multichannel source (used for multichannel Dolby Digital or DTS sources).
• 1 ch – Sound plays through the center speaker only (used for dual mono Dolby Digital or single channel DTS sources).

Listening in surround sound

Using the SURROUND button you can listen to any source in surround sound.

SURROUND

- While listening to a source, press SURROUND.

If the source is Dolby Digital, DTS, or Dolby Surround encoded, the proper decoding format will automatically be selected and shows in the display.

With two channel sources, press SURROUND repeatedly to select from:

• MOVIE – Up to 5.1 channel sound using Dolby Pro Logic II, especially suited to movie sources
• MUSIC – Up to 5.1 channel sound using Dolby Pro Logic II, especially suited to music sources
• DOLBY PL – 5.1 channel surround sound using Dolby Pro Logic
• 5 – STEREO – Stereo sound but using all the speakers (for single channel sources, the one channel is output from all the speakers)

Note

- You can't use the surround mode with 96/88.2 kHz PCM.

Listening in stereo

Just as you can listen to any source in surround sound, you can also choose to listen to sources in stereo. In this case, all sound will be played through the front left and right speakers and the subwoofer.

Multichannel sources are mixed down to stereo so that you still hear the full soundtrack.

Note that single channel sources are played through the center speaker and subwoofer only in this mode.

STEREO

- While listening to a source, press STEREO for stereo playback.

Using the Sound modes

In addition to the above listening modes, you can also select a Sound mode.

OFF SOUND Pioneer RECEIVER

- While listening to a source, press SOUND to select a Sound mode.

Press repeatedly to select one of the following:

• F.SURR. – Front surround, recommended when the surround speakers are placed at the front, giving the impression of surround sound.
  • GAME – Surround sound designed for video game sources
  • S. BASS – Enhanced bass
• QUIET – Use when listening at low volume to hear the sound more clearly.

- To switch off the Sound mode, press OFF on the remote or SOUND MODE OFF on the front panel.

Using the tone controls

OFF TONE BASS TREBLE Pioneer RECEIVER

The tone controls include separate adjustments for bass and treble.

1 Press TONE.

2 use the BASS +/- and TREBLE +/- buttons to adjust the bass and treble as you like.

- To switch off the tone, press OFF (remote) or SOUND MODE OFF (front panel).

Note

• If you use one of the Sound modes, the tone is automatically switched off.
• When Sound mode is off, you can start to adjust the tone directly from the BASS +/- and TREBLE +/- buttons (without pressing TONE first).
• If a Sound mode is active and you press BASS +/- or TREBLE +/- then TONE OFF is displayed.

Listening through headphones

When you connect a pair of headphones for private listening the front panel display shows PHONES IN and sound from the speakers is muted.

Sound through the headphones is always stereo; multichannel sources are mixed down as necessary.

When headphones are connected, the AUTO,

SURROUND, STEREO and SOUND buttons are all inoperative.

Dynamic Range Control setting

- Default setting: DRC: OFF

Using this setting, you can compress the dynamic range of Dolby Digital or DTS sources so that low level sounds can be heard more easily (sounding relatively louder) yet louder sounds won't be too overbearing.

1 Press SYSTEM SETUP repeatedly until the DRC setting is shown in the display.

The display shows DRC ON or DRC OFF.

2 Use the / (cursor left/right) buttons to change the setting.

Switching on Dynamic Range Control is best used when listening at low volumes so that you can still hear dialog.

- You can also use the buttons on the front panel.

3 Press ENTER to exit System Setup.

Dual Mono setting

- Default setting: CH1

You may sometimes come across Dolby Digital or DTS discs that are in dual mono format. This is two-channel material, but the channels may be listened to separately or together depending on the situation. In this case you can use the Dual Mono setting to select the channel or channels to listen to.

1 Press SYSTEM SETUP repeatedly until the Dual Mono setting is shown in the display.

The display shows CH 1, CH 1/CH 2 or CH 2.

2 Use the / (cursor left/right) buttons to change the setting.

- You can also use the < and > buttons on the front panel.

3 Press ENTER to exit System Setup.

Using the sleep timer

The sleep timer switches the receiver into standby after a specified amount of time so you can fall asleep without worrying about the receiver being left on all night. Use the remote control to set the sleep timer.

SLEEP

- Press SLEEP repeatedly to set the sleep time.

Tip

• You can check the remaining sleep time at any time by pressing SLEEP once. Pressing repeatedly will cycle through the sleep options again.
• You can also switch off the sleep timer simply by switching the receiver into standby.

Chapter 06:

Using the tuner

Listening to the radio

The following steps show you how to tune in to FM and AM radio broadcasts using the automatic (search) and manual (step) tuning functions.

Once you are tuned to a station you can memorize the frequency for recall later—see Saving station presets below for more on how to do this.

INPUT SELECTOR FM/AM TUKING MPX Pioneer RECEIVER

1 Press the FM/AM INPUT SELECTOR button to select the tuner.

The front panel display shows the band (FM or AM) and the frequency. If you want to change the band, press FM/AM again.

2 Tune to a station.

There are three ways to do this:

- Manual (step) tuning

To change the frequency one step at a time, press TUNING +/-

- Automatic tuning

To search for stations in the currently selected band, press and hold TUNING +/- for about a second. The receiver will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

• High speed tuning

Press and hold TUNING +/- for high speed tuning. Release the button at the frequency you want.

Improving FM stereo sound

If the tuning ( ) or FM stereo () indicators don't light when tuning to a stereo FM station because the signal is weak, press the MPX button to switch the receiver into mono reception mode. This should improve the sound quality and allow you to enjoy the broadcast.

Saving station presets

If you often listen to a particular radio station, it's convenient to have the receiver store the frequency for easy recall. This saves the effort of manually tuning in each time.

You can memorize up to 30 stations, stored in three banks, or classes, (A, B and C) of 10 stations each. When saving an FM frequency, the MPX setting (see above) is also stored.

INPUT SELECTOR TUNER 80F FM/AM CLASS TUNING STATION - + - + ENTER

1 Tune to a station you want to memorize.

See Listening to the radio above for more on this.

2 Press TUNER EDIT.

The display shows a blinking memory class.

3 Press CLASS to select a class (A, B or C).

Press repeatedly to change the class displayed in the front panel display.

4 Use the < and > buttons to select a preset number in which to store the station.

5 Press ENTER.

After pressing ENTER, the preset class and number stop blinking and the receiver stores the station.

Listening to station presets

You will need to have some presets stored to do this. See Saving station presets on page 23 if you haven't done this already.

INPUT SELECTOR TUNER EDIT FM/AM CLASS STATION - + ENTER

1 Press FM/AM to select the tuner.

2 Press CLASS to select a class (A, B or C).

Press repeatedly to change the class displayed in the front panel display.

3 Use the STATION +/- buttons to select the preset you want.

Note

- If the receiver is left disconnected from the AC power outlet for an extended period, the station memories will be lost and will have to be reprogrammed.

Naming station presets

You can name saved presets with four-character names.

1 Use the CLASS and STATION +/- buttons to find the station preset you want to name.

2 Press TUNER EDIT.

3 Use the / (cursor left/right) buttons to select a character, then press ENTER.

After pressing ENTER, the cursor moves to the next character space.

4 Repeat step 3 to enter the remaining three characters.

Pressing ENTER after the fourth character stores the station name.

Chapter 07:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

Problem	Remedy
The power does not turn on.	Connect the power plug to the wall outlet.Disconnect the power plug from the outlet, and insert again.Make sure there are no loose strands of speaker wire touching the rear panel. This could cause the receiver to shut off automatically.If the power shuts off automatically, take the unit to your nearest Pioneer authorized service center or your dealer for servicing.
No sound is output when a function is selected.	Make sure the component is connected correctly (refer to Connecting up on page 7).Press MUTE on the remote control to turn muting off.Adjust the MASTER VOLUME.
Considerable noise in radio broadcasts.	Tune in the correct frequency.Connect the antenna (refer to page 9).Route any loose cables away from the antenna terminals and wires.Fully extend the FM wire antenna, position for best reception, and secure to a wall, etc.Connect an outdoor FM antenna (refer to page 9).Adjust the direction and position for best reception.Connect an additional internal or external AM antenna (refer to page 9).Turn off the equipment causing the noise or move it away from the receiver.Move antennas farther away from equipment causing the noise.
Broadcast stations cannot be selected automatically.	Connect an outdoor antenna (refer to page 9).
No sound from surround or center speakers.	Connect the speakers properly (refer to page 10).
No sound from subwoofer.	Make sure the subwoofer is switched on.If the subwoofer has a volume knob, make sure it's turned up.The Dolby Digital or DTS source you are listening to does not have an LFE channel.
Noise during playback of a cassette deck.	Move the cassette deck further from your receiver, until the noise disappears.
When a search is performed by a DTS compatible CD player during playback, noise is output.	This is not a malfunction, but be sure to turn the volume down to prevent the output of loud noise from your speakers.
Can't operate the remote control.	Replace the batteries (refer to page 6).Operate within 21 ft. / 7 m, 30° of the remote sensor on the front panel (refer to page 6).Remove obstacles or operate from another position.Avoid exposing the remote sensor on the front panel to direct light.
The display is dark or off. • Press DIMMER on the remote control repeatedly to return to the default.

Note

- If the unit does not operate normally due to external effects such as static electricity, disconnect the power plug from the outlet and insert again to return to normal operating conditions.

Cleaning the unit

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• When the surface is dirty, wipe with a soft cloth dipped in some neutral cleanser diluted five or six times with water, and wrung out well, and then wipe again with a dry cloth. Do not use furniture wax or cleansers.
• Never use thinners, benzine, insecticide sprays or other chemicals on or near this unit, since these will corrode the surface.

Tuner step setting

You can set the tuning step for the built-in tuner for optimal tuning in your area. If you find that you can't tune into stations very effectively, try changing this setting. The two settings are AM 9 kHz / FM 50 kHz and AM 10 kHz / FM 100 kHz.

1 Switch the receiver into standby.

2 Press and hold FM/AM, then press ⏻ STANDBY/ON.

The new tuner step setting is shown in the display.

Input attenuator setting

- Default setting: ATT:OFF

If you experience distortion when you select the TAPE/VCR input it may be that the input level is too high. Switching on the input attenuator lowers the input level, restoring the proper sound.

1 Press SYSTEM SETUP repeatedly until the input attenuator setting is shown in the display.

The display shows ATT:ON or ATT:OFF for Input attenuator on and off respectively.

2 Use the / (cursor left/right) buttons to change the setting.

- You can also use the < and > buttons on the front panel.

3 Press ENTER to exit System Setup.

Resetting the receiver

Use this procedure to reset all the receiver's settings to the factory default. Use the front panel controls to do this.

1 Switch the receiver into standby.
2 Press TONE and SYSTEM SETUP at the same time.
3 When you see RESET? appear in the display, press the > button.
OK? shows in the display.

4 Press ENTER to confirm.

OK appears in the display to indicate that the receiver has been reset to the factory default settings.

Note

- Steps 3 and 4 must be completed within five seconds, otherwise the receiver will exit the reset process.

Specifications

Amplifier section

Continuous Power Output

Front

.. 100 W per channel *(200 Hz - 20 kHz, 1.0%**, 6 Ω)

Center . . . . . . 100 W* (200 Hz - 20 kHz, 1.0% **, 6 Ω)

Surround

.. 100 W per channel* (200 Hz - 20 kHz, 1.0% **, 6 Ω)

Subwoofer .... 100 W* (45 Hz - 200 Hz, 1.0%**, 6 Ω)

RMS Power Output

Front. 125W per channel (1kHz, THD 10%, 6 Ω)

Center 125W (1kHz, THD 10%, 6 Ω)

Surround ..... 125W per channel (1kHz, THD 10%, 6Ω)

Subwoofer....125W (100Hz, THD 10%, 6 Ω)

Music Power Output

Front. . . . . . . 167 W per channel (DIN MUSIC, 10%, 6 Ω)

Center 167 W (DIN MUSIC, 10%, 6 Ω)

Surround ..... 167 W per channel (DIN MUSIC, 10%, 6 Ω)

Subwoofer....167 W (DIN MUSIC, 10%, 6 Ω)

* Measured pursuant to the Federal Trade Commission's

Trade Regulation rule on Power Output Claims for

Amplifiers.

** Measured by audio spectrum analyzer.

FM Tuner Section

Frequency Range 87.5 MHz to 108 MHz

Antenna Input (DIN)....75 Ω unbalanced

AM Tuner Section

Frequency Range

10kHz step 530 kHz to 1,700 kHz

Antenna....Loop antenna

Miscellaneous

Power requirements..... AC 120 V / 60Hz

Power consumption 200 W

In standby 0.5 W

Dimensions .....16.5 (W) x 6.2 (H) x 15.7 (D) in.

Weight (without package) 20 lb 15 oz

9.5 kg

Furnished Parts

AM loop antenna 1

FM wire antenna 1

Dry cell batteries (AA size IEC R6) 2

Remote control 1

Warranty card 1

These operating instructions

Note

- Specifications and the design are subject to possible modifications without notice, due to improvements.

This Class B digital apparatus complies with Canadian ICES-003.

3D rendering of a gray mechanical component with a curved arrow indicating rotation (no text or symbols)

Illustration of a remote control panel with a scroll wheel and cable attachment (no text or symbols)

3D rendering of a gray remote control device with a handle and scroll (no text or symbols visible)

Important

30° 30° 7m

Aération

Diagram showing two labeled mechanical components (R and L) connected by a valve or connector, with an arrow indicating direction.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Diagram of a vintage television set with a 'STEREO' button and various screen layout (no text or symbols beyond the label)

Centre 125 W (1 kHz, 10 % THD, 6 Ω)

Piles sèches (type AA IEC R6)....2

Télécommande 1

Carte de garantie 1

Ce mode d'emploi

Remarque

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer Authorized Independent Service Company, or if you wish to purchase replacement parts, operating instructions, service manuals, or accessories, please call the number shown below.

$$ 8 0 0 - 4 2 1 - 1 4 0 4 $$

Please do not ship your product to Pioneer without first calling the Customer Support Division at the above listed number for assistance.

Pioneer Electronics (USA) Inc. Customer Support Division P.O. BOX 1760, Long Beach, CA 90801-1760, U.S.A.

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada. Alternatively, please contact the Customer Satisfaction Department at the following address:

Pioneer Electronics of Canada, Inc. Customer Satisfaction Department 300 Allstate Parkway, Markham, Ontario L3R OP2 [phone] 1(877)283-5901

For warranty information please see the Limited Warranty sheet included with your product.

Published by Pioneer Corporation.

Copyright © 2004 Pioneer Corporation.

All rights reserved.

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]

K002E

<5707210180491>Printed in (
