USER MANUAL MVHS720BHS PIONEER

Important (Serial number)

The serial number is located on the bottom of this unit. For your own security and convenience, be sure to record this number on the enclosed warranty card.

Audio Adjustments 26

Settings 28

FUNCTION settings 28

AUDIO settings 31

SYSTEM settings 34

ILLUMINATION settings. 37

MIXTRAX settings. 38

Additional Information 40

About this manual:

• In the following instructions, a USB memory or USB audio player are referred to as "USB device".

CANICES-3B/NMB-3B

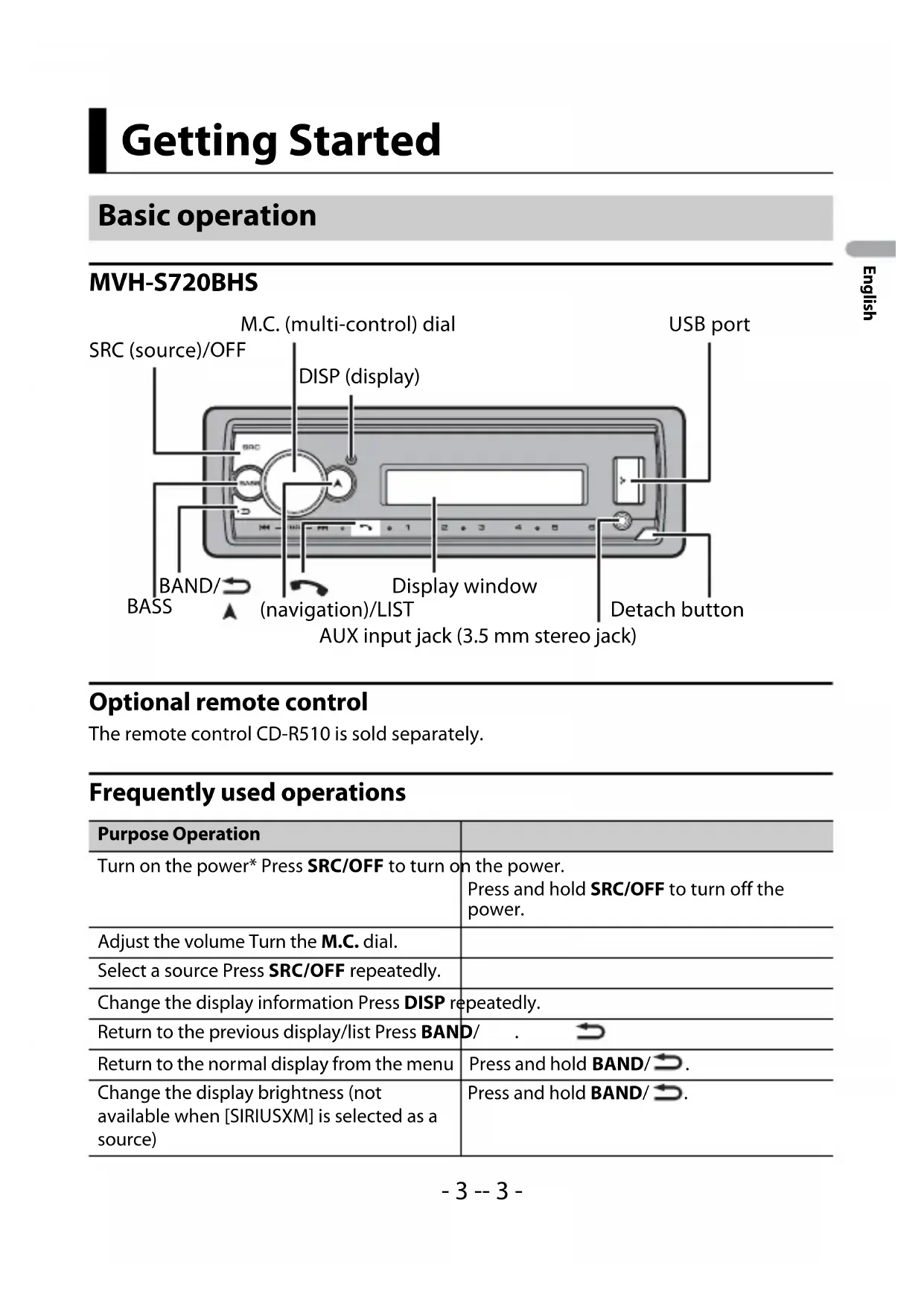

Basic operation

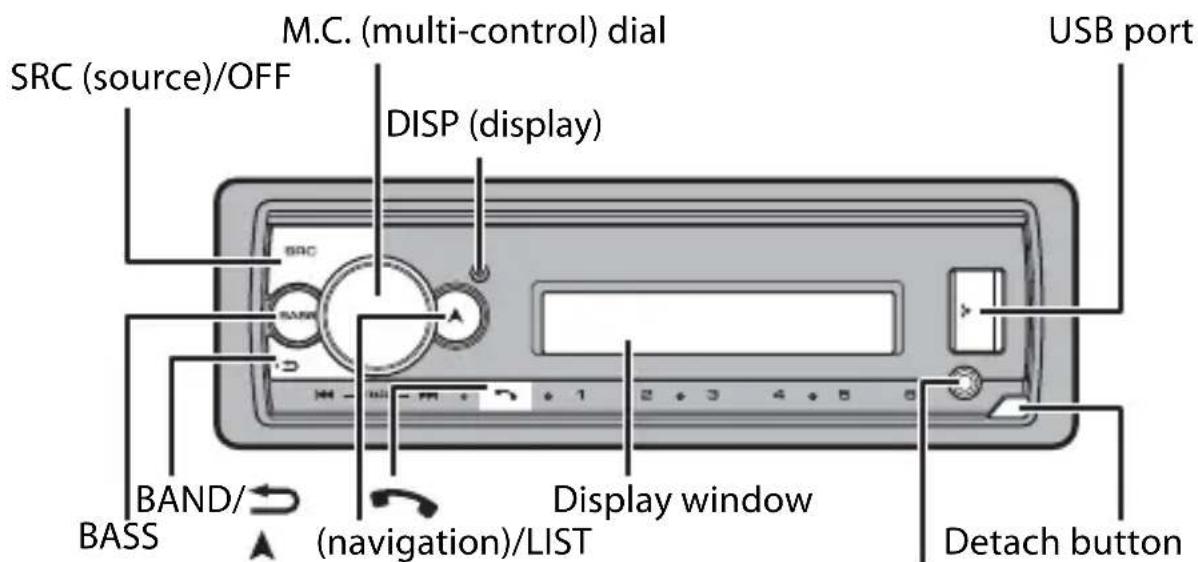

MVH-S720BHS

AUX input jack (3.5 mm stereo jack)

Optional remote control

The remote control CD-R510 is sold separately.

Frequently used operations

Purpose Operation
Turn on the power* Press SRC/OFF to turn on	on the power. Press and hold SRC/OFF to turn off the power.
Adjust the volume Turn the M.C. dial.
Select a source Press SRC/OFF repeatedly.
Change the display information Press DISP repeatedly.
Return to the previous display/list Press BAND/ . ➔
Return to the normal display from the menu	Press and hold BAND/ ➔.
Change the display brightness (not available when [SIRIUSXM] is selected as a source)	Press and hold BAND/ ➔.
Answering a call Press any button.
Ending a call Press .
Boost the bass level Press BASS.	•You can select the bass level ([HI] or [LOW]) in [D.BASS] (page 33).

• When this unit's blue/white lead is connected to the vehicle's auto-antenna relay control terminal, the vehicle's antenna extends when this unit's source is turned on. To retract the antenna, turn the source off.

Display indication

Indication Description
» Appears when a lower tier of the menu or folder exists.
BASS	Appears when the BASS function is activated.
××	Appears when random/shuffle play is set (except when BT AUDIO is selected as the source).
⇔	Appears when repeat play is set (except when BT AUDIO is selected as the source).
®	Appears when a Bluetooth connection is made (page 12).
APP	Appears when a Pioneer Smart Sync connection is made (page 23).

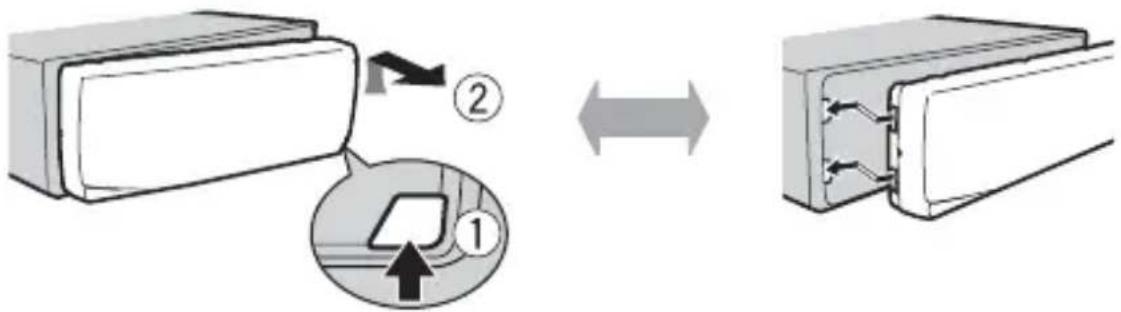

Detaching the front panel

Detach the front panel to prevent theft. Remove any cables and devices attached to the front panel and turn off the unit before detaching it.

Detach Attach

Important

• Avoid subjecting the front panel to excessive shock.
• Keep the front panel out of direct sunlight and high temperatures.
• Always store the detached front panel in a protective case or bag.

Resetting the microprocessor

The microprocessor must be reset in the following situations:

• Before using this unit for the first time after installation
• If the unit fails to operate properly
• When strange or incorrect messages appear on the display

1Remove the front panel (page 4).

2 Press the RESET button with a pointed instrument longer than 8mm

RESET button

Setup menu

When you turn the ignition switch to ON after installation, the setup menu appears in the display.

WARNING

Do not use the unit in standard mode when a speaker system for network mode is connected to the unit. Do not use the unit in network mode when a speaker system for standard mode is connected to the unit. This may cause damage to the speakers.

1 Turn the M.C. dial to select the options, then press to confirm.

To proceed to the next menu option, you need to confirm your selection.

Menu Item Description
LANGUAGE Select the language to display the text information from a compressed audio file.
[ENG](English), [ESP](Spanish), [FRA] (Canadian French)
CLOCK SET Set the clock.	1 Turn the M.C. dial to adjust the hour, then press to confirm. The indicator moves to the minute setting automatically. 2 Turn the M.C. dial to adjust the minute, then press to confirm.
SPEAKER MODE Switch [STANDARD], [NETWORK]	between two operation modes: the 2-way network mode (NETWORK) and the standard mode (STANDARD) according to the connections you have established. For details on operation modes, see page 26. After selecting the appropriate mode, turn the M.C. dial to select [YES], then press to confirm. • You cannot complete the setup menu without setting the [SPEAKER MODE]. • Once the speaker mode is set, this setting cannot be changed unless the default settings of this product are restored. Restore the default settings to change the speaker mode setting (refer to SYSTEM RESET on page 7). • When [NETWORK] is selected, the beep tone function is not available.

2[QUIT:YES] appears.

To return to the first item of the setup menu, turn the M.C. dial to select [QUIT :NO], then press to confirm.

3 Press the M.C. dial to confirm the settings.

NOTE

These settings other than [SPEAKER MODE] can be made at any time from the SYSTEM settings (page 34).

Canceling the demonstration display (DEMO OFF)

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [DEMO OFF], then press to confirm.
4 Turn the M.C. dial to select [YES], then press to confirm.

INITIAL settings

1 Press and hold SRC/OFF until the unit turns off.
2 Press the M.C. dial to display the main menu.
3 Turn the M.C. dial to select [INITIAL], then press to confirm.
4 Turn the M.C. dial to select an option, then press to confirm.

Menu Item Description
REAR-SP Select when the [FUL]	ere is a full-range speaker connected to the rear speaker output leads.
[SW] Select when the	ere is a subwoofer connected directly to the rear speaker output leads without any auxiliary amplifier.
SYSTEM UPDATE Select [SYSTEM INFO], [S/W UPDATE]	[SYSTEM INFO] to confirm the latest system information on the unit. Select [S/W UPDATE] to update the unit to the latest software and initialize the unit settings. For details on the latest software and updating, visit our website.
SXM RESET Select to initialize [YES], [NO]	initialize the SiriusXM settings.
SYSTEM RESET Select [YES], [NO]	ES] to initialize the unit settings. The unit will be restarted automatically.

HD Radio™ Technology

The tuner frequencies on this unit are allocated for use in North America. Use in other areas may result in poor reception.

About HD Radio™ stations

HD Radio™ stations offer high-quality audio and data services. HD Radio stations are brought to you by local FM/AM stations.

HD Radio stations feature the following:

High quality audio
-FM multicasting
Data services

PSD

Program Service Data: Contributes to the superior user experience of HD Radio Technology. Presents song name, artist, station IDs, HD2/HD3 Channel Guide, and other relevant data streams.

HD2/HD3

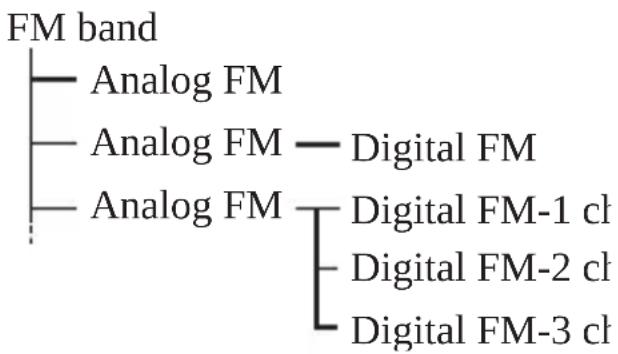

Adjacent to traditional main stations are extra local FM channels. These HD2/HD3 Channels provide new, original music as well as deep cuts into traditional genre.

Digital Sound

Digital, CD-quality sound. HD Radio Technology enables local radio stations to broadcast a clean digital signal. AM sounds like today's FM and FM sounds like a CD.

Receiving preset stations

1 Press SRC/OFF to select [HD RADIO].
2 Press BAND/ to select the band from [FM1], [FM2], [FM3] or [AM].
3 Press a number button (1/ to 6/).

Best stations memory (BSM)

The six strongest stations are stored on the number buttons (1/ 6/

1 After selecting the band, press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [FUNCTION], then press to confirm.

To seek a station manually

1 After selecting the band, press to select a station.

Press and hold then release to seek an available station. Scanning stops

when the unit receives a station. To cancel seek tuning, press

NOTE

Depending on the reception status, seek tuning can be changed between digital station seek and all station seek (page 28).

To store stations manually

1 While receiving the station you want to store, press and hold one of the number buttons (1/∧ to 6/) until it stops flashing.

Emergency alerts

In emergency situations, drivers can receive messages via their local radio stations when [AR] is set to [ON] in the FUNCTION settings (page 29).

While receiving an emergency alert, the following functions are available.

To ignore the alert

1 Press the M.C. dial, SRC/OFF, or ▷

To postpone the alert

1 Press BAND/

Alert history

While receiving an emergency alert, press and hold.

The last four items that have been received appear.

2 Turn the M.C. dial to select one of the items, then press to confirm.

The detail of the selected item appears.

NOTE

[/TEST/) appears at the beginning of an item if it was a test message.

To delete an alert history

1 Press and hold the M.C. dial in step 2 above.
2 Turn the M.C. dial to select [DELETE YES], then press to confirm.

USB/iPhone®/AUX

(iPhone source is not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 35).)

Playing back

Disconnect headphones from the device before connecting it to the unit.

USB devices (including Android™)/iPhone

1 Open the USB port cover.
2 Plug in the USB device/iPhone using an appropriate cable.

NOTE

To automatically switch to USB source when a USB device/iPhone is connected to the unit, set [USB AUTO] to [ON] in the SYSTEM settings (page 36).

CAUTION

Use a USB cable (sold separately) to connect the USB device as any device connected directly to the unit will protrude out from the unit, which could be dangerous.

Before removing the device, stop playback.

AOA connections

A device running Android OS 4.1 or later installed and also supports AOA (Android Open Accessory) 2.0 can be connected to the unit via AOA, using the cable supplied with the device.

NOTE

If you use an AOA connection, [APP CONTROL] needs to be set to [Wired] (page 35) and [USB MTP] needs to be set to [OFF] (page 35) in the SYSTEM settings.

MTP connection

A device installed with Android OS 4.0 or most of later versions can be connected to the unit via MTP, using the cable supplied with the device. However, depending on the connected device, OS version or the numbers of the files in the device, audio files/songs may not be able to be played back via MTP. Note that MTP connection is not compatible with WAV file formats and FLAC file formats, and cannot be used with the MIXTRAX function.

NOTE

If you use an MTP connection, [USB MTP] needs to be set to [ON] in the SYSTEM settings (page 35).

AUX

1 Insert the stereo mini plug into the AUX input jack.
2 Press SRC/OFF to select [AUX IN] as the source.

NOTE

If [AUX] is set to [OFF] in the SYSTEM settings, [AUX IN] cannot be selected as a source (page 35).

Operations

You can make various adjustments in the FUNCTION settings (page 28) (except for AUX IN/USB source).

Note that the following operations do not work for an AUX device. To operate an AUX device, use the device itself.

Purpose Operation
Select a folder*1	Press 1/▲ or 2/▼.
Select a track/song (chapter) Press or .	↓← ▷→
Fast forward or reverse*2 Press and hold or .	↓← ▷→
Search for a file from a list (USB only)	1 Press and hold ▲ to display the list. 2 Turn the M.C. dial to select the desired file (folder) name or category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
View a list of the files in the selected folder/category*1	Press the M.C. dial when a folder/category is selected.
Play a song in the selected folder/category*1	Press and hold the M.C. dial when a folder/category is selected.
Repeat play Press 6/ .	↔
Random/shuffle play Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Return to root folder (USB only)*1	Press and hold 1/▲.

1 Compressed audio files only
2 When you use the fast forward or reverse function while playing a VBR file, the playback time may be not correct.

About MIXTRAX (USB/iPhone only)

The MIXTRAX function creates a non-stop mix of your music library, accompanied by illumination effects. For details on MIXTRAX settings, see page 38.

NOTES

• iPhone needs to be connected with Pioneer Smart Sync via USB for using this function (page 23).
• Depending on the file/song, sound effects may not be available.
• Turn the MIXTRAX function off if the illumination effects it produces interfere with driving.

1 Press 3/MIX to turn MIXTRAX on/off.

Bluetooth

Bluetooth connection

Important

If ten or more Bluetooth devices (e.g. a phone and separate audio player) are connected, they may not work properly.

TIP

The next connection to the unit is performed automatically if the Bluetooth device has been connected previously in the following steps.

1Turn on the Bluetooth function of the device.

If you make a Bluetooth connection from the device, proceed to step 4.

2Press to display the [ADD DEVICE] setting.

The unit starts to search for available devices, then displays them in the device list.

• To cancel searching, press the M.C. dial.
• If the desired device is not in the list, select [RE-SEARCH].
• If there is no device available, [NOT FOUND] appears in the display.
• If there is already a connected device, the phone menu appears by pressing

3 Turn the M.C. dial to select a device from the device list, then press to confirm.

Press and hold the M.C. dial to switch the displayed device information between the Bluetooth device address and device name.

If you make a Bluetooth connection from the unit, proceed to step 5.

4Select the unit name shown in the device display.
5Make sure the same 6-digit number appears on this unit and the device, then select [YES] if the 6-digit numbers displayed on this unit and the device are the same.

Bluetooth telephone

First, make a Bluetooth connection with the Bluetooth telephone (page 12). Up to two Bluetooth telephones can be connected simultaneously.

Important

• Leaving the unit on standby to connect to your phone via Bluetooth while the engine is not running can drain the vehicle's battery.
• Be sure to park your vehicle in a safe place and apply the parking brake before operation.

To make a phone call

1 Press to display the phone menu.

When two phones are connected, a phone name appears first then a phone menu will display. To switch to another phone, press again.

2 Turn the M.C. dial to select [RECENTS] or [PHONE BOOK], then press to confirm. If you select [PHONE BOOK], proceed to step 4.
3 Turn the M.C. dial to select [MISSED], [DIALED] or [RECEIVED], then press to confirm.
4 Turn the M.C. dial to select a name or phone number, then press to confirm. The phone call starts.

To answer an incoming call

1 Press any button when a call is received.

TIP

When two phones are connected to the unit via Bluetooth and there is an incoming call while one phone is being used for a call, a message will appear in the display. To answer that incoming call, you need to end the existing call.

Basic operations

Purpose Operation
End a call Press .	✓
Reject an incoming call Press and hold when a call is received.
Switch between the current caller and a caller on hold	Press the M.C. dial.
Cancel a caller on hold Press and hold	.
Adjust the volume of the caller's voice (When private mode is on, this function is not available.)	Turn the M.C. dial during the call.
Purpose	Operation
Turn the private mode on or off	Press BAND/ during the call.

To preset phone numbers

1 Select a phone number from a phone book or call history.
2 Press and hold one of the number buttons (1/ A to 6/ A).

The contact is stored in the selected preset number.

To make a call using a preset number, press one of the number buttons (1/ to 6/ ), then press the M.C. dial, while the phone menu is displayed.

Voice recognition

This function is only available when an iPhone/Android device equipped with voice recognition is connected to the unit via Bluetooth.

1 Press and hold and then talk into the microphone to input voice commands.

To exit the voice recognition mode, press BAND/

NOTE

For details on the voice recognition features, refer to the manual supplied with your device.

TIP

When a Pioneer Smart Sync connection is made (page 23), you can also use the voice recognition function from Pioneer Smart Sync installed on your iPhone/Android device by pressing and holding. For details on the voice recognition features, see the application's help section.

Phone menu

1 Press to display the phone menu.

Menu Item Description
RECENTS Display the missed call history. [MISSED]
[DIALED] Display the dialed call history.
[RECEIVED] Display the received call history.
PHONE BOOK Display the contacts in your phone.
PRESET 1-6 Recall the preset phone numbers. You can also recall the preset phone numbers by pressing one of the number buttons (1/^ to 6/÷) .
A.ANSR* Select [ON] to [ON], [OFF]	answer an incoming call automatically.
PB INVT Invert the order	of names in the phone book (name view).
DEVICELIST Display the	list of paired Bluetooth devices. “*” appears on the device name when the Bluetooth connection is established. When no device is selected in the device list, this function is not available.
DEL DEVICE Delete the [DELETE YES], [DELETE NO]	device information.
ADD DEVICE Register a	new device.
DEV. INFO Switch the device information on the display between the device name and Bluetooth device address.

• If two phones are connected, this function does not work on incoming calls that are received while one of the phones is being used for a call.

Bluetooth audio

Important

Depending on the Bluetooth audio player connected to this unit, the available operations will be limited to the following two levels:

• A2DP (Advanced Audio Distribution Profile) can only play back songs on your audio player.

AVRCP (Audio/Video Remote Control Profile) can perform functions such as playback, pause, select song, etc.

• The sound of the Bluetooth audio player will be muted when the phone is in use.
• When the Bluetooth audio player is in use, you cannot connect to a Bluetooth telephone automatically.
• Depending on the type of Bluetooth audio player you have connected to this unit, operation and information displayed may vary based on availability and functionality.

1Make a Bluetooth connection with the Bluetooth audio player.

2 Press SRC/OFF to select [BT AUDIO] as the source.
3 Press BAND/ to start playback.

NOTE

You must reconnect the Bluetooth connection when the source is switched or the unit is turned off.

TIP

When more than two and up to five devices are registered to the unit via Bluetooth, you can switch the Bluetooth device by playing back songs on the device. By doing so, playing back a song from the Bluetooth device of each passenger is easily available. However, depending on the usage conditions,

multiple connections may not be available and the audio files/songs may not be able to be played back properly.

Basic operations

You can make various adjustments in the FUNCTION settings (page 28).

Purpose Operation
Fast forward or reverse Press and hold or .	←→
Select a track Press or .	←→
Repeat play* Press 6/ .	→
Random play* Press 5/ .	××
Pause/resume playback	Press 4/PAUSE.
Search for a file from a list	1 Press and hold ▲ to display a list. 2 Turn the M.C. dial to select the desired folder name, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.

• Depending on the connected device, these operations may not be available.

Pandora®

(Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 35).)

Pandora music is a music service not affiliated with Pioneer. More information is available at http://www.pandora.com.

The Pandora mobile application is available for iPhone and Android phones. Please visit www.pandora.com/everywhere/mobile for the latest compatibility information.

Listening to Pandora

Update the firmware of the Pandora application to the latest version before use.

1 Connect this unit with the mobile device.

iPhone via USB (page 10)
- iPhone/Android device via Bluetooth (page 12)

2 Press SRC/OFF to select [PANDORA].
3 Press and hold 1 / to display [APP CONTROL].
4 Turn the M.C. dial to select one of the below.

• Select [Wired] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

5 Press SRC/OFF to select [PANDORA].

6Launch the Pandora application on the mobile device and start playback.

NOTE

When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

Basic operations

You can make various adjustments in the FUNCTION settings (page 28).

Purpose Operation
Skip a track Press .	→↑
Switch between Shuffle and the station	Press and hold Athen turn the M.C. dial to select the Shuffle or the desired station.
Change the sort order Press and hold	, then select one of the following. [ABC]: Sort the items in the list alphabetically. [DATE]: Sort the items in the list in order of the dates on which the items were created.
Play When Shuffle or the station is selected, press the M.C. dial.
Delete a station	1 When the station is selected, press and hold the M.C. dial. [DELETE YES] appears. 2 Press the M.C. dial. To cancel, press BAND/→i n s t e
Pause/resume playback	Press 4/PAUSE.
Thumbs Up	Press 1/∧.
Thumbs Down	Press 2/∨.
Create a new station based on the track currently being played	Press and hold 5/xxxx.
Create a new station based on the artist currently being played	Press and hold 6/←.
Store the track information currently being played in your Pandora account.	1 Press and hold 3/MIX. [BOOKMARK] appears. 2 Press the M.C. dial.

NOTE

Some functions of Pandora may not be operated from the unit.

(Not available when [USB MTP] is set to [ON] in the SYSTEM settings (page 35).)

Spotify is a music streaming distribution service not affiliated with Pioneer. More information is available at http://www.spotify.com.

The Spotify application is available for compatible smartphones, please visit https:// support.spfoty.com/ for the latest compatibility information.

To enjoy Spotify as you drive, first download the Spotify app to your iPhone or Android device. You can download it on the iTunes® App Store® or Google Play™. Choose a free account or a paid Premium account, either in the app or at Spotify.com. A Premium account gives you more features, like offline listening.

Important

• This product incorporates Spotify software which is subject to 3rd party licenses found here: www.spotify.com/connect/third-party-licenses.
• For information on the countries and regions where Spotify can be used, take a look at https://spotfly.com/us/select-your-country/.

Listening to Spotify

Update the firmware of the Spotify application to the latest version before use.

1 Connect this unit with the mobile device.

iPhone via USB (page 10)
- iPhone/Android device via Bluetooth (page 12)

2 Press SRC/OFF to select [SPOTIFY].
3 Press and hold 1 / to display [APP CONTROL].
4 Turn the M.C. dial to select one of the below.

• Select [Wired] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

5 Press SRC/OFF to select [SPOTIFY].
Launch the Spotify application on the mobile device and start playback.

NOTE

When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.

Basic operations

You can make various adjustments in the FUNCTION settings (page 28).

NOTE

The available operations may vary according to the type of contents (track/album/artist/playlist/radio) you want to play.

Purpose Operation
Skip a track Press or .	↓→→
Search for a track from a list	1 Press and hold▲ to display the list. 2 Turn the M.C. dial to select the desired category, then press to confirm. 3 Turn the M.C. dial to select the desired file, then press to confirm. Playback starts.
Pause/resume playback Press 4/PAUSE.
Thumbs Up (Only for radio) Press 1/ .	^
Thumbs Down (Only for radio) Press 2/ .	√
Random play (Only for track/album/artist/ playlist)	Press 5/××.
Repeat play (Only for track/album/artist/ playlist)	Press 6/←.
Start a radio channel based on the song currently being played.	1 Press and hold 5/×× to start a radio. 2 Press the M.C. dial. This function may not be available depending on the selected song.

NOTE

Some functions of Spotify may not be operated from the unit.

SiriusXM Satellite Radio

Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the best sports, news, talk, comedy and entertainment. Welcome to the world of satellite radio. A SiriusXM Vehicle Tuner and Subscription are required. For more information, visit www.siriusxm.com

TuneStartTM

Automatically start songs from the beginning when you tune to one of your preset music channels stored on the current band of presets. For details, refer to TUNE START on page 30.

NOTE

TuneStart is compatible with SXV200 or later tuner models. Not compatible with SXV100.

TuneScanTM

Scan through short previews of songs you may have missed on music channels stored on the current band of presets.

Each song in the current channel plays for six seconds at a time.

For details, refer to TUNE SCAN (scanning the songs) on page 30.

NOTE

TuneScan is compatible with SXV200 or later tuner models. Not compatible with SXV100.

TuneMix™

Create a TuneMix™ preset made up of 2 or more of your favorite SiriusXM music channels. You can then access the TuneMix preset just like you would a traditional preset channel. You can also edit your TuneMix preset to add or remove channels. For details, refer to TUNEMIX on page 30.

NOTE

TuneMix™ is compatible with the SXV300 or later tuner models. Not compatible with the SXV200 or SXV100.

Preparing for the SiriusXM Satellite Radio service

1 Press SRC/OFF to select [SIRIUSXM].

You should be able to hear the SiriusXM preview channel on Channel 1. If you cannot hear the preview channel, please check the installation instructions to make sure your SiriusXM Connect tuner is properly installed.

2Press / to select channel 0.

The Radio ID appears on the display.

In addition, the Radio ID is located on the bottom of the SiriusXM Connect Vehicle Tuner.

NOTE

The Radio ID does not include the letters I, O, S or F.

3Activate the SiriusXM service online or by phone.

For US Subscriptions:

• Visit www.siriusxm.com/activatenow
  Call SiriusXM Listener Care at 1-866-635-2349

For Canadian Subscriptions:

• Visit www.siriusxm.ca/activatexm
  Call 1-877-438-9677

4[SUBSCRIPTION UPDATED] appears on the display when your SiriusXM Connect Vehicle Tuner has been subscribed successfully.

Press any key to clear the activation message.

NOTE

The activation process usually takes 10 minutes to 15 minutes but may take up to an hour in some cases. Do not turn off the unit until you clear the activation message in step 4.

Listening to a channel

1 Press SRC/OFF to select [SIRIUSXM].
2 Press BAND/ to select a band from [SXM1], [SXM2] or [SXM3].

3Press / toselect a channel.*

Pressing and holding either button will rapidly browse through the channels.
* If you select a channel, you need to switch to [CHANNEL] by pressing and holding DISP.

Replay Operation Mode

You can pause, rewind or replay live satellite radio as well as the channel you are currently listening to.

Basic operations

Purpose Operation
Skip backward/forward Press or .	↓→ ▷
Fast forward or reverse Press and hold or .	↓← ▷
Jump to Live Press and hold BAND/ .	→
Switch the operation mode from [REPLAY] to [CHANNEL]	Press and hold DISP.

NOTE

You can also make various adjustments in the SiriusXM settings (page 30).

Channel Operation Mode

You can switch a channel, rapidly browse through the channels and listen to live satellite radio.

Basic operations

Purpose Operation
Select a channel Press or .	↓← ↑
Rapidly browse through the channels Press and hold or .	↓← ↑
Jump to Live Press and hold BAND/ .	→
Switch the operation mode from [CHANNEL] to [REPLAY]	Press and hold DISP.

NOTE

You can also make various adjustments in the SiriusXM settings (page 30).

Category scan

The live broadcast for each channel in the current category plays for six seconds at a time. Follow the instructions below.

To search for a channel from a list

1 Press and hold during playback.
2 Turn the M.C. dial to select a category.
3 Select one of the operations below.

Category scan: Press and hold the M.C. dial to switch to category scan.

Channel search: Press the M.C. dial to stop a scan.

NOTE

Press DISP to change the display information between "Channel Name", "Artist Name", "Song Title", "Content Info" and "Channel Number".

Scan options

Purpose Operation
Stopping a scan (selecting the channel or song playing)	Press the M.C. dial.
Switching to the next/previous song during TuneScan	Press▶▶.
Switching to the next/previous channel during the category scan	Press▶▶.
Aborting a scan (The last channel or song will continue to play when scan ends.)	Press BAND/▶.

Channel Preset

To preset a channel

1 While receiving a channel you want to store, press and hold one of the number buttons (1/ to 6 / 2 ) until it stops flashing.

To play the stored channels, select the band and then press a number button (1/ to 6/ )

To preset a channel from the program list

1 While receiving a channel you want to store, press and hold
2 Turn the M.C. dial to select [PRESETS], then press to confirm.

3 Turn the M.C. dial to select a preset channel.
4 Press and hold the M.C. dial to store.

To play the stored channels, turn the M.C. dial to select a preset channel, then press to confirm.

Parental Control

You can lock any SiriusXM channel (except for Channel 0 and Channel 1). For details, see [PARENTAL CTRL] in SiriusXM settings (page 31).

SXM RESET

For details, see INITIAL settings on page 7.

Using Pioneer Smart Sync/APP

Pioneer Smart Sync is the application that intelligently brings your maps, messages, and music together in the vehicle.

You can operate the unit from Pioneer Smart Sync installed on an iPhone/Android device. In some cases, you can control aspects of the application, such as source selection, pause, etc., by using the unit.

For details on what operations are available on the application, see the application's help section.

NOTE

The APP source is not available when a Pioneer Smart Sync connection is not made or [USB MTP] is set to [ON] in the SYSTEM settings (page 35).

WARNING

Do not attempt to operate the application while driving. Make sure to pull off the road and park your vehicle in a safe location before attempting to use the controls on the application.

For iPhone users

This function is compatible with iOS 10.3 or later.

You can download Pioneer Smart Sync on iTunes App Store.

For Android device users

For Bluetooth connections, this function is compatible with devices that have Android OS 5.0 or later installed.

For USB connections, this function is compatible with a phone that runs Android 5.0 or later up to 7.1.2 and also supports AOA (Android Open Accessory) 2.0. However, the compatibility depends on the smartphone.

You can download Pioneer Smart Sync on Google Play.

NOTE

Some Android devices connected via AOA 2.0 may not work properly or emit sounds due to their own software design, regardless of the OS version.

What kind of function does the application have?

Promoting the use of the unit

The interface of the unit can be evolved by using your iPhone/Android device.

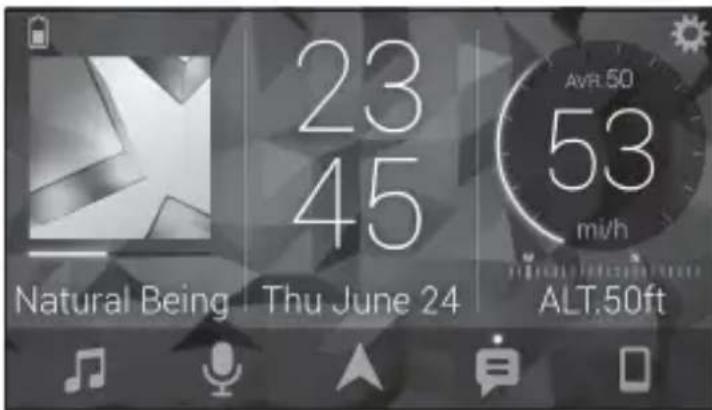

Image (example):

Examples:

• Selecting a source of the unit
• Listening to the music on your iPhone/Android device
• Controlling the sound field intuitively
• Setting the illumination color
• Controlling your connected Bluetooth device

Extending the functions of the unit by using the application

The following functions, which are unavailable on the unit alone, are available by making a Pioneer Smart Sync connection.

Menu Item (example) Description
Using a navigation application You can specify and start the navigation application installed on your device.
Message reading You can read messages received from the apps installed on your device.
31 Band EQ setting You can select an equalizer band from the 31-band graphic equalizer (13-band for not using the Pioneer Smart Sync connection).
Super "Todoroki" Sound You can boost the bass level more dynamically than when not using the Pioneer Smart Sync connection.
Easy Sound Fit You can perform the time align nment setting easily by selecting your vehicle type.
Theme setting You can set the wall paper and the theme color (display/keys/characters) at once.

NOTES

• Some functions may be restricted depending on the connection conditions with the application.
• The 31 Band EQ setting is converted into 13 bands when a music source from this product is engaged.

TIP

It is recommended to enter the search term "Pioneer Smart Sync" in the search field to search for the application.

Pioneer Smart Sync

Making a connection with Pioneer Smart Sync

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [SYSTEM], then press to confirm.
3 Turn the M.C. dial to select [APP CONTROL], then press to confirm.
4 Turn the M.C. dial to select one of the below.

• Select [Wired] for the USB connection.
• Select [BLUETOOTH] for the Bluetooth connection.

5 Turn the M.C. dial to select [AUTO APP CONN], then press to confirm.
6 Turn the M.C. dial to select [ON], then press to confirm.

7Connect this unit with the mobile device.

• iPhone/Android device via USB (page 10)
• iPhone/Android device via Bluetooth (page 12)

Pioneer Smart Sync on the device starts automatically.

NOTE

Regardless of whether the [AUTO APP Conn] setting is set to [ON] or [OFF], you can also perform the following to start Pioneer Smart Sync.

• For devices other than the USB-connected Android device, press SRC/OFF to select any source and press and hold the M.C. dial.
• For iPhone, launch Pioneer Smart Sync on the mobile device.

NOTES

• When you connect a mobile device other than an iPhone/Android device, it may not operate correctly depending on your mobile device.
• If Pioneer Smart Sync has not been installed on your iPhone/Android device yet, a message that prompts you to install the application will appear on your iPhone/Android device (except for the Android device connected via Bluetooth). Select [OFF] in [AUTO APP CONN] to clear the message (page 35).

Listening to music on your device

1 Press SRC/OFF to select [APP].

Audio Adjustments

You can also make various adjustments in the AUDIO settings (page 31).

Operation modes

This unit features two operation modes: network mode and standard mode. You can switch between modes as desired (page 6).

Network mode

You can create a 2-way + SW multi-amp and multi-speaker system with high range speaker, middle range speaker and subwoofer for reproduction of high, middle and low frequencies (bands).

Standard mode

You can create a 4-speaker system with front and rear speakers or front speakers and subwoofoers, or a 6-speaker system with front and rear speakers and subwoofoers.

Adjusting the cut-off frequency value and the slope value

You can adjust the cut-off frequency value and the slope value of each speaker. The following speakers can be adjusted.

Network mode:

[HIGH] (high-range speaker HPF), [MID HPF] (middle-range speaker HPF), [MID LPF] (middle-range speaker LPF), [SUBWOOFER]

Standard mode:

[FRONT], [REAR], [SUBWOOFER]

NOTE

[SUBWOOFER] can only be selected when [ON] is selected in [SUBWOOFER] (page 32).

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select [AUDIO], then press to confirm.
3 Turn the M.C. dial to select [CROSSOVER], then press to confirm.
4 Turn the M.C. dial to select the speaker unit (filter) to be adjusted, then press to confirm.
5 Turn the M.C. dial to select [HPF] or [LPF] according to the speaker unit (filter), then press to confirm.
6 Turn the M.C. dial to select an appropriate cut-off frequency for the speaker unit (filter) selected in step 4, then press to confirm.

Network mode:

[1.25K] to [12.5K] (if you choose [HIGH] or [MID LPF])
[25] to [250] (if you choose [MID HPF] or [SUBWOOFER])

Standard mode:

[25HZ] to [250HZ]

7 Turn the M.C. dial to select an appropriate slope for the speaker unit (filter) selected in step 4.

Network mode:

[-6] to [-24] (if you choose [HIGH], [MID HPF] or [MID LPF])
[-12] to [-36] (if you choose [SUBWOOFER])

Standard mode:

[-6] to [-24] (if you choose [FRONT] or [REAR])
[-6] to [-36] (if you choose [SUBWOOFER])

Settings

You can adjust various settings in the main menu.

1 Press the M.C. dial to display the main menu.
2 Turn the M.C. dial to select one of the categories below, then press to confirm.

FUNCTION settings (page 28)
- AUDIO settings (page 31)
SYSTEM settings (page 34)
- ILLUMINATION settings (page 37)
- MIXTRAX settings (page 38)

3 Turn the M.C. dial to select the options, then press to confirm.

FUNCTION settings

The menu items vary according to the source.

Menu Item Description

BSM HD RADIO

Store the six strongest stations on the number buttons (1 / to 6 / 一) automatically.

LOCAL HD RADIO

FM: [OFF], [LV1], [LV2], [LV3], [LV4] Restrict the tuning station according to the AM: [OFF], [LV1], [LV2] signal strength.

HD SEEK* HD RADIO

[ON], [OFF] Change seek tuning setting between digital station seek ([ON]) and all station seek ([OFF]) depending on the reception status.

BLEND* HD RADIO

[ON], [OFF] Set [ON] to switch to the analog broadcast of the same frequency level automatically if a digital broadcast reception is poor. Set [OFF] to receive analog broadcast only.

Menu Item Description

AR HD RADIO [ON], [OFF] Interrupt the currently selected source with emergency announcements or test messages. A beep can be heard when an emergencyannouncement or test message breaks in. Select[OFF] to disable this function. (In some caseswhen a test message is received, a notificationwill appear in the display instead of a beep.)

SAVE SPOTIFY Store the information about the song currentlybeing played to your music list on Spotify.

UNSAVE SPOTIFY Remove the song information stored in [SAVE].

SEL DEVICE iPhone PANDORA BT AUDIO SPOTIFY Connect a Bluetooth device in the list.

BOOKMARK PANDORA Store the track information currently beingplayed in your Pandora account.

NEW STATION PANDORA [FROM TRACK], [FROM ARTIST] Create a new station based on the track or artistcurrently being played.

PLAY BT AUDIO Start playback.

STOP BT AUDIO Stop playback.

• If [HD SEEK] is set to [ON] and [BLEND] is set to [OFF], the tuner cannot receive broadcasts. In this case, [HD SEEK] or [BLEND] is changed automatically as follows:
• When [HD SEEK] is set to [ON], if you switch [BLEND] from [ON] to [OFF], [HD SEEK] is changed to [OFF].
• When [BLEND] is set to [OFF], if you switch [HD SEEK] from [OFF] to [ON], [BLEND] is changed to [ON].

SiriusXM settings

Menu Item Description

PAUSE [ON], [OFF] Pause or resume playback.

OPERATE MODE [CHANNEL], [REPLAY] Press or buttons to select a channel or skip backward/skip forward.

TUNEMIX [ON], [OFF] Create a music channel that's a blend of songs made up from the music channels stored on the current band of presets.

TUNE SCAN Scan through songs from your music channel presets.

TUNE START [ON], [OFF] Start playback of the broadcast from the beginning of a song when tuning to a preset music channel.

Menu Item Description

PARENTAL CTRL

[LOCKED CH], [CLEAR ALL], [EDIT CODE]

Input the current passcode on the [PASSCODE] screen (the default passcode is 0000).

1 Turn the M.C. dial to select a number.
2 Press the M.C. dial to move the cursor to the next position.
3 After inputting the passcode, press the M.C. dial.
4 Turn the M.C. dial to select one of the following menu items, then press to confirm.
- [LOCKED CH]: Lock the current channel (except for Channel 0 and Channel 1).
1 Press the M.C. dial to turn the lock on or off.
- [CLEAR ALL]: Unlock all the channels (except for Channel 0 and Channel 1) that have restricted access.
1 Turn the M.C. dial to switch to [YES], then press to confirm.
- [EDIT CODE]: Change the passcode.
1Repeat steps 1 to 3 to enter a new passcode.
2 After inputting the passcode, press the M.C. dial. The new passcode is saved.

AUDIO settings

NOTE

[CHK APP SETTG.] may be displayed when the setting is performed from Pioneer Smart Sync.

Menu Item Description
EQ SETTING
[SUPER BASS], [POWERFUL], [DYNAMIC], [NATURAL], [VOCAL], [VIVID], [SET BY APP]*, [CUSTOM1], [CUSTOM2], [FLAT] * [SET BY APP] is displayed when the preset equalizer curve that is not available in the unit has been set from Pioneer Smart Sync.	Select or customize the equalizer curve. ·When you select a setting other than [CUSTOM1], [CUSTOM2] and [SET BY APP], you can also customize the equalizer curve by pressing and holding the M.C. dial, then store the customized equalizer curve in [CUSTOM1].
Select an equalizer band and level for further customizing.
Equalizer band: [50HZ] to [12.5kHz]
Equalizer level: [-6] to [+6]
FADER* (Only for standard mode)
	Adjust the front and rear speaker balance.
BALANCE
	Adjust the left and right speaker balance.
SUBWOOFER
[ON], [OFF] Set to [ON] when using a subwoofer speaker.
SUBWOOFER
[NOR], [REV] Select the subwoofer phase.
SPEAKER LEVEL
Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER]	Select a speaker unit (filter) and adjust the output level.
Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER]	Each value you have adjusted changes when you change the [POSITION] setting (page 33).
Output level: [-24] to [10]
CROSSOVER
	Select a speaker unit (filter) to adjust the HPF or LPF cut-off frequency and the slope for each speaker unit. For details on the [CROSSOVER] setting, see page 27.
POSITION
[OFF], [FRONT LEFT] (front seat left), [FRONT RIGHT] (front seat right), [FRONT] (front seats), [ALL]* Only for standard mode	Select a listening position to adjust the speakers' output levels automatically and add a delay time that corresponds to the number and locations of occupied seats.
TIME ALIGNMENT
[INITIAL], [OFF], [CUSTOM]	Select or customize the time alignment settings to reflect the distance between the listener's position and each speaker. • Select [INITIAL] to initialize the setting value. • Select [OFF] to reset all setting values to 0. • The [CUSTOM] setting is available when [FRONT LEFT] or [FRONT RIGHT] is selected in [POSITION] (page 33). • The [CUSTOM] setting is not available when [OFF] is selected in [SUBWOOFER] (page 32).
Select a type of speaker and adjust the speaker distance for further customizing in [CUSTOM]. Network mode: [HIGH L], [HIGH R], [MID L], [MID R], [SUBWOOFER] Standard mode: [FRONT L], [FRONT R], [REAR L], [REAR R], [SUBWOOFER] Speaker distance (inch): [140] to [0]
SAVE SETTINGS
[YES], [NO] Save to later recall the following sound settings at their current values: [CROSSOVER], [SPEAKER LEVEL], [EQ SETTING], [POSITION], [TIME ALGNMT], [D.BASS], [SUBWOOFER]. • The settings that can be saved differ when a Pioneer Smart Sync connection is made.
LOAD SETTINGS
	Load the sound settings, when you have already performed [SAVE SETTINGS].
D.BASS
[OFF], [LOW], [HI] Boost the bass level dynamically to offer an effect as if a subwoofer was added to the system.
LOUDNESS
[OFF], [LOW], [MID], [HI] Compensate for clear sound at low volume.
SLA
[+4] to [-4] Adjust the volume level for each source except FM.Each of the below combinations are set to the same setting automatically.When making a USB connection, set USB,iPhone, PANDORA, APP, and SPOTIFY.When making a Bluetooth connection, set BT AUDIO, iPhone, PANDORA, APP, and SPOTIFY.
S.RTRV
[1] (effective for low compression rates),[2] (effective for high compression rates),[OFF]	Enhance compressed audio and restore rich sound.

• Not available when [SW] is selected in [REAR-SP] in the INITIAL settings (page 7).

SYSTEM settings
You can also access to these menus when the unit is turned off.
Menu Item Description
LANGUAGE
[ENG](English), [ESP](Spanish), [FRA] (Canadian French)	Select the language to display the text information from a compressed audio file.
CLOCK SET
[12H], [24H] Set the clock (page 5).	·This setting is not available when a Pioneer Smart Sync connection is made.
SCROLL SET
[ONCE], [LOOP], [OFF] Select the way to scroll the text in the display window.
BEEP TONE (Only for standard mode)
[ON], [OFF] A beep can be heard when any button is pushed.	Select [OFF] to disable this function.
Menu Item Description
INFO DISPLAY
[SOURCE/SPEANA], [CLOCK/SPEANA], [SRC/LIVE FX], [CLOCK/LIVE FX], [SOURCE], [SPEANA], [OFF]	Display the item on the sub information display. • When [SOURCE/SPEANA] or [CLOCK/SPEANA] is selected, display the antenna instead of the speana on the radio source.
AUX
[ON], [OFF] Set to [ON] when using an auxiliary device connected to the unit.
BT AUDIO
[ON], [OFF] Set the Bluetooth signal on/off.
PANDORA
[ON], [OFF] Set to [ON] when using the Pandora function.
SPOTIFY
[ON], [OFF] Set to [ON] when using the Spotify function.
BT MEM CLEAR
[YES], [NO] Clear the Bluetooth device data (device list, PIN code, call history, phone book, preset phone numbers) stored in the unit. [CLEARED] appears when data is successfully deleted.
APP CONTROL
[WIED], [BLUETOOTH] Select the appropriate connection method according to your device. See page 36 for details on the connections for each device.
USB MTP
[ON], [OFF] Set to [ON] when using the MTP connection. The following sources are not available when the setting is set to [ON]. • APP, PANDORA, SPOTIFY, iPhone, and USB (AOA)
AUTO APP Conn
[ON], [OFF] Select [ON] to automatically launch Pioneer Smart Sync when the iPhone/Android device is connected to the unit.

Menu Item Description

USB AUTO

[ON], [OFF] Select [ON] to automatically switch to USB source when a USB device/iPhone is connected to the unit. Select [OFF] when a USB device/iPhone is being connected to the unit just for charging.

Information on the connections for each device

The available sources differ depending on the setting value.

Please set [APP CONTROL] according to the table for the source you want to use.

For details on Pioneer Smart Sync connection, see page 23.

When Pioneer Smart Sync connection is NOT performed

Setting Value Device Available source(s)
[Wired] iPhone iPhone	one, PANDORA, SPOTTIFY
	Android USB (AOA)
[Bluetooth] iPhone	iPhone iPhone, PANDORA, SPOTIFY
	Android PANDORA, SPOTIFY

When Pioneer Smart Sync connection is performed

Setting Value Device Available source(s)
[Wired] iPhone APP, PANDORA, SPOTIFY
	Android APP
[Bluetooth] iPhone	APP, PANDORA, SPOTIFY
	Android APP, PANDORA, SPOTIFY

ILLUMINATION settings

Menu Item Description
COLOR
[KEY COLOR], [DISP COLOR], [BOTH COLOR]	Select color for the keys/display of the unit from 12 preset colors, [SCAN] or [CUSTOM]*. ·[SCAN]: Cycle through a variety of colors automatically. ·[CUSTOM]*: 1 Press and hold the M.C. dial until the color setting display appears. 2Set the primary color (R (red)/G (green)/B (blue)) and brightness level ([0] to [60]). You cannot select a level below 10 for all three of R (red), G (green), B (blue) at the same time. You can also customize the preset colors. Select one of the preset colors, then press and hold the M.C. dial until the color setting display appears. * The CUSTOM setting is only available for [KEY COLOR] and [DISP COLOR].
DIM SETTING
[SYNC ILLUMI], [SYNC CLOCK], [MANUAL]	Select the way to change the display brightness.
BRIGHTNESS
[KEY], [DISP] Select the brightness for the keys/display of the unit from [1] to [10]. The available setting ranges differ depending on [DIM SETTING].
PHONE COLOR
	Select the key color when a call is received.
[FLASHING] Applies the color set by [KEY COLOR]. ·The illumination effect differs depending on the selection of [ON] or [OFF] in [ILLUMI FX].
[FLASH FX1] to [FLASH FX6] Cycle through a variety of colors automatically.
[OFF] No change in key color made.
Menu Item Description
ILLUMI FX
[ON], [OFF] The illumination effect can be seen when: - there is an incoming call when [FLASHING] is selected in [PHONE COLOR] - you are on a phone call - the message received on the device is being read when a Pioneer Smart Sync connection is made - the front panel is attached. The illumination effect will activate when the ACC power is turned on/off regardless of this setting.

MIXTRAX settings
Menu Item Description
SHORT PLAYBCK
[1.0 MIN], [1.5 MIN], [2.0 MIN], [2.5 MIN], [3.0 MIN], [OFF]	Select the length of the playback time.
FLASH AREA
[KEY/DISPLAY], [KEY], [OFF] Select the area for the illumination effect. When [OFF] is selected, the color set under the ILLUMINATION settings (page 37) is used as the display color.
FLASH PATTERN
[SOUND LEVEL 1] to [SOUND LEVEL 6]	Change the illumination effect according to the sound and bass level. The flash pattern changes according to the sound level.
[LOW PASS 1] to [LOW PASS 6] The flash pattern changes according to the bass level.
[RANDOM1] The flash pattern changes randomly according to the sound level mode and low pass mode.
[RANDOM2] The flash pattern changes randomly according to the sound level mode.
[RANDOM3] The flash pattern changes randomly according to the low pass mode.
DISPLAY FX
[ON], [OFF] Set the MIXTRAX special effects on/off.

Menu Item Description

CUT IN FX

[ON], [OFF] Turn the MIXTRAX sound effects on/off while manually changing the tracks.

Additional Information

Troubleshooting

The display automatically returns to the normal display.

No operations have been made for about 30 seconds.

-Perform an operation.

The repeat play range changes unexpectedly.

Depending on the repeat play range, the selected range may change when another folder or track is being selected or during fast forwarding/reversing.

-Select the repeat play range again.

A subfolder is not played back.

Sub folders cannot be played when [FLD] (folder repeat) is selected.

-Select another repeat play range.

The sound is intermittent.

You are using a device, such as a cellular phone, that may cause audible interference.

-Move electrical devices that may be causing the interference away from the unit.

The sound from the Bluetooth audio source is not played back.

There is a call in progress on a Bluetooth-connected cellular phone. -The sound will be played back when the call is terminated.

A Bluetooth-connected cellular phone is currently being operated.

-Stop using the cellular phone.

→The connection between the unit and the cellular phone is not established correctly after a call made by a

Bluetooth-connected cellular phone.

-Make a Bluetooth connection between the unit and the cellular phone again.

Error messages

Common

AMP ERROR

→This unit fails to operate or the speaker connection is incorrect.

→The protective circuit is activated.

-Check the speaker connection.

• Turn the ignition switch OFF and back to ON again. If the message remains, contact your dealer or an authorized Pioneer Service Station for assistance.

NO XXXX (NO TITLE, for example)

→There is no embedded text information.

• Switch the display or play another track/file.

USB device/iPhone

FORMATREAD

→Sometimes there is a delay between the start of playback and when you start to hear any sound.

Wait until the message disappears and you hear sound.

NO AUDIO

→There are no songs.

• Transfer the audio files to the USB device and connect.

→The connected USB device has security enabled.

• Follow the USB device instructions to disable the security.

SKIPPED

→The connected USB device contains DRM protected files.

• The protected files are skipped.

PROTECT

All the files on the connected USB device are embedded with DRM.

-Replace the USB device.

N/A USB

→The connected USB device is not supported by this unit.

-Disconnect your device and replace it with a compatible USB device.

HUB ERROR

→The USB device connected via a USB hub is not supported by this unit.

• Connect the USB device directly to this unit using a USB cable.

CHECK USB

→The USB connector or USB cable has short-circuited.

-Check that the USB connector or USB cable is not caught in something or damaged.

The connected USB device consumes more than maximum allowable current.

• Disconnect the USB device and do not use it. Turn the ignition switch OFF and back to ACC or ON. Connect only compliant USB devices.

ERROR-19

Communication failed.

Perform one of the following operations, then return to the USB source.

• Disconnect the USB device.
• Change to a different source.

iPhone failure.

-Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

ERROR-23

USB device was not formatted properly.

-Format the USB device with FAT12, FAT16 or FAT32.

ERROR-16

→The iPhone firmware version is old.

-Update the iPhone version.

iPhone failure.

-Disconnect the cable from the iPhone. Once the iPhone's main menu is displayed, reconnect the iPhone and reset it.

STOP

→There are no songs in the current list.

-Select a list that contains songs.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and iPhone via Bluetooth (page 12).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection with iPhone failed.

-Press BAND/ t o m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost.

-Press BANDt o m a k connection again.

Bluetooth device

ERROR-10

→The power failed for the Bluetooth module of the unit.

• Turn the ignition switch OFF and back to ACC or ON.

Pandora

ERROR-19

Communication failed.

-Disconnect the cable from the device. Once the device's main menu is displayed, reconnect the device and reset it.

NOT FOUND

→The Pandora application has not started running yet.

-Start up the Pandora application.

RATING ERROR

→The thumb rating operation was disabled.

-Run the same command for another track.

CAN'TSKIP

→The skip operation was disabled.

-Run the same command for another track.

THUMB ERROR

Unable to save thumb rating.

-Try again later.

BOOKMARK ERR

Unable to save BookMark.

-Try again later.

INOPERABLE

→The operation to save BookMark or add station was disabled.

-Run the same command for another track.

UNABLE TO ADD

Unable to add station.

-Try again later.

SKIPLIMIT

Due to music licensing restrictions,

Pandora limits the total number of skips per hour.

• Wait until Pandora allows you to skip again.

UPDATE APP

→This version of the Pandora application is not supported.

-Connect a device that has a compatible version of the Pandora application installed.

LOG IN ERROR

Your Pandora account is not logged in.

-Disconnect the cable from the device, and log in to your Pandora account. Then reconnect the device.

ERROR

Device error message displayed in the Pandora application.

-Check the connected device.

Pandora system is undergoing maintenance.

-Try again later.

NO STATIONS

No station found.

-Create a station in the Pandora application on your connected device.

NO BT DEVICE GO TO BT MENU TO REGISTER

→No Bluetooth device found.

-Connect the unit and the device via Bluetooth (page 12).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BAND to m a k connection again.

CHECK APP PRESS BAND KEY TO RETRY

Connection to the Pandora application failed.

-Press BAND/ t o m a k connection again.

DISCONNECTED PRESS BAND KEY TO RETRY →Bluetooth connection lost. -Press BANDt o m a connection again.

STATION LIMIT

A new station cannot be added.
--Delete an old station to open a spot for a new one.

CANNOT DELETE

→The station could not be deleted.
- Run the same command for another station.

BAD NETWORK

The connected device is out of area. Connect the device to a network.

UNAVAILAVLE

The connected device is out of area. Connect the device to a network. The operation was disabled.. Run the same command for another station.

CHECKAPP

An unknown error (including communication error) has occurred. -Follow the instructions that appear on the screen.

APP

CONNECT APP

Pioneer Smart Sync connection is not made.
- Make a connection with Pioneer Smart Sync (page 23).

Spotify

NOT FOUND

→The Spotify application has not started running yet.
- Start up the Spotify application.

NO BT DEVICE GO TO BT MENU TO REGISTER →No Bluetooth device found. k -Gconnect the unit and the device via Bluetooth (page 12).

CONN. Failed PRESS BAND KEY TO RETRY

→Bluetooth connection failed.

-Press BANDt o m connection again.

CHECK APP PRESS BAND KEY TO RETRY →Connection to the Spotify application failed. -Press BAND/ t o m connection again.

DISCONNECTED PRESS BAND KEY TO RETRY

→Bluetooth connection lost.

-Press BANDo m a k connection again.

CHECKAPP

An unknown error (including communication error) has occurred. -Follow the instructions that appear on the screen.

SiriusXM Satellite Radio

CHECK ANTENNA

→The antenna cable may be either disconnected or damaged.
- Check the antenna connection or replace if damaged.

CHECK TUNER

→The radio is having difficulty communicating with the SiriusXM Connect Vehicle Tuner. The tuner may be disconnected or damaged.
- Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the radio.

NO SIGNAL

→The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM satellite signal.
-Move your vehicle outdoors with a clear view of the southern sky.
-Make sure that the SiriusXM magnetic mount antenna is mounted on a metal surface on the outside the vehicle.
-Move the SiriusXM antenna away from any obstructions.

SUBSCRIPTION UPDATED

→This unit has detected a change in your SiriusXM subscription status.
-Press any key to clear the message.

CH UNAVAIL

→The channel that you have requested is not available.
-Check the SiriusXM channel lineup.

CHAN UNSUB

→The channel that you have requested is not included in your SiriusXM subscription package.
-Check the content of your SiriusXM subscription package.

CH LOCKED

The channel has been locked by the Parental Control function.
-Set [LOCKED CH] to [OFF] or [CLEAR ALL] to [YES] in the FUNCTION settings (page 31).

NO TUNEMIX CH

There is only one music channel in the band.
-Select a band with two or more music channels.
-Add more music channels to the current band.

Handling guidelines

USB storage device

• Connections via USB hubs are not supported.

• Firmly secure the USB storage device before driving. Do not let the USB storage device fall onto the floor, where it may become jammed under the brake or accelerator pedal.
  Depending on the USB storage device, the following problems may occur.

• Operations may vary.

• The storage device may not be recognized.
• Files may not be played back properly.
• The device may cause audible interference when you are listening to the radio.

iPhone

• Do not leave the iPhone in places with high temperatures.
• Firmly secure the iPhone when driving. Do not let the iPhone fall onto the floor, where it may become jammed under the brake or accelerator pedal.
• Incompatible text saved on the iPhone will not be displayed by the unit.

Compressed audio compatibility

• Only the first 32 characters can be displayed as a file name (including the file extension) or a folder name.
• The unit may not work properly depending on the application used to encode WMA files.
• There may be a slight delay at the start of the playback of audio files embedded with image data, or audio files stored on a

USB device with numerous folder hierarchies.

CAUTION

• Pioneer cannot guarantee compatibility with all USB mass storage devices, and assumes no responsibility for any loss of data on media players, smartphones, or other devices while using this product.
• Do not leave a USB device in any place that is subject to high temperatures.

WMA files

File extension .wma
Bit rate 48 kbps to 320	kbps (CBR), 48 kbps to 384 kbps (VBR)
Sampling frequency 32	kHz, 44.1 kHz, 48 kHz
Windows Media™ Audio Professional, Lossless, Voice/DRM Stream/Stream with video	Not compatible

MP3 files

File extension.mp3
Bit rate 8 kbps to 320 kbps (CBR), VBR
Sampling frequency 8 kHz to 48 kHz (32 kHz, 44.1 kHz, 48 kHz for emphasis)
Compatible ID3 tag version	1.0, 1.1, 2.2, 2.3, 2.4 (ID3 tag Version 2.x is given priority over Version 1.x.)
M3u playlist Not compatible
MP3i (MP3 interactive), mp3 PRO	Not compatible

WAV files

WAV file formats cannot be connected via MTP.

Quantization bits 8 and	16 (LPCM)
Sampling frequency 16	kHz to 48 kHz (LPCM)

AAC files

Compatible format AAC	coded by iTunes
File extension .m4a
Sampling frequency 11.025 kHz to 48 kHz
Stereo Bit Rate 16 kbps	to 320 kbps, VBR
Apple Lossless Not compatible
AAC file bought from the iTunes Store (.m4p file extension)	Not compatible

FLAC files

• FLAC file formats cannot be connected via MTP.
• FLAC files may not be playable, depending on the encoder.

File extension .flac, .fla
Sampling frequency 8/	1.025/12/16/22.05/24/32/44.1/48/96 kHz
Quantization bit rate 8/	6/24 bit
Channel mode 1/2 ch

USB device

• There may be a slight delay when starting playback of audio files on a USB storage device with numerous folder hierarchies.

Playable folder hierarchy	Up to eight tiers (A practical hierarchy is less than two tiers.)
Playable folders Up to 1	500
Playable files Up to 15 00	00
Playback of copyright-protected files	Not compatible
Partitioned USB device	Only the first partition can be played.

File extension .wav

iPhone compatibility

This unit supports only the following iPhone models. Older versions may not be supported. Made for

-iPhone XR
-iPhone XS Max
-iPhoneXS
-iPhoneX
-iPhone 8
-iPhone 8 Plus
-iPhone7
-iPhone7Plus
iPhone SE
-iPhone 6s
iPhone 6s Plus
-iPhone6
-iPhone 6 Plus
iPhone 5s
- Operations may vary depending on the generation and/or software version of the iPhone.
- Users of iPhone with the Lightning Connector should use the Lightning to USB Cable (supplied with iPhone).
Refer to the iPhone manuals for information about the file/format compatibility.
- Audiobook, Podcast: Compatible

CAUTION

Pioneer accepts no responsibility for data lost on the iPhone, even if that data is lost while this unit is used.

Sequence of audio files

The user cannot assign folder numbers and specify playback sequences with this unit. Sequence of audio file depends on the connected device.

Note that the hidden files in a USB device cannot be played back.

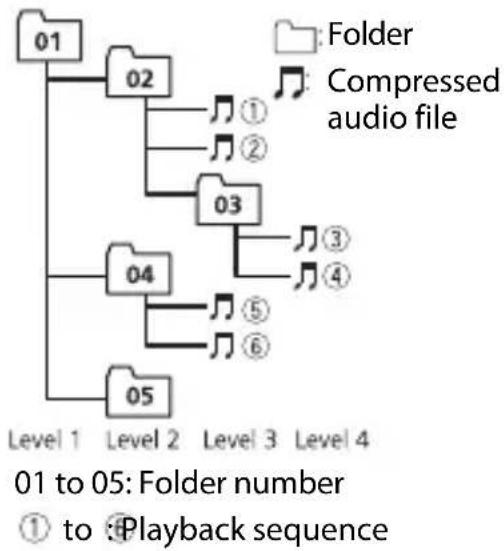

Example of a hierarchy

Copyright and trademark

Bluetooth

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

iTunes

Apple and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

WMA

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

FLAC

Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2014 Xiph.Org

Foundation

Redistribution and use in source and binary forms, with or without modification,

are permitted provided that the following conditions are met:

-Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

-Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

-Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND
CONTRIBUTORS "AS IS" AND ANY EXPRESS
OR IMPLIED WARRANTYES, INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE
LIABLE FOR ANY DIRECT, INDIRECT,
INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCEDUREM OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF
USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.

iPhone and Lightning

Use of the Made for Apple badge means that an accessory has been designed to connect specifically to the Apple product(s) identified in the badge, and has been certified by the developer to meet

Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

Please note that the use of this accessory with an Apple product may affect wireless performance.

iPhone and Lightning are trademarks of Apple Inc., registered in the U.S. and other countries.

Siri®

Works with Siri through the microphone.

Google™, Google Play, Android Google, Google Play and Android are trademarks of Google LLC.

SiriusXM Satellite Radio

SiriusXM and all related marks and logos are trademarks of Sirius XM Radio, Inc. All rights reserved.

Pandora® Music

PANDORA, the PANDORA logo, and the
Pandora trade dress are trademarks or
registered trademarks of Pandora Media,
LLC. Used with permission.
Pandora is only available in certain
countries. Please visit
http://www.pandora.com/legal
for more information.

MIXTRAX

MIXTRAX is a trademark of the PIONEER CORPORATION.

HD Radio™ Technology

HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. For patents see http://dts.com/patents.HD Radio and the HD, HD Radio, and "ARC" logos are registered trademarks or trademarks of iBiquity Digital Corporation in the United States and/or other countries.

© iBiquity Digital Corporation. All Rights Reserved.

Spotify®

SPOTIFY and the Spotify logo are among the registered trademarks of Spotify AB. Compatible mobile digital devices and premium subscription required, where available, see https://www.spotify.com.

T-Kernel 2.0

This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org).

MP3

Copyright (C) 1998-2009 PacketVideo

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License.

You may obtain a copy of the License at

http://www.apache.org/licenses/License-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTY OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

Specifications

General

Power source: 14.4 V DC (10.8 V to 15.1 V allowable)

Grounding system: Negative type Maximum current consumption: 10.0 A

Dimensions (W× H× D) DIN

Chassis: 178mm× 50mm× 165mm (7 in. × 2 in. × 6 - 1 / 2 in.)

Nose: 188mm× 58mm× 17mm (7-3/8 in. × 2 - 1 / 4 in. × 5 / 8 in.)

D

Chassis: 178mm× 50mm× 165mm (7 in. × 2 in. × 6 - 1 / 2 in.)

Nose: 170mm× 46mm× 17mm (6-3/4 in. × 1 - 3 / 4 in. × 5 / 8 in.)

Weight: 0.7kg (1.5 lbs)

Audio

Maximum power output:

• 50W× 4 ch/4 (for no subwoofer)

• 50W× 2ch / 4 +70W× 1ch / 2 (for subwoofer)

Continuous power output:

22W× 4 (50 Hz to 15 000 Hz, 5 %

THD, 4 Ω load, both channels driven)

Load impedance: 4 (4 to 8 (2 for 1 ch) allowable)

Preout maximum output level: 4.0V

Equalizer (13-Band Graphic Equalizer):

Frequency: 50 Hz/80 Hz/125 Hz/200

Hz/315 Hz/500 Hz/800 Hz/1.25 kHz/2

kHz/3.15 kHz/5 kHz/8 kHz/12.5 kHz

Gain: ± 12 dB (2 dB step)

High pass filter (Standard mode):

Frequency: 25 Hz/31.5 Hz/40 Hz/50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, OFF

Subwoofer/Low pass filter (Standard mode):

Frequency: 25Hz / 31.5Hz / 40Hz / 50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Slope: -6dB / oct, - 12dB / oct, - 18dB /

oct, -24 dB/oct, -30 dB/oct, -36 dB/Oct, OFF

Gain: +10 dB to -24 dB (1 dB step)

Phase: Normal/Reverse

Speaker level (Standard mode):

+10 dB to -24 dB (1 dB step)

Time alignment (Standard mode): 0 Inch to 140 Inch (1 inch/Step)

High pass filter (HIGH) (Network mode): Frequency: 1.25 kHz/1.6 kHz/2 kHz/ 2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/ 8 kHz/10 kHz/12.5 kHz Slope: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct

High pass filter (MID) (Network mode): Frequency: 25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz Slope: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

Low pass filter (MID) (Network mode): Frequency: 1.25 kHz/1.6 kHz/2 kHz/ 2.5 kHz/3.15 kHz/4 kHz/5 kHz/6.3 kHz/ 8 kHz/10 kHz/12.5 kHz Slope: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, OFF

Subwoofer (Network mode): Frequency: 25 Hz/31.5 Hz/40 Hz/50 Hz/63 Hz/80 Hz/100 Hz/125 Hz/160 Hz/200 Hz/250 Hz Slope: -12 dB/oct, -18 dB/oct, -24 dB/ oct, -30 dB/oct, -36 dB/oct, OFF Gain: +10 dB to -24 dB (1 dB step) Phase: Normal/Reverse

Speaker level (Network mode): +10 dB to -24 dB (1 dB step)

Time alignment (Network mode): 0 Inch to 140 Inch (1 inch/Step)

USB

USB standard specification: USB 2.0 full speed

Maximum current supply: 1.5 A

USB Protocol:
MSC (Mass Storage Class)
MTP (Media Transfer Protocol)
AOA (Android Open Accessory) 2.0

File system: FAT12, FAT16, FAT32

MP3 decoding format: MPEG-1 & 2 Audio Layer 3

WMA decoding format: Ver. 7, 8, 9, 9.1, 9.2 (2 ch audio)

AAC decoding format: MPEG-4 AAC (iTunes encoded only) (Ver. 10.6 and earlier)

FLAC decoding format:v1.2.1 (Free Lossless Audio Codec)

WAV signal format: Linear PCM (Non-compressed)

FM tuner

Frequency range: 87.9 MHz to 107.9 MHz

Usable sensitivity: 11 dBf (1.0 V/75 Ω, mono, S/N: 30 dB)

Signal-to-noise ratio: 80 dB (digital broadcasting) (IHF-A network)

Signal-to-noise ratio: 72 dB (analog broadcasting) (IHF-A network)

AMtuner

Frequency range: 530kHz to 1710kHz Usable sensitivity: 25~ V (S/N: 20 dB)

Signal-to-noise ratio: 62 dB (analog broadcasting) (IHF-A network)

Bluetooth

Version: Bluetooth 4.0 certified

Output power: +4 dBm Maximum (Power class 2)

BLE (Bluetooth Low Energy) Version: 4.0 certified

BLE (Bluetooth Low Energy) Output power: +3 dBm Maximum

Frequency band(s): 2400 MHz to 2483.5 MHz

Bluetooth profiles:
GAP (Generic Access Profile)
SDAP (Service Discovery Application Profile)
HFP (Hands Free Profile) 1.6
PBAP (Phone Book Access Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio/Video Remote Control Profile) 1.5
SPP (Serial Port Profile) 1.1

CTA2006 Specifications

Power output: 14 W RMS × 4 Channels (4 Ω)

and % THD+N)

S/N ratio: 91 dBA (reference: 1 W into 4 Ω)

NOTE

Specifications and the design are subject

to modifications without notice.

Table des matieres

Pour commencer 3

Technologie HD RadioTM 8

USB/iPhone®/AUX 10

Bluetooth 13

Pandora® 18

Spotify® 20

Radio satellite SiriusXM 21

Utilisation de Pioneer Smart Sync/APP 26

Réglages audio 29

Réglages 31

Réglages FUNCTION 31

Réglages AUDIO 34

Réglages SYSTEM 37

Réglages ILLUMINATION 40

Réglages MIXTRAX 41

Radio satellite SiriusXM

[LOCKED CH], [CLEAR ALL], [EDIT CODE]

→Échec de communication.

Radio satellite SiriusXM

CHECK ANTENNA

Radio satellite SiriusXM

1,25kHz/2kHz/3,15kHz/5kHz/8k 12,5 kHz

Gain: ± 12 dB (par incrementes de 2 dB)

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, DÉSACTIVÉE

Pente: -6 dB/oct, -12 dB/oct, -18 dB/

oct, -24 dB/oct, -30 dB/oct, -36 dB/ oct, DÉSACTIVÉE

Phase: Normale/Inversée

Pente: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct

Pente: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, DÉSACTIVÉE

Pente: -6 dB/oct, -12 dB/oct, -18 dB/ oct, -24 dB/oct, DÉSACTIVÉE

Pente: -12dB/occt, -18dB/occt,

24 dB/oct, -30 dB/oct, -36 dB/oct, DÉSACTIVÉE

Phase: Normale/Inversée

Specifications CTA2006

1 Pulse el dial M.C., SRC/OFF, o.

Posponer la alerta

1 Presione BAND/

Historical de alerts

La aplicacion Spotify está disponible para Telefonos compatibles, ingrese a https:// support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://upport).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://support).(https://支援.(https:/conexion.

Importante

Alternatively, you can use the following two methods to realize this task.

Modos de operation

[LOCKED CH], [CLEAR ALL], [EDIT CODE]

Copyright © 2000-2009 Josh Coalson
Copyright © 2011-2014 Xiph.Org
Foundation

Copyright (C) 1998-2009 PacketVideo

Pendiente: -6 dB/oct, -12 dB/oct, -18 dB/oct, -24 dB/oct, OFF

dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

dB/oct, -24 dB/oct, OFF

dB/oct, -24 dB/oct, OFF

Subwoofer (modulo red):

Frecuencia: 25Hz / 31,5Hz / 40Hz / 50

Hz/63 Hz/80 Hz/100 Hz/125 Hz/160

Hz/200 Hz/250 Hz

Pendiente: -12 dB/oct, -18 dB/oct, -24 dB/oct, -30 dB/oct, -36 dB/oct, OFF

AOA (Android Open Accessory) 2.0

http://www.pioneerelectronics.com

http://www.pioneerelectronics.ca

• Learn about product updates (such as firmware updates) for your product.
• Register your product to receive notices about product updates and to safeguard purchase details in our files in the event of loss or theft.
• Access owner's manuals, spare parts information, service information, and much more.
• Informez-vous sur les mises à jour disponibles pour votre produit (telles que les mises à jour du firmware).
  — Enregistrez votre produit afin de receivevoir des notifications concernant les mises à jour du produit, ainsi que pour sauvegarder les détails de votre achat dans nos fichiers en cas de perte ou de vol.
• Accedez aux modes d'emploi, aux informations relatives aux pieces de rechange et à l'entretien, et à beaucoup d'autres informations.
• Informe de las ultimasactualizaciones (porejemplo,actualizaciones de firmware) para su producto.
• Registre su producto para recibir informacion sobreactualizaciones del producto y paramantener la seguidad de los detailles de su compra en{nuestros ARCHIVOS en caso de perdida o robo.
• Acceso a manuales de instrucciones, informacion sobre piezas de recambio y mucho mas.

PIONEER CORPORATION

28-8, Honkomagome 2-chome, Bunkyo-ku, Tokyo 113-0021, Japan

PIONEER ELECTRONICS (USA) INC.

P.O.Box 1540, Long Beach, California 90801-1540,U.S.A. TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melisele, Belgium/Belgique
TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

2 Jalan Kilang Barat, #07-01, Singapore 159346
TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202 Australia

TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd. Manuel Avila Camacho 138, 10 plso
Col.Lomas de Chapultepec, Mexico, D.F. 11000
Tel: [phone], Fax: [phone]

先锋股份有限公司

台北市內湖區瑞光路407號8樓
