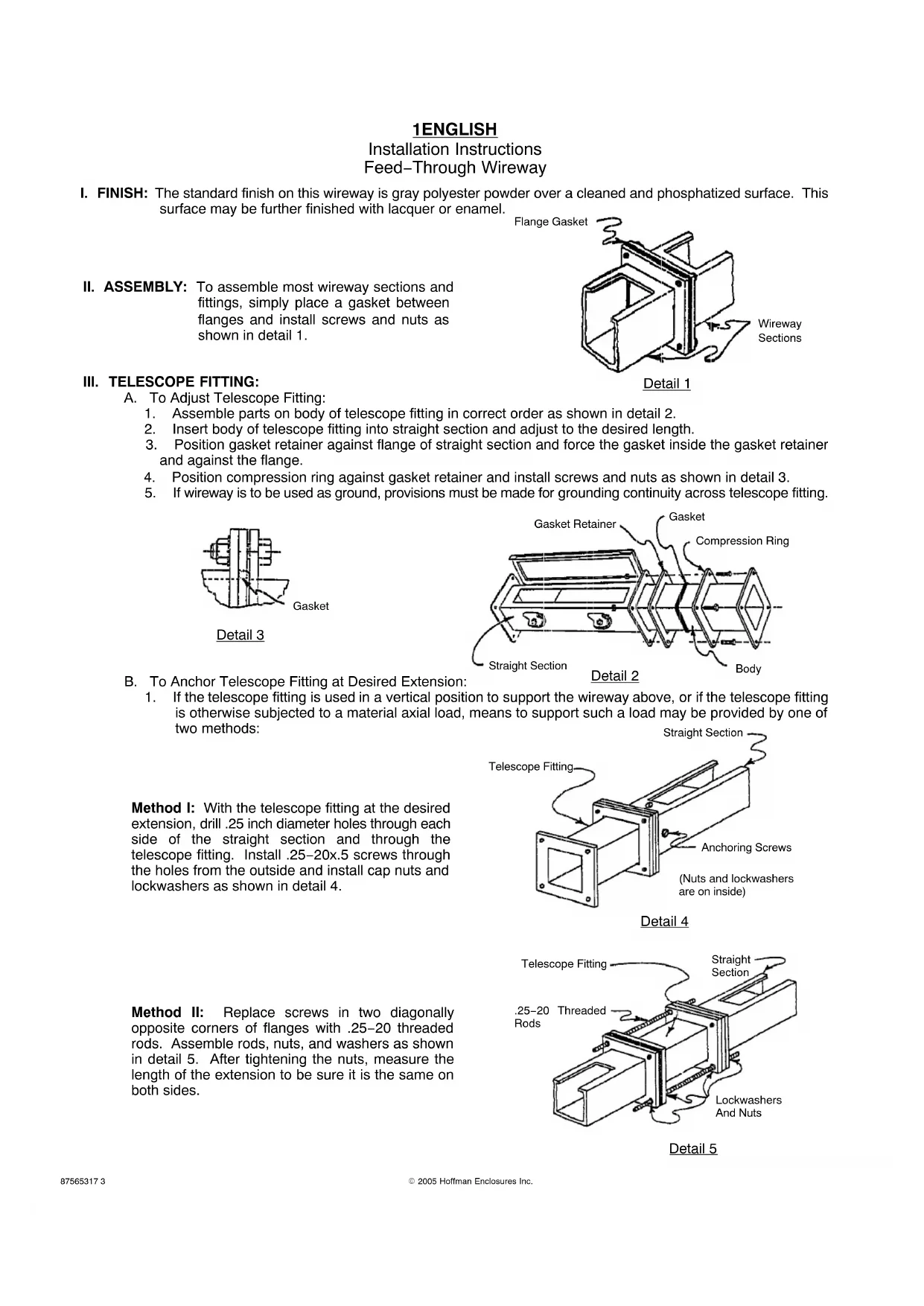

Installation Instructions

Feed-Through Wireway

I. FINISH: The standard finish on this wireway is gray polyester powder over a cleaned and phosphatized surface. This surface may be further finished with lacquer or enamel.

Flange Gasket

et Wireway Sections

Detail 1

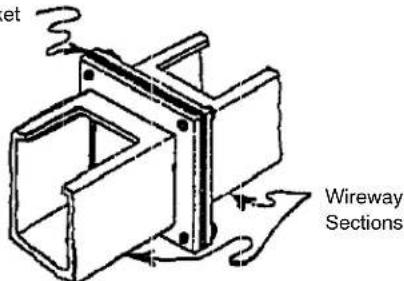

II. ASSEMBLY: To assemble most wireway sections and fittings, simply place a gasket between flanges and install screws and nuts as shown in detail 1.

III. TELESCOPE FITTING:

A. To Adjust Telescope Fitting:

1. Assemble parts on body of telescope fitting in correct order as shown in detail 2.
2. Insert body of telescope fitting into straight section and adjust to the desired length.
3. Position gasket retainer against flange of straight section and force the gasket inside the gasket retainer and against the flange.
4. Position compression ring against gasket retainer and install screws and nuts as shown in detail 3.
5. If wireway is to be used as ground, provisions must be made for grounding continuity across telescope fitting.

Detail 3

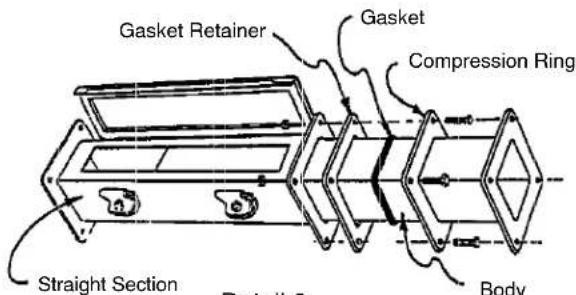

Gasket Retainer Gasket Compression Ring Straight Section Body

Detail 2

B. To Anchor Telescope Fitting at Desired Extension:

1. If the telescope fitting is used in a vertical position to support the wireway above, or if the telescope fitting is otherwise subjected to a material axial load, means to support such a load may be provided by one of two methods: Straight Section

Method I: With the telescope fitting at the desired extension, drill .25 inch diameter holes through each side of the straight section and through the telescope fitting. Install .25–20x.5 screws through the holes from the outside and install cap nuts and lockwashers as shown in detail 4.

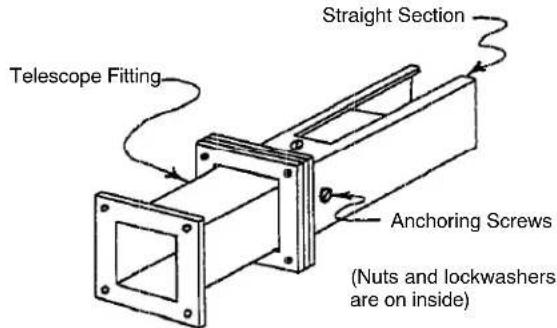

Telescope Fitting Straight Section Anchoring Screws (Nuts and lockwashers are on inside)

Detail 4

Method II: Replace screws in two diagonally opposite corners of flanges with .25–20 threaded rods. Assemble rods, nuts, and washers as shown in detail 5. After tightening the nuts, measure the length of the extension to be sure it is the same on both sides.

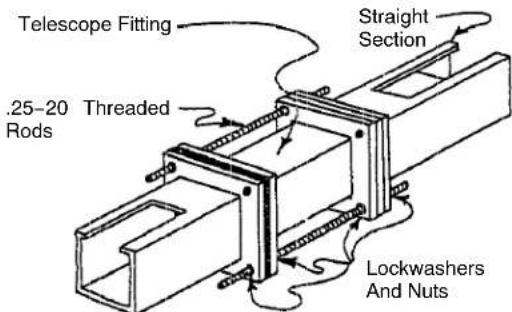

Telescope Fitting .25-20 Threaded Rods Straight Section Lockwashers And Nuts

Detail 5

2ENGLISH

Installation Instructions

Feed-Through Wireway

IV. CUT-OFF FITTING: Cut off the body to the desired length. (remember to allow for the flange and gaskets) Be sure the body is cut off squarely. Weld the extra flange to the body. Grind off all burrs and sharp edges. Touch-up paint can be used to duplicate the original finish.

V. SWIVEL NIPPLES:

A. To Install 2.5 X 2.5 And 4 X 4 Regular Type Swivel Nipple:

1. Position wireway section, flange gasket, swivel ring, round swivel gasket, and swivel nipple in that order. (see details 7 and 8) Position clips over round flange of swivel nipple, and install screws and nuts.

B. To Install 6 x 6 and 8 x 8 Regular Type Swivel Nipple:

1. Position wireway section, flange gasket, and swivel ring in that order. (see details 7 and 8) Attach swivel ring to wireway flange with four flat-head screws and nuts. Position round swivel gasket and swivel nipple on swivel ring. Position clips over round flange of swivel nipple and install screws and nuts.

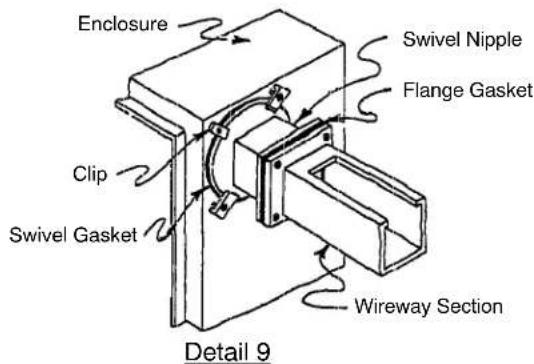

Enclosure Swivel Nipple Flange Gasket Clip Swivel Gasket Wireway Section Detail 9

C. To Install Box Entry Type Swivel Nipple:

1. Using the provided connector flange as a pattern, trace the box entry cutout on the outside of the enclosure and make the cutout.

2. Position the connector flange and the connector flange gasket on the inside of the enclosure as shown in detail 10. Then position the round swivel gasket and the swivel nipple on the outside of the enclosure as shown in details 9 and 10. Position the clips over the round flange of the swivel nipple, and install the screws and nuts.

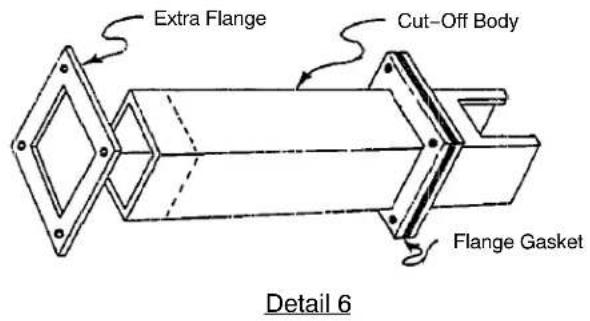

Extra Flange Cut-Off Body Flange Gasket Detail 6

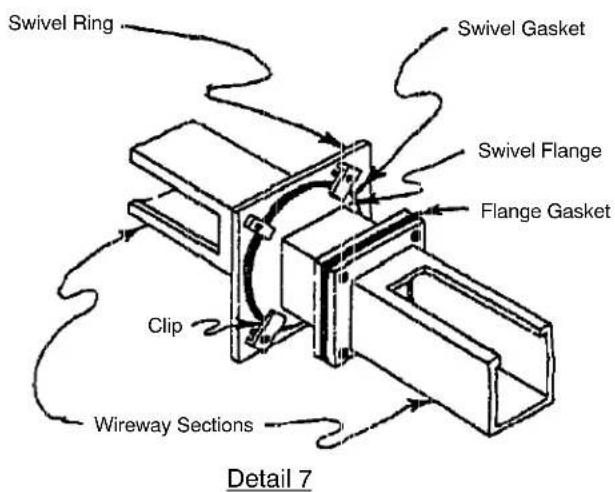

Swivel Ring Swivel Gasket Swivel Flange Flange Gasket Clip Wireway Sections Detail 7

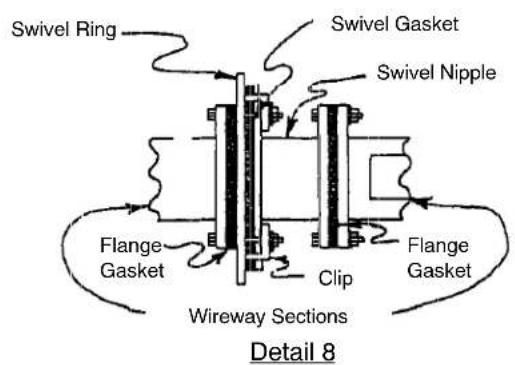

Swivel Ring Swivel Gasket Swivel Nipple Flange Gasket Clip Flange Gasket Wireway Sections Detail 8

Connector Flange Enclosure Swivel Nipple Wireway Section Flange Gasket Swivel GasketConnector Flange Gasket Detail 10

3ENGLISH

Installation Instructions

Feed-Through Wireway

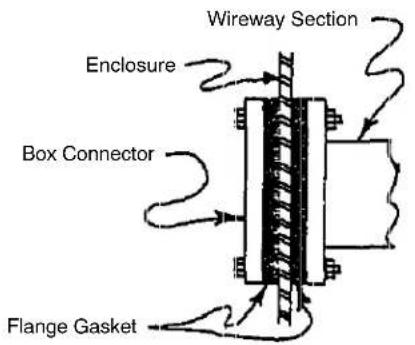

VI. BOX ENTRIES (WITHOUT SWIVEL NIPPLE): When entering a control enclosure or box with regular wireway, make a cutout in the enclosure as shown in detail 11. The box connector and a gasket are positioned inside the enclosure, while another gasket is placed between the outside surface of the enclosure and the adjoining wireway section. See detail 12 for the proper arrangement.

Wireway Section Enclosure Box Connector Flange Gasket

Detail 12

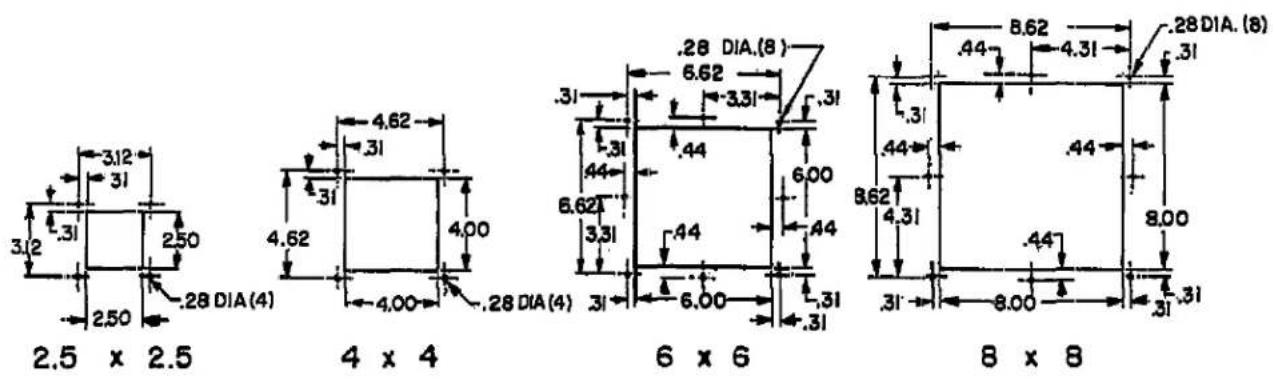

2.5 x 2.5 3.12 3.1 3.12 2.50 2.50 2.8 DIA(4) 4 x 4 4.62 3.1 4.62 4.00 4.00 2.8 DIA(4) 6 x 6 8 x 8 2.8 DIA.(8) 6.62 3.31 3.1 3.1 4.4 6.62 3.31 4.4 6.00 4.4 6.00 3.1 3.1 4.4 8.62 4.31 4.4 8.62 4.31 4.4 8.00 3.1 3.1 8.00 3.1

Detail 11 Units: Inch

VII. HANGERS: Assemble hangers as shown in details 13 and 14. Note that the hanger does not fit between the adjacent wireway flanges. These hangers may be attached to the wireway flange in various positions.

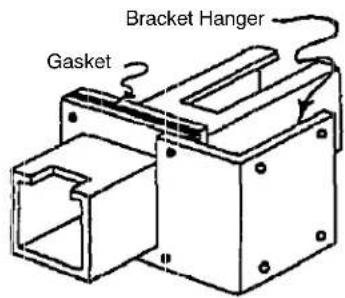

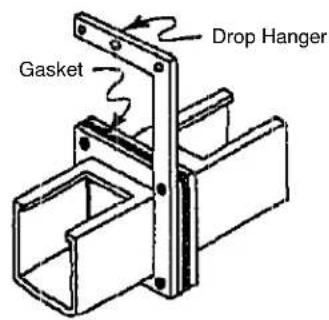

Gasket Drop Hanger

Detail 13

Bracket Hanger Gasket

Detail 13
