USER MANUAL LV 460 A Ariston Thermo

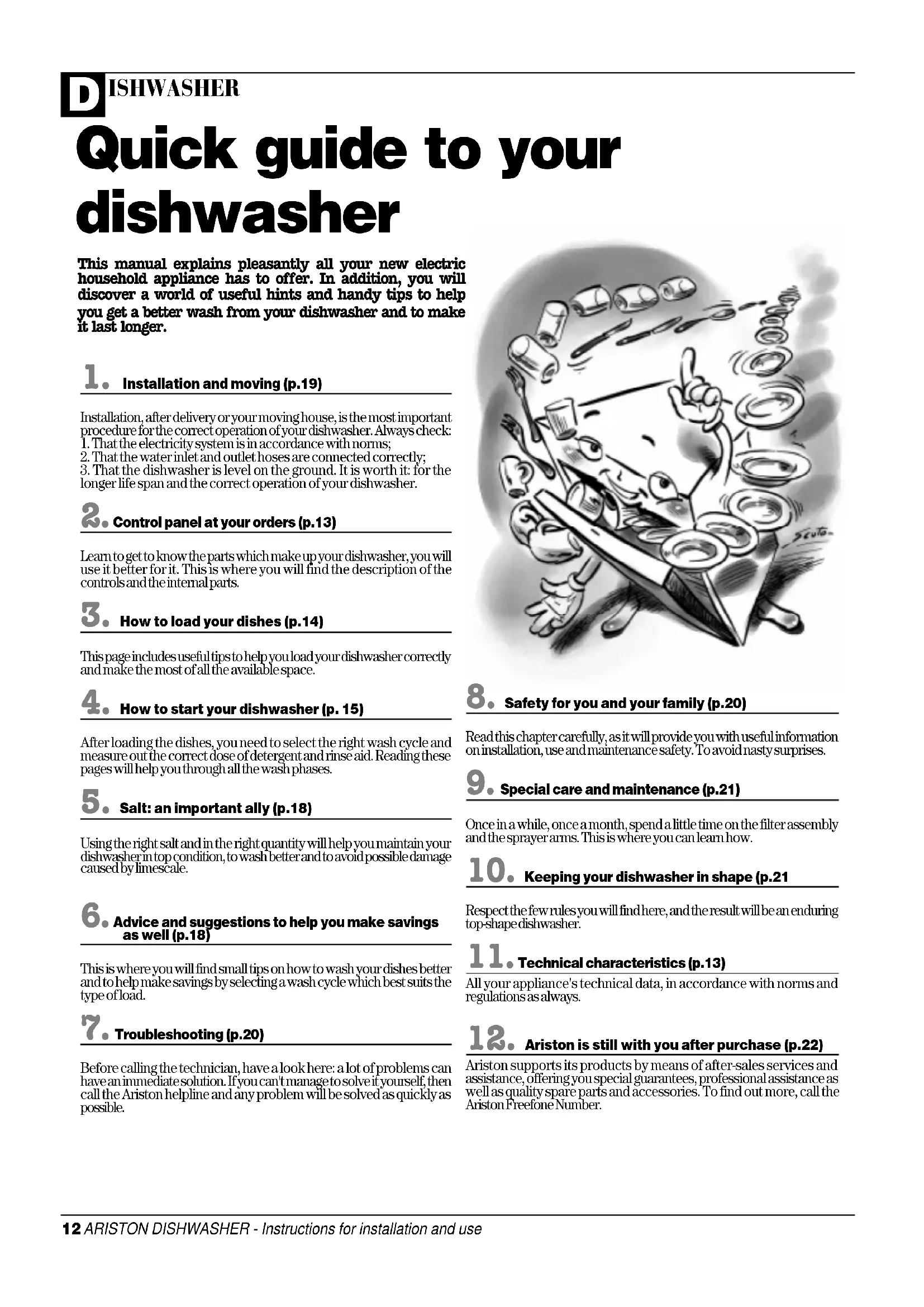

ISHWASHER This manual explains pleasantly all your new electrichousehold appliance has to offer. In addition, you willdiscover a world of useful hints and handy tips to helpyou get a better wash from your dishwasher and to makeit last longer. Quick guide to your dishwasher

1. Installation and moving (p.19)

Installation, after delivery or your moving house, is the most importantprocedure for the correct operation of your dishwasher. Always check:1. That the electricity system is in accordance with norms;2. That the water inlet and outlet hoses are connected correctly;3. That the dishwasher is level on the ground. It is worth it: for thelonger life span and the correct operation of your dishwasher.

2. Control panel at your orders (p.13)

Learn to get to know the parts which make up your dishwasher, you willuse it better for it. This is where you will find the description of thecontrols and the internal parts.

3. How to load your dishes (p.14)

This page includes useful tips to help you load your dishwasher correctlyand make the most of all the available space.

4. How to start your dishwasher (p. 15)

After loading the dishes, you need to select the right wash cycle andmeasure out the correct dose of detergent and rinse aid. Reading thesepages will help you through all the wash phases.

5. Salt: an important ally (p.18)

Using the right salt and in the right quantity will help you maintain yourdishwasher in top condition, to wash better and to avoid possible damagecaused by limescale.

6. Advice and suggestions to help you make savings

as well (p.18)This is where you will find small tips on how to wash your dishes betterand to help make savings by selecting a wash cycle which best suits thetype of load.

7. Troubleshooting (p.20)

Before calling the technician, have a look here: a lot of problems canhave an immediate solution. If you can't manage to solve it yourself, thencall the Ariston helpline and any problem will be solved as quickly aspossible.

8. Safety for you and your family (p.20)

Read this chapter carefully, as it will provide you with useful informationon installation, use and maintenance safety. To avoid nasty surprises.

9. Special care and maintenance (p.21)

Once in a while, once a month, spend a little time on the filter assemblyand the sprayer arms. This is where you can learn how.

10. Keeping your dishwasher in shape (p.21

Respect the few rules you will find here, and the result will be an enduringtop-shape dishwasher.

11. Technical characteristics (p.13)

All your appliance's technical data, in accordance with norms andregulations as always.

12. Ariston is still with you after purchase (p.22)

Ariston supports its products by means of after-sales services andassistance, offering you special guarantees, professional assistance aswell as quality spare parts and accessories. To find out more, call theAriston Freefone Number.ARISTON DISHWASHER - Instructions for installation and use 13

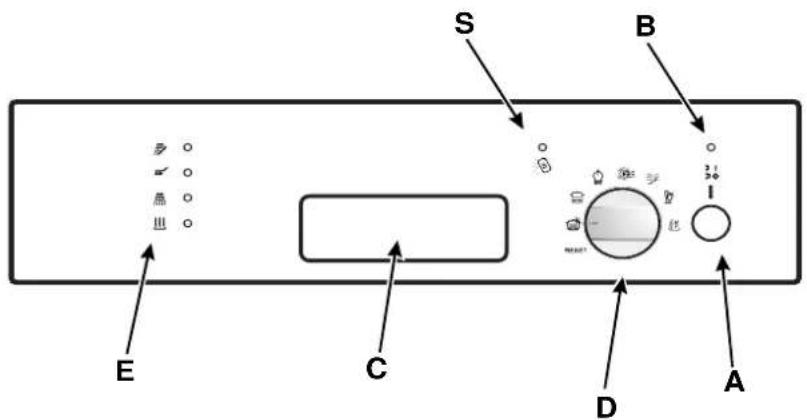

ISHWASHER Control panel at your orders A. ON-OFF ButtonPress this button toswitch the appliance on.B. ON-OFF Indicator lightThis light informs youthat the dishwasher is on. C.C. C.C.

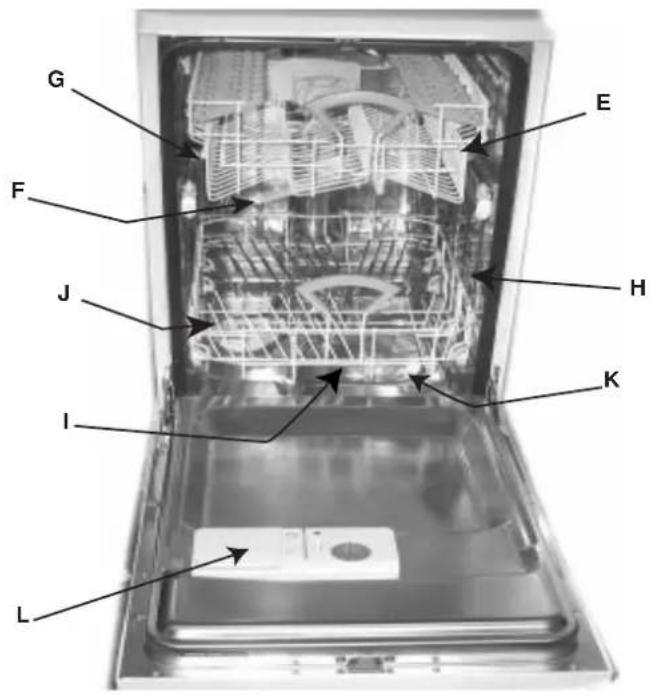

oor opening handleoor opening handleoor opening handleoor opening handleoor opening handleUse this handle to openthe dishwasher doorD. Cycle selection knobUse this knob to select awash cycle.E. Cycle phase indicatorlightspre-wash, wash, rinses,drying.S. Low salt indicator lightThis light warns you thatit is time to add more salt. How is it made? E. Upper rackF. Top sprayer armG. Rack height adjusterH . Lower rack Let's open up your dishwasher together

I. Bottom sprayer armJ. Salt container capK . Washing filterL. Detergent and rinseaid dispenser

Technical Characteristics Learn to get to know the parts which make up your dishwasher, you will use it better for it. 7HFKQLFDOFKDUDFWHULVWLFVWidth cm. 44,5Depth cm. 57Height cm. 82÷90Capacity 9 standard place settings Mains water pressure 4,3 psi - 145 psi 30KPa÷ 1MPa (0,3 ÷10 bar) Power voltage See data plateTotal absorber power See data plateFuse See data plateThis dishwasher conformsto the following EuropeanCommunity Directives: 73/23/EC(Low Voltage Directive)and subsequentamendments; 89/336/EC(ElectromagneticCompatibility) andsubsequentamendments. 97/17/EC(Labelling)

E14 ARISTON DISHWASHER - Instructions for installation and use

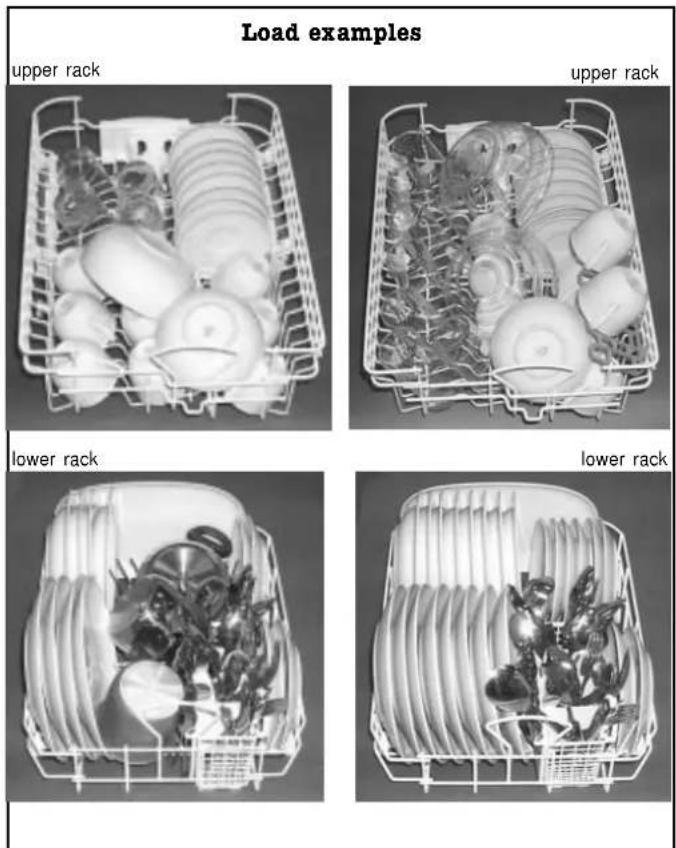

ISHWASHER How to load your dishes First of all. Before placing the dishes in the racks, remove the largest scraps of food left over on your plates, you will thus avoid blocking the filter, which would reduce the efficacy of the wash. If the saucepans and frying pans are very dirty, allow them to soak before being washed. To make it easier to load your dishes, pull the racks out. What goes into thelower rack? We recommend you place the most difficult dishes to wash into the lower rack: saucepans, lids, soup dishes and plates (a load example is shown in the photo). Serving dishes and large lids: place them on the sides of the rack. Saucepans, salad bowls: must always be placed upside down Very deep dishes: place them obliquely, thus allowing water to run down them and cleaning them better Place the cutlery with the handles at the bottom; if the basket is the one with side inserts, then insert the tea spoons one by one into the slots (see figure A). Knives and utensils with sharp blades or tips should be positioned with the sharp parts at the bottom. Position all cutlery items so that they don't touch. It is best if you place longer utensils horizontally at the front of the upper rack. It is best if you place longer utensils horizontally at the front of the upper rack. After loading the dishes, remember to check that the blades on the sprayer arms can turn freely without hitting against any dishes. Before washing, a few small steps can help you get a better wash and keep your dishwasher for longer. Remove the largest scraps of food left over on your plates, soak saucepans and frying pans with tough incrustations. After loading your dishes, make sure the blades on the sprayer arm turn well lower rackWhat goes into theupper rack? Place delicate and lightweight dishes in the upper rack: glasses, tea cups and coffee cups, saucers - but plates too - shallow salad bowls, slightly dirty frying pans and shallow pans. Position lightweight dishes in such as way as to avoid their being moved by the spray of water. How to adjust the toprack. The upper rack can be set in high or low position to enable you to organise your dishes effortlessly. Fig. ALoad examplesupper racklower rackupper rack

Open the rail stop flaps and pull therack out completely. Now place it inhigh or low position, then slide italong the guide rails until the frontwheels also go in. Now close the railstop flaps. Follow the sequence ofactions illustrated in figure "F".ARISTON DISHWASHER - Instructions for installation and use 15

ISHWASHER You have loaded your dishes and you now have to set the wash cycle. It takes just one minute to learn how Starting the dishwasher Make sure thewash cycle hasended beforeremoving thedishes!If opening the doorsoon after the endof theprogramme,orduring it, standaway from theDishwasher, toavoid possibleinjury from hotsteam.You've left out a dish?Well, it happens to everyone.Interrupt the wash cycle bypressing the ON-OFF button, insertthe dish you had forgotten andpress the ON-OFF button again.The cycle will start up from whereyou interrupted it.There's been a powerfailure? Have youopened the dishwasherdoor?The wash cycle stops and thenrestarts when the electricity comesback on or when you close the door.Everything is under control!You can modifythe wash cycle inprogress, if ithas only juststarted. Ready, steady, go! First of all.After performing all the operationsdescribed in the previousparagraphs, turn the water tap oncompletely and press ON-OFFbutton "A": you will hear a shortbeep and indicator light "B" lightsup. Now the appliance is on andready to be programmed.Selecting the washcycle.To select the wash cycle, turn knob"D" clockwise until the referencenotch on the knob corresponds withthe number or symbol for the cycleyou wish to set (have a look at thewash cycle table on page 17). Ashort beep will indicate the start ofthe wash cycle and indicator light"E" corresponding to the cyclestarting phase will light up.The dishwasher keepsyou informed.Your dishwasher is fitted withindicator lights (E) which light upto indicate the cycle phase under way. Here are the symbols correspond-ing to each cycle phase:pre-wash, wash, rinses, drying.At all times, your dishwasher tellsyou which cycle phase is under way. Modifying a wash cyclein progress.But if you have chosen the wrongcycle, not to worry! You can modifythe wash cycle in progress, if it hasonly just started. Turn the knobanti-clockwise until it reaches theReset position and, after a fewseconds, you will hear 4 beeps andindicator light "E" will turn off. Thisis to inform you that all the settingshave been cancelled. You are nowfree to re-set the correct washcycle.Finished?The end of the wash cycle isindicated by two short beeps andthe flashing of the drying phaseindicator light.Turn the knob anti-clockwise toReset in order to reset all thesettings.Turn the appliance off to cut offthe electricity supply.Turn off the water tap.Wait a few minutes before unload-ing the dishes: they are very hot! Ifyou wait a little while, they drybetter thanks to the steam.Empty the lower rack first.16 ARISTON DISHWASHER - Instructions for installation and use

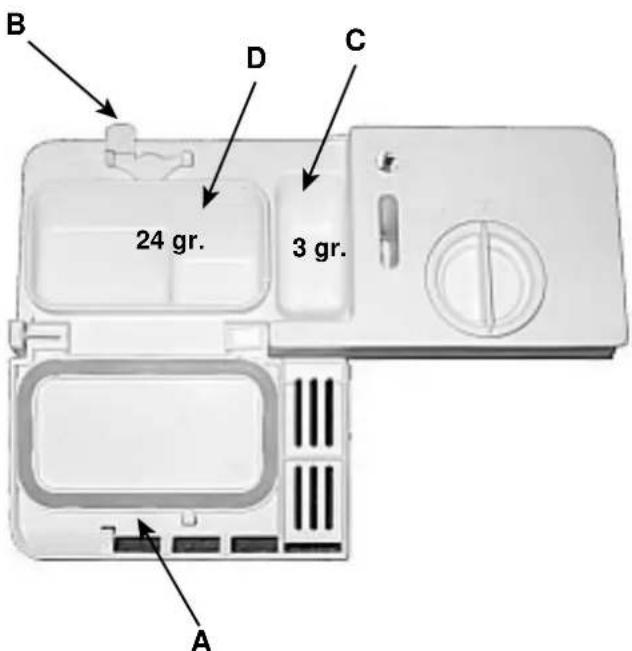

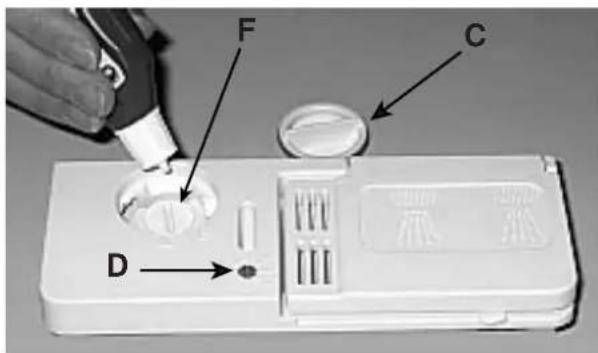

ISHWASHER Detergent and rinse aid The rinse aid.This product makes dishes sparklemore as it improves their drying.The rinse aid container is situatedon the inside of the appliance door;you should refill it when you seethe container is empty by meansof indicator D.(If your dishwasher is fitted with alow rinse aid indicator light, fillthe container up when the indicatorlight flashes or lights up).Loading the rinse aid.To open the dispenser, turn cap Canticlockwise. Take care when youpour in the rinse aid to avoid itoverflowing. You can adapt theamount of rinse aid used by thedishwasher: regulate the adjusterF which you will find under lid C.The detergentLoading the detergentTo open lid A, press button B. Thedetergent should be poured intothe two containers C and D up tothe rim.Now you can close the lid: press itdown until you hear it click.If you prefer to use the detergentin tablets, place one of these incontainer "D". Now you can closethe lid: press it down until youhear it click.It won't close!Check whether there is anydetergent residue on the edgesof the dispenser. It is due to thisresidue that the lid won't close.Get rid of it and you'll see that itcloses.Only use specific dishwasher detergents. Pour the detergent into thedispenser on the inside of the door. Before the wash cycle starts! Useful tips Proper dosage ofthe rinse aidimproves drying.If drops of waterremain on thedishes or spottingoccurs, turn thedosage adjuster toa higher setting.If, on the otherhand, the disheshave whitestreaks, then turnthe dosageadjuster down toa lower setting.You can choose from six different positions. It isnormally set to 4. Use the rightamount ofdetergent: ifyou use toomuch, you willnot get cleanerdishes, but just more environmentalpollution. Keep yourdishwasherdetergent andrinse aid in acool, dry placeand away fromchildren.

WarningThree-in-one dishwasher tablets are now available on the market, and combine the detergent, salt and rinseaid all in one. If the water in your area is hard or very hard, we still recommend you pour extra salt into therelevant dispenser to prevent the formation of white streaks on your dishes or on the appliance interior.Add rinse aid to the corresponding container only if you are dissatisfied with the results on your dishes.In any case, please read the manufacturer's instructions provided on the packet.ARISTON DISHWASHER - Instructions for installation and use 17

ISHWASHER A wash cycle for every degree of soil Select the right wash cycle Salt, rinse aid, the right amount of detergent and thecorrect wash cycle: this is the formula to get the bestresults and to keep your dishwasher in shape&\FOH&\FOH V H OH FWLRQLQVWUXFWLRQV&\FOHGHVFULSWLRQ'HWHUJHQWIRUSUH ZDV KZDV K5LQVH $LG :DVKF\FOHGXUDWLRQWROH UDQFH6XSHU:DVKVery dirty dishes and pans(not to be used fordelicate items)Pre-wash with hot water at 40°CExtended wash at 65°C.2 Rinses with cold waterRinse with hot water at 65°C.Drying.J

'DLO\:DVKCycle for normally dirtypans and dishes. Standarddaily cycle.Extended wash at 60°C.Cold rinseRinse with hot water at 70°C.Drying.

Environmentally-friendlycycle, with low energyconsumption levels,suitab le for norma lly d irtypans and dishes.2 Cold pre-washesExtended wash at 50°CHot rinse at 65°CDryingJ

5DSLG'U\Economic and fast cycle tobe used for slightly dirtydishes. Run cycleimmediately after use.Short wash at 47°CHot rinse at 65°CDrying

6RDNLQJP reliminary wash cycle fordishes while awaitingcompletion of the loadwith the dishes from thenext meal.Short cold wash to prevent foodfrom drying onto the dishes &U\VWDOSpecial cycle to be usedfo r more d elicate itemswhich are sensitive to hightemperatures. Run cycleimmediately after use.Wash at 52°CRinse at 45°CHot rinse at 65°CDrying

6SHFLDO*XHVWRinse and drying cycle fordishes that are seldomused and are only dusty.Hot rinse at 65°CDrying

Select the right wash cycle for your dishes. Selecting the most suitable wash cycle for the load ensures clean dishes and a more convenient use of water and electricity.18 ARISTON DISHWASHER - Instructions for installation and use

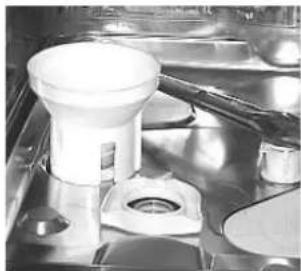

ISHWASHER Never without salt Loading the salt.Always use salt which is intendedfor dishwasher use.The salt container is situatedunderneath the lower rack, fill itup as follows:1.Pull out the lower rackcompletely, unscrew andremove the container cap2. Is it the first time you load thesalt? First fill the container upwith water (you won't have todo this again next time)3. Put the dishwasher funnel onthe hole and pour inapproximately two kilos of salt.It is normal that some watercomes out of the container.4. Screw the cap back in placecarefully. Water in your home When should I load thesalt?The salt container should be filledup when the low salt indicator light"S" flashes. Your appliance will re-mind you to do so for 5 consecu-tive wash cycles.Salt adjustmentYour dishwasher can adjust its saltconsumption according to the hard-ness of the water in your home.This way, you can optimise andcustomise your dishwasher's saltconsumption (not too much, nor toolittle).To adjust salt consumption, doas follows:1. Unscrew the salt container cap2. There is an arrow on the neckof the container (see figure): ifnecessary, turn the arrow anti-clockwise from the "-" settingto the "+" setting.Select the arrow positiondepending on the waterhardness, referring to the tableprovided.Water hardness varies according to where you live. If the water in your home ishard, without water softening, incrustations would form on your dishes. Yourdishwasher is fitted with a water softener which uses special salt to get rid oflimescale in the water.Using your electric household applianceswisely helps you make savings and isgood for the environment. Savings are easy Maximum load.To optimise consumption levels, try to use thedishwasher with a full load only. If it takesquite some time to fill up your dishwasher,use the soak cycle to avoid the formation ofbad odours and caked-on food.The right wash cycle.Select the most suitable wash cycle for thetype of load you have placed in thedishwasher. The choice of wash cycle dependson the type of dishes to wash and on howdirty they are. To select the right wash cycle,please consult the wash cycle table on page

How to look after and protect the dishes you hold dear ■ For particularly delicate dishes,we recommend you use thespecific wash cycle offered byyour dishwasher. Suggestions and advice for you. Apart frommaking you savetime and energy,your dishwasherdisinfects yourdishes, washingthem at a hightemperature.■ Silver plates and serving dishesshould be washed immediatelyafter use, especially if they havecontained salt, eggs, olives,mustard, vinegar, fruit juicesand cooked vegetables.■ Almost all silverware can becleaned in a dishwasher.There are two exceptions: oldsilverware and silverwaredecorated with an oxidisingagent. Hot water can loosenthe handles on old silverwaread wear off the decorations onthe other.Never let silverware come intocontact with other metals: youwill thus avoid stains andblackeningTo prevent rustfrom forming, loadthe salt just beforebeginning a washcycle. Water Hardness Clarke degrees °fH mmol/l Selector position Salt consu- mption (grams/- cycle) Autono-

>71 > 89 > 8,9 "+" 60 25 You don't knowhow hard thewater in yourhome is? Ask thecompany thatsupplies water inyour area.ARISTON DISHWASHER - Instructions for installation and use 19

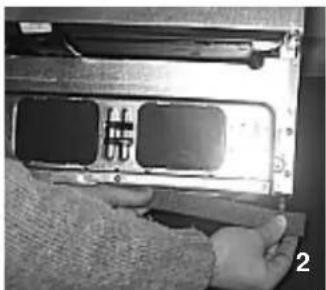

ISHWASHER If the power socket towhich the appliance isconnected is notcompatible with theplug, replace it with asuitable plug ratherthan using adapters ormultiple plugs as thesecould causeoverheating or burns. Installation and moving After having bought or moved your dishwasher to another home, a correct installation ensures that your dishwasher will operate smoothly and efficiently. Your dishwasher has arrived Hot water connection.Your dishwasher can be suppliedwith hot water from the mainssupply (if you have a centralheating system with radiators) ata temperature of no more than60°C.In this case, the wash cycle timewill be about 15 minutes shorterand the wash will be slightly lesseffective.The connection must be made tohot water supply following thesame procedures as those indicatedfor the cold water connection.Anti-flooding protectionYour dishwasher (model LV 460A)is provided with a special systemwhich blocks the water supply inthe event of leaks inside the appli-ance. It is further equipped with awater inlet hose (WATER STOP)that can withstand extremely highpressures and that turns bright redin the event of breakage. Safety inthe event of flooding is ensured bythe second clear hose that containsthe former and thus highlights thelatter when it has turned bright red.It is vital that you check it on aregular basis: if you see it has turnedbright red, then you know you haveto replace it as soon as possible.Call for an authorised technicalengineer to come and replace it.Drain hose connection.Fit the drain pipe into a drain linewith a minimum diameter of 4 cmor place it over the sink. Avoidrestricting or bending it. Use thespecial plastic elbow provided (seefigure) to position it in the bestpossible way. The part of the pipemarked with the letter A should bebetween 40 and 100 cm above theground.The pipe should not be immersedin water.Choose where you want to installyour dishwasher, you can evenplace it so that its sides or backpanel are side by side with furnitureor up against the wall. Thedishwasher is provided with watersupply and drain hoses, which canbe directed towards the left or rightto facilitate appropriateinstallation.Levelling.Once the appliance is positioned,adjust the feet by screwing themin or out depending on how highyou want it and to level it so that itis horizontal. Make sure that it isnot inclined more than 2 degrees.If the appliance is level, it will help ensure its correct operation.Adjusting the Back FeetInsert the appliance into the cutoutand then adjust the height usingthe screws located on the frontbottom part of the machine. Use ascrewdriver to turn the screws inthe clockwise or anti-clockwisedirection to increase or decreasethe height respectively.Cold water connection.Connect the cold water supplyhose to a threaded 3/4 (gas)connector, inserting the small filtersupplied with the dishwasher andmaking sure that it is fastenedtightly in place (see figure 2). The LV460 A model, have a "Water Stop" water supply pipe, with filterin the threaded inletIf the water pipes are new or havenot been used for an extendedperiod of time, let the water run tomake sure that the water is clearand free of impurities. If thisprecaution is not taken, there is arisk that the water inlet can getblocked and damage the appliance.Antinoise protection(where present)- On top of the dishwasher you willfind two self-adhesive sponges.- Glue the small sponge onto thetop cross-rod as shown inphotograph 1.- Tilt the appliance and glue thelarge sponge as shown inphotograph 2.Both sponges must be appliedensuring that they stick properlyto the plate.

Electrical connection.First of all, check that the mainsvoltage and frequency valuescorrespond to those stated on therating plate located on the stainlesssteel inner door of the applianceand that the electrical system towhich the dishwasher is connectedis sized for the maximum currentindicated on said rating plate.Earth: indispensablesafety.Only now can you plug theappliance into a socket providedwith an efficient earth connection(the system's earthing is aguarantee of safety provided forby law, make sure your system has it). The plugThe dishwasher plug must beaccessible even when the applianceis installed as a built-in unit so thatmaintenance can be done safely.Power supply wire.Check the power supply wire on aregular basis; if it is damaged, werecommend you have it replacedby an authorised technicalAssistance service centre. Condensation-proof tape.On some models, a transparentcondensation-proof adhesive tapehas been provided.It should be stuck onto the lowerside of your wooden worktop toprotect it from the formation ofcondensation.When not provided, this tape canbe requested as a spare part fromauthorised retailers.The special plasticelbow should befastened firmly ontothe wall to prevent thedrain hose frommoving and allowingwater to spill outsidethe drain. Fig.220 ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER Safety within your home Your dishwasher was built in accordance with the strictest international safety regulations. They protectyou and your family. Read the instructions and information contained in this manual: they will provideyou with useful hints as to installation, use and maintenance safety. To avoid nasty surprises.1. Dispose of the packagingmaterial carefully (follow theinstructions on how to divideyour rubbish up provided byyour local Council)2. After removing thepackaging, check to makesure your appliance is intact.If in doubt, contact a qualifiedprofessional.3. Your dishwasher must only beused by adults and for washinghousehold dishes, according tothe instructions included inthis manual. Do not touch theappliance with wet hands orfeet or barefoot.4. We discourage the use ofextension leads and multipleplugs. If the electricity supplywire is not long enough, thenhave it replaced with one ofthe correct length andremember that it should befree of bends or dangerouskinks.5. If the appliance is not operatingproperly or if maintenanceoperations are necessary,disconnect the dishwasherfrom the mains power supply(unplug it!).6. Keep children away from thedishwasher when it is open andkeep detergents out of theirreach.7. Your dishwasher is not to beinstalled outdoors, not even ifthe area is covered by a roof:it is extremely dangerous toleave it exposed to rain andthunderstorms.8. Do not touch the heatingelement during or straightafter a wash cycle.9. Do not lean or sit on the doorwhen it is open, as this couldoverturn the dishwasher.10. If the appliance malfunctions,turn off the water inlet tap anddisconnect the plug from thewall socket. Then tryconsulting the section entitled"I you have a problem, readthis page". If you cannotresolve the problem, then callthe service centre. If you have a problem, read this Your dishwasher may not work or not function properly. In many cases, these are problems which can besolved without having to call for a technician. Before calling the service centre, always check the pointsbelow.The dishwasher won'tstart■ Is the water supply tap turned on? ■ Is the water supply tapconnected to the hose properly?■ Has the water in your homebeen cut off?■ Is the pressure of the watersupply sufficient?■ Is the hose bent?■ Is the filter on the water supplyhose blocked?■ Is the dishwasher door open?The dishes are notclean.■ Have you put the right amountof detergent into thedispenser?■ Is the wash cycle suitable forthe dishes you have placedinside the appliance?■ Are the filter and microfilterclean?■ Can the sprayer arms turnfreely?The dishwasher won'tdrain.■ Is the drain hose bent?Limescale deposits or awhite film form on thedishes.■ Is the lid on the salt containerclosed properly?■ Is the rinse aid dosage correct?Error messagesYour dishwasher is equipped witha safety system which is able todetect any operating anomalies.These anomalies are reported byone or two cycle indicator lights"E" flashing rapidly. Take a note ofwhich lights are flashing, turn theappliance off and call for technicalassistance.Tap off alarmIf you have forgotten to turn thewater tap on, your appliance willremind you of this by sounding afew short beeps for a few minutes.Turn the tap on and your appliancewill start up again after a fewminutes. Were you to be absentwhen these beeps are sounded, theappliance will be blockedautomatically and indicator lights2 and 3 (wash and rinses) will flashrapidly. Turn the appliance off atthe ON-OFF button, turn on thewater tap and wait approximately20 seconds before turning theappliance back on. Re-select awash cycle as indicated in the"Selecting the wash cycle"paragraph and the appliance willstart.Clogged filter alarmIf the appliance is blocked andindicator lights 1 (pre-wash) and 3(rinses) flash rapidly, this meansthe filter is clogged by largeparticles of food residue. Turn theappliance off, clean the filterthoroughly and reposition it in itsseat as illustrated on page 21. Thenturn it back on. The selected washcycle will start up again.Water load solenoidvalve malfunctionalarm.If indicator light 2 (wash) flashesrapidly, TURN the dishwasher OFF Troubleshooting 11. Once taken out of use,appliances must be madeinoperable: cut the powersupply wire and damage thedoor lock.I only want an authorisedspecialised technician withoriginal Ariston guaranteedspare partsAND BACK ON AGAIN after oneminute. If the alarm persists, firstturn off the water tap to avoid anyflooding and then cut off theelectricity supply and call fortechnical assistance.You have checkedeverything, but thedishwasher still doesn'twork and the problempersists?Call an authorised service centrenear you and remember tomention: the type of malfunction the model mark (Mod.) andthe serial number (S/N.)indicated on the rating platelocated on the inner door, to oneside.Never call upon theservices ofunauthorisedtechnicians andalways refuse spareparts that are notoriginals.ARISTON DISHWASHER - Instructions for installation and use 21

ISHWASHER Cleaning and special maintenance Cleaning the sprayerarms.Food residue may becomeencrusted onto the sprayer armsand block the holes where watercomes out. Check the sprayer armsregularly and clean them once in awhile.Once in a while,once a month,spend a little timeon the filterassembly and thesprayer arms. Keep your dishwasher in shape Respecting these few rules ensures you will alwayshave a reliable work companion by your side.After every wash.When the wash cycle has ended,always remember to turn off thewater supply tap and to leave theappliance door ajar. This way,moisture and bad odours will notbe trapped inside.Unplug the appliance.Before carrying out any cleaningor maintenance on the dishwasher,always remove the plug from theelectricity socket. Do not run risks.No solvents! No abrasives!To clean the exterior and rubberparts of your appliance, do not usesolvents or abrasive cleaningproducts. Use a cloth dampenedwith lukewarm soapy water only.If there are any stains on thesurface of the appliance interior,use a cloth dampened with waterand a little white vinegar, or acleaning product specifically madefor dishwashers.Going on holiday?When you go away for an extendedperiod of time, we recommend youdo the following: run a cycle with the dishwasherempty turn off the water inlet tap. leave the appliance door ajarThis will help the seals last longerand prevent unpleasant odoursfrom forming inside the appliance.Moving the appliance.Should the appliance have to bemoved, try to keep it in a verticalposition. If absolutely necessary, itcan be positioned on its back.The seals.One of the factors that causeunpleasant odours to form insidethe dishwasher is food that remainstrapped in the seals. Periodiccleaning using a damp sponge willprevent this from occurring.Your dishwasher is not a wastedisintegrator!Do not worry about removing everysingle bit of food residue from yourdishes, but do get rid of bones, peel andrind and any other left-overs beforeplacing them in the racks. Empty outall glasses and cups. Care and maintenance

The filter assemblyIf you want consistent good resultsfrom your dishwasher, you need toclean the filter assembly.The food particles are removedfrom the wash water, allowing it tobe recirculated during the cycle,filtered perfectly. For this reason,it is a good idea to remove the largerfood particles trapped inside thecup C and the semi-circular filterA after each wash; pull the cuphandle upwards to remove them.Just rinse them under runningwater.The entire filter assembly shouldbe cleaned thoroughly once amonth: cup C + semi-circular filterA + cylindrical filter B. Rotate filterB anticlockwise to remove it.For cleaning, use a non metallicbrush.Reassemble the filter parts (asshown in the figure) and reinsertthe whole assembly into thedishwasher. Position it into itshousing and press downwards.The dishwasher is not to be usedwithout filters. Improperreplacement of the filters may re-duce the efficiency of the wash andeven damage your dishwasher.Cleaning the Water InletFilterPeriodically clean the water inletfilter (see figure 2 under"Installation") located on the outletof the water supply tap. Afterturning off the water tap, unscrewthe end of the water supply hose,remove the filter and clean itcarefully under running water.Then, return the filter to its placeand tighten the water supply hoseback into position.22 ARISTON DISHWASHER - Instructions for installation and use

ISHWASHER We're as close to you as your telephone For direct access to Genuine Ariston Spare Parts and Accessories, call 0870 558 5850 and speak to our skilled staff who can help you to identify and purchase the item you require. For a Rapid Response to a problem with your appliance, call 0870 607 0805. We're open from Monday to Saturday (8am - 5.30pm weekdays, 9am - 5pm Saturday). We have our own department of highly trained Aristonservice staff. For most calls, our Service Engineer can fix the problem on the first visit.Please have the following details to hand when you ring us: The nature of the problem, the Model Number and the Serial Number. These numbers can be found on the appliance and on the portion of the Registration Card which you retain. Stay in touch THANK YOU for choosing an Ariston appliance. We are confident you have made a good choice and that your new appliance will give many years of excellent service.And we're there when you need us. Register your purchase now This will confirm your entitlement to free spare parts for five years, and you could also be lucky enough to recover the cost of your purchasein our quarterly prize draw.Simply complete and return the Registration Form supplied with the appliance documents, using the FREEPOST envelope supplied. Or call the Registration Hotline on 0870 010 4305. Enjoy complete peace of mind. By registering now, you automatically qualify for a full year's guarantee on parts and labour PLUS free functional parts cover for a further 4 years, provided they are genuine Ariston spare parts fitted by an Ariston Service Engineer.LAVE-VAISSELLE ARISTON - Mode d'installation et d'emploi 23
