MW 7 - Microwave Oven TEAM - Free user manual and instructions

Brand	TEAM
Model	MW 7
Product type	Microwave oven with grill
Weight	Approximately 15 kg
Timer	0-30 minutes
Microwave power	Variable power (5 levels: 18%, 36%, 58%, 81%, 100%)
Grill	Grill only (100%) or combined microwave/grill (30%/70%, 49%/51%, 67%/33%)
Turntable	Yes, glass
Sliding ring	Yes (removable for cleaning)
Power supply	230 V, 250 V 8 A fuse (internal protection)
Grounding	Required
Safety	Door lock, automatic stop when open, no-load protection
Cleaning	Soft damp cloth, mild detergent, avoid abrasives and aerosols
Accessible spare parts	Glass tray, sliding ring, light bulb (replacement by supplier)
Installation	Free space: 8 cm on the sides, 10 cm at the back
User manual	User manual included (28 pages)

Frequently Asked Questions - MW 7 TEAM

How to set the cooking time?

Turn the timer (0-30 min) to the desired time. For a time less than 2 minutes, first turn past 2 minutes then back to the correct time. The oven starts as soon as the timer is activated.

What to do if the oven does not turn on or does not work?

First check that the plug is connected and the door is properly closed (safety switches must be active). Also check the fuses. If the problem persists, contact after-sales service.

Can I use metal containers in this microwave?

No, do not use metal containers, metal ornaments, or metal ties. Only use microwave-safe utensils (glass, ceramic, specific plastic).

How to clean the interior of the oven?

Unplug the appliance. Wipe splatters with a soft damp cloth. Use a mild detergent if necessary - never abrasive or strong detergents. Clean the glass tray and sliding ring regularly (soapy water or dishwasher).

Can I cook eggs in this microwave?

Eggs in their shell should not be heated in the microwave as they may burst. For poached eggs, cook them in a covered container and wait one minute before removing the lid.

What are the defrost programs?

Use the power level 36% (indicated 'Defrost' in the table) to defrost food. You can also use power 58% to defrost more quickly while partially cooking.

How to use the grill?

Turn the function selector to the position corresponding to 'Grill' (100% grill) or a microwave/grill combination. The grill is ideal for grilling meat, fish, or gratinating.

What to do if food catches fire inside?

Keep the door closed, immediately unplug the appliance or cut the power at the circuit breaker. Do not open the door to avoid supplying oxygen.

Can the oven run empty?

No, never operate the oven empty as it may damage it. Always ensure there is food or a container of water inside when the timer is activated.

How to remove persistent bad odors?

Place a cup of water with lemon juice and peel in a microwave-safe bowl, heat for 5 minutes at full power, then wipe the interior with a soft cloth.

USER MANUAL MW 7 TEAM

team International

Mikrowelle

Micro-Wave Oven

Four à Micro-Ondes

Magnetronoven

Forno a Microonde

CE

I/B Version

010717

TEAM MW 7 G

230 V \~ 800 W

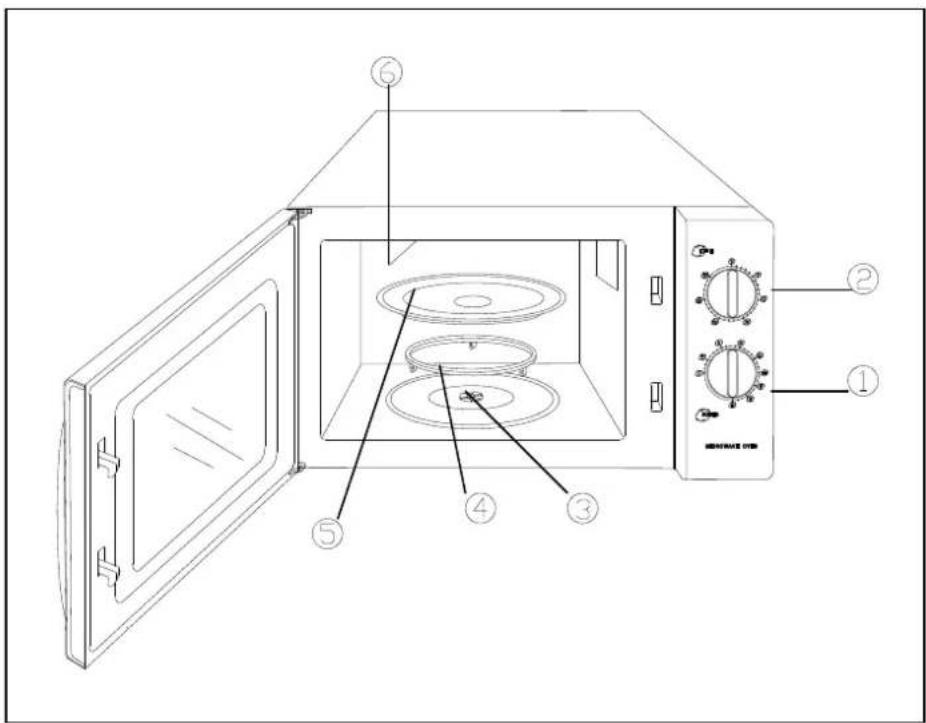

Technical diagram of a microwave oven with numbered components for identification

D

1. Power level
2. Timer
3. Turntable motor shaft
4. Roller rest
5. Glass turntable
6. Grill

F

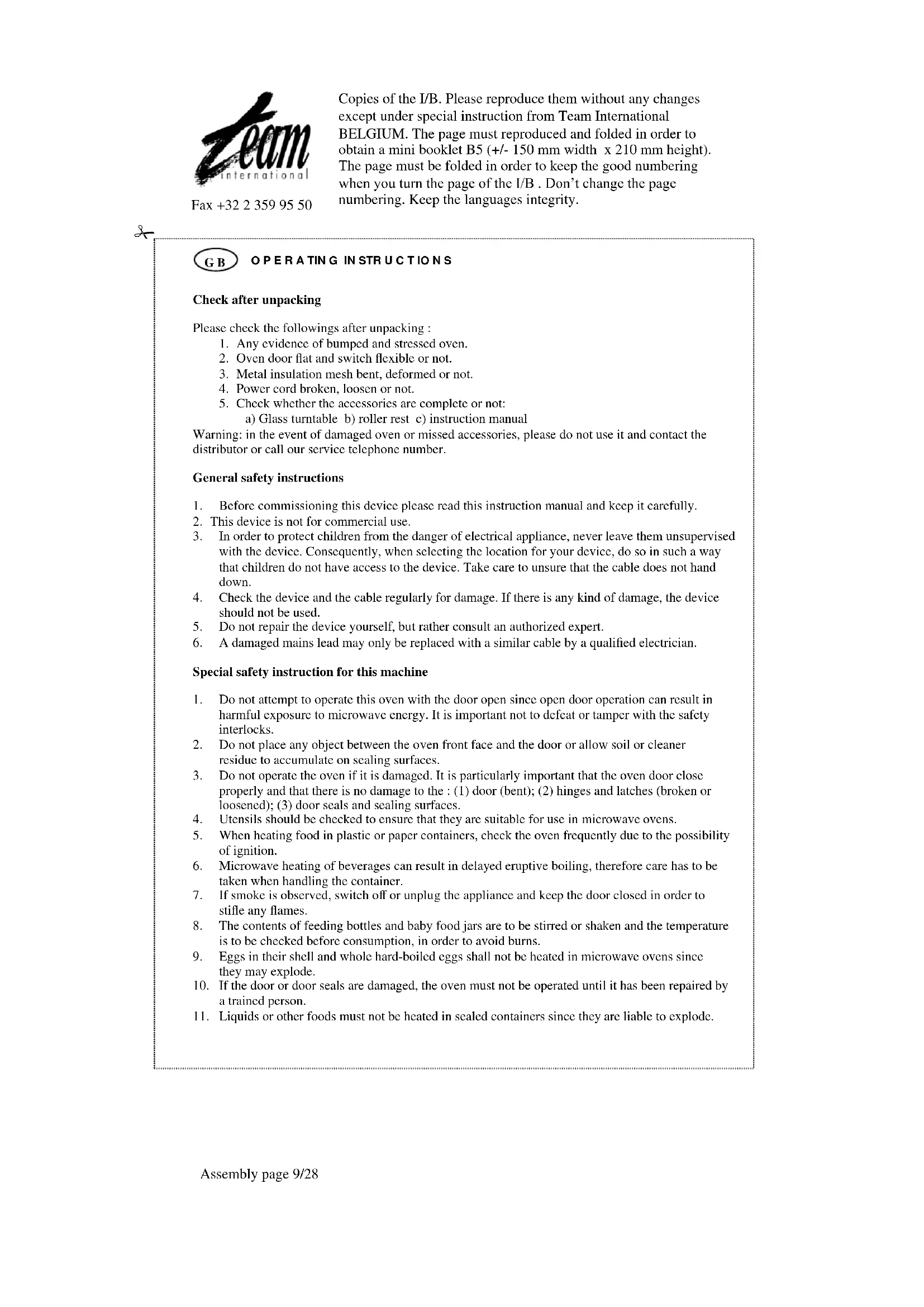

Check after unpacking

Please check the followings after unpacking :

1. Any evidence of bumped and stressed oven.
2. Oven door flat and switch flexible or not.
3. Metal insulation mesh bent, deformed or not.
4. Power cord broken, loosen or not.
5. Check whether the accessories are complete or not: a) Glass turntable b) roller rest c) instruction manual

Warning: in the event of damaged oven or missed accessories, please do not use it and contact the distributor or call our service telephone number.

General safety instructions

1. Before commissioning this device please read this instruction manual and keep it carefully.
2. This device is not for commercial use.
3. In order to protect children from the danger of electrical appliance, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to unsure that the cable does not hand down.
4. Check the device and the cable regularly for damage. If there is any kind of damage, the device should not be used.
5. Do not repair the device yourself, but rather consult an authorized expert.
6. A damaged mains lead may only be replaced with a similar cable by a qualified electrician.

Special safety instruction for this machine

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the : (1) door (bent); (2) hinges and latches (broken or loosened); (3) door seals and sealing surfaces.
4. Utensils should be checked to ensure that they are suitable for use in microwave ovens.
5. When heating food in plastic or paper containers, check the oven frequently due to the possibility of ignition.
6. Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
7. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
8. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
9. Eggs in their shell and whole hard-boiled eggs shall not be heated in microwave ovens since they may explode.
10. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a trained person.
11. Liquids or other foods must not be heated in sealed containers since they are liable to explode.

Using the oven

I. Place food into oven.
II. Rotate "Function/Power Selection Knob" to select function or power.
III. Rotate "Time Selection Knob" to set correct cooking time.

Note: 1. As time is set, microwave oven begins to work.

1. If the preset time/weight is less than 5 minutes, set it above 5 minutes. Then set it back to the preset time.

FUNCTION		MICROWAVE	GRILL	APPLICATION
	[5AGH]	18%	-	Keep temp., soften ice cream
		36%	-	Cook tough meat, soup and stew, soften butter
		36%	-	Defrost
		58%	-	Cook milk cake, stew food, defrost
		81%	-	Cook rice, fish and cookie, meat
		100%	-	Reheat, boil water, cook vegetables, chicken, heat drinks (exclude milk)
		-	100%	Stip-roasting, smoked fish fillets, potato chips
		30%	70%	Steak, pork chop, meat, poultry
	[DT25]	49%	51%	Meat, pork chop
	[2HT3]	67%	33%	Chickens, ducks, meat, make food crispy and tasty

Remark

1) When the oven is out of use, or the food is taken out ahead of time, please set time/weight knob back to "0".
2) When the cooking is to be stopped after cooking steps are set, just open the door and door safety system will stop generating microwave. If don't use the left time, please reset time/weight knob to "0" before closing the door.
3) This oven works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore no browning. For this reason this appliance is not suitable for drying objects.
4) Only food should be heated with this oven.

Be sure to disconnect the oven from the power supply

1. Clean the inside of the oven after use with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water
3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

NORMAL
Microwave oven Interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in	It does no damage to oven if oven operates empty for quite short time. But it should be avoided.

TROUBLE	POSSIBLE CAUSE	REMEDY
Oven can not be started	1) Power cord not plugged in tightly2) Fuse blowing or circuit breaker works3) Trouble with outlet	Unplug. Then plug again after 10 seconds.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)Test outlet with other electrical appliances
Oven does not heat	4) Door not closed well	Close door well
Glass turntable makes noise when microwave oven operates	5) Dirty roller rest and oven bottom	Refer to “Maintenance of Microwave” to clean dirty parts.

This appliance conforms with CE directives for radio interference suppression and low-voltage safety and has been built to meet current safety requirements. Subject to technical changes without prior notice.
