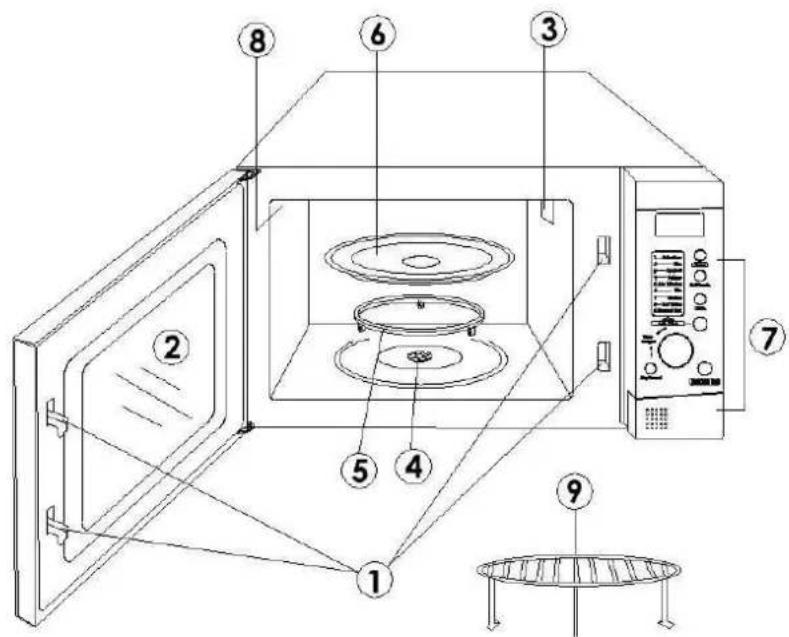

MW 24 G - Microwave Oven TEAM - Free user manual and instructions

USER MANUAL MW 24 G TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Front cover page (first page)

Microwave oven Four à micro-ondes Microondas I/B Version 060314Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

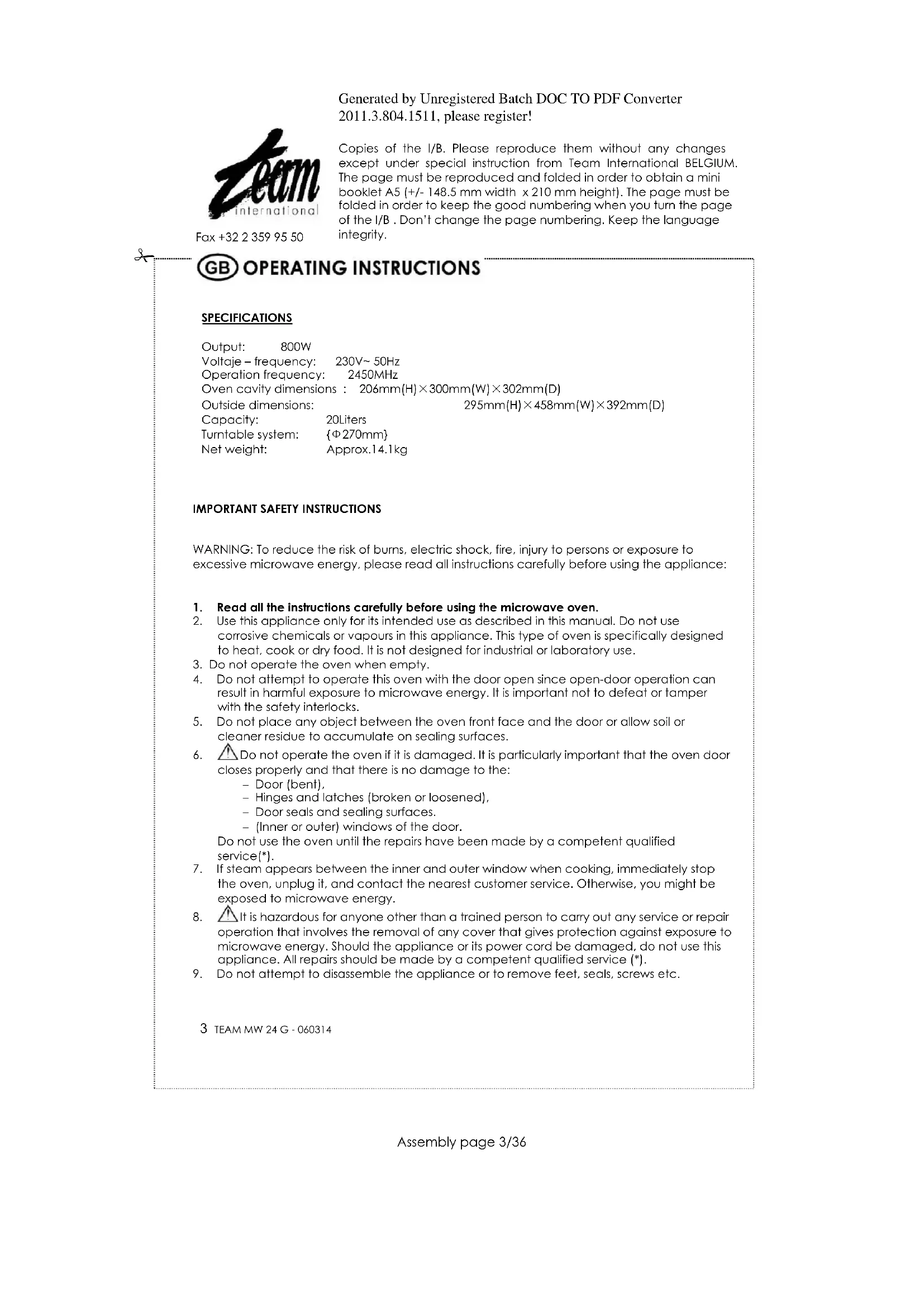

1. Door safety lock system

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to

excessive microwave energy, please read all instructions carefully before using the appliance:

1. Read all the instructions carefully before using the microwave oven.

2. Use this appliance only for its intended use as described in this manual. Do not use

corrosive chemicals or vapours in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3. Do not operate the oven when empty.

4. Do not attempt to operate this oven with the door open since open-door operation can

result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.

5. Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

6. Do not operate the oven if it is damaged. It is particularly important that the oven door

closes properly and that there is no damage to the: Door (bent), Hinges and latches (broken or loosened), Door seals and sealing surfaces. (Inner or outer) windows of the door. Do not use the oven until the repairs have been made by a competent qualified service(*).

7. If steam appears between the inner and outer window when cooking, immediately stop

the oven, unplug it, and contact the nearest customer service. Otherwise, you might be exposed to microwave energy.

8. It is hazardous for anyone other than a trained person to carry out any service or repair

operation that involves the removal of any cover that gives protection against exposure to microwave energy. Should the appliance or its power cord be damaged, do not use this appliance. All repairs should be made by a competent qualified service (*).

9. Do not attempt to disassemble the appliance or to remove feet, seals, screws etc.

SPECIFICATIONS Output: 800W Voltaje – frequency: 230V~ 50Hz Operation frequency: 2450MHz Oven cavity dimensions : 206mm(H)×300mm(W)×302mm(D) Outside dimensions: 295mm(H)×458mm(W)×392mm(D) Capacity: 20Liters Turntable system: {Φ270mm} Net weight: Approx.14.1kgGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

10. As with any appliance, close supervision is necessary when used by children. Make

sure children have received all the instructions so that they can use the appliance in a safe way and that they are aware of the dangers that an improper use could represent.

11. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, check the oven frequency to avoid any risk of fire. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

12. IMPORTANT: UTENSILS THAT ARE NOT SUITABLE FOR MICROWAVE COOKING.

Always check if your utensils are microwave resistant before using them in the appliance. - Never use utensils with a metal handle. - Never use utensils with metal decorations. - Never use iron locking clips (not even covered with paper) - Never use melamine receptacles as these contain a substance that absorbs microwave energy. The receptacle might break or carbonise and the cooking process would be slower. - The use of traditional thermometers is prohibited, use microwave resistant thermometers. - In case of doubt, please contact the supplier of the utensil to know whether it is microwave resistant or not.

13. Do not prepare food in receptacles with too narrow an opening, as this might cause these

receptacles to explode.

14. Liquid or other food must not be heated in sealed containers (such as receptacles with

lid or feeding bottle with dummy) since they are liable to explode.

15. Eggs in their shell or whole hard-boiled eggs must not be heated in the microwave oven as

16. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has

to be taken when you handle the container.

17. CAUTION: Do not fry food in the oven. Hot oil can damage oven parts and utensils and

even result in skin burns. Do not warm up greasy foods in the microwave oven, as it might catch fire.

18. Pierce foods with heavy skins such as potatoes, whole squash, apples and chestnuts

before cooking. Otherwise they might explode.

19. The contents of feeding bottles and baby jars should be stirred or shaken and the

temperature should be checked before serving in order to avoid burns.

20. Cooking utensils may become hot because of heat transferred from the heated food.

Potholders may be needed to handle the utensil.

21. Before operating the oven, make sure the glass tray, the motor shaft and the roller ring are

in correct position inside the oven.

22. Make sure the openings of microwave resistant receptacles are neither obstructed nor

covered in order to avoid that they explode during operation.

23. Do not place the preparation directly on the glass tray, but put them in a microwave

resistant receptacle.

24. Food containing a mixture of water and grease should be left 30 to 60 seconds in the oven

when switched off to allow the mixture to come down to avoid bubbling, especially when a beef cube is added.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

1. Make sure that all the packing materials are removed from the inside of the door.

2. Check the oven for any damage, such as misaligned or bent door, damaged door seals

and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not operate the oven and contact a competent qualified service.

3. This microwave oven must be placed on a flat, stable surface to hold its weight (14.1kg) and

the heaviest food likely to be cooked in the oven.

4. Do not place the oven where heat, moisture or high humidity are generated, or near

combustible materials.

5. Do not cover or block any openings on the appliance. Do not remove the feet.

6. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the

oven, 10cm at back and 5cm at both sides.

7. The socket must be readily accessible so that it can be easily unplugged in case of

8. Do not use the oven outdoors.

WARNING: THIS APPLIANCE MUST BE GROUNDED. This oven is equipped with a cord of 1.4 meter,

the power socket should be within this distance. Avoid using extension cords or make sure they are compatible with the power of your appliance. We advise you to call for an electrician if you have any questions concerning the technical installation of your appliance. This appliance is protected by a safety fuse. Should this fuse be replaced, please contact a competent qualified electrician (*).

RADIO INTERFERENCE Operation of the microwave oven can cause interference to your radio, TV or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.

2. Reorient the receiving antenna of radio or television.

3. Move the microwave oven away from the receiver.

4. Plug the microwave oven into a different outlet so that microwave oven and receiver are

on different branch circuits.

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.

2. Watch cooking time. Cook for the shortest amount of time indicated and add more as

needed. Food severely overcooked can smoke or ignite.

3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.

4. Turn foods over once during microwaving to speed cooking of such foods as chicken

and hamburgers. Large items like roasts must be turned over at least once.

5. Rearrange foods such as meatballs halfway through cooking both from top to bottom

and from the centre of the dish to the outside.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

1. We advise you to use utensils that are specially conceived for microwave cooking as they

allow energy to pass through the container and heat the food.

2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not

3. Do not use recycled paper products when microwave cooking, as they may contain small

metal fragments which may cause sparks and/or fire.

4. Round/oval dishes rather than square/oblong ones are recommended, as food in corners

tends to overcook. The table below is a general guide to help you select the correct utensils. Cookware Microwave Cooking Grill Cooking Combination Cooking Heat–Resistant Glass Yes Yes Yes Non Heat–Resistant Glass

Heat–Resistant Ceramics Yes Yes Yes Microwave–Safe Plastic Dish Yes

Aluminium Foil & Foil Containers

Yes NoGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

CONTROL PANEL For each pad, please refer to the paragraph “OPERATION” to know their functions.

DISPLAY SCREEN Cooking time, power, action indicators and present time are displayed. POWER Press to select microwave power level. GRILL/COMB. Press to set a grill cooking programme or one of the two combination cooking settings. TIME/WEIGHT Turn the dial to set the oven clock time or input cooking time. Rotate the dial to specify weight. AUTO COOK Press a number of times for quick settings to cook popular foods. You need to specify weight. CLOCK Press to set the digital clock.

Press to start a cooking programme or set quick start cooking programme. STOP/CANCEL Press to cancel a setting or reset the oven before setting a cooking programme. Press once to temporarily stop cooking, or twice to cancel cooking altogether. It is also used for setting child lock.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

Each time a pad is touched, a beep will sound to acknowledge the touch.

With the oven ready for input, press the CLOCK button once or twice to set the digital clock in 12 or 24 hours cycle. For example: Suppose you want to set the oven clock time to 8:30.

5. Press CLOCK to confirm the setting.

To check clock time during cooking, press the CLOCK button once, the time will be displayed for 5 seconds. MICROWAVE COOKING To cook with microwave power alone, press the POWER button a number of times to select a cooking power level, and then use the TIME/WEIGHT dial to set a desired cooking time. The longest cooking time is 60 minutes. Select power level by pressing the POWER Press power button Cooking power once 100% twice 80% 3 times 60% 4 times 40% 5 times 20% 6 times

For example, suppose you want to cook for 1 minute at 60% of microwave power.

GRILL The longest cooking time is 60 minutes. The grill cooking is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages of piece of chicken. It is also suitable for hot sandwiches and au gratin dishes. For example, suppose you want to grill for 12 minutes.

1. Press GRILL/COMBI button once.

2. Turn the TIME/WEIGHT dial to 12:00.

3. Press START/QUICK START button.Generated by Unregistered Batch DOC TO PDF Converter

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

COMBINATION 1 The longest cooking time is 60 minutes. 30% time for microwave cooking, 70% for grill cooking. Use for fish, potatoes or au gratin. For example: Suppose you want to set combination 1 cooking for 25 minutes.

COMBINATION 2 The longest cooking time is 60 minutes. 55% time for microwave cooking, 45% for grill cooking. Use for puddings omelettes, baked potatoes and poultry. For example: Suppose you want to set combination 2 cooking for 12 minutes.

1. Press GRILL/COMBI. button three times.

AUTO COOK For food or the following cooking mode, it is not necessary to programme the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. In order to do this, press the AUTO COOK button a number of times to select a category of food/cooking mode. Then turn the TIME/WEIGHT dial to indicate weight of food to be cooked. The oven begins cooking once the START/QUICK START button is engaged. You may need to turn food over at the middle of cooking time to obtain uniform cooking. For example, to cook 400g of fish.

Auto Cook Menu Code Food/cooking mode Turn TIME/WEIGHT dial to indicate weight of food

700Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

The result of auto cooking depends on factors such as the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly. AUTO DEFROST The oven allows the defrosting of meat, poultry, and seafood. The time and the defrosting power are adjusted automatically once the weight of food is programmed. The range weight of frozen foods varies between 100gr and 2700gr. For example: Suppose you want to defrost 600g of shrimp.

1. Place the shrimp to be defrosted into the oven.

2. Turn the dial to choose a weight.600g.

3. Press START/QUICK START button.

QUICK START This feature allows you to start the oven quickly. Press the START/QUICK START button a number of times to set the cooking time, the oven starts work at full power level immediately.

For example, to set the oven to cook for 2 minutes using this feature:. Press START/QUICK START button 4 times, the oven starts working immediately at full microwave power. CHILD LOCK Use to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven cannot be operated while the CHILD LOCK is set. To set the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds, a beep sounds and LOCK indicator lights. To cancel the CHILD LOCK: Press and hold the STOP/CANCEL button for 3 seconds until lock indicator on display goes off. SPECIAL FEATURE AUTO REMINDER After a cooking or defrosting programme has completed, the oven will automatically continue to sound beeps every two minutes until the oven door is opened or the STOP/CANCEL button is pressed.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a mini booklet A5 (+/- 148.5 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the language integrity.

1. If the oven fails to operate, if the display doesn't come on or if it goes out:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

2. If the oven doesn't start:

a) Check to ensure that the control panel is programmed correctly and the timer is set. b) Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven. If none of the above rectifies the situation, then contact a competent qualified electrician. Do not try to adjust or repair the oven yourself.

1. Turn off the oven and remove the power plug from the wall socket before cleaning.

2. It is very important to clean the oven door, as it is responsible for the impenetrability of the

oven. Therefore, make sure it is always clean and make sure no object hinders the door from being properly closed.

3. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven

walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

4. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the

operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

5. Do not allow the control panel to become wet. Clean with a soft, damp cloth. When

cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.

6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.

This may occur when the microwave oven is operated under high humidity conditions, this is normal.

7. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm

sudsy water or in a dishwasher.

8. The roller ring and oven floor should be cleaned regularly to avoid excessive noise. Simply

wipe the bottom surface of the oven with mild detergent. The roller ring may be washed in mild sudsy water or dishwasher. When removing the roller ring from cavity floor for cleaning, be sure to replace in the proper position.

9. Remove odours from your oven by combining a cup of water with the juice and skin of one

lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.

10. When it becomes necessary to replace the oven light, please consult the customer service

to have it replaced.
