USER MANUAL TM2415 Tomado

• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person. Addendum If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation. IMpORTANT SAfETY INSTRUCTIONS To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Liquids and other foods must not be heated in sealed containers since they are liable to explode.

• It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

• Only use utensils suitable for use in microwave ovens.

• The oven should be cleaned regularly and any food deposits should be removed.

• Read and follow the specific:

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Do not overcook food.

• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.

• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

• Install or locate this oven only in accordance with the installation instructions provided.

• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Instruction manual TM-241535

• Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Do not store or use this appliance outdoors.

• Do not use this oven near water, in a wet basement or near a swimming pool.

• The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven.

• Do not let cord hang over edge of table or counter.

• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

• Accessible parts may become hot during use. Young children should be kept away.

• Steam cleaner is not to be used.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. CLEANING

• Be sure to unplug the appliance from the power supply.

• Clean the inside of the oven after using with a slightly damp cloth.

• Clean the accessories in the usual way in soapy water.

• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty. Instruction manual TM-241536 TO REDUCE THE RISK Of INJURY TO pERSONS GROUNDING INSTALLATION Danger Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance. WARNING Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

• This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded. If it is necessary to use an extension cord, use only a 3-wire extension cord.

• A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

• If a long cord set or extension cord is used: 1)The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2)The extension cord must be a groundingtype 3-wire cord. 3)The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally. UTENSILS See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below. CAUTION personal Injury Hazard It is hazardous for anyone other than a compentent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.

• Cook on maximum power for 1 minute.

• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.

• Do not exceed 1 minute cooking time. Instruction manual TM-241537

MATERIALS YOU CAN USE IN

MICROWAVE OVEN Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break. Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven cooking Follow manufacturer’s instructions. Do not close with metal tie. Make bags slits to allow steam to escape. Paper plates Use for short–term cooking/warming only. Do not leave oven unattended and cups while cooking. Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only. Parchment paper Use as a cover to prevent splattering or a wrap for steaming. Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food. Thermometers Microwave-safe only (meat and candy thermometers). Wax paper Use as a cover to prevent splattering and retain moisture. Instruction manual TM-24151

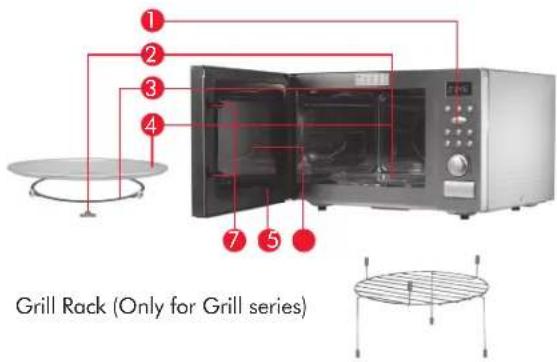

SETTING Up YOUR OVEN Names of Oven parts and Accessories

• Remove the oven and all materials from the carton and oven cavity.

• Your oven comes with the following accessories: Glass tray 1, Turntable ring assembly 1 Instruction Manual 1, Grill Rack

Grill Rack (Only for Grill series)

Utensils Remarks Aluminum tray May cause arcing. Transfer food into microwave-safe dish. Food carton with May cause arcing. Transfer food metal handle into microwave-safe dish. Metal or metal- Metal shields the food from trimmed utensils microwave energy. Metal trim may cause arcing. Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. Instruction manual TM-241539

INSTALLATION AND CONNECTION

• Select a level surface that provide enough open space for the intake and/or outlet vents.

• A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any adjacent walls. One side must be open.

• Leave a minimum clearance of 12 inches (30cm) above the oven.

• Do not remove the legs from the bottom of the oven.

• Blocking the intake and/or outlet openings can damage the oven.

• Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

• Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

• WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

• The accessible surface may be hot during operation. TURNTABLE INSTALLATION Hub (underside) Turntable ring assembly Glass tray Turntable shaft

• Never place the glass tray upside down. The glass tray should never be restricted.

• Both glass tray and turntable ring assembly must always be used during cooking.

• All food and containers of food are always placed on the glass tray for cooking.

• If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center. Instruction manual TM-241540

• Press “ START/+30SEC./CONFIRM “ to start cooking.

• Press the “GRILL “ key once, and “G-1” display.

• Turn “ “ to adjust the cooking time. (The time setting should be 0:05- 95:00.)

• Press “ START/+30SEC./CONFIRM “ to start cooking.

• Note: If half the grill time passes, the oven will sound twice to tell you to turn the food over. You can just leave it continue cooking. But in order to have a better effect of grilling food, you should turn the food over, close the door, and then press “START/+30SEC./ CONFIRM” to continue cooking.

4. Microwave+Grill Cooking

• Press the “ MICRO.+GRILL “ key once, and “G-2” display.

• Press “ MICRO.+GRILL” for times or turn “ “ to select “G-3”, “G-4”, “G-2” in order.

• Press “START/+30SEC./CONFIRM “ to confirm. OpERATION INSTRUCTION This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking. 1.Clock Setting When the microwave oven is electrified,the oven will display “0:00”, buzzer will ring once.

• Press “ CLOCK/PRE-SET “ to choose 12-hour or 24-hour.

• Turn “ “ to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour).

• Press “ CLOCK/PRE-SET “, the minute figures will flash.

• Turn “ “ to adjust the minute figures, the input time should be within 0--59.

• Press “ CLOCK/PRE-SET” to finish clock setting. “:” will flash.

• Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting,

if you press “ STOP/CLEAR “, the oven will go back to the previous status automatically.

2. Microwave Cooking

• Press the “MICROWAVE “ key once, and “P100” display.

• Press “ MICROWAVE” for times or turn “ “ to select the microwave power from 100% to 10%. “P100”, “P80”, “P50”, “P30”, “P10” will display in order.

• Press “START/+30SEC./CONFIRM “ to confirm.

• Turn “ “ to adjust the cooking time. (The time setting should be 0:05- 95:00.) Instruction manual TM-241541

• Press the “CONVECTION “ key once, “150” flash.

• Keep pressing “CONVECTION” or turn “ “ to select the convection function. Note:the temperature can be chosen from 150 degrees to 240 degrees.

• Press the “ START/+30SEC./CONFIRM “ to confirm the temperature.

• Press the “ START/+30SEC./CONFIRM “ to start preheating.When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash.

• Put the food into the oven and close the door. Turn “ “ to adjust the cooking time. (The maximum setting time is 95 minutes.)

• Press the “ START/+30SEC./CONFIRM “ key to start cooking.

• Note: a. Cooking time cannot be input until the preheating temperature arrives. If the temperature arrives, door must be opened to input the cooking time. b. If the time not input in 5 minutes, the oven will stop preheating. The buzzer sound five times and turn back to waiting states.

7. Convection Cooking

(Without pre-heating function)

• Press the “CONVECTION “ key once, “150” flash.

• Keep pressing “CONVECTION” or turn “ “ to select the convection function.

• Note: the temperature can be chosen from 150 degrees to 240 degrees.

• Turn “ “ to adjust the cooking time. (The time setting should be 0:05- 95:00.)

• Press “ START/+30SEC./CONFIRM “ to start cooking.

5. Microwave+Convection Cooking

• Press the “ MICRO.+CONV. “ key once, and “C-1” display.

• Press “ MICRO.+CONV. “ for times or turn “ “ to select “C-1”,”C-2”,”C-3” or “C-4”.

• Press “START/+30SEC./CONFIRM “ to confirm.

• Turn “ “ to adjust the cooking time. (The time setting should be 0:05- 95:00.)

• Press “ START/+30SEC./CONFIRM “ to start cooking.

• Note: Combination instructions Display Microwave Power Grill Power Convection Power (900W) (1000W) (2500W) G-2 28% 72% G-3 38% 62% G-4 48% 52% C-1 28% 72% C-2 38% 62% C-3 48% 52% C-4 28% 72% 72%

6. Convection Cooking(With preheating funtion)

The convection cooking can let you to cook the food as a traditional oven. Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven. Instruction manual TM-241542 Example: if you want to cook with 80% microwave power for 7 minutes. a. Press”MICROWAVE” once; b. Press “ MICROWAVE” for times or turn “ “ to choose 80% microwave power till “P80” display; c. Press “START/+30SEC./CONFIRM” to confirm; d. Turn “ “ to adjust the cooking time of 7 minutes; After the above steps, please do not press “ START/+30SEC./CONFIRM “. Then do as following:

• Press “ CLOCK/PRE-SET “, current time displays and the hour figures flash.

• Turn “ “ to adjust the hour figures, the input time should be within 0--23(24-hour) or 1--12(12-hour).

• Press “ CLOCK/PRE-SET “, the minute figures will flash.

• Turn “ “ to adjust the minute figures, the input time should be within 0--59.

• Press “ START/+30SEC./CONFIRM “ to finish setting. “:” will light, buzzer will ring twice when the time arrives, then cooking will start automatically.

• Note: Clock must be set first. Otherwise, pre-set function will not work.

• In waiting state, press “AUTO MENU” key once, and “A1” display.

• Press “ AUTO MENU” for times or turn “ “ to choose “A2”,”A3”....”A10”,”A1”.

• Press “START/ +30 SEC./CONFIRM” to confirm the menu you need.

• Turn “ “ to choose the weight of menu,and “g” indicator will light.

• Press “START/ +30 SEC./CONFIRM” to start cooking.

• Press the “ START/+30SEC./CONFIRM “ to confirm the temperature

• Turn “ “ to adjust the cooking time. (The maximum setting time is 95 minutes.)

• Press the “ START/+30SEC./CONFIRM “ key to start cooking. 8.Multi-Stage Cooking Two stages can be maximumly set. If one stages is defrosting, it should be put in the first stage. The buzzer will ring once after each stage and the next stage will begin. Note: Auto menu and preheating cannot be set as one of the multi-stage. Example: if you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

• Press “W.T./TIME DEFROST “ twice, the screen will display “dEF2”;

• Turn “ “ to adjust the defrost time of 5 minutes;

• Press “START/+30SEC./CONFIRM” to confirm;

• Turn “ “ to adjust the cooking time of 7 minutes;

• Press “START/+30SEC./CONFIRM” to start cooking.

• Set the clock first. (Consult the instruction of clock setting.)

• Input the cooking program. Two stages can be set at most. Defrosting should not be set in preset function. Auto menu can be set single stage only. Instruction manual TM-241543

• Note: When you choose A8 cake, please do not put the cake into the oven at the begining. The oven needs to be preheated to 180 degree first. After sevarel minutes, the buzzer sounds twice to remind you to put the cake into the oven. After putting the cake in the oven, please press “Start/+30Sec./Confirm” again. The timer will count down, and the cake will be cooked perfectly.

In waiting state, turn “ “ left to choose cooking time directly then press “START/+30SEC./CONFIRM” key to cook with 100% microwave power. This program can be set as one of multi-stage.

15. Inquiring Function

• In cooking state, press “Microwave”,”GRILL”,” Micro./Grill”,”Micro./Conv.”, or “Convection”, the current power will be displayed for 2-3 seconds.

• In pre-set state, press “ CLOCK/PRE-SET “ to inquire the time for delay start cooking. The pre-set time will flash for 2-3 seconds, then the oven will turn back to the clock display.

• During cooking state, press “CLOCK/PRE-SET” to check the current time. It will be displayed for 2-3 seconds.

16. Lock-out Function for Children

Lock: In waiting state, press “STOP/CLEAR” for 3 seconds, there will be a long “beep” denoting entering into the children-lock state and “ “ indicator will light. LED will display current time or 0:00. Lock quitting: In locked state, press “STOP/CLEAR” for 3 seconds, there will be a long “beep” denoting that the lock is released, and “ “ indicator will disapear.

• The buzzer will sound once when turning the knob at the beginning;

• “START/+30 SEC./CONFIRM” must be pressed to continue cooking if the door is opened during cooking;

• Press “W.T./TIME DEFROST” pad once, the oven will display “dEF1”,.

• Turn “ “ to select the weight of food.At the same time, “g” will lights, The weight should be 100-2000g.

• Press “START/+30SEC./CONFIRM” key to start defrosting “ “ and “ “ indicators will flash and “g” indicator will go out.

• Turn “ “ to select the cooking time. The maximum setting time is 95 minutes.

• Press “ START/+30SEC./CONFIRM” key to start defrosting. “ “ and “ “ indicators will flash.

• Note: If the food weight is no more than 200 grams, please place the food at the edge of the glass turntable but not the center to be defrosted.

• In waiting state, press “START/+30SEC./CONFIRM” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. The maximum cooking time is 95 minutes.

• During microwave, grill, convection and combination states, press “START/+30SEC./CONFIRM” key to cook with 100% power level for 30 seconds. Each press on the same key can increase 30 seconds. Note: this function cannot work under defrost, auto menu and multi-stage cooking. Instruction manual TM-241545 Trouble possible Cause Remedy Oven can not be started Power cord not plugged in tightly. Unplug. Then plug again after 10 seconds. Fuse blowing or circuit breaker works. Replace fuse or reset circuit breaker (repaired by professional personnel of our company) Trouble with outlet. Test outlet with other electrical appliances. Oven does not heat door not closed well. Close door well Glass turntable makes noise when microwave oven operates Dirty roller rest and oven bottom. Refer to “maintenance of Microwave” to clean dirty parts.

• Once the cooking programme has been set, “START/+30 SEC./CONFIRM” is not pressed in 5 minutes. The current time will be displayed. The setting will be cancelled.

• The buzzer sounds once by efficient press, inefficient press will be no responce.

• The buzzer will sound five times to remind you when cooking is finished. TROUBLE SHOOTING Normal Microwave oven interfering TV reception Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal. Dim oven light In low power microwave cooking, oven light may become dim. It is normal. Steam accumulating on door, hot air out of vents. In cooking, steam may come out of food. Most will get out from vents. But some may accumulation cool place like oven door. It is normal. Instruction manual TM-241546 SpECIfICATIONS Model: TM-2415 Rated Voltage: 230V~50Hz Rated Input Power(Microwave): 1450W Rated Output Power(Microwave): 900W Rated Input Power(Grill): 1100W Rated Input Power(Convection): 2500W Oven Capacity: 25L Turntable Diameter: 315mm External Dimensions (LxWxH): 513x498x305mm Net Weight: Approx. 18,1 kg Instruction manual TM-241547 We would like to congratulate you on buying an appliance from the TOMADO product range. Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.

• The warranty runs from the date of purchase; we advise you to carefully save your receipt.

• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.

• The warranty certificate has to be filled in by the sales person at the moment of purchase.

• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.

• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).

• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.

• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).

• TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.

Milieu - Environnement - Environment49 Product This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health. EC declaration of conformity This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive “No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC “Electromagnetic Compatibility” and the requirement of Directive 93/68/EEC. Déclaration de conformité CE Cet appareil est conçu, fabriqué et commercialisé conformément aux mesures de sécurité De la Directive de Tension Faible – No. 2006/95/CE – les conditions de protection de la Directive EMC 2004/108/EC sur la ‘Compatibilité électromagnétique’ et la condition de la Directive 93/68/CEE. Guidelines for protection of the environment This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection. Packaging The packaging is 100% recyclable, return the packaging separated.
