USER MANUAL Super Grill 20L 75315 TERMOZETA

Illustration of a microwave oven with control panel and door (no visible text or symbols)

TERMOZETA®

SUPER GRILL 20L

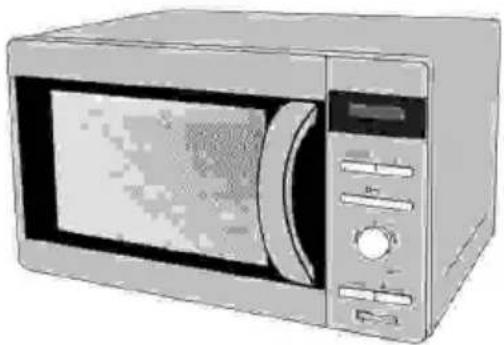

Illustration of a microwave oven with control panel and display screen (no text or symbols)

DATI TECNICI

TECHNICAL DATA

DONNÉES TECHNIQUES

TECHNISCHE DATEN

DATOS TÉCNICOS

SUPER GRILL 20L

Type 408004

230 V \~ 50 Hz

Microwave frequency: 2450 MHz

Power Input (Microwave): 1050 W

Power Output (Microwave): 700 W

Power Input (Grill): 1000 W

Made in China

CE

TERMOZETA

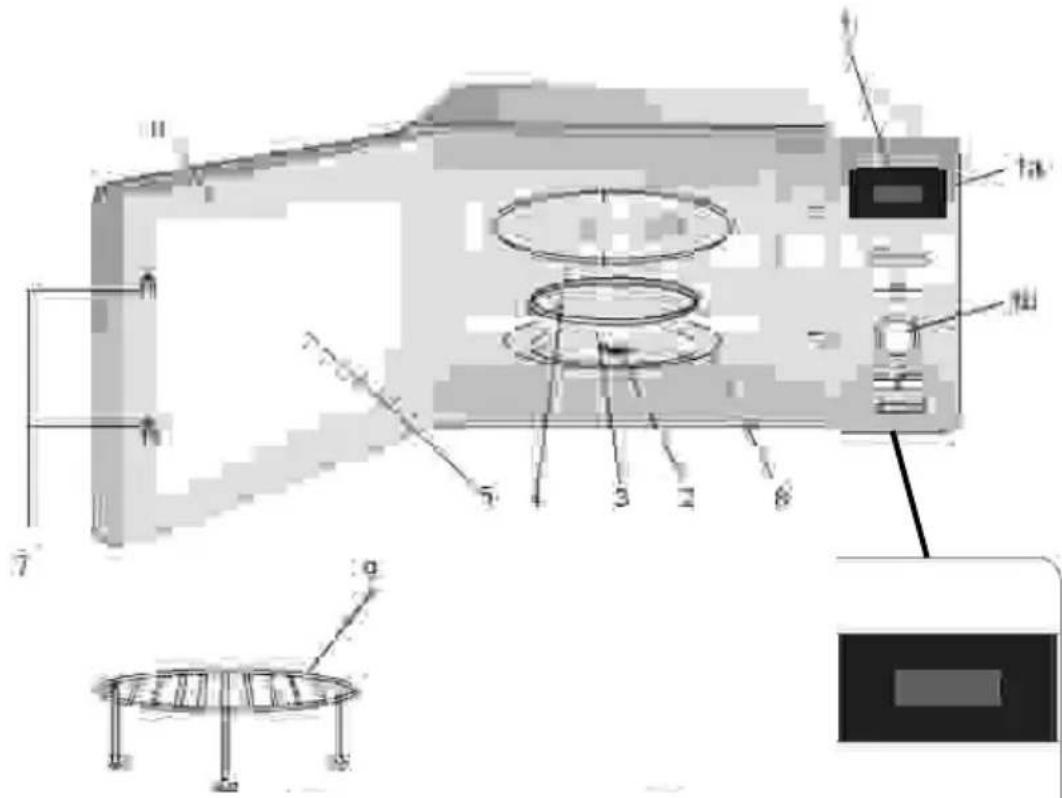

Technical diagram of a device with labeled components and internal layout, including zoomed-in views and component labels.

I

DESCRIZIONE

1. Control panel
   1a. Display
   1b. Multi-function knob
2. Drive pin
3. Roller ring
4. Glass tray
5. Observation window
6. Door
7. Safety locking system
8. Oven base
9. Grill rack

GB

F

DESCRIPTION

PROGRAMMARE LA COTTURA

This manual is an integral part of the appliance and must be carefully read before using it as it gives important indications with regard to safety of installation, use and maintenance. Keep it with care.

• After taking off the packing make sure that the appliance is intact. In case of doubt do not use it and contact an assistance centre authorised by TERMOZETA.
- Do not leave pieces of packing (plastic bags, polystyrene foam, nails etc.) within reach of children or persons with reduced mental capacities since these are potential sources of danger.
- This device is electrically safe only when it is correctly connected to an effective earthing system in compliance with the current electrical safety standards. Termozeta cannot be held responsible for eventual damages caused by a lack of earthing in the electrical system.
- Before connecting the plug to the outlet check that the working voltage of the appliance corresponds to the one in your house. If in doubt, contact professionally qualified staff.
- Use of adaptors, multiple outlets and extension leads is not advisable. In case of necessity use exclusively approved devices in conformity with the current safety regulations while making sure that they are compatible with the appliance power. If in doubt, contact professionally qualified staff.
- Any use which doesn't comply with what is specified can endanger your safety and the warranty expires.
- The appliance must only be used to cook food for domestic purposes.
- For safety reasons pay attention and:

- do not use the appliance when you are barefoot or having wet hands or feet

- do not use the appliance outside the domestic environment

- do not leave the appliance exposed to atmospheric agents (sun, rain, etc.)

- never pull the power cord or the appliance itself in order to disconnect the plug from the outlet

- do not leave the appliance unattended when it is plugged into the main power supply

- never submerge the appliance in water or other liquids

• The appliance is not intended for being used by people (including children) whose physical, sensorial or mental capacities are reduced, or who are lacking in experience or knowledge, unless they can benefit from the presence of someone who is responsible for their safety and who is provided with the instructions for use.
• Children should be supervised to ensure that they do not play with the appliance.
• The power cord of the appliance should never be replaced by the user himself. In case of necessity contact an assistance centre authorised by TERMOZETA or professionally qualified staff.
• At the end of the life-cycle of the appliance, put it out of service by cutting the power cord after disconnecting the plug from the outlet. For the disposal of the appliance follow the regulations which are valid in your place of residence.
• TERMOZETA cannot be considered responsible for any damage to persons, animals or things caused by the incorrect installation or as a result of an illegitimate, mistaken or unreasonable use.

WARNING! If the door is damaged, the oven must not be used

until it has been repaired by a skilled technician.

WARNING! If the appliance is not kept clean, its surface could be damaged reducing the lifespan of the appliance itself and leading to potentially dangerous situations.

MATERIALS THAT CAN BE USED IN MICROWAVE OVEN

Always pay much attention to the materials of the utensils you desire to use in your microwave oven.

As a matter of fact, there may be certain non-metallic utensils

which are not safe if used in microwave oven.

Microwave-safety is indicated by the symbol aside.

If in doubt, you can check if the utensil in question can be used in microwave oven following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Check the utensil carefully. If it is warm, do not use it for microwave cooking.

For more information, please refer to the following table:

Utensils	Notes
Aluminium foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to the oven walls. The foil should be at least 2.5 cm away from the oven walls.
Browning dish	Follow the manufacturer's instructions.The bottom of the browning dish must be at least 5 mm above the roller ring. Incorrect usage may cause the roller ring to break.
Dinnerware	Microwave-safe only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove the lid.Use only to heat food until it is just warm.Most glass jars are not heat-resistant and may break.
Glassware	Heat-resistant oven glassware only.Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Oven cooking bags	Follow the manufacturer's instructions.Do not close with metal ties.Make slits to allow steam to escape.
Paper plates	Use for short-term cooking/warming only. Do not leave the oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat.Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic containers	Microwave-safe only.Follow the manufacturer's instructions.They should be labelled “Microwave Safe”.Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as indicated on the package.
Plastic wrap	Microwave-safe only.Use to cover food during cooking to retain moisture.Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

Avoid using the cook utensils indicated below in microwave oven since this could lead to dangerous situations.

Utensils	Notes
Aluminium tray	May cause arcing.Transfer food into a microwave-safe dish.
Food carton with metal handles	May cause arcing.Transfer food into a microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy.Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam trays	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

APPLIANCE INSTALLATION

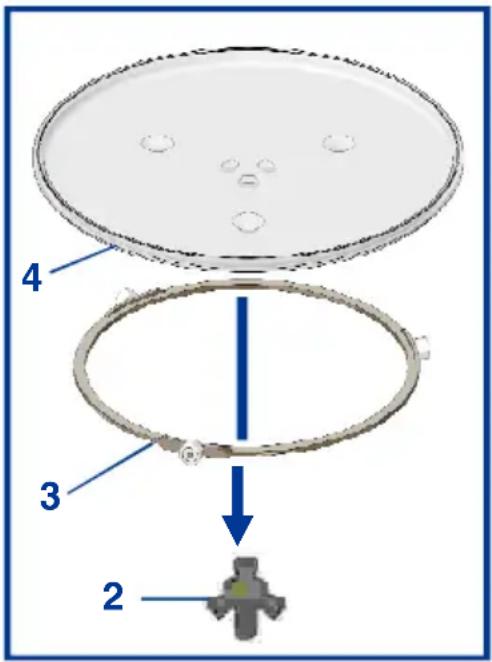

TURNTABLE ASSEMBLY

• Insert the drive pin (2) in the center of the oven base (8).
• Both the glass tray (4) and the roller ring (3) must always be used during cooking.
• Never place the glass tray (4) upside down. The projecting parts of the glass tray are located on its lower side. The glass tray movement should never be restricted.
• All food and containers of food must always be placed on the glass tray for cooking.
• If the glass tray or the roller ring cracks or breaks, contact an assistance centre authorised by TERMOZETA.

4 3 2

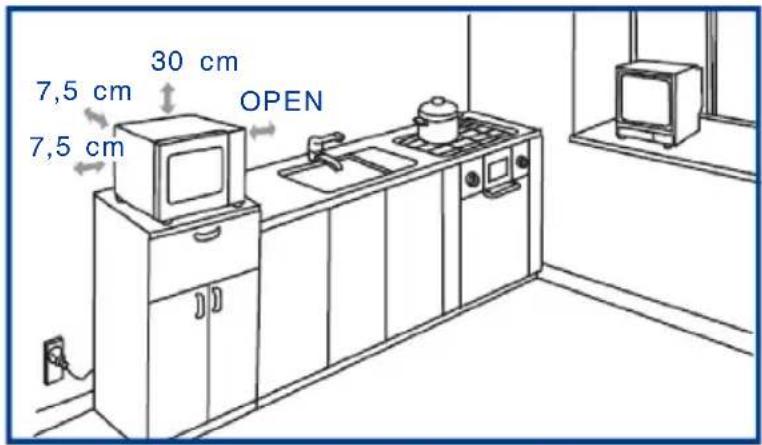

WORKTOP PREPARATION

First of all, examine the oven and check if it has any dents or other damage, for example make sure that the door is not broken. Never start the oven if there are some problems.

For the installation, proceed as follows:

- Choose a level surface that provides enough open space in order to ensure a good ventilation around the appliance.

• A minimum clearance of 7.5 cm is required between the oven and any adjacent walls. One side must be open.
• Leave a minimum clearance of 30 cm above the oven.

7,5 cm 7,5 cm 30 cm OPEN

• Do not remove the feet from the bottom of the oven.
• Do not obstruct the appliance vents.
• Do not place the oven near radios and TV. The microwave oven operation may cause interference to your radio or TV reception.
• Plug your microwave oven in the power outlet.

WARNING! Do not install the oven over the cooktop or other heat sources. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The oven surfaces may be hot during operation.

OPERATION

CLOCK SETTING

After connecting the microwave oven to the electric network,"0:00" will be displayed and a buzzer will indicate the possibility to proceed with the setting.

• Press key ⏻·(i): the hour figures will flash.
• Turn multi-function knob (1b) ☐ to adjust the hour figures. The input time is included between 0 and 23.

• Press key ⏻·(1) again. The minute figures will flash.

• Turn multi-function knob (1b) Ⓞ to adjust the minute figures. The time input is included between 0 and 59.

• Press key ⏻·⋯ to complete the clock setting. Symbol “:” will flash and the time will keep on being lighted up.

NOTE: after connecting the plug to the electric outlet, oven clock will not operate automatically, but it must be set up. If no operation on the keys is carried out during the clock setting, the oven will automatically come back to the previous condition.

MICROWAVE COOKING

• Press key 📄: “P100” will be displayed.
• Press many times the same key or turn knob (1b) to select the desired power. "P100", "P80", "P50", "P30" o "P10" will be displayed at each press.
• Now press key ☐/+30sec./OK to confirm and turn knob (1b) ☐ to set the cooking time from 0:05 to 95:00
• Press key ◇/+30sec/OK again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can set the oven as indicated below:

• Press key once. "P100" will be displayed.
• Press key 📄→again or turn knob (1b) 🔍 to choose 80% microwave power.

- Press key /+30sec/OK to confirm."P80" will be displayed.

- Turn knob (1b) ☐ to select the cooking time until “20:00” is displayed.

- Press key /+30 sec./OK to start cooking.

NOTE: During adjustment, the time increases as indicated below:

0-1	min.:	5	seconds
1-5	min.:	10	seconds
5-10	min.:	30	seconds
10-30	min.:	1	minute
30-95	min.:	5	minutes

Values that can be set by means of multi-function knob (1b) in "Microwave" mode.

Order	Display	Microwave power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

GRILL OR COMBINATION COOKING

• Press key ☐ more times until indication “G”, “C-1” or “C-2” is displayed.
• Now press key ◆/+30sec/OK to confirm the selection and turn knob (1b) ○ to set the cooking time from 0:05 to 95:00.
• Press 1 /+30 sec/OK again to start cooking.

Example: If you desire to use 55% microwave power and 45% grill power (C-1) to cook for 10 minutes, you can set the oven operation as follows:

• Press key 📄️ 🐵️ 🐵️ until “(C-1)” is displayed.
• Press key /+30sec/OK to confirm.
• Turn knob (1b) ☐ to select the cooking time until “10:00” is displayed.
• Press key /+30 set./OK to start cooking.

Values that can be set by means of multi-function knob (1b) in "Grill/Combi" mode.

Order	Display	Microwave power	Grill power
1	G	0%	100%
2	C-1	55%	45%
3	C-2	36%	64%

NOTE:

- To have a uniform cooking in “Grill” mode, it is advisable to turn the food over from time to time.

ENGLISH

- If the door is opened during the cooking, time stops automatically; when the door is closed key /+30sec/OK must be pressed to start cooking from the point in which it was interrupted.

QUICK START

When the oven is off, press key /+30sec/OK to start cooking for 30 seconds with 100% of power in microwave mode. At each press of the same key, the cooking time will increase by 30 seconds up to 95 minutes.

OTHER FUNCTIONS

• During oven operation, at each press of key ⏻/+30 sec/OK cooking time increases by 30 seconds.
• By turning knob (1b) ○ anticlockwise when the oven is off, it is possible to set the desired cooking time with 100% power in microwave mode; then press key /+30sec/OK to start cooking.

DEFROST BY WEIGHT

• Press ⚙ once: "dEF1" will be displayed.
• Turn knob (1b) ☐ to select food weight from 100 to 2000 g.
• Press key /+30 sec/OK to start defrosting. When the time on the display is over, the buzzer sounds once. In this mode, time is set automatically.

DEFROST BY TIME

- Press key ♂ key: "dEF2" will appear on the display.

- Turn knob (1b) to set the defrost time.

- Press key /+30 sec/OK to start defrosting.

Defrosting requires 30% of the microwave power, and this value cannot be changed.

AUTO MENU

• Turn knob (1b) Ⓧ clockwise to select the desired menu (please refer to the following table). Messages from “A1” to “A8”, which enable a preset cooking method, will be displayed.
• Press key /+30sec/OK to confirm the selection.
• Then turn knob (1b) Ⓧ to select the weight referring to the table on the following page.
• Press key /+30sec/OK to start cooking.

Example: If you desire to use the Auto Menu to cook 350 g of fish, proceed as follows:

• Turn knob (1b) ⏻ clockwise until "A3" is displayed.
• Press key /+30 sec/OK to confirm.
• Turn knob (1b) ○ to select the fish weight until value "350" is displayed.
• Press key ⏻/+30sec/OK to start cooking. When the cooking is over, the buzzer will sound once.

Menu	Weight	Display	Power
A-1Reheat	200 g	200	100%
	400 g	400
	600 g	600
A-2Vegetable	200 g	200	100%
	300 g	300
	400 g	400
A-3Fish	250 g	250	80%
	350 g	350
	450 g	450
A-4Meat	250 g	250	100%
	350 g	350
	450 g	450
A-5Pasta	50 g (with 450 ml of water)	50	80%
	100 g (with 800 ml of water)	100
A-6Potatoes	200 g	200	100%
	400 g	400
	600 g	600
A-7Pizza	200 g	200	100%
	400 g	400
A-8Soup	200 ml	200	80%
	400 ml	400

PROGRAMME SET IN ADVANCE

• First of all, set the clock following the instructions of paragraph "Clock setting".
• Choose the cooking programme

NOTE: this function does not allow setting the defrost phase as an oven programme.

Example: If you desire to cook with 80% microwave power for 7 minutes, proceed as follows:

• Press key 📋 once. "P100" will be displayed.
• Press key again or turn knob (1b) to select the 80% microwave power.
• Press key /+30sec/OK to confirm.
• Turn knob (1b) ○ to set the cooking time until "7:00" appears on the display.

After carrying out these operations, be careful NOT to press key /+30 sec /OK to start cooking.

• Press key ⏻·⋯, set the hour and the minutes of the cooking starting time as for the clock setting.
• Press key /+30sec/OK to complete the setting: if the key is not pressed within one minute, the setting is automatically cancelled.

The oven will start cooking after a double buzz.

- To cancel the setting press key Ⓥπ.

MULTI-PHASE COOKING

This function does not allow setting any Auto Menu programme. Only two cooking phases at most can be set.

If one phase is defrosting, then defrosting shall be set first.

Example: If you desire to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, proceed as follows:

• Press key ⚙ twice. “dEF2” will appear on the display.
• Turn knob (1b) to select the defrost time until "5:00" is displayed.
• Press key 📋 until "P80" is displayed.
• Press key /+30sec/OK to confirm the setting.
• Turn knob (1b) ○ again to set the cooking time until "7:00" is displayed.

- Press key /+30sec/OK to start cooking. Defrosting time counts down. The buzzer will indicate the beginning of the second cooking phase. At the end of the cooking, the buzzer sounds five times.

INFORMATION FUNCTION

With this function it is possible to check the main information on the oven display.

• Cooking mode: when the oven is operating in microwave, grill or combined cooking mode, press key 📄 to display the ongoing cooking mode (ex. P100, G, C-1 etc.). After 3 seconds the display will come back to the previous condition. This function does not allow displaying the ongoing Auto Menu programme.
• Cooking time: when the oven works in PROGRAMME SET IN ADVANCE mode, press key ⏻·💡 to display the cooking starting time, that will be shown for 3 seconds.
• Time: when the oven works in PROGRAMME SET IN ADVANCE mode, press key ⏻•➊ to display the time, that will be shown for 3 seconds.

SAFETY FUNCTION FOR CHILDREN

Lock enabling: to enable this function press key 📋 for 3 seconds when the oven is not working. When the safety lock is set the buzzer will sound and symbol “[::]” will be displayed.

Key lock disabling: to disable key lock, press key Ⓥ for 3 seconds. The buzzer will sound and the current time will be displayed.

GENERAL INFORMATION FOR THE USE

If the door is open while the oven is working, cooking stops automatically. Key ☐/40-er/OK must be pressed to restart cooking from the point in which it was interrupted.

The buzzer will sound five times when the cooking is finished.

SAFETY INSTRUCTIONS

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow the following precautions:

WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: for safety reasons do not remove the cover located on front door which gives protection against exposure to microwave gy.

WARNING: when the appliance is running in the combination mode, then should only use the oven under adult supervision due to the high eratures that the oven may reach.

• Only use utensils suitable for use in microwave ovens.
• The oven should be cleaned regularly and any food deposits should be removed.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of fire.
• If smoke is observed, switch off the appliance, unplug it and keep the door closed in order to stifle eventual flames.
• Do not overcook food.
• Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
• Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Use this appliance only for its intended uses as described in this manual. It is not designed for industrial or laboratory use.

• The temperature of accessible surfaces may be high when the appliance is operating. Keep the power cord away from heated surface and do not allow it hanging from the table or the rest surface.

• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Microwave heating of beverages can result in delayed boiling. Therefore take care not to burn yourself and handle the containers with care.
• Children should be supervised to ensure that they do not play with the appliance.
• The microwave oven shall not be placed in a cabinet.

HOW TO REDUCE THE RISK OF INJURY TO PERSONS

WARNING! ELECTRIC SHOCK HAZARD!

Touching some of the internal components of the microwave oven can cause serious personal injury or death. Do not disassemble this appliance for any reason.

CLEANING AND MAINTENANCE

WARNING!

Before carrying out any cleaning operations, always disconnect the plug from the power outlet.

The oven must be cleaned regularly to remove food remains. Squirts of oil or food particles stuck to the oven walls could damage the surfaces and reduce the oven life and efficiency; moreover, they could give rise to dangerous situations.

Use a neutral detergent, water and a soft cloth to clean the internal surfaces, the internal and external part of the door, the glasses and the door joints. Put the detergent on the cloth, not on the oven. Prevent grease or food from depositing around the door.

Do not use chemical products, corrosive vapours or steel wools on this fixture.

In case of strong stains, put a cup of water in the oven and make it

boil for two-three minutes. The steam will soften the dirt.

To remove the odors inside the oven, put a cup of water with some lemon juice on the turntable and make it boil for one minute.

Clean the supplied accessories (turntable, ring and grill) regularly with a normal washing-up liquid, most of all if any liquid spilled over.

Do not start the oven if the turntable has been taken out for cleaning.

Do not remove the protective plates on the internal part of the microwave oven. These plates prevent grease and food pieces from entering into the internal slits of the oven.

Do not dip the oven in water or other liquids. Be careful to avoid water penetration into the internal grids.

Make sure that the oven and the accessories are totally dry before using them.

If the oven is not going to be used for a long time, place it in a dry place protected from dust.

NOTE: During cleaning operations, be careful not to wet the control panel.

TROUBLESHOOTING

In case of problems, consult the tables below.

In some cases, these conditions are absolutely normal and do not present any danger.

Problem	Explanation
Interference with TV reception	Radio and TV reception may be interfered during the oven operation.It is normal.
Dim oven light	During low power microwave cooking, the oven light may become dim.It is normal.
Steam accumulates on the door, hot air comes out of the vents	During cooking, steam may come out of food. Most of it will get out through the vents, but some may accumulate on cool parts like the door.It is normal.
The oven started accidentally with no food in	It is forbidden to start the appliance without any food inside it.IT IS VERY DANGEROUS!

Problem	Possible cause	Solution
The oven cannot be started	The power cord is not plugged correctly.	Unplug the oven.Then plug again after 10 10 seconds.
	Trouble with the outlet.	Test the outlet with other electrical appliances.
	Door (6) is not closed well.	Close door (6) well.
The glass tray makes noise when the oven is running	The roller ring (3) and/or the oven base (8) are dirty.	Refer to the chapter “Cleaning and maintenance”.

PRESCRIPTIONS DE SECURITE

In accordance with European Directives 2002/95/CE, 2002/96/CE and 2003/108/CE on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal.

• The barred symbol of the rubbish bin shown on the equipment indicates that, at the end of its useful life, the product must be collected separately from other waste.
• Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis.
• The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus.
• Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws in force.

France

INFORMATION AUX USAGERS
