USER MANUAL MWG 760D CLATRONIC

Instruction Manual/Guarantee

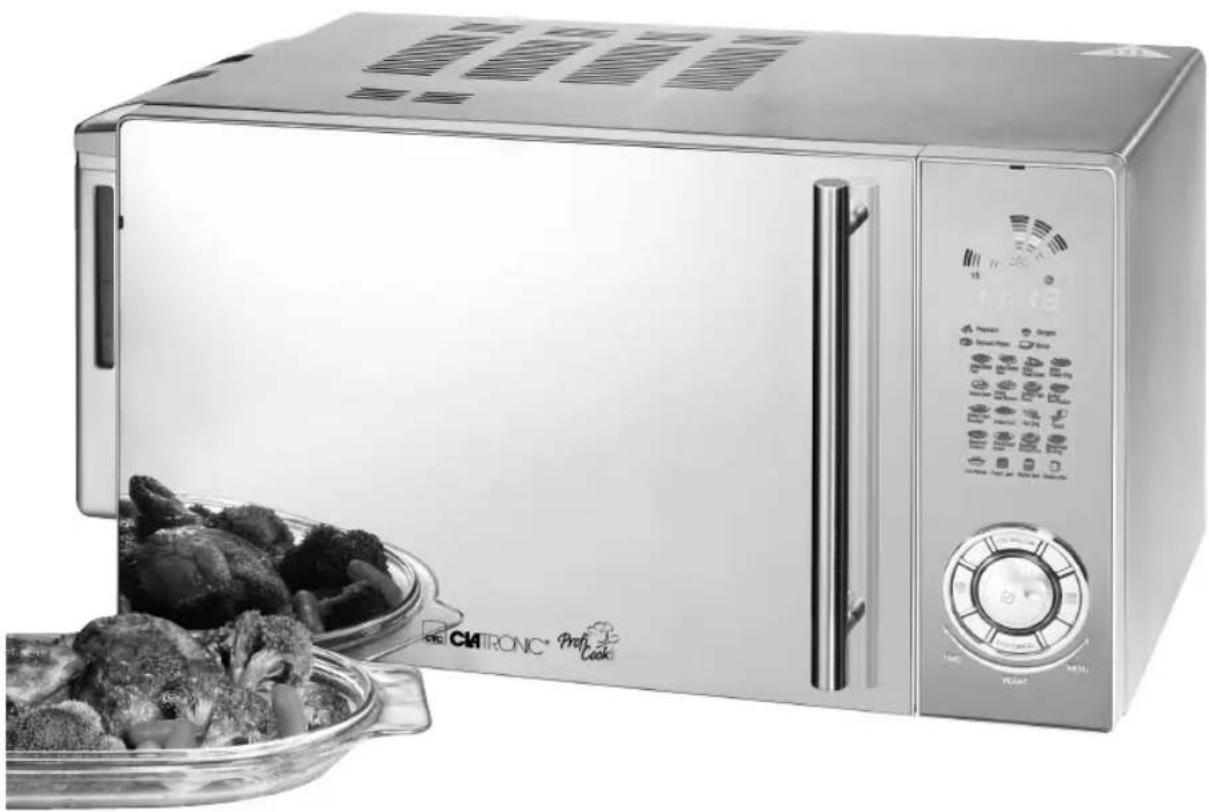

Modern microwave oven with digital display and open lid, accompanied by a bowl of cooked meat (no visible text or symbols on main body)

CE

MIKROWELLENGERÄT MIT GRILL UND DAMPFGARER

Microwave Oven with Grill and Steam Cooker

MWG 760 D

DEUTSCH

FRANÇAIS

Inhalt

Overview of the Components ...... Page 3

Instruction Manual...... Page 40

Technical Data Page 50

Guarantee Page 50

Caution: Do not remove any installed parts from inside the oven or anything from the inside of the door! The foils on the inside of the door must not be removed!

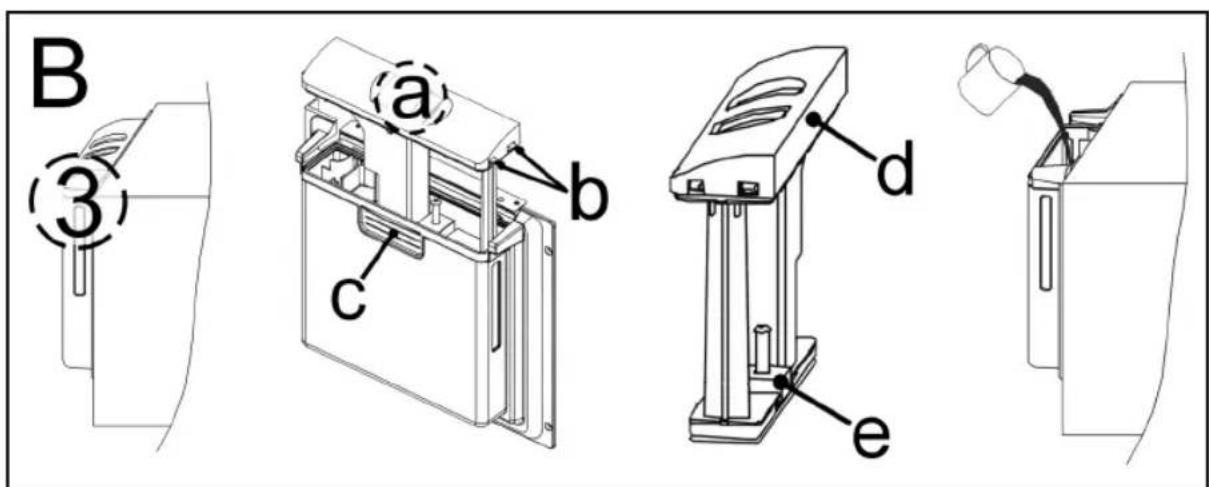

B ③ a b c d e

Co-1	Co-2
30% Mikrowelle	55% Mikrowelle
70% Grill	45% Grill

D-47906 Kempen/Germany

Co-1	Co-2
30% magnetron	55% magnetron
70% gril	45% gril

Co-1 Co-2
30% micro-ondes 55% micro-ondes
70% grill 45% grill

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Children and Frail Individuals

- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

- In order to protect children or frail individuals from the hazards of electrical equipment, please ensure that this device is only used under supervision. This device is not a toy. Do not allow small children to play with it.

Important Safety Information!

Please read carefully and keep for future use.

• Warning: When the door or the door seals are damaged, the microwave oven must not be used until it has been repaired by a qualified specialist.
• Warning: Please do not repair the device yourself, but have it repaired by an authorised specialist. Carrying out maintenance or repair work which involves removal of the cover that protects the surroundings from microwave radiation is dangerous unless carried out by an expert.

• Warning: Do not heat liquids in closed containers. Danger of explosion!

• Warning: Do not place your microwave in a cupboard. Please maintain the following distances to the sides of the device for the purposes of ventilation:
  – at least 20 cm from the top

• at least 10 cm from the rear wall
• and at least 5 cm from the sides
• Children and frail individuals may only use the oven without supervision if they have been instructed in its use in such a way that they are able to use the device safely and understand the dangers of incorrect operation.
• Warning: If the device is operated using combined mode children may use the device only when supervised by adults due to the temperatures that are produced.
  • Note: The microwave oven is not suitable for warming/heating up living animals.
• Only suitable tableware should be used such as: glass, porcelain, ceramics, heat-resistant plastic or special microwave tableware.
• If food is being heated or cooked in combustible materials, such as plastic or paper containers, the microwave oven should be checked frequently due to the risk of fire.
• If smoke is produced, turn the device off and remove the plug. Keep the door closed in order to suffocate any flames.
• Delay in boiling: During boiling, particularly during the reheating of liquids (water), it may happen that the boiling temperature has been reached but the typical bubbles have not yet started to rise. The liquid does not boil evenly. When the vessel is removed this so-called delay in boiling may result in the sudden formation of bubbles when the vessel is knocked, causing the water to boil over. There is a serious danger of burns! In order to achieve even boiling, please place a glass rod or similar item, but nothing metallic, in the vessel.
• The contents of babies' bottles and jars of baby food must be stirred or shaken and the temperature checked before use. There is a danger of burns.
• Food with a shell or skin, such as eggs, sausages, sealed jars etc. must not be heated up in the microwave as they may explode even when heating by the microwaves is finished.
• Any dirt on the door frame/door seal and neighbouring parts must be carefully cleaned with a damp cloth.
• Clean the microwave oven regularly and remove any food residues from the interior.
• If the machine is not clean the surface may be damaged, affecting its serviceable life and possibly resulting in hazardous situations.
• Do not store any food or other items inside the oven.
• Symbols on the device!

WARNING: Hot surface!

During operation of the device the temperature of the exposed surfaces may be very hot.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

Description of the Components

Diagram A: Description of Parts

1 Door lock
2 Viewing window
3 Steam cooker tank
4 Grill heating
5 Grilling grid
6 Control panel
7 Water channel
8 Oven compartment
9 Two trays made of plastic, one of which contains holes

Diagram B: Operating Controls

	START Button Press the button to start the programme.
	LIGHT WAVE/COMB. Button	Select the LIGHT WAVE (Grill) orCOMB. function: The microwave and LIGHT WAVE work alternately.
	STEAM.MICRO.CLOCK button	Select the steam cooking function orset the time
	STOP/CANCEL button	Press once to stop the cooking process.Press twice to delete the programme.Hold down for 3 seconds to disable/reactivate the device.
	MICRO.DEF.button	For selecting the power settings of the microwave
	Rotating knob with start button	For setting thetimeautomatic programmesweight information etc.

Initial Operation

- If there are any oil or other residues from the manufacturing process on the housing or heating element, smoke or odours may initially be produced. This is normal and will not occur after the oven has been used a few times.

The following procedure is strongly recommended: Turn the device to the LIGHT WAVE (Grill) function and allow it to run several times without any food inside. Zorg voor voldoende ventilatie. Please ensure adequate ventilation.

i NOTE:

Without any food inside the device can only be operated on LIGHT WAVE (Grill). This is not possible in combi or microwave operation!

• Remove the accessories from the oven compartment and unpack them.
• Check the device for any visible damage, particularly in the area of the door. If any damage is found, the machine must not be used.
• In order to avoid interference to other machines when the microwave oven is operated, do not place it in the direct vicinity of other electronic devices.
• Remove any protective foils that may be adhered to the housing.
• Insert the mains plug into a properly installed 230 V, 50 Hz power socket.

CAUTION:

The socket should always be within easy reach in case of emergency.

Using the Device

What you should know about microwave operation:

• Your device works with microwave radiation, which heats up water particles in food in a very short time. There is no heat radiation and therefore hardly any browning.
• Only food should be heated up with this device.
• Do not fry food in the microwave as hot oil may damage the oven and lead to skin burns.
• Only 1-2 portions should be heated up at the same time. Otherwise the microwave will become less efficient.
• In order to interrupt the cooking process, press the STOP/CANCEL button.
• Microwaves provide their full energy levels immediately. Pre-heating is therefore not necessary.
• Never operate the microwave function when the oven is empty.
• The microwave oven does not replace your traditional cooker. It is used mainly for:

– defrosting deep-frozen food
– rapid warming/heating of food or drinks
- cooking meals

Information on Grilling and Combined Operation

• As heat radiation is used during grilling and combined operation, please use only heat-resistant tableware.
• When food is only being grilled, metal or aluminium tableware may also be used -but not during combined or microwave operation.
• Do not place anything on top of the housing as this becomes hot. Always leave the ventilation slits uncovered.
• Please use the grilling grid to move the food to be cooked nearer to the heating element.

Suitable Microwave Tableware

• The ideal material for use in a microwave is transparent and allows the microwave radiation to heat the food evenly.
• Microwaves are not able to penetrate metal, so that no metal vessels or plates should be used.
• Do not use any paper dishes made of recycled material as these may contain small amounts of metal, which may result in sparks or fires.
• Round/oval dishes and plates are more suitable than rectangular ones as the food in the corners may overcook.

The list below is intended to help you select suitable microwave tableware:

Material	Suitable for
	micro-wave	LIGHT WAVE (grill)	Steam Cooking	combination*
Heat-resistant glass vessel	yes yes	yes yes
Non-heat-resistant glass vessel	no no	no no
Heat-resistant ceramic vessel/plate	yes yes	yes yes
Plastic vessels suitable for microwave use	yes no	yes no
Kitchen roll yes no no no
Metal tray no yes yes no
Grilling grid no yes yes yes
Aluminium foil and foil containers	no yes	yes no
Trays made of plastic yes	no yes no

*) Combination of microwave and LIGHT WAVE (Grill).

WARNING:

You should monitor the cooking process if you have combustible materials such as paper or plastic in the microwave oven.

Setting the Time:

1. Press the STOP/CANCEL button.
2. Keep the STEAM.MICRO.CLOCK button pressed down. "Hr 24" appears in the display. Press the STEAM.MICRO.CLOCK button again to change to "Hr 12" mode if necessary.

3. Set the desired hour figure by means of the rotating knob.

4. Press the STEAM.MICRO.CLOCK button again.

5. Use the rotating knob to set the desired minute figure.
6. Press the STEAM.MICRO.CLOCK button again to activate the new time.

Operating the Microwave

1. Place the food to be heated up into suitable tableware.
2. Open the door and place the vessel in the middle of the oven compartment.
3. Close the door.

i NOTE:

For safety reasons the device only works when the door is firmly closed.

1. Press the MICRO.DEF. button. Select the desired microwave power by pressing the MICRO.DEF. button once or several times.

Power in the display as selected in %	Power in watts (approx.)	Field of application
HI	800	Rapid heating
80	640	Cooking
60	480	Continued cooking
40	320	Melting cheese etc.
20	160	Defrosting deep-frozen food
0	0	Only timer function, e.g. for time-controlled cooling

1. Use the rotating knob to set the cooking time between 10 seconds and 95 minutes.
2. Press the START button to start the machine. The length of cooking depends on the quantity and consistency of the contents. With a little practice you will soon learn to estimate the cooking time.

i NOTE:

Cooking in the microwave oven is very much faster than in a standard cooker. If you are not sure, set the cooking time to low and continue cooking afterwards if necessary.

1. After the time has expired, the oven switches off and the word „END“ appears in the display. Then you can remove the food.

Interrupting or Stopping the Cooking Process

• If you would like to interrupt the cooking process, press the STOP/CANCEL button or simply open the door.
• If you wish to continue cooking, close the door and press the START button.
• If you would like to stop the cooking process altogether, press the STOP/CANCEL button twice.

Warming

The warming and heating of food is a particular strength of the microwave. Liquids and foods that are in the refrigerator can be easily brought up to room temperature or the right temperature for consumption without the need for many pots.

The heating times contained in the following table are only rough guides as the time depends very much on the starting temperature and the composition of the food. You are therefore advised to check from time to time whether the dish is already hot enough.

Heating Table

Food/dish Quantity		Power in watts	Approx. time in minutes	Cover
Liquids
Water, 1 cup 150 g 800	0,5 - 1 no
Water, 0.5 l 500 g 800 3	5 - 5 no
Water, 0.75 l 750 g 800	5 - 7 no
Coffee, 1 cup 150 g 800	0,5 - 1 no
Milk, 1 cup 150 g 800 0,5 - 1 no
Note: Place a glass rod or similar item (nothing metal) into the vessel in order to prevent delayed boiling. Stir well before drinking.
One-Course Meals
Schnitzel, potatoes and vegetables	450 g 800 2,5 - 3,5	yes
Goulash with noodles	450 g 800 2 - 2,5	yes
Meat, dumpling and sauce	450 g 800 2,5 - 3,5	yes
Tip: moisten slightly beforehand, stir from time to time.
Meat
Schnitzel, coated with breadcrumbs	200 g 800 1 - 2 no
Meatballs, 4 in total	500 g 800 3 - 4 no
Joint	250 g 800 2 - 3 no
Tip: brush with oil so that the breadcrumbs or crust do not become soft.
Poultry
Half a chicken	450 g 800 3,5 - 5 no
Chicken fricassee	400 g 800 3 - 4,5	yes
Tip: brush with oil, stir from time to time.
Extras
Noodles, rice 1 portion 2 portions	150 g 800 1 - 2	yes
	300 g 800 2,5 - 3,5	yes
Potatoes	500 g 800 3 - 4	yes
Tip: moisten slightly beforehand.
Soups/Sauces
Clear soup, 1 plate	250 g	800	1 - 1,5	yes
Soup with garnish	250 g	800	1,5 - 2	yes
Sauce	250 g	800 1 - 2	yes
Baby Food
Milk	100 ml	480 0,5 - 1 no
Mash	200 g	480	1 - 1,5	no
Tip: shake well or stir. Check the temperature!

Cooking

Practical Cooking Tips

Please keep to the recommended values in the cooking table and the recipes. Keep an eye on the cooking process until you have more experience.

The door of the microwave can be opened at any time. The machine switches off automatically.

This only starts to work again when the door is closed and the START button is pressed a second time.

Foods taken directly from the refrigerator require a slightly longer cooking time than those at room temperature.

The more compact a food is, the longer is the cooking time. For example, a large piece of meat has to be cooked longer than the same quantity of sliced meat. It is advisable to start cooking sizeable quantities on maximum power and then to continue cooking evenly on medium power.

Flat dishes cook faster than thick ones. Therefore it is advisable to spread the food as thinly as possible. Thinner pieces, e.g. chicken legs or fish fillets should be placed towards the inside or allowed to overlap.

Smaller quantities cook faster than large ones.

The following rule of thumb applies:

Double the quantity = almost double the time Half the quantity = half the time

If you are not able to find a suitable time for a dish, the following rule applies:

approx. 1 minute cooking time for each 100 g.

All dishes which are covered up on a normal cooker should also be covered in the microwave oven.

A lid prevents the food from drying out. Suitable covers are an inverted plate, parchment paper or microwave foil. Dishes which are to be given a crust should not be covered when cooked.

*) Ready-made meals.
Cooking Table

Food/dish Quantity		Power in watts	Approx. time in minutes	Cover
Vegetables
Aubergines	500 g	640 7 -	10 yes
Cauliflower	500 g	640	8 - 11	yes
Broccoli	500 g	640 6 -	9 yes
Chicory	500 g	640 6 -	7 yes
Peas	500 g	640 6 -	7 yes
Fennel	500 g	640 8 -	11 yes
Green beans	300 g	640	13 - 15	yes
Potatoes	500 g	640 9 -	12 yes
Turnip cabbage	500 g	640 8 -	10 yes
Leek	500 g	640 7 -	9 yes
Maize cob	250 g	640 7 -	9 yes
Carrots	500 g	640 8 -	10 yes
Paprika	500 g	640 6 -	9 yes
Sprouts	300 g	640 7 -	10 yes
Asparagus 300 g 640 6	-9 yes
Tomatoes 500 g 640 6	-7 yes
Courgettes 500 g 640 9	-10 yes
Tip: Cut the vegetables into small pieces and cook with 2 - 3 tablespoons of liquid, stir from time to time, continue cooking for 3 - 5 minutes, season just before serving.
Fruit
Stewed apple, pear 500 g 640 5 - 8 yes
Plum jam 250 g 640 4 - 6 no
Stewed rhubarb 250 g 640 5 - 8 yes
4 baked apples 500 g 640 7 - 9 yes
Tip: add 125 ml water. Lemon juice prevents the fruit from changing colour. Cook for a further 3 - 5 minutes.
Meat*)
Meat with sauce 400 g 640 10 - 12 yes
Goulash, stewed strips of meat	500 g 640 10 - 15 yes
Roulade of beef 250 g 640 7 - 8 yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Poultry*)
Chicken fricassee	250 g 640 6 - 7 yes
Poultry soup 200 g 640 5 - 6 yes
Tip: stir from time to time, allow to stand for 3 - 5 minutes.
Fish
Fish fillet	300 g 640 7 - 8 yes
	400 g 640 8 - 9 yes
Tip: turn halfway through, continue cooking for 3 - 5 minutes.
Defrosting and Cooking Vegetables
Apple and red cabbage	450 g	640	14 -16	yes
Leaf spinach	300 g 640 11 - 13 yes
Cauliflower	200 g 640 7 - 9 yes
French beans	200 g 640 8 - 10 yes
Broccoli	300 g 640 8 - 9 yes
Peas	300 g 640 7 - 8 yes
Turnip cabbage	300 g 640 13 -15 yes
Leek	200 g 640 10 - 11 yes
Corn	200 g 640 4 - 6 yes
Carrots	200 g 640 5 - 6 yes
Sprouts	300 g 640 7 - 8 yes
Spinach	450 g 640 12 - 13 yes
	600 g 640 15 - 17 yes
Tip: cook in 1 - 2 tablespoons of liquid, stir from time to time or divide carefully into pieces. Continue cooking for 2 - 3 minutes and season just before serving.
Soups / Stews*)
Stew	500 g 640 13 - 15 yes
Soup with garnish	300 g 640 7 - 8 yes
Crème soup	500 g 640 13 - 15 yes
Tip: stir from time to time and continue cooking for 3 - 5 minutes.

QUICK START

If you would like to heat food or a drink briefly on maximum microwave power:

• Turn the rotating knob clockwise to set a cooking time.
- Press the START button to start the cooking process.

Automatic Cooking

Your microwave has various programmes with which you can automatically cook different foods.

In the first step you should choose your product and in the second step select a weight or number of cups from the programme. Once the programme starts it continues automatically. Here is an example: Let us assume you would like to prepare pieces of chicken:

1. Press the STOP/CANCEL button.
2. Turn the rotating knob in an anticlockwise direction and select the desired automatic programme. In our example GRILLED CHICKEN PIECE.

i NOTE:

The currently selected programme symbol flashes.

1. Press the START button. A weight or number of cups appears in the display, or also a number, depending on the programme that has been selected. In our example „200g“ appears.
2. Turn the rotating knob to select the desired weight or number.
3. In order to confirm your selection and start the programme, press the START button. The programme length appears in the display in minutes and seconds. For the possible settings please see the following table.

Symbol	Programme Remarks
	Popcorn Please use only special microwave popcorn in a bag.
	Creamed rice	Measure out the rice and the water in accordance with the indicated weight. You should monitor the cooking process.
	Heating up pizza	When the pizza is taken out of the refrigerator.
	Soup	approx. 200 to 250ml per cup.
	Grilled pieces of chicken	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.Please turn the food over after half of the cooking time.Press the START button again to begin the second half of the cooking process.
Symbol Programme Remarks
	Grilled chicken steak	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.Please turn the food over after half of the cooking time.Press the START button again to begin the second half of the cooking process.
	Grilling a whole chicken	Insert the closed tray (drip pan).After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled chicken wings	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled meat	Cut the meet up into thin slices.Please use a plate on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled meat spits	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled fish in pieces	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.

Symbol Programme Remarks
	Grilled lamb •	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled Ham Sausage	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Grilled corn •	Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Hot Dog • Insert the closed tray (drip pan).Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Toast • Place the pieces directly on the grilling grid.After half of the cooking time you are reminded by a beep to turn the food over.Press the START button again to begin the second half of the cooking process.
	Steamed Chicken	Use a heat-resistant ceramic dish as a base.Place the food to be cooked on a plate.
	Steamed Meat	Use a heat-resistant ceramic dish as a base.Place the food to be cooked on a plate.
	Steamed fish	Use a heat-resistant ceramic dish as a base.Place the food to be cooked on a plate.
	Steamed prawns/shrimps	Use a heat-resistant ceramic dish as a base.Place the food to be cooked on a plate.
	Automatic heating	The temperature before heating should be approx. 5°C.Please use heat-resistant tableware.Cover the food if necessary.
	Peach jam Ingredients: 4 peaches, 150g sugar, 500ml waterWash and peel the peaches and cut into small pieces.Put all the ingredients into a heat-resistant vessel and place this in the centre of the oven compartment.
	Apple jam Ingredients: 4 apples, 150g sugar, 250ml lemon juiceWash and peel the apples and cut into small pieces.Put all the ingredients into a heat-resistant vessel.Stir well and cover.Place the vessel in the centre of the oven compartment.
	Strawberry wine	Ingredients: 500g strawberries, approx. 250-400g sugar, 4 lemons, approx. 1250ml rice wineWash and clean the strawberries and cut into small pieces.Put all the ingredients into a heat-resistant vessel.Stir well and cover.Place the vessel in the centre of the oven compartment.

Grilling with the LIGHT WAVE

For grilling please use the grilling grid. Use suitable heatresistant tableware or place the food to be grilled directly on the grid.

Preheating of the grill is not necessary as the radiating grill produces heat immediately.

To grill and gratinate food, proceed as follows:

1. Press the STOP/CANCEL button.
2. Press the LIGHT WAVE/COMB(INATION) button. The LIGHT WAVE symbol appears in the display.
3. Set the desired grilling time between 10 seconds and 95 minutes using the rotating button.
4. To start cooking press the START button.

Food/dish Quantity		Approx. time in minutes	Cover
Toast gratinated with cheese 2-3 3-4 no

COMBI Microwave and LIGHTWAVE Operation

In these settings the microwave and LIGHTWAVE (Grill) work alternately within the preset period in the following ratios:

Co-1 Co-2
30% microwave	55% microwave
70% grill	45% grill

1. Press the STOP/CANCEL button.
2. Press the LIGHT WAVE/COMB(INATION) button 2 or 3 times.
3. Set the desired cooking time between 10 seconds and 95 minutes using the rotating button.
4. To start cooking press the START button.

Tips on Combined Operation

If you prepare food using the combined microwave-grill functions you should note the following:

For large, thick foods such as roast pork the microwave time is correspondingly longer than for small, flat foods. However, in the case of the grill it is the other way round. The closer the food is to the grill, the faster it turns brown. This means that when large joints are prepared using combined operation the grilling time may be shorter than for smaller joints.

Please use the grid for grilling in order to achieve rapid and even browning.

Combined Operation Table

Food/dish Quantity		Approx. time in minutes	Cover
Meat, Sausages
Beef, pork or veal in pieces	500 g 10 - 12		no
	750 g 12 - 15		no
Smoked pork loin	500 g 12 - 14		no
Meat loaf	500 g 13 - 15		no
Wienerwurst 200 g 2 - 3	no
Frankfurter	200 g	2 - 3	no
Tip: turn the meat halfway through and continue cooking for 3 - 5 minutes; coat the meat loaf with egg white; prick the sausages with a fork.
Poultry
Boiling fowl	1000 g	13 - 15	no
Chicken pieces	250 g	4 - 5	no
Tip: allow to cook without liquid in its own juice, turn once and continue cooking for 4 - 5 minutes.
Fish
Trout, blue	300 g	5 - 6	no
Fish fillet	300 g	3 - 4	no
Tip: turn halfway through and continue cooking for 3 - 5 minutes.

Steam Cooking

For the components see illustrations B

a Buttons
b Closer
c Water tank with heating
d Lid
e Float

Safety Instructions for Steam Cooking

The function of the steam cooker necessitates special safety instructions, with which you should familiarise yourself.

• Before using the device for the first time, please clean the lid, water tank and float. Rinse the components off with warm water.
• For the purposes of cleaning you can remove the water tank (c). However, the tank should not be immersed in water as it contains electrical components.
• Check the fl oat (e) every time before you use the device. It must move freely.
• Warning! Hot steam

- Do not open the lid (d) during steam operation.

- You should also not open the lid immediately after steam operation. Wait approx. 2-3 minutes.

• Fill with water before operation. Use a vessel to do so. The water should be filled in up to the maximum mark, but do not overfill the tank!
• Warning! Hot surface
• The tank (c) contains a heating element and becomes very hot during operation.

- Do not remove this to replenish with water.

- The tank should only be removed for the purposes of cleaning after it has cooled down.

• After the cooking process please throw the residual water in the tank away.
- Check and clean the float (e) regularly. It must not be twisted.

Filling with Water

• Press the buttons (a) to remove the lid from the water tank.
• Fill the water tank with clear, cold water up to the maximum mark.

i NOTE:

Always fill the tank before you begin cooking. For safety reasons the steam cooking programme cannot be started with too little or no water.

- Place the lid back on the water tank. The closer (b) must click into place.

The Plastic Trays

• Place the closed tray on the floor of the oven compartment. This is used to collect water or other liquids.
• The tray containing the holes is inserted at medium height in the oven compartment. The food to be cooked is placed on this tray so that it is completely surrounded by steam.

Steam Cooking

1. Open the door and place the food to be cooked on the tray. In the case of rice or similar products you should use an appropriate vessel.
2. Press the STEAM.MICRO.CLOCK button or select an automatic programme as described above.
3. Use the rotating knob to set the desired cooking time between 10 seconds and 95 minutes, or select a weight.
4. Press the START button to start.

i NOTE:

During the first 40 seconds the LIGHT WAVE (Grill) is also operated to preheat the oven compartment slightly.

1. After the time has elapsed the device switches off and „END“ appears in the display.

Replenishing with Water

If during the cooking process the water level falls below the minimum mark, the cooking process is interrupted and a beep is heard.

• Wait for approx. 2 to 3 minutes so that the steam can cool down a little.
• Open the lid carefully, as there is still steam and hot water in the water tank.
• Fill the water tank up to the maximum mark. You can use a vessel to help you.
• Then close the lid.

End of the Cooking Process

During the cooking process most of the steam is emitted through ventilation slits on the top of the microwave oven. However, some of the steam remains inside the oven in the form of condensation.

• Open the door slowly as together with the inner walls it is covered with condensation.
• Some of the water may drip on to the working surface. Be prepared to wipe it up.
• When you remove the cooked food, use an oven cloth or similar items to help you.
  • After the oven compartment has cooled down, wipe the inside dry with a cloth.

Water Channel (7)

i NOTE:

When certain (water-containing) products are cooked, increased quantities of condensation are produced on the inside of the door, which may drip on to the worktop when the door is opened. This is „clean“ condensation!

Push to the water channel under the door so that the condensation can drain into the channel.

After every cooking procedure or after an operating time of more than 30 minutes the water channel must be emptied.

Steam Cooking Table

General

• The following times are only a guide and may vary depending upon circumstances.
• The size/quantity of food selected should not be too much.
  • Defrost meat and poultry before cooking it.

Rice

1) There are various types of rice. Follow the specific cooking instructions for each type.
2) Measure the rice and water precisely and pour into the rice bowl. Put the lid on and switch on the steam cooker.
3) Check whether the rice is cooked as specified by the cooking time. Stir the rice.
4) When checking/stirring the rice, make sure that the condensed water does not drip into the rice bowl. It will alter the quality and the taste of the rice.
5) After steaming the rice, spice it with salt, pepper or butter.

Rise types	Together in the Rice Bowl Estimated time
	Rice quantity Water		(Minutes)
Brown rice
- Normal 1/2 cup	1 cup 42-45
- Parboiled 1 cup	1 1/2 cups 45-50
Long grain and wild rice mix
- Normal	1 cup 1 1/2	cups 56-58
- Precooked rice	1 cup 1 3/4	cups 18-20
Instant rice	1 cup 1 1/2	cups 12-15
White rice
- Normal	1 cup 1 1/2	cups 45-50
- Long grain	1 cup 1 2/3	cups 50-55

Vegetables/Fruit

1) Wash the vegetables well. Cut the stems and peal or chop the vegetables as required by the recipe. Smaller pieces cook faster than large ones.
2) The quantity, freshness, size/consistency and the temperature of frozen foods can influence the steaming time. The quantity of water and the cooking time vary according to the desired result.
3) Frozen vegetables are not to be thawed before steaming.

Type of vegetable/ fruit	Weight or pieces	Estimated time (Minutes)
Artichokes, whole	4 whole pieces	30-32
Asparagus, tips	500 g	12-14
Beans
- Green/wax	250 g	12-14
- cut or whole	500 g	20-22
- thick beans	500 g, shelled	12-13
Red beets	500 g, cut	25-28
Broccoli, tips	500 g	20-22
Brussels sprouts	500 g	24-26

Type of vegetable/ fruit	Weight or pieces	Estimated time (Minutes)
White cabbage	500 g, cut	16-18
Celery	250 g, diced	14-16
Carrots	500 g, diced	18-20
Cauliflower, whole	500 g	20-22
Corn on the cob	3-5 cobs	14-16
Eggplant	500 g	16-18
Champignon, whole	500 g	10-12
Onions	250 g, finely diced	12-14
Pepper, whole	up to 4 average-sized	12-13
Potatoes	ca. 500 g	30-32
Turnips	1 average-sized, diced	28-30
Spinach	250 g	14-16
Pumpkin	500 g	16-18
Beets	500 g, sliced	20-22
Frozen vegetables	285 g	28-50
Apples	500 g, in Pieces	10-15
Pears	500 g, in Pieces	10-15

Fish and Seafood

1) The cooking time provided in the table is for fresh, frozen and thawed seafood and fi sh. Clean and wash the fresh seafood and fi sh well before steaming.
2) Almost all types of fish and seafood cook fast. Steam cook them in small portions or in the specified quantities.
3) The time varies for the opening of large and small mussels and oysters. Check the shells to avoid that they boil. Do not eat mussels whose shell does not open after steaming to avoid food poisoning!
4) Fish fi lets can be steamed also in the rice bowl.

Seafood/Fish	Weight or pieces	Estimated time (Minutes)
Whole mussels in the shell	500 g	10-12
Crabs	250 g	20-22
Lobster
- Tail	2-4	16-18
- cut	500-600 g	18-20
Small mussels (fresh in the shell)	500 g	14-16
Oysters (fresh in the shell)	1500 g	18-20
Scallops (fresh)	500 g	16-18
Shrimps
- average-sized in shell	500 g	10-12
- large/jumbo in shell	500 g	16-18
Fish
- whole	250-375 g	10-12
- filet	500 g	10-12
- steak	500 g, 2,5 cm thick 16-18

Meat

Meat type Weight or pieces		Estimated time (Minutes)
Beef
- Pieces 500 g 28-30
- Hamburger/Rissoles	500 g 16-18
- Meatballs 500 g 22-24
Chicken
- Pieces/slices 2-4 24-26
Lamb
- Pieces/slices 500 g	26-28
Pork
- Pieces/slices 500 g	26-28
Hot dogs/Frankfurters 500 g 14-18

Eggs

Type Quantity		Estimated time (Minutes)
In the shell
- soft-boiled	1-12	15-18
- hard-boiled	1-12	19-22
Poached
1st step: Put 2 cups of water in the rice bowl;Steam to heat the water.		7-8
2nd step: Beat the eggs and put the contents in the small bowl, put the bowl in the rice bowl with hot water until the egg is poached.		7-8
Scrambled eggs
Beat 6 eggs with 2 tablespoons of milk and pour into the rice bowl.Spice with salt and pepper. Beat the eggs during the first minutes of the cooking.		20-22

Cooking in Several Steps

With this microwave it is possible to programme three different functions one after the other.

Let us assume you select the following programmes for cooking:

Heating up Food in the Microwave

Grilling with LIGHT WAVE

1. Press the STOP/CANCEL button.
2. Press the MICRO. DEF. button. „1S“ appears in the display.
3. Select the desired microwave power level by pressing the MICRO. DEF. button once or several times.
4. Set the desired cooking time between 10 seconds and 95 minutes using the rotating button.
5. Press the LIGHT WAVE/COMBI(NATION) button. „2S“ appears in the display.
6. Set the desired cooking time between 10 seconds and 95 minutes using the rotating button.
7. To start cooking press the START button.

After the time has elapsed the oven switches off and the word „END“ appears in the display. Then you can remove the food.

Special Functions

Automatic Reminder

After cooking has finished you are reminded every 2 minutes by a beep to remove the food.

This reminder is switched off by opening the door or pressing the STOP/CANCEL button.

Disabling

Press the STOP/CANCEL button for more than 3 seconds to disable the machine. The fact that the machine is disabled is then shown in the display. The function of the operating controls is now blocked. Press the STOP/CANCEL button again for more than 3 seconds to reactivate the machine.

Error Messages

The symbols „E-1“, „E-2“, „E-3“ or „E-4“ may appear in the display during operation. In this case there is a problem with the electronic control system.

• Press the STOP/CANCEL button and remove the mains plug from the socket.
  • After a few minutes re-insert the plug and repeat the process.
• If the fault recurs, press the STOP/CANCEL button and send the device with a description of the fault to our service centre.

Cleaning

Turn the microwave off and remove the mains plug.

Interior

• Keep the interior of the oven clean. Splashes and overflowing liquids on the walls of the oven can be removed with a damp cloth. If the oven is very dirty a mild detergent can also be used. Please do not use any abrasive detergents.
• Wipe off the viewing window on the inside and outside with a damp cloth and remove splashes and stains from overflowing liquids regularly.

External Walls

• The external walls of the microwave should only be cleaned with a damp cloth. Please ensure that no water enters the openings in the housing and therefore inside the device.
• The switches should also only be cleaned with a damp cloth. In order to clean the function switch, first open the microwave door to avoid switching on the device so accidentally.

Grilling Grid

- Clean the grilling grid by hand with warm water and a little washing-up liquid.

Lid with Float

These components should only be cleaned by hand and no washing-up liquid should be used.

• Rinse the parts under warm running water.
• In the case of severe soiling you can use a nylon brush.
• Dry thoroughly. Make sure that the seal located at the bottom of the component is correctly positioned.

Water Tank

This component should only be cleaned by hand and no washing-up liquid should be used.

CAUTION:

Never immerse the water tank in water or other liquids.

• Rinse out the tank with warm water.
• In the case of severe soiling you can use a nylon brush.
• Dry thoroughly. Make sure that the seal at the top of the component is correctly positioned.

Descaling

In the case of hard water, lime gradually accumulates on the heating element. In order to prevent this, please put a standard commercially available decalcifi er on a citric acid base into the water container after the device has been used between 7 and 10 times and fi ll it up to the "MAX" mark with water. Please use the quantities as instructed. Then replace the lid on the water tank. Do not operate the device!

• After the decalcifi er has been allowed to act for the designated period the lime residues can be removed with a nylon brush if necessary.
• Rinse out the water container several times with cold water.
• The descaling intervals depend on the degree of hardness of the water and the frequency of use.

Odours

- In order to remove any unpleasant odours that may emanate from the microwave, place a dish filled with water and lemon juice that is suitable for microwave use in the oven and heat it for approximately 5 minutes. Then wipe out the oven with a soft cloth.

Oven light

- If you need to replace the lighting in the oven, please contact a specialist workshop near you.

Technical Data

Model:....MWG 760 D

Power supply: 230 V, 50 Hz

Power consumption:

Microwave: 1400 W Steam: 1250 W Grill: 850 W

Rated microwave power output: 800 W

Cavity volume: 23 litres

Protection class: I

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

CLATRONIC® INTERNATIONAL GMBH

D-47906 Kempen/Germany · Industriering Ost 40 Internet: http://www.clatronic.de · email: [e-mail]
