Baby - Control

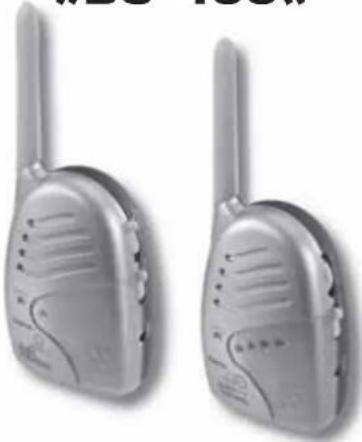

»BC-100«
€ 0681
00092667
Labeled diagram of a walkie-talkie with numbered parts for identificationnatural_image
Line drawing of a mechanical device with arrows indicating motion or force (no text or symbols)About these operating
instructions 23
Copyright 23
Warnings 24
Intended use 25
Limitation of liability ..... 25
Safety 26
Danger due to electrical
current 26
Handling the batteries ..... 27
Basic safety instructions ..... 28
Design and functionality . . .28
Basic design 28
Design of the
receiver/baby unit 29
Design of the
receiver/parent unit ..... 29
Energy status LED ..... 30
Baby unit 30
Parent unit 31
Getting started .....31
Safety instructions ..... 31
Included components and
delivery inspection .... 32
Disposing of packaging
materials 32
Positioning requirements .... 33
Electrical connection .....34
Inserting the batteries ..... 34
Connecting the power
supply adapter 34
Operation 35
Baby unit 35
Parent unit 35
Cleaning and care .....36
Safety instructions .....36
Cleaning 36
Troubleshooting .....37
Safety instructions ..... 37
Causes of errors and error
rectification....38
Disposal .....39
Device disposal 39
Battery disposal 39
Appendix 39
EU declaration of conformity. 39
Specifications....40
Precautions against radiation .40
Energy-saving options ..... 41
Introduction
Preface
Dear customer,
By purchasing this Hama baby-control, you have chosen a quality product which conforms to state-of-the-art development standards in technology and functionality.
Read the information contained here carefully so that you become familiar with the device and its full range of functions.
We hope you enjoy it for many years to come.
About these operating instructions
These operating instructions are an integral part of the „BC-100“ Baby-Control(hereinafter referred to as the “device”), and provide important information on the intended use, safety, connection and operation of the device.
The operating instructions must be kept available near the device at all times. They must be read and adhered to by all persons responsible for operating the device or troubleshooting.
Keep these instructions in a safe place and pass them on to subsequent users or owners together with the device.
Copyright
This documentation is protected by copyright.
It may not be reprinted or reproduced (including illustrations) in whole or in part without prior written consent from the manufacturer. This also applies after changes to the documentation.
Warings
The following warnings are used in these operating instructions:
DANGER
A warning of this type indicates the immediate threat of a dangerous situation.
Death or serious injuries can result if this situation is not avoided.
▶ Follow the information in this warning to prevent death or serious personal injury.
WARNING
A warning of this type indicates the possibility of a dangerous situation.
Injuries and/or material damage can result if this situation is not avoided.
▶ Follow the information in this warning to prevent personal injury or material damage.
CAUTION
A warning of this type indicates the possibility of material damage.
Material damage can result if this situation is not avoided.
▶ Follow the information in this warning to prevent material damage.
NOTE
▶ A note indicates additional useful information for handling the device.
htended use
This device is only intended for indoor use to monitor babies and persons who need to be monitored. Other uses or uses that go beyond this use are considered unintended.
WARNING
Danger caused by improper use!
Danger may result from improper or irregular use of the device.
▶ Only use the device as intended.
▶ Adhere to the procedures described in these operating instructions.
All claims made as a result of damage caused by improper use are excluded.
The operator alone bears the risks as a result.
Limitation of liability
All technical information, data and instructions contained in these operating instructions were current at the time of printing, and are made to the best of our knowledge based on previous experiences and findings.
Therefore, no claims can be derived from the specifications, illustrations and descriptions contained in these instructions.
The manufacturer accepts no liability for damages caused by failure to observe the instructions, improper use or repairs, unauthorised device modifications or the use of non-approved spare parts.
Safety
GB
This chapter contains important safety instructions for handling the device.
This device complies with the applicable safety regulations. However, improper use can lead to personal injury or material damage.
Danger due to electrical current
DANGER
Danger of death due to electrical current!
Coming into contact with live electrical lines or components can be fatal.
Adhere to the following safety instructions to avoid dangers associated with electrical current:
▶ Only use the included power supply adapter, as the device may be damaged otherwise.
▶ Do not operate the device when the power supply adapter, connection cable or plug is damaged.
▶ Do not open the housing of the power supply adapter under any circumstances. There is a risk of electric shock when coming into contact with live connections or if the electronic or mechanical layout of the device is altered.
▶ Keep the device away from moisture, possible liquid penetration and dusty environments. Disconnect the power supply adapter immediately if the device comes into contact with liquids.
▶ Disconnect the power supply adapter before cleaning and in the event of malfunctions.
▶ Keep cables away from hot surfaces or other sources of danger, and do not jam or crush them.
Handling the batteries
WARNING
Danger may result from the improper use of batteries.
▶ Only use batteries of the same type.
When inserting the batteries, ensure that the polarity is correct. Reverse polarity can result in damage to both the batteries and the device.
▶ Never throw batteries into a fire, as they may explode.
The battery poles must not be connected together (whether accidentally or intentionally) or come into contact with metallic objects. This can result in overheating, explosion or fire.
▶ Keep batteries out of the reach of children. If swallowed, seek medical attention immediately.
▶ Leaking battery acid can cause permanent damage to the device. Exercise extreme caution when handling damaged or leaking batteries. Danger of chemical burns! Wear protective gloves.
▶ Remove the batteries if the device is not used for an extended period.
▶ Do not use empty batteries and full batteries together.
GB
Basic safety instructions
Observe the following safety instructions to ensure safe handling of the device:
■ The device should only be assembled by adults. Keep small parts out of reach of children during assembly.
■ Do not let children play with parts of the device or the device itself. Ensure that the baby monitor units, power supply adapter and connection cable are always kept out of reach of babies.
■ Never cover the device (e.g. with a towel or blanket).
■ Faulty components may be replaced with original spare parts only. Only original spare parts can guarantee that applicable safety requirements are adhered to.
Design and functionality
Basic design
The "Baby-Control" is comprised of one parent unit and one baby unit, which communicate with each other over a wireless connection. This device provides you with sensor-controlled acoustical monitoring of babies and persons who need to be monitored.
The data recorded by the microphone on the baby unit are transmitted to the parent unit, where it can be heard over the loudspeaker. The parent unit is also equipped with four LEDs to indicate the volume.
NOTE
▶ The baby monitor is only intended as a support aid, and is not a substitute for responsible and proper care by an adult.
Design of the receiver/baby unit:
1 ON/OFF battery display
2 Operation selection switch
3 Channel selection switch
4 Transmission indicator
5 Socket for power supply adapter
6 Microphone
Design of the receiver/parent unit:
8 Loudspeaker
9 Volume control ON/OFF
10 Channel selection switch
11 L ED reception indicator
12 Socket for power supply adapter
Energy status LED
Baby unit
GB
LED lights up green Normal operation with batteries
LED lights up orange Rechargeable batteries are being charged; operation using power supply unit
LED lights up red Rechargeable batteries are being charged; device is switched off
"Transmit" LED The baby unit is transmitting lights up red
Flashing LED Batteries are empty
NOTE
▶ When the charge from the batteries is too low (energy status LED fl ashes red):
- A warning tone is sounded by the parent unit every 3 seconds.
- The charge status (empty battery) is shown in the display of the parent unit (see fig. 3, 6).
- The device automatically shuts off after 30 seconds.
Parent unit
LED lights up green Normal operation with batteries
LED lights up orange Rechargeable batteries are being charged; operation using power supply unit
LED lights up red Rechargeable batteries are being charged; device is switched off
LEDs "Receive Level" The parent unit is receiving (The number of LEDs indicate the volume) light up red
Flashing LED Batteries are empty
NOTE
▶ Replace empty batteries immediately. (See page 14)
▶ Immediately charge rechargeable batteries when they are empty. To do so, connect the power supply unit while the rechargeable batteries are inserted. (See page 14).
Getting started
Safety instructions
WARNING
Personal injury and material damage may occur when using the device for the first time.
Observe the following safety instructions to avoid these dangers.
▶ Packaging materials may not be used as toys. Risk of suffocation!
GB
Included components and delivery inspection
The device is delivered with the following components as standard:
- Baby unit
- Parent unit
• Power supply adapter (2x)
• Table mount for baby unit
• Swivelling base for parent unit - Fastening clip for parent unit
- Operating instructions
NOTE
▶ Check the delivery for completeness and visible damage. Inform your supplier in the event of incomplete or damaged deliveries.
Disposing of packaging materials
The packaging protects the device from damage during transportation. The packaging materials have been selected according to environmental and disposal factors, and can therefore be recycled.
Recycling packaging saves raw materials and reduces the volume of waste. Dispose of packaging materials that are no longer needed according to locally applicable regulations.
NOTE
▶ When possible, retain the original packaging during the warranty period in order to pack the device properly in the event of warranty claims.
Positioning requirements
The device must be positioned according to the following requirements in order to ensure safe and error-free operation:
■ The socket must be easily accessible in order to disconnect the power cable in an emergency.
■ The device must be positioned in a dry location.
■ The units must be positioned on a level, horizontal surface.
■ The parent unit and baby unit must be kept at least 1 metre apart.
■ The distance between the baby unit and the object to be monitored (e.g. baby) must be at least one metre (due to radiation).
- Do not place the "BC-100" in the immediate vicinity of computers, electric ovens, microwaves, cordless telephones or fluorescent lamps. This can disturb and distort the audio signals.
NOTE
▶ If the signal is weak, move the transmitter/receiver to another location or change the frequency.
▶ You can only change the frequency if the alternate frequency is not blocked by another transmitter.
▶ To improve the transmitting power, we recommend that both the transmitter and the receiver should always be placed in an upright position.
Electrical connection
The devices are provided by the included power supply adapter or alkaline batteries/rechargeable batteries (not included).
Inserting the batteries
◆ Insert four alkaline batteries/rechargeable batteries
Connecting the power supply adapter
- First, plug the connection cable into the socket on the device. Then plug the power supply adapter into a power outlet.
NOTE
Use the enclosed power supply adapter only.
The rechargeable batteries in the parent unit automatically begin to charge when the power supply adapter is attached. During the charging process, the charge symbol flashes as shown in "LED display" (see page 10).
NOTE
▶ The duration of the charging process depends on the type of rechargeable battery being used and its storage capacity.
Operation
Baby unit
◆ Place the transmitter in the room to be monitored.
To switch the unit on, set the operation selection switch on the right side of the device to "MIC LOW" or "MIC HI" for low/high microphone sensitivity.
◆ Move the channel selection switch to "CH1" or "CH2" to define the channel to be used.
NOTE
▶ Make sure that the microphone on the front of the transmitter is not covered.
▶ The transmitter is sensor-activated and only transmits when the noise level is high enough.
Parent unit
◆ To switch the unit on, turn the combination ON/OFF switch clockwise.
◆ Use the ON/OFF switch to adjust the volume.
◆ Move the channel selection switch to the same position that you selected for the baby unit.
◆ For practical purposes, you can use the clip to attach the parent unit to your belt (or other convenient location)
Cleaning and care
Safety instructions
GB
DANGER
Danger of death due to electrical current!
Adhere to the following safety instructions to avoid dangers associated with electrical current:
▶ Switch off the device and unplug the power supply adapter before cleaning.
WARNING
Danger due to leaking battery acid!
Leaking battery acid can cause injuries (skin irritation) and damage to the device.
Wear protective gloves.
Cleaning
■ Clean the device with a damp cloth and a mild cleaning agent only.
■ After cleaning the BC-100 with a wet cloth, be sure to dry it off immediately with a dry cloth.
Troubleshooting
This chapter contains important information for localising and rectifying errors. Observe the information to avoid dangers and material damage.
GB
Safety instructions
WARNING
Observe the following safety instructions to avoid safety risks and material damage:
▶ Repairs to electrical devices may only be carried out by specialists who have been trained by the manufacturer. Improper repairs can result in significant danger to the operator and damage to the device..
Causes of errors and error rectifi cation
The following table can be used to localise and rectify minor errors with the device:
GB
| Error Possible cause Solution | ||
| No sound from the parent unit | Volume is too low Increase the volume control. | |
| The distance between the baby unit and the baby/person is too far | Reduce the distance between the baby unit and the baby/person. | |
| No connection between the parent unit and the baby unit | Interference from other devices | Change the channel. |
| Identify and remove the sources of interference. | ||
| Distance is too far Reduce the distance. | ||
| Different channels have been set | Set both units to the same channel. | |
| The batteries in the baby unit are too weak | Replace the batteries. | |
| Audio feedback (whistling) | The baby unit and the parent unit are too close to each other | Increase the distance to at least one metre. |
| Volume is too high Lower the volume control. | ||
| Control LED does not light up | Device is switched off | S witch on the device. |
| The power supply adapter is not connected correctly | Make sure that the power supply adapter is properly plugged into the device and the power outlet. | |
| Batteries are empty Replace the batteries. | ||
| No mains power Check your fuse box. | ||
| Device is faulty | Inform our customer service department. | |
NOTE
▶ Contact our customer service department if the problem remains after taking the steps detailed above.
Disposal
Device disposal
Do not dispose of the device in the household waste. This product is subject to the European 2002/96/EC Waste Electrical and Electronic Equipment (WEEE) directive.
Dispose of the device at an approved waste disposal company or at your local waste disposal facility. Observe all applicable regulations. In case of doubt, contact your waste disposal facility.
Battery disposal
Batteries must not be disposed of in the household waste. Consumers are obliged by law to return batteries to the public collection points set up for this purpose. This legal obligation ensures that batteries are disposed of in an environmentally-friendly fashion. Only return discharged batteries.
Appendix
EU declaration of conformity
This device complies with the basic requirements and other relevant regulations of the European 99/5/EC Radio & Telecommunications Terminal Equipment (R&TTE) directive.
The original declaration of conformity can be found in full at http://www.hama.com.
Specifications
GB
| General information | |
| Frequency 40.665 Mhz – 40.695 Mhz | |
| Max. range outdoors 300 m | |
| Dimensions 5.6 cm x 7.3 cm x 10.2 cm | |
| Weight | 114 g |
| Power supply via adapter | |
| Input | 230 V AC/50 Hz |
| Output | 9 V DC/100 mA |
| Power supply via batteries | |
| Parent unit, baby unit | 4 x LR06/AA (alkaline batteries) |
| 4 x LR06/AA(rechargeable batteries) | |
Energy-saving options
In addition to the steps that have been taken by the manufacturer to reduce power consumption, you can further reduce power consumption by using the device wisely.
■ Remove the power supply adapter from the mains supply/power outlet when the device is not in use.
■ After completely charging rechargeable batteries, promptly remove the power supply adapter from the mains/power outlet in order to prevent the power supply adapter from entering stand-by operation.
In order to keep transmissions to an absolute minimum, set the operation selection switch on the baby unit to "MIC HI", if possible
■ Whenever possible, only charge the rechargeable batteries when they are completely empty. This helps to prevent them from experiencing a premature drop in power output, which can cause them to have to be recharged more often.
Precautions against radiation
To date, scientific studies on the potential health risks caused by high-frequency and low-frequency electromagnetic fields have not proven a distinct causal relationship. However, some studies have shown indications of possible health risks. As a measure of precaution, you should use all available technical options to keep exposure to high-frequency and low-frequency fields to a minimum – especially with babies and infants, who are particularly sensitive.
■ Position the device at least one metre away from the child's bed.
■ In particular, make sure to place the power supply unit as far away from the child as possible.
GB
F Mode d'emploi
Sommaire
Introduction .....43
Avant-propos 43
REMARQUE
La LED clignote Piles/batteries vides
