USER MANUAL Remote Control GO TOMTOM

toc_sforzaEU.fm Page 2 Friday, November 9, 2007 5:53 PMEN Remote control

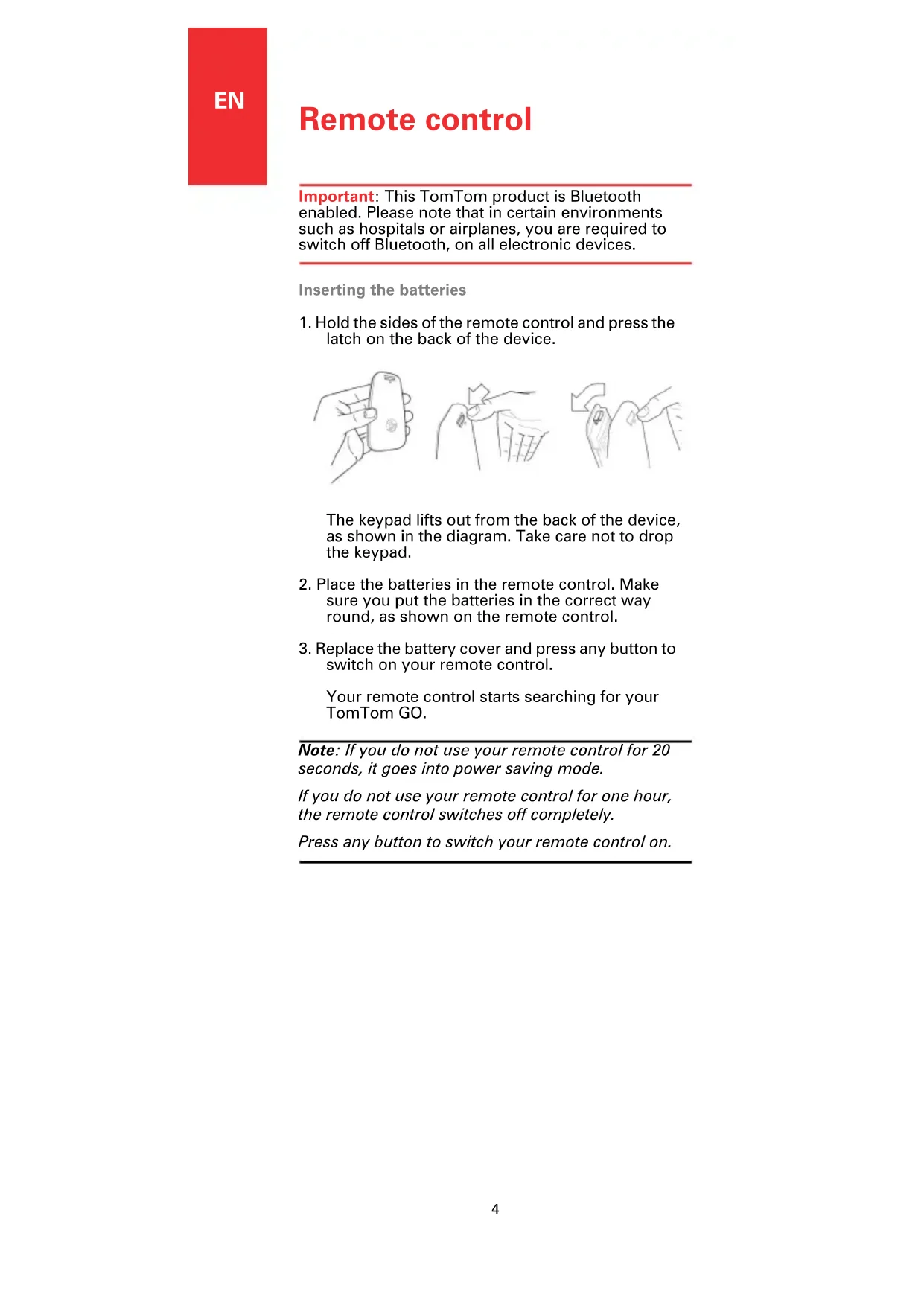

Remote control Important: This TomTom product is Bluetooth enabled. Please note that in certain environments such as hospitals or airplanes, you are required to switch off Bluetooth, on all electronic devices. Inserting the batteries

1. Hold the sides of the remote control and press the

latch on the back of the device. The keypad lifts out from the back of the device, as shown in the diagram. Take care not to drop the keypad.

2. Place the batteries in the remote control. Make

sure you put the batteries in the correct way round, as shown on the remote control.

3. Replace the battery cover and press any button to

switch on your remote control. Your remote control starts searching for your TomTom GO. Note: If you do not use your remote control for 20 seconds, it goes into power saving mode. If you do not use your remote control for one hour, the remote control switches off completely. Press any button to switch your remote control on. Remote-Control-Accessory.book Page 4 Friday, November 9, 2007 3:56 PMEN

Establishing a connection Before your remote control can communicate with your TomTom GO, you need to establish a Bluetooth connection between your remote control and your GO. This Bluetooth process is also known as ‘pairing’. The first time you switch on your remote control, it tries to establish a connection with the nearest GO. To establish a connection, do the following:

1. Switch on your TomTom GO and tap Bluetooth

preferences in the Preferences menu.

2. Tap Enable Bluetooth.

3. Press any button on your remote control to switch

it on. Your remote control communicates with your GO and you are asked if you want to accept the connection.

4. Tap Yes to accept the connection.

The next time you use your remote control, it looks for your GO. If your GO is switched off or is not within range, the remote control searches for another GO. Lights Bluetooth preferences Note: This button may only be available if all menu options are shown. To show all menu options, tap Show ALL menu options in the Preferences Menu. No light - your remote control is switched off or in power saving mode. Flashing blue light - your remote control is searching for your GO. Solid blue light - your remote control is connected to your GO. Red light - battery power is low. Replace the batteries as soon as possible. Remote-Control-Accessory.book Page 5 Friday, November 9, 2007 3:56 PMEN Remote control

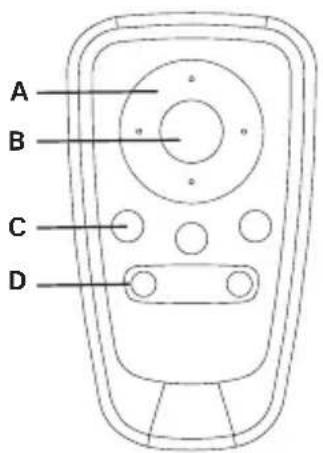

• Up and down buttons: zoom in and out on the map.

• Left and right buttons: go to the previous and next song. B Select button:

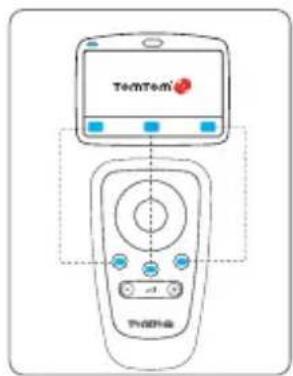

• Selects an item in a list, such as a list of POIs. C Soft buttons:

• Select the left, middle and right buttons in menus.

• The middle button plays and pauses tracks when playing music.

• Select the bottom left and right areas of the screen in the Driving View. D Volume controls:

• Turn the volume up and down.

Remote-Control-Accessory.book Page 6 Friday, November 9, 2007 3:56 PMLimited warranty

Limited war- ranty WARRANTOR Non-U.S. and non-Canadian purchases: If you have made your purchase outside the United States and Canada, this Limited Warranty is granted by and this Limitation of Liability is stipulated for the benefit of TomTom International B.V., Rembrandtplein 35, 1017 CT Amsterdam (The Netherlands).

WHAT THIS WARRANTY COVERS

1) TomTom International B.V. (“TomTom”) warrants to you that the

Hardware will be free from defects in workmanship and materials under normal use (“Defects”) for a period of one (1) year from the date that the Hardware was first purchased by you (“Warranty Period”). During the Warranty Period the Hardware will be repaired or replaced at TomTom’s choice (“Limited Warranty”) without charge to you for either parts or labour. This Limited Warranty covers the replacement of the Hardware only. If the Hardware is repaired after the Warranty Period has expired, the Warranty Period for the repair will expire six (6) months after the date of repair.

WHAT THIS WARRANTY DOES NOT COVER

2) The Limited Warranty does not apply to normal wear and tear, does not

apply when the Hardware is opened or repaired by someone not authorized by TomTom and does not cover repair or replacement of any Hardware or part thereof damaged by: misuse, moisture, liquids, proximity or exposure to heat and accident, abuse, non-compliance with the instructions supplied with the Hardware, neglect or misapplication. The Limited Warranty does not cover physical damage to the surface of the Hardware. This Limited Warranty does not cover any software that may accompany or be installed on the Hardware. The Limited Warranty does not cover the installation, removal or maintenance of the Hardware or any costs related herewith.

HOW TO MAKE A WARRANTY CLAIM

3) In order to make a claim of a Defect, you must contact TomTom by email

during the Warranty Period via www.tomtom.com to explain the Defect and to obtain an RMA number (Return Materials Authorization) if necessary. You must return the Hardware during the Warranty Period, along with an explanation of the Defect, to the address provided to you by TomTom. If a defect arises and a valid claim under this Limited Warranty is received by TomTom after the first one hundred and eighty (180) days of the Warranty Period, TomTom is entitled to charge you for any reasonable shipping and handling costs made in connection with the repair or replacement of the Hardware. You must comply with any other return procedures stipulated by TomTom, if any.

any part of this Limited Warranty is held to be invalid or unenforceable, the remainder of the Limited Warranty shall nonetheless remain in full force and effect.

5) This Limited Warranty is the only express warranty made to you and is

provided in lieu of any other express warranties or similar obligations (if any) created by any advertising, documentation, packaging, or other communications.

6) Except for the Limited Warranty and to the maximum extent permitted

by applicable law, TomTom and its suppliers provide the Hardware “AS IS AND WITH ALL FAULTS”, and hereby disclaim all other warranties and conditions, whether express, implied or statutory, including, but not limited to, any (if any) implied warranties, duties or conditions of satisfactory quality, of fitness for a particular purpose, of reliability or availability, of accuracy or completeness of responses, of results, of workmanlike effort, of lack of viruses, and of reasonable care and skill, all with regard to the Hardware, and the provision of or failure to provide support or other services, information, software, and related content through the Hardware or otherwise arising out of the use of the Hardware. Also, there is no warranty or condition of quiet enjoyment, quiet possession, or non- infringement with regard to the Hardware. This exclusion does not apply to (i) any implied condition as to title and (ii) any implied warranty as to conformity with description.

7) This Limited Warranty does not affect any legal rights under applicable

national legislation governing the sale of consumer goods.

8) This Limited Warranty cannot be transferred to any other person.

LIMITATION OF LIABILITY

9) Neither TomTom nor its suppliers shall be liable to you or to any third

party for any damages either direct, indirect, incidental, consequential or otherwise (including in each case, but not limited to, damages for the inability to use the equipment or access data, loss of data, loss of business, loss of profits, business interruption or the like) arising out of the use of or inability to use the Hardware even if TomTom has been advised of the possibility of such damages.

10) Notwithstanding any damages that you might incur for any reason

whatsoever (including, without limitation, all damages referenced herein and all direct or general damages in contract or anything else), the entire liability of TomTom and any of its suppliers shall be limited to the amount actually paid by you for the Hardware.

11) TomTom shall not be liable for (i) any fraud on the part of its employees

and/or agents; or (ii) any fraudulent misrepresentation on the part of its employees and/or agents.

12) Notwithstanding the above, neither party’s liability for death or

personal injury resulting from its own negligence shall be limited. Remote-Control-Accessory.book Page 7 Friday, November 9, 2007 3:56 PMDE Fernbedienung

Remote-Control-Accessory.book Page 12 Friday, November 9, 2007 4:15 PMFR Télécommande

Remote-Control-Accessory.book Page 22 Friday, November 9, 2007 4:28 PMTomTom Garanzia Limitata

Addendum FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. IC Regulations Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received,

including interference that may cause undesired operation of the device.

Responsible party in North America TomTom, Inc., 150 Baker Avenue Extension, Concord, MA

Tel: (866 486-6866) option 1 (1-866-4-TomTom) Exposure to Radio Frequency Radiation To comply with RF exposure requirements please maintain a separation distance of at least 20 cm / 7 inches from any part of the product. Emissions information for Canada This Class B digital apparatus complies with Canadian ICES-

Cet appareil numérique de la classe B est conforme ŕ la norme NMB-003 du Canada. CE Marking This equipment complies with the requirements for CE marking when used in a residential, commercial, vehicular or light industrial environment. WEEE Directive This symbol on the product or its packaging indicates that this product shall not be treated as household waste. In line with EU Directive 2002/96/EC for waste electrical and electronic equipment (WEEE), this electrical product must not be disposed of as unsorted municipal waste. Please dispose of this product by returning it to the point of sale or to your local municipal collection point for recycling. Dieses auf dem Produkt oder der Verpackung angebrachte Symbol zeigt an, dass dieses Produkt nicht mit dem Hausmüll addendum-eu.fm Page 36 Friday, November 9, 2007 5:36 PMAddendum
