USER MANUAL AVICX950BH PIONEER

02 Connectingthesystem

Precautionsbeforeconnectingthe system5

Beforeinstallingthisproduct5

Topreventdamage6

-Noticefortheblue/whitelead6

Partssupplied7

InstallingtheHDMI®cableholder7

Connectingthesystem8

WhenconnectingtheiPhone9

WhenconnectingtheAndroid™ device(for AVIC-Z150BHandAVIC-X950BH)11

Connectingthepowercord(1)12

Connectingthepowercord(2)14

Whenconnectingtoseparatelysoldpower amp16

Whenconnectingarearviewcamera18

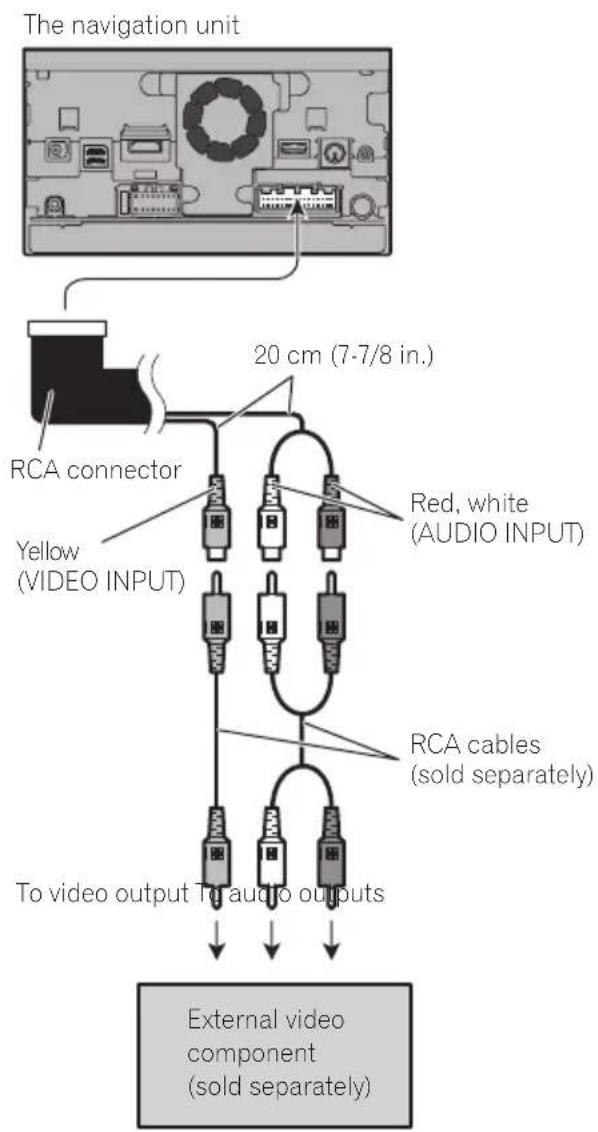

Whenconnectingtheexternalvideo component19

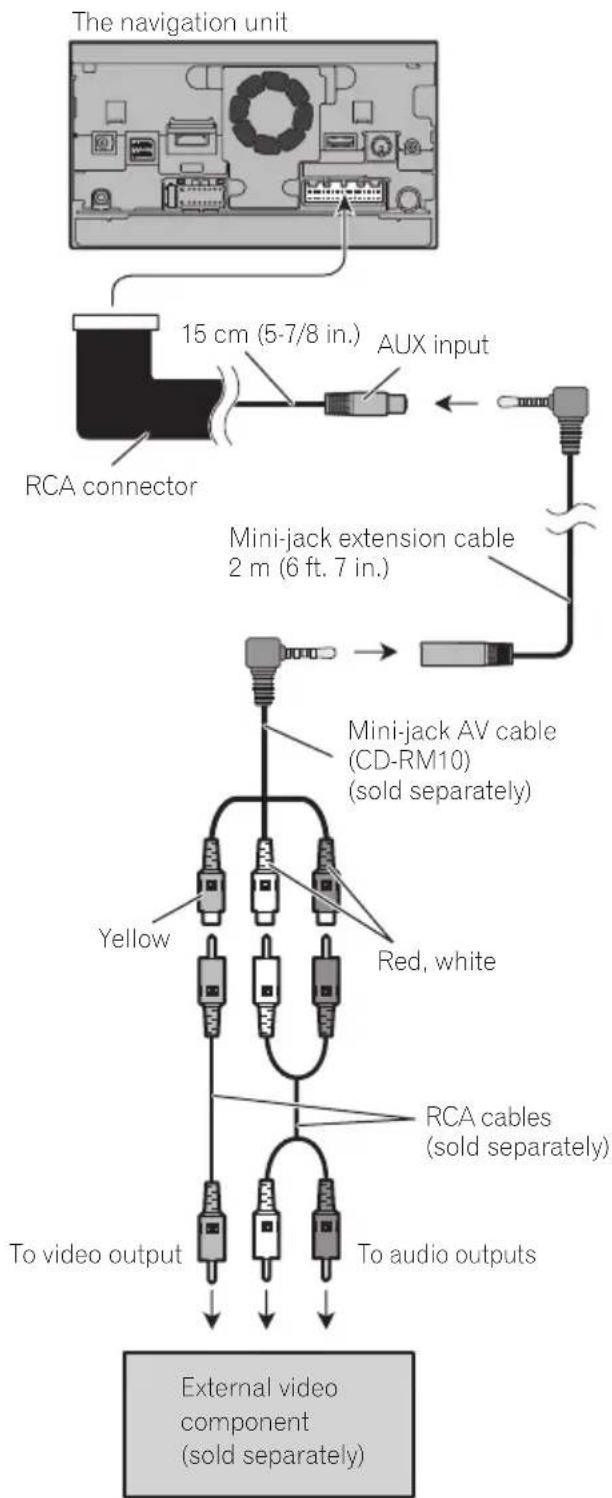

-UsinganAVinput(AV1)19

-UsinganAVinput(AV2)20

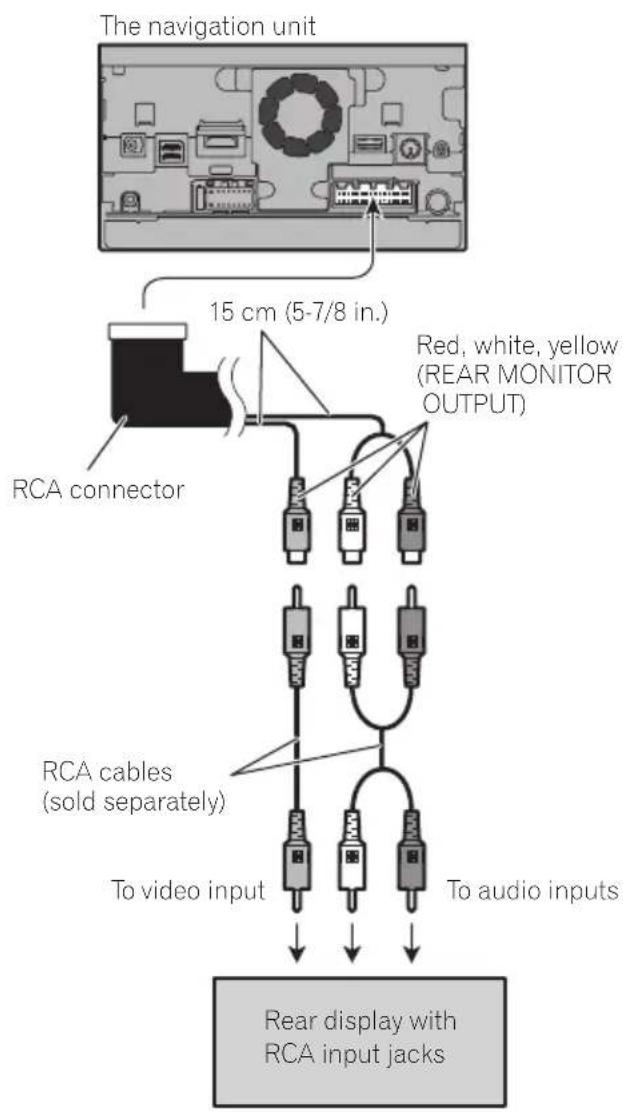

Whenconnectingthereardisplay20

-When using areardisplayconnectedto rearvideooutput20

03 Installation

Precautionsbeforeinstallation21

Toavoidelectromagneticinterference21

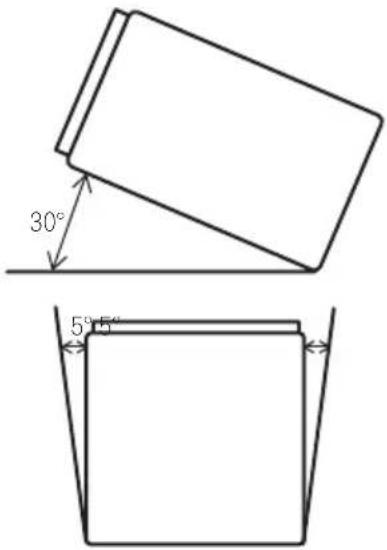

Beforeinstalling21

-ForAVIC-Z150BHusers22

Installingthenavigationsystem22

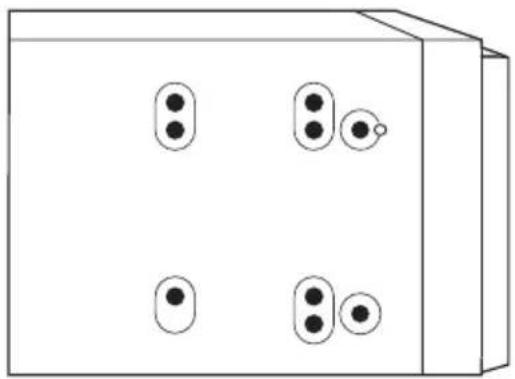

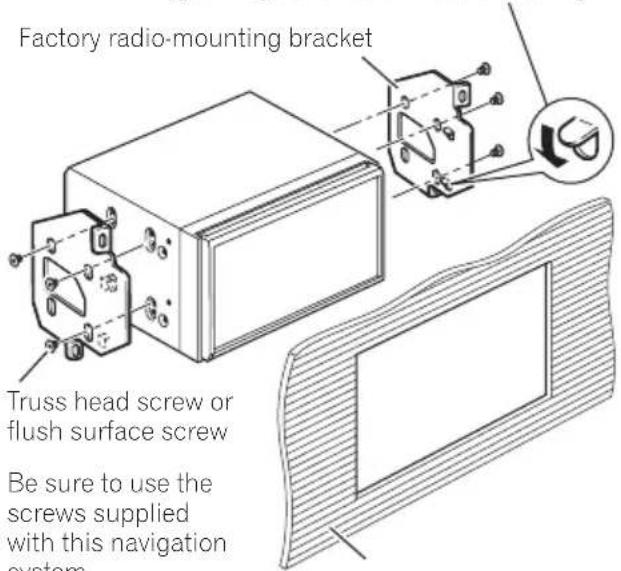

-Installationusingthescrewholeson thesideofthenavigationunit23

-Fasteningthedetachablefaceplate24

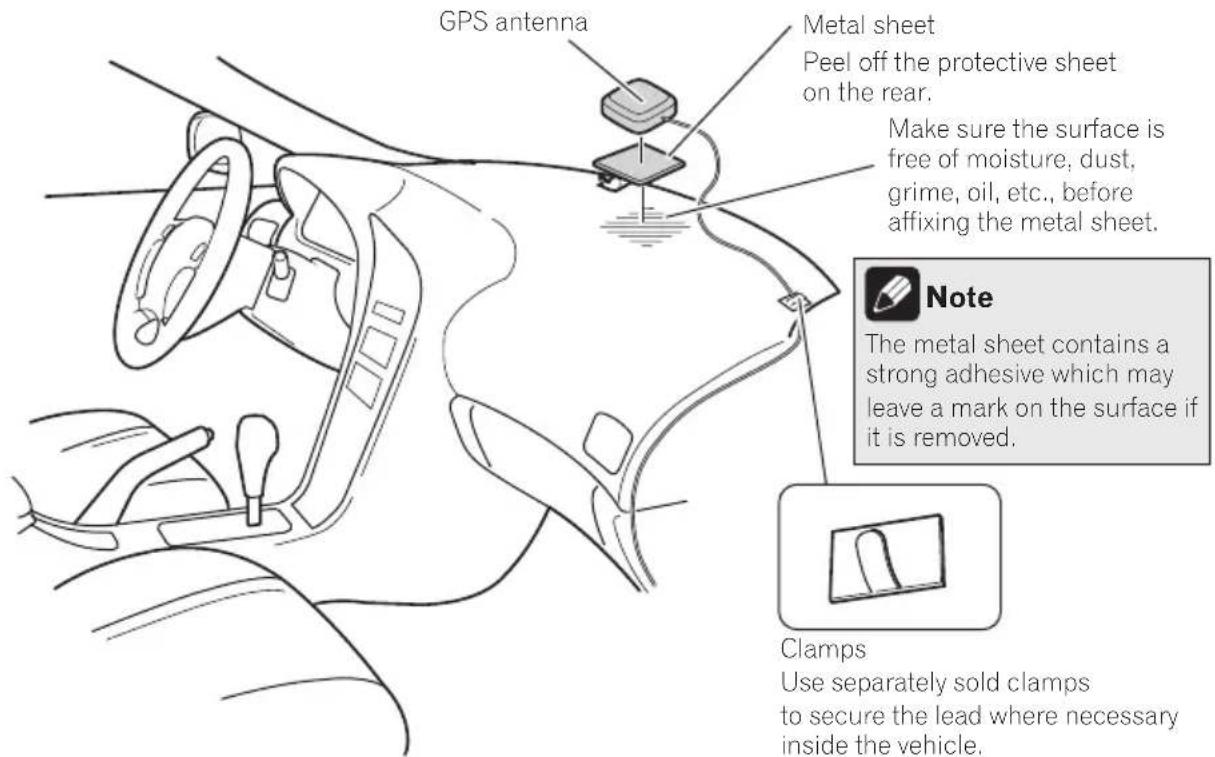

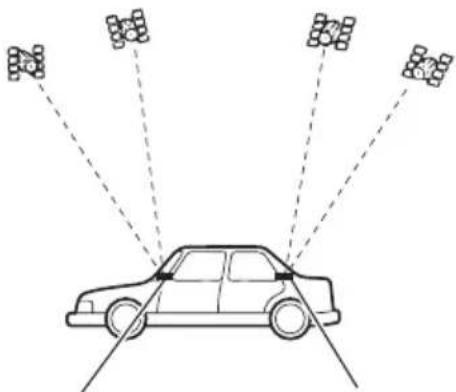

InstallingtheGPSantenna25

-Wheninstallingtheantennainsidethe vehicle(onthedashboardorrear shelf)26

Installingthemicrophone27

-Partssupplied27

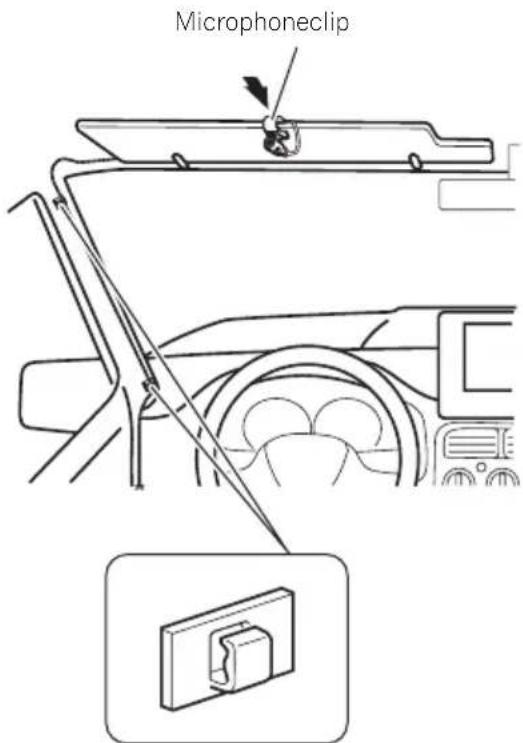

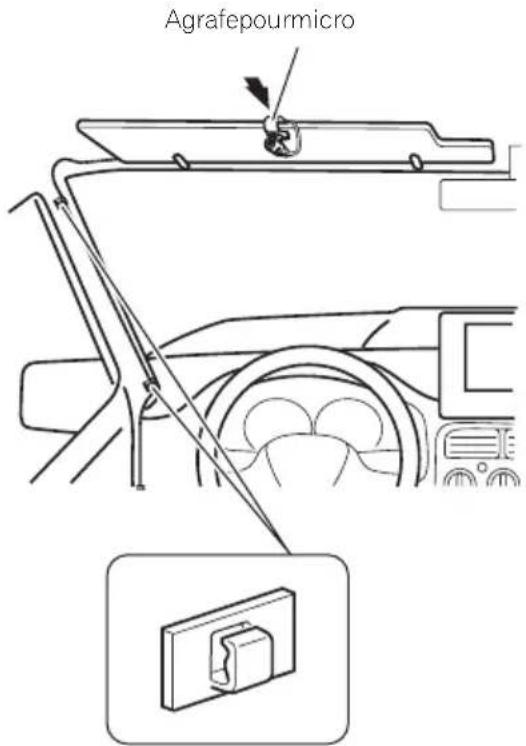

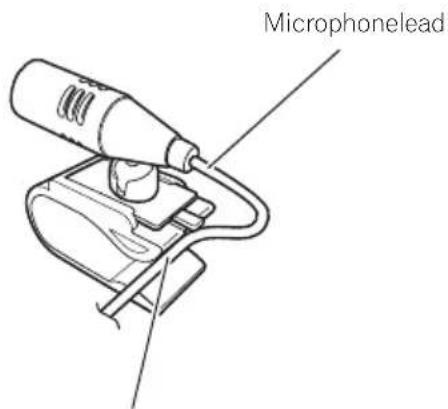

-Mountingonthesunvisor27

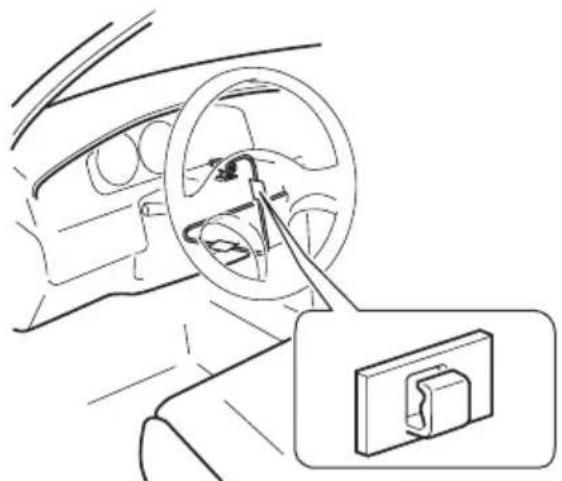

-Installationonthesteeringcolumn28

-Adjustingthemicrophoneangle28

Yournewnavigation systemandthismanual

• Thenavigationfeaturesofthisproduct (andtherearviewcameraoptionifpur-chased)areintendedsolelytoaidyouin theoperationofyourvehicle.Itisnotasub-stituteforyourattentiveness,judgment andcarewhendriving.
• Neverusethisnavigationsystemtoroute tohospitals,policestations,orsimilarfacilitiesinanemergency.Pleasecalltheappropriateemergencynumber.
• Donotoperatethisnavigationsystem(or therearviewcameraoptionifpurchased)if doingsowilldivertyourattentioninany wayfromthesafeoperationofyourvehicle. Alwaysobservesafedrivingrulesandfol-lowalexistingtrafficregulations.Ifyouexperienceddifficultyinoperatingthesystem orreadingthedisplay,parkyourvehiclein asafelocationandapplytheparkingbrake beforemakingthenecessaryadjustments.
• Thismanualeexplainshowtoinstallthisnavigationsysteminyourvehicle.Operation of thisnavigationsystemisexplainedin theseparatemanualsforthenavigation system.
• Donotinstallthisproductwhereitmay(i) obstructthedriver'svision,(ii)impairthe performanceofanyofthevehicle'soperatingsystemsofsafetyfeatures,including airbags,hazardlampbuttons,or(iii)impair thedriver'sabilitytosafelyoperatethevehicle.Insomecases,itmaynotbepossible toinstallthisproductbecauseofthevehicletypeortheshapeofthevehicleinterior.

Important safeguards

WARNING

Pioneerdoesnotrecommendthatyouinstall yournavigationsystemyourself.Thisproductisdesignedforprofessionalinstallation only.Werecommendthatonlyauthorized Pioneerservicepersonnel,whohavespecial trainingandexperienceinmobileelectronics,setupandinstallthisproduct.NEVER SERVICETHISPRODUCTYOURSELF.Installingorservicingthisproductanditsconnectingcablesmayexposeyoutotheriskof electricshockorotherhazards,andcan causedamagetothenavigationsystemthat isnotcoveredbywarranty.

• Readthismanualfullyandcarefullybefore installingyournavigationsystem.
• Keep this manual handy for future reference.
• Paycloseattentiontoallwarningsinthis manualandfollowtheinstructionscarefully.
• This navigationsystemmayincertaincircumstancesdisplayinaccuratepositionof yourvehicle,thedistanceofobjectsshown onthescreen,andcompassdirections.In addition,thesystemhascertainlimitations,includingtheinabilitytoidentifyone-waystreets,temporarytrafficrestrictions andpotentiallyunsafedrivingareas.Please exerciseyourownjudgmentinthelightof actualdrivingconditions.
• Aswithanyaccessoryinyourvehicle'sinterior,thenavigationsystemshouldnotdivertyourattentionfromthesafeoperation ofyourvehicleasitmayresultinserious injuryordeath.Ifyouexperienceddifficulty inoperatingthesystemorreadingthedisplay,pleasemakeadjustmentswhilesafely parked.
• Pleaseremembertowearyourseatbeltat alltimeswhileoperatingyourvehicle.If youareinanaccident,yourinjuriescanbe considerablymoresevereifyourseatbelt isnotproperlybuckled.

01 (Precautions

- Certaincountryandgovernmentlawsmay prohibitionrestricttheplacementanduse ofthissysteminyourvehicle.Pleasecomplywithallapplicablelawsandregulations regardingtheuse,installationandoperationofyournavigationsystem.

Precautionsbefore connectingthesystem

WARNING

Donottakeanystepstotamperwithordisabletheparkingbrakeinterlocksystem whichisinplaceforyourprotection. Tamperingwithordisablingtheparkingbrakeinterlocksystemcouldresultinseriousinjuryor death.

CAUTION

• If you decide to perform the installation yourself, and have special training and experience in them mobile electronics installations, please carefully follow all of the steps in the installation manual.
• Secureallwiringwithcableclampsorelectricaltape.Donotallowanybarewiringtoremainexposed.
• Donotdirectlyconnecttheyellowleadof thisproducttothevehiclebattery.If the leadisdirectlyconnectedtothebattery, enginevibrationmayeventuallycause theinsulationtofailatthepointwhere thewirepassesfromthepassengercompartmentintotheenginecompartment.If theyellowlead'sinsulationtearsasaresultofcontactwithmetalparts,short-circuitingcanoccur,resultingin considerabledanger.
• Itisextremelydangeroustoallowcables tobecomewoundaroundthesteeringcolumnorshiftlever.Besuretoinstallthis product,itscables,andwiringawayin suchsothattheywillnotobstructorhinderdriving.
• Makesurethatthecablesandwireswill notinterferewithorbecomecaughtin anyofthevehicle'smovingparts,especiallythesteeringwheel,shiftlever,parkingbrake,slidingseattracks,doors,or anyofthevehicle'scontrols.
• Donotroutewireswheretheywillbeexposedtohightemperatures.Iftheinsulationheatsup,wiresmaybecome

damaged, resulting in an short circuit or malfunction and permanent damage to the product.

• DonotcuttheGPSantennacableto shortenitoruseanextensiontomakeit longer. Alteringtheantennacablecould resultinashortcircuitormalfunction.
• Donotshortenanyleads.Ifyoudo,the protectioncircuit(fuseholder,fuseresistororfilter,etc.)mayfailtoworkproperly.
• Neverfeedpowertootherelectronicproductsbycuttingtheinsulationofthepowersupplyleadofthenavigationsystemandtappingintothelead.Thecurrentcapacityoftheleadwillbeexceeded,causingoverheating.

Beforeinstallingthisproduct

• Usethisunitwitha12-voltbatteryandnegativegroundingonly.Failuretodosomay resultinafireormalfunction.
• To avoid shortsin the electrical system, be suretodisconnectthe(-)batterycablebeforeinstallation.

Illustration of a hand holding a battery with a switch and power plug, no text or symbols present

Topreventdamage

WARNING

• Usespeakersover50W(outputvalue) andbetween4Ωto8Ω(impedancevalue). Donotuse1Ωto3Ωspeakersforth is unit.

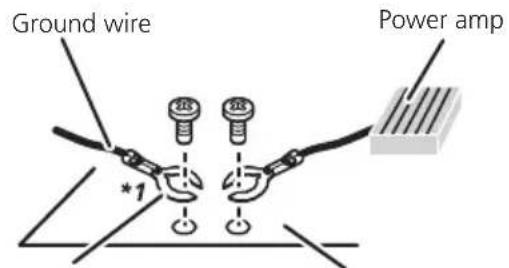

• Theblackcableisground.Wheninstallingthisunitorpoweramp(soldseparately),makesuretoconnecttheground wirefirst.Ensurethatthegroundwireis properlyconnectedtometalpartsofthe car'sbody.Thegroundwireofthepower ampandtheoneofthisunitoranyother devicemustbeconnectedtothecarse separatelywithdifferentscrews.Ifthescrew forthegroundwireloosensorfallsout,it couldresultinfiregenerationofsmokeor malfunction.

Ground wire *1 Power amp

Other devices (Another electronic device in the car)
Metal parts of car's body

*1 Not supplied for this unit.

- Whenreplacingthefuse,besuretoonly useafuseoftheratingprescribedonthis product.

• Whendisconnectingacon connector, pull the connector itself. Donotpullthelead, as youmaypullitoutoftheconnector.
• ThisproductcannotbeinstalledinvehiclewithoutACC(accessory)positionontheignitionswitch.

OFF ACC ON START

OFF ON START

ACCpositionNoACCposition

• To avoid short-circuiting, cover the disconnected lead with insulating tape. It is especially important to insulate all unused speaker leads, which if left uncovered may
- Attachtheconnectorsofthesamecolorto thecorrespondingcoloredport,i.e.,blue connectortotheblueport,blacktoblack, etc.
- Refertotheowner's manualfordetailson connecting the power amp and other units, then make connections accordingly.
- SinceauniqueBPTLcircuitisemployed, donotdirectlygroundthe⊖sideofthe speakerleaderconnectthe⊖sideofan-othersideofthespeakerleadtogether.Be suretoconnectthe⊖sideofthespeaker leadtothe⊖sideofthespeakerleadon thisnavigationsystem.

Noticefortheblue/whitelead

• Whentheignitionswitchisturnedon(ACC ON),acontrolsignalisoutputthroughthe blue/whitelead.Connecttoanexternal poweramp'ssystemremotecontrolterminal,theauto-antennarelaycontrolterminal,ortheantennaboosterpowercontrol terminal(max.300mA12VDC).Thecontrolsignalisoutputthroughtheblue/white lead,eveniftheaudiosourceisswitched off.
• Besurenottousethisleadasthepower supplyleadfortheexternalpoweramps. Suchconnectioncouldcauseexcessive currentdrainandmalfunction.
• Besurenottousethisleadasthepower supplyleadfortheauto-antennaorantennabooster.Suchconnectioncouldcause excessivecurrentdrainandmalfunction.

Connectingthesystem

Partssupplied

Partsmarked(*)aresuppliedwithAVIC-Z150BHandAVIC-X950BH.

Technical line drawing of a rectangular electronic component and a coiled cable with connectors (no text or symbols)

ThenavigationunitPowercord

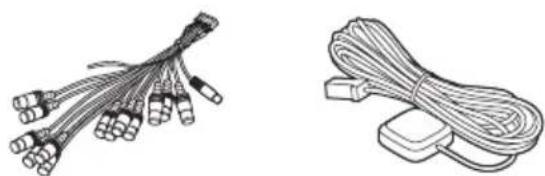

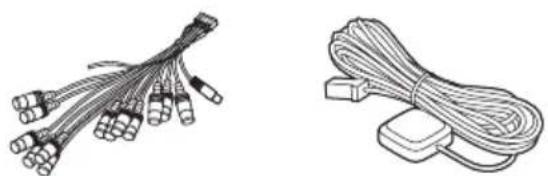

Two types of cable connectors shown: a bundle of wires with connectors and a separate coiled cable (no text or symbols)

RCAconnectorGPSantenna

Technical line drawings of a cable and a U-shaped mechanical component (no text or symbols)

MicrophoneHDMlcableholder*

Mini-jackextension cable

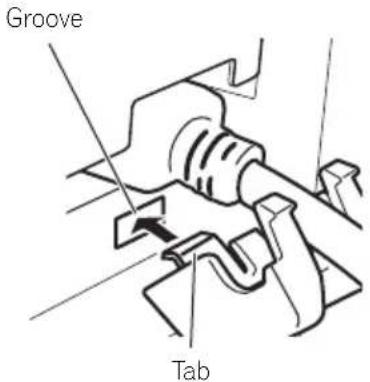

InstallingtheHDMI® cable holder

1InsertthelowertaboftheHDMicable holderintothegrooveofthisproduct.

Groove Tab

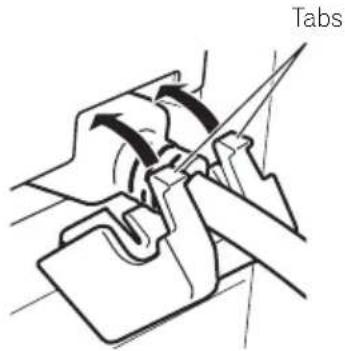

2Insertthetwouppertabsintothethis productbypushingtheHDMIcableholder.

Mechanical assembly diagram showing a tool interacting with a component labeled 'Tabs' (no other text or symbols)

□UsetheHDMIcableholderwhenyouconnectthisproductwiththeseparatelysold AppConnectivityKit(CD-AH200),HDMI/USBinterfacecableforiPod/iPhone(CD-IH202)orVGA/USBinterfacecableforiPod/iPhone(CD-IV202NAVI).
□Nevergriptheholdertightlyoruseforce whenremovingorattaching.

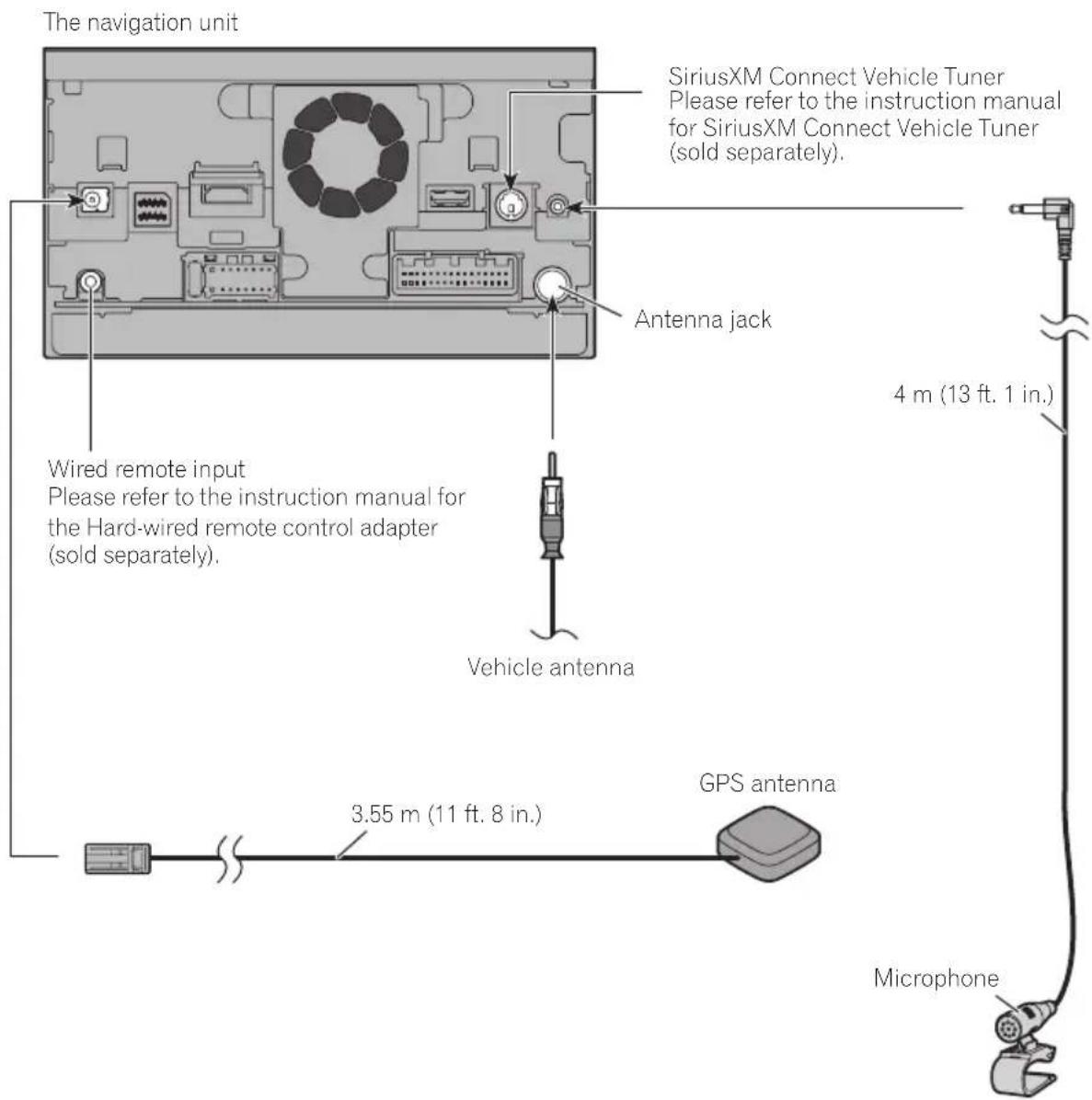

Connectingthesystem

The navigation unit SiriusXM Connect Vehicle Tuner Please refer to the instruction manual for SiriusXM Connect Vehicle Tuner (sold separately). Antenna jack Wired remote input Please refer to the instruction manual for the Hard-wired remote control adapter (sold separately). Vehicle antenna 4 m (13 ft. 1 in.) GPS antenna 3.55 m (11 ft. 8 in.) Microphone

WARNING

• To avoid the risk of accident and the potential violation of applicable laws, this product should never be used while the vehicle is being driven except for navigation purposes. And, also rear displays should not be in a location where it is a visible distraction to the driver.
• In some countries, the viewing of images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply they must be obeyed and this product's video source should not be used.

WhenconnectingtheiPhone

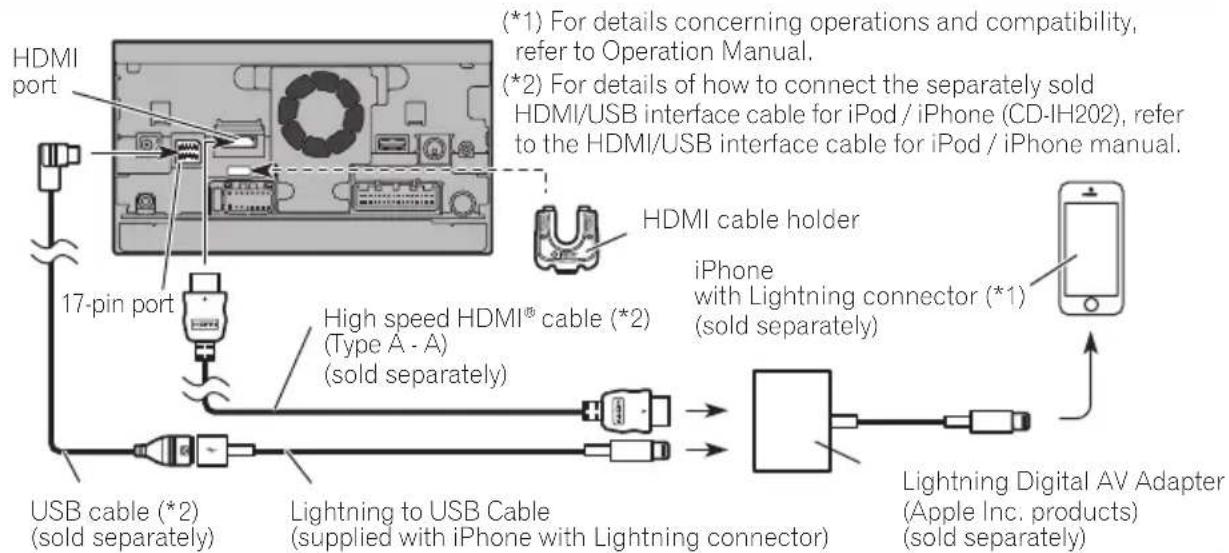

Connecting an iPhone with Lightning connector (for AVIC-Z150BH and AVIC-X950BH)

HDMI port (*1) For details concerning operations and compatibility, refer to Operation Manual. (*2) For details of how to connect the separately sold HDMI/USB interface cable for iPod / iPhone (CD-IH202), refer to the HDMI/USB interface cable for iPod / iPhone manual. HDMI cable holder iPhone with Lightning connector (*1) (sold separately) High speed HDMI® cable (*2) (Type A - A) (sold separately) USB cable (*2) (sold separately) Lightning to USB Cable (supplied with iPhone with Lightning connector) Lightning Digital AV Adapter (Apple Inc. products) (sold separately)

Notes

• When you connect the High Speed HDMI® Cable, use the HDMI cable holder to fix it securely.
• The iPhone needs to be connected to this navigation system via Bluetooth® wireless technology when you want to operate applications on the screen of the navigation system.

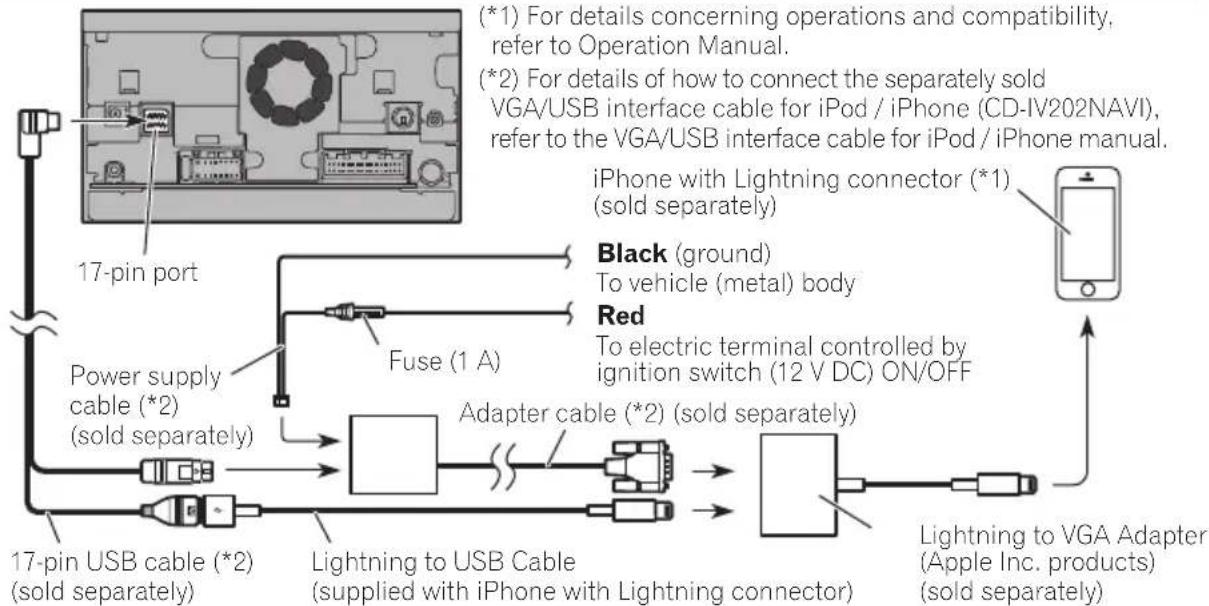

Connecting an iPhone with Lightning connector (for AVIC-X850BT and AVIC-X8510BT)

Note

- The iPhone needs to be connected to this navigation system via Bluetooth® wireless technology when you want to operate applications on the screen of the navigation system.

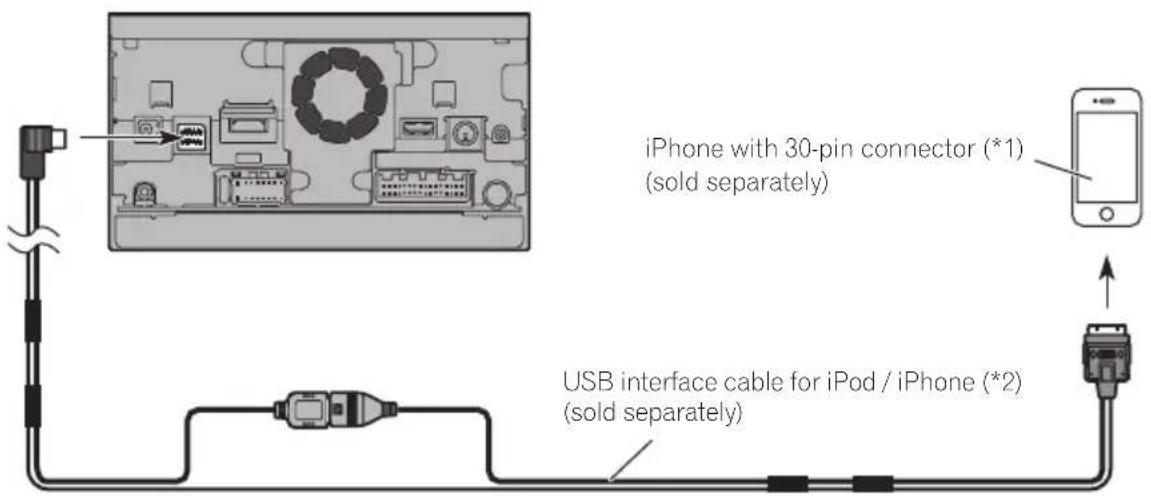

Connecting an iPhone with 30-pin connector

iPhone with 30-pin connector (*1) (sold separately) USB interface cable for iPod / iPhone (*2) (sold separately)

(*1) For details concerning operations and compatibility, refer to Operation Manual.
(*2) For details of how to connect the separately sold USB interface cable for iPod / iPhone (CD-IU201N) refer to the USB interface cable for iPod / iPhone manual.

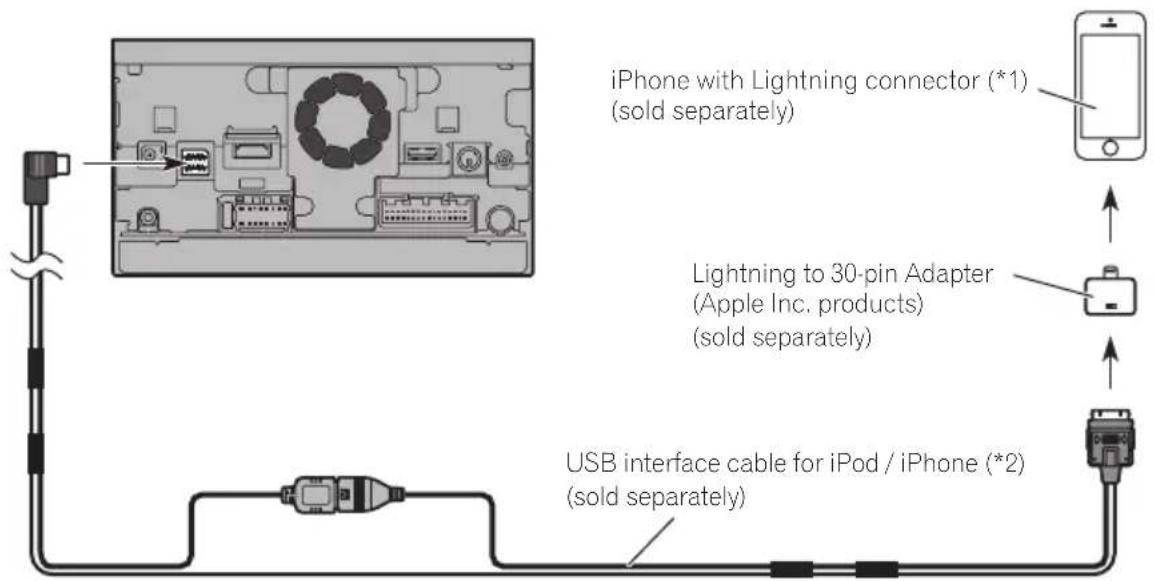

Connecting an iPhone with a Lightning to 30-pin Adapter

iPhone with Lightning connector (*1) (sold separately) Lightning to 30-pin Adapter (Apple Inc. products) (sold separately) USB interface cable for iPod / iPhone (*2) (sold separately)

(*1) For details concerning operations and compatibility, refer to Operation Manual.
(*2) For details of how to connect the separately sold USB interface cable for iPod / iPhone (CD-IU201N) refer to the USB interface cable for iPod / iPhone manual.

WhenconnectingtheAndroid ^TM device(forAVIC-Z150BH andAVIC-X950BH)

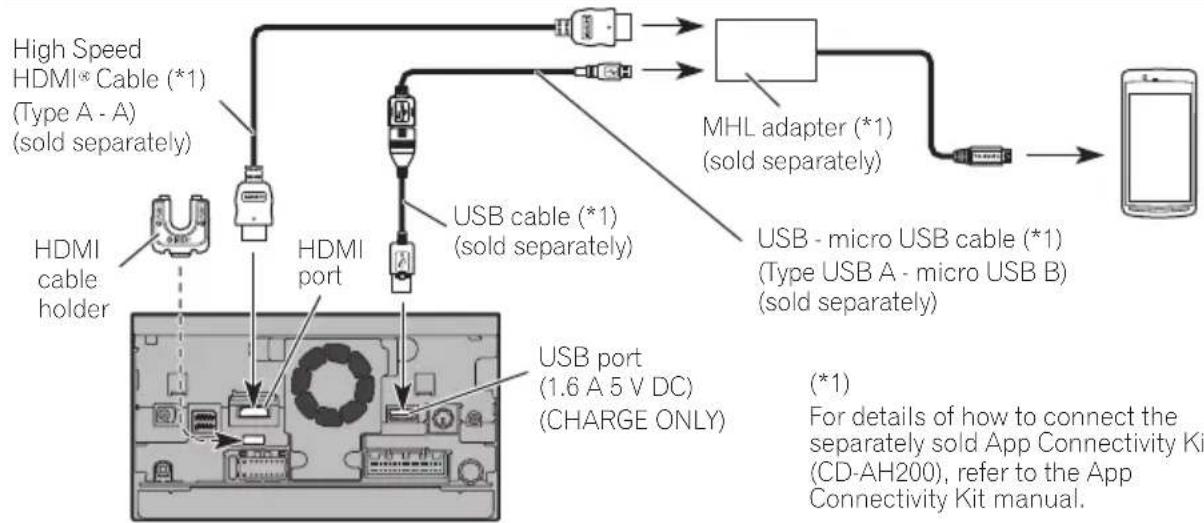

Connecting an Android device with an MHL port

Notes

• When you connect the High Speed HDMI® Cable, use the HDMI cable holder to fix it securely.
• The Android device needs to be connected to this navigation system via Bluetooth® wireless technology when you want to operate applications on the screen of the navigation system.
• An adapter cable will not be used if you use the MHL adapter.

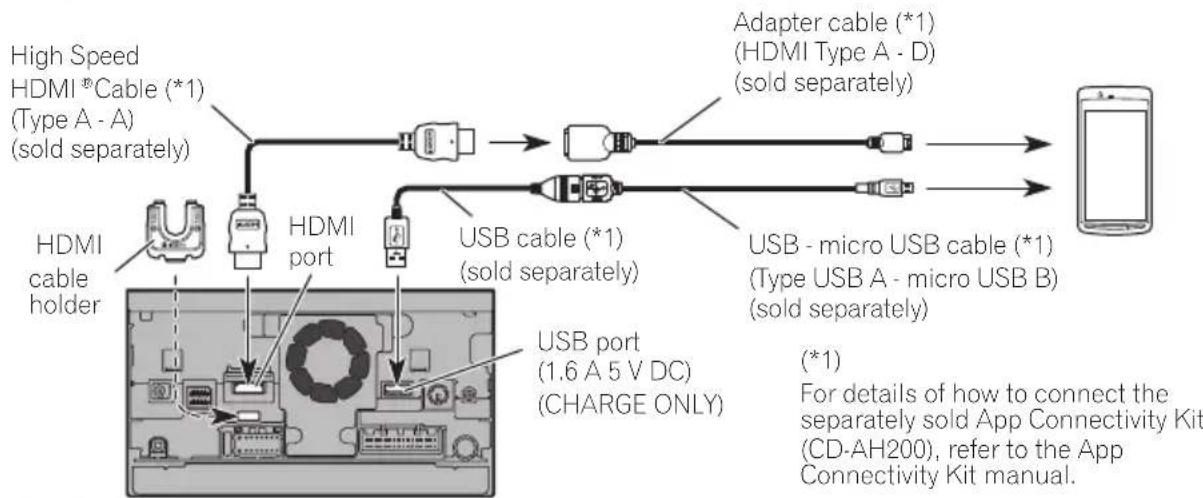

Connecting an Android device with an HDMI port

Notes

• When you connect the High Speed HDMI® Cable, use the HDMI cable holder to fix it securely.
• The Android device needs to be connected to this navigation system via Bluetooth wireless technology when you want to operate applications on the screen of the navigation system.
• An MHL adapter will not be used if you use the adapter cable.

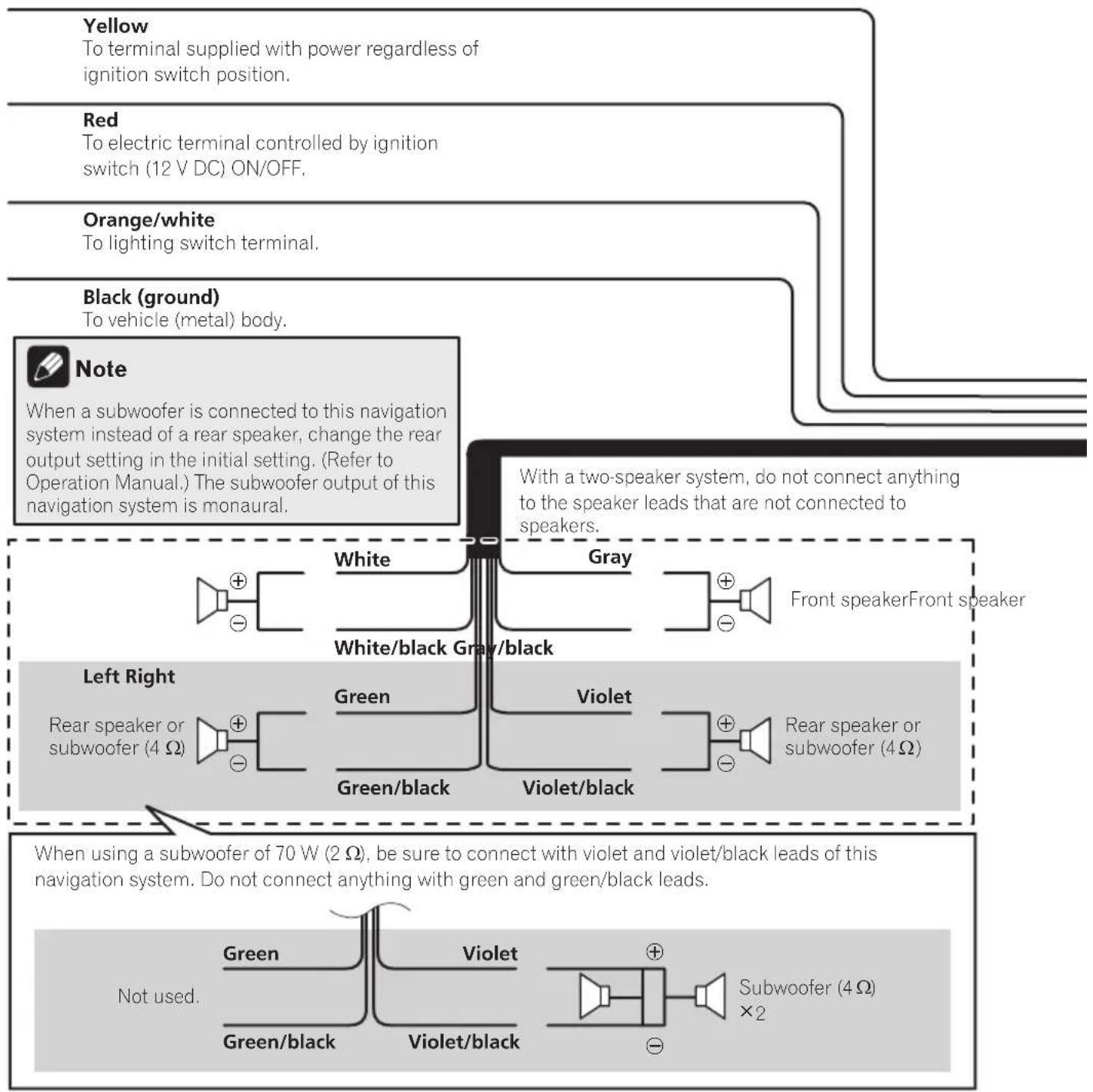

Connectingthepowercord(1)

Connectingthesystem

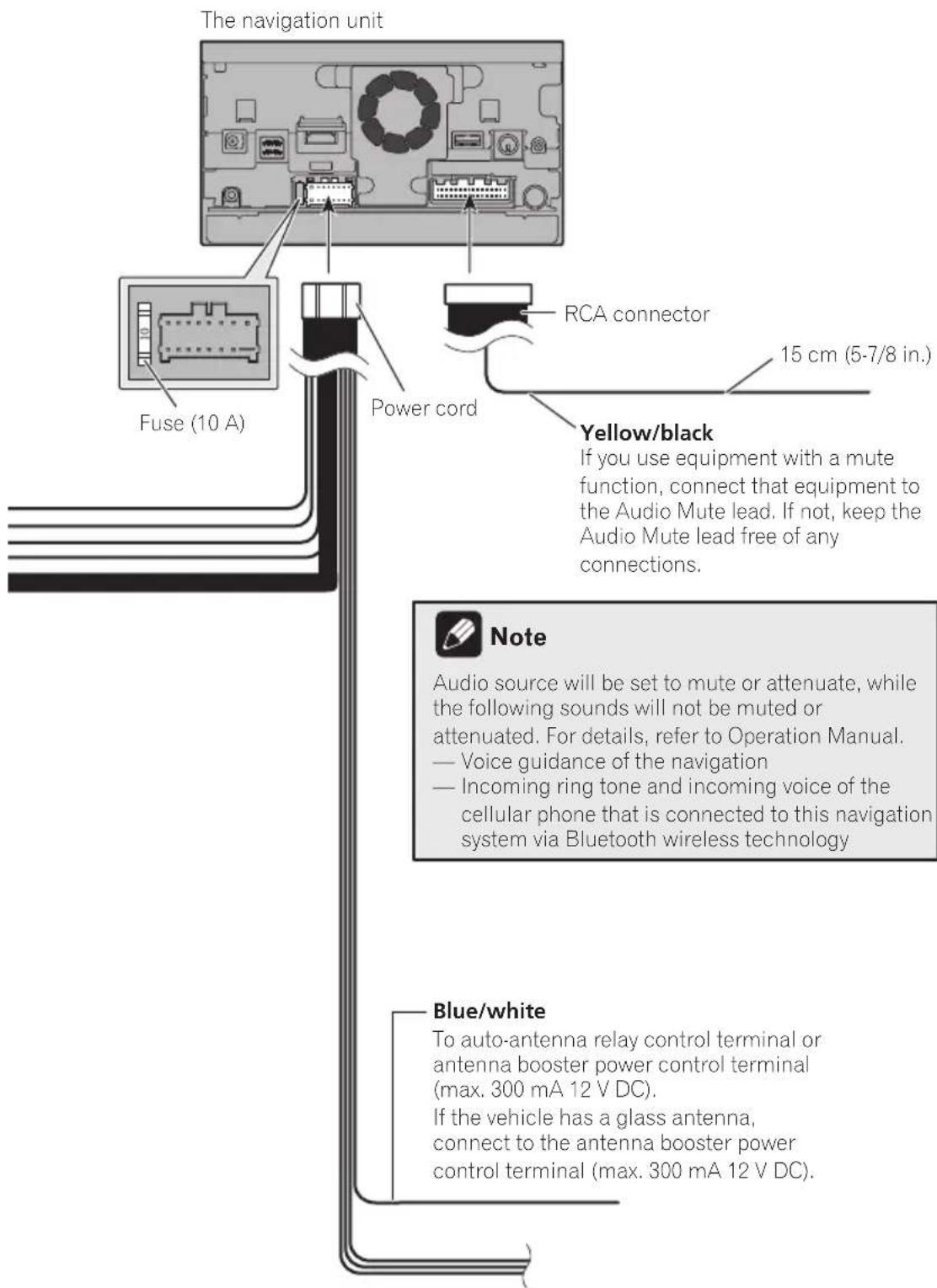

The navigation unit Fuse (10 A) Power cord RCA connector 15 cm (5-7/8 in.) Yellow/black If you use equipment with a mute function, connect that equipment to the Audio Mute lead. If not, keep the Audio Mute lead free of any connections. Note Audio source will be set to mute or attenuate, while the following sounds will not be muted or attenuated. For details, refer to Operation Manual. — Voice guidance of the navigation — Incoming ring tone and incoming voice of the cellular phone that is connected to this navigation system via Bluetooth wireless technology Blue/white To auto-antenna relay control terminal or antenna booster power control terminal (max. 300 mA 12 V DC). If the vehicle has a glass antenna, connect to the antenna booster power control terminal (max. 300 mA 12 V DC).

Connectingthepowercord(2)

Pink (CAR SPEED SIGNAL INPUT)

The navigation system is connected here to detect the distance the vehicle travels. Always connect the vehicle's speed detection circuit. Failure to make this connection will increase errors in the vehicle's location display.

WARNING

IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE VEHICLE'S ANTILOCK BRAKING SYSTEM, AUTOMATIC TRANSMISSION AND SPEEDOMETER INDICATION.

CAUTION

It is strongly suggested that the speed pulse wire be connected for accuracy of navigation and better performance.

Note

The position of the speed detection circuit and the position of the parking brake switch vary depending on the vehicle model. For details, consult your authorized Pioneer dealer or an installation professional.

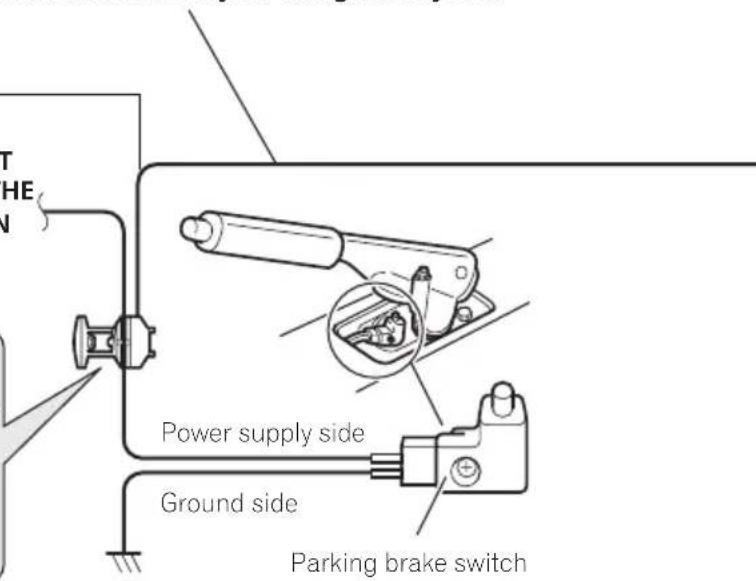

Light green (PARKING BRAKE)

Used to detect the ON/OFF status of the parking brake. This lead must be connected to the power supply side of the parking brake switch.

If this connection is made incorrectly or omitted, certain functions of your navigation system will be unusable.

WARNING

LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE PARKING BRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

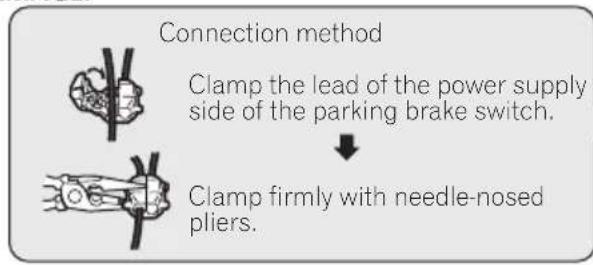


T HE N Power supply side Ground side Parking brake switch

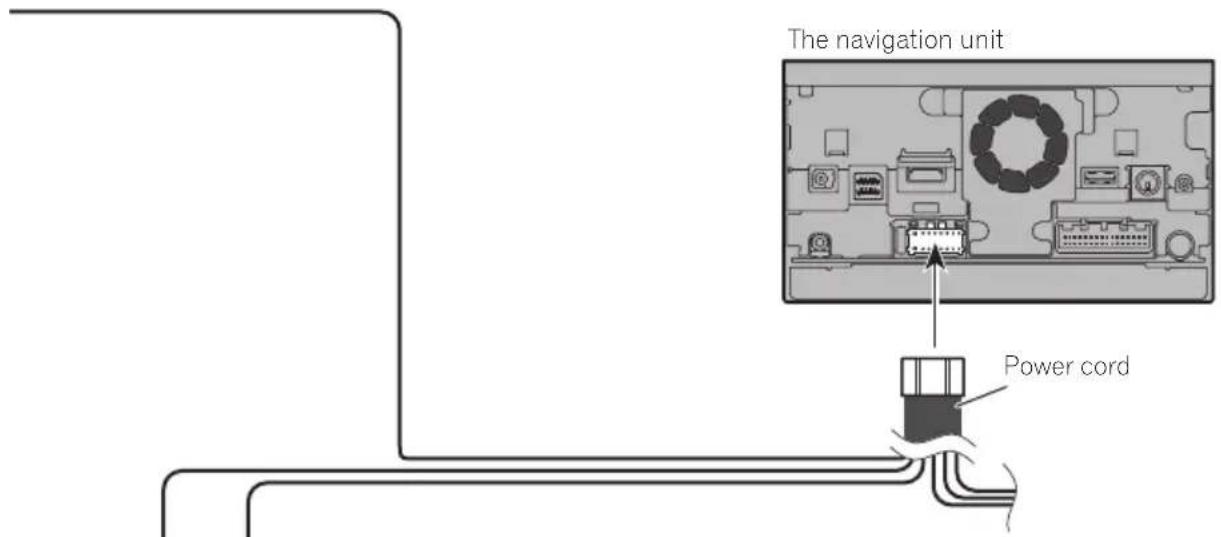

Connectingthesystem

The navigation unit Power cord

Violet/white (REVERSE GEAR SIGNAL INPUT)

This is connected so that the navigation system can detect whether the vehicle is moving forwards or backwards. Connect the violet/white lead to the lead whose voltage changes when the shift lever is put in reverse. Unless connected, the sensor may not detect your vehicle traveling forward/backward properly, and thus the position of your vehicle detected by the sensor may be misaligned from the actual position.

Note

When you use a rear view camera, please make sure to connect this lead. Otherwise you cannot switch to the rear view camera picture.

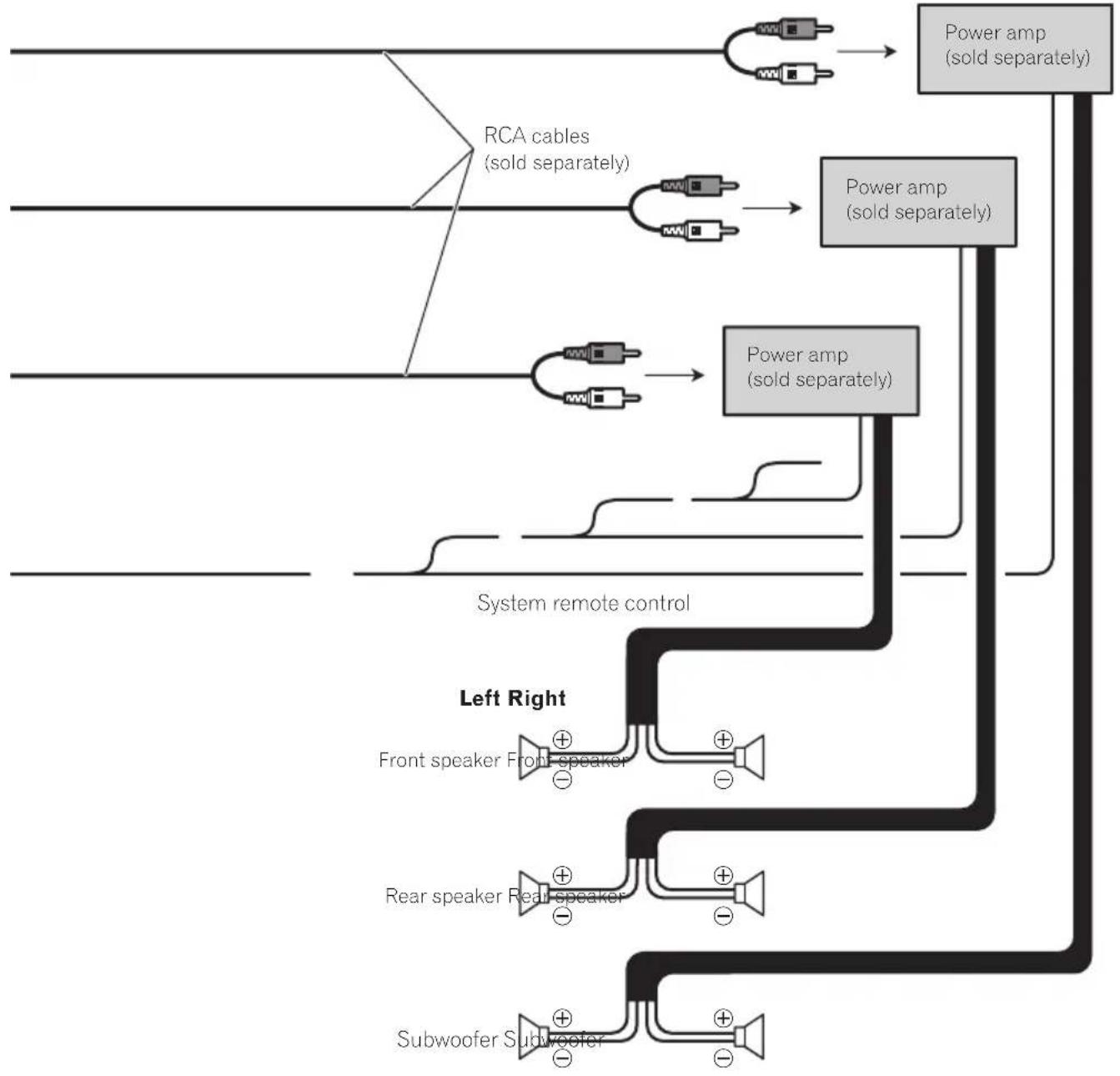

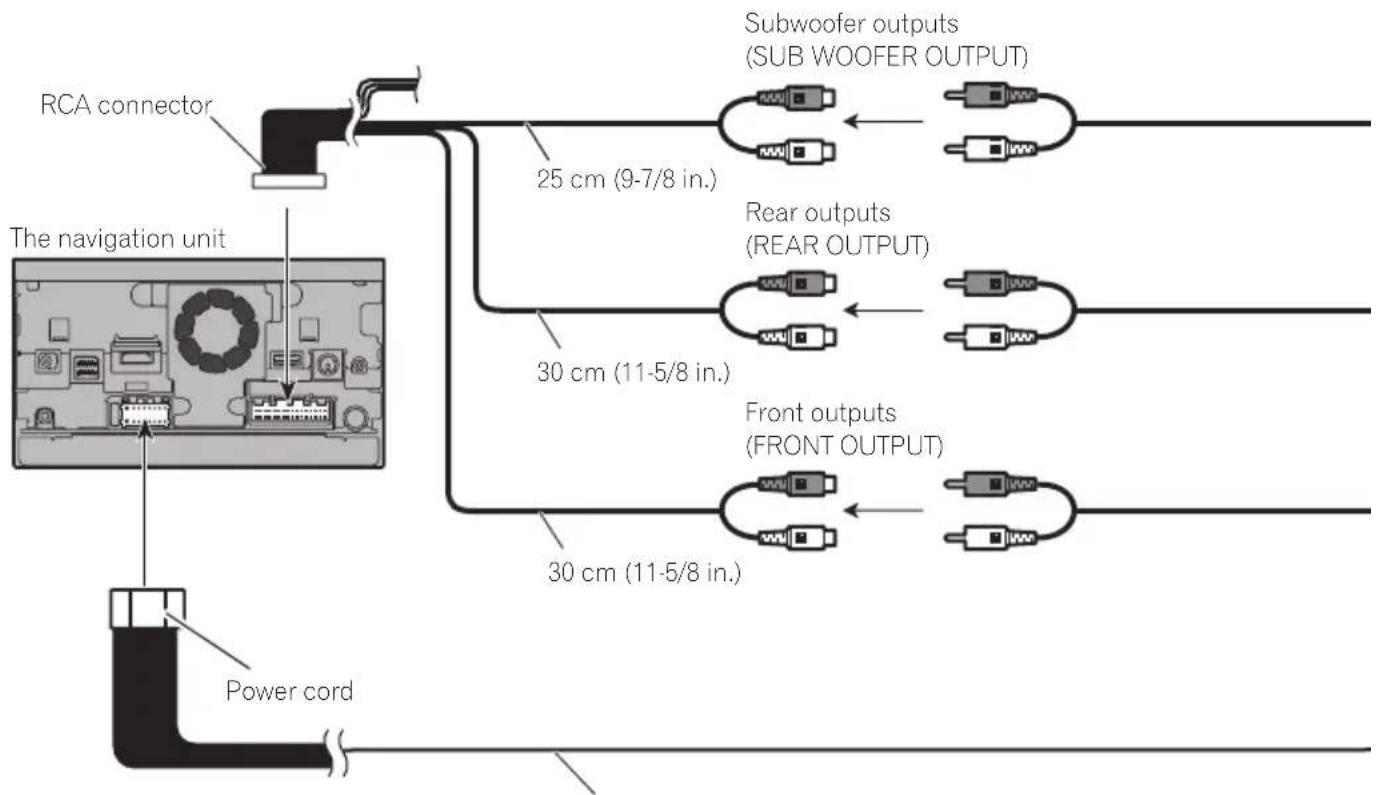

Whenconnectingtoseparatelysoldpoweramp

RCA connector The navigation unit 25 cm (9-7/8 in.) Subwoofer outputs (SUB WOOFER OUTPUT) Rear outputs (REAR OUTPUT) 30 cm (11-5/8 in.) Front outputs (FRONT OUTPUT) 30 cm (11-5/8 in.) Power cord

Blue/white

To system control terminal of the power amp (max. 300 mA 12 V DC).

Notes

• You can change the RCA output of the subwoofer depending on your subwoofer system. (Refer to Operation Manual.)
• The subwoofer output of this navigation system is monaural.

Connectingthesystem


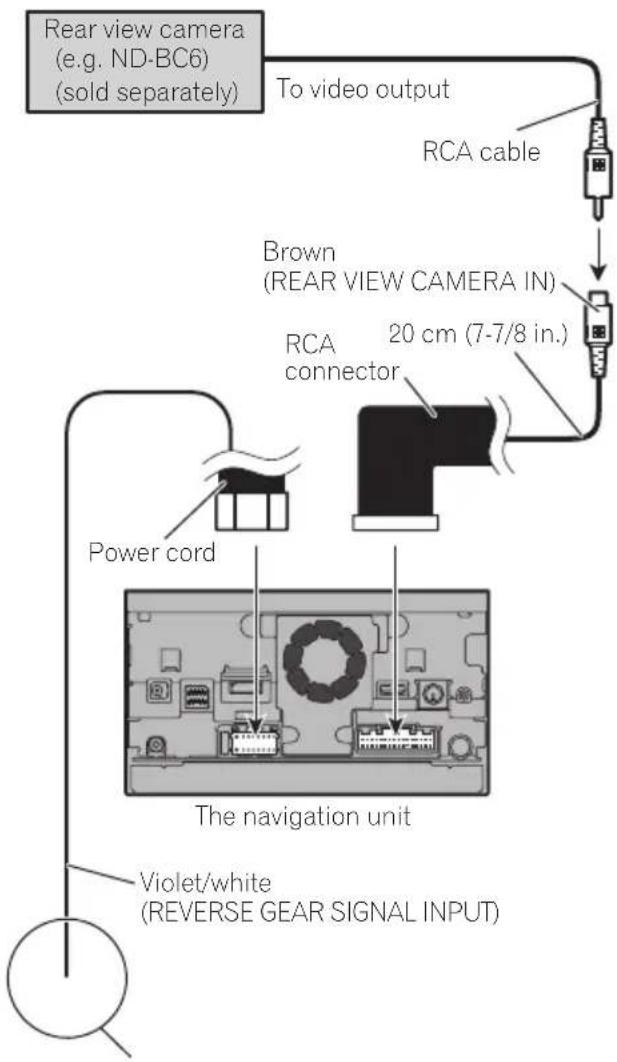

Whenconnectingarear viewcamera

When this product is used with a rear view camera, it is possible to automatically switch from the video to rear view image when the shiftleverism moved to REVERSE(R). Rear Viewmode also allows you to check what is behind you while driving.

WARNING

USEINPUTONLYFORREVERSEORMIRROR IMAGEREARVIEWCAMERA.OTHERUSEMAY RESULTININJURYORDAMAGE.

CAUTION

• Thescreenimagemayappearreversed.
• Therearviewcameraisusedasanaidto keepaneyontrailers,orbackingintoatight parkingspot.Donotusethisfunctionforentertainmentpurposes.
• Objectsinrearviewmayappearcloseror moredistantthaninreality.
• Plesenotethattheimageareashownbythe rearviewcameramaydifferslightlywhenfull-screenimagesaredisplayedwhenbacking andwhencheckingtherearofthevehicle whilemovingforward.

Formoredetailsaboutthewiring,refertoConnecting thepowercord(2)onpage14.

Notes

• Thismodeisavailablewhentherearview camerasettingissetto"On".(Fordetails, refertoOperationManual.)
• Connectthenavigationsystemtotherear viewcameraonly.Donotconnecttoany otherequipment.

Connectingthesystem

Whenconnectingthe externalvideocomponent UsinganAVinput(AV1)

- Thismodeisavailablewhenthesettingof video input 1 (AV1) is set to "On". (For details, refertoOperationManual.)

CAUTION

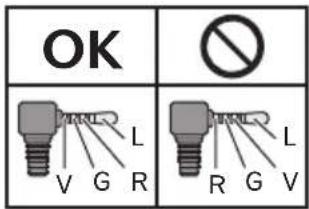

Besuretouseamini-jackAVcable(CD-RM10) (soldseparately)forwiring.Ifyouuseother cables,thewiringpositionmightdifferresulting indisturbedimagesandsounds.

OK L V G R L R G V L

L: Left audio (White)
R : Right audio (Red)
V: Video (Yellow)
G: Ground

UsinganAVinput(AV2)

The navigation unit 20 cm (7-7/8 in.) RCA connector Yellow (VIDEO INPUT) Red, white (AUDIO INPUT) RCA cables (sold separately) To video output To audio outputs External video component (sold separately)

• Thismodeisavailablewhenthesettingof video input 2 (AV2) is set to "On". (For details, refertoOperationManual.)

Whenconnectingtherear display

The navigation unit 15 cm (5-7/8 in.) Red, white, yellow (REAR MONITOR OUTPUT) RCA connector RCA cables (sold separately) To video input To audio inputs Rear display with RCA input jacks

When using areardisplay connected to rear video output

WARNING

NEVERinstallthereardisplayinalocation that enable sthedrivertowatch the video sourcewhiledriving.

Thisnavigationsystem'srearvideooutputisfor connectionofadisplaytoenablepassengersin therearseatstowatchthevideosource.

Precautionsbefore installation

CAUTION

• Neverinstallthisproductinplaceswhere, orinamannerthat:
  —Could injurethedriverorpassengersif thevehiclestopssuddenly.
  —Mayinterferewiththedriver'soperationofthevehicle,suchasonthefloorinfrontofthedriver'sseat,orclosetothesteeringwheelorshiftlever.
• Makesurethereisnothingbehindthe dashboardorpanelingwhendrillingholes inthem.Becarefulnottodamagefuel lines,brakelines,electroniccomponents, communicationwiresorpowercables.
• Whenusingscrews, donotallowthemto comeintocontactwithanyelectricallead. Vibrationmaydamagewiresorinsulation, leadingtoashortcircuitorotherdamage tothevehicle.
• Toensureproperinstallation,besureto usethesuppliedpartsinthemannerspecified.Ifanypartsarenotsuppliedwith thisproduct,usecompatiblepartsinthe mannersspecifiedafteryouhavetheparts' compatibilitycheckedbyyourdealer.If partsotherthansuppliedorcompatible onesareused,theymaydamageinternal partsofthisproductortheymaywork looseandtheproductmaybecomedetached.
• Itisextremelydangeroustoallowcables tobecomewoundaroundthesteeringcolumnorshiftlever.Besuretoinstallthis product,itscables,andwiringawayin suchsothattheywillnotobstructorhinderdriving.
• Makesurethatleadscannotgetcaughtin adoorortheslidingmechanismofaseat, resultinginashortcircuit.

• Please confirm the proper function of your vehicle's other equipment after installation of thenavigations system.

• Donotinstallthisnavigationsystem whereitmay(i)obstructthedriver'svision,(ii)impairtheperformanceofanyof thevehicle'soperatingsystemsorsafety features,includingairbags,hazardlamp buttonson(iii)impairthedriver'sability tosafelyoperatethevehicle.

• Installthenavigationsystembetweenthe driver'sseatandfrontpassengerseatso thatitwillnotbehitbythedriverorpassengerifthevehiclestopsquickly.
• Neverinstallthenavigationsystemin frontofornexttotheplaceinthedashboard,door,orpillarfromwhichoneof yourvehicle'sairbagswoulddeploy. Pleaserefertoyourvehicle'sowner's manualforreferencetothedeployment areaofthefrontalairbags.
• Failuretofollowalloftheseprecautions mayresultinserious injuryordeath.

Toavoidelectromagnetic interference

In order to prevent interference, set the following items as far as possible from this navigation system, other cables or leads:

• FM, AM antenna and its lead
- GPS antenna and its lead In addition, you should lay or route each antenna lead as far as possible from other antenna leads. Do not bind, lay or route them together, or cross them. Electromagnetic noise will increase the potential for errors in the vehicle 's location display.

Beforeinstalling

• Consult with your nearest dealer if installation requires drilling holes or other modifications of the vehicle.
• Before making a final installation of this product, temporarily connect the wiring to confirm that the connections are correct and the system works properly.

ForAVIC-Z150BHusers

DonotinstallthisnavigationsysteminapositionwheretheopeningoftheLCDpanelisobstructedbyanyobstacles,suchastheshift lever.Beforeinstallingthisnavigationsystem, besuretoleavesufficientspacesothatthe LCDpaneldoesnotobstructtheshiftlever whenitisfullyopened.Thismaycauseinterferencewiththeshiftlever,oramalfunctionof themechanismofthisnavigationsystem.

Installingthenavigation system

Installationnotes

- Donotinstallthenavigationsystemin placesubjecttohightemperaturesorhumidity,suchas:

—Placesclosetoaheater,ventorairconditioner.

—Placesexposedtodirectsunlight,such asontopofthedashboard.

—Placesthatmaybeexposedtorain, suchasclosetothedoororonthevehicle'sfloor.

• Install this navigationsysteminan area strongenoughtobearitsweight.Choosea positionwherethis navigationsystemcan befirmlyinstalled,andinstallitsecurely.If this navigation system is not securely installed,the current location of the vehicle cannot be displayed correctly.

- Installthenavigationunithorizontallyona surfacewithin0to30degreestolerance (within5degreestotheleftorright).Improperinstallationoftheunitwiththesurface tiltedmorethanthesetolerancesincreases thepotentialforerrorsinthevehicle'slocationdisplay,andmightotherwisecausereduceddisplayperformance.

30° 5°-5°

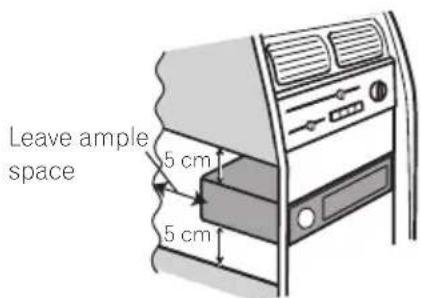

- Wheninstalling,toensureproperheatdispersalwhenusingthisunit,makesureyou leaveamplespacebehindtherearpanel andwrapanyloosecablessotheyarenot blockingthevents.

Leave ample space 5 cm 5 cm

Installation

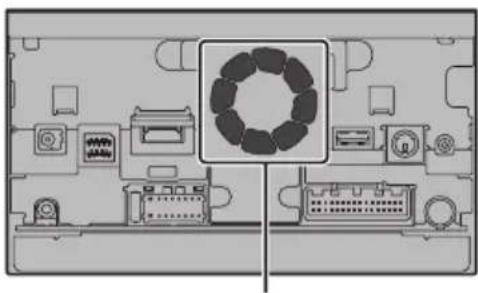

- Thecordsmustnotcovertheareashown inthefigurebelow. This is necessary to allow the amps and navigation mechanism to dissipate heat.

Top-down schematic of a computer monitor with integrated circuitry and display panels (no text or labels)

Donotcoverthisarea.

- These semiconductor laser will be damaged if to overheats, sodon't install then navigation unit any where hot—for instance, near a heater outlet.

Partssupplied

Partsmarked(*)aresuppliedwithAVIC-X950BH,AVIC-X850BTandAVIC-X8510BT.

Simple line drawing of a rectangular box with four small circular holes on its sides (no text or symbols)

ThenavigationunitTrussheadscrew

(5mm×8mm) (6pcs.)

Flushsurfacescrew (5mm×9mm) (6pcs.)

Screw ^* (2mm×4mm) (1pc.)

Installationusingthescrewholes onthesideofthenavigationunit

●Fasteningthenavigationunittothe factoryradio-mountingbracket.

Positionthenavigationunitsothatthebracketsscrewholesanditsscrewholesare aligned,andtightenthescrewsatthreelocationsoneachside.

Use either the truss head screw (5mm × 8mm) or flush surfaces screw (5mm × 9mm), depending on the shape of the bracket's screw holes.

Simple line drawing of a 3D box with four circular buttons and one small circle on top (no text or symbols)

If the pawl interferes with installation, you may bend it down out of the way.

Factory radio-mounting bracket Truss head screw or flush surface screw Be sure to use the screws supplied with this navigation system

Dashboard or console

Fasteningthedetachablefaceplate

ThisdescriptionisforAVIC-X950BH,AVIC-X850BTandAVIC-X8510BT. If you donot plantoremovethedetachablefaceplate, the detachablefaceplate can be fastened with the supplied screw.

Isometric line drawing of a 3D rectangular enclosure with internal components and a vertical scale bar (no text or symbols)

Screw(2mm×4mm)

InstallingtheGPSantenna

CAUTION

DonotcuttheGPSantennaleadtoshortenitoruseanextensiontomakeitlonger. Alteringtheantennacablecouldresultinashortcircuitormalfunctionandpermanentdamagetothenavigationsystem.

Installationnotes

- Theantennashouldbeinstalledonalevel surfacewhereradiowaveswillbeblocked aslittleaspossible.Radiowavescannotbe receivedbytheantennaifreceptionfrom thesatelliteisblocked.

Diagram of a car with multiple sensor arrays radiating from a central vehicle (no text or symbols present)

DashboardRearshelf

• WheninstallingtheGPSantennainside thevehicle,besuretousethemetalsheet providedwithyoursystem.Ifthisisnot used,thereptionsensitivitywillbepoor.
• Donotcuttheaccessorymetalsheet. This would reduce cethesensitivity of the GPS antenna.
  • Takecarenottopulltheantennaleadwhen removingtheGPSantenna. Themagnetattachedtotheantennaisverypowerful, and theleadmaybecomedetached.
• DonotpainttheGPSantenna, asthismay affect its performance.

Partssupplied

GPSantennaMetalsheet

Wheninstallingtheantennainsidethevehicle(onthedashboard orrearshelf)

WARNING

DonotinstalltheGPSantennaoveranysensorsorventsonthedashboardofthevehicle, asdoingsomayinterferewiththeproper functioningofsuchsensorsorventsandmay compromisetheabilityofthemetalsheet undertheGPSantennatoproperlyandsecurelyaffixtothedashboard.

Affixthemetalsheetonthesurfaceaslevelas possiblewheretheGPSantennafacesthe window.PlacetheGPSantennaonthemetal sheet.(TheGPSantennaisfastenedwithits magnet.)

GPS antenna Metal sheet Peel off the protective sheet on the rear. Make sure the surface is free of moisture, dust, grime, oil, etc., before affixing the metal sheet. Note The metal sheet contains a strong adhesive which may leave a mark on the surface if it is removed. Clamps Use separately sold clamps to secure the lead where necessary inside the vehicle.

Clamps
Use separately sold clamps to secure the lead where necessary inside the vehicle.

Notes

• Whenattachingthemetalsheet, donotcut itintosmallpieces.
• Somemodelsusewindowglassthatdoes notallowsignalsfromGPSsatellitesto passthrough.Onsuchmodels,installthe GPSantennaontheoutsideofthevehicle.

Installation

Installingthemicrophone

• Install themicrophone in a place where its direction and distance from the driver make it easiest to pickup the driver's voice.
- Makesuretoconnectthemicrophoneto thenavigationsystemafterthesystemis turnedoff(ACCOFF).

Partssupplied

Illustration of a welding torch and wire with a clamp (no text or symbols)

MicrophoneDouble-sidedtape

Mountingonthesunvisor

1Fitthemicrophoneleadintothe groove.

Microphonelead

Groove

2Attachthemicrophonecliptothesun visor.

Microphoneclip

Clamps
Useseparatelysoldclamps
tosecuretheleadwherene-
cessaryinsidethevehicle.

Install themicrophone on the sunvisor when it is in the up position. It cannot recognize the driver's voice if the sunvisor is in the down position.

Installationonthesteeringcolumn

1 Detachthemicrophonebasefrom the microphoneclipbyslidingthemicrophone basewhilepressingthetab.

MicrophoneTab

Diagram of a handheld device with directional arrows indicating motion or operation (no text or symbols)

MicrophoneclipMicrophonebase

2Mountthemicrophoneonthesteering column.

Double-sidedtape

Line drawing of a car's seatbelt mechanism, showing no text or symbols

Install themicrophone on the steering column, keeping it away from the steering wheel.

Line drawing of a car interior showing steering wheel and dashboard, with a close-up inset of the dashboard switch (no text or symbols)

Clamps

Useseparatelysold clampstosecurethe leadwherenecessary insidethevehicle.

Adjustingthemicrophoneangle

Themicrophoneanglecanbeadjusted.

Diagram of a handheld electric plug with rotating arrows indicating motion (no text or symbols)

01 Précautions

Votrenouveausystèmedenavigationetce manuel30

Illustration of a hand holding a battery with a power plug, showing terminal connections and polarity (no text or symbols)

OFF ACC ON START PositionACCPasdeposition ACC

Technical line drawing of a rectangular component with three small holes and a coiled cable with connectors (no text or symbols)

UnitédenavigationCordond'alimentation

Two types of cable connectors shown: a bundle of wires and a separate cable with a plug (no text or symbols)

Technical illustration of a mechanical clamp and a U-shaped bracket component (no text or symbols)

HDMI*

Mechanical assembly diagram showing a tool interacting with a bracket (no text or symbols visible)

Languette

OK V G R L R G V L R G V

Top-down schematic of a computer monitor with labeled ports and a circular button (no text or symbols)

Isometric line drawing of a rectangular block with four labeled faces (no text or symbols)

Simple line drawing of a 3D box with four circular buttons and one small circle on top (no text or symbols)

Technical line drawing of a 3D rectangular enclosure with internal components and mounting holes (no text or symbols)

Vis(2mm×4mm)

Installationdel'antenneGPS

ATTENTION

Diagram of a car with multiple sensor arrays radiating from a central vehicle (no text or symbols present)

Illustration of a coiled cable and two rectangular components (no text or symbols)

Installationdumicrophone

Illustration of a handheld device with a coiled cable and connector (no text or symbols)

MicrophoneBandeadhésiveà

doubleface

Installationsurlepare-soleil

Line drawing of a handheld tool with a cylindrical component and attached circuit board (no text or symbols)

Fente

2Fixezl'agrafepourmicroaupare-soleil.

Agrafepourmicro

Diagram of a handheld device with directional arrows indicating movement or force (no text or symbols)

AgrafepourmicroBasedumicrophone

2Montezlemicrophonesurlacolonne dedirection.

Bandeadhésiveàdoubleface

Line drawing of a car's seatbelt mechanism, showing angle and direction (no text or symbols)

Installezlemicrophonesurlacolonnededirection,àdistancedu volant.

Line drawing of a car interior showing steering wheel and dashboard, with a close-up inset of the dashboard (no text or symbols)

Serre-fils

Diagram of a handheld device with rotating arrows indicating motion (no text or symbols)

PIONEERCORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi,

Kanagawa212-0031, JAPAN

PIONEERELECTRONICS(USA)INC.

P.O.Box1540, Long Beach, California 90801-1540, U.S.A.

TEL:[phone]

PIONEERELECTRONICSOFCANADA, INC.

340FerrierStreet, Unit2, Markham, Ontario L3R2Z5, Canada

TEL:[phone]

TEL:[phone]

PIONEEREUROPENV

Haven1087, Keetberglaan1, B-9120Melsele, Belgium/Belgique

TEL:[phone]

PIONEERELECTRONICSASIACENTREPTE.LTD.

253AlexandraRoad,#04-01,Singapore159936

TEL:[phone]

PIONEERELECTRONICSAUSTRALIAPTY.LTD.

5ArcoLane,Heatherton,Victoria,3202,Australia

TEL:[phone]

PIONEERELECTRONICSDEMEXICO,S.A.deC.V.

Blvd.ManuelAvilaCamacho13810piso

Col.LomasdeChapultepec,Mexico,D.F.11000

TEL:[phone]

先鋒股份有限公司

台北市內湖區瑞光路407號8樓

電話:886-(0)2-2657-3588

先鋒電子（香港）有限公司

香港九龍長沙灣道909號5樓

電話:852-2848-6488

©2013PIONEERCORPORATION.

Allrightsreserved.

©2013PIONEERCORPORATION.

Tousdroitsdereproductionetde

traductionréservés.
