USER MANUAL DO05805CHM SIEMENS

operating instructions

Nenninhalt [l] 5,0 5,0 5,0 5,0

Eine Störung, was tun?

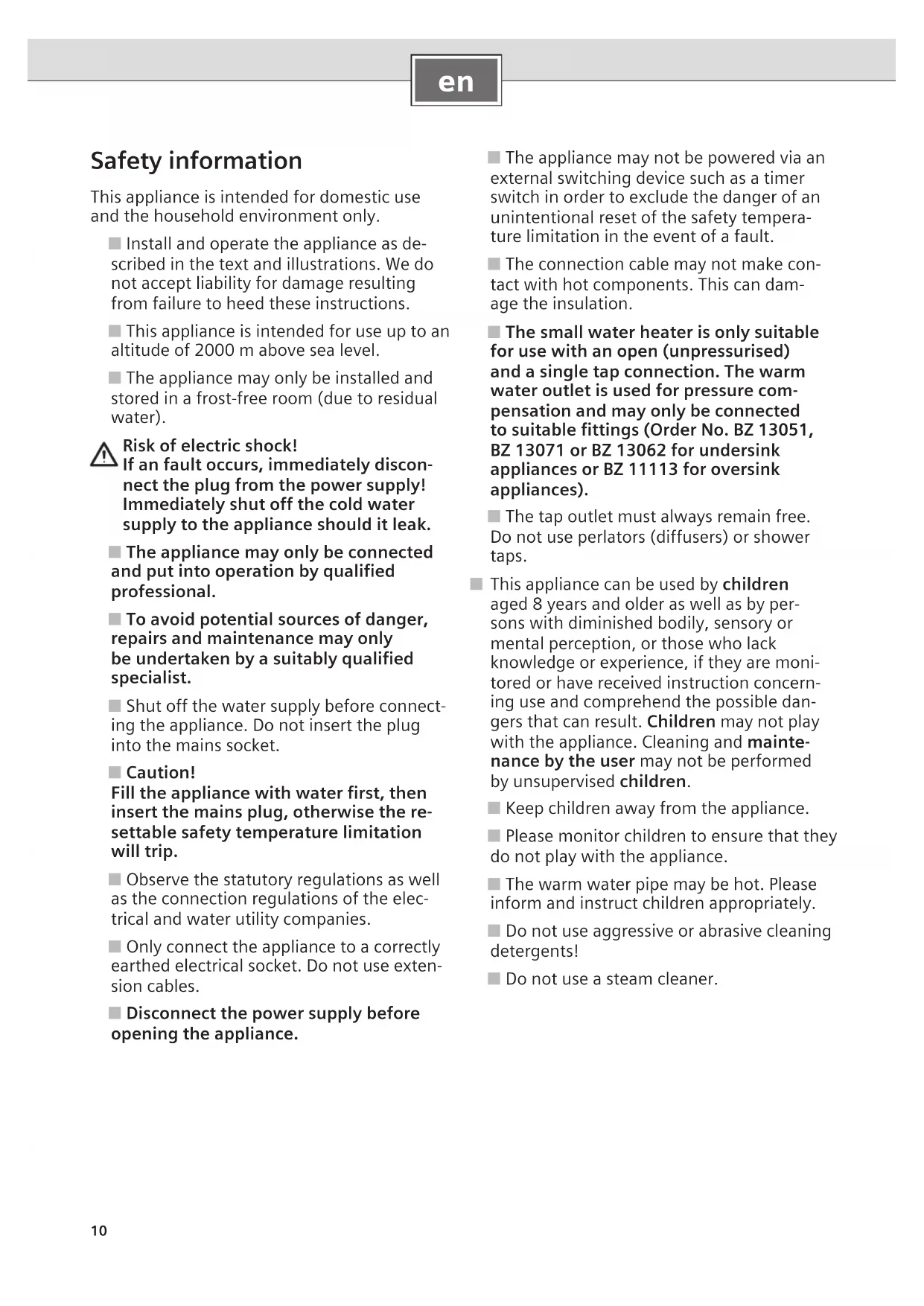

This appliance is intended for domestic use

and the household environment only.

■ Install and operate the appliance as de-

scribed in the text and illustrations. We do

not accept liability for damage resulting

from failure to heed these instructions.

■ This appliance is intended for use up to an

altitude of 2000 m above sea level.

■ The appliance may only be installed and

stored in a frost-free room (due to residual

Risk of electric shock!

If an fault occurs, immediately discon-

nect the plug from the power supply!

Immediately shut off the cold water

supply to the appliance should it leak.

■ The appliance may only be connected

and put into operation by qualified

■ To avoid potential sources of danger,

repairs and maintenance may only

be undertaken by a suitably qualified

■ Shut off the water supply before connect-

ing the appliance. Do not insert the plug

into the mains socket.

Fill the appliance with water first, then

insert the mains plug, otherwise the re-

settable safety temperature limitation

■ Observe the statutory regulations as well

as the connection regulations of the elec-

trical and water utility companies.

■ Only connect the appliance to a correctly

earthed electrical socket. Do not use exten-

■ Disconnect the power supply before

opening the appliance.

■ The appliance may not be powered via an

external switching device such as a timer

switch in order to exclude the danger of an

unintentional reset of the safety tempera-

ture limitation in the event of a fault.

■ The connection cable may not make con-

tact with hot components. This can dam-

■ The small water heater is only suitable

for use with an open (unpressurised)

and a single tap connection. The warm

water outlet is used for pressure com-

pensation and may only be connected

to suitable fittings (Order No. BZ 13051,

BZ 13071 or BZ 13062 for undersink

appliances or BZ 11113 for oversink

■ The tap outlet must always remain free.

Do not use perlators (diffusers) or shower

■ This appliance can be used by children

aged 8 years and older as well as by per-

sons with diminished bodily, sensory or

mental perception, or those who lack

knowledge or experience, if they are moni-

tored or have received instruction concern-

ing use and comprehend the possible dan-

gers that can result. Children may not play

with the appliance. Cleaning and mainte-

nance by the user may not be performed

by unsupervised children.

■ Keep children away from the appliance.

■ Please monitor children to ensure that they

do not play with the appliance.

■ The warm water pipe may be hot. Please

inform and instruct children appropriately.

■ Do not use aggressive or abrasive cleaning

■ Do not use a steam cleaner.11

en Congratulations on purchasing this Siemens appliance. You have acquired a top-quality product, which will give you a lot of enjoyment.Please read this installation and operating instruction manual carefully, then act accordingly! Store for future reference. Installation instructions

Unpacking ■ Inspect the new appliance for transport damage! ■ Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner. I.

Scope of delivery 1 Appliance with operating panel2 Installation bracket3 DO3170D5M only: Mounting (2 screws, 2 wall plugs)4 Documentation Product description The small water heater is only suitable for open (unpres-surised) installation. It heats and stores drinking water up to approx. 85 °C. Different temperature levels can be selected with the temperature selector knob.The appliance may not be operated with pre-heated water, as otherwise the safety temperature limitation will trip.The appliance is connected using the mains plug. This installation and operating instruction manual describes various appliance types:– Undersink appliances with additional drip stop function and pressure stop DO05705M, DO3170D5M and DO05705CHM– Oversink appliances DO05805M and DO05805CHM I.

Preparations for installation ■ Shut off the water supply before connecting the appli-ance. Do n o t insert the mains plug. ■ Remove the installation bracket on the appliance and break off the retaining rings (A). ■ Fix the connection cable to the rear of the appliance to suit the required length (B). Wall mounting

Undersink appliances DO05705M,

DO3170D5M and DO05705CHM

■ Align the appliance on the wall and use the three indents (top, left and right on the appliance) to apply markings (A). ■ Connect the markings by a pattern of crossed lines with a spirit level (B1 and B2). ■ Place the installation bracket on top at the point of inter- section of the drawn lines and mark the position for the holes (C). ■ Drill the holes and insert wall plugs (D1).

■ Attach the installation bracket (notch at top) to the wall using the screws (D2). ■ Suspend the appliance in the installation bracket (D3). Exchanging appliances ■ When replacing an old Siemens small water heater with this new appliance, the existing drill holes with wall plugs can be used. Please note that the new appliance is approx. 2 cm higher. If the new appliance is to be flush at the top like the old ap-pliance (E1): ■ Attach the new installation bracket to the wall with the notches at the top.If the new appliance is to be flush at the bottom like the old appliance (E2): ■ Turn the installation bracket around and attach to the wall with the notches at the bottom. III.

Oversink appliances DO05805M and

■ Align the appliance on the wall and use the three indents (top, left and right on the appliance) to apply markings (F). ■ Connect the markings to a pattern of crossed lines with a spirit level (G1 and G2). ■ Place the installation bracket on top at the point of inter- section of the drawn lines and mark the position for the holes (H). ■ Drill the holes and insert wall plugs (I1).

■ Attach the installation bracket (notch at top) to the wall using the screws (I2). Exchanging appliancesWhen replacing an old Siemens small water heater with this new appliance, the existing drill holes with wall plugs can be used. Please note that the new appliance is approx. 2 cm higher. ■ Turn the installation bracket around and attach to the wall with the notches at the bottom (J).12

The existing fitting may not be covered with scaling.

■ Do not grease the thread!

Info: Replacement for damaged threaded nozzles available

from customer service.

■ Insert the seals (B1).

■ Ensure the axial fit of the connection pipes in the nozzles.

■ Place the union nuts on the thread and tighten them by

■ Tighten the screw fitting (C). Counter the threaded noz-

zles on the warm water heater with a wrench

■ After the unit has been used to heat water a few times,

retighten the screw fitting.

Oversink appliances DO05805M and

■ Install the mixer if required (D1 to D3).

■ Insert the pipe connections to the mixer with seals (E).

Ensure the axial fit of the connection pipes in the nozzles.

■ Insert the seals on the pipe connection (F1).

■ Suspend the appliance (G).

■ Place the union nut (F2) on the thread and tighten it by

■ Tighten the screw fittings (H1 and H2). Counter the

threaded nozzles on the warm water heater with a

Electrical connection

■ Important: Do not insert the plug into the mains socket

■ Fill the appliance with water first. Water must flow from

■ Only then insert the plug into the mains socket.

Note: If the appliance is not filled with water, the resettable

safety temperature limitation will trip!

Checking the heating

■ Turn the rotary selector switch to “III” (approx. 85 °C).

■ Monitor the heating process until the pilot lamp switches

off after approx. 12 ‒ 18 minutes.

■ Check the temperature.

■ Caution: If the safety temperature limitation has switched

off the small water heater, unplug the mains plug, open

the warm water tap and allow approx. 4 litres of water to

flow. Then plug the mains plug back in.

The appliance is ready again for operation.

Limitation of the water temperature

The temperature of the water leaving the tap for the small wa-

ter heater can be mechanically set to stage “I” (approx. 38 °C)

or stage “e” (approx. 60 °C) (see “Operation”, page 14).

■ Set the rotary selector to “e” to conserve energy.

■ Hand over the installation and operating instructions to

the user and explain how the appliance operates.13

DO05805CHM Over-sink

Rated output [kW] 2.2 1.8 2.2 1.8

Rated capacity [l] 5.0 5.0 5.0 5.0

CLICKFIX plus installation technology ✓✓✓✓

Mixed water quantities 40 °C

(15 °C/85 °C) / (15 °C/85 °C) [l] 9.5/14 9.5/14 9.5/14 9.5/14

Variable temperature adjustment up to [°C] 85 85 85 85

Stand-by power consumption

at 65 °C/24 h [kWh/d] 0.18 0.18 0.18 0.18

Electrical connection [V] 230 230 230 230

Heat-up time to 60 °C

(supply temperature 12 °C) [min] 8989

Fuse protection [A] 10 10 10 10

Water connection ["] 3/8 3/8 1/2 1/2

Maximum flow [l/min] 5555

Cable length [m] 0.6 0.6 0.6 0.6

Dimensions (Height x Width x Depth) [mm] 435 x 270 x 240 435 x 270 x 240 435 x 270 x 240 435 x 270 x 240

Weight, filled [kg] 7.7 7.7 7.7 7.7

Energy efficiency class

XXS XXS XXS XXS Annual energy consumption

[kWh] 477 484 481 484

Daily energy consumption

Hot water heating energy efficiency

[%] 37.8 36.8 37.2 36.814

Operating instructions ■ Before using the appliance, please read the instruc-tions carefully and observe them! ■ Important: The appliance may never be exposed to frost! Risk of electric shock!If a fault occurs, immediately disconnect the plug from the power supply!Immediately shut off the cold water supply to the appliance should it leak.Please read and observe the detailed safety instructions at the start of these instructions!

Operation The small water heater heats and stores drinking water up to approx. 85 °C. Setting the water temperature

■ The required outlet temperature from 35 °C to 85 °C can be set with the rotary selector switch. or:

■ Set the required fixed outlet temperature (A): ❄ Frost protectionI Approx. 38 °C (soft lock-in)e Conserve energy approx. 60 °C (soft lock-in)III Hot water approx. 85 °CThe pilot lamp lights up during heat up.Water drips out of the tap with oversink appliances.The appliance with be covered more quickly with limescale at higher temperatures. Tip: Set the rotary selector switch to “e” to operate the appli- ance economically and to reduce the effects of limescale.Note: If the appliance has not been used for an extended period, e. g. during a holiday, allow the water to briefly heat up to stage “III”. Limitation of the water temperature Limit the outlet temperature to avoid scalding with hot water: ■ Set the rotary selector switch to “●“. ■ Open the cover of the rotary selector switch. ■ Select between “I” = approx. 38 °C (B1) or “e” = approx. 60 °C (B2). ■ Close the cover. Switching off

■ Set the rotary selector switch to “●“ (A). The heating is switched off. Undersink appliances only DO05705M,

DO3170D5M and DO05705CHM Drip stopThe drip stop function prevents expanding water from drip-ping from the tap during heat up. If water is heated, the gas-ses (air) dissolved in it will be released by the water. Depending on the quantity of gas released – particularly when a higher temperature is selected – it can force residual water from the tap.

A Pressure stop The appliance features pressure switch off. The pressure switch off indicates when the tap is clogged by limescale (low or no flow). When water pressure exceeds 0.25 Mpa (2.5 bar) it even detects if the appliance has been incorrectly connected with the water line during initial installation. The pressure switch off automatically shuts off the water inlet and prevents rupturing of the tank.It the pressure stop has tripped, a red pin will appear at the top of the appliance (C1). ■ The fault must be corrected (see chapter “A fault, what to do?”). ■ After the fault has been corrected, the red pin can be pushed back in easily (C2). The water inlet is now free. ■ Please contact customer service if this occurs repeatedly. Important: Do not block the path of the pin (C1) with objects.

Cleaning Do not use aggressive or abrasive cleaning detergents!Do not use a steam cleaner. ■ Clean appliance externally with a mild cleaning agent. ■ Clean the dirt and lime scale deposits in the aerator filter.

■ Descale the outlet pipe with commercially available des- caling agent or vinegar. ■ Please observe the manufacturers warnings when descaling.If the water flows significantly slower when the tap is fully opened, the small water heater and tap should be descaled by a specialist. Otherwise, the pressure stop may trip due to an unpermissible high pressure. Maintenance The following repairs and maintenance may only be carried out by an authorised customer service representative to avoid potential sources of danger. ■ The electrical mains supply and the water supply must be shut off before all work on the appliance. Exchange of the electrical connection cable When the electrical cable is visibly damaged: ■ Switch off the device, unplug the mains plug and contact customer service.

B Cleaning the inlet filter When the flow of water is too low and the inlet filter in the tap is descaled: ■ Contact customer service and get the inlet filter (D) cleaned.15

We ask you to always provide the E-No. and the FD-No. of

your appliance when calling in a customer service engineer.

You will find the number near both water connection nozzles

of the small water heater.

This appliance is labelled in accordance with Euro-

pean Directive 2012/19/EU concerning used elec-

trical and electronic appliances (waste electrical

and electronic equipment – WEEE).

The guideline determines the framework for the

return and recycling of used appliances as appli-

cable throughout the EU.

Please ask your specialist retailer about current

disposal facilities.

The guarantee conditions for this appliance are as defined

by our representative in the country in which it is sold. De-

tails regarding these conditions can be obtained from the

dealer, from whom the appliance was purchased, or directly

from our representative in the country. Furthermore, the

guarantee conditions can also be found on the Internet at

the website address stated. The bill of sale or receipt must be

produced when making any claims under the terms of this

Subject to change without notice.

A fault, what to do?

If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy

the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service

■ The electrical mains supply and the water supply must be shut off before all work on the appliance.

Fault Cause Solution Who

The appliance does not start

(heat), only cold water flows.

The fuse in the house electrical

installation has tripped/blown.

Check the fuse in the house electri-

The mains plug is not inserted. Insert the plug into the mains

The safety temperature limitation

Unplug the mains plug, open the

warm water tap and allow approx.

4 litres of water to flow. Insert the

plug into the mains socket.

Water flow-rate is too low. The filter in the tap is clogged. Remove the filter and either clean it

The filter in the cold water regulat-

ing valve is clogged.

Remove, clean and reinstall the

inlet filter. Circulate water through

If necessary, repeat this procedure

until the filter is free of particles.

The water outlet or the tap is

clogged by limescale.

Descale or install a new fitting. Servicing

The tap drips during heat up

regardless of the drip stop.

Frequent, momentary dispensing

or dispensing with a low water

Longer dispensing, increase the

The drip stop function is defective. Exchange the appliance. Servicing

The pressure stop has tripped,

water no longer flows.

The appliance has been incorrectly

installed on the water connection.

Connect the appliance correctly,

push in the red pin of the pressure

The fitting is clogged by limescale. Descale the tap, push in the red pin

of the pressure stop.

The warm water connection nozzle

Clean the warm water connection

nozzle and exchange the water con-

nection if necessary. Then push in

the red pin of the pressure stop.

If the fault could not be eliminated, please call customer service.16
