USER MANUAL PAM 21011 BOSCH

GB Instructions for Use

electrical and electronic equipment - WEEE)

Servicepartner zur Verfügung.Table of contents

Environmental protection

Recommendations for the disposal of packaging28

Recommendations for the disposal of your old appliance28

Recommendations for saving energy 28

Important Information

Before connecting your appliance 29

Description of the appliance 30

Description of accessories32

Requirements for use

Requirements for use32

"Up" and "down" keys33

Instructions for Use

Preparing the appliance before use34

Turning the appliance on and off 36

Selecting the operation function 36

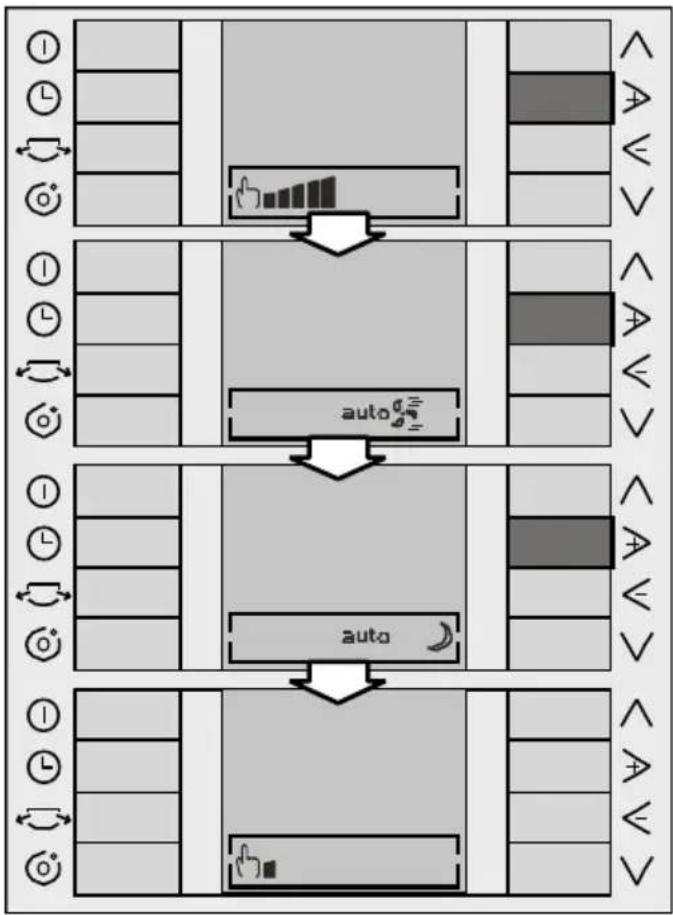

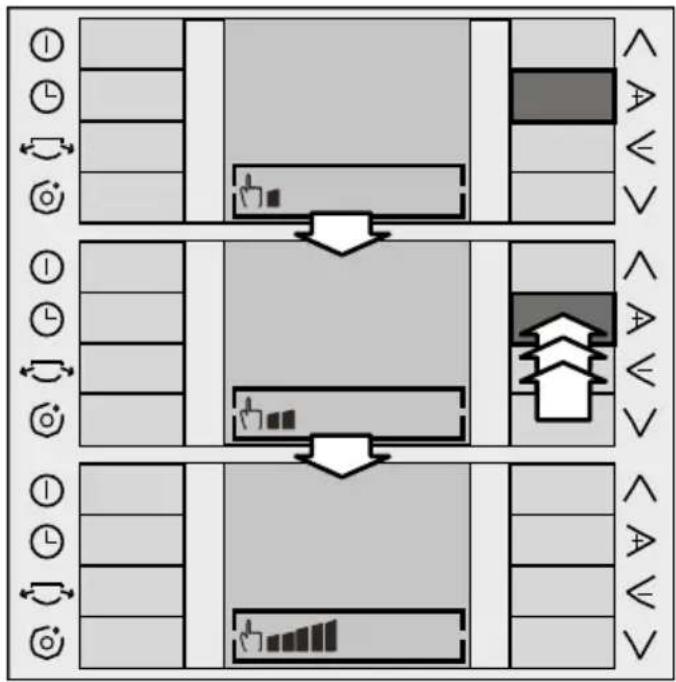

Selecting the speed 38

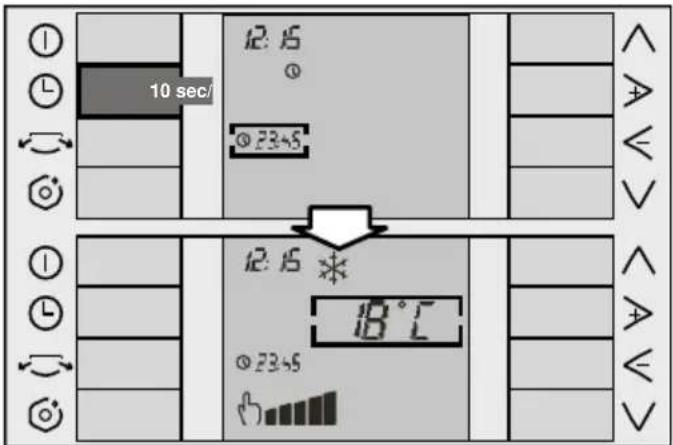

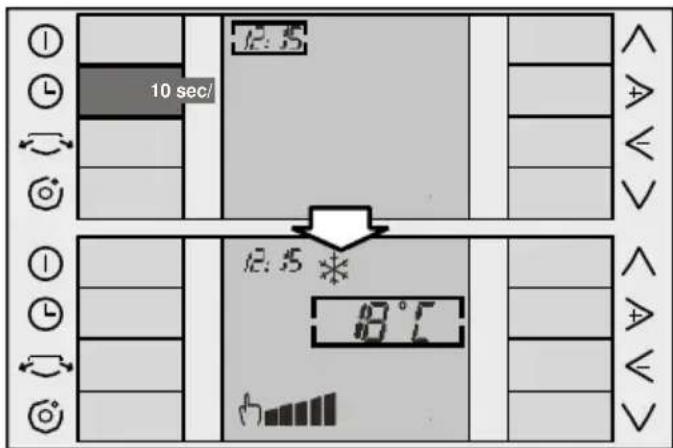

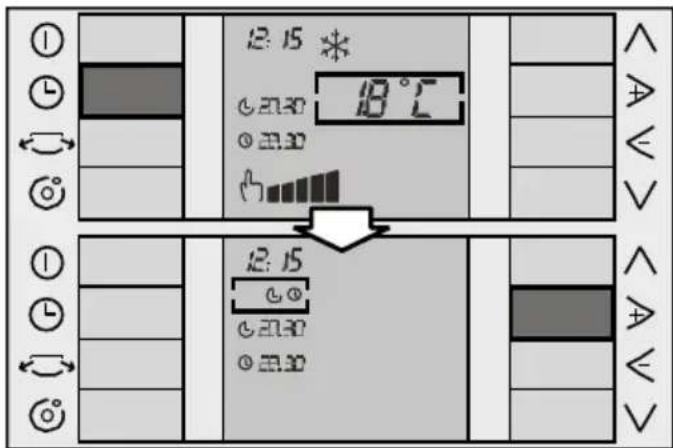

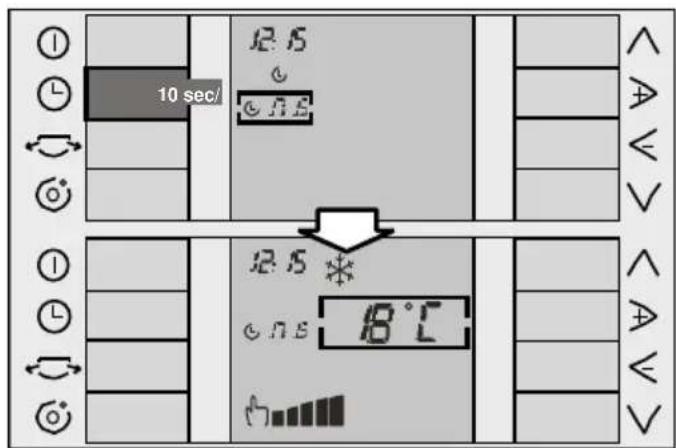

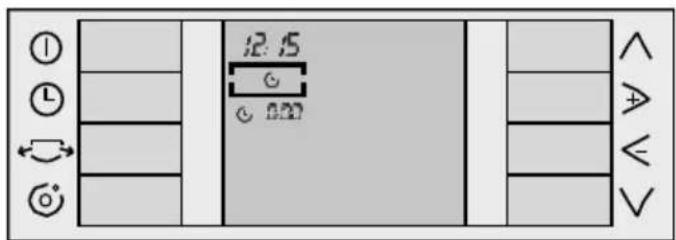

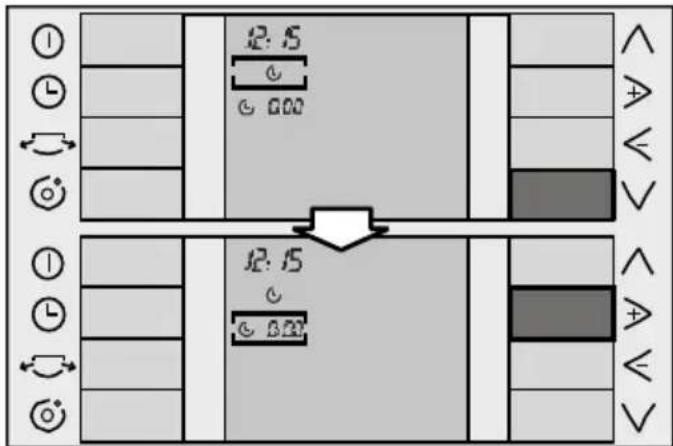

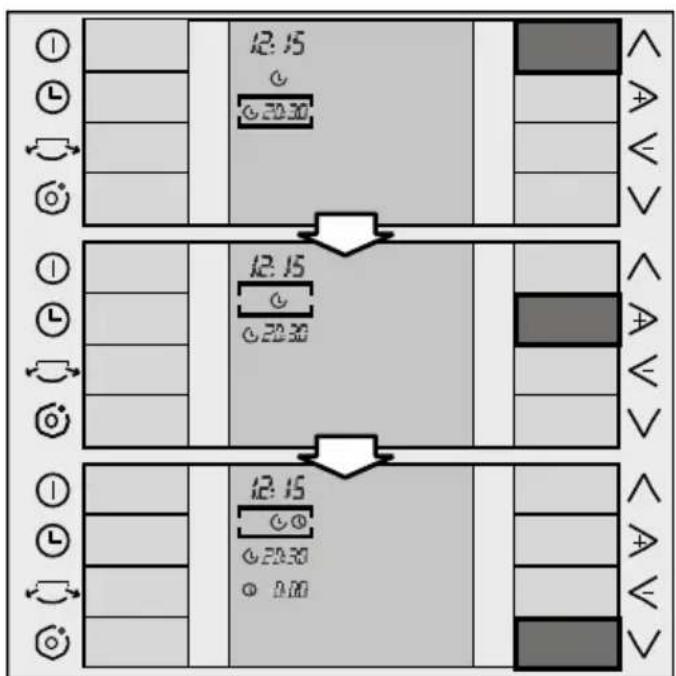

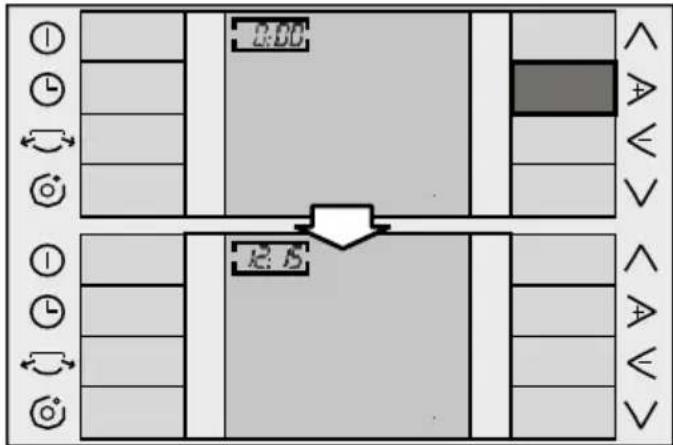

Setting the clock / Programming the timer40

Cleaning, Transportation and Maintenance

Cleaning the appliance44

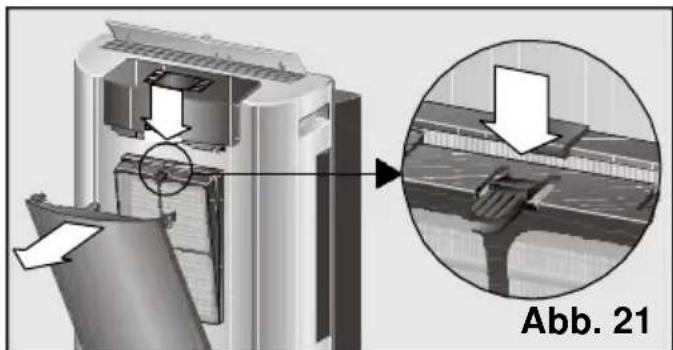

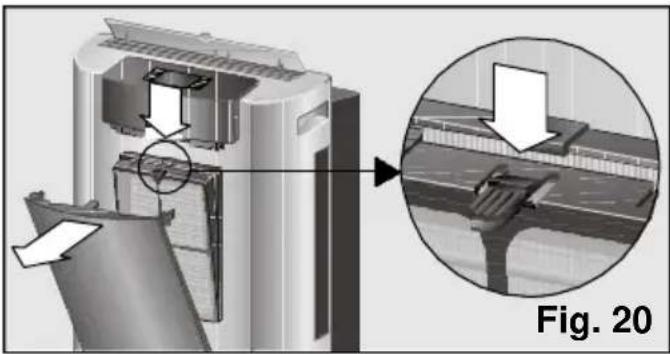

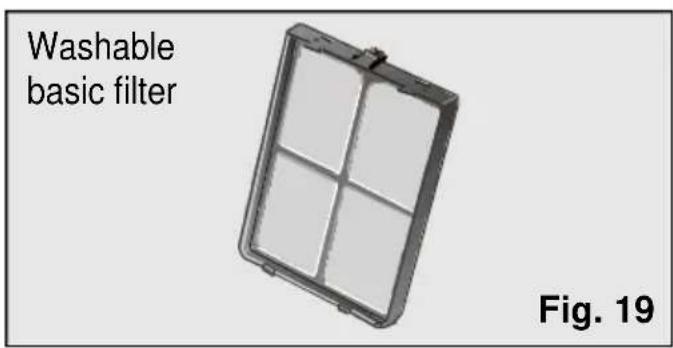

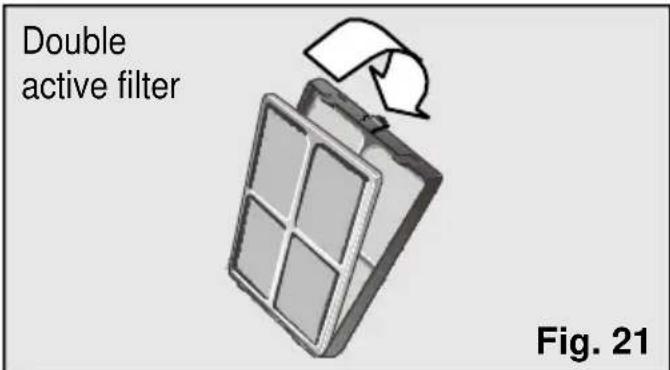

Cleaning and changing the purifying filters44

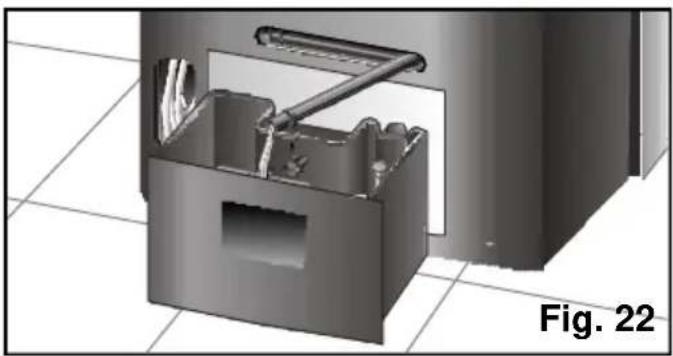

Transportation requirements45

Storage requirements 45

Prior to use at change of season45

Things to check before calling the Technical

Technical Service / Warranty /

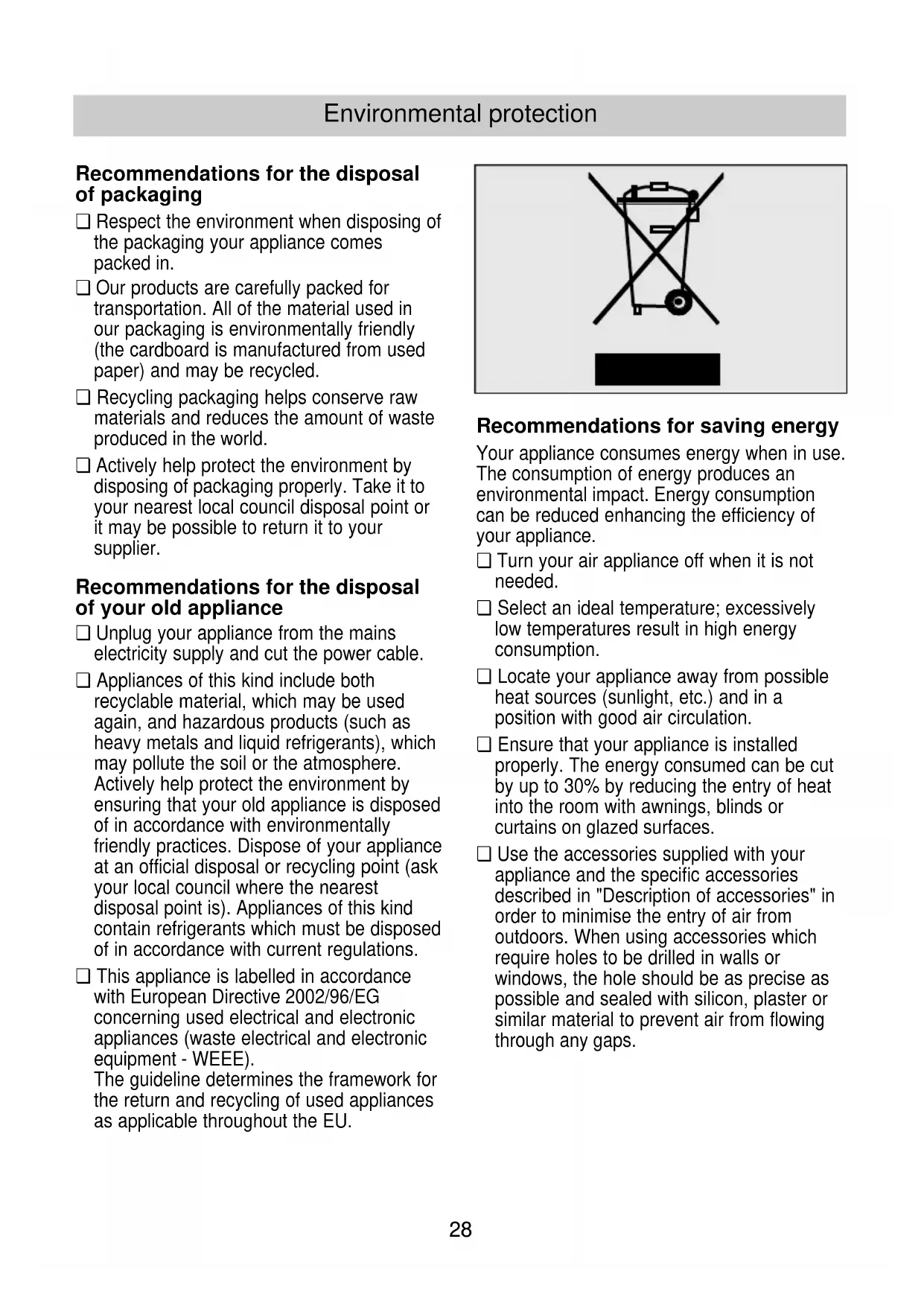

Environmental protection

Recommendations for the disposal

❏ Respect the environment when disposing of

the packaging your appliance comes

❏ Our products are carefully packed for

transportation. All of the material used in

our packaging is environmentally friendly

(the cardboard is manufactured from used

paper) and may be recycled.

❏ Recycling packaging helps conserve raw

materials and reduces the amount of waste

produced in the world.

❏ Actively help protect the environment by

disposing of packaging properly. Take it to

your nearest local council disposal point or

it may be possible to return it to your

Recommendations for the disposal

of your old appliance

❏ Unplug your appliance from the mains

electricity supply and cut the power cable.

❏ Appliances of this kind include both

recyclable material, which may be used

again, and hazardous products (such as

heavy metals and liquid refrigerants), which

may pollute the soil or the atmosphere.

Actively help protect the environment by

ensuring that your old appliance is disposed

of in accordance with environmentally

friendly practices. Dispose of your appliance

at an official disposal or recycling point (ask

your local council where the nearest

disposal point is). Appliances of this kind

contain refrigerants which must be disposed

of in accordance with current regulations.

❏ This appliance is labelled in accordance

with European Directive 2002/96/EG

concerning used electrical and electronic

appliances (waste electrical and electronic

The guideline determines the framework for

the return and recycling of used appliances

as applicable throughout the EU.

Recommendations for saving energy

Your appliance consumes energy when in use.

The consumption of energy produces an

environmental impact. Energy consumption

can be reduced enhancing the efficiency of

❏ Turn your air appliance off when it is not

❏ Select an ideal temperature; excessively

low temperatures result in high energy

❏ Locate your appliance away from possible

heat sources (sunlight, etc.) and in a

position with good air circulation.

❏ Ensure that your appliance is installed

properly. The energy consumed can be cut

by up to 30% by reducing the entry of heat

into the room with awnings, blinds or

curtains on glazed surfaces.

❏ Use the accessories supplied with your

appliance and the specific accessories

described in "Description of accessories" in

order to minimise the entry of air from

outdoors. When using accessories which

require holes to be drilled in walls or

windows, the hole should be as precise as

possible and sealed with silicon, plaster or

similar material to prevent air from flowing

through any gaps.2929

Environmental protection

Important Information

Before connecting your appliance

❏ Read the instructions book before using the

appliance for the first time. It contains

important information concerning not only

how to use the appliance, but also

maintenance and personal safety.

❏ Keep this instructions book. It may be

needed by another user at a later date.

❏ Do not use the appliance when damaged.

❏ Your appliance should be assembled and

connected to the mains electricity supply in

accordance with the assembly instructions

and current regulations. You may lose your

warranty if you fail to observe these

❏ Our appliances are manufactured in

accordance with current safety regulations.

Only technicians instructed in these matters

are authorised to repair them. Your safety is

❏ It is recommended that you follow the

manufacturer’s instructions concerning the

air expulsion tube (see "Preparing the

appliance before use") in order to prevent

efficiency loss and unnecessary energy

❏ Avoid sharp bends on the air expulsion tube

and do not lengthen it more than necessary.

❏ When expelling hot air through sliding

windows, install the accessory which

prevents hot air entering the room from

outdoors and enhances efficiency.

❏ Make sure that the diffusion duct is

positioned in such a way that the window

can be closed as far as possible in order to

prevent air from outdoors entering the room.

❏ Check that the sleeves (collection and

diffusion) are correctly joined to the air

expulsion tube. See "Ways of releasing air

❏ Make sure that the air intakes and outlets

are not obstructed. Keep them clean and

free of dirt, dust and foreign objects.

❏ Make sure that the filters fitted on your

appliance are clean and installed properly

(see "Cleaning and Maintenance").

❏ In the summer, ventilate the building when

the air outdoors is at its coolest (early

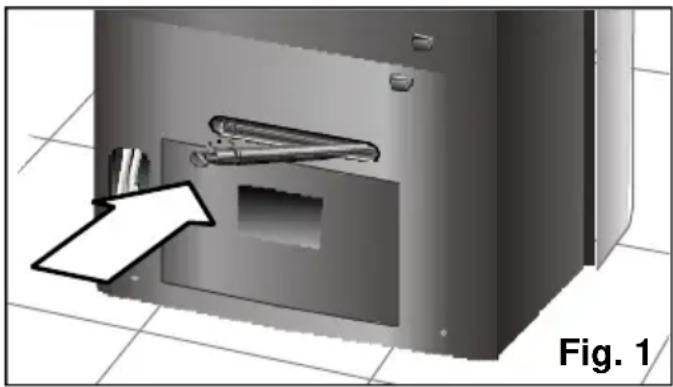

❏ Make sure that the drainage plug is fully

inserted. It may have come loose during

transportation, Fig. 1.

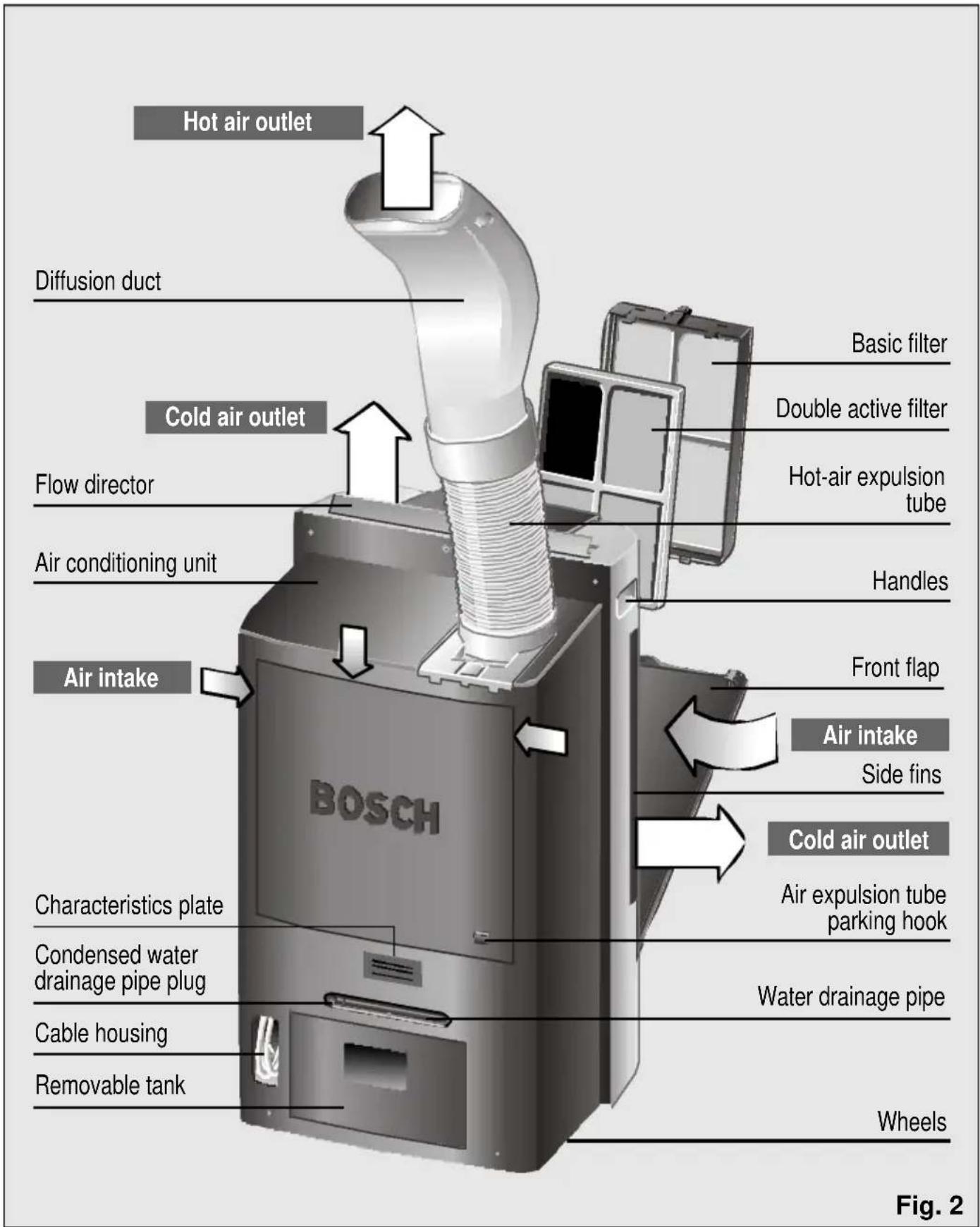

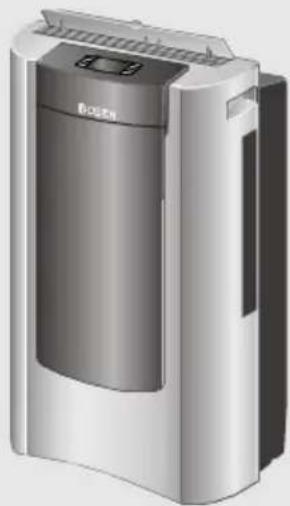

Description of the appliance

Characteristics plate

Double active filter

temperature, time, speed,

Description of accessories

Standard accessories:

These accessories are supplied with the appliance.

Optional accessories:

These accessories are available for purchase from the

manufacturer's official technical service and authorised distributors.

Optional accessories:

These accessories are only available for purchase from the

manufacturer's official technical service.

Requirements for use

Requirements for use

❏ This home appliance should be connected

to a 220/240 V, 50 Hz mains electricity

supply via an earthed socket.

❏ It must be protected with a 10 A slow-action

❏ Should an extension lead be required, then

this lead should be at least 1.5 mm

per terminal, less than 25 m long and

❏ There is a cavity at the back of the

appliance to house the mains electricity

supply cable. See Fig. 2.

❏ Do not allow water to enter your appliance

and do not cover the air intakes/outlets.

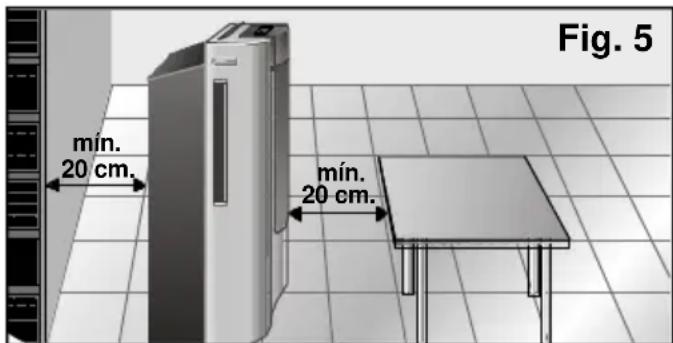

❏ For safety reasons, the appliance must be

at least 20 cm away from any nearby

surface before it is turned on, Fig. 5.

The mains electricity supply connection

cable must only be replaced by authorised

members of the manufacturer’s Official

When the appliance is turned off and then

turned back on, it takes the compressor 3

minutes to start up again. This period of

time is required in order to ensure correct

Avoid direct contact with the air expelled

through the expulsion tube.33

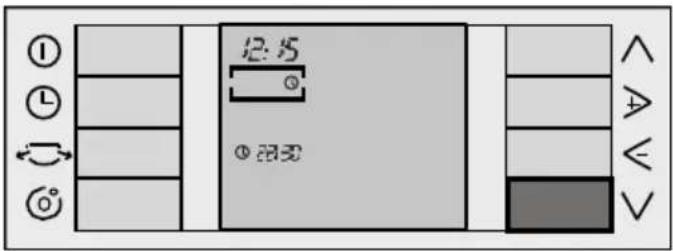

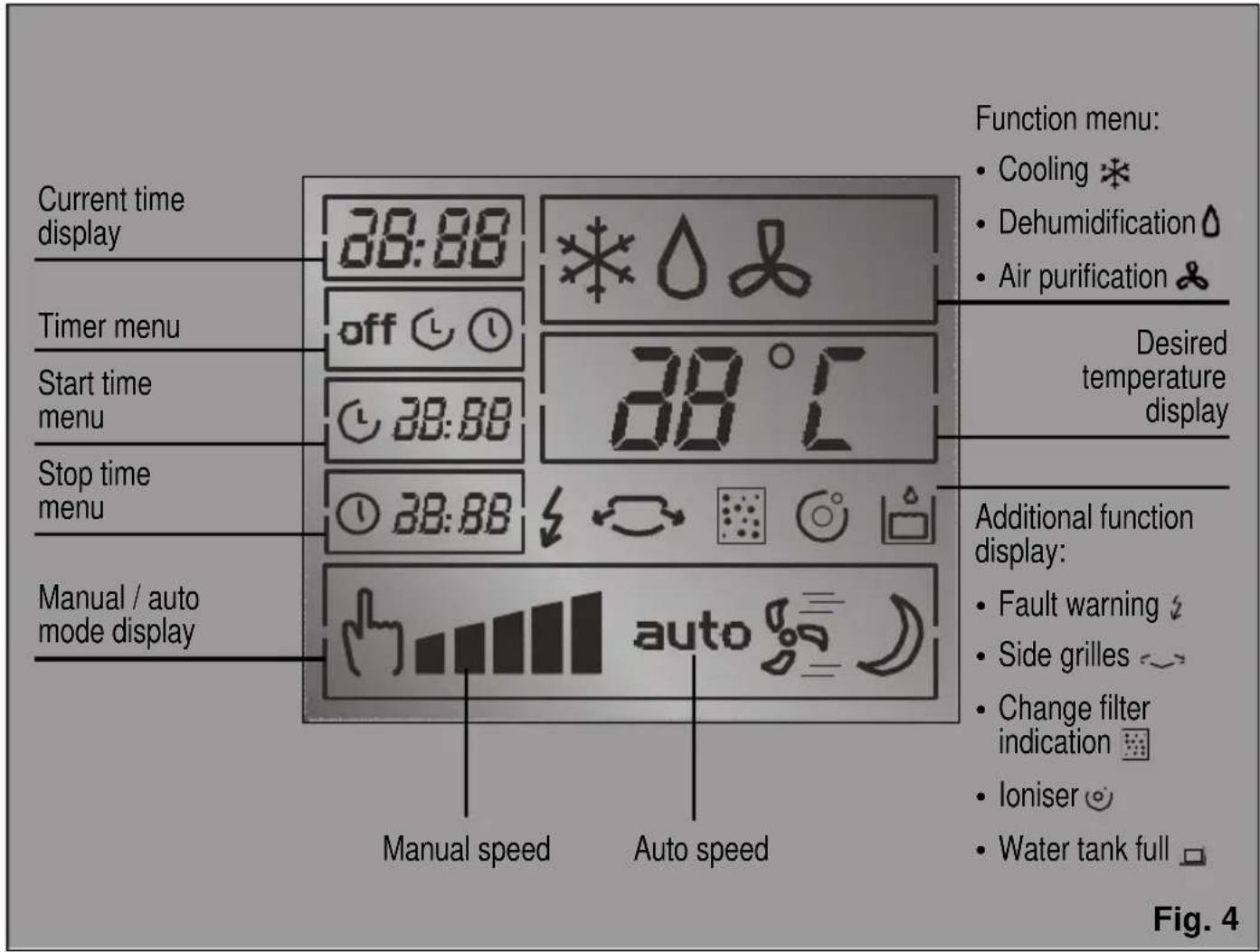

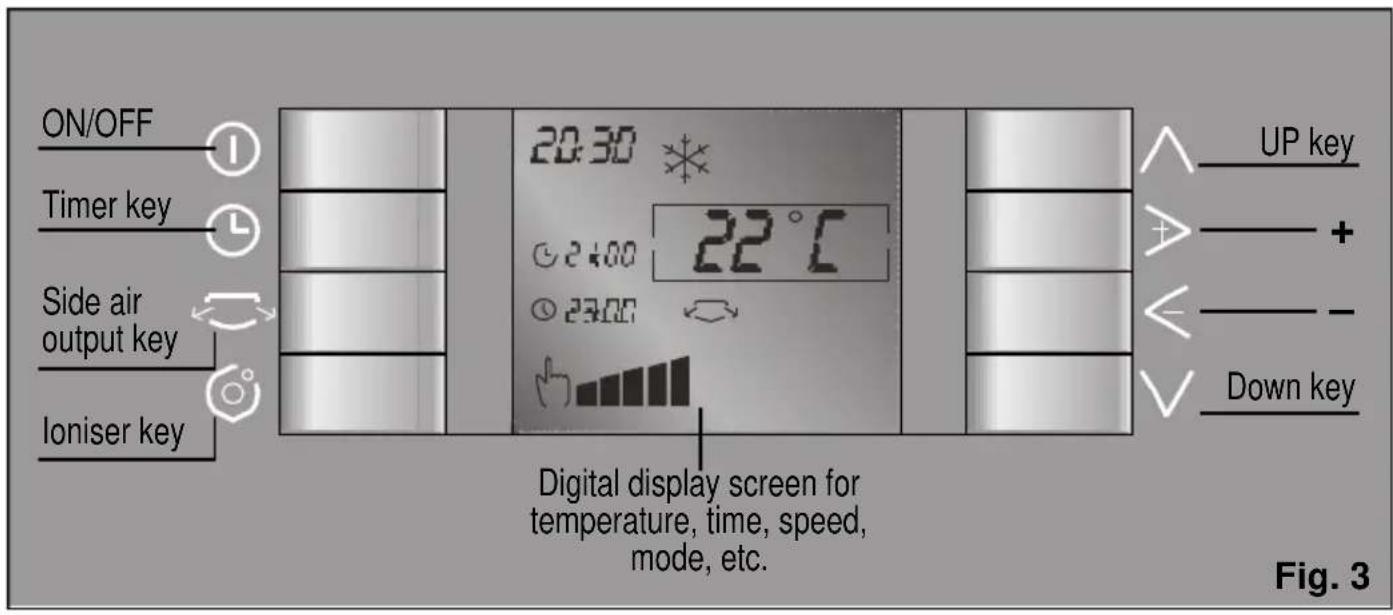

The control panel is designed to make it

easier to use your appliance. The following

points need to be taken into consideration.

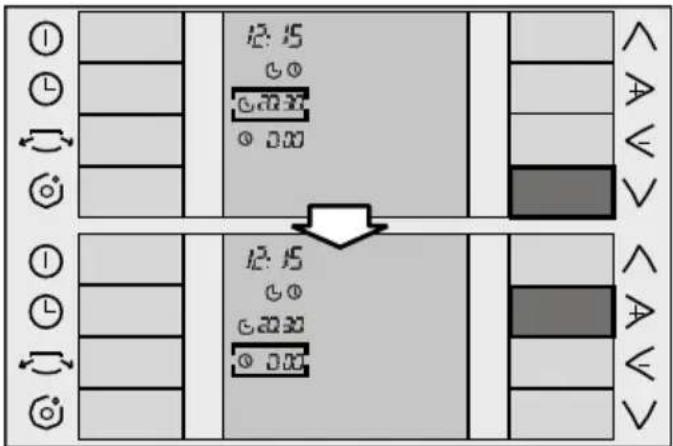

The "up" and "down" keys are used to move

up and down the screen. The "+" and "–" keys

(right and left) are used to move to the right

and to the left in the selection box. The box

shows the function selected for modification.

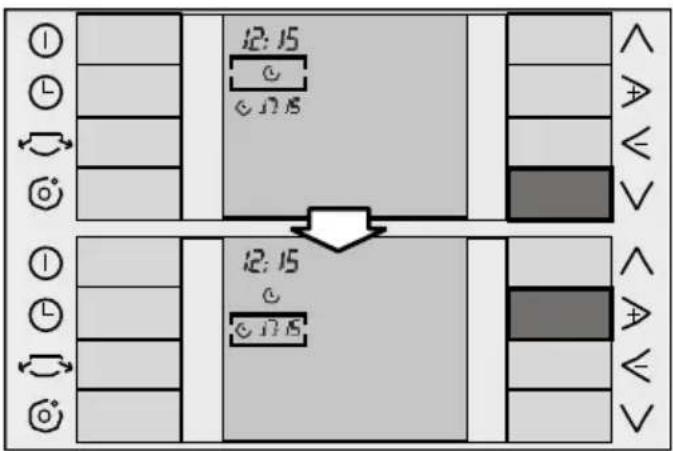

The following is an example of navigation:

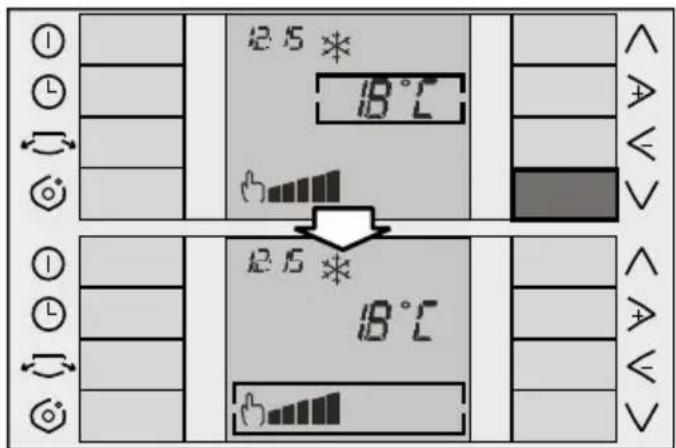

The "up" and "down" keys are used to move

up and down the screen.

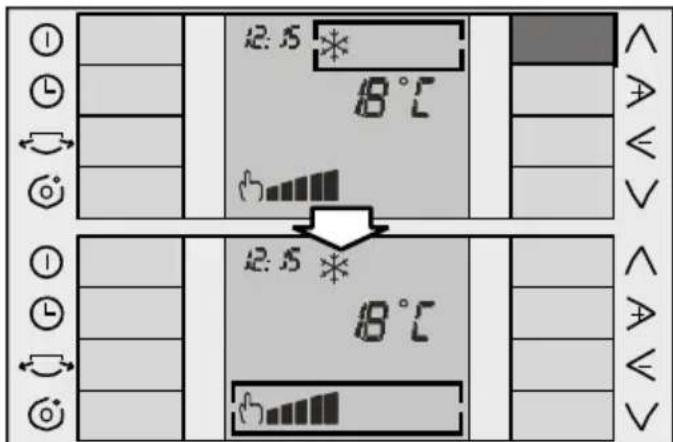

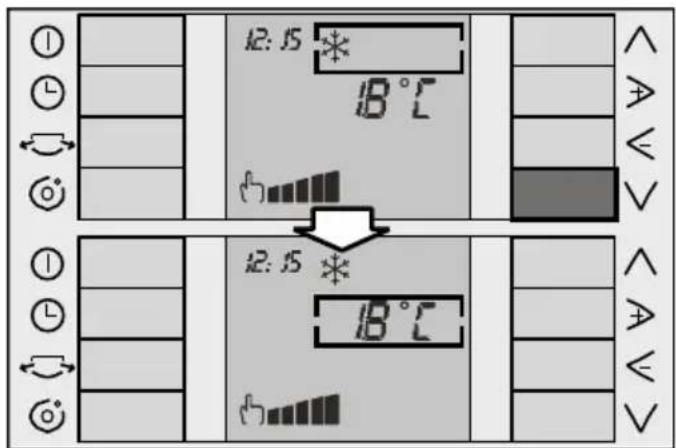

Starting from the screen shown in the first

figure (the selection box is situated on the

operation function option). If you press key ,

the selection box moves down to the

"Temperature selection" function.

If you press key again, the selection box

moves down to the “speed selection” function.

Key works in exactly the same way as key

, the selection box moving up rather than

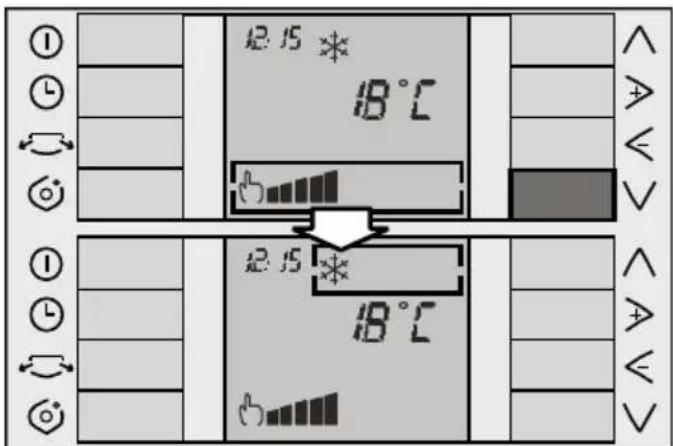

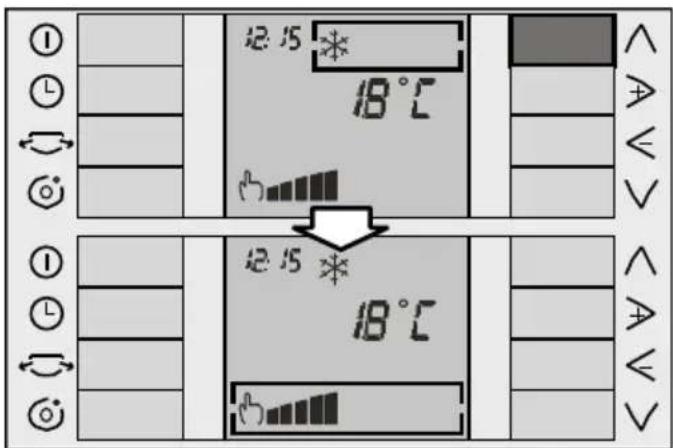

Both keys work cyclically, i.e. if the selection

box is at the bottom of the screen and key

is pressed again, the selection box moves to

the top of the screen. Likewise, if the selection

box is at the top of the screen and key is

pressed, the selection box moves to the

bottom of the screen.

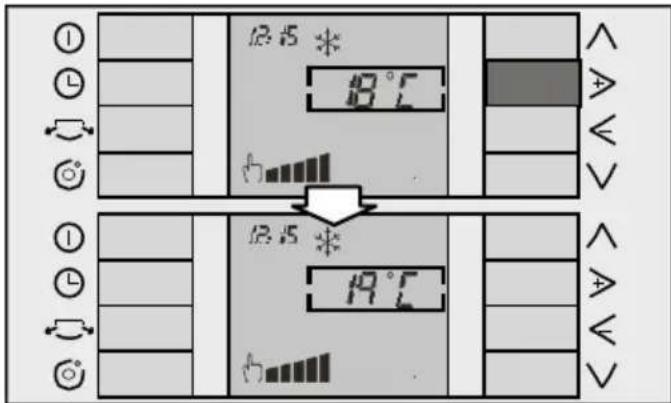

The "+" and "–" keys are used to move to the

right and to the left within the selection box. If

the function selected is temperature, these

keys are used to increase and reduce

the desired temperature as shown below:34

Instructions for Use

Preparing the appliance before use

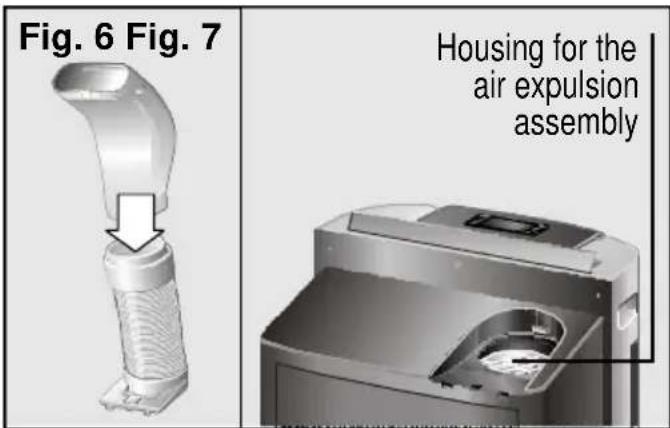

Installing the air expulsion tube

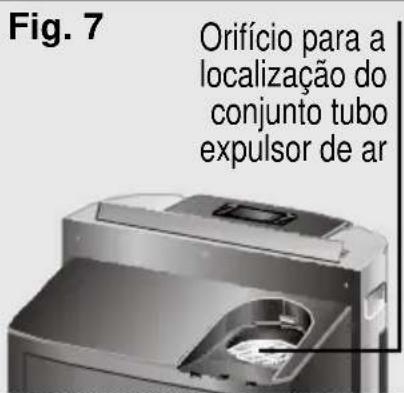

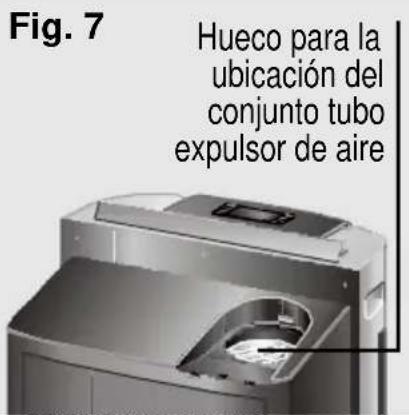

❏ Fit the air expulsion tube assembly into the

housing on the top of the appliance at the

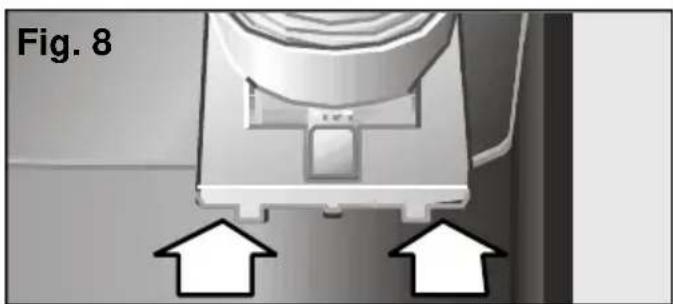

In order to fit the expulsion tube assembly

properly in its housing, it is necessary to slide

the sleeve into the positioning slot (as shown

by the arrows on Fig. 8).

The diffusion duct, Fig. 6, is added when the

tube assembly has been fitted onto the

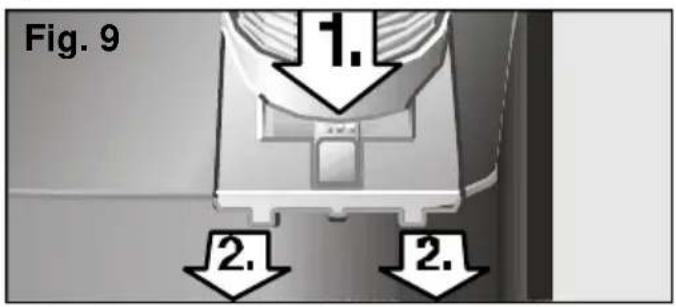

Press the "Push" tab (Fig. 9, 1) and slide out

(Fig, 9, 2) to remove the assembly from the

Installing the air expulsion accessories for

the air-conditioning function

There are a set of accessories used to expel

hot air (see "Description of accessories").

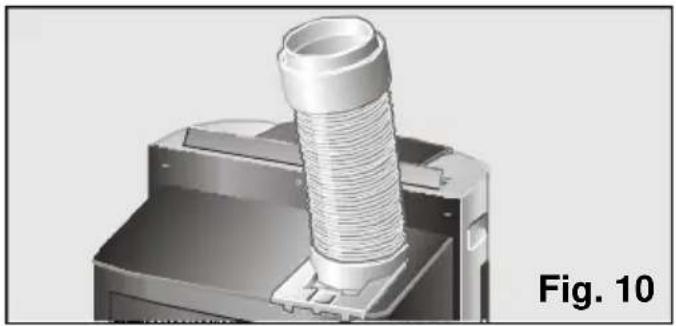

Installation for the dehumidification and air

purification function

❏ Remove the diffusion duct and set the air

expulsion tube to the position shown in

❏ The expulsion tube may also be totally

dismantled if desired.

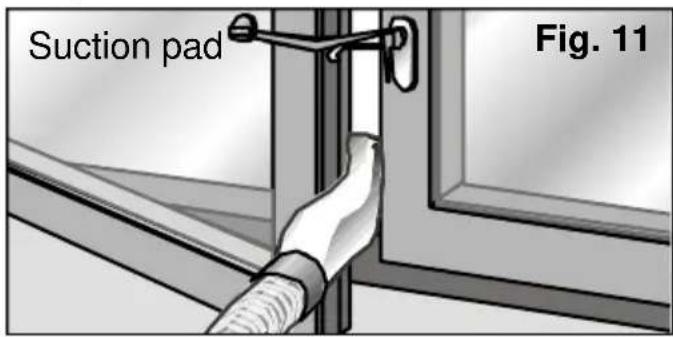

Installing the suction pad

❏ Open the window slightly and position the

diffusion duct between the jamb and the

❏ Close the window as far as possible and

secure it with the suction pad supplied,

Instructions for Use

❏ Remove the diffusion sleeve and connect

the air expulsion tube to the accessory.

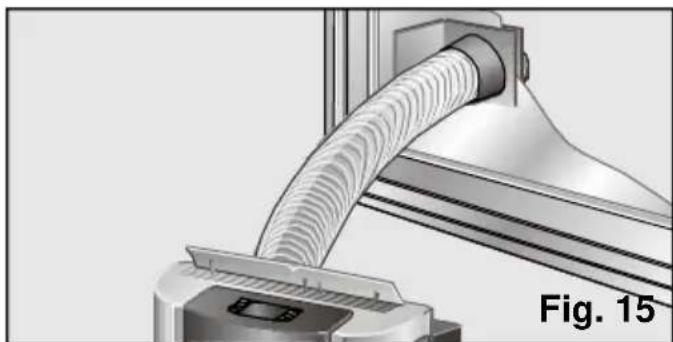

❏ If permanent installation is to be performed

through the window, then it is only

necessary to use the transparent end piece

on the accessory. A 10.5-cm diameter hole

needs to be cut in the glass, Fig. 15.

Permanent installation

Performed using the wall grommet / window

grommet accessory. See "Description of

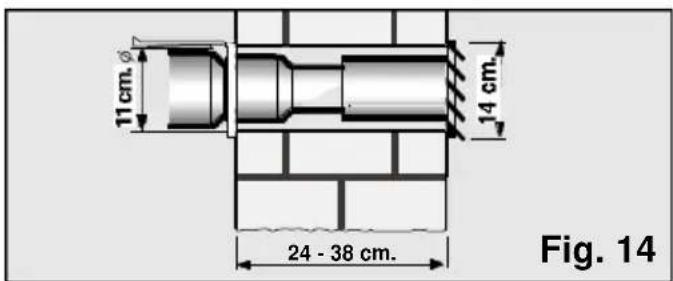

❏ To expel hot air through the wall, it is

necessary to make a hole in the wall and fit

the wall grommet, Fig. 14.

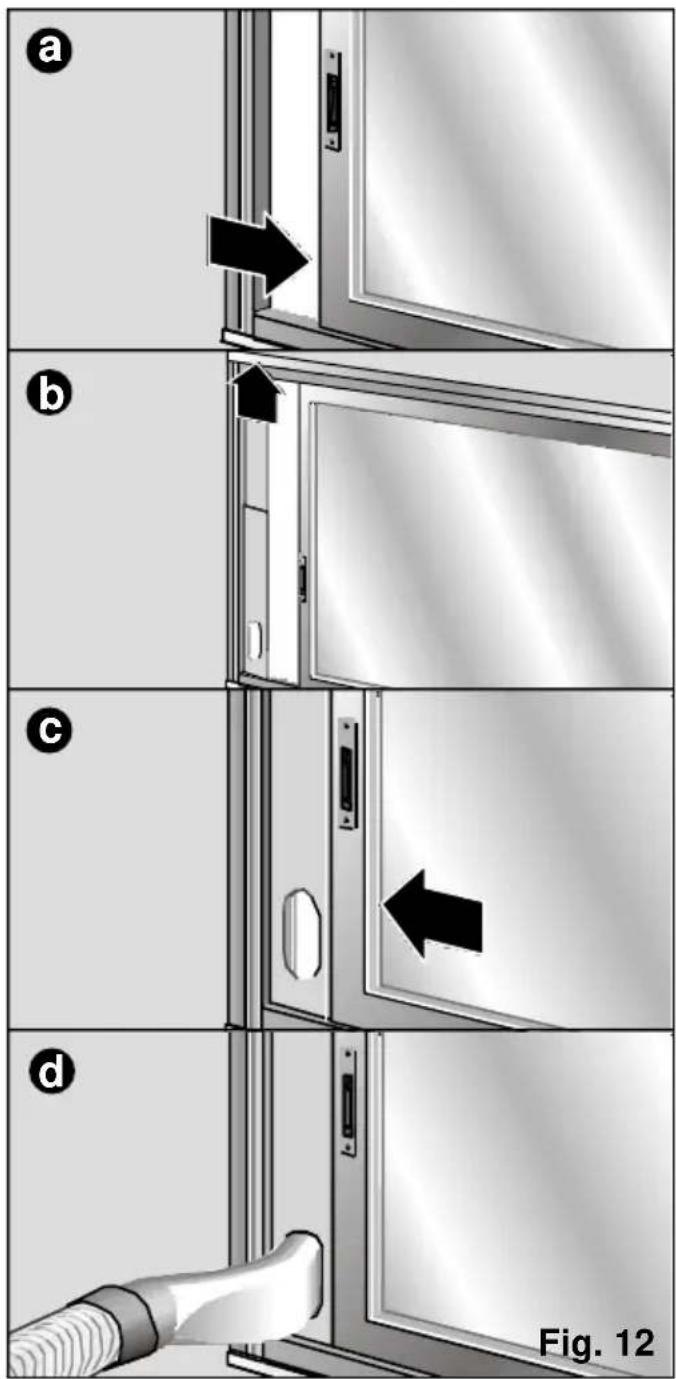

Installing the sliding window / balcony

❏ The sliding window/balcony installation

accessory supplied with your appliance can

also be used (See "Description of

accessories"), Fig. 12 : a, b, c, d. This

accessory can be used for both horizontal

and vertical windows.

❏ The accessory has two holes on the side to

fit it to the window / balcony with. The user

can secure it to the frame or wall with two

screws (not included with the accessory) to

prevent it from moving or falling out of

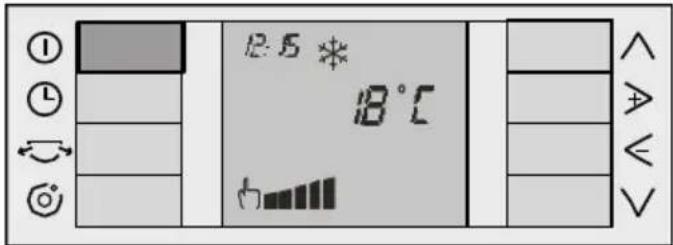

Fig. 15Turning the appliance on and off

Press the "On" / "Off" key to start the

Place the selection box on the operation

function menu using the "up" and "down"

keys (see "Navigation": “up“ and "down" keys).

Use the "+" and "–" keys to move within the

selection box and select the desired function

(see "Navigation": "+" and "–" keys).

In this function, the appliance reduces ambient

temperature until the desired temperature is

reached. The appliance dehumidifies and

purifies the air in the room at the same time in

order to create a pleasant atmosphere.

❏ Plug the appliance into the mains electricity

❏ Lead the hot air expulsion tube outside,

(see "Preparing the appliance before use").

❏ Check that the plug is fitted onto the water

drainage pipe to prevent water from leaking

onto the support surface.

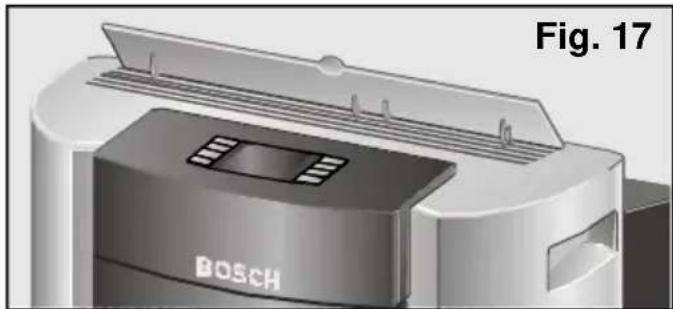

❏ Lift the air director on the top of the

Instructions for Use

more than necessary (maximum length;

Do not form sharp bends when positioning

the tube, otherwise the correct expulsion

of hot air may be impeded. This may cause

a reduction in the cooling power and

performance of the appliance.

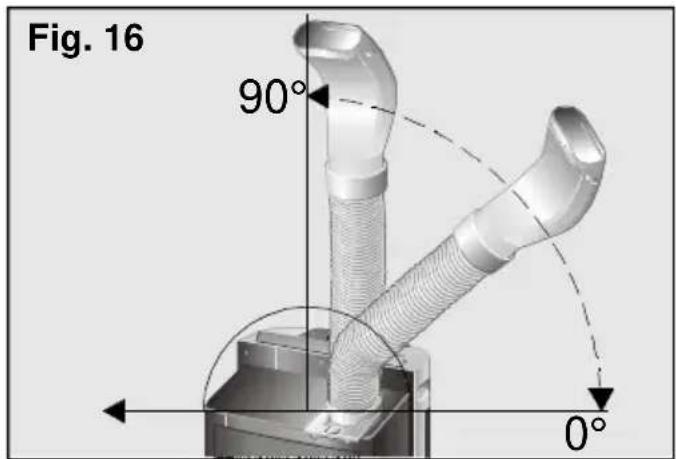

In order to achieve maximum cooling

efficiency and minimum noise levels, the

expulsion tube should be fitted above the

total height of the appliance, Fig. 16.

Make sure that the appliance is plugged

into the mains electricity supply.

Selecting the operation function

The following functions can be selected on

❏ dehumidification .

❏ air purification .

❏ Turn the appliance on by pressing the "On"

❏ Select the cooling function , (see

"Selecting the operation function").

❏ Select the desired temperature, (see

"Selecting the temperature"). If the

appliance turns itself off automatically, it is

necessary to wait for ambient temperature

to rise 2-3°C before it comes back on again.

❏ Select the operation speed, (see "Selecting

Instructions for Use

Dehumidification via the removable tank:

• Check that the removable tank is fitted onto

the appliance properly and that the plug is

fitted onto the water drainage pipe to prevent

water from leaking onto the support surface.

• The water level in the removable tank rises.

When it reaches its maximum level, the

symbol appears on the screen. This

symbol also appears when the removable

tank is not properly fitted into its housing.

• In both events, it is necessary to extract the

tank and pour the water carefully down the

Dehumidification in continuous mode:

• Place a receptacle at the end of the water

drainage pipe to collect the condensed

water or lead the pipe to the nearest drain.

• Remove the plug from the water drainage

pipe on the back at the bottom of the unit.

When operating in this mode, the appliance

does not stop or warn that the external

receptacle is full via the symbol .

• Select the dehumidification function (see

"Selecting the operation function").

• Select the operation speed, (see "Selecting

The amount of water dehumidified from the

atmosphere may reach 42 litres in 24 hours

depending on atmospheric conditions.

When the appliance is operating in the

dehumidification function, the temperature

does not appear on the screen and cannot

be selected or modified.

Do not forget to replace the plug onto the

water drainage pipe when you change

function, otherwise the appliance will shed

water when operated.

Remember that ambient temperature must

be 18°C or higher in order for the appliance

The appliance expels hot air through the

drainage pipe when operating in

dehumidification function. This is

During air conditioning, the condensed water

produced evaporates automatically and is

expelled outdoors together with the expelled

air through the hot air expulsion tube.

In conditions of extreme humidity, the

appliance accumulates condensed water in

the appliance’s rear tank. When a certain level

is reached, the removable tank full symbol

appears on the screen to indicate that the tank

needs to be emptied. The appliance stops

working when this happens. To empty the

removable tank, press the handle and remove

the tank carefully. Empty the water down the

The symbol disappears from the screen when

the water tank has been emptied and replaced

on the appliance properly.

When you turn the appliance back on again

after emptying all of the water, do not

forget to replace the removable tank on the

appliance properly. Should you fail to do

so, the symbol will not disappear from the

screen and the appliance will not work.

Remember that when the appliance is

turned off, it is necessary to wait for

approximately 3 minutes before the

compressor starts up again. This period of

time is required in order to ensure correct

appliance operation.

In this operation function, the appliance

reduces the humidity in the atmosphere. The

appliance purifies the air in the room at the

same time in order to create a pleasant

❏ Plug the appliance into the mains electricity

❏ Fit the hot air expulsion tube outside as

indicated in “Preparing the appliance before

❏ Lift the air director on the top of the

There are two ways of expelling condensed

water: via the removable tank and in

necessary for the appliance to work more

efficiently in this operation function.

The air inside the room (ventilation) is

circulated through a purifying filter (air

purification) when the appliance is set to this

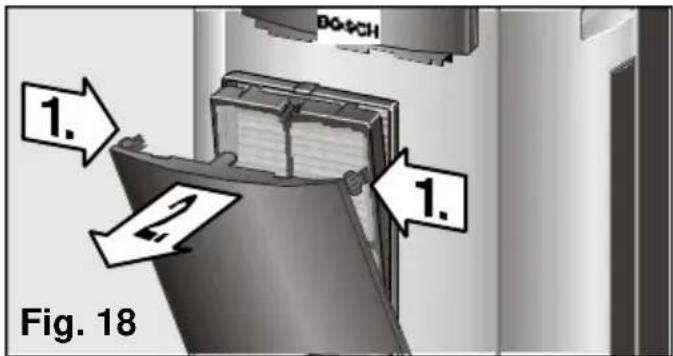

The standard appliance is fitted with a basic

filter and a double active filter (see "Cleaning

and Maintenance") against:

- Pollen, bacteria and dust.

❏ Plug the appliance into the mains electricity

❏ Fit the hot air expulsion tube (see

"Preparing the appliance before use").

❏ Lift the air director on the top of the

❏ Select the air purification function , (see

"Selecting the operation function").

❏ Select the operation speed, (see "Selecting

We recommend you leave the filters in

position regardless of the function setting

(cooling, dehumidification, air purification)

in order to purify the air more effectively.

Your air-conditioning system is fitted with an

ioniser which can be connected additionally.

The ioniser enriches the air with negatively

charged ions. In nature, this normally happens

after a summer storm, on the coast or in

mountain areas. Ionised air is fresh and clean

because it is exceptionally rich in negative

• Press the ioniser key on the control

panel to activate the ioniser. The ion symbol

appears on the screen to indicate that the

function has been activated.

• Press the ioniser key again to deactivate it.

The ioniser symbol disappears from the

Instructions for Use

The ioniser can be used in conjunction with

any function (cooling, dehumidification and air

purification) and any speed.

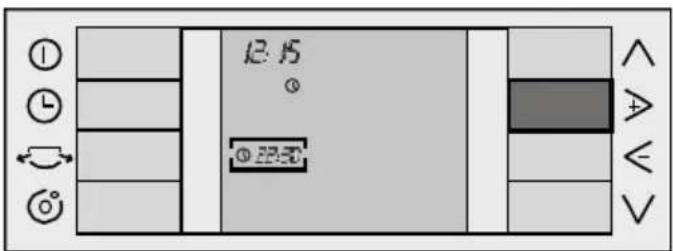

Selecting the temperature

This function is only available in the cooling

Place the selection box on the temperature

selection menu (see "up" and "down" keys).

Use the "+" and "–" keys to move within the

selection box until the desired temperature is

reached (see "+" and "–" keys).

The "+" key increases the desired temperature

and the "–" key reduces the desired

The temperature selectable ranges from 18°C

to 30°C and can be set to the nearest 1°C.

Keep the key pressed in to increase or

decrease the desired temperature more

Your appliance has five manual speeds

and two automatic speeds:

maximum and silent . The

maximum auto speed regulates the

temperature by beginning at maximum cooling

power until the temperature set by the user is

reached. The silent auto speed

regulates the temperature by beginning at a

lower, more silent cooling power until the

temperature set by the user is reached.

Place the selection box on the speed selection

menu (see "Navigation" Up and down keys).

Use the "+" and "–" keys to move within the

menu to set the desired speed (see

"Navigation" "+" and "–" keys).

The manual symbol appears on the screen

followed by the last speed set. Press the "+"

and "–" keys to change the speed from

maximum to silent and vice

versa.Instructions for Use

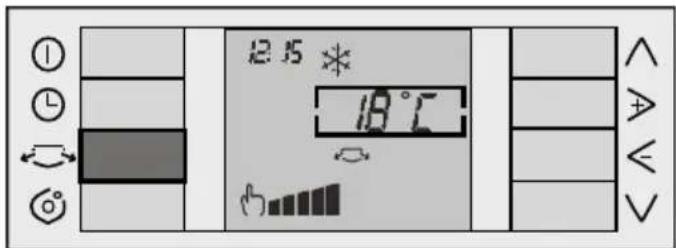

Your appliance is fitted with side fins which can

be activated to distribute the air more

Press the side fin key to open the fins and

activate their operation. The relevant

symbol is displayed on the screen.

Press the same key again to close the fins.

The symbol disappears from the screen and

These fins are available in all operation

functions: cooling, dehumidification and air

The side fins close automatically when the

appliance is turned off via the "Off" key.

Place the selection box on the "Speed

selection" menu to activate this speed and

press the "+" and "–" keys.

Once the maximum manual speed

has been reached, press the "+" key again to

move to the maximum auto speed .

Press the "+" key again to access the silent

auto speed . Press the "+" key again.

The silent auto symbol disappears from

the screen and the appliance works in manual

Press the "+" and "–" keys to deactivate

automatic speed. The relevant auto symbol

disappears and the appliance works at the

manual speed set by the user once again.40

If the side fins were open prior to turning the

appliance off, they open again when the

appliance is turned back on.

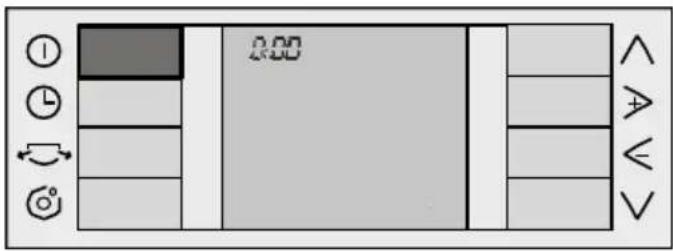

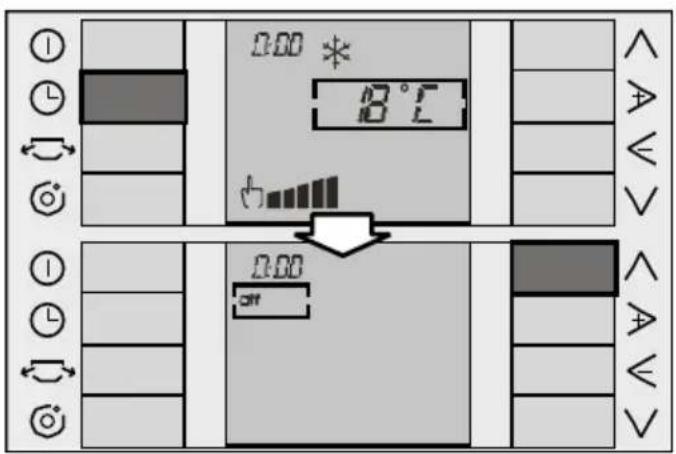

Setting the clock / Programming the

❏ The current time (24-hour clock) is

displayed in the top left-hand corner of the

screen the first time the appliance is

connected to the mains electricity supply.

0:00 flashes by default.

❏ To set the time, it is necessary to turn the

appliance on by pressing the "On" key .

If you take more than 10 seconds to

perform the next operation during

programming / setting the clock on your

appliance, the screen automatically returns

to the main menu and the factory-set

default settings are displayed or, if this is

not the first time that the timer is set, the

last settings used are displayed on the

❏ Press the "Timer" key . The selection

box appears on the timer menu with the last

function selected ("Off" is displayed by

Instructions for Use

❏ Use the "up" key to place the selection box

on the time. The time is modified using the

"+" and "–" keys. The time increases or

decreases by one minute each time one of

these keys is pressed. Keep the key

pressed in to increase or decrease the

minutes more quickly.

❏ Press the "Ti m e r " key , to memorise the

time. If you do not press this key, the time is

automatically memorised when a period of 10

seconds has passed without pressing any key.

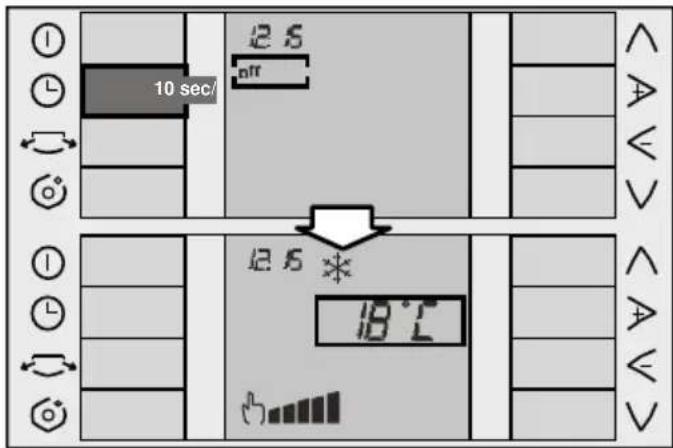

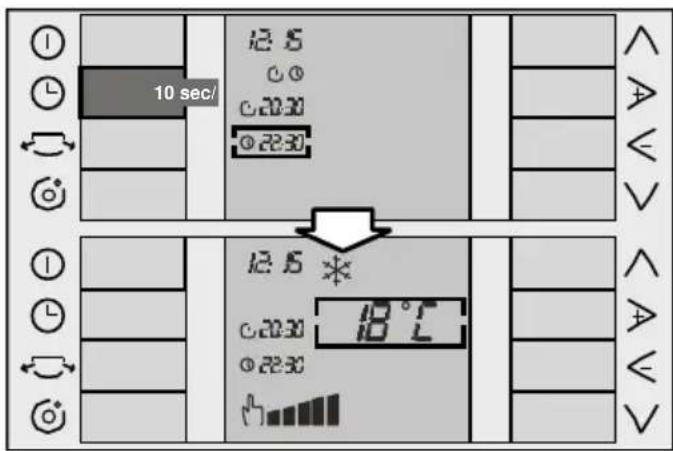

10 sec/Programming the appliance "Start" / "Stop"

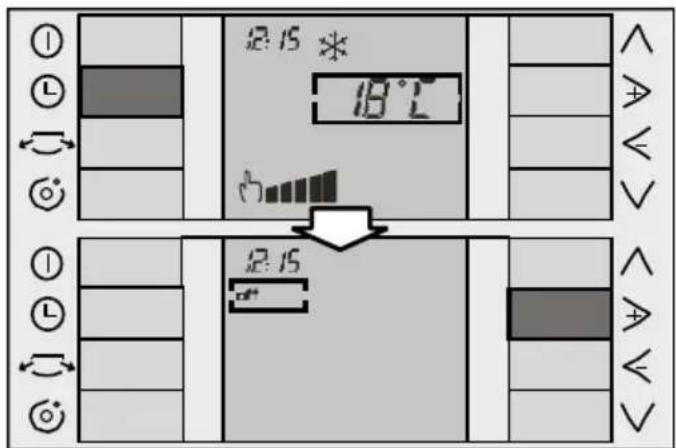

❏ Press the "Ti m e r " key , to position the

cursor on the timer menu. The last function

programmed appears by default.

❏ The time changes 15 minutes at a time.

❏ Press the "Timer" key , or wait for 10

seconds without touching any keys to

memorise the set start time.

❏ The set time is displayed on the screen

together with the relevant symbol (the

"Start" symbol ) and the set functions.

❏ Use the "+" and "–" keys to select the

"Start" function , (see "+" and "–" keys).

❏ Use the "down" key (see "up" and "down"

keys) to lower the cursor to the start time

menu. Then use the "+" and "–" keys to

modify the programmed time until the

desired time is reached.

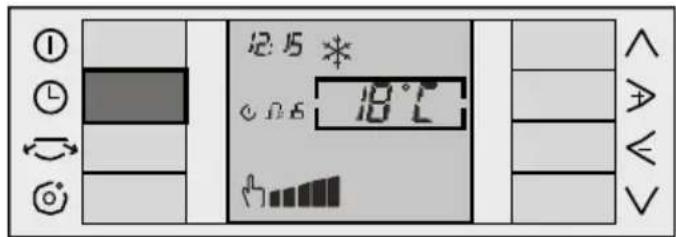

Programming the timer

The appliance needs to be turned on with the

clock set in order to programme the start /

Press the "Timer" key , to navigate through

the timer menu. Press the "+" key to

programme the different functions available on

your appliance. These are:

• "Off" : appliance not programmed.

• "Start" : programming the appliance

• "Start" / "Stop" : programming the

appliance start and stop time.

• "Stop" : programming the appliance .

Programming the appliance start time

❏ Press the "Ti m e r " key , to position the

cursor on the timer menu. The last function

programmed appears by default.

Instructions for Use42

❏ Use the "+" and "–" keys to select the

"Start" function , (see "+" and "–" keys).

❏ Use the "down" key (see "Up" and "down"

keys) to lower the cursor to the start time

menu. Then use the "+" and "–" keys to

modify the programmed time until the

desired time is reached.

Instructions for Use

❏ Press the "u p" key again to position the

cursor on the timer menu. Use the "+" and "–"

keys to select the "S t a r t" / "S t o p" f u n c t i o n .

(see "+" and "–" k e y s ) .

❏ Use the "down" key to position the cursor

on the stop time menu. Then use the "+"

and "–" keys to modify the stop time until the

desired time is reached.

❏ The time changes 15 minutes at a time.

❏ Press the "Timer" key , or wait for 10

seconds without touching any keys to

memorise the set start / stop times.

❏ The set time is displayed on the screen.

Programming the appliance stop time

❏ Press the "Timer" key , to position the

cursor on the timer menu. The last function

programmed appears by default.❏ The times and functions set on the timer

remain active and the programmed

operation is repeated every day at the set

times until deactivated or cancelled as

Turning the timer off

❏ Press the "Timer" key , to position the

cursor on the timer menu. The last function

programmed appears by default.

Instructions for Use

❏ Use the "+" and "–" keys to select the

"Stop" function , (see "+" and "–" keys).

❏ Use the "down" key (see "up" and "down"

keys) to lower the cursor to the stop time

menu. Then use the "+" and "–" keys to

modify the stop time until the desired time is

❏ The time changes 15 minutes at a time.

❏ Press the "Timer" key , or wait for 10

seconds without touching any keys to

memorise the set stop time.

❏ The set time is displayed on the screen.

❏ Use the "+" and "–" keys to select the "Off"

❏ Press the "Timer" key , or wait for 10

seconds without touching any keys to turn

the timer off. No set time is displayed on the

Cleaning and Maintenance

Cleaning the appliance

❏ For safety reasons, you should unplug the

appliance from the mains electricity supply

❏ The appliance can be cleaned with a cloth

or sponge, slightly warm water and a mild

❏ Never use hot water (more than 40°C),

bleach, benzene, petrol, acid, scouring

pads, brushes or strong detergents. Prevent

water from entering the appliance.

❏ Do not clean the appliance with a hose..

Cleaning and changing the purifying

Press the side tabs, (Fig. 18, 1.), on the front

flap of the appliance and pull it open (it is not

necessary to remove it), (Fig. 18, 2.). The flap

is fitted with a stop and can be opened up to

this point without risk of falling.

All models are fitted with a basic filter which

needs to be cleaned regularly, Fig. 19. The

filter is accessed by pressing the tab at the top

and removing it from its housing, Fig. 20. The

filter is cleaned under a cold tap, dried and

A double active filter is also fitted inside the

basic filter on these models, Fig. 21.

In order to remain operational, this filter needs

to be changed every year or when the

"change filter" symbol appears on the

(These accessories are available for purchase

from the Manufacturer's Official Technical

Service and authorised distributors).

Press the "+" and the "–" key at the same time

to make the symbol disappear from the

screen after changing the filter. The symbol

disappears from the screen and the filter is

Installing the double active filter:

❏ Remove the basic filter from the appliance,

❏ Change the double active filter inside the

basic filter for a new one as shown in Fig. 21.

❏ Install the assembly onto the appliance by

lining the lower studs up with the slots on

the front casing of the appliance and

pressing the top clip in until it clicks into

position. The assembly is fitted properly

when it clicks into position.

Storage requirements

When the appliance is out of use for a long

period, set the expulsion tube to parking

position so that the appliance takes up as little

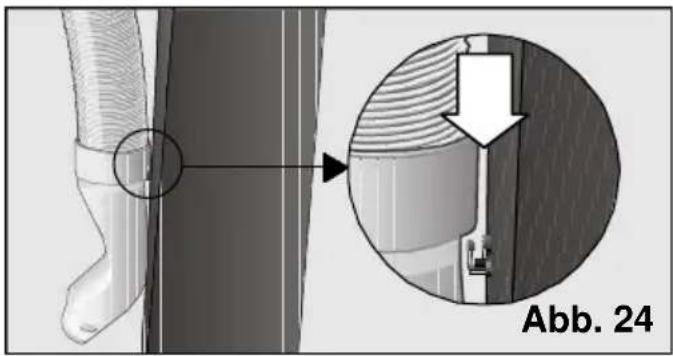

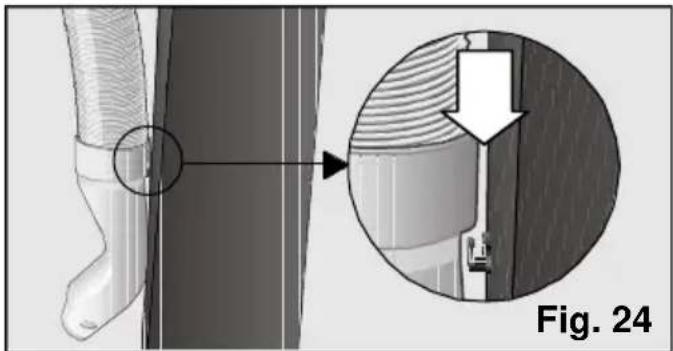

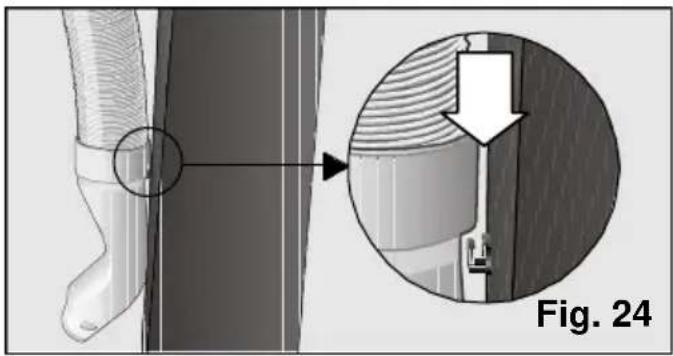

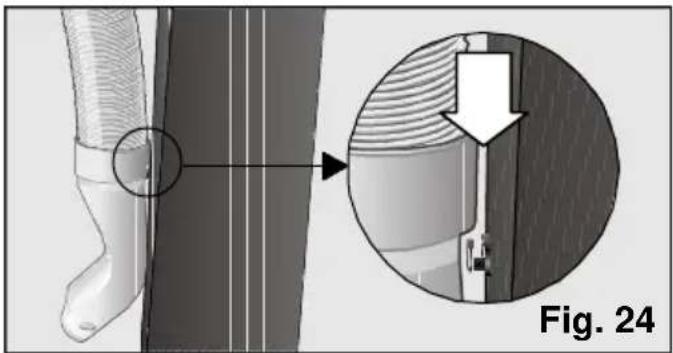

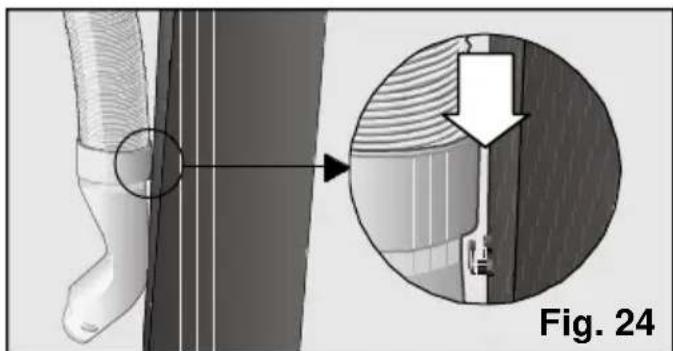

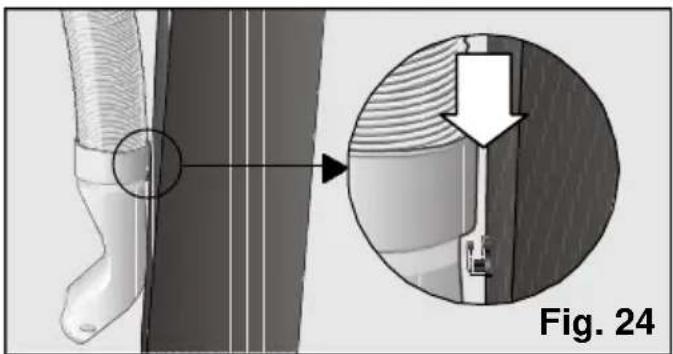

❏ To do this, bend the tube towards the back

of the appliance and secure it with the

diffusion hook, Figs. 23 and 24.

Prior to use at change of season

❏ Clean the air filter.

❏ Clean the casing and the grilles if

❏ Close the front flap.

❏ In order to maintain cooling power, only fit

one set of filters onto the support.

The front flap can also be removed in order

to clean the appliance or change the filters

To do this, open the flap up to the first stop

(the flap opens to a slight angle; Fig. 18)

and pull outwards. In order to refit it, line

the lower studs on the flap up with the

holes on the casing until the studs meet

the clips on the casing.

Transportation requirements

The appliance is fitted with wheels to make it

easier to move around. It can be tilted, if

necessary, in order to make transportation

easier. You should not turn the appliance back

on again for a minimum period of one hour

after performing this procedure.

❏ Before tilting it, empty the condensed water

from the internal tank by extracting the

water drainage pipe from its housing and

removing the plug, Fig. 22. Place a

receptacle (or the appliance’s removable

tank) at the end of the water drainage pipe

to collect the condensed water or lead the

pipe to the nearest drain. Do not forget to

replace the plug and reinsert the pipe in its

housing when the tank is empty.

Cleaning and Maintenance

Things to check before calling the Technical Service

General requirements for operation

... the appliance does not work ...

❏ Check that it is plugged in properly.

❏ Check that the mains electricity supply is

working. Check the fuse box.

❏ Set the thermostat to a lower temperature.

... the appliance does not work and the

symbol indicating that the condensed

water tank is full is displayed on the

❏ Set the appliance on a flat surface. If the

symbol does not disappear, empty the water

tank. Make sure that the tank is refitted

properly afterwards. (See instructions in

... the appliance does not reduce room

temperature sufficiently ...

❏ Check the joins on the hot air expulsion

❏ Make sure that the expulsion tube is not too

bent and that it is not extended to more

❏ Make sure that the plug is fitted on the

drainage water pipe.

❏ Fit the suction pad to close the window as

❏ Lower blinds to reduce direct sunlight.

... the fault symbol is displayed on the

❏ Get in touch with an authorised dealer,

customer service or the manufacturer’s

Technical Service Network.

... there is water on the control panel grille

or on the basic filter housing ...

❏ There is no cause for concern. This is

... the appliance makes a lot of noise ...

❏ Some noise is normal and other types of

noise can be solved easily. You need to be

able to distinguish between these types of

Perfectly normal noise

❏ The sound of water flowing in cycles is due

to the pump, which circulates the water to

enhance the power of the appliance.

❏ A dull, humming sound is inevitable due to

❏ A faint, whistling sound is due to the

refrigerant passing through the thinner

pipes on the appliance when the

compressor starts up.

❏ A short clicking sound is produced when the

pump connects and disconnects or when

the regulator connects or disconnects the

Easy-to-solve noises

❏ Make sure that the air expulsion tube and

the diffusion and collection sleeves are

fitted properly onto the appliance.

❏ Make sure that the air intakes and outlets

on the appliance are free of obstacles.

❏ Make sure that the appliance is not in direct

contact with furniture or other appliances.

The air output may be flowing directly onto

these and thereby increasing the noise

Any other type of fault or repair work

should be dealt with by a specialised

Technician. Get in touch with your

authorised dealer, customer service or the

Technical Service Network.Technical service / Warranty / Technical Information

Should your appliance fail to work properly

and all the instructions for use and installation

(especially the section headed

"Requirements....") have been carefully

observed, then remember that our Technical

Service Network is at your full disposal.

When contacting the Technical Service, quote

the model code (E-NR) and the appliance’s

factory number (FD). This information can be

found on characteristics plate, Fig. 2.

The conditions of warranty depend on the

relevant Supplier in a particular country.

Contact the establishment where you

purchased your appliance for more information

and quote the appliance model and factory

number. The receipt of purchase for the

appliance must be produced prior to any work

carried out under warranty.

Technical Information

Consumption at maximum power (W)* 975

Dehumidification capacity (l./day) 42

Energy efficiency (letter) C Cooling capacity (W)* 2100

"down" (voir "Concept de navigation":

and electronic equipment - WEEE).

função seleccionada for temperatura, as

❏ Seleccionar com as teclas "+" e "–" a

❏ Seleccionar com as teclas "+" e "–" a

❏ Seleccionar com as teclas "+" e "–" a

(waste electrical and electronic equipment -

Tasti “Up”e “Down" 140

electrical and electronic equipment -
