USER MANUAL DO418BL DOMO

Black and white photo of a modern kitchen blender with clear glass casing and handle (no text or symbols visible)

DO418BL

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

VEILIGHEIDSMAATREGELEN

When using the electrical appliance, the below basic safety precautions should be followed:

1. Read all instructions.
2. Before using check that the voltage power corresponds to the one shown on the appliance nameplate.
3. Do not let cord hang over edge of table or counter.
4. Do not operate any appliance with a damage cord or plug or after the appliance malfunction or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.
5. Use by children not intended but foreseeable, but only allowed with supervision.
6. Avoid contacting moving parts.
7. Blades are sharp, so handle carefully.
8. The use of attachment, including jug, lid, not recommended or sold by manufacture may cause fire, electric shock or injury.
9. The appliance cannot be used for blending hard and dry substance, otherwise the blade could be blunted.
10. Switch off the appliance before approaching parts which move in use.
11. Be sure to turn switch to 0 position after each use. Make sure the motor stop completely before disassembling. And the power supply cord plug is removed from outlet.
12. This appliance is not intended for used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
13. Children should be supervised to ensure that they do not play with the appliance.
14. Do not immerse the Motor Unit into water or other liquids.
15. Do not use outdoors.
16. Save these instructions

HOUSEHOLD USE ONLY

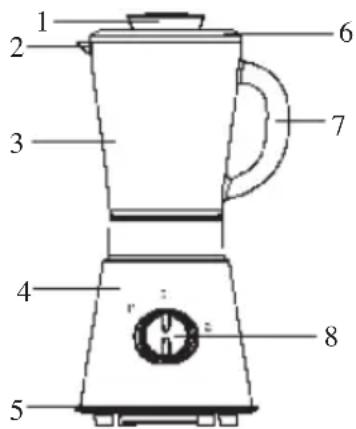

KNOW YOUR BLENDER

1. Measuring cup
2. Spout
3. Glass jug
4. Motor unit
5. Working indicator
6. Top lid
7. Handle
8. Speed selector

1 2 3 4 5 6 7 8

FOR THE INITIAL USE

1. Unpack the appliance and place all parts on a horizontal surface.
2. Immerse jug, top lid and measuring cup in warm soapy water and rinse them and dry. Never immerse motor unit in water for cleaning to prevent the risk of electric shock.

Caution: the blade is very sharp, handle with great care.

1. The correct assembly way will be described in detail in below sections.

Before assembling the jug, be sure the power cord is unplugged from the power outlet and the speed selector is on the 0 position.

The jug is suitable for making mixture which the juice and pulp are mixed.

For attaching jug, first place the jug into the motor unit, then turn it in clockwise .

Note: make sure the jug is assembled into the motor unit properly, there is interlock switch on the position, if the jug is not assembled properly, the blender will not operate.

BLENDING FRUIT AND VEGETABLE:

1. Before attaching the power cord into the outlet, make sure the speed selector is in the 0 position.
2. Peel or core the fruit or vegetables and then cut it into small dices, put the food pieces into the jug. The amount of mixture should not exceed the max level as indicated on the jug.

Note: never use boiling liquids or run the appliance empty. The jug can be used for breaking up ice.

1. Replace the top lid on the jug. Only directly place the top lid into the jug.
2. Plug in the unit, the glass base will light up.
3. Turn the speed selector to the desired setting, the blue light of the base will start blinking. There are four settings: P, 0, 1, 2. The 1 setting is the low speed, the 2 setting is the high speed. Turn switch to P position and hold it to pulse actuate motor for delicate chopping. Release it to return the 0 position.
4. You may add ingredient into the jug through the center opening of top lid during operation, then replace Measuring Cup if necessary. Let the tab of Measuring Cup aligns with the groove of top lid, put down and turn clockwise until it is locked.
5. The consecutive operation time shall not exceed 3 minutes. Minimum 1 minutes rest period is required between two consecutive cycles.
6. Turn the Speed selector to 0 Position once the mixture has been blended to your desired consistency.
7. Remove the jug from the Motor Unit (remove it by turning it anti-clockwise), carefully take down the top lid, then pour and serve.

CLEANING AND MAINTENANCE

The Auto Clean feature can clean the blender and blade assembly easily, rapidly in complete safety.

-Pour a little warm soapy water into the jug and turn the Speed Selector to P position for a few seconds.

-Remove the jug from the motor unit by turning it in anti-clockwise and rinse the jug, top lid under running water.

-Wiping the outer surface of Motor Unit with a damp cloth, do not use abrasive

cleansers. Never immerse in water for cleaning

-Dry all parts and then replace them

For complete cleaning, you can hold the blade assembly at the bottom of jar carefully, for it is sharp, take it out by turning coupling on the other side clockwise emphatically?

Then put the detachable accessories into Dishwasher for clean, they are dishwasher safe components, but the temperature setting shall not exceed 70^ C.

If any problem has been encountered during use never disassemble the Motor Base by yourself, no user serviceable parts inside. Contact only the authorized service facility for examination and repair.
