USER MANUAL DO2325CG DOMO

ausge setzt sein, sind nic ht in der Garantie eingeschlossen. WARRANTY This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts

such as brushes and batteries, w hich ar e subject to wear, are ex cluded from the warranty

he symbol on the product or on its packaging indicates that this pro duct may not be treated as househ

d waste . Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is dispo sed of correctly, you will help prevent potential neg ative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city offi ce, your household waste disposal service or the shop where you purchased the product.DO2325CG

WERKING CONVECTIE EN GRILL

9. Convection/Combination – Gril/Combination

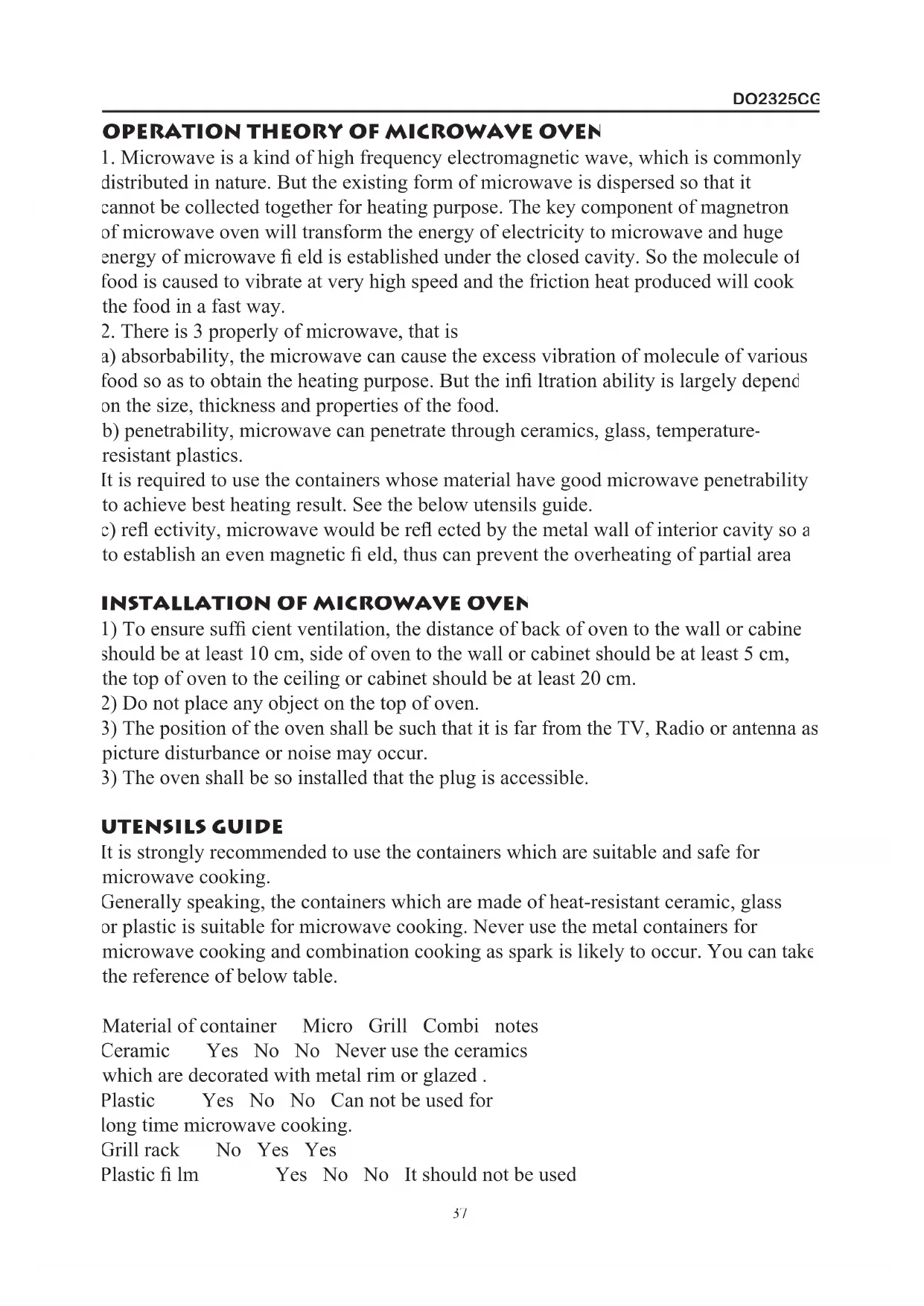

1. Microwave is a kind of high frequency electromagnetic wave, which is commonly

distributed in nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave fi eld is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way.

2. There is 3 properly of microwave, that is

a) absorbability, the microwave can cause the excess vibration of molecule of various food so as to obtain the heating purpose. But the infi ltration ability is largely depend on the size, thickness and properties of the food. b) penetrability, microwave can penetrate through ceramics, glass, temperature- resistant plastics. It is required to use the containers whose material have good microwave penetrability to achieve best heating result. See the below utensils guide. c) refl ectivity, microwave would be refl ected by the metal wall of interior cavity so as to establish an even magnetic fi eld, thus can prevent the overheating of partial area.

INSTALLATION OF MICROWAVE OVEN

1) To ensure suffi cient ventilation, the distance of back of oven to the wall or cabinet

should be at least 10 cm, side of oven to the wall or cabinet should be at least 5 cm, the top of oven to the ceiling or cabinet should be at least 20 cm.

2) Do not place any object on the top of oven.

3) The position of the oven shall be such that it is far from the TV, Radio or antenna as

picture disturbance or noise may occur.

3) The oven shall be so installed that the plug is accessible.

UTENSILS GUIDE It is strongly recommended to use the containers which are suitable and safe for microwave cooking. Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic is suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table. Material of container Micro Grill Combi notes Ceramic Yes No No Never use the ceramics which are decorated with metal rim or glazed . Plastic Yes No No Can not be used for long time microwave cooking. Grill rack No Yes Yes Plastic fi lm Yes No No It should not be used 37DO2325CG when cooking meat or chops as the oven temperature may do damage to the fi lm

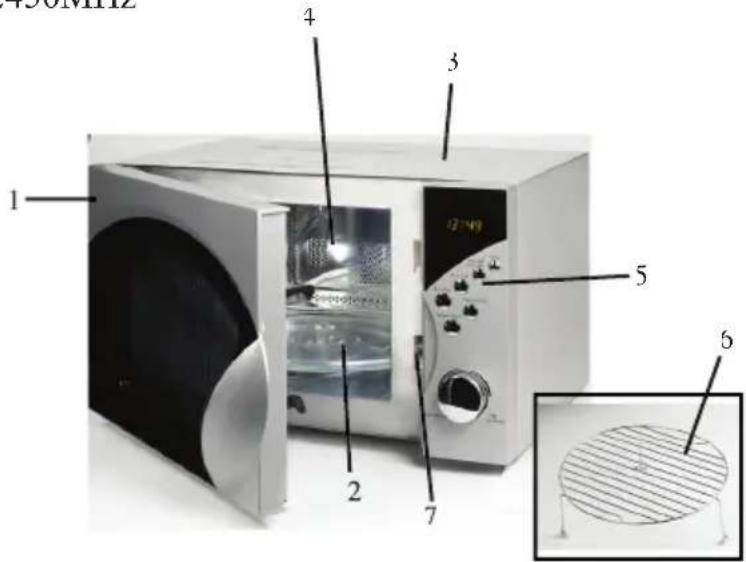

KNOW YOUR MICROWAVE OVEN

Model: DO2325CG Rated Voltage: 230V 50Hz Rated Power input: 1350W or 1400W for microwave 1300W for convection 1000W for heat element Rated Microwave power output: 800W or 900W Rated Microwave frequency: 2450MHz Capacity of oven cavity: 25L

4. Waveguide cover (inside)

1. The oven cannot be activated without the door properly closed. This is a safety

feature, never intend to damage it.

2. The operation of control panel is illustrated in next page.

3. Do not remove the Waveguide cover during cleaning.

IMPORTANT SAFEGUARDS The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the

rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fi re in the oven cavity:

A. Do not overcook the food. B. Remove wire twist-ties from paper or plastic bags before placing bags in the oven. C. Do not heat oil or fat for deep drying as the temperature of oil cannot be controlled. D. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fi re. E. If materials inside the oven should smoke or ignite, keep oven door closed, turn

2DO2325CG oven off and disconnect the power supply. G. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material.

4. To reduce the risk of explosion and sudden boiling:

A. Do not place sealed containers in the oven. Baby bottles fi tted with a screw cap or teat are considered to be sealed containers. B. When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.

5. Never operate the oven further if the door is damaged or the oven malfunction or

supply cord is damaged. Return the appliance to the nearest authorised service centre for repair and maintenance. Never try to adjust or repair the oven yourself.

6. If the supply cord is damaged it must be replaced by the manufacturer or its service

agent or a qualifi ed technician in order to avoid a shock hazard.

7. After cooking, the container is very hot. Using gloves to take out the food and avoid

steam burns by directing steam away from the face and hands.

8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and

carefully open popcorn and oven cooking bags away from the face.

9. To prevent the turntable from breaking:

A. Let the turntable cool down before cleaning. B. Do not place hot foods or utensils on the cold turntable. C. Do not place frozen foods or utensils on the hot turntable.

10. Make sure the utensils do not touch the interior walls during cooking.

11. Do not store food or any other things inside the oven.

12. Do not operate the oven without any liquid or food inside the oven. This would do

13. This appliance is not intended for use by young children or infi rm persons without

14. Only allow children to use the oven without supervision when adequate

instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.

15. Any accessories not recommended by the manufacturer may cause injuries to

16. Do not use outdoors.

17. Save these instructions.

The LED Display will fl ash 3 times when plugged in power supply. Then it will fl ash, Prompt you set the current clock and cooking procedure. LED Display It will show the clock time, cooking mode and left operation time, which is depend on the current set mode. 39DO2325CG

5. Touch Clock one more time wait for 5 seconds

Increase or decrease cooking time during operation by turning auto defrost time weight button if necessary.

4. Child lock function

All the buttons are de-activated in this mode Use this feature to lock the control panel when you are cleaning or so that children can not use the oven unsupervised. To set child lock: 1.Touch and hold Pause/cancel about 3 seconds or until the LED appears OFF. To cancel child lock:

1. To unlock, touch and hold Pause/cancel for about 3 seconds or until LED appear

colon . A beep sound will be heard.

When your preset cooking procedure have fi nished, the LED Display will show “END” and six beep sound will be heard to prompt you to take out food. If you do not press Pause/cancel button once or open the door the beep will be sounded at an interval of 3 minutes.

6. Pause/Cancel Press Pause /cancel button once to

1. Stop the oven temporarily during cooking .

2. Clear the enter if you make a mistake during programming .

7. To cancel a programme during cooking

Touch the Pause /cancel twice .

8. Microwave cooking

Press Power button, LED display will cycle to show 100P, 80P, 60P, 40P, 20P,100P 100P: High power, the magnetron is energized all the operation time. 80P: Medium High power, 80% microwave power . 60P: Medium power, 60% microwave power . 40P: Medium Low Power, 40% microwave power . 20P: Low power, 20% microwave power .

1. Select the desire microwave power by touching Power button consecutively.

2. After select power ,set cooking time by turning the Time weight /Auto Defrost knob

3. For example you want to cook the food for 10 minutes and thirty seconds .

4. You can change the cooking time during cooking .

NOTE : 1.The max time you can set is 99 minutes and 99 seconds .

9. Convection/Combination Grill/Combination

Press this button LED Display will cycle to show C - C1- C2 - G- G1- G2 A) Convection/Combination C: Convection, the convection unit will be energized during operation time. C1: Combination of convection and microwave cooking. Convection unit and magnetron is energized in an alternate way. C2: Same as above except that the magnetron operation time .More magnetron operation time . Convection function allow you to grill poultry ,make cakes ,cookies etc. Touch the “conv/combi grill/combi” button consecutively to select desired menu

2. After select desired cook means ,press Instant/Start to confi rm the selection. Change

the convection temperature by turning TimeWeight/Defrost . If you skip cooking time setting ,you need touch instant/start twice to start cooking . B) Grill/combination G: Grill, the heat element will be energized during operation time. G1: Combination of Grill and microwave cooking. Heat element and magnetron is energized in an alternate way. G2: Combination of Grill and microwave cooking. Heat element and magnetron is energized in an alternate way, but more microwave cooking time . TEMPERATURE SELECTION You can select the temperature depending on the programm you are using. The following temperature selections are possible : 80°C, 100°C, 120°C, 140°C, 160°C, 180°C, 200°C en 230°C. For defrosting you select a temperature of 80°C. For baking the temperature can be selected between 120°C and 180°C. When using the grill select a temperture between 180°C and 230°C When using a combination (f.ex. grill/microwave) the temperature can not exceed 180°C.

USE OF CONVECTION AND GRILL

Press the conv. Combi button to select the desired programm. Select the desired temperature by turrning the “temp. time weight/auto defrost” button. Press “instant/start” button to confi rm the setting. Select the desired cooking time and possible pre-heat time. Press instant/start to start the cooking process. 41DO2325CG

Directly turn the Time weight/Auto Defrost knob to select defrost cook procedure. AD1: for defrosting meat. AD2: for defrosting poultry. AD3: for defrosting seafood. Press the “instant/start” button to confi rm. Use the “auto defrost/time weight” button to select the weight. For defrosting meat, the weight range from 0.1 Kg to 2.0 Kg. For defrosting poultry, the weight range from 0.2 to 3.0 Kg. For defrosting seafood, the weight range from 0.1 to 0.9 Kg. Select desire weight, then press Instant/start button to begin operation. Adjust the cooking time during operation if necessary .

The oven has default cooking menu for simple operation. When the LED fl ash colon, press the Auto cook button and LED will cycle to show AC1 - AC2 - AC3 - AC7 - AC8. Select describe cook menu , set cook weight or volume(for cook menu AC7, AC8, you do not need to set weight or volume). Touch Instant/Start begin cooking. For detailed cook procedure and tips, refer to the Auto cook table in next page .You can adjust the cook time during cooking. AC1 Rise/Pasta Wash rice and soak for 30 minutes. Place rice in boiling water with 0.25 to 1 teaspoon salt in a deep and large bowl. Refer the water volume as follows Weight 100g 200g 300g cover Rice 180ml 330ml 480ml yes Pasta 300ml 600ml 900ml no Rice after cooking, stand cover for 5 min. or until water is absorbed. Pasta during the cooking, stir several times. After cooking, stand for 1 or 2 minutes. Rinse pasta with cold water. AC2 Fresh vegetable Place vegetable in a microwave-safe bowl. Add water. Cover the bowl. After cooking stir and allow to stand. Add amount water according to the quantity

AC3 Frozen vegetables Same as fresh vegetable 0.2 – 0.8 kg 42DO2325CG AC4 Popcorn Place only one bag of prepacked microwave popcorn on the centre of the turntable.

AC5 Beverage Use a big mouth mug. Do not cover. (be careful, the beverage will be very hot. Sometimes liquids heated in cylinder containers will splash out when the cup is moved.) 250 –500 ml AC6 Potato Pierce each potato and place them in a microwave-safe bowl with some water. 0.45 – 0.65 kg AC7 Pizza This function is for reheating the chilled pizza. Place pizza on turntable. 0.15 kg AC8 Fish Wash fi sh thoroughly and remove scales. Make a slit on the skin of the fi sh. Put on a shallow dish. Sprinkle lightly with some ingredients. After cooking, stand for 2 minutes. 0.45 kg Note:

1. The cook time above based on the food which is of the room temperature of 20-25

C except specially noted in the above cooking menu A5. Time may vary for the food in different temperature.

2. when cooking the potatoes and fi sh it is suggested to cover the food with a layer of

plastic thin fi lm to prevent the loss of water.

3. The temperature, weight and shape of food will largely infl uence the cooking effect.

If any deviation has been found to the factor noted on above menu, you can adjust the cooking time for best result.

If you do not want the oven start operation immediately you can activate the automatic start function as follows: First set the current clock, cooking procedure and time. And hold down the Clock pad for 3 seconds and the hour will start to blink. Enter the time you expected to start by pressing the keypad. Later LED will show the current clock and the oven will be started automatically at your preset time. Preset time can be viewed by depressing the Clock button. Once the Automatic start function has been activated:

• Press the Instant/Start pad if you intend to operate the oven immediately;

• Press the Pause/Cancel pad if you intend to cancel this function. Note : Always set current clock before you programme the automatic start function. 43DO2325CG

13. Multi stage cooking

For best results ,some recipes need different cook menu during different stage of cook cycle. You can program your oven to switch from one power menu to another. Example :you want cook food with 100p microwave power for 3 minutes then grill food for 9 minutes . Select de desired microwave power (100p) by pressing the “power” button. Set the cooking time by turning the “time weight/auto defrost” button. Select the cook procedure (grill G) by pressing the “conv/combi grill/combi” button Select the cook time for the grill (9 minutes). Press the “instant/start” button to start cooking. When microwave power cooking is fi nished , microwave oven will begin grill operation automatically. Operation notes:

1. Never operate the oven empty.

2. If you turn the food during operation, press the Instant/start button once and the

preset cooking procedure will continue.

3. If you intend to remove the food before the preset time, you must press Pause/

Cancel button twice to clear the preset procedure to avoid unintended operation of next time use.

CLEANING AND MAINTENANCE

Clean the oven at regular intervals Disconnect the power supply cord before cleaning. Exterior: The outside may be cleaned with mild soap and warm water, wipe clean with a damp cloth. Avoid the use of harsh abrasive cleaners. Door: Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaners. Control panel: Care should be taken in cleaning the control panel. Wipe the panel with a cloth dampened slightly with water only. Do not scrub or use any sort of chemical cleaners. Avoid the use of excess water. Interior walls: To clean the interior surfaces, wipe with a soft cloth and warm water for hygienic reasons. After use wipe the waveguide cover in the oven with a soft damp cloth to remove any food splashed. Build up splashes may overheat and begin to smoke or catch fi re. Do not remove the waveguide cover. Do not use a commercial oven cleaner, abrasive or harsh cleaners and scouring pads on any part of your microwave oven. Never spray oven cleaners directly onto any part of your oven. Avoid using excess water. After cleaning the oven, ensure any water is removed with a soft cloth. 44DO2325CG Turntable/ Rotating ring/Rotating axis Wash with mild soapy water and dry thoroughly.

MICROWAVE COOKING TIPS

1) Arrange food carefully, place thickest areas toward outside of dish.

2) Watch cooking time, cook for the shortest amount of time indicated and add more

3) Cover foods before cooking check recipe for suggestions: paper towels, microwave

plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly. (Helps keep oven clean).

Use small pieces of aluminium foil to cover thin areas of meats or poultry to avoid overcooking.

5) Stir foods: From outside to centre of dish once or twice during cooking, if possible.

Foods such as chicken, hamburgers or steaks should be turned over once during cooking.

7) Rearrange foods: Like meatballs halfway through cooking both from top to bottom

and from the centre of the dish to the outside.

8) Allow standing time After cooking ensure adequate standing time.

Remove food from oven and stir if possible. Cover for standing time which allows the food to fi nish cooking without overcooking.

8) Check for doneness

Look for signs indicating that cooking temperature has been reached. Doneness signs include: -Food steams throughout, not just at edge. -Poultry thigh joints move easily. -Pork and poultry show no pinkness.. -Fish is opaque and fl akes easily with a fork.

A normal part of microw ave cooking. The humidity and moisture in food will infl uence the amount of moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods. Ensure that the ventilation openings are not blocked.

10) Microwave safe plastic wrap for cooking food with high fat content, do not bring

the wrap in contact with the food as it may melt.

11) Microwave safe plastic cookware Some microwave safe plastic cookware are not
