USER MANUAL WFU7012 HISENSE

Ensure that the ventilation openings in the base of the washing machine

(if available on your model) are not obstructed by a carpet or other material.

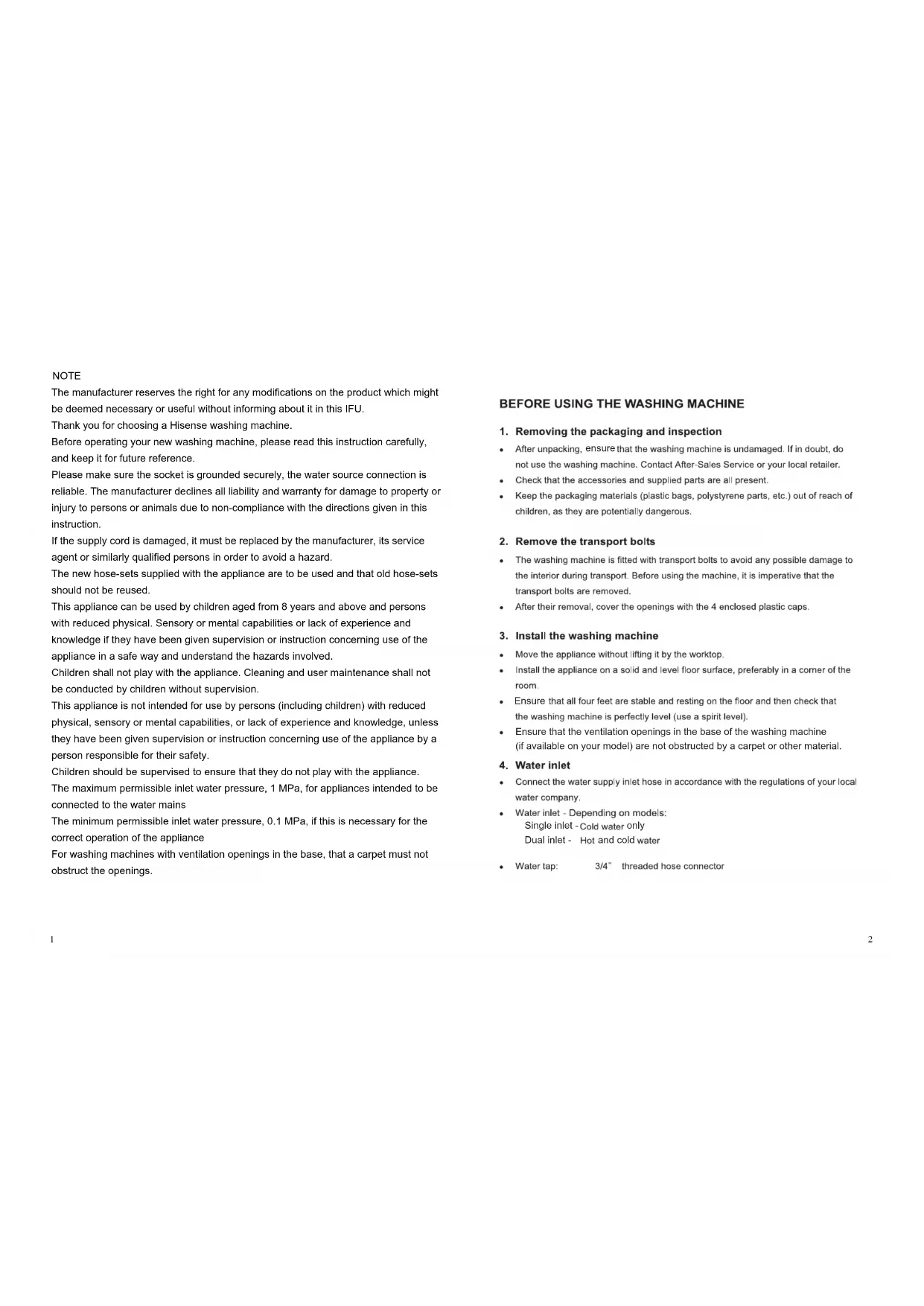

NOTE The manufacturer reserves the right for any modifications on the product which might

be deemed necessary or useful without informing about it in this IFU.

Thank you for choosing a Hisense washing machine.

Before operating your new washing machine, please read this instruction carefully,

and keep it for future reference.

Please make sure the socket is grounded securely, the water source connection is

reliable. The manufacturer declines all liability and warranty for damage to property or

injury to persons or animals due to non-compliance with the directions given in this

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualified persons in order to avoid a hazard.

The new hose-sets supplied with the appliance are to be used and that old hose-sets

should not be reused.

This appliance can be used by children aged from 8 years and above and persons

with reduced physical. Sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not

be conducted by children without supervision.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The maximum permissible inlet water pressure, 1 MPa, for appliances intended to be

connected to the water mains

The minimum permissible inlet water pressure, 0.1 MPa, if this is necessary for the

correct operation of the appliance

For washing machines with ventilation openings in the base, that a carpet must not

obstruct the openings.3

The symbol on the product, or on the documents accompanying the product,

indicates that this appliance may not be treated as household waste. Instead it

shall be handed over to the applicable collection point for the recycling of electrical

and electronic equipment. Disposal must be carried out in accordance with local

environmental regulations for waste disposal. For more detailed information about

treatment, recovery and recycling of this product, please contact your local city

office, your household waste disposal service or the shop where you purchased

from the mains supply,

,Control panel layout and appearance will depend on the model. 5

Clean the outside of the washing machine with a damp cloth. Do not use abrasive

Never open the door forcibly or use it as a step.

1. Sort the laundry according to...

Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwash items.

The wool wash cycle of this machine has been tested and approved by The

Woolmark Company for the washing of Woolmark garments labelled as “machine

wash” provided that the garments are washed according to the instructions on the

garment label and those issued by the manufacturer of this washing machine.

Separate coloured and white items. Wash new coloured articles separately.

Wash items of different sizes in the same load to improve washing efficiency and

distribution in the drum.

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras)

in a cloth bag or pillow case with zip. Always remove curtain rings or wash curtains

with the rings inside a cotton bag.

2. Empty all pockets

Coins, safety pins etc. can damage your laundry as well as the appliance drum and

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied

Blood, milk, eggs etc. are generally removed by the automatic enzyme phase of the

To remove any residual water used during testing by the manufacturer, we

recommend that you carry out a short wash cycle without laundry.

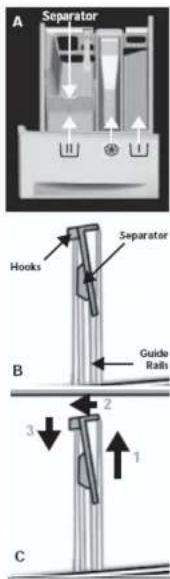

3 Pour a little detergent (about 30 ml) into the main wash chamber of the deter-

4. Select and start a short programme (see separate quick reference guide).

2 Depending on the model, Insert removal tool like

slotted screwdriver into the small opening of

bottom baffle, press the bottom baffle downward

with much strength and open it. Or, push down on

the tabs provided on both the sides and remove it.11 12

and the power switched ON

remove some15 16 Fig.1Hot fill Red inlet valve Blue inlet valve Cold fill Red inlet valve Blue inlet valve Cold fill Y-pieceFig.2 If you wish to connect hot and cold water supply (Fig.1):

1. Fix the red marked inlet hose to the hot water tap and to the inlet valve with the red

filter on the rear side of machine.

2. Fix the other inlet hose to the cold water tap and to the inlet valve with the blue filter

on the rear side of the machine.

a) The connections are tightly fixed

b) Do not invert their position (for example: cold fill into hot inlet valve and vice versa).

If you wish to connect only the cold fill follow the below instructions (Fig. 2):

1. You will need a Y-piece connector. This can be purchased from local hardware or plumb

2. Fix the Y-piece connector to the cold fill tap.

3. Connect the two inlet valves present on the rear part of the machine to the Y-piece

connector using the hoses provided.

All connections are tightly fixed.

Do not allow children to operate, crawl on, be near or inside your washer.

Note that during the wash cycles, the surface temperature of the porthole door may

Close supervision of children is necessary when the appliance is used near children.

Displayed on Display Window Fault Description

“F01” Water inflow fault

“F03” Drainage fault

“F04”, “F05”, “F06”, “F07”，“F23” and “F24”

Electronic module fault, overflow or too much foam.

“F13” Door lock fault

“UNB” Unbalance alarm

a. “F01” displayed on screen

The machine is not fed with water or insufficient water. Check:

• Faucet is fully open and has enough water pressure.

• Water inlet pipe is knotted or not.

• Filtering net of water inlet pipe is blocked or not (refer to maintenance and

• Water pipe is frozen or not.

Press “Start/Pause” key after fault is removed.

If fault occurs again, please contact with after-sale service (refer to after-sale

b. “F03” displayed on screen

The washer is not emptied. The washer stops the program being executed. Shut

down the machine and disconnect power supply. Check:

• Drain pipe is knotted or not.

• Filter in drain pump is blocked or not (refer to the cleaning of filter in drain pump)17 18

adequate for the machine’s 10 A Current Rating.

The electrical power cable must be replaced exclusively by a licensed electrician.

The washer stops when the program is running. The display window shows fault

code “F24”, fault codes from “F04’ to “F07”, “F13”, “F23” or “UNB”.

If fault code “F24” is shown

Water level reaches overflow level.

Remove it by pressing “Start/Pause” key and feed water.

Select and start required program. If fault occurs again, disconnect power supply

and contact with after-sale service.

If fault code “F04” to “F07”, “F23” shown

Electronic module fails.

Press “Power Supply” key for 3 sec to turn off the machine.

After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect

power supply and contact with after-sale service.

If fault code “F13” is shown

Door lock is abnormal. Start program for 20 sec and unlock the washer door

(PTC) to check whether the door is closed.

Open or close it again.

After fault is removed, press “Start/Pause” key. If fault occurs again, disconnect

power supply and contact with after-sale service.

If fault code “UNB” is shown

Press “Power Supply” key for 3 sec to turn off the machine. Open the door and

re-tidy clothes and then rotate program knob to single dehydration mode. Spin

clothes to dry again.

If fault occurs again, disconnect power supply and contact with after-sale service.NOTICE D'UTILISATION Avant de faire fonctionner cet appareil, merci de lire attentivement
