USER MANUAL CG238 DELONGHI

DESCRIPTION OF APPLIANCE

A Top hinge B Top non-stick grill plate, removable C Foot (only for some models) D Top of appliance E Heat-insulated handle F Drainage vent G Bottom non-stick grill plate, removable H Temperature control knob I Grill plate release catch L Pilot light M Base of appliance

- Before using the grill, make sure that it has not been damaged in any way during transportation. - Place the appliance on a flat surface well out of the reach of children, as high temperatures are generated during use. - Before plugging the appliance into the mains , check that:

• the supply voltage corresponds to that indicated on the rating plate fitted on the appliance;

• the power on the mains socket is minimum 10A;

• the mains socket is suitable for the type of plug fitted on the appliance; if not it should be changed;

• the mains socket is earthed. The manufacturer does not accept any liability for damage caused as a result of non-compliance with this requirement. - Before using the grill for the first time, switch it on and leave it to heat up in the barbecue/party grill position (see pg.3, pos.3) without any food, for at least 5 minutes; open the win- dow in order to eliminate any unplea- sant smell that tends to be given off when an appliance is new.

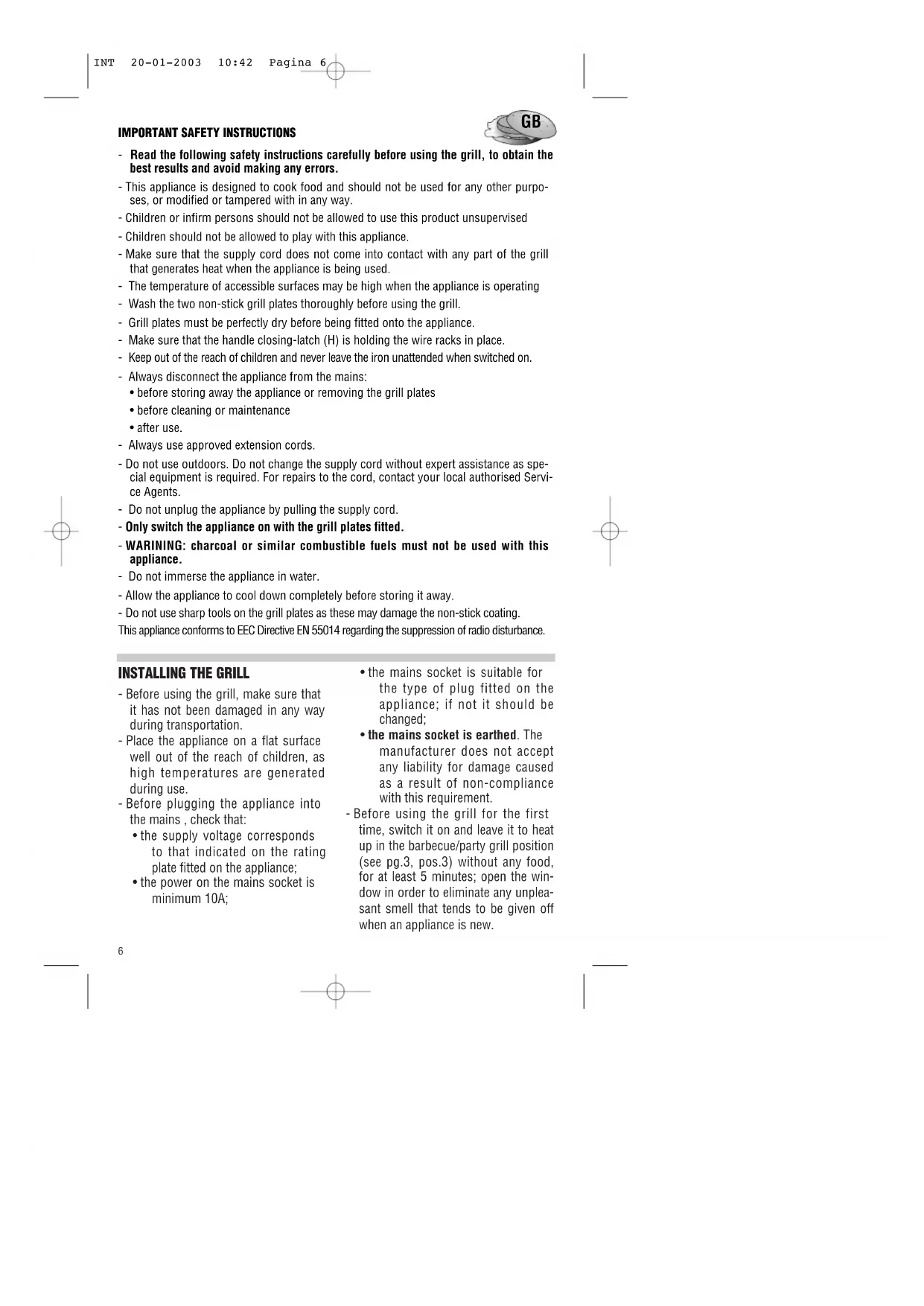

IMPORTANT SAFETY INSTRUCTIONS

- Read the following safety instructions carefully before using the grill, to obtain the best results and avoid making any errors. - This appliance is designed to cook food and should not be used for any other purpo- ses, or modified or tampered with in any way. - Children or infirm persons should not be allowed to use this product unsupervised - Children should not be allowed to play with this appliance. - Make sure that the supply cord does not come into contact with any part of the grill that generates heat when the appliance is being used. - The temperature of accessible surfaces may be high when the appliance is operating - Wash the two non-stick grill plates thoroughly before using the grill. - Grill plates must be perfectly dry before being fitted onto the appliance. - Make sure that the handle closing-latch (H) is holding the wire racks in place. - Keep out of the reach of children and never leave the iron unattended when switched on. - Always disconnect the appliance from the mains:

• before storing away the appliance or removing the grill plates

• before cleaning or maintenance

• after use. - Always use approved extension cords. - Do not use outdoors. Do not change the supply cord without expert assistance as spe- cial equipment is required. For repairs to the cord, contact your local authorised Servi- ce Agents. - Do not unplug the appliance by pulling the supply cord. - Only switch the appliance on with the grill plates fitted. - WARINING: charcoal or similar combustible fuels must not be used with this appliance. - Do not immerse the appliance in water. - Allow the appliance to cool down completely before storing it away. - Do not use sharp tools on the grill plates as these may damage the non-stick coating. This appliance conforms to EEC Directive EN 55014 regarding the suppression of radio disturbance.

- Connect the appliance to the mains supply and turn the temperature con- trol knob (H) to the desired setting; the pilot light (L) will come on. Allow the appliance to heat up with the grill plates closed. - The pilot light switches off when the set temperature has been reached. - Place the food on the grill plate. - Set the appliance in the desired posi- tion, 1, 2 or 3. - Place a heatproof container under the drainage vent to catch surplus fat. - To switch off the appliance, turn the temperature control knob counter- clockwise until it stops between the “slow” and the “0” position; then push and, in the mean time, turn the knob once more counterclockwise until the “0” position is reached. -After grilling, unplug the appliance and allow to cool. Do not use sharp tools on the grill plates as these may damage the non-stick coating. COOKING TIPS - Thawed and marinaded meat should be dried thoroughly before being pla- ced on the grill. - Meat should be seasoned before gril- ling but salt should be added at time of serving. - Food which is to be contact-grilled should be uniformly thick to ensure even browning. - Always oil the lower plate (G) before grilling fish. -A number of recipes suitable for the grill have been provided. Please note that the cooking times given are only approximate. They may vary, depending on the characteristics of the food being cooked (temperature prior to cooking, water content) and indivi- dual preference. FUNCTION POSITIONS The appliance can be operated in three different positions:

ONTACT GRILLING ideal for all kinds of meat, vegetables, polen- ta, toasted sandwiches (no.1, pg.3).

ROWNING ideal for fish and pizza (no.2, pg.3). To set this position, lift up the top of the appliance and turn it towards you.

G RILLING This position can be used to grill all types of food except pizzas (no.3, pg.3). Open the grill out flat and lower the foot (C). CLEANING - Always unplug the appliance and allow it to cool before cleaning. - Clean the appliance after each use to prevent unpleasant smells or fumes from being emitted when it is next used. - Remove the 2 grill plates, pulling the release catches (I) and wash either by hand in hot water or in a dishwasher. - Leave the plates to soak in warm water to remove any residue left during cooking. - Do not use abrasive tools or cleaning agents as these may scratch or damage the non-stick coating. - Refit the clean plates on the applian- ce making sure that they are perfectly dry. INT 20-01-2003 10:42 Pagina 7FOOD TEMP. SETTING GRILL POSITION

Chop (1) max 1 6’-8’ Chops should be of even thickness. Beefburger (2) max 1 3’-5’ Wait 2-3’ before opening the plate, otherwise the burgers will break up. Beef steak (1) med 1 2’-3’ Meat cooked rare in time indicated Pork steak (1) max 1 2’-3’ Meat cooked rare in time indicated Spare ribs (3) max 1 15’-18’ Turn ribs after 10’ Liver (2) med 1 2’-3’ Clean liver thoroughly Kebabs (3) max 1 8’-10’ Turn after 4-5’ Chicken (1 kg) med 1 75’-80’ Cut open in half, do not turn Sausage (3) max 1 3’-5 Cut in half Fresh sausage (2) max 1 4’-6’ Cut in half Salmon trout fillet (1) med 2 16’-20’ Oil the plate and turn halfway through cooking Salmon steak (1) med 2 16’-20’ Oil the plate and turn halfway through cooking Sole (1) med 2 18’-22’ Oil the plate and turn halfway through cooking Aubergines (6 slices) med 1 6’-8’ Slice evenly Courgettes (7 slices) med 1 6’-8’ Slice evenly 1 pepper/capsi- cum (quarters) med 1 6’-8’ Close the grill plates and press down Onions (sliced) med 1 6’-8’ Slice evenly Polenta (slices) med 1 20’-25’ Cut into 1.5 cm. thick slices. Leave to cook with plates closed for 15’ Filled bread rolls med 1 3’-9’ Use soft rolls Toasted sandwich med 1 2’-3’ Place only half a cheese slice in each sandwich as it tends to spill as it melts. Pizza med 2 40’-45’ Remove the bottom grill plate and spread out the pizza dough on top. Replace the plate and add topping. A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fit- ted, as below.

WARNING: Very carefully dispose of the cut off plug after

removing the fuse: do not insert in a 13 Amp socket elsewhe- re in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re- fitted when changing the fuse using a 13 Amp Asta appro- ved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug. B) If your appliance is not fitted with a plug, please follow the instructions provided below: WARNING - THIS APPLIANCE MUST BE EARTHED IMPORTANT The wires in the mains lead are coloured in accordance with the following code: Green and yellow: Earth Blue: Neutral Brown: Live As the colours of the wires in the mains lead may not corre- spond with the coloured markings identifying the terminals in your plug, proceed as follows: The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow. The blue wire must be connected to the terminal marked with the letter N or coloured black. The brown wire must be connected to the terminal marked with the letter L or coloured red.
