232135 - Kettle PRINCESS - Free user manual and instructions

Product type	Electric kettle with filter
Brand	Princess
Model	232135
Capacity with filter	1 L
Capacity without filter	1.7 L
Power supply	220-240 V ~ 50-60 Hz
Power	2200 W (estimated)
Material	Robust plastic with brushed steel finish
Filter type	Brita filter cartridge (removable)
Water level indicator	External, visible
Base	360° swivel, with cord storage
Automatic shut-off	At boiling point
Dry boil safety	Yes, thermal cut-out
Triple safety system	Boil-dry shut-off, dry boil shut-off, thermal cut-out
Spout	With integrated filter
Brita Memo	Electronic cartridge replacement indicator
Care and cleaning	Clean the exterior with a damp cloth. Do not immerse. Do not put in dishwasher.
Spare parts	Brita filter cartridge (standard ref.)
Repairability	Have it repaired by a qualified technician. Do not attempt to repair yourself.
Use	Household use only. For cold water only.
Instructions before first use	Boil a full kettle of water and discard it.
Warranty	Consult the manufacturer

Frequently Asked Questions - 232135 PRINCESS

How to use the Brita filter?

Place the filter holder with the Brita cartridge into the kettle. Fill through the filler opening of the filter holder with tap water. Let the water flow through the filter. Do not exceed 1 L of water with the filter.

How to boil water without the filter?

Remove the filter holder from the kettle. Fill the kettle directly (between 0.7 L and 1.7 L). Put the normal lid back on. Place the kettle on the base, plug in and press the switch down.

How to clean the kettle?

Unplug and let cool. Clean the exterior with a damp cloth. Never immerse the appliance, cord or plug. Do not use harsh detergents or hard brushes.

What to do if the kettle does not stop after boiling?

Check that the lid is properly closed. If the problem persists, the safety mechanism may be faulty. Stop using and contact customer service.

When to replace the Brita filter cartridge?

The Brita Memo indicator flashes when the cartridge needs to be replaced. This depends on frequency of use. Consult the Brita leaflet for more details.

How to replace the filter cartridge?

Press the release button of the filter holder lid and remove the lid. Pull the used cartridge upward by the loop. Insert the new cartridge firmly. Replace the lid by snapping the front then the back. Reset the Memo by pressing the button until four bars are displayed.

Can I use the kettle without water?

No. The kettle is equipped with a safety device that stops it if there is no water. If this happens, let it cool for 10 minutes before filling with water and reusing.

What are the safety features?

The kettle has a triple safety system: automatic shut-off at boiling point, dry boil shut-off, and thermal cut-out in case of overheating.

Can I heat milk or other liquids?

No. The appliance is designed exclusively for boiling or heating water. Never use other liquids.

How to descale the kettle?

Use a descaling product suitable for electric kettles following the product instructions. You can also use diluted white vinegar. Rinse thoroughly after descaling.

USER MANUAL 232135 PRINCESS

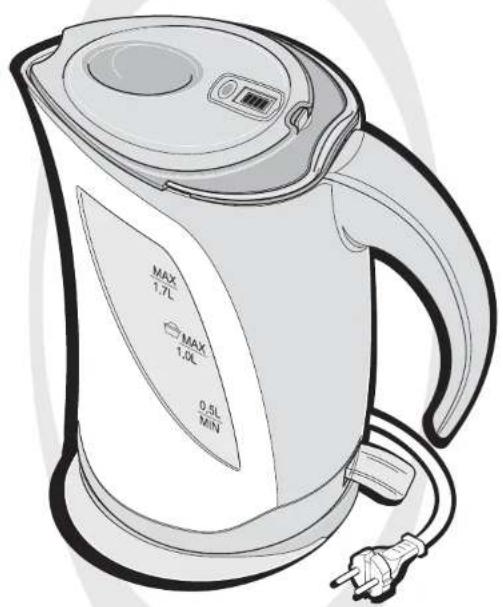

Classic Filter Kettle Article 232135 / 232133

• Gebruksaanwijzing · User's instructions · Mode d'emploi
• Bedienungsanleitung · Instruetiones de uso · Istruzione per l'uso
• Bruksanvising · Brugsanvising · Bruksanvising
• Kaytttoohje · Instruções de uso

Nederlands 1

English 5

Français 11

Deutsch 15

Espanol 21

Italiano 25

Svenska 31

Dansk 35

Norsk 39

Suomi 43

Portugues 47

51

2

Algemeen

This attractive Princess Classic Filter Kettle, one of the products in our Classic range, is constructed from sturdy plastic with a brushed stainless-steel finish. Your kettle can filter and boil water very quickly.

The appliance has a jug fitted with a removable lid with integral Brita Memo, a Brita water filter cartridge, and an external indication of the water level. The Kettle can boil 1 l filtered water or 1.7 l unfiltered water.

The Brita water filter cartridge removes calcium carbonate and other substances, such as chlorine, that affect the smell and taste of your drinking water. In addition, the filter cartridge also reduces the concentration of aluminium, specific heavy metals (such as copper and lead) and certain pesticides that may be present in the water. Moreover organic contaminants will also be filtered out of the water. Consequently, the filter yields optimum freshly filtered water - ideally suited to the preparation of delicious hot and cold drinks, and to cooking delicious meals. The Brita filter also reduces the formation of limescale in your kettle.

The kettle's base is connected to a 220 - 240V mains power supply. The jug can rotate through 360^ on the round base. The power cord can be stored by wrapping it around the convenient lugs on the base.

Operation and controls

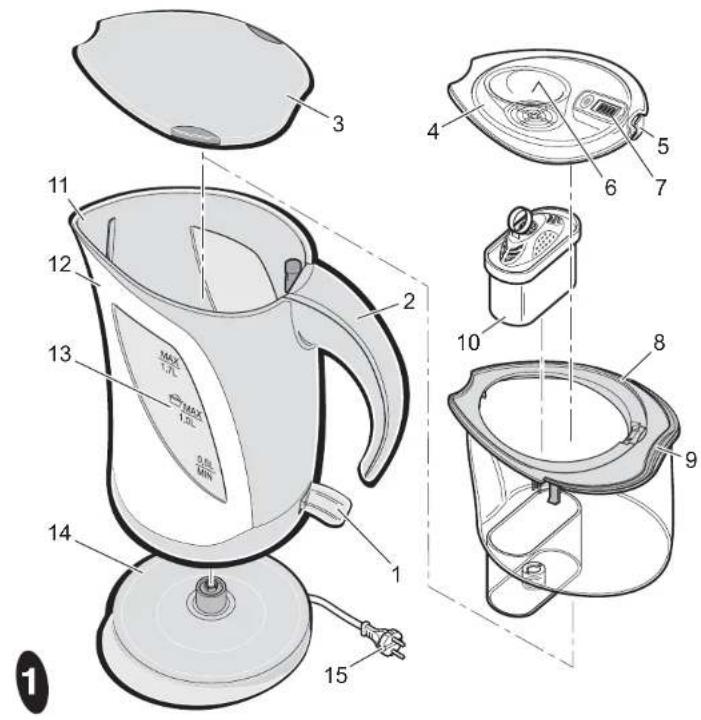

See Figure 1.

The appliance has the following features:

1 On/Off switch with indicator light
2 Handle
3 Cover
4 Filter-holder lid
5 Release button, filter-holder lid
6 Filter-holder filling opening
7 BRITA Memo - the cartridge exchange indicator
8 Filter holder
9 Filter-holder grip
10 Brita filter (removable)
11 Spout
12 Jug
13 Water-level indicator
14 Base
15 Power cord and plug

Before use for the first time

1 Take the appliance out of the packaging.
2 Remove the filter holder from the jug, and replace with the standard lid.
3 Boil a full jug of water.
4 Dispose of the boiled water.

Filling the jug fitted with filter holder (filtering water)

1 Detach the jug from the base.
2 Fit the filter holder, with lid, to the jug.
3 Slowly pour drinking water into the filter holder's filling opening, and allow the water to pass through the filter. Make sure that you do not spill any water on the base.
4 To avoid damage to your kettle, when boiling filtered water always fill the jug

with a minimum of 0.7 l and a maximum of 1 l water.

Filling the jug without the filter holder

1 Detach the jug from the base.
2 Take hold of the filter holder's grip and remove the unit from the jug.
3 Fill the jug with the required amount of water. To avoid damage, fill the jug with a minimum of 0.7 l and a maximum of 1.7 l water. Make sure that you do not spill any water on the base.
4 Fit the standard lid to the jug.

Boiling water

1 Place the filled jug on the base, and insert the plug in the wall socket. Push the On/Off switch downwards so that the indicator lamp illuminates.
2 The jug kettle is now switched on, and the water will now begin to heat. The jug kettle switches off automatically a few seconds after the water has come to the boil. However, this automatic cutout operates only when the filter-holder's lid is closed securely. If so required, you can stop heating the water by pushing the On/Off switch upwards.
3 The indicator light extinguishes once the jug kettle is switched off.
4 A further quantity of water can be boiled once the appliance has cooled down (after about 5 minutes).
5 The kettle is fitted with a triple safeguard which prevents the kettle from producing too much steam, boiling dry, or overheating. The safeguard will switch off the jug kettle if it is operated without water. Allow the jug kettle to cool down for at least 10 minutes before using it again.

Maintenance and cleaning

• Never use harsh or corrosive cleaning agents or sharp objects (such as knives or hard brushes) when cleaning.
• Before cleaning, make sure that the appliance is not connected to the power supply and that it has cooled down.
• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.
• Never immerse the appliance in water.
• Never put the appliance in a dishwasher.
• Make sure that no moisture can contact the appliance's electrical components.

1 Clean the exterior of the appliance with a damp cloth. Dry the exterior thoroughly.

Replacing the Brita filter cartridge

Please refer to the enclosed BRITA kettle brochure for supplementary information about the use of the Brita water filter cartridge.

For optimum performance replace the Brita water filter cartridge at periodic intervals. The 'Brita Memo' is an electronic cartridge exchange indicator. The Memo measures the recommended time of use of the cartridge. The Memo's display begins to flash when the filter cartridge needs to be replaced.

1 Press the release button on the filter-holder's lid and remove the lid.

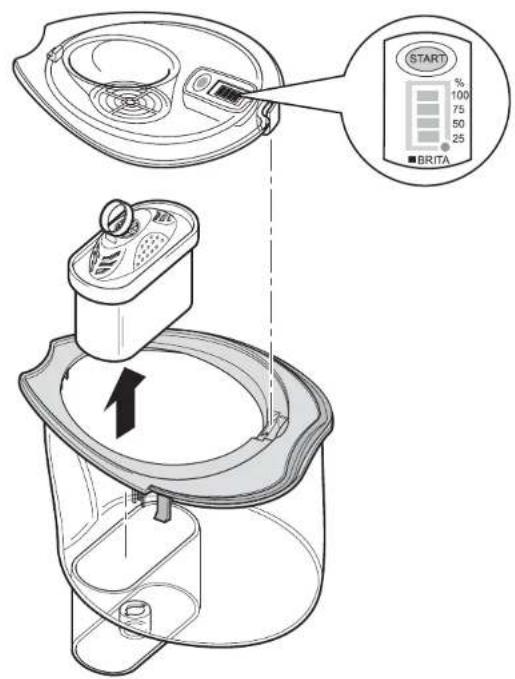

2 See Figure 2. Pull on the Brita filter's loop to remove the cartridge from the filter holder.
3 Fit the new water filter cartridge in the holder, and press firmly into place.
4 Return the lid to the filter holder; begin by fitting the front, and then press the rear to click it into place.
5 After fitting a new filter always reset the 'Brita Memo' by pressing the start button until the indicator displays four bars.

Please contact Brita's Customer Service Department if you have any questions about the Brita water filter cartridge. Their address and telephone is given on the rear of the Brita brochure.

Safety

General

• Please read these instructions carefully and retain them for reference.
• Use this appliance only in accordance with the instructions.
• This appliance is intended solely for domestic use.
• Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.
• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.
• Use solely accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Plug the appliance into an earthed wall socket.
• Always remove the plug from the socket when the appliance is not in use.
• Always remove the plug from the wall socket by pulling on the plug, not the power cord.
• Never pull on the power cable to move the appliance or remove the plug from the wall socket.
• Don't use the appliance if it or the cord is damaged. For your safety return the appliance to our service department. A damaged power cord can be replaced solely by our service department, who have the special tools required for the repair.
• Make sure that the appliance, the power cord and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the appliance, the power cord and plug do not come in contact with water.
• Take care when touching the appliance and its parts. Allow the appliance to cool down first. The appliance and its parts will become hot whilst the appliance is in use. Touch only the handle when the appliance is hot.
• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.

During use

• Never use the appliance outdoors.
• Place the appliance on a flat, stable surface where it cannot fall.
• Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Always make sure that the cord is unwound completely.
• Make sure that your hands are dry before touching the appliance, power cord or plug.
• Never use the appliance in a humid room.
• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.
• Use solely the base supplied with the jug kettle. Never use the base for other purposes.
• Fill the jug with water before switching on the appliance. Fill only with cold water.
• Verify that the appliance is switched off before you remove the jug from the base.
• The jug's lid must remain securely closed whilst the water boils.
• This appliance must be used solely to boil or heat water. Never use it for other liquids!
• Never fill above the maximum-level indication (maximum of 1 l water when the filter holder is fitted, and of 1.7 l when the filter holder is not fitted).
• Never immerse the appliance, the cord or the plug in water or any other fluid.
• Do not pick up the appliance if it falls into water. Remove the plug from the

wall socket immediately. No not use the device again.

• Clean the appliance thoroughly after use (see the 'Cleaning and maintenance' Section). Allow the appliance to cool to room temperature before cleaning and storing it.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
• The wire which is coloured GREEN/YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW

WARNING: THIS APPLIANCE MUST BE EARTHED

The Environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair.

When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area.

Applicable European Directive:

2002/95/EC
