ACM800W - Coffee machine BESTRON - Free user manual and instructions

Product type	Coffee machine
Brand	Bestron
Model	ACM800W
Power	900 W
Voltage	230 V ~ 50 Hz
Capacity	12 cups
Drip-stop system	Yes
Permanent filter	Yes (removable)
Hot plate	Yes
Water level indicator	Yes, external
Carafe	Glass with hinged lid
Switch with indicator lamp	Yes
Descaling	Recommended with appropriate descaling agent
Warranty	60 months (parts and labor)
Use	Household only
Indicator light	Yes (on/off)
Removable washable parts	Yes (filter, filter holder, carafe)
Cord length	Approx. 0.8 m (estimate)

Frequently Asked Questions - ACM800W BESTRON

How to use the coffee machine for the first time?

Before first use, run the appliance several times with water only to clean it internally. Follow the instructions in the manual and discard the water after each cycle.

What is the maximum capacity of the coffee maker?

The coffee maker has a capacity of 12 cups. Do not pour less than 2 cups or more than 12 cups of water into the reservoir.

Can I use paper filters?

Yes, you can place a paper filter (size 1x4) in the filter holder. The appliance is also equipped with a removable permanent filter that you can rinse under running water.

How does the drip-stop system work?

The drip-stop system allows you to pour a cup of coffee even while the coffee maker is operating. Quickly replace the carafe to prevent the filter from overflowing.

How to clean the coffee maker?

Turn off the appliance and unplug it. Let it cool down. Rinse the permanent filter and filter holder under running water. Clean the carafe with hot water and detergent or in the dishwasher. Wipe the exterior with a damp cloth. Never immerse the appliance in water.

How to descale the machine?

Use an appropriate descaling agent following the product instructions. Limescale buildup can impair operation, especially in hard water areas. A water softener can reduce limescale formation.

What is the power of the appliance?

The appliance has a power of 900 W and a voltage of 230 V ~ 50 Hz.

Does the coffee maker have a warranty?

Yes, 60 months warranty (parts and labor) from the date of purchase, covering manufacturing defects. The warranty is valid for the first purchaser and must be accompanied by proof of purchase.

What to do if the appliance does not work?

Contact Bestron's after-sales service or the retailer. Never send the appliance without prior instructions. Repairs must be carried out by a qualified technician.

Can I use the coffee maker with an external timer?

No, the appliance must not be used with an external timer or remote control for safety reasons.

USER MANUAL ACM800W BESTRON

Instruction manual coffee maker

Italiano

Contenance: maximum de 12 tasses

CONDITIONS DE GARANTIE

Congratulations on the purchase of your coffee maker. It has a capacity of 12 cups, a pause-and-serve function, an on/off switch with pilot light, and a hotplate.

SAFETY INSTRUCTIONS - General

• Please read these instructions carefully and retain them for reference.
• Use this appliance solely in accordance with these instructions.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

SAFETY INSTRUCTIONS - Electricity and heat

parts of the appliance may get hot.

not touch these parts to prevent burning yourself.

Before use please verify that the mains voltage is the same as indicated on the rating plate of the appliance.
- Make sure that you always use an earthed wall socket to connect the appliance.
Always remove the plug from the mains socket before moving the appliance and when the appliance is not in use.
- Remove the plug from the wall socket by pulling the plug, not the power cord.
- Check the appliance's power cord regularly to make sure it is not damaged. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified repair service.
Certain parts of the appliance may get hot. Do not touch these parts to prevent burning yourself.
- To prevent the risk of fire the appliance needs space to allow it to loose heat. Make sure that it has sufficient space around, and that it makes no contact with flammable material. Do not cover the appliance. Also make sure that the air vents are not covered or blocked.
- Make sure that the appliance, the power cord or the plug do not make contact with hot surfaces, such as a hot hob or naked flame.
Make sure that the appliance, the power cord and plug do not make contact with water.

SAFETY INSTRUCTIONS - During use

• Never use the appliance outdoors.
• Never allow the power cord to hang over the edge of the draining board, worktop or table.
• Make sure that your hands are dry before touching the appliance, cable or plug.
• Never use the appliance in a humid room.
• Never immerse the appliance, the plug or the power cord in water or other liquid.
• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• This appliance may not be used through an external timer or by means of a remote control.

TECHNICAL INFORMATION

Type: ACM800/W/Z

Output: 900W

Power supply: 230V 50Hz

Capacity: maximum of 12 cups

OPERATION - General

The appliance is intended only for domestic use, not for professional use.

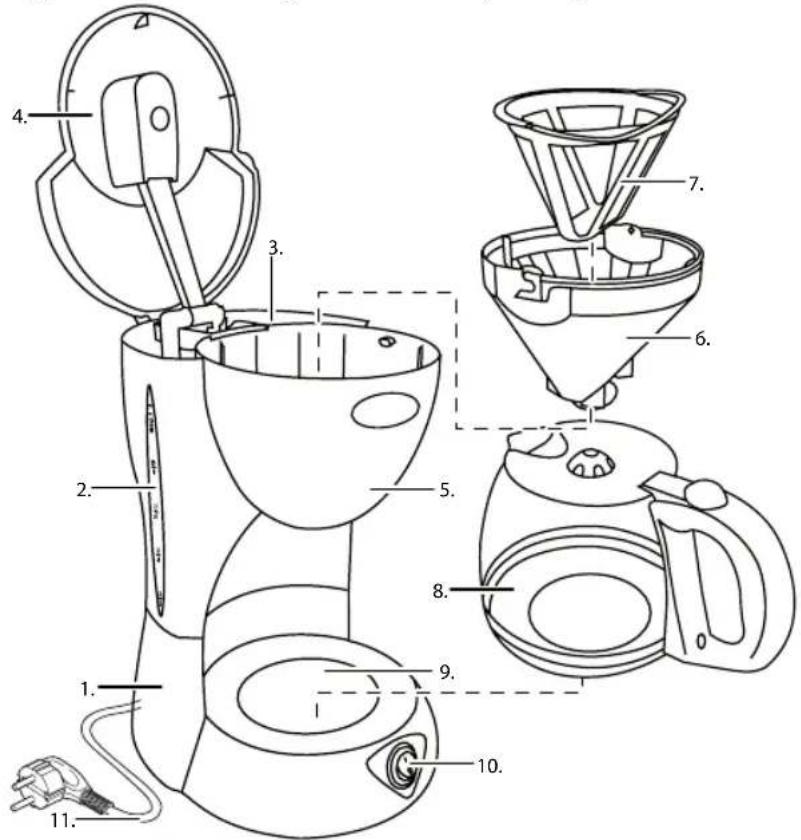

Figure 1

1. Housing
2. Water-level indicator
3. Water reservoir
4. Filter cover with vents
5. Filter casing

6. Filter holder with pause-and-serve function

7. Permanent filter

8. Glass pot with hinged lid
9. Hotplate
10. On/Off switch
11. Cable with plug

OPERATION - Before first use

Clean the appliance a couple of times by filling it with water only. Please observe the following instructions. Dispose of the water after use.

OPERATION - Making coffee

1. Place the appliance on a flat and stedy surface. Connect the appliance to the wall socket. Make sure the On/Off switch is set to 'O' (pilot light is extinguished).
2. Open the filter cover. Pour sufficient water into the reservoir (not less than 2 cups and not more than 12 cups, as shown on the water-level indicator).
3. This coffee maker is supplied with a permanent filter, no more paper filters needed. But if you prefer, you can also fit a paper filter (1 x 4) in the filter holder. Fill the filter with the required amount of ground coffee (the customary quantity is 1 level scoop for each cup).
4. Close the filter cover.
5. Place the glass pot on the hotplate.
6. Switch on the appliance (On/off switch in the '1' position: the pilot light illuminates). The coffee will now be prepared.
7. The pause-and-serve function enables you to pour a cup of coffee before the coffee maker has finished. Replace the carafe quickly, to prevent the filter from overflowing.

CLEANING AND MAINTENANCE

1. Switch off the appliance (On/off switch in the 'O' position: the pilot light extinguishes).
2. Remove the plug from the wall socket, and if necessary allow the appliance to cool.

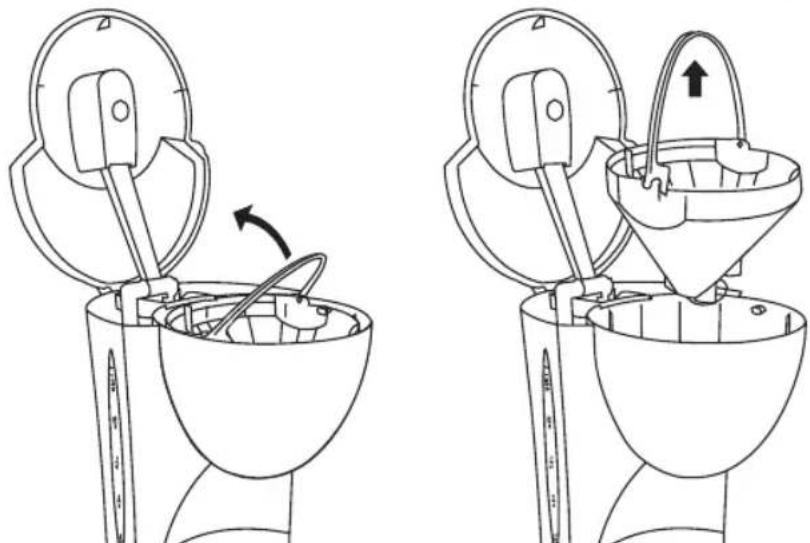

3. Dispose of the paper filter, where relevant. Remove the permanent filter from the casing, and clean it under running water. Unlock the filter holder by pulling up the handle (see figure 2). Remove the filter holder from the casing, and clean it under running water also. Place the filter holder back into the casing and push the handle down to lock the filter holder. When refitting the filter holder make sure that the non-drip nozzle projects through the opening in the filter casing.

Figure Removing

2

1. Clean the glass pot in hot washing-up water, or put it in a dishwasher.
2. Clean the outside of the appliance with a damp cloth. Make sure no moisture gets into the appliance.

• Never immerse the appliance, plug or power cord in water. Never put the appliance in a dishwasher. Only the loose parts may be immersed in water.

• Never use corrosive or scouring cleaning agents or sharp objects (such as knives or hard brushes) to clean the appliance.

CLEANING AND MAINTENANCE - Descaling

Limescale can reduce the efficiency of your coffee maker. Limescale is common in areas with hard water. We advise the use of a suitable descending agent to remove any scale. Always follow the instructions for the descending agent. The amount of scale will be reduced when you use a water softener.

THE ENVIRONMENT

• Dispos of packaging material, such as plastic and boxes, in the appropriate waste containers. When this product reaches the end of its useful life do not dispose of it by putting it in a dustbin; hand it in at a collection point for the reuse of electrical and electronic equipment. Please refer to the symbols on the product, the user's instructions or the packaging.

• The materials can be re-used as indicated. Your help in the re-use, recycling or other means of making use of old electrical equipment will make an important contribution to the protection of the environment.

• Contact your municipality for the address of the appropriate collection point in your neighbourhood.

GUARANTEE TERMS

The importer guarantees the appliance against defects caused by manufacturing and/or material faults for 60 months from the date of purchase, subject to the following conditions.

1. No charges will be made for labour costs or materials during the warranty period. Any repairs carried out during the warranty period do not extend the warranty period.
2. The importer automatically becomes the owner of any faulty parts that he replaces or a faulty appliance (in the event of replacement of the appliance).
3. All claims submitted under warranty must be accompanied by the original bill of sale.
4. Claims under warranty must be submitted to the dealer where the appliance was purchased or to the importer.
5. The warranty is issued solely to the first purchaser and cannot be transferred.
6. The warranty does not cover damage caused by:

a. Accidents, incorrect use, wear and/or neglect.
b. Faulty installation and/or use in a manner contravening the prevailing legal, technical or safety regulations.

c. Connection to a mains voltage other than the voltage specified on the type plate.
d. Unauthorized modifications.
e. Repairs carried out by third parties.
f. Careless transport, i.e. without suitable packaging materials or protection.

1. No claims may be made under this warranty for:

a. Losses incurred during transport.
b. The removal or changing of the appliance's serial number.

1. The guarantee does not cover power cords, lamps or glass parts.
2. No claims can be submitted under this warranty for damage other than the repair or replacement of faulty parts. The importer can never be held responsible for any consequential loss or damage or any other consequences, resulting either directly or indirectly from the appliance supplied by the importer.
3. In case of claims under guarantee you can contact your dealer where the appliance is purchased. Bestron offers you also the possibility to send the appliance directly to our Service Department. Do not send your appliance without consulting us. The package may be refused and any any costs will be for your account. Please contact the Service Department and they will tell you how to pack and send the appliance.
4. This appliance is not suitable for professional use.

SERVICE

If a fault should occur please contact the BESTRON service department:

THE NETHERLANDS:

BESTRON NEDERLAND BV

Bestron Service

Moeskampweg 20

5222 AW's-Hertogenbosch

Tel: [phone]

Fax: +31 (0) 73 - 621 23 96

Email: [e-mail]

Internet: www.bestron.com

CE DECLARATION OF CONFORMITY

This product conforms to the essential requirements of the following EU safety directives:

EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC

R. Neyman

Quality control
