EN IMPORTANT SAFETY INSTRUCTIONS Read the instructions carefully before

using, as they include important information

on safe installation, use and maintenance.

Keep this instruction manual in a safe place

for future reference. If the appliance is sold,

given away or moved, make sure the manual

is kept with the machine.4

Remove the appliance from all packaging

and make sure it was not damaged during

transportation, if it was damaged contact the

retailer and do not proceed any further with

the installation process.

When using your dishwasher, follow

the precautions listed below:

• The appliance must be used to wash

domestic crockery in accordance with the

instructions in this manual.

• This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Children

shall not play with the appliance.

• Cleaning and user maintenance shall not

be made by children without supervision.

• The appliance must not be installed

outdoors, even in covered areas. It is

extremely dangerous to leave the machine

exposed to rain and storms.

• Do not store flammable materials in close

proximity to the appliance.

• The water in the appliance is not potable.

• Do not use solvents inside the appliance:

• The door should not be left in the open

position since this could present a tripping

• Do not rest objects on the open door or sit

or stand on it since the appliance could trip

• The open appliance door can only support

the weight of the loaded rack when pulled

• The water supply tap must be shut off

and the plug should be removed from the

electrical socket at the end of every cycle

and before cleaning the appliance for

carrying out any maintenance work also

disconnect in the event of any malfunction.

• Repairs and technical modifications must

be carried out exclusively by a qualified

• When unplugging the appliance always

pull the plug from the mains socket. Do not

• In order to avoid laceration hazard,

usage of special gloves is needed during

the assembling of the appliance.

• During use, the access to the rear wall

should be limited in a sustainable manner

such as approaching the device to the wall

• Keep packaging materials out of the reach

of Children, packaging materials should

not be used as a toy.

• Children must not be allowed to play with

• Store the detergent, rinse aid and salt out

of the reach of children.

• Appliance is dedicated only for household

• Appliance can not be operated until

installation process is complete.

GROUNDING INSTRUCTIONS

• This appliance must be grounded. In the

event of a malfunction or breakdown,

grounding will reduce the risk of an

electric shock by providing a path of

least resistance of electric current. This

appliance is equipped with a cord having

an equipment- grounding conductor and

• The plug must be plugged into an

appropriate outlet that is installed and

grounded in accordance with all local

codes and ordinances.

• Extension cord, adapters and conversion

plugs must not be used to connect the

appliance to the outlet.

• Improper connection of the equipment-

grounding conductor can result in the risk

of an electric shock.

• Check with a qualified electrician or service

representative if you are in doubt whether

the appliance is properly grounded. Do

not modify the plug provided with the

appliance; If it does not fit the outlet. Have

a proper outlet installed by a qualified

• Access to disconnection of the appliance

(main plug) shall be ensured after

• When loading items to be washed:

1 - Locate sharp items so that they are not

likely to damage the door seal;

2 - WARNING: Knives and other utensils with

sharp points must be loaded in the cutlery

basket with their points/blades down or

placed in a horizontal position with the

sharp end facing away from the front of

• Use only detergent and rinse additives

designed for an automatic dishwasher.

• WARNING: Some dishwasher detergents

are strongly alkaline. They can be extremely

dangerous if swallowed. Avoid contact with

the skin and eyes and keep children away

from the dishwasher when the door is open.

Check that the detergent receptacle is

empty after completion of the wash cycle.

• If the supply cord is damaged, it must

be replaced by the manufacturer or its

service agent or a similarly qualified person

in order to avoid a hazard.

• During installation, the power supply must

not be excessively or dangerously bent or

flattened. Do not tamper with controls.

• To dispose of any packaging materials,

follow local legislation so that the

packagings may be reused.

• Use the dishwasher only for its intended

• The appliance is to be connected to the

water mains using new hose sets. The old

hose-sets should not be reused.

• The maximum number of place settings is

shown in the product sheet.

SAFEGUARDING THE ENVIRONMENT

• This appliance has been made of recyclable

or re-usable material. Scrapping must be

carried out in compliance with local waste

disposal regulations. Before scrapping it,

make sure to cut off the mains cord so that

the appliance cannot be re-used.

• For more detailed information on handling

and recycling of this product, contact your

local authorities who deal with the separate

collection of rubbish or the shop where you

bought the appliance.

SCRAPPING OF PACKAGING

•The packaging can be 100% recycled

as confirmed by the recycling symbol .

The various parts of the packaging must

not be dispersed in the environment, but

must be scrapped in line with local authority

• The European Directive 2012/19/EU

relating to Waste Electrical and Electronic

Equipment (WEEE) states that household

appliances should not be disposed of

using the normal solid urban waste cycle.

Exhausted appliances should be collected

separately in order to optimise the cost of

reusing and recycling the materials inside

the machine, while preventing potential

damage to the atmosphere and public

health. The crossed-out dustbin symbol

shown on all products reminds the owners

of their obligations regarding separated

waste collection. For further information

relating to the correct disposal of household

appliances, owners may contact the

relevant public authority or the local

• WAARSCHUWING: Enkele

Before contacting Assistance: • Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting).• Restart the programme to check whether the problem has ceased to exist.• If the problem persists, contact the Authorised Technical Assistance Service.Never use the services of unauthorised technicians.Please have the following information to hand:• The type of malfunction.• The appliance model (Mod.).• The serial number (S/N).This information can be found on the appliance data plate (see Description of the appliance) .

Rated capacity in standard place settings (1)

Energy efciency class on a scale from A+++ (low consumption) to D (high consumption)

Energy consumption per year in kWh (2)

Energy consumption of the standard cleaning cycle in kWh

Power consumption of the off-mode in W

Power consumption of the left-on mode in W

Water consumption per year in litres (3)

Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)

A Programme time for standard cleaning cycle in minutes

The duration of the left-on mode in minutes

1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally soiled

tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard cleaning cycle

corresponds to the Eco cycle.

2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy consumption

depends on how the appliance is used.

3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

EN Product Data (product fiche)

Rumore in dB(A) re 1 pW

centro assistenza.28

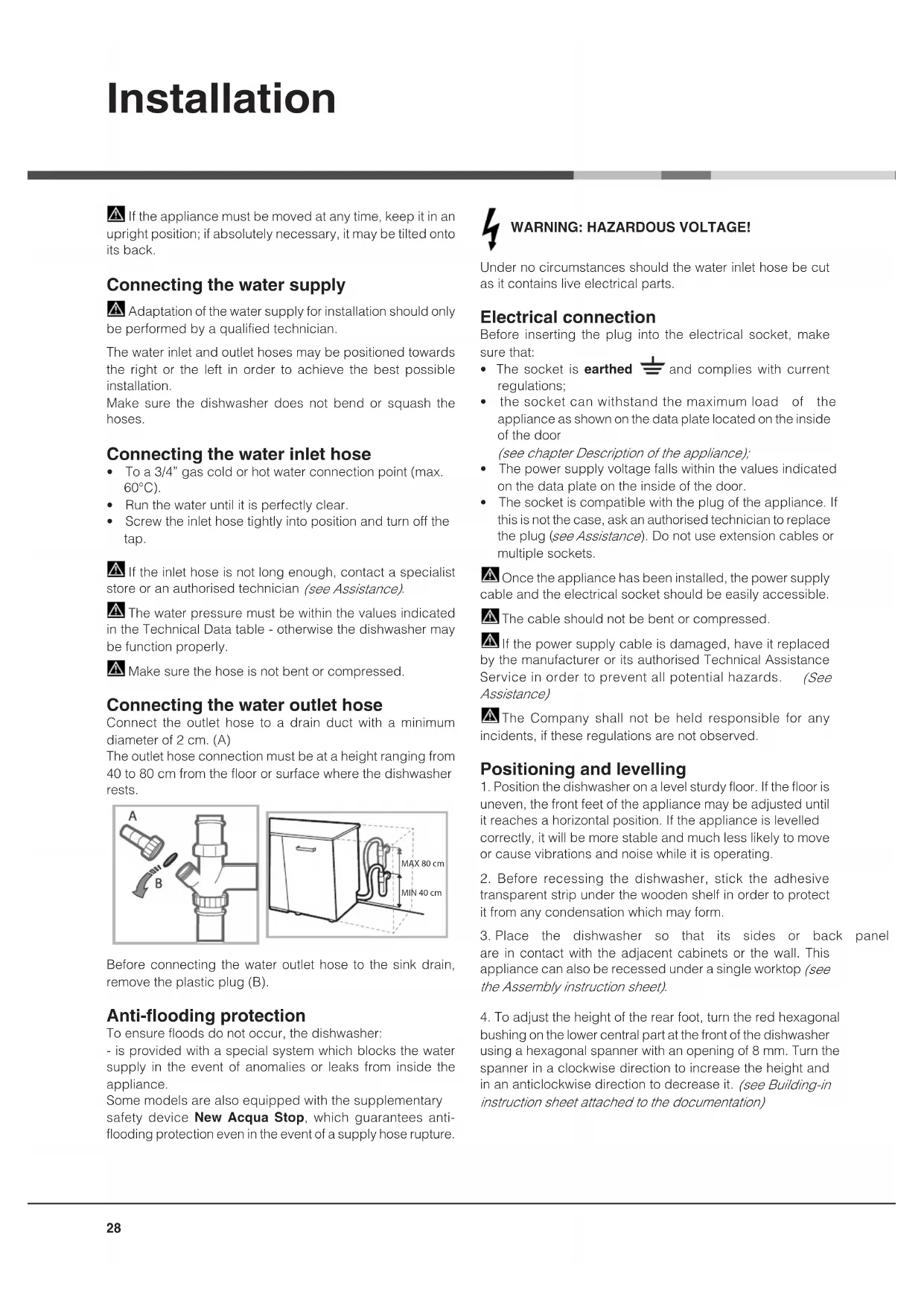

If the appliance must be moved at any time, keep it in an

upright position; if absolutely necessary, it may be tilted onto

Connecting the water supply

Adaptation of the water supply for installation should only

be performed by a qualified technician.

The water inlet and outlet hoses may be positioned towards

the right or the left in order to achieve the best possible

Make sure the dishwasher does not bend or squash the

Connecting the water inlet hose

If the inlet hose is not long enough, contact a specialist

store or an authorised technician

The water pressure must be within the values indicated

in the Technical Data table - otherwise the dishwasher may

be function properly.

Make sure the hose is not bent or compressed.

Connecting the water outlet hose

Connect the outlet hose to a drain duct with a minimum

diameterof2cm.(A)

The outlet hose connection must be at a height ranging from

40to80cmfromthefloororsurfacewherethedishwasher

Before connecting the water outlet hose to the sink drain,

removetheplasticplug(B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

- is provided with a special system which blocks the water

supply in the event of anomalies or leaks from inside the

Somemodelsarealsoequippedwiththesupplementary

safety device New Acqua Stop, which guarantees anti-

flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut

as it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make

• Thesocket is earthed and complies with current

• thesocketcanwithstandthemaximumload of the

appliance as shown on the data plate located on the inside

(seechapterDescriptionoftheappliance);

on the data plate on the inside of the door.

• Thesocketiscompatiblewiththeplugoftheappliance.If

this is not the case, ask an authorised technician to replace

Once the appliance has been installed, the power supply

cable and the electrical socket should be easily accessible.

The cable should not be bent or compressed.

If the power supply cable is damaged, have it replaced

by the manufacturer or its authorised Technical Assistance

Serviceinordertopreventallpotentialhazards.

The Company shall not be held responsible for any

incidents, if these regulations are not observed.

Positioning and levelling

1. Position the dishwasher on a level sturdy floor. If the floor is

uneven, the front feet of the appliance may be adjusted until

itreachesahorizontalposition.Iftheapplianceislevelled

correctly, it will be more stable and much less likely to move

or cause vibrations and noise while it is operating.

2. Before recessing the dishwasher, stick the adhesive

transparent strip under the wooden shelf in order to protect

it from any condensation which may form.

3.Place the dishwasher so that its sides or back panel

are in contact with the adjacent cabinets or the wall. This

appliance can also be recessed under a single worktop

the Assembly instruction sheet)

4.Toadjusttheheightoftherearfoot,turntheredhexagonal

bushing on the lower central part at the front of the dishwasher

usingahexagonalspannerwithanopeningof8mm.Turnthe

spanner in a clockwise direction to increase the height and

in an anticlockwise direction to decrease it.

instruction sheet attached to the documentation)

Installation MIN 40 cmMAX 80 cm29

Advice regarding the first wash cycle

After the installation, remove the stoppers from the racks and

the retaining elastic elements from the upper rack

Water softener settings

Before starting the first wash cycle, set the hardness lev-

el of the water from the mains supply.

aid and refined salt).

First load the softener tank with water, then introduce about

1 kg of salt. It is perfectly normal for water to flow out.

As soon as this procedure is complete, run a wash cycle.

Only use salt that has been specifically designed for dish-

After the salt has been poured into the machine, the LOW SALTindicatorlightswitchesoff.

If the salt container is not filled, the water softener and the

heating element may be damaged as a result.

Capacity 10 standard place-settings

Water supply pressure

0,05 ÷ 1MPa (0.5 ÷ 10 bar)

Total absorbed power See appliance data plate

Fuse See appliance data plate

This dishwasher conforms to the

following European Community

-93/68/EEC (CE Marking)

-2006/95/EC (Low Voltage)

-2012/19/CE Waste Electrical

and Electronic Equipment (WEEE)

The machine has a buzzer/set of tones to inform the user that

a command has been implemented: power on, cycle end etc.

The symbols/indicator lights/LEDs on the control panel/

display may vary in colour and may have a flashing or fixed

The display provides useful information concerning the type

of wash cycle, drying/wash-cycle phase, remaining time,

3. Tip-up compartments

Half Load Option button and

Refined Salt and Rinse Aid (°dH=hardnessmeasuredinGermandegrees-°f=hardnessmeasuredinFrenchdegrees–mmol/l=millimolesperlitre) Measuring out the rinse aid RinseaidmakesdishDRYINGeasier.Therinseaiddispensershould be filled:• WhentheLOWRINSEAIDindicatorlightonthepanel/displayis lit;• Whenthedarkopticalindicatoronthedispenserdoor“E” becomes transparent.1. Open the dispenser by turning the cap "G" in an anticlockwise direction.2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.3.Screwthecapbackon.NEVER pour the rinse aid directly into the tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used. Turn the adjuster “F”. Amaximumof4levelscanbesetaccordingtothedishwashermodel. The factory setting is for a medium level. • Ifyouseebluishstreaksonthedishes,setalownumber(1-2).• Iftherearedropsofwaterorlimescalemarksonthedishes,setahighnumber(3-4).Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt.Follow the instructions given on the packaging.If you are using a multi-function product, we recommend that you add salt in any case, especially if the water is hard or very hard. (Followtheinstructionsgivenonthepackaging.)If you do not add salt or rinse aid, the LOW SALT and LOW RINSE AID indicator lights will remain lit. Measuring out the refined salt Theuse ofsalt preventsthe formationof LIMESCALEon thedishes and on the machine's functional components. •Itisimportantthatthesaltdispenserbeneverempty.•Itisimportanttosetthewaterhardness.The salt dispenser is located in the lower part of the dishwasher (seeDescription) and should be filled:• WhentheLOWRINSEAIDindicatorlightinthecontrolpanelis lit;• Seeautonomyinthewaterhardnesstable.1.Remove thelower rackand unscrewthe containercap(anticlockwise).2. Only the first time you do this: fill the water dispenser up to the edge.3.Position the funnel (see figure) and fill the salt container right up to its edge (approximately1kg);itisnotunusualforalittle water to leak out.4.Removethefunnelandwipeanysaltresidueawayfromtheopening; rinse the cap under running water and then screw it on.It is advisable to perform this procedure every time you add salt to the container. Make sure the cap is screwed on tightly, so that no detergent can getintothecontainerduringthewashcycle(thiscoulddamagethe water softener beyond repair).Whenever you need to add salt, we recommend carrying out the procedure before the washing cycle is started. Setting the water hardness For perfect water softener operation, it is essential that the adjustment be based on the water hardness in your house. Ask your local water supplier for this information. The factory setting is for medium water hardness. •SwitchthedishwasheronusingtheOn/Offbutton. •SwitchitoffusingtheOn/Offbutton •HolddowntheSTART/PAUSE button for 5 seconds until you hear a beep.•SwitchitonusingtheOn/Offbutton•Thedisplayshowsthecurrentselectionlevelnumberandthesalt indicator light.•Press buttonP to select the desired hardness level(seeHardnessTable).•SwitchitoffusingtheOn/Offbutton•Settingiscomplete!Water Hardness TableAverage autonomysalt dispenser with 1 wash cycle per daylevel °dH °fH mmol/l months1 0 - 6 0 - 10 0 - 1 7 months2 6 - 11 11 - 20 1.1 - 2 5 months 3 12 - 17 21 - 30 2.1 - 3 3 months

4 17 - 34 31 - 60 3.1 - 6 2 months

5 34 - 50 61 - 90 6.1 - 9 2/3 weeks For values between 0°f and 10°f, we do not recommend the use of salt. A setting of 5 may increase cycle duration.32

The basket is equipped with top grilles for improved cutlery ar-

rangement. The cutlery basket should be positioned only at the

front of the lower rack.

Load this rack with delicate and lightweight crockery such as

glasses, cups, saucers and shallow salad bowls.

Before loading the racks, remove all food residues from the

crockery and empty liquids from glasses and containers. No

preventive rinsing is needed under running water.

Arrange the crockery so that it is held in place firmly and does

not tip over; and arrange the containers with the openings facing

downwardsandtheconcave/convexpartsplacedobliquely,

thus allowing the water to reach every surface and flow freely.

Make sure that the lids, handles, trays and frying pans do not

prevent the spray arms from rotating. Place any small items in

Sinceplasticdishesandnon-stickfryingpansusuallyretainmore

water drops, their drying will be not so good as that of ceramic

or stainless-steel dishes.

Lightweight items such as plastic containers should be placed in

the upper rack and arranged so that they cannot move.

After loading the appliance, make sure that the spray arms can

The lower rack can hold pans, lids, dishes, salad bowls, cutlery

etc. Large plates and lids should ideally be placed at the sides.

Very soiled dishes and pans should be placed in the lower rack

because in this sector the water sprays are stronger and allow

a higher washing performance.

Adjustable position tip-up compartments

The side tip-up compartments can be positioned at three different

heightstooptimizethearrangementofthecrockeryinsidethe

Wine glasses can be placed safely in

the tip-up compartments by inserting

the stem of each glass into the

For optimum drying results incline

the tip-up compartments more. To

change the inclination, pull up the tip-

up compartment, slide it slightly and

position it as you wish.33

Adjusting the height of the upper rack

The height of the upper rack can be adjusted: high position

to place bulky crockery in the lower rack and low position to

make the most of the tip-up compartments by creating more

It is strongly recommended to never adjust height position

when the rack is loaded.

NEVER raise or lower the rack on one side only.

If the rack is equipped with a Lift-Up device

up by holding its sides. To restore the lower position, press the

levers(A) at the sides of the rack and follow the rack down.

• Woodencrockeryandcutlery.

• Delicatedecoratedglasses,artistichandicraftandantique

crockery. Their decorations are not resistant.

• Partsin syntheticmaterial whichdo notwithstand high

• Copperandtincrockery.

• Crockerysoiledwithash,wax,lubricatinggreaseorink.

Thecoloursof glassdecorationsand aluminium/silver pieces

canchangeandfadeduringthewashingprocess.Sometypes

ofglass(e.g.crystalobjects)canbecomeopaqueafteranumber

Damage to glass and crockery

manufacturer as dishwasher safe.

• Useadelicatedetergentsuitableforcrockery.

• Collectglassesandcutleryfromthedishwasherassoonas

the wash cycle is over.34

Measuring out the detergent Good washing results also depend on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution.The amount can be adjusted to the soil level.In the case of normally soiled items, use approximately either 25g (powder detergent) or 25ml (liquid detergent). If tablets are used, one tablet will be enough.If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly. For good washing results also follow the instructions shown on the detergent box.For further questions please ask the detergent producers.Open the detergent dispenser using button D and measure out the detergent according to the Table of wash cycles:•powderorliquid:compartmentsA(washdetergent)andB(pre-wash detergent) •tablet:whenthecyclerequires1 tablet, place it in compartment A and close cover C; when it requires 2 tablets, place the second tablet on the bottom of the appliance.Removedetergentresiduesfromtheedgesofthecompartmentand close cover C until it clicks. The detergent dispenser automatically opens up at the right time according to the wash cycle. If all-in-one detergents are used, we recommend using the TAB option, because it adjusts the cycle so that the best washing and drying results are always achieved.Only use detergent which has been specifically designed for dishwashers.DO NOT USE washing up liquid.Using excessive detergent may result in foam residues remaining in the machine after the cycle has ended. To achieve the best washing and drying results, the combined use of detergent, rinse aid liquid and refined salt is required.We recommend using detergents that do not contain phosphates or chlorine, as these products are harmful to the environment. Starting the dishwasher 1.PresstheON-OFFbutton.2. Open the door and measure out the detergent. (seedetergent

information). 3.Loadtheracks (seeLoadingtheracks) and shut the door.4.Selectthewashcycleinaccordancewiththetypeofcrockeryand its soil level (seetableofwashcycles) by pressing the P button.5.Selectthewashoptions (seeSpecialwashcyclesandoptions)

. 6.StartthewashcyclebypressingtheSTART/PAUSEbutton.7. The end of the wash cycle is indicated by beeps and the display shows END.SwitchofftheappliancebypressingtheON/OFFbutton.8.Waitforafewminutesbeforeremovingthecrockery,inorderto avoid burns. Unload the racks, beginning with the lower level.The machine will switch off automatically during certain extended periods of inactivity, in order to minimise electricity consumption. If the crockery is only lightly soiled or if it has been rinsedwith water before being placed in the dishwasher, reduce theamount of detergent used accordingly. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process, it is possible to change the cycle, provided that it has only just begun:bypressingandholdingtheON/OFFbutton,themachinewillswitchoff.SwitchthemachinebackonusingtheON/OFFbutton and select the new wash cycle and any options desired; startthecyclebypressingtheSTART/PAUSEbutton. Adding extra crockery Without switching off the machine, open the door, taking care to avoid the escaping steam, and place the crockery inside the dishwasher.ShutthedoorandpresstheSTART/PAUSEbuttonthe cycle will begin from the point at which it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. once the door has been shut or the electricity supply is restored, to start again the cycle from where it was interrupted,presstheSTART/PAUSEbutton.35

Wash-cycledataismeasuredunderlaboratoryconditionsaccordingtoEuropeanStandardEN50242.

Based on the different conditions of use, the wash-cycle duration and data can change.

Instructions on wash-cycle selection and detergent dosage

6. Crockery to be washed later.Nodetergent

6. Prewash No Start Delay – Half Load 00:10 4,0 0,0136 Notes: Optimumperformancelevelswhenusingthe“1 Hour” and“Rapid”cyclescanbe achieved by respecting the specifiednumber of place settings.To reduce consumption even further, only run the dishwasher when it is full.Note for Test Laboratories: forinformationoncomparativeENtesting conditions, please send an email to the following address: contact@whirlpool.com Special wash cycles

If there are not many dishes to be washed, a half

load cycle may be used in order to save water, electricity and

detergent.SelectthewashcycleandpresstheHALFLOAD

button: the indicator light will illuminate. PresstheHALFLOADbuttontodeselectthisoption. Remember to halve the amount of detergent.

Sani Rinse Option This option allows higher temperatures to be used. Selectthewashingprogram,presstheSaniRinsebuttonandthe indicator light will switch on. To deselect the option, press the same button again. Ideal to clean crockery and feeding bottles. Warning:thecrockeryandplatescouldbeextremelyhotatthe end of the cycle. TheSani Rinse option results in lengthening of the wash cycle. Drain out To stop and cancel the active cycle, the Drain Out function can be used.AlongpressofSTART/PAUSEbutton,willactivatetheDRAINOUT function. The active cycle will be stopped and the water in the dishwasher will be drained out. Child safety lock AlongpressofHALFLOADbutton,willactivatetheSAFETYLOCKfunction.TheSAFETYLOCKfunctionwillblockthecontrolpanel.TodeactivatetheSAFETYLOCK,longpressagain. Tablet option (Tab) AlongpressoftheSaniRinsebutton,willactivatetheTABLET function. This option optimises washing and drying results. To deactivate the TABLET, long press again.The “Tablet” option results in a longer wash cycle. Wash options

The OPTIONS may only be set, changed or reset after the

wash cycle has been selected and before the Start/Pause

button has been pressed.

Only the options which are compatible with the type of wash

cycle set may be selected. If an option is not compatible

with the selected wash cycle

(seeTableofwashcycles)

correspondingled/symbolflashesrapidly3times.

If an option is selected which is not compatible with another

(previouslyselected)option,itwillflash3timesandswitch

off, while the most recently selected option will remain active.

To deselect an option which has been set by mistake, press

the corresponding button again.

The start of the program may be delayed for

a period of time between 0:30 and 24 hours.

1.Selecttheprogram and anydesiredoptions.Pressthe

DELAYEDSTART button (repeatedly) todelay the start of

With each press of the button, the delay start increases by:

0:30 if selection below 4 hours, 1:00 if selection is below

12hours,4hoursifselectionisabove12hours.If24hours

reached, and the button is pressed, the delayed start is

off and the program begins automatically. If at the time of

thecountdowntheSTART/PAUSEbuttonispressedagain

the DELAYEDSTART option is cancelled and the selected

program starts automatically. The Start Delay function cannot be set once a wash cycle has started.37

Care and maintenance

Shutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycletoavoidleaks.

• Alwaysunplugthe appliance when cleaning it and when

performing maintenance work.

Cleaning the dishwasher

• Theexternalsurfacesofthemachineandthecontrolpanel

can be cleaned using a non-abrasive cloth which has been

dampened with water. Do not use solvents or abrasive

• Anymarksontheinsideoftheappliancemayberemoved

using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

• Alwayskeepthedooroftheapplianceajarinordertoavoid

moisture from forming and being trapped inside the machine.

• Cleanthesealsaroundthedooranddetergentdispensers

regularly using a damp sponge. This will avoid food becoming

trapped in the seals, which is the main cause behind the

formation of unpleasant odours.

Cleaning the spray arms

Food residue may become encrusted onto the spray arms

and block the holes used to spray the water. It is therefore

recommended that you check the arms from time to time and

clean them with a small non-metallic brush.

The two spray arms may both be removed.

To remove the upper spray arm,

turn the plastic locking ring in an

anti-clockwise direction. The upper

spray arm should be replaced so that

the side with the greater number of

holes is facing upwards.

The lower spray arm can be removed

by pressing on the side tabs and

Cleaning the water inlet hose

Ifthewaterhosesareneworhavenotbeenusedforanextended

period of time, let the water run to make sure it is clear and free

of impurities before performing the necessary connections. If this

precaution is not taken, the water inlet could become blocked

and damage the dishwasher.

Clean the water inlet filter at the tap outlet regularly.

- Turn off the water tap.

- Unscrew the end of the water inlet hose, remove the filter and

clean it carefully under running water.

-Re-placethefilterandscrewthewaterhosebackintoposition.

Cleaning the filters

The filter assembly consists of three filters which remove food

residues from the washing water and then recirculate the water.

They must be cleaned if you wish to achieve the best results in

Clean the filters regularly.

The dishwasher must not be used without filters or if the filter

•Afterseveralwashes,checkthefilterassemblyandifnecessary

clean it thoroughly under running water, using a non-metallic

brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and

4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection

(blackdetail)(fig.4).

Aftercleaningthefilters,re-placethefilterassemblyandfixit

in position correctly; this is essential for maintaining the efficient

operation of the dishwasher.

Leaving the machine unused for extended

• Disconnecttheappliancefromtheelectricitysupplyandshut

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem: Possible causes / Solutions:

The dishwasher does not start

or cannot be controlled.

• The water supply tap is not turned on.

• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately

one minute and reset the wash cycle.

• The appliance has not been plugged in properly or another electricity socket should be used.

• The dishwasher door has not been closed properly.

The door won’t close.

• Make sure that the racks were inserted all the way.

• The lock was released. Strongly push the door until a “clacking” noise is heard.

No water drain out of the

• The wash cycle has not nished yet.

• The water drain hose is bent

• The drain duct is clogged up.

• The lter is clogged up with food residues.

• Check the height of the drain hose.

The dishwasher makes

• The dishes are rattling against each other or against the spray arms. Place the dishes

properly and make sure the spray arms can rotate freely.

• Too much foam: the detergent has not been measured out correctly or it is not suitable for use

(See Detergent and dishwasher use.)

Do not prewash the dishes by hand.

The dishes and glasses are

covered in a white lm or

• Water hardness adjustment is not suitable: increase the relevant values.

• The salt and rinse-aid dispenser cap has not been closed properly.

• The rinse aid has been used up or the dosage is too low.

The dishes and glasses are

streaked or have a bluish

• The rinse aid dosage is too high.

The crockery has not been

• A wash cycle without a drying programme has been selected.

• The rinse aid has been used up.

(See Rened Salt and Rinse Aid.)

• The rinse aid dispenser setting is not suitable.

• The crockery is made from non-stick material or plastic; the presence of water drops is

The dishes are not clean. • The crockery has not been arranged properly.

• The spray arms cannot rotate freely, being hindered by the dishes.

• The wash cycle is too gentle

• Too much foam: the detergent has not been measured out correctly or it is not suitable for use

(See Detergent and dishwasher use.)

• The lid on the rinse aid compartment has not been closed correctly.

• The lter is dirty or clogged up

(see Care and maintenance.)

• The rened salt level is low

(See Rened Salt and Rinse Aid.)

• Make sure that the height of the dishes is compatible with the rack adjustment.

• The holes in the spray arms are clogged up.

(See Care and maintenance.)

The dishwasher won’t load

any water. It is blocked with ashing lights. • There is no water in the mains supply or the tap is shut off.

• The water inlet hose is bent

• The lters are clogged up: they need cleaning.

(See Care and maintenance.)

• The drain duct is clogged up: it needs cleaning.

• After checking and cleaning, switch the dishwasher on and off and start a new wash cycle.

• If the problem persists, turn off the water tap, remove the plug and call the Service Centre.FR

-2006/95/EC (Low Voltage)

-2006/95/EC (Low Voltage)

and Electronic Equipment

- 21025 Comerio (Varese) Italy
