WE30 - Waffle Maker STEBA - Free user manual and instructions

Product type	Waffle maker
Brand	Steba
Model	WE30
Usage	Private and non-commercial
Plate coating	Non-stick
Indicator lights	Red (heating) and green (temperature reached)
Temperature control	Yes, temperature selector
Number of waffles per batch	1 (classic plates)
Approximate cooking time	About 3 minutes
Cooking settings	2-3 for light waffles, 4-5 for dark waffles
Power supply	220-240 V, 50/60 Hz (typical value, check rating plate)
Power	Approximately 900 W (typical value for this type of appliance)
Safety distance	At least 70 cm from flammable materials
Cleaning	Paper towel for plates, damp cloth for exterior
Maintenance	Do not use abrasive cleaners or metal utensils
Child safety	Use under supervision from age 8, keep out of reach of children under 8
Overheat protection	Not specified, but unplug after use
Spare parts and repairability	Repairs by qualified personnel only
Disposal	Do not dispose of with household waste, recycle at waste collection point
Included recipes	Sweet and savory waffles in the manual

Frequently Asked Questions - WE30 STEBA

How to use the Steba WE30 waffle maker for the first time?

Before first use, clean all parts thoroughly except the heating element. Plug the appliance into an outlet matching the parameters on the rating plate. The red indicator lights up. Select the desired temperature and close the lid. Wait for the green indicator to light up indicating that the temperature is reached.

How to clean the Steba WE30 waffle maker?

Always unplug the appliance and let it cool down before cleaning. Clean the plates with a paper towel. Remove batter residues from the hinge and housing. Wipe the exterior with a damp cloth. Never use abrasive cleaners, metal scouring pads, or metal scrapers to avoid damaging the non-stick coating.

What are the power and voltage of the Steba WE30 waffle maker?

The rating plate indicates the exact voltage and power. Generally, Steba appliances operate at 220-240 V, 50/60 Hz. The power is typically around 900 W for a waffle maker of this size. Always check your local mains parameters.

How long does it take to cook waffles with the Steba WE30?

The approximate cooking time is about 3 minutes. Temperature and time are approximate values. For light waffles, set the thermostat to 2-3; for darker waffles, to 4-5.

What safety instructions should be followed?

Only plug in the appliance if the mains parameters match the rating plate. Check for damage before each use. Keep the appliance out of reach of children under 8 years old. Never immerse the appliance in water. Unplug before cleaning. Do not let the cord come into contact with hot surfaces.

Can the Steba WE30 be used with a timer or remote control?

No, it is prohibited to use a separate timer or remote control system with this appliance. The appliance must be used under constant supervision.

What to do in case of damage or malfunction?

If the appliance is defective (drop, damaged cord, etc.), do not put it into service. Contact customer service at the address given in the manual. Repairs must be carried out by a qualified electrician. Do not send unpaid packages.

What waffle recipes can be made with the Steba WE30?

The manual offers two recipes: sweet waffles (flour, sugar, eggs, butter, milk) and savory waffles (ham, cheese). You can vary the ingredients: grated apples, raisins, olives, buttermilk, etc. Let the batter rest for 30 minutes before cooking.

How to get well-cooked and even waffles?

Preheat the appliance until the green indicator lights up. Lightly oil the plates. Pour a small amount of batter using a ladle. Close the lid and press briefly to spread the batter evenly. Do not use too much batter. After cooking, remove the waffles without metal utensils to preserve the coating.

How to dispose of the Steba WE30 waffle maker at the end of its life?

Do not dispose of the appliance with household waste. The crossed-out trash can symbol indicates that it should be recycled. Take it to an appropriate collection center or return it to the seller for environmentally friendly disposal.

USER MANUAL WE30 STEBA

White frying pan with black control panel and green/red indicator lights (no text or symbols visible)

Waffeleisen WE 30

Instructions for use 8

Mode d'emploi 12

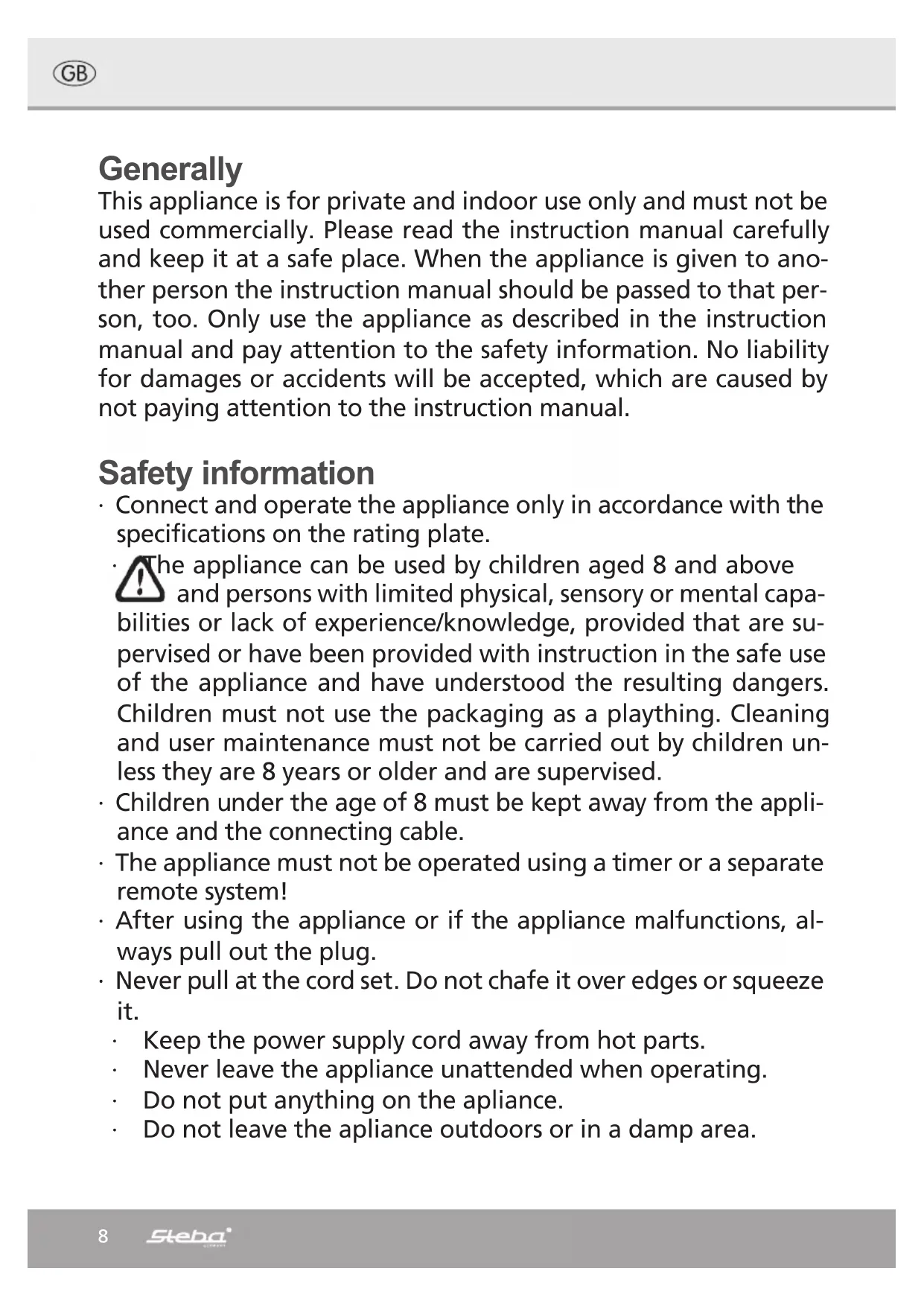

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

- The appliance must not be operated using a timer or a separate remote system!

- After using the appliance or if the appliance malfunctions, always pull out the plug.

- Never pull at the cord set. Do not chafe it over edges or squeeze it.

- Keep the power supply cord away from hot parts.

- Never leave the appliance unattended when operating.

• Do not put anything on the apliance.

- Do not leave the apliance outdoors or in a damp area.

• Never immerse the appliance in water.
• Do not operate the appliance if it is damaged (for example if it felt down).
• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made.
• The apliance becomes very hot. Do not move the apliance until it has cooled down!
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.

Attention! Housing get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials. Only use it on a even, stable and a heat resisting surface.

- Carefull: Steam from the food can emerge between the plates. Danger of burns!

Cleaning and maintenance:

Pull the plug and allow the device to cool before cleaning.

• Never immerse the electrical part of the device into water.
• Clean the waffle plate with paper towel.
• Remove the dough remains from the hinge and housing.
• Wipe the entire device with a damp cloth.
• Do not use abrasive cleaners or metal objects.

- For cuts and scratches on the coating, resulting from the use, no guarantee can be made.

• Due to grease vapors may discolor the surface.

Preparation of waffles

Only use the appliance according the instructions on the rating label. The red lamp shines.

Choose the desired temperature and close the lid.

The temperature is reached if the green light shines. You can start now.

Add small quantities of dough on the waffle plate and close the device and slightly pinch so that the dough is spread evenly.

Do not fill in too much dough.

Settings: 2 – 3 bright waffles

4 – 5 dark waffles

Baking time: ca. 3 minutes

The given temperatures and times are approximate values.

Sweet waffles:

250g flour

3 tbsp sugar

Vanilla sugar

Baking powder

14 tsp salt

3 eggs, separated

125g butter, melted

300ml milk

Rum aroma

Icing sugar for decoration

Mix flour, sugar, vanilla, baking powder and salt. Mix egg yolks, milk, butter and aroma.

Stir in the flour-mix. Beat the egg whites and stir them in carefully.

Salty waffles:

250g flour

Baking powder

14 tsp salt

3 eggs, separated

300ml milk

Pepper

100g ham, diced

100g cheese, grated

Mix flour, baking powder and salt. Mix egg yolks, milk, butter and pepper. Stir in the flour-mix and then add the ham and cheese. Beat the egg whites and stir them in carefully.

Tip:

You can vary the ingredients e.g. roughly grated apples, raisins, olives etc. can be mixed into the dough.

Buttermilk or cream gives a different flavor. Other types of dough, out of recipe books, can easily be prepared in the device as well.

Baking

• Leave the dough to swell for at least 30 minutes.
• For baking, the dough should be fluid.
• Preheat the device until the green light shines.
• Slightly grease the plates.
• Add the dough and spread evenly.
• Close the device immediately and slightly pinch so that the dough is spread evenly.
  • After about 3 minutes remove the waffles and allow to cool on a wire rack.
• To remove the waffles do not use metal objects so that the coating will not get damaged.
• Close the device. If the green light shines, the device is ready for operation again.
• Us all dough as it changes its structure and contains eggs!

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
