USER MANUAL CFB60AX FAGOR

As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and ap- pearance

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

SAFETY RECOMMENDATIONS — This oven was designed for use by private persons in their homes. — This appliance is not designed to be used by people (including children) with reduced phys- ical, sensorial or mental capacity or people lacking in experience or knowledge, except if they have the benefit, through the intermedi- ary of a person responsible for their safety, of preliminary supervision or instruction con- cerning the use of the appliance. It is advis- able to supervise children to make sure that they do not treat the appliance as a toy. — When you receive the appliance, unpack or have it unpacked immediately. Give it an over- all general inspection. Make note of any con- cerns or reservations on the delivery slip and make sure to keep a copy of this form. — Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other pur- pose than that for which it was designed. — Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety. — Repairs must only be carried out by an approved specialist. — Always unplug the hood before cleaning it or performing other maintenance acts. — Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gas- es. — You should never "flambé" dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance). — When frying food under the appliance, you must carefully monitor the preparation at all times. Oils and grease brought to very high temperatures can catch fire. — Respect the recommended frequency of cleaning and filter replacements. The accumu- lation of grease deposits may cause a fire. — The hood should never be used over a com- bustible fuel burning stove (wood, coal, etc.). — Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety). — With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteris- tics, making any changes to their features considered necessary or desirable in view of technical progress. — In order to easily locate the reference infor- mation for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relation

Attention Keep this user guide with your appli- ance. If the appliance is ever sold or trans- ferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommenda- tions before installing and using your appli- ance. They were written for your safety and the safety of others. Warning In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "recycling" version of the hood should be installed. Do not use the hood without metal filters. Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel. EN33 Warning Installation should only be performed by installers and qualified technicians. Warning Remove the protective film from the filter cartridge before use. ENVIRONMENTAL PROTECTION

— This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose. — Your appliance also contains a great amount of recyclable material. It is marked with this label to indicate the used appliances that should not be mixed with other waste. This way, the appli- ance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appli- ance collection points closest to your home. — We thank you doing your part to protect the environment.

Important The accessible parts of this appliance may become hot if it is used with a cooking appliance.34

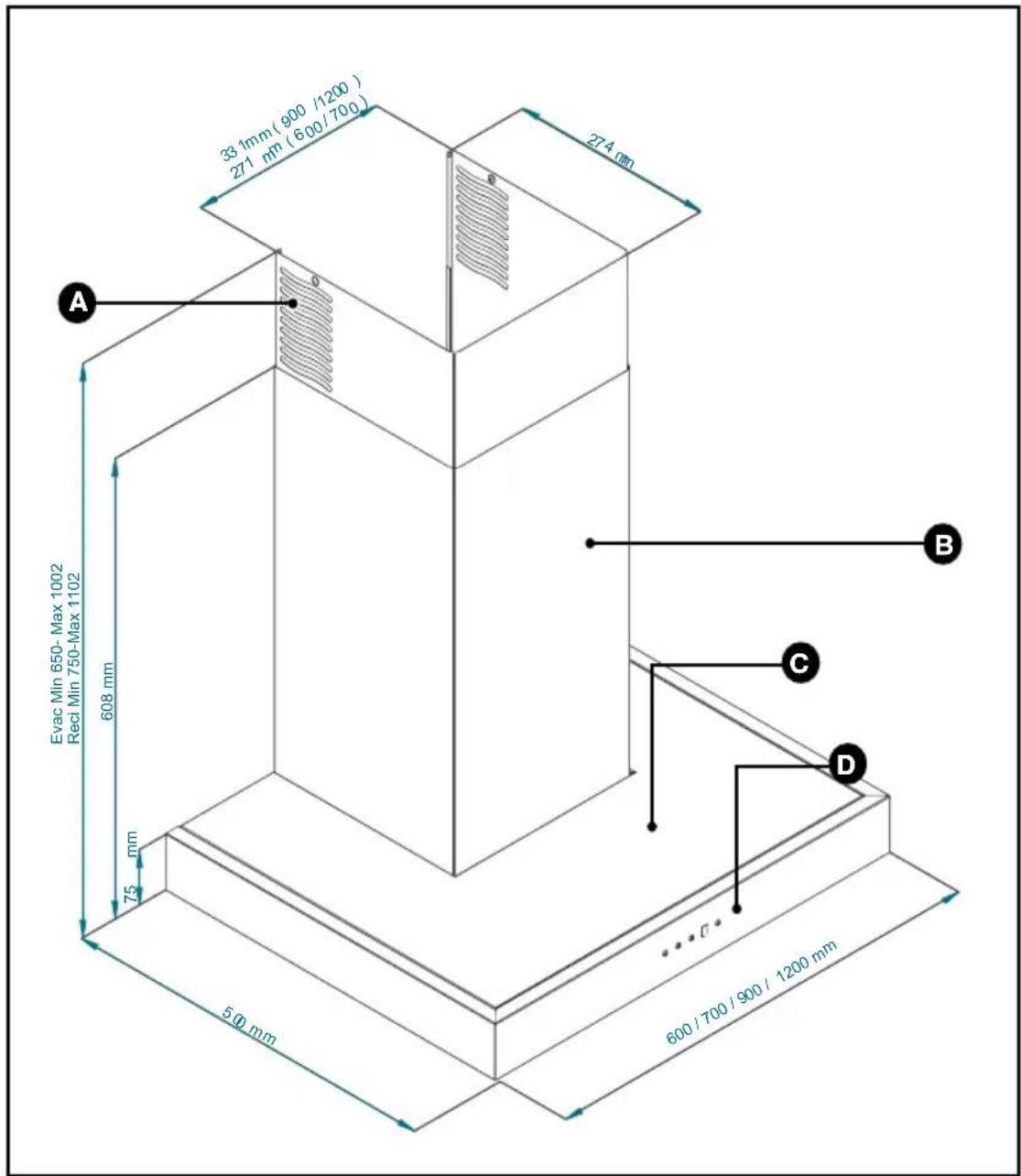

2 / INSTALLING YOUR APPLIANCE

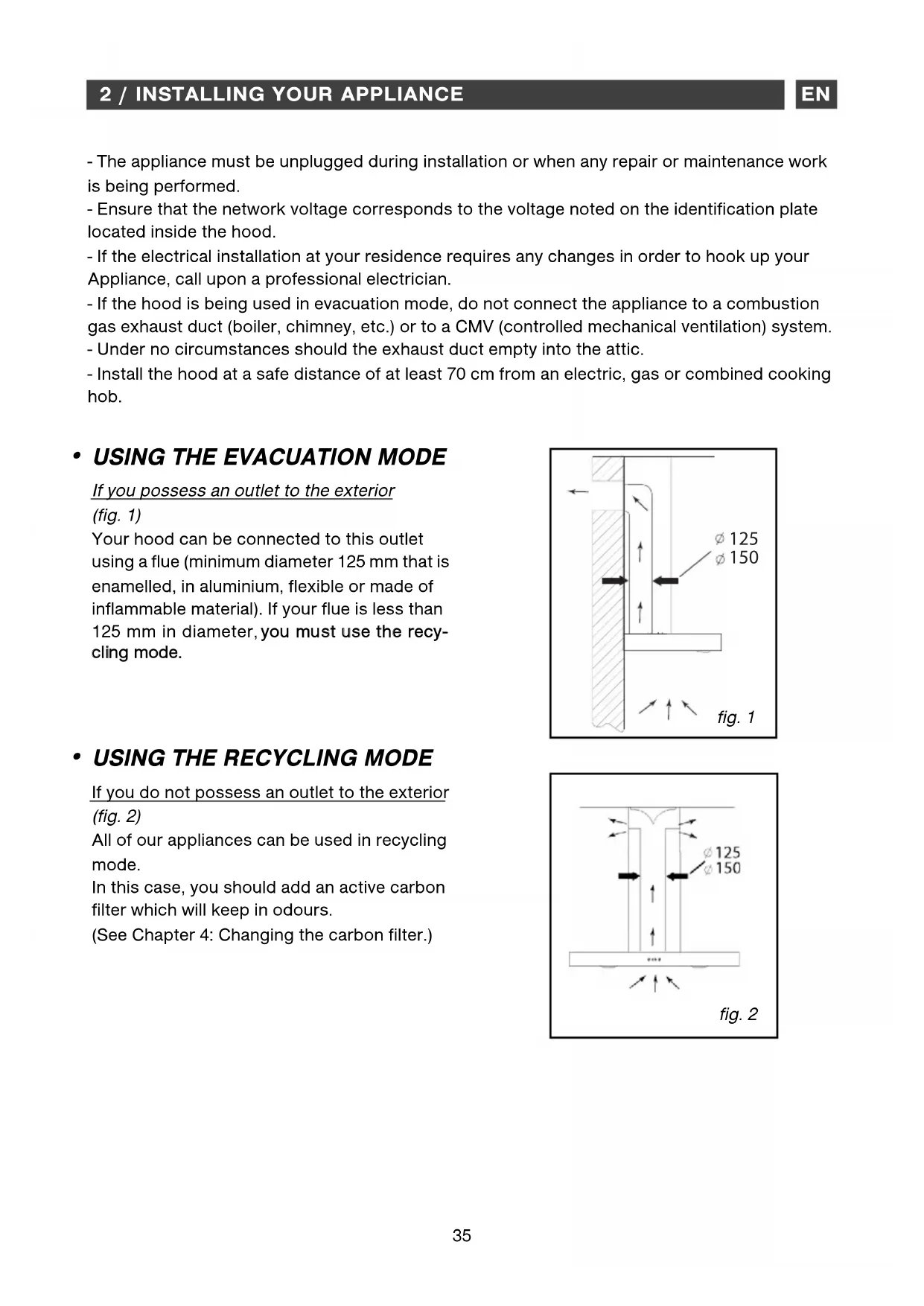

USING THE EVACUATION MODE

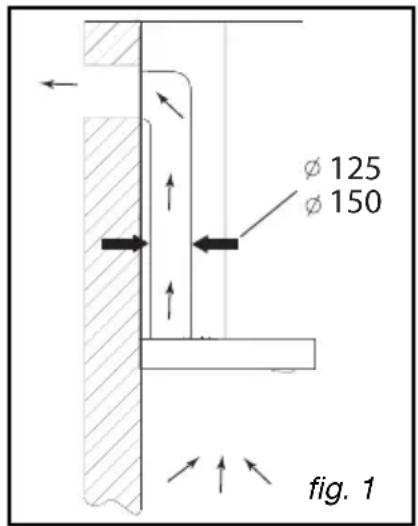

If you possess an outlet to the exterior (fig. 1) Your hood can be connected to this outlet using a flue (minimum diameter 125 mm that is enamelled, in aluminium, flexible or made of inflammable material). If your flue is less than 125 mm in diameter, yyoouu mmuusstt uussee tthhee rreeccyy-- cclliinngg mmooddee..

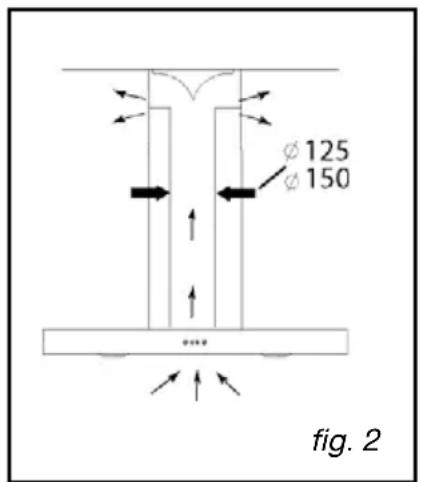

If you do not possess an outlet to the exterior (fig. 2) All of our appliances can be used in recycling mode. In this case, you should add an active carbon filter which will keep in odours. (See Chapter 4: Changing the carbon filter.)

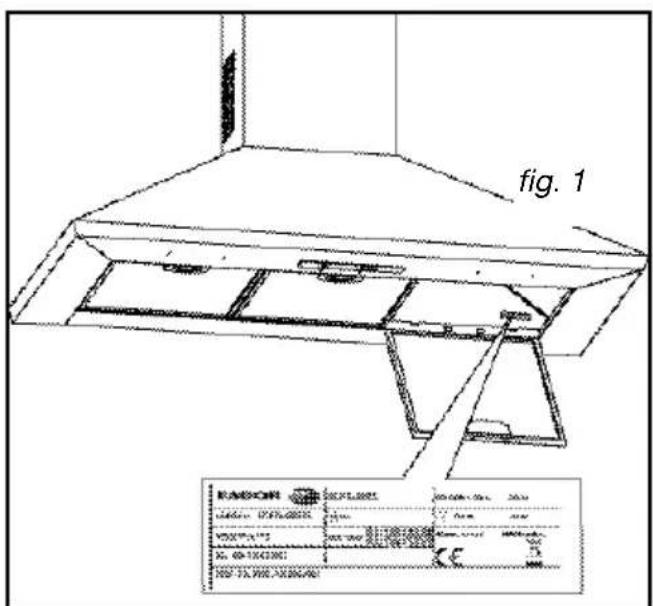

- The appliance must be unplugged during installation or when any repair or maintenance work is being performed. - Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood. - If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician. - If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system. - Under no circumstances should the exhaust duct empty into the attic. - Install the hood at a safe distance of at least 70 cm from an electric, gas or combined cooking hob.

fig. 1 fig. 236 Warning This appliance is delivered with a H 05 VVF power cord that has three-0.75 mm2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 220-240 V single phase current) via a CEI 60083 standardised socket that should remain accessible after installa- tion, in keeping with installation guidelines. We cannot be held responsible for any acci- dent resulting from an inexistent, defective or incorrect ground lead. The fuse for your installation must be 10 or 16A. If the power cable is damaged, call the after-sales serv- ice department in order to avoid danger. Warning If the electrical installation at your resi- dence requires any changes in order to hook up your appliance, call upon a professional electrician. Warning If the hood displays any malfunctions, unplug the appliance or remove the fuse cor- responding to the electrical socket where your appliance is plugged in.

ELECTRICAL CONNECTIONS During installation and maintenance opera- tions, the appliance must be unplugged from the electrical grid; fuses must be cut off or re- moved. The electrical connections are made before the appliance is installed in its housing. Ensur e that: - the electrical installation has sufficient volt- age, - the electrical wires are in good condition, - the diameter of the wires complies with the installation requirements.

2 / INSTALLING YOUR APPLIANCE

2 / INSTALLING YOUR APPLIANCE

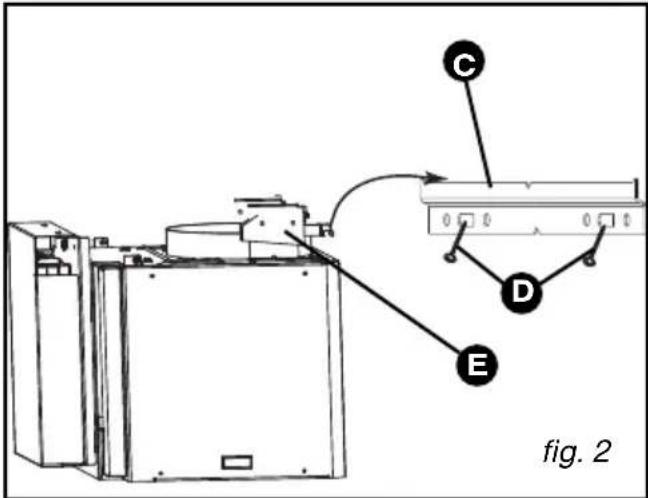

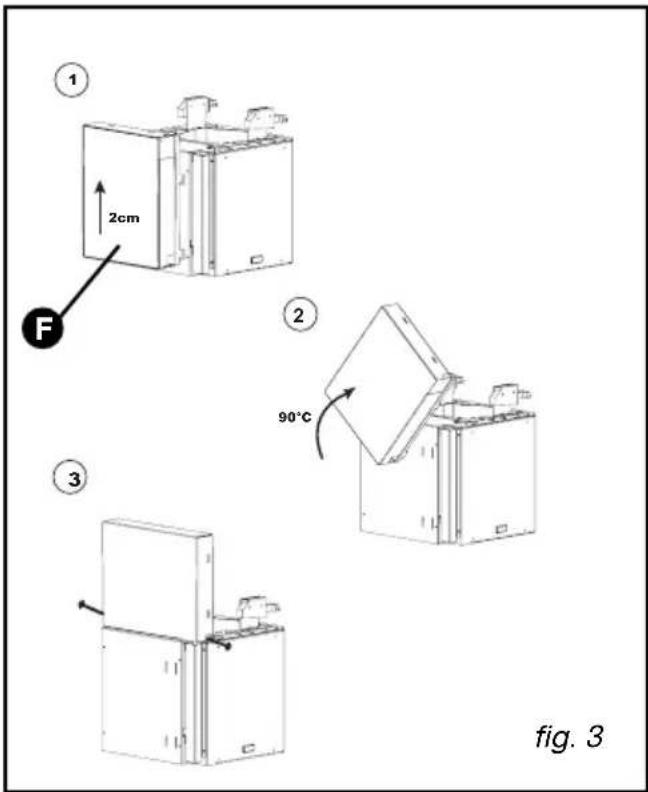

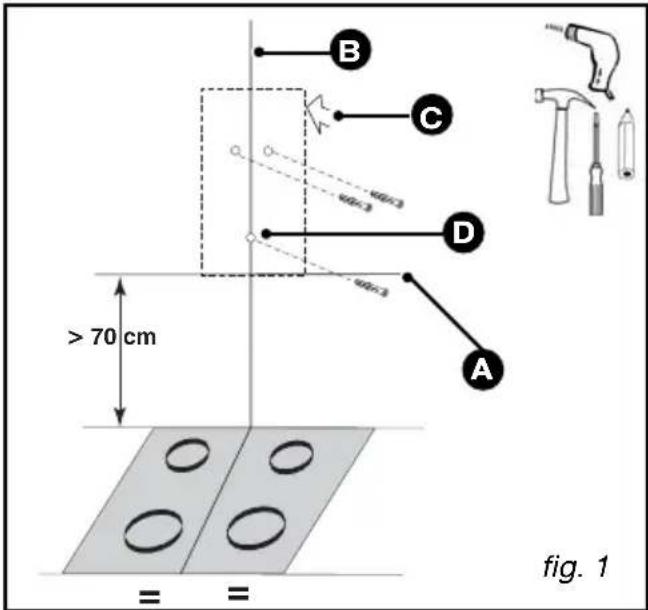

Warning The hood must be installed in compli- ance with all applicable regulations concern- ing the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist. The minimum distance between the cookingsurface and the lowest part of the hood mustbe 70 cm. If the instructions for the hobinstalled under the hood specify a distance ofmore than 70 cm, this requirement must berespected.— Draw a horizontal line 70 cm minimum fromthe cooker top (A/fig. 1).— Draw a vertical line (B/fig. 1) on the wall thatis centred over the cooker top and that ex-tends from the horizontal line drawn in theprevious step (A) to the ceiling.— Place the drilling template (C/fig. 1) on thewall. In the case of a hollow wall, use suitablewall plugs and screws.— Drill the two holes. Insert the 2 wall plugs.— Screw the fastening bar to the wall (C/fig. 2), with the 2 screws (D/fig. 2)— Hang the suction hood by its hooks (E/fig. 2). — Adjust the height and level by moving theclamping screws (E/fig. 2) of the supports(the top screw for horizontal fit and the bot-tom screw for fitting to the wall).— Fit the anti-lifting screw (D/fig. 1)— Remove the adhesive tape from the compo-nent unit (F/fig. 3).— Lift the unit around 2 cm then release it. Giveit a quarter turn then slide it and fasten it using2 screws above the motor (fig. 3). WWaarrnniinngg:: ddoo nnoott ddaammaaggee tthhee ccaabblleess wwhhiillee rroo-- ttaattiinngg aanndd ffaasstteenniinngg..

2 / INSTALLING YOUR APPLIANCE

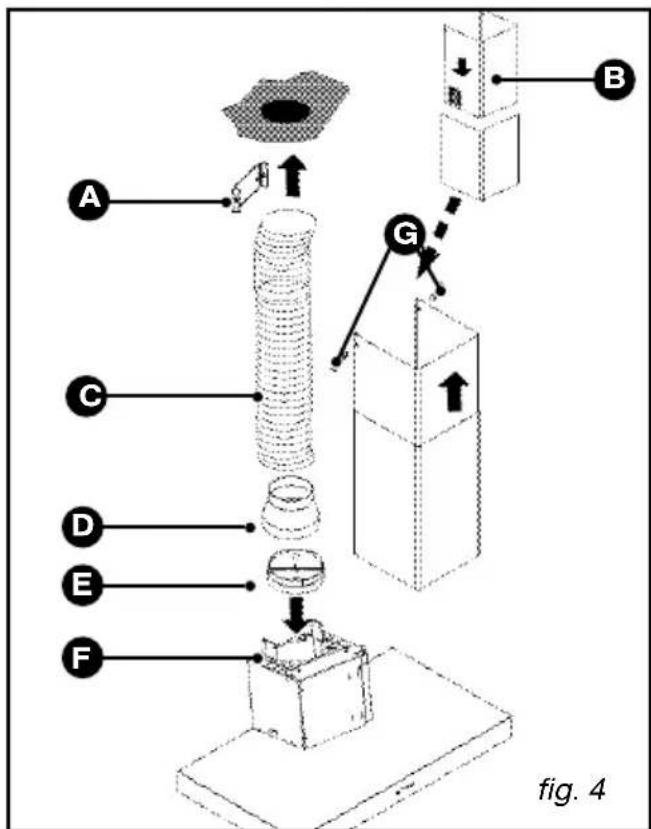

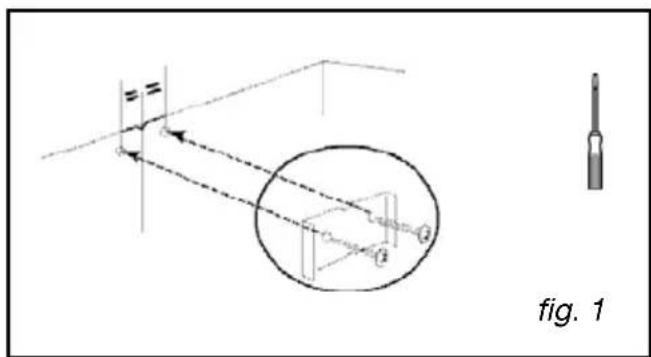

• Outdoor evacuation — Using the two screws (fig. 1), attach the met- al chimney bracket against the wall, flush with the ceiling for support. — Mount the back-flow valve near the motor outlet (fig. 2). This back-flow valve makes it possible to block the entry of air from the out- side. — If a 125 mm flue is being installed, use the adapter provided (fig. 3). If the diameter of your exterior flue is less than125 mm, you must connect your hood in recycling mode. — Slide the end of the flue over the motor out- let (fig. 4). — Prepare your telescoping ventilation shaft, taking care not to block the vents (B/fig. 4). Fit the chimney to the hood and lift the upper portion to adjust the height and then screw it (G/fig.4) on the metal chimney bracket (A/fig. 4).

Tip For optimal use of your appliance, we recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using outdoor evacuation, you should ensure a sufficient inflow of fresh air to avoid a pres- sure deficiency in the room.39

2 / INSTALLING YOUR APPLIANCE

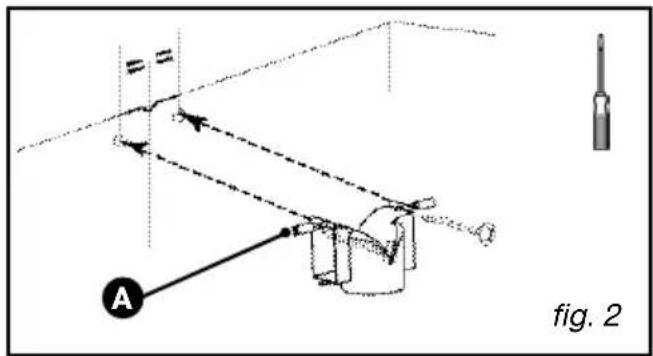

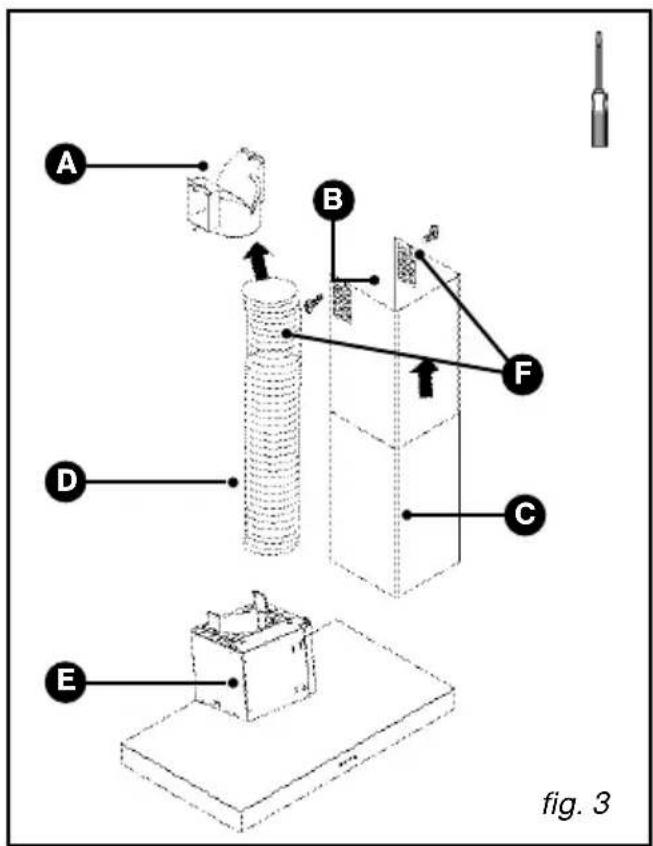

• Recycling — Remove the back-flow valve (fig. 1). — Using the two screws (fig. 2), attach the plastic smoke deflector against the wall, flush with the ceiling for support. Be careful to centre the deflector in relation to the vertical line drawn on the wall (fig. 2). For models up to 700 mm, add the 2 struts sup- plied in the pocket (A/fig. 2) — Slide one end of the flue over the deflector and the other end over the motor outlet (fig. 3). — Prepare your ventilation shaft, taking care to face the vents upward so that they are visible (B/fig. 3). — Attach the assembled chimney (C/fig. 3) to the hood and lift the upper portion to adjust the height, then screw it to the smoke deflector (A/fig. 3) using the two screws (F/fig. 3). fig. 3

A40 The symbol will flash on the display after 30 hours of operation of the hood. This message tells you that that it is necessary to clean your filter cartridge. After cleaning the filter cartridge, press button

for 3 seconds to stop the warning light

FILTER CARTRIDGE SATURATION INDICATOR

- Every time the speed selection button (

) is pressed, the following cycle is defined: speed 1, 2, 3 or 4 then return to speed 1. - Every time the hood is used it will start up at the last selected speed.

• Timer selection — Pressing E will activate the timer; the hood will shut down after 10 minutes. A will flash on the display to tell you that the hood is in timer mode.

Tip This Guide to Installation and Use is valid for several models. Minor differences in details and fittings may emerge between your appliance and the descriptions provided.

3 / USING YOUR APPLIANCE

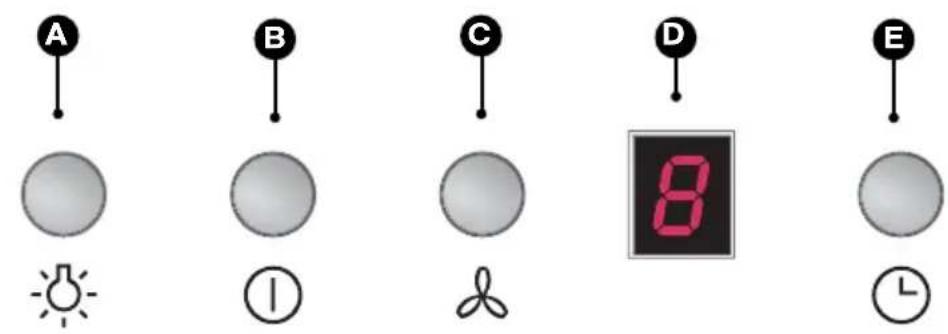

Timer/Delayed shutdown (10 Min) Indicator Speed selection (1 to 4)

To clean the outside of your hood, use soapy water, but do not use abrasive creams or scrubbing sponges.

4 / CARING FOR AND CLEANING YOUR APPLIANCE

Warning Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good perform- ance and durability. Warning Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

CLEANING THE FILTER CAR-

TRIDGES They must be cleaned after approximately 30 hours of use or at least once a month. These fil- ters can be cleaned in a vertical position in your dishwasher. Use a brush, hot water and mild de- tergent. Rinse and dry them thoroughly before returning them to the hood.

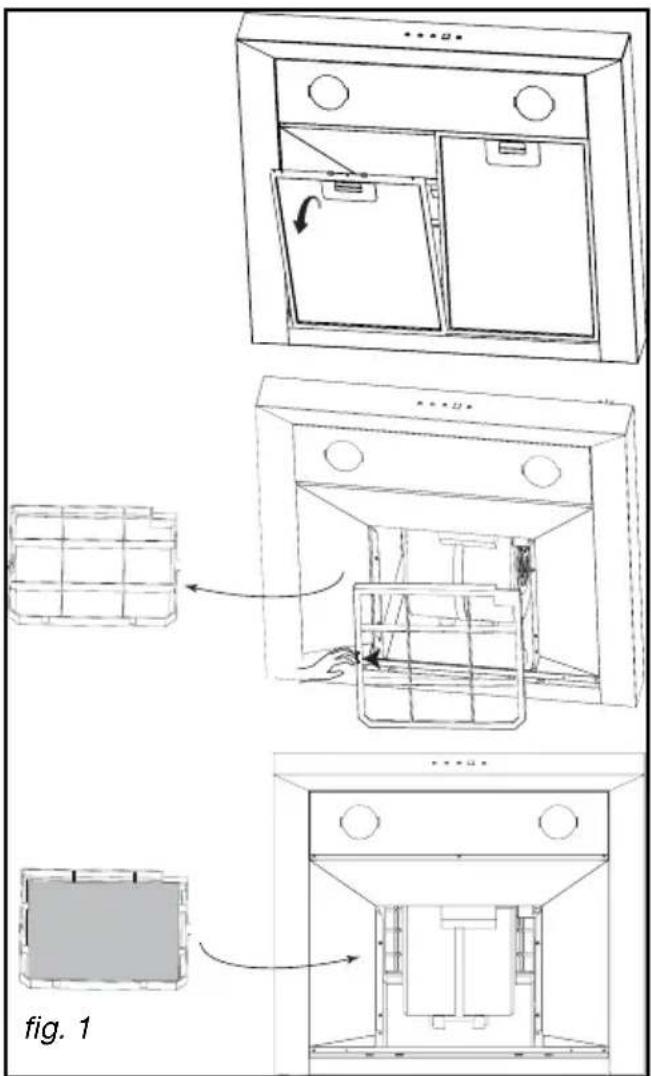

• Dismantling the filter cartridge ( fig. 1) — Replace it after approximately 120 hours of use. — Remove the filter cartridge by unclipping it (fig. 1).

(depending on model) Replace it after approximately 120 hours of use. — Remove the filter cartridge by unclipping it (fig. 1).

4 / CARING FOR AND CLEANING YOUR APPLIANCE

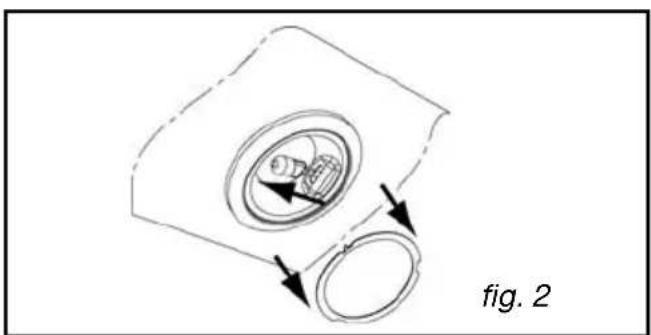

MAINTAINING YOUR APPLIANCE

Warning Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch. This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water. Top surface and acces- sories NNeevveerr uussee mmeettaall ssccoouurriinngg ppaaddss,, aabbrraassiivvee pprroodduuccttss oorr eexxcceessssiivveellyy ssttiiffff bbrruusshheess.. Activated carbon filter (Depending on model or optional) To clean the body and the lighting port, you should use only com- mercial household cleaning prod- ucts diluted in water and then rinse using clean water, drying with a soft cloth. This filter traps odours and must be changed at least once a year depending on your level of use. You should order these filters from your dealer and note the date the filter was changed. Use a commercial household cleaning product then rinse abun- dantly and dry. These filters can be cleaned in a vertical position in your dishwasher. ((DDoo nnoott aallllooww tthheemm ttoo ttoouucchh ddiirrttyy ddiisshheess oorr ssiillvveerrwwaarree)).. To preserve your appliance, we recommend that you use Clearit cleaning products. Clearit offers you professional products and solutions designed for the daily care of your house- hold appliances and kitchens. They are on sale at your regular retailer, along with a complete line of accessories and consum- able products. Professional expertise serving individuals PPRROODDUUCCTTSS//AACCCCEESSSSOORRIIEESS

MMAAIINNTTEENNAANNCCEE TTOO UUSSEE

EN43 5 / TROUBLESHOOTING The hood is not operating effectively... Ensure that:

• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.

• The kitchen is sufficiently ventilated to allow for fresh air intake.

• The carbon filter is not worn (hood operating in recycling mode). The hood is not working... Ensure that:

• The power is not cut off.

• A speed has been selected. The hood stopped work- ing Ensure that:

• The power is not cut off.

• The single-pole cut-off device was not activat- ed. SSOOLLUUTTIIOONNSSSSYYMMPPTTOOMMSS
