Oslo - Kitchen scale TAURUS - Free user manual and instructions

Product type	Kitchen scale
Brand	Taurus
Model	Oslo
Display	LCD screen
Weighing capacity	5 kg (estimated)
Unit selection	kg / lb / st:lb
Power supply	1 CR2032 3V battery
Auto-off	Yes, after a few seconds of inactivity
Overload indication	Display «EEEE»
Low battery indication	Display «Lo»
Platform	Glass
Cleaning	Damp cloth, do not immerse
Safety	Do not use if the glass is cracked or broken; do not use with wet feet
Usage	Household only, not professional
Repairability	Contact an authorized technical service
Batteries included	Yes, with protective film to remove
Dimensions (approx.)	27 x 20 x 2 cm (estimated)
Weight (approx.)	0.5 kg (estimated)

Frequently Asked Questions - Oslo TAURUS

How to install the battery on the Taurus Oslo scale?

Open the battery compartment cover on the back, insert a CR2032 battery respecting polarity (+/-). Remove the protective film if present. Close the cover.

How to change the weight unit (kg/lb)?

Press the UNIT button to cycle through units: kg, lb, st:lb. The selected unit is displayed on the screen.

What does the 'EEEE' display mean?

The EEEE display indicates that the maximum capacity of the scale has been exceeded. Immediately remove the excess weight.

What to do if the screen displays 'Lo'?

The Lo message means the battery is low. Replace it with a new CR2032 battery.

How to clean the scale?

Clean with a damp cloth and dry thoroughly. Do not use solvents, abrasive or acidic products. Never immerse the scale in water.

Why does the scale not turn on?

Check that the battery is correctly installed and that the protective film has been removed. If the problem persists, replace the battery with a new one.

Is the scale accurate?

Yes, the Taurus Oslo scale is designed for precise weighing. Make sure to use it on a hard, flat, and stable surface, and remain still during measurement.

Can the scale be used on a carpet?

It is recommended to place the scale on a hard and flat surface. Use on a carpet may distort measurements.

Can children use this scale?

No, the scale is intended for adult use. Supervise children to prevent them from playing with it. Do not allow unfamiliar persons to use it.

How to store the scale when not in use?

Store the scale flat, in a dry place away from dust. Remove the battery if not used for an extended period.

USER MANUAL Oslo TAURUS

Line drawing of a square metal plate with a rectangular cutout on top (no text or symbols)

Color palette bar with grayscale shades and a central crosshair symbol (no text or labels)

Color palette bar with grayscale swatches and a central crosshair symbol (no text or labels)

Español

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Color palette bar with grayscale swatches and a black horizontal bar at bottom (no text or symbols)

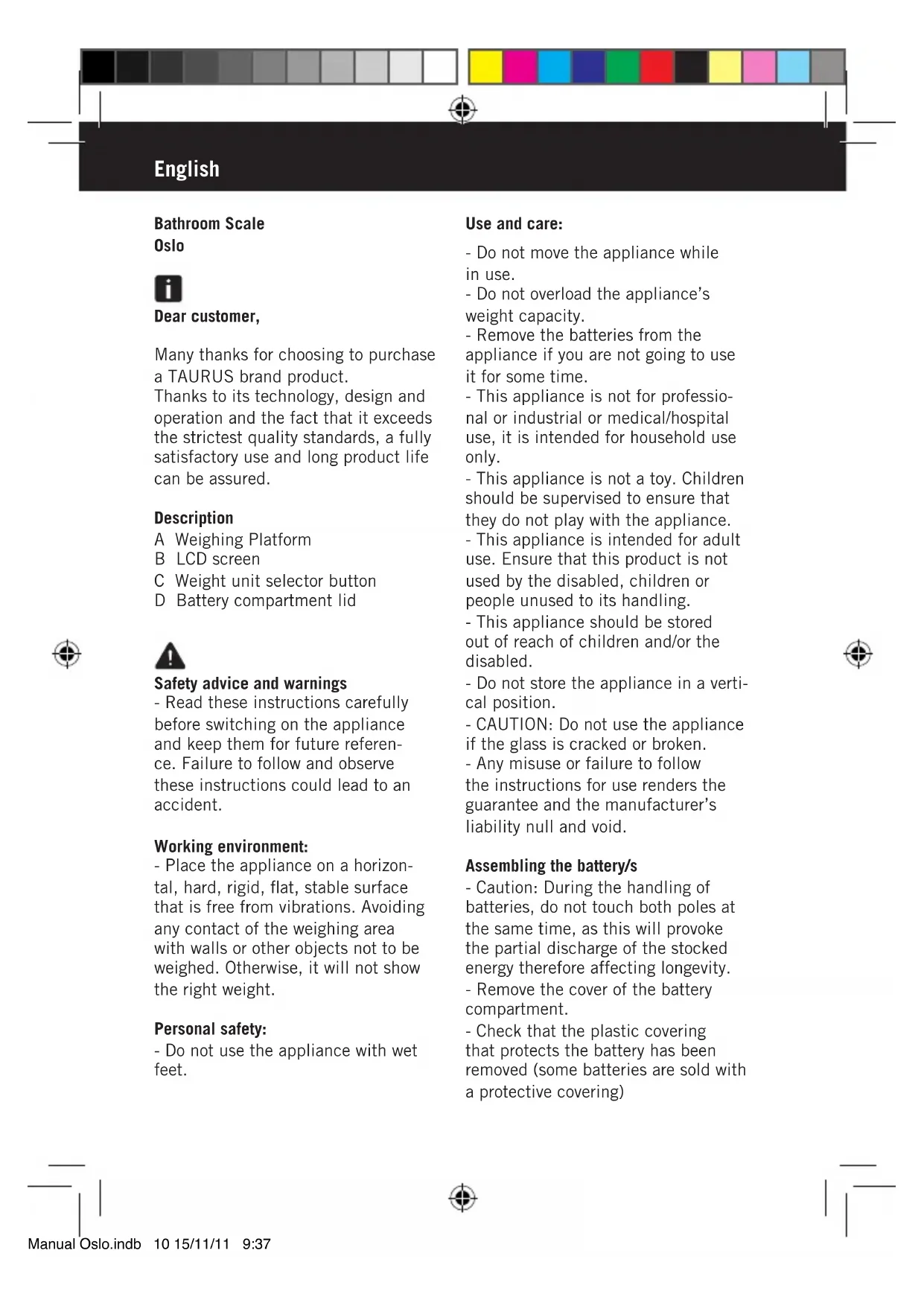

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

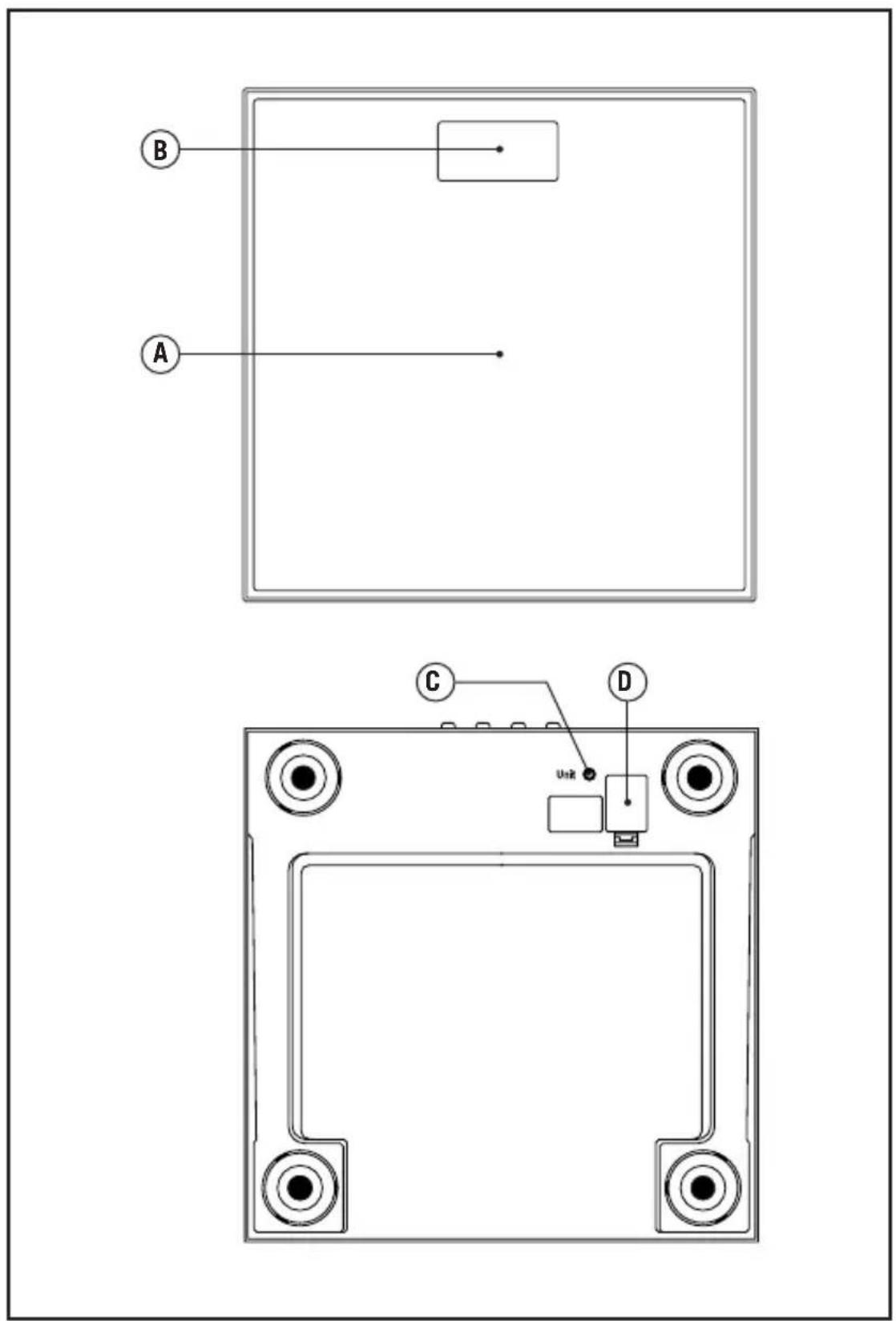

Description

A Weighing Platform
B LCD screen
C Weight unit selector button
D Battery compartment lid

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

Working environment:

- Place the appliance on a horizontal, hard, rigid, flat, stable surface that is free from vibrations. Avoiding any contact of the weighing area with walls or other objects not to be weighed. Otherwise, it will not show the right weight.

Personal safety:

- Do not use the appliance with wet feet.

Use and care:

• Do not move the appliance while in use.
• Do not overload the appliance's weight capacity.
• Remove the batteries from the appliance if you are not going to use it for some time.
• This appliance is not for professional or industrial or medical/hospital use, it is intended for household use only.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not store the appliance in a vertical position.
• CAUTION: Do not use the appliance if the glass is cracked or broken.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Assembling the battery/s

- Caution: During the handling of batteries, do not touch both poles at the same time, as this will provoke the partial discharge of the stocked energy therefore affecting longevity.

- Remove the cover of the battery compartment.

- Check that the plastic covering that protects the battery has been removed (some batteries are sold with a protective covering)

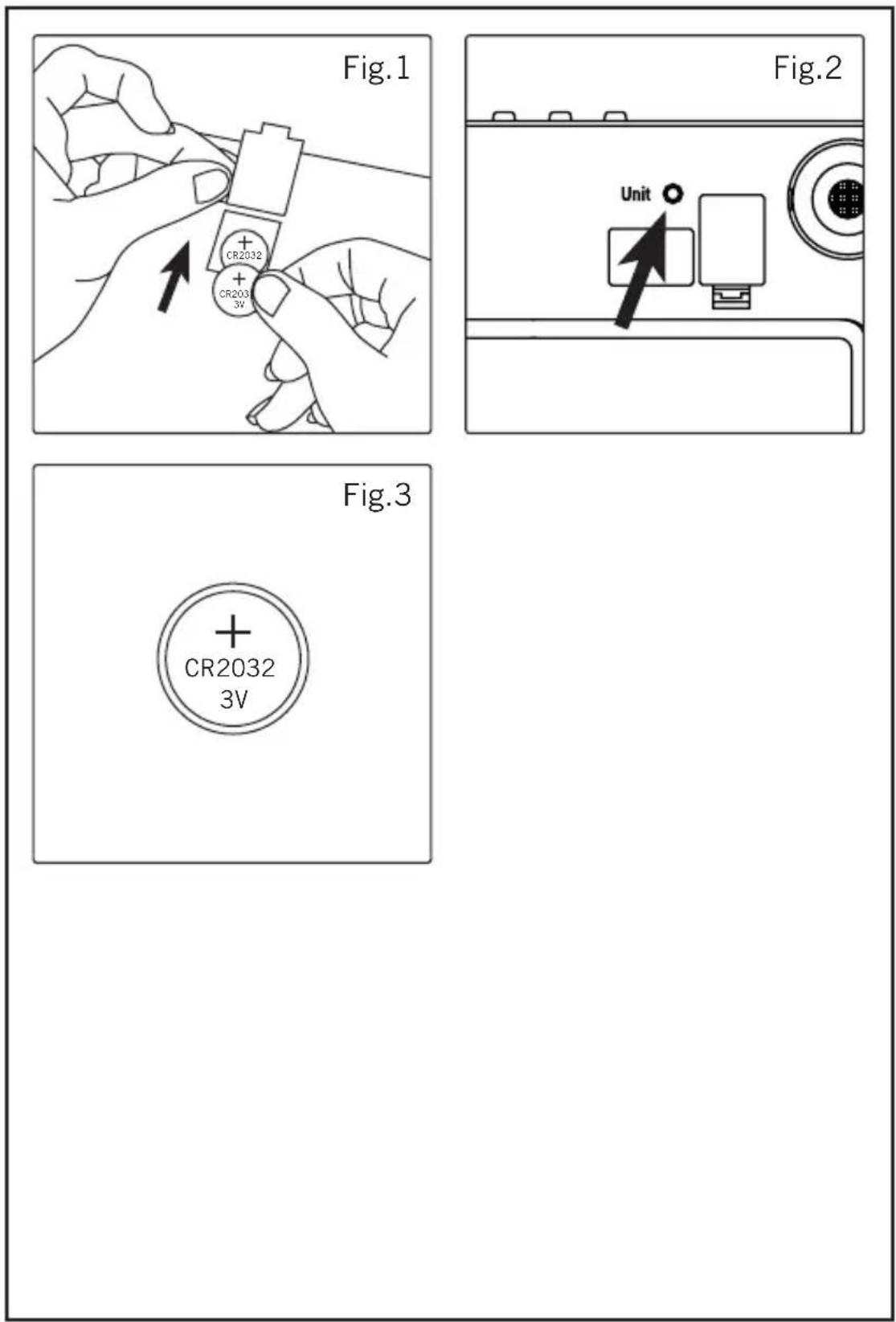

- Put the battery in its compartment, respecting the polarity (Fig.1).

- Replace the cover of the battery compartment.

- It is essential that the batteries should always be the same kind and the same charge. Never mix alkaline batteries with normal one (Carbon-Zinc) and/or rechargeable ones.

- N.B. When changing the batteries, the configuration of the appliance will be removed, and you will need to reset the parameters of the appliance.

Instructions for use

Before use:

- Prepare the appliance according to the function you wish to use:

Weighing units selector Kg/Lb/St:lb

- The appliance has a selector of weighing units, put the selector in the position according to those units you want to work with. (Fig. 2)

Use:

- Place yourself in the centre of the platform avoiding abrupt movements, maintaining immobile and without touching other objects, until the appliance shows your weight.

Automatic disconnection function (stand-by):

- In order to save energy, the appliance passes to stand-by after few seconds if the user does not use it.

Once you have finished using the appliance:

- Remove the battery from the appliance if you are not intending to use the appliance during an extended period.

Special messages:

The following messages can appear on the screen:

- EEEE: means that the appliance's capacity has been exceeded

- Lo: means that the battery has to be changed/recharged

Cleaning

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in water or any other liquid or place it under running water.

Supplies

- Only the following type of supplies must be used with the appliance (Fig. 3)

- Battery type: 3V CR2032

- These supplies are available in specialist shops.

Anomalies and repair

- Take the appliance to an authorised technical support service if a product

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

damage or other problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

- This appliance contains, or could contain, oil. Remember that one should abide by the regulations concerning the elimination of this type of contaminant.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of

Waste from Electric and Electronic Equipment (WEEE).

This symbol means that product may include a battery or batteries; user must to remove them

before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in fire.

Recycling

- If the product includes batteries, remove them before disposing of the product. Remember that batteries must be disposed of in duly authorised containers. Do not dispose of them in a fire.

This appliance complies with 2004/108/EC on Electromagnetic Compatibility.

Français

Pèse-personne

Oslo

Cher Client,

Color palette bar with grayscale swatches and a black horizontal bar at the bottom (no text or symbols)

Accessoires

Color palette bar with grayscale swatches and a black horizontal bar at the bottom (no text or symbols)

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Color palette bar with grayscale swatches and a black horizontal bar at the bottom (no text or symbols)

Color palette bar with grayscale swatches and a black horizontal bar at the bottom (no text or symbols)

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Consumíveis

Color palette bar with grayscale swatches and a black horizontal bar at the bottom (no text or symbols)

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Переработка:

Color palette bar with grayscale swatches and a black horizontal bar at bottom, no text or symbols present

Anomalii si reparatii

- إن divorce That I’m checking that he’s a happy, it’s always. He’s getting in the home, and is doing so, and is doing so.

Color calibration bar with grayscale and color swatches, no text or symbols present

Manual Oslo.indb 47 15/11/11 9:37

taurus

Avda. Barcelona, s/n

E 25790 Oliana

Spain

Net weight: 1,17 Kg

Gross weight: 1,46 Kg
