! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.
! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).
! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.
! This unit may be installed and used only in permanently ventilated rooms in accordance with British Standard Codes Of Practice: B.S. 6172 / B.S. 5440, Par. 2 and B.S. 6891 Current Editions. The following requirements must be observed:
- The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

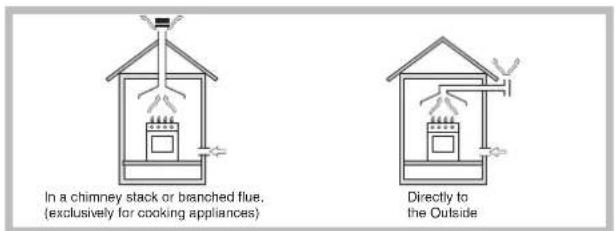

In a chimney stack or branched flue. (exclusively for cooking appliances) Directly to the Outside

- The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2m^3/h per kW of installed power.

Examples of ventilation holes for comburant air.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm ^2 ; the opening must not be vulnerable to any type of blockages.

Adjacent Room Room to be Vented Enlarging the ventilation slot between window and floor.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

- Liquid petroleum gas sinks to the floor as it is heavier than air. Therefore, rooms containing LPG cylinders must

also be equipped with vents to allow gas to escape in the event of a leak. As a result LPG cylinders, whether partially or completely full, must not be installed or stored in rooms or storage areas that are below ground level (cellars, etc.). It is advisable to keep only the cylinder being used in the room, positioned so that it is not subject to heat produced by external sources (ovens, fireplaces, stoves, etc.) which could raise the temperature of the cylinder above 50°C.

Fitting the appliance

Gas and mixed hobs are manufactured with type X degree protection against overheating. The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob.
• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob (see figure).

- The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

55 mm 475 mm 555 mm

Hook fastening diagram

Pure mechanical assembly diagram showing a bracket and mounting detail without any text or symbols

Hooking position for top H=20 mm

Cross-sectional diagram of a mechanical assembly with hatched area and base (no text or symbols)

Hooking position for top H=30 mm

Pure mechanical cross-section diagram without any text, numbers, or symbols

Back

Pure technical line drawing of a rectangular device with internal components and mounting holes (no text or symbols)

Hooking position Front for top H=40 mm

! Use the hooks contained in the "accessory pack"

- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into

contact with surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

- The appliance is earthed and the plug is compliant with the law.

- The socket can withstand the maximum power of the appliance, which is indicated on the data plate.

- The voltage is in the range between the values indicated on the data plate.

- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply or to a gas cylinder in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use. If this is not the case, follow the instructions indicated in the paragraph "Adapting to different types of gas."

When using liquid gas from a cylinder, install a pressure regulator which complies with current national regulations.

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 ("Burner and nozzle specifications"). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance.

There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

Adapting to different types of gas

To adapt the hob to a different type of gas other than default type (indicated on the rating plate at the base of the hob or on the packaging), the burner nozzles should be replaced as follows:

1. Remove the hob grids and slide the burners off their seats.
2. Unscrew the nozzles using a 7 mm socket spanner, and replace them with nozzles for the new type of gas (see table 1 "Burner and nozzle characteristics"). In the case of the Mini WOK, use a spanner with a 7 mm opening to unscrew the nozzle (see figure).
3. Reassemble the parts following the above procedure in the reverse order.
4. Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Sticker are available from any of our Service Centres.

Replacing the Mini DUAL burner nozzles

1. Remove the hob grids and slide the burners off their seats. The burner consists of two separate parts.
2. Loosen the 3 screws and remove the burner.
3. Loosen the 2 screws (see figure).

Close-up of a circular mechanical component with three ports and an arrow indicating direction (no text or symbols)

Close-up of a circular mechanical component with central hub and three side ports (no visible text or symbols)

Mechanical component diagram showing a circular housing with labeled points A and B (no text or symbols beyond labels)

1. Unscrew nozzle "A" using a 7 mm socket spanner. Use a spanner with a 7 mm opening to unscrew nozzle "B" (see figure). Replace the nozzles with models which are suitable for use with the new type of gas (see table 1).
2. Replace all the components

by following the above instructions in reverse.

- Adjusting the burners' primary air :

Does not require adjusting.

- Setting the burners to minimum:

1. Turn the tap to the low flame position.

Two mechanical mounting base configurations with no visible text or symbols

1. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady.

2. Having adjusted the flame to the required low setting, while the burner is alight, quickly change the position of the knob from minimum to maximum and vice versa several times, checking that the flame does not go out.

3. Some appliances have a safety device (thermocouple) fitted. If the device fails to work when the burners are set to the low flame setting, increase this low flame setting using the adjusting screw.
4. Once the adjustment has been made, replace the seals on the by-passes using sealing wax or a similar substance.
   ! If the appliance is connected to liquid gas, the regulation screw must be fastened as tightly as possible.
   ! Once this procedure is finished, replace the old rating sticker with one indicating the new type of gas used. Stickers are available from any of our Service Centres.
   ! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

Burner and nozzle specifications

Table 1 Liquid gas Natural gas
Burner Diameter		(mm)	Thermal power kW (p.c.s.*) Red. N	Thermal power kW (p.c.s.*) Nom. (mm)	By-pass 1/100 (mm) *** ** Nom. (mm)	Nozzle 1/100	Flow* g/h		Thermal power kW (p.c.s.*)	Nozzler 1/100	Flow* l/h	Nozzler 1/100	Flow* l/h
Fast (Large) (R)		100	0,70	3,00	39	86	218	214	3,00	116	286	143	286
Reduced Fast (RR)		100	0,70	2,60	39	80	189	186	2,60	110	248	135	248
Ultra Fast (UR)		100	0,70	3,40	39	91	247	243	3,40	123	324	135	248
Semi Fast (Medium) (S)		75	0,40	1,65	28	64	120	118	1,65	96	157	105	157
Auxiliary (Small) (A)		55	0,40	1,00	28	50	74	71	1,00	79	95	80	95
Mini WOK (MW)		110	1,30	3,50	57	91	254	250	3,50	138	343	155	333
Mini DUAL	MD internal	40	0,20	0,60	23	37	44	43	0,70	66	67	76	86
	MD external	108	1,30	4,00	54	93	291	286	4,00	135	381	124	438
Supply pressures		Nominal (mbar) Minimum (mbar) Maximum (mbar)					28-30 20 35	37 25 45		20 17 25		13 6,5 18

At 15°C and 1013 mbar - dry gas
Propane P.C.S. = 50.37 MJ/Kg
Butane P.C.S. = 49.47 MJ/Kg
Natural P.C.S. = 37.78 MJ/m ^3

RR MD A S S

TV 751 GH

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Overall view

GB

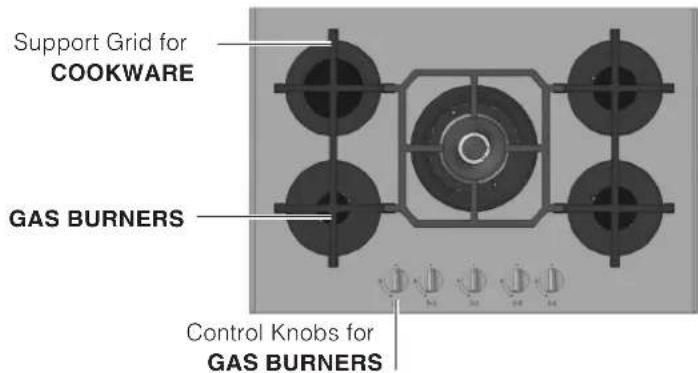

ELECTRIC HOTPLATE* GAS BURNERS Support Grid for COOKWARE Indicator Light for ELECTRIC HOTPLATE* Control Knobs for GAS BURNERS and ELECTRIC HOTPLATE*

Support Grid for COOKWARE GAS BURNERS Control Knobs for GAS BURNERS

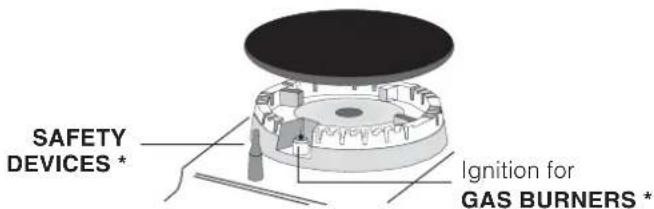

SAFETY DEVICES * Ignition for GAS BURNERS *

• The INDICATOR LIGHT FOR ELECTRIC HOTPLATES / COOKTOP BROILER / CERAMIC GLASS MODULE * switches on whenever the selector knob is moved from the 'off' position.
• GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.

• Control Knobs for GAS BURNERS and ELECTRIC HOTPLATES * adjust the power or the size of the flame.
  * Only available on certain models.

• GAS BURNER ignition * enables a specific burner to be lit automatically.

• SAFETY DEVICE * stops the gas flow if the flame is accidentally extinguished.

Start-up and use

! The position of the corresponding gas burner or electric hotplate* is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

- Off

Maximum

Minimum

To light one of the burners, hold a lit match or lighter near the burner and, at the same time, press down and turn the corresponding knob anti-clockwise to the maximum setting.

Since the burner is fitted with a safety device, the knob should be pressed for approximately 2-3 seconds to allow the automatic device keeping the flame alight to heat up.

When using models with an ignition button, light the desired burner pressing down the corresponding knob as far as possible and turning it anticlockwise towards the maximum setting.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the “●” position).

The Mini DUAL burner\*

This gas burner consists of two concentric flame rings. Using both flame rings enables a higher power level to be reached, thus reducing cooking time with respect to the time required by traditional burners. The double ring also enables heat to be distributed across the base of the pan more evenly. Cookware of all sizes may be used; when cooking with small recipients use only the inner burner. The burner is controlled with a single knob.

To light it, press the knob in fully and turn it in an anticlockwise direction until it reaches the maximum

position ⚙️ ⚡️. The burner is equipped with an electronic lighting system that is activated automatically when the knob is pressed.

As the burner is fitted with a safety device, the knob should be held down for approximately 2-3 seconds, until the automatic device keeping the flame alight has heated up.

* Only available on certain models.

Each burner can be adjusted using the control knob as follows:

- Off

On and inner ring set to maximum

Inner ring set to minimum

Both rings set to maximum

Both rings set to minimum

To switch off the burner, turn the knob in a clockwise direction until it stops (when it reaches the “•” position).

Practical advice on using the burners

For best performance, follow these general guidelines:

• Use the appropriate cookware for each burner (see table) in order to prevent the flame from reaching the sides of the pot or pan;
• Alwasy use cookware with a flat bottom and keep the lid on;
• When the contents of the pan reach boiling point, turn the knob to minimum.

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

Bruciatore ø Diametro Recipienti(cm)
Ultra Rapid (UR) 24 – 26
Reduced Rapid (RR) 22 – 24
Rapid (R) 24 – 26
Semi-Rapid (S) 16 – 20
Auxilliary (A) 10 – 14
Mini Dual (MD internal)	12 – 16
Mini Dual (MD external)	24 – 26

Two crossed metal objects: a rectangular container and a circular filter, both without any text or symbols.

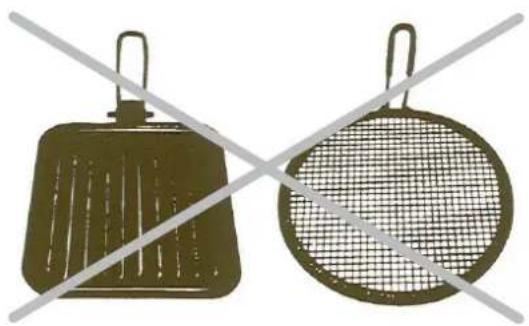

! Do not use stainless steel flame spreaders, bread toasters or meat grills over gas flames.

Practical Advice on Using the Electric Hot Plates \*

In order to avoid heat loss and damage to the hot plate, use cookware with a flat bottom the diameter of which is not less than that of the hot plate.

Setting	Normal or Fast Plate
0	Off
1	Cooking vegetables, fish
2	Cooking potatoes (using steam) soups, chickpeas, beans.
3	Continuing the cooking of large quantities of food, minestrone
4	For roasting (average)
5	For roasting (above average)
6	For browning and reaching a boil in a short time.

Before using the hot plates for the first time, you should heat them at maximum temperature for approximately 4 minutes, without any pans. During this initial stage, their protective coating hardens and reaches its maximum resistance.

DATA PLATE
Electrical connections	voltage of 220-240V ~ 50/60Hz maximum power absorbed (see data plate)
	This appliance conforms to the following European Economic Community directives:-2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments- 2004/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 90/396/EEC dated 29/06/90 (Gas) and subsequent amendments.- 2002/96/EC and subsequent amendments.

* Only available on certain models.

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
- Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on "Positioning" the appliance.
- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or damp hands and feet.
- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
- Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.
- The openings used for ventilation and dispersion of heat must never be covered.
- Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
- When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
- Never carry out any cleaning or maintenance work without having detached the plug from the mains.
- In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
- Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.

• Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.
• Do not leave the electric hotplate switched on without a pan placed on it.
• Do not use unstable or deformed pans.
• Remove any liquid from the lid before opening it.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.
  All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.
! Never use steam cleaners or pressure cleaners on the appliance.
- It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
- The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
- For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
- Before using the ceramic glass module, the surface must be cleaned, using a damp cloth to remove dust or food residues. The ceramic glass surface should be cleaned regularly with a solution of warm water and a non-abrasive detergent. Periodically, special products will need

to be used to clean the surface. First, remove all food buildup or grease with a cleaning scraper, e.g.

CERA (not supplied. Clean the cooking surface when it is still warm with a

suitable cleaning product (such as the one in the Solutions product line available from any After-Sales Service Centre) and paper towels. Then rub

Illustration of a hand using a paintbrush to brush the paint onto a surface (no text or symbols)

with a damp cloth and dry. Aluminum foil, plastic items, objects made of synthetic material, sugar or foods with a high sugar content that have melted onto the surface must be removed immediately with a scraper while the cooking surface is still hot. Special cleaning products for ceramic glass surfaces form a transparent protective layer which fights dirty buildup. This

also protects the surface from damage caused by food with a high sugar content. Do not use abrasive sponges or cleaning products under any circumstances. This holds true for chemically aggressive cleaners, like oven sprays and

Illustration of three metallic containers crossed out by a black X-shaped line (no text or symbols)

Gas tap maintenance

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

Problem

The burner does not light or the flame is not even around the burner.

The flame dies in models with a safety device.

The burner does not remain lit when set to minimum.

The cookware is unstable.

Possible causes/Solution

• The gas holes on the burner are clogged.
• All the movable parts that make up the burner are mounted correctly.

• There are draughts near the appliance.

• You pressed the knob all the way in.

• You keep the knob pressed in long enough to activate the safety device.
• The gas holes are not blocked in the area corresponding to the safety device.

• The gas holes are not blocked.
- There are no draughts near the appliance.
- The minimum setting has been adjusted properly.

• The bottom of the cookware is perfectly flat.
• The cookware is positioned correctly at the centre of the burner.
• The pan support grids have been positioned correctly

If, despite all these checks, the hob does not function properly and the problem persists, call the nearest Customer Service Centre. Please have the following information handy:

• The appliance model (Mod.).
• The serial number (S/N).
This information can be found on the data plate located on the appliance and/or on the packaging.

! Never use unauthorised technicians and never accept replacement parts which are not original.

Italiano, 1

English, 12

Français, 23

Nederlands, 36

TV 631 GH

TV 631 E GH

TV 640 GH

TV 641 GH

TV 750 GH

TV 751 GH

Sommaire

Installation, 24-29

Positionnement

Abstract black-and-white circular pattern with radial symmetry (no text or symbols)

Scholtès

Local adjacent Local à ventiler

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Cross-sectional diagram of a mechanical joint or seal assembly (no text or labels)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical or electrical component without any text, numbers, or symbols

Devant

Pure technical line drawing of a structural frame with no text, numbers, or symbols

560 mm. 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Circular mechanical component with central hub and four side ports (no visible text or symbols)

Close-up of a circular mechanical component with internal features and mounting holes (no visible text or symbols)

Mechanical component diagram showing a circular housing with labeled points A and B (no text or symbols beyond labels)

Two mechanical mounting base configurations with cylindrical components and mounting holes (no text or symbols)

MW S A ... ... ...

TV 631 GH TV 641 GH

Ø 145 R S A .......

TV 631 E GH

S R S A .......

TV 640 GH

S MW S A ... ... ... ...

RR UR A S S .............

TV 750 GH

RR MD A S S

TV 751 GH

Two crossed-out kitchen utensils: a flat plate and a mesh grater (no text or symbols)

Illustration of three metallic cylindrical objects crossed by a black X symbol, with a grid base and book nearby (no text or symbols)

Illustration of a hand using a tool to brush or brush over scattered debris (no text or symbols)

Causes / Solutions possibles

Abstract black-and-white circular pattern with radial symmetry (no text or symbols)

Scholtès

Pure mechanical cross-section diagram without any text, numbers, or symbols

Cross-sectional diagram of a mechanical assembly with hatched and solid layers (no text or labels)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical line drawing of a mechanical or electronic component with no visible text, numbers, or symbols.

Voor

Pure technical line drawing of a structural joint or bracket (no text or symbols)

560 mm 45 mm.

Pure mechanical part diagram without any text, numbers, or symbols

Top-down view of a circular mechanical component with internal features and mounting holes (no text or symbols visible)

Circular mechanical component with internal components and mounting holes (no visible text or symbols)

Mechanical component diagram showing a circular housing with labeled points A and B (no text or symbols beyond labels)

Technical illustration of two mechanical assembly steps with no visible text or symbols

MW S A ... ... ...

TV 631 GH TV 641 GH

Ø 145 R S A .......

TV 631 E GH

S R S A .......

TV 640 GH

S MW S A ... ... ... ...

RR UR S A S .......

TV 750 GH

RR MD A S S

TV 751 GH

Two crossed-out kitchen utensils: a large container and a circular filter, both without any text or symbols.

Illustration of a hand using a paintbrush to brush the paint onto a surface (no text or symbols)

Illustration of three metallic containers crossed out by a black X-shaped line (no text or symbols)
