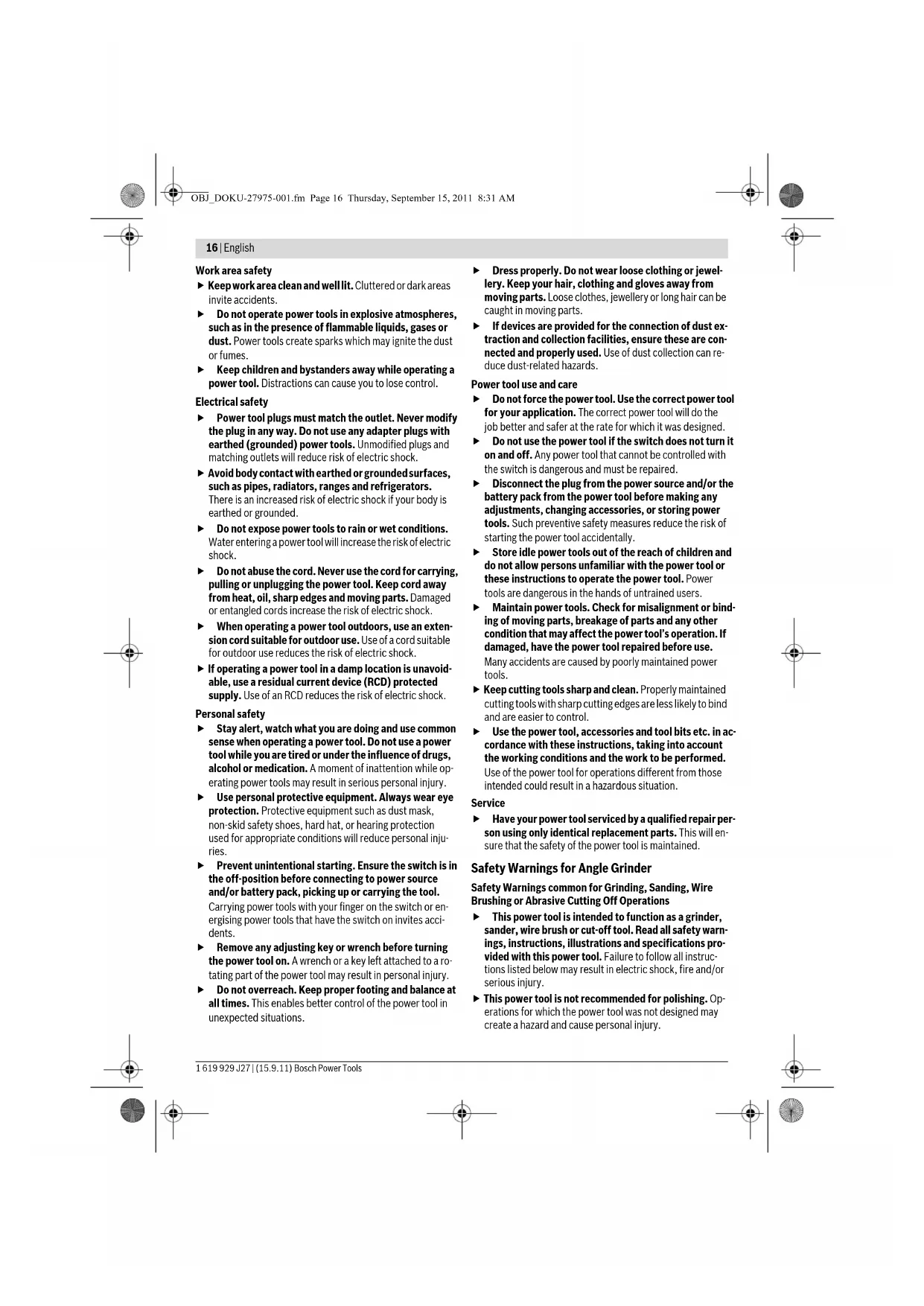

General Power Tool Safety Warnings

Read all safety warnings and all in-

structions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or seri-

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-

operated (corded) power tool or battery-operated (cordless)

WARNING OBJ_DOKU-27975-001.fm Page 15 Thursday, September 15, 2011 8:31 AM16 | English

1 619 929 J27 | (15.9.11) Bosch Power Tools

f Keep work area clean and well lit. Cluttered or dark areas

f Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases or

dust. Power tools create sparks which may ignite the dust

f Keep children and bystanders away while operating a

power tool. Distractions can cause you to lose control.

f Power tool plugs must match the outlet. Never modify

the plug in any way. Do not use any adapter plugs with

earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

f Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.

f Do not expose power tools to rain or wet conditions.

Water entering a power tool will increase the risk of electric

f Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the power tool. Keep cord away

from heat, oil, sharp edges and moving parts. Damaged

or entangled cords increase the risk of electric shock.

f When operating a power tool outdoors, use an exten-

sion cord suitable for outdoor use. Use of a cord suitable

for outdoor use reduces the risk of electric shock.

f If operating a power tool in a damp location is unavoid-

able, use a residual current device (RCD) protected

supply. Use of an RCD reduces the risk of electric shock.

f Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs,

alcohol or medication. A moment of inattention while op-

erating power tools may result in serious personal injury.

f Use personal protective equipment. Always wear eye

protection. Protective equipment such as dust mask,

non-skid safety shoes, hard hat, or hearing protection

used for appropriate conditions will reduce personal inju-

f Prevent unintentional starting. Ensure the switch is in

the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or en-

ergising power tools that have the switch on invites acci-

f Remove any adjusting key or wrench before turning

the power tool on. A wrench or a key left attached to a ro-

tating part of the power tool may result in personal injury.

f Do not overreach. Keep proper footing and balance at

all times. This enables better control of the power tool in

unexpected situations.

f Dress properly. Do not wear loose clothing or jewel-

lery. Keep your hair, clothing and gloves away from

moving parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

f If devices are provided for the connection of dust ex-

traction and collection facilities, ensure these are con-

nected and properly used. Use of dust collection can re-

duce dust-related hazards.

Power tool use and care

f Do not force the power tool. Use the correct power tool

for your application. The correct power tool will do the

job better and safer at the rate for which it was designed.

f Do not use the power tool if the switch does not turn it

on and off. Any power tool that cannot be controlled with

the switch is dangerous and must be repaired.

f Disconnect the plug from the power source and/or the

battery pack from the power tool before making any

adjustments, changing accessories, or storing power

tools. Such preventive safety measures reduce the risk of

starting the power tool accidentally.

f Store idle power tools out of the reach of children and

do not allow persons unfamiliar with the power tool or

these instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

f Maintain power tools. Check for misalignment or bind-

ing of moving parts, breakage of parts and any other

condition that may affect the power tool’s operation. If

damaged, have the power tool repaired before use.

Many accidents are caused by poorly maintained power

f Keep cutting tools sharp and clean. Properly maintained

cutting tools with sharp cutting edges are less likely to bind

and are easier to control.

f Use the power tool, accessories and tool bits etc. in ac-

cordance with these instructions, taking into account

the working conditions and the work to be performed.

Use of the power tool for operations different from those

intended could result in a hazardous situation.

f Have your power tool serviced by a qualified repair per-

son using only identical replacement parts. This will en-

sure that the safety of the power tool is maintained.

Safety Warnings for Angle Grinder

Safety Warnings common for Grinding, Sanding, Wire

Brushing or Abrasive Cutting Off Operations

f This power tool is intended to function as a grinder,

sander, wire brush or cut-off tool. Read all safety warn-

ings, instructions, illustrations and specifications pro-

vided with this power tool. Failure to follow all instruc-

tions listed below may result in electric shock, fire and/or

f This power tool is not recommended for polishing. Op-

erations for which the power tool was not designed may

create a hazard and cause personal injury.

OBJ_DOKU-27975-001.fm Page 16 Thursday, September 15, 2011 8:31 AMEnglish | 17

Bosch Power Tools 1 619 929 J27 | (15.9.11)

f Do not use accessories which are not specifically de-

signed and recommended by the tool manufacturer.

Just because the accessory can be attached to your power

tool, it does not assure safe operation.

f The rated speed of the accessory must be at least equal

to the maximum speed marked on the power tool. Ac-

cessories running faster than their rated speed can break

f The outside diameter and the thickness of your acces-

sory must be within the capacity rating of your power

tool. Incorrectly sized accessories cannot be adequately

guarded or controlled.

f The arbor size of wheels, flanges, backing pads or any

other accessory must properly fit the spindle of the

power tool. Accessories with arbor holes that do not

match the mounting hardware of the power tool will run out

of balance, vibrate excessively and may cause loss of con-

f Do not use a damaged accessory. Before each use in-

spect the accessory such as abrasive wheels for chips

and cracks, backing pad for cracks, tear or excess

wear, wire brush for loose or cracked wires. If power

tool or accessory is dropped, inspect for damage or in-

stall an undamaged accessory. After inspecting and in-

stalling an accessory, position yourself and bystanders

away from the plane of the rotating accessory and run

the power tool at maximum no-load speed for one

minute. Damaged accessories will normally break apart

during this test time.

f Wear personal protective equipment. Depending on

application, use face shield, safety goggles or safety

glasses. As appropriate, wear dust mask, hearing pro-

tectors, gloves and workshop apron capable of stop-

ping small abrasive or workpiece fragments. The eye

protection must be capable of stopping flying debris gen-

erated by various operations. The dust mask or respirator

must be capable of filtrating particles generated by your

operation. Prolonged exposure to high intensity noise may

f Keep bystanders a safe distance away from work area.

Anyone entering the work area must wear personal

protective equipment. Fragments of workpiece or of a

broken accessory may fly away and cause injury beyond

immediate area of operation.

f Hold the power tool by insulated gripping surfaces on-

ly, when performing an operation where the cutting ac-

cessory may contact hidden wiring or its own cord. Cut-

ting accessory contacting a “live” wire may make exposed

metal parts of the power tool “live” and could give the op-

erator an electric shock.

f Position the cord clear of the spinning accessory. If you

lose control of the power tool, the cord may be cut or

snagged and your hand or arm may be pulled into the spin-

f Never lay the power tool down until the accessory has

come to a complete stop. The spinning accessory may

grab the surface and pull the power tool out of your control.

f Do not run the power tool while carrying it at your side.

Accidental contact with the spinning accessory could snag

your clothing, pulling the accessory into your body.

f Regularly clean the power tool’s air vents. The motor’s

fan will draw the dust inside the housing and excessive ac-

cumulation of powdered metal may cause electrical haz-

f Do not operate the power tool near flammable materi-

als. Sparks could ignite these materials.

f Do not use accessories that require liquid coolants. Us-

ing water or other liquid coolants may result in electrocu-

Kickback and related warnings

f Kickback is a sudden reaction to a pinched or snagged ro-

tating wheel, backing pad, brush or any other accessory.

Pinching or snagging causes rapid stalling of the rotating

accessory which in turn causes the uncontrolled power

tool to be forced in the direction opposite of the accesso-

ry’s rotation at the point of the binding.

For example, if an abrasive wheel is snagged or pinched by

the workpiece, the edge of the wheel that is entering into

the pinch point can dig into the surface of the material

causing the wheel to climb out or kick out. The wheel may

either jump toward or away from the operator, depending

on direction of the wheel’s movement at the point of pinch-

ing. Abrasive wheels may also break under these condi-

Kickback is the result of power tool misuse and/or incor-

rect operating procedures or conditions and can be avoid-

ed by taking proper precautions as given below.

Maintain a firm grip on the power tool and position your

body and arm to allow you to resist kickback forces. Al-

ways use auxiliary handle, if provided, for maximum

control over kickback or torque reaction during

start-up. The operator can control torque reactions or

kickback forces, if proper precautions are taken.

f Never place your hand near the rotating accessory. Ac-

cessory may kickback over your hand.

f Do not position your body in the area where power tool

will move if kickback occurs. Kickback will propel the

tool in direction opposite to the wheel’s movement at the

f Use special care when working corners, sharp edges,

etc. Avoid bouncing and snagging the accessory. Cor-

ners, sharp edges or bouncing have a tendency to snag the

rotating accessory and cause loss of control or kickback.

f Do not attach a saw chain woodcarving blade or

toothed saw blade. Such blades create frequent kickback

and loss of control over the power tool.

Safety warnings specific for Grinding and Abrasive Cut-

f Use only wheel types that are recommended for your

power tool and the specific guard designed for the se-

lected wheel. Wheels for which the power tool was not de-

signed cannot be adequately guarded and are unsafe.

OBJ_DOKU-27975-001.fm Page 17 Thursday, September 15, 2011 8:31 AM18 | English

1 619 929 J27 | (15.9.11) Bosch Power Tools

f The guard must be securely attached to the power tool

and positioned for maximum safety, so the least

amount of wheel is exposed towards the operator. The

guard helps to protect operator from broken wheel frag-

ments, accidental contact with wheel and sparks that

could ignite clothing.

f Wheels must be used only for recommended applica-

tions. For example: do not grind with the side of the

cut-off wheel. Abrasive cut-off wheels are intended for

peripheral grinding; side forces applied to these wheels

may cause them to shatter.

f Always use undamaged wheel flanges that are of cor-

rect size and shape for your selected wheel. Proper

wheel flanges support the wheel thus reducing the possi-

bility of wheel breakage. Flanges for cut-off wheels may be

different from grinding wheel flanges.

f Do not use worn down wheels from larger power tools.

Wheels intended for larger power tools are not suitable for

the higher speed of a smaller tool and may burst.

Additional safety warnings specific for abrasive cutting

f Do not “jam” the cut-off wheel or apply excessive pres-

sure. Do not attempt to make an excessive depth of cut.

Overstressing the wheel increases the loading and suscep-

tibility to twisting or binding of the wheel in the cut and the

possibility of kickback or wheel breakage.

f Do not position your body in line with and behind the

rotating wheel. When the wheel, at the point of operation,

is moving away from your body, the possible kickback may

propel the spinning wheel and the power tool directly at

f When wheel is binding or when interrupting a cut for

any reason, switch off the power tool and hold the pow-

er tool motionless until the wheel comes to a complete

stop. Never attempt to remove the cut-off wheel from

the cut while the wheel is in motion otherwise kickback

may occur. Investigate and take corrective action to elimi-

nate the cause of wheel binding.

f Do not restart the cutting operation in the workpiece.

Let the wheel reach full speed and carefully re-enter

the cut. The wheel may bind, walk up or kickback if the

power tool is restarted in the workpiece.

f Support panels or any oversized workpiece to minimize

the risk of wheel pinching and kickback. Large work-

pieces tend to sag under their own weight. Supports must

be placed under the workpiece near the line of cut and near

the edge of the workpiece on both sides of the wheel.

f Use extra caution when making a “pocket cut” into ex-

isting walls or other blind areas. The protruding wheel

may cut gas or water pipes, electrical wiring or objects that

Safety warnings specific for sanding operations

f Do not use excessively oversized sanding disc paper.

Follow manufacturers recommendations, when select-

ing sanding paper. Larger sanding paper extending be-

yond the sanding pad presents a laceration hazard and

may cause snagging, tearing of the disc, or kickback.

Safety warnings specific for wire brushing operations

f Be aware that wire bristles are thrown by the brush

even during ordinary operation. Do not overstress the

wires by applying excessive load to the brush. The wire

bristles can easily penetrate light clothing and/or skin.

f If the use of a guard is recommended for wire brushing,

do not allow any interference of the wire wheel or

brush with the guard. Wire wheel or brush may expand in

diameter due to work load and centrifugal forces.

Additional safety warnings

Wear safety goggles.

f Use suitable detectors to determine if utility lines are

hidden in the work area or call the local utility company

for assistance. Contact with electric lines can lead to fire

and electric shock. Damaging a gas line can lead to explo-

sion. Penetrating a water line causes property damage or

may cause an electric shock.

Release the On/Off switch and set it to the off position

when the power supply is interrupted, e. g., in case of a

power failure or when the mains plug is pulled. This pre-

vents uncontrolled restarting.

f Secure the workpiece. A workpiece clamped with clamp-

ing devices or in a vice is held more secure than by hand.

Products sold in GB only: Your product is fitted with an

BS 1363/A approved electric plug with internal fuse (ASTA

approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be

cut off and an appropriate plug fitted in its place by an author-

ised customer service agent. The replacement plug should

have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible

shock hazard and should never be inserted into a mains sock-

Products sold in AUS and NZ only: Use a residual current de-

vice (RCD) with a rated residual current of 30 mA or less.

Product Description and Specifica-

Read all safety warnings and all instruc-

tions. Failure to follow the warnings and in-

structions may result in electric shock, fire

and/or serious injury.

While reading the operating instructions, unfold the graphics

page for the machine and leave it open.

The machine is intended for cutting, roughing and brushing of

metal and stone materials without the use of water.

For cutting with bonded abrasives, a special cutting guide (ac-

cessory) must be used.

OBJ_DOKU-27975-001.fm Page 18 Thursday, September 15, 2011 8:31 AMEnglish | 19

Bosch Power Tools 1 619 929 J27 | (15.9.11)

When cutting in stone, provide for sufficient dust extraction.

With approved sanding tools, the machine can be used for

sanding with sanding discs.

The numbering of the product features refers to the illustra-

4 Auxiliary handle (insulated gripping surface)

6 Protection guard for grinding

8 Clamping lever for protection guard

9 Screw for adjustment of protection guard

10 Mounting flange with O-ring

15 Protection guard for cutting*

23 Cutting guide with dust extraction protection guard *

24 Diamond cutting disc*

25 Handle (insulated gripping surface)

*Accessories shown or described are not part of the standard de-

livery scope of the product. A complete overview of accessories

can be found in our accessories program.

Noise/Vibration Information

Measured sound values determined according to EN 60745.

Typically the A-weighted noise levels of the product are: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncer-

M 14 M 14 M 14 M 14 M 14 M 14

Reduced starting current

Weight according to EPTA-Procedure

01/2003 kg 6.5 6.5 6.6 6.2 6.4 6.4

/II /II /II /II /II /II The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.

Only for power tools without reduced starting current: Starting cycles generate brief voltage drops. Interference with other equipment/machines may

occur in case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.25 ohm.

OBJ_DOKU-27975-001.fm Page 19 Thursday, September 15, 2011 8:31 AM20 | English

1 619 929 J27 | (15.9.11) Bosch Power Tools

The vibration emission level given in this information sheet

has been measured in accordance with a standardised test

given in EN 60745 and may be used to compare one tool with

another. It may be used for a preliminary assessment of expo-

The declared vibration emission level represents the main ap-

plications of the tool. However if the tool is used for different

applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly in-

crease the exposure level over the total working period.

An estimation of the level of exposure to vibration should also

take into account the times when the tool is switched off or

when it is running but not actually doing the job. This may sig-

nificantly reduce the exposure level over the total working pe-

Identify additional safety measures to protect the operator

from the effects of vibration such as: maintain the tool and the

accessories, keep hands warm, organise work patterns.

Declaration of Conformity

We declare under our sole responsibility that the product de-

scribed under “Technical Data” is in conformity with the fol-

lowing standards or standardization documents: EN 60745

according to the provisions of the directives 2011/65/EU,

2004/108/EC, 2006/42/EC.

Mounting the Protective Devices

f Before any work on the machine itself, pull the mains

Note: After breakage of the grinding disc during operation or

damage to the holding fixtures on the protection guard/power

tool, the machine must promptly be sent to an after-sales

service agent for maintenance (for addresses, see section

„After-sales Service and Customer Assistance“.

Protection Guard for Grinding

Release the clamping lever 8. Place the protection guard 6

with the encoding key 7 engaging into the groove on the spin-

dle collar until the shoulder of the protection guard is seated

against the flange of the power tool, and turn the protection

guard 6 to the requested position. Lock the clamping lever 8.

f Adjust the protection guard 6 in such a manner that

sparking is prevented in the direction of the operator.

The tightening tension of the clamp from the protection guard

6 can be changed by loosening or tightening the adjustment

screw 9. Ensure that the protection guard 6 is tightly seated

and check regularly.

Note: The encoding keys on the protection guard 6 ensure

that only a protection guard that fits the machine type can be

Protection Guard for Cutting

f For cutting with bonded abrasives, always use the pro-

tection guard for cutting 15.

f Provide for sufficient dust extraction when cutting

The protection guard for cutting 15 is mounted in the same

manner as the protection guard for grinding 6.

Cutting Guide with Dust Extraction Protection Guard

The cutting guide with dust extraction protection guard 23 is

mounted in the same manner as the protection guard for

f Operate your machine only with the auxiliary handle 4.

Screw the auxiliary handle 4 on the right or left of the machine

head depending on the working method.

Vibration Damper (GWS 26-180 JBV/

GWS 26-230 BV/GWS 26-230 JBV)

The integrated vibration damper reduces occurring vibra-

(triax vector sum) and uncertainty K determined accord-

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_DOKU-27975-001.fm Page 20 Thursday, September 15, 2011 8:31 AMEnglish | 21

Bosch Power Tools 1 619 929 J27 | (20.9.11)

f Do not continue to use the power tool when the damp-

ing element is damaged.

f For operations with the rubber sanding plate 19 or with

the cup brush/wheel brush/flap disc, always mount the

The hand guard 17 is fastened with the auxiliary handle 4.

Mounting the Grinding Tools

f Before any work on the machine itself, pull the mains

f Grinding and cutting discs become very hot while

working; do not touch until they have cooled.

Note for GWS 24-230 VX/GWS 24-230 JVX: It is recom-

mended to use the quick-clamping nut 13. When using clamp-

ing nut 12, an increased expenditure of force must be taken

into account when loosening the clamping nut.

Clean the grinder spindle 5 and all parts to be mounted.

For clamping and loosening the grinding tools, lock the grind-

er spindle with the spindle lock button 1.

f Actuate the spindle lock button only when the grinder

spindle is at a standstill. Otherwise, the machine may be-

With the quick-clamping nut 13, grinding tools can be mount-

ed without additional tools.

f Use only a flawless, undamaged quick-clamping nut 13.

When screwing on, pay attention that the side of the

quick-clamping nut 13 with printing does not face the

grinding disc; the arrow must point to the index mark 26.

Lock the grinder spindle with

the spindle lock button 1. To

tighten the quick-clamping

nut, firmly turn the grinding

disc in clockwise direction.

A properly attached, undam-

aged quick-clamping nut can

be loosened by hand when

turning the knurled ring in an-

ticlockwise direction.

Never loosen a tight quick-

clamping nut with pliers. Al-

ways use the two-pin span-

ner. Insert the two-pin span-

Grinding/Cutting Disc

Pay attention to the dimensions of the grinding tools. The

mounting hole diameter must fit the mounting flange without

play. Do not use reducers or adapters.

When using diamond cutting discs, pay attention that the di-

rection-of-rotation arrow on the diamond cutting disc and the

direction of rotation of the machine (see direction-of-rotation

arrow on the machine head) agree.

See graphics page for the mounting sequence.

To fasten the grinding/cutting disc, screw on the clamping nut

12 and tighten with the two-pin spanner; see Section “Quick-

f After mounting the grinding tool and before switching

on, check that the grinding tool is correctly mounted

and that it can turn freely. Make sure that the grinding

tool does not graze against the protection guard or oth-

A plastic part (O-ring) is fitted around

the centring collar of mounting flange

10. If the O-ring is missing or dam-

aged, the mounting flange 10 must be

replaced before resuming operation.

f For operations with the flap disc, always mount the

Rubber Sanding Plate

f For operations with the rubber sanding plate 19, al-

ways mount the hand guard 17.

See graphics page for the mounting sequence.

3 601 H55.../3 601 H56...: Before mounting the rubber

sanding plate 19, put the 2 spacer discs 18

Screw on the round nut 21 and tighten with the two-pin span-

Note for GWS 24-230 VX/GWS 24-230 JVX: When loosen-

ing the round nut 21, an increased expenditure of force must

be taken into account.

Cup Brush/Disc Brush

f For operations with the cup brush/wheel brush, always

mount the hand guard 17.

See graphics page for the mounting sequence.

The cup brush/disc brush must be able to be screwed onto

the grinder spindle until it rests firmly against the grinder

spindle flange at the end of the grinder spindle threads. Tight-

en the cup brush/disc brush with an open-end spanner.

Note for GWS 24-230 VX/GWS 24-230 JVX: When loosen-

ing the grinding tool, an increased expenditure of force must

be taken into account.

OBJ_DOKU-27975-001.fm Page 21 Tuesday, September 20, 2011 1:35 PM22 | English 1 619 929 J27 | (15.9.11) Bosch Power Tools Approved Grinding Tools

All grinding tools mentioned in these operating instructions

The permissible speed [min

] or the circumferential speed

[m/s] of the grinding tools used must at least match the values

Therefore, observe the permissible rotational/circumferen-

tial speed on the label of the grinding tool.

Rotating the Main Handle

f Before any work on the machine itself, pull the mains

The main handle 27 can be rotated with respect to the ma-

chine housing toward the left or right in steps of 90°. In this

manner, the On/Off switch can be brought into a more con-

venient position for special working situations, e.g., for cut-

ting operations using the cutting guide with dust extraction

protection guard 23 or for left-handed persons.

Press the handle unlocking button 28 in the direction of the

arrow and at the same time turn the main handle 27 to the re-

quested position until it latches.

Dust/Chip Extraction

f Dusts from materials such as lead-containing coatings,

some wood types, minerals and metal can be harmful to

one’s health. Touching or breathing-in the dusts can cause

allergic reactions and/or lead to respiratory infections of

the user or bystanders.

Certain dusts, such as oak or beech dust, are considered

as carcinogenic, especially in connection with wood-treat-

ment additives (chromate, wood preservative). Materials

containing asbestos may only be worked by specialists.

– As far as possible, use a dust extraction system suita-

ble for the material.

– Provide for good ventilation of the working place.

– It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the

materials to be worked.

f Prevent dust accumulation at the workplace. Dusts can

f Observe correct mains voltage! The voltage of the pow-

er source must agree with the voltage specified on the

nameplate of the machine. Power tools marked with

230 V can also be operated with 220 V.

When operating the machine with power from mobile genera-

tors that do not have sufficient reserve capacity or are not

equipped with suitable voltage control with starting current

amplification, loss of performance or untypical behavior can

occur upon switching on.

Please observe the suitability of the power generator being

used, particularly with regard to the mains voltage and fre-

Switching On and Off

To start the power tool, press the On/Off switch 3 forward

To lock-on the pressed On/Off switch 3, push the On/Off

switch 3 further forward.

To switch off the power tool, release the On/Off switch 3, or

when it is locked, briefly press the On/Off switch 3 and then

Switch Version without Lock-on

To start the power tool, press the On/Off switch 3 forward

To switch off the machine, release the On/Off switch 3.

f Check grinding tools before using. The grinding tool

must be mounted properly and be able to move freely.

Carry out a test run for at least one minute with no load.

Do not use damaged, out-of-centre or vibrating grind-

ing tools. Damaged grinding tools can burst and cause in-

Run-on Brake (GWS 24-230 VX/GWS 24-230 JVX)

The power tool is equipped with the Bosch

When switching off or when the power sup-

ply is interrupted, the machine comes to a

complete stop within a few seconds. This

means a reduction of the run-on time of approx. 70 % when

compared with angle grinders without run-on brake, which al-

lows for the power tool to be placed down sooner.

27 OBJ_DOKU-27975-001.fm Page 22 Thursday, September 15, 2011 8:31 AMEnglish | 23

Bosch Power Tools 1 619 929 J27 | (15.9.11)

Note: When the braking effect decreases noticeably, the run-

on brake has failed. The power tool should be sent immediate-

ly to an after-sales service (for addresses, see section “After-

sales Service and Customer Assistance”.

Restarting Protection

(3601H64U../3601H55U../3601H56U..)

The restarting protection feature prevents uncontrolled re-

starting of the machine after an interruption in the power sup-

To restart the operation, switch the On/Off switch 3 to the

Off position and start the machine again.

Reduced starting current (GWS 24-230 JVX/

GWS 26-180 JBV/GWS 26-230 JBV)

The electronic reduced starting current limits the power con-

sumption when switching the tool on and enables operation

from a 13 ampere fuse.

Note: When the machine runs at full speed immediately after

switching on, the reduced starting current and the restarting

protection have failed. The power tool should be sent imme-

diately to an after-sales service (for addresses, see section

“After-sales Service and Customer Assistance”.

f Exercise caution when cutting slots in structural walls;

see Section “Information on Structures ”.

f Clamp the workpiece if it does not remain stationary

due to its own weight.

f Do not strain the machine so heavily that it comes to a

f After heavily straining the power tool, continue to run

it at no-load for several minutes to cool down the acces-

f Grinding and cutting discs become very hot while

working; do not touch until they have cooled.

f Do not use the power tool with a cut-off stand.

Note: When not using for extended periods, pull the mains

plug out of the socket outlet. When the mains plug is inserted

and mains voltage is given, the power tool, even when

switched off, still consumes a low amount of current.

f Never use a cutting disc for roughing.

The best roughing results are achieved when setting the ma-

chine at an angle of 30° to 40°. Move the machine back and

forth with moderate pressure. In this manner, the workpiece

will not become too hot, does not discolour and no grooves

With the flap disc (accessory), curved surfaces and profiles

Flap discs have a considerably higher service life, lower noise

levels and lower sanding temperatures than conventional

f For cutting with bonded abrasives, always use the pro-

tection guard for cutting 15.

When cutting, work with moderate feed, adapted to the mate-

rial being cut. Do not exert pressure onto the cutting disc, tilt

or oscillate the machine.

Do not reduce the speed of running down cutting discs by ap-

plying sideward pressure.

The machine must al-

grinding motion. Other-

wise, the danger exists

of it being pushed un-

controlled out of the

When cutting profiles and square bar, it is best to start at the

smallest cross section.

f Provide for sufficient dust extraction when cutting

f Wear a dust respirator.

f The machine may be used only for dry cutting/grinding.

For cutting stone, it is best to use a diamond cutting disc.

When using the cutting guide with dust extraction protection

guard 23, the vacuum cleaner must be approved for vacuum-

ing masonry dust. Suitable vacuum cleaners are available

Switch on the machine

and place the front part

of the cutting guide on

the workpiece. Slide the

machine with moderate

feed, adapted to the ma-

terial to be worked.

For cutting expecially hard material, e. g., concrete with high

pebble content, the diamond cutting disc can overheat and

become damaged as a result. This is clearly indicated by cir-

cular sparking, rotating with the diamond cutting disc.

In this case, interrupt the cutting process and allow the dia-

mond cutting disc to cool by running the machine for a short

time at maximum speed with no load.

Noticeable decreasing work progress and circular sparking

are indications of a diamond cutting disc that has become

OBJ_DOKU-27975-001.fm Page 23 Thursday, September 15, 2011 8:31 AM24 | English

1 619 929 J27 | (15.9.11) Bosch Power Tools

dull. Briefly cutting into abrasive material (e. g. lime-sand

brick) can resharpen the disc again.

Information on Structures

Slots in structural walls are subject to the Standard DIN 1053

Part 1, or country-specific regulations.

These regulations are to be observed under all circumstanc-

es. Before beginning work, consult the responsible structural

engineer, architect or the construction supervisor.

Maintenance and Service

Maintenance and Cleaning

f Before any work on the machine itself, pull the mains

f For safe and proper working, always keep the machine

and ventilation slots clean.

f In extreme conditions, always use dust extraction as

far as possible. Blow out ventilation slots frequently

and install a residual current device (RCD). When work-

ing metals, conductive dust can settle in the interior of the

power tool. The total insulation of the power tool can be im-

Please store and handle the accessory(-ies) carefully.

If the replacement of the supply cord is necessary, this has to

be done by Bosch or an authorized Bosch service agent in or-

der to avoid a safety hazard.

If the machine should fail despite the care taken in manufac-

turing and testing procedures, repair should be carried out by

an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always in-

clude the 10-digit article number given on the type plate of

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concern-

ing maintenance and repair of your product as well as spare

parts. Exploded views and information on spare parts can al-

Our customer service representatives can answer your ques-

tions concerning possible applications and adjustment of

products and accessories.

Robert Bosch Ltd. (B.S.C.)

Fax: +353 (01) 4 66 68 88

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Customer Contact Center

Republic of South Africa

Hotline: +27 (011) 6 51 96 00

35 Roper Street, New Centre

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

E-Mail: rbsa-hq.pts@za.bosch.com

OBJ_DOKU-27975-001.fm Page 24 Thursday, September 15, 2011 8:31 AMFrançais | 25 Bosch Power Tools 1 619 929 J27 | (15.9.11) Disposal

The machine, accessories and packaging should be sorted for

environmental-friendly recycling.

Do not dispose of power tools into household waste!

Only for EC countries:

According the European Guideline

2002/96/EC for Waste Electrical and Elec-

tronic Equipment and its implementation

into national right, power tools that are no

longer usable must be collected separately

and disposed of in an environmentally cor-

rect manner. Subject to change without notice. Français

Avertissements de sécurité

AVERTISSEMENT OBJ_DOKU-27975-001.fm Page 25 Thursday, September 15, 2011 8:31 AM26 | Français

OBJ_DOKU-27975-001.fm Page 26 Thursday, September 15, 2011 8:31 AMFrançais | 27

OBJ_DOKU-27975-001.fm Page 27 Thursday, September 15, 2011 8:31 AM28 | Français

OBJ_DOKU-27975-001.fm Page 28 Thursday, September 15, 2011 8:31 AMFrançais | 29

M 14 M 14 M 14 M 14 M 14 M 14

OBJ_DOKU-27975-001.fm Page 29 Thursday, September 15, 2011 8:31 AM30 | Français

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_DOKU-27975-001.fm Page 30 Thursday, September 15, 2011 8:31 AMFrançais | 31

Bosch Power Tools 1 619 929 J27 | (15.9.11)

27 OBJ_DOKU-27975-001.fm Page 32 Thursday, September 15, 2011 8:31 AMFrançais | 33

OBJ_DOKU-27975-001.fm Page 33 Thursday, September 15, 2011 8:31 AM34 | Français

ADVERTENCIA OBJ_DOKU-27975-001.fm Page 35 Thursday, September 15, 2011 8:31 AM36 | Español

OBJ_DOKU-27975-001.fm Page 36 Thursday, September 15, 2011 8:31 AMEspañol | 37

OBJ_DOKU-27975-001.fm Page 37 Thursday, September 15, 2011 8:31 AM38 | Español

OBJ_DOKU-27975-001.fm Page 38 Thursday, September 15, 2011 8:31 AMEspañol | 39

M 14 M 14 M 14 M 14 M 14 M 14

OBJ_DOKU-27975-001.fm Page 39 Thursday, September 15, 2011 8:31 AM40 | Español

2011/65/UE, 2004/108/CE, 2006/42/CE.

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_DOKU-27975-001.fm Page 40 Thursday, September 15, 2011 8:31 AMEspañol | 41

Bosch Power Tools 1 619 929 J27 | (15.9.11)

27 OBJ_DOKU-27975-001.fm Page 42 Thursday, September 15, 2011 8:31 AMEspañol | 43

OBJ_DOKU-27975-001.fm Page 43 Thursday, September 15, 2011 8:31 AM44 | Español

OBJ_DOKU-27975-001.fm Page 44 Thursday, September 15, 2011 8:31 AMPortuguês | 45 Bosch Power Tools 1 619 929 J27 | (15.9.11) Chile

MR P R O D U C T O C E R T I F I C A D O C E R T I F I E D P R O D U C T ATENÇÃO OBJ_DOKU-27975-001.fm Page 45 Thursday, September 15, 2011 8:31 AM46 | Português

OBJ_DOKU-27975-001.fm Page 46 Thursday, September 15, 2011 8:31 AMPortuguês | 47

OBJ_DOKU-27975-001.fm Page 47 Thursday, September 15, 2011 8:31 AM48 | Português

OBJ_DOKU-27975-001.fm Page 48 Thursday, September 15, 2011 8:31 AMPortuguês | 49

M 14 M 14 M 14 M 14 M 14 M 14

OBJ_DOKU-27975-001.fm Page 49 Thursday, September 15, 2011 8:31 AM50 | Português

Senior Vice President

Dr. Eckerhard Strötgen

Engineering Director

PT/ESI OBJ_DOKU-27975-001.fm Page 50 Thursday, September 15, 2011 8:31 AMPortuguês | 51

Bosch Power Tools 1 619 929 J27 | (15.9.11)

27 OBJ_DOKU-27975-001.fm Page 52 Thursday, September 15, 2011 2:17 PMPortuguês | 53

OBJ_DOKU-27975-001.fm Page 53 Thursday, September 15, 2011 8:31 AM54 | Português

OBJ_DOKU-27975-001.fm Page 54 Thursday, September 15, 2011 2:18 PMItaliano | 55 Bosch Power Tools 1 619 929 J27 | (15.9.11) Eliminação

AVVERTENZA OBJ_DOKU-27975-001.fm Page 55 Thursday, September 15, 2011 8:31 AM56 | Italiano
