USER MANUAL Spirit proLine TRI 9375 Schulthess

Instructions for the use of professional exhaust air dryers

Follow the safety instructions!

Only use appliance after first reading

these instructions!

Produkte-Nr. 9655.1

(Direllva machine 2006/42/CE, Appendix II A)

EC Declaration of conformity for machinery

(Machinery Directive 2006/42/EC, Annex II, sub. A)

Manufacturer: Schulthess Maschinen AG
Address: Landstrasse 37
CH-8633 Wolfhausen

Hereby declares that the industrial dryers:

Type:	Spirit ProLine TIRI 9250	Spirit ProLine TIRI 9375	Spirit ProLine TIRI 9550	Spirit ProLine TIRI 9750	Electrical Connection
Prod. No. 9655.1 9656.1 96	57.1 9658.1 3x40V

are in conformity with the relevant provisions of the Machinery Directive 2006/42/EC
are in conformity with the provisions of the following other EC-Directives Electromagnetic compatibility 2004/108/EC

Wolfhausen, December 2009 Schulthess Maschinen AG

Ch. Daneffel H.-F. (BENEFICIARY DEPUTIES)

Caderas

Product Name:

Chere cliente, cher client

We are pleased that you have chosen a Schulthess dryer.

Your new dryer is the result of many years of development work. The highest quality requirements, both in de velop ment and manufacture, guarantee a long lifetime.

Its design meets all the current and future demands of modern laundry care. It offers you a varied and individual choice of programmes.

Sparing use of energy and short drying times help to ensure that you can use your dryer as economically as possible.

Please read these instructions carefully to enable you to use all the possibilities and advantages of your new dryer. Please note in particular the chapter «Safety information» and the enclosed guarantee and customer services booklet.

We hope you will be very happy with your new Schulthessm machine.

Yours

Waste disposal advice

Packaging from your new machine 48
Disposal of your old machine 48

Safety information

General safety information 48
Observe before start-up 48
Observe when drying 48
When transporting your machine 48/49

How to dry correctly and environmentally friendly

Sorting the laundry 49
Load
Tips for drying 49/50
Do not dry the following fabrics in the

machine 50

Start up

Preparation 50
Opening the door 50
Closing the door 50

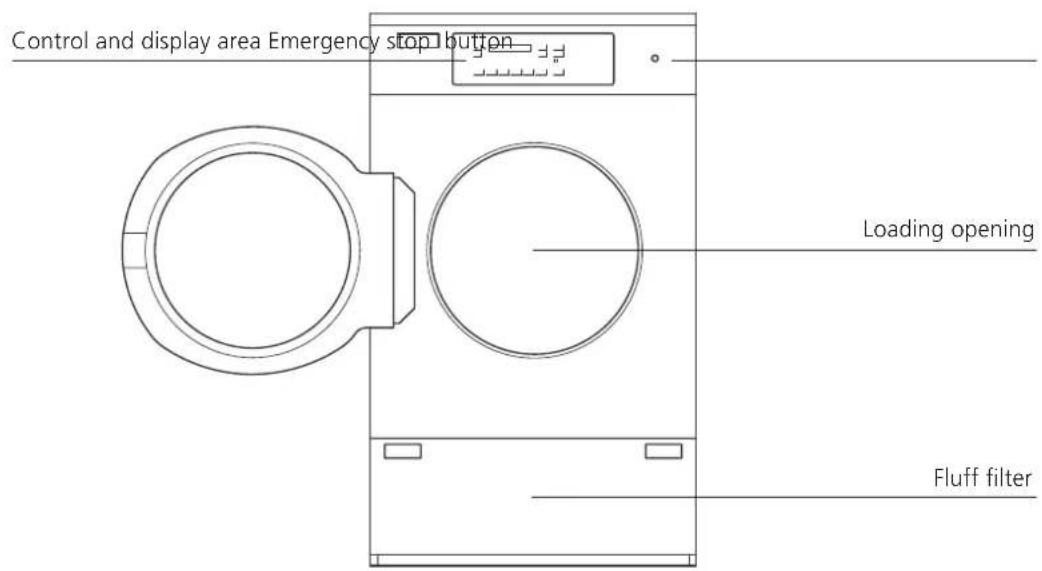

Machine description

Control and display area 51
Programme buttons

Programme survey 52

Selecting programme

Selecting residual moisture controlled programme 53
Selecting mangle moist programme 53
Selecting time programme 53
Selecting Wet-Clean programme 53

Additional functions

Easy care 54
Time selection 54
Gentledrying 54
Start time preselection 54
Fast forward 54

Starting programme

Changing the programme before the start 54
Add laundry 54
Start the programme 54

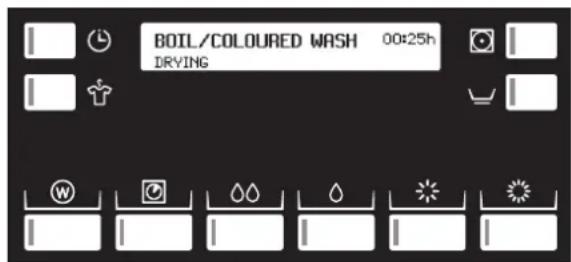

Programme progress/Programme status 54
Adding more laundry 54
Interrupting the programme 54
Programme end 54
Removing the laundry 54
Switch off the machine 54

Basic settings

Drying level 55
Crease protection 55
Cool down 55
Time 55
Language 55

Extended basic settings

Child lock 55

Button memory 55
LCD Brightness 55
LCD Contrast 55
Alarm volume 55
Standby function 56
Optical interface 56
Default language 56
Start time preselection 56

Cleaning and Care

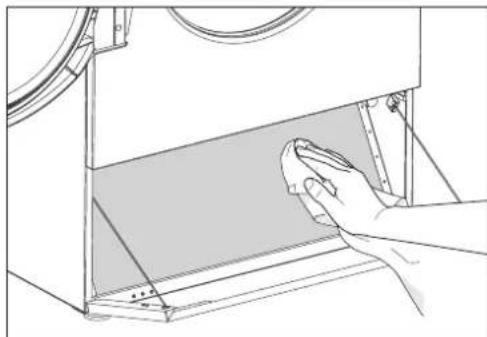

Cleaning the filter 56
Cleaning the machine 56

Problems

Error messages 57
Troubleshooting 58/59

Noise level 58

Customer services

Product and serial numbers 58

Guarantee 58
Technical Data 59

Safety information and warnings
indicates work steps which must be executed one after the other
- enumerations, general useful hints

Waste Disposal Advice

Packaging from your new machine

Dispose of all packaging materials properly.

Packaging materials are not toys.

Processing and reuse saves raw materials and reduces waste volumes.

The packaging can be returned to the retailer or supplier. All packaging materials used are environmentally friendly and reusable. All card is made of 80 - 100% recycled paper. Wood is not chemically treated. Films are made of polyethylene (PE), banding is made of polypropylene (PP).

These materials are pure hydrocarbon compounds and are recyclable.

Disposal of your old machine

Worn out machines should be made unusable:

After unplugging the machine or after an electrician has removed the connection, cut through and remove the mains cable. Destroy or remove the door lock so that playing children cannot become locked in and put their lives at risk.

Components from your old machine must not be reused. The old machine contains valuable materials which should be sent for recycling.

Please ensure that your old machine is disposed of properly.

Please do not keep your old machine and under no circumstances dispose of it in your normal waste. Additional information on the recyc ling of this product can be obtained from your commune, your waste disposal contractor or the shop in which you bought the product.

In this way you can help to ensure environmentally friendly disposal and/or recycling methods.

Safety Information

This machine meets the stringent safety regulations for electronic devices. It is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Please observe the safety instructions in these operating instructions and the appurtenant mounting instructions.

General safety information:

Do not stand on the machine.
Do not sit, lean or support yourself on the loading door. (danger of tipping!)
Under no circumstances spray the machine with water or clean it with a steam cleaner.
If the machine is not needed for a longer period of time, disconnect it from the power supply.
Touch the power plug with dry hands only. Only pull the plug, do not pull the cable.
Repair work may only be executed by qualified and trained personnel and defective components may only be replaced with original spare parts by the original equipment manufacturer.

Inexpert repairs can cause considerable damage and risk to the user. Modifications to the appliance are only admissible after consultation with the manufacturer.

If a malfunction occurs, the appliance must be disconnected from the mains immediately.
The tumble dryer is only electrically isolated from the mains if the mains plug is withdrawn or the main switch set to off or the fuse removed.
Detergents and laundry care agents must be kept out of children's reach.

Observe before start-up:

Read the enclosed documents carefully before using your washing machine. They contain important information on the installation, use and safety of the machine. Keep the documents safe for other users or subsequent owners.
The tumble dryer may only be set up and put into operation by customer service or an approved specialist dealer. Do not plug in a machine with visible damage.
Do not connect the exhaust air evacuation, duct to a chimney to which a gas or coal-burning stove or gas room heating is connected. Danger of poisoning due to gases being sucked back!
Only use the tumble dryer when all removable external panels are fitted.
Fluff, which finds its way into the air pipes, may cause a fire under certain circumstances. Only operate the tumble dryer with a perfectly functioning fluff filter fitted. Replace the fluff filter immediately if any sign of damage is seen.

Observe when drying:

Before adding laundry, ensure that there are no foreign bodies or even trapped pets in the drum.
Dry clean laundry in the dryer only.
The tumbler dryer is not to be used if chemicals have been used for cleaning. Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kero sene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
Items such as foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
A drying procedure should always end with fully completed cooling-off, so that the laundry remains at a temperature that does not damage them. If the drying procedure is ended prematurely without cooling-off, all of the laundry must be removed quickly and spread out so that the heat can be given off. Here one should be aware that the laundry can cause burns upon contact with skin due to its temperature and moisture. Appropriate hand protection is therefore to be worn.
Keep pets away from the machine.
Only use the machine in the home for drying textiles.
The door glass becomes very hot when the dryer is in use. Never touch the door glass during the drying.
Ensure good room ventilation when drying (open a window or door).
Do not reach into the rotating drum after the end of the programme..
Do not store or use petrol, paraffin or any other easily in flammable materials in the immediate vicinity of the tumble dryer. (Fire and explosion hazard!)
In the event of an emergency, press the red emergency stop button immediately!

(see chapter «Start-up/«Emergency stop switch»)

When transporting your machine:

Take care when transporting the machine! (risk of injury!) Do not lift the machine by the fittings on the front!

How to dry correctly and environmentally friendly

Sorting the laundry

Pay attention to the drying symbols on your fabrics.

Dry at normal temperature.
Dry at low temperature
Do not tumble dry.

Dry textiles only which have been washed in water. To achieve even drying results, sort the laundry by fabric type and desired level of dryness.

Load

• Your dryer will be most environmentally friendly and economical if you fill the machine with the maximum laundry load. (See chapter «Programme table»)
• Do not exceed the maximum load, because overfilling affects the drying result and severely creases the laundry.

• Remove as much water as possible from the laundry before drying by spinning in a washing machine or spin dryer. The higher the spin speed, the shorter the drying time and lower the energy consumption.

• You should also spin easy care laundry.

Tips for drying

• Do up all zips, hooks and eyes. Button up duvet covers and pillowcases. Tie together loose belts, apron strings etc.
• Remove easy care laundry from the dryer in a slightly damp state if possible (Select target dryness «Light Drying») and allow to finish drying in the air. Over drying causes creases.
• Shake the laundry slightly and place it loosely into the drum, mix big and small textiles.
• Laundry which is still too damp after drying a load of widely varying fabrics can be dried further using the programme «Time drying».
• Knitted fabrics, e.g. jersey underwear, can shrink slightly during drying. Do not use the «Extra Dry» programme for these fabrics.
• If one single piece is to be dried in the dryer, it will be dried more evenly by adding additional pieces as ballast, e.g. two terry towels.
  Pure linen fabrics tend to roughen up in the dryer. The manufacturer's instructions should therefore be observed. Starched laundry can be dried in the tumble dryer.
• Laundry for ironing does not have to be ironed immediately after drying. It is beneficial to leave it folded or rolled for a while to enable the residual moisture in the laundry to distribute itself evenly.
  The correct moisture level for hand ironing or machine ironing is achieved by appropriate programme selection

Do not dry the following fabrics in the machine:

• Dripping wet laundry: waste of energy! (Spin laundry again)
• Do not dry laundry in the machine which was treated with inflammable solvents, e.g. with stain remover or spirit vinegar (explosion hazard!).
• Do not dry textiles in the dryer which contain any foam rubber or have been in contact / covered with setting lotion, nail polish remover or similar agents (fire hazard!).

Start-up

Install the machine according to the installation instructions.

Before using the machine for the first time, wipe the in side of the drum with a damp cloth.

Preparation

Check whether:

The fluff filter is in place. (See chapter «Selecting programmes/Cleaning the filters»)
The machine is plugged in or switched on at the wall.

The machine is ready for use if all the control lights are flashing or have gone out in sleep mode.

If one of the control lights stays on, press the «Fast forward» button until the message «Please select programme» is displayed.

Open the door

Open the door and add the laundry.

Close the door

• Close the door by pushing it until the lock audibly engages.

Ensure when closing the door that no laundry gets shut in it.

If the door is not closed, the safety switch will prevent the machine from operating.

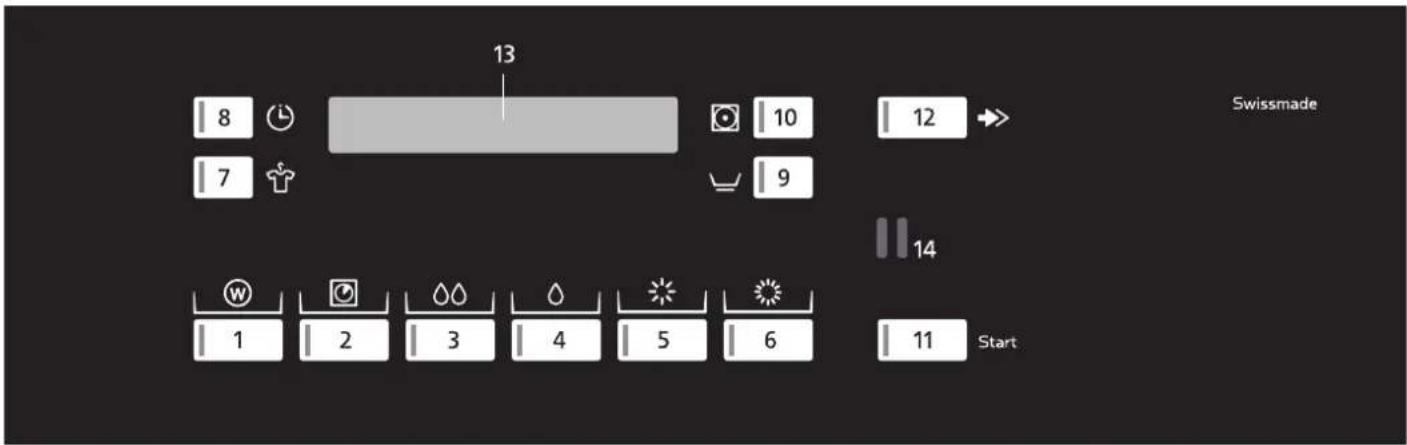

Control and display area

Programmes

1 Wet-Clean programmes
2 Timed drying
3 Mangle moist 1 (1 - 5)
4 Mangle moist 2 (1 - 5)
5 Cabinet dry
6 Extra dry

Displays

13Display

Interfaces

14 SCS-Schultheiss Control System

(PC interface for customer services)

Additional functions

2 Time selection
7 Crease protection
8 Start time preselection
9 Easy care
10Gentledrying
11Programmestart
12Fastforward

Programme survey

Boil and coloured wash

Buttons Programme Resid. moist Time

○1x Mangle moist 1 «1» 13min

○2x Mangle moist 1 «2» 16min

○3x Mangle moist 1 «3» 18min

○4x Mangle moist 1 «4» 20min

○5x Mangle moist 1 «5» 21min

○1x Mangle moist 2 «1» 22min

○2x Mangle moist 2 «2» 23min

○3x Mangle moist 2 «3» 25min

○4x Mangle moist 2 «4» 26min

○5x Mangle moist 2 «5» 27min

1x Cabinet dry +2/-2 %

1x Extra dry +2/-4 %

With the «Gentle drying» button pressed, the drying time is extended by around 20% .

Easy care wash

Textiles from synthetik or cotton mixtures as well as cotton with handle free equipment.

Buttons Programme Resid. moist Time

○1x + Mangle moist 1 «1»	2min
○2x + Mangle moist 1 «2»	4min
○3x + Mangle moist 1 «3»	5min
○4x + Mangle moist 1 «4»	7min
○5x + Mangle moist 1 «5»	8min
○1x + Mangle moist 2 «1»	9min
○2x + Mangle moist 2 «2»	10min
○3x + Mangle moist 2 «3»	11min
○4x + Mangle moist 2 «4»	12min
○5x + Mangle moist 2 «5»	13min
○1x + Cabinet dry +2/0%
○1x + Extra dry 0/-2%

With the «Gentle drying» button pressed, the drying time is extended by around 20% .

Wet-Clean Wash

For sensitive textiles which have been washed using the Wet-Clean process, this appliance offers the facility of an equally gentle drying or partial drying programme to match. The following 10 programmes can be selected by pressing button once or several times:

Programme Buttons Display	Time
Timed drying cold	1x W + to choice	cold	1min - 2h30min possible
Timed drying 40°C	2x W + to choice	40°C	1min - 2h30min possible
Timed drying 60°C	3x W + to choice	60°C	2min - 2h30min possible
Timed drying 70°C	4x W + to choice	70°C	3min - 2h30min possible
Non-washable coats and jackets	5x W		ca. 47min
Washable outerwear	6x W		ca. 24min
Angora, Silk (only part-dryed)	7x W		11min
Wedding dresses, curtains	8x W		13min
Duvets	9x W		1h23min
Impregnated items	10x W		ca. 31min

Quantity of the loadings

Type of dryer	TRI 9250	TRI 9375	TRI 9550	TRI 9750
Boil and coloured wash	10kg	15kg	22kg	30kg
Easy care wash	5kg	7,5kg	11kg	15kg
Delicates	3kg	5kg	7kg	10kg

Selecting programmes

Selecting residual moisture controlled programme

The electronic sampling system continually checks the current level of dryness of your laundry and automatically stops the programme when it reaches the specified level of dryness.

Press the programme button corresponding to the desired drying level.
The control light for the selected programme lights up.
For easy care fabrics, select the additional «Easy care» function.

Selecting mangle moist programme

The appliance offers the facility to change the moisture level by repeated pressing of the «Iron dry 1 and 2» buttons. 5 levels are possible for each. The display shows the level selected, whereby the residual moisture declines as the number increases.

Selecting time programme

Timed programme for drying of individual items of laundry or additional drying of previously dried textiles with a low moisture content.

Set the drying time according to the type of laundry, the quantity of laundry and the moisture level.

Lightly press the programme button.
The time programme pilot lamp illuminates and the minimum drying time is displayed.
- Select the drying time up to a maximum of 150min by repeated pressing of the button.

Selecting Wet-Clean programme

These programmes serve to dry textiles which have been washed with the Wet-Clean procedure first.

Press button repeatedly until the desired programme will appear on the display.

Additional Functions

Alongside the various standard programmes, your dryer also offers you the opportunity to design your own programmes. Select first a standard or special programme. By selecting one or more additional functions, you can tailor this drying programme to the specifics of your laundry. These additional functions are only active for this one drying programme.

You have the opportunity to tailor your dryer to your needs by changing the basic settings (see chapter «Basic settings»). Adjustments to basic settings remain active until you change them again.

Easy care

For easy care fabrics made of synthetic or mixed fibres, and cotton with a non-iron finish.

Time selection

If you have chosen a time-controlled drying programme from the special programmes you can set the length of the programme with the «Time selection» button. The drying time required depends on the type and amount of laundry and how damp it is.

Press the programme button.
The time programme control light flashes and the mini mum drying time is displayed.
Select the drying time by repeatedly pressing the button.

Gentle drying

With sensible textiles, the button «Gentle drying» can be pushed. The temperature is reduced.

Start time preselection

By pressing the Start time preselect button one or more times, the programme start time can be delayed by up to 23,5 hours.

This makes it possible to take advantage of cheaper night-time electricity, for example. The start time and consequently also the end time of a programme can be tailored to your individual lifestyle.

The display shows the start time and anticipated programme time end.

The preselected time starts when the start button is pressed.

When the start time is reached, the selected programme starts automatically. The current programme duration will be displayed.

• In the event of a power cut, the current time is stored. The duration of the power cut is not taken into account.

Fast forward

The programme can be shortened or interrupted by pressing the fast forward button.

Starting the programme

Selecting programmes

See chapter «Selecting programmes»

Selecting additional functions

See chapter «Additional functions»

Changing a programme before the start

Press the desired programme button again.
- All control lights for the available additional functions flash again and all settings are deleted.
Select any additional functions.

Add laundry

Only dry fabrics which have been washed with water in the dryer.

Place the laundry loosely in the drum, mixing large and small items

Startprogramme

Start

Press the start button.
The control light is illuminated and the programme starts automatically.

If the child lock is activated:

Hold the start button down and press the fast forward button.

Programme progress / Programme status

• With the moisture controlled programmes the dampness of the laundry is continually monitored by an electronic sampling system.
  The programme time remaining is displayed.
  This remaining time is recalculated several times during drying, so the effective programme end will therefore vary by a few minutes.
  For time programmes, the time remaining to the end of the programme is displayed.

Adding more laundry

This is possible at any time.

Open the door.
Wait for the drum to stop.
Add your laundry.
- Close the door again.
Press the start button.

If the child lock is activated:

Hold down the start and fast forward buttons at the same time.
The drying process is continued.

Interrupting the programme

Interrupt the programme by pressing the fast forward button repeatedly, until «programme end» appears on the display.

If the child lock is activated:

Hold the start button down.
Simultaneously tip the fast forward button.

Programme end

The programme end is indicated by the display value 00:00h, the display of «Programme End» as well as a flashing control light.

An audible signal.

(only if the alarm volume is switched on)

The drum continues to rotate periodically after the programme has ended to prevent the laundry from creasing (only if crease protection has been switched on, for 30 or 60 minutes).

The washing should be taken out now at the latest.

Remove the laundry

Open the door.
Remove the laundry.
Clean the filter.

Switch off the machine

Close the door.
Switch the machine off at the wall.

• If there is not wall switch, the display field will automatically go out after 4 min. and the dryer will switch to standby mode (only if the standby function is switched on).

Basic Settings

The machine has basic settings from the factory. It can be adapted to the user's individual needs either when first used or later using the following functions.

The basic settings can only be changed if no dry programme is running. To change a basic setting, it is first necessary to hold the programme button pressed and then press the fast forward button. The corresponding function is shown on the digital display. The display changes when the fast forward button is pressed repeatedly with the programme button held down.

Example:

Function switched off

Function switched on

Drying level (ex factory NORMAL)

When this function is switched on, the level of dryness for the moisture controlled programmes (Cabinet and Extra Dry) is slightly increased and the laundry will be slightly drier.

Crease protection (ex factory 30MIN)

When this function is switched on, the crease protection phase begins at the end of the programme.

Cool down (ex factory OFF)

With this function switched on, the cooling-down phase is extended in some programmes

Time (the time is not set ex factory)

The hours can be set using the button and the minutes using the button.

Language (ex factory DEUTSCH)

The basic language is changed and is retained even after switching the machine off or putting it in sleep mode.

Extended basic settings

By pressing these three buttons at the same time, the display shows the extended basic settings.

Repeatedly pressing the -button shows the possible settings.
Pressing -button allows the settings to be changed.
Pressing the -button ends the display of the settings.

Child lock (ex factory OFF)

Select «Extended basic settings»!

The child lock is to prevent accidental starting, changing or deletion of a programme by small children. Start a programme with the child lock switched on:

Hold the start button down and press the fast forward button.

Button memory (ex factory OFF)

Select «Extended basic settings»!

If the button memory function is activated, the last programmes used will be saved for both the «Mangle Moist» and «Wet Clean» programmes. When one of these programmes is selected again, the last programme used is automatically selected.

LCD Brightness (ex factory 150)

Select «Extended basic settings»!

The button can be used to alter the brightness or text on the display.

LCD Contrast (ex factory 32)

Select «Extended basic settings»!

The button can be used to alter the contrast on the display.

Alarm volume (ex factory volume 2)

Select «Extended basic settings»!

With the Alarm setting switched on, a signal sounds at regular intervals at the end of the programme.

The level can be adjusted in 3 levels.

Off

Level 1

Level 2

Level 3

Standby function (ex factory ON)

Select «Extended basic settings»!

When the standby function is switched on, the controls switch off when no drying programme is running in energy saving mode. All displays are dark.

Optical interface (ex factory OFF)

Select «Extended basic settings»!

If the optical interface (SCS) is switched on, customer services can communicate with the machine by PC.

Default language (ex factory DEUTSCH)

Select «Extended basic settings»!

If another language is temporarily selected via the buttons and 4 minutes after programme end, in standby mode or after a long standstill, the setting reverts back to the default language.

Start time preselection (ex factory 24 HOURS)

Select «Extended basic settings»!

The maximum adjustable range of the start time delay can be reset from 24 hours to 100 hours.

Cleaning and Care

Cleaning the fluff filter

Only operate the tumble dryer with a perfectly functioning fluff filter fitted.

The fluff filter should be cleaned every day.

The fluff filter must not be removed and care should be taken to ensure it is not damaged. Damaged fluff filters must be replaced!

Fluff which finds its way into the air pipes may cause a fire under certain circumstances.

Cleaning the machine

Ensure that the power supply is switched off before any cleaning, care or maintenance work.

Under no circumstances spray the machine with water or clean it with a steam cleaner.

Do not use solvents! These substances can damage parts of the machine, produce poisonous vapour and carry the risk of explosion!

Casings and control areas should only be cleaned with soap or a commercially available, solvent-free, non-ab passive cleaning product.

Problems

Error messages

If the following error messages are displayed, the programme can be restarted by pressing the start button once the error has been rectified.

«CHILD LOCK ACTIVE»

Hold the start button down and press the fast forward button (see chapter «Basic settings»).

(PLEASE CLOSE DOOR)

Push door closed until lock engages.

This message only appears during a drying programme.

Close the plinth flap.

EMERGENCY-STOP PRESSED

The emergency stop button is only to be used in the event of danger and causes the dryer to stop immediately.
- When actuated, the switch remains locked.
- Please do not use the emergency stop button to stop the dryer during normal operation.

• Once the fault has been rectified or the danger removed, the actuated emergency stop button can be released by turning the red mushroom-head button clockwise.
  To restart the tumble dryer, unlock the emergency button and press the start button.

«MAINS SUPPLY BLOCKED»

• In the case of electrically-heated machines, the appliance may be shut down by external energy management systems at times of peak power loads.
  The mains blocking causes the heating to shut down and the dryer goes over to the cool-down cycle and then into the anti-crease cycle.
• In this condition all operating buttons are blocked except for the Fast forward button, and the time remaining display is stopped. The control light for the start button lights up.
• When the mains blocking is ended, the drying program me is resumed automatically and the display reactivated.

If the machine displays an F - - error message:

Interrupt the programme using the fast forward button and select a new programme.

If error messages appear repeatedly:

• Switch off the power for around 1 minute and switch it back on again. (Pull out the plug or switch off at the wall).
  The machine is ready for use again when the programme control lights flash.
  Select a new programme.

If an error message appears again:

Make a note of the error message.
Unplug the machine or switch it off at the wall.
Notify customer services.

Troubleshooting

Repairs, alterations or intervention on electronic equipment should only be carried out by qualified specialists. Inexpert repairs can cause considerable damage and risk to the user.

Only original spare parts should be used for repairs.

Rectifying minor faults yourself

The machine does not start after pressing a programme button:

• Check whether the mains power is switched on at the wall and the plug is in.
  Check whether all the fuses are intact or the safety switch has tripped.

The display is dark:

The machine is in standby mode. No error. To operate the machine press any button.
Power failure: If a programme had been started before the power failure, it will automatically be continued after the power failure.

The machine does not start:

The start button has not been pressed.
Start time preselect has been set. Only starts at the preselected start time.

The machine cannot be switched on, display remains dark even after pressing a button:

• Check whether the mains power is switched on at the wall and the plug is in.
  Check whether all the fuses are intact or the safety switch has tripped.
• Mains blockage, generally at noon. Operate the machine after the mains blockage has ended.

The drying target was not achieved:

When warm, laundry feels more moist than it actually is! Remove the laundry from the dryer and let it cool. When still moist:

Clean filter (see chapter «Starting the programme»).
Increase degree of drying (see chapter «Basic settings»).

The individual laundry piece does not reach the set drying target:

If one single piece is to be dried in the dryer, it will be dried more evenly by adding additional pieces as ballast, e.g. two terry towels.

The drying takes too long:

Clean filter (see chapter «Starting the programme»).
Power failure (note lock times of EW).

The laundry is not dry after the maximum possible settings:

▶ Drum is overloaded (see chapter «Programme survey»).
- Laundry not sufficiently spun.
Insufficient room ventilation (open a window or door).
The filter is blocked with fluff or scale deposits (see chapter «Starting the programme/Cleaning the filter»).
Increase degree of drying (see chapter «Basic settings»)
Clean moisture sensor (see chapter «Cleaning and Maintenance»).

Dampness in the room increases significantly:

The room does not have sufficient ventilation.

Ensure adequate ventilation.

Noise level

The value of level of noise can be reduced by fitting sound insulation to the exhaust air duct or the use of specially soundproofed pipework (made of plastic for example.

Customer Services

Before you call customer services, check whether you can rectify the problem yourself (see chapter «Problems»). If advice is required, costs may be incurred if a service technician is required, even during the guarantee period.

If you cannot rectify a problem yourself, unplug the machine or switch it off at the wall and call customer services.

Dial the central customer services number (see back cover). You will be automatically connected to the customer services branch for your region.

Give customer services product and serial numbers. You will find this information on the type label on the inside of the door.

Note the numbers for your machine here.

Product No.

Serial No.

Guarantee

Guarantee 1 year.

TRI 9250 TRI 9375 TRI 9550 TRI 9750

Capacity (dry laundry) 10 kg 15 kg 22 kg 30 kg
Programme duration «Cabinet dry» ca. 35 min ca. 35 min ca. 35 min ca. 35 min
Drum volume 231 dm	3 347 dm	3 508 dm	3 690 dm	3
Drum diameter 776 mm 776 mm 1075 mm 1076 mm
Drum depth 490 mm 735 mm 560 mm 760 mm
Drum speed 45 RPM 45 RPM 40 RPM 40 RPM
Drying performance from 50% residual moisture to «Cabinet dry» according to EN61121 0,17 L/min 0,24 L/min 0,35 L/min 0,48 L/min
Connected load, electrical heating	14,4 kW	19,2 kW	28,8 kW	38,4 kW
Number of heating elements	3	4	6	8
Drive motor	180 W	180 W	370 W	370W
Mains voltage	400 V 3~NE	400 V 3~NE	400 V 3~NE	400 V 3~NE
Fuses	25 AT	32 AT	50 AT	63 AT
Exhaust air volume	max. 900 m³/h	max. 1100 m³/h	max. 1200 m³/h	max. 1500 m³/h
Exhaust air temperature	max. 70°C	max. 70°C	max. 70°C	max. 70°C
Maximum line resistance (external)	max. 200 Pa	max. 200 Pa	max. 300 Pa	max. 300 Pa
Heater temperature	max. 200°C	max. 200°C	max. 200°C	max. 200°C
Exhaust connection diameter	200 mm 200 mm 200 mm 200 mm
Air duct	radial	radial	radial	radial
Fluff filter area	30 dm²	30 dm²	48 dm²	48 dm²
Reversing	yes	yes	yes	yes
Moisture control	yes	yes	yes	yes
Rear bearing arrangement	2 RS	2 RS	2 RS	2RS
Loading opening diameter	530 mm 530 mm 530 mm 530 mm
Loading height	578 mm 578 mm 759 mm 759 mm
Door opening 180°	yes	yes	yes	yes
Height of door lower edge from the ground	523 mm 523 mm 705 mm 705 mm
External height	1460 mm 1460 mm 1795 mm 1795 mm
External width	842 mm 842 mm 1150 mm 1150 mm
External depth	820 mm 1065 mm 888 mm 1088 mm
Machine weight, net	200 kg	220 kg	360 kg	400 kg

SCHULTHESS
